Documentatie atasata la

Rezervoare incastrate pentru vase WC GEBERIT

Sisteme sanitare 2015-2016 GEBERIT

Limba: Engleza, Romana

Produse încluse în această documentație: Delta, Sigma 12 , Omega, Duofix, Sigma 8

1514 afisari

Tip documentatie: Catalog, brosura

Pagina 1 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

Geberit Sanitary Systems Catalogue 2015/2016 Valid from 1 April 2015 Geberit Kombifix Geberit Duofix Geberit GIS Geberit Concealed Cisterns Geberit Actuator Plates and WC Flush Controls Geberit Monolith Geberit Exposed Cisterns Geberit Cisterns for Low-Height Furniture Geberit Fill Valves and Flush Valves Systems Geberit Urinal Systems Geberit Washbasin Taps Geberit Floor Drainage Systems Geberit Waste Fittings Geberit AquaClean Appendix Geberit Kombifix 1. Geberit Kombifix 1.1 Installation elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 1.1.1 1.1.5 Elements for WCs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Accessory overview: Geberit Kombifix elements for WCs . . . . . . . . . . . . . . . . . . . . 6 Elements for washbasins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Pagina 1-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 2 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

. . . . 12 Elements for bidets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Elements for urinals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Accessory overview: Geberit Kombifix elements for urinals . . . . . . . . . . . . . . . . . 13 Elements for showers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 1.2 Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 1.2.1 For fastenings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 1.1.2 1.1.3 1.1.4 5 Geberit Kombifix Installation elements Elements for WCs 1.1 Installation elements 1.1.1 Elements for WCs Accessory overview: Geberit Kombifix elements for WCs Actuator plate

Pagina 2-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

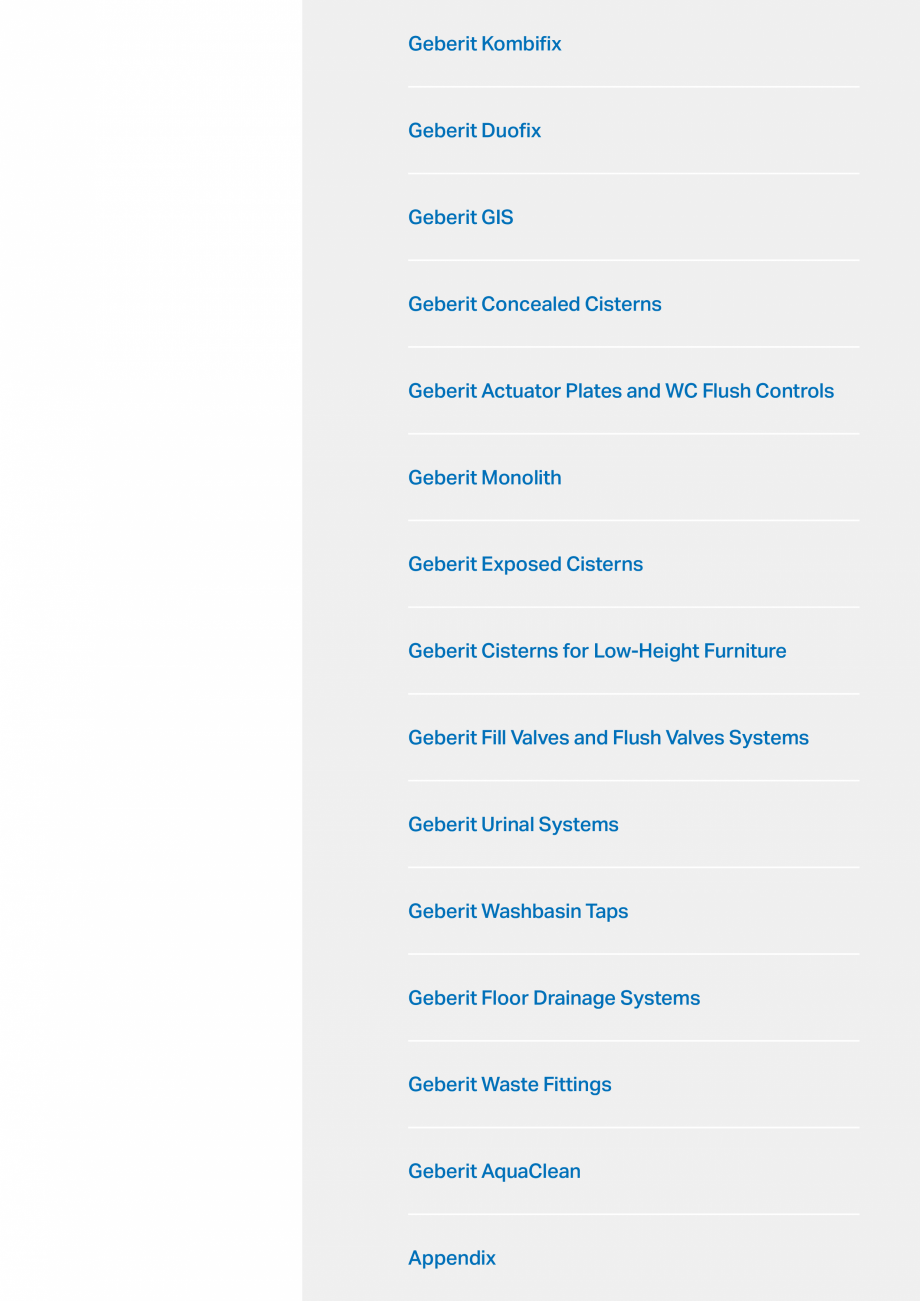

Pagina 3 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

s of the Sigma series Actuator plates of the Omega series Actuator plates of the Delta series Set of leg supports Set of studs with foot plate Concealed outlet for drywall and solid wall construction → p. 70 → p. 82 → p. 86 → p. 17 → p. 17 → p. 281 ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü 110.350.00.5 Element for wall-hung WC, 108 cm, with Sigma concealed cistern 12 cm 110.340.00.5 Element for wall-hung WC, 108 cm, with Sigma concealed cistern 12 cm, with leg supports 110.772.00.1 Element for wall-hung WC, 109 cm, with Sigma concealed cistern 8 cm 110.020.00.1 Element for wall-hung WC, 106 cm, with Omega concealed cistern 12 cm 110.001.00.1 Element for wall-hung WC, 82 cm, with Omega concealed cistern 12 cm, adjustable in depth 110.011.00.1 Element for wall-hung WC, 98 cm, with Omega concealed cistern 12 cm, adjustable in depth 110.170.00.1 Element for wall-hung WC, 110 cm, with Delta

Pagina 3-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 4 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

ü concealed cistern 12 cm, with leg supports 110.171.00.1 Element for wall-hung WC, 110 cm, with Delta concealed cistern 12 cm 110.150.00.1 Element for wall-hung WC, 109 cm, with Delta concealed cistern 8 cm 6 Geberit Kombifix Elements for WCs Installation elements Geberit Kombifix element for wall-hung WC, 108 cm, with Sigma concealed cistern 12 cm 12 42 R½ Geberit Kombifix element for wall-hung WC, 108 cm, with Sigma concealed cistern 12 cm, with leg supports 9 100 12 42 R½ 100 9 100 100 76 18/23 5 5 +2 108 1045 41 −1 76 18/23 5 23 5 +2 108 1045 41 −1 23 0 0 0 0 65 195 65 ≥ 30 195 Application purposes • For masonry walls • For installation in part- or room-height prewall installations • For wall-hung WCs with connection dimensions in accordance with EN 33:2011 • For single flush, dual flush or stop-and-go flush Characteristics • Mounting frame, powder-coated, with four fixing brackets • Fastening for connection bend can be mo

Pagina 4-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 5 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

unted from front • Concealed cistern with front actuation, fully insulated against condensation • Immediate post flush possible with factory setting • Tool-free installation and maintenance work on concealed cistern • Water supply connection on the rear or at the top centre • Protection box for service opening can be cut to length • Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets Technical data ≥ 30 Application purposes • For masonry walls • For installation in part- or room-height prewall installations • For wall-hung WCs with connection dimensions in accordance with EN 33:2011 • For single flush, dual flush or stop-and-go flush Characteristics • Mounting frame, powder-coated, with four fixing brackets • Fastening for connection bend can be mounted from front • Concealed cistern with front actuation, fully insulated against condensation • Immediate post flush possible with factory setting • Tool-free install

Pagina 5-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

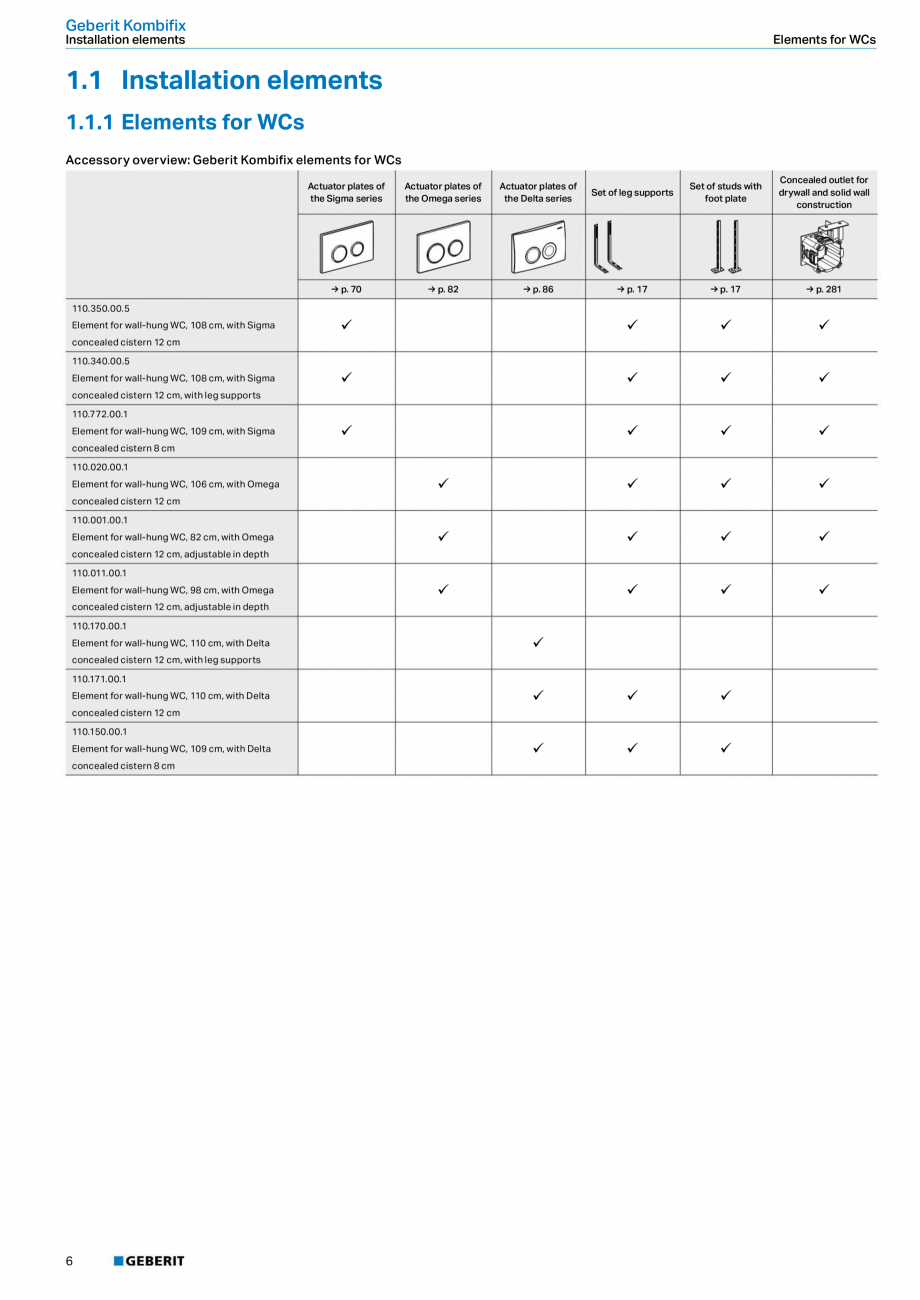

Pagina 6 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

ation and maintenance work on concealed cistern • Water supply connection on the rear or at the top centre • Protection box for service opening can be cut to length • Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets Technical data Flow pressure 0.1-10 bar Flush volume factory setting 6 and 3 l Flow pressure 0.1-10 bar Flush volume large adjustment range 4.5 / 6 / 7.5 l Flush volume factory setting 6 and 3 l 3-4 l Flush volume large adjustment range 4.5 / 6 / 7.5 l Flush volume small adjustment range 3-4 l Flush volume small adjustment range Scope of delivery • Water supply connection R 1/2, compatible with MeplaFix, with integrated angle stop valve and hand wheel • Protection box for service opening • Connection set for WC, ø 90 mm • Connection bend made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • Filling segment • 2 protection plugs • 2 threaded rods M12 • Fastening material Art.

Pagina 6-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

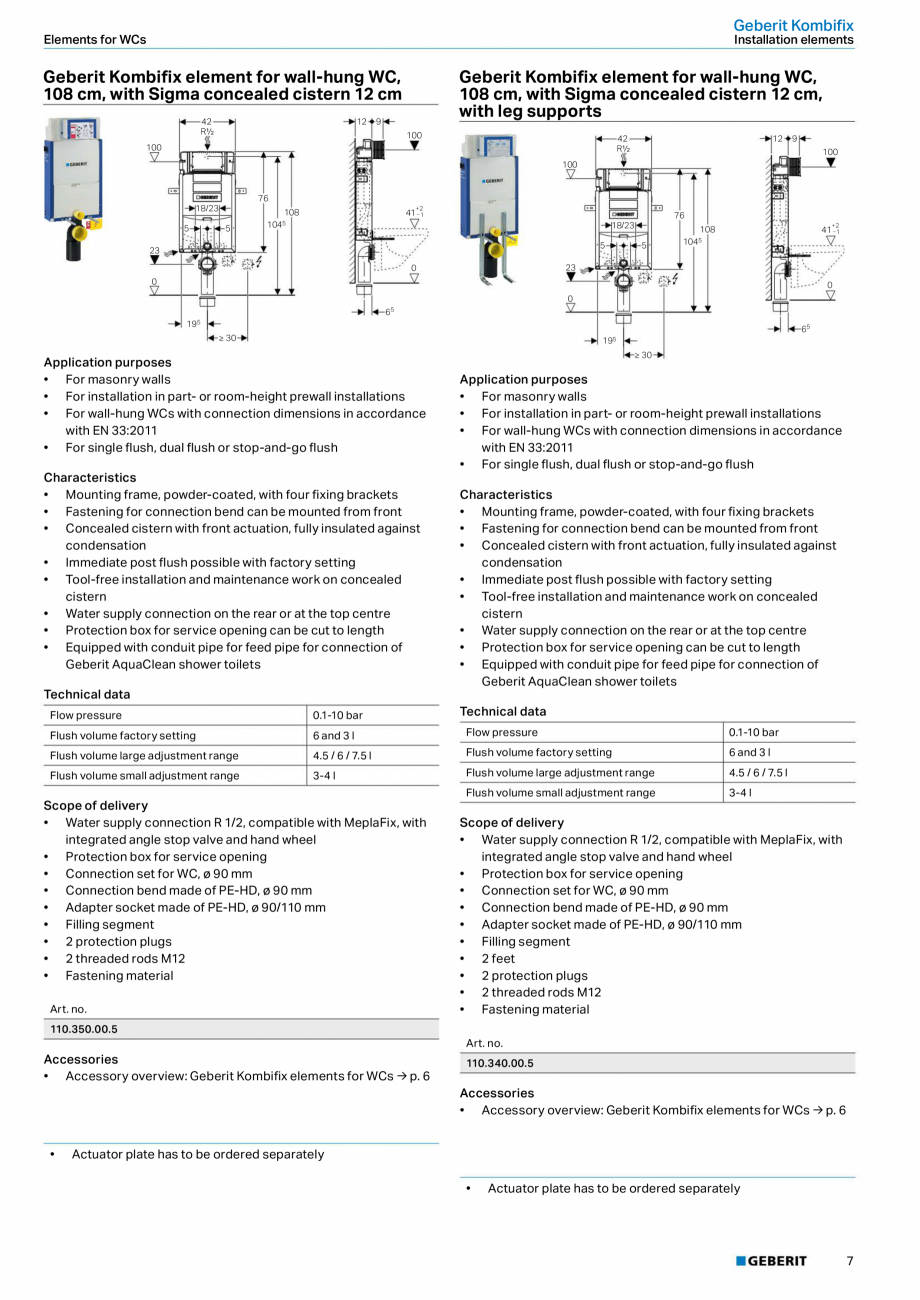

Pagina 7 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

no. Scope of delivery • Water supply connection R 1/2, compatible with MeplaFix, with integrated angle stop valve and hand wheel • Protection box for service opening • Connection set for WC, ø 90 mm • Connection bend made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • Filling segment • 2 feet • 2 protection plugs • 2 threaded rods M12 • Fastening material 110.350.00.5 Art. no. Accessories • Accessory overview: Geberit Kombifix elements for WCs → p. 6 110.340.00.5 Accessories • Accessory overview: Geberit Kombifix elements for WCs → p. 6 • Actuator plate has to be ordered separately • Actuator plate has to be ordered separately 7 Geberit Kombifix Installation elements Elements for WCs Geberit Kombifix element for wall-hung WC, 109 cm, with Sigma concealed cistern 8 cm 1-5 8 505 Geberit Kombifix element for wall-hung WC, 82 cm, with Omega concealed cistern 12 cm 42 15–205 12–205 ≤ 91 100 8 R1/2 75 R½ 100 1

Pagina 7-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

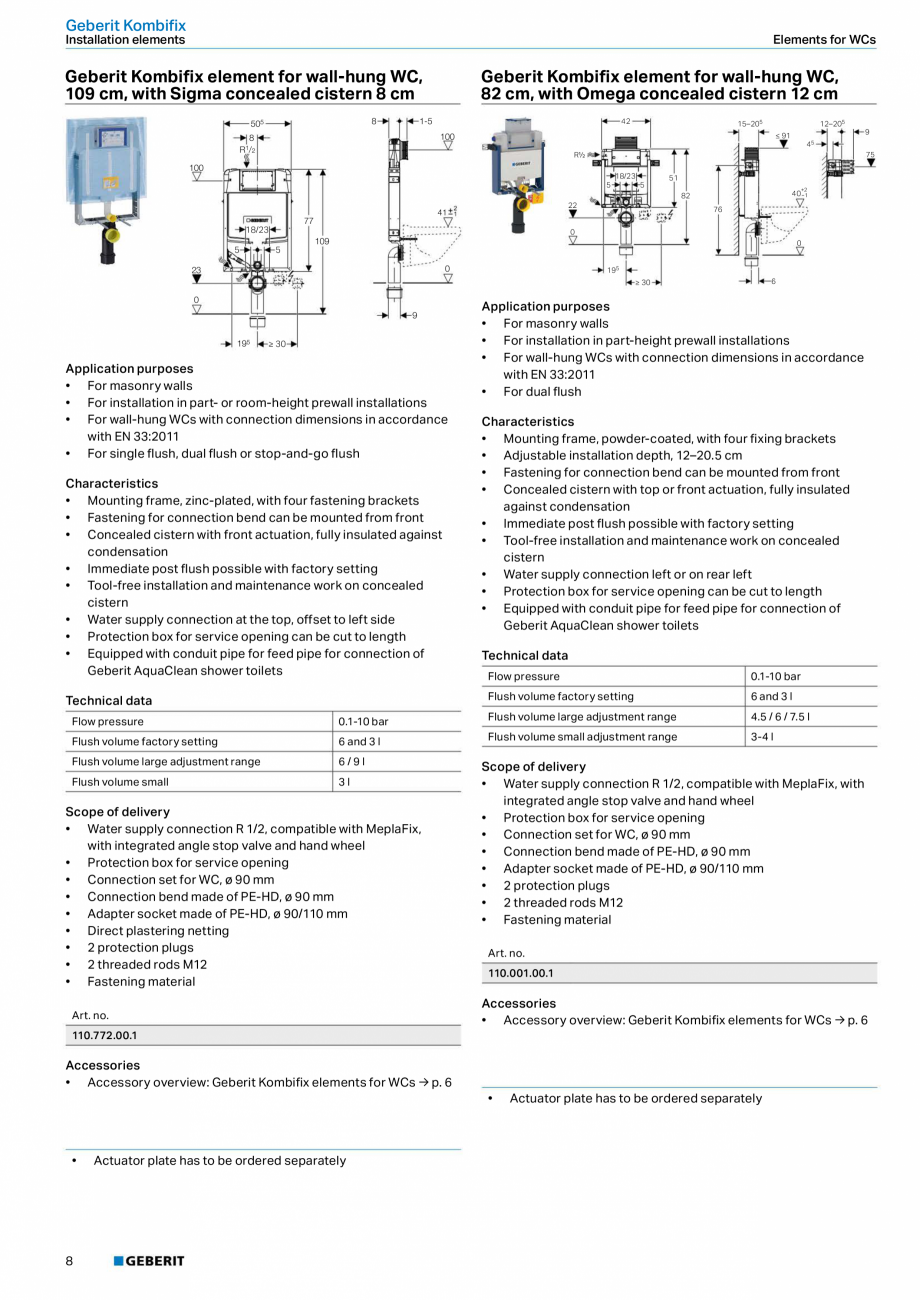

Pagina 8 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

8/23 5 5 51 +2 40 −1 82 77 18/23 5 5 22 41 76 0 109 0 0 23 195 6 ≥ 30 0 9 195 9 45 ≥ 30 Application purposes • For masonry walls • For installation in part- or room-height prewall installations • For wall-hung WCs with connection dimensions in accordance with EN 33:2011 • For single flush, dual flush or stop-and-go flush Characteristics • Mounting frame, zinc-plated, with four fastening brackets • Fastening for connection bend can be mounted from front • Concealed cistern with front actuation, fully insulated against condensation • Immediate post flush possible with factory setting • Tool-free installation and maintenance work on concealed cistern • Water supply connection at the top, offset to left side • Protection box for service opening can be cut to length • Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets Application purposes • For masonry walls • For installation in part-height p

Pagina 8-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 9 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

rewall installations • For wall-hung WCs with connection dimensions in accordance with EN 33:2011 • For dual flush Characteristics • Mounting frame, powder-coated, with four fixing brackets • Adjustable installation depth, 12–20.5 cm • Fastening for connection bend can be mounted from front • Concealed cistern with top or front actuation, fully insulated against condensation • Immediate post flush possible with factory setting • Tool-free installation and maintenance work on concealed cistern • Water supply connection left or on rear left • Protection box for service opening can be cut to length • Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets Technical data Flow pressure 0.1-10 bar Flush volume factory setting 6 and 3 l 0.1-10 bar Flush volume large adjustment range 4.5 / 6 / 7.5 l Flush volume factory setting 6 and 3 l Flush volume small adjustment range 3-4 l Flush volume large adjustment range 6/9l Fl

Pagina 9-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 10 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

ush volume small 3l Technical data Flow pressure Scope of delivery • Water supply connection R 1/2, compatible with MeplaFix, with integrated angle stop valve and hand wheel • Protection box for service opening • Connection set for WC, ø 90 mm • Connection bend made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • Direct plastering netting • 2 protection plugs • 2 threaded rods M12 • Fastening material Art. no. Scope of delivery • Water supply connection R 1/2, compatible with MeplaFix, with integrated angle stop valve and hand wheel • Protection box for service opening • Connection set for WC, ø 90 mm • Connection bend made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • 2 protection plugs • 2 threaded rods M12 • Fastening material Art. no. 110.001.00.1 Accessories • Accessory overview: Geberit Kombifix elements for WCs → p. 6 110.772.00.1 Accessories • Accessory overview: Geberit Kombifix elements for

Pagina 10-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 11 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

WCs → p. 6 • • 8 Actuator plate has to be ordered separately Actuator plate has to be ordered separately Geberit Kombifix Elements for WCs Installation elements Geberit Kombifix element for wall-hung WC, 98 cm, with Omega concealed cistern 12 cm 42 12–205 15–205 ≤ 91 9 45 N ew Geberit Kombifix element for wall-hung WC, 106 cm, with Omega concealed cistern 12 cm 75 R½ 42 66 18/23 5 5 45 12 R½ 98 92 23 9 100 +2 41 −1 18/23 0 5 0 195 Application purposes • For masonry walls • For installation in part-height prewall installations • For wall-hung WCs with connection dimensions in accordance with EN 33:2011 • For dual flush Characteristics • Mounting frame, powder-coated, with four fixing brackets • Adjustable installation depth, 12–20.5 cm • Fastening for connection bend can be mounted from front • Concealed cistern with top or front actuation, fully insulated against condensation • Immediate post flush possible with factory

Pagina 11-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

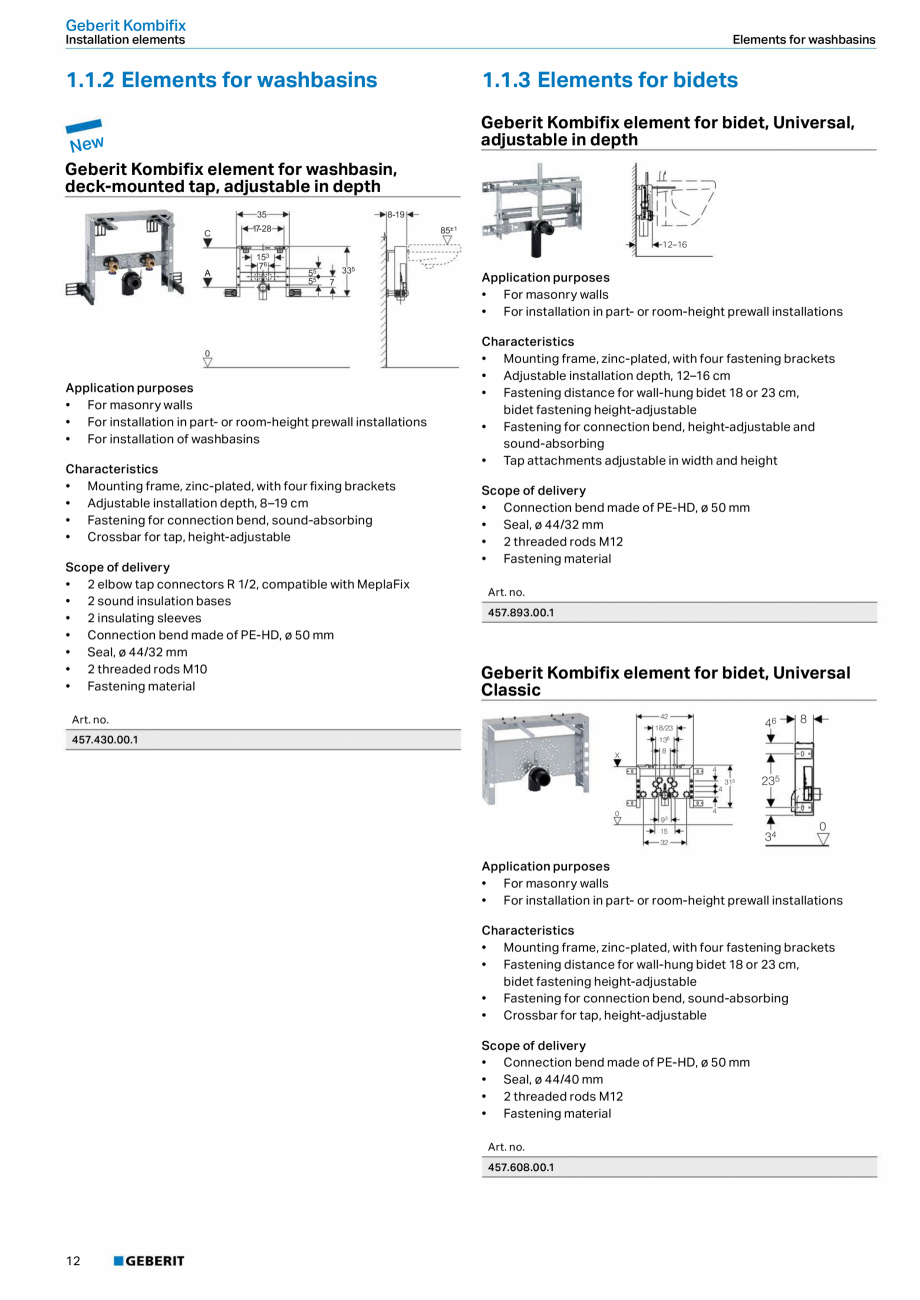

Pagina 12 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

setting • Tool-free installation and maintenance work on concealed cistern • Water supply connection left or on rear left • Protection box for service opening can be cut to length • Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets Technical data Flow pressure 0.1-10 bar Flush volume factory setting 6 and 3 l Flush volume large adjustment range 4.5 / 6 / 7.5 l Flush volume small adjustment range 3-4 l Scope of delivery • Water supply connection R 1/2, compatible with MeplaFix, with integrated angle stop valve and hand wheel • Protection box for service opening • Connection set for WC, ø 90 mm • Connection bend made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • 2 protection plugs • 2 threaded rods M12 • Fastening material Art. no. 110.011.00.1 Accessories • Accessory overview: Geberit Kombifix elements for WCs → p. 6 106 +2 41 −1 101 23 6 ≥ 30 76 5 0 0 195 ≥ 30 6 Applicat

Pagina 12-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

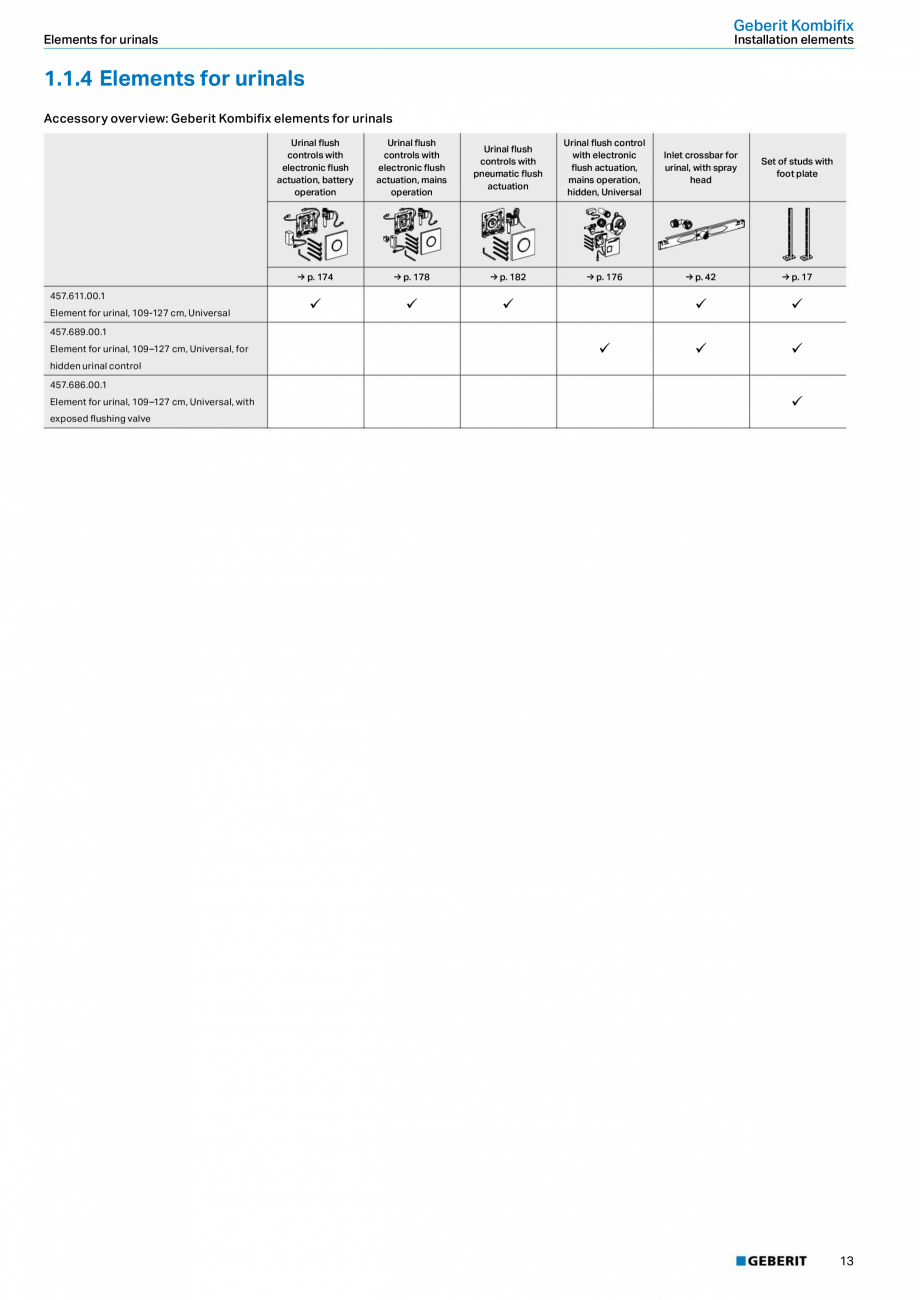

Pagina 13 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

ion purposes • For masonry walls • For installation in part- or room-height prewall installations • For wall-hung WCs with connection dimensions in accordance with EN 33:2011 • For dual flush Characteristics • Mounting frame, powder-coated, with four fixing brackets • Fastening for connection bend can be mounted from front • Concealed cistern with front actuation, fully insulated against condensation • Immediate post flush possible with factory setting • Tool-free installation and maintenance work on concealed cistern • Water supply connection left or on rear left • Protection box for service opening can be cut to length • Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets Technical data Flow pressure 0.1-10 bar Flush volume factory setting 6 and 3 l Flush volume large adjustment range 4.5 / 6 / 7.5 l Flush volume small adjustment range 3-4 l Scope of delivery • Water supply connection R 1/2, compatible with Mep

Pagina 13-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 14 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

laFix, with integrated angle stop valve and hand wheel • Protection box for service opening • Connection set for WC, ø 90 mm • Connection bend made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • Filling segment • 2 protection plugs • Sound insulation set • 2 threaded rods M12 • Fastening material Art. no. 110.020.00.1 • Actuator plate has to be ordered separately Accessories • Accessory overview: Geberit Kombifix elements for WCs → p. 6 • Actuator plate has to be ordered separately 9 Geberit Kombifix Installation elements Elements for WCs Geberit Kombifix element for wall-hung WC, 110 cm, with Delta concealed cistern 12 cm 12 42 R½ 1-6 Geberit Kombifix element for wall-hung WC, 110 cm, with Delta concealed cistern 12 cm, with leg supports 100 12 42 R½ 100 1-6 100 100 76 18/23 1095 41 1035 76 18/23 1095 41 1035 23 23 0 0 0 0 65 Application purposes • For masonry walls • For installation in part- or room-hei

Pagina 14-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 15 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

ght prewall installations • For wall-hung WCs with connection dimensions in accordance with EN 33:2011 • For single flush, dual flush or stop-and-go flush Characteristics • Mounting frame, zinc-plated, with four fastening brackets • Fastening for connection bend can be mounted from front • Concealed cistern with front actuation, fully insulated against condensation • Immediate post flush possible with factory setting • Water supply connection on the rear or at the top centre • Connection hose on angle stop valve can be attached without tools Technical data 65 Application purposes • For masonry walls • For installation in part- or room-height prewall installations • For wall-hung WCs with connection dimensions in accordance with EN 33:2011 • For single flush, dual flush or stop-and-go flush Characteristics • Mounting frame, zinc-plated, with four fastening brackets • Fastening for connection bend can be mounted from front • Concealed cistern with front ac

Pagina 15-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 16 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

tuation, fully insulated against condensation • Immediate post flush possible with factory setting • Water supply connection on the rear or at the top centre • Connection hose on angle stop valve can be attached without tools Technical data Flow pressure 0.1-10 bar Flush volume factory setting 6 and 3 l Flow pressure 0.1-10 bar Flush volume large adjustment range 6/9l Flush volume factory setting 6 and 3 l Flush volume small adjustment range 3-4 l Flush volume large adjustment range 6/9l Flush volume small adjustment range 3-4 l Scope of delivery • Angle stop valve R 1/2, compatible with MeplaFix, with adapter ring • Protection box for service opening • 2 distance bolts • Connection set for WC, ø 90 mm • Connection bend made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • Filling segment • 2 protection plugs • 2 threaded rods M12 • Fastening material Art. no. Scope of delivery • Angle stop valve R 1/2, compatible with Mep

Pagina 16-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

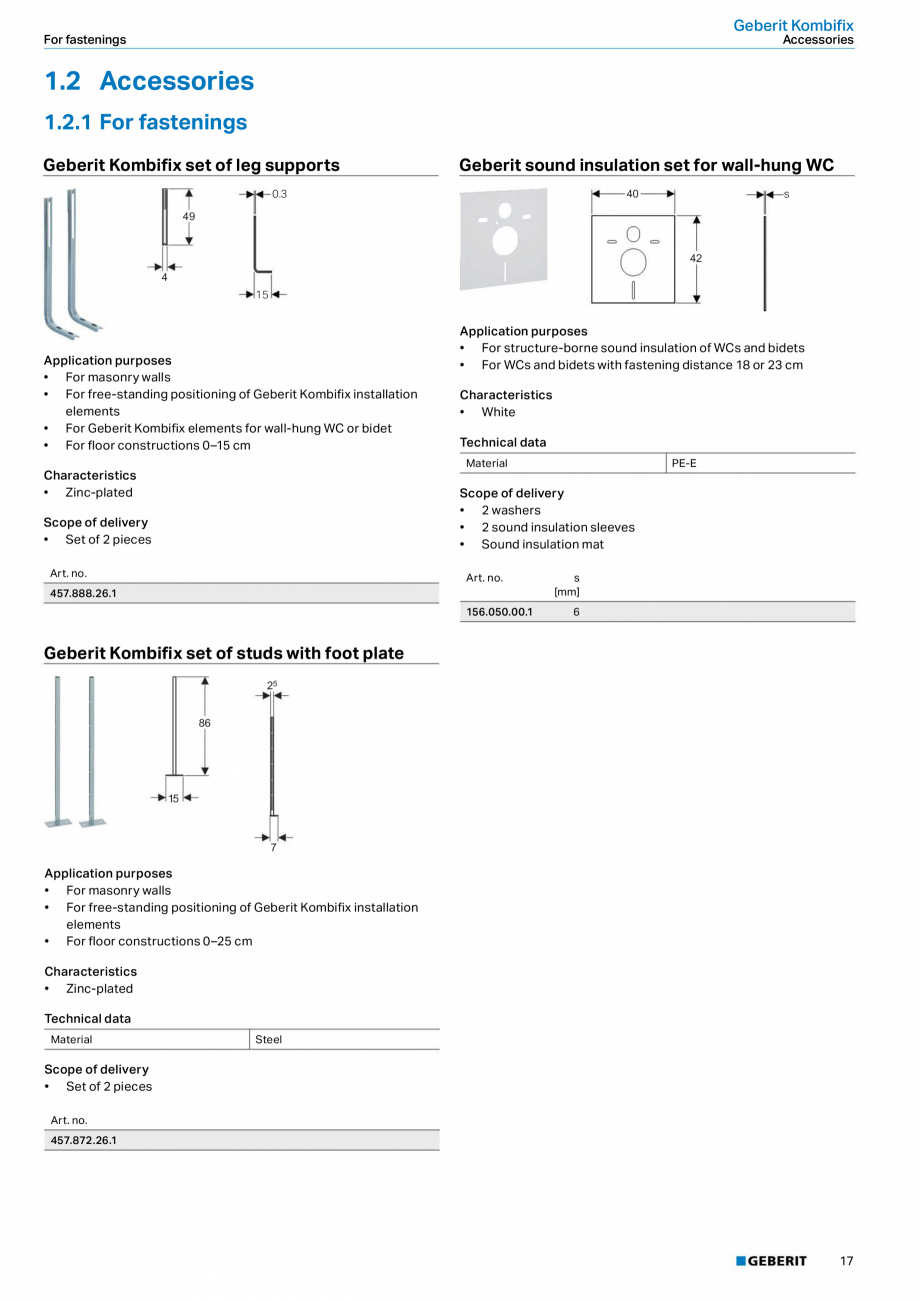

Pagina 17 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

laFix, with adapter ring • Protection box for service opening • 2 distance bolts • Connection set for WC, ø 90 mm • Connection bend made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • Filling segment • 2 protection plugs • 2 feet • 2 threaded rods M12 • Fastening material 110.171.00.1 Art. no. Accessories • Accessory overview: Geberit Kombifix elements for WCs → p. 6 110.170.00.1 Accessories • Accessory overview: Geberit Kombifix elements for WCs → p. 6 • Actuator plate has to be ordered separately • 10 Actuator plate has to be ordered separately Geberit Kombifix Elements for WCs Installation elements Geberit Kombifix element for wall-hung WC, 109 cm, with Delta concealed cistern 8 cm 8 455 R½ 1-6 100 100 77 18/23 41 109 23 0 0 65 Application purposes • For masonry walls • For installation in part- or room-height prewall installations • For wall-hung WCs with connection dimensions in accordance with EN 33:20

Pagina 17-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 18 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

11 • For single flush, dual flush or stop-and-go flush Characteristics • Mounting frame, zinc-plated, with four fastening brackets • Fastening for connection bend can be mounted from front • Concealed cistern with front actuation • Immediate post flush possible with factory setting • Water supply connection at the top centre • Connection hose on angle stop valve can be attached without tools Technical data Flow pressure 0.1-10 bar Flush volume factory setting 6 and 3 l Flush volume large adjustment range 6/9l Flush volume small 3l Scope of delivery • Angle stop valve R 1/2, compatible with MeplaFix, with adapter ring • Protection box for service opening • 2 distance bolts • Connection set for WC, ø 90 mm • Connection bend made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • Direct plastering netting • 2 protection plugs • 2 threaded rods M12 • Fastening material Art. no. 110.150.00.1 Accessories • Accessory overview: Geber

Pagina 18-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 19 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

it Kombifix elements for WCs → p. 6 • Not in scope of delivery: actuator plate 11 Geberit Kombifix Installation elements Elements for washbasins 1.1.2 Elements for washbasins 1.1.3 Elements for bidets Geberit Kombifix element for bidet, Universal, adjustable in depth N ew Geberit Kombifix element for washbasin, deck-mounted tap, adjustable in depth 35 C 8-19 17-28 85±1 12–16 A 153 76 55 55 335 7 0 Application purposes • For masonry walls • For installation in part- or room-height prewall installations • For installation of washbasins Characteristics • Mounting frame, zinc-plated, with four fixing brackets • Adjustable installation depth, 8–19 cm • Fastening for connection bend, sound-absorbing • Crossbar for tap, height-adjustable Scope of delivery • 2 elbow tap connectors R 1/2, compatible with MeplaFix • 2 sound insulation bases • 2 insulating sleeves • Connection bend made of PE-HD, ø 50 mm • Seal, ø 44/32 mm • 2 threaded rods M

Pagina 19-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 20 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

10 • Fastening material Application purposes • For masonry walls • For installation in part- or room-height prewall installations Characteristics • Mounting frame, zinc-plated, with four fastening brackets • Adjustable installation depth, 12–16 cm • Fastening distance for wall-hung bidet 18 or 23 cm, bidet fastening height-adjustable • Fastening for connection bend, height-adjustable and sound-absorbing • Tap attachments adjustable in width and height Scope of delivery • Connection bend made of PE-HD, ø 50 mm • Seal, ø 44/32 mm • 2 threaded rods M12 • Fastening material Art. no. 457.893.00.1 Geberit Kombifix element for bidet, Universal Classic 42 Art. no. 46 18/23 457.430.00.1 8 136 X 8 4 4 0 315 235 4 93 15 32 34 0 Application purposes • For masonry walls • For installation in part- or room-height prewall installations Characteristics • Mounting frame, zinc-plated, with four fastening brackets • Fastening distance for wall-hung bide

Pagina 20-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

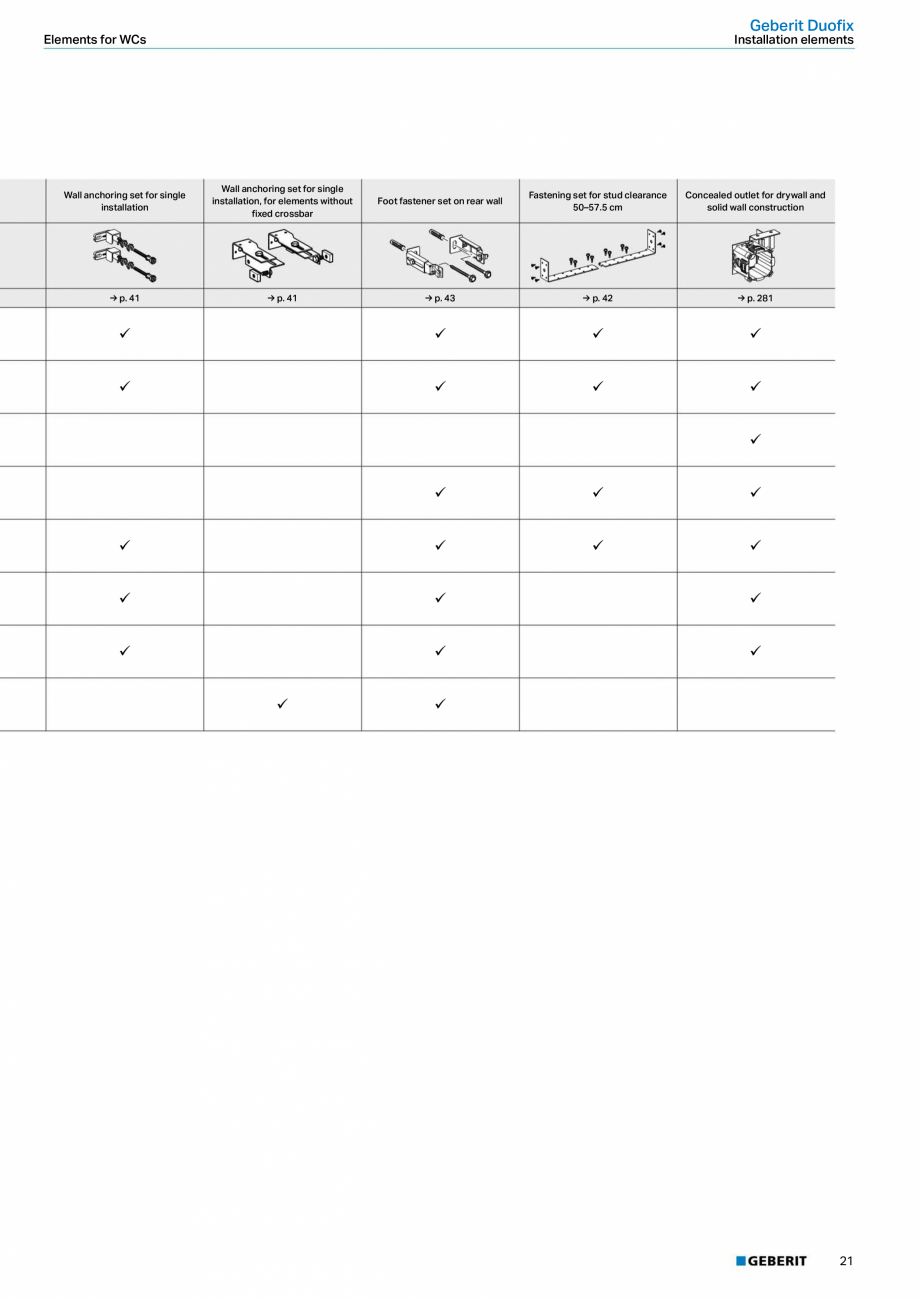

Pagina 21 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

t 18 or 23 cm, bidet fastening height-adjustable • Fastening for connection bend, sound-absorbing • Crossbar for tap, height-adjustable Scope of delivery • Connection bend made of PE-HD, ø 50 mm • Seal, ø 44/40 mm • 2 threaded rods M12 • Fastening material Art. no. 457.608.00.1 12 Geberit Kombifix Elements for urinals Installation elements 1.1.4 Elements for urinals Accessory overview: Geberit Kombifix elements for urinals Urinal flush controls with electronic flush actuation, battery operation Element for urinal, 109-127 cm, Universal Urinal flush controls with pneumatic flush actuation Urinal flush control with electronic flush actuation, mains operation, hidden, Universal Inlet crossbar for urinal, with spray head Set of studs with foot plate → p. 174 457.611.00.1 Urinal flush controls with electronic flush actuation, mains operation → p. 178 → p. 182 → p. 176 → p. 42 → p. 17 ü ü ü ü ü ü ü 457.689.00.1 Element for urinal, 10

Pagina 21-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 22 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

9–127 cm, Universal, for ü hidden urinal control 457.686.00.1 Element for urinal, 109–127 cm, Universal, with ü exposed flushing valve 13 Geberit Kombifix Installation elements Elements for urinals Geberit Kombifix element for urinal, 109-127 cm, Universal 42 Geberit Kombifix element for urinal, 109–127 cm, Universal, for hidden urinal control 42 8-125 8-125 9 9-29 R1/2 17-37 min. 9 75-33 75 9 100-118 100 R1/2 max. 81 min. 31 max. 65 109-127 100 109-127 75-33 0 0 0 0 0-20 0-20 75 Application purposes • For masonry walls • For installation in part- or room-height prewall installations Characteristics • Mounting frame, zinc-plated, with four fixing brackets • Stop valve with throttle pre-mounted • Fastening for inlet ø 32 mm, height-adjustable • Fastening for connection bend, height-adjustable and soundabsorbing • Urinal fasteners M8 width- and height-adjustable • Crossbars with centring marks, adjustable without tools • Can be re

Pagina 22-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 23 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

trofitted with accessories to fit urinals with spray head Technical data Flow pressure 1-8 bar Maximum test pressure water 16 bar Maximum test pressure air / inert gas 3 bar Flow rate at 1 bar without flow limiter 0.3 l/s Flow rate at 1 bar with flow limiter 0.24 l/s Scope of delivery • Water supply connection R 1/2 • Protection box for service opening • Connection set for urinal, with urinal trap • Connection bend made of PE-HD, ø 50/63 mm • Seal, ø 57/50 mm • 2 protection plugs • 2 threaded rods M8 • Fastening material Art. no. 457.611.00.1 Accessories • Accessory overview: Geberit Kombifix elements for urinals → p. 13 Application purposes • For masonry walls • For installation in part- or room-height prewall installations • For Geberit urinal flush controls for covered installation, vandal-resistant Characteristics • Mounting frame, zinc-plated, with four fixing brackets • Stop valve with throttle pre-mounted • Service opening behind uri

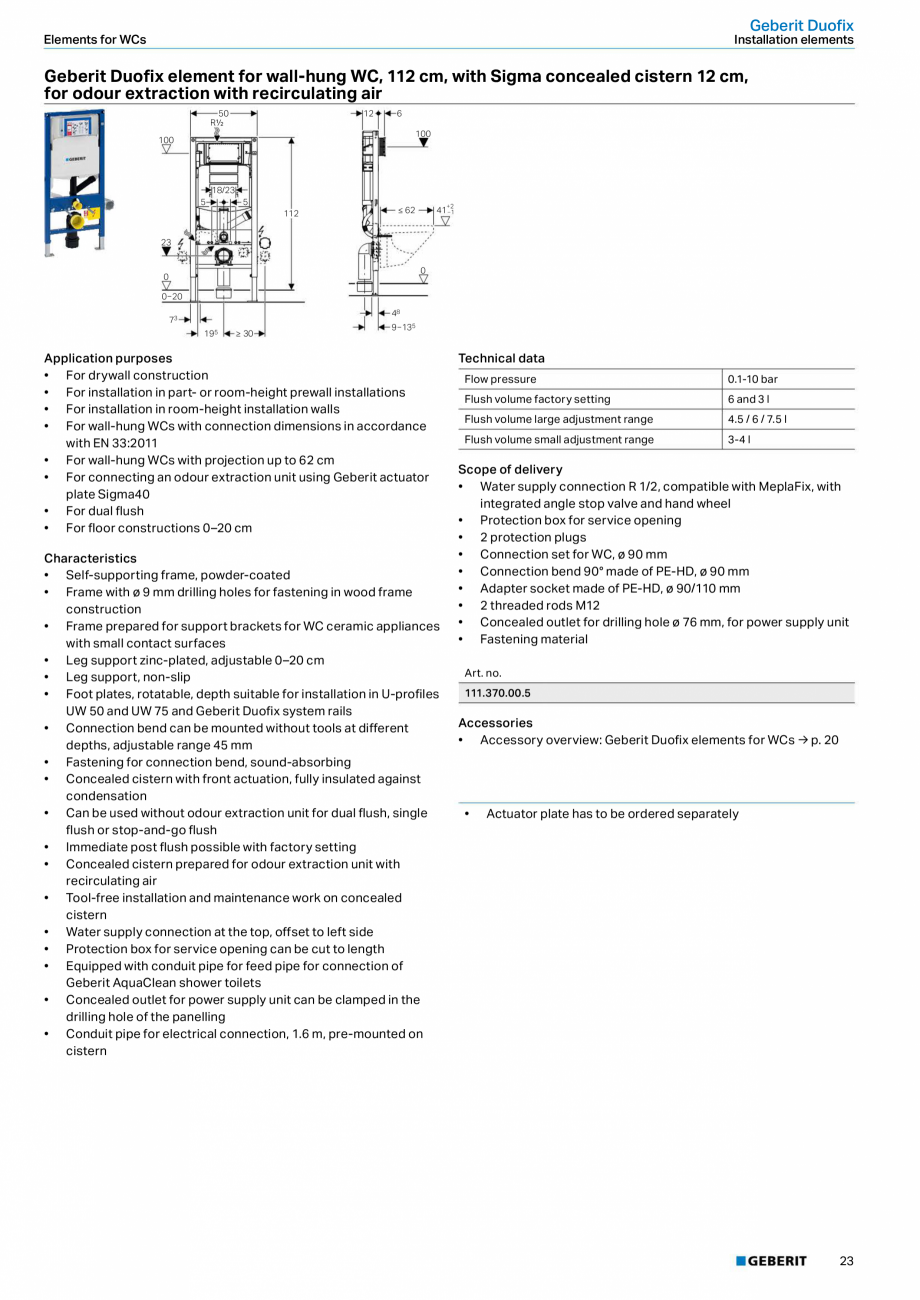

Pagina 23-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

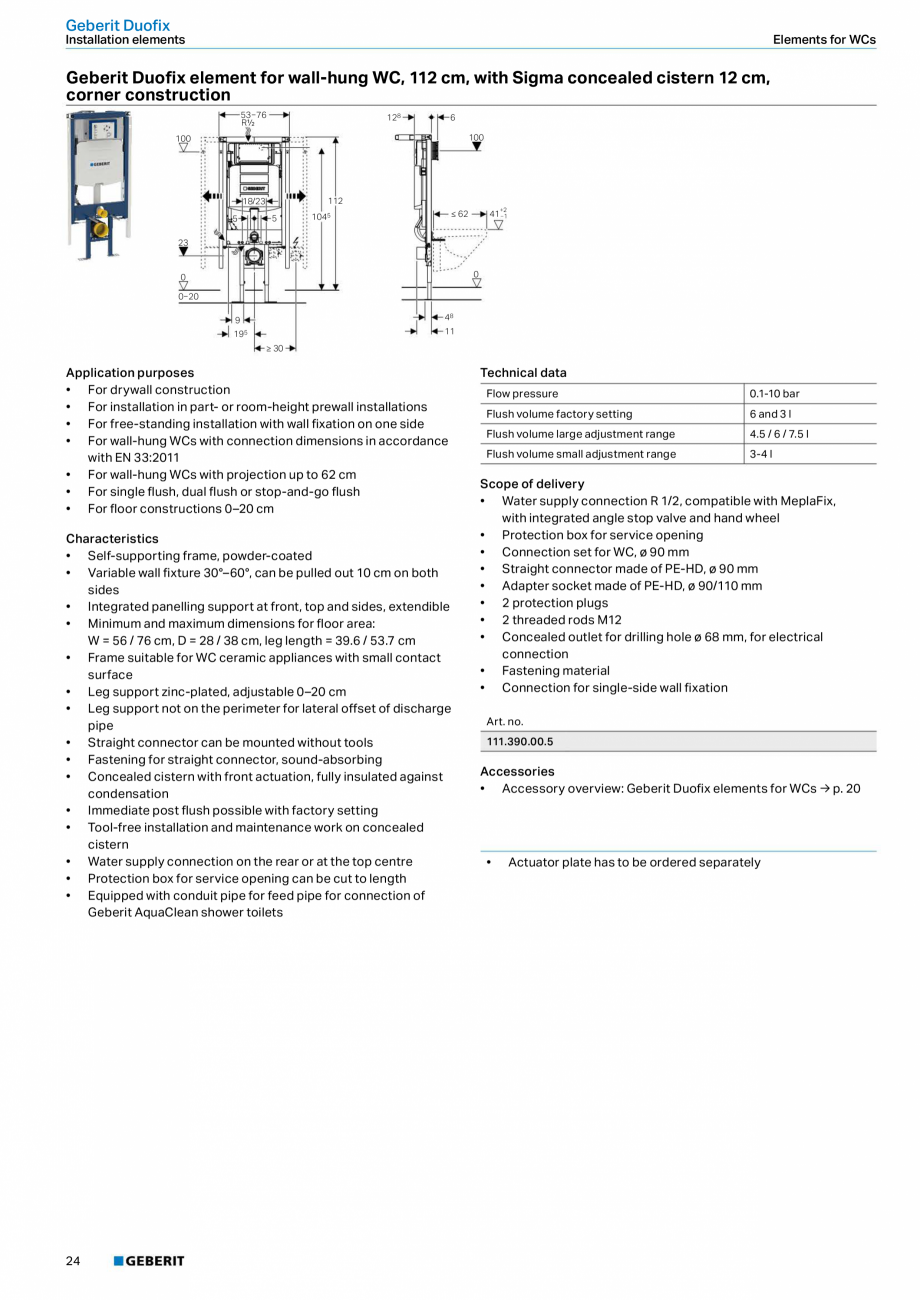

Pagina 24 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

nal • Flexible flush hose with guide and integrated check valve • Equipped with conduit pipe to connect the sensor in the trap to the urinal flush control • Fastening for inlet ø 32 mm, height-adjustable • Fastening for connection bend, height-adjustable and soundabsorbing • Urinal fasteners M8 width- and height-adjustable • Crossbars with centring marks, adjustable without tools • Can be retrofitted with accessories to fit urinals with spray head Technical data Flow pressure 1-8 bar Maximum test pressure water 16 bar Maximum test pressure air / inert gas 3 bar Flow rate at 1 bar without flow limiter 0.3 l/s Flow rate at 1 bar with flow limiter 0.24 l/s Scope of delivery • Water supply connection R 1/2 • Protection box for service opening • Connection set for urinal, with urinal trap • Connection bend made of PE-HD, ø 50/63 mm • Seal, ø 57/50 mm • 2 protection plugs • 2 threaded rods M8 • Fastening material Art. no. 457.689.00.1 Accessories �

Pagina 24-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

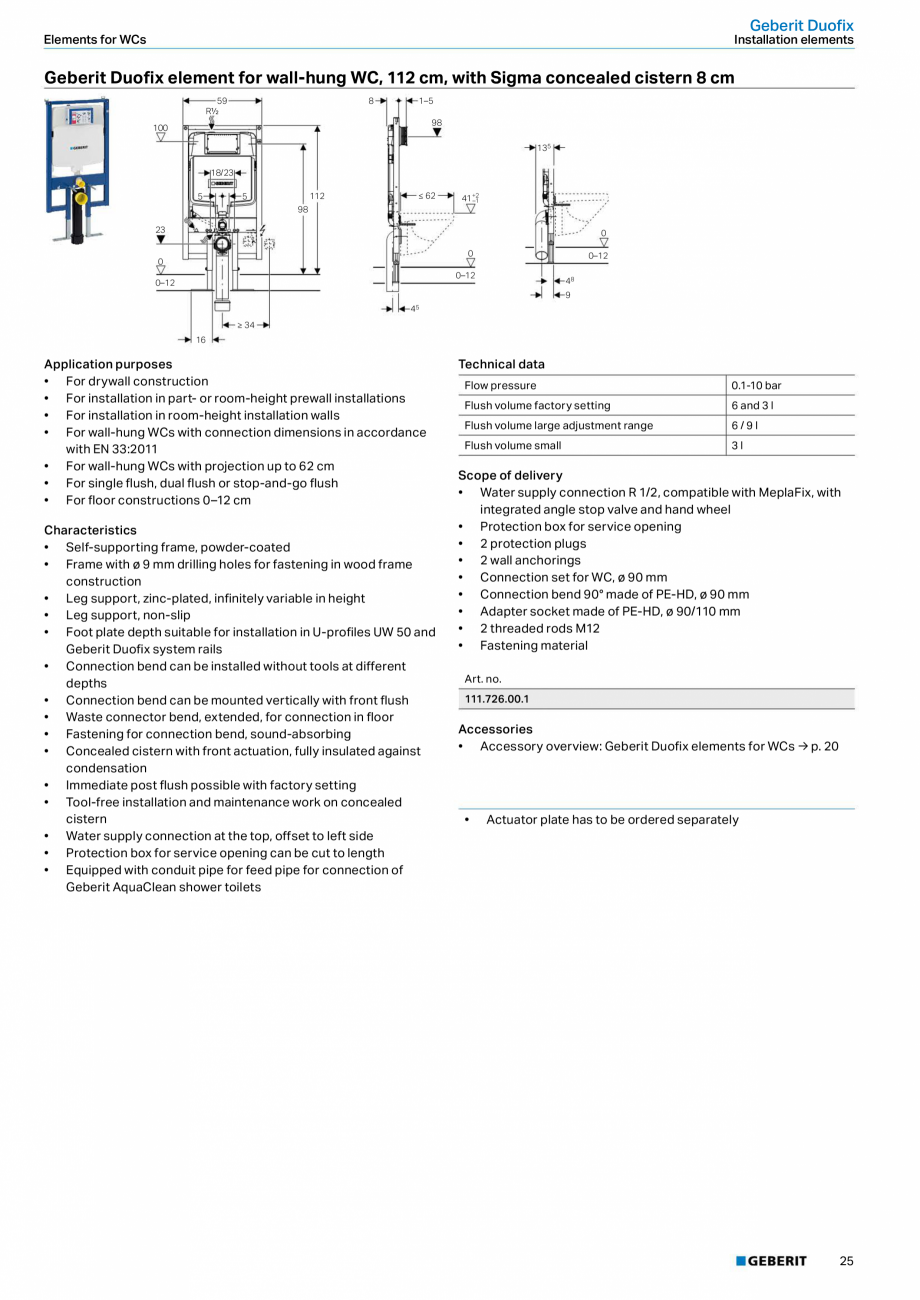

Pagina 25 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

�� Accessory overview: Geberit Kombifix elements for urinals → p. 13 14 Geberit Kombifix Elements for urinals Installation elements Geberit Kombifix element for urinal, 109–127 cm, Universal, with exposed flushing valve 42 8-125 min. 112-130 R1/2 75-33 100 109-127 0 0 75 Application purposes • For masonry walls • For installation in part- or room-height prewall installations • For exposed flushing valves Characteristics • Mounting frame, zinc-plated, with four fixing brackets • Fastening for connection bend, height-adjustable and sound-absorbing • Urinal fasteners M8 width- and height-adjustable • Crossbars with centring marks, adjustable without tools Scope of delivery • Water supply connection R 1/2 • Sealing washer • Connection set for urinal, with urinal trap • Connection bend made of PE-HD, ø 50/63 mm • Seal, ø 57/50 mm • 2 protection plugs • 2 threaded rods M8 • Fastening material Art. no. 457.686.00.1 Accessories • Accessory ove

Pagina 25-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 26 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

rview: Geberit Kombifix elements for urinals → p. 13 15 Geberit Kombifix Installation elements Elements for showers 1.1.5 Elements for showers Geberit Kombifix element for shower, with wall drain, floor construction height from 65 mm 9 53 8 4 355 355 35 6 168 0 3 Application purposes • For drainage of floor-even showers • For solid walls, drywalls, or prewalls in solid and drywall construction • For composite seals • For floor constructions of 65–90 mm Technical data Discharge rate Characteristics • Deviating from the requirements from EN 1253, the depth of water seal is just 30 mm • Minimum screed height at inlet 65 mm • Plaster thickness 5–30 mm • Tile structure floor 2–26 mm • Tile structure wall 2–35 mm • Height-adjustable element • Adjustable sealing level for tension-free sealing connection • Drainage connection left or right • Sealing fleece, pre-mounted, 10 cm circumferential, for connecting sealing systems • Adjustable inle

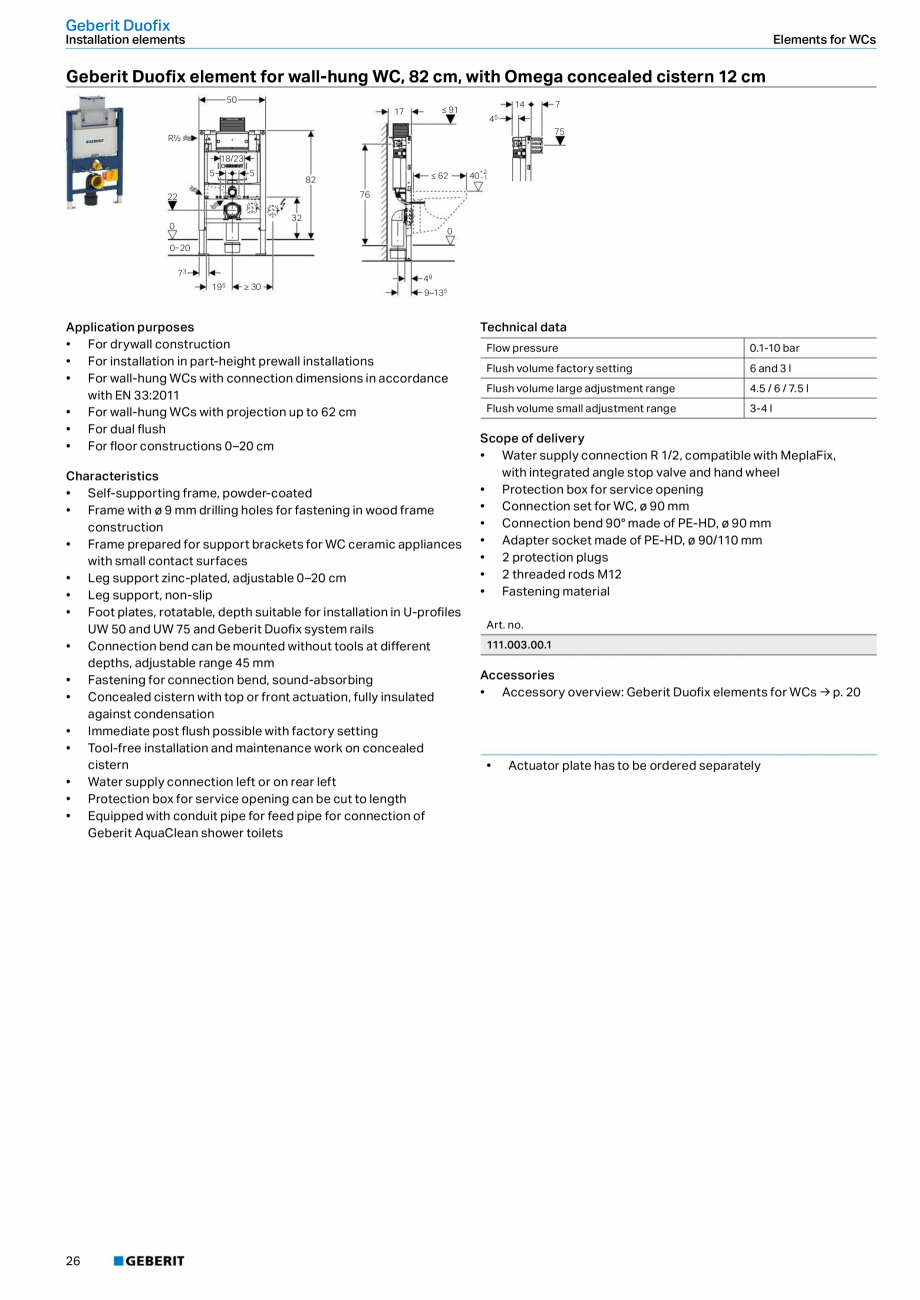

Pagina 26-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 27 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

t height of trap 0.4 l/s Depth of water seal 30 mm Scope of delivery • Straight connector, made of PE-HD, ø 40 mm • 1 protection box cover with integrated outlet sheet • Fastening material Art. no. 457.536.00.1 To order additionally • Ready-to-fit set Geberit Kombifix element for shower, with wall drain, floor construction height from 90 mm 9 8 53 4 355 355 5 9 193 0 3 Application purposes • For drainage of floor-even showers • For solid walls, drywalls, or prewalls in solid and drywall construction • For composite seals • For floor constructions 90–200 mm Characteristics • Quality-monitored in accordance with EN 1253-3 • Minimum screed height at inlet 90 mm • Plaster thickness 5–30 mm • Tile structure floor 2–26 mm • Tile structure wall 2–35 mm • Height-adjustable element • Adjustable sealing level for tension-free sealing connection • Drainage connection left or right • Sealing fleece, pre-mounted, 10 cm circumferential, for c

Pagina 27-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

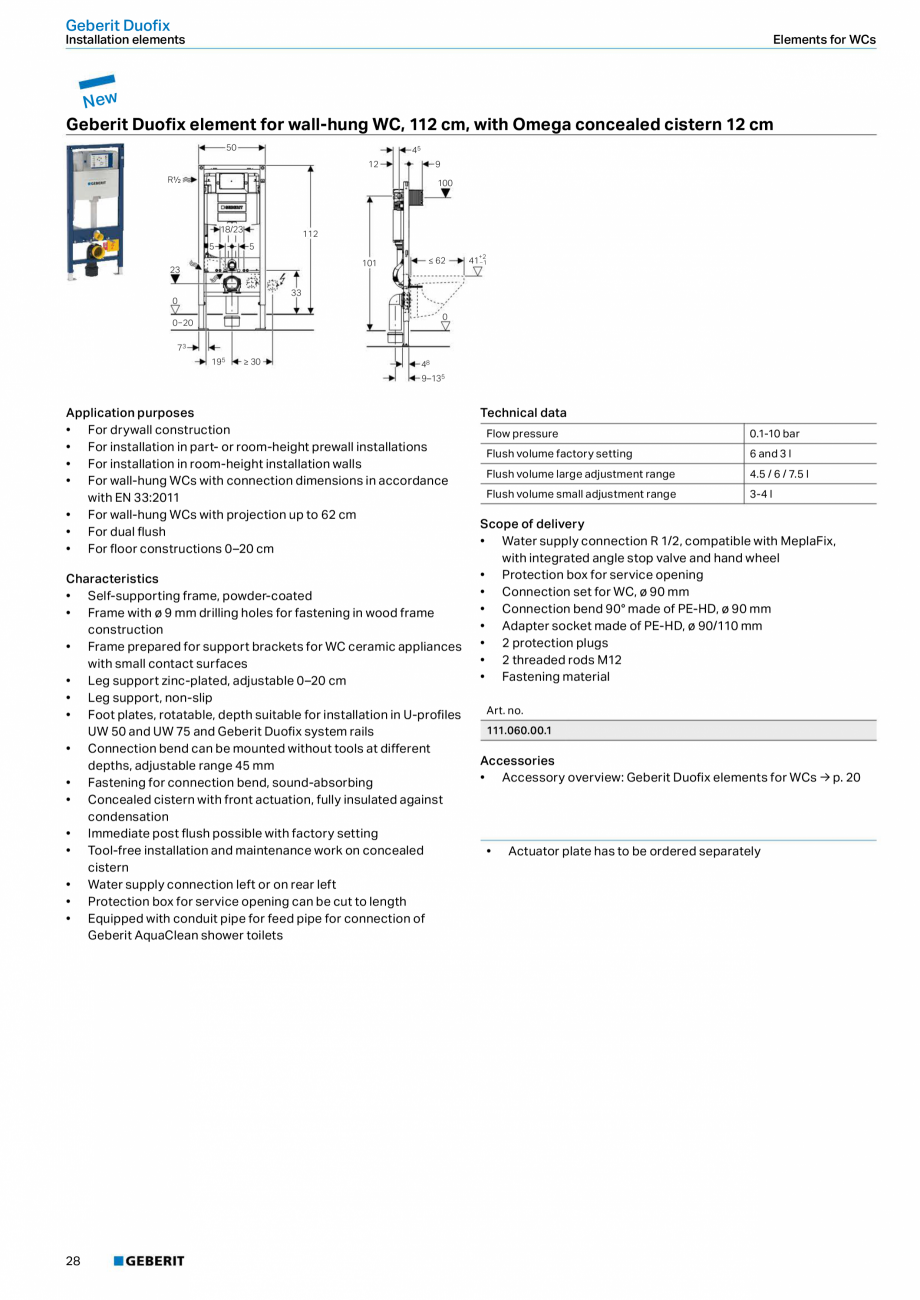

Pagina 28 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

onnecting sealing systems • Adjustable inlet height of trap 16 Technical data Discharge rate 0.8 l/s Depth of water seal 50 mm Scope of delivery • Straight connector, made of PE-HD, ø 50 mm • 1 protection box cover with integrated outlet sheet • Fastening material Art. no. 457.534.00.1 To order additionally • Ready-to-fit set Geberit Kombifix For fastenings Accessories 1.2 Accessories 1.2.1 For fastenings Geberit Kombifix set of leg supports Geberit sound insulation set for wall-hung WC 0.3 s 40 49 42 4 15 Application purposes • For masonry walls • For free-standing positioning of Geberit Kombifix installation elements • For Geberit Kombifix elements for wall-hung WC or bidet • For floor constructions 0–15 cm Application purposes • For structure-borne sound insulation of WCs and bidets • For WCs and bidets with fastening distance 18 or 23 cm Characteristics • White Technical data Material Characteristics • Zinc-plated PE-E Scope of de

Pagina 28-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 29 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

livery • 2 washers • 2 sound insulation sleeves • Sound insulation mat Scope of delivery • Set of 2 pieces Art. no. Art. no. 457.888.26.1 156.050.00.1 s [mm] 6 Geberit Kombifix set of studs with foot plate 25 86 15 7 Application purposes • For masonry walls • For free-standing positioning of Geberit Kombifix installation elements • For floor constructions 0–25 cm Characteristics • Zinc-plated Technical data Material Steel Scope of delivery • Set of 2 pieces Art. no. 457.872.26.1 17 Geberit Duofix 2. Geberit Duofix 2.1 Installation elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 2.1.1 2.1.7 Elements for WCs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 Accessory overview: Geberit Duofix elements for WCs . . . . . . . . . . . . . . . . . . . . .20 Elements for washbasins . . . . . . . . . . . . . . . . . . . . .

Pagina 29-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 30 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30 Accessory overview: Geberit Duofix elements for washbasins . . . . . . . . . . . . . .30 Elements for bidets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32 Elements for urinals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33 Accessory overview: Geberit Duofix elements for urinals . . . . . . . . . . . . . . . . . . .33 Elements for showers, with wall drain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37 Elements for showers and bathtubs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40 Accessory overview: Geberit Duofix elements for showers and bathtubs . . .40 Elements for loads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40 2.2 Accessories. . . . . . . . . .

Pagina 30-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 31 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 2.2.1 For installation elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 2.1.2 2.1.3 2.1.4 2.1.5 2.1.6 19 Geberit Duofix Installation elements Elements for WCs 2.1 Installation elements 2.1.1 Elements for WCs Accessory overview: Geberit Duofix elements for WCs Actuator plates of the Sigma series Actuator plates of the Omega series Actuator plates of the Delta series Set of support brackets for WC ceramic appliances with small contact surfaces → p. 70 → p. 82 → p. 86 → p. 43 111.300.00.5 Element for wall-hung WC, 112 cm, with Sigma concealed ü ü ü1) ü cistern 12 cm 111.370.00.5 Element for wall-hung WC, 112 cm, with Sigma concealed cistern 12 cm, for odour extraction with recirculating air 111.390.00.5 Element for wall-hung WC, 112 cm, with Sigma concealed ü cistern 12 cm, corner constr

Pagina 31-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 32 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

uction 111.726.00.1 Element for wall-hung WC, 112 cm, with Sigma concealed ü cistern 8 cm 111.060.00.1 Element for wall-hung WC, 112 cm, with Omega concealed ü ü ü ü ü ü cistern 12 cm 111.030.00.1 Element for wall-hung WC, 98 cm, with Omega concealed cistern 12 cm 111.003.00.1 Element for wall-hung WC, 82 cm, with Omega concealed cistern 12 cm 458.160.00.1 Element for wall-hung WC, 112 cm, with Delta concealed cistern 12 cm, without crossbar for panelling support 1) Not suitable for Geberit actuator plate Sigma60 20 ü ü Geberit Duofix Elements for WCs Installation elements Wall anchoring set for single installation Wall anchoring set for single installation, for elements without fixed crossbar Foot fastener set on rear wall Fastening set for stud clearance 50–57.5 cm Concealed outlet for drywall and solid wall construction → p. 41 → p. 41 → p. 43 → p. 42 → p. 281 ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü

Pagina 32-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 33 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

ü ü ü ü ü 21 Geberit Duofix Installation elements Elements for WCs Geberit Duofix element for wall-hung WC, 112 cm, with Sigma concealed cistern 12 cm 12 50 R½ 6 100 100 112 18/23 5 5 1045 +2 41 −1 ≤ 62 23 0 0 0−20 48 73 195 ≥ 30 9−135 Application purposes • For drywall construction • For installation in part- or room-height prewall installations • For installation in room-height installation walls • For wall-hung WCs with connection dimensions in accordance with EN 33:2011 • For wall-hung WCs with projection up to 62 cm • For single flush, dual flush or stop-and-go flush • For floor constructions 0–20 cm Characteristics • Self-supporting frame, powder-coated • Frame with ø 9 mm drilling holes for fastening in wood frame construction • Frame prepared for support brackets for WC ceramic appliances with small contact surfaces • Leg support zinc-plated, adjustable 0–20 cm • Leg support, non-slip • Foot plates, rotata

Pagina 33-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 34 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

ble, depth suitable for installation in U-profiles UW 50 and UW 75 and Geberit Duofix system rails • Connection bend can be mounted without tools at different depths, adjustable range 45 mm • Fastening for connection bend, sound-absorbing • Concealed cistern with front actuation, fully insulated against condensation • Immediate post flush possible with factory setting • Tool-free installation and maintenance work on concealed cistern • Water supply connection on the rear or at the top centre • Protection box for service opening can be cut to length • Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets 22 Technical data Flow pressure 0.1-10 bar Flush volume factory setting 6 and 3 l Flush volume large adjustment range 4.5 / 6 / 7.5 l Flush volume small adjustment range 3-4 l Scope of delivery • Water supply connection R 1/2, compatible with MeplaFix, with integrated angle stop valve and hand wheel • Protection box for

Pagina 34-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

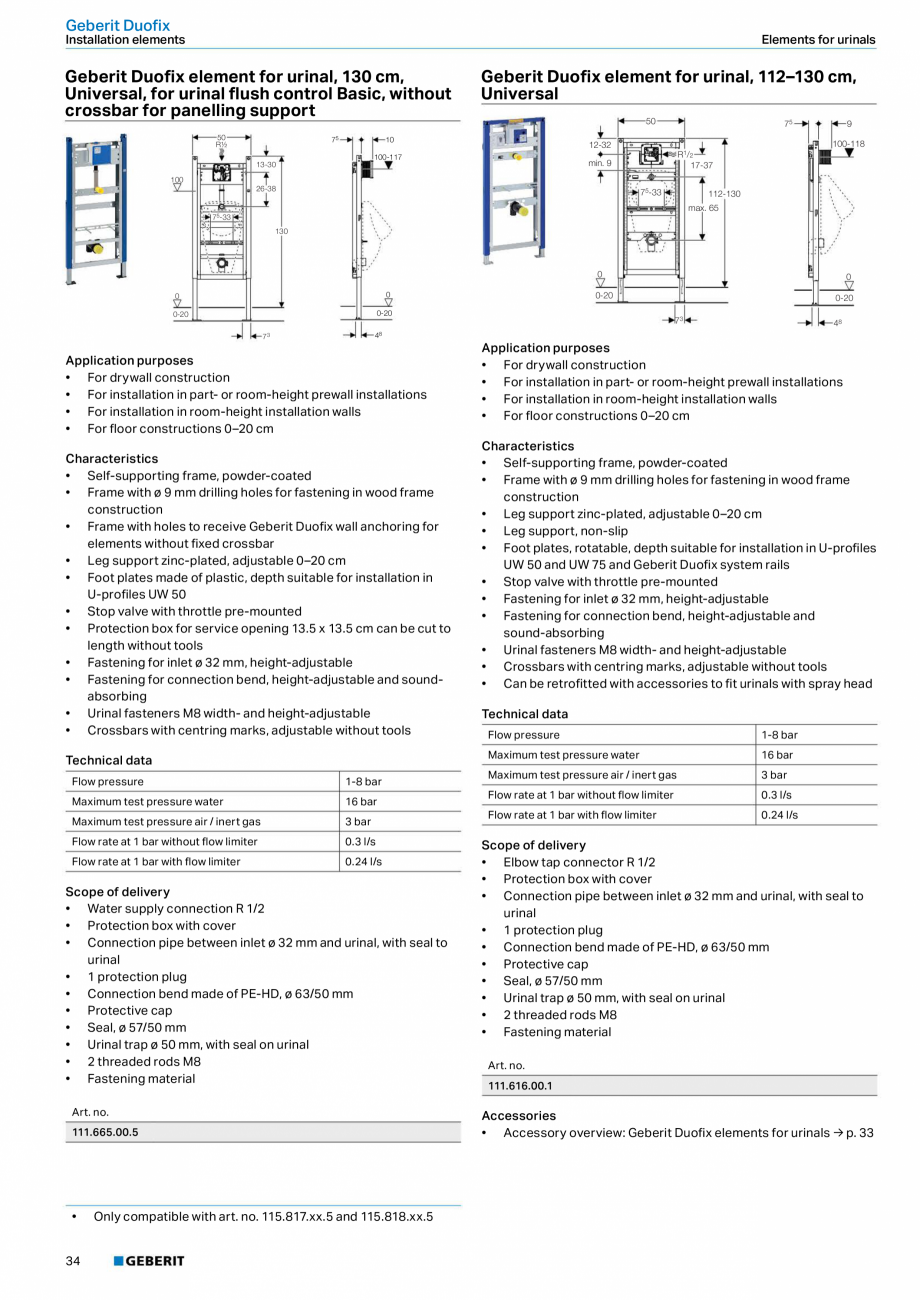

Pagina 35 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

service opening • 2 protection plugs • Connection set for WC, ø 90 mm • Connection bend 90° made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • 2 threaded rods M12 • Fastening material Art. no. 111.300.00.5 Accessories • Accessory overview: Geberit Duofix elements for WCs → p. 20 • Actuator plate has to be ordered separately Geberit Duofix Elements for WCs Installation elements Geberit Duofix element for wall-hung WC, 112 cm, with Sigma concealed cistern 12 cm, for odour extraction with recirculating air 12 50 R½ 6 100 100 18/23 5 5 112 +2 41 −1 ≤ 62 23 0 0 0−20 48 73 195 ≥ 30 9−135 Application purposes • For drywall construction • For installation in part- or room-height prewall installations • For installation in room-height installation walls • For wall-hung WCs with connection dimensions in accordance with EN 33:2011 • For wall-hung WCs with projection up to 62 cm • For connecting an odour extracti

Pagina 35-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

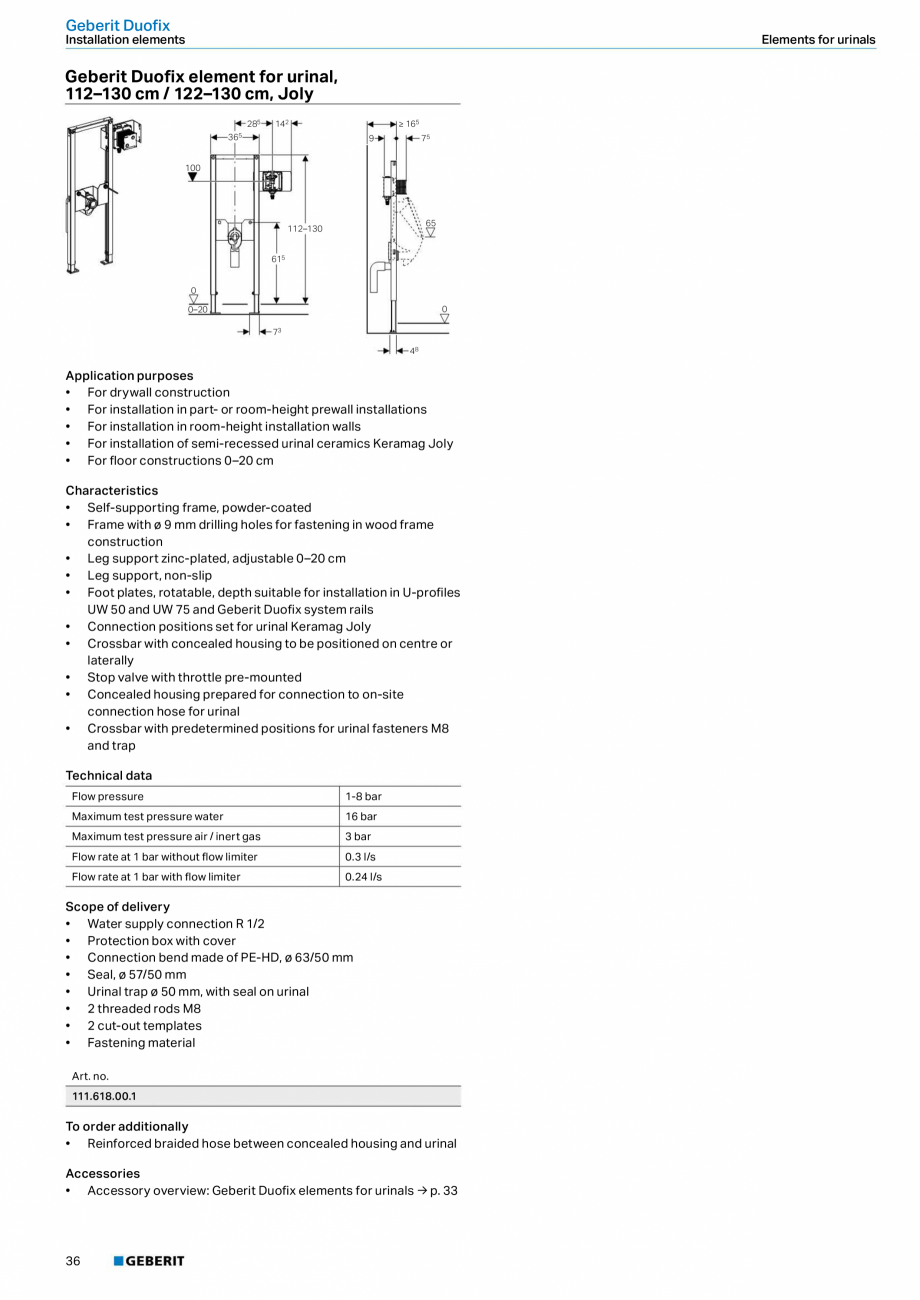

Pagina 36 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

on unit using Geberit actuator plate Sigma40 • For dual flush • For floor constructions 0–20 cm Characteristics • Self-supporting frame, powder-coated • Frame with ø 9 mm drilling holes for fastening in wood frame construction • Frame prepared for support brackets for WC ceramic appliances with small contact surfaces • Leg support zinc-plated, adjustable 0–20 cm • Leg support, non-slip • Foot plates, rotatable, depth suitable for installation in U-profiles UW 50 and UW 75 and Geberit Duofix system rails • Connection bend can be mounted without tools at different depths, adjustable range 45 mm • Fastening for connection bend, sound-absorbing • Concealed cistern with front actuation, fully insulated against condensation • Can be used without odour extraction unit for dual flush, single flush or stop-and-go flush • Immediate post flush possible with factory setting • Concealed cistern prepared for odour extraction unit with recirculating air • Tool-free

Pagina 36-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 37 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

installation and maintenance work on concealed cistern • Water supply connection at the top, offset to left side • Protection box for service opening can be cut to length • Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets • Concealed outlet for power supply unit can be clamped in the drilling hole of the panelling • Conduit pipe for electrical connection, 1.6 m, pre-mounted on cistern Technical data Flow pressure 0.1-10 bar Flush volume factory setting 6 and 3 l Flush volume large adjustment range 4.5 / 6 / 7.5 l Flush volume small adjustment range 3-4 l Scope of delivery • Water supply connection R 1/2, compatible with MeplaFix, with integrated angle stop valve and hand wheel • Protection box for service opening • 2 protection plugs • Connection set for WC, ø 90 mm • Connection bend 90° made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • 2 threaded rods M12 • Concealed outlet for drillin

Pagina 37-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

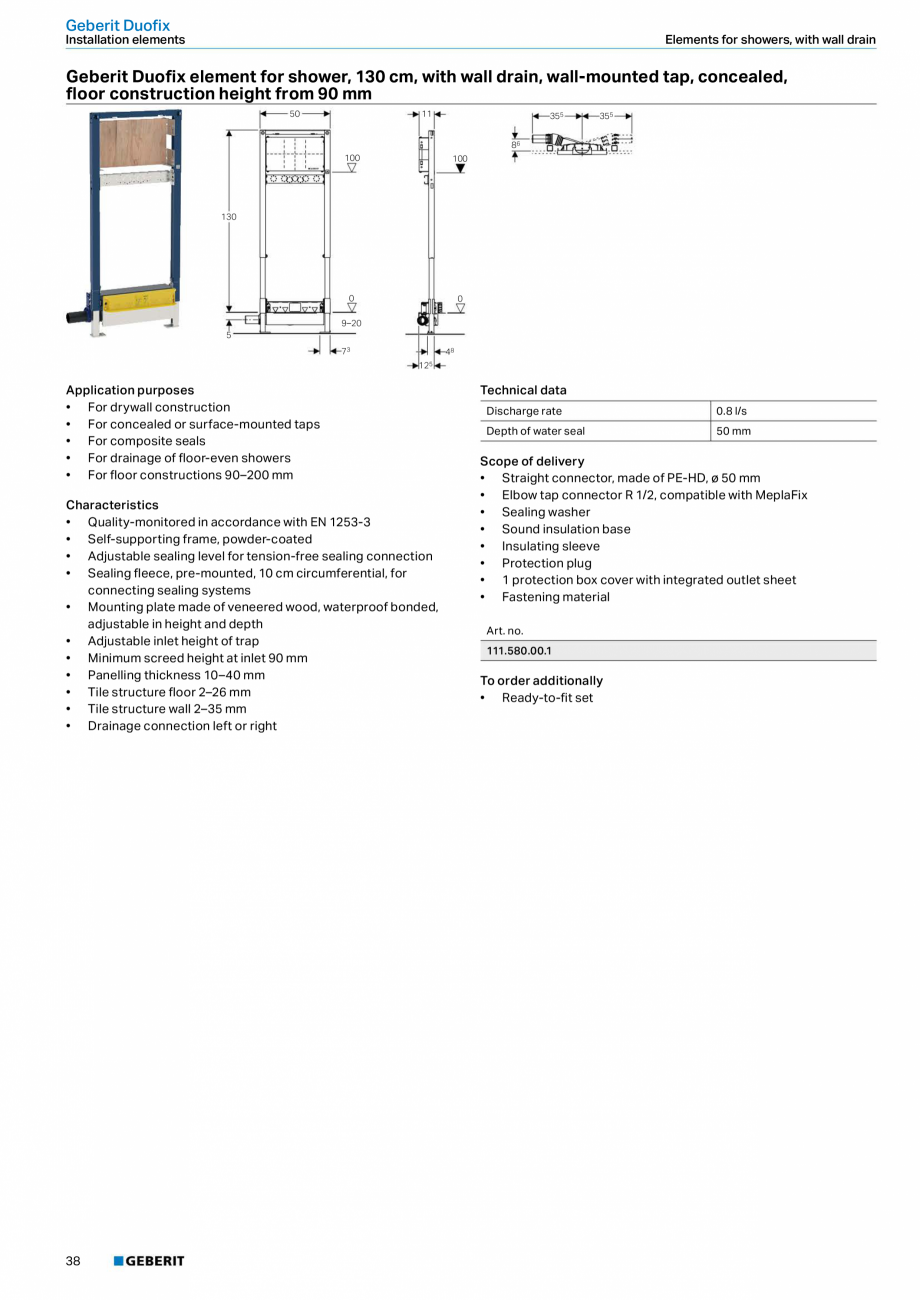

Pagina 38 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

g hole ø 76 mm, for power supply unit • Fastening material Art. no. 111.370.00.5 Accessories • Accessory overview: Geberit Duofix elements for WCs → p. 20 • Actuator plate has to be ordered separately 23 Geberit Duofix Installation elements Elements for WCs Geberit Duofix element for wall-hung WC, 112 cm, with Sigma concealed cistern 12 cm, corner construction 53−76 R½ 128 6 100 100 112 18/23 5 5 +2 ≤ 62 1045 41 −1 23 0 0 0−20 9 48 195 11 ≥ 30 Application purposes • For drywall construction • For installation in part- or room-height prewall installations • For free-standing installation with wall fixation on one side • For wall-hung WCs with connection dimensions in accordance with EN 33:2011 • For wall-hung WCs with projection up to 62 cm • For single flush, dual flush or stop-and-go flush • For floor constructions 0–20 cm Characteristics • Self-supporting frame, powder-coated • Variable wall fixture 30°–60°, can be

Pagina 38-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

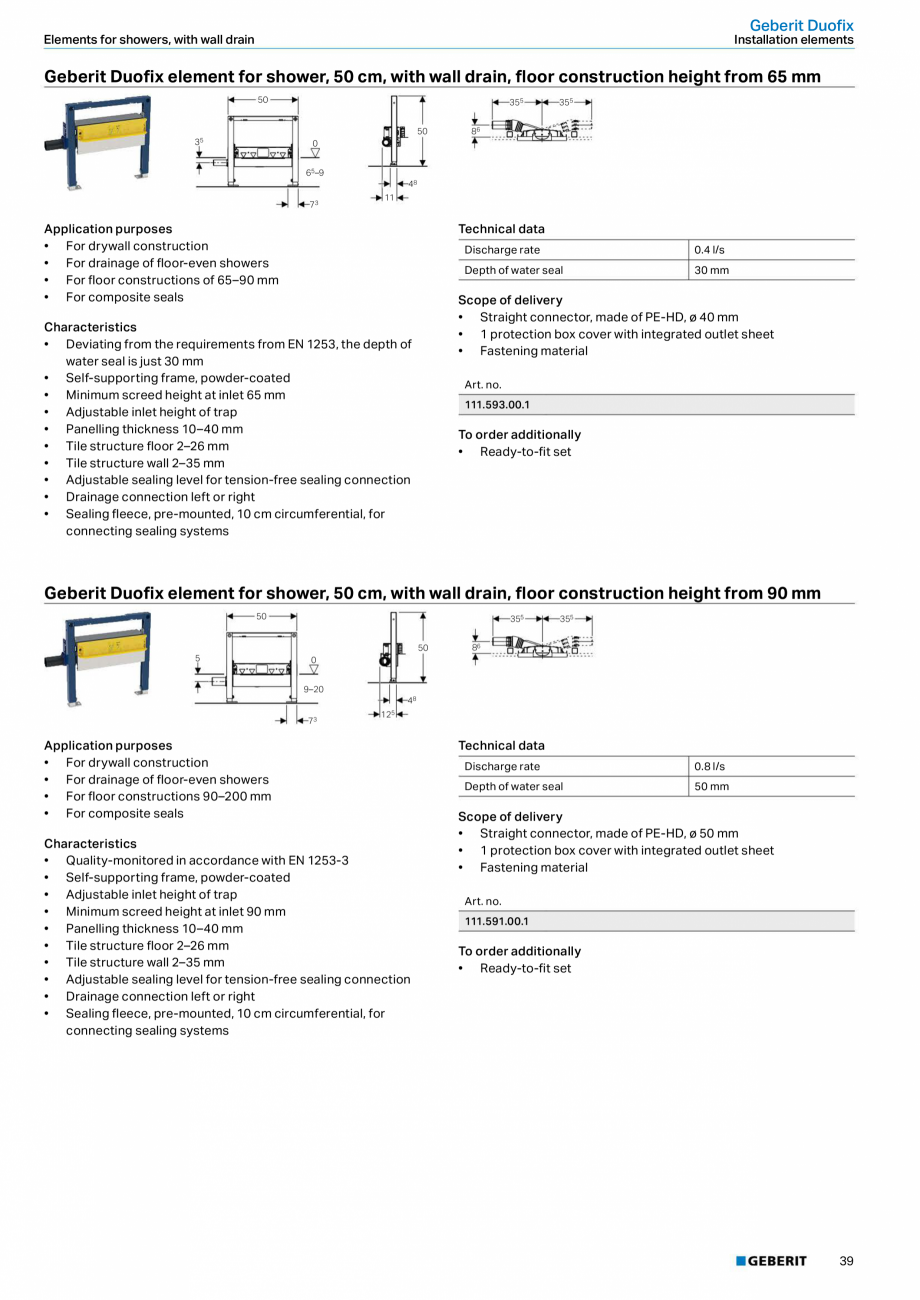

Pagina 39 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

pulled out 10 cm on both sides • Integrated panelling support at front, top and sides, extendible • Minimum and maximum dimensions for floor area: W = 56 / 76 cm, D = 28 / 38 cm, leg length = 39.6 / 53.7 cm • Frame suitable for WC ceramic appliances with small contact surface • Leg support zinc-plated, adjustable 0–20 cm • Leg support not on the perimeter for lateral offset of discharge pipe • Straight connector can be mounted without tools • Fastening for straight connector, sound-absorbing • Concealed cistern with front actuation, fully insulated against condensation • Immediate post flush possible with factory setting • Tool-free installation and maintenance work on concealed cistern • Water supply connection on the rear or at the top centre • Protection box for service opening can be cut to length • Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets 24 Technical data Flow pressure 0.1-10 bar Flush volu

Pagina 39-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 40 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

me factory setting 6 and 3 l Flush volume large adjustment range 4.5 / 6 / 7.5 l Flush volume small adjustment range 3-4 l Scope of delivery • Water supply connection R 1/2, compatible with MeplaFix, with integrated angle stop valve and hand wheel • Protection box for service opening • Connection set for WC, ø 90 mm • Straight connector made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • 2 protection plugs • 2 threaded rods M12 • Concealed outlet for drilling hole ø 68 mm, for electrical connection • Fastening material • Connection for single-side wall fixation Art. no. 111.390.00.5 Accessories • Accessory overview: Geberit Duofix elements for WCs → p. 20 • Actuator plate has to be ordered separately Geberit Duofix Elements for WCs Installation elements Geberit Duofix element for wall-hung WC, 112 cm, with Sigma concealed cistern 8 cm 8 59 R½ 1–5 98 100 135 18/23 5 112 5 ≤ 62 41+2 –1 98 23 0 0 0 0–12 0�

Pagina 40-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 41 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

�12 0–12 48 9 45 ≥ 34 16 Application purposes • For drywall construction • For installation in part- or room-height prewall installations • For installation in room-height installation walls • For wall-hung WCs with connection dimensions in accordance with EN 33:2011 • For wall-hung WCs with projection up to 62 cm • For single flush, dual flush or stop-and-go flush • For floor constructions 0–12 cm Characteristics • Self-supporting frame, powder-coated • Frame with ø 9 mm drilling holes for fastening in wood frame construction • Leg support, zinc-plated, infinitely variable in height • Leg support, non-slip • Foot plate depth suitable for installation in U-profiles UW 50 and Geberit Duofix system rails • Connection bend can be installed without tools at different depths • Connection bend can be mounted vertically with front flush • Waste connector bend, extended, for connection in floor • Fastening for connection bend, sound-absorbing • Conc

Pagina 41-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 42 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

ealed cistern with front actuation, fully insulated against condensation • Immediate post flush possible with factory setting • Tool-free installation and maintenance work on concealed cistern • Water supply connection at the top, offset to left side • Protection box for service opening can be cut to length • Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets Technical data Flow pressure 0.1-10 bar Flush volume factory setting 6 and 3 l Flush volume large adjustment range 6/9l Flush volume small 3l Scope of delivery • Water supply connection R 1/2, compatible with MeplaFix, with integrated angle stop valve and hand wheel • Protection box for service opening • 2 protection plugs • 2 wall anchorings • Connection set for WC, ø 90 mm • Connection bend 90° made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • 2 threaded rods M12 • Fastening material Art. no. 111.726.00.1 Accessories • Accesso

Pagina 42-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

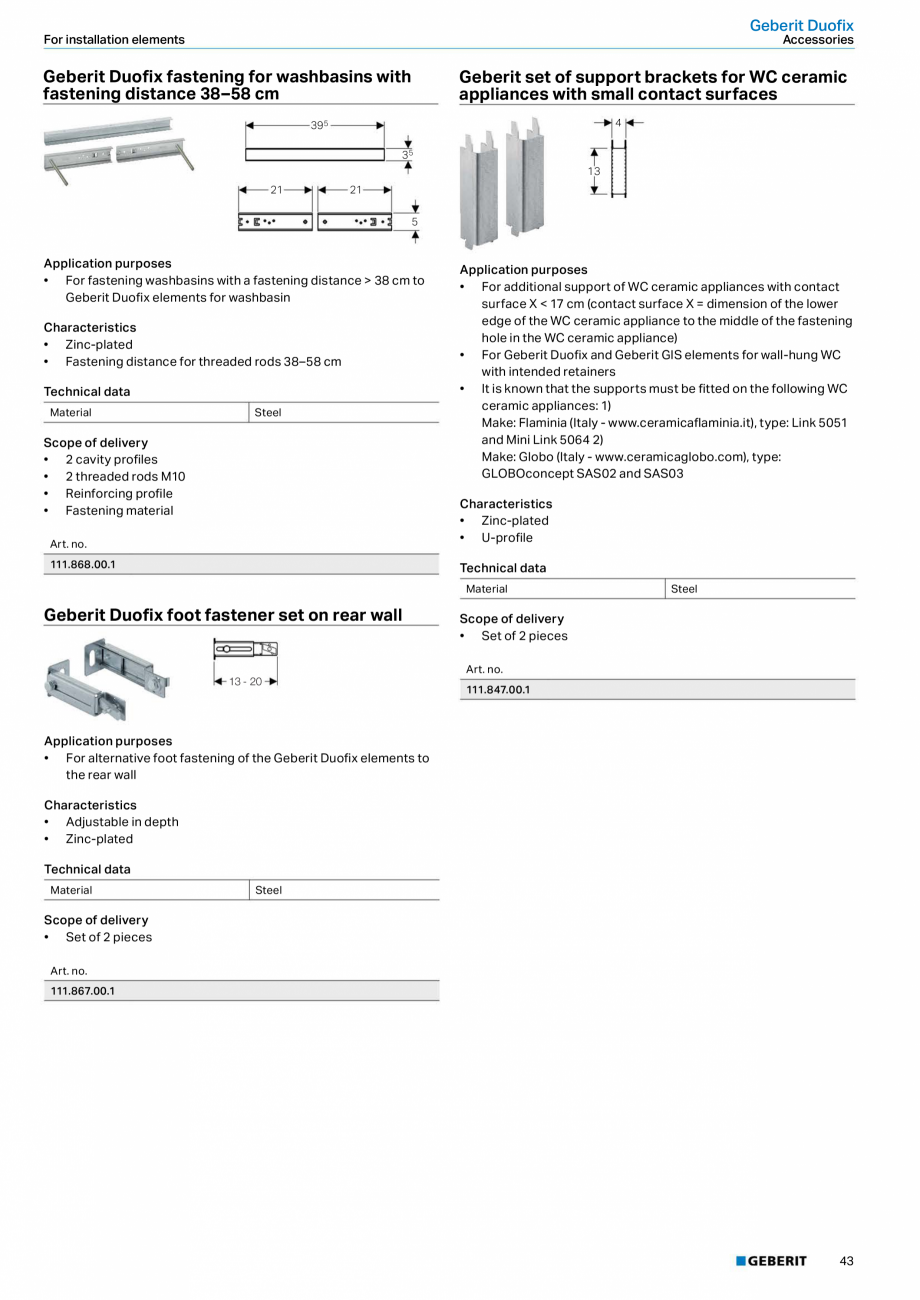

Pagina 43 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

ry overview: Geberit Duofix elements for WCs → p. 20 • Actuator plate has to be ordered separately 25 Geberit Duofix Installation elements Elements for WCs Geberit Duofix element for wall-hung WC, 82 cm, with Omega concealed cistern 12 cm 50 14 ≤ 91 17 7 45 75 R½ 18/23 5 5 ≤ 62 82 +2 40 −1 76 22 32 0 0 0−20 73 195 ≥ 30 48 9–135 Application purposes • For drywall construction • For installation in part-height prewall installations • For wall-hung WCs with connection dimensions in accordance with EN 33:2011 • For wall-hung WCs with projection up to 62 cm • For dual flush • For floor constructions 0–20 cm Characteristics • Self-supporting frame, powder-coated • Frame with ø 9 mm drilling holes for fastening in wood frame construction • Frame prepared for support brackets for WC ceramic appliances with small contact surfaces • Leg support zinc-plated, adjustable 0–20 cm • Leg support, non-slip • Foot plates, rotatable

Pagina 43-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

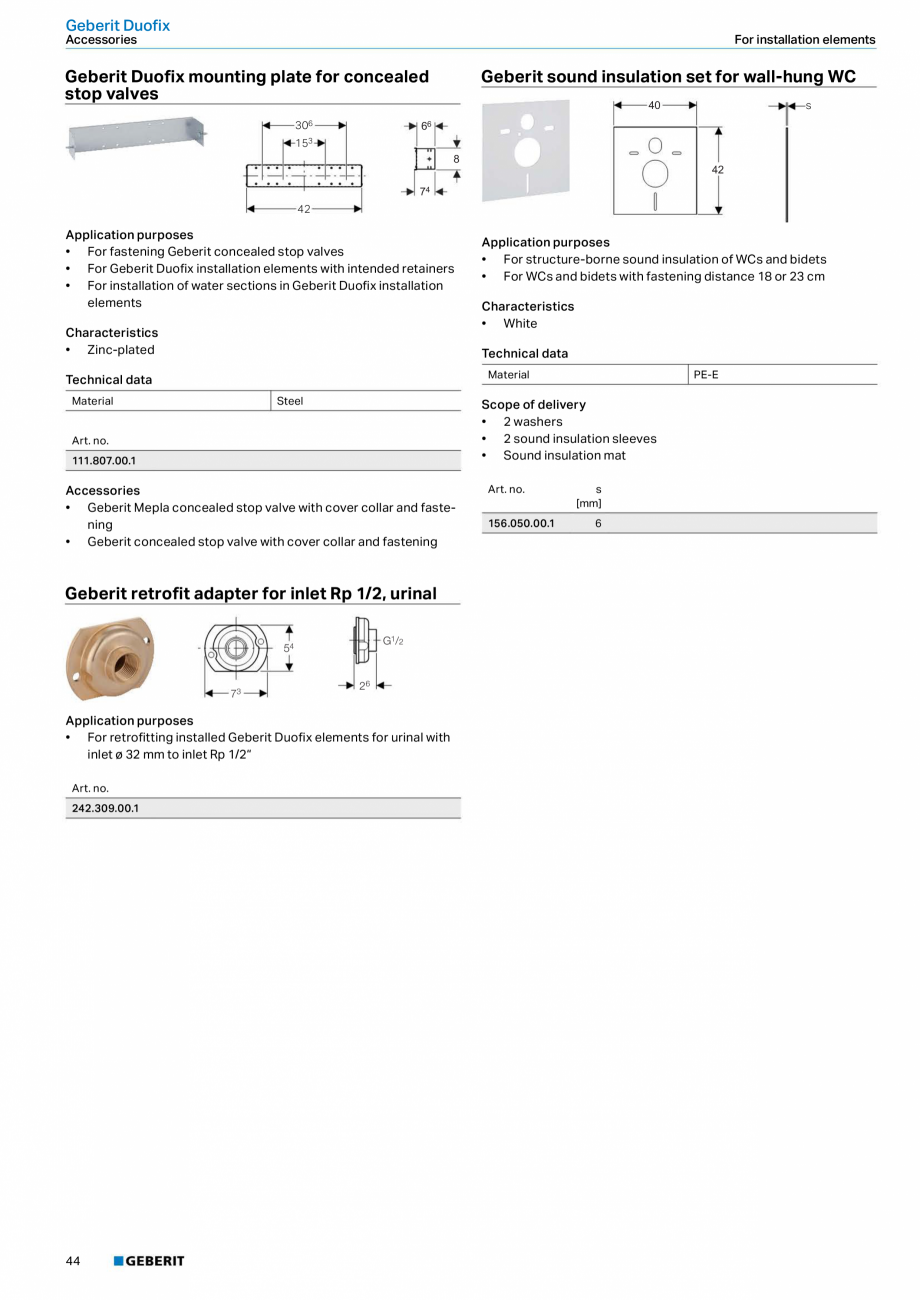

Pagina 44 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

, depth suitable for installation in U-profiles UW 50 and UW 75 and Geberit Duofix system rails • Connection bend can be mounted without tools at different depths, adjustable range 45 mm • Fastening for connection bend, sound-absorbing • Concealed cistern with top or front actuation, fully insulated against condensation • Immediate post flush possible with factory setting • Tool-free installation and maintenance work on concealed cistern • Water supply connection left or on rear left • Protection box for service opening can be cut to length • Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets 26 Technical data Flow pressure 0.1-10 bar Flush volume factory setting 6 and 3 l Flush volume large adjustment range 4.5 / 6 / 7.5 l Flush volume small adjustment range 3-4 l Scope of delivery • Water supply connection R 1/2, compatible with MeplaFix, with integrated angle stop valve and hand wheel • Protection box for service

Pagina 44-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 45 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

opening • Connection set for WC, ø 90 mm • Connection bend 90° made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • 2 protection plugs • 2 threaded rods M12 • Fastening material Art. no. 111.003.00.1 Accessories • Accessory overview: Geberit Duofix elements for WCs → p. 20 • Actuator plate has to be ordered separately Geberit Duofix Elements for WCs Installation elements Geberit Duofix element for wall-hung WC, 98 cm, with Omega concealed cistern 12 cm 50 ≤ 107 17 14 7 45 91 R½ 18/23 5 98 5 92 +2 41 −1 ≤ 62 23 33 0 0 0−20 73 48 195 ≥ 30 9–135 Application purposes • For drywall construction • For installation in part-height prewall installations • For wall-hung WCs with connection dimensions in accordance with EN 33:2011 • For wall-hung WCs with projection up to 62 cm • For dual flush • For floor constructions 0–20 cm Characteristics • Self-supporting frame, powder-coated • Frame with ø 9

Pagina 45-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 46 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

mm drilling holes for fastening in wood frame construction • Frame prepared for support brackets for WC ceramic appliances with small contact surfaces • Leg support zinc-plated, adjustable 0–20 cm • Leg support, non-slip • Foot plates, rotatable, depth suitable for installation in U-profiles UW 50 and UW 75 and Geberit Duofix system rails • Connection bend can be mounted without tools at different depths, adjustable range 45 mm • Fastening for connection bend, sound-absorbing • Concealed cistern with top or front actuation, fully insulated against condensation • Immediate post flush possible with factory setting • Tool-free installation and maintenance work on concealed cistern • Water supply connection left or on rear left • Protection box for service opening can be cut to length • Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets Technical data Flow pressure 0.1-10 bar Flush volume factory setting 6 and 3 l Flu

Pagina 46-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

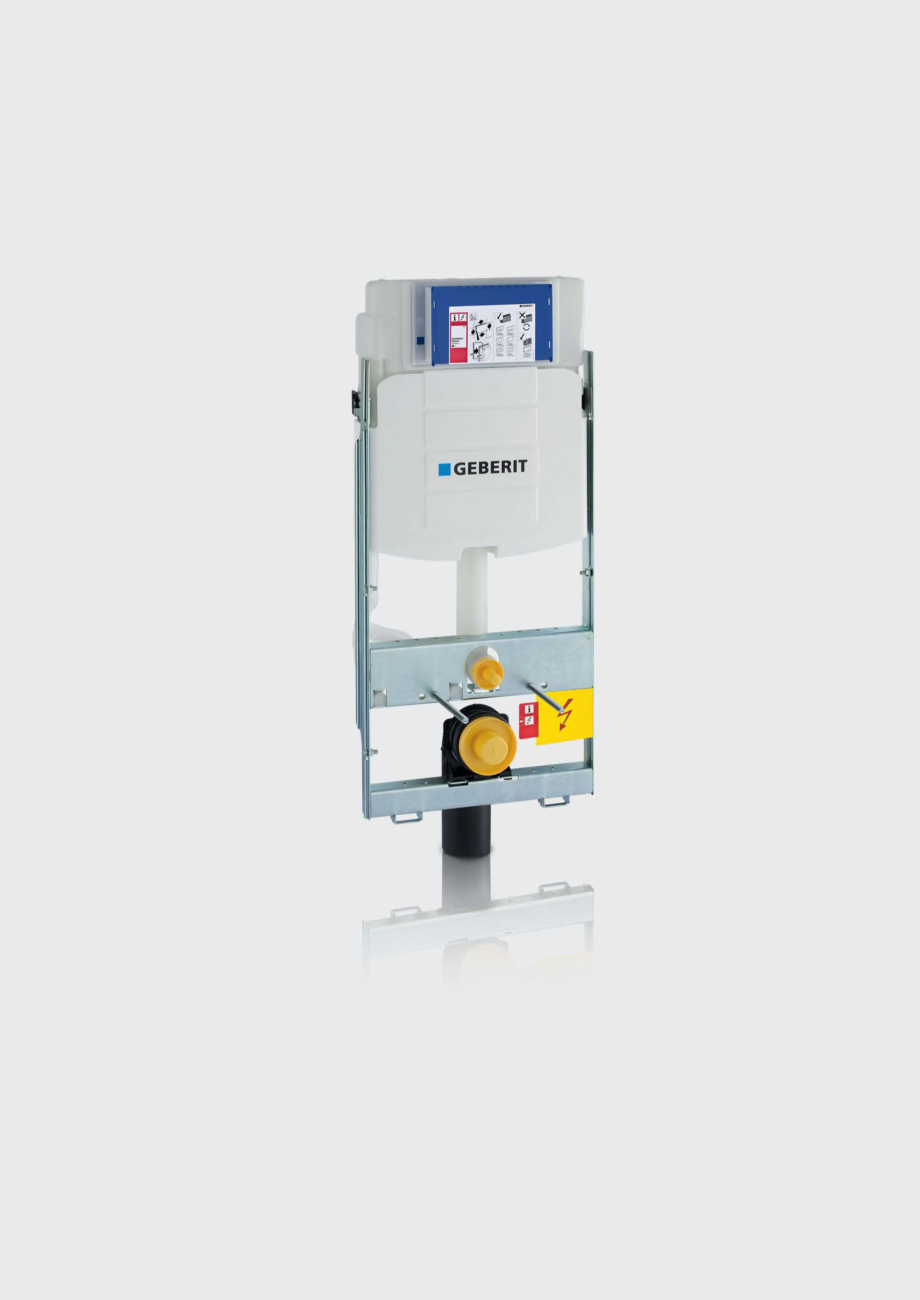

Pagina 47 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

sh volume large adjustment range 4.5 / 6 / 7.5 l Flush volume small adjustment range 3-4 l Scope of delivery • Water supply connection R 1/2, compatible with MeplaFix, with integrated angle stop valve and hand wheel • Protection box for service opening • Connection set for WC, ø 90 mm • Connection bend 90° made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • 2 protection plugs • 2 threaded rods M12 • Fastening material Art. no. 111.030.00.1 Accessories • Accessory overview: Geberit Duofix elements for WCs → p. 20 • Actuator plate has to be ordered separately 27 Geberit Duofix Installation elements Elements for WCs N ew Geberit Duofix element for wall-hung WC, 112 cm, with Omega concealed cistern 12 cm 50 45 12 9 R½ 100 18/23 5 112 5 101 23 ≤ 62 +2 41 −1 33 0 0 0−20 73 195 ≥ 30 48 9–135 Application purposes • For drywall construction • For installation in part- or room-height prewall installations •

Pagina 47-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

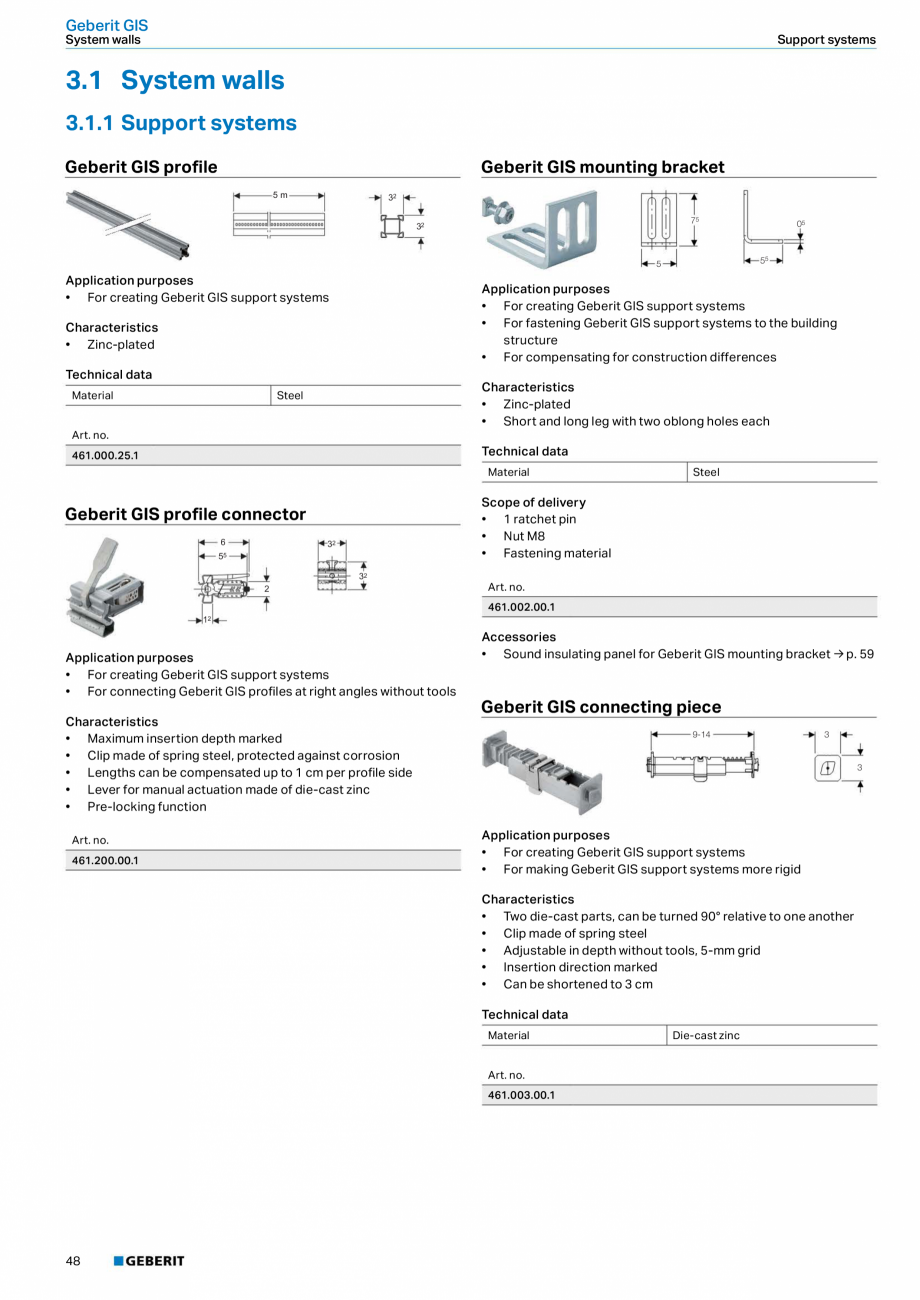

Pagina 48 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

For installation in room-height installation walls • For wall-hung WCs with connection dimensions in accordance with EN 33:2011 • For wall-hung WCs with projection up to 62 cm • For dual flush • For floor constructions 0–20 cm Characteristics • Self-supporting frame, powder-coated • Frame with ø 9 mm drilling holes for fastening in wood frame construction • Frame prepared for support brackets for WC ceramic appliances with small contact surfaces • Leg support zinc-plated, adjustable 0–20 cm • Leg support, non-slip • Foot plates, rotatable, depth suitable for installation in U-profiles UW 50 and UW 75 and Geberit Duofix system rails • Connection bend can be mounted without tools at different depths, adjustable range 45 mm • Fastening for connection bend, sound-absorbing • Concealed cistern with front actuation, fully insulated against condensation • Immediate post flush possible with factory setting • Tool-free installation and maintenance work on con

Pagina 48-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 49 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

cealed cistern • Water supply connection left or on rear left • Protection box for service opening can be cut to length • Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets 28 Technical data Flow pressure 0.1-10 bar Flush volume factory setting 6 and 3 l Flush volume large adjustment range 4.5 / 6 / 7.5 l Flush volume small adjustment range 3-4 l Scope of delivery • Water supply connection R 1/2, compatible with MeplaFix, with integrated angle stop valve and hand wheel • Protection box for service opening • Connection set for WC, ø 90 mm • Connection bend 90° made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • 2 protection plugs • 2 threaded rods M12 • Fastening material Art. no. 111.060.00.1 Accessories • Accessory overview: Geberit Duofix elements for WCs → p. 20 • Actuator plate has to be ordered separately Geberit Duofix Elements for WCs Installation elements Geberit Duofix e

Pagina 49-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

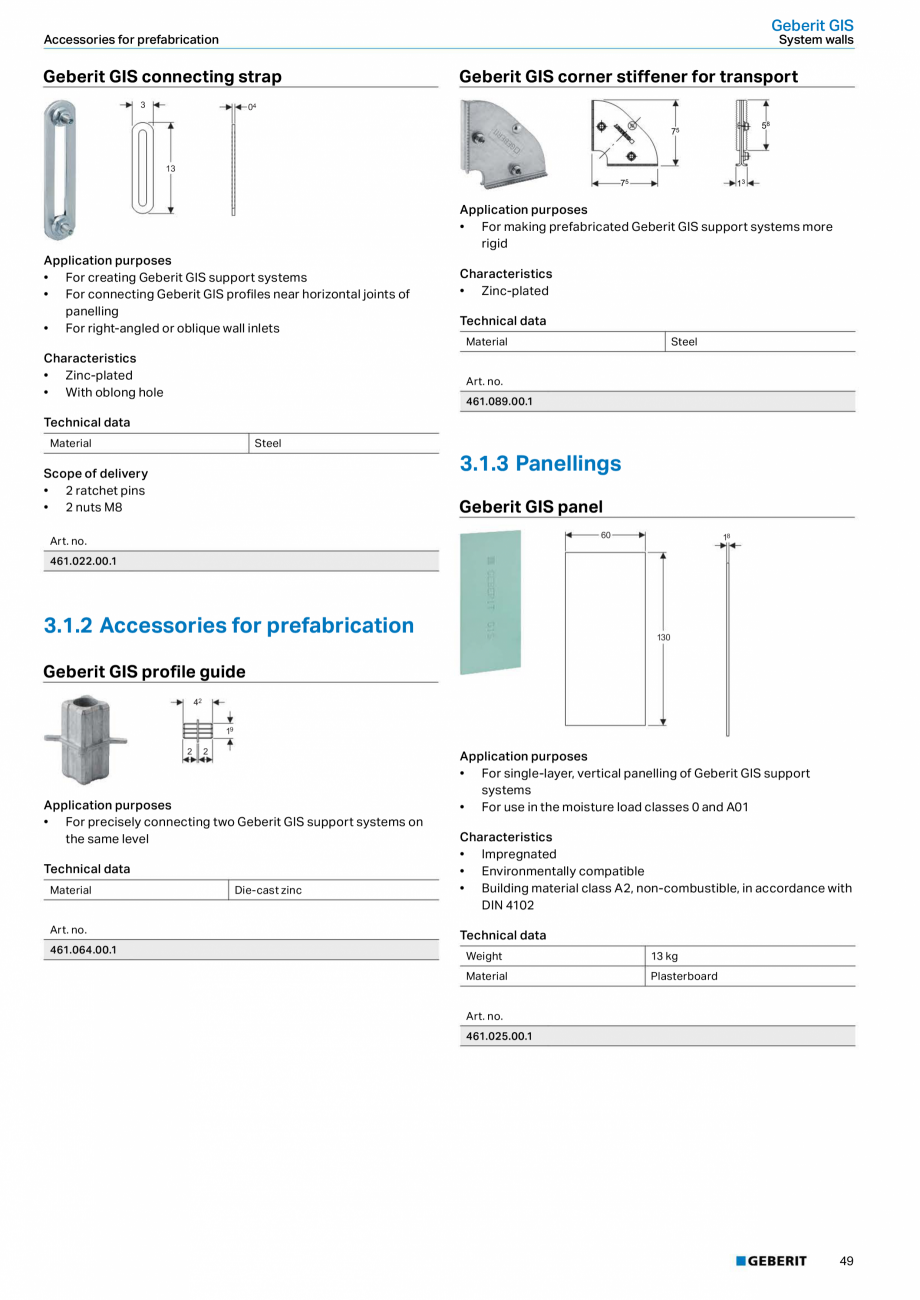

Pagina 50 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

lement for wall-hung WC, 112 cm, with Delta concealed cistern 12 cm, without crossbar for panelling support 50 R1/2 12 1–6 100 100 18/23 112 1045 ≤ 62 +2 41 −1 23 0 0 0–20 0-20 73 48 9/11 (d 90) 10/12 (d 110) Application purposes • For drywall construction • For installation in part- or room-height prewall installations • For installation in room-height installation walls • For wall-hung WCs with connection dimensions in accordance with EN 33:2011 • For wall-hung WCs with projection up to 62 cm • For single flush, dual flush or stop-and-go flush • For floor constructions 0–20 cm Characteristics • Self-supporting frame, powder-coated • Frame with ø 9 mm drilling holes for fastening in wood frame construction • Frame with holes to receive Geberit Duofix wall anchoring for elements without fixed crossbar • Frame prepared for support brackets for WC ceramic appliances with small contact surfaces • Leg support zinc-plated, adjustable 0–20 c

Pagina 50-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 51 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

m • Foot plates made of plastic, depth suitable for installation in Uprofiles UW 50 • Concealed cistern with front actuation, fully insulated against condensation • Immediate post flush possible with factory setting • Water supply connection on the rear or at the top centre Technical data Flow pressure 0.1-10 bar Flush volume factory setting 6 and 3 l Flush volume large adjustment range 6/9l Flush volume small adjustment range 3-4 l Scope of delivery • Angle stop valve R 1/2, with adapter ring • Protection box for service opening, made of polystyrene foam • 2 distance bolts • Connection set for WC, ø 90 mm • Connection bend 90° made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • 2 protection plugs • 2 threaded rods M12 • Fastening material Art. no. 458.160.00.1 Accessories • Accessory overview: Geberit Duofix elements for WCs → p. 20 • Actuator plate has to be ordered separately 29 Geberit Duofix Installation elements

Pagina 51-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 52 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

Elements for washbasins 2.1.2 Elements for washbasins Accessory overview: Geberit Duofix elements for washbasins Fastening for washbasins with fastening distance 38–58 cm 111.490.00.1 Element for washbasin, 82–98 cm, deck-mounted tap Foot fastener set on rear wall Fastening set for stud clearance 50–57.5 cm → p. 207 → p. 41 → p. 43 → p. 42 ü Element for washbasin, 112 cm, deck-mounted tap Wall anchoring set for single installation → p. 43 111.434.00.1 Concealed base unit HANSAVAROX with shut-off ü ü ü ü ü ü ü ü ü ü 111.493.00.1 ü Element for washbasin, 112–130 cm, wall-mounted ü tap, concealed Geberit Duofix element for washbasin, 112 cm, deck-mounted tap 50 75 100 5-38 85 112 7 80 76 153 0 52 306 0 0-20 73 48 Application purposes • For drywall construction • For installation in part- or room-height prewall installations • For installation in room-height installation walls • For installation of washbasins

Pagina 52-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

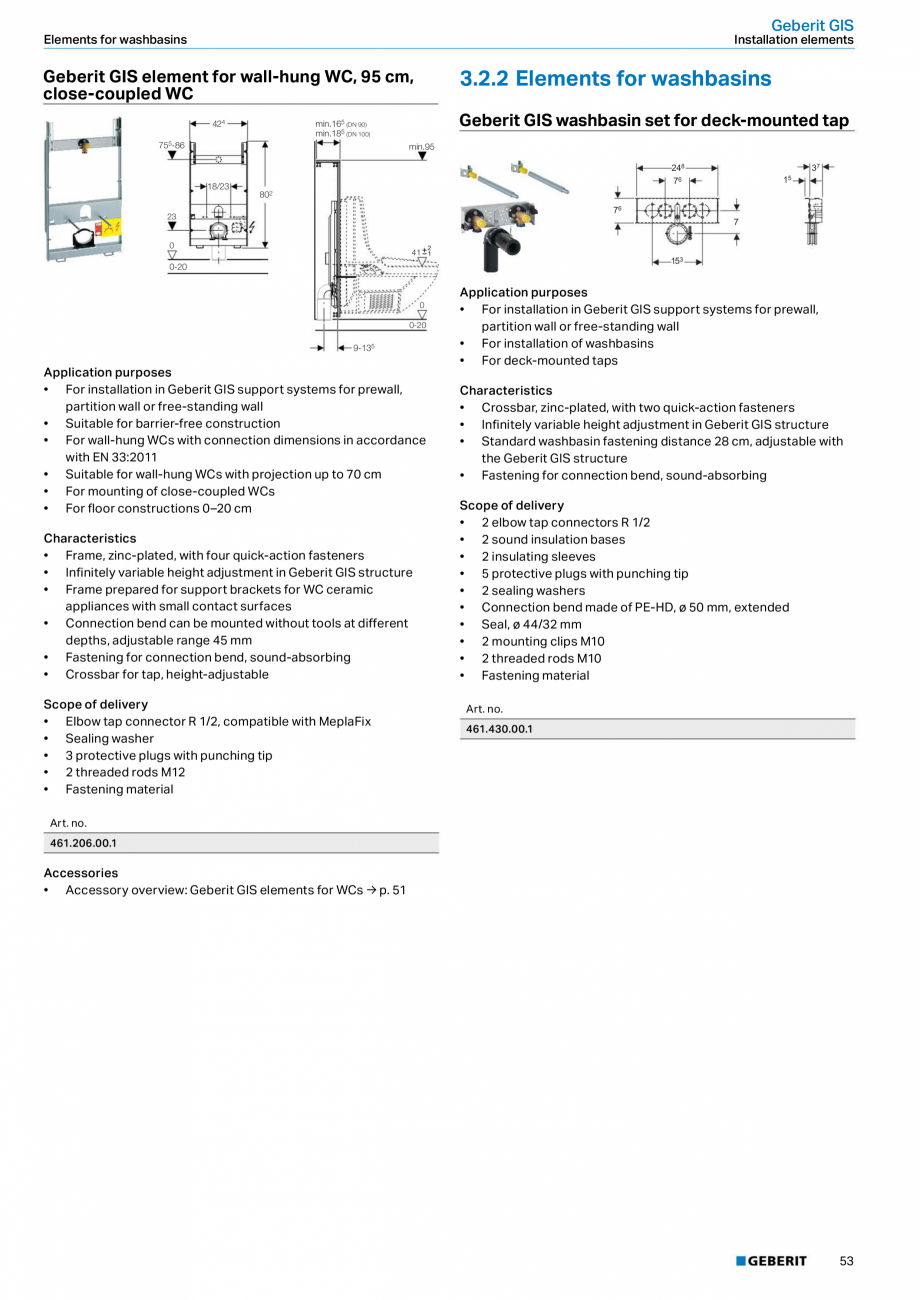

Pagina 53 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

• For deck-mounted taps • For floor constructions 0–20 cm Characteristics • Self-supporting frame, powder-coated • Frame with ø 9 mm drilling holes for fastening in wood frame construction • Leg support zinc-plated, adjustable 0–20 cm • Leg support, non-slip • Foot plates, rotatable, depth suitable for installation in U-profiles UW 50 and UW 75 and Geberit Duofix system rails • Fastening distance for washbasin 5–38 cm • Fastening for connection bend, height-adjustable and sound-absorbing • Crossbar for tap adjustable in height and depth 30 Scope of delivery • Connection bend made of PE-HD, ø 50 mm • Seal, ø 44/32 mm • 2 threaded rods M10 • Fastening material Art. no. 111.434.00.1 Accessories • Accessory overview: Geberit Duofix elements for washbasins → p. 30 Geberit Duofix Elements for washbasins Installation elements Geberit Duofix element for washbasin, 82–98 cm, deck-mounted tap 50 Geberit Duofix element for washbasin, 112–130 c

Pagina 53-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 54 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

m, wall-mounted tap, concealed 11 50 75 5-38 85 85 5-38 7 76 153 0 98 80 (82) 112-130 80 52 52 0 306 0 0 0-20 0-20 48 73 Application purposes • For drywall construction • For installation in part-height prewall installations • For installation of washbasins • For deck-mounted taps • For floor constructions 0–20 cm Characteristics • Self-supporting frame, powder-coated • Frame with ø 9 mm drilling holes for fastening in wood frame construction • Leg support zinc-plated, adjustable 0–20 cm • Leg support, non-slip • Foot plates, rotatable, depth suitable for installation in U-profiles UW 50 and UW 75 and Geberit Duofix system rails • Fastening distance for washbasin 5–38 cm • Fastening for connection bend, height-adjustable and sound-absorbing • Crossbar for tap adjustable in height and depth Scope of delivery • Connection bend made of PE-HD, ø 50 mm • Seal, ø 44/32 mm • 2 threaded rods M10 • Fastening material Art. no. 111.490.

Pagina 54-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 55 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

00.1 Accessories • Accessory overview: Geberit Duofix elements for washbasins → p. 30 73 48 Application purposes • For drywall construction • For installation in part- or room-height prewall installations • For installation in room-height installation walls • For installation of washbasins • For concealed taps • For floor constructions 0–20 cm Characteristics • Self-supporting frame, powder-coated • Frame with ø 9 mm drilling holes for fastening in wood frame construction • Leg support zinc-plated, adjustable 0–20 cm • Leg support, non-slip • Foot plates, rotatable, depth suitable for installation in U-profiles UW 50 and UW 75 and Geberit Duofix system rails • Fastening distance for washbasin 5–38 cm • Mounting plate made of veneered wood, waterproof bonded, adjustable in height and depth • Fastening for connection bend, height-adjustable and sound-absorbing Scope of delivery • Connection bend made of PE-HD, ø 50 mm • Seal, ø 44/32 mm �

Pagina 55-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 56 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

� 2 threaded rods M10 • Fastening material Art. no. 111.493.00.1 Accessories • Accessory overview: Geberit Duofix elements for washbasins → p. 30 31 Geberit Duofix Installation elements Elements for bidets 2.1.3 Elements for bidets Geberit Duofix element for bidet, 112 cm, Universal 50 4 100 112 8-38 18/23 0 0 0-20 0-20 48 73 10 Application purposes • For drywall construction • For installation in part- or room-height prewall installations • For installation in room-height installation walls • For wall-hung bidets with deck-mounted tap • For floor constructions 0–20 cm Characteristics • Self-supporting frame, powder-coated • Frame with ø 9 mm drilling holes for fastening in wood frame construction • Leg support zinc-plated, adjustable 0–20 cm • Leg support, non-slip • Foot plates, rotatable, depth suitable for installation in U-profiles UW 50 and UW 75 and Geberit Duofix system rails • Fastening distance for wall-hung bidet 18 or 23 cm,

Pagina 56-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 57 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

bidet fastening height-adjustable • Fastening for connection bend, height-adjustable and sound-absorbing • Tap attachments adjustable in width and height Geberit Duofix element for bidet, 98 cm, Universal 8-38 4 98 0 0 0-20 0-20 73 111.539.00.1 Geberit Duofix element for bidet, 82 cm, Universal 4 50 8-38 18/23 82 0 0 0-20 0-20 48 Application purposes • For drywall construction • For installation in part-height prewall installations • For wall-hung bidets with deck-mounted tap • For floor constructions 0–20 cm 111.520.00.1 18/23 Art. no. 10 Art. no. 50 Scope of delivery • Connection bend made of PE-HD, ø 50 mm • Seal, ø 44/32 mm • 2 threaded rods M12 • Fastening material 73 Scope of delivery • Connection bend made of PE-HD, ø 50 mm • Seal, ø 44/32 mm • 2 threaded rods M12 • Fastening material 48 10 Application purposes • For drywall construction • For installation in part-height prewall installations • For wall-hung bid

Pagina 57-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 58 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

ets with deck-mounted tap • For floor constructions 0–20 cm 32 Characteristics • Self-supporting frame, powder-coated • Frame with ø 9 mm drilling holes for fastening in wood frame construction • Leg support zinc-plated, adjustable 0–20 cm • Leg support, non-slip • Foot plates, rotatable, depth suitable for installation in U-profiles UW 50 and UW 75 and Geberit Duofix system rails • Fastening distance for wall-hung bidet 18 or 23 cm, bidet fastening height-adjustable • Fastening for connection bend, height-adjustable and sound-absorbing • Tap attachments adjustable in width and height Characteristics • Self-supporting frame, powder-coated • Frame with ø 9 mm drilling holes for fastening in wood frame construction • Leg support zinc-plated, adjustable 0–20 cm • Leg support, non-slip • Foot plates, rotatable, depth suitable for installation in U-profiles UW 50 and UW 75 and Geberit Duofix system rails • Fastening distance for wall-hung bidet 18 or

Pagina 58-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 59 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

23 cm, bidet fastening height-adjustable • Fastening for connection bend, height-adjustable and sound-absorbing • Tap attachments adjustable in width and height Scope of delivery • Connection bend made of PE-HD, ø 50 mm • Seal, ø 44/32 mm • 2 threaded rods M12 • Fastening material Art. no. 111.524.00.1 Geberit Duofix Elements for urinals Installation elements 2.1.4 Elements for urinals Accessory overview: Geberit Duofix elements for urinals Urinal flush controls with electronic flush actuation, battery operation Urinal flush controls with electronic flush actuation, mains operation Urinal flush controls with pneumatic flush actuation Urinal flush control with electronic flush actuation, mains operation, hidden, Universal Inlet crossbar for urinal, with spray head Wall anchoring set for single installation Wall anchoring set for single installation, for elements without fixed crossbar Foot fastener set on rear wall Fastening set for stud clearance 50–57.5 cm

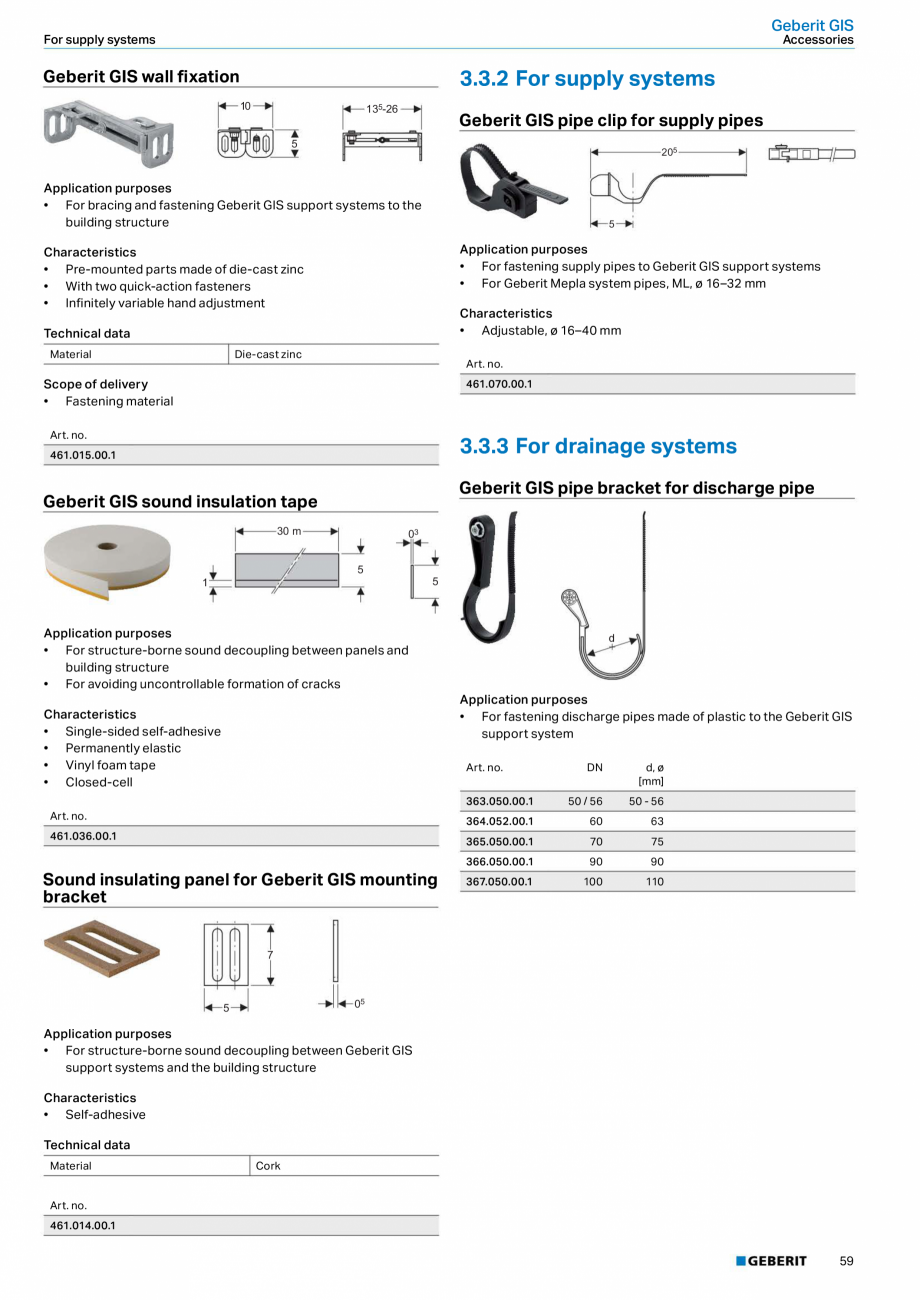

Pagina 59-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

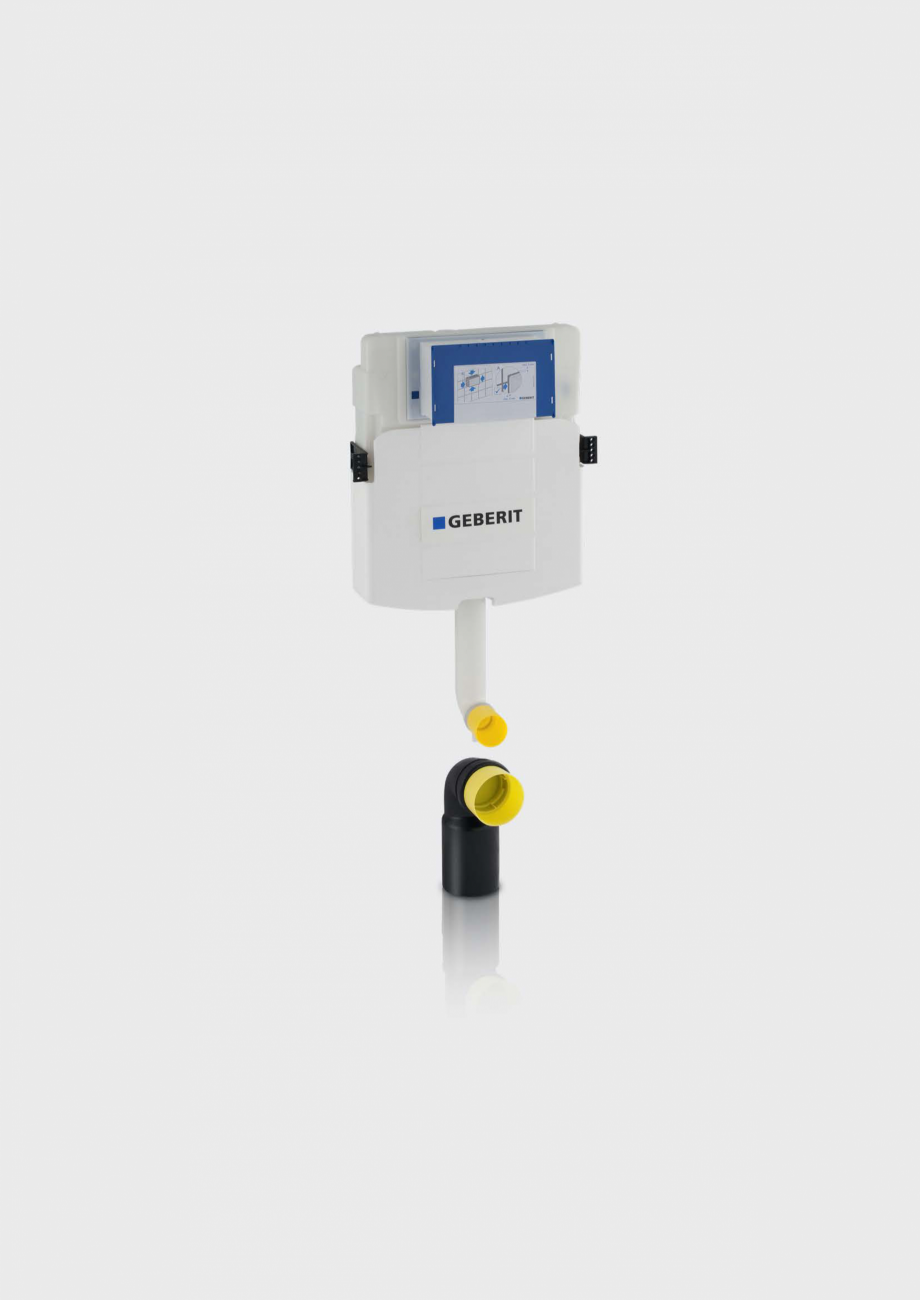

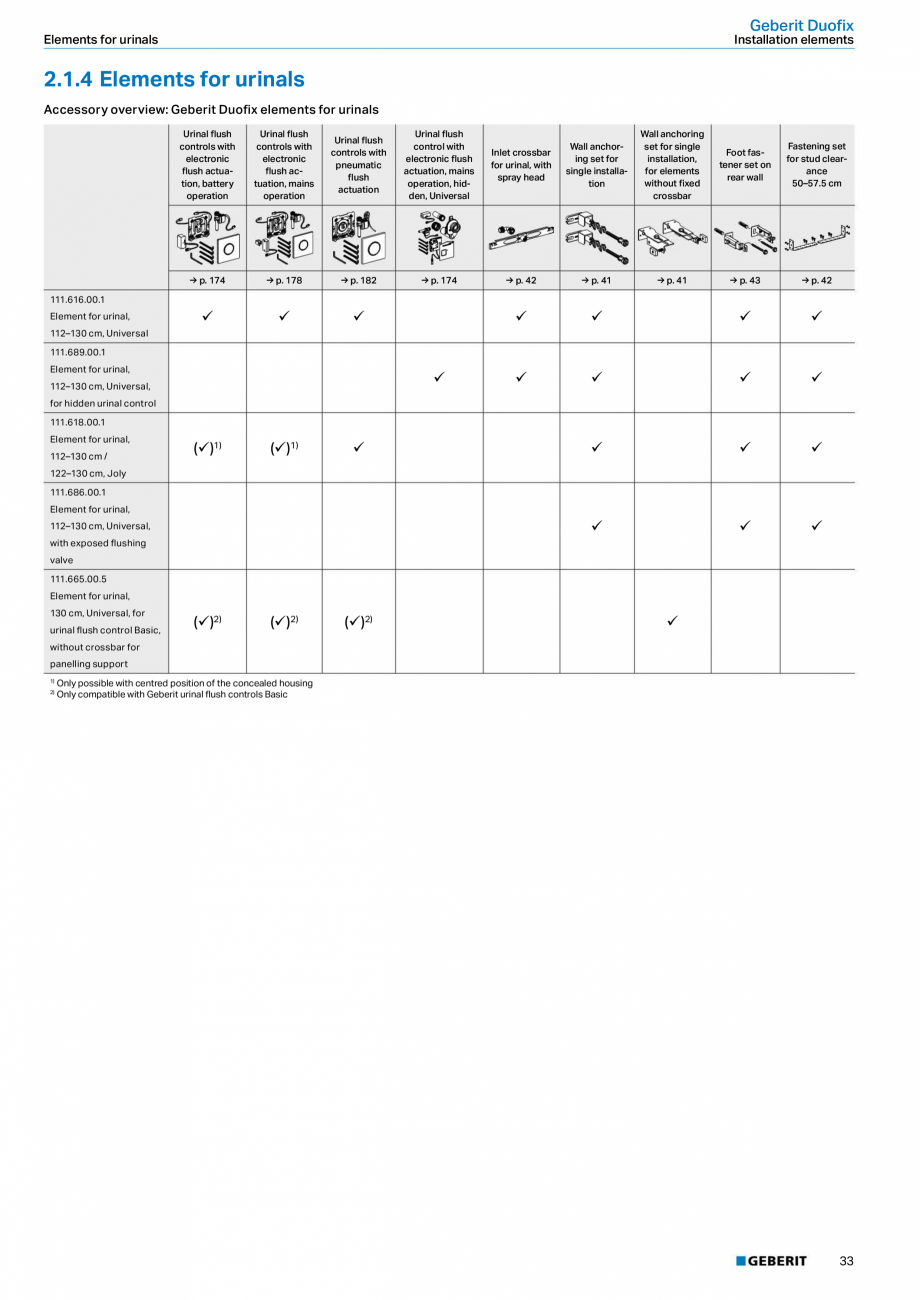

Pagina 60 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

→ p. 174 → p. 178 → p. 182 → p. 174 → p. 42 → p. 41 → p. 41 → p. 43 → p. 42 ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü 111.616.00.1 Element for urinal, 112–130 cm, Universal 111.689.00.1 Element for urinal, ü 112–130 cm, Universal, for hidden urinal control 111.618.00.1 Element for urinal, 112–130 cm / (ü)1) (ü)1) ü 122–130 cm, Joly 111.686.00.1 Element for urinal, 112–130 cm, Universal, with exposed flushing valve 111.665.00.5 Element for urinal, 130 cm, Universal, for urinal flush control Basic, (ü)2) (ü)2) (ü)2) ü without crossbar for panelling support 1) 2) Only possible with centred position of the concealed housing Only compatible with Geberit urinal flush controls Basic 33 Geberit Duofix Installation elements Elements for urinals Geberit Duofix element for urinal, 130 cm, Universal, for urinal flush control Basic, without crossbar for panelling support 50 R½ 75 Geberit Duofix element for

Pagina 60-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 61 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

urinal, 112–130 cm, Universal 50 10 100-117 13-30 75 9 100-118 12-32 R1/2 17-37 min. 9 100 26-38 75-33 112-130 max. 65 75-33 130 0 0-20 0-20 Application purposes • For drywall construction • For installation in part- or room-height prewall installations • For installation in room-height installation walls • For floor constructions 0–20 cm Characteristics • Self-supporting frame, powder-coated • Frame with ø 9 mm drilling holes for fastening in wood frame construction • Frame with holes to receive Geberit Duofix wall anchoring for elements without fixed crossbar • Leg support zinc-plated, adjustable 0–20 cm • Foot plates made of plastic, depth suitable for installation in U-profiles UW 50 • Stop valve with throttle pre-mounted • Protection box for service opening 13.5 x 13.5 cm can be cut to length without tools • Fastening for inlet ø 32 mm, height-adjustable • Fastening for connection bend, height-adjustable and soundabsorbing • Urin

Pagina 61-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 62 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

al fasteners M8 width- and height-adjustable • Crossbars with centring marks, adjustable without tools 1-8 bar 16 bar Maximum test pressure air / inert gas 3 bar Flow rate at 1 bar without flow limiter 0.3 l/s Flow rate at 1 bar with flow limiter 0.24 l/s Scope of delivery • Water supply connection R 1/2 • Protection box with cover • Connection pipe between inlet ø 32 mm and urinal, with seal to urinal • 1 protection plug • Connection bend made of PE-HD, ø 63/50 mm • Protective cap • Seal, ø 57/50 mm • Urinal trap ø 50 mm, with seal on urinal • 2 threaded rods M8 • Fastening material Art. no. 111.665.00.5 • 34 73 48 Application purposes • For drywall construction • For installation in part- or room-height prewall installations • For installation in room-height installation walls • For floor constructions 0–20 cm Characteristics • Self-supporting frame, powder-coated • Frame with ø 9 mm drilling holes for fastening in wood frame con

Pagina 62-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

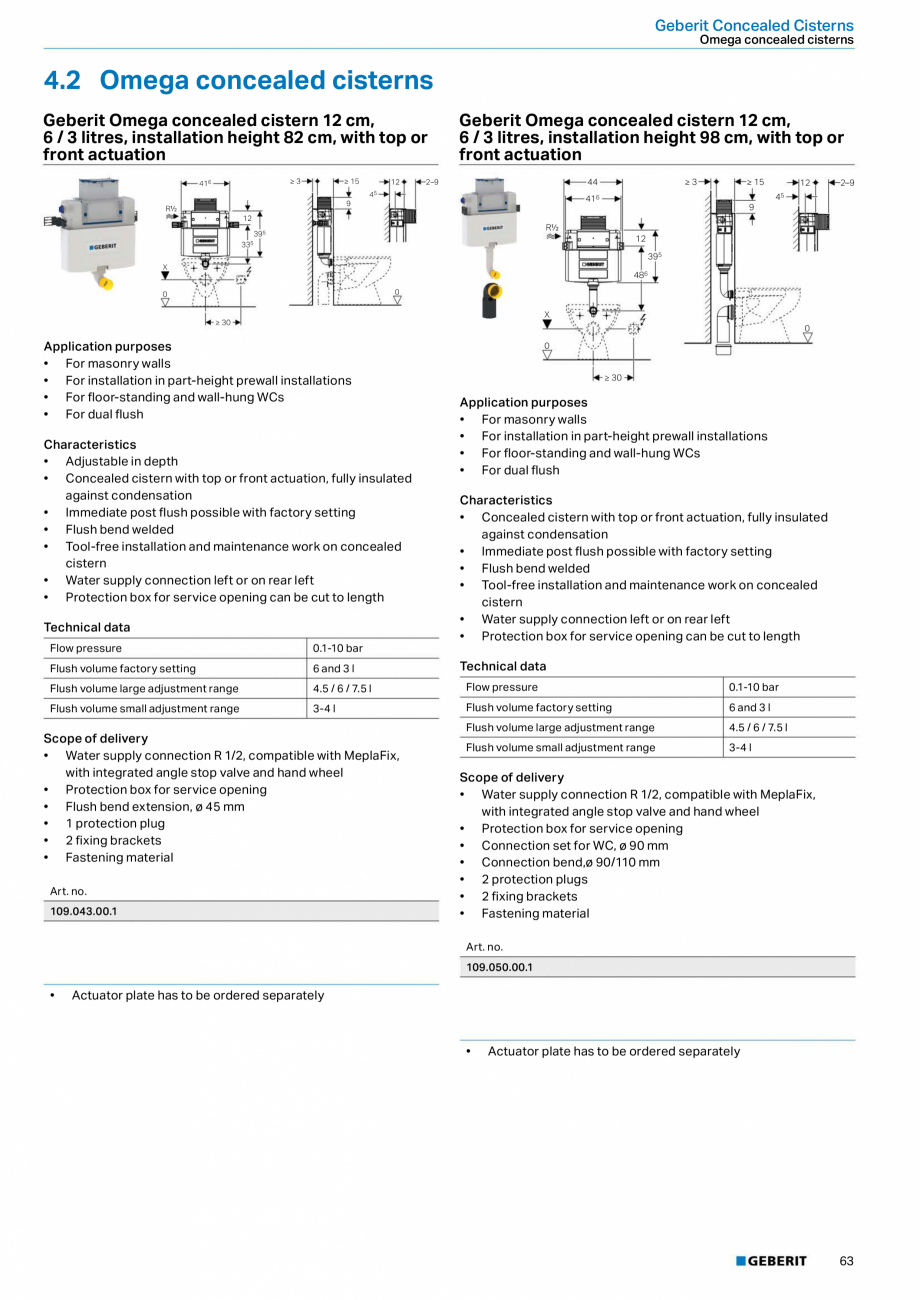

Pagina 63 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

struction • Leg support zinc-plated, adjustable 0–20 cm • Leg support, non-slip • Foot plates, rotatable, depth suitable for installation in U-profiles UW 50 and UW 75 and Geberit Duofix system rails • Stop valve with throttle pre-mounted • Fastening for inlet ø 32 mm, height-adjustable • Fastening for connection bend, height-adjustable and sound-absorbing • Urinal fasteners M8 width- and height-adjustable • Crossbars with centring marks, adjustable without tools • Can be retrofitted with accessories to fit urinals with spray head Technical data Only compatible with art. no. 115.817.xx.5 and 115.818.xx.5 Flow pressure 1-8 bar Maximum test pressure water Technical data Maximum test pressure water 0-20 48 73 Flow pressure 0 0-20 0 0 16 bar Maximum test pressure air / inert gas 3 bar Flow rate at 1 bar without flow limiter 0.3 l/s Flow rate at 1 bar with flow limiter 0.24 l/s Scope of delivery • Elbow tap connector R 1/2 • Protection box with

Pagina 63-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

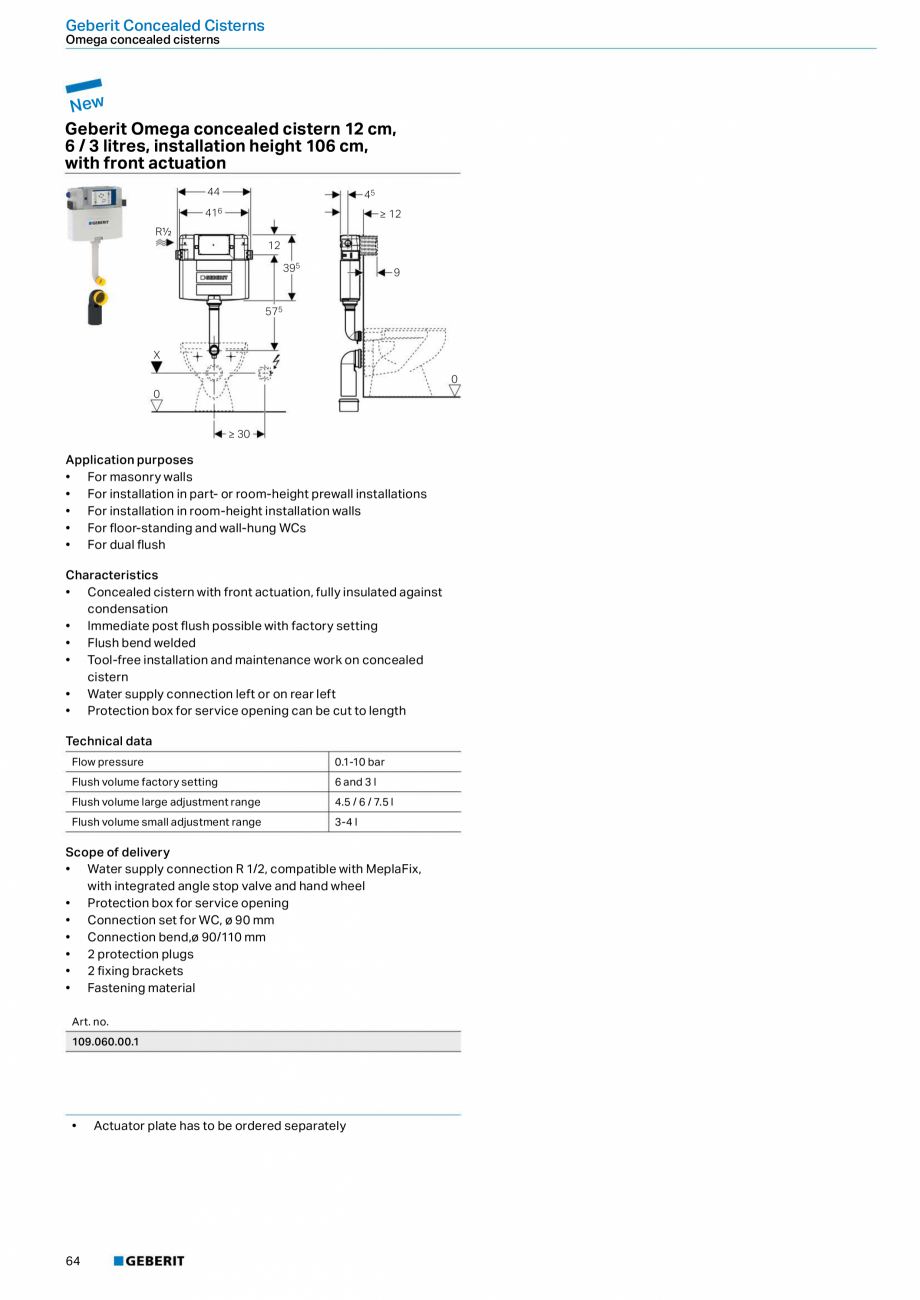

Pagina 64 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

cover • Connection pipe between inlet ø 32 mm and urinal, with seal to urinal • 1 protection plug • Connection bend made of PE-HD, ø 63/50 mm • Protective cap • Seal, ø 57/50 mm • Urinal trap ø 50 mm, with seal on urinal • 2 threaded rods M8 • Fastening material Art. no. 111.616.00.1 Accessories • Accessory overview: Geberit Duofix elements for urinals → p. 33 Geberit Duofix Elements for urinals Installation elements Geberit Duofix element for urinal, 112–130 cm, Universal, for hidden urinal control 50 75 Geberit Duofix element for urinal, 112–130 cm, Universal, with exposed flushing valve 50 9 75 R1/2 75-33 R1/2 max. 81 min. 31 65 112-130 112-130 75-33 0 0 0 0-20 73 73 48 Application purposes • For drywall construction • For installation in part- or room-height prewall installations • For installation in room-height installation walls • For Geberit urinal flush controls for covered installation, vandal-resistant • For floor c

Pagina 64-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 65 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

onstructions 0–20 cm Characteristics • Self-supporting frame, powder-coated • Frame with ø 9 mm drilling holes for fastening in wood frame construction • Leg support zinc-plated, adjustable 0–20 cm • Leg support, non-slip • Foot plates, rotatable, depth suitable for installation in U-profiles UW 50 and UW 75 and Geberit Duofix system rails • Stop valve with throttle pre-mounted • Service opening behind urinal • Flexible flush hose with guide and integrated check valve • Equipped with conduit pipe to connect the sensor in the trap to the urinal flush control • Fastening for inlet ø 32 mm, height-adjustable • Fastening for connection bend, height-adjustable and sound-absorbing • Urinal fasteners M8 width- and height-adjustable • Crossbars with centring marks, adjustable without tools • Can be retrofitted with accessories to fit urinals with spray head Technical data Flow pressure 1-8 bar Maximum test pressure water 16 bar Maximum test pressure air /

Pagina 65-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

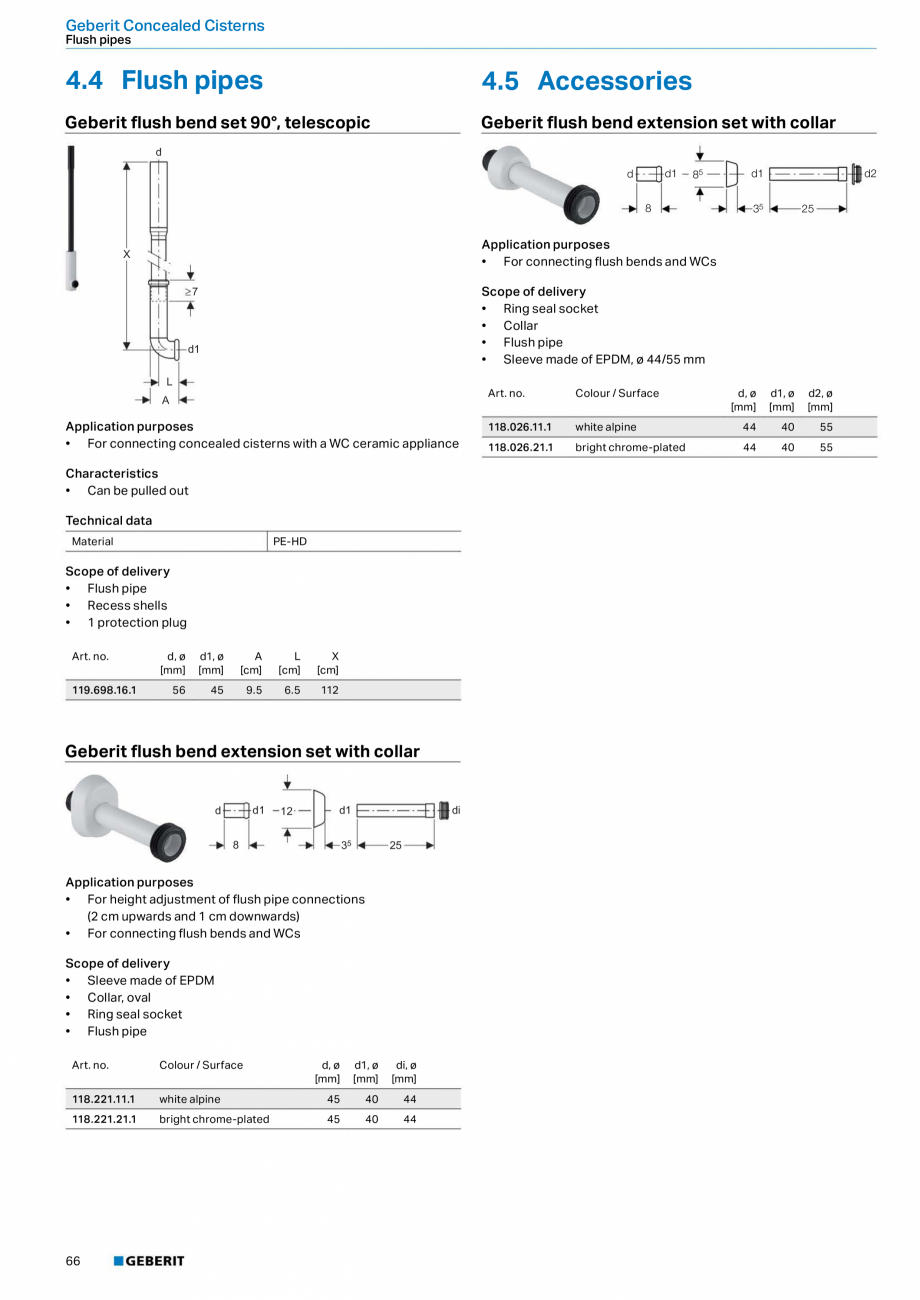

Pagina 66 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

inert gas 3 bar Flow rate at 1 bar without flow limiter 0.3 l/s Flow rate at 1 bar with flow limiter 0.24 l/s Scope of delivery • Water supply connection R 1/2 • Protection box with cover • Connection pipe between inlet ø 32 mm and urinal, with seal to urinal • 1 protection plug • Connection bend made of PE-HD, ø 63/50 mm • Seal, ø 57/50 mm • Protective cap • 2 threaded rods M8 • Fastening material 0 0-20 0-20 48 Application purposes • For drywall construction • For installation in part- or room-height prewall installations • For installation in room-height installation walls • For exposed flushing valves • For floor constructions 0–20 cm Characteristics • Self-supporting frame, powder-coated • Frame with ø 9 mm drilling holes for fastening in wood frame construction • Leg support zinc-plated, adjustable 0–20 cm • Leg support, non-slip • Foot plates, rotatable, depth suitable for installation in U-profiles UW 50 and UW 75 and Geb

Pagina 66-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 67 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

erit Duofix system rails • Fastening for connection bend, height-adjustable and sound-absorbing • Urinal fasteners M8 width- and height-adjustable • Crossbars with centring marks, adjustable without tools Scope of delivery • Water supply connection R 1/2, compatible with MeplaFix • 1 protection plug • Sealing washer • Connection bend made of PE-HD, ø 63/50 mm • Protective cap • Seal, ø 57/50 mm • Urinal trap ø 50 mm, with seal on urinal • 2 threaded rods M8 • Fastening material Art. no. 111.686.00.1 Accessories • Accessory overview: Geberit Duofix elements for urinals → p. 33 Art. no. 111.689.00.1 Accessories • Accessory overview: Geberit Duofix elements for urinals → p. 33 35 Geberit Duofix Installation elements Elements for urinals Geberit Duofix element for urinal, 112–130 cm / 122–130 cm, Joly 285 ≥ 165 142 365 75 9 100 65 112–130 615 0 0 0–20 73 48 Application purposes • For drywall construction • For installation

Pagina 67-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 68 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

in part- or room-height prewall installations • For installation in room-height installation walls • For installation of semi-recessed urinal ceramics Keramag Joly • For floor constructions 0–20 cm Characteristics • Self-supporting frame, powder-coated • Frame with ø 9 mm drilling holes for fastening in wood frame construction • Leg support zinc-plated, adjustable 0–20 cm • Leg support, non-slip • Foot plates, rotatable, depth suitable for installation in U-profiles UW 50 and UW 75 and Geberit Duofix system rails • Connection positions set for urinal Keramag Joly • Crossbar with concealed housing to be positioned on centre or laterally • Stop valve with throttle pre-mounted • Concealed housing prepared for connection to on-site connection hose for urinal • Crossbar with predetermined positions for urinal fasteners M8 and trap Technical data Flow pressure 1-8 bar Maximum test pressure water 16 bar Maximum test pressure air / inert gas 3 bar Flow rat

Pagina 68-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 69 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

e at 1 bar without flow limiter 0.3 l/s Flow rate at 1 bar with flow limiter 0.24 l/s Scope of delivery • Water supply connection R 1/2 • Protection box with cover • Connection bend made of PE-HD, ø 63/50 mm • Seal, ø 57/50 mm • Urinal trap ø 50 mm, with seal on urinal • 2 threaded rods M8 • 2 cut-out templates • Fastening material Art. no. 111.618.00.1 To order additionally • Reinforced braided hose between concealed housing and urinal Accessories • Accessory overview: Geberit Duofix elements for urinals → p. 33 36 Geberit Duofix Elements for showers, with wall drain Installation elements 2.1.5 Elements for showers, with wall drain Geberit Duofix element for shower, 130 cm, with wall drain, wall-mounted tap, concealed, floor construction height from 65 mm 50 11 355 355 86 100 100 0 0 130 65–9 35 73 48 11 Application purposes • For drainage of floor-even showers • For floor constructions of 65–90 mm • For drywall construction •

Pagina 69-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

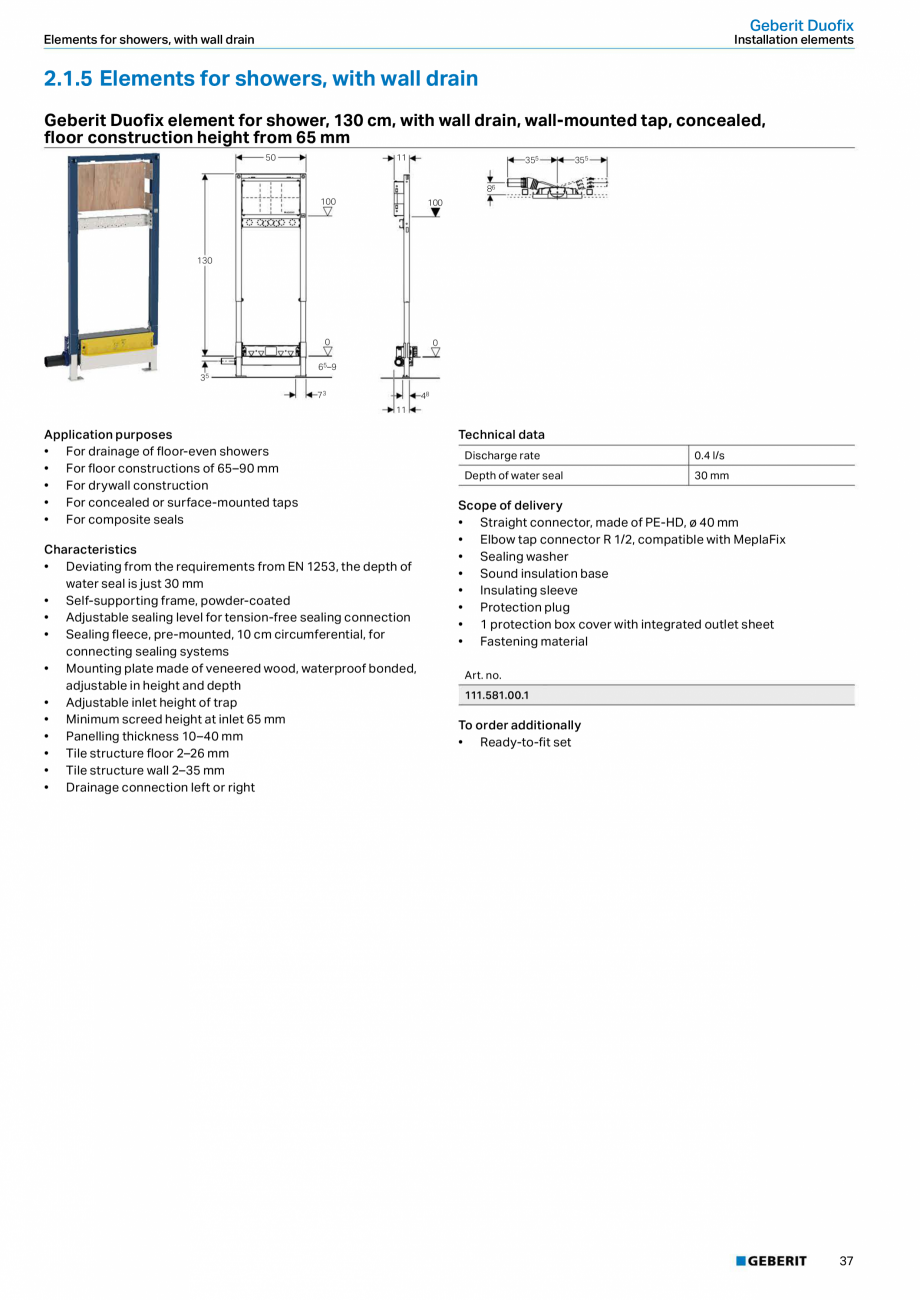

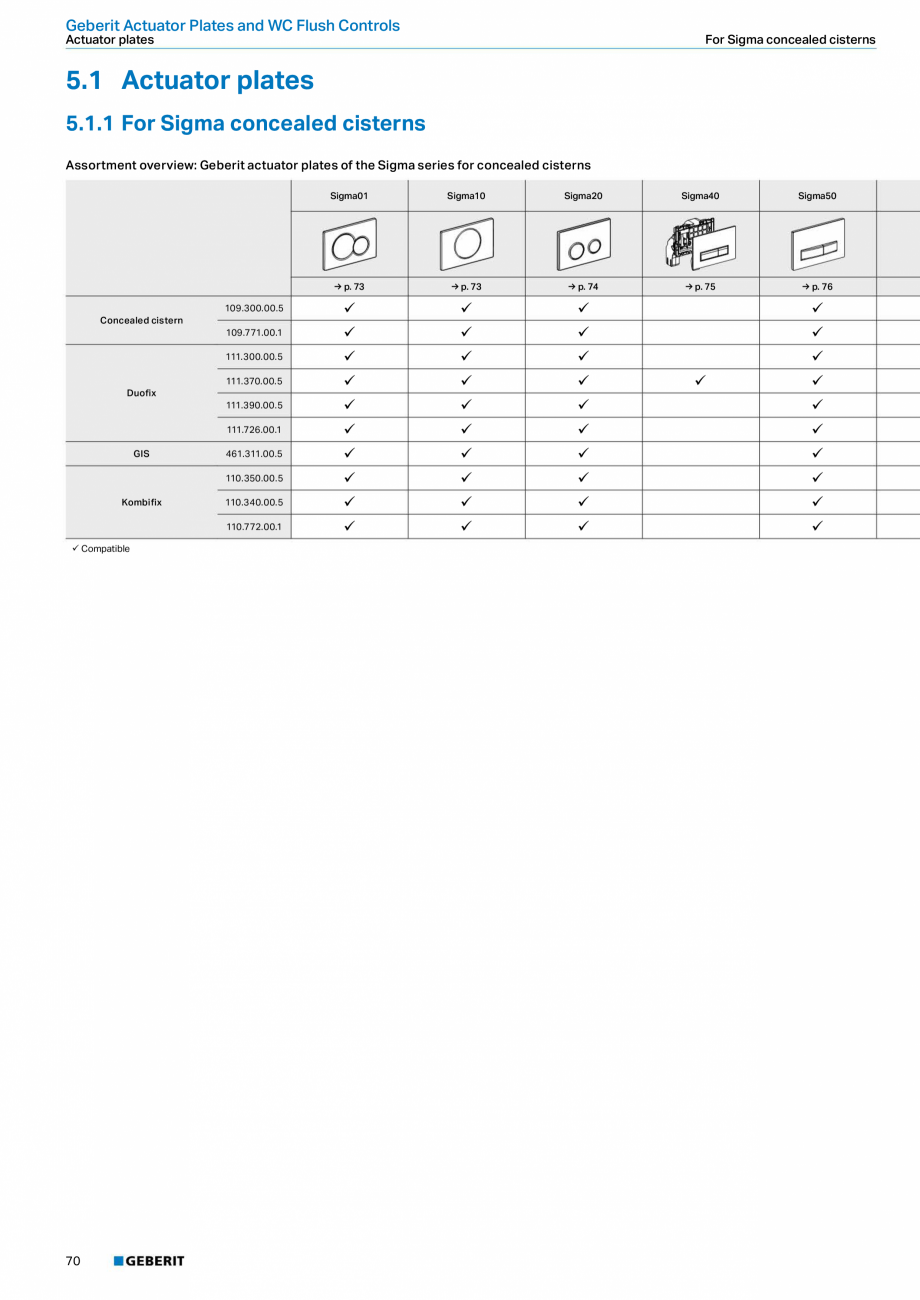

Pagina 70 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

For concealed or surface-mounted taps • For composite seals Characteristics • Deviating from the requirements from EN 1253, the depth of water seal is just 30 mm • Self-supporting frame, powder-coated • Adjustable sealing level for tension-free sealing connection • Sealing fleece, pre-mounted, 10 cm circumferential, for connecting sealing systems • Mounting plate made of veneered wood, waterproof bonded, adjustable in height and depth • Adjustable inlet height of trap • Minimum screed height at inlet 65 mm • Panelling thickness 10–40 mm • Tile structure floor 2–26 mm • Tile structure wall 2–35 mm • Drainage connection left or right Technical data Discharge rate 0.4 l/s Depth of water seal 30 mm Scope of delivery • Straight connector, made of PE-HD, ø 40 mm • Elbow tap connector R 1/2, compatible with MeplaFix • Sealing washer • Sound insulation base • Insulating sleeve • Protection plug • 1 protection box cover with integrated outlet s

Pagina 70-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

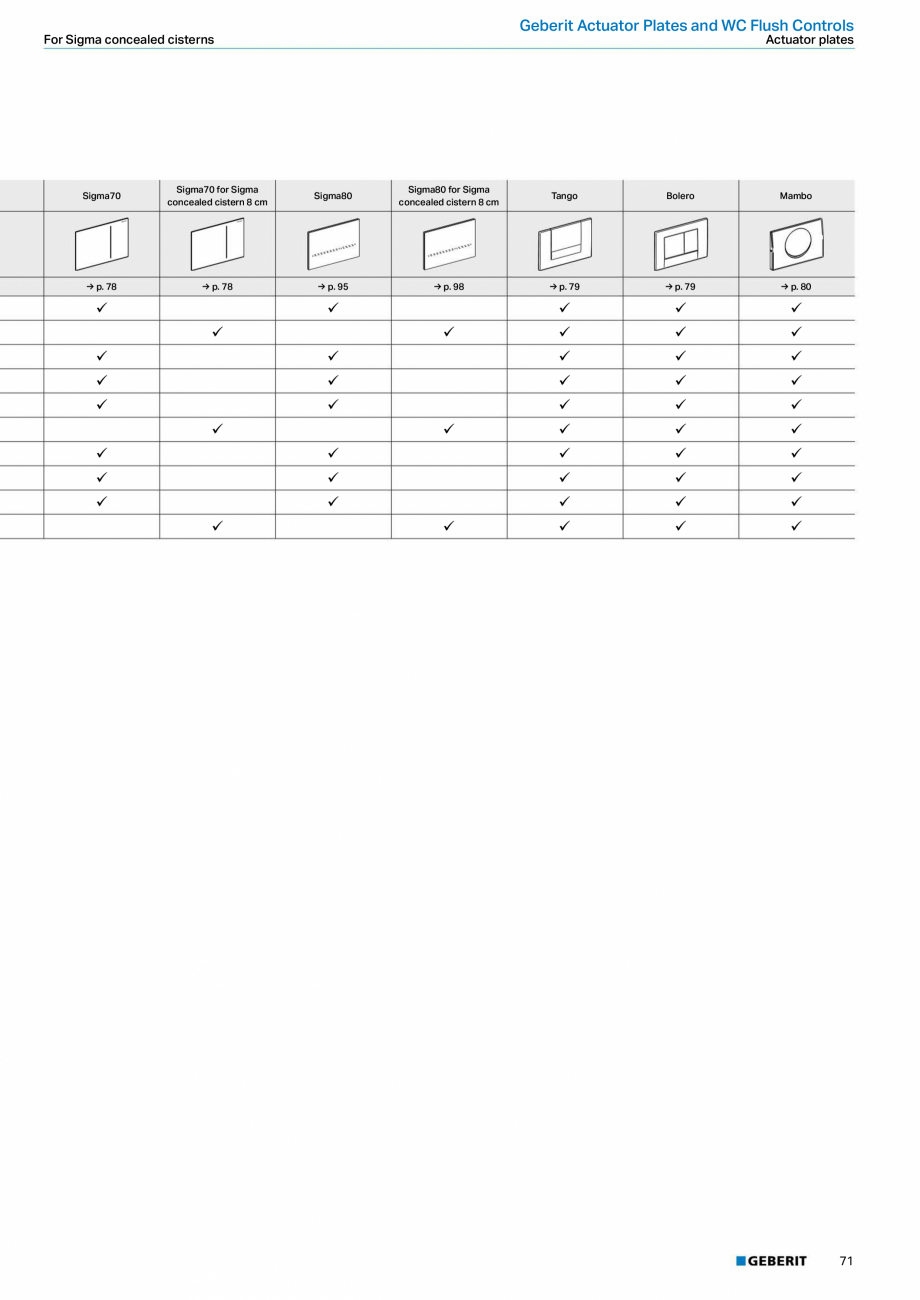

Pagina 71 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

heet • Fastening material Art. no. 111.581.00.1 To order additionally • Ready-to-fit set 37 Geberit Duofix Installation elements Elements for showers, with wall drain Geberit Duofix element for shower, 130 cm, with wall drain, wall-mounted tap, concealed, floor construction height from 90 mm 50 11 355 355 86 100 100 0 0 130 9–20 5 73 48 125 Application purposes • For drywall construction • For concealed or surface-mounted taps • For composite seals • For drainage of floor-even showers • For floor constructions 90–200 mm Characteristics • Quality-monitored in accordance with EN 1253-3 • Self-supporting frame, powder-coated • Adjustable sealing level for tension-free sealing connection • Sealing fleece, pre-mounted, 10 cm circumferential, for connecting sealing systems • Mounting plate made of veneered wood, waterproof bonded, adjustable in height and depth • Adjustable inlet height of trap • Minimum screed height at inlet 90 mm • Panel

Pagina 71-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 72 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

ling thickness 10–40 mm • Tile structure floor 2–26 mm • Tile structure wall 2–35 mm • Drainage connection left or right 38 Technical data Discharge rate 0.8 l/s Depth of water seal 50 mm Scope of delivery • Straight connector, made of PE-HD, ø 50 mm • Elbow tap connector R 1/2, compatible with MeplaFix • Sealing washer • Sound insulation base • Insulating sleeve • Protection plug • 1 protection box cover with integrated outlet sheet • Fastening material Art. no. 111.580.00.1 To order additionally • Ready-to-fit set Geberit Duofix Elements for showers, with wall drain Installation elements Geberit Duofix element for shower, 50 cm, with wall drain, floor construction height from 65 mm 50 355 50 35 355 86 0 65–9 48 73 11 Application purposes • For drywall construction • For drainage of floor-even showers • For floor constructions of 65–90 mm • For composite seals Technical data Discharge rate 0.4 l/s Depth of water seal 30

Pagina 72-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 73 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

mm Scope of delivery • Straight connector, made of PE-HD, ø 40 mm • 1 protection box cover with integrated outlet sheet • Fastening material Characteristics • Deviating from the requirements from EN 1253, the depth of water seal is just 30 mm • Self-supporting frame, powder-coated • Minimum screed height at inlet 65 mm • Adjustable inlet height of trap • Panelling thickness 10–40 mm • Tile structure floor 2–26 mm • Tile structure wall 2–35 mm • Adjustable sealing level for tension-free sealing connection • Drainage connection left or right • Sealing fleece, pre-mounted, 10 cm circumferential, for connecting sealing systems Art. no. 111.593.00.1 To order additionally • Ready-to-fit set Geberit Duofix element for shower, 50 cm, with wall drain, floor construction height from 90 mm 50 355 50 5 355 86 0 9–20 48 73 125 Application purposes • For drywall construction • For drainage of floor-even showers • For floor constructions 90–20

Pagina 73-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 74 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

0 mm • For composite seals Characteristics • Quality-monitored in accordance with EN 1253-3 • Self-supporting frame, powder-coated • Adjustable inlet height of trap • Minimum screed height at inlet 90 mm • Panelling thickness 10–40 mm • Tile structure floor 2–26 mm • Tile structure wall 2–35 mm • Adjustable sealing level for tension-free sealing connection • Drainage connection left or right • Sealing fleece, pre-mounted, 10 cm circumferential, for connecting sealing systems Technical data Discharge rate 0.8 l/s Depth of water seal 50 mm Scope of delivery • Straight connector, made of PE-HD, ø 50 mm • 1 protection box cover with integrated outlet sheet • Fastening material Art. no. 111.591.00.1 To order additionally • Ready-to-fit set 39 Geberit Duofix Installation elements Elements for showers and bathtubs 2.1.6 Elements for showers and bathtubs Accessory overview: Geberit Duofix elements for showers and bathtubs Accessories for wall dr

Pagina 74-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 75 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

ains Concealed base unit HANSAVAROX with shut-off Wall anchoring set for single installation Foot fastener set on rear wall Fastening set for stud clearance 50–57.5 cm → p. 218 → p. 207 → p. 41 → p. 43 → p. 42 ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü 111.580.00.1 Element for shower, 130 cm, with wall drain, wall-mounted tap, concealed, floor construction height from 90 mm 111.581.00.1 Element for shower, 130 cm, with wall drain, wall-mounted tap, concealed, floor construction height from 65 mm 111.591.00.1 Element for shower, 50 cm, with wall drain, floor construction height from 90 mm 111.593.00.1 Element for shower, 50 cm, with wall drain, floor construction height from 65 mm 2.1.7 Elements for loads Geberit Duofix element for support handles, 112 cm, barrier-free 4 365 100 Scope of delivery • Fastening material 85 Art. no. 50 111.790.00.1 112 Accessories • Geberit Duofix wall anchoring set for single installation → p

Pagina 75-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 76 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

. 41 0 0 0-20 73 48 Application purposes • For drywall construction • For installation in part- or room-height prewall installations • For installation in room-height installation walls • Suitable for barrier-free construction • For fastening support handles • For floor constructions 0–20 cm Characteristics • Self-supporting frame, powder-coated • Frame with ø 9 mm drilling holes for fastening in wood frame construction • Leg support zinc-plated, adjustable 0–20 cm • Leg support, non-slip • Foot plates, rotatable, depth suitable for installation in U-profiles UW 50 and UW 75 and Geberit Duofix system rails • Mounting plate made of veneered wood, waterproof bonded, height-adjustable 40 Geberit Duofix For installation elements Accessories 2.2 Accessories 2.2.1 For installation elements Geberit Duofix wall anchoring set for single installation 135–20 Geberit Duofix wall anchoring set for single installation, corner construction 14-20 85 6 38 2

Pagina 76-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 77 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

Application purposes • For fastening Geberit Duofix installation elements in front of drywalls and solid walls • For fastening panelling in part-height prewall installations Characteristics • Can be adjusted in depth from the front, infinitely variable, with fast adjustment • Wall inlet rotatable by 360° • Threaded rod M10, zinc-plated Technical data Material Die-cast zinc / steel/plastic Application purposes • For fastening Geberit Duofix installation elements in front of drywalls and solid walls • For fastening panelling in part-height prewall installations Characteristics • Can be adjusted in depth from the front, infinitely variable • Integrated panelling support • Threaded rod M10, zinc-plated • Wall inlet rotatable by 360° • Infinitely variable angle adjustment possible for corner installation Technical data Material Scope of delivery • Set of 2 pieces Die-cast zinc / steel/plastic Scope of delivery • Set of 2 pieces Art. no. 111.815.00.1 Art.

Pagina 77-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 78 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

no. Accessories • Geberit Duofix extension set for wall anchoring → p. 42 Geberit Duofix wall anchoring set for single installation 9–11 52 111.835.00.1 Accessories • Geberit Duofix extension set for wall anchoring → p. 42 Geberit Duofix wall anchoring set for single installation, for elements without fixed crossbar 4 12-20 4 28 Application purposes • For fastening Geberit Duofix installation elements in front of drywalls and solid walls • For fastening Geberit Duofix elements for wall-hung WC with concealed cistern 8 cm Characteristics • Can be adjusted in depth from the front, infinitely variable • Wall inlet rotatable by 360° • Threaded rod M10, zinc-plated Technical data Material Scope of delivery • 2 prevailing torque nuts • Fastening material Art. no. Steel / plastic 4 Application purposes • For fastening Geberit Duofix installation elements in front of drywalls and solid walls • For Geberit Duofix installation elements without fixed c

Pagina 78-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

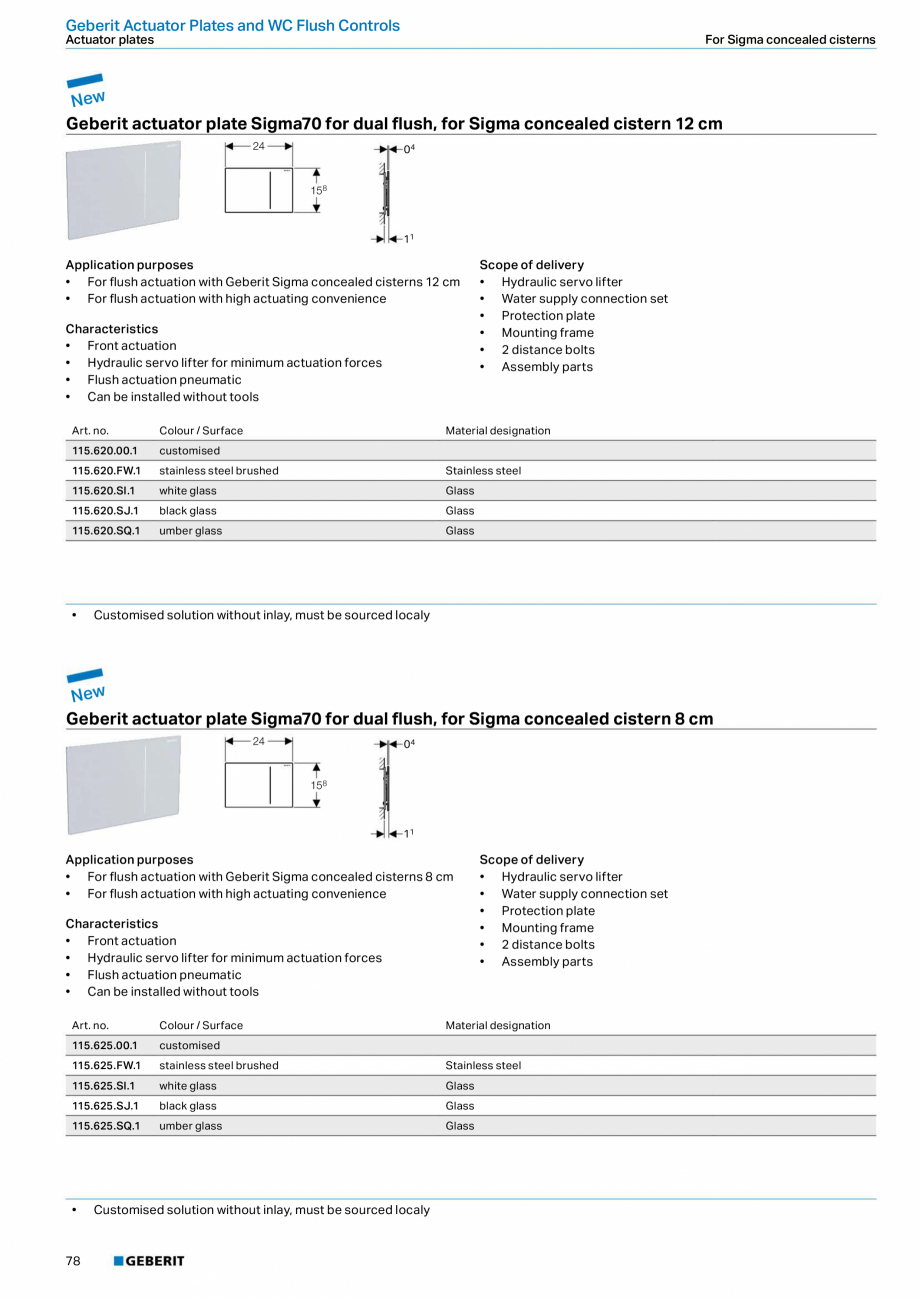

Pagina 79 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

rossbar for panelling support Characteristics • Adjustable in depth • Zinc-plated • Infinitely variable angle adjustment possible for corner installation Scope of delivery • Set of 2 pieces Art. no. 111.839.00.1 242.048.00.1 41 Geberit Duofix Accessories For installation elements Geberit heavy-duty dowel Scope of delivery • 2 wall anchorings • Crossbar for panelling support • Fastening material 86 08 M8 Art. no. Application purposes • For fastening Geberit GIS mounting brackets and GIS installation kits for free-standing GIS walls on the unfinished building structure (concrete) • For fastening Geberit Duofix installation elements with large, reinforced foot plates to the rough building structure (concrete) Characteristics • Zinc-plated Geberit inlet crossbar for urinal, with spray head Application purposes • For Geberit installation elements for urinal with flexible connection • For urinal ceramics Laufen Caprino Plus 42065/42066 • For connecting

Pagina 79-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 80 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

urinals with spray head Technical data Material 111.813.00.1 Steel Art. no. Characteristics • Can be installed without tools • Inlet Rp 1/2 adjustable sideways 461.037.26.1 N ew Geberit Duofix extension set for wall anchoring 220 M 10 Scope of delivery • Connecting nipple • 1 protection plug • Crossbar Art. no. 242.042.00.1 Application purposes • For extending Geberit Duofix wall anchorings by 20 cm • For Geberit Duofix wall anchoring with threaded rod M10 Characteristics • Can be shortened • Zinc-plated 8 Steel Scope of delivery • Set of 2 pieces Art. no. 111.887.00.1 Geberit Duofix crossbar, clip-on, for panelling support Characteristics • Zinc-plated Technical data Scope of delivery • 2 fixing brackets • Fastening material Art. no. 111.869.00.1 Application purposes • For fastening Geberit Duofix installation elements in front of drywalls and solid walls • For panelling supports with part-height prewall installations • For Geberit Duo

Pagina 80-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 81 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

fix installation elements without fixed crossbar for panelling support Characteristics • Crossbar for panelling support can be mounted by pushing it on 23 8 5 Application purposes • For drywall construction • For installation in room-height installation walls • For fastening Geberit Duofix installation elements between two studs at a distance of 50–57.5 cm Material 42 8 23 Technical data Material Geberit Duofix fastening set for stud clearance 50–57.5 cm Steel Geberit Duofix For installation elements Accessories Geberit Duofix fastening for washbasins with fastening distance 38–58 cm Geberit set of support brackets for WC ceramic appliances with small contact surfaces 4 395 35 13 21 21 5 Application purposes • For fastening washbasins with a fastening distance > 38 cm to Geberit Duofix elements for washbasin Characteristics • Zinc-plated • Fastening distance for threaded rods 38–58 cm Technical data Material Steel Scope of delivery • 2 cavity

Pagina 81-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 82 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

profiles • 2 threaded rods M10 • Reinforcing profile • Fastening material Application purposes • For additional support of WC ceramic appliances with contact surface X < 17 cm (contact surface X = dimension of the lower edge of the WC ceramic appliance to the middle of the fastening hole in the WC ceramic appliance) • For Geberit Duofix and Geberit GIS elements for wall-hung WC with intended retainers • It is known that the supports must be fitted on the following WC ceramic appliances: 1) Make: Flaminia (Italy - www.ceramicaflaminia.it), type: Link 5051 and Mini Link 5064 2) Make: Globo (Italy - www.ceramicaglobo.com), type: GLOBOconcept SAS02 and SAS03 Characteristics • Zinc-plated • U-profile Art. no. 111.868.00.1 Technical data Material Geberit Duofix foot fastener set on rear wall 13 - 20 Steel Scope of delivery • Set of 2 pieces Art. no. 111.847.00.1 Application purposes • For alternative foot fastening of the Geberit Duofix elements to the rear wall

Pagina 82-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

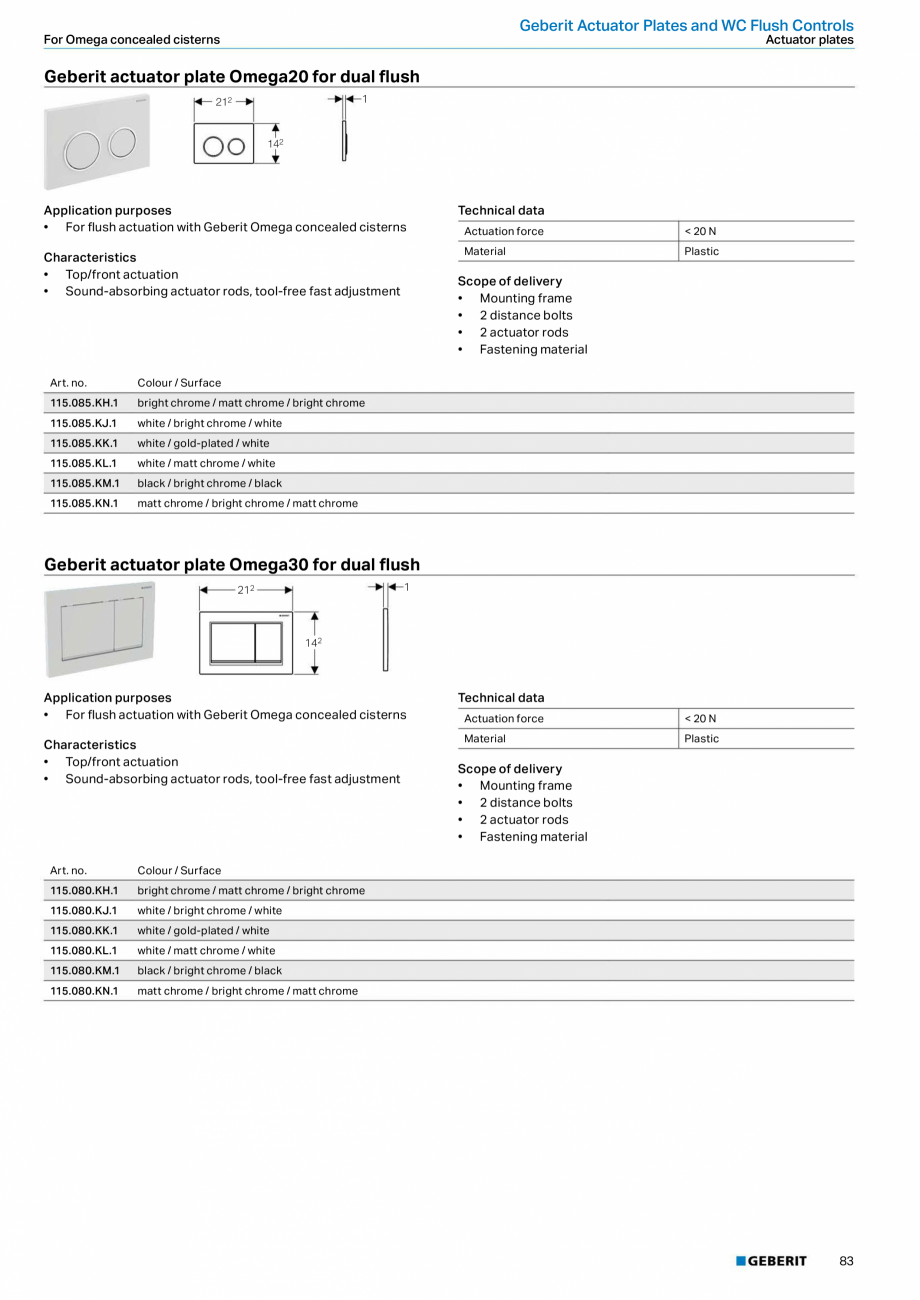

Pagina 83 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

Characteristics • Adjustable in depth • Zinc-plated Technical data Material Steel Scope of delivery • Set of 2 pieces Art. no. 111.867.00.1 43 Geberit Duofix Accessories For installation elements Geberit Duofix mounting plate for concealed stop valves 306 Geberit sound insulation set for wall-hung WC s 40 66 153 8 42 74 42 Application purposes • For fastening Geberit concealed stop valves • For Geberit Duofix installation elements with intended retainers • For installation of water sections in Geberit Duofix installation elements Characteristics • Zinc-plated Material Material Steel 111.807.00.1 Accessories • Geberit Mepla concealed stop valve with cover collar and fastening • Geberit concealed stop valve with cover collar and fastening Geberit retrofit adapter for inlet Rp 1/2, urinal G1/2 54 73 26 Application purposes • For retrofitting installed Geberit Duofix elements for urinal with inlet ø 32 mm to inlet Rp 1/2“ 44 PE-E Scope of d

Pagina 83-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 84 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

elivery • 2 washers • 2 sound insulation sleeves • Sound insulation mat Art. no. 242.309.00.1 Characteristics • White Technical data Technical data Art. no. Application purposes • For structure-borne sound insulation of WCs and bidets • For WCs and bidets with fastening distance 18 or 23 cm Art. no. 156.050.00.1 s [mm] 6 For installation elements Geberit Duofix Accessories 45 Geberit GIS 3. Geberit GIS 3.1 System walls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 3.1.1 3.1.2 3.1.3 Support systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48 Accessories for prefabrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49 Panellings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49 3

Pagina 84-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 85 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

.2 Installation elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 3.2.1 3.2.5 3.2.6 3.2.7 Elements for WCs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 Accessory overview: Geberit GIS elements for WCs . . . . . . . . . . . . . . . . . . . . . . . . 51 Elements for washbasins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53 Elements for bidets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54 Elements for urinals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54 Accessory overview: Geberit GIS elements for urinals . . . . . . . . . . . . . . . . . . . . . .54 Elements for taps and devices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Pagina 85-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 86 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

. . . . . .56 Elements for loads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57 3.3 Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57 3.3.1 3.3.2 3.3.3 For system walls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57 For supply systems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59 For drainage systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59 3.2.2 3.2.3 3.2.4 47 Geberit GIS System walls Support systems 3.1 System walls 3.1.1 Support systems Geberit GIS profile Geberit GIS mounti

Pagina 86-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 87 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

ng bracket 5m 32 75 32 55 5 Application purposes • For creating Geberit GIS support systems Application purposes • For creating Geberit GIS support systems • For fastening Geberit GIS support systems to the building structure • For compensating for construction differences Characteristics • Zinc-plated Technical data Material 05 Characteristics • Zinc-plated • Short and long leg with two oblong holes each Steel Art. no. Technical data 461.000.25.1 Material Scope of delivery • 1 ratchet pin • Nut M8 • Fastening material Geberit GIS profile connector 6 Steel 32 55 32 2 Art. no. 461.002.00.1 12 Application purposes • For creating Geberit GIS support systems • For connecting Geberit GIS profiles at right angles without tools Characteristics • Maximum insertion depth marked • Clip made of spring steel, protected against corrosion • Lengths can be compensated up to 1 cm per profile side • Lever for manual actuation made of die-cast zinc �

Pagina 87-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 88 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

�� Pre-locking function Art. no. 461.200.00.1 Accessories • Sound insulating panel for Geberit GIS mounting bracket → p. 59 Geberit GIS connecting piece 9-14 3 3 Application purposes • For creating Geberit GIS support systems • For making Geberit GIS support systems more rigid Characteristics • Two die-cast parts, can be turned 90° relative to one another • Clip made of spring steel • Adjustable in depth without tools, 5-mm grid • Insertion direction marked • Can be shortened to 3 cm Technical data Material Art. no. 461.003.00.1 48 Die-cast zinc Geberit GIS Accessories for prefabrication System walls Geberit GIS connecting strap 3 Geberit GIS corner stiffener for transport 04 58 75 13 75 13 Application purposes • For making prefabricated Geberit GIS support systems more rigid Application purposes • For creating Geberit GIS support systems • For connecting Geberit GIS profiles near horizontal joints of panelling • For right-angled or oblique

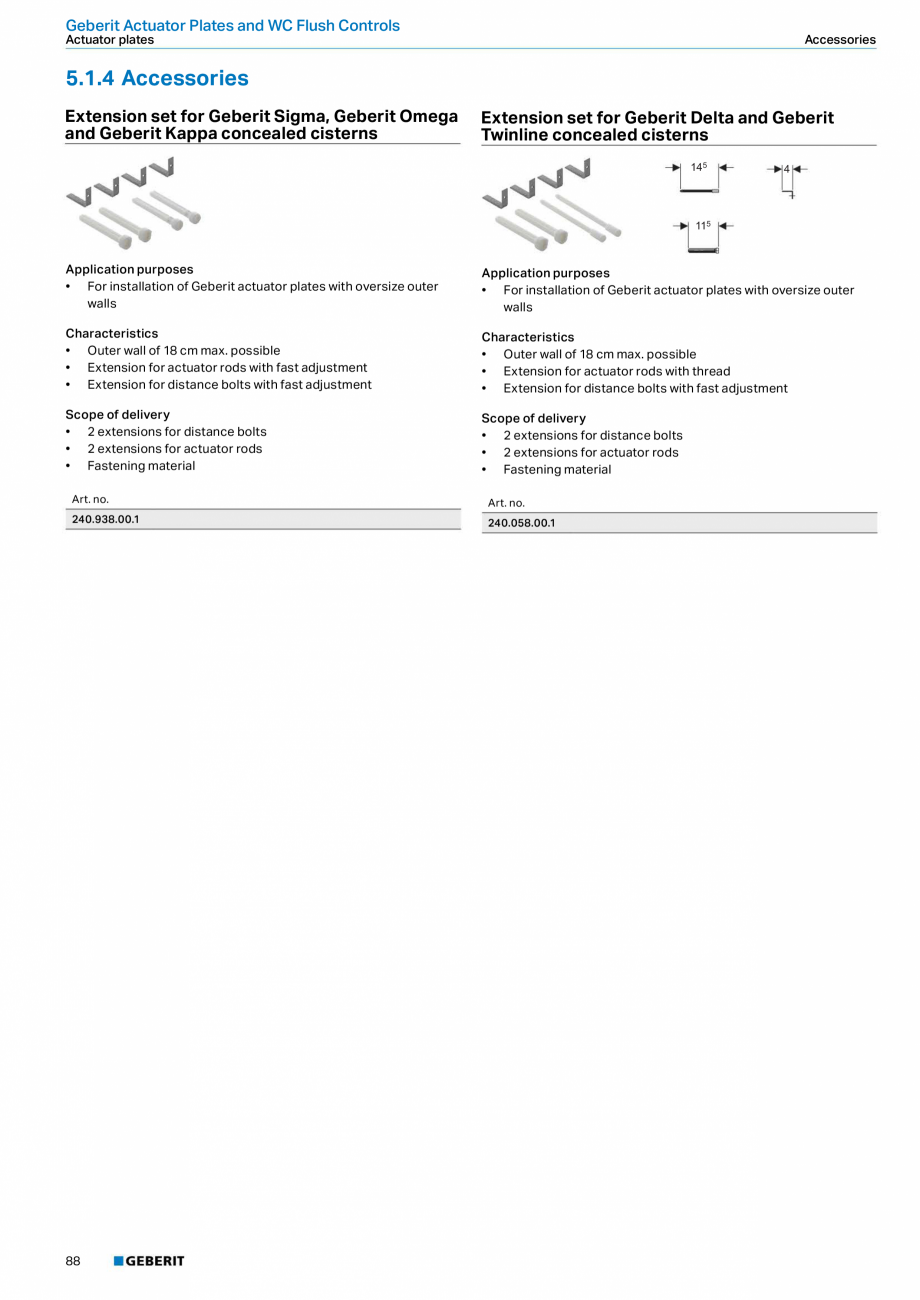

Pagina 88-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 89 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

wall inlets Characteristics • Zinc-plated Technical data Material Characteristics • Zinc-plated • With oblong hole Steel Art. no. 461.089.00.1 Technical data Material Steel 3.1.3 Panellings Scope of delivery • 2 ratchet pins • 2 nuts M8 Geberit GIS panel 60 Art. no. 18 461.022.00.1 3.1.2 Accessories for prefabrication 130 Geberit GIS profile guide 42 19 2 2 Application purposes • For precisely connecting two Geberit GIS support systems on the same level Technical data Material Art. no. 461.064.00.1 Die-cast zinc Application purposes • For single-layer, vertical panelling of Geberit GIS support systems • For use in the moisture load classes 0 and A01 Characteristics • Impregnated • Environmentally compatible • Building material class A2, non-combustible, in accordance with DIN 4102 Technical data Weight 13 kg Material Plasterboard Art. no. 461.025.00.1 49 Geberit GIS System walls Panellings Geberit aqua panel Plus Technical data 60

Pagina 89-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 90 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

18 Weight 12 kg Material Plasterboard Art. no. 461.058.00.1 130 Geberit GIS panel for washbasin 60 Application purposes • For single-layer, vertical panelling of Geberit GIS support systems • For single-layer panelling of Geberit Duofix system walls • For areas exposed to high amounts of moisture • For utilisation in the moisture load classes 0, A0 and A1 (range regulated by building authorities) Characteristics • Cement-bonded mineral structural panel • Water-resistant • Without mineral fibers • Building material class A1, non-combustible, in accordance with DIN 4102 Technical data Weight Calcium silicate Art. no. 461.163.00.1 130 Application purposes • For single-layer panelling of Geberit GIS elements for washbasin in GIS support system • For use in the installation of Geberit GIS support systems on unfinished floors Characteristics • Impregnated • Environmentally compatible • Non-combustible • Pre-drilled for washbasin connections 9 kg Mater

Pagina 90-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 91 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

ial 18 P Technical data Material Geberit GIS panel for wall-hung WC, for Sigma concealed cisterns 12 cm 60 Plasterboard Art. no. 461.074.00.1 18 Geberit panel screw 130 Application purposes • For single-layer panelling of Geberit GIS elements for wall-hung WC in GIS support system • For use in the installation of Geberit GIS support systems on finished floors • For use in the moisture load classes 0 and A01 Characteristics • Impregnated • Environmentally compatible • Pre-drilled for wall-mounted WC connections • Cutout section available for Geberit Sigma concealed cistern 12 cm service opening • Building material class A2, non-combustible, in accordance with DIN 4102 50 Application purposes • For fastening Geberit panels and Geberit aqua panels Plus to Geberit Duofix system walls and Geberit GIS support systems Characteristics • Self-tapping screw, 4.2 x 35 mm • Self-tapping thread • Steel, hardened and phosphatised • Flared head with crosshead Phil

Pagina 91-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 92 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

lips PH 2 Art. no. 461.030.00.1 Geberit GIS Elements for WCs Installation elements Geberit filler Geberit panel screw, in magazine Application purposes • For fastening Geberit panels and Geberit aqua panels Plus to Geberit Duofix system walls and Geberit GIS support systems • For quick-fit auto-feed screwdriver Application purposes • For filling Geberit panels and Geberit aqua panels Plus without stripe in areas exposed to moderate or high amounts of moisture Characteristics • Self-tapping screw, 4.2 x 35 mm • Self-tapping thread • Steel, hardened and phosphatised • Flared head with crosshead Phillips PH 2 • Plastic magazine for 50 panel screws Characteristics • Impregnated • Environmentally compatible • Powdery Art. no. 461.031.00.1 Art. no. 464.015.00.1 3.2 Installation elements 3.2.1 Elements for WCs Accessory overview: Geberit GIS elements for WCs Actuator plates of the Sigma series Actuator plates of the Omega series Set of support brackets for

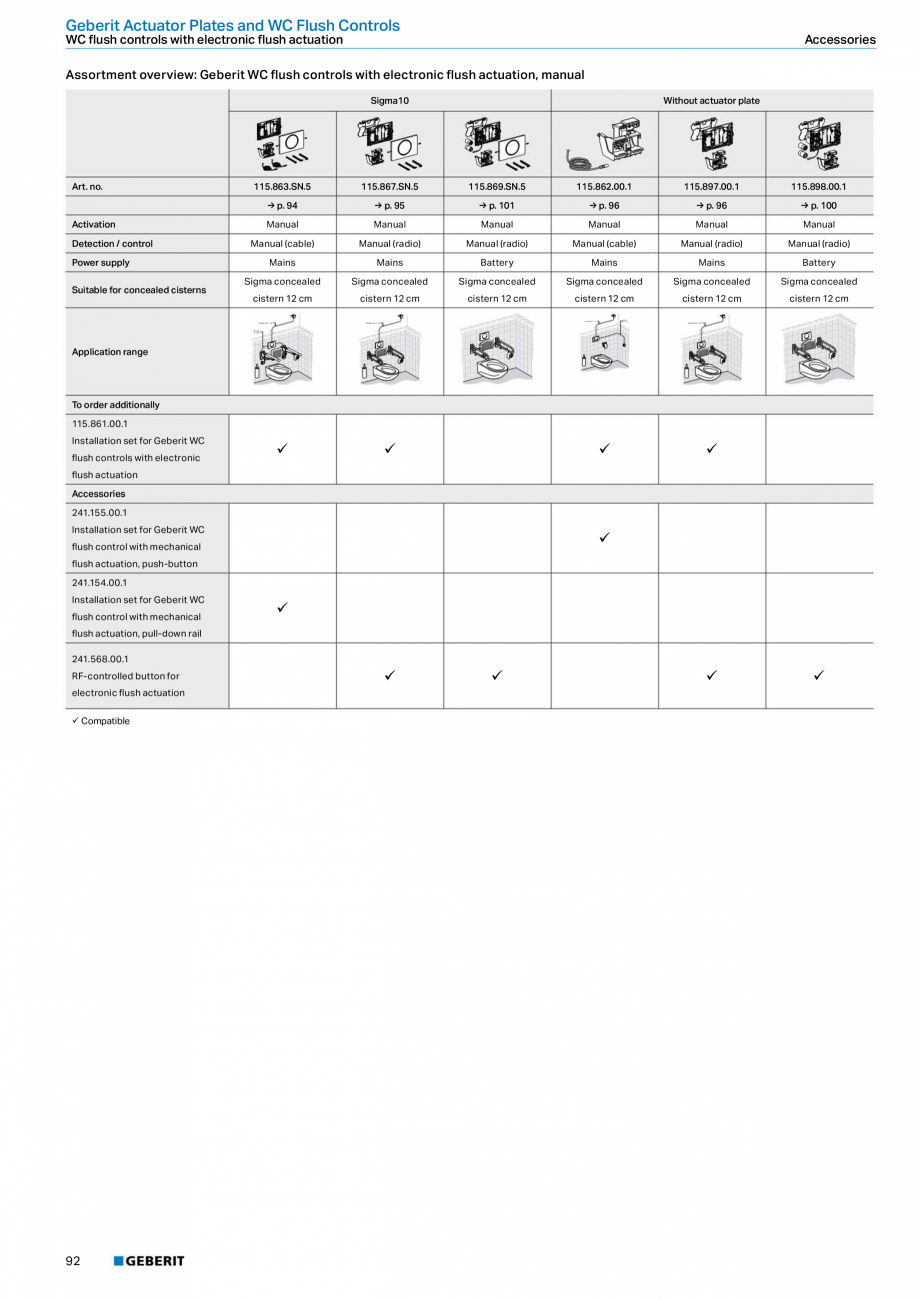

Pagina 92-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

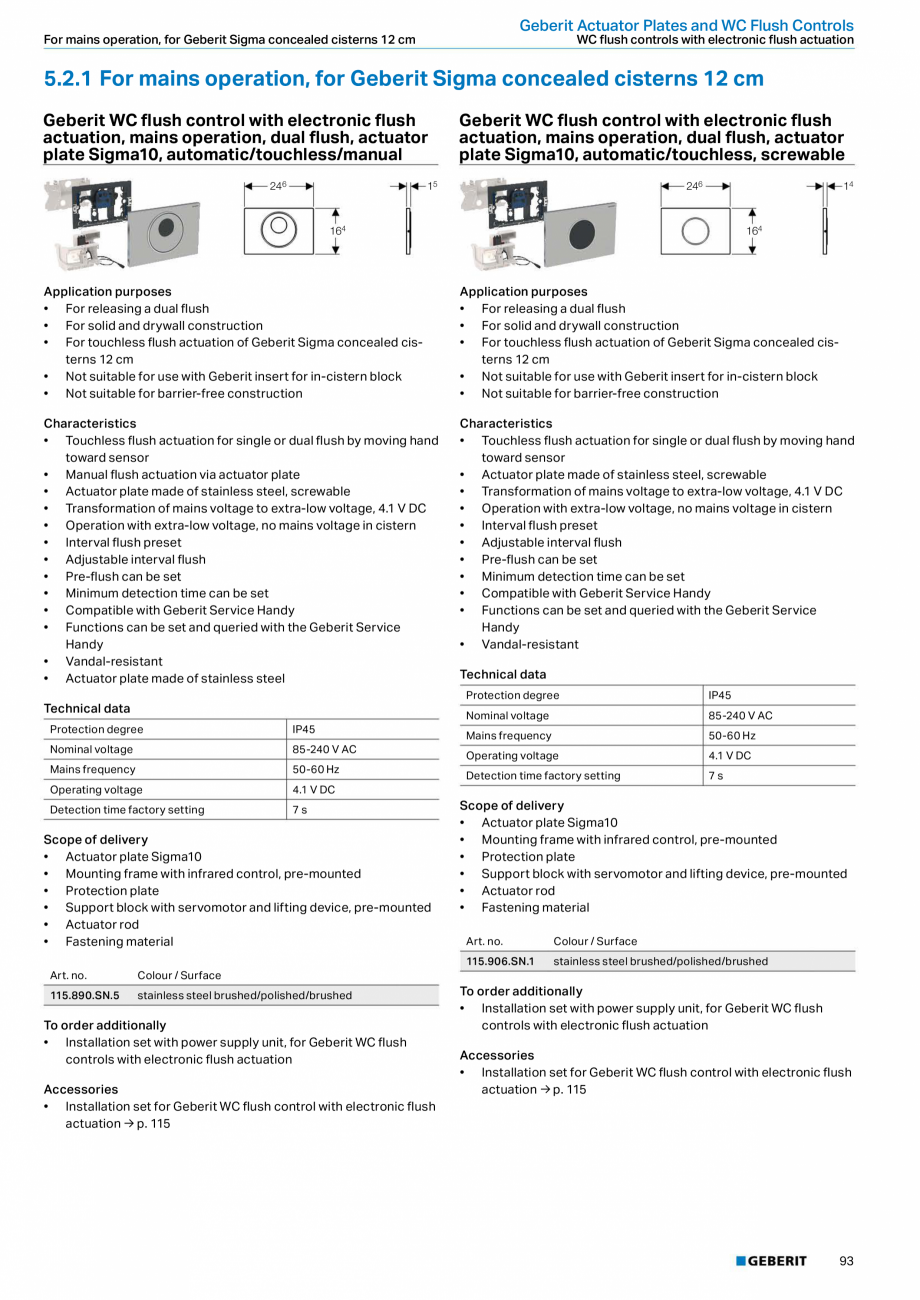

Pagina 93 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

WC ceramic appliances with small contact surfaces Concealed outlet for drywall and solid wall construction → p. 70 → p. 82 → p. 43 → p. 281 ü ü ü ü ü ü 461.311.00.5 Element for wall-hung WC, 114 cm, with Sigma ü concealed cistern 12 cm 461.141.00.1 Element for wall-hung WC, 87 cm, with Omega ü concealed cistern 12 cm 461.206.00.1 Element for wall-hung WC, 95 cm, close-coupled WC 51 Geberit GIS Installation elements Elements for WCs Geberit GIS element for wall-hung WC, 114 cm, with Sigma concealed cistern 12 cm Geberit GIS element for wall-hung WC, 87 cm, with Omega concealed cistern 12 cm ≥ 165 (DN 90) ≥ 195 (DN 100) 424 R½ ≥ 205 424 114 100 45 100 87−91 R½ 18/23 5 5 1045 100 75 18/23 +2 41 −1 ≤ 70 5 5 9 23 +2 22 0 40 −1 0 9−135 195 32 0 0−20 76 0−20 ≥ 30 0 195 ≥ 30 Application purposes • For installation in Geberit GIS support systems for prewall, partition wall or free-standing wall

Pagina 93-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 94 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

• Suitable for barrier-free construction • For wall-hung WCs with connection dimensions in accordance with EN 33:2011 • Suitable for wall-hung WCs with projection up to 70 cm • For single flush, dual flush or stop-and-go flush • For floor constructions 0–20 cm Application purposes • For installation in Geberit GIS support systems for part-height prewall or free-standing wall • For wall-hung WCs with connection dimensions in accordance with EN 33:2011 • For dual flush • For floor constructions 0–20 cm Characteristics • Frame, zinc-plated, with four quick-action fasteners • Infinitely variable height adjustment in Geberit GIS structure • Frame prepared for support brackets for WC ceramic appliances with small contact surfaces • Connection bend can be mounted without tools at different depths, adjustable range 45 mm • Fastening for connection bend, sound-absorbing • Concealed cistern with front actuation, fully insulated against condensation • Immedia

Pagina 94-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 95 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

te post flush possible with factory setting • Tool-free installation and maintenance work on concealed cistern • Water supply connection on the rear or at the top centre • Protection box for service opening can be cut to length • Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets Characteristics • Frame, zinc-plated, with four quick-action fasteners • Infinitely variable height adjustment in Geberit GIS structure • Frame prepared for support brackets for WC ceramic appliances with small contact surfaces • Connection bend can be mounted without tools at different depths, adjustable range 45 mm • Fastening for connection bend, sound-absorbing • Concealed cistern with top or front actuation, fully insulated against condensation • Immediate post flush possible with factory setting • Tool-free installation and maintenance work on concealed cistern • Water supply connection left or on rear left • Protection box for service

Pagina 95-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

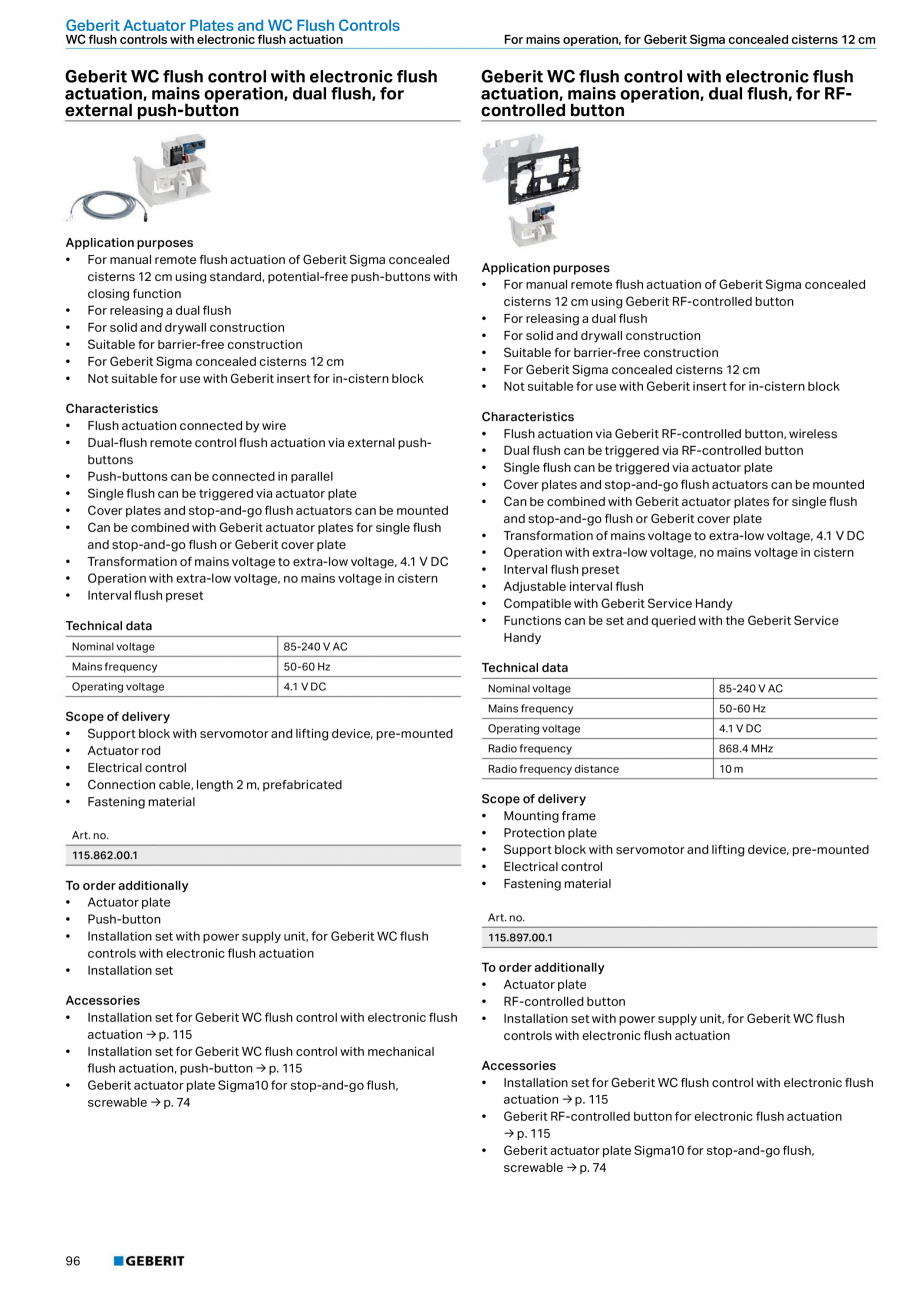

Pagina 96 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

opening can be cut to length • Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets Technical data Technical data 9−135 Flow pressure 0.1-10 bar Flow pressure 0.1-10 bar Flush volume factory setting 6 and 3 l Flush volume factory setting 6 and 3 l Flush volume large adjustment range 4.5 / 6 / 7.5 l Flush volume large adjustment range 4.5 / 6 / 7.5 l Flush volume small adjustment range 3-4 l Flush volume small adjustment range 3-4 l Scope of delivery • Water supply connection R 1/2, compatible with MeplaFix, with integrated angle stop valve and hand wheel • Protection box for service opening • Connection set for WC, ø 90 mm • Connection bend 90° made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • 4 protective plugs with punching tip • 2 threaded rods M12 • Fastening material Scope of delivery • Water supply connection R 1/2, compatible with MeplaFix, with integrated angle stop valve a

Pagina 96-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 97 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

nd hand wheel • Protection box for service opening • Connection set for WC, ø 90 mm • Connection bend 90° made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • 4 protective plugs with punching tip • 2 threaded rods M12 • Fastening material Art. no. Art. no. 461.311.00.5 461.141.00.1 Accessories • Accessory overview: Geberit GIS elements for WCs → p. 51 • 52 Actuator plate has to be ordered separately Accessories • Accessory overview: Geberit GIS elements for WCs → p. 51 • Actuator plate has to be ordered separately Geberit GIS Elements for washbasins Installation elements 3.2.2 Elements for washbasins Geberit GIS element for wall-hung WC, 95 cm, close-coupled WC 424 Geberit GIS washbasin set for deck-mounted tap min.165 (DN 90) min.185 (DN 100) 755-86 min.95 248 18/23 37 15 76 802 76 23 7 0 41 153 0-20 0 0-20 9-135 Application purposes • For installation in Geberit GIS support systems for prewall, partition w

Pagina 97-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 98 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

all or free-standing wall • Suitable for barrier-free construction • For wall-hung WCs with connection dimensions in accordance with EN 33:2011 • Suitable for wall-hung WCs with projection up to 70 cm • For mounting of close-coupled WCs • For floor constructions 0–20 cm Characteristics • Frame, zinc-plated, with four quick-action fasteners • Infinitely variable height adjustment in Geberit GIS structure • Frame prepared for support brackets for WC ceramic appliances with small contact surfaces • Connection bend can be mounted without tools at different depths, adjustable range 45 mm • Fastening for connection bend, sound-absorbing • Crossbar for tap, height-adjustable Scope of delivery • Elbow tap connector R 1/2, compatible with MeplaFix • Sealing washer • 3 protective plugs with punching tip • 2 threaded rods M12 • Fastening material Application purposes • For installation in Geberit GIS support systems for prewall, partition wall or free-standing

Pagina 98-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 99 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

wall • For installation of washbasins • For deck-mounted taps Characteristics • Crossbar, zinc-plated, with two quick-action fasteners • Infinitely variable height adjustment in Geberit GIS structure • Standard washbasin fastening distance 28 cm, adjustable with the Geberit GIS structure • Fastening for connection bend, sound-absorbing Scope of delivery • 2 elbow tap connectors R 1/2 • 2 sound insulation bases • 2 insulating sleeves • 5 protective plugs with punching tip • 2 sealing washers • Connection bend made of PE-HD, ø 50 mm, extended • Seal, ø 44/32 mm • 2 mounting clips M10 • 2 threaded rods M10 • Fastening material Art. no. 461.430.00.1 Art. no. 461.206.00.1 Accessories • Accessory overview: Geberit GIS elements for WCs → p. 51 53 Geberit GIS Installation elements Elements for bidets 3.2.3 Elements for bidets Geberit GIS element for bidet, Universal 4 50 8-38 18/23 350 330 310 290 270 250 230 210 190 170 150 130 110 90 360 340

Pagina 99-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 100 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

320 300 280 260 240 220 200 180 160 140 120 100 80 964.162.00.0 69 110 130 150 170 190 210 230 250 270 290 310 330 350 8090100 120 140 160 180 200 220 240 260 280 300 320 340 360 964.161.00.0 0 0 0-20 0-20 10 Application purposes • For installation in Geberit GIS support systems for prewall, partition wall or free-standing wall • For wall-hung bidets with deck-mounted tap • For floor constructions 0–20 cm Characteristics • Frame, zinc-plated, with four quick-action fasteners • Infinitely variable height adjustment in Geberit GIS structure • Fastening distance for wall-hung bidet 18 or 23 cm, bidet fastening height-adjustable • Fastening for connection bend, height-adjustable and soundabsorbing • Tap attachments adjustable in width and height Scope of delivery • 2 elbow tap connectors R 1/2, compatible with MeplaFix • 2 sealing washers • 2 sound insulation bases • 2 insulating sleeves • 3 protective plugs with punching tip • Connection bend made of

Pagina 100-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

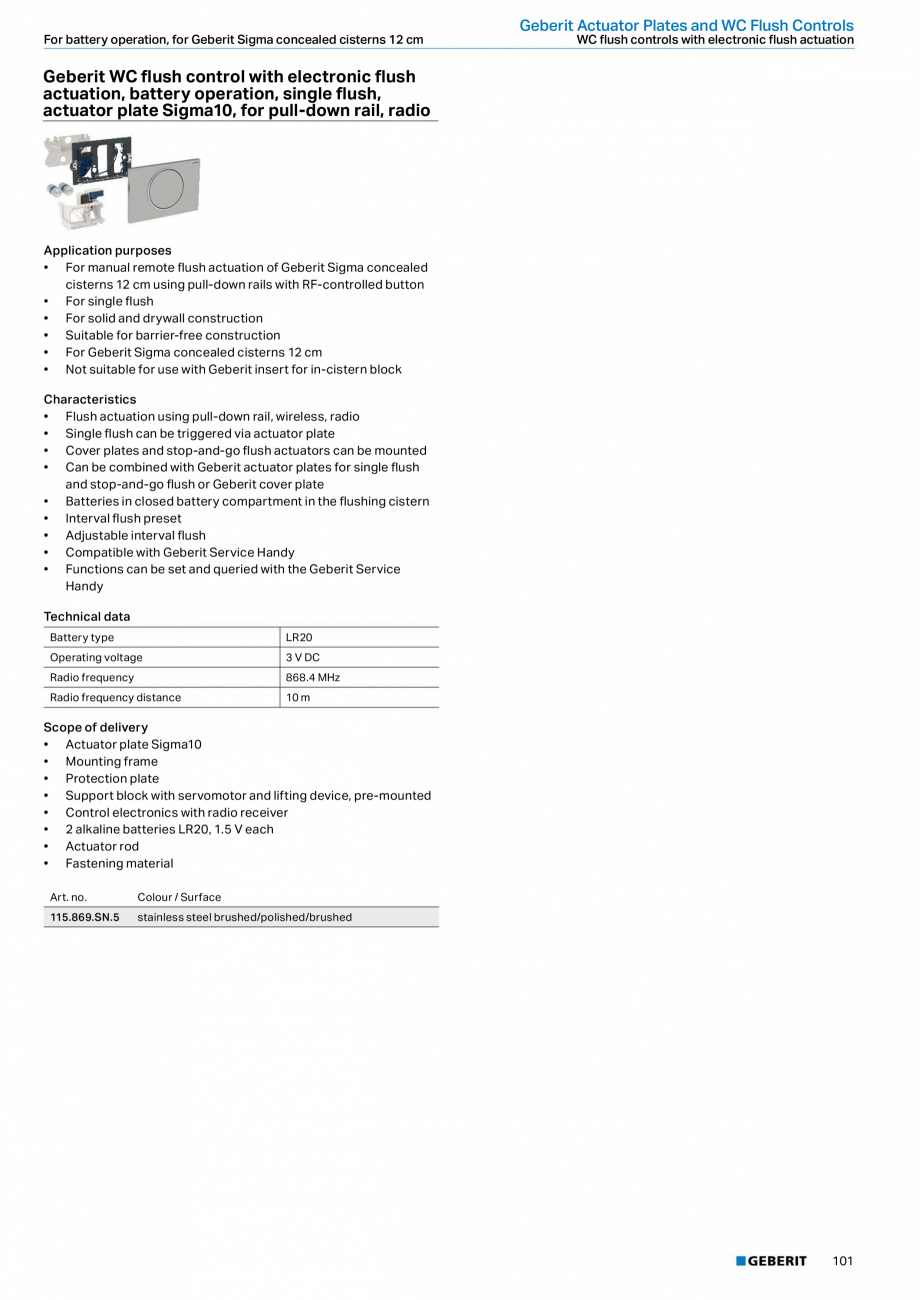

Pagina 101 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

PE-HD, ø 50 mm • Seal, ø 44/32 mm • 2 threaded rods M12 • Fastening material Art. no. 461.530.00.1 3.2.4 Elements for urinals Accessory overview: Geberit GIS elements for urinals Urinal flush controls with electronic flush actuation, battery operation Element for urinal, 114 cm, Universal Urinal flush controls with pneumatic flush actuation Urinal flush control with electronic flush actuation, mains operation, hidden, Universal Inlet crossbar for urinal, with spray head → p. 174 461.621.00.1 Urinal flush controls with electronic flush actuation, mains operation → p. 178 → p. 182 → p. 174 → p. 42 ü ü ü ü 461.689.00.1 Element for urinal, 114–132 cm, Universal, for hidden urinal control 54 ü ü Geberit GIS Elements for urinals Installation elements Geberit GIS element for urinal, 114–132 cm, Universal, for hidden urinal control 42 Geberit GIS element for urinal, 114 cm, Universal 75 42 9 9-29 R1/2 75-33 100 109-127 7 min. 114 R

Pagina 101-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

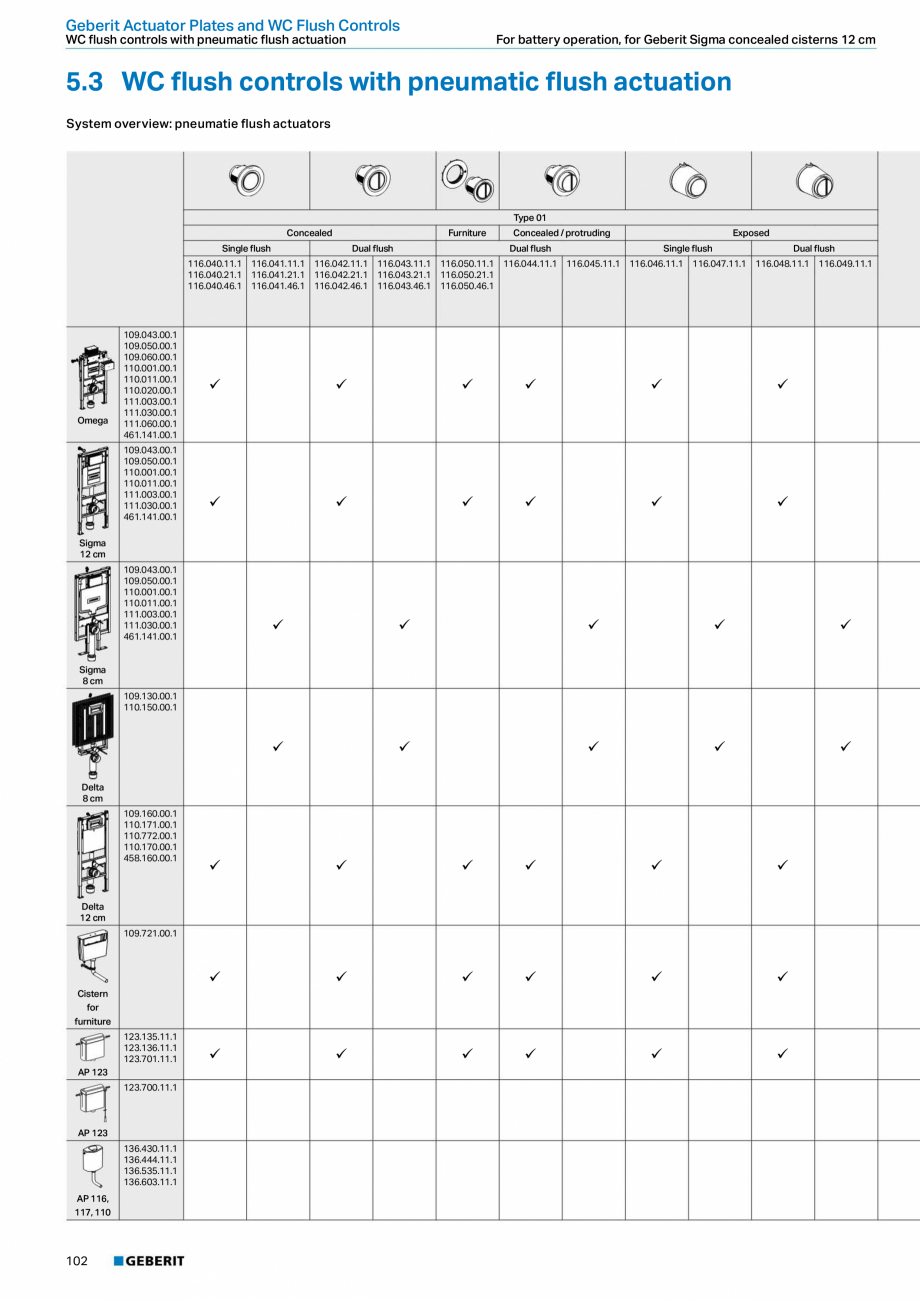

Pagina 102 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

1/2 17-37 min. 9 max. 81 min. 31 10 100-118 100 max. 65 109-127 75-33 0 0 0 0-20 0-20 Application purposes • For installation in Geberit GIS support systems for prewall, partition wall or free-standing wall • For Geberit urinal flush controls for covered installation, vandal-resistant • For floor constructions 0–20 cm Characteristics • Frame, zinc-plated, with four quick-action fasteners • Infinitely variable height adjustment in Geberit GIS structure • Stop valve with throttle pre-mounted • Service opening behind urinal • Flexible flush hose with guide and integrated check valve • Equipped with conduit pipe to connect the sensor in the trap to the urinal flush control • Fastening for inlet ø 32 mm, height-adjustable • Fastening for connection bend, height-adjustable and sound-absorbing • Urinal fasteners M8 width- and height-adjustable • Crossbars with centring marks, adjustable without tools • Can be retrofitted with accessories to fit urinal

Pagina 102-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 103 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

s with spray head 0 0 - 20 0 - 20 Application purposes • For installation in Geberit GIS support systems for prewall, partition wall or free-standing wall • For floor constructions 0–20 cm Characteristics • Frame, zinc-plated, with four quick-action fasteners • Infinitely variable height adjustment in Geberit GIS structure • Stop valve with throttle pre-mounted • Fastening for inlet ø 32 mm, height-adjustable • Fastening for connection bend, height-adjustable and sound-absorbing • Urinal fasteners M8 width- and height-adjustable • Crossbars with centring marks, adjustable without tools • Can be retrofitted with accessories to fit urinals with spray head Technical data Flow pressure 1-8 bar Maximum test pressure water 16 bar Maximum test pressure air / inert gas 3 bar Flow rate at 1 bar without flow limiter 0.3 l/s Flow rate at 1 bar with flow limiter 0.24 l/s Scope of delivery • Elbow tap connector R 1/2 • Protection box with cover • Connecti

Pagina 103-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

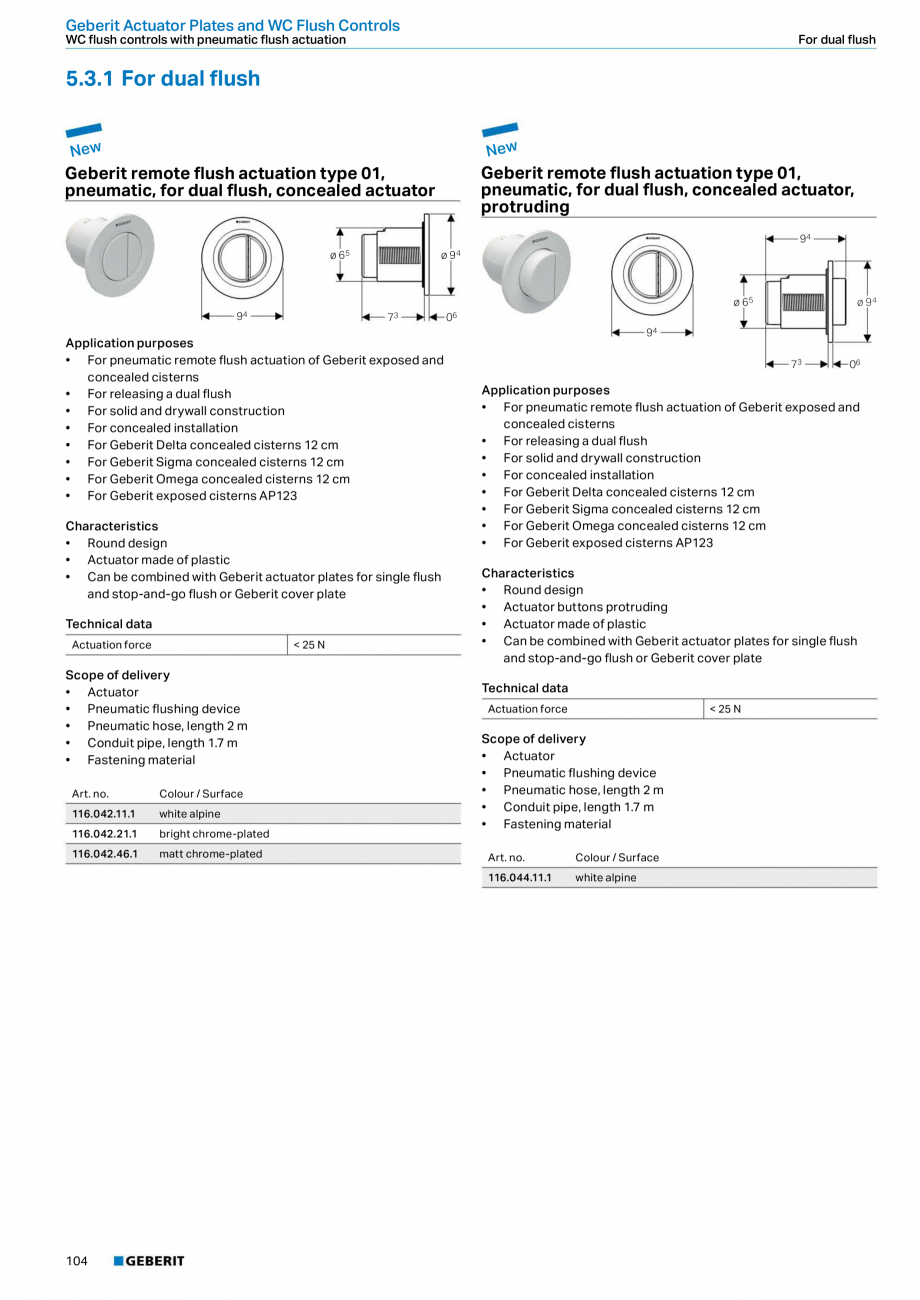

Pagina 104 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

on pipe between inlet ø 32 mm and urinal, with seal to urinal • 1 protection plug • Connection bend made of PE-HD, ø 50/63 mm • Protective cap • Urinal trap ø 50 mm, with seal on urinal • 2 threaded rods M8 • Fastening material Art. no. 1-8 bar Maximum test pressure water 16 bar Maximum test pressure air / inert gas 3 bar Flow rate at 1 bar without flow limiter Technical data Flow pressure 0.3 l/s Flow rate at 1 bar with flow limiter 0.24 l/s Scope of delivery • Elbow tap connector R 1/2 • Protection box with cover • Connection pipe between inlet ø 32 mm and urinal, with seal to urinal • 1 protection plug • Connection bend made of PE-HD, ø 63/50 mm • Protective cap • Seal, ø 57/50 mm • Urinal trap ø 50 mm, with seal on urinal • 2 threaded rods M8 • Fastening material Art. no. 461.621.00.1 Accessories • Accessory overview: Geberit GIS elements for urinals → p. 54 461.689.00.1 Accessories • Accessory overview: Geberit GIS elemen

Pagina 104-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 105 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

ts for urinals → p. 54 55 Geberit GIS Installation elements Elements for taps and devices 3.2.5 Elements for taps and devices Geberit GIS crossbar for wall-mounted tap, surface-mounted, 153 mm, for two water supply connections 248 Geberit GIS mounting plate for concealed base units HANSAVAROX and iBox 37 77 15 153 125 76 2 76 38 Application purposes • For installation in Geberit GIS support systems for prewall, partition wall or free-standing wall • For connecting surface-mounted taps with gauge for bore holes 15.3 cm • For connecting surface-mounted taps with gauge for bore holes 7.6 cm Application purposes • For installation in Geberit GIS support systems for prewall, partition wall or free-standing wall • For installation of concealed base units HANSAVAROX and iBox Characteristics • Infinitely variable height adjustment in Geberit GIS structure • Crossbar, zinc-plated, with four quick-action fasteners Art. no. Characteristics • Infinitely variable

Pagina 105-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 106 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

height adjustment in Geberit GIS structure • Crossbar, zinc-plated, with two quick-action fasteners 461.178.00.1 3.2.6 Elements for loads Scope of delivery • 2 protective plugs with punching tip • 2 sealing washers • 2 sound insulation bases • Fastening material Geberit GIS mounting plate Universal, 31 x 58 cm 3 308 Art. no. 461.038.00.1 578 Geberit GIS mounting plate for concealed stop valves, 270 mm 5 153 115 12 7 27 Application purposes • For installation in Geberit GIS support systems for prewall, partition wall or free-standing wall • For fastening Geberit concealed stop valves Characteristics • Infinitely variable height adjustment in Geberit GIS structure • Crossbar, zinc-plated, with two quick-action fasteners 13 5 Application purposes • For installation in Geberit GIS support systems for prewall, partition wall or free-standing wall • Suitable for barrier-free construction • For fastening support handles • For fastening urinal divisions,

Pagina 106-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

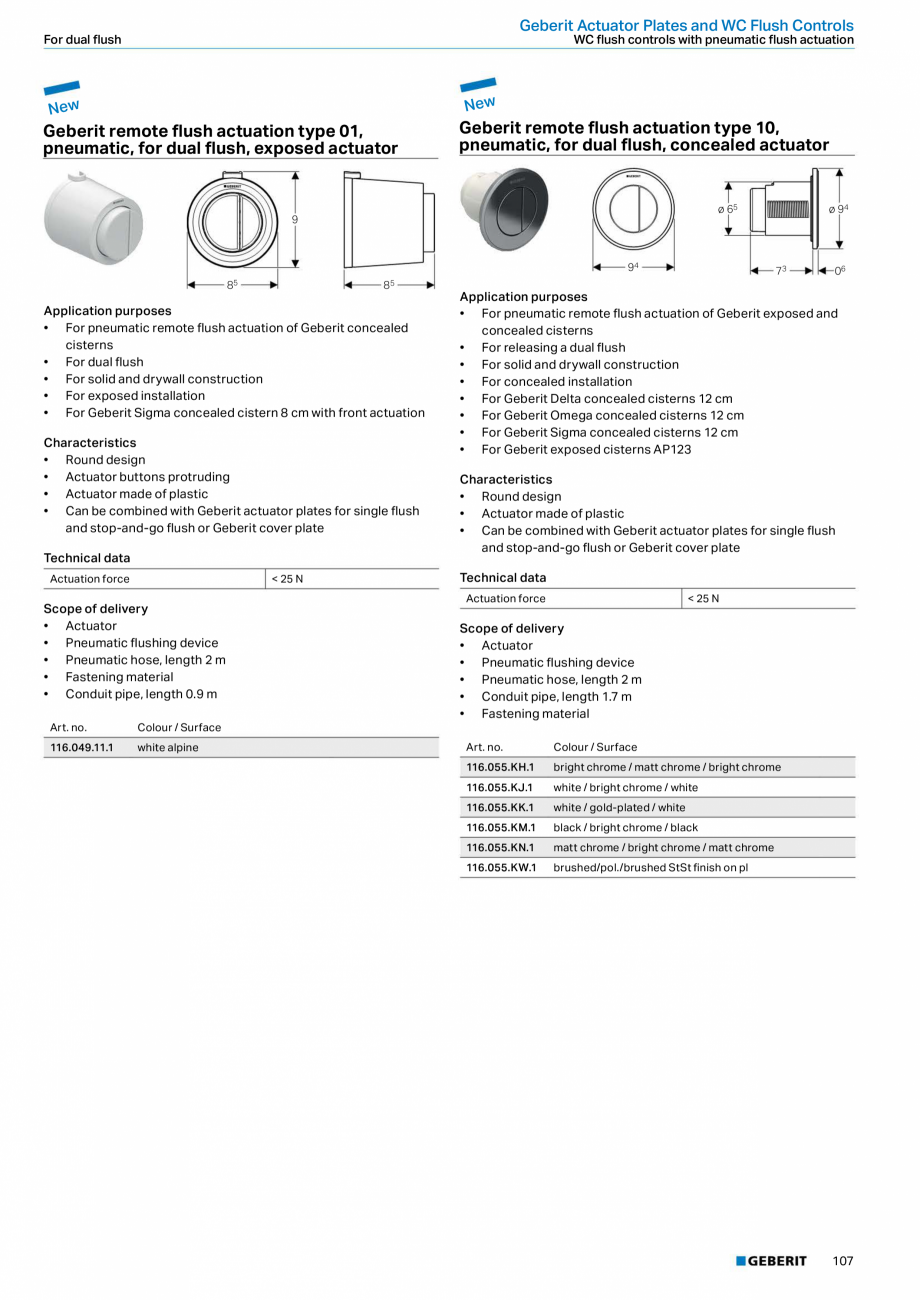

Pagina 107 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

shower partition walls and wall cabinets Characteristics • Mounting plate made of veneered wood, waterproof bonded • Can be divided into two smaller mounting plates • Can be mounted vertically and horizontally • All-round cutout suitable for Geberit GIS profile Technical data Art. no. Material 461.072.00.1 Accessories • Geberit Mepla concealed stop valve with cover collar and fastening • Geberit concealed stop valve with cover collar and fastening 56 Art. no. 461.035.00.1 Wood Geberit GIS Accessories Accessories 3.2.7 Accessories 3.3 Accessories Geberit retrofit adapter for inlet Rp 1/2, urinal 3.3.1 For system walls G1/2 54 Geberit GIS installation kit for free-standing system wall 10-17 26 73 28 Application purposes • For retrofitting installed Geberit Duofix elements for urinal with inlet ø 32 mm to inlet Rp 1/2“ 20 Art. no. 242.309.00.1 Geberit sound insulation set for wall-hung WC s 40 42 Application purposes • For making free-standin

Pagina 107-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 108 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

g Geberit GIS support systems more rigid Characteristics • Zinc-plated Technical data Material Application purposes • For structure-borne sound insulation of WCs and bidets • For WCs and bidets with fastening distance 18 or 23 cm Characteristics • White Technical data PE-E Scope of delivery • 2 washers • 2 sound insulation sleeves • Sound insulation mat 156.050.00.1 Scope of delivery • 2 support brackets, pre-mounted, zinc-plated • 2 heavy-duty dowels • 4 ratchet pins • 2 screws M8 • 6 nuts M8 Art. no. Material Art. no. Steel 461.660.00.1 Geberit GIS installation kit for service flap s [mm] 6 Application purposes • For creating service openings in Geberit GIS walls Characteristics • Size of service opening 15 x 15 cm, can be enlarged to 0.5 m² • Minimum tile size 15 x 15 cm Technical data Material Steel Scope of delivery • 2 pair fixing devices with safety catch • 2 joint angles with adjustable magnets • 2 contact plates • Pull cord t

Pagina 108-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 109 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

o open • Silicone adhesive Art. no. 461.043.00.1 57 Geberit GIS Accessories For system walls Geberit GIS mounting clip Geberit GIS installation kit for service door M10 33 25 27 2 SW13 M10 5 Application purposes • For fastening threaded rods to Geberit GIS profiles • For fastening installation parts and sanitary appliances to Geberit GIS profiles Characteristics • Zinc-plated • Thread M10 Application purposes • For creating service openings in Geberit GIS walls Characteristics • Size of service opening 20 x 20 cm to 50 x 100 cm • Minimum tile size 20 x 20 cm Technical data Material Steel Scope of delivery • 4 connection elements • 2 hinge holders • Pressure opener • Silicone adhesive Scope of delivery • 1 protective plug with punching tip • Fastening screw Art. no. 461.004.00.1 Art. no. 461.044.00.1 Geberit GIS ratchet pin 2 SW 4 M8 16 SW 13 Geberit heavy-duty dowel 86 M8 Application purposes • For fastening Geberit GIS installation

Pagina 109-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

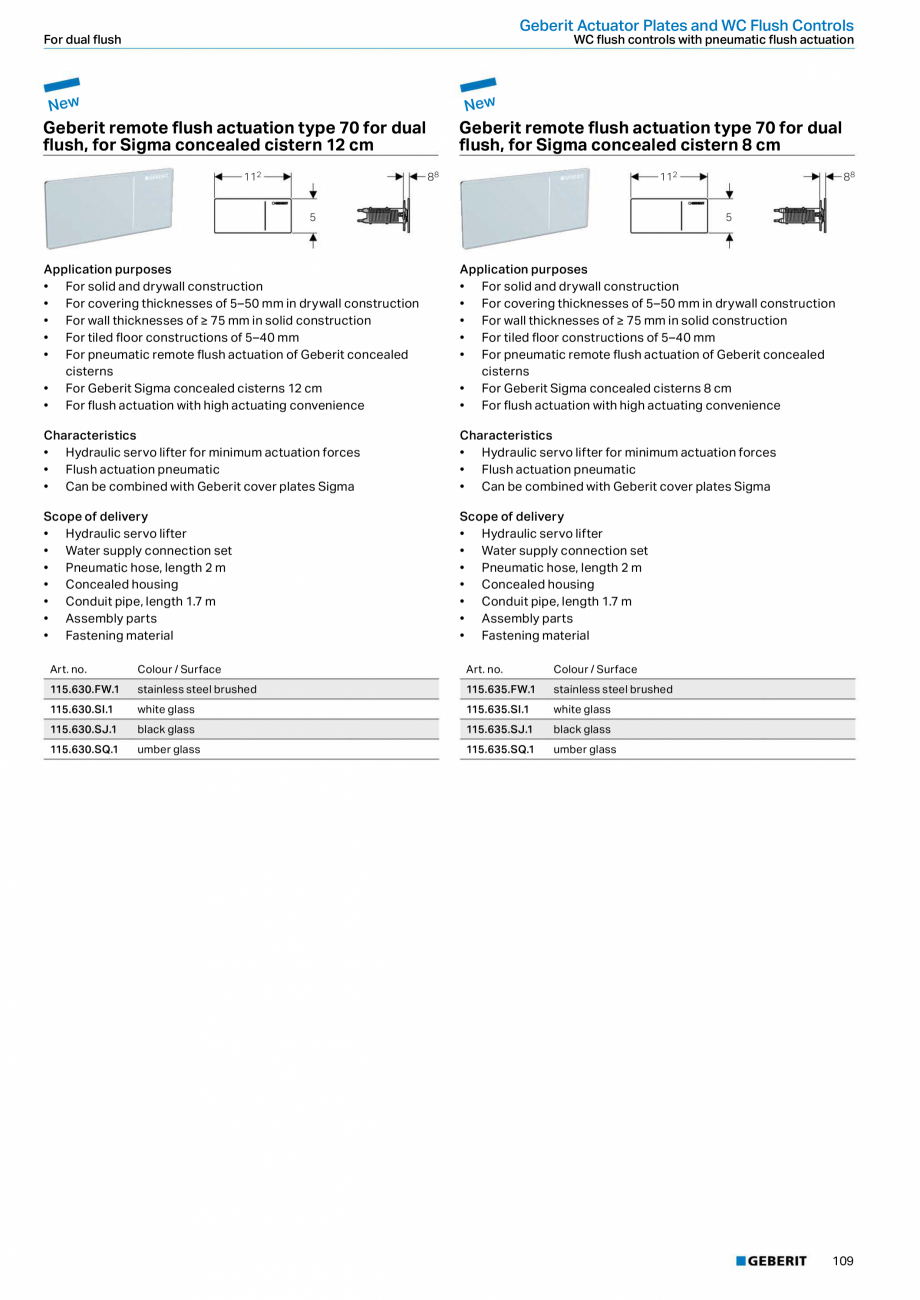

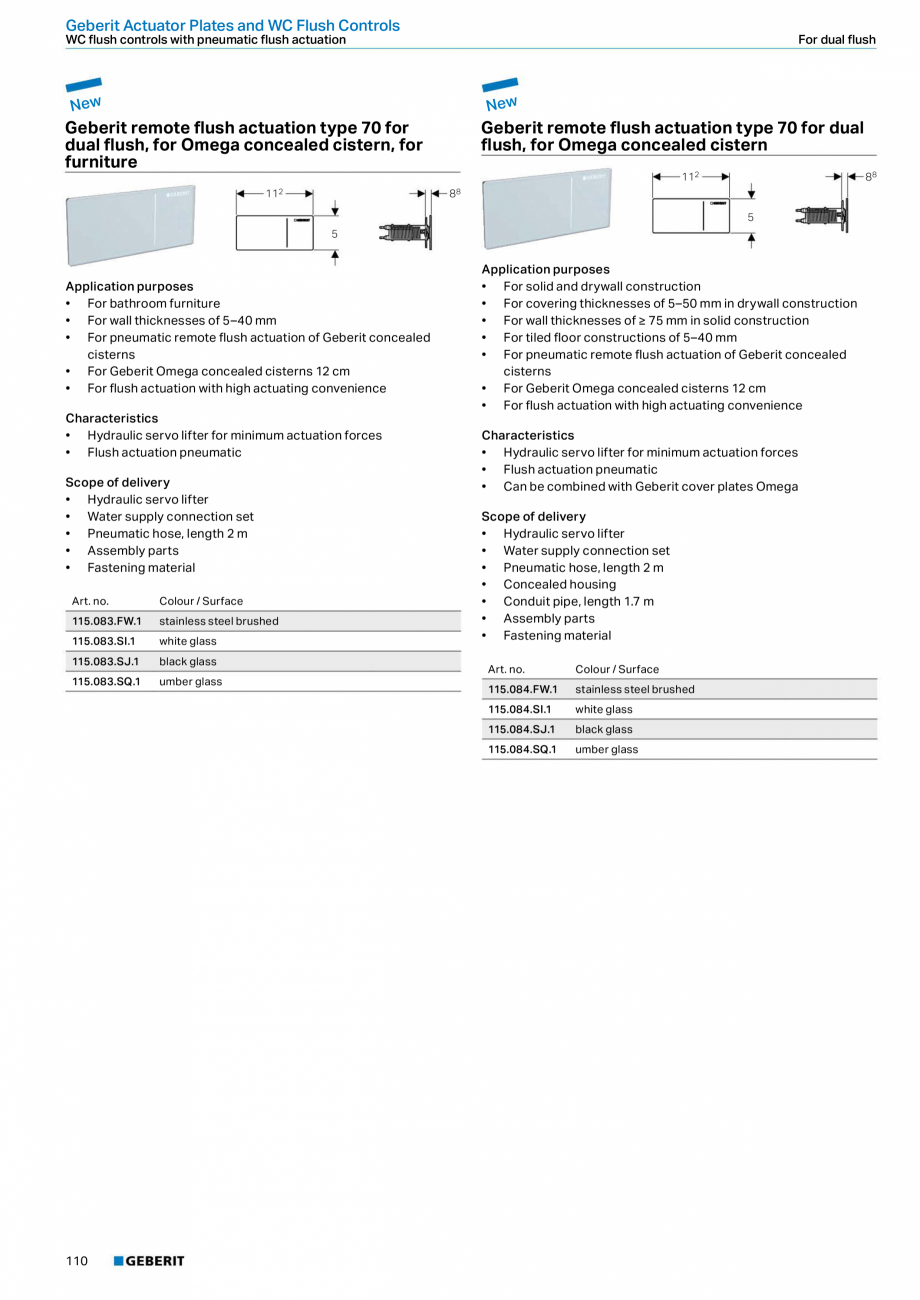

Pagina 110 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

elements on the structure • For creating additional fastenings on Geberit GIS profiles Characteristics • Zinc-plated • Thread M8 461.006.00.1 Technical data Material Geberit void dowel, metal Ø 11 76 Application purposes • For fastening Geberit GIS mounting brackets to panels with panelling thickness of 18–25 mm • For fastening Geberit Duofix system rails to panels with panelling thicknesses of 18–25 mm Characteristics • Zinc-plated Technical data Art. no. 465.029.00.1 58 Art. no. 461.037.26.1 M6 Scope of delivery • Screw M6 Application purposes • For fastening Geberit GIS mounting brackets and GIS installation kits for free-standing GIS walls on the unfinished building structure (concrete) • For fastening Geberit Duofix installation elements with large, reinforced foot plates to the rough building structure (concrete) Characteristics • Zinc-plated Art. no. Material 08 M8 17 Steel Steel Geberit GIS For supply systems Accessories 3.3.2 Fo

Pagina 110-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

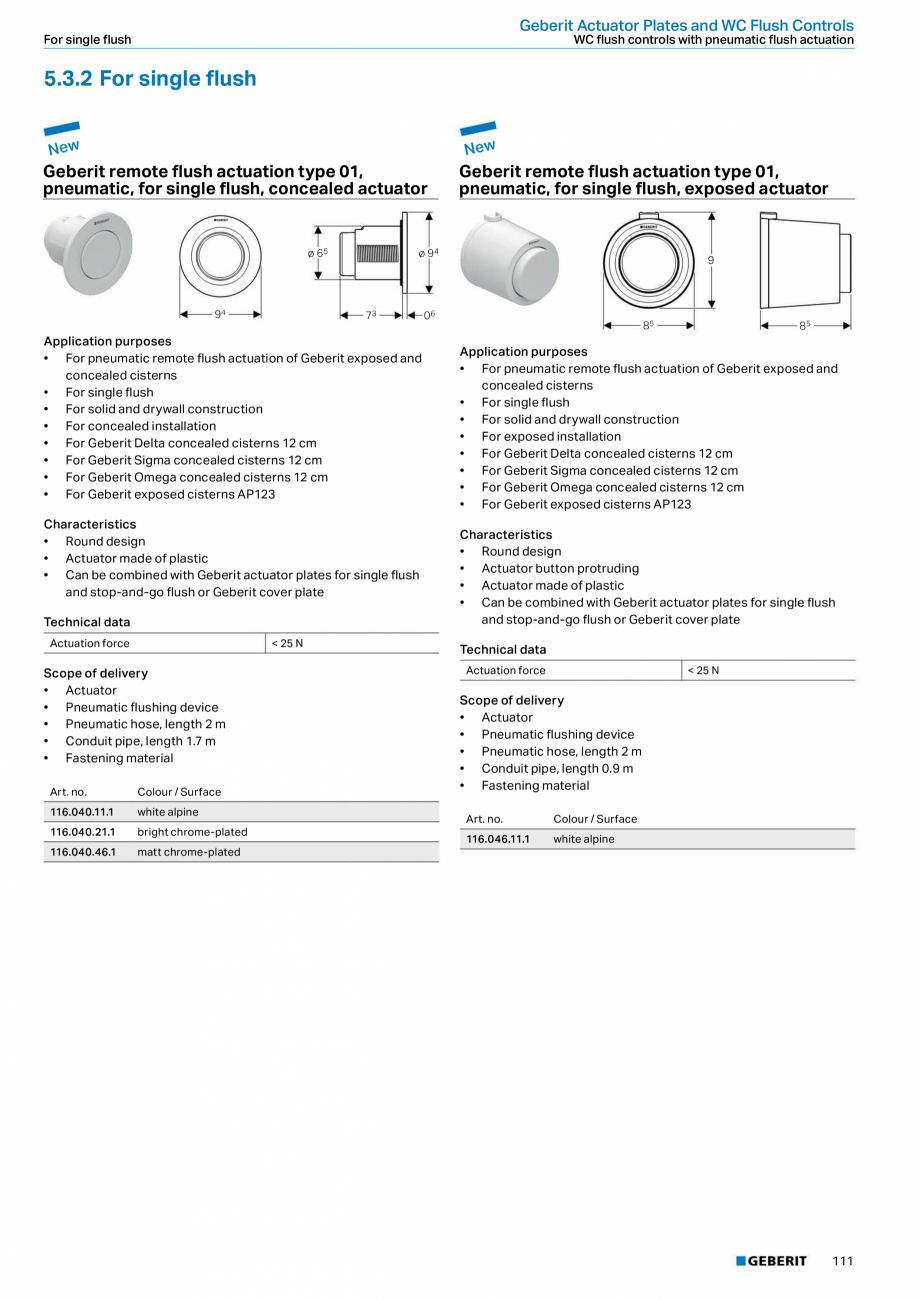

Pagina 111 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

r supply systems Geberit GIS wall fixation 10 135-26 Geberit GIS pipe clip for supply pipes 5 205 Application purposes • For bracing and fastening Geberit GIS support systems to the building structure 5 Application purposes • For fastening supply pipes to Geberit GIS support systems • For Geberit Mepla system pipes, ML, ø 16–32 mm Characteristics • Pre-mounted parts made of die-cast zinc • With two quick-action fasteners • Infinitely variable hand adjustment Characteristics • Adjustable, ø 16–40 mm Technical data Material Die-cast zinc Art. no. Scope of delivery • Fastening material 461.070.00.1 Art. no. 3.3.3 For drainage systems 461.015.00.1 Geberit GIS pipe bracket for discharge pipe Geberit GIS sound insulation tape 30 m 03 5 1 5 Application purposes • For structure-borne sound decoupling between panels and building structure • For avoiding uncontrollable formation of cracks d Application purposes • For fastening discharge pipes

Pagina 111-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

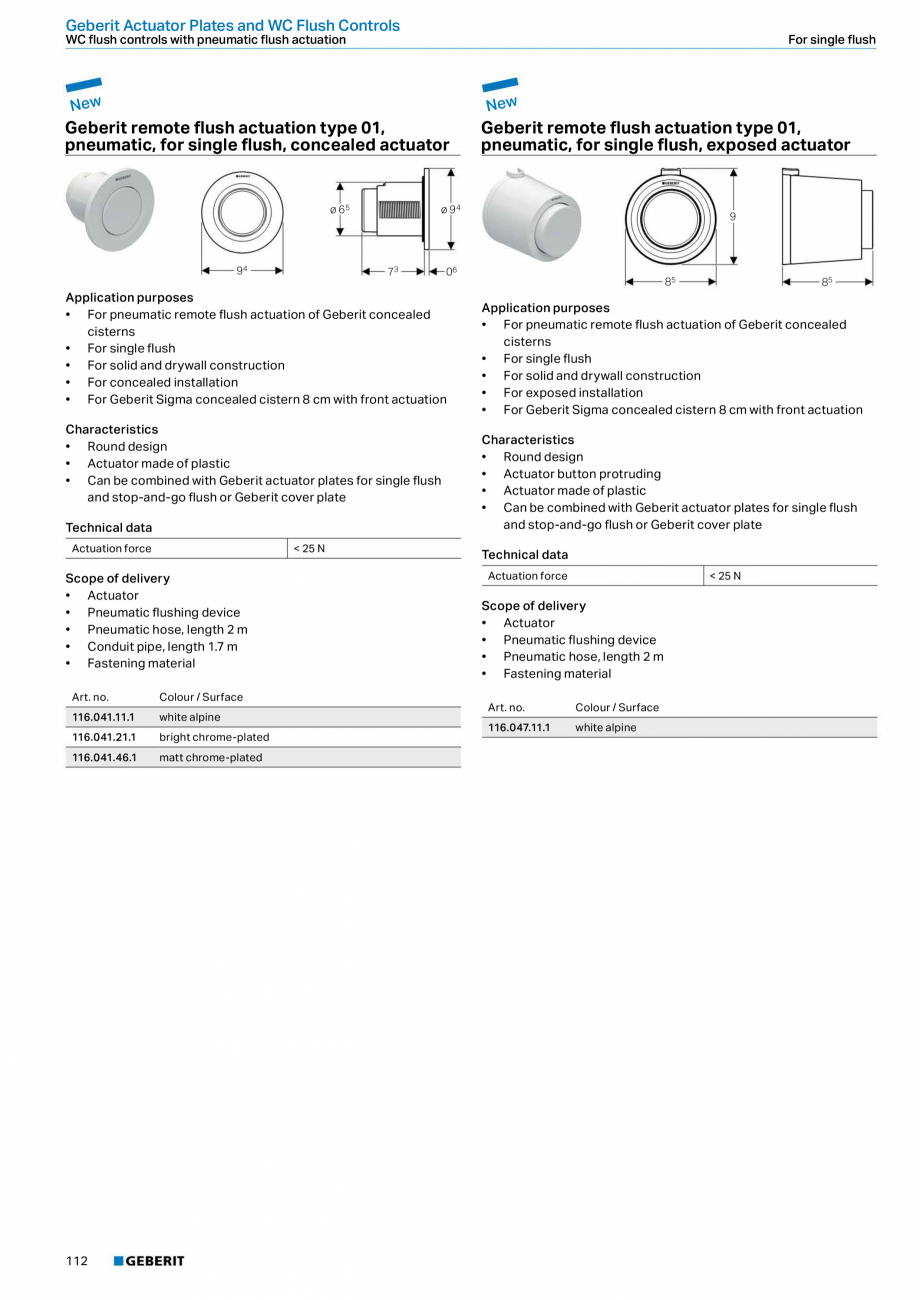

Pagina 112 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

made of plastic to the Geberit GIS support system Characteristics • Single-sided self-adhesive • Permanently elastic • Vinyl foam tape • Closed-cell Art. no. 50 / 56 50 - 56 364.052.00.1 60 63 365.050.00.1 461.036.00.1 d, ø [mm] 363.050.00.1 Art. no. DN 70 75 366.050.00.1 Sound insulating panel for Geberit GIS mounting bracket 90 90 367.050.00.1 100 110 7 05 5 Application purposes • For structure-borne sound decoupling between Geberit GIS support systems and the building structure Characteristics • Self-adhesive Technical data Material Cork Art. no. 461.014.00.1 59 Geberit Concealed Cisterns 4. Geberit Concealed Cisterns 4.1 Sigma concealed cisterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62 4.2 Omega concealed cisterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63 4.3 Delta concealed cisterns . . . . . . . . . . . . . . . . . . . . . .

Pagina 112-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

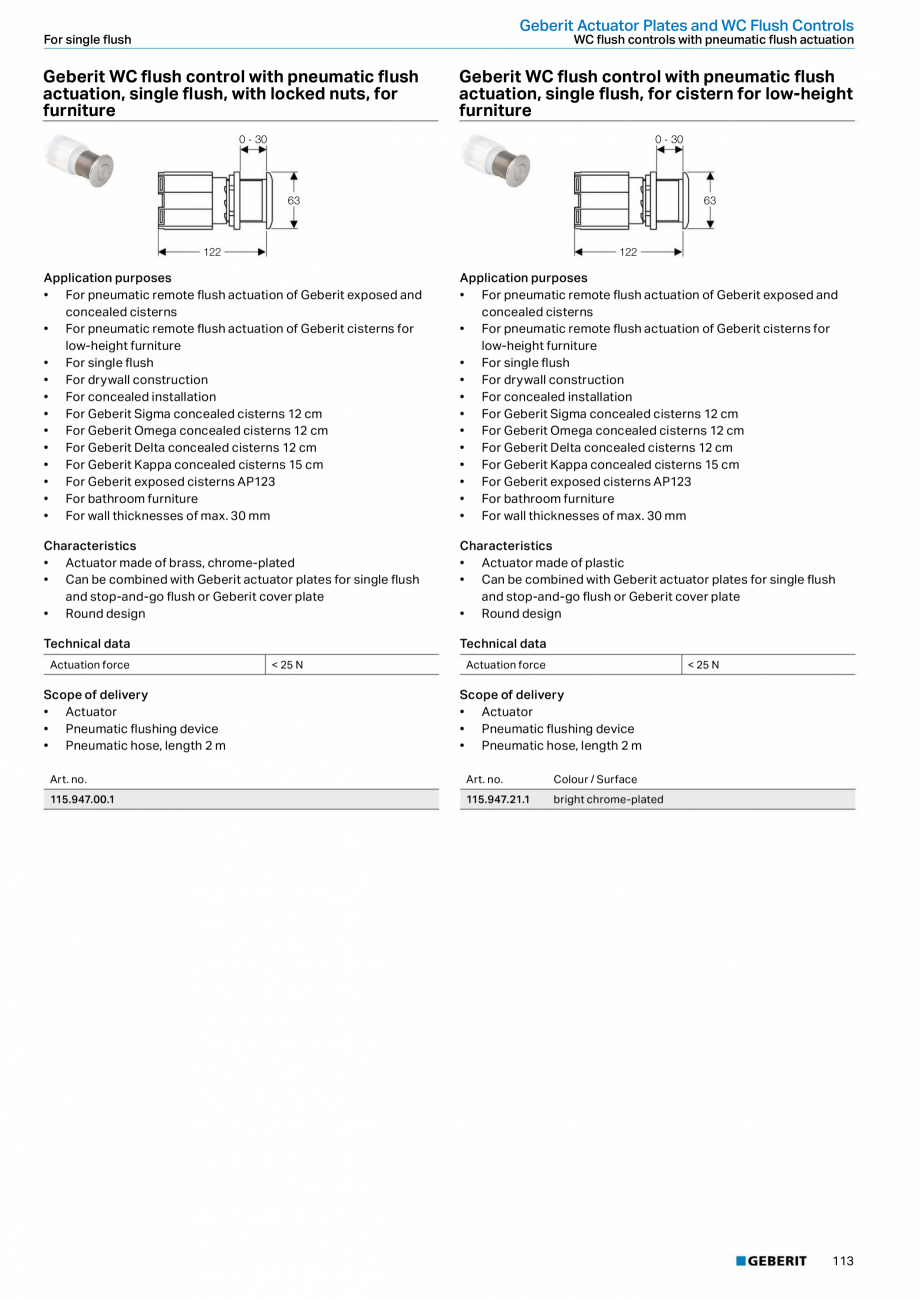

Pagina 113 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

. . . . . . . . . . . . . . . . . . . . . . . . . 65 4.4 Flush pipes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66 4.5 Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66 61 Geberit Concealed Cisterns Sigma concealed cisterns 4.1 Sigma concealed cisterns Geberit Sigma concealed cistern 8 cm, 6 / 3 litres Geberit Sigma concealed cistern 12 cm, 6 / 3 litres 12 44 41 2-9 R1/2 8 505 1–5 8 100 R1/2 100 87 87 110 110 235 845 51 595 41 108 23 67–82 1045 365 135 8 0 max.–15 X 0 0 0 30 Application purposes • For masonry walls • For installation in part- or room-height prewall installations • For installation in room-height installation walls • For floor-standing and wall-hung WCs • For single flush, dual flush or stop-and-go flush Characteristics • Concealed cistern with front actu

Pagina 113-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 114 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

ation, fully insulated against condensation • Immediate post flush possible with factory setting • Flush bend fitted • Tool-free installation and maintenance work on concealed cistern • Water supply connection on the rear or at the top centre • Protection box for service opening can be cut to length Technical data Application purposes • For masonry walls • For installation in part- or room-height prewall installations • For installation in room-height installation walls • For floor-standing WCs • For single flush, dual flush or stop-and-go flush Characteristics • Concealed cistern with front actuation, fully insulated against condensation • Immediate post flush possible with factory setting • Flush bend fitted • Flush bend adjustable 2 cm upwards and 1 cm downwards • Tool-free installation and maintenance work on concealed cistern • Water supply connection at the top, offset to left side • Protection box for service opening can be cut to length Flow

Pagina 114-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

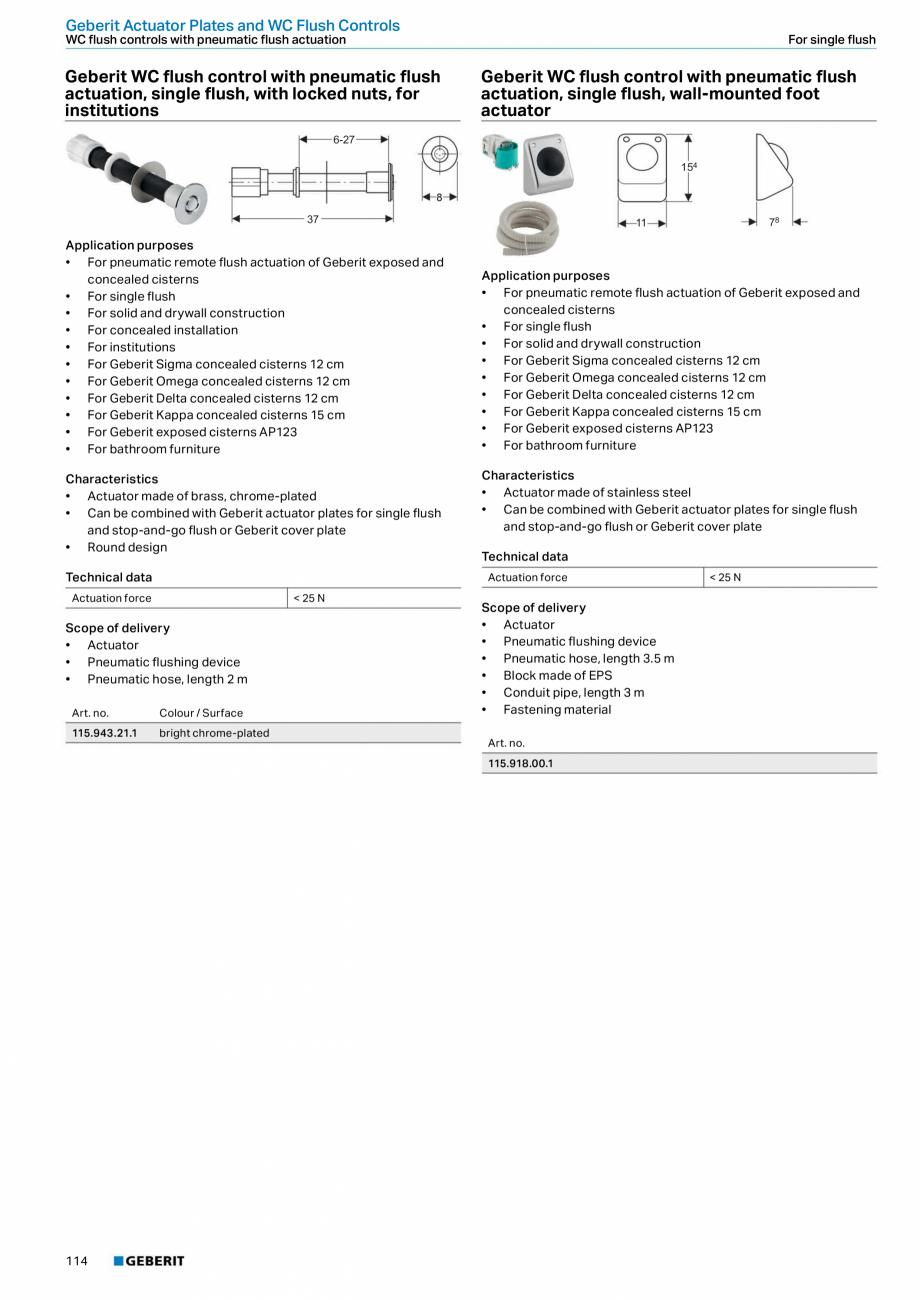

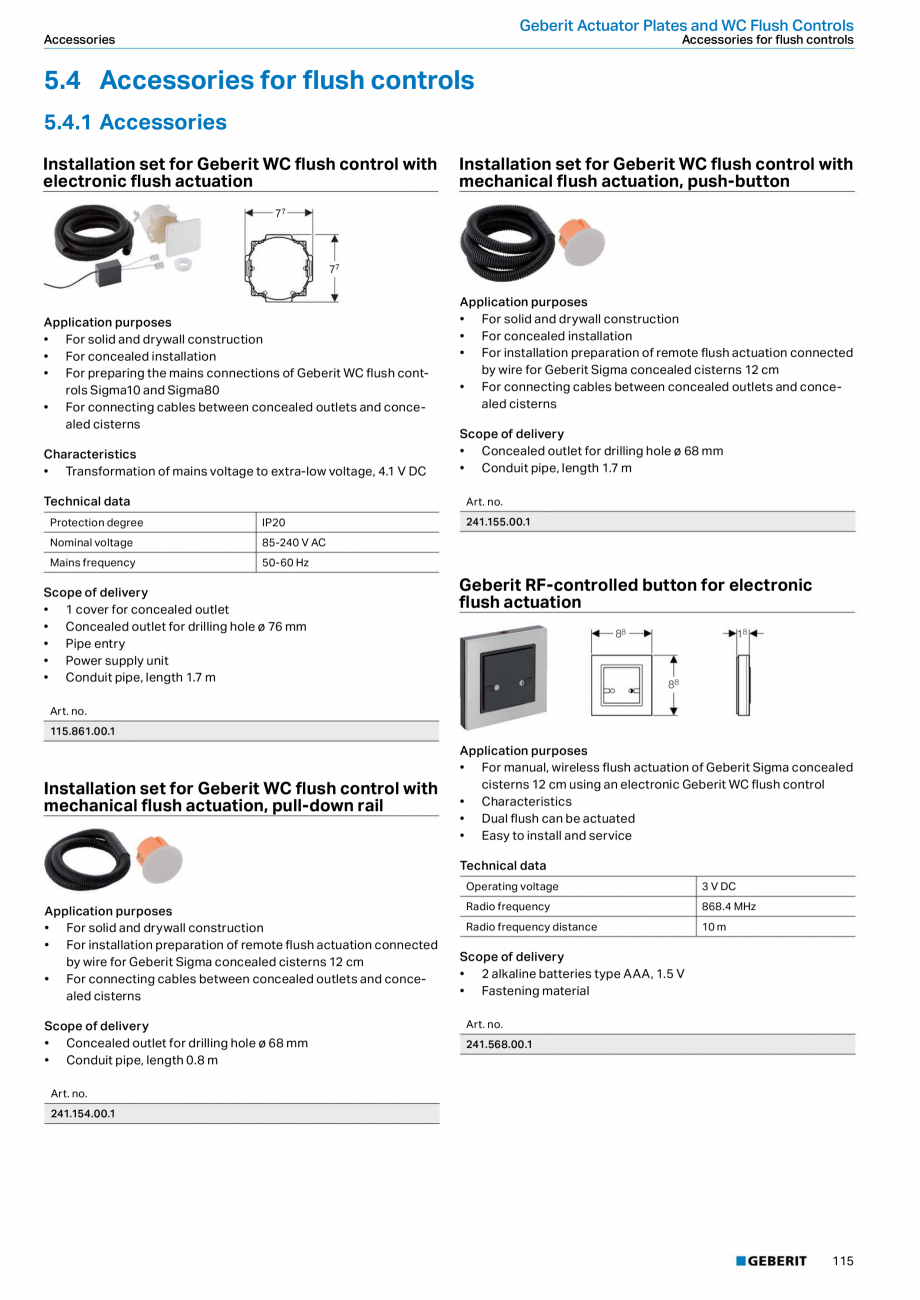

Pagina 115 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

pressure 0.1-10 bar Flush volume factory setting 6 and 3 l Flow pressure 0.1-10 bar Flush volume large adjustment range 4.5 / 6 / 7.5 l Flush volume factory setting 6 and 3 l Flush volume small adjustment range 3-4 l Flush volume large adjustment range 6/9l Flush volume small 3l Scope of delivery • Water supply connection R 1/2, compatible with MeplaFix, with integrated angle stop valve and hand wheel • Protection box for service opening • Flush bend with recess shells • 1 protection plug • 2 slotted flat irons • 2 fixing brackets • Fastening material Art. no. 109.300.00.5 Technical data Scope of delivery • Water supply connection R 1/2, compatible with MeplaFix, with integrated angle stop valve and hand wheel • Protection box for service opening • Flush bend with recess shells • Flush bend extension, ø 45 mm • 1 protection plug • 2 slotted flat irons • Direct plastering netting • Fastening material Art. no. 109.771.00.1 • Actuator p

Pagina 115-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 116 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

late has to be ordered separately • 62 Actuator plate has to be ordered separately Geberit Concealed Cisterns Omega concealed cisterns 4.2 Omega concealed cisterns Geberit Omega concealed cistern 12 cm, 6 / 3 litres, installation height 82 cm, with top or front actuation ≥3 416 ≥ 15 12 Geberit Omega concealed cistern 12 cm, 6 / 3 litres, installation height 98 cm, with top or front actuation ≥ 15 12 12 2–9 45 416 9 R½ ≥3 44 2–9 45 9 R½ 395 12 335 395 X 486 0 0 X ≥ 30 0 Application purposes • For masonry walls • For installation in part-height prewall installations • For floor-standing and wall-hung WCs • For dual flush Characteristics • Adjustable in depth • Concealed cistern with top or front actuation, fully insulated against condensation • Immediate post flush possible with factory setting • Flush bend welded • Tool-free installation and maintenance work on concealed cistern • Water supply connection left or on re

Pagina 116-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 117 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

ar left • Protection box for service opening can be cut to length Technical data 0 ≥ 30 Application purposes • For masonry walls • For installation in part-height prewall installations • For floor-standing and wall-hung WCs • For dual flush Characteristics • Concealed cistern with top or front actuation, fully insulated against condensation • Immediate post flush possible with factory setting • Flush bend welded • Tool-free installation and maintenance work on concealed cistern • Water supply connection left or on rear left • Protection box for service opening can be cut to length Flow pressure 0.1-10 bar Flush volume factory setting 6 and 3 l Flush volume large adjustment range 4.5 / 6 / 7.5 l Flow pressure 0.1-10 bar Flush volume small adjustment range 3-4 l Flush volume factory setting 6 and 3 l Flush volume large adjustment range 4.5 / 6 / 7.5 l Flush volume small adjustment range 3-4 l Scope of delivery • Water supply connection R 1/2,

Pagina 117-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

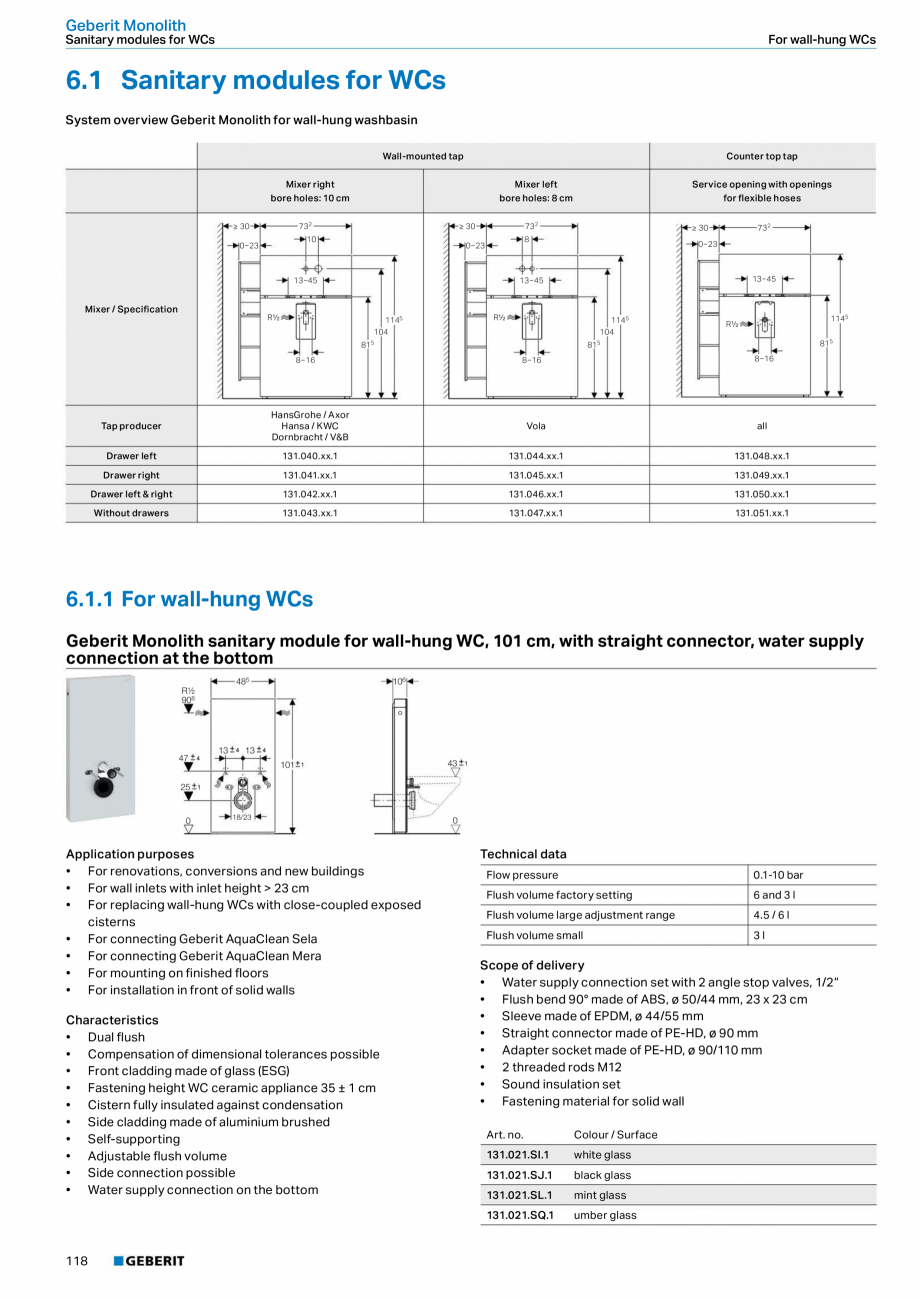

Pagina 118 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

compatible with MeplaFix, with integrated angle stop valve and hand wheel • Protection box for service opening • Flush bend extension, ø 45 mm • 1 protection plug • 2 fixing brackets • Fastening material Art. no. 109.043.00.1 Technical data Scope of delivery • Water supply connection R 1/2, compatible with MeplaFix, with integrated angle stop valve and hand wheel • Protection box for service opening • Connection set for WC, ø 90 mm • Connection bend,ø 90/110 mm • 2 protection plugs • 2 fixing brackets • Fastening material Art. no. 109.050.00.1 • Actuator plate has to be ordered separately • Actuator plate has to be ordered separately 63 Geberit Concealed Cisterns Omega concealed cisterns N ew Geberit Omega concealed cistern 12 cm, 6 / 3 litres, installation height 106 cm, with front actuation 44 45 416 ≥ 12 R½ 12 395 9 575 X 0 0 ≥ 30 Application purposes • For masonry walls • For installation in part- or room-height prewall in

Pagina 118-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

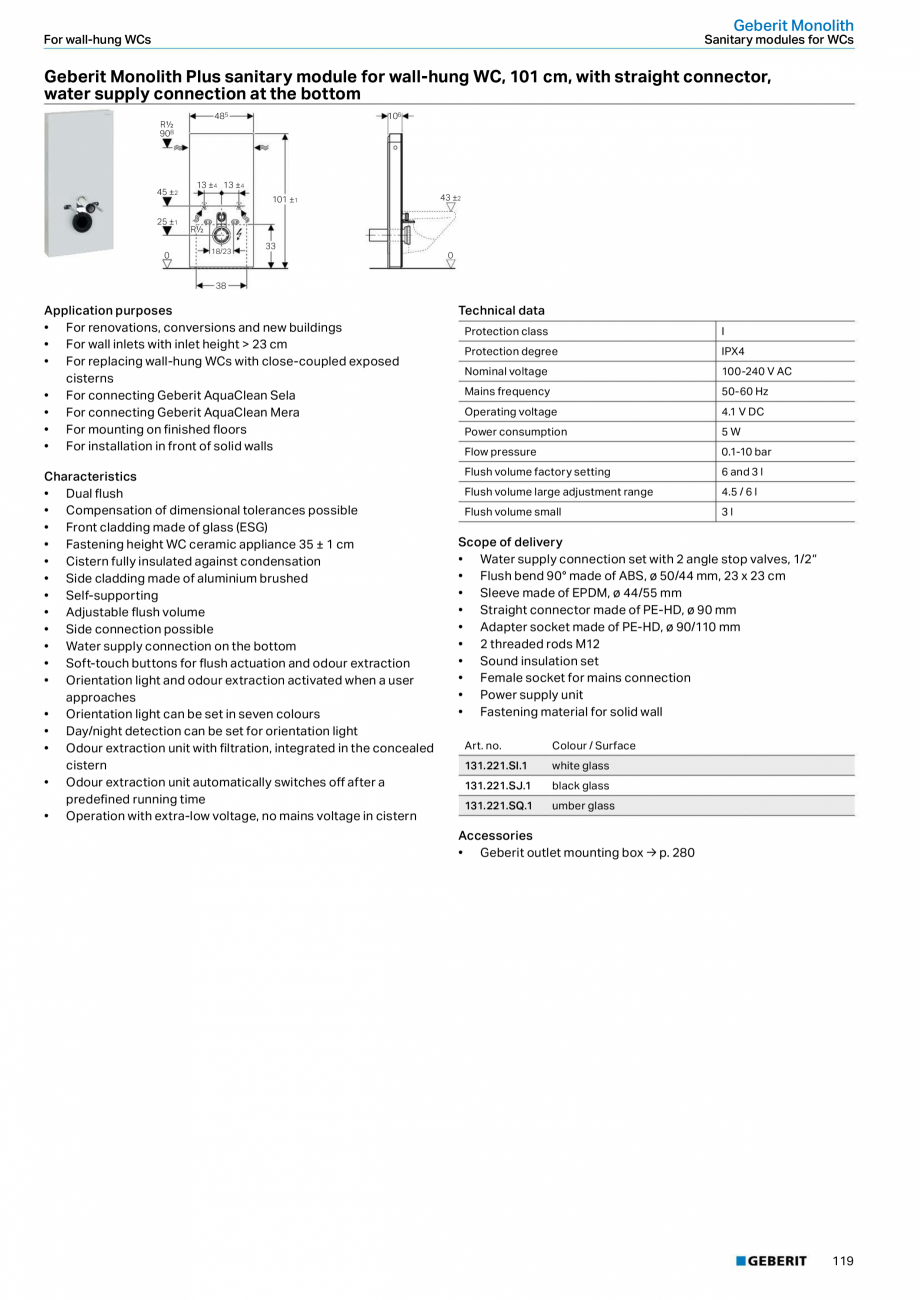

Pagina 119 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

stallations • For installation in room-height installation walls • For floor-standing and wall-hung WCs • For dual flush Characteristics • Concealed cistern with front actuation, fully insulated against condensation • Immediate post flush possible with factory setting • Flush bend welded • Tool-free installation and maintenance work on concealed cistern • Water supply connection left or on rear left • Protection box for service opening can be cut to length Technical data Flow pressure 0.1-10 bar Flush volume factory setting 6 and 3 l Flush volume large adjustment range 4.5 / 6 / 7.5 l Flush volume small adjustment range 3-4 l Scope of delivery • Water supply connection R 1/2, compatible with MeplaFix, with integrated angle stop valve and hand wheel • Protection box for service opening • Connection set for WC, ø 90 mm • Connection bend,ø 90/110 mm • 2 protection plugs • 2 fixing brackets • Fastening material Art. no. 109.060.00.1 • 64 Actua

Pagina 119-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 120 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

tor plate has to be ordered separately Geberit Concealed Cisterns Delta concealed cisterns 4.3 Delta concealed cisterns Geberit Delta concealed cistern 12 cm, 9 / 4 litres 12 44 41 R1/2 Geberit Delta concealed cistern 8 cm, 9 / 3 litres 8 45 R1/2 1-6 1015-119 1-6 985-1155 985-1155 134 134 1015-119 25 86-1035 85 595 535 -175 111-1285 365 -175 41 105 365 0 85 -17 41 -16 0 Application purposes • For masonry walls • For installation in part- or room-height prewall installations • For installation in room-height installation walls • For floor-standing and wall-hung WCs • For single flush, dual flush or stop-and-go flush Characteristics • Concealed cistern with front actuation, fully insulated against condensation • Flush bend fitted • Water supply connection on the rear or at the top centre • Connection hose on angle stop valve can be attached without tools Technical data Flow pressure 0.1-10 bar Flush volume factory setting 9 and 4 l Flush vo

Pagina 120-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 121 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

lume large adjustment range 6/9l Flush volume small adjustment range 3-4 l Scope of delivery • Angle stop valve R 1/2, compatible with MeplaFix, with adapter ring • Protection box for service opening • 2 distance bolts • Flush bend with recess shells • Flush bend extension, ø 45 mm • 1 protection plug • 2 slotted flat irons • 2 fixing brackets • Fastening material Art. no. 109.160.00.1 • Actuator plate has to be ordered separately 0 0 Application purposes • For masonry walls • For installation in part- or room-height prewall installations • For installation in room-height installation walls • For floor-standing and wall-hung WCs • For single flush, dual flush or stop-and-go flush Characteristics • Concealed cistern with front actuation • Flush bend fitted • Water supply connection at the top centre • Connection hose on angle stop valve can be attached without tools Technical data Flow pressure 0.1-10 bar Flush volume factory setting 9

Pagina 121-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

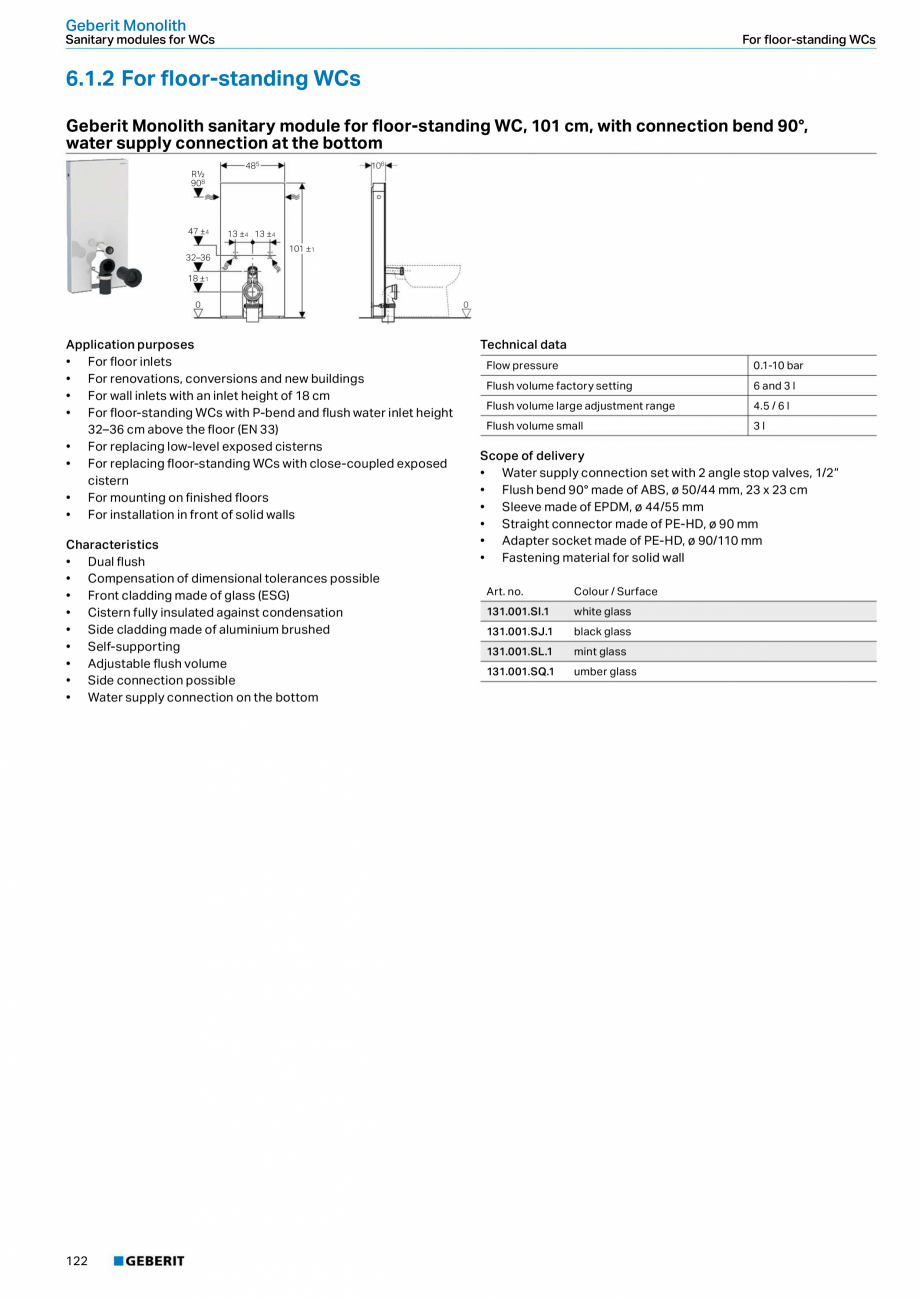

Pagina 122 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

and 3 l Flush volume large adjustment range 6/9l Flush volume small 3l Scope of delivery • Angle stop valve R 1/2, compatible with MeplaFix, with adapter ring • Protection box for service opening • 2 distance bolts • Flush bend with recess shells • Flush bend extension, ø 45 mm • 1 protection plug • 4 slotted flat irons • Direct plastering netting • Fastening material Art. no. 109.130.00.1 • Actuator plate has to be ordered separately 65 Geberit Concealed Cisterns Flush pipes 4.4 Flush pipes 4.5 Accessories Geberit flush bend set 90°, telescopic Geberit flush bend extension set with collar d d1 d 85 8 d1 L Art. no. A Application purposes • For connecting concealed cisterns with a WC ceramic appliance Characteristics • Can be pulled out Technical data Material PE-HD Scope of delivery • Flush pipe • Recess shells • 1 protection plug d, ø [mm] d1, ø [mm] A [cm] L [cm] X [cm] 56 45 9.5 6.5 112 Geberit flush bend extension

Pagina 122-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

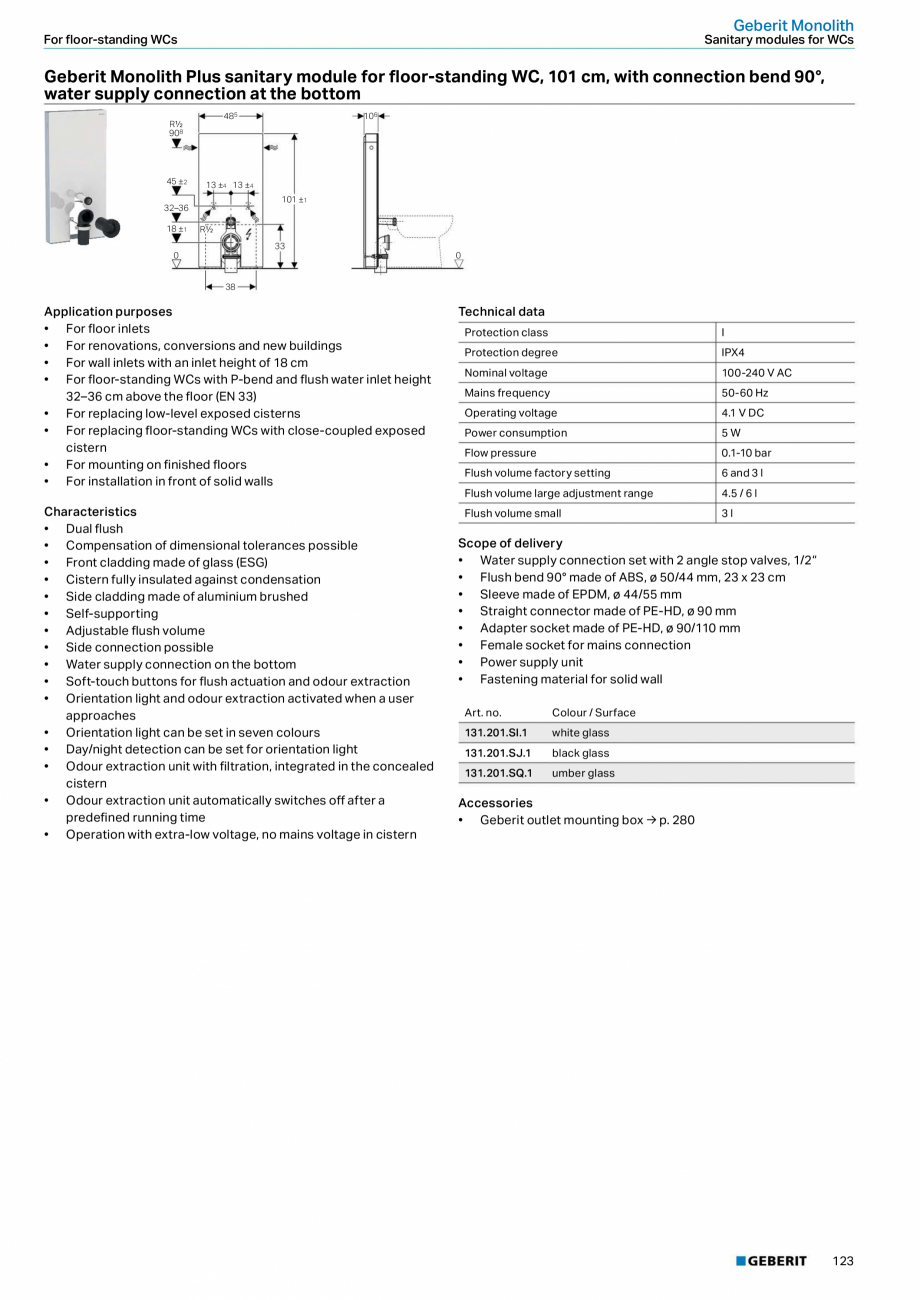

Pagina 123 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

set with collar d1 d 12 di d1 8 25 35 Application purposes • For height adjustment of flush pipe connections (2 cm upwards and 1 cm downwards) • For connecting flush bends and WCs Scope of delivery • Sleeve made of EPDM • Collar, oval • Ring seal socket • Flush pipe Art. no. Colour / Surface 118.221.11.1 118.221.21.1 66 25 Scope of delivery • Ring seal socket • Collar • Flush pipe • Sleeve made of EPDM, ø 44/55 mm 7 119.698.16.1 35 Application purposes • For connecting flush bends and WCs X Art. no. d2 d1 d, ø [mm] d1, ø [mm] di, ø [mm] white alpine 45 40 44 bright chrome-plated 45 40 44 Colour / Surface d, ø [mm] d1, ø [mm] d2, ø [mm] 118.026.11.1 white alpine 44 40 55 118.026.21.1 bright chrome-plated 44 40 55 Geberit Concealed Cisterns Accessories 67 Geberit Actuator Plates and WC Flush Controls 5. Geberit Actuator Plates and WC Flush Controls 5.1 Actuator plates . . . . . . . . . . . . . . . . . . .

Pagina 123-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 124 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70 5.1.1 5.1.4 For Sigma concealed cisterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70 Assortment overview: Geberit actuator plates of the Sigma series for concealed cisterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71 Overview: Range of colours . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72 For Omega concealed cisterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82 Assortment overview: Geberit actuator plates of the Omega series for concealed cisterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82 For Delta concealed cisterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86 Assor

Pagina 124-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 125 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

tment overview: Geberit actuator plates of the Delta series for concealed cisterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .88 5.2 WC flush controls with electronic flush actuation. . . . . . . . . . . . . . . . . . . . . . . 90 5.2.1 5.2.2 5.2.3 Assortment overview: Geberit WC flush controls with electronic flush actuation, touchless . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90 Assortment overview: Geberit WC flush controls with electronic flush actuation, manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .92 For mains operation, for Geberit Sigma concealed cisterns 12 cm . . . . . . . . . .93 For mains operation, for Geberit Sigma c

Pagina 125-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

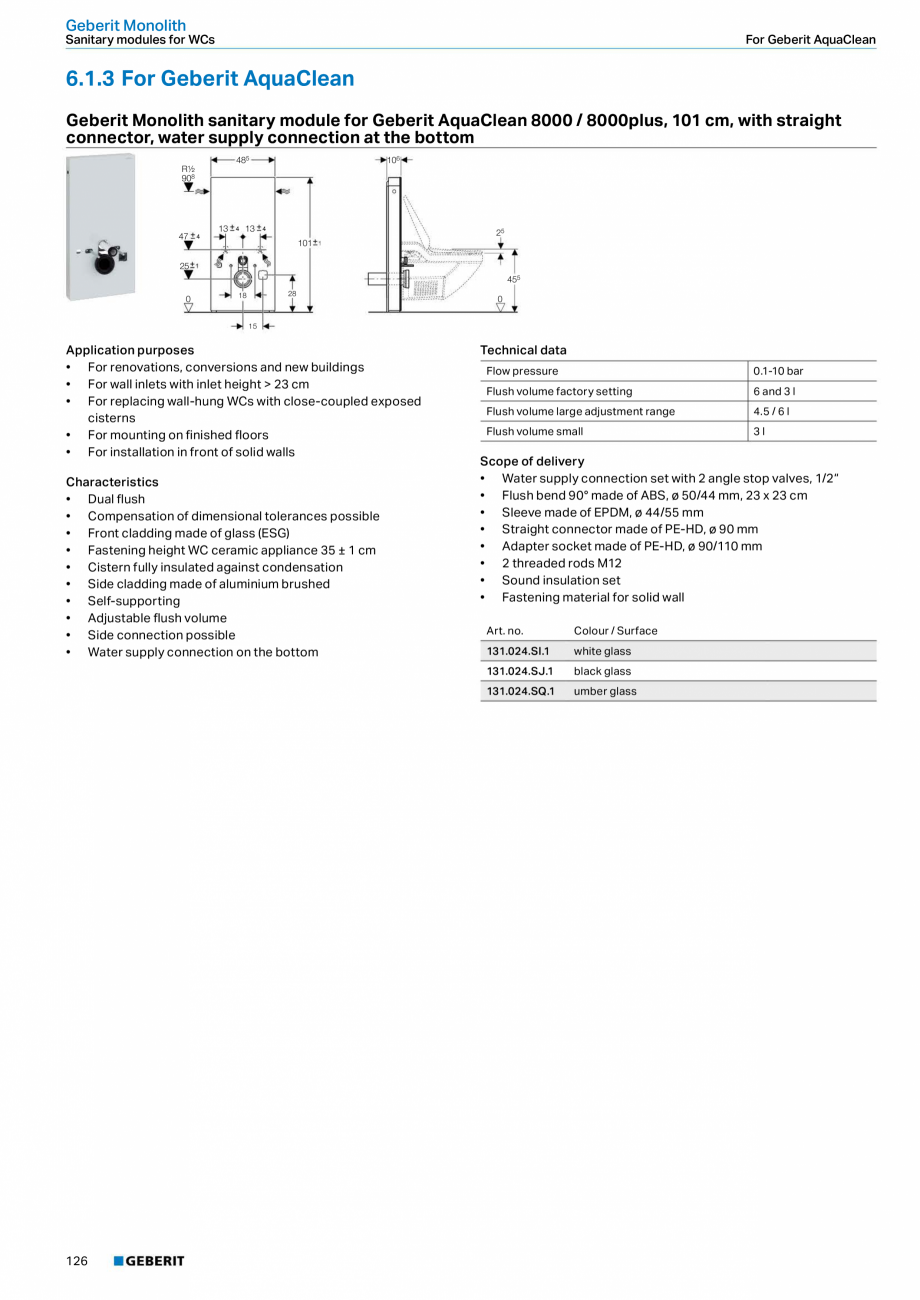

Pagina 126 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

oncealed cisterns 8 cm . . . . . . . . . . .98 For battery operation, for Geberit Sigma concealed cisterns 12 cm . . . . . . . . .99 5.3 WC flush controls with pneumatic flush actuation . . . . . . . . . . . . . . . . . . . . . 102 5.3.1 5.3.2 System overview: pneumatie flush actuators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103 For dual flush . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104 For single flush . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111 5.4 Accessories for flush controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115 5.4.1 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .115 5.1.2 5.1.3 69 Geberit Actuator Plates and WC Flush Controls Actuator plates For Sigma co

Pagina 126-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 127 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

ncealed cisterns 5.1 Actuator plates 5.1.1 For Sigma concealed cisterns Assortment overview: Geberit actuator plates of the Sigma series for concealed cisterns Sigma01 Sigma10 Sigma20 Sigma40 Sigma50 → p. 73 → p. 73 → p. 74 → p. 75 → p. 76 109.300.00.5 ü ü ü ü 109.771.00.1 ü ü ü ü 111.300.00.5 ü ü ü ü 111.370.00.5 ü ü ü 111.390.00.5 ü ü ü ü 111.726.00.1 ü ü ü ü Concealed cistern Duofix ü ü ü Compatible 70 ü ü ü ü ü ü ü ü 110.340.00.5 ü ü ü ü 110.772.00.1 Kombifix 461.311.00.5 110.350.00.5 GIS ü ü ü ü Geberit Actuator Plates and WC Flush Controls For Sigma concealed cisterns Actuator plates Sigma70 Sigma70 for Sigma concealed cistern 8 cm Sigma80 Sigma80 for Sigma concealed cistern 8 cm Tango Bolero Mambo → p. 78 → p. 78 → p. 95 → p. 98 → p. 79 → p. 79 → p. 80 ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü

Pagina 127-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

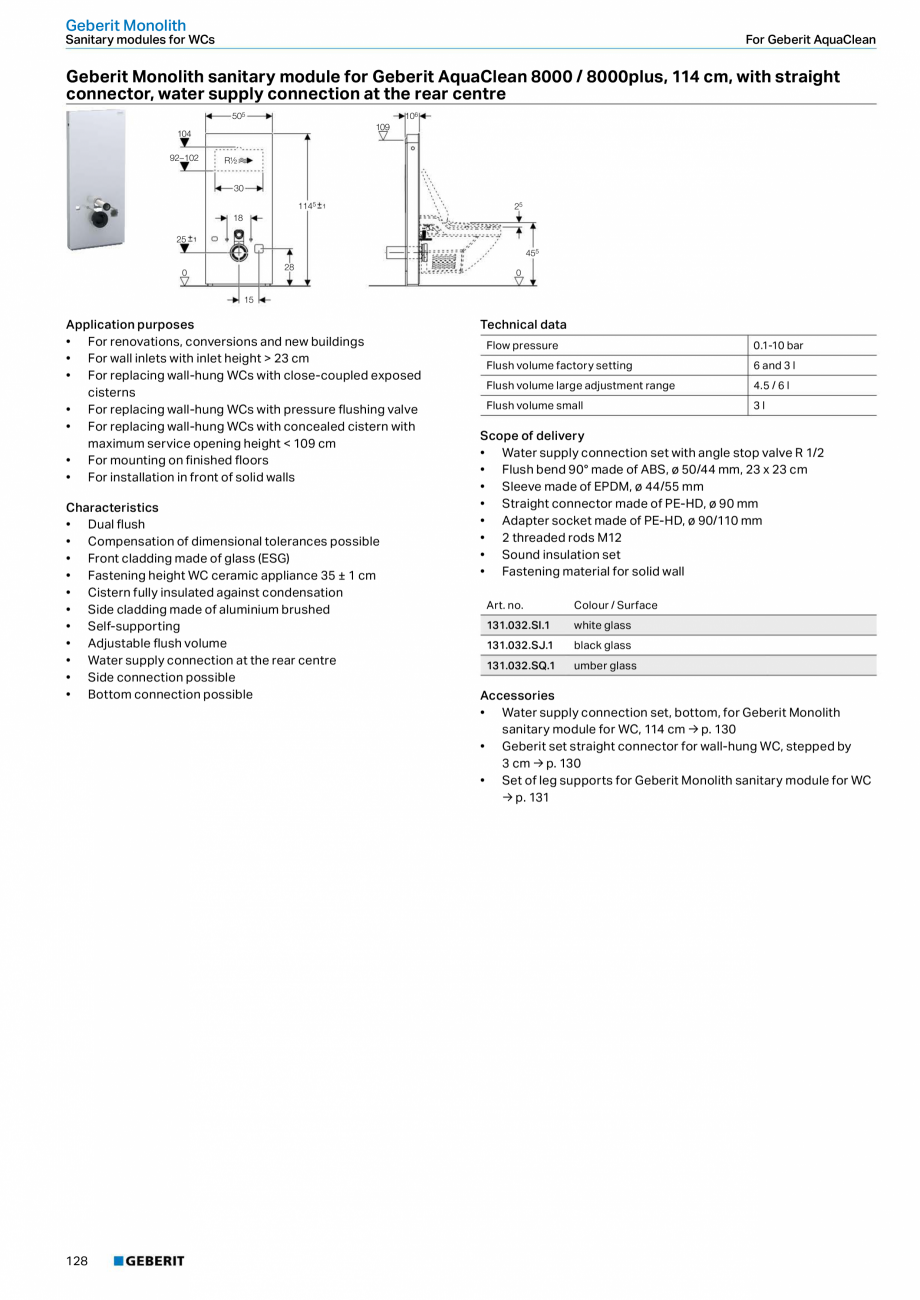

Pagina 128 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü 71 Geberit Actuator Plates and WC Flush Controls Actuator plates For Sigma concealed cisterns Overview: Range of colours Colour 11 KQ white alpine DW KR jet black RAL 9005 Glass SE green glass satinised SD smoked glass reflective SI SQ umber glass SJ SG white glass black glass Metal SM Metallic finished 00 stainless steel glass reflective 21 bright chrome-plated 00 customised* gold-plated DT special brass galvanized FW stainless steel brushed bright chrome / matt chrome / bright chrome matt chrome-plated palladium-plated matt KA bright chrome / matt chrome KJ white / bright chrome / white KL white / matt chrome / matt chrome 46 HC KH GH brushed chrome 45 white / gold-plated / white KM black / bright chrome / black KK KN matt chrome / bright chrome / matt chrome SN stainless steel brushed / polished / brushed *The

Pagina 128-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 129 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

inlay is not supplied by Geberit 72 Geberit Actuator Plates and WC Flush Controls For Sigma concealed cisterns Actuator plates Geberit actuator plate Sigma01 for dual flush 246 13 164 Application purposes • For flush actuation with Geberit Sigma concealed cisterns Characteristics • Front actuation • Sound-absorbing actuator rods, tool-free fast adjustment Art. no. special brass galvanized 115.770.DW.5 jet black RAL 9005 115.770.KA.5 Scope of delivery • Mounting frame • 2 distance bolts • 2 actuator rods matt chrome-plated 115.770.DT.5 Plastic bright chrome-plated 115.770.46.5 < 20 N Material white alpine 115.770.21.5 Actuation force Colour / Surface 115.770.11.5 Technical data bright chrome / matt chrome Accessories • Extension set for Geberit Sigma, Geberit Omega and Geberit Kappa concealed cisterns → p. 88 Geberit actuator plate Sigma10 for stop-and-go flush 246 14 164 Application purposes • For flush actuation with Geberit Sigma c

Pagina 129-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 130 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

oncealed cisterns Technical data Characteristics • Front actuation • Sound-absorbing actuator rods, tool-free fast adjustment Scope of delivery • Mounting frame • 2 distance bolts • Actuator rod • Stop-and-go lever Actuation force Art. no. Colour / Surface Material designation 115.758.KH.5 bright chrome / matt chrome / bright chrome Plastic 115.758.KJ.5 white / bright chrome / white Plastic 115.758.KK.5 white / gold-plated / white Plastic 115.758.KL.5 white / matt chrome / white Plastic 115.758.KM.5 black / bright chrome / black Plastic 115.758.KN.5 matt chrome / bright chrome / matt chrome Plastic 115.758.SN.5 stainless steel brushed/polished/brushed < 20 N Stainless steel Accessories • Extension set for Geberit Sigma, Geberit Omega and Geberit Kappa concealed cisterns → p. 88 73 Geberit Actuator Plates and WC Flush Controls Actuator plates For Sigma concealed cisterns Geberit actuator plate Sigma10 for stop-and-go flush, screwable 24

Pagina 130-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

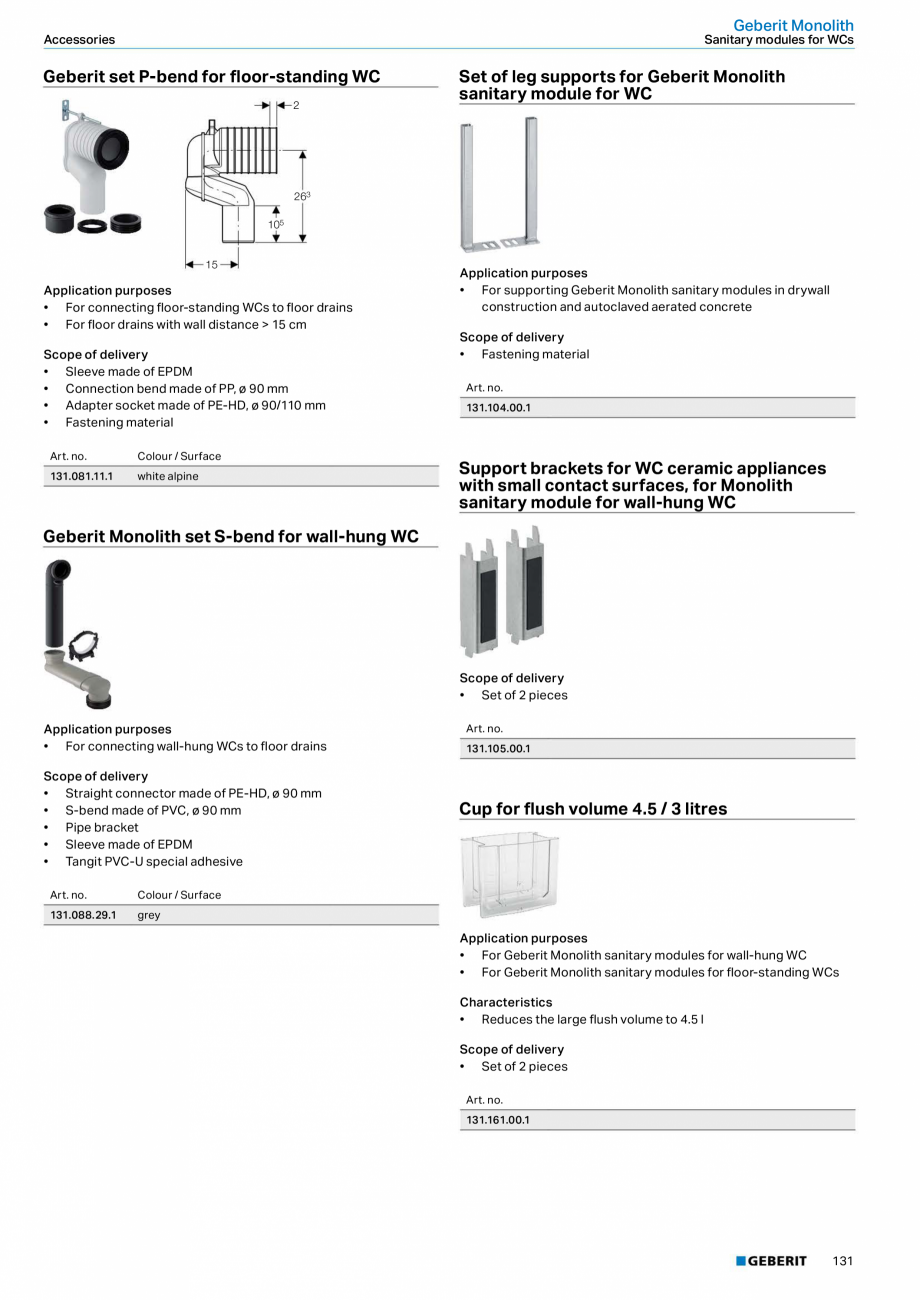

Pagina 131 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

6 15 164 Application purposes • For flush actuation with Geberit Sigma concealed cisterns Characteristics • Front actuation • Sound-absorbing actuator rods, tool-free fast adjustment Art. no. Actuation force < 20 N Material Stainless steel Scope of delivery • Mounting frame • 2 distance bolts • Actuator rod • Stop-and-go lever • Set of bolts Colour / Surface 115.787.SN.5 Technical data stainless steel brushed/polished/brushed Accessories • Extension set for Geberit Sigma, Geberit Omega and Geberit Kappa concealed cisterns → p. 88 Geberit actuator plate Sigma20 for dual flush 246 11 164 Application purposes • For flush actuation with Geberit Sigma concealed cisterns Technical data Characteristics • Front actuation • Sound-absorbing actuator rods, tool-free fast adjustment Scope of delivery • Mounting frame • 2 distance bolts • 2 actuator rods Actuation force Art. no. Colour / Surface Material designation 115.778.KH.1 bright chro

Pagina 131-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 132 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

me / matt chrome / bright chrome Plastic 115.778.KJ.1 white / bright chrome / white Plastic 115.778.KK.1 white / gold-plated / white Plastic 115.778.KL.1 white / matt chrome / white Plastic 115.778.KM.1 black / bright chrome / black Plastic 115.778.KN.1 matt chrome / bright chrome / matt chrome Plastic 115.778.SN.1 stainless steel brushed/polished/brushed Stainless steel Accessories • Extension set for Geberit Sigma, Geberit Omega and Geberit Kappa concealed cisterns → p. 88 74 < 20 N Geberit Actuator Plates and WC Flush Controls For Sigma concealed cisterns Actuator plates Geberit actuator plate Sigma20 for dual flush, screwable 246 11 164 Application purposes • For flush actuation with Geberit Sigma concealed cisterns Technical data Actuation force Characteristics • Front actuation • Sound-absorbing actuator rods, tool-free fast adjustment Art. no. Stainless steel Scope of delivery • Mounting frame • 2 distance bolts • 2 actuator rod

Pagina 132-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

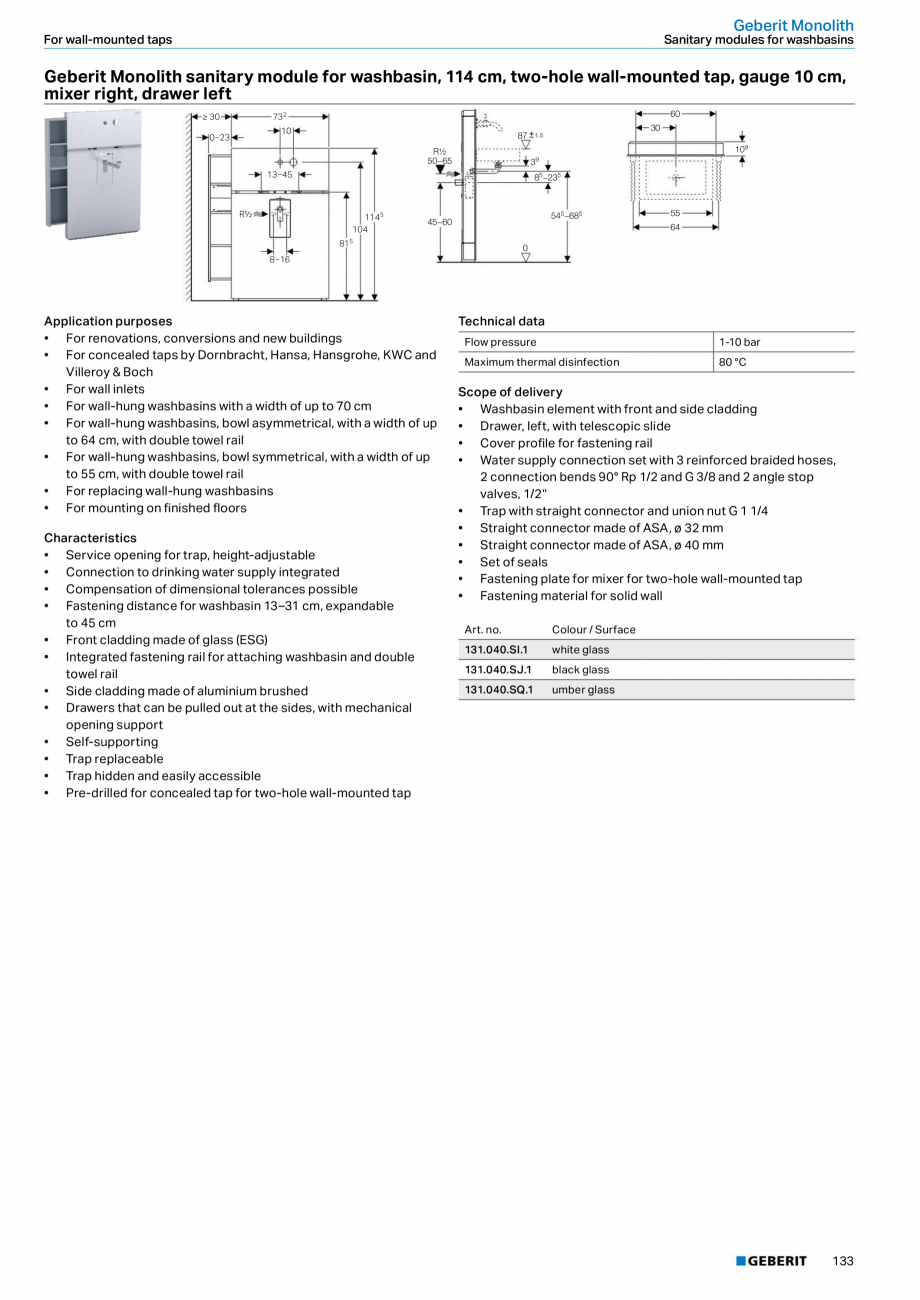

Pagina 133 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

s • Set of bolts Colour / Surface 115.781.SN.1 < 20 N Material stainless steel brushed/polished/brushed Accessories • Extension set for Geberit Sigma, Geberit Omega and Geberit Kappa concealed cisterns → p. 88 Geberit actuator plate Sigma40 for dual flush, with integrated odour extraction unit 266 22 2−45 (6) 182 Application purposes • For flush actuation with Geberit Sigma concealed cisterns 12 cm with odour extraction adapter recirculating air • For direct odour extraction from WC ceramic appliances • For adding in-cistern blocks without chlorine or oxidising components Technical data III Protection degree IPX4 Nominal voltage 230 V AC Mains frequency 50 Hz Operating voltage Characteristics • Front actuation • Surface of actuator buttons made of aluminium brushed • Sound-absorbing actuator rods, tool-free fast adjustment • Odour extraction unit with filtration, integrated in the concealed cistern • Extraction unit can be mounted without too

Pagina 133-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 134 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

ls • LED display for filter replacement • Odour neutralisation with active carbon filter • Push-button for switching the odour extraction unit on and off • Automatic switching off of the odour extraction unit after 10 min • Active carbon filter can be replaced without tools • In-cistern blocks can be inserted without tools Protection class 12 V DC Power consumption 3W Actuation force < 20 N Scope of delivery • Mounting frame with swivelling mechanism • 2 distance bolts • 2 actuator rods • Protection plate • Extraction unit with radial fan • Power supply unit with LED display • Cable connection with plug • Active carbon filter, type 1 • Receptacle for in-cistern block • Moisture protection for conduit pipe Art. no. Colour / Surface Material designation 115.600.KQ.1 white alpine Plastic 115.600.KR.1 jet black RAL 9005 Plastic 115.600.SI.1 white glass Glass 115.600.SJ.1 black glass Glass 115.600.SQ.1 umber glass Glass Accessories �

Pagina 134-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 135 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

�� Geberit active carbon filter type 1 → p. 76 75 Geberit Actuator Plates and WC Flush Controls Actuator plates For Sigma concealed cisterns Geberit active carbon filter type 1 Application purposes • For Geberit actuator plates Sigma40 with integrated odour extraction unit Art. no. 242.555.00.1 Geberit actuator plate Sigma50 for dual flush a 246 164 Application purposes • For flush actuation with Geberit Sigma concealed cisterns Technical data Characteristics • Front actuation • Sound-absorbing actuator rods, tool-free fast adjustment Scope of delivery • Mounting frame • 2 distance bolts • 2 actuator rods Art. no. Actuation force < 20 N Colour / Surface Material designation a [cm] 115.788.00.5 customised Die-cast zinc 0.96 115.788.11.5 white alpine Die-cast zinc / plastic 1.26 115.788.DW.5 jet black RAL 9005 Die-cast zinc / plastic 1.26 115.788.GH.5 brushed chrome Die-cast zinc / brass 1.16 115.788.SD.5 smoked glass reflective Die-ca

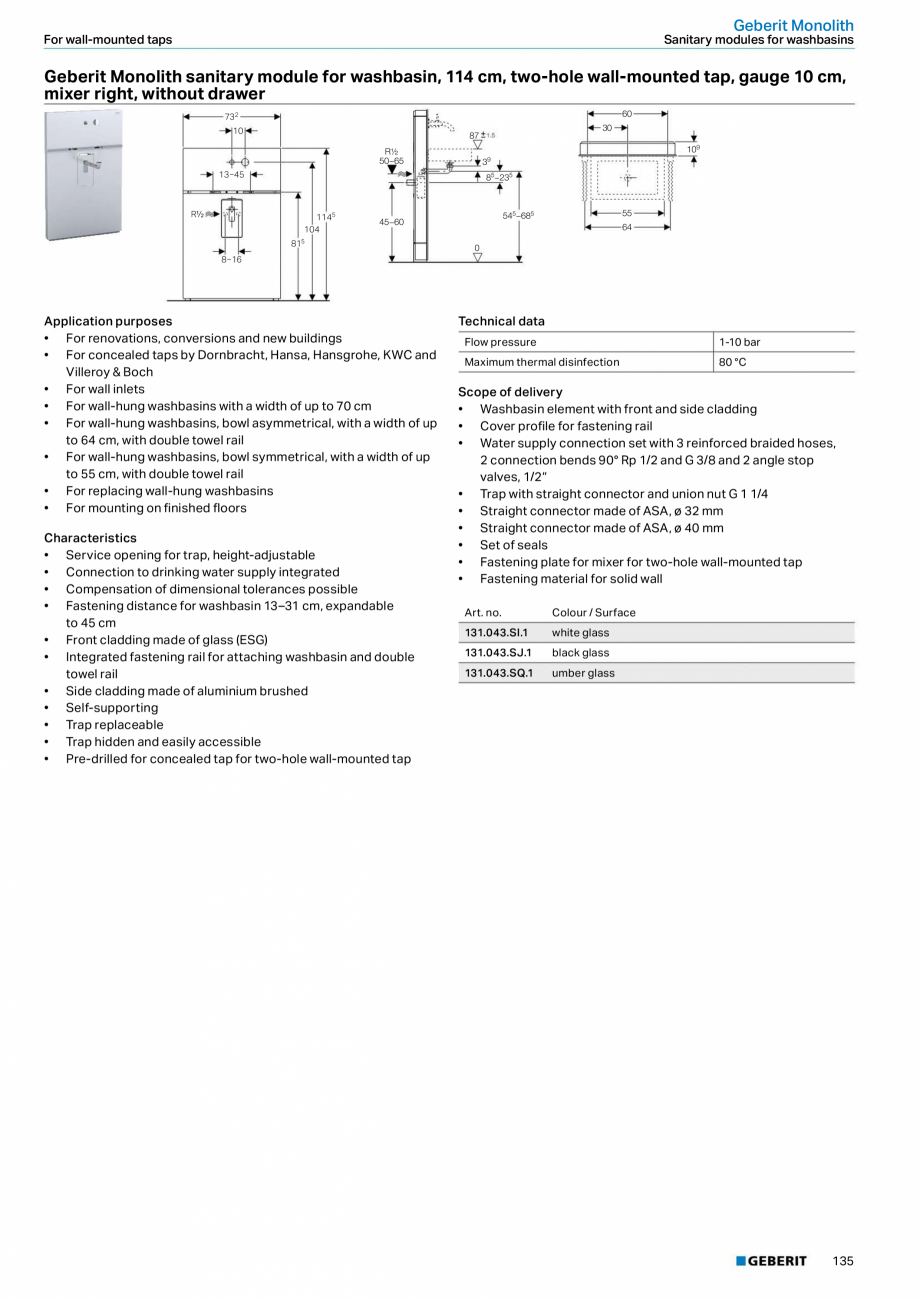

Pagina 135-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

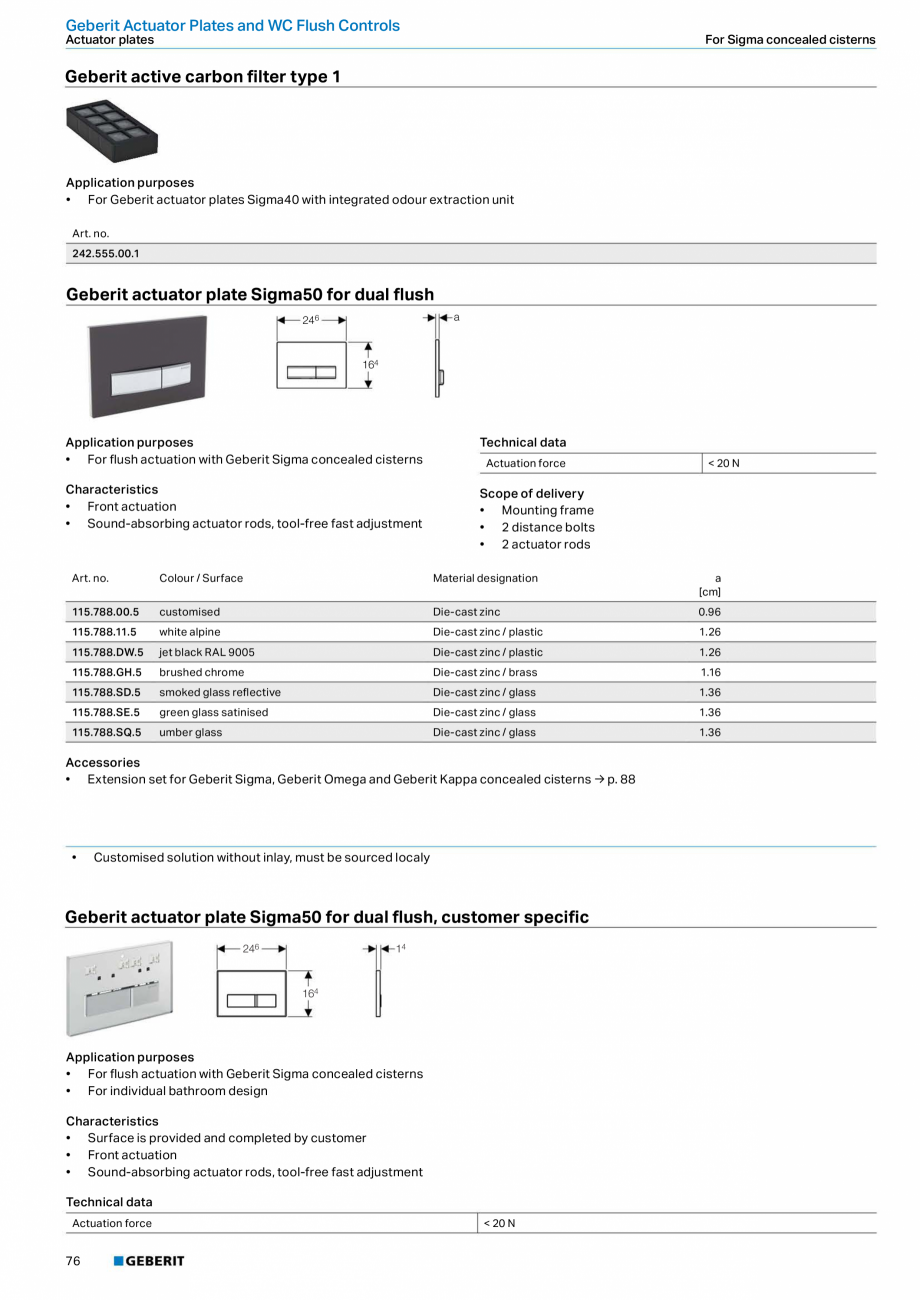

Pagina 136 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

st zinc / glass 1.36 115.788.SE.5 green glass satinised Die-cast zinc / glass 1.36 115.788.SQ.5 umber glass Die-cast zinc / glass 1.36 Accessories • Extension set for Geberit Sigma, Geberit Omega and Geberit Kappa concealed cisterns → p. 88 • Customised solution without inlay, must be sourced localy Geberit actuator plate Sigma50 for dual flush, customer specific 246 14 164 Application purposes • For flush actuation with Geberit Sigma concealed cisterns • For individual bathroom design Characteristics • Surface is provided and completed by customer • Front actuation • Sound-absorbing actuator rods, tool-free fast adjustment Technical data Actuation force 76 < 20 N Geberit Actuator Plates and WC Flush Controls For Sigma concealed cisterns Actuator plates Material Die-cast zinc Scope of delivery • Mounting frame • 2 distance bolts • 2 actuator rods Art. no. Colour / Surface 115.788.00.1 customised Accessories • Extension set for Geberi

Pagina 136-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 137 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

t Sigma, Geberit Omega and Geberit Kappa concealed cisterns → p. 88 • Customised solution without inlay, must be sourced localy Geberit actuator plate Sigma60 for dual flush 221 06−18 18−6 139 Application purposes • For flush actuation with Geberit Sigma concealed cisterns 8 cm • For flush actuation with Geberit Sigma concealed cisterns 12 cm Characteristics • Front actuation • Surface-even actuation • Tile structure 6–18 mm • Suitable for covering and roughcast thicknesses of at least 18 mm • Sound-absorbing actuator rods, tool-free fast adjustment Art. no. Material Die-cast zinc Scope of delivery • Protection box for service opening • Installation frame with compensation frame • 2 actuator rods • Protection plate • Fastening material Colour / Surface 115.792.GH.1 Technical data brushed chrome Cover frame for Geberit actuator plate Sigma60 06 15 164 246 Application purposes • For Geberit actuator plates Sigma60 • For covering un

Pagina 137-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

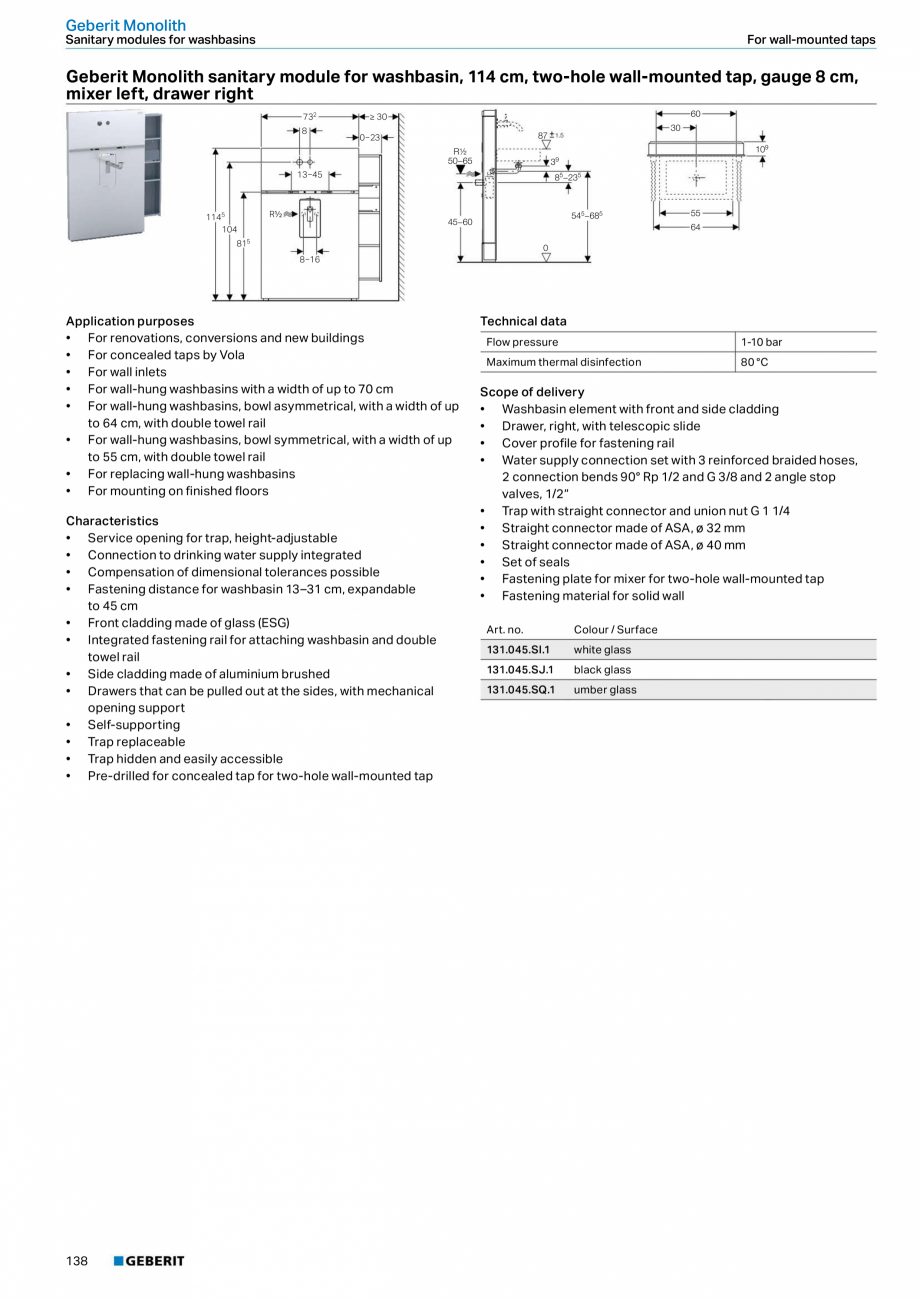

Pagina 138 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

finished tile edges Art. no. Material Die-cast zinc Colour / Surface 242.544.GH.1 Technical data brushed chrome 77 Geberit Actuator Plates and WC Flush Controls Actuator plates For Sigma concealed cisterns N ew Geberit actuator plate Sigma70 for dual flush, for Sigma concealed cistern 12 cm 24 04 158 11 Application purposes • For flush actuation with Geberit Sigma concealed cisterns 12 cm • For flush actuation with high actuating convenience Characteristics • Front actuation • Hydraulic servo lifter for minimum actuation forces • Flush actuation pneumatic • Can be installed without tools Scope of delivery • Hydraulic servo lifter • Water supply connection set • Protection plate • Mounting frame • 2 distance bolts • Assembly parts Art. no. Colour / Surface 115.620.00.1 customised 115.620.FW.1 stainless steel brushed Stainless steel 115.620.SI.1 white glass Glass 115.620.SJ.1 black glass Glass 115.620.SQ.1 umber glass Glass • Ma

Pagina 138-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 139 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

terial designation Customised solution without inlay, must be sourced localy N ew Geberit actuator plate Sigma70 for dual flush, for Sigma concealed cistern 8 cm 24 04 158 11 Application purposes • For flush actuation with Geberit Sigma concealed cisterns 8 cm • For flush actuation with high actuating convenience Characteristics • Front actuation • Hydraulic servo lifter for minimum actuation forces • Flush actuation pneumatic • Can be installed without tools Scope of delivery • Hydraulic servo lifter • Water supply connection set • Protection plate • Mounting frame • 2 distance bolts • Assembly parts Art. no. Colour / Surface 115.625.00.1 customised 115.625.FW.1 stainless steel brushed Stainless steel 115.625.SI.1 white glass Glass 115.625.SJ.1 black glass Glass 115.625.SQ.1 umber glass Glass • 78 Customised solution without inlay, must be sourced localy Material designation Geberit Actuator Plates and WC Flush Controls For Sigma

Pagina 139-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 140 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

concealed cisterns Actuator plates Geberit actuator plate Tango for stop-and-go flush, screwable 1 246 164 Application purposes • For flush actuation with Geberit Sigma concealed cisterns Characteristics • Front actuation • Sound-absorbing actuator rods, tool-free fast adjustment Art. no. matt chrome-plated 115.760.DT.1 special brass galvanized 115.760.HC.1 palladium-plated matt 115.760.KA.1 Scope of delivery • Mounting frame • 2 distance bolts • Actuator rod • Stop-and-go lever • Set of bolts gold-plated 115.760.46.1 Die-cast zinc bright chrome-plated 115.760.45.1 < 20 N Material white alpine 115.760.21.1 Actuation force Colour / Surface 115.760.11.1 Technical data bright chrome / matt chrome Accessories • Extension set for Geberit Sigma, Geberit Omega and Geberit Kappa concealed cisterns → p. 88 Geberit actuator plate Bolero for dual flush 246 14 164 Application purposes • For flush actuation with Geberit Sigma concealed cisterns

Pagina 140-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

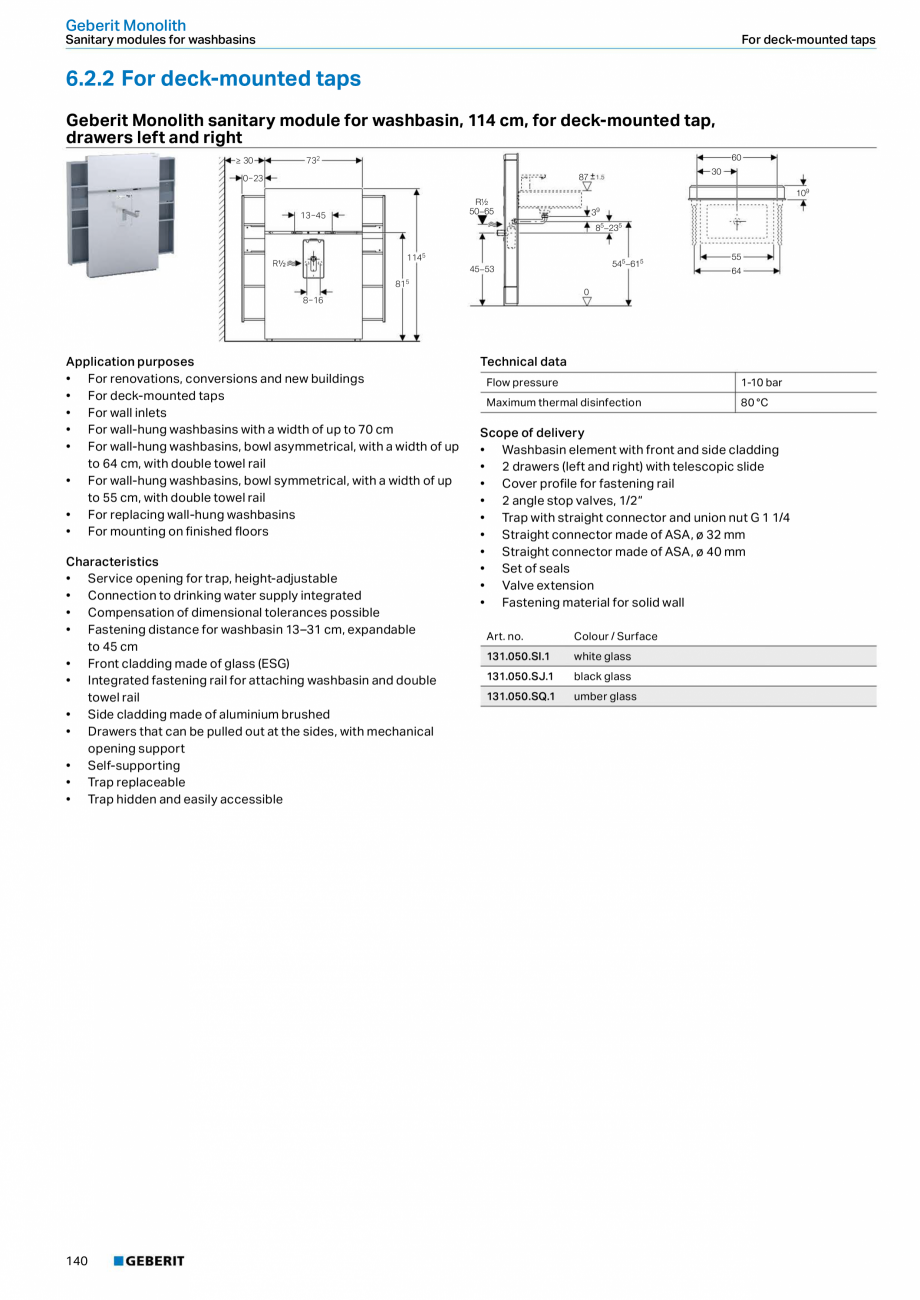

Pagina 141 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

Characteristics • Front actuation • Sound-absorbing actuator rods, tool-free fast adjustment Art. no. special brass galvanized 115.777.DW.1 Scope of delivery • Mounting frame • 2 distance bolts • 2 actuator rods matt chrome-plated 115.777.DT.1 Plastic bright chrome-plated 115.777.46.1 < 20 N Material white alpine 115.777.21.1 Actuation force Colour / Surface 115.777.11.1 Technical data jet black RAL 9005 Accessories • Extension set for Geberit Sigma, Geberit Omega and Geberit Kappa concealed cisterns → p. 88 79 Geberit Actuator Plates and WC Flush Controls Actuator plates For Sigma concealed cisterns Geberit actuator plate Mambo for stop-and-go flush, screwable 246 25 164 Application purposes • For flush actuation with Geberit Sigma concealed cisterns Characteristics • Front actuation • Sound-absorbing actuator rods, tool-free fast adjustment Art. no. Actuation force < 20 N Material Stainless steel Scope of delivery • Mounting fra

Pagina 141-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 142 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

me • 2 distance bolts • Actuator rod • Stop-and-go lever • Set of bolts Colour / Surface 115.751.00.1 Technical data stainless steel brushed Accessories • Extension set for Geberit Sigma, Geberit Omega and Geberit Kappa concealed cisterns → p. 88 N ew Geberit cover plate Sigma, screwable 246 12 164 Application purposes • For covering the service opening in Geberit Sigma concealed cisterns Art. no. Colour / Surface 115.764.FW.1 Scope of delivery • Mounting frame • 2 distance bolts • Set of bolts stainless steel brushed N ew Geberit cover plate Sigma a 246 164 Application purposes • For covering the service opening in Geberit Sigma concealed cisterns Scope of delivery • Mounting frame • 2 distance bolts Art. no. Colour / Surface Material designation 115.766.00.1 customised Die-cast zinc 0.9 115.766.SI.1 white glass Die-cast zinc / glass 1.2 80 a [cm] Geberit Actuator Plates and WC Flush Controls For Sigma concealed cisterns

Pagina 142-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

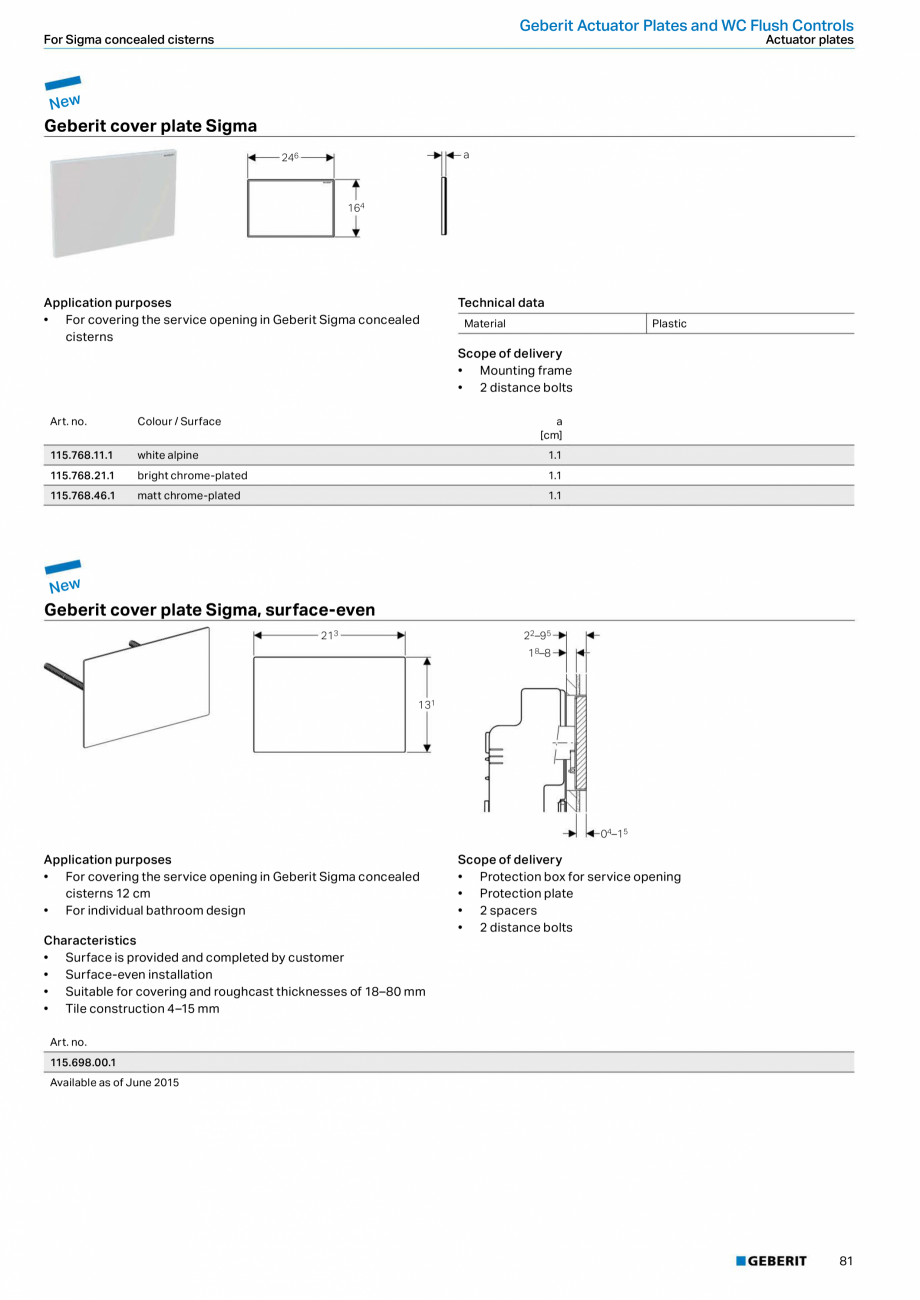

Pagina 143 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

Actuator plates N ew Geberit cover plate Sigma a 246 164 Application purposes • For covering the service opening in Geberit Sigma concealed cisterns Technical data Material Plastic Scope of delivery • Mounting frame • 2 distance bolts Art. no. Colour / Surface a [cm] 115.768.11.1 white alpine 1.1 115.768.21.1 bright chrome-plated 1.1 115.768.46.1 matt chrome-plated 1.1 N ew Geberit cover plate Sigma, surface-even 213 22–95 18–8 131 04–15 Application purposes • For covering the service opening in Geberit Sigma concealed cisterns 12 cm • For individual bathroom design Characteristics • Surface is provided and completed by customer • Surface-even installation • Suitable for covering and roughcast thicknesses of 18–80 mm • Tile construction 4–15 mm Scope of delivery • Protection box for service opening • Protection plate • 2 spacers • 2 distance bolts Art. no. 115.698.00.1 Available as of June 2015 81 Geberit Actuator Plates

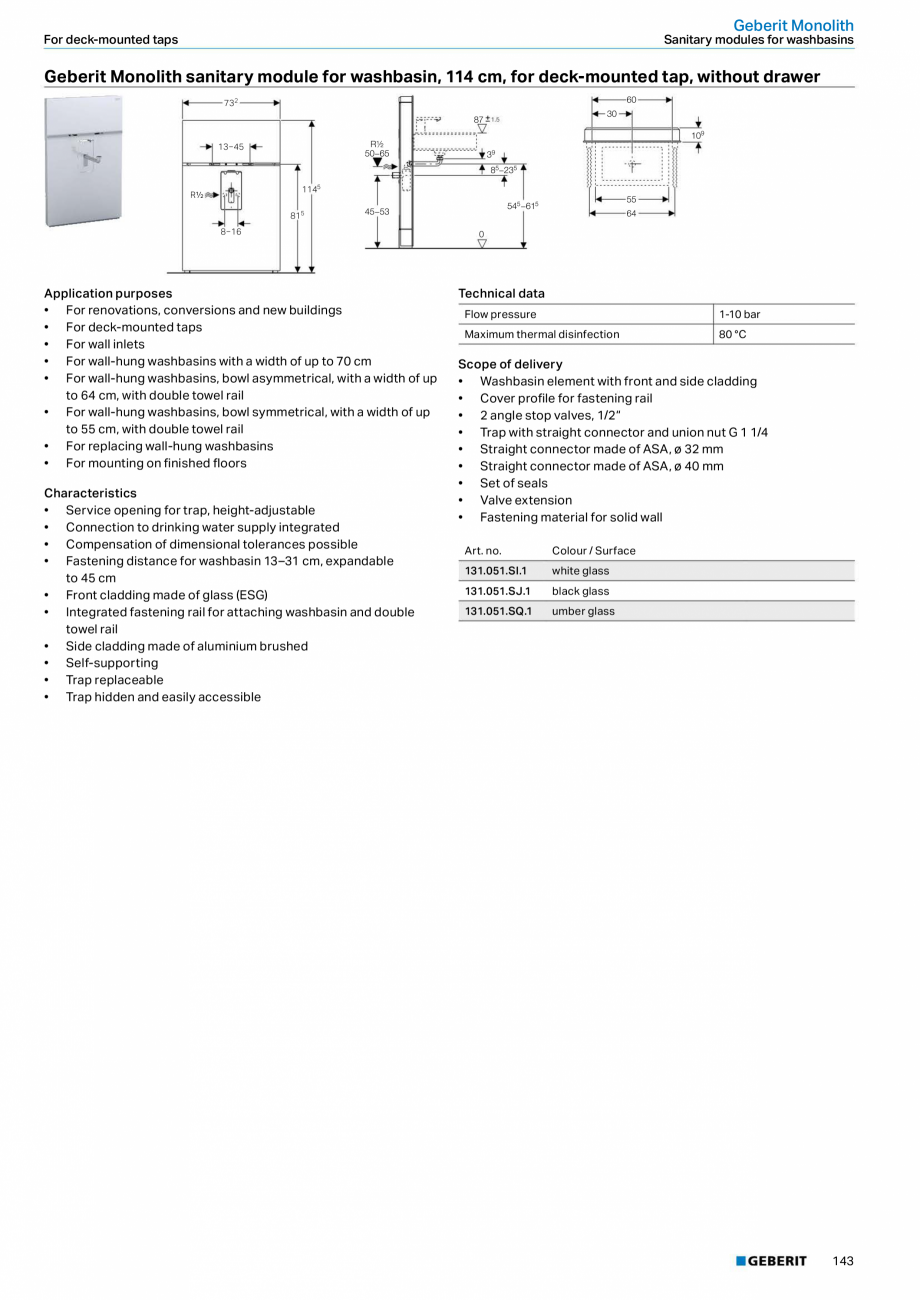

Pagina 143-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 144 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

and WC Flush Controls Actuator plates For Omega concealed cisterns N ew Geberit cover plate Sigma, surface-even, with sight frame 213 28–9 18–8 131 1 Application purposes • For covering the service opening in Geberit Sigma concealed cisterns 12 cm • For individual bathroom design Characteristics • Surface is provided and completed by customer • Surface-even installation • Suitable for covering and roughcast thicknesses of 18–80 mm • Tile construction on cover with sight frame 10 mm • Sight frame for cover, bright chrome-plated Scope of delivery • Protection box for service opening • Protection plate • 2 spacers • 2 distance bolts Art. no. 115.699.00.1 Available as of June 2015 5.1.2 For Omega concealed cisterns Assortment overview: Geberit actuator plates of the Omega series for concealed cisterns Omega20 Omega30 Omega60 Cover plate Omega → p. 83 → p. 83 → p. 84 → p. 84 109.050.00.1 ü 82 ü ü 461.141.00.1 ü ü 110.011.00.1

Pagina 144-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 145 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

ü 110.020.00.1 ü Compatible ü 111.030.00.1 110.001.00.1 Kombifix ü 111.060.00.1 GIS ü 111.003.00.1 Duofix 109.060.00.1 109.043.00.1 Concealed cistern ü Geberit Actuator Plates and WC Flush Controls For Omega concealed cisterns Actuator plates Geberit actuator plate Omega20 for dual flush 1 212 142 Application purposes • For flush actuation with Geberit Omega concealed cisterns white / gold-plated / white 115.085.KL.1 white / matt chrome / white 115.085.KM.1 black / bright chrome / black 115.085.KN.1 Scope of delivery • Mounting frame • 2 distance bolts • 2 actuator rods • Fastening material white / bright chrome / white 115.085.KK.1 Plastic bright chrome / matt chrome / bright chrome 115.085.KJ.1 < 20 N Colour / Surface 115.085.KH.1 Actuation force Material Characteristics • Top/front actuation • Sound-absorbing actuator rods, tool-free fast adjustment Art. no. Technical data matt chrome / bright chrome / matt chrome Geberit

Pagina 145-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 146 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

actuator plate Omega30 for dual flush 1 212 142 Application purposes • For flush actuation with Geberit Omega concealed cisterns Characteristics • Top/front actuation • Sound-absorbing actuator rods, tool-free fast adjustment Art. no. black / bright chrome / black 115.080.KN.1 Scope of delivery • Mounting frame • 2 distance bolts • 2 actuator rods • Fastening material white / matt chrome / white 115.080.KM.1 Plastic white / gold-plated / white 115.080.KL.1 Material white / bright chrome / white 115.080.KK.1 < 20 N bright chrome / matt chrome / bright chrome 115.080.KJ.1 Actuation force Colour / Surface 115.080.KH.1 Technical data matt chrome / bright chrome / matt chrome 83 Geberit Actuator Plates and WC Flush Controls Actuator plates For Omega concealed cisterns Geberit actuator plate Omega60 for dual flush 24–90 184 114 Application purposes • For flush actuation with Geberit Omega concealed cisterns • For covering thicknesses of 24�

Pagina 146-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

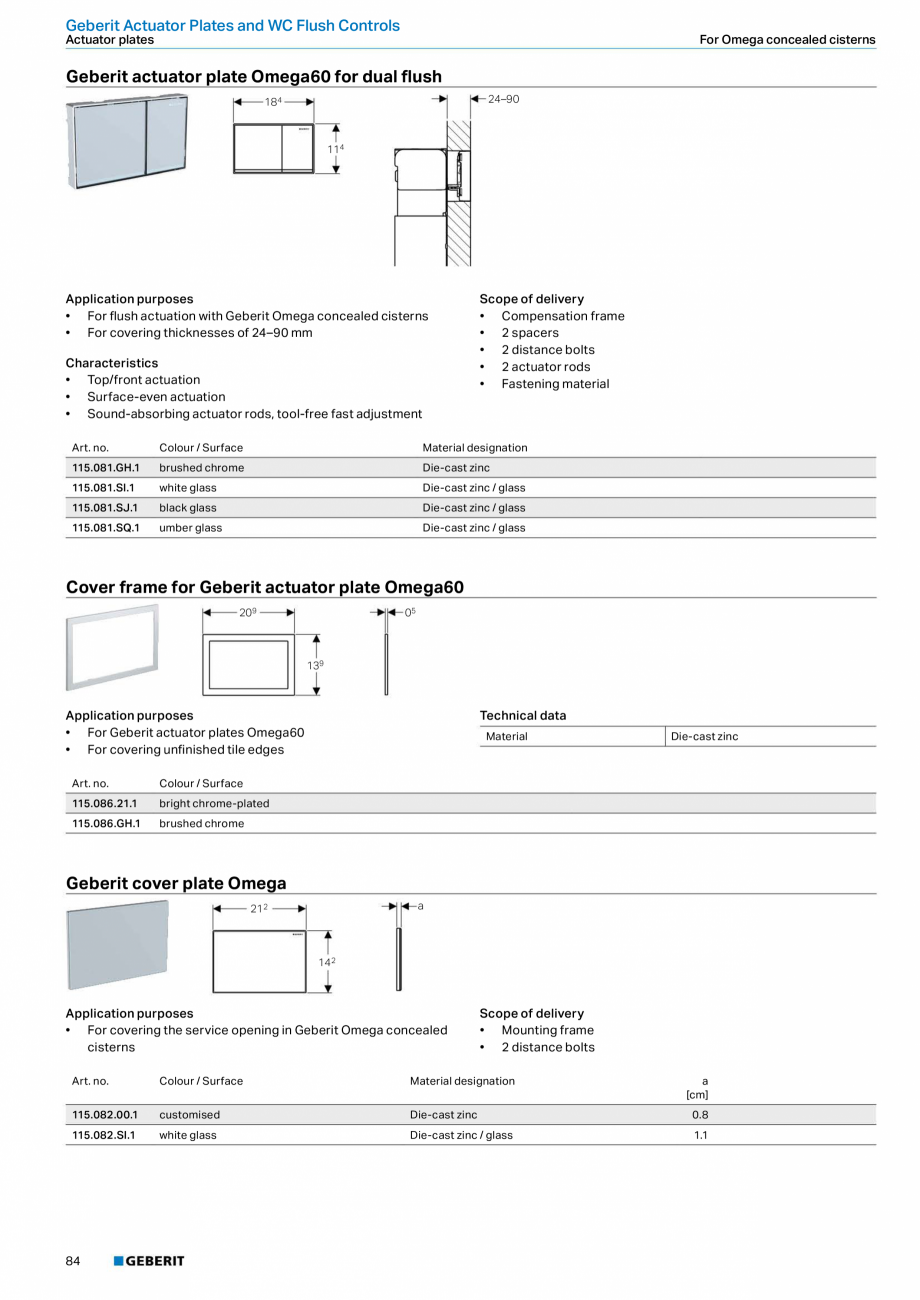

Pagina 147 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

��90 mm Characteristics • Top/front actuation • Surface-even actuation • Sound-absorbing actuator rods, tool-free fast adjustment Scope of delivery • Compensation frame • 2 spacers • 2 distance bolts • 2 actuator rods • Fastening material Art. no. Colour / Surface Material designation 115.081.GH.1 brushed chrome Die-cast zinc 115.081.SI.1 white glass Die-cast zinc / glass 115.081.SJ.1 black glass Die-cast zinc / glass 115.081.SQ.1 umber glass Die-cast zinc / glass Cover frame for Geberit actuator plate Omega60 209 05 139 Application purposes • For Geberit actuator plates Omega60 • For covering unfinished tile edges Art. no. Die-cast zinc bright chrome-plated 115.086.GH.1 Material Colour / Surface 115.086.21.1 Technical data brushed chrome Geberit cover plate Omega a 212 142 Application purposes • For covering the service opening in Geberit Omega concealed cisterns Scope of delivery • Mounting frame • 2 distance bolts Art. no.

Pagina 147-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 148 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

Colour / Surface Material designation 115.082.00.1 customised Die-cast zinc 0.8 115.082.SI.1 white glass Die-cast zinc / glass 1.1 84 a [cm] Geberit Actuator Plates and WC Flush Controls For Omega concealed cisterns Actuator plates N ew Geberit cover plate Omega, surface-even 22–95 183 18–8 113 04–15 Application purposes • For individual bathroom design • For covering the service opening in Geberit Omega concealed cisterns Scope of delivery • Protection plate • 2 spacers • 2 distance bolts Characteristics • Surface is provided and completed by customer • Installation possible from the top/front • Surface-even installation • Suitable for covering and roughcast thicknesses of 18–80 mm • Tile construction 4–15 mm Art. no. 115.087.00.1 Available as of June 2015 N ew Geberit cover plate Omega, surface-even, with sight frame 28–9 183 18–8 113 1 Application purposes • For individual bathroom design • For covering the servic

Pagina 148-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 149 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

e opening in Geberit Omega concealed cisterns Scope of delivery • Protection plate • 2 spacers • 2 distance bolts Characteristics • Surface is provided and completed by customer • Installation possible from the top/front • Surface-even installation • Suitable for covering and roughcast thicknesses of 18–80 mm • Tile construction on cover with sight frame 10 mm • Sight frame for cover, bright chrome-plated Art. no. 115.088.00.1 Available as of June 2015 85 Geberit Actuator Plates and WC Flush Controls Actuator plates For Delta concealed cisterns 5.1.3 For Delta concealed cisterns Assortment overview: Geberit actuator plates of the Delta series for concealed cisterns Delta21 Delta11 Delta50 Delta15 Cover plate Delta → p. 87 → p. 86 → p. 87 → p. 86 → p. 87 109.160.00.1 ü 109.130.00.1 ü 458.160.00.1 ü 110.170.00.1 ü 110.171.00.1 ü 110.150.00.1 ü Concealed cistern Duofix Kombifix ü Compatible Geberit actuator plate Delta1

Pagina 149-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 150 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

1 for stop-and-go flush 246 Geberit actuator plate Delta15 for stop-and-go flush, screwable 25 3 246 164 164 Application purposes • For flush actuation with Geberit Delta concealed cisterns Application purposes • For flush actuation with Geberit Delta concealed cisterns Characteristics • Front actuation Characteristics • Front actuation Technical data Technical data Actuation force < 20 N Actuation force < 20 N Material Plastic Material Stainless steel Scope of delivery • Mounting frame • Actuator rod • Stop-and-go lever • Fastening material Scope of delivery • Mounting frame • Actuator rod • Stop-and-go lever • Set of bolts • Fastening material Art. no. Colour / Surface 115.120.11.1 white alpine Art. no. Colour / Surface 115.120.21.1 bright chrome-plated 115.101.00.1 stainless steel brushed 115.120.46.1 matt chrome-plated Accessories • Extension set for Geberit Delta and Geberit Twinline concealed cisterns → p. 88 86 A

Pagina 150-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 151 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

ccessories • Extension set for Geberit Delta and Geberit Twinline concealed cisterns → p. 88 Geberit Actuator Plates and WC Flush Controls For Delta concealed cisterns Actuator plates Geberit actuator plate Delta21 for dual flush 246 Geberit cover plate Delta, screwable 26 246 164 18 164 Application purposes • For flush actuation with Geberit Delta concealed cisterns Characteristics • Front actuation Application purposes • For covering the service opening in Geberit Delta concealed cisterns Technical data Material Technical data Actuation force Scope of delivery • Mounting frame • Set of bolts • Fastening material < 20 N Material Stainless steel Plastic Scope of delivery • Mounting frame • 2 actuator rods • Fastening material Art. no. 115.103.00.1 Art. no. white alpine 115.125.21.1 bright chrome-plated 115.125.46.1 stainless steel brushed Accessories • Extension set for Geberit Delta and Geberit Twinline concealed cisterns → p. 88

Pagina 151-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 152 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

Colour / Surface 115.125.11.1 Colour / Surface matt chrome-plated Accessories • Extension set for Geberit Delta and Geberit Twinline concealed cisterns → p. 88 Geberit actuator plate Delta50 for dual flush 246 25 164 Application purposes • For flush actuation with Geberit Delta concealed cisterns Characteristics • Front actuation Technical data Actuation force < 20 N Material Plastic Scope of delivery • Mounting frame • 2 actuator rods • Fastening material Art. no. Colour / Surface 115.135.11.1 white alpine 115.135.21.1 bright chrome-plated 115.135.46.1 matt chrome-plated Accessories • Extension set for Geberit Delta and Geberit Twinline concealed cisterns → p. 88 87 Geberit Actuator Plates and WC Flush Controls Actuator plates Accessories 5.1.4 Accessories Extension set for Geberit Sigma, Geberit Omega and Geberit Kappa concealed cisterns Extension set for Geberit Delta and Geberit Twinline concealed cisterns 145 4 115 Application purpose

Pagina 152-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

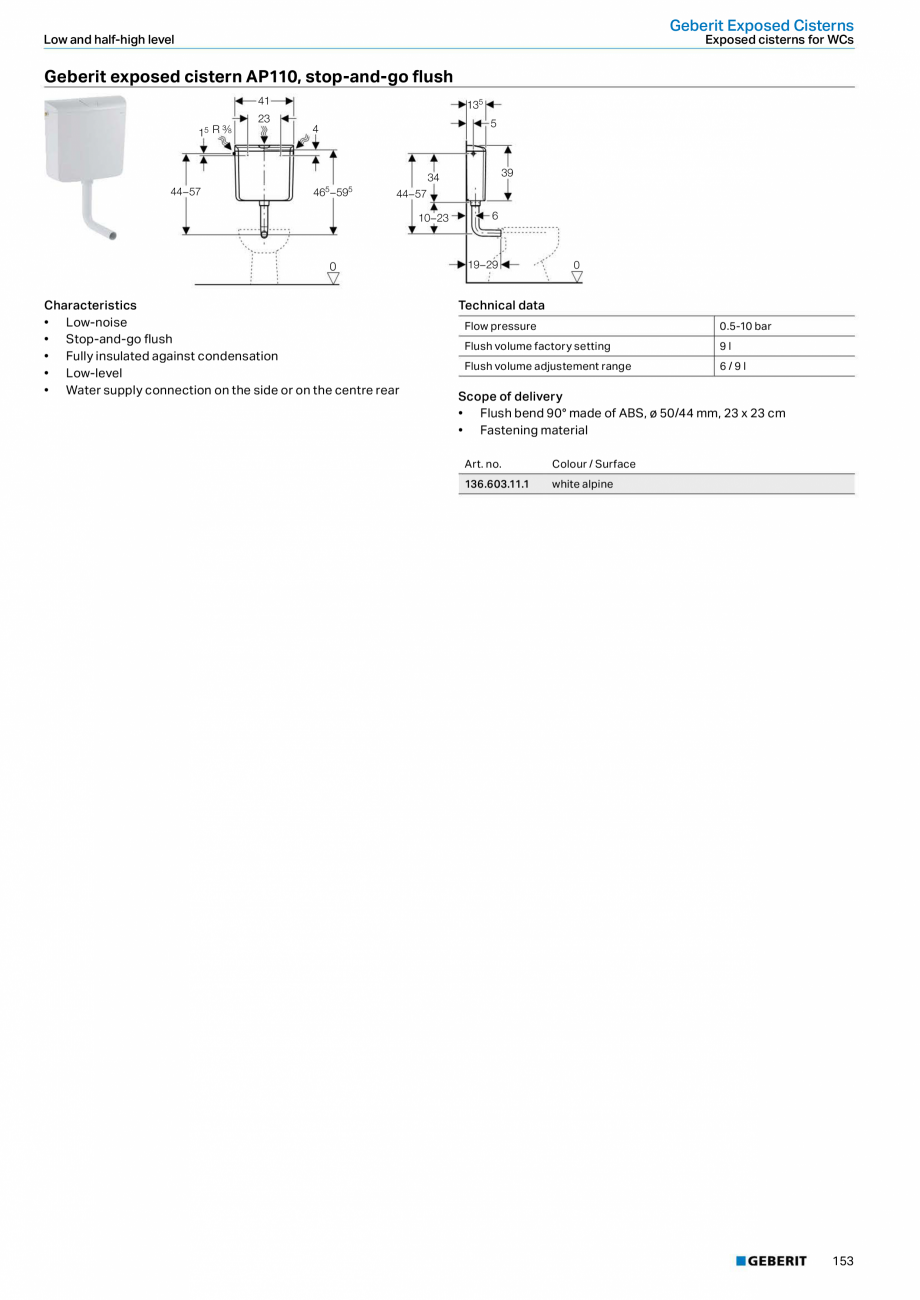

Pagina 153 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

s • For installation of Geberit actuator plates with oversize outer walls Application purposes • For installation of Geberit actuator plates with oversize outer walls Characteristics • Outer wall of 18 cm max. possible • Extension for actuator rods with fast adjustment • Extension for distance bolts with fast adjustment Characteristics • Outer wall of 18 cm max. possible • Extension for actuator rods with thread • Extension for distance bolts with fast adjustment Scope of delivery • 2 extensions for distance bolts • 2 extensions for actuator rods • Fastening material Scope of delivery • 2 extensions for distance bolts • 2 extensions for actuator rods • Fastening material Art. no. Art. no. 240.938.00.1 240.058.00.1 88 Accessories Geberit Actuator Plates and WC Flush Controls Actuator plates 89 Geberit Actuator Plates and WC Flush Controls WC flush controls with electronic flush actuation Accessories 5.2 WC flush controls with electronic flus

Pagina 153-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 154 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

h actuation Assortment overview: Geberit WC flush controls with electronic flush actuation, touchless Sigma80 Art. no. 116.090.SG.1 116.090.SM.1 116.091.SG.1 116.091.SM.1 115.906.SN.1 115.907.xx.1 115.908.xx.1 → p. 95 Activation Detection / control Power supply Suitable for concealed cisterns → p. 98 → p. 93 → p. 94 → p. 100 Touchless Touchless Touchless Touchless Touchless Infrared-controlled Infrared-controlled Infrared-controlled Infrared-controlled Infrared-controlled Mains Mains Mains Mains Battery Sigma concealed cistern Sigma concealed cistern Sigma concealed cistern Sigma concealed cistern Sigma concealed cistern 12 cm 8 cm 12 cm 12 cm 12 cm Abstand max. 1,7 m Abstand max. 1,7 m Abstand max. 1,7 m Abstand max. 1,7 m Application range To order additionally 115.861.00.1 Installation set for Geberit WC flush controls with electronic flush actuation ü Compatible 90 ü ü ü ü Geberit Actuator Plates and WC Flush Controls

Pagina 154-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

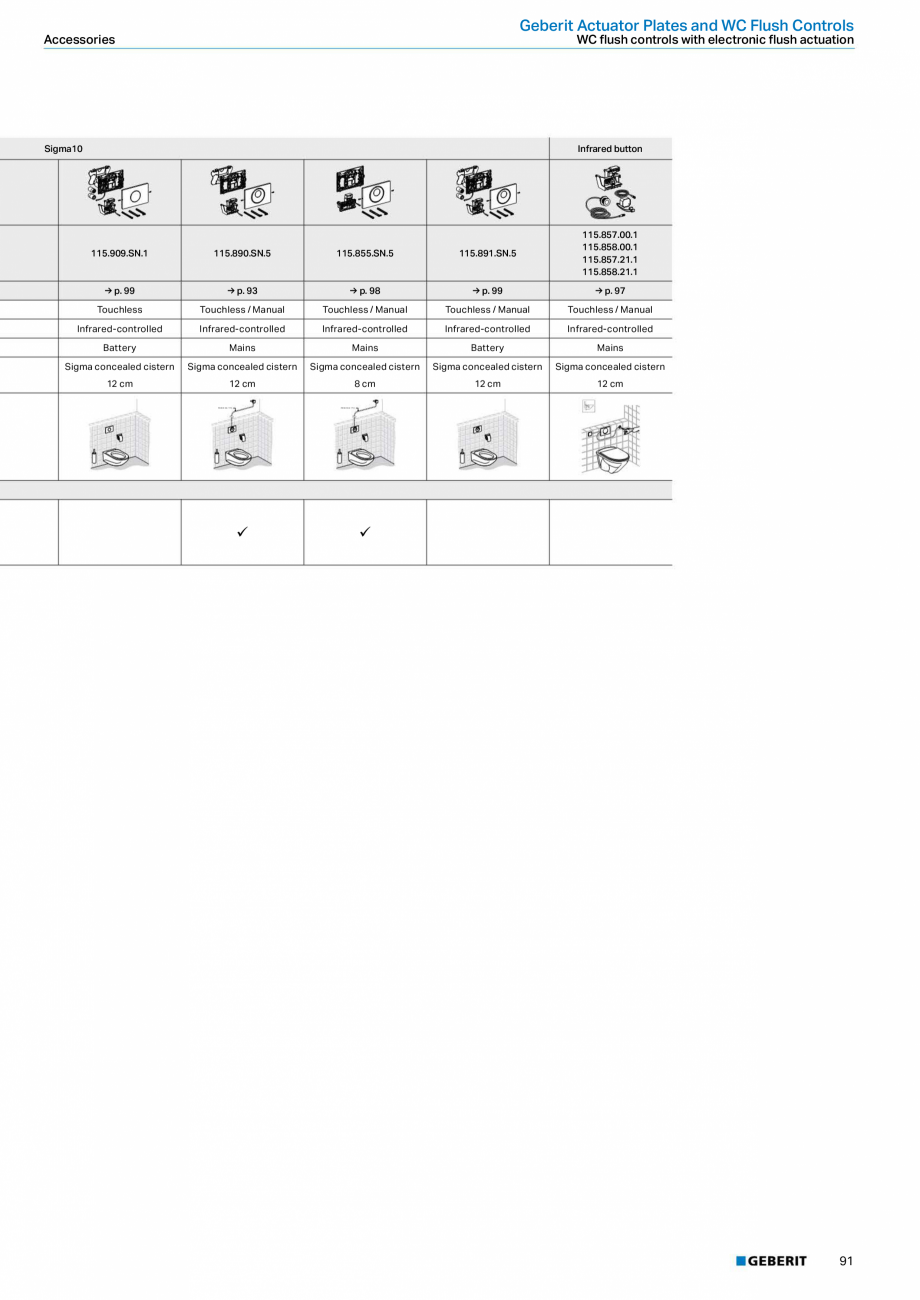

Pagina 155 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

Accessories WC flush controls with electronic flush actuation Sigma10 Infrared button 115.909.SN.1 115.890.SN.5 115.855.SN.5 115.891.SN.5 115.857.00.1 115.858.00.1 115.857.21.1 115.858.21.1 → p. 99 → p. 93 → p. 98 → p. 99 → p. 97 Touchless Touchless / Manual Touchless / Manual Touchless / Manual Touchless / Manual Infrared-controlled Infrared-controlled Infrared-controlled Infrared-controlled Infrared-controlled Battery Mains Mains Battery Mains Sigma concealed cistern Sigma concealed cistern Sigma concealed cistern Sigma concealed cistern Sigma concealed cistern 12 cm 12 cm 8 cm 12 cm 12 cm Abstand max. 1,7 m Abstand max. 1,7 m ü ü 91 Geberit Actuator Plates and WC Flush Controls WC flush controls with electronic flush actuation Accessories Assortment overview: Geberit WC flush controls with electronic flush actuation, manual Sigma10 Art. no. Without actuator plate 115.863.SN.5 115.867.SN.5 115.869.SN.5 115.862.00.1 11

Pagina 155-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

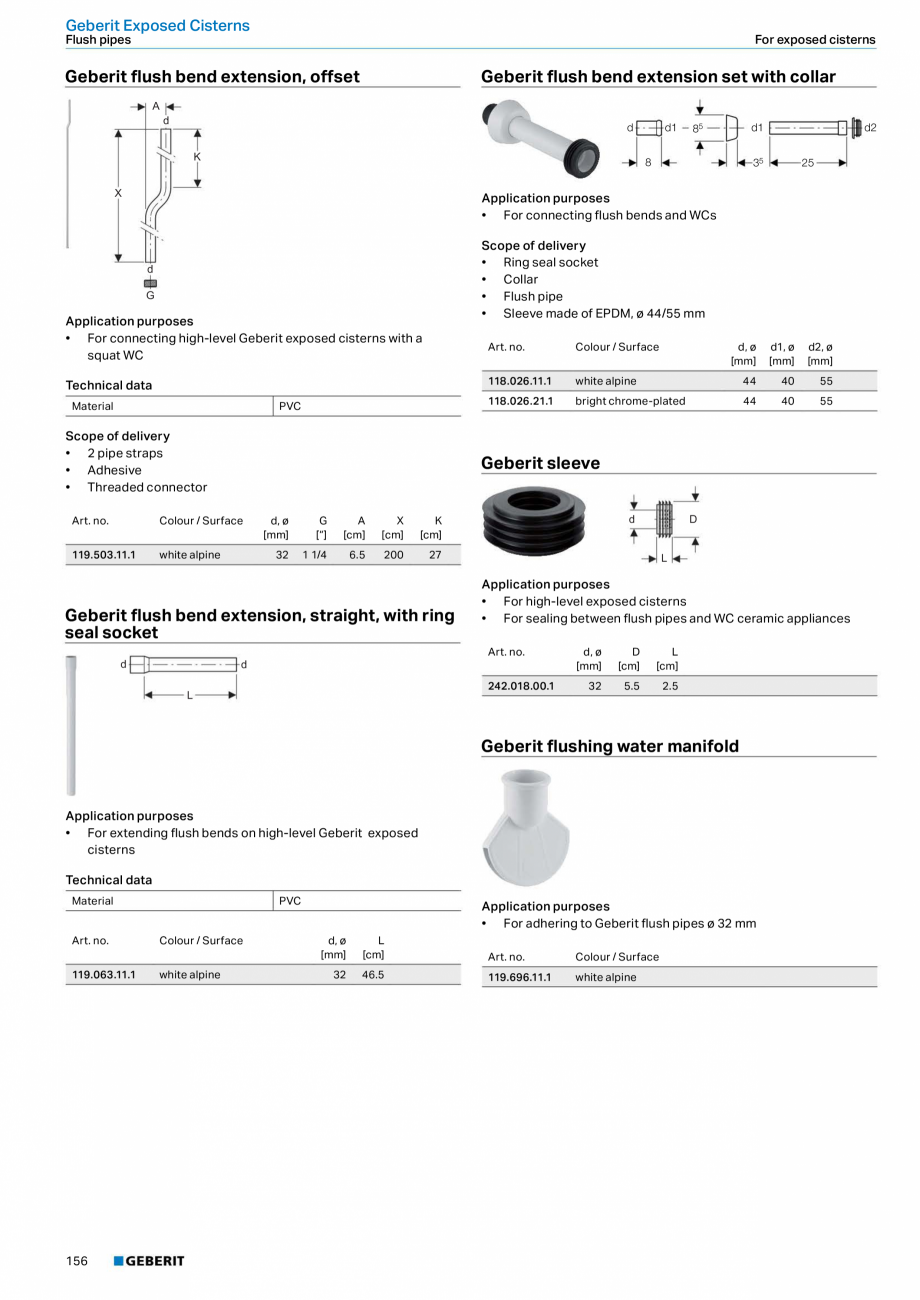

Pagina 156 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

5.897.00.1 115.898.00.1 → p. 94 → p. 95 → p. 101 → p. 96 → p. 96 → p. 100 Manual Manual Manual Manual Manual Manual Manual (cable) Manual (radio) Manual (radio) Manual (cable) Manual (radio) Manual (radio) Activation Detection / control Power supply Suitable for concealed cisterns Mains Mains Battery Mains Mains Battery Sigma concealed Sigma concealed Sigma concealed Sigma concealed Sigma concealed Sigma concealed cistern 12 cm cistern 12 cm cistern 12 cm cistern 12 cm cistern 12 cm cistern 12 cm Abstand max. 1,7 m Abstand max. 1,7 m Abstand max. 1,7 m Abstand max. 1,7 m Abstand max. 1,7 m Abstand ca. 0,8 m Application range To order additionally 115.861.00.1 Installation set for Geberit WC flush controls with electronic ü ü ü ü flush actuation Accessories 241.155.00.1 Installation set for Geberit WC ü flush control with mechanical flush actuation, push-button 241.154.00.1 Installation set for Geberit WC flush contro

Pagina 156-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 157 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

l with mechanical ü flush actuation, pull-down rail 241.568.00.1 RF-controlled button for electronic flush actuation ü Compatible 92 ü ü ü ü Geberit Actuator Plates and WC Flush Controls For mains operation, for Geberit Sigma concealed cisterns 12 cm WC flush controls with electronic flush actuation 5.2.1 For mains operation, for Geberit Sigma concealed cisterns 12 cm Geberit WC flush control with electronic flush actuation, mains operation, dual flush, actuator plate Sigma10, automatic/touchless/manual 246 Geberit WC flush control with electronic flush actuation, mains operation, dual flush, actuator plate Sigma10, automatic/touchless, screwable 15 246 14 164 164 Application purposes • For releasing a dual flush • For solid and drywall construction • For touchless flush actuation of Geberit Sigma concealed cisterns 12 cm • Not suitable for use with Geberit insert for in-cistern block • Not suitable for barrier-free construction Application purposes

Pagina 157-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

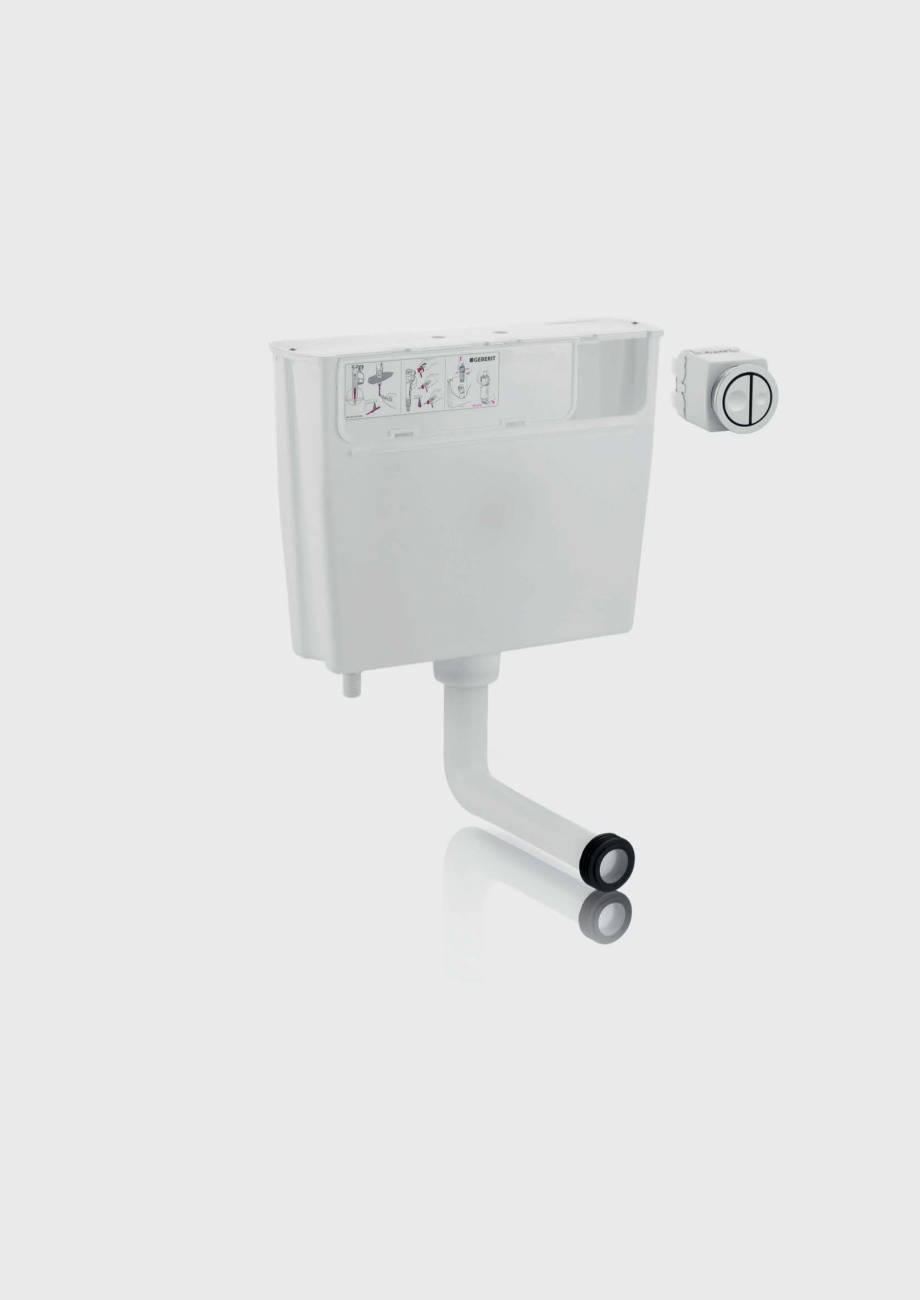

Pagina 158 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

• For releasing a dual flush • For solid and drywall construction • For touchless flush actuation of Geberit Sigma concealed cisterns 12 cm • Not suitable for use with Geberit insert for in-cistern block • Not suitable for barrier-free construction Characteristics • Touchless flush actuation for single or dual flush by moving hand toward sensor • Manual flush actuation via actuator plate • Actuator plate made of stainless steel, screwable • Transformation of mains voltage to extra-low voltage, 4.1 V DC • Operation with extra-low voltage, no mains voltage in cistern • Interval flush preset • Adjustable interval flush • Pre-flush can be set • Minimum detection time can be set • Compatible with Geberit Service Handy • Functions can be set and queried with the Geberit Service Handy • Vandal-resistant • Actuator plate made of stainless steel Characteristics • Touchless flush actuation for single or dual flush by moving hand toward sensor • Actuator

Pagina 158-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 159 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

plate made of stainless steel, screwable • Transformation of mains voltage to extra-low voltage, 4.1 V DC • Operation with extra-low voltage, no mains voltage in cistern • Interval flush preset • Adjustable interval flush • Pre-flush can be set • Minimum detection time can be set • Compatible with Geberit Service Handy • Functions can be set and queried with the Geberit Service Handy • Vandal-resistant Technical data Protection degree Protection degree IP45 Nominal voltage 85-240 V AC Mains frequency 50-60 Hz Operating voltage 7s 85-240 V AC Mains frequency 50-60 Hz Operating voltage 4.1 V DC Detection time factory setting 7s 4.1 V DC Detection time factory setting IP45 Nominal voltage Technical data Scope of delivery • Actuator plate Sigma10 • Mounting frame with infrared control, pre-mounted • Protection plate • Support block with servomotor and lifting device, pre-mounted • Actuator rod • Fastening material Scope of delivery • Ac

Pagina 159-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 160 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

tuator plate Sigma10 • Mounting frame with infrared control, pre-mounted • Protection plate • Support block with servomotor and lifting device, pre-mounted • Actuator rod • Fastening material stainless steel brushed/polished/brushed stainless steel brushed/polished/brushed Colour / Surface 115.890.SN.5 Colour / Surface 115.906.SN.1 Art. no. Art. no. To order additionally • Installation set with power supply unit, for Geberit WC flush controls with electronic flush actuation Accessories • Installation set for Geberit WC flush control with electronic flush actuation → p. 115 To order additionally • Installation set with power supply unit, for Geberit WC flush controls with electronic flush actuation Accessories • Installation set for Geberit WC flush control with electronic flush actuation → p. 115 93 Geberit Actuator Plates and WC Flush Controls WC flush controls with electronic flush actuation For mains operation, for Geberit Sigma concealed cisterns

Pagina 160-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 161 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

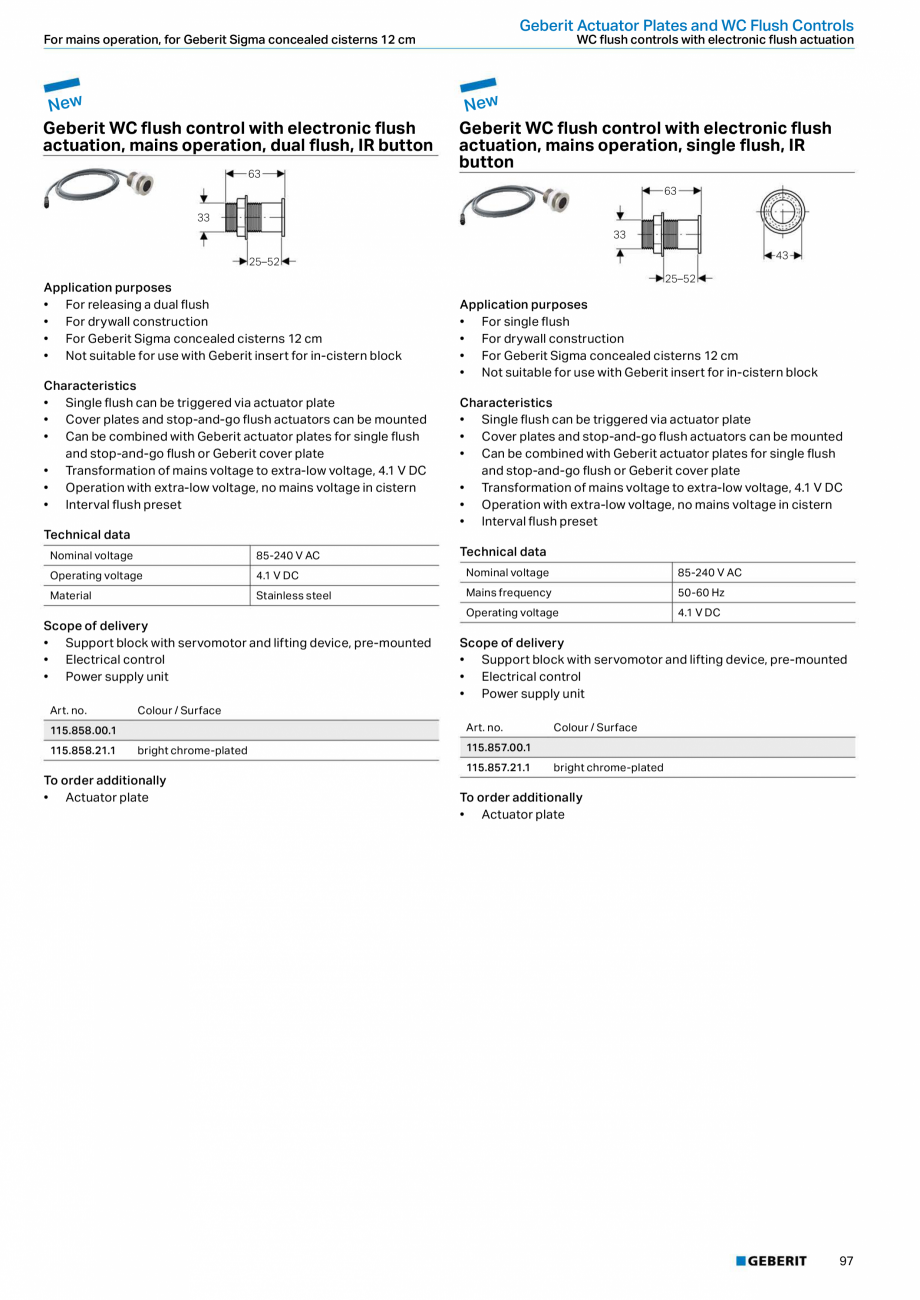

12 cm Geberit WC flush control with electronic flush actuation, mains operation, dual flush, actuator plate Sigma10, automatic/touchless 14 246 Geberit WC flush control with electronic flush actuation, mains operation, single flush, actuator plate Sigma10, for pull-down rail, manual 164 Application purposes • For private and semi-public areas • For releasing a dual flush • For solid and drywall construction • For touchless flush actuation of Geberit Sigma concealed cisterns 12 cm • Not suitable for use with Geberit insert for in-cistern block • Not suitable for barrier-free construction Characteristics • Touchless flush actuation for single or dual flush by moving hand toward sensor • Transformation of mains voltage to extra-low voltage, 4.1 V DC • Operation with extra-low voltage, no mains voltage in cistern • Interval flush preset • Adjustable interval flush • Pre-flush can be set • Minimum detection time can be set • Compatible with Geberit Service H

Pagina 161-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 162 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

andy • Functions can be set and queried with the Geberit Service Handy • Actuator plate made of plastic Technical data Protection degree IP45 Nominal voltage 85-240 V AC Mains frequency 50-60 Hz Operating voltage 7s Characteristics • Flush actuation connected by wire • Flush actuation via pull-down rail, connected by wire • Push-buttons can be connected in parallel • Single flush can be triggered via actuator plate • Cover plates and stop-and-go flush actuators can be mounted • Can be combined with Geberit actuator plates for single flush and stop-and-go flush or Geberit cover plate • Transformation of mains voltage to extra-low voltage, 4.1 V DC • Operation with extra-low voltage, no mains voltage in cistern • Interval flush preset • Actuator plate made of stainless steel, screwable 4.1 V DC Detection time factory setting Application purposes • For manual remote flush actuation of Geberit Sigma concealed cisterns 12 cm using pull-down rails with po

Pagina 162-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 163 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

tential-free pushbutton with closing function • For single flush • For solid and drywall construction • Suitable for barrier-free construction • For Geberit Sigma concealed cisterns 12 cm • Not suitable for use with Geberit insert for in-cistern block Scope of delivery • Actuator plate Sigma10 • Mounting frame with infrared control, pre-mounted • Protection plate • Support block with servomotor and lifting device, pre-mounted • Actuator rod • Fastening material Technical data Protection degree IP45 Operating voltage 4.1 V DC Scope of delivery • Actuator plate Sigma10 • Mounting frame • Support block with servomotor and lifting device, pre-mounted • Electrical control • 2 cables, prefabricated, length 1.2 m • Actuator rod • Fastening material Art. no. Art. no. Colour / Surface 115.907.KH.1 bright chrome / matt chrome / bright chrome 115.907.KJ.1 white / bright chrome / white 115.907.KK.1 white / gold-plated / white 115.907.KL.1 white /

Pagina 163-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 164 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

matt chrome / white 115.907.KM.1 black / bright chrome / black 115.907.KN.1 matt chrome / bright chrome / matt chrome 115.907.SN.1 stainless steel brushed/polished/brushed To order additionally • Installation set with power supply unit, for Geberit WC flush controls with electronic flush actuation Accessories • Installation set for Geberit WC flush control with electronic flush actuation → p. 115 94 Colour / Surface 115.863.SN.5 stainless steel brushed/polished/brushed To order additionally • Installation set with power supply unit, for Geberit WC flush controls with electronic flush actuation Accessories • Installation set for Geberit WC flush control with electronic flush actuation → p. 115 • Installation set for Geberit WC flush control with mechanical flush actuation, pull-down rail → p. 115 Geberit Actuator Plates and WC Flush Controls For mains operation, for Geberit Sigma concealed cisterns 12 cm Geberit WC flush control with electronic flush act

Pagina 164-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

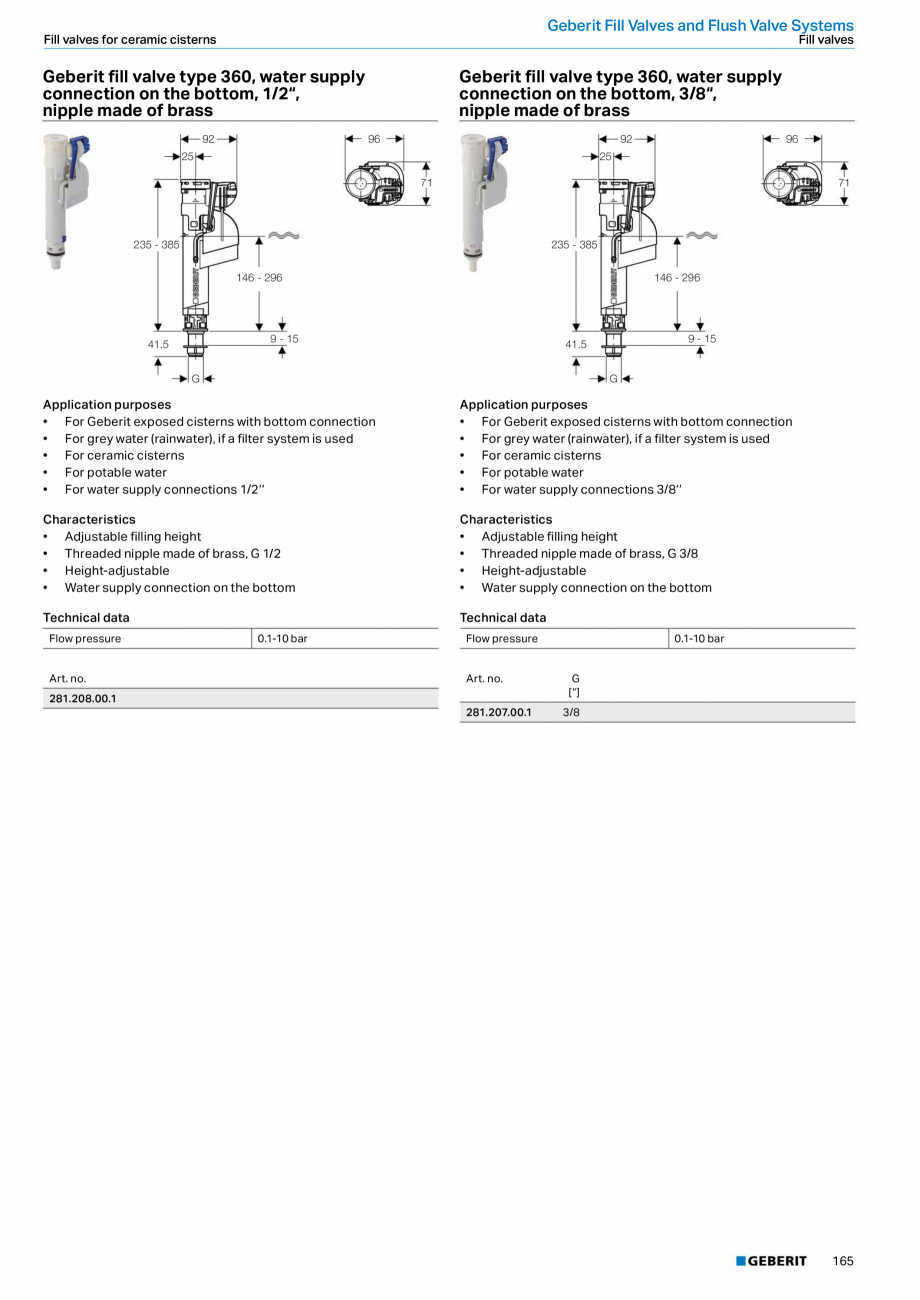

Pagina 165 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

uation, mains operation, single flush, actuator plate Sigma10, for pull-down rail, radio WC flush controls with electronic flush actuation Geberit WC flush control with electronic flush actuation, mains operation, dual flush, actuator plate Sigma80, touchless 1 247 164 Application purposes • For manual remote flush actuation of Geberit Sigma concealed cisterns 12 cm using pull-down rails with RF-controlled button • For single flush • For solid and drywall construction • Suitable for barrier-free construction • For Geberit Sigma concealed cisterns 12 cm • Not suitable for use with Geberit insert for in-cistern block Characteristics • Flush actuation using pull-down rail, wireless, radio • Single flush can be triggered via actuator plate • Cover plates and stop-and-go flush actuators can be mounted • Can be combined with Geberit actuator plates for single flush and stop-and-go flush or Geberit cover plate • Transformation of mains voltage to extra-low voltage,

Pagina 165-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 166 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

4.1 V DC • Operation with extra-low voltage, no mains voltage in cistern • Interval flush preset • Adjustable interval flush • Compatible with Geberit Service Handy • Functions can be set and queried with the Geberit Service Handy • Actuator plate made of stainless steel, screwable Technical data Nominal voltage 85-240 V AC Mains frequency 50-60 Hz Operating voltage 4.1 V DC Radio frequency 868.4 MHz Radio frequency distance 10 m Scope of delivery • Actuator plate Sigma10 • Mounting frame • Protection plate • Support block with servomotor and lifting device, pre-mounted • Control electronics with radio receiver • Actuator rod • Fastening material Art. no. stainless steel brushed/polished/brushed Application purposes • For private and semi-public areas • For releasing a dual flush • For solid and drywall construction • Suitable for barrier-free construction • For touchless flush actuation of Geberit Sigma concealed cisterns 12 cm • Not

Pagina 166-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 167 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

suitable for use with Geberit insert for in-cistern block Characteristics • Flush actuation possible via external push-button • Actuator plate without mechanical buttons • Actuator buttons identifiable by light bars • Button illumination activated when approached • Button illumination can be set in five colours • Orientation light can be activated • Transformation of mains voltage to extra-low voltage, 4.1 V DC • Operation with extra-low voltage, no mains voltage in cistern • Flush actuation can be manually deactivated for cleaning • Adjustable interval flush • Pre-flush can be set • Minimum detection time can be set • Compatible with Geberit Service Handy • Functions can be set and queried with the Geberit Service Handy • Lockable Technical data Protection degree IP45 Nominal voltage 85-240 V AC Mains frequency 50-60 Hz Operating voltage 4.1 V DC Detection time factory setting 7s Scope of delivery • Actuator plate Sigma80 • Mounting frame �

Pagina 167-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

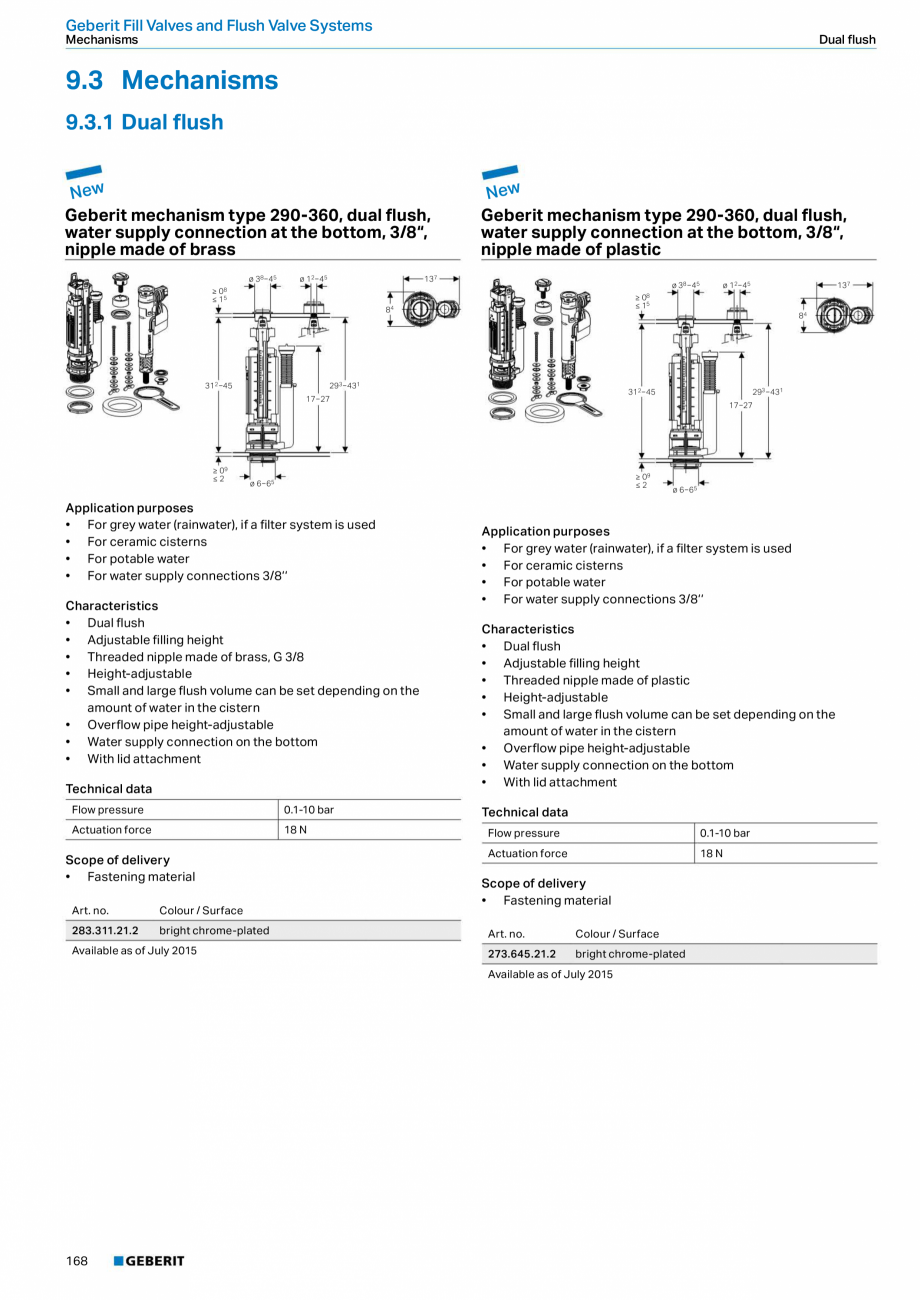

Pagina 168 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

� Support block with servomotor and lifting device, pre-mounted • Fastening material Colour / Surface 115.867.SN.5 37 Accessories • Installation set for Geberit WC flush control with electronic flush actuation → p. 115 Colour / Surface 116.090.SG.1 To order additionally • Installation set with power supply unit, for Geberit WC flush controls with electronic flush actuation Art. no. black glass 116.090.SM.1 glass, reflective To order additionally • Installation set with power supply unit, for Geberit WC flush controls with electronic flush actuation Accessories • Installation set for Geberit WC flush control with electronic flush actuation → p. 115 95 Geberit Actuator Plates and WC Flush Controls WC flush controls with electronic flush actuation Geberit WC flush control with electronic flush actuation, mains operation, dual flush, for external push-button Application purposes • For manual remote flush actuation of Geberit Sigma concealed cisterns 12 cm u

Pagina 168-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

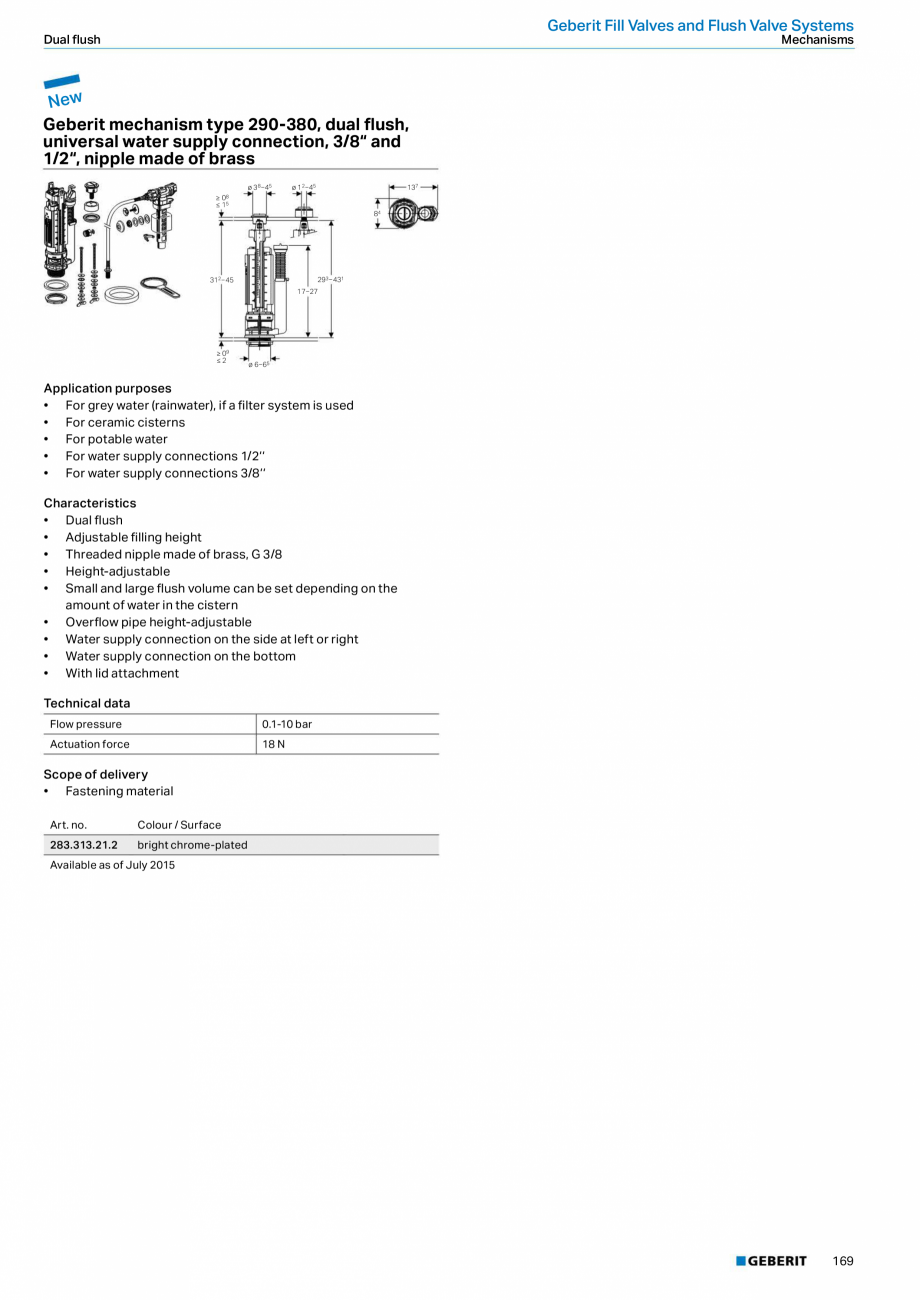

Pagina 169 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

sing standard, potential-free push-buttons with closing function • For releasing a dual flush • For solid and drywall construction • Suitable for barrier-free construction • For Geberit Sigma concealed cisterns 12 cm • Not suitable for use with Geberit insert for in-cistern block Characteristics • Flush actuation connected by wire • Dual-flush remote control flush actuation via external pushbuttons • Push-buttons can be connected in parallel • Single flush can be triggered via actuator plate • Cover plates and stop-and-go flush actuators can be mounted • Can be combined with Geberit actuator plates for single flush and stop-and-go flush or Geberit cover plate • Transformation of mains voltage to extra-low voltage, 4.1 V DC • Operation with extra-low voltage, no mains voltage in cistern • Interval flush preset Technical data Nominal voltage 85-240 V AC Mains frequency 50-60 Hz Operating voltage 4.1 V DC Scope of delivery • Support block with servomoto

Pagina 169-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

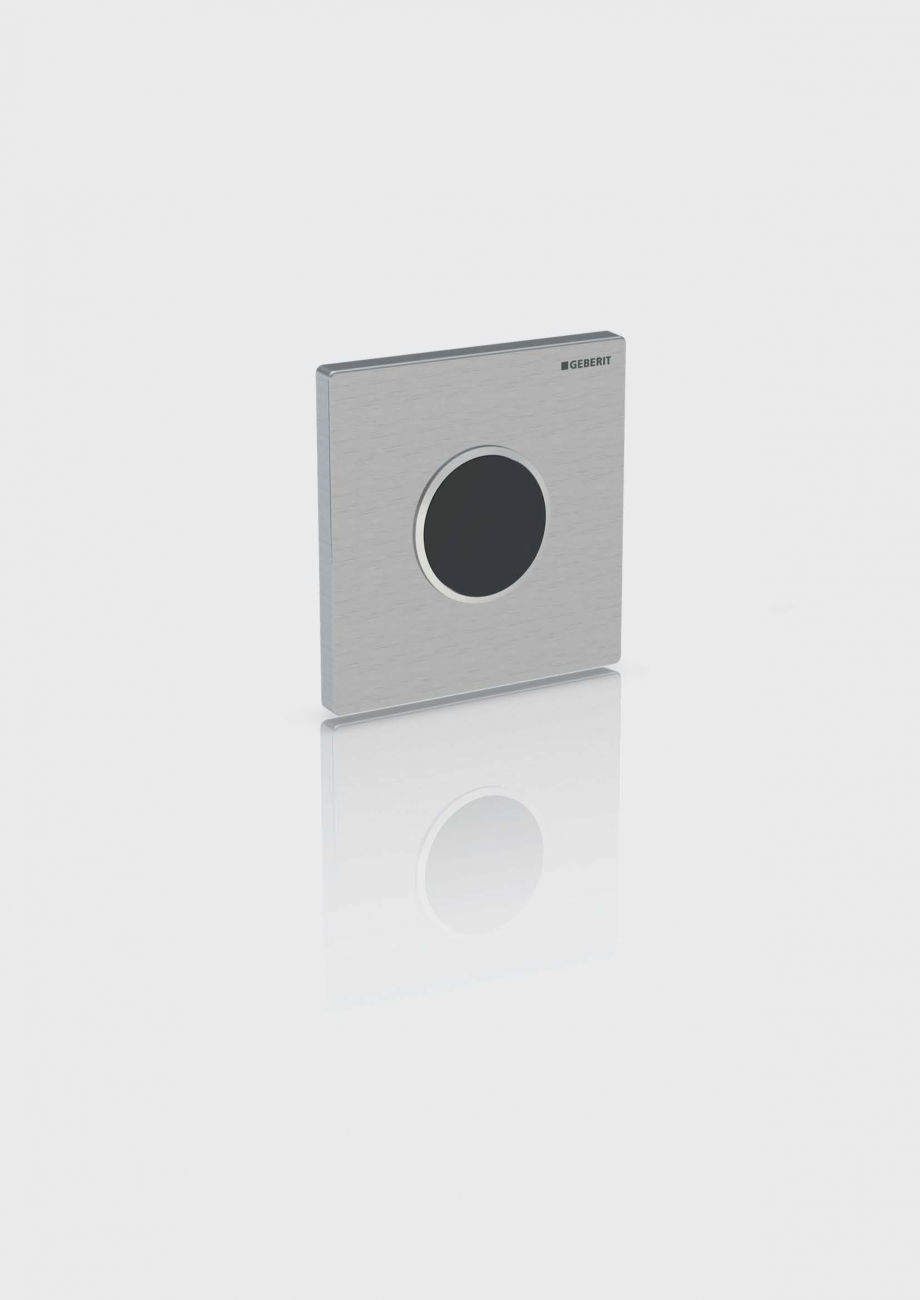

Pagina 170 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

r and lifting device, pre-mounted • Actuator rod • Electrical control • Connection cable, length 2 m, prefabricated • Fastening material Art. no. 115.862.00.1 To order additionally • Actuator plate • Push-button • Installation set with power supply unit, for Geberit WC flush controls with electronic flush actuation • Installation set Accessories • Installation set for Geberit WC flush control with electronic flush actuation → p. 115 • Installation set for Geberit WC flush control with mechanical flush actuation, push-button → p. 115 • Geberit actuator plate Sigma10 for stop-and-go flush, screwable → p. 74 96 For mains operation, for Geberit Sigma concealed cisterns 12 cm Geberit WC flush control with electronic flush actuation, mains operation, dual flush, for RFcontrolled button Application purposes • For manual remote flush actuation of Geberit Sigma concealed cisterns 12 cm using Geberit RF-controlled button • For releasing a dual flush • For

Pagina 170-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 171 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

solid and drywall construction • Suitable for barrier-free construction • For Geberit Sigma concealed cisterns 12 cm • Not suitable for use with Geberit insert for in-cistern block Characteristics • Flush actuation via Geberit RF-controlled button, wireless • Dual flush can be triggered via RF-controlled button • Single flush can be triggered via actuator plate • Cover plates and stop-and-go flush actuators can be mounted • Can be combined with Geberit actuator plates for single flush and stop-and-go flush or Geberit cover plate • Transformation of mains voltage to extra-low voltage, 4.1 V DC • Operation with extra-low voltage, no mains voltage in cistern • Interval flush preset • Adjustable interval flush • Compatible with Geberit Service Handy • Functions can be set and queried with the Geberit Service Handy Technical data Nominal voltage 85-240 V AC Mains frequency 50-60 Hz Operating voltage 4.1 V DC Radio frequency 868.4 MHz Radio frequency dista

Pagina 171-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 172 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

nce 10 m Scope of delivery • Mounting frame • Protection plate • Support block with servomotor and lifting device, pre-mounted • Electrical control • Fastening material Art. no. 115.897.00.1 To order additionally • Actuator plate • RF-controlled button • Installation set with power supply unit, for Geberit WC flush controls with electronic flush actuation Accessories • Installation set for Geberit WC flush control with electronic flush actuation → p. 115 • Geberit RF-controlled button for electronic flush actuation → p. 115 • Geberit actuator plate Sigma10 for stop-and-go flush, screwable → p. 74 Geberit Actuator Plates and WC Flush Controls For mains operation, for Geberit Sigma concealed cisterns 12 cm N ew Geberit WC flush control with electronic flush actuation, mains operation, dual flush, IR button 63 WC flush controls with electronic flush actuation N ew Geberit WC flush control with electronic flush actuation, mains operation, single flush,

Pagina 172-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 173 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

IR button 63 33 33 43 25–52 Application purposes • For releasing a dual flush • For drywall construction • For Geberit Sigma concealed cisterns 12 cm • Not suitable for use with Geberit insert for in-cistern block Characteristics • Single flush can be triggered via actuator plate • Cover plates and stop-and-go flush actuators can be mounted • Can be combined with Geberit actuator plates for single flush and stop-and-go flush or Geberit cover plate • Transformation of mains voltage to extra-low voltage, 4.1 V DC • Operation with extra-low voltage, no mains voltage in cistern • Interval flush preset Technical data 25–52 Application purposes • For single flush • For drywall construction • For Geberit Sigma concealed cisterns 12 cm • Not suitable for use with Geberit insert for in-cistern block Characteristics • Single flush can be triggered via actuator plate • Cover plates and stop-and-go flush actuators can be mounted • Can be combined with Geb

Pagina 173-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 174 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

erit actuator plates for single flush and stop-and-go flush or Geberit cover plate • Transformation of mains voltage to extra-low voltage, 4.1 V DC • Operation with extra-low voltage, no mains voltage in cistern • Interval flush preset Technical data Nominal voltage 85-240 V AC Operating voltage 4.1 V DC Nominal voltage 85-240 V AC Stainless steel Mains frequency 50-60 Hz Operating voltage 4.1 V DC Material Scope of delivery • Support block with servomotor and lifting device, pre-mounted • Electrical control • Power supply unit Art. no. Scope of delivery • Support block with servomotor and lifting device, pre-mounted • Electrical control • Power supply unit Colour / Surface 115.858.00.1 Art. no. 115.858.21.1 115.857.00.1 bright chrome-plated To order additionally • Actuator plate 115.857.21.1 Colour / Surface bright chrome-plated To order additionally • Actuator plate 97 Geberit Actuator Plates and WC Flush Controls WC flush controls wi

Pagina 174-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 175 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

th electronic flush actuation For mains operation, for Geberit Sigma concealed cisterns 8 cm 5.2.2 For mains operation, for Geberit Sigma concealed cisterns 8 cm Geberit WC flush control with electronic flush actuation, mains operation, dual flush, actuator plate Sigma10, automatic/touchless/manual 246 Geberit WC flush control with electronic flush actuation, mains operation, dual flush, actuator plate Sigma80, touchless 15 1 247 164 Application purposes • For solid and drywall construction • For Geberit Sigma concealed cistern 8 cm with front actuation • Not suitable for use with Geberit insert for in-cistern block • Not suitable for barrier-free construction Characteristics • Touchless flush actuation for single or dual flush by moving hand toward sensor • Manual flush actuation via actuator plate • Actuator plate made of stainless steel, screwable • Transformation of mains voltage to extra-low voltage, 4.1 V DC • Operation with extra-low voltage, no mains

Pagina 175-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 176 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

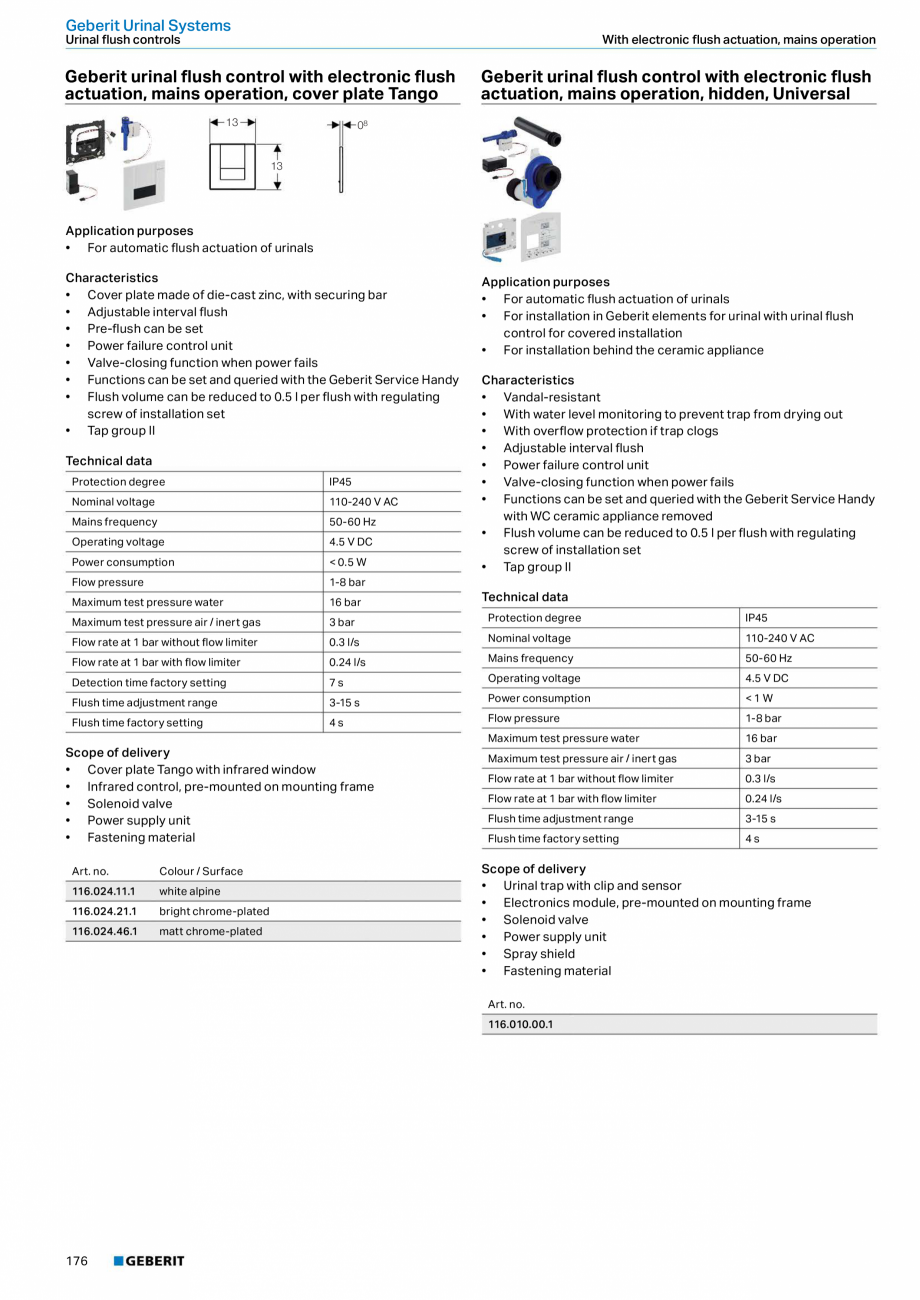

voltage in cistern • Interval flush preset • Adjustable interval flush • Pre-flush can be set • Minimum detection time can be set • Compatible with Geberit Service Handy • Functions can be set and queried with the Geberit Service Handy • Vandal-resistant • Actuator plate made of stainless steel Technical data Protection degree IP45 Nominal voltage 85-240 V AC Mains frequency 50-60 Hz Operating voltage 4.1 V DC Detection time factory setting 7s Scope of delivery • Actuator plate Sigma10 • Mounting frame with infrared control, pre-mounted • Protection plate • Support block with servomotor and lifting device, pre-mounted • Actuator rod • Fastening material Art. no. Colour / Surface 115.855.SN.5 stainless steel brushed/polished/brushed To order additionally • Installation set with power supply unit, for Geberit WC flush controls with electronic flush actuation Accessories • Installation set for Geberit WC flush control with electronic flush act

Pagina 176-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

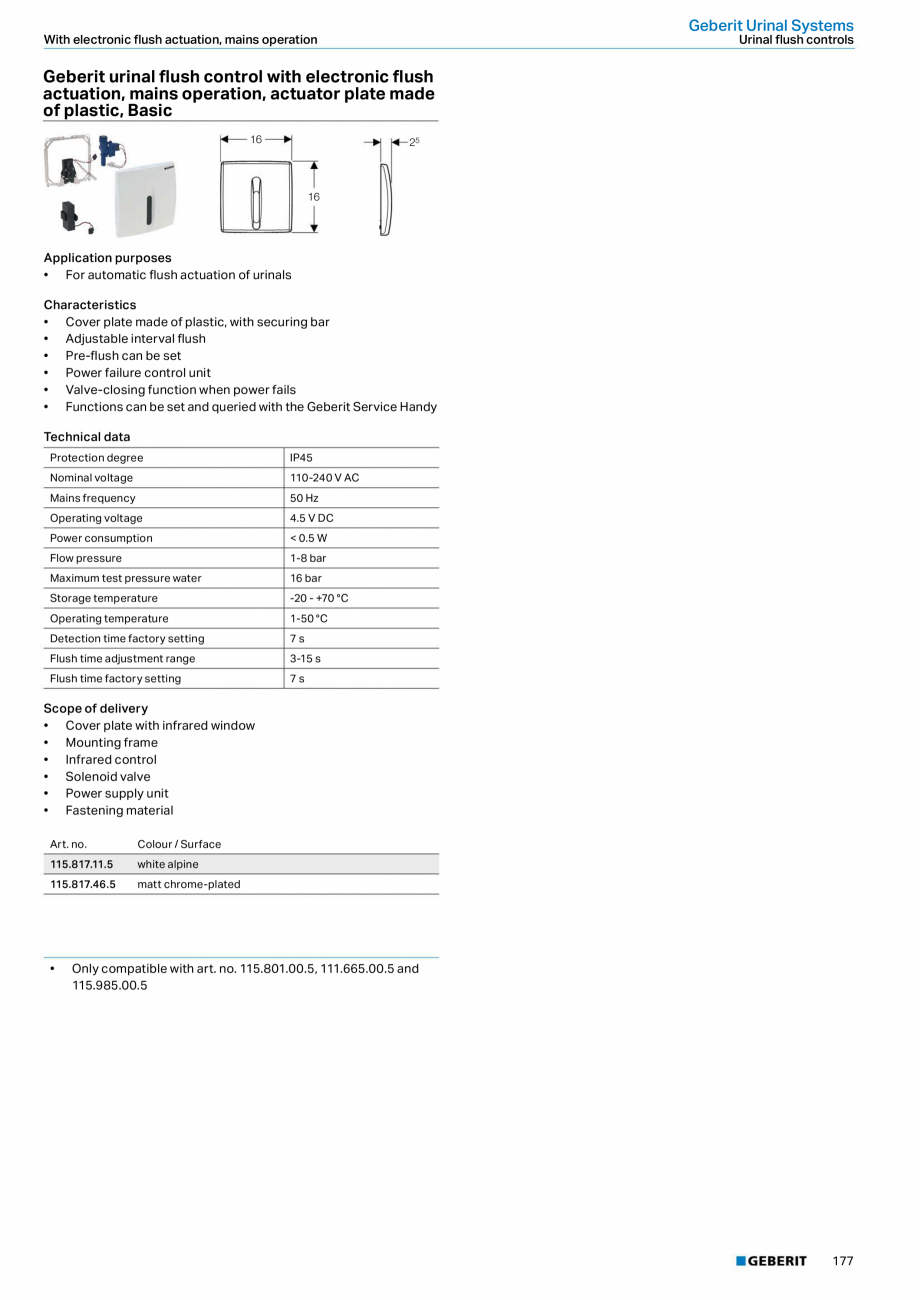

Pagina 177 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

uation → p. 115 164 37 Application purposes • For private and semi-public areas • For releasing a dual flush • For solid and drywall construction • Suitable for barrier-free construction • For Geberit Sigma concealed cistern 8 cm with front actuation • Not suitable for use with Geberit insert for in-cistern block Characteristics • Flush actuation possible via external push-button • Actuator plate without mechanical buttons • Actuator buttons identifiable by light bars • Button illumination activated when approached • Button illumination can be set in five colours • Orientation light can be activated • Transformation of mains voltage to extra-low voltage, 4.1 V DC • Operation with extra-low voltage, no mains voltage in cistern • Flush actuation can be manually deactivated for cleaning • Adjustable interval flush • Pre-flush can be set • Minimum detection time can be set • Compatible with Geberit Service Handy • Functions can be set and queri

Pagina 177-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 178 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

ed with the Geberit Service Handy • Lockable Technical data Protection degree IP45 Nominal voltage 85-240 V AC Mains frequency 50-60 Hz Operating voltage 4.1 V DC Scope of delivery • Actuator plate Sigma80 • Mounting frame • Support block with servomotor and lifting device, pre-mounted • Actuator rod • Fastening material Art. no. Colour / Surface 116.091.SG.1 black glass 116.091.SM.1 glass, reflective To order additionally • Installation set with power supply unit, for Geberit WC flush controls with electronic flush actuation Accessories • Installation set for Geberit WC flush control with electronic flush actuation → p. 115 98 Geberit Actuator Plates and WC Flush Controls For battery operation, for Geberit Sigma concealed cisterns 12 cm WC flush controls with electronic flush actuation 5.2.3 For battery operation, for Geberit Sigma concealed cisterns 12 cm Geberit WC flush control with electronic flush actuation, battery operation, dual flush, act

Pagina 178-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 179 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

uator plate Sigma10, automatic/touchless/ manual 246 Geberit WC flush control with electronic flush actuation, battery operation, dual flush, actuator plate Sigma10, automatic/touchless, screwable 15 246 14 164 164 Application purposes • For releasing a dual flush • For solid and drywall construction • For touchless flush actuation of Geberit Sigma concealed cisterns 12 cm • Not suitable for use with Geberit insert for in-cistern block • Not suitable for barrier-free construction Application purposes • For releasing a dual flush • For solid and drywall construction • For touchless flush actuation of Geberit Sigma concealed cisterns 12 cm • Not suitable for use with Geberit insert for in-cistern block • Not suitable for barrier-free construction Characteristics • Touchless flush actuation for single or dual flush by moving hand toward sensor • Manual flush actuation via actuator plate • Actuator plate made of stainless steel, screwable • Batteries in

Pagina 179-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

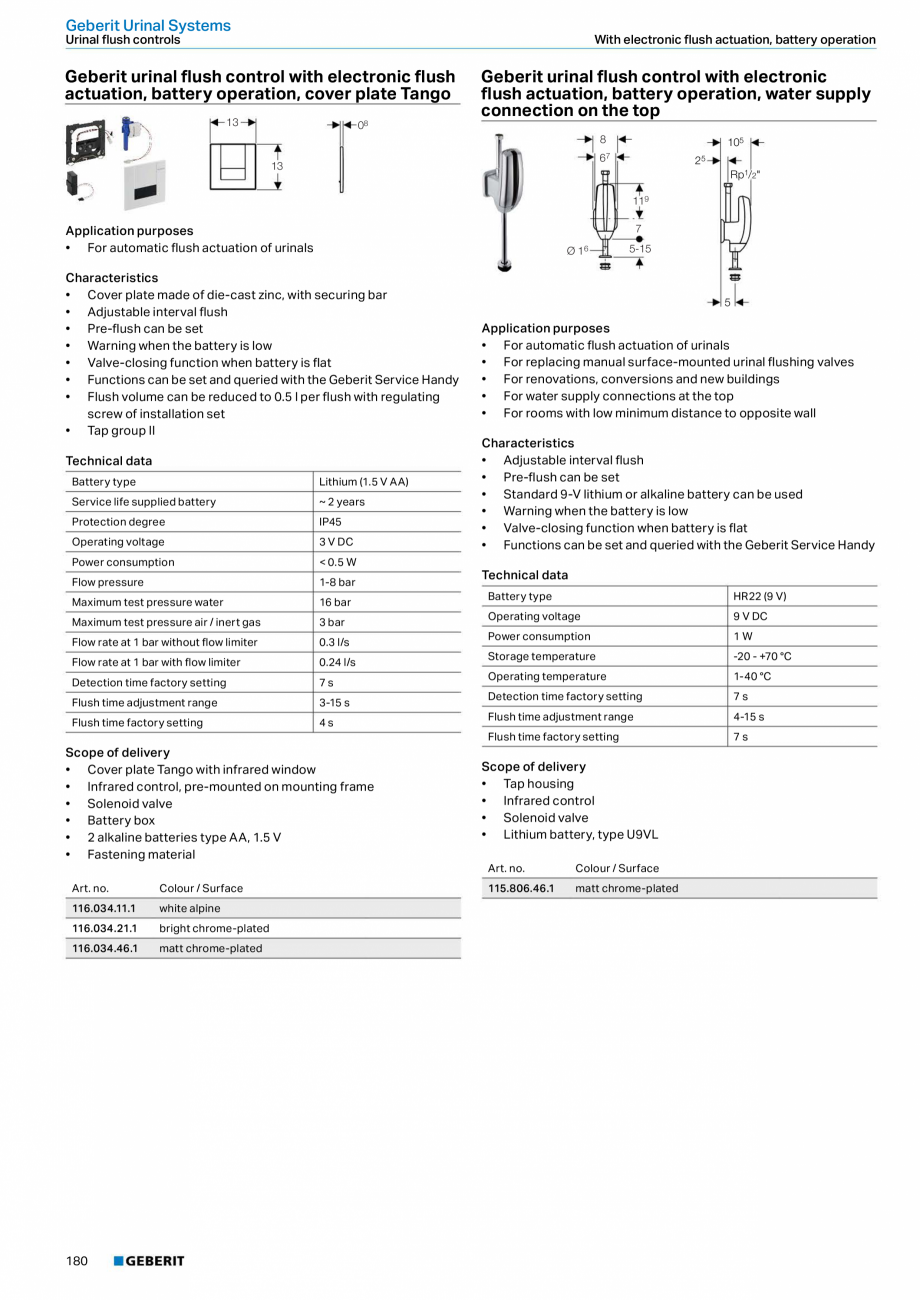

Pagina 180 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

closed battery compartment in the flushing cistern • Interval flush preset • Adjustable interval flush • Pre-flush can be set • Minimum detection time can be set • Compatible with Geberit Service Handy • Functions can be set and queried with the Geberit Service Handy • Vandal-resistant • Actuator plate made of stainless steel Characteristics • Touchless flush actuation for single or dual flush by moving hand toward sensor • Actuator plate made of stainless steel, screwable • Batteries in closed battery compartment in the flushing cistern • Interval flush preset • Adjustable interval flush • Pre-flush can be set • Minimum detection time can be set • Compatible with Geberit Service Handy • Functions can be set and queried with the Geberit Service Handy • Vandal-resistant Technical data Battery type Battery type LR20 Operating voltage 7s 3 V DC Detection time factory setting 7s 3 V DC Detection time factory setting LR20 Operating voltage Te

Pagina 180-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

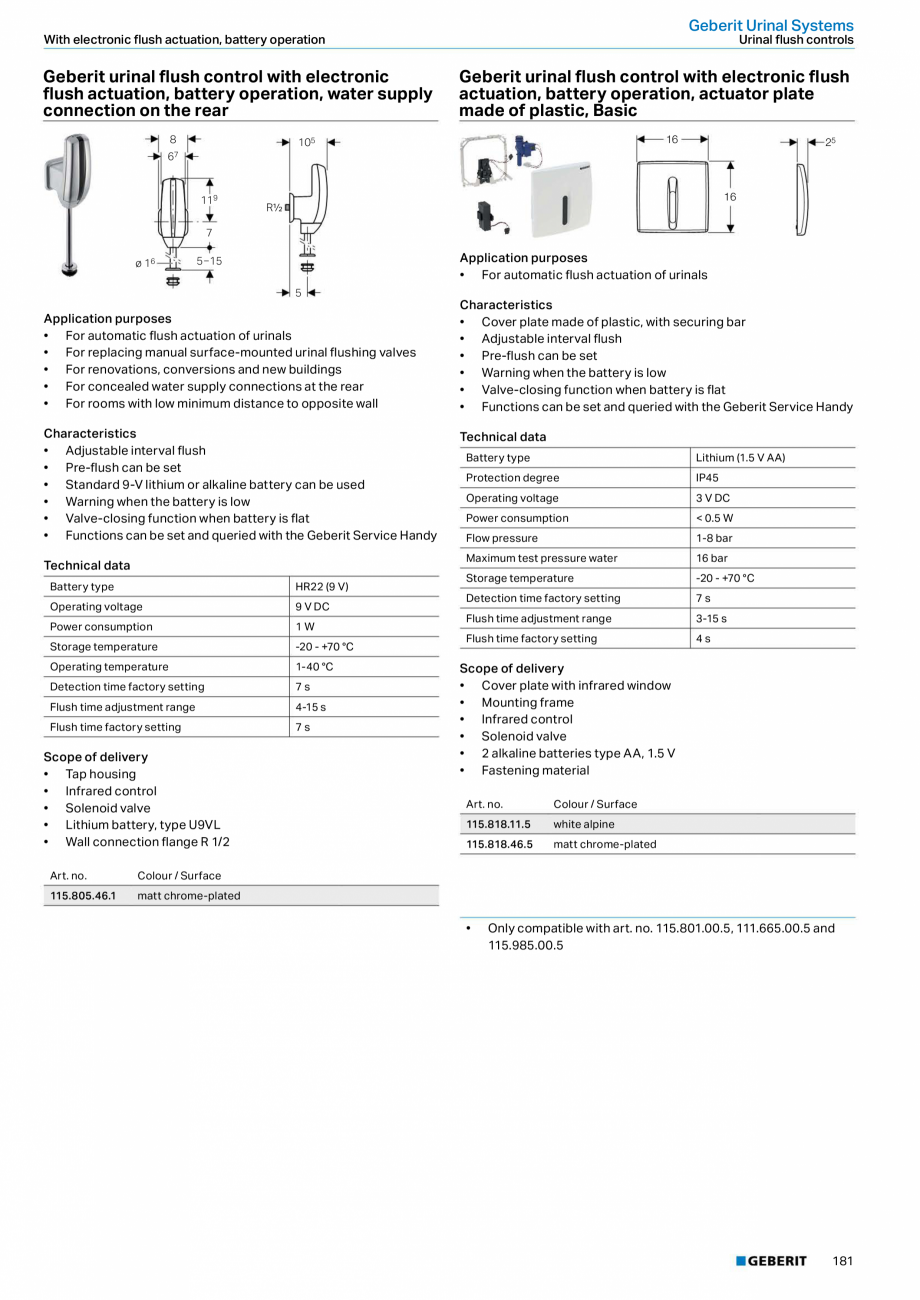

Pagina 181 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

chnical data Scope of delivery • Actuator plate Sigma10 • Mounting frame with infrared control and battery compartment, pre-mounted • Protection plate • Support block with servomotor and lifting device, pre-mounted • 2 alkaline batteries LR20, 1.5 V each • Actuator rod • Fastening material Scope of delivery • Actuator plate Sigma10 • Mounting frame with infrared control and battery compartment, pre-mounted • Protection plate • Support block with servomotor and lifting device, pre-mounted • 2 alkaline batteries LR20, 1.5 V each • Actuator rod • Fastening material stainless steel brushed/polished/brushed Colour / Surface 115.891.SN.5 Colour / Surface 115.909.SN.1 Art. no. Art. no. stainless steel brushed/polished/brushed 99 Geberit Actuator Plates and WC Flush Controls WC flush controls with electronic flush actuation For battery operation, for Geberit Sigma concealed cisterns 12 cm Geberit WC flush control with electronic flush actuation, batter

Pagina 181-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

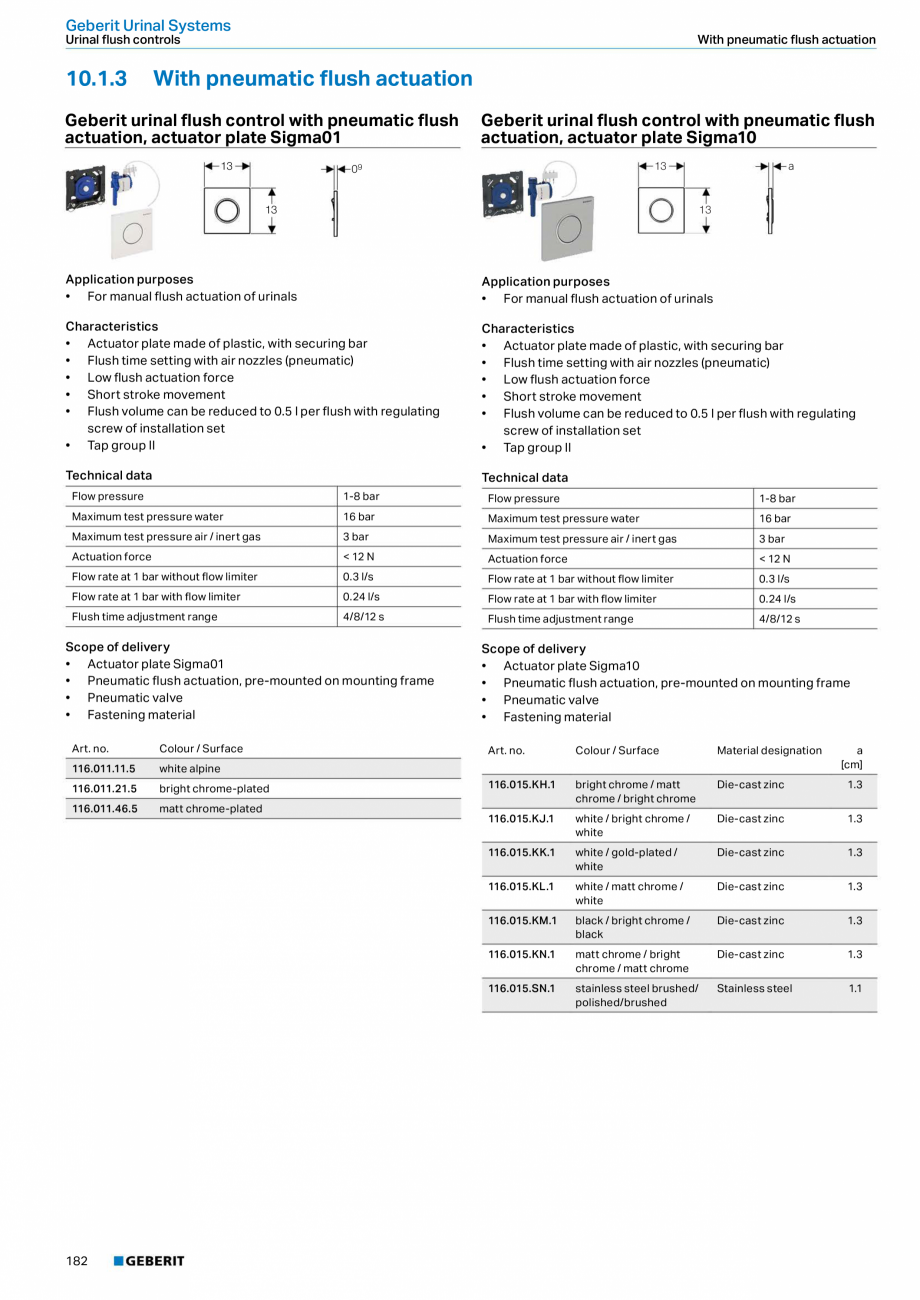

Pagina 182 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

y operation, dual flush, actuator plate Sigma10, automatic/touchless Geberit WC flush control with electronic flush actuation, battery operation, dual flush, for RFcontrolled button 14 246 164 Application purposes • For private and semi-public areas • For releasing a dual flush • For solid and drywall construction • For touchless flush actuation of Geberit Sigma concealed cisterns 12 cm • Not suitable for use with Geberit insert for in-cistern block • Not suitable for barrier-free construction Characteristics • Touchless flush actuation for single or dual flush by moving hand toward sensor • Batteries in closed battery compartment in the flushing cistern • Interval flush preset • Adjustable interval flush • Pre-flush can be set • Minimum detection time can be set • Compatible with Geberit Service Handy • Functions can be set and queried with the Geberit Service Handy • Actuator plate made of plastic Technical data Battery type 3 V DC Detection time f

Pagina 182-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 183 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

actory setting 7s Characteristics • Flush actuation via Geberit RF-controlled button, wireless • Dual flush can be triggered via RF-controlled button • Single flush can be triggered via actuator plate • Cover plates and stop-and-go flush actuators can be mounted • Can be combined with Geberit actuator plates for single flush and stop-and-go flush or Geberit cover plate • Batteries in closed battery compartment in the flushing cistern • Interval flush preset • Adjustable interval flush • Compatible with Geberit Service Handy • Functions can be set and queried with the Geberit Service Handy LR20 Operating voltage Application purposes • For manual remote flush actuation of Geberit Sigma concealed cisterns 12 cm using Geberit RF-controlled button • For releasing a dual flush • For solid and drywall construction • Suitable for barrier-free construction • For Geberit Sigma concealed cisterns 12 cm • Not suitable for use with Geberit insert for in-cistern

Pagina 183-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 184 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

block Technical data LR20 Operating voltage Scope of delivery • Actuator plate Sigma10 • Mounting frame with infrared control and battery compartment, pre-mounted • Protection plate • Support block with servomotor and lifting device, pre-mounted • 2 alkaline batteries LR20, 1.5 V each • Actuator rod • Fastening material Battery type 3 V DC Radio frequency 868.4 MHz Radio frequency distance 10 m Scope of delivery • Mounting frame with battery compartment, pre-mounted • Protection plate • Support block with servomotor and lifting device, pre-mounted • Control electronics with radio receiver • 2 alkaline batteries LR20, 1.5 V each • Actuator rod • Fastening material Art. no. Colour / Surface 115.908.KH.1 bright chrome / matt chrome / bright chrome 115.908.KJ.1 white / bright chrome / white Art. no. 115.908.KK.1 white / gold-plated / white 115.898.00.1 115.908.KL.1 white / matt chrome / white 115.908.KM.1 black / bright chrome / black 1

Pagina 184-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 185 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

15.908.KN.1 matt chrome / bright chrome / matt chrome 115.908.SN.1 stainless steel brushed/polished/brushed 100 To order additionally • Actuator plate • RF-controlled button Accessories • Geberit RF-controlled button for electronic flush actuation → p. 115 • Geberit actuator plate Sigma10 for stop-and-go flush, screwable → p. 74 For battery operation, for Geberit Sigma concealed cisterns 12 cm Geberit Actuator Plates and WC Flush Controls WC flush controls with electronic flush actuation Geberit WC flush control with electronic flush actuation, battery operation, single flush, actuator plate Sigma10, for pull-down rail, radio Application purposes • For manual remote flush actuation of Geberit Sigma concealed cisterns 12 cm using pull-down rails with RF-controlled button • For single flush • For solid and drywall construction • Suitable for barrier-free construction • For Geberit Sigma concealed cisterns 12 cm • Not suitable for use with Geberit insert

Pagina 185-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 186 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

for in-cistern block Characteristics • Flush actuation using pull-down rail, wireless, radio • Single flush can be triggered via actuator plate • Cover plates and stop-and-go flush actuators can be mounted • Can be combined with Geberit actuator plates for single flush and stop-and-go flush or Geberit cover plate • Batteries in closed battery compartment in the flushing cistern • Interval flush preset • Adjustable interval flush • Compatible with Geberit Service Handy • Functions can be set and queried with the Geberit Service Handy Technical data Battery type LR20 Operating voltage 3 V DC Radio frequency 868.4 MHz Radio frequency distance 10 m Scope of delivery • Actuator plate Sigma10 • Mounting frame • Protection plate • Support block with servomotor and lifting device, pre-mounted • Control electronics with radio receiver • 2 alkaline batteries LR20, 1.5 V each • Actuator rod • Fastening material Art. no. Colour / Surface 115.869.SN.5 s

Pagina 186-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

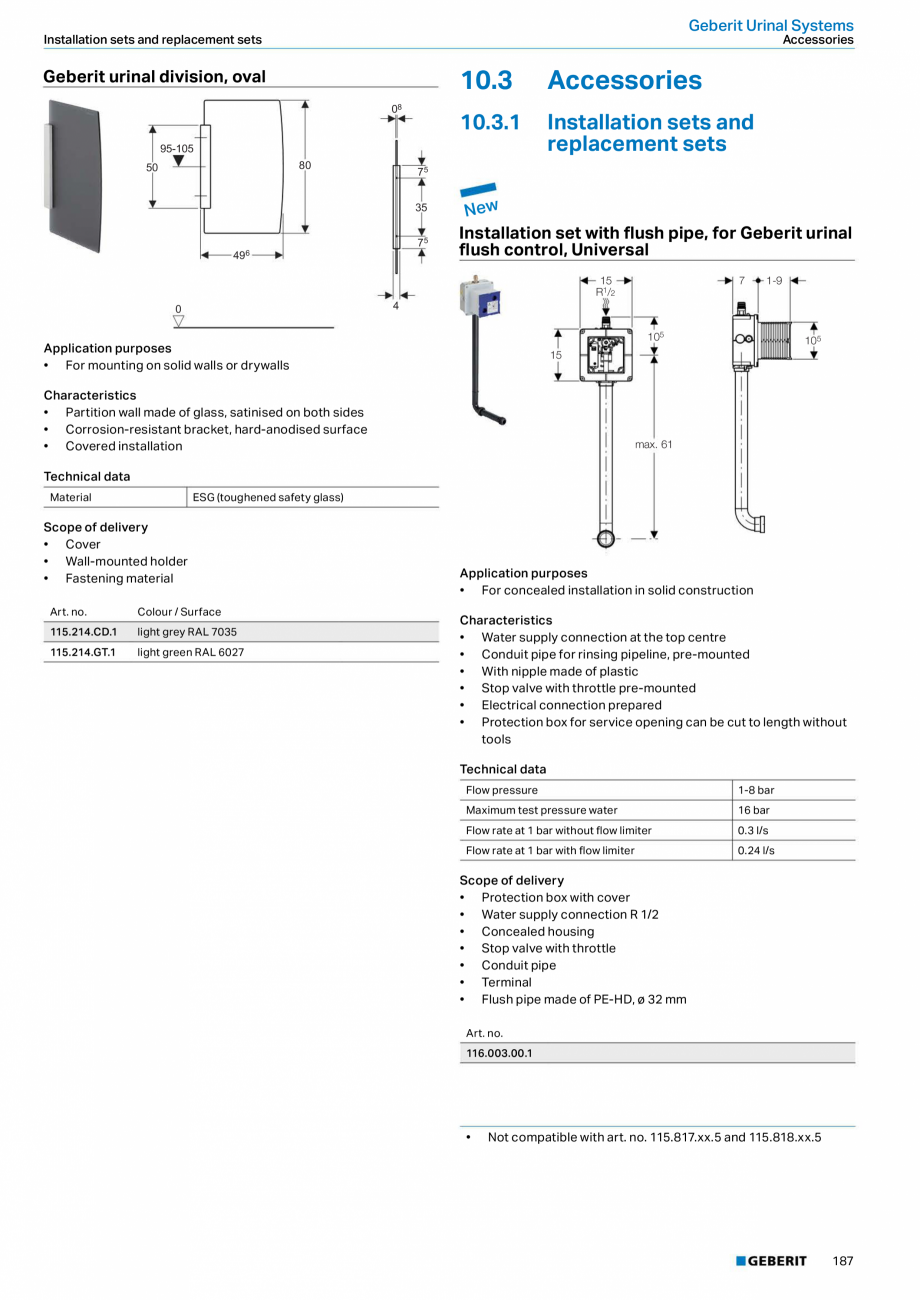

Pagina 187 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

tainless steel brushed/polished/brushed 101 Geberit Actuator Plates and WC Flush Controls WC flush controls with pneumatic flush actuation For battery operation, for Geberit Sigma concealed cisterns 12 cm 5.3 WC flush controls with pneumatic flush actuation System overview: pneumatie flush actuators Type 01 Concealed Furniture Single flush Dual flush Concealed / protruding Exposed Dual flush Single flush Dual flush 116.040.11.1 116.041.11.1 116.042.11.1 116.043.11.1 116.050.11.1 116.044.11.1 116.045.11.1 116.046.11.1 116.047.11.1 116.048.11.1 116.049.11.1 116.040.21.1 116.041.21.1 116.042.21.1 116.043.21.1 116.050.21.1 116.040.46.1 116.041.46.1 116.042.46.1 116.043.46.1 116.050.46.1 Omega 109.043.00.1 109.050.00.1 109.060.00.1 110.001.00.1 110.011.00.1 110.020.00.1 111.003.00.1 111.030.00.1 111.060.00.1 461.141.00.1 109.043.00.1 109.050.00.1 110.001.00.1 110.011.00.1 111.003.00.1 111.030.00.1 461.141.00.1 ü ü ü ü ü ü ü ü ü ü ü ü Sigma 12 cm 109

Pagina 187-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 188 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

.043.00.1 109.050.00.1 110.001.00.1 110.011.00.1 111.003.00.1 111.030.00.1 461.141.00.1 ü ü ü ü ü ü ü ü ü ü Sigma 8 cm 109.130.00.1 110.150.00.1 Delta 8 cm 109.160.00.1 110.171.00.1 110.772.00.1 110.170.00.1 458.160.00.1 ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü Delta 12 cm 109.721.00.1 Cistern for furniture 123.135.11.1 123.136.11.1 123.701.11.1 AP 123 123.700.11.1 AP 123 136.430.11.1 136.444.11.1 136.535.11.1 136.603.11.1 AP 116, 117, 110 102 Geberit Actuator Plates and WC Flush Controls For battery operation, for Geberit Sigma concealed cisterns 12 cm WC flush controls with pneumatic flush actuation Type 10 Concealed Type 70 Furniture Furniture Dual flush 116.055.KN.1 116.055.KM.1 116.055.KH.1 116.055.KK.1 116.055.KJ.1 116.055.KW.1 116.056.KN.1 116.056.KM.1 116.056.KH.1 116.056.KK.1 116.056.KJ.1 116.056.KW.1 Type metal 116.057.KN.1 116.057.KM.1 116.057.KH.1 116.057.KK.1 116.057.KJ.1 116.057.KW.1 ü ü ü ü ü

Pagina 188-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

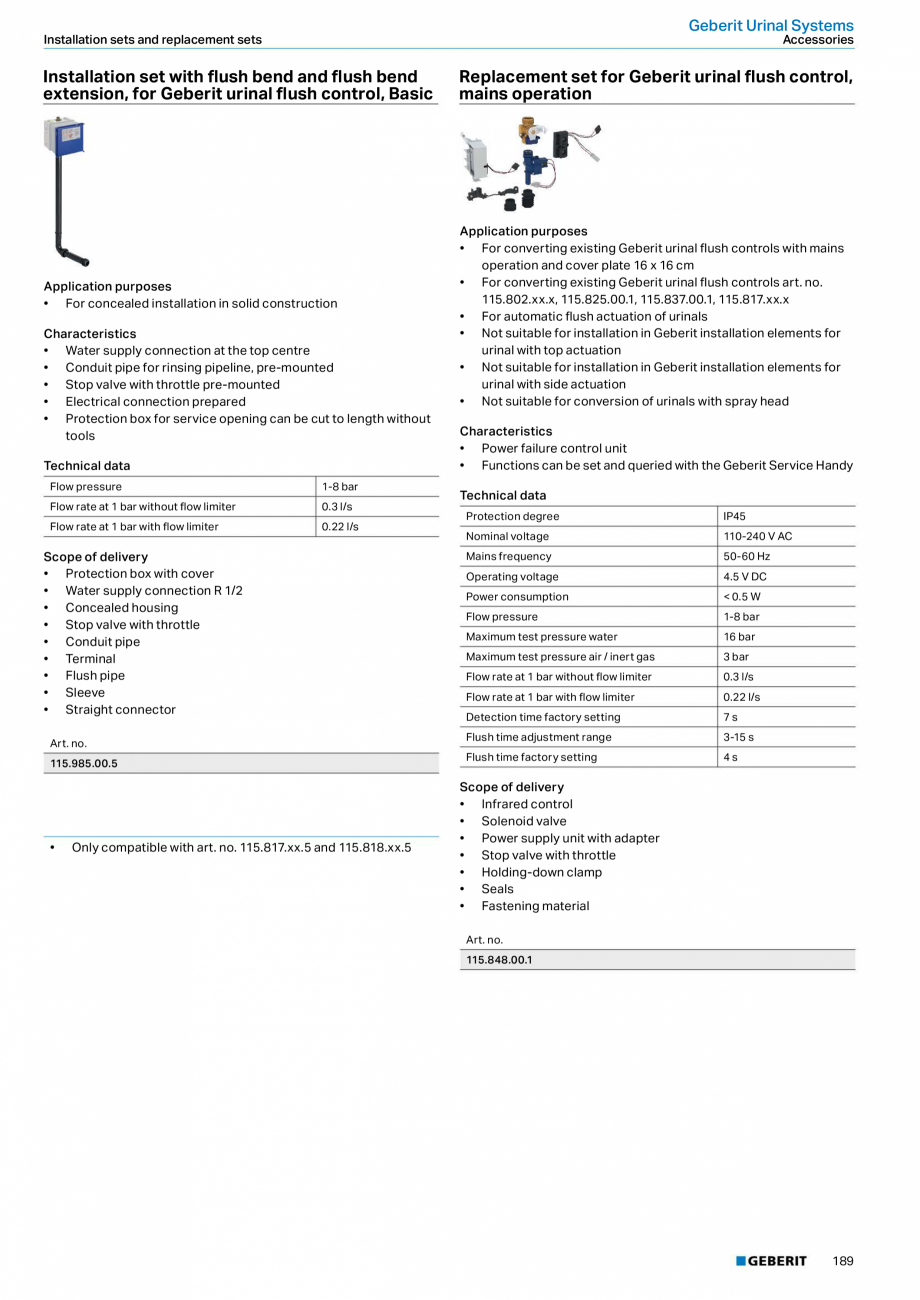

Pagina 189 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

115.083.FW.1 115.083.SI.1 115.083.SJ.1 115.083.SQ.1 ü 115.084.FW.1 115.084.SI.1 115.084.SJ.1 115.084.SQ 1 115.630.FW.1 115.630.SI.1 115.630.SJ.1 115.630.SQ.1 115.635.FW.1 115.635.SI.1 115.635.SJ.1 115.635.SQ.1 ü Furniture Exposed Single flush Dual flush Type prison Furniture Concealed Single flush Single flush 115.947.00.1 115.947.21.1 115.943.21.1 Type foot 115.918.00.1 ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü 103 Geberit Actuator Plates and WC Flush Controls WC flush controls with pneumatic flush actuation For dual flush 5.3.1 For dual flush N ew N ew Geberit remote flush actuation type 01, pneumatic, for dual flush, concealed actuator, protruding Geberit remote flush actuation type 01, pneumatic, for dual flush, concealed actuator 94 ø 65 ø 94 ø 65 94 73 Application purposes • For pneumatic remote flush actuation of Geberit exposed and concealed cisterns • For releasing a dual flush • Fo

Pagina 189-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 190 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

r solid and drywall construction • For concealed installation • For Geberit Delta concealed cisterns 12 cm • For Geberit Sigma concealed cisterns 12 cm • For Geberit Omega concealed cisterns 12 cm • For Geberit exposed cisterns AP123 Characteristics • Round design • Actuator made of plastic • Can be combined with Geberit actuator plates for single flush and stop-and-go flush or Geberit cover plate Technical data Actuation force < 25 N Scope of delivery • Actuator • Pneumatic flushing device • Pneumatic hose, length 2 m • Conduit pipe, length 1.7 m • Fastening material Art. no. Colour / Surface 116.042.11.1 white alpine 116.042.21.1 bright chrome-plated 116.042.46.1 matt chrome-plated 94 73 06 Application purposes • For pneumatic remote flush actuation of Geberit exposed and concealed cisterns • For releasing a dual flush • For solid and drywall construction • For concealed installation • For Geberit Delta concealed cisterns 12 cm • For

Pagina 190-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 191 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

Geberit Sigma concealed cisterns 12 cm • For Geberit Omega concealed cisterns 12 cm • For Geberit exposed cisterns AP123 Characteristics • Round design • Actuator buttons protruding • Actuator made of plastic • Can be combined with Geberit actuator plates for single flush and stop-and-go flush or Geberit cover plate Technical data Actuation force < 25 N Scope of delivery • Actuator • Pneumatic flushing device • Pneumatic hose, length 2 m • Conduit pipe, length 1.7 m • Fastening material Art. no. Colour / Surface 116.044.11.1 104 ø 94 06 white alpine Geberit Actuator Plates and WC Flush Controls For dual flush WC flush controls with pneumatic flush actuation N ew N ew Geberit remote flush actuation type 01, pneumatic, for dual flush, exposed actuator Geberit remote flush actuation type 01, pneumatic, for dual flush, furniture actuator ø 65 9 8 85 ø 8 ø 10 73 06 10 85 Application purposes • For pneumatic remote flush actuation of Gebe

Pagina 191-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

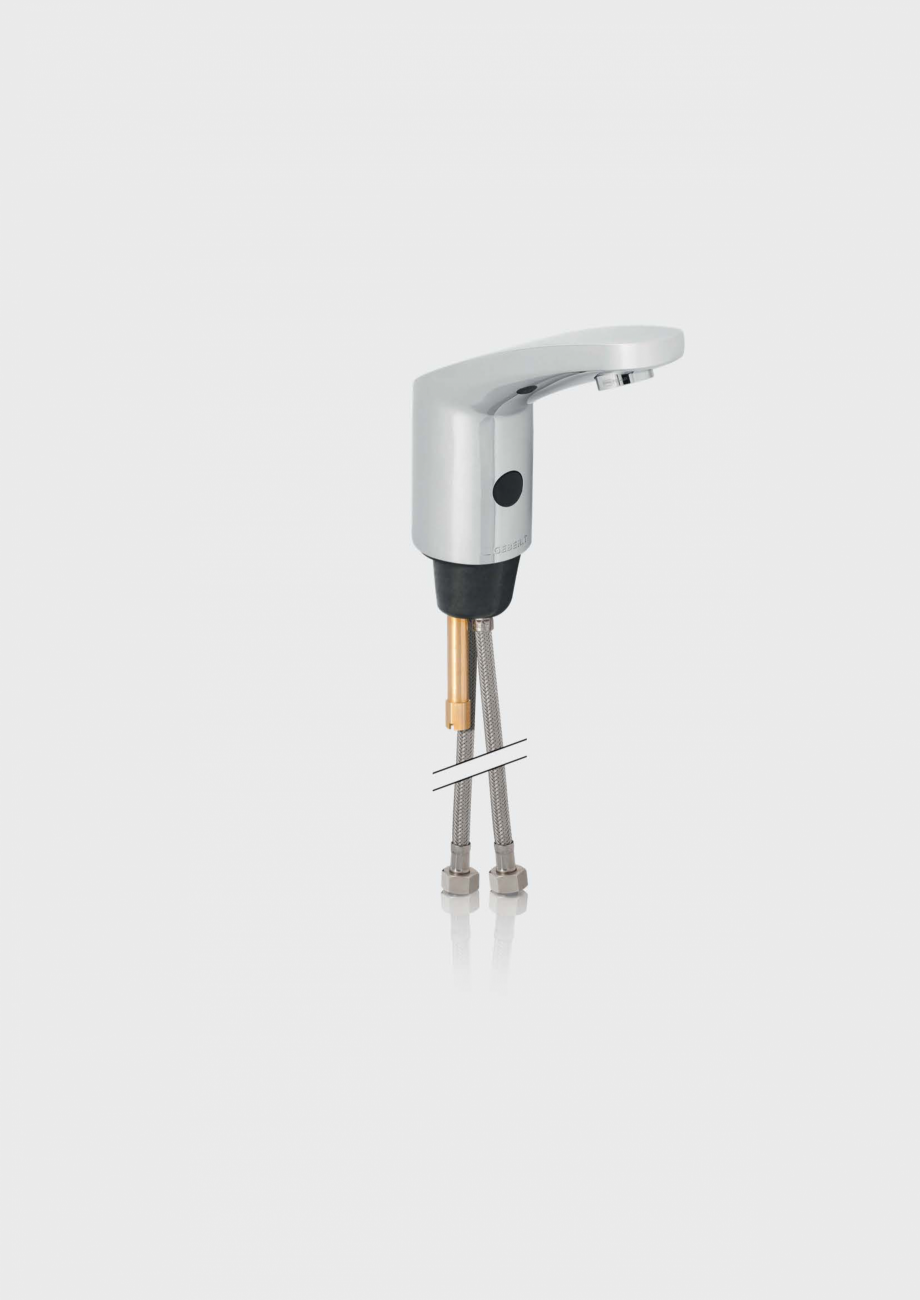

Pagina 192 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

rit exposed and concealed cisterns • For releasing a dual flush • For solid and drywall construction • For exposed installation • For Geberit Delta concealed cisterns 12 cm • For Geberit Sigma concealed cisterns 12 cm • For Geberit Omega concealed cisterns 12 cm • For Geberit exposed cisterns AP123 Application purposes • For pneumatic remote flush actuation of Geberit exposed and concealed cisterns • For pneumatic remote flush actuation of Geberit cisterns for low-height furniture • For releasing a dual flush • For Geberit Delta concealed cisterns 12 cm • For Geberit Sigma concealed cisterns 12 cm • For Geberit Omega concealed cisterns 12 cm • For Geberit exposed cisterns AP123 • For bathroom furniture Characteristics • Round design • Actuator buttons protruding • Actuator made of plastic • Can be combined with Geberit actuator plates for single flush and stop-and-go flush or Geberit cover plate Characteristics • Round design • Actuator made

Pagina 192-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 193 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

of plastic • Can be combined with Geberit actuator plates for single flush and stop-and-go flush or Geberit cover plate Technical data Technical data Actuation force < 25 N Scope of delivery • Actuator • Pneumatic flushing device • Pneumatic hose, length 2 m • Conduit pipe, length 0.9 m • Fastening material Art. no. 116.048.11.1 Actuation force < 25 N Scope of delivery • Actuator • Pneumatic flushing device • Pneumatic hose, length 2 m • Fastening material Art. no. Colour / Surface Colour / Surface 116.050.11.1 white alpine white alpine 116.050.21.1 bright chrome-plated 116.050.46.1 matt chrome-plated 105 Geberit Actuator Plates and WC Flush Controls WC flush controls with pneumatic flush actuation For dual flush N ew N ew Geberit remote flush actuation type 01, pneumatic, for dual flush, concealed actuator Geberit remote flush actuation type 01, pneumatic, for dual flush, concealed actuator, protruding 94 ø 65 ø 94 ø 65 94 73 Appl

Pagina 193-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

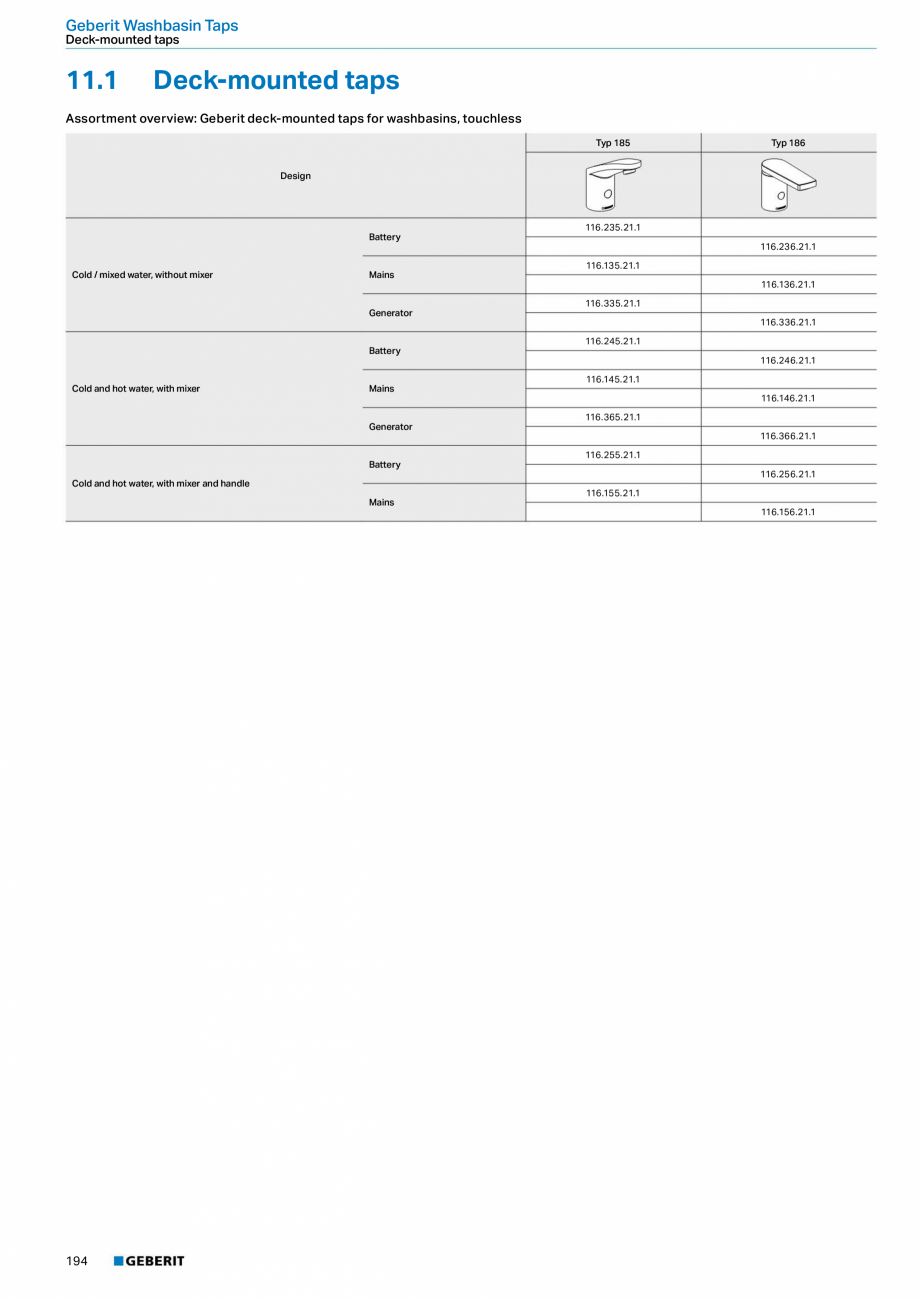

Pagina 194 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

ication purposes • For pneumatic remote flush actuation of Geberit concealed cisterns • For dual flush • For solid and drywall construction • For concealed installation • For Geberit Sigma concealed cistern 8 cm with front actuation Characteristics • Round design • Actuator made of plastic • Can be combined with Geberit actuator plates for single flush and stop-and-go flush or Geberit cover plate Technical data Actuation force < 25 N Scope of delivery • Actuator • Pneumatic flushing device • Pneumatic hose, length 2 m • Conduit pipe, length 1.7 m • Fastening material Art. no. Colour / Surface 116.043.11.1 white alpine 116.043.21.1 bright chrome-plated 116.043.46.1 matt chrome-plated 94 73 06 Application purposes • For pneumatic remote flush actuation of Geberit concealed cisterns • For dual flush • For solid and drywall construction • For concealed installation • For Geberit Sigma concealed cistern 8 cm with front actuation Characterist

Pagina 194-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 195 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

ics • Round design • Actuator buttons protruding • Actuator made of plastic • Can be combined with Geberit actuator plates for single flush and stop-and-go flush or Geberit cover plate Technical data Actuation force < 25 N Scope of delivery • Actuator • Pneumatic flushing device • Pneumatic hose, length 2 m • Conduit pipe, length 1.7 m • Fastening material Art. no. Colour / Surface 116.045.11.1 106 ø 94 06 white alpine Geberit Actuator Plates and WC Flush Controls For dual flush WC flush controls with pneumatic flush actuation N ew N ew Geberit remote flush actuation type 01, pneumatic, for dual flush, exposed actuator Geberit remote flush actuation type 10, pneumatic, for dual flush, concealed actuator ø 65 9 94 85 85 Application purposes • For pneumatic remote flush actuation of Geberit concealed cisterns • For dual flush • For solid and drywall construction • For exposed installation • For Geberit Sigma concealed cistern 8 cm with

Pagina 195-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 196 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

front actuation Characteristics • Round design • Actuator buttons protruding • Actuator made of plastic • Can be combined with Geberit actuator plates for single flush and stop-and-go flush or Geberit cover plate Technical data Actuation force < 25 N Scope of delivery • Actuator • Pneumatic flushing device • Pneumatic hose, length 2 m • Fastening material • Conduit pipe, length 0.9 m Art. no. white alpine 73 06 Application purposes • For pneumatic remote flush actuation of Geberit exposed and concealed cisterns • For releasing a dual flush • For solid and drywall construction • For concealed installation • For Geberit Delta concealed cisterns 12 cm • For Geberit Omega concealed cisterns 12 cm • For Geberit Sigma concealed cisterns 12 cm • For Geberit exposed cisterns AP123 Characteristics • Round design • Actuator made of plastic • Can be combined with Geberit actuator plates for single flush and stop-and-go flush or Geberit cover plate Tec

Pagina 196-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 197 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

hnical data Actuation force < 25 N Scope of delivery • Actuator • Pneumatic flushing device • Pneumatic hose, length 2 m • Conduit pipe, length 1.7 m • Fastening material Colour / Surface 116.049.11.1 ø 94 Art. no. Colour / Surface 116.055.KH.1 bright chrome / matt chrome / bright chrome 116.055.KJ.1 white / bright chrome / white 116.055.KK.1 white / gold-plated / white 116.055.KM.1 black / bright chrome / black 116.055.KN.1 matt chrome / bright chrome / matt chrome 116.055.KW.1 brushed/pol./brushed StSt finish on pl 107 Geberit Actuator Plates and WC Flush Controls WC flush controls with pneumatic flush actuation For dual flush N ew N ew Geberit remote flush actuation type 10, pneumatic, for dual flush, furniture actuator ø 65 8 Geberit remote flush actuation type 10, pneumatic, for dual flush, concealed actuator ø 8 ø 10 73 ø 65 06 94 10 Application purposes • For pneumatic remote flush actuation of Geberit exposed and concealed ci

Pagina 197-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 198 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

sterns • For pneumatic remote flush actuation of Geberit cisterns for low-height furniture • For releasing a dual flush • For Geberit Delta concealed cisterns 12 cm • For Geberit Sigma concealed cisterns 12 cm • For Geberit Omega concealed cisterns 12 cm • For Geberit exposed cisterns AP123 • For bathroom furniture Characteristics • Round design • Actuator made of plastic • Can be combined with Geberit actuator plates for single flush and stop-and-go flush or Geberit cover plate Technical data Actuation force < 25 N Scope of delivery • Actuator • Pneumatic flushing device • Pneumatic hose, length 2 m • Fastening material ø 94 73 Application purposes • For pneumatic remote flush actuation of Geberit concealed cisterns • For dual flush • For solid and drywall construction • For concealed installation • For Geberit Sigma concealed cistern 8 cm with front actuation Characteristics • Round design • Actuator made of plastic • Can be combined

Pagina 198-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

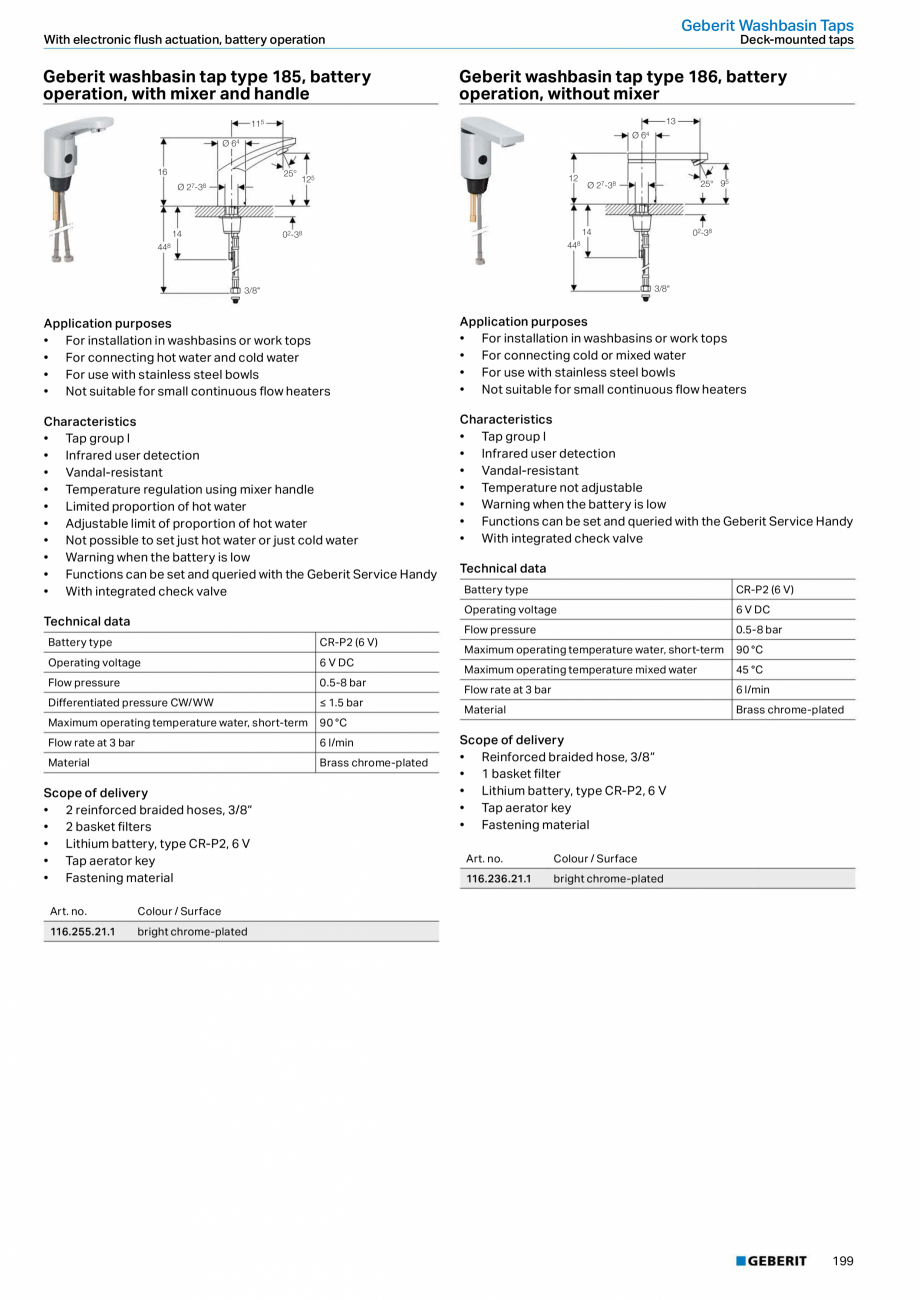

Pagina 199 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

with Geberit actuator plates for single flush and stop-and-go flush or Geberit cover plate Technical data Actuation force < 25 N Scope of delivery • Actuator • Pneumatic flushing device • Pneumatic hose, length 2 m • Conduit pipe, length 1.7 m • Fastening material Art. no. Colour / Surface 116.056.KH.1 bright chrome / matt chrome / bright chrome 116.056.KJ.1 white / bright chrome / white Art. no. Colour / Surface 116.056.KK.1 white / gold-plated / white 116.057.KH.1 bright chrome / matt chrome / bright chrome 116.056.KM.1 black / bright chrome / black 116.057.KJ.1 white / bright chrome / white 116.056.KN.1 matt chrome / bright chrome / matt chrome 116.057.KK.1 white / gold-plated / white 116.056.KW.1 brushed/pol./brushed StSt finish on pl 116.057.KM.1 black / bright chrome / black 116.057.KN.1 matt chrome / bright chrome / matt chrome 116.057.KW.1 brushed/pol./brushed StSt finish on pl 108 06 Geberit Actuator Plates and WC Flush Controls For

Pagina 199-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 200 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

dual flush WC flush controls with pneumatic flush actuation N ew N ew Geberit remote flush actuation type 70 for dual flush, for Sigma concealed cistern 12 cm Geberit remote flush actuation type 70 for dual flush, for Sigma concealed cistern 8 cm 88 112 88 112 5 5 Application purposes • For solid and drywall construction • For covering thicknesses of 5–50 mm in drywall construction • For wall thicknesses of ≥ 75 mm in solid construction • For tiled floor constructions of 5–40 mm • For pneumatic remote flush actuation of Geberit concealed cisterns • For Geberit Sigma concealed cisterns 12 cm • For flush actuation with high actuating convenience Application purposes • For solid and drywall construction • For covering thicknesses of 5–50 mm in drywall construction • For wall thicknesses of ≥ 75 mm in solid construction • For tiled floor constructions of 5–40 mm • For pneumatic remote flush actuation of Geberit concealed cisterns • For Geb

Pagina 200-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

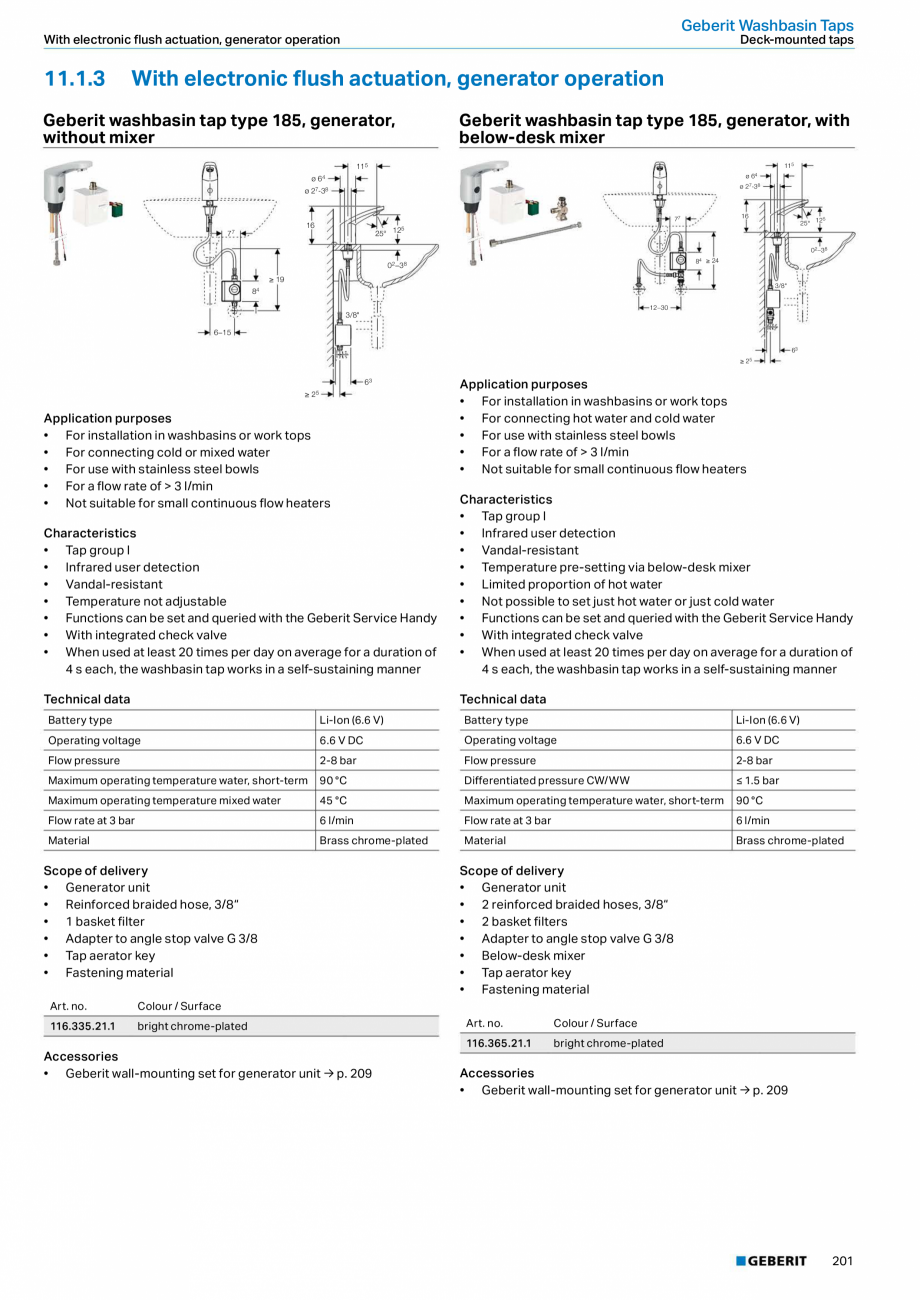

Pagina 201 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

erit Sigma concealed cisterns 8 cm • For flush actuation with high actuating convenience Characteristics • Hydraulic servo lifter for minimum actuation forces • Flush actuation pneumatic • Can be combined with Geberit cover plates Sigma Characteristics • Hydraulic servo lifter for minimum actuation forces • Flush actuation pneumatic • Can be combined with Geberit cover plates Sigma Scope of delivery • Hydraulic servo lifter • Water supply connection set • Pneumatic hose, length 2 m • Concealed housing • Conduit pipe, length 1.7 m • Assembly parts • Fastening material Scope of delivery • Hydraulic servo lifter • Water supply connection set • Pneumatic hose, length 2 m • Concealed housing • Conduit pipe, length 1.7 m • Assembly parts • Fastening material Art. no. Colour / Surface Art. no. Colour / Surface 115.630.FW.1 stainless steel brushed 115.635.FW.1 stainless steel brushed 115.630.SI.1 white glass 115.635.SI.1 white glass 11

Pagina 201-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 202 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

5.630.SJ.1 black glass 115.635.SJ.1 black glass 115.630.SQ.1 umber glass 115.635.SQ.1 umber glass 109 Geberit Actuator Plates and WC Flush Controls WC flush controls with pneumatic flush actuation For dual flush N ew N ew Geberit remote flush actuation type 70 for dual flush, for Omega concealed cistern, for furniture Geberit remote flush actuation type 70 for dual flush, for Omega concealed cistern 88 112 88 112 5 5 Application purposes • For bathroom furniture • For wall thicknesses of 5–40 mm • For pneumatic remote flush actuation of Geberit concealed cisterns • For Geberit Omega concealed cisterns 12 cm • For flush actuation with high actuating convenience Characteristics • Hydraulic servo lifter for minimum actuation forces • Flush actuation pneumatic Scope of delivery • Hydraulic servo lifter • Water supply connection set • Pneumatic hose, length 2 m • Assembly parts • Fastening material Art. no. Colour / Surface 115.083.FW.1 stainl

Pagina 202-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 203 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

ess steel brushed 115.083.SI.1 white glass 115.083.SJ.1 black glass 115.083.SQ.1 umber glass Application purposes • For solid and drywall construction • For covering thicknesses of 5–50 mm in drywall construction • For wall thicknesses of ≥ 75 mm in solid construction • For tiled floor constructions of 5–40 mm • For pneumatic remote flush actuation of Geberit concealed cisterns • For Geberit Omega concealed cisterns 12 cm • For flush actuation with high actuating convenience Characteristics • Hydraulic servo lifter for minimum actuation forces • Flush actuation pneumatic • Can be combined with Geberit cover plates Omega Scope of delivery • Hydraulic servo lifter • Water supply connection set • Pneumatic hose, length 2 m • Concealed housing • Conduit pipe, length 1.7 m • Assembly parts • Fastening material Colour / Surface 115.084.FW.1 stainless steel brushed 115.084.SI.1 white glass 115.084.SJ.1 black glass 115.084.SQ.1 110 Art. n

Pagina 203-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 204 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

o. umber glass Geberit Actuator Plates and WC Flush Controls For single flush WC flush controls with pneumatic flush actuation 5.3.2 For single flush N ew N ew Geberit remote flush actuation type 01, pneumatic, for single flush, concealed actuator ø 65 94 ø 94 73 Application purposes • For pneumatic remote flush actuation of Geberit exposed and concealed cisterns • For single flush • For solid and drywall construction • For concealed installation • For Geberit Delta concealed cisterns 12 cm • For Geberit Sigma concealed cisterns 12 cm • For Geberit Omega concealed cisterns 12 cm • For Geberit exposed cisterns AP123 Characteristics • Round design • Actuator made of plastic • Can be combined with Geberit actuator plates for single flush and stop-and-go flush or Geberit cover plate Technical data Actuation force < 25 N Scope of delivery • Actuator • Pneumatic flushing device • Pneumatic hose, length 2 m • Conduit pipe, length 1.7 m • Fasten

Pagina 204-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 205 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

ing material Art. no. Colour / Surface 116.040.11.1 white alpine 116.040.21.1 bright chrome-plated 116.040.46.1 Geberit remote flush actuation type 01, pneumatic, for single flush, exposed actuator 9 06 85 85 Application purposes • For pneumatic remote flush actuation of Geberit exposed and concealed cisterns • For single flush • For solid and drywall construction • For exposed installation • For Geberit Delta concealed cisterns 12 cm • For Geberit Sigma concealed cisterns 12 cm • For Geberit Omega concealed cisterns 12 cm • For Geberit exposed cisterns AP123 Characteristics • Round design • Actuator button protruding • Actuator made of plastic • Can be combined with Geberit actuator plates for single flush and stop-and-go flush or Geberit cover plate Technical data Actuation force < 25 N Scope of delivery • Actuator • Pneumatic flushing device • Pneumatic hose, length 2 m • Conduit pipe, length 0.9 m • Fastening material matt chrome-pla

Pagina 205-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 206 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

ted Art. no. Colour / Surface 116.046.11.1 white alpine 111 Geberit Actuator Plates and WC Flush Controls WC flush controls with pneumatic flush actuation For single flush N ew N ew Geberit remote flush actuation type 01, pneumatic, for single flush, concealed actuator ø 65 94 ø 94 73 Characteristics • Round design • Actuator made of plastic • Can be combined with Geberit actuator plates for single flush and stop-and-go flush or Geberit cover plate Actuation force < 25 N Scope of delivery • Actuator • Pneumatic flushing device • Pneumatic hose, length 2 m • Conduit pipe, length 1.7 m • Fastening material Art. no. Colour / Surface 116.041.11.1 white alpine 116.041.21.1 bright chrome-plated 116.041.46.1 matt chrome-plated 112 9 06 Application purposes • For pneumatic remote flush actuation of Geberit concealed cisterns • For single flush • For solid and drywall construction • For concealed installation • For Geberit Sigma conceale

Pagina 206-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 207 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

d cistern 8 cm with front actuation Technical data Geberit remote flush actuation type 01, pneumatic, for single flush, exposed actuator 85 85 Application purposes • For pneumatic remote flush actuation of Geberit concealed cisterns • For single flush • For solid and drywall construction • For exposed installation • For Geberit Sigma concealed cistern 8 cm with front actuation Characteristics • Round design • Actuator button protruding • Actuator made of plastic • Can be combined with Geberit actuator plates for single flush and stop-and-go flush or Geberit cover plate Technical data Actuation force < 25 N Scope of delivery • Actuator • Pneumatic flushing device • Pneumatic hose, length 2 m • Fastening material Art. no. Colour / Surface 116.047.11.1 white alpine Geberit Actuator Plates and WC Flush Controls For single flush WC flush controls with pneumatic flush actuation Geberit WC flush control with pneumatic flush actuation, single flush, w

Pagina 207-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 208 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

ith locked nuts, for furniture Geberit WC flush control with pneumatic flush actuation, single flush, for cistern for low-height furniture 0 - 30 0 - 30 63 63 122 122 Application purposes • For pneumatic remote flush actuation of Geberit exposed and concealed cisterns • For pneumatic remote flush actuation of Geberit cisterns for low-height furniture • For single flush • For drywall construction • For concealed installation • For Geberit Sigma concealed cisterns 12 cm • For Geberit Omega concealed cisterns 12 cm • For Geberit Delta concealed cisterns 12 cm • For Geberit Kappa concealed cisterns 15 cm • For Geberit exposed cisterns AP123 • For bathroom furniture • For wall thicknesses of max. 30 mm Application purposes • For pneumatic remote flush actuation of Geberit exposed and concealed cisterns • For pneumatic remote flush actuation of Geberit cisterns for low-height furniture • For single flush • For drywall construction • For concealed in

Pagina 208-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 209 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

stallation • For Geberit Sigma concealed cisterns 12 cm • For Geberit Omega concealed cisterns 12 cm • For Geberit Delta concealed cisterns 12 cm • For Geberit Kappa concealed cisterns 15 cm • For Geberit exposed cisterns AP123 • For bathroom furniture • For wall thicknesses of max. 30 mm Characteristics • Actuator made of brass, chrome-plated • Can be combined with Geberit actuator plates for single flush and stop-and-go flush or Geberit cover plate • Round design Characteristics • Actuator made of plastic • Can be combined with Geberit actuator plates for single flush and stop-and-go flush or Geberit cover plate • Round design Technical data Technical data Actuation force Scope of delivery • Actuator • Pneumatic flushing device • Pneumatic hose, length 2 m < 25 N Actuation force < 25 N Scope of delivery • Actuator • Pneumatic flushing device • Pneumatic hose, length 2 m Art. no. Art. no. Colour / Surface 115.947.00.1 115.947.21.1

Pagina 209-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 210 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

bright chrome-plated 113 Geberit Actuator Plates and WC Flush Controls WC flush controls with pneumatic flush actuation For single flush Geberit WC flush control with pneumatic flush actuation, single flush, with locked nuts, for institutions Geberit WC flush control with pneumatic flush actuation, single flush, wall-mounted foot actuator 6-27 154 8 37 Application purposes • For pneumatic remote flush actuation of Geberit exposed and concealed cisterns • For single flush • For solid and drywall construction • For concealed installation • For institutions • For Geberit Sigma concealed cisterns 12 cm • For Geberit Omega concealed cisterns 12 cm • For Geberit Delta concealed cisterns 12 cm • For Geberit Kappa concealed cisterns 15 cm • For Geberit exposed cisterns AP123 • For bathroom furniture Characteristics • Actuator made of brass, chrome-plated • Can be combined with Geberit actuator plates for single flush and stop-and-go flush or Geberit cover plat

Pagina 210-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 211 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

e • Round design Technical data Application purposes • For pneumatic remote flush actuation of Geberit exposed and concealed cisterns • For single flush • For solid and drywall construction • For Geberit Sigma concealed cisterns 12 cm • For Geberit Omega concealed cisterns 12 cm • For Geberit Delta concealed cisterns 12 cm • For Geberit Kappa concealed cisterns 15 cm • For Geberit exposed cisterns AP123 • For bathroom furniture Characteristics • Actuator made of stainless steel • Can be combined with Geberit actuator plates for single flush and stop-and-go flush or Geberit cover plate Technical data Actuation force Actuation force < 25 N Scope of delivery • Actuator • Pneumatic flushing device • Pneumatic hose, length 2 m Art. no. Colour / Surface 115.943.21.1 bright chrome-plated Scope of delivery • Actuator • Pneumatic flushing device • Pneumatic hose, length 3.5 m • Block made of EPS • Conduit pipe, length 3 m • Fastening material Ar

Pagina 211-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 212 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

t. no. 115.918.00.1 114 78 11 < 25 N Geberit Actuator Plates and WC Flush Controls Accessories Accessories for flush controls 5.4 Accessories for flush controls 5.4.1 Accessories Installation set for Geberit WC flush control with electronic flush actuation Installation set for Geberit WC flush control with mechanical flush actuation, push-button 77 77 Application purposes • For solid and drywall construction • For concealed installation • For preparing the mains connections of Geberit WC flush controls Sigma10 and Sigma80 • For connecting cables between concealed outlets and concealed cisterns Characteristics • Transformation of mains voltage to extra-low voltage, 4.1 V DC Technical data Application purposes • For solid and drywall construction • For concealed installation • For installation preparation of remote flush actuation connected by wire for Geberit Sigma concealed cisterns 12 cm • For connecting cables between concealed outlets and concealed ci

Pagina 212-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 213 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

sterns Scope of delivery • Concealed outlet for drilling hole ø 68 mm • Conduit pipe, length 1.7 m Art. no. Protection degree IP20 Nominal voltage Mains frequency 241.155.00.1 85-240 V AC 50-60 Hz Scope of delivery • 1 cover for concealed outlet • Concealed outlet for drilling hole ø 76 mm • Pipe entry • Power supply unit • Conduit pipe, length 1.7 m Geberit RF-controlled button for electronic flush actuation 88 18 88 Art. no. 115.861.00.1 Installation set for Geberit WC flush control with mechanical flush actuation, pull-down rail Application purposes • For manual, wireless flush actuation of Geberit Sigma concealed cisterns 12 cm using an electronic Geberit WC flush control • Characteristics • Dual flush can be actuated • Easy to install and service Technical data Operating voltage Application purposes • For solid and drywall construction • For installation preparation of remote flush actuation connected by wire for Geberit Sigma concealed ci

Pagina 213-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

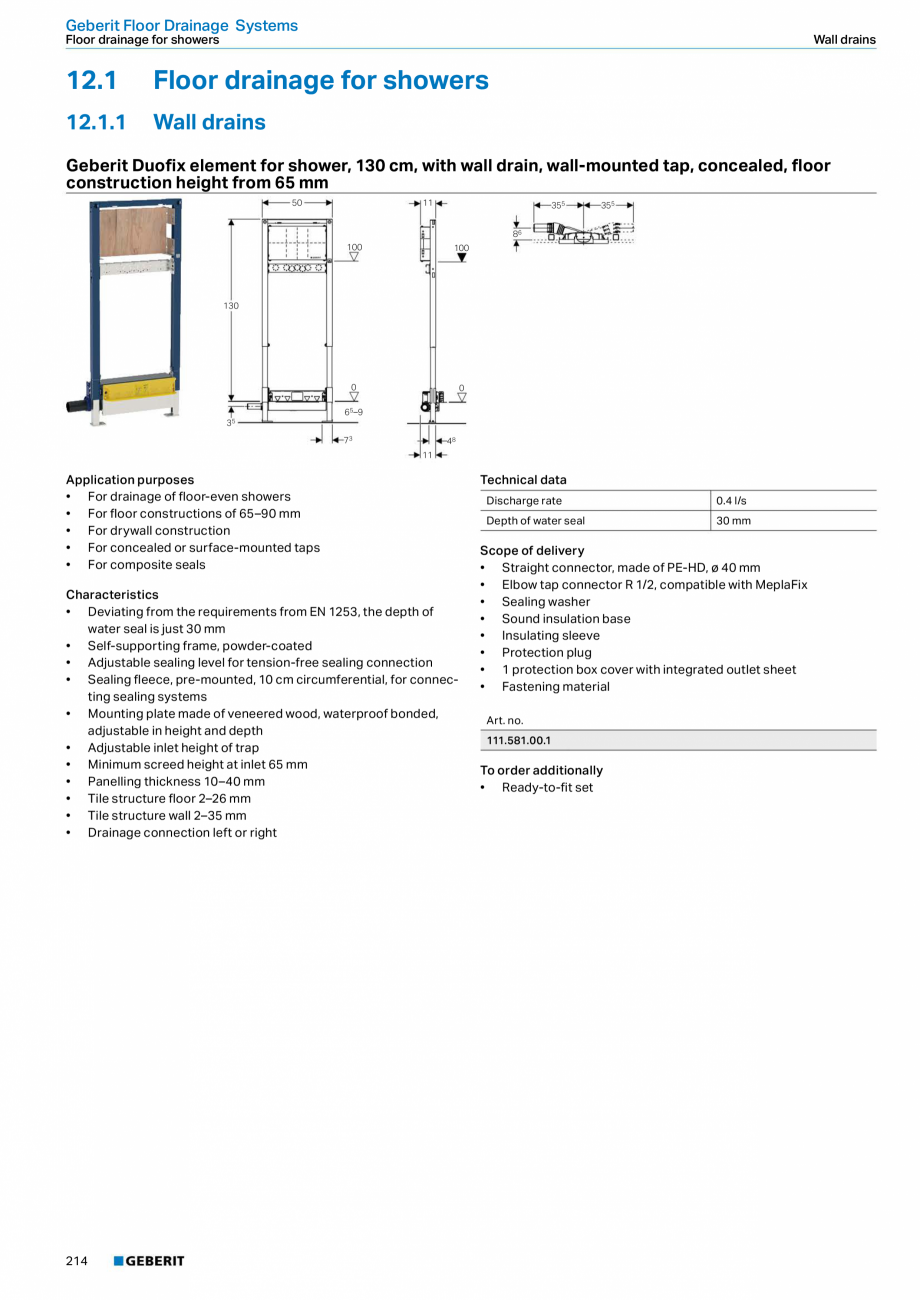

Pagina 214 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

sterns 12 cm • For connecting cables between concealed outlets and concealed cisterns Scope of delivery • Concealed outlet for drilling hole ø 68 mm • Conduit pipe, length 0.8 m 3 V DC Radio frequency 868.4 MHz Radio frequency distance 10 m Scope of delivery • 2 alkaline batteries type AAA, 1.5 V • Fastening material Art. no. 241.568.00.1 Art. no. 241.154.00.1 115 Geberit Monolith 6. Geberit Monolith 6.1 Sanitary modules for WCs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118 6.1.1 6.1.2 6.1.3 6.1.4 System overview Geberit Monolith for wall-hung washbasin . . . . . . . . . . . . . . .118 For wall-hung WCs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .118 For floor-standing WCs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .122 For Geberit AquaClean . . . . . . . . . . . . . . . . . . . . . . . .

Pagina 214-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 215 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

. . . . . . . . . . . . . . . . . . . . . . . . . . . .126 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130 6.2 Sanitary modules for washbasins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132 6.2.1 6.2.2 6.2.3 For wall-mounted taps. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132 For deck-mounted taps. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144 6.3 Sanitary modules for bidets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145 6.3.1 For wall-hung and floor-standing bidets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145 117 Geberit Monolith

Pagina 215-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 216 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

Sanitary modules for WCs For wall-hung WCs 6.1 Sanitary modules for WCs System overview Geberit Monolith for wall-hung washbasin Wall-mounted tap Counter top tap Mixer right bore holes: 10 cm Mixer left bore holes: 8 cm 732 ≥ 30 0−23 732 ≥ 30 10 0−23 R½ 732 ≥ 30 8 13−45 Mixer / Specification Service opening with openings for flexible hoses 0−23 13−45 13−45 R½ 1145 104 1145 104 815 1145 R½ 815 815 8−16 8−16 8−16 Tap producer HansGrohe / Axor Hansa / KWC Dornbracht / V&B Vola all 131.048.xx.1 Drawer left 131.040.xx.1 131.044.xx.1 Drawer right 131.041.xx.1 131.045.xx.1 131.049.xx.1 Drawer left & right 131.042.xx.1 131.046.xx.1 131.050.xx.1 Without drawers 131.043.xx.1 131.047.xx.1 131.051.xx.1 6.1.1 For wall-hung WCs Geberit Monolith sanitary module for wall-hung WC, 101 cm, with straight connector, water supply connection at the bottom 47 106 485 R½ 908 4 13 4 13 4 101 43 25 0 18/23 Application

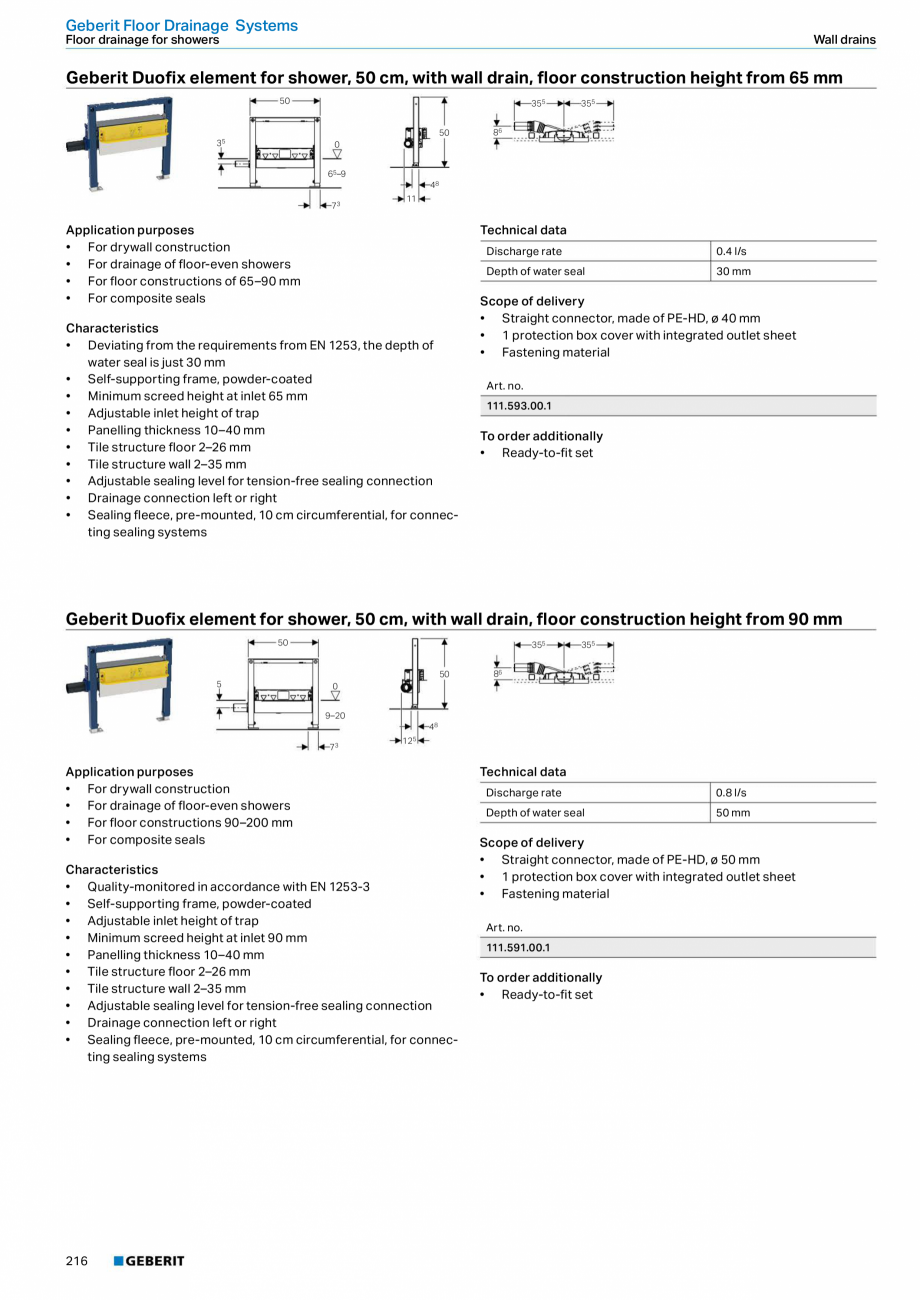

Pagina 216-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 217 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

purposes • For renovations, conversions and new buildings • For wall inlets with inlet height > 23 cm • For replacing wall-hung WCs with close-coupled exposed cisterns • For connecting Geberit AquaClean Sela • For connecting Geberit AquaClean Mera • For mounting on finished floors • For installation in front of solid walls Characteristics • Dual flush • Compensation of dimensional tolerances possible • Front cladding made of glass (ESG) • Fastening height WC ceramic appliance 35 ± 1 cm • Cistern fully insulated against condensation • Side cladding made of aluminium brushed • Self-supporting • Adjustable flush volume • Side connection possible • Water supply connection on the bottom 0 Technical data Flow pressure 0.1-10 bar Flush volume factory setting 6 and 3 l Flush volume large adjustment range 4.5 / 6 l Flush volume small 3l Scope of delivery • Water supply connection set with 2 angle stop valves, 1/2“ • Flush bend 90° made of ABS

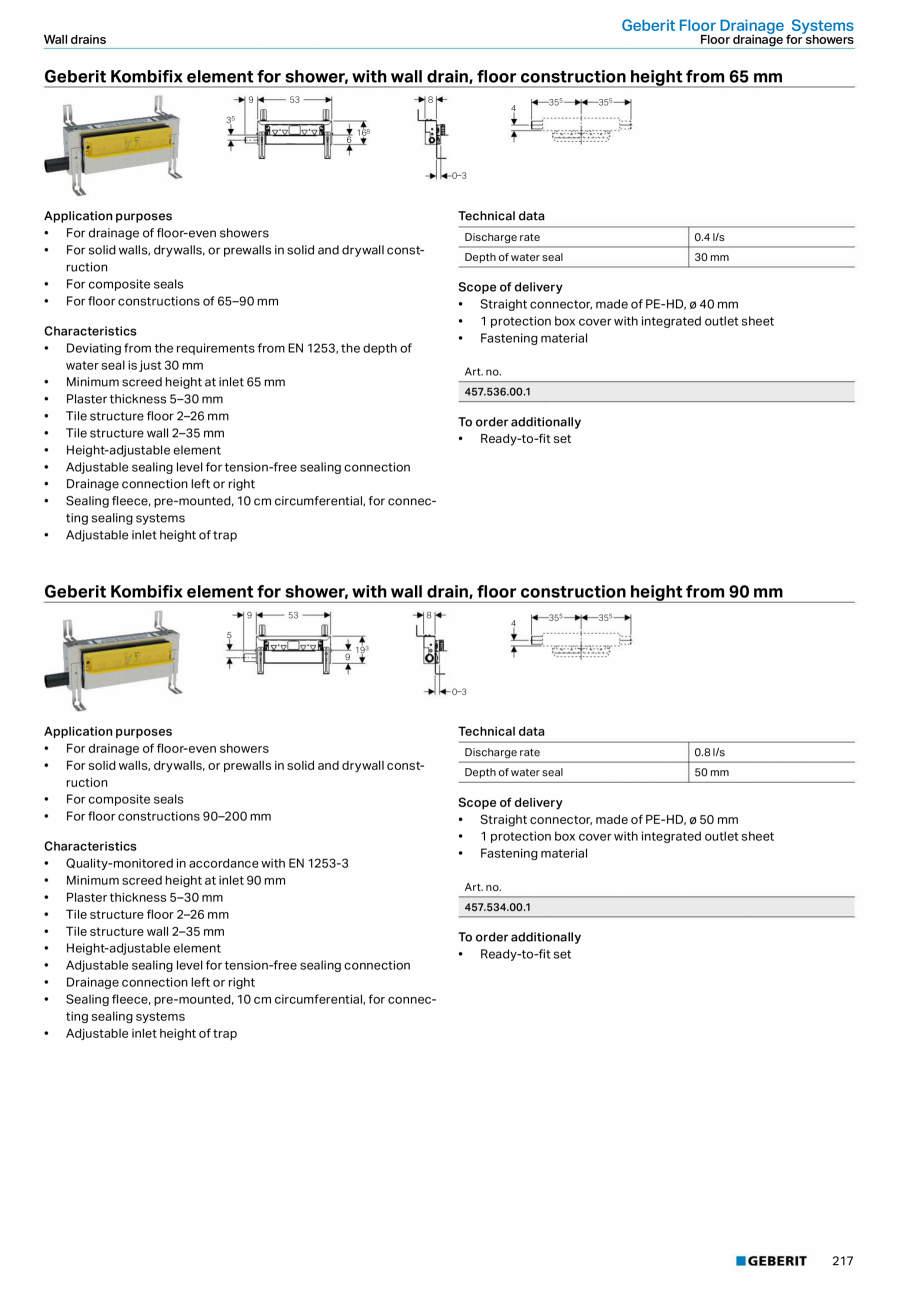

Pagina 217-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 218 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

, ø 50/44 mm, 23 x 23 cm • Sleeve made of EPDM, ø 44/55 mm • Straight connector made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • 2 threaded rods M12 • Sound insulation set • Fastening material for solid wall Colour / Surface 131.021.SI.1 white glass 131.021.SJ.1 black glass 131.021.SL.1 mint glass 131.021.SQ.1 118 Art. no. umber glass Geberit Monolith For wall-hung WCs Sanitary modules for WCs Geberit Monolith Plus sanitary module for wall-hung WC, 101 cm, with straight connector, water supply connection at the bottom 45 ±2 25 ±1 0 106 485 R½ 908 13 ±4 13 ±4 101 ±1 43 ±2 R½ 18/23 33 0 38 Application purposes • For renovations, conversions and new buildings • For wall inlets with inlet height > 23 cm • For replacing wall-hung WCs with close-coupled exposed cisterns • For connecting Geberit AquaClean Sela • For connecting Geberit AquaClean Mera • For mounting on finished floors • For installation in fron

Pagina 218-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 219 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

t of solid walls Characteristics • Dual flush • Compensation of dimensional tolerances possible • Front cladding made of glass (ESG) • Fastening height WC ceramic appliance 35 ± 1 cm • Cistern fully insulated against condensation • Side cladding made of aluminium brushed • Self-supporting • Adjustable flush volume • Side connection possible • Water supply connection on the bottom • Soft-touch buttons for flush actuation and odour extraction • Orientation light and odour extraction activated when a user approaches • Orientation light can be set in seven colours • Day/night detection can be set for orientation light • Odour extraction unit with filtration, integrated in the concealed cistern • Odour extraction unit automatically switches off after a predefined running time • Operation with extra-low voltage, no mains voltage in cistern Technical data Protection class I Protection degree IPX4 Nominal voltage 100-240 V AC Mains frequency 50-60 Hz

Pagina 219-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 220 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

Operating voltage 4.1 V DC Power consumption 5W Flow pressure 0.1-10 bar Flush volume factory setting 6 and 3 l Flush volume large adjustment range 4.5 / 6 l Flush volume small 3l Scope of delivery • Water supply connection set with 2 angle stop valves, 1/2“ • Flush bend 90° made of ABS, ø 50/44 mm, 23 x 23 cm • Sleeve made of EPDM, ø 44/55 mm • Straight connector made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • 2 threaded rods M12 • Sound insulation set • Female socket for mains connection • Power supply unit • Fastening material for solid wall Art. no. Colour / Surface 131.221.SI.1 white glass 131.221.SJ.1 black glass 131.221.SQ.1 umber glass Accessories • Geberit outlet mounting box → p. 280 119 Geberit Monolith Sanitary modules for WCs For wall-hung WCs Geberit Monolith sanitary module for wall-hung WC, 114 cm, with straight connector, water supply connection at the rear centre 505 106 109 104 92−102

Pagina 220-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

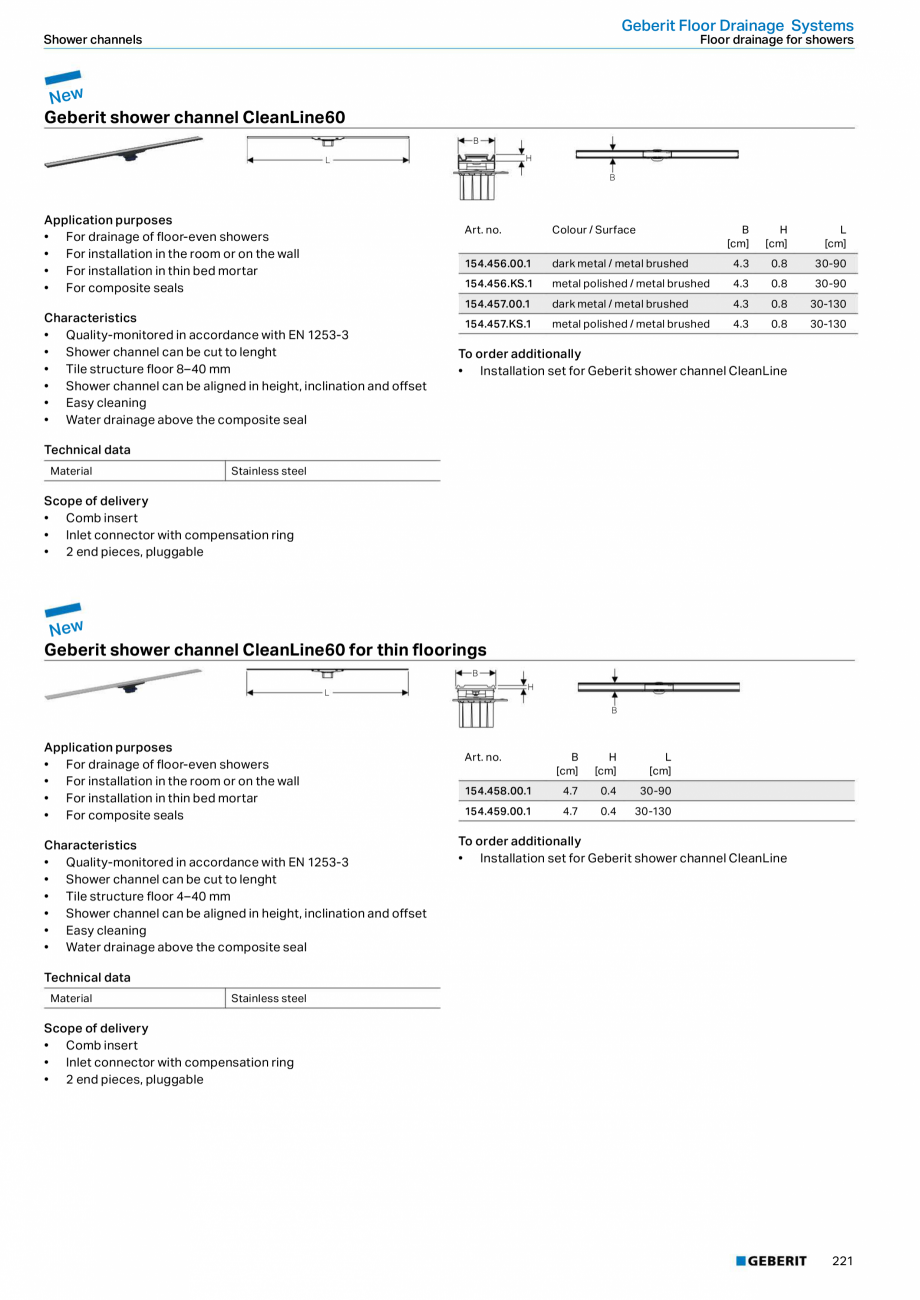

Pagina 221 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

R½ 30 1145 18 43 25 0 Application purposes • For renovations, conversions and new buildings • For wall inlets with inlet height > 23 cm • For replacing wall-hung WCs with close-coupled exposed cisterns • For replacing wall-hung WCs with pressure flushing valve • For replacing wall-hung WCs with concealed cistern with maximum service opening height < 109 cm • For connecting Geberit AquaClean Sela • For connecting Geberit AquaClean Mera • For mounting on finished floors • For installation in front of solid walls Characteristics • Dual flush • Compensation of dimensional tolerances possible • Front cladding made of glass (ESG) • Fastening height WC ceramic appliance 35 ± 1 cm • Cistern fully insulated against condensation • Side cladding made of aluminium brushed • Self-supporting • Adjustable flush volume • Water supply connection at the rear centre • Side connection possible • Bottom connection possible 120 0 Technical data Flow pressure

Pagina 221-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

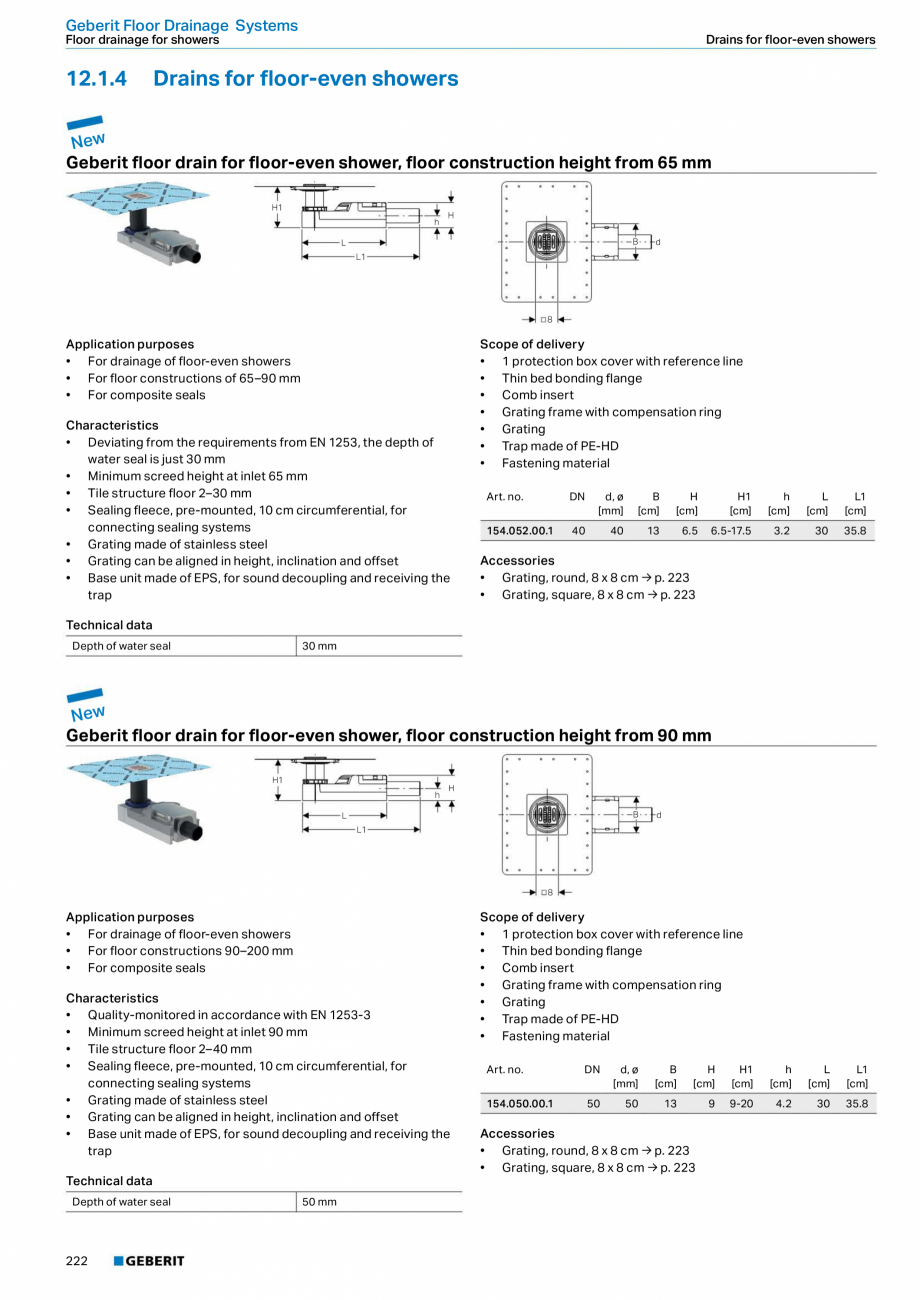

Pagina 222 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

0.1-10 bar Flush volume factory setting 6 and 3 l Flush volume large adjustment range 4.5 / 6 l Flush volume small 3l Scope of delivery • Water supply connection set with 2 angle stop valves, 1/2“ • Flush bend 90° made of ABS, ø 50/44 mm, 23 x 23 cm • Sleeve made of EPDM, ø 44/55 mm • Straight connector made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • 2 threaded rods M12 • Sound insulation set • Fastening material for solid wall Art. no. Colour / Surface 131.031.SI.1 white glass 131.031.SJ.1 black glass 131.031.SQ.1 umber glass Accessories • Water supply connection set, bottom, for Geberit Monolith sanitary module for WC, 114 cm → p. 130 • Geberit set straight connector for wall-hung WC, stepped by 3 cm → p. 130 • Set of leg supports for Geberit Monolith sanitary module for WC → p. 131 Geberit Monolith For wall-hung WCs Sanitary modules for WCs Geberit Monolith Plus sanitary module for wall-hung WC, 114 cm, wi

Pagina 222-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 223 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

th straight connector, water supply connection at the rear centre 505 106 109 102 92–102 6 12 45 ±2 25 ±1 0 13 ±4 13 ±4 1145 ±1 43 ±2 R½ 18 33 0 38 Application purposes • For renovations, conversions and new buildings • For wall inlets with inlet height > 23 cm • For replacing wall-hung WCs with close-coupled exposed cisterns • For replacing wall-hung WCs with pressure flushing valve with additional water supply connection set • For replacing wall-hung WCs with concealed cistern with maximum service opening height < 109 cm • For connecting Geberit AquaClean Sela • For connecting Geberit AquaClean Mera • For mounting on finished floors • For installation in front of solid walls Technical data Characteristics • Dual flush • Compensation of dimensional tolerances possible • Front cladding made of glass (ESG) • Fastening height WC ceramic appliance 35 ± 1 cm • Cistern fully insulated against condensation • Side cladding made of aluminium

Pagina 223-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 224 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

brushed • Self-supporting • Adjustable flush volume • Water supply connection at the rear centre • Side connection possible • Bottom connection possible • Soft-touch buttons for flush actuation and odour extraction • Orientation light and odour extraction activated when a user approaches • Orientation light can be set in seven colours • Day/night detection can be set for orientation light • Odour extraction unit with filtration, integrated in the concealed cistern • Odour extraction unit automatically switches off after a predefined running time • Operation with extra-low voltage, no mains voltage in cistern Scope of delivery • Water supply connection set with 2 angle stop valves, 1/2“ • Flush bend 90° made of ABS, ø 50/44 mm, 23 x 23 cm • Sleeve made of EPDM, ø 44/55 mm • Straight connector made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • 2 threaded rods M12 • Sound insulation set • Female socket for mains connection

Pagina 224-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 225 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

• Power supply unit • Fastening material for solid wall Protection class I Protection degree IPX4 Nominal voltage 100-240 V AC Mains frequency 50-60 Hz Operating voltage 4.1 V DC Power consumption 5W Flow pressure 0.1-10 bar Flush volume factory setting 6 and 3 l Flush volume large adjustment range 4.5 / 6 l Flush volume small 3l Art. no. Colour / Surface 131.231.SI.1 white glass 131.231.SJ.1 black glass 131.231.SQ.1 umber glass Accessories • Water supply connection set, bottom, for Geberit Monolith sanitary module for WC, 114 cm → p. 130 • Geberit outlet mounting box → p. 280 121 Geberit Monolith Sanitary modules for WCs For floor-standing WCs 6.1.2 For floor-standing WCs Geberit Monolith sanitary module for floor-standing WC, 101 cm, with connection bend 90°, water supply connection at the bottom R½ 908 47 ±4 32–36 106 485 13 ±4 13 ±4 101 ±1 18 ±1 0 Application purposes • For floor inlets • For renovations, conversion

Pagina 225-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 226 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

s and new buildings • For wall inlets with an inlet height of 18 cm • For floor-standing WCs with P-bend and flush water inlet height 32–36 cm above the floor (EN 33) • For replacing low-level exposed cisterns • For replacing floor-standing WCs with close-coupled exposed cistern • For mounting on finished floors • For installation in front of solid walls Characteristics • Dual flush • Compensation of dimensional tolerances possible • Front cladding made of glass (ESG) • Cistern fully insulated against condensation • Side cladding made of aluminium brushed • Self-supporting • Adjustable flush volume • Side connection possible • Water supply connection on the bottom 122 0 Technical data Flow pressure 0.1-10 bar Flush volume factory setting 6 and 3 l Flush volume large adjustment range 4.5 / 6 l Flush volume small 3l Scope of delivery • Water supply connection set with 2 angle stop valves, 1/2“ • Flush bend 90° made of ABS, ø 50/44 mm, 23

Pagina 226-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 227 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

x 23 cm • Sleeve made of EPDM, ø 44/55 mm • Straight connector made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • Fastening material for solid wall Art. no. Colour / Surface 131.001.SI.1 white glass 131.001.SJ.1 black glass 131.001.SL.1 mint glass 131.001.SQ.1 umber glass Geberit Monolith For floor-standing WCs Sanitary modules for WCs Geberit Monolith Plus sanitary module for floor-standing WC, 101 cm, with connection bend 90°, water supply connection at the bottom 45 ±2 13 ±4 13 ±4 101 ±1 32–36 18 ±1 106 485 R½ 908 R½ 33 0 0 38 Application purposes • For floor inlets • For renovations, conversions and new buildings • For wall inlets with an inlet height of 18 cm • For floor-standing WCs with P-bend and flush water inlet height 32–36 cm above the floor (EN 33) • For replacing low-level exposed cisterns • For replacing floor-standing WCs with close-coupled exposed cistern • For mounting on finished floors

Pagina 227-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 228 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

• For installation in front of solid walls Characteristics • Dual flush • Compensation of dimensional tolerances possible • Front cladding made of glass (ESG) • Cistern fully insulated against condensation • Side cladding made of aluminium brushed • Self-supporting • Adjustable flush volume • Side connection possible • Water supply connection on the bottom • Soft-touch buttons for flush actuation and odour extraction • Orientation light and odour extraction activated when a user approaches • Orientation light can be set in seven colours • Day/night detection can be set for orientation light • Odour extraction unit with filtration, integrated in the concealed cistern • Odour extraction unit automatically switches off after a predefined running time • Operation with extra-low voltage, no mains voltage in cistern Technical data Protection class I Protection degree IPX4 Nominal voltage 100-240 V AC Mains frequency 50-60 Hz Operating voltage 4.1 V

Pagina 228-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

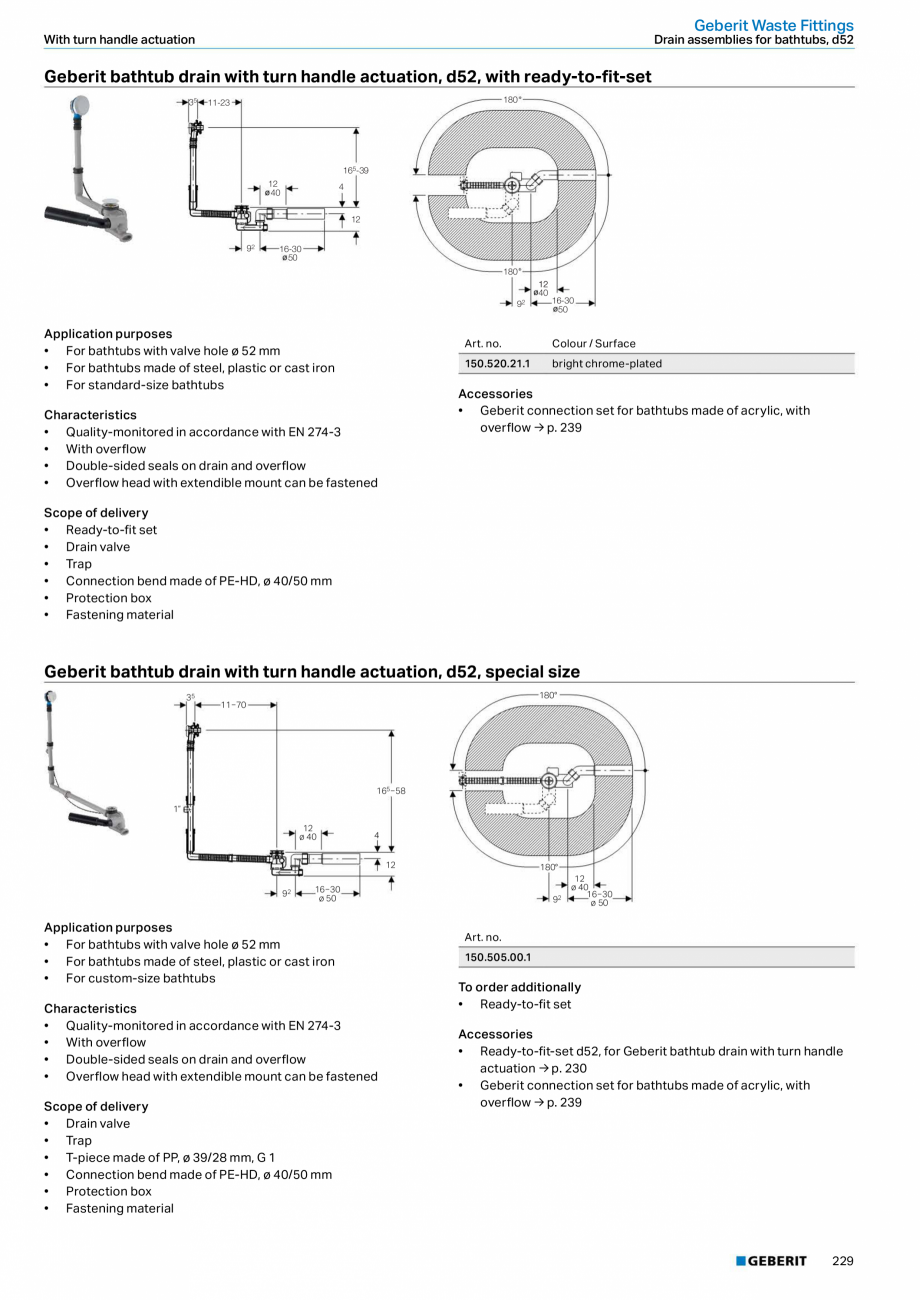

Pagina 229 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

DC Power consumption 5W Flow pressure 0.1-10 bar Flush volume factory setting 6 and 3 l Flush volume large adjustment range 4.5 / 6 l Flush volume small 3l Scope of delivery • Water supply connection set with 2 angle stop valves, 1/2“ • Flush bend 90° made of ABS, ø 50/44 mm, 23 x 23 cm • Sleeve made of EPDM, ø 44/55 mm • Straight connector made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • Female socket for mains connection • Power supply unit • Fastening material for solid wall Art. no. Colour / Surface 131.201.SI.1 white glass 131.201.SJ.1 black glass 131.201.SQ.1 umber glass Accessories • Geberit outlet mounting box → p. 280 123 Geberit Monolith Sanitary modules for WCs For floor-standing WCs Geberit Monolith sanitary module for floor-standing WC, 114 cm, with P-bend, water supply connection at the rear centre 106 505 109 104 92–102 R½ 30 1145 ±1 32–36 18 ±1 0 Application purposes • For floor inlet

Pagina 229-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

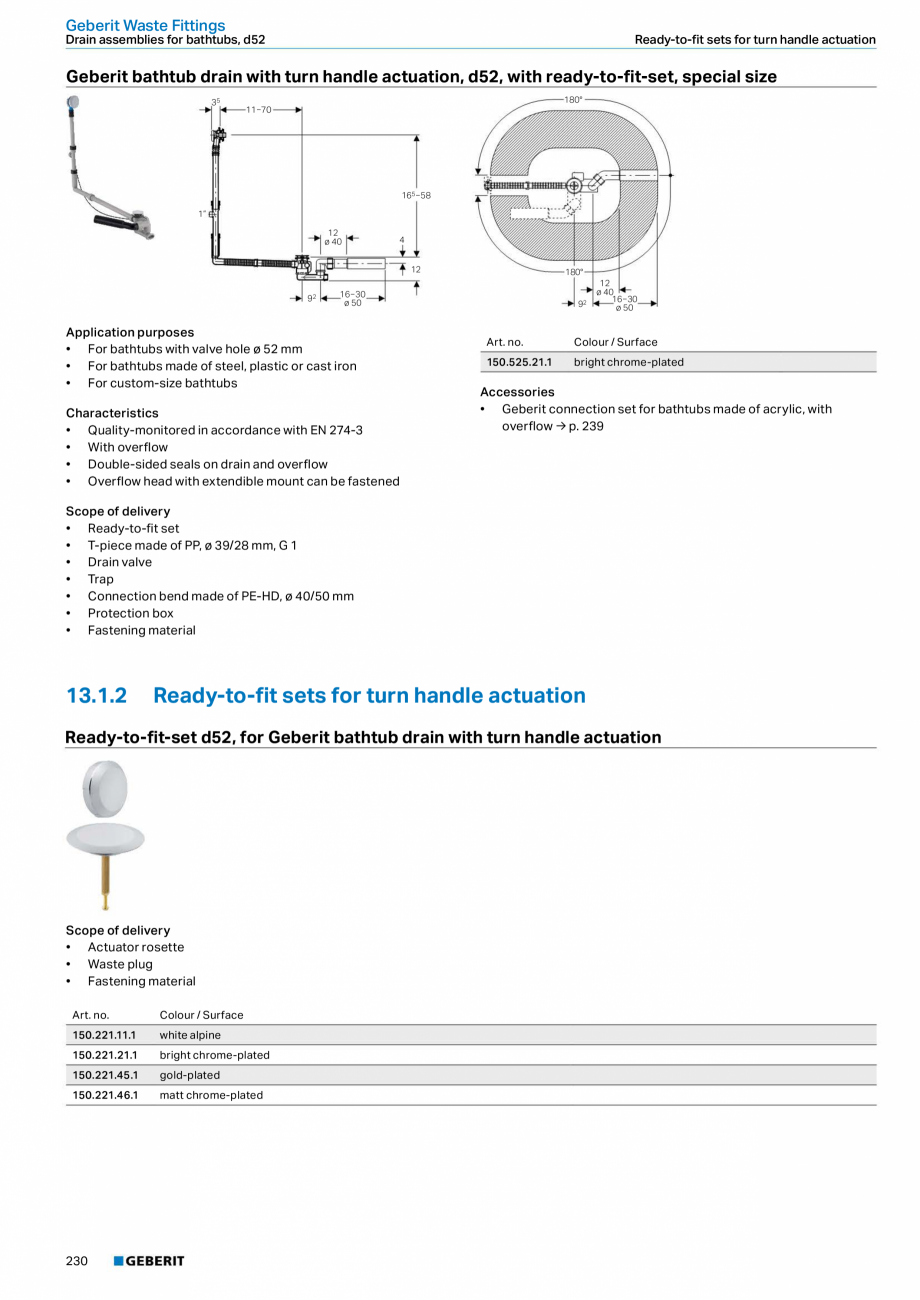

Pagina 230 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

s • For renovations, conversions and new buildings • For wall inlets with an inlet height of 18 cm • For replacing floor-standing WCs with concealed cistern with maximum service opening height < 109 cm • For replacing half-high level exposed cisterns • For replacing floor-standing WCs with close-coupled exposed cistern • For replacing pressure flushing valves • For mounting on finished floors • For installation in front of solid walls Characteristics • Dual flush • Compensation of dimensional tolerances possible • Front cladding made of glass (ESG) • Cistern fully insulated against condensation • Side cladding made of aluminium brushed • Self-supporting • Adjustable flush volume • Water supply connection at the rear centre • Side connection possible • Bottom connection possible 124 0 Technical data Flow pressure 0.1-10 bar Flush volume factory setting 6 and 3 l Flush volume large adjustment range 4.5 / 6 l Flush volume small 3l Scope of de

Pagina 230-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

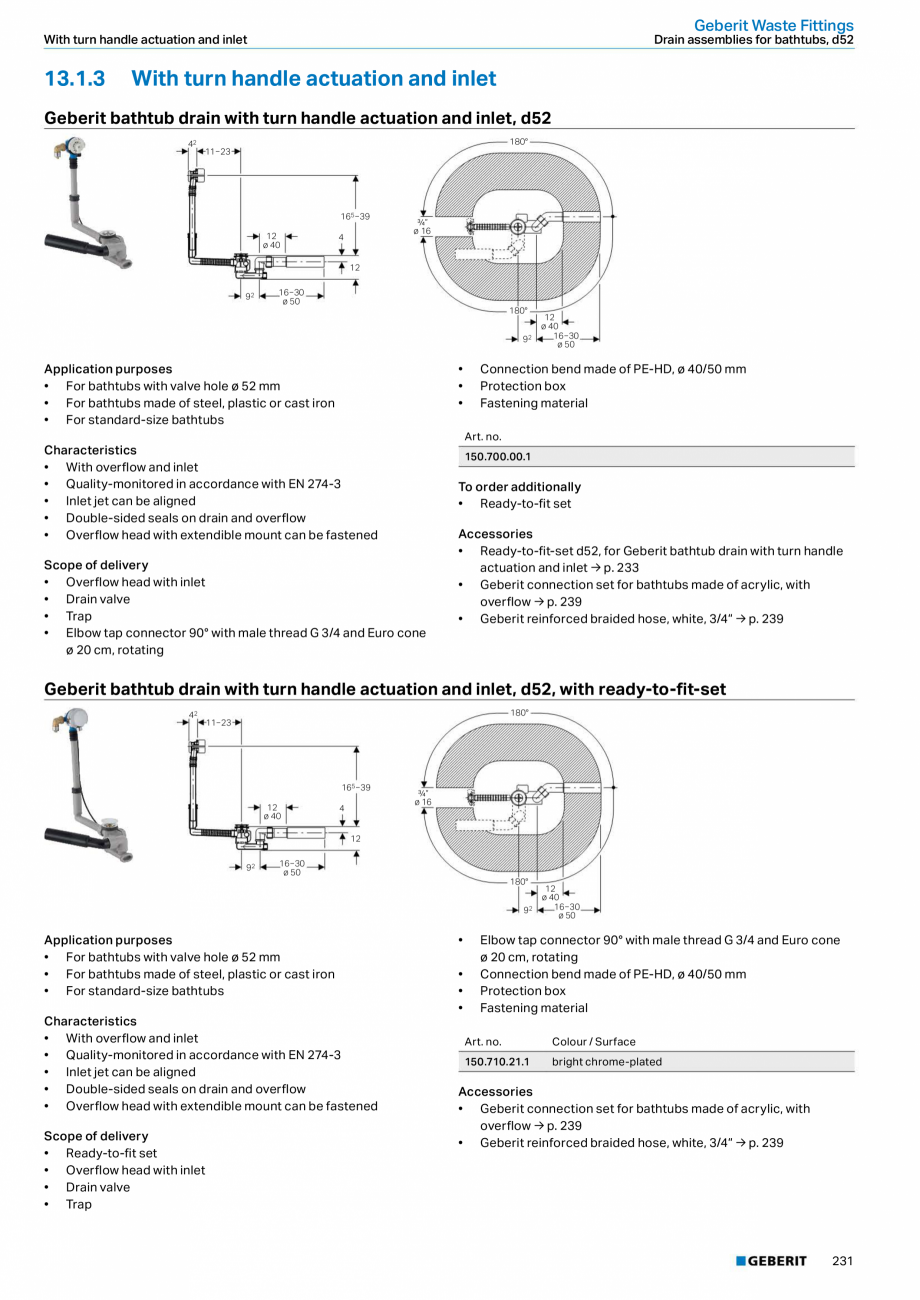

Pagina 231 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

livery • Water supply connection set with 2 angle stop valves, 1/2“ • Flush bend 90° made of ABS, ø 50/44 mm, 23 x 23 cm • Connection bend made of PP, ø 90 mm • Sleeve made of EPDM, ø 44/55 mm • Adapter socket made of PE-HD, ø 90/110 mm • Fastening material for solid wall Art. no. Colour / Surface 131.033.SI.1 white glass 131.033.SJ.1 black glass 131.033.SQ.1 umber glass Accessories • Water supply connection set, bottom, for Geberit Monolith sanitary module for WC, 114 cm → p. 130 Geberit Monolith For floor-standing WCs Sanitary modules for WCs Geberit Monolith Plus sanitary module for floor-standing WC, 114 cm, with P-bend, water supply connection at the rear centre 106 505 109 102 92–102 45 ±2 6 12 13 ±4 13 ±4 1145 ±1 32–36 18 ±1 R½ 33 0 0 38 Application purposes • For floor inlets • For renovations, conversions and new buildings • For wall inlets with an inlet height of 18 cm • For replacing floor-standing WCs with con

Pagina 231-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 232 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

cealed cistern with maximum service opening height < 109 cm • For replacing half-high level exposed cisterns • For replacing floor-standing WCs with close-coupled exposed cistern • For replacing pressure flushing valves • For mounting on finished floors • For installation in front of solid walls Technical data I Protection degree IPX4 Nominal voltage 100-240 V AC Mains frequency 50-60 Hz Operating voltage 4.1 V DC Power consumption 5W Flow pressure 0.1-10 bar Flush volume factory setting 6 and 3 l Flush volume large adjustment range 4.5 / 6 l Flush volume small Characteristics • Dual flush • Compensation of dimensional tolerances possible • Front cladding made of glass (ESG) • Cistern fully insulated against condensation • Side cladding made of aluminium brushed • Self-supporting • Adjustable flush volume • Water supply connection at the rear centre • Side connection possible • Bottom connection possible • Soft-touch buttons for flush

Pagina 232-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

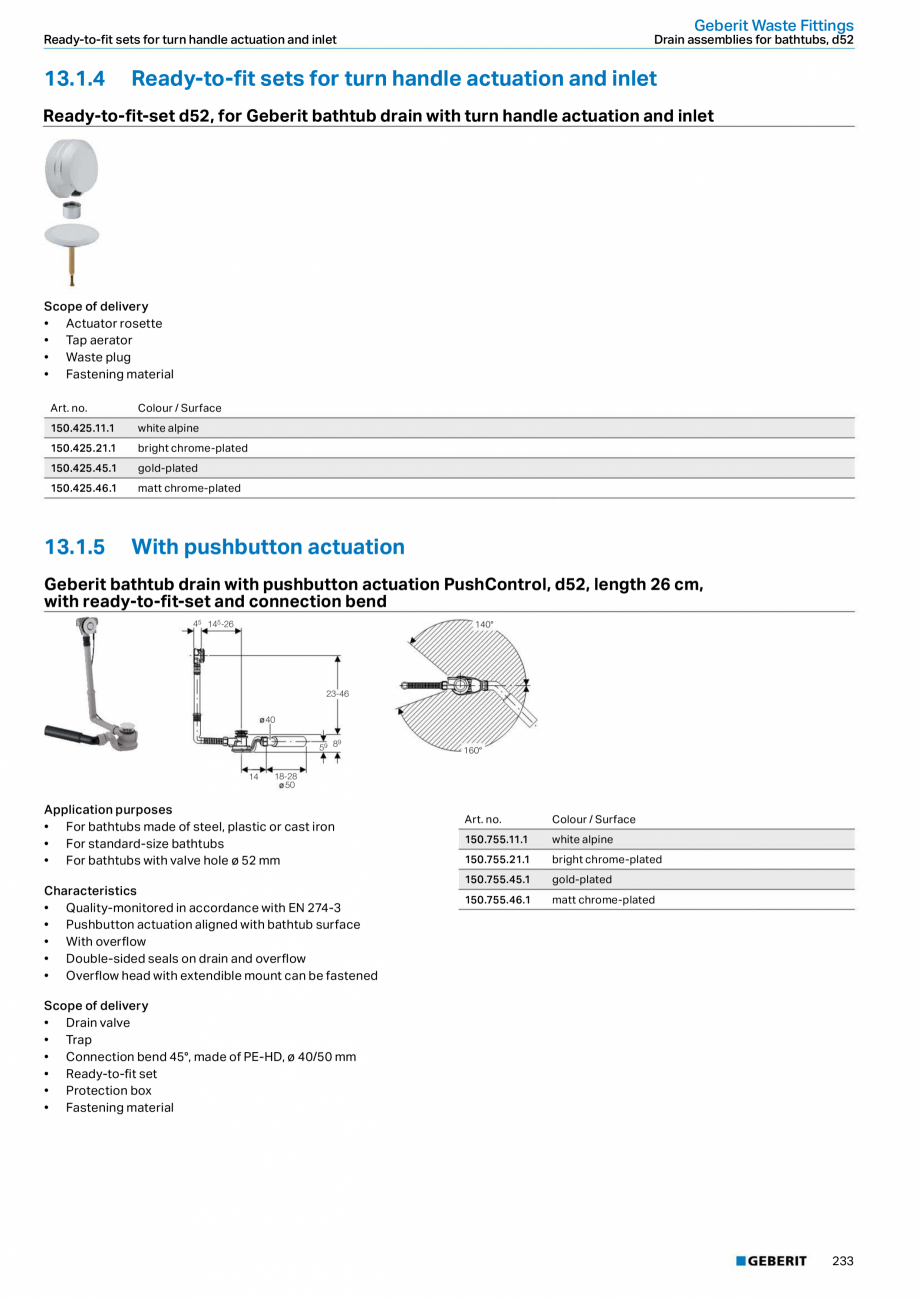

Pagina 233 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

actuation and odour extraction • Orientation light and odour extraction activated when a user approaches • Orientation light can be set in seven colours • Day/night detection can be set for orientation light • Odour extraction unit with filtration, integrated in the concealed cistern • Odour extraction unit automatically switches off after a predefined running time • Operation with extra-low voltage, no mains voltage in cistern Protection class 3l Scope of delivery • Water supply connection set with 2 angle stop valves, 1/2“ • Flush bend 90° made of ABS, ø 50/44 mm, 23 x 23 cm • Connection bend made of PP, ø 90 mm • Sleeve made of EPDM, ø 44/55 mm • Adapter socket made of PE-HD, ø 90/110 mm • Female socket for mains connection • Power supply unit • Fastening material for solid wall Art. no. Colour / Surface 131.233.SI.1 white glass 131.233.SJ.1 black glass 131.233.SQ.1 umber glass Accessories • Water supply connection set, bottom, for Geb

Pagina 233-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

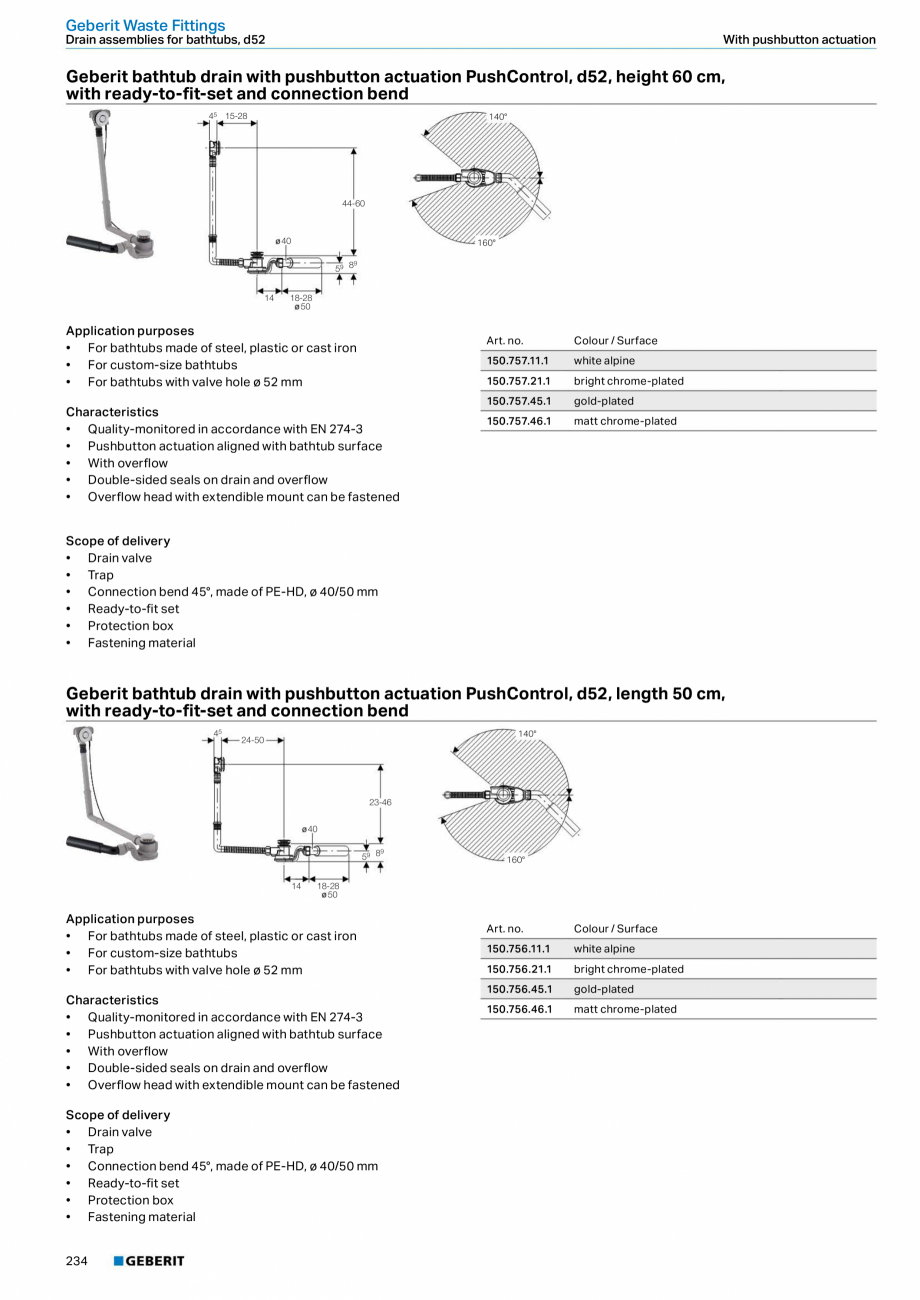

Pagina 234 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

erit Monolith sanitary module for WC, 114 cm → p. 130 • Geberit outlet mounting box → p. 280 125 Geberit Monolith Sanitary modules for WCs For Geberit AquaClean 6.1.3 For Geberit AquaClean Geberit Monolith sanitary module for Geberit AquaClean 8000 / 8000plus, 101 cm, with straight connector, water supply connection at the bottom 47 106 485 R½ 908 4 13 4 13 4 25 101 25 455 0 28 18 0 15 Application purposes • For renovations, conversions and new buildings • For wall inlets with inlet height > 23 cm • For replacing wall-hung WCs with close-coupled exposed cisterns • For mounting on finished floors • For installation in front of solid walls Characteristics • Dual flush • Compensation of dimensional tolerances possible • Front cladding made of glass (ESG) • Fastening height WC ceramic appliance 35 ± 1 cm • Cistern fully insulated against condensation • Side cladding made of aluminium brushed • Self-supporting • Adjustable flush volume

Pagina 234-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

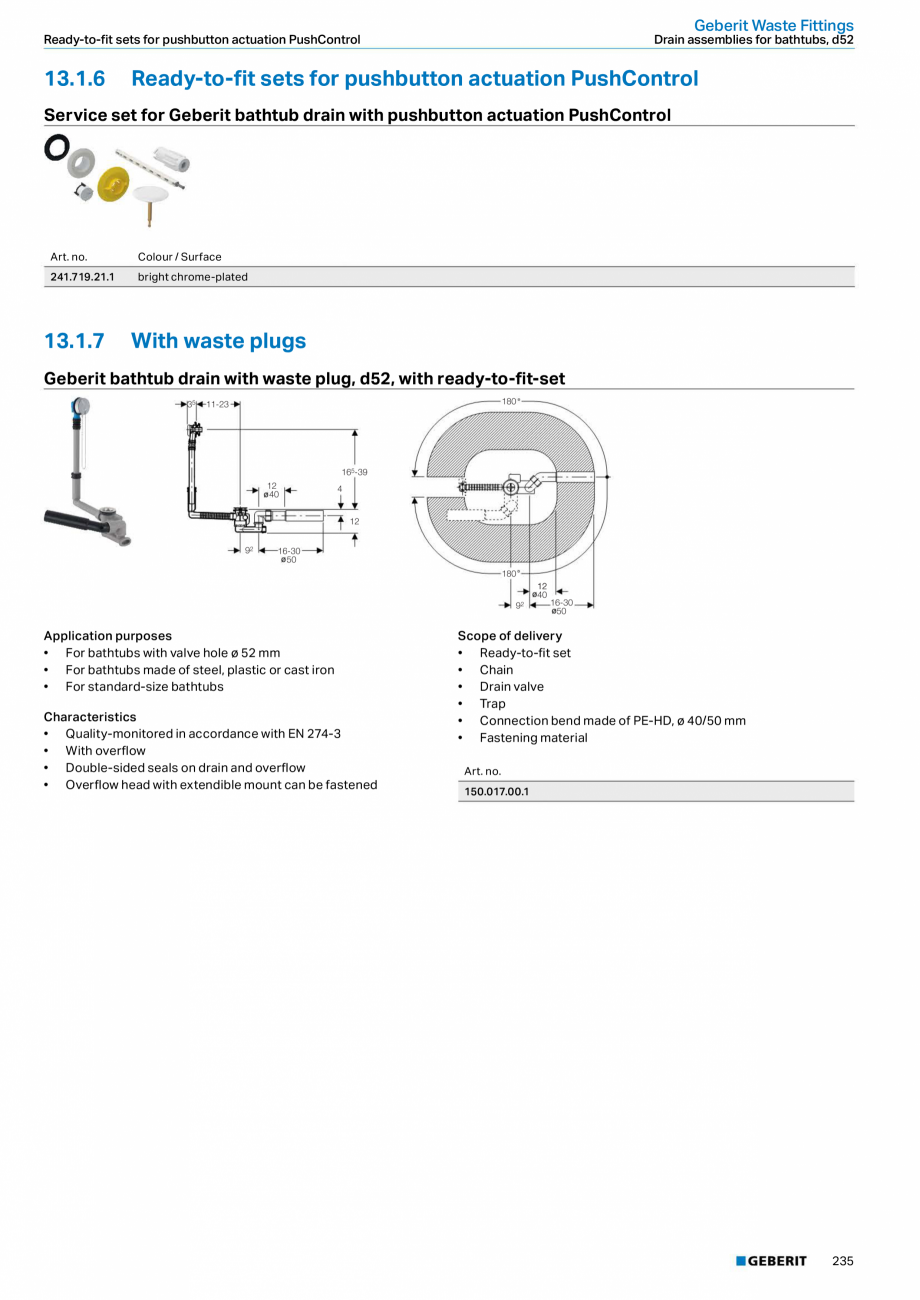

Pagina 235 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

• Side connection possible • Water supply connection on the bottom Technical data Flow pressure 0.1-10 bar Flush volume factory setting 6 and 3 l Flush volume large adjustment range 4.5 / 6 l Flush volume small 3l Scope of delivery • Water supply connection set with 2 angle stop valves, 1/2“ • Flush bend 90° made of ABS, ø 50/44 mm, 23 x 23 cm • Sleeve made of EPDM, ø 44/55 mm • Straight connector made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • 2 threaded rods M12 • Sound insulation set • Fastening material for solid wall Colour / Surface 131.024.SI.1 white glass 131.024.SJ.1 black glass 131.024.SQ.1 126 Art. no. umber glass Geberit Monolith For Geberit AquaClean Sanitary modules for WCs Geberit Monolith Plus sanitary module for Geberit AquaClean 8000 / 8000plus, 101 cm, with straight connector, water supply connection at the bottom R½ 908 45 ±2 106 485 13 ±4 13 ±4 25 101 ±1 25 ±1 455 0 18 28 0 15 A

Pagina 235-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

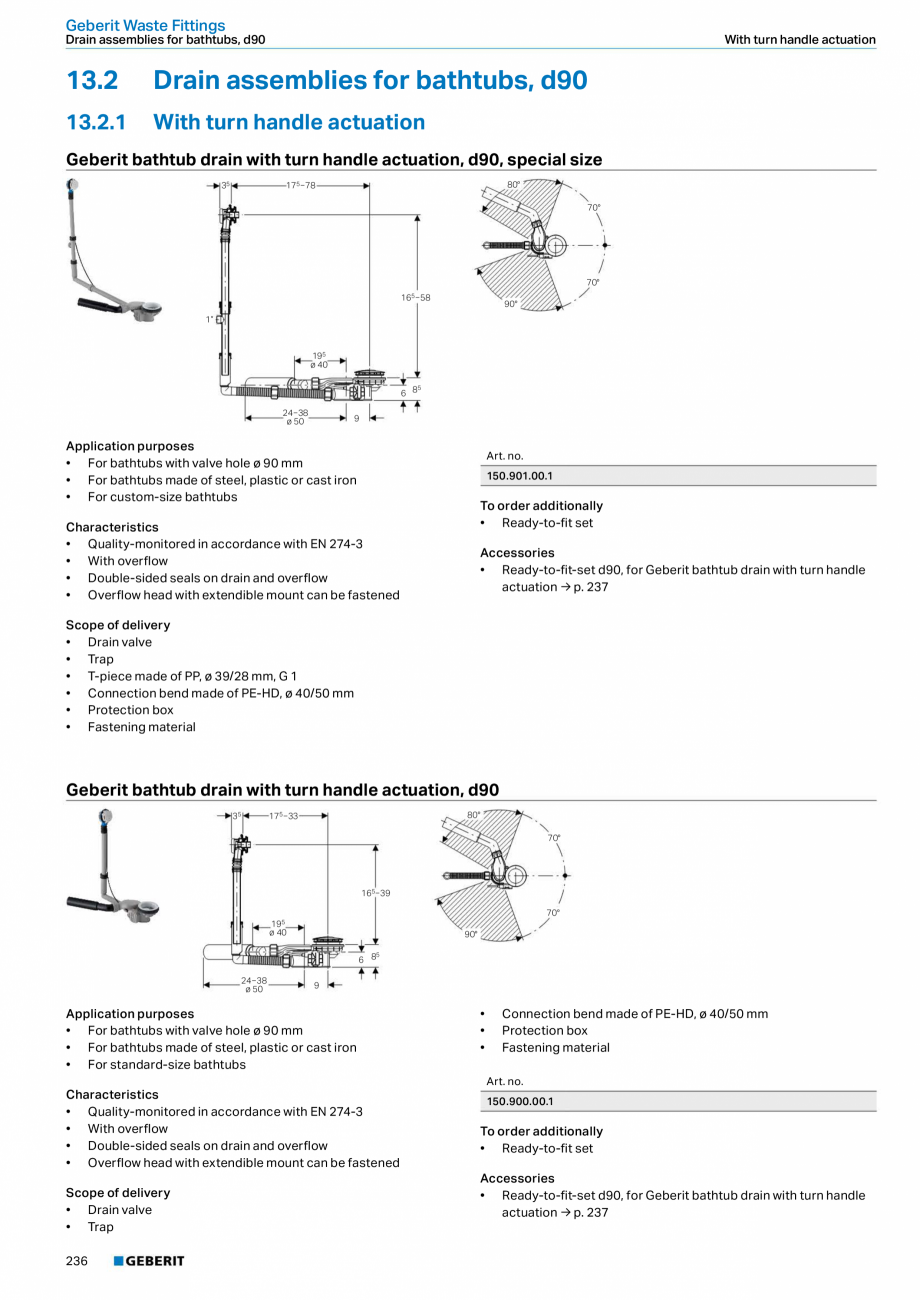

Pagina 236 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

pplication purposes • For renovations, conversions and new buildings • For wall inlets with inlet height > 23 cm • For replacing wall-hung WCs with close-coupled exposed cisterns • For mounting on finished floors • For installation in front of solid walls Characteristics • Dual flush • Compensation of dimensional tolerances possible • Front cladding made of glass (ESG) • Fastening height WC ceramic appliance 35 ± 1 cm • Cistern fully insulated against condensation • Side cladding made of aluminium brushed • Self-supporting • Adjustable flush volume • Side connection possible • Water supply connection on the bottom • Soft-touch buttons for flush actuation and odour extraction • Orientation light and odour extraction activated when a user approaches • Orientation light can be set in seven colours • Day/night detection can be set for orientation light • Odour extraction unit with filtration, integrated in the concealed cistern • Odour extraction

Pagina 236-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 237 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

unit automatically switches off after a predefined running time • Operation with extra-low voltage, no mains voltage in cistern Technical data Protection class I Protection degree IPX4 Nominal voltage 100-240 V AC Mains frequency 50-60 Hz Operating voltage 4.1 V DC Power consumption 5W Flow pressure 0.1-10 bar Flush volume factory setting 6 and 3 l Flush volume large adjustment range 4.5 / 6 l Flush volume small 3l Scope of delivery • Water supply connection set with 2 angle stop valves, 1/2“ • Flush bend 90° made of ABS, ø 50/44 mm, 23 x 23 cm • Sleeve made of EPDM, ø 44/55 mm • Straight connector made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • 2 threaded rods M12 • Sound insulation set • Female socket for mains connection • Power supply unit • Fastening material for solid wall Art. no. Colour / Surface 131.224.SI.1 white glass 131.224.SJ.1 black glass 131.224.SQ.1 umber glass Accessories • Geberit set st

Pagina 237-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 238 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

raight connector for wall-hung WC, stepped by 3 cm → p. 130 • Set of leg supports for Geberit Monolith sanitary module for WC → p. 131 • Geberit outlet mounting box → p. 280 127 Geberit Monolith Sanitary modules for WCs For Geberit AquaClean Geberit Monolith sanitary module for Geberit AquaClean 8000 / 8000plus, 114 cm, with straight connector, water supply connection at the rear centre 505 106 109 104 92−102 R½ 30 1145 25 18 25 455 28 0 0 15 Application purposes • For renovations, conversions and new buildings • For wall inlets with inlet height > 23 cm • For replacing wall-hung WCs with close-coupled exposed cisterns • For replacing wall-hung WCs with pressure flushing valve • For replacing wall-hung WCs with concealed cistern with maximum service opening height < 109 cm • For mounting on finished floors • For installation in front of solid walls Characteristics • Dual flush • Compensation of dimensional tolerances possible • Front clad

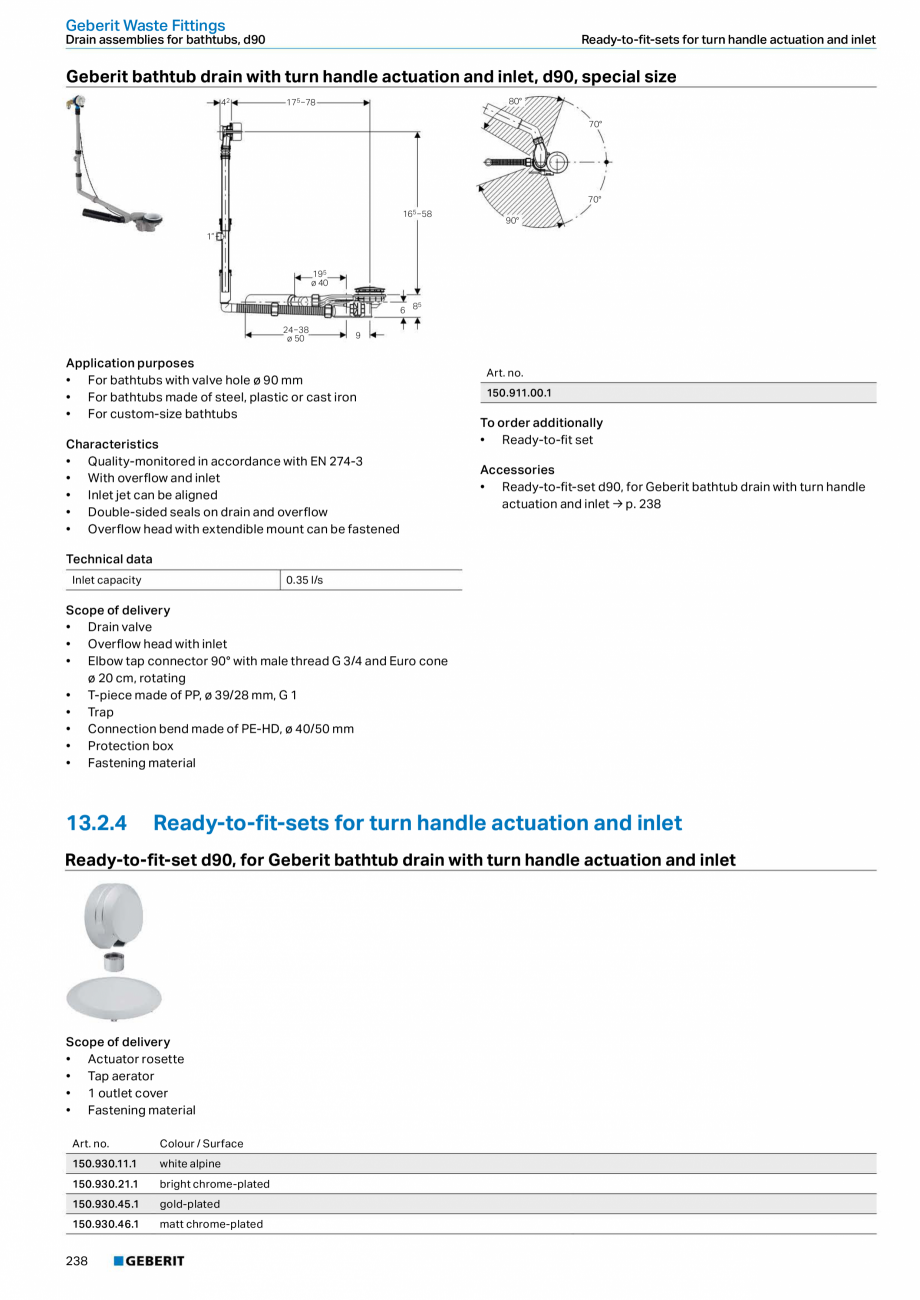

Pagina 238-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 239 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

ding made of glass (ESG) • Fastening height WC ceramic appliance 35 ± 1 cm • Cistern fully insulated against condensation • Side cladding made of aluminium brushed • Self-supporting • Adjustable flush volume • Water supply connection at the rear centre • Side connection possible • Bottom connection possible 128 Technical data Flow pressure 0.1-10 bar Flush volume factory setting 6 and 3 l Flush volume large adjustment range 4.5 / 6 l Flush volume small 3l Scope of delivery • Water supply connection set with angle stop valve R 1/2 • Flush bend 90° made of ABS, ø 50/44 mm, 23 x 23 cm • Sleeve made of EPDM, ø 44/55 mm • Straight connector made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • 2 threaded rods M12 • Sound insulation set • Fastening material for solid wall Art. no. Colour / Surface 131.032.SI.1 white glass 131.032.SJ.1 black glass 131.032.SQ.1 umber glass Accessories • Water supply connection set, bottom

Pagina 239-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 240 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

, for Geberit Monolith sanitary module for WC, 114 cm → p. 130 • Geberit set straight connector for wall-hung WC, stepped by 3 cm → p. 130 • Set of leg supports for Geberit Monolith sanitary module for WC → p. 131 Geberit Monolith For Geberit AquaClean Sanitary modules for WCs Geberit Monolith Plus sanitary module for Geberit AquaClean 8000 / 8000plus, 114 cm, with straight connector, water supply connection at the rear centre 505 106 109 102 92–102 6 12 45 ±2 25 ±1 0 13 ±4 13 ±4 1145 ±1 25 R½ 455 18 28 0 15 Application purposes • For renovations, conversions and new buildings • For wall inlets with inlet height > 23 cm • For replacing wall-hung WCs with close-coupled exposed cisterns • For replacing wall-hung WCs with pressure flushing valve with additional water supply connection set • For replacing wall-hung WCs with concealed cistern with maximum service opening height < 109 cm • For mounting on finished floors • For installation in

Pagina 240-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 241 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

front of solid walls Characteristics • Dual flush • Compensation of dimensional tolerances possible • Front cladding made of glass (ESG) • Fastening height WC ceramic appliance 35 ± 1 cm • Cistern fully insulated against condensation • Side cladding made of aluminium brushed • Self-supporting • Adjustable flush volume • Water supply connection at the rear centre • Side connection possible • Bottom connection possible • Soft-touch buttons for flush actuation and odour extraction • Orientation light and odour extraction activated when a user approaches • Orientation light can be set in seven colours • Day/night detection can be set for orientation light • Odour extraction unit with filtration, integrated in the concealed cistern • Odour extraction unit automatically switches off after a predefined running time • Operation with extra-low voltage, no mains voltage in cistern Technical data Protection class I Protection degree IPX4 Nominal voltage

Pagina 241-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

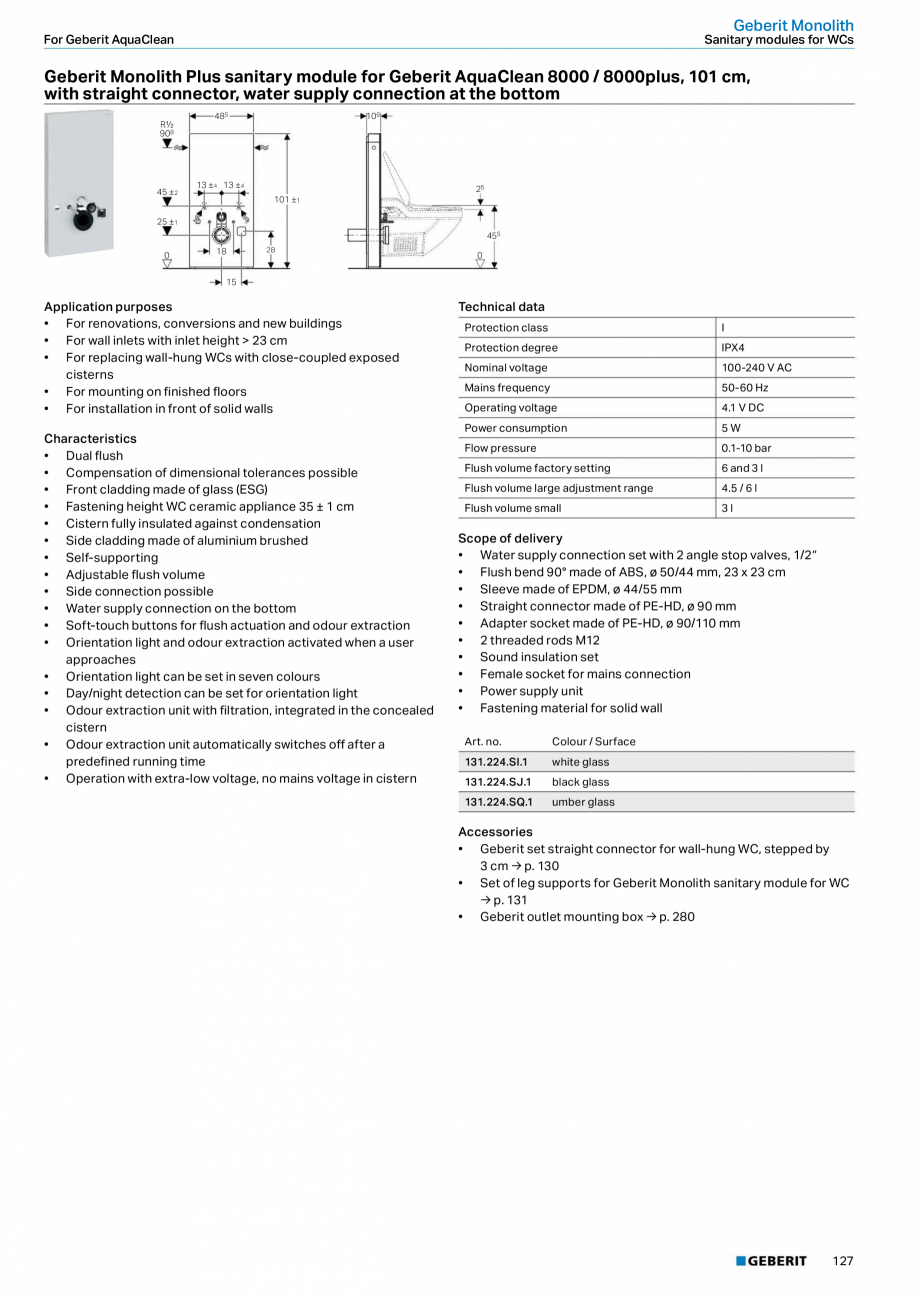

Pagina 242 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

100-240 V AC Mains frequency 50-60 Hz Operating voltage 4.1 V DC Power consumption 5W Flow pressure 0.1-10 bar Flush volume factory setting 6 and 3 l Flush volume large adjustment range 4.5 / 6 l Flush volume small 3l Scope of delivery • Water supply connection set with angle stop valve R 1/2 • Flush bend 90° made of ABS, ø 50/44 mm, 23 x 23 cm • Sleeve made of EPDM, ø 44/55 mm • Straight connector made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • 2 threaded rods M12 • Sound insulation set • Female socket for mains connection • Power supply unit • Fastening material for solid wall Art. no. Colour / Surface 131.232.SI.1 white glass 131.232.SJ.1 black glass 131.232.SQ.1 umber glass Accessories • Geberit outlet mounting box → p. 280 • Water supply connection set, bottom, for Geberit Monolith sanitary module for WC, 114 cm → p. 130 129 Geberit Monolith Sanitary modules for WCs Accessories 6.1.4 Accessories Wat

Pagina 242-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 243 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

er supply connection set, left/right, for Geberit Monolith sanitary module for WC Scope of delivery • Angle stop valve, 1/2“ • Reinforced braided hose, 3/8“ • Fitting piece • Collar, chrome-plated • Connecting bend made of copper, chrome-plated • 2 cone screw fittings • Connecting nipple, offset Geberit set straight connector for wall-hung WC, stepped by 3 cm Application purposes • For compensating the offset between WC connections and wall drains Scope of delivery • Straight connector made of PP, ø 90 mm, stepped by 3 cm • Sleeve made of EPDM Art. no. Colour / Surface Art. no. Colour / Surface 131.071.21.1 bright chrome-plated 131.085.11.1 white alpine Water supply connection set, bottom, for Geberit Monolith sanitary module for WC, 114 cm Scope of delivery • Reinforced braided hose, 1/2“ • Reducer, 1/2“–3/8“ Geberit set straight connector for wall-hung WC, stepped by 7 cm Application purposes • For compensating the offset between

Pagina 243-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 244 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

WC connections and wall drains • For converting of floor-standing WCs with wall inlet to Geberit Monolith sanitary modules with wall-hung WC • For laying wall inlets from 18 cm to 25 cm above finished floor Art. no. 131.138.00.1 Geberit set straight connector for floorstanding WC Scope of delivery • 2 sleeves made of EPDM • Straight connector made of PP, ø 90 mm, stepped by 7 cm Art. no. 102±5 d l L Colour / Surface 131.108.11.1 white alpine Geberit set connection bend 90° for floorstanding WC Application purposes • For connecting floor-standing WCs to wall drains Scope of delivery • Sleeve made of EPDM • Straight connector made of PE-HD, ø 90 mm Art. no. 131.083.16.1 d, ø [mm] L [cm] l [cm] 90 30 26.5 Application purposes • For connecting floor-standing WCs to floor drains • For floor drains with wall distance < 15 cm Scope of delivery • Sleeve made of EPDM • Straight connector made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 9

Pagina 244-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 245 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

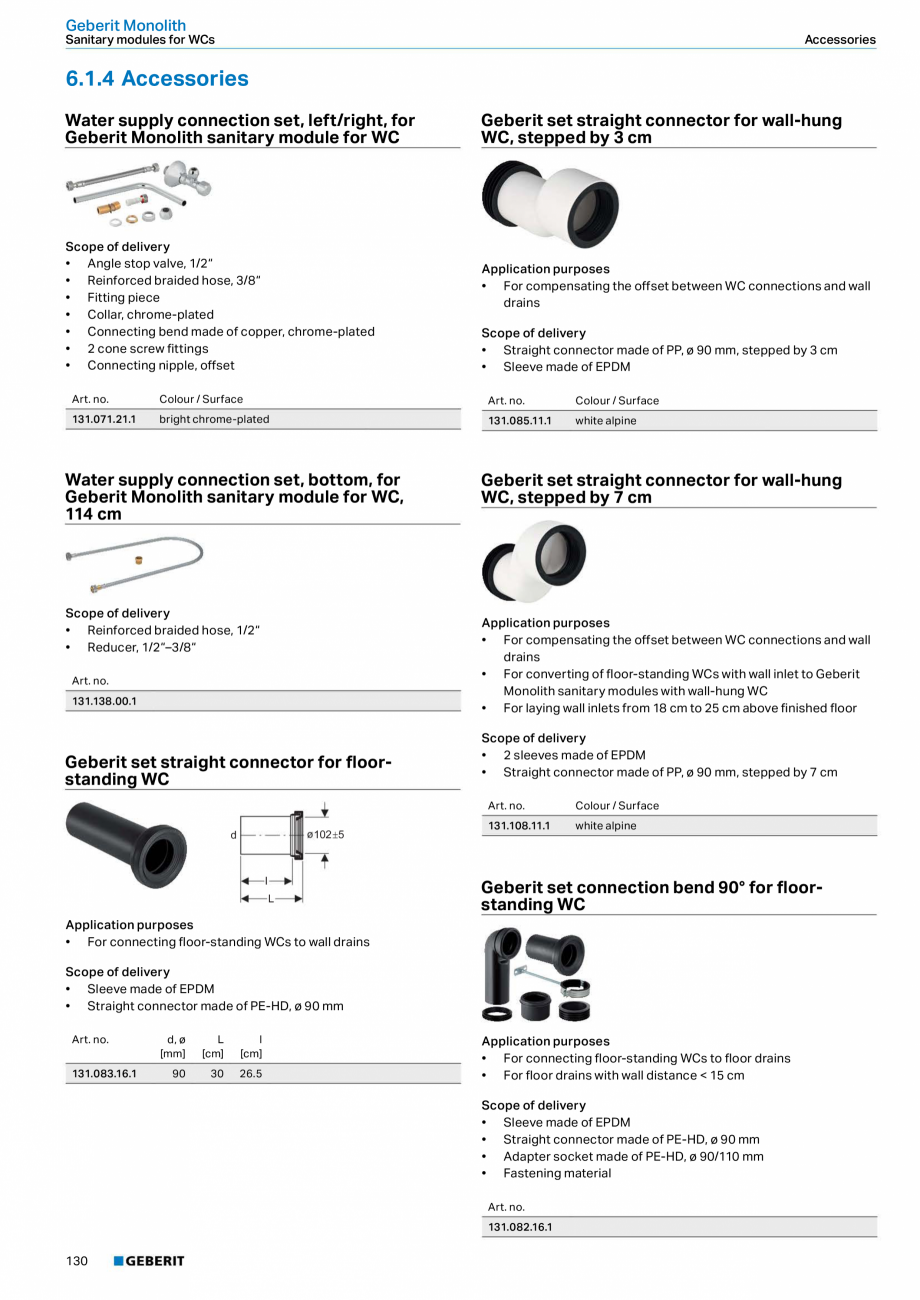

0/110 mm • Fastening material Art. no. 131.082.16.1 130 Geberit Monolith Accessories Sanitary modules for WCs Geberit set P-bend for floor-standing WC 2 Set of leg supports for Geberit Monolith sanitary module for WC 263 105 15 Application purposes • For connecting floor-standing WCs to floor drains • For floor drains with wall distance > 15 cm Scope of delivery • Sleeve made of EPDM • Connection bend made of PP, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • Fastening material Art. no. Colour / Surface 131.081.11.1 white alpine Application purposes • For supporting Geberit Monolith sanitary modules in drywall construction and autoclaved aerated concrete Scope of delivery • Fastening material Art. no. 131.104.00.1 Support brackets for WC ceramic appliances with small contact surfaces, for Monolith sanitary module for wall-hung WC Geberit Monolith set S-bend for wall-hung WC Scope of delivery • Set of 2 pieces Application purposes • For co

Pagina 245-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 246 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

nnecting wall-hung WCs to floor drains Scope of delivery • Straight connector made of PE-HD, ø 90 mm • S-bend made of PVC, ø 90 mm • Pipe bracket • Sleeve made of EPDM • Tangit PVC-U special adhesive Art. no. 131.105.00.1 Cup for flush volume 4.5 / 3 litres Colour / Surface 131.088.29.1 Art. no. grey Application purposes • For Geberit Monolith sanitary modules for wall-hung WC • For Geberit Monolith sanitary modules for floor-standing WCs Characteristics • Reduces the large flush volume to 4.5 l Scope of delivery • Set of 2 pieces Art. no. 131.161.00.1 131 Geberit Monolith Sanitary modules for washbasins For wall-mounted taps 6.2 Sanitary modules for washbasins 6.2.1 For wall-mounted taps Geberit Monolith sanitary module for washbasin, 114 cm, two-hole wall-mounted tap, gauge 10 cm, mixer right, drawers left and right 60 732 ≥ 30 10 0−23 109 R½ 50−65 39 13−45 R½ 30 87 85−235 1145 104 545−685 45−60 815 55 64 0 8−16 A

Pagina 246-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

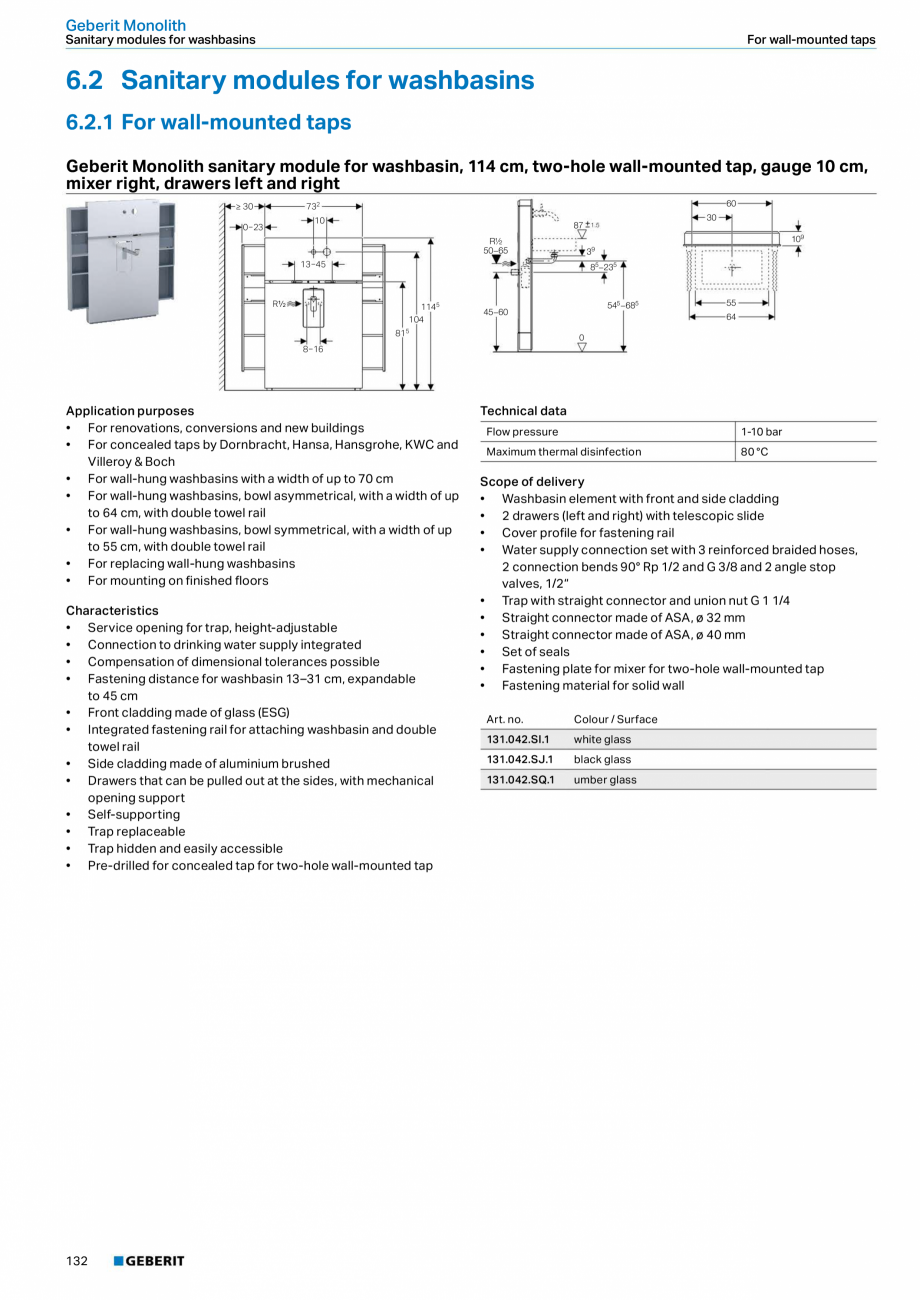

Pagina 247 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

pplication purposes • For renovations, conversions and new buildings • For concealed taps by Dornbracht, Hansa, Hansgrohe, KWC and Villeroy & Boch • For wall-hung washbasins with a width of up to 70 cm • For wall-hung washbasins, bowl asymmetrical, with a width of up to 64 cm, with double towel rail • For wall-hung washbasins, bowl symmetrical, with a width of up to 55 cm, with double towel rail • For replacing wall-hung washbasins • For mounting on finished floors Characteristics • Service opening for trap, height-adjustable • Connection to drinking water supply integrated • Compensation of dimensional tolerances possible • Fastening distance for washbasin 13–31 cm, expandable to 45 cm • Front cladding made of glass (ESG) • Integrated fastening rail for attaching washbasin and double towel rail • Side cladding made of aluminium brushed • Drawers that can be pulled out at the sides, with mechanical opening support • Self-supporting • Trap replaceable

Pagina 247-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

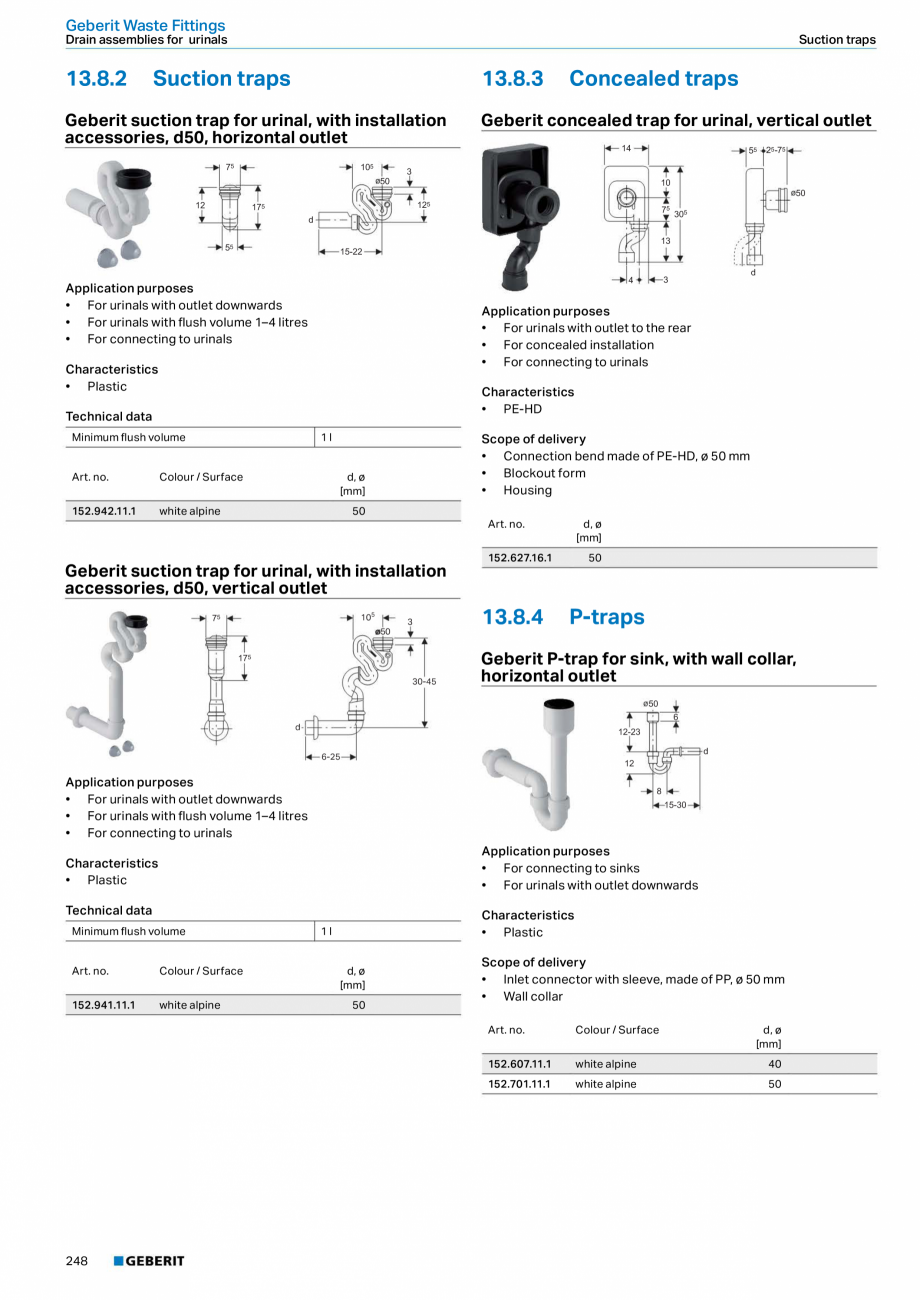

Pagina 248 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

• Trap hidden and easily accessible • Pre-drilled for concealed tap for two-hole wall-mounted tap 132 Technical data Flow pressure 1-10 bar Maximum thermal disinfection 80 °C Scope of delivery • Washbasin element with front and side cladding • 2 drawers (left and right) with telescopic slide • Cover profile for fastening rail • Water supply connection set with 3 reinforced braided hoses, 2 connection bends 90° Rp 1/2 and G 3/8 and 2 angle stop valves, 1/2“ • Trap with straight connector and union nut G 1 1/4 • Straight connector made of ASA, ø 32 mm • Straight connector made of ASA, ø 40 mm • Set of seals • Fastening plate for mixer for two-hole wall-mounted tap • Fastening material for solid wall Art. no. Colour / Surface 131.042.SI.1 white glass 131.042.SJ.1 black glass 131.042.SQ.1 umber glass Geberit Monolith For wall-mounted taps Sanitary modules for washbasins Geberit Monolith sanitary module for washbasin, 114 cm, two-hole wall-mo

Pagina 248-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 249 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

unted tap, gauge 10 cm, mixer right, drawer left 60 732 ≥ 30 10 0−23 30 87 109 R½ 50−65 39 13−45 R½ 85−235 1145 104 545−685 45−60 55 64 815 0 8−16 Application purposes • For renovations, conversions and new buildings • For concealed taps by Dornbracht, Hansa, Hansgrohe, KWC and Villeroy & Boch • For wall inlets • For wall-hung washbasins with a width of up to 70 cm • For wall-hung washbasins, bowl asymmetrical, with a width of up to 64 cm, with double towel rail • For wall-hung washbasins, bowl symmetrical, with a width of up to 55 cm, with double towel rail • For replacing wall-hung washbasins • For mounting on finished floors Characteristics • Service opening for trap, height-adjustable • Connection to drinking water supply integrated • Compensation of dimensional tolerances possible • Fastening distance for washbasin 13–31 cm, expandable to 45 cm • Front cladding made of glass (ESG) • Integrated fastening rail for a

Pagina 249-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

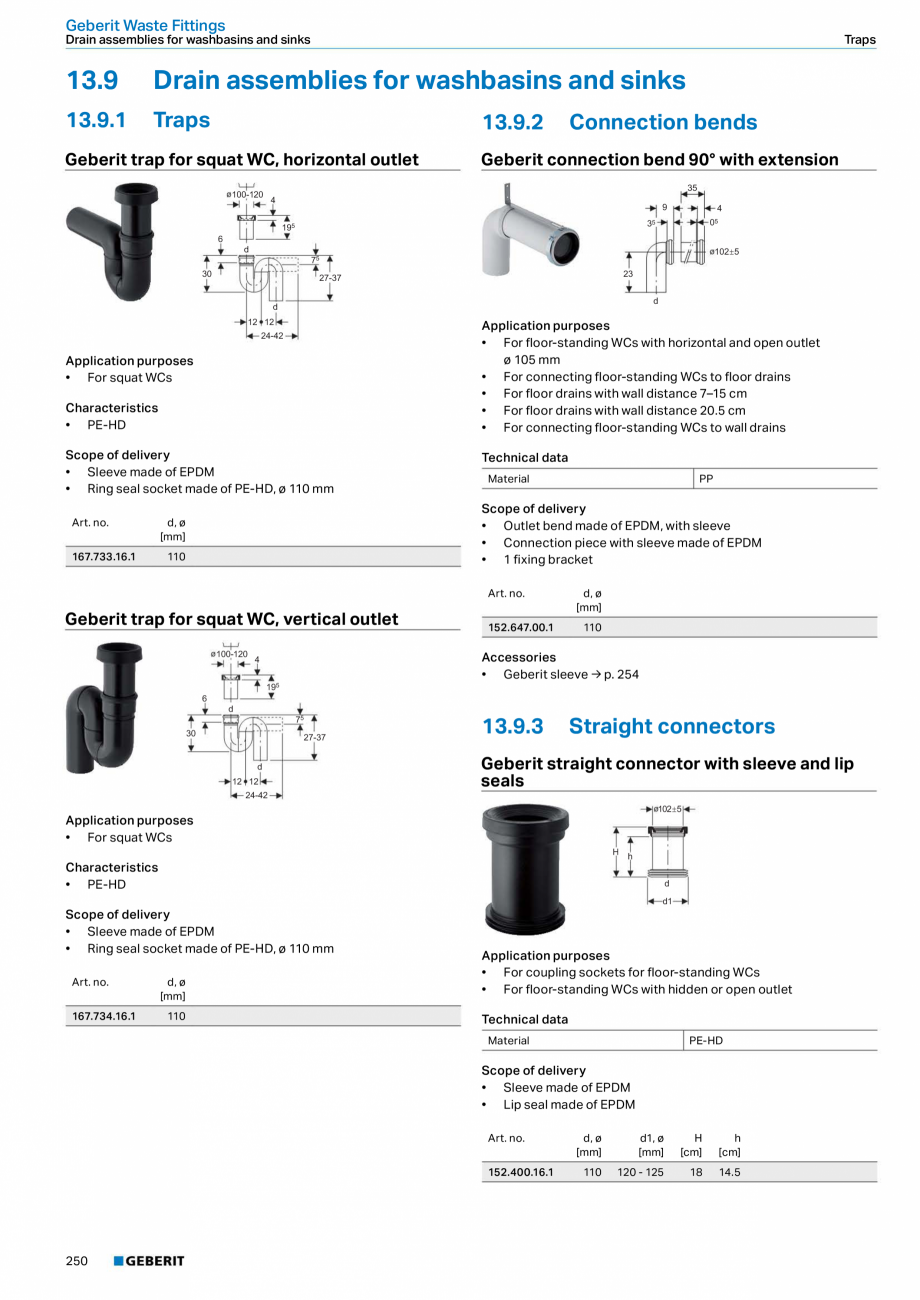

Pagina 250 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

ttaching washbasin and double towel rail • Side cladding made of aluminium brushed • Drawers that can be pulled out at the sides, with mechanical opening support • Self-supporting • Trap replaceable • Trap hidden and easily accessible • Pre-drilled for concealed tap for two-hole wall-mounted tap Technical data Flow pressure 1-10 bar Maximum thermal disinfection 80 °C Scope of delivery • Washbasin element with front and side cladding • Drawer, left, with telescopic slide • Cover profile for fastening rail • Water supply connection set with 3 reinforced braided hoses, 2 connection bends 90° Rp 1/2 and G 3/8 and 2 angle stop valves, 1/2“ • Trap with straight connector and union nut G 1 1/4 • Straight connector made of ASA, ø 32 mm • Straight connector made of ASA, ø 40 mm • Set of seals • Fastening plate for mixer for two-hole wall-mounted tap • Fastening material for solid wall Art. no. Colour / Surface 131.040.SI.1 white glass 131.040.SJ.1

Pagina 250-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 251 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

black glass 131.040.SQ.1 umber glass 133 Geberit Monolith Sanitary modules for washbasins For wall-mounted taps Geberit Monolith sanitary module for washbasin, 114 cm, two-hole wall-mounted tap, gauge 10 cm, mixer right, drawer right 732 10 60 ≥ 30 30 87 0−23 109 R½ 50−65 39 13−45 1145 104 R½ 85−235 545−685 45−60 55 64 815 0 8−16 Application purposes • For renovations, conversions and new buildings • For concealed taps by Dornbracht, Hansa, Hansgrohe, KWC and Villeroy & Boch • For wall inlets • For wall-hung washbasins with a width of up to 70 cm • For wall-hung washbasins, bowl asymmetrical, with a width of up to 64 cm, with double towel rail • For wall-hung washbasins, bowl symmetrical, with a width of up to 55 cm, with double towel rail • For replacing wall-hung washbasins • For mounting on finished floors Characteristics • Service opening for trap, height-adjustable • Connection to drinking water supply integrated •

Pagina 251-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

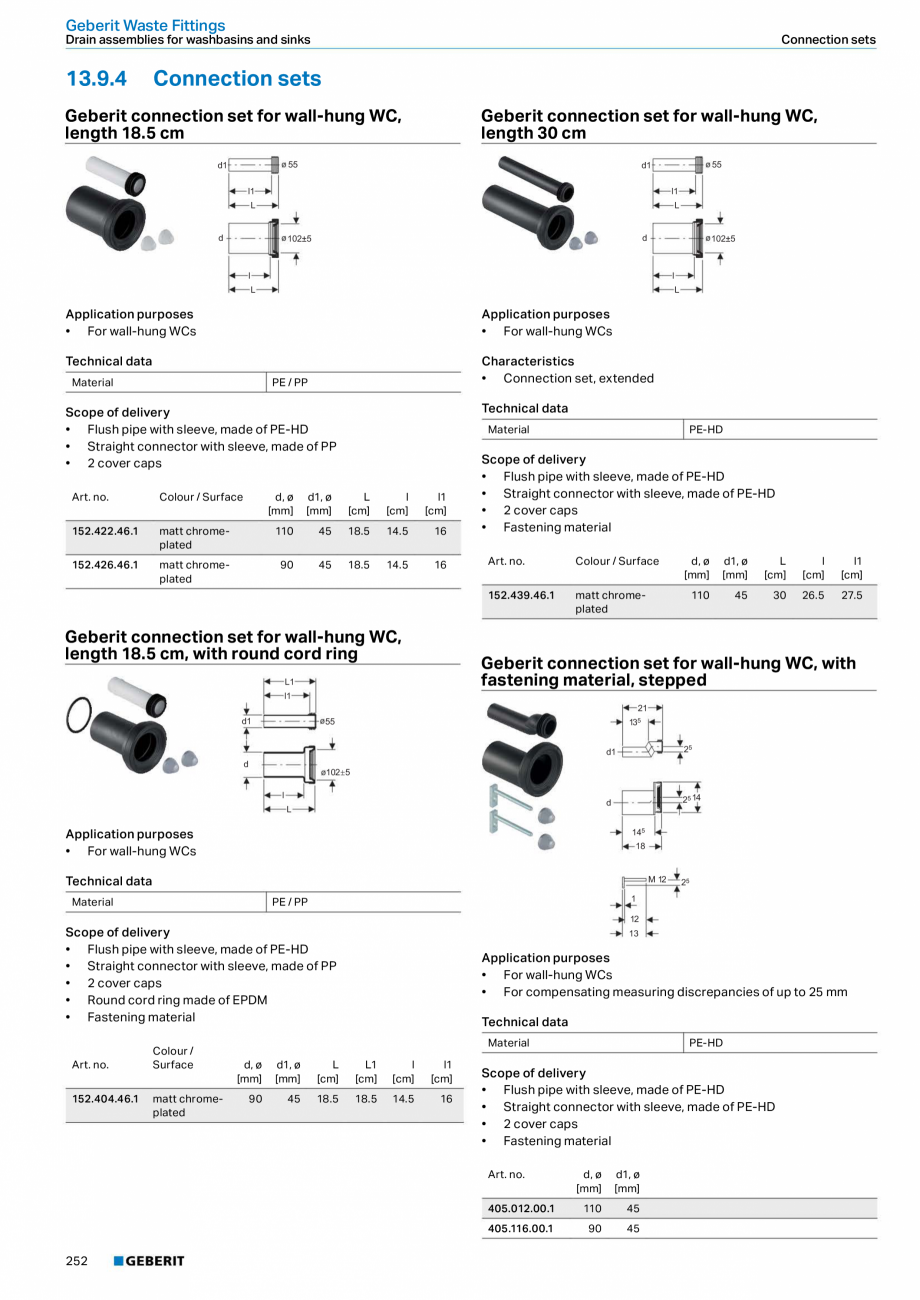

Pagina 252 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

Compensation of dimensional tolerances possible • Fastening distance for washbasin 13–31 cm, expandable to 45 cm • Front cladding made of glass (ESG) • Integrated fastening rail for attaching washbasin and double towel rail • Side cladding made of aluminium brushed • Drawers that can be pulled out at the sides, with mechanical opening support • Self-supporting • Trap replaceable • Trap hidden and easily accessible • Pre-drilled for concealed tap for two-hole wall-mounted tap 134 Technical data Flow pressure 1-10 bar Maximum thermal disinfection 80 °C Scope of delivery • Washbasin element with front and side cladding • Drawer, right, with telescopic slide • Cover profile for fastening rail • Water supply connection set with 3 reinforced braided hoses, 2 connection bends 90° Rp 1/2 and G 3/8 and 2 angle stop valves, 1/2“ • Trap with straight connector and union nut G 1 1/4 • Straight connector made of ASA, ø 32 mm • Straight connector made of

Pagina 252-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 253 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

ASA, ø 40 mm • Set of seals • Fastening plate for mixer for two-hole wall-mounted tap • Fastening material for solid wall Art. no. Colour / Surface 131.041.SI.1 white glass 131.041.SJ.1 black glass 131.041.SQ.1 umber glass Geberit Monolith For wall-mounted taps Sanitary modules for washbasins Geberit Monolith sanitary module for washbasin, 114 cm, two-hole wall-mounted tap, gauge 10 cm, mixer right, without drawer 60 732 10 87 109 R½ 50−65 39 13−45 R½ 30 85−235 1145 104 815 55 545−685 45−60 64 0 8−16 Application purposes • For renovations, conversions and new buildings • For concealed taps by Dornbracht, Hansa, Hansgrohe, KWC and Villeroy & Boch • For wall inlets • For wall-hung washbasins with a width of up to 70 cm • For wall-hung washbasins, bowl asymmetrical, with a width of up to 64 cm, with double towel rail • For wall-hung washbasins, bowl symmetrical, with a width of up to 55 cm, with double towel rail • For replaci

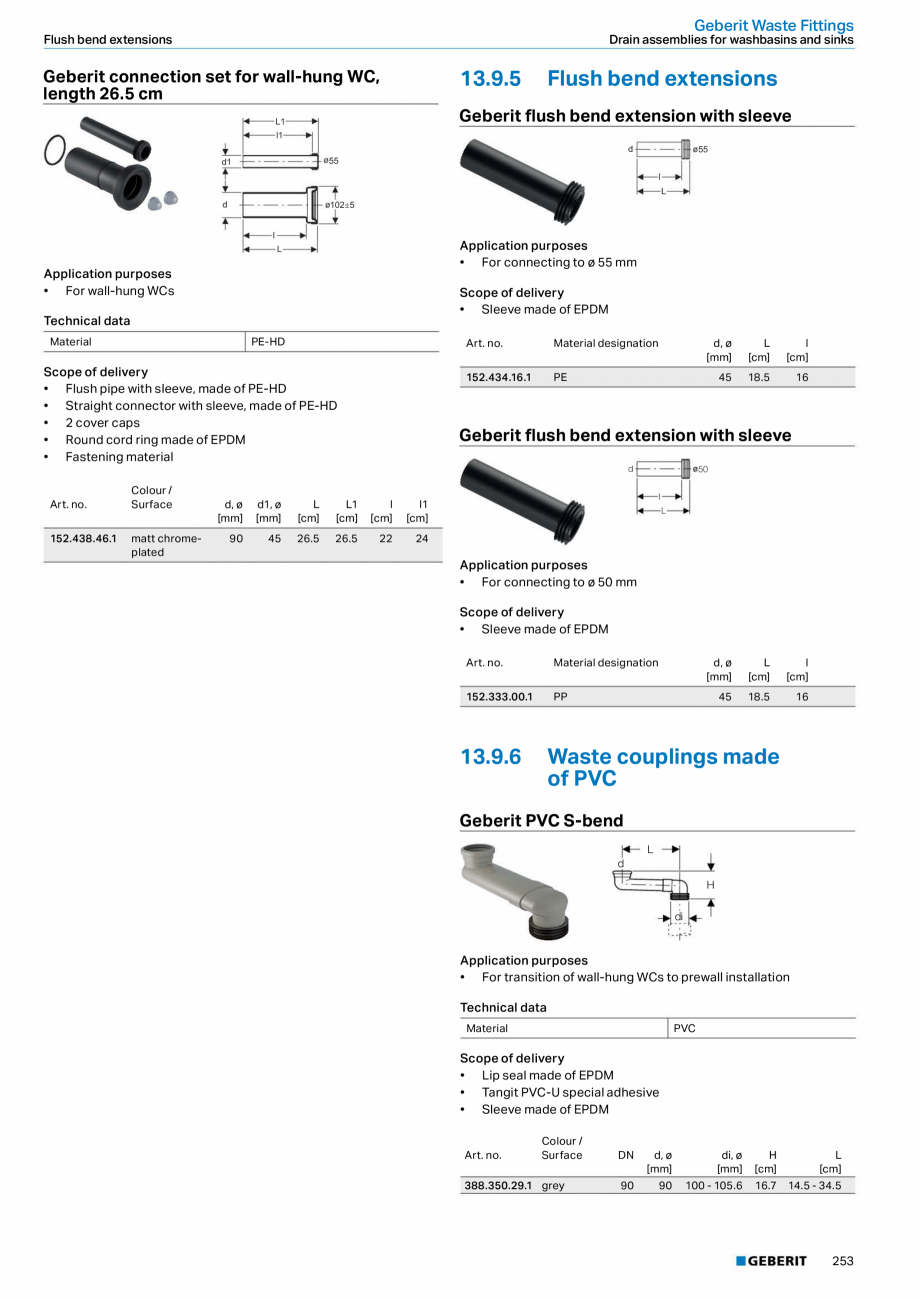

Pagina 253-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 254 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

ng wall-hung washbasins • For mounting on finished floors Characteristics • Service opening for trap, height-adjustable • Connection to drinking water supply integrated • Compensation of dimensional tolerances possible • Fastening distance for washbasin 13–31 cm, expandable to 45 cm • Front cladding made of glass (ESG) • Integrated fastening rail for attaching washbasin and double towel rail • Side cladding made of aluminium brushed • Self-supporting • Trap replaceable • Trap hidden and easily accessible • Pre-drilled for concealed tap for two-hole wall-mounted tap Technical data Flow pressure 1-10 bar Maximum thermal disinfection 80 °C Scope of delivery • Washbasin element with front and side cladding • Cover profile for fastening rail • Water supply connection set with 3 reinforced braided hoses, 2 connection bends 90° Rp 1/2 and G 3/8 and 2 angle stop valves, 1/2“ • Trap with straight connector and union nut G 1 1/4 • Straight connector m

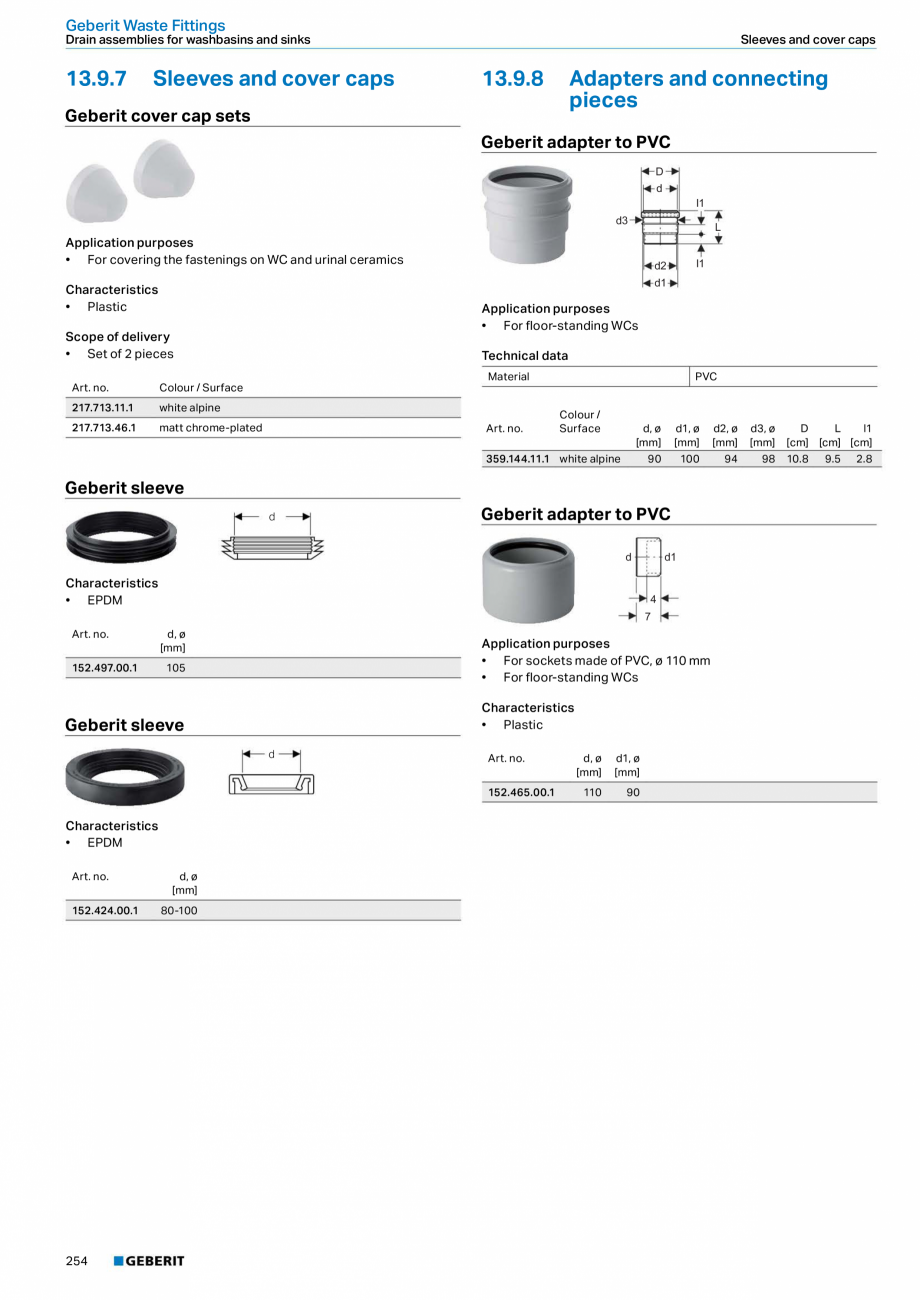

Pagina 254-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

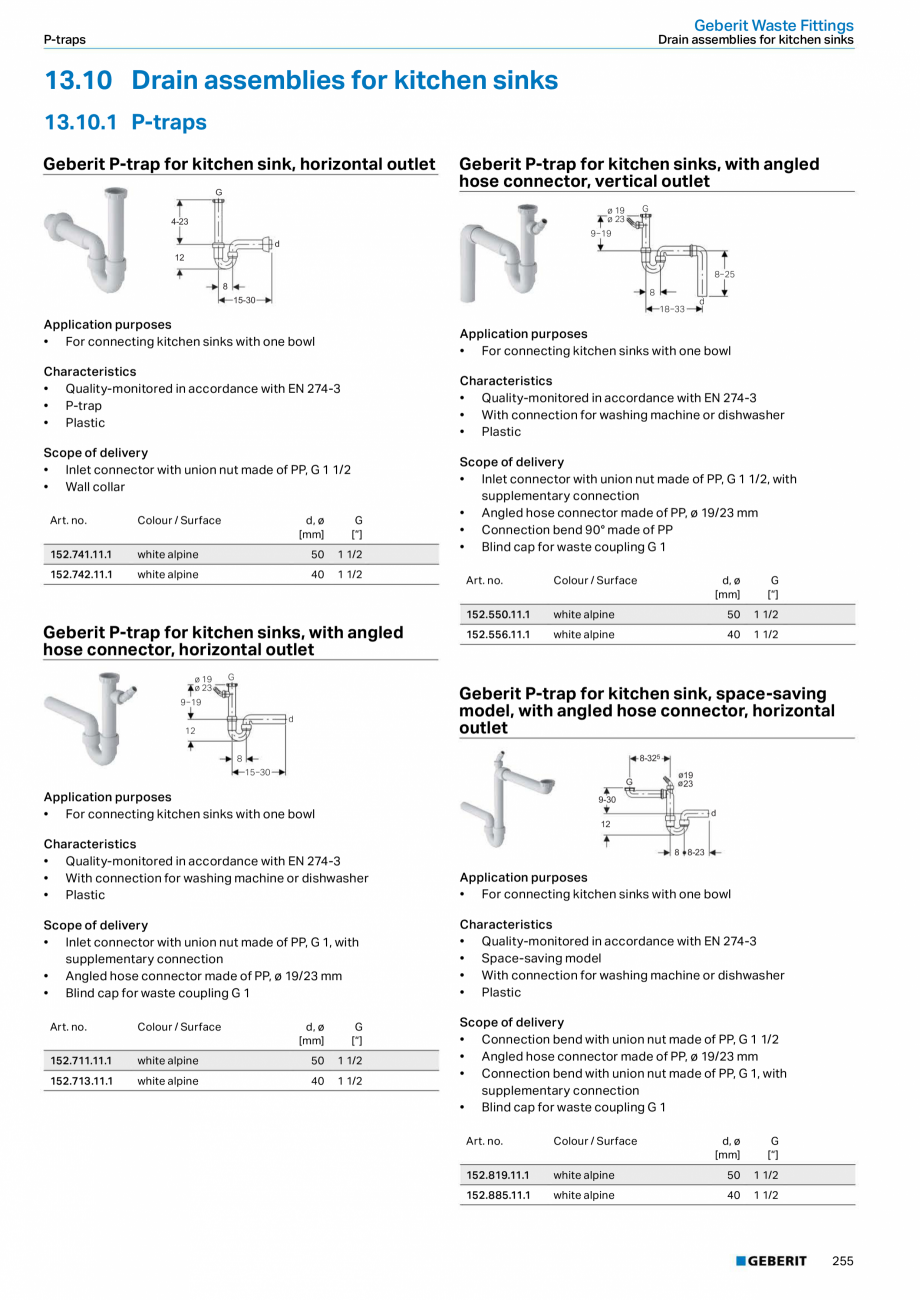

Pagina 255 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

ade of ASA, ø 32 mm • Straight connector made of ASA, ø 40 mm • Set of seals • Fastening plate for mixer for two-hole wall-mounted tap • Fastening material for solid wall Art. no. Colour / Surface 131.043.SI.1 white glass 131.043.SJ.1 black glass 131.043.SQ.1 umber glass 135 Geberit Monolith Sanitary modules for washbasins For wall-mounted taps Geberit Monolith sanitary module for washbasin, 114 cm, two-hole wall-mounted tap, gauge 8 cm, mixer left, drawers left and right 60 732 ≥ 30 8 0−23 87 109 R½ 50−65 39 13−45 R½ 30 85−235 1145 104 545−685 45−60 815 55 64 0 8−16 Application purposes • For renovations, conversions and new buildings • For concealed taps by Vola • For wall inlets • For wall-hung washbasins with a width of up to 70 cm • For wall-hung washbasins, bowl asymmetrical, with a width of up to 64 cm, with double towel rail • For wall-hung washbasins, bowl symmetrical, with a width of up to 55 cm, with do

Pagina 255-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

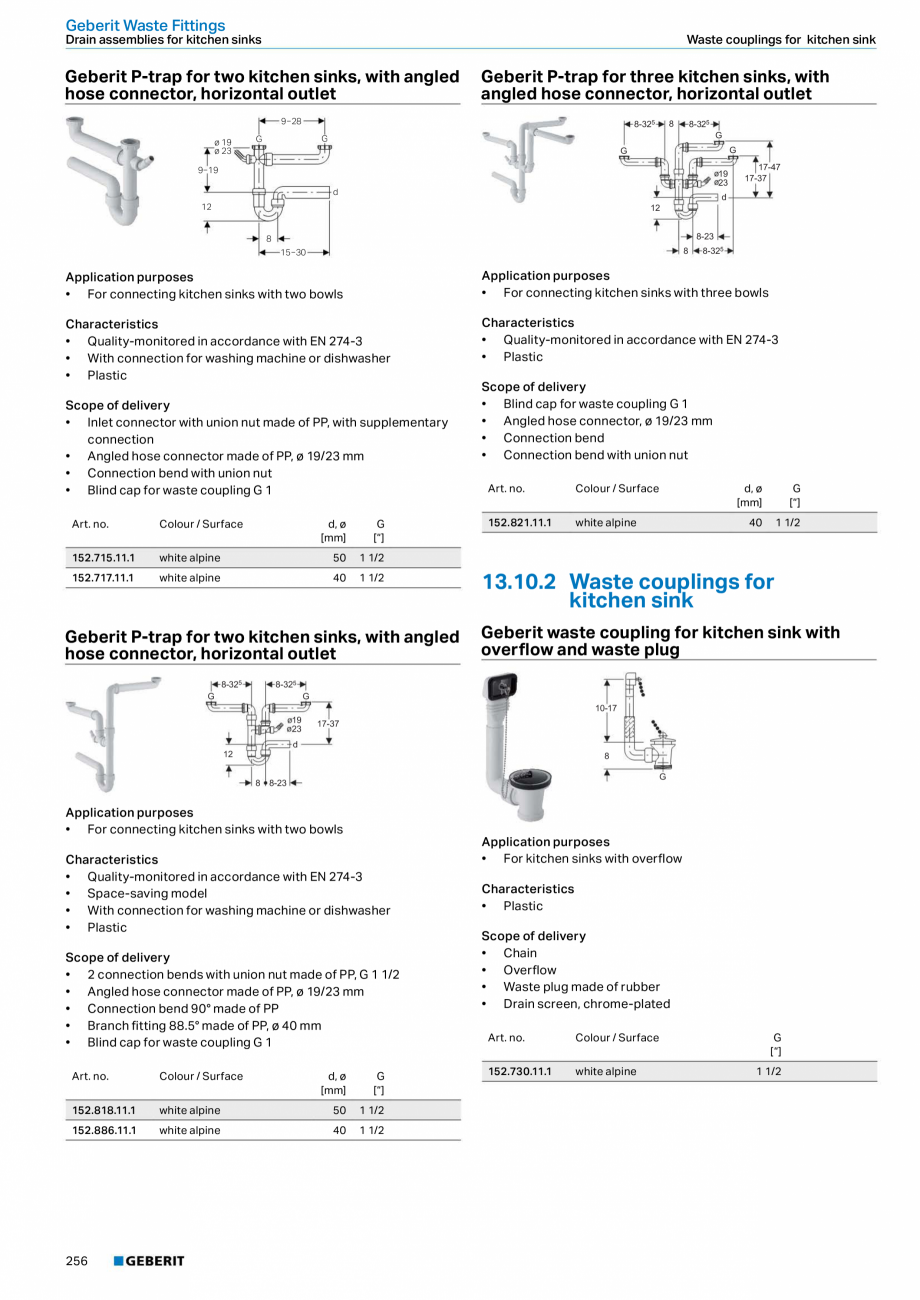

Pagina 256 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

uble towel rail • For replacing wall-hung washbasins • For mounting on finished floors Characteristics • Service opening for trap, height-adjustable • Connection to drinking water supply integrated • Compensation of dimensional tolerances possible • Fastening distance for washbasin 13–31 cm, expandable to 45 cm • Front cladding made of glass (ESG) • Integrated fastening rail for attaching washbasin and double towel rail • Side cladding made of aluminium brushed • Drawers that can be pulled out at the sides, with mechanical opening support • Self-supporting • Trap replaceable • Trap hidden and easily accessible • Pre-drilled for concealed tap for two-hole wall-mounted tap 136 Technical data Flow pressure 1-10 bar Maximum thermal disinfection 80 °C Scope of delivery • Washbasin element with front and side cladding • 2 drawers (left and right) with telescopic slide • Cover profile for fastening rail • Water supply connection set with 3 reinforc

Pagina 256-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 257 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

ed braided hoses, 2 connection bends 90° Rp 1/2 and G 3/8 and 2 angle stop valves, 1/2“ • Trap with straight connector and union nut G 1 1/4 • Straight connector made of ASA, ø 32 mm • Straight connector made of ASA, ø 40 mm • Set of seals • Fastening plate for mixer for two-hole wall-mounted tap • Fastening material for solid wall Art. no. Colour / Surface 131.046.SI.1 white glass 131.046.SJ.1 black glass 131.046.SQ.1 umber glass Geberit Monolith For wall-mounted taps Sanitary modules for washbasins Geberit Monolith sanitary module for washbasin, 114 cm, two-hole wall-mounted tap, gauge 8 cm, mixer left, drawer left 60 732 ≥ 30 8 0−23 30 87 109 R½ 50−65 39 13−45 R½ 85−235 1145 104 545−685 45−60 55 64 815 0 8−16 Application purposes • For renovations, conversions and new buildings • For concealed taps by Vola • For wall inlets • For wall-hung washbasins with a width of up to 70 cm • For wall-hung washbasins, b

Pagina 257-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 258 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

owl asymmetrical, with a width of up to 64 cm, with double towel rail • For wall-hung washbasins, bowl symmetrical, with a width of up to 55 cm, with double towel rail • For replacing wall-hung washbasins • For mounting on finished floors Characteristics • Service opening for trap, height-adjustable • Connection to drinking water supply integrated • Compensation of dimensional tolerances possible • Fastening distance for washbasin 13–31 cm, expandable to 45 cm • Front cladding made of glass (ESG) • Integrated fastening rail for attaching washbasin and double towel rail • Side cladding made of aluminium brushed • Drawers that can be pulled out at the sides, with mechanical opening support • Self-supporting • Trap replaceable • Trap hidden and easily accessible • Pre-drilled for concealed tap for two-hole wall-mounted tap Technical data Flow pressure 1-10 bar Maximum thermal disinfection 80 °C Scope of delivery • Washbasin element with front and si

Pagina 258-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 259 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

de cladding • Drawer, left, with telescopic slide • Cover profile for fastening rail • Water supply connection set with 3 reinforced braided hoses, 2 connection bends 90° Rp 1/2 and G 3/8 and 2 angle stop valves, 1/2“ • Trap with straight connector and union nut G 1 1/4 • Straight connector made of ASA, ø 32 mm • Straight connector made of ASA, ø 40 mm • Set of seals • Fastening plate for mixer for two-hole wall-mounted tap • Fastening material for solid wall Art. no. Colour / Surface 131.044.SI.1 white glass 131.044.SJ.1 black glass 131.044.SQ.1 umber glass 137 Geberit Monolith Sanitary modules for washbasins For wall-mounted taps Geberit Monolith sanitary module for washbasin, 114 cm, two-hole wall-mounted tap, gauge 8 cm, mixer left, drawer right 732 8 60 ≥ 30 30 87 0−23 109 R½ 50−65 39 13−45 1145 104 R½ 85−235 545−685 45−60 55 64 815 0 8−16 Application purposes • For renovations, conversions and new buildings

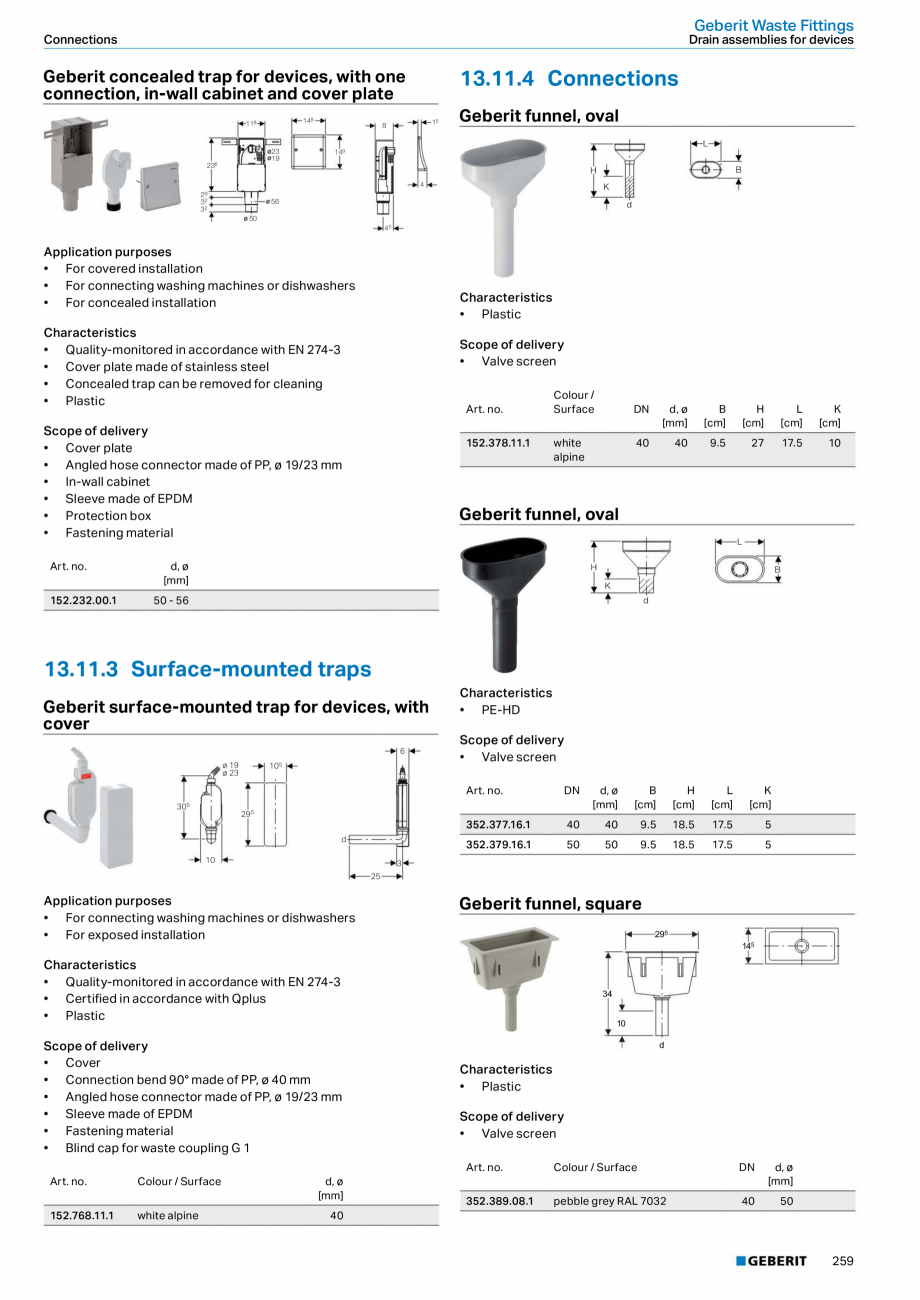

Pagina 259-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

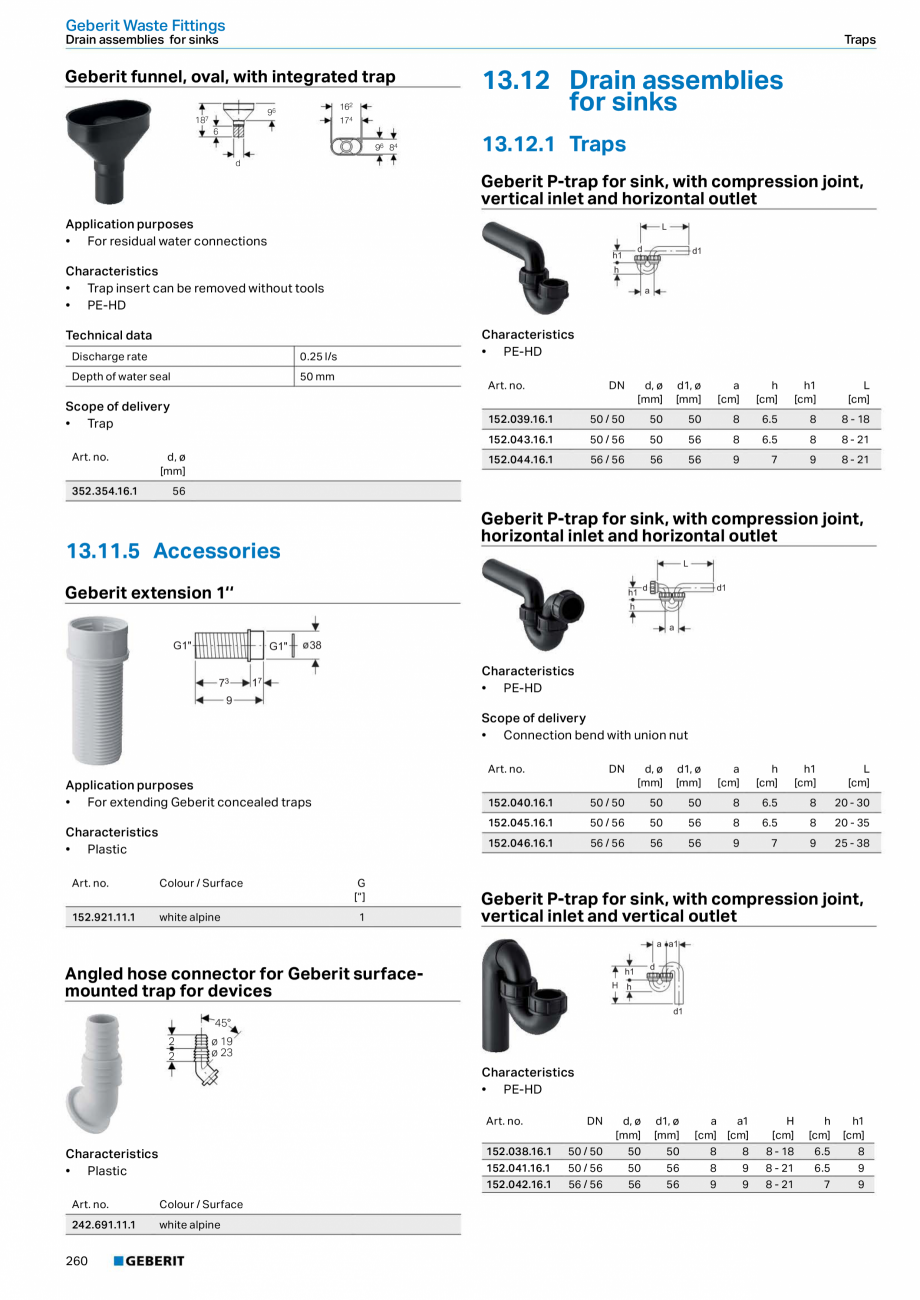

Pagina 260 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

• For concealed taps by Vola • For wall inlets • For wall-hung washbasins with a width of up to 70 cm • For wall-hung washbasins, bowl asymmetrical, with a width of up to 64 cm, with double towel rail • For wall-hung washbasins, bowl symmetrical, with a width of up to 55 cm, with double towel rail • For replacing wall-hung washbasins • For mounting on finished floors Characteristics • Service opening for trap, height-adjustable • Connection to drinking water supply integrated • Compensation of dimensional tolerances possible • Fastening distance for washbasin 13–31 cm, expandable to 45 cm • Front cladding made of glass (ESG) • Integrated fastening rail for attaching washbasin and double towel rail • Side cladding made of aluminium brushed • Drawers that can be pulled out at the sides, with mechanical opening support • Self-supporting • Trap replaceable • Trap hidden and easily accessible • Pre-drilled for concealed tap for two-hole wall-mounted t

Pagina 260-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

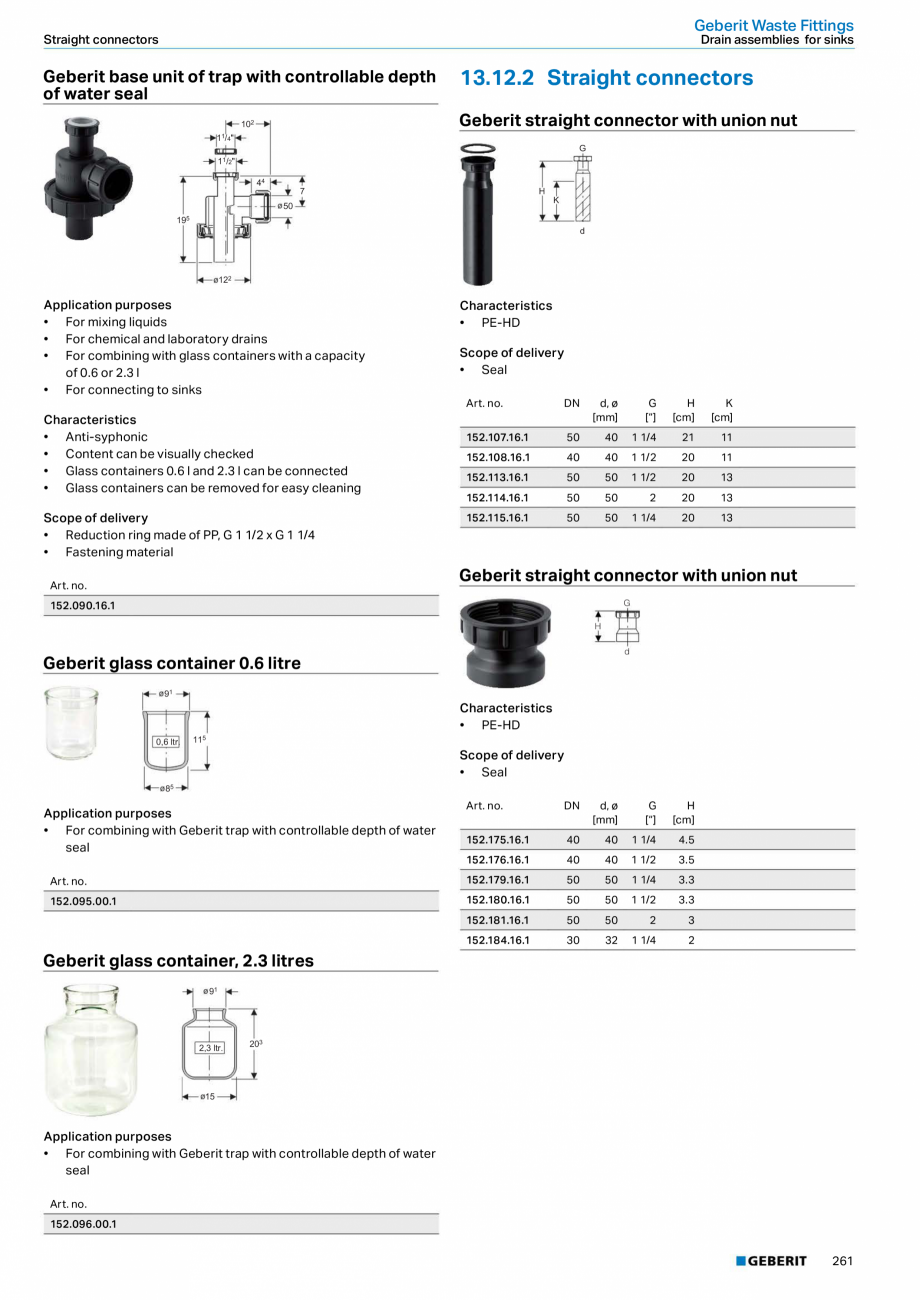

Pagina 261 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

ap 138 Technical data Flow pressure 1-10 bar Maximum thermal disinfection 80 °C Scope of delivery • Washbasin element with front and side cladding • Drawer, right, with telescopic slide • Cover profile for fastening rail • Water supply connection set with 3 reinforced braided hoses, 2 connection bends 90° Rp 1/2 and G 3/8 and 2 angle stop valves, 1/2“ • Trap with straight connector and union nut G 1 1/4 • Straight connector made of ASA, ø 32 mm • Straight connector made of ASA, ø 40 mm • Set of seals • Fastening plate for mixer for two-hole wall-mounted tap • Fastening material for solid wall Art. no. Colour / Surface 131.045.SI.1 white glass 131.045.SJ.1 black glass 131.045.SQ.1 umber glass Geberit Monolith For wall-mounted taps Sanitary modules for washbasins Geberit Monolith sanitary module for washbasin, 114 cm, two-hole wall-mounted tap, gauge 8 cm, mixer left, without drawer 60 732 8 87 109 R½ 50−65 39 13−45 R½ 30 85−23

Pagina 261-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

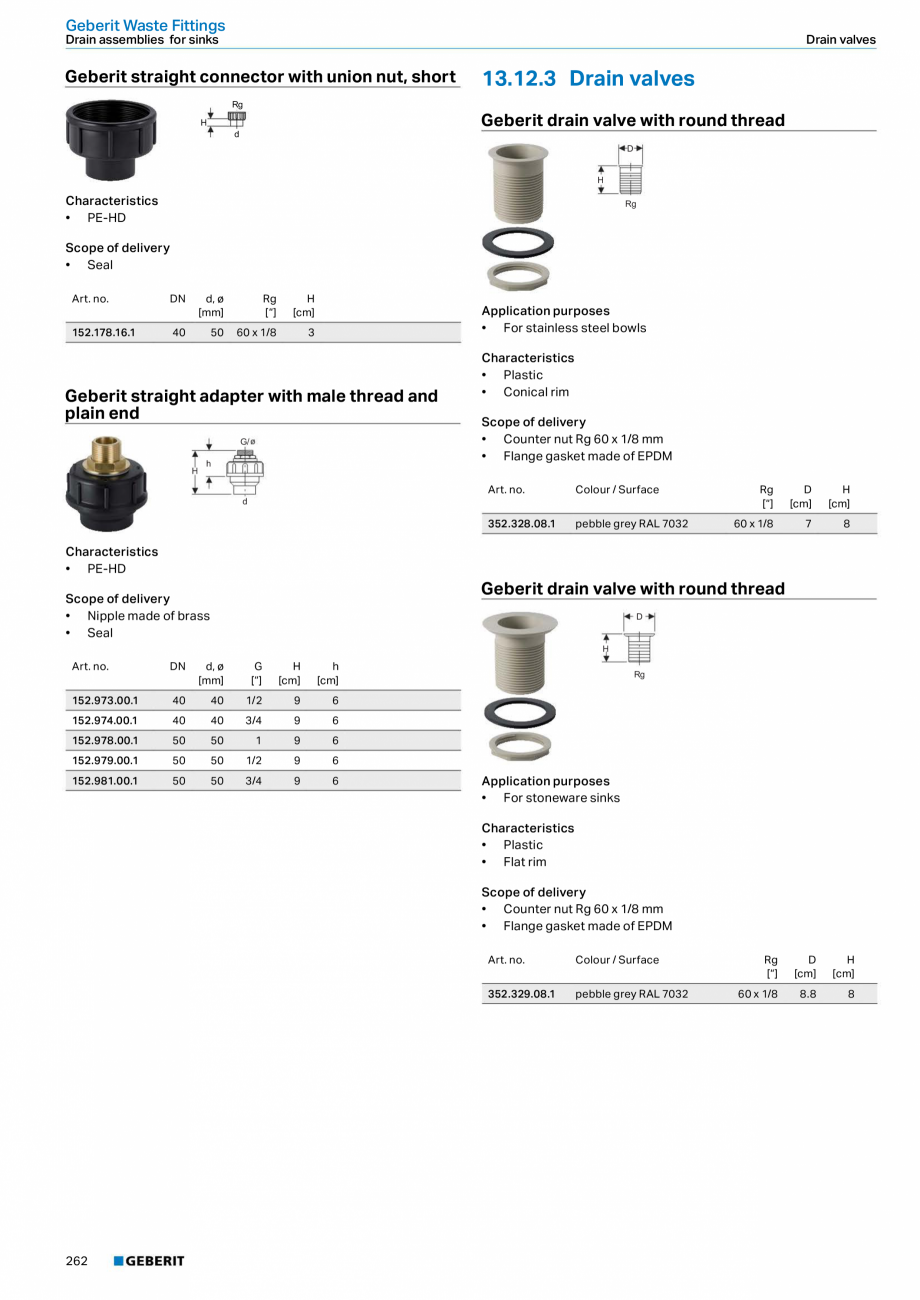

Pagina 262 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

5 1145 104 815 55 545−685 45−60 64 0 8−16 Application purposes • For renovations, conversions and new buildings • For concealed taps by Vola • For wall inlets • For wall-hung washbasins with a width of up to 70 cm • For wall-hung washbasins, bowl asymmetrical, with a width of up to 64 cm, with double towel rail • For wall-hung washbasins, bowl symmetrical, with a width of up to 55 cm, with double towel rail • For replacing wall-hung washbasins • For mounting on finished floors Characteristics • Service opening for trap, height-adjustable • Connection to drinking water supply integrated • Compensation of dimensional tolerances possible • Fastening distance for washbasin 13–31 cm, expandable to 45 cm • Front cladding made of glass (ESG) • Integrated fastening rail for attaching washbasin and double towel rail • Side cladding made of aluminium brushed • Self-supporting • Trap replaceable • Trap hidden and easily accessible • Pre-drilled

Pagina 262-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 263 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

for concealed tap for two-hole wall-mounted tap Technical data Flow pressure 1-10 bar Maximum thermal disinfection 80 °C Scope of delivery • Washbasin element with front and side cladding • Cover profile for fastening rail • Water supply connection set with 3 reinforced braided hoses, 2 connection bends 90° Rp 1/2 and G 3/8 and 2 angle stop valves, 1/2“ • Trap with straight connector and union nut G 1 1/4 • Straight connector made of ASA, ø 32 mm • Straight connector made of ASA, ø 40 mm • Set of seals • Fastening plate for mixer for two-hole wall-mounted tap • Fastening material for solid wall Art. no. Colour / Surface 131.047.SI.1 white glass 131.047.SJ.1 black glass 131.047.SQ.1 umber glass 139 Geberit Monolith Sanitary modules for washbasins For deck-mounted taps 6.2.2 For deck-mounted taps Geberit Monolith sanitary module for washbasin, 114 cm, for deck-mounted tap, drawers left and right 60 732 ≥ 30 30 87 0−23 109 R½ 50−65

Pagina 263-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 264 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

13−45 39 85−235 1145 R½ Application purposes • For renovations, conversions and new buildings • For deck-mounted taps • For wall inlets • For wall-hung washbasins with a width of up to 70 cm • For wall-hung washbasins, bowl asymmetrical, with a width of up to 64 cm, with double towel rail • For wall-hung washbasins, bowl symmetrical, with a width of up to 55 cm, with double towel rail • For replacing wall-hung washbasins • For mounting on finished floors Characteristics • Service opening for trap, height-adjustable • Connection to drinking water supply integrated • Compensation of dimensional tolerances possible • Fastening distance for washbasin 13–31 cm, expandable to 45 cm • Front cladding made of glass (ESG) • Integrated fastening rail for attaching washbasin and double towel rail • Side cladding made of aluminium brushed • Drawers that can be pulled out at the sides, with mechanical opening support • Self-supporting • Trap replaceabl

Pagina 264-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 265 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

e • Trap hidden and easily accessible 55 64 0 8−16 140 545−615 45−53 815 Technical data Flow pressure 1-10 bar Maximum thermal disinfection 80 °C Scope of delivery • Washbasin element with front and side cladding • 2 drawers (left and right) with telescopic slide • Cover profile for fastening rail • 2 angle stop valves, 1/2“ • Trap with straight connector and union nut G 1 1/4 • Straight connector made of ASA, ø 32 mm • Straight connector made of ASA, ø 40 mm • Set of seals • Valve extension • Fastening material for solid wall Art. no. Colour / Surface 131.050.SI.1 white glass 131.050.SJ.1 black glass 131.050.SQ.1 umber glass Geberit Monolith For deck-mounted taps Sanitary modules for washbasins Geberit Monolith sanitary module for washbasin, 114 cm, for deck-mounted tap, drawer left 60 732 ≥ 30 30 87 0−23 109 R½ 50−65 13−45 39 85−235 1145 R½ 545−615 45−53 815 Characteristics • Service opening for t

Pagina 265-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 266 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

rap, height-adjustable • Connection to drinking water supply integrated • Compensation of dimensional tolerances possible • Fastening distance for washbasin 13–31 cm, expandable to 45 cm • Front cladding made of glass (ESG) • Integrated fastening rail for attaching washbasin and double towel rail • Side cladding made of aluminium brushed • Drawers that can be pulled out at the sides, with mechanical opening support • Self-supporting • Trap replaceable • Trap hidden and easily accessible 64 0 8−16 Application purposes • For renovations, conversions and new buildings • For deck-mounted taps • For wall inlets • For wall-hung washbasins with a width of up to 70 cm • For wall-hung washbasins, bowl asymmetrical, with a width of up to 64 cm, with double towel rail • For wall-hung washbasins, bowl symmetrical, with a width of up to 55 cm, with double towel rail • For replacing wall-hung washbasins • For mounting on finished floors 55 Technical data

Pagina 266-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 267 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

Flow pressure 1-10 bar Maximum thermal disinfection 80 °C Scope of delivery • Washbasin element with front and side cladding • Drawer, left, with telescopic slide • Cover profile for fastening rail • 2 angle stop valves, 1/2“ • Trap with straight connector and union nut G 1 1/4 • Straight connector made of ASA, ø 32 mm • Straight connector made of ASA, ø 40 mm • Set of seals • Valve extension • Fastening material for solid wall Art. no. Colour / Surface 131.048.SI.1 white glass 131.048.SJ.1 black glass 131.048.SQ.1 umber glass 141 Geberit Monolith Sanitary modules for washbasins For deck-mounted taps Geberit Monolith sanitary module for washbasin, 114 cm, for deck-mounted tap, drawer right 732 60 ≥ 30 0−23 13−45 30 87 109 R½ 50−65 39 85−235 1145 R½ 545−615 45−53 815 Characteristics • Service opening for trap, height-adjustable • Connection to drinking water supply integrated • Compensation of dimensional tol

Pagina 267-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 268 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

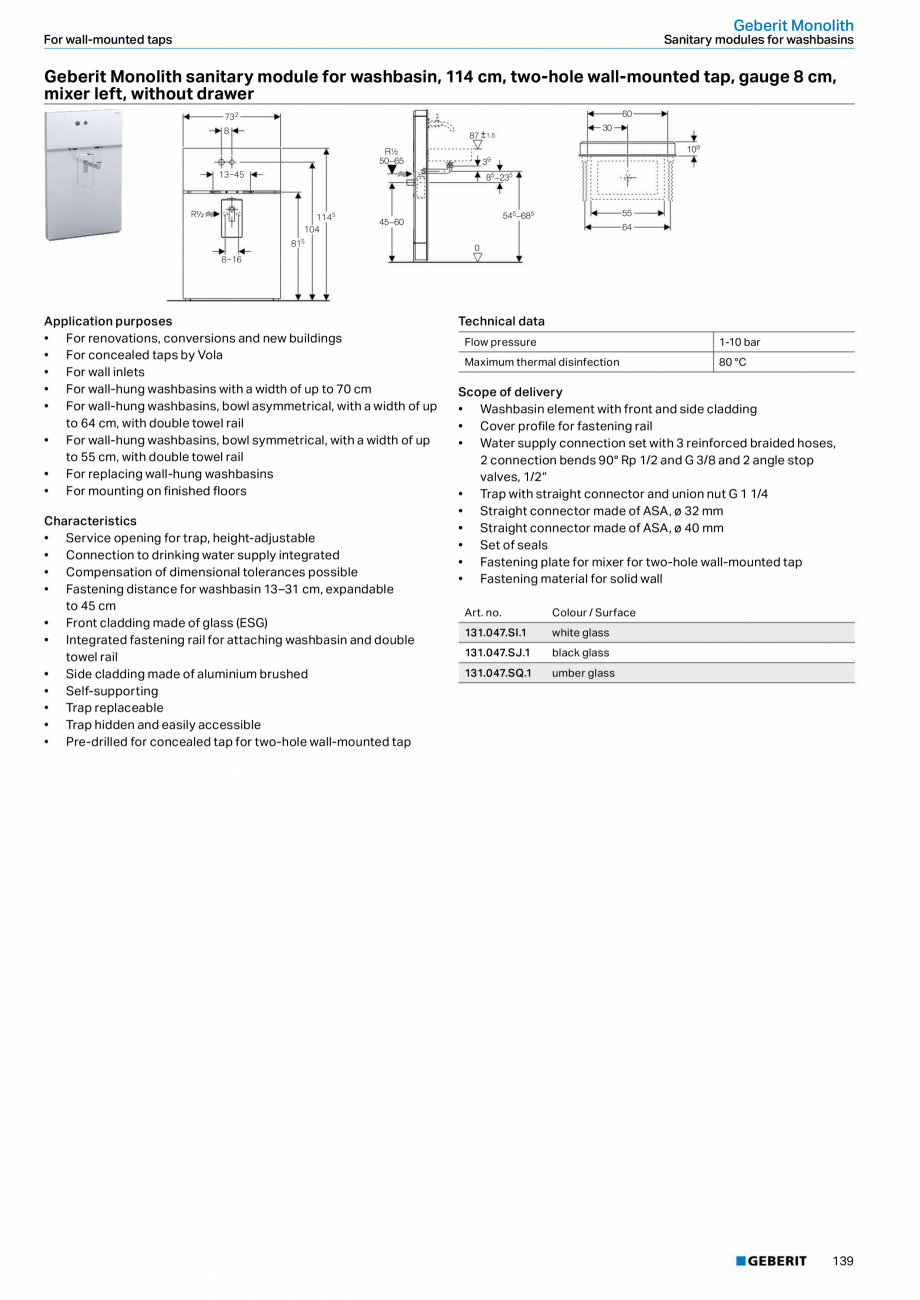

erances possible • Fastening distance for washbasin 13–31 cm, expandable to 45 cm • Front cladding made of glass (ESG) • Integrated fastening rail for attaching washbasin and double towel rail • Side cladding made of aluminium brushed • Drawers that can be pulled out at the sides, with mechanical opening support • Self-supporting • Trap replaceable • Trap hidden and easily accessible 142 64 0 8−16 Application purposes • For renovations, conversions and new buildings • For deck-mounted taps • For wall inlets • For wall-hung washbasins with a width of up to 70 cm • For wall-hung washbasins, bowl asymmetrical, with a width of up to 64 cm, with double towel rail • For wall-hung washbasins, bowl symmetrical, with a width of up to 55 cm, with double towel rail • For replacing wall-hung washbasins • For mounting on finished floors 55 Technical data Flow pressure 1-10 bar Maximum thermal disinfection 80 °C Scope of delivery • Washbasin element

Pagina 268-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

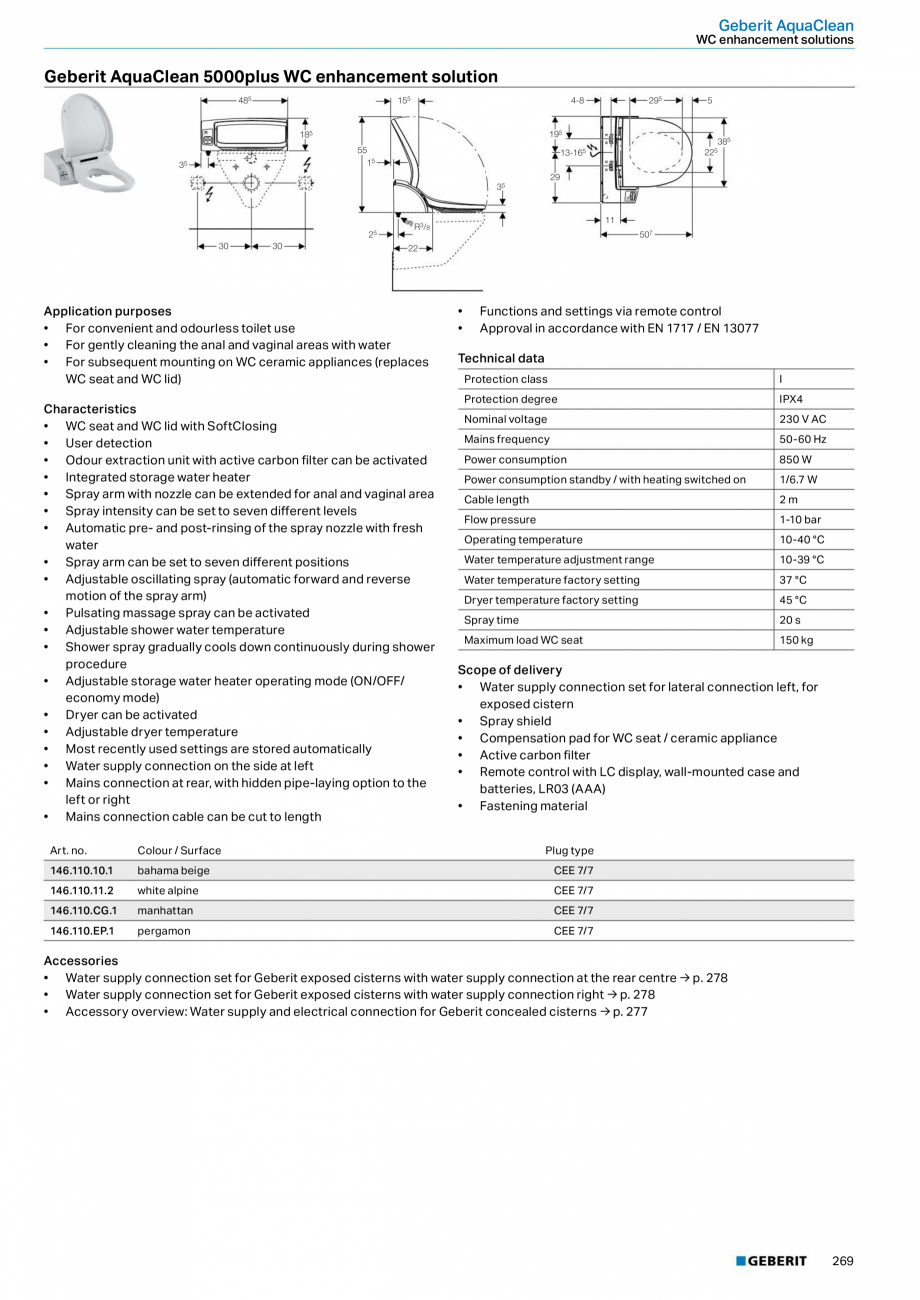

Pagina 269 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

with front and side cladding • Drawer, right, with telescopic slide • Cover profile for fastening rail • 2 angle stop valves, 1/2“ • Trap with straight connector and union nut G 1 1/4 • Straight connector made of ASA, ø 32 mm • Straight connector made of ASA, ø 40 mm • Set of seals • Valve extension • Fastening material for solid wall Art. no. Colour / Surface 131.049.SI.1 white glass 131.049.SJ.1 black glass 131.049.SQ.1 umber glass Geberit Monolith For deck-mounted taps Sanitary modules for washbasins Geberit Monolith sanitary module for washbasin, 114 cm, for deck-mounted tap, without drawer 60 732 30 87 109 R½ 50−65 13−45 39 85−235 1145 R½ 815 8−16 Application purposes • For renovations, conversions and new buildings • For deck-mounted taps • For wall inlets • For wall-hung washbasins with a width of up to 70 cm • For wall-hung washbasins, bowl asymmetrical, with a width of up to 64 cm, with double towel rail • For w

Pagina 269-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

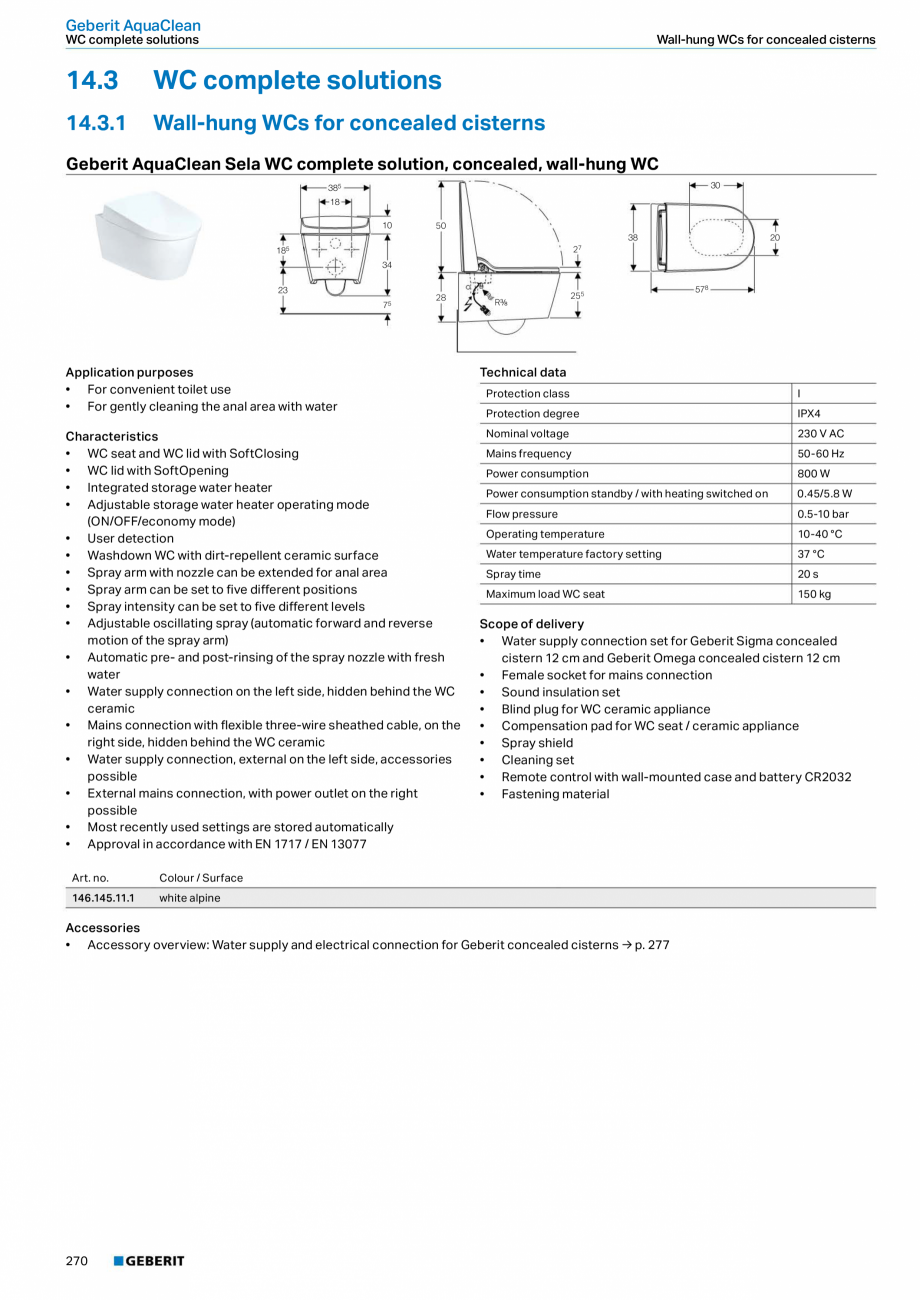

Pagina 270 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

all-hung washbasins, bowl symmetrical, with a width of up to 55 cm, with double towel rail • For replacing wall-hung washbasins • For mounting on finished floors Characteristics • Service opening for trap, height-adjustable • Connection to drinking water supply integrated • Compensation of dimensional tolerances possible • Fastening distance for washbasin 13–31 cm, expandable to 45 cm • Front cladding made of glass (ESG) • Integrated fastening rail for attaching washbasin and double towel rail • Side cladding made of aluminium brushed • Self-supporting • Trap replaceable • Trap hidden and easily accessible 55 545−615 45−53 64 0 Technical data Flow pressure 1-10 bar Maximum thermal disinfection 80 °C Scope of delivery • Washbasin element with front and side cladding • Cover profile for fastening rail • 2 angle stop valves, 1/2“ • Trap with straight connector and union nut G 1 1/4 • Straight connector made of ASA, ø 32 mm • Straight

Pagina 270-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

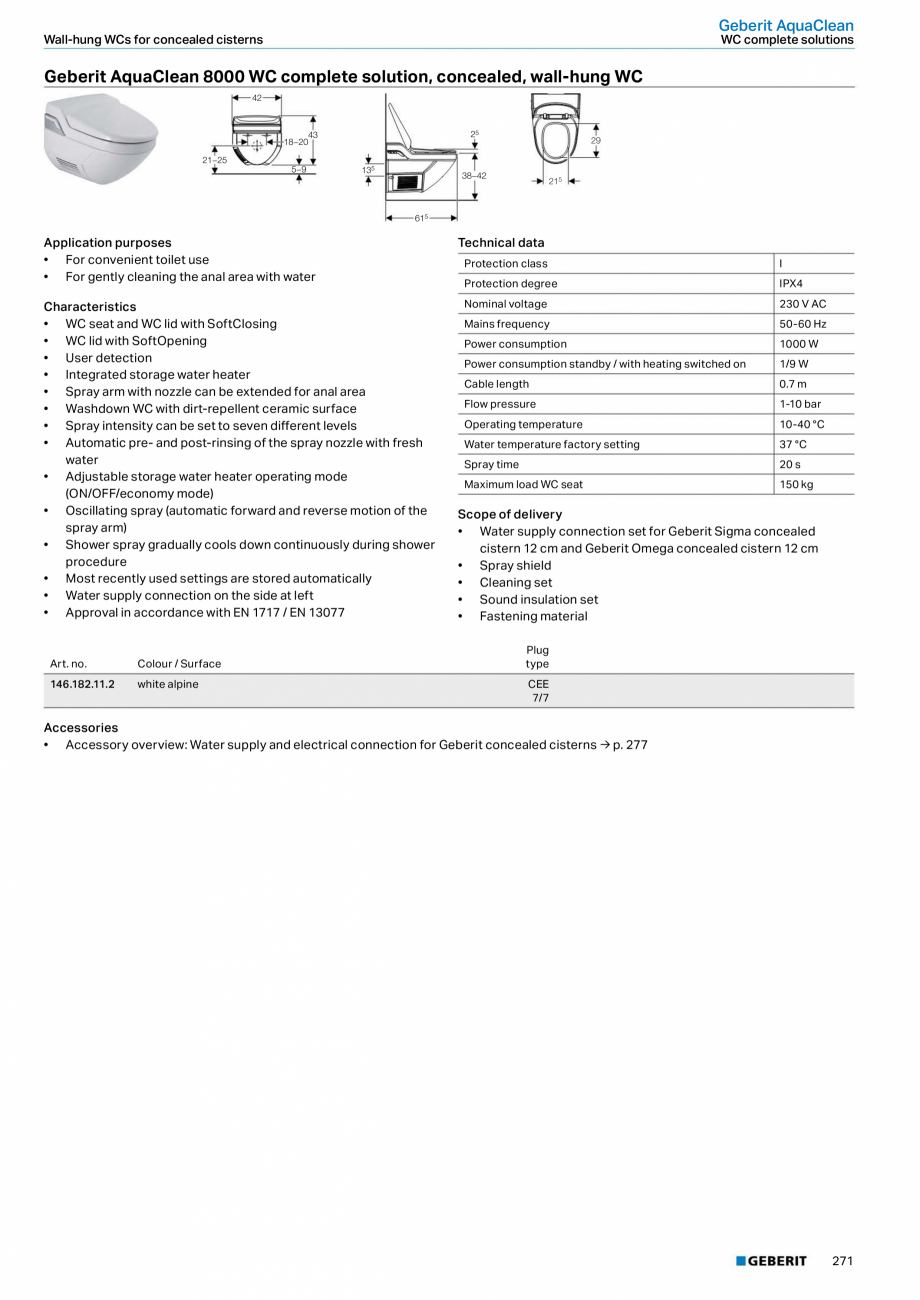

Pagina 271 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

connector made of ASA, ø 40 mm • Set of seals • Valve extension • Fastening material for solid wall Art. no. Colour / Surface 131.051.SI.1 white glass 131.051.SJ.1 black glass 131.051.SQ.1 umber glass 143 Geberit Monolith Sanitary modules for washbasins Accessories 6.2.3 Accessories Double towel rail for Geberit Monolith sanitary module for washbasin Soap dispenser for Geberit Monolith sanitary module for washbasin with drawers 112 Characteristics • Towel rail, Emco Loft series • Chrome-plated 81 159 Application purposes • For Geberit Monolith sanitary modules for washbasin with drawer Scope of delivery • Fastening material Art. no. Colour / Surface 131.109.21.1 bright chrome-plated 34 131.110.21.1 bright chrome-plated Characteristics • Fastening in drawer with magnetic tape L [cm] 44 Art. no. 131.119.00.1 Rail for Geberit Monolith sanitary module for washbasin Fastening set for Geberit Monolith sanitary module for washbasin, for instal

Pagina 271-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

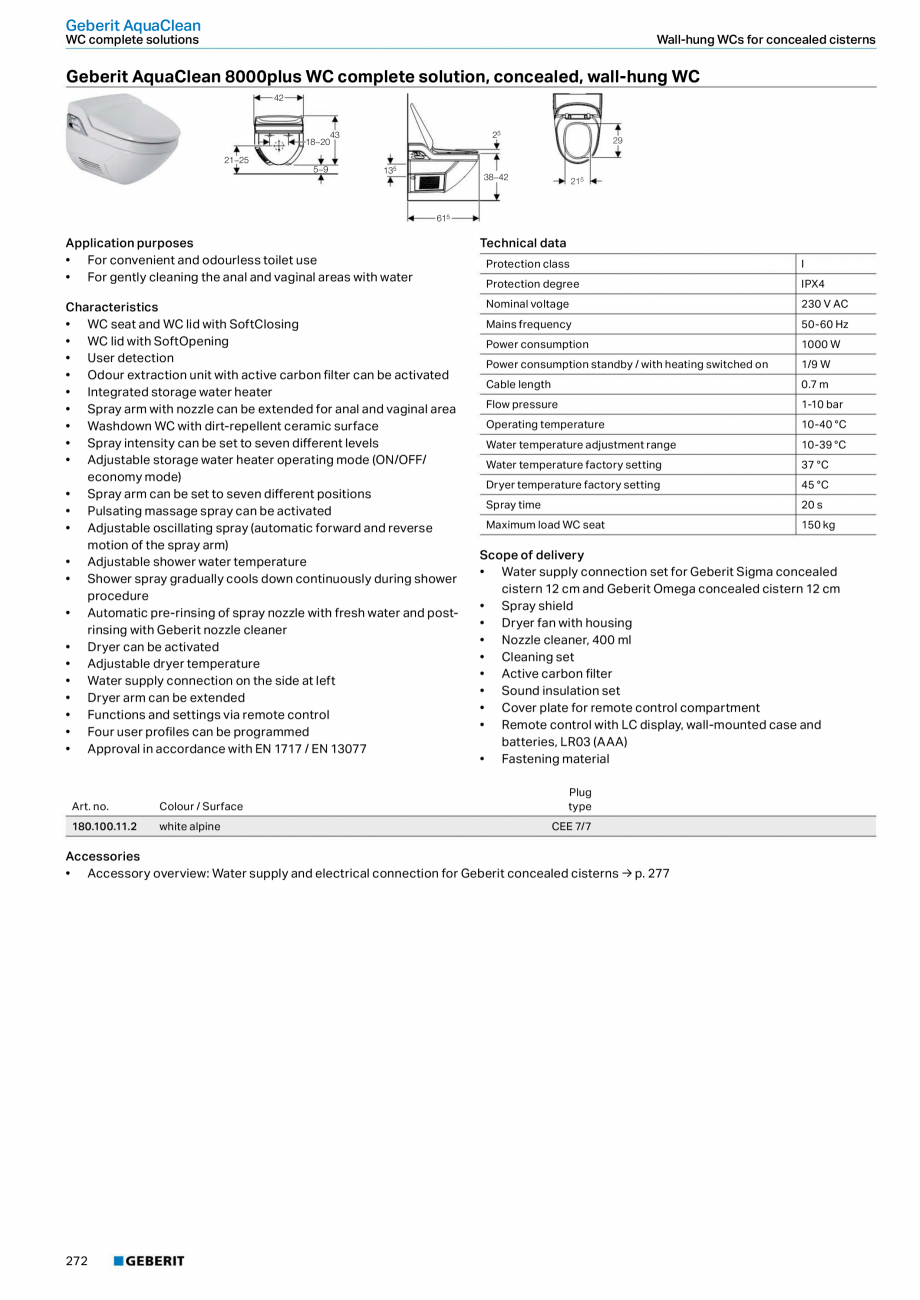

Pagina 272 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

lation with existing hanger bolts B L Application purposes • For Geberit Monolith sanitary modules for washbasin with drawer • For top, short drawer compartment • For long drawer compartments, bottom Application purposes • For Geberit Monolith sanitary modules for washbasin Characteristics • Fastening in drawer with magnetic tape Scope of delivery • Set of 2 pieces Art. no. Colour / Surface 131.129.94.1 131.137.94.1 144 B [cm] L [cm] iron grey RAL 7011 3.2 22 iron grey RAL 7011 3.2 15.9 Art. no. 131.099.00.1 Geberit Monolith For wall-hung and floor-standing bidets Sanitary modules for bidets 6.3 Sanitary modules for bidets 6.3.1 For wall-hung and floor-standing bidets Geberit Monolith sanitary module for bidet, 101 cm 106 485 18 101 0 Application purposes • For renovations, conversions and new buildings • For floor-standing and wall-hung bidets • For deck-mounted taps • For wall inlets • For water supply connections at the bottom • Fo

Pagina 272-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 273 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

r replacing wall-hung and floor-standing bidets • For mounting on finished floors Characteristics • Compensation of dimensional tolerances possible • Fastening distance for wall-hung bidet 18 cm • Front cladding made of glass (ESG) • Wall inlet height 8–21 cm from finished floor • Fastening height wall-hung bidet 35 ± 1 cm • Side cladding made of aluminium brushed • Self-supporting • Water supply connection on the bottom 0 Technical data Maximum operating pressure 10 bar Maximum thermal disinfection 80 °C Scope of delivery • Element for bidet with front and side cladding • Water supply connection set • Trap • Fastening material for solid wall Art. no. Colour / Surface 131.030.SI.1 white glass 131.030.SJ.1 black glass 131.030.SQ.1 umber glass 145 Geberit Exposed Cisterns 7. Geberit Exposed Cisterns 7.1 Exposed cisterns for WCs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148 7.1.1 7.1.2 7.1.3

Pagina 273-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 274 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

Close-coupled . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148 High-level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149 Low and half-high level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150 7.2 Flush pipes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154 7.2.1 For exposed cisterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154 7.3 Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157 7.3.1 7.3.2 7.3.3 Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157 Angle valves

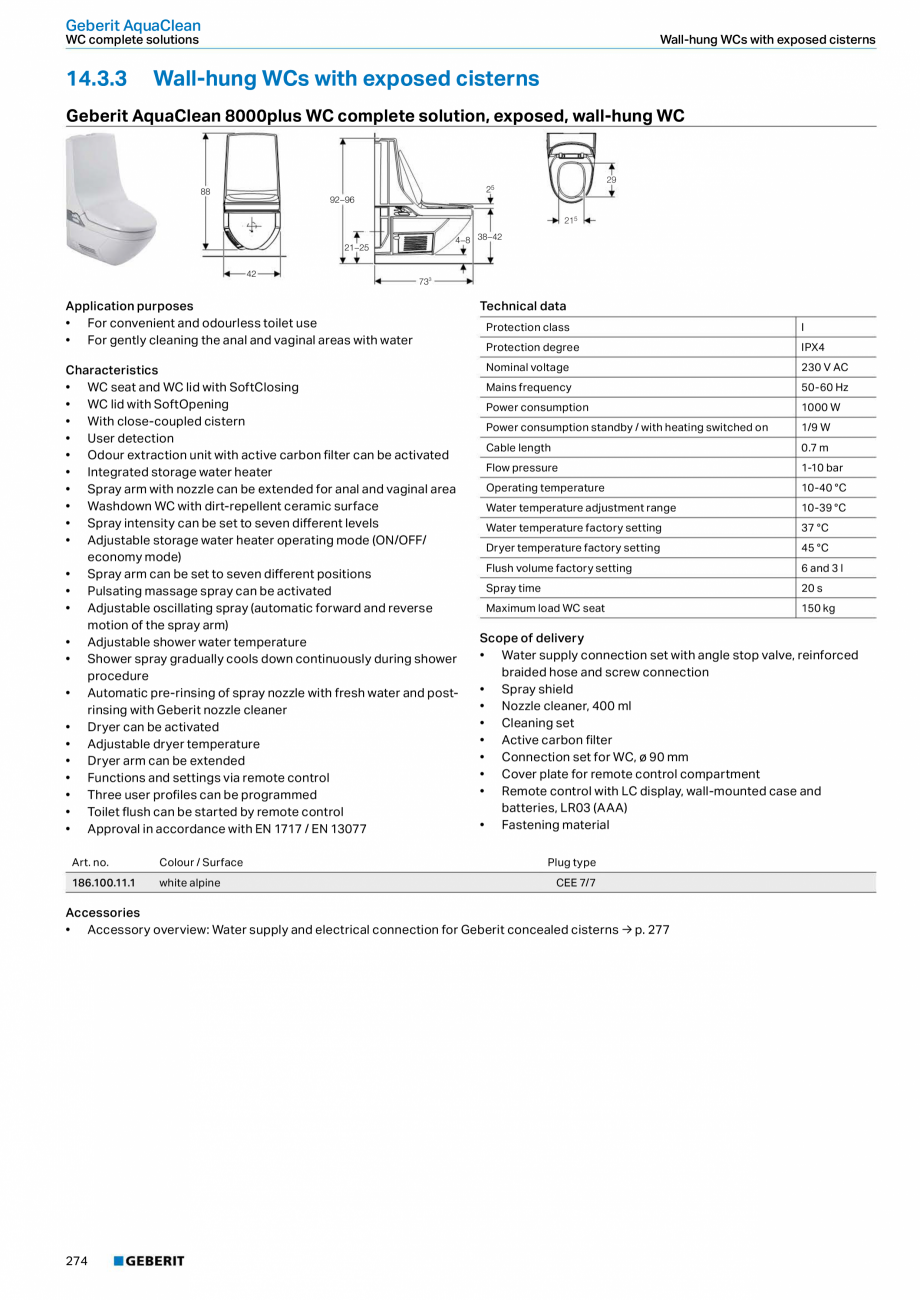

Pagina 274-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

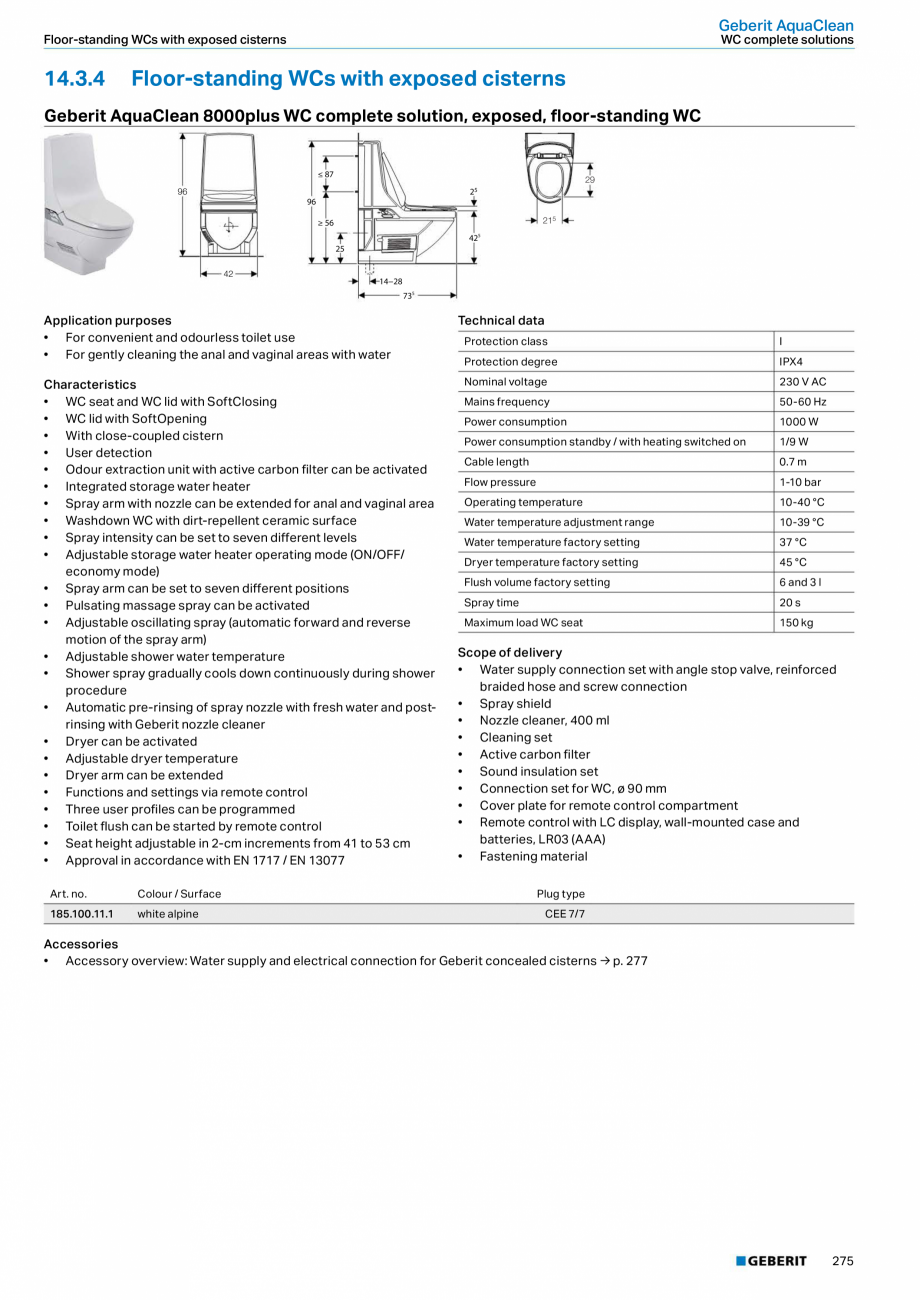

Pagina 275 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157 Sleeves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157 147 Geberit Exposed Cisterns Exposed cisterns for WCs Close-coupled 7.1 Exposed cisterns for WCs 7.1.1 Close-coupled Geberit exposed cistern AP128, dual flush, water supply connection at the rear centre, with cistern lid made of melamine 40 168 745±2 � � 45 8 825 22 � 405 0 85 0 30 Characteristics • Dual flush • Close-coupled • Cistern fully insulated against condensation • Cistern lid, cigarette burn resistant • Water supply connection at the rear centre Technical data Flush volume factory setting 9 and 4 l Flush volume large adjustment range 6/9l Flush volume small adjustment range 3/4l Scope of delivery • Angle stop valve, 1/2“ • Fastening material Art. no. Colour / Surfac

Pagina 275-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 276 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

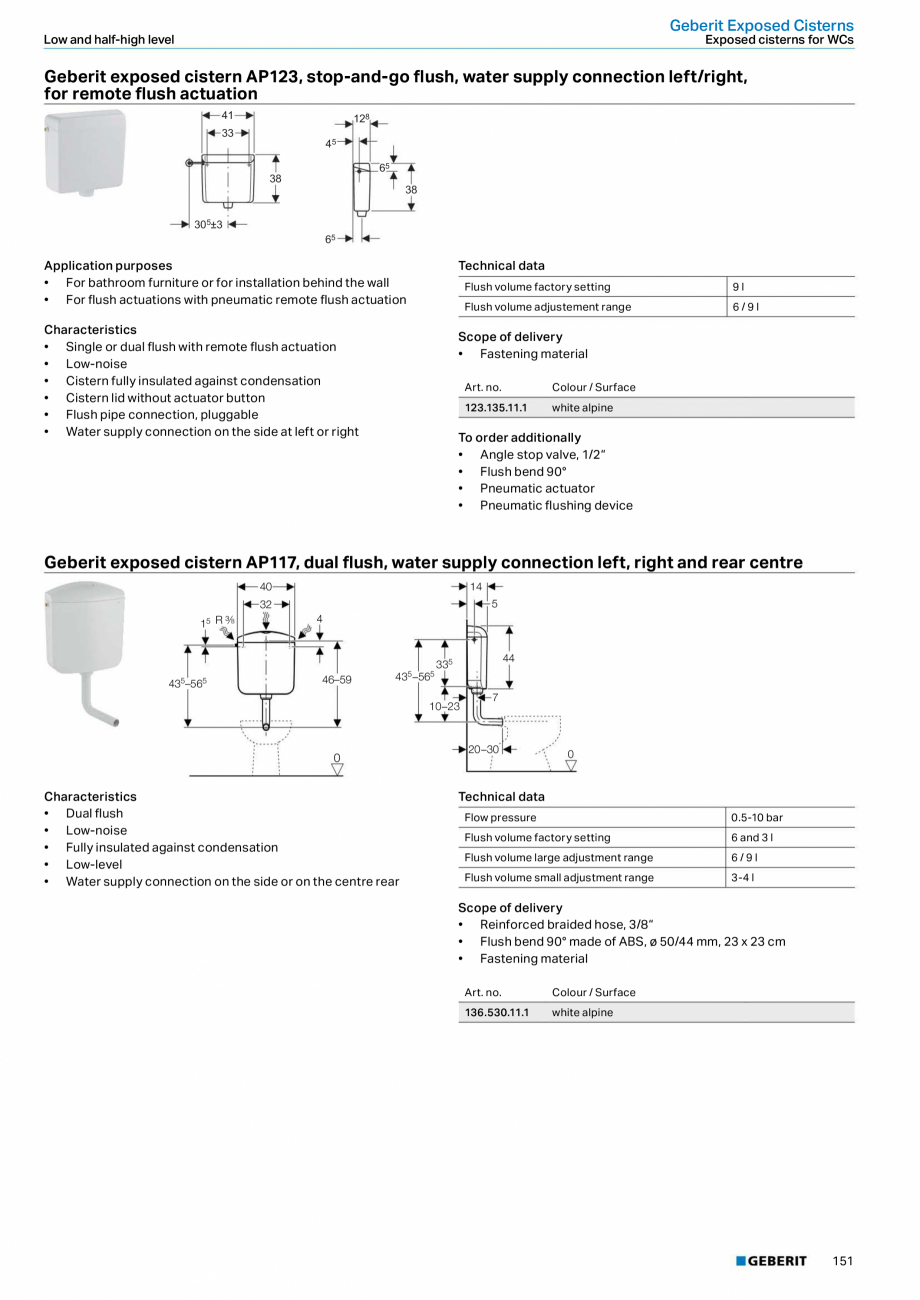

e 128.300.11.1 white alpine Geberit exposed cistern AP117, dual flush, water supply connection left, right and rear centre 40 14 5 R ³⁄8 345 14−235 37 0 345 44 7 Characteristics • Dual flush • Close-coupled • Low-noise • Fully insulated against condensation • Water supply connection on the side or on the centre rear 0 Technical data Flow pressure 0.5-10 bar Flush volume factory setting 6 and 3 l Flush volume large adjustment range 6/9l Flush volume small adjustment range 3-4 l Scope of delivery • Fastening material Art. no. 148 Colour / Surface 136.535.11.1 white alpine Geberit Exposed Cisterns High-level Exposed cisterns for WCs 7.1.2 High-level Geberit exposed cistern AP123, single flush, water supply connection left/right, with draw chain 41 128 33 205±6 45 65 38 305±3 65 2115 0 Scope of delivery • Draw chain • Damming device • Fastening material Application purposes • For mechanical remote flush actuation Characte

Pagina 276-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 277 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

ristics • Single flush • High-level • Cistern fully insulated against condensation • Flush pipe connection with compression joint • Cistern lid without actuator button • Water supply connection on the side at left or right Art. no. Technical data Colour / Surface 123.700.11.1 white alpine • Flush volume factory setting 9l Flush volume adjustement range 6/9l • • For flush pipes for exposed installation, dia. 32 mm, see page 156 ff For flush pipes oriental WC, exposed installation, see Article 119.503 and 242.018, page 158 For flush pipes for concealed installation see Article no. 119.611 or 119.626 and 119.610, 118.026, page 156 ff Geberit exposed cistern AP123, single flush, water supply connection left/right, for remote flush actuation 41 128 33 45 65 38 305±3 38 65 Application purposes • For flush actuations with pneumatic remote flush actuation Characteristics • Single or dual flush with remote flush actuation • High-level • Cistern fu

Pagina 277-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 278 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

lly insulated against condensation • Flush pipe connection with compression joint • Cistern lid without actuator button • Water supply connection on the side at left or right Technical data Flush volume factory setting 9l Flush volume adjustement range 6/9l Scope of delivery • Damming device • Fastening material Art. no. Colour / Surface 123.701.11.1 white alpine To order additionally • Angle stop valve, 1/2“ • Pneumatic actuator • Pneumatic flushing device 149 Geberit Exposed Cisterns Exposed cisterns for WCs Low and half-high level 7.1.3 Low and half-high level N ew Geberit exposed cistern AP123, stop-and-go flush, water supply connection left/right 41 128 33 45 65 38 38 305±3 65 Characteristics • Cistern fully insulated against condensation • Flush pipe connection, pluggable • Stop-and-go flush • Low-level • Water supply connection on the side at left or right Technical data Flush volume factory setting 6l Flush volume adjustement

Pagina 278-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 279 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

range 6/9l Scope of delivery • Flush bend 90° made of ABS, ø 50/44 mm, 23 x 23 cm • Fastening material Art. no. Colour / Surface 123.105.11.1 white alpine Geberit exposed cistern AP123, stop-and-go flush, water supply connection left/right, for remote flush actuation 41 128 33 45 65 38 38 305±3 65 Application purposes • For bathroom furniture or for installation behind the wall • For thin walls of max. 70 mm thickness in combination with floor-standing WCs • For flush actuations with pneumatic remote flush actuation Characteristics • Single or dual flush with remote flush actuation • Low-noise • Cistern fully insulated against condensation • Cistern lid without actuator button • Flush pipe connection, pluggable • Low-level • Water supply connection on the side at left or right 150 Technical data Flush volume factory setting 6l Flush volume adjustement range 6/9l Scope of delivery • Flush bend 90° made of PE-HD, ø 50/44 mm, 38 x 5.2 cm

Pagina 279-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

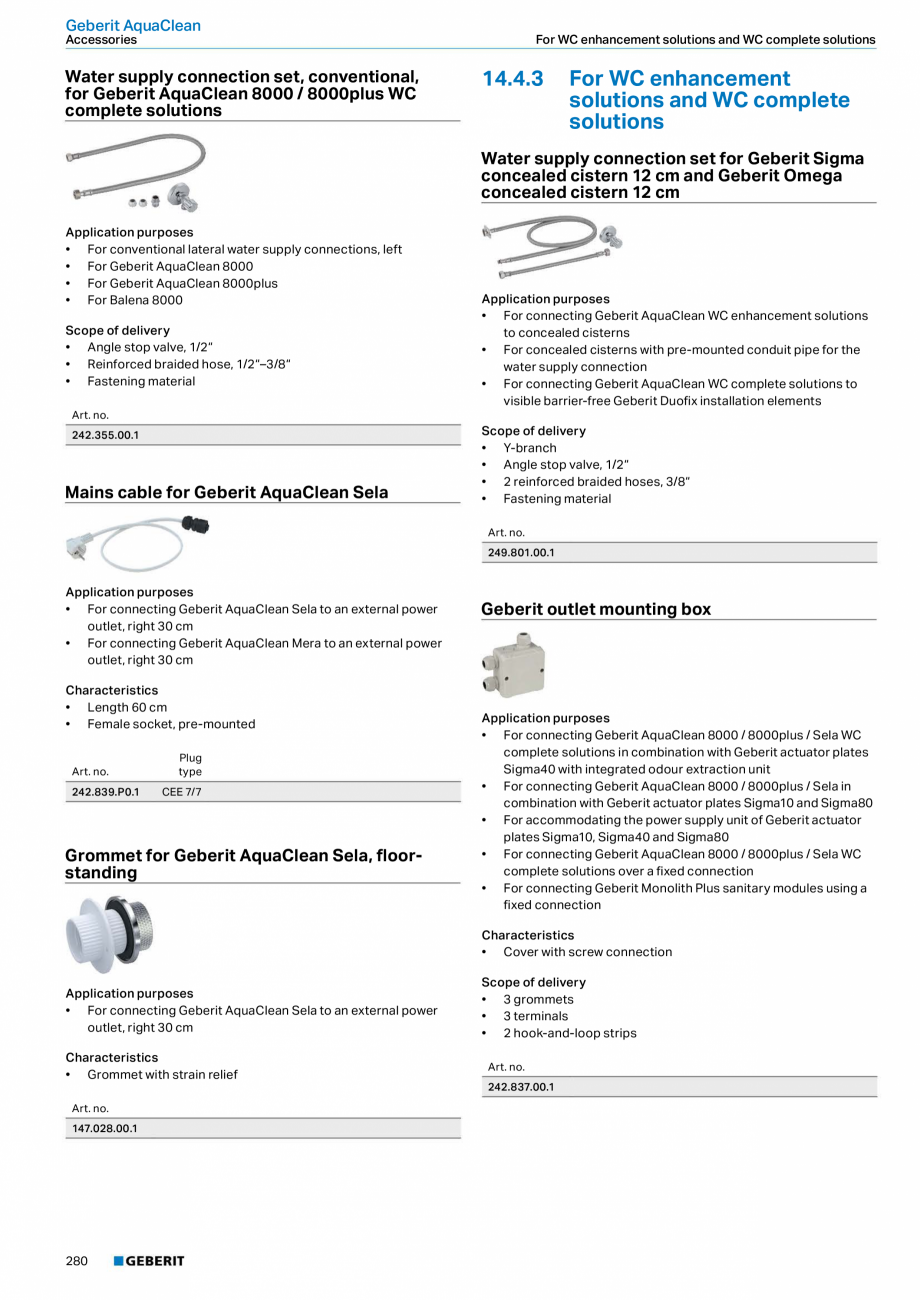

Pagina 280 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

• Fastening material Art. no. Colour / Surface 123.136.11.1 white alpine To order additionally • Angle stop valve, 1/2“ • Pneumatic actuator • Pneumatic flushing device Geberit Exposed Cisterns Low and half-high level Exposed cisterns for WCs Geberit exposed cistern AP123, stop-and-go flush, water supply connection left/right, for remote flush actuation 41 128 33 45 65 38 38 305±3 65 Application purposes • For bathroom furniture or for installation behind the wall • For flush actuations with pneumatic remote flush actuation Technical data Flush volume factory setting Characteristics • Single or dual flush with remote flush actuation • Low-noise • Cistern fully insulated against condensation • Cistern lid without actuator button • Flush pipe connection, pluggable • Water supply connection on the side at left or right 9l Flush volume adjustement range 6/9l Scope of delivery • Fastening material Art. no. Colour / Surface 123.135.11.1 w

Pagina 280-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 281 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

hite alpine To order additionally • Angle stop valve, 1/2“ • Flush bend 90° • Pneumatic actuator • Pneumatic flushing device Geberit exposed cistern AP117, dual flush, water supply connection left, right and rear centre 14 40 5 32 15 R ³⁄8 435–565 4 46–59 435−565 44 335 10−23 0 Characteristics • Dual flush • Low-noise • Fully insulated against condensation • Low-level • Water supply connection on the side or on the centre rear 7 20−30 0 Technical data Flow pressure 0.5-10 bar Flush volume factory setting 6 and 3 l Flush volume large adjustment range 6/9l Flush volume small adjustment range 3-4 l Scope of delivery • Reinforced braided hose, 3/8“ • Flush bend 90° made of ABS, ø 50/44 mm, 23 x 23 cm • Fastening material Art. no. Colour / Surface 136.530.11.1 white alpine 151 Geberit Exposed Cisterns Exposed cisterns for WCs Low and half-high level Geberit exposed cistern AP116, dual flush, with insert for in-cis

Pagina 281-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 282 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

tern block 34 135 23 5 3 R ³⁄8 43 335 465−595 435−565 435−565 7 10−23 20−30 0 Characteristics • Dual flush • Low-noise • Hinged flush plate for insertion of in-cistern blocks • Fully insulated against condensation • Low-level • Water supply connection on the side or on the centre rear Technical data Flow pressure 0.5-10 bar Flush volume factory setting 6 and 3 l Flush volume large adjustment range 6-7.5 l Flush volume small adjustment range 3-4.5 l Material ABS Scope of delivery • Reinforced braided hose, 3/8“ • Receptacle for in-cistern block • Flush bend 90° made of ABS, ø 50/44 mm, 23 x 23 cm • Sleeve made of EPDM, ø 44/55 mm • Fastening material Art. no. Colour / Surface 136.444.11.1 white alpine Geberit exposed cistern AP116, dual flush 34 135 23 R ³⁄8 435−565 5 3 465−595 43 335 435−565 10−23 0 Characteristics • Fully insulated against condensation • Water supply connection on the side or on

Pagina 282-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 283 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

the centre rear 7 20−30 Technical data Flow pressure 0.5-10 bar Flush volume factory setting 6 and 3 l Flush volume large adjustment range 6-7.5 l Flush volume small adjustment range 3-4.5 l Material ABS Scope of delivery • Reinforced braided hose, 3/8“ • Copper pipe, bent • Flush bend 90° made of ABS, ø 50/44 mm, 23 x 23 cm • Sleeve made of EPDM, ø 44/55 mm • Fastening material Art. no. 136.430.11.1 152 Colour / Surface white alpine Geberit Exposed Cisterns Low and half-high level Exposed cisterns for WCs Geberit exposed cistern AP110, stop-and-go flush 41 15 R ³⁄8 23 135 5 4 39 34 44−57 465−595 44−57 10−23 0 Characteristics • Low-noise • Stop-and-go flush • Fully insulated against condensation • Low-level • Water supply connection on the side or on the centre rear 6 19−29 0 Technical data Flow pressure 0.5-10 bar Flush volume factory setting 9l Flush volume adjustement range 6/9l Scope of delivery • Flu

Pagina 283-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 284 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

sh bend 90° made of ABS, ø 50/44 mm, 23 x 23 cm • Fastening material Art. no. Colour / Surface 136.603.11.1 white alpine 153 Geberit Exposed Cisterns Flush pipes For exposed cisterns 7.2 Flush pipes 7.2.1 For exposed cisterns Geberit flush bend extension 90°, 24 x 12 cm, with collar Geberit flush bend 90°, 156 x 24 cm, offset A d 2 K X X d 75 d X1 d Application purposes • For connecting high-level Geberit exposed cisterns with a concealed flush bend Application purposes • For connecting high-level Geberit exposed cisterns with a WC ceramic appliance Technical data Material PVC Art. no. Colour / Surface 119.610.11.1 X1 d, ø [mm] X [cm] X1 [cm] white alpine 32 24 12 Geberit flush bend 90°, 28 cm, for thick walls Technical data Material PVC Scope of delivery • 2 pipe straps • Fastening material Art. no. Colour / Surface 119.504.11.1 white alpine d, ø [mm] A [cm] X [cm] X1 [cm] K [cm] 32 d 6.5 156 24 27 X d1 X1 Geberit flu

Pagina 284-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 285 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

sh bend set 90°, offset, with damming device and pipe strap L A Application purposes • For connecting WCs to exposed cisterns mounted behind the wall d K X Technical data Material Art. no. 118.200.16.1 PE-HD d, ø [mm] d1, ø [mm] L [cm] X [cm] X1 [cm] 50 45 28 28 4 X1 d1 X2 Application purposes • For connecting half-high level Geberit exposed cisterns with a WC ceramic appliance Technical data Material PVC Scope of delivery • Pipe strap • Compensation pad • Damming device Art. no. 118.100.11.1 154 Colour / Surface white alpine d, ø [mm] d1, ø [mm] A [cm] X [cm] X1 [cm] X2 [cm] K [cm] 50 44 6 53 50 22 14 Geberit Exposed Cisterns For exposed cisterns Flush pipes Geberit flush bend set 90°, telescopic, with recess shells and protection plug Geberit flush bend set 90°, telescopic, with recess shells and protection plug, for squat WC L L d d 5 5 L1 L1 68 7 7 G d1 L2 A L2 A Application purposes • For concealed connectio

Pagina 285-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

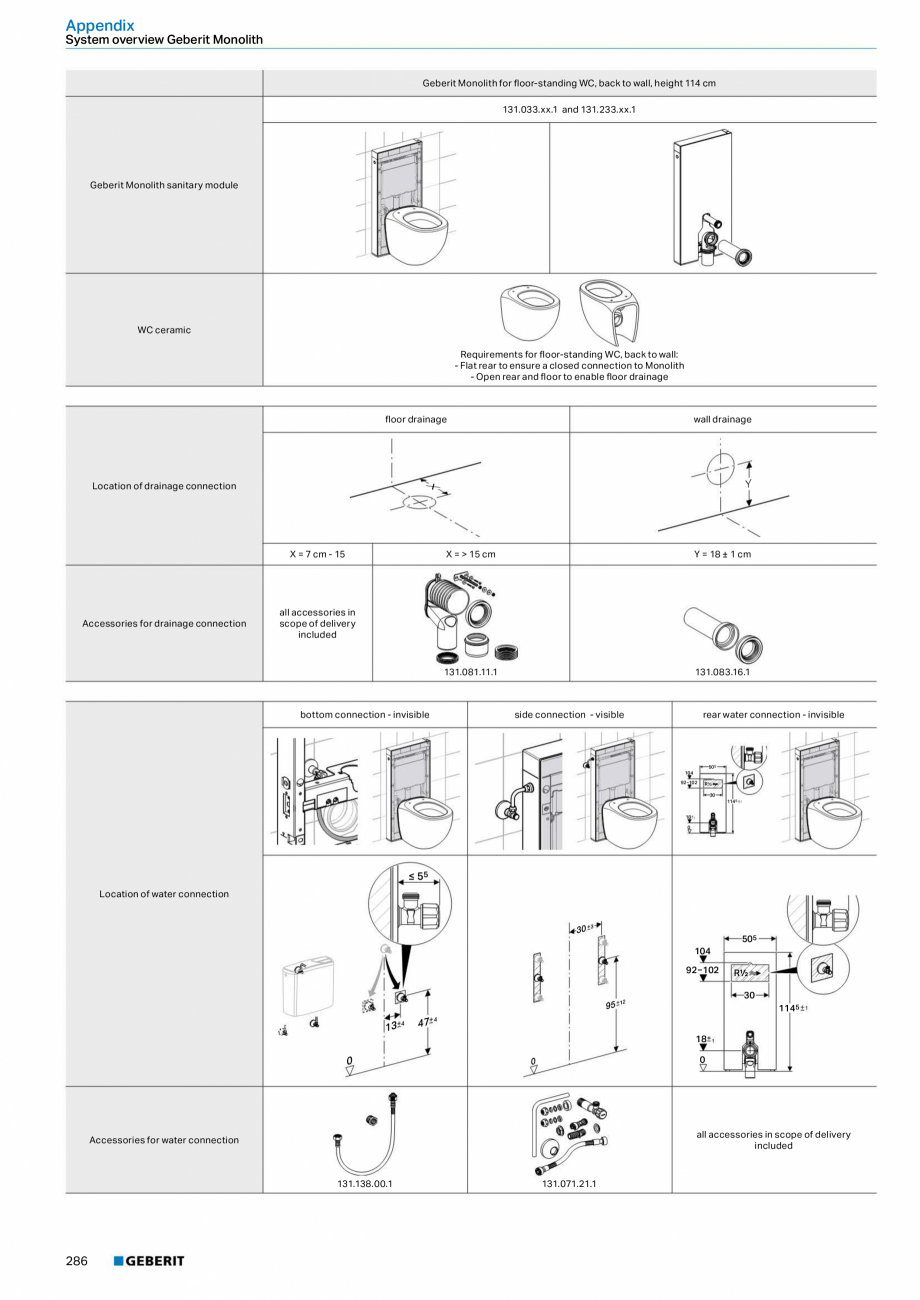

Pagina 286 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

n of high-level exposed cisterns with a WC ceramic appliance Characteristics • Three-piece • Can be pulled out Material Material PE-HD PE-HD Scope of delivery • Adhesive • Recess shells • 1 protection plug Scope of delivery • Flush bend with ring seal socket • Adhesive • Recess shells • 2 protection plugs 119.611.16.1 Characteristics • Three-piece • Can be pulled out Technical data Technical data Art. no. Application purposes • For concealed connection of high-level exposed cisterns with squat WCs Art. no. d, ø [mm] d1, ø [mm] A [cm] L [cm] L1 [cm] L2 [cm] 32 45 9.5 7.5 173 Colour / Surface 119.626.11.1 d, ø [mm] white alpine G [“] A [cm] L [cm] L1 [cm] L2 [cm] 32 1 1/4 10 7.3 173 7.6 7 Geberit flush bend extension 90° with ring seal socket d 115 d 30 Application purposes • For extending flush bends on high-level Geberit exposed cisterns Technical data Material PVC Scope of delivery • Adhesive Art. no. Colour

Pagina 286-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 287 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

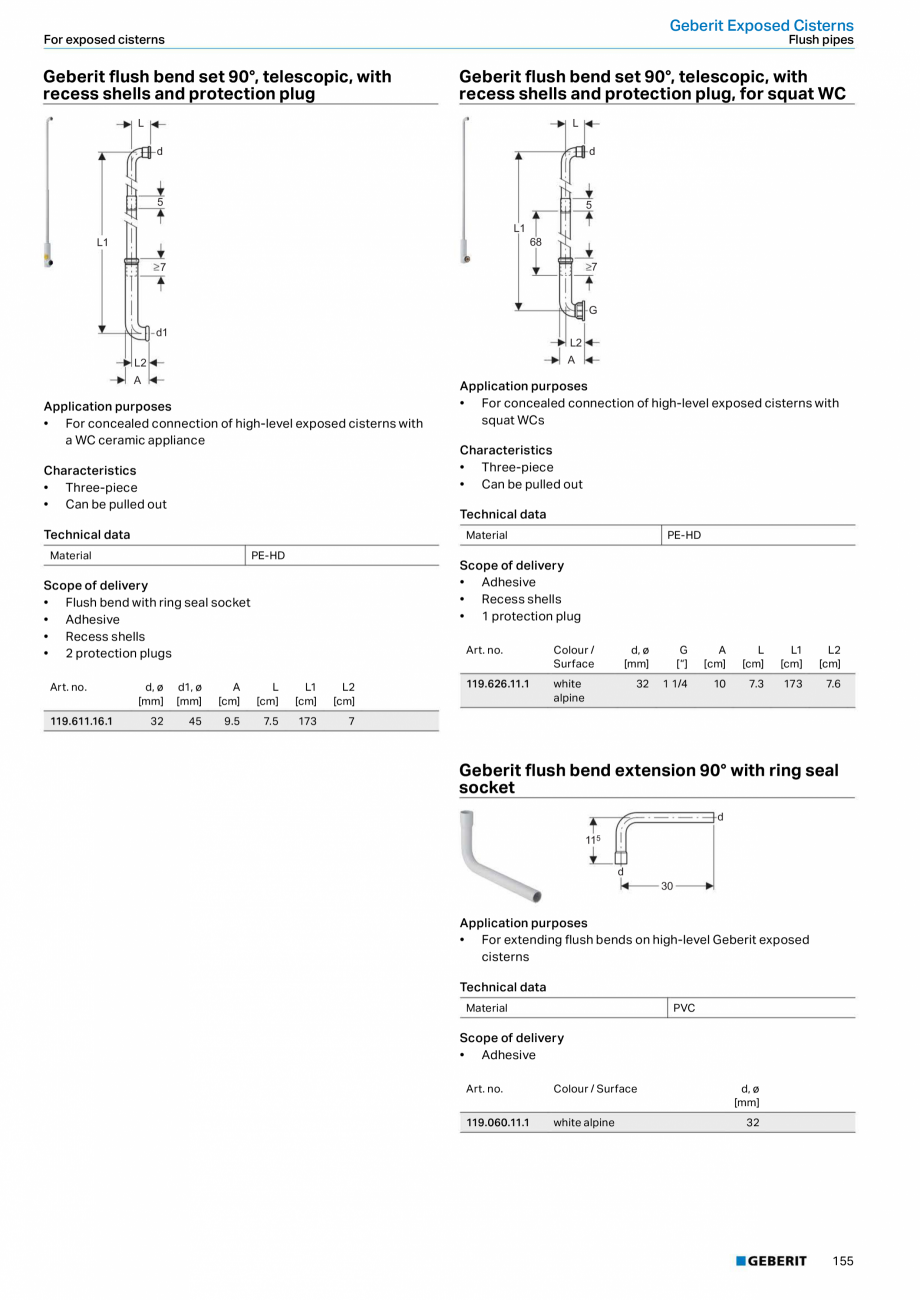

/ Surface 119.060.11.1 white alpine d, ø [mm] 32 155 Geberit Exposed Cisterns Flush pipes For exposed cisterns Geberit flush bend extension, offset Geberit flush bend extension set with collar A d d1 d K 8 X 35 25 Application purposes • For connecting flush bends and WCs Scope of delivery • Ring seal socket • Collar • Flush pipe • Sleeve made of EPDM, ø 44/55 mm d G Application purposes • For connecting high-level Geberit exposed cisterns with a squat WC Art. no. Material 118.026.21.1 PVC Scope of delivery • 2 pipe straps • Adhesive • Threaded connector d, ø [mm] d1, ø [mm] d2, ø [mm] white alpine 44 40 55 bright chrome-plated 44 40 55 Geberit sleeve Art. no. Colour / Surface 119.503.11.1 white alpine d, ø [mm] G [“] A [cm] X [cm] 32 1 1/4 6.5 200 d K [cm] D 27 Geberit flush bend extension, straight, with ring seal socket d Colour / Surface 118.026.11.1 Technical data L Application purposes • For hig

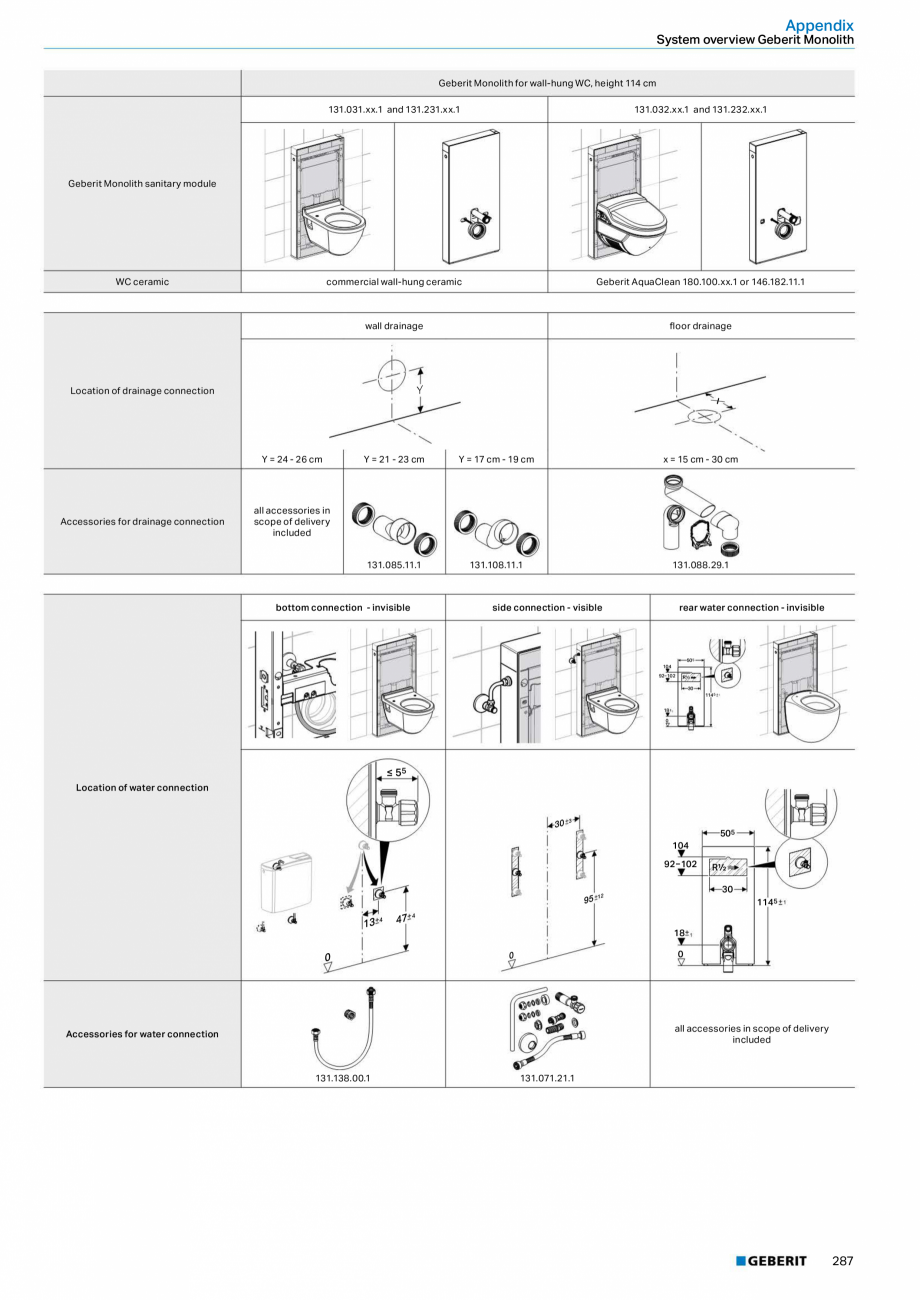

Pagina 287-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

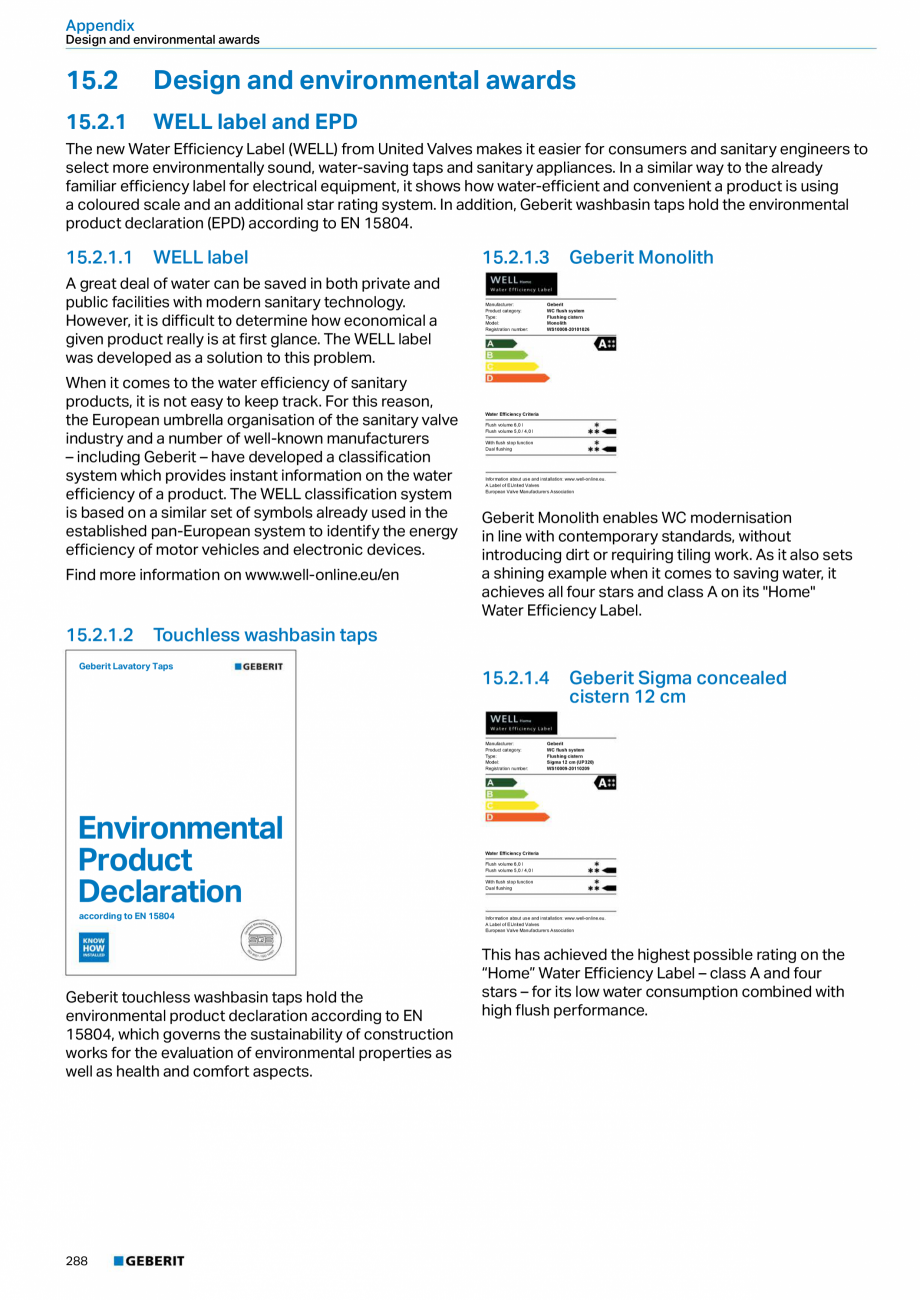

Pagina 288 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

h-level exposed cisterns • For sealing between flush pipes and WC ceramic appliances Art. no. d 242.018.00.1 L d, ø [mm] D [cm] L [cm] 32 5.5 2.5 Geberit flushing water manifold Application purposes • For extending flush bends on high-level Geberit exposed cisterns Technical data Material PVC Art. no. Colour / Surface 119.063.11.1 white alpine 156 d2 d1 85 Application purposes • For adhering to Geberit flush pipes ø 32 mm d, ø [mm] L [cm] Art. no. Colour / Surface 32 46.5 119.696.11.1 white alpine Geberit Exposed Cisterns Connections Accessories 7.3 Accessories 7.3.1 Connections Geberit water supply connection at the rear centre Scope of delivery • Cone screw fitting • Copper pipe, bent Art. no. 240.017.00.1 d, ø [mm] G [“] 10 3/8 7.3.2 Angle valves Angle stop valve for Geberit exposed cistern AP117 Art. no. 238.192.00.2 7.3.3 Sleeves Geberit sleeve for flush pipe connection d D L Application purposes • For high-level exposed

Pagina 288-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 289 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

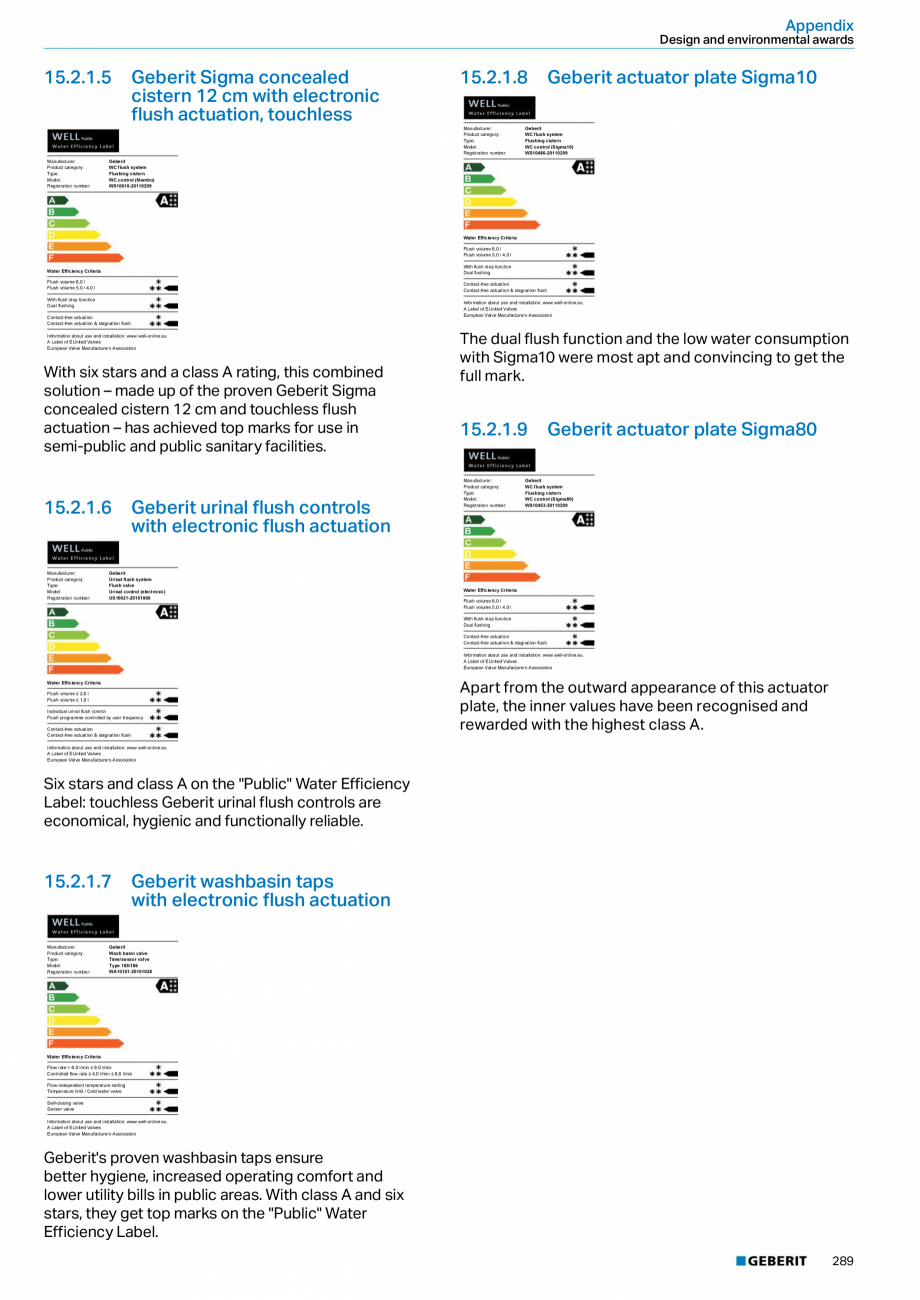

cisterns • For sealing between flush pipes and WC ceramic appliances Technical data Material Art. no. EPDM d, ø [mm] D [cm] L [cm] 119.668.00.1 42 6 2.5 119.675.00.1 42 7.5 3.3 157 Geberit Cisterns for Low-Height Furniture 8. Geberit Cisterns for LowHeight Furniture 8.1 With pneumatic flush actuation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160 159 Geberit Cisterns for Low-Height Furniture With pneumatic flush actuation 8.1 With pneumatic flush actuation Geberit cistern for low-height furniture, 6 / 3 litres, pneumatic flush actuation 132 464 30 Geberit cistern for low-height furniture, 6 litres, pneumatic flush actuation 98 9 94 30 8 132 464 8 98 M64x2 94 355 355 75−39 R½ 45 65 75−39 35 R½ 15 45 Application purposes • For installation in bathroom furniture • For floor-standing WCs • For dual flush Characteristics • Flush actuation pneumatic • Water supply connection at the bottom lef

Pagina 289-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

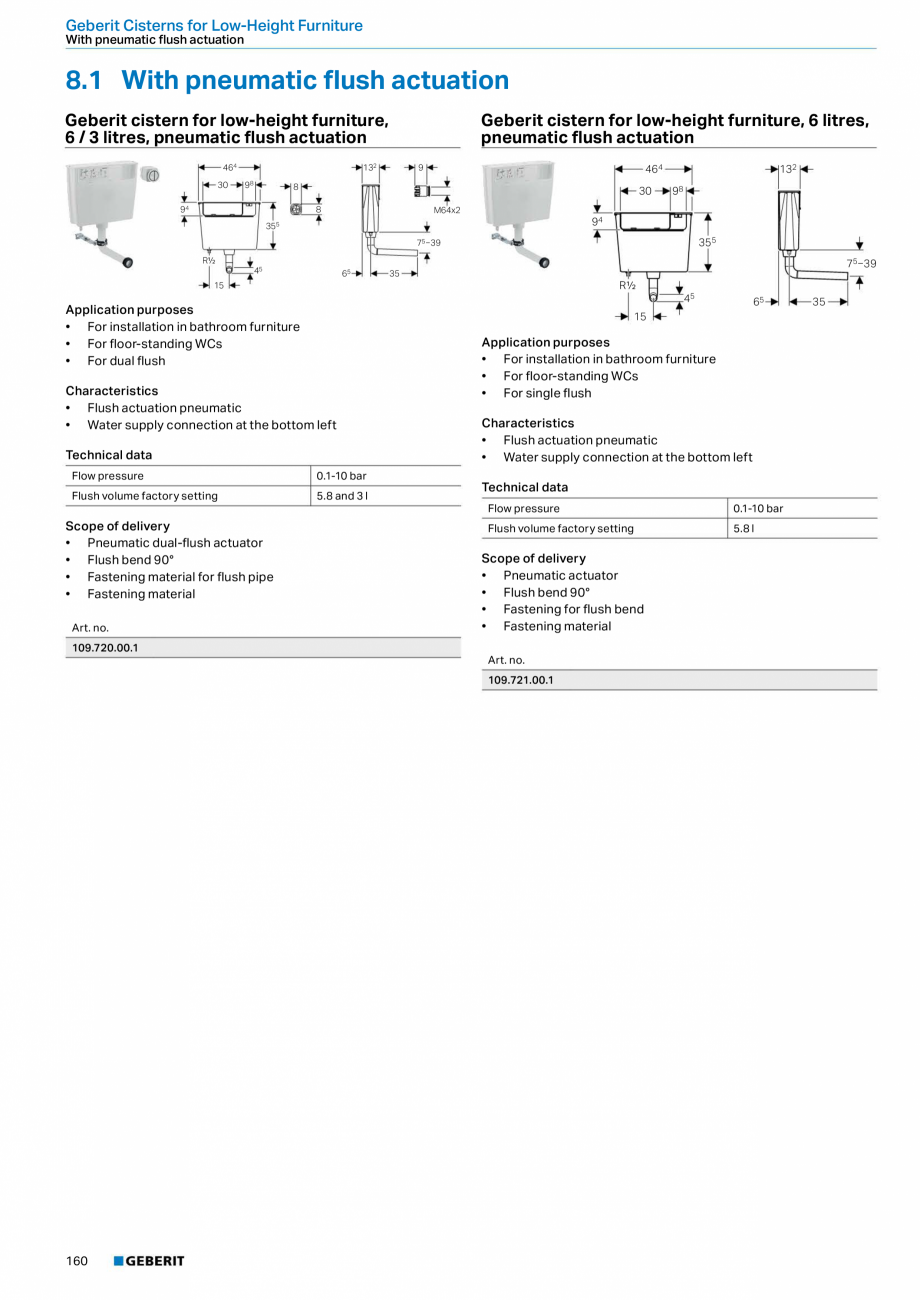

Pagina 290 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

t Technical data Flow pressure 0.1-10 bar Flush volume factory setting 5.8 and 3 l Scope of delivery • Pneumatic dual-flush actuator • Flush bend 90° • Fastening material for flush pipe • Fastening material Art. no. 109.720.00.1 Application purposes • For installation in bathroom furniture • For floor-standing WCs • For single flush Characteristics • Flush actuation pneumatic • Water supply connection at the bottom left Technical data Flow pressure 0.1-10 bar Flush volume factory setting 5.8 l Scope of delivery • Pneumatic actuator • Flush bend 90° • Fastening for flush bend • Fastening material Art. no. 109.721.00.1 160 65 15 35 Geberit Cisterns for Low-Height Furniture With pneumatic flush actuation 161 Geberit Fill Valves and Flush Valve Systems 9. Geberit Fill Valves and Flush Valve Systems 9.1 Fill valves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164 9

Pagina 290-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

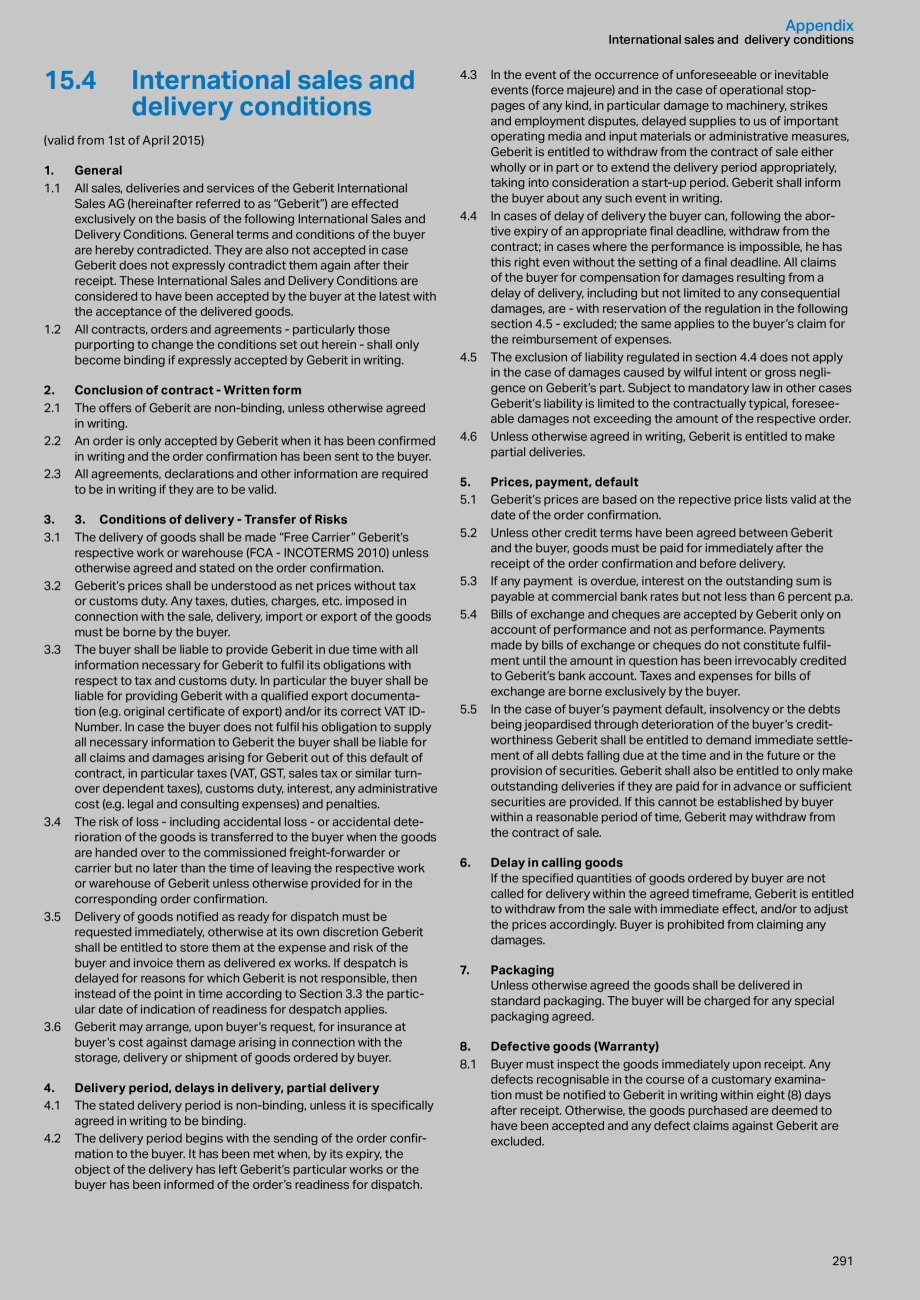

Pagina 291 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

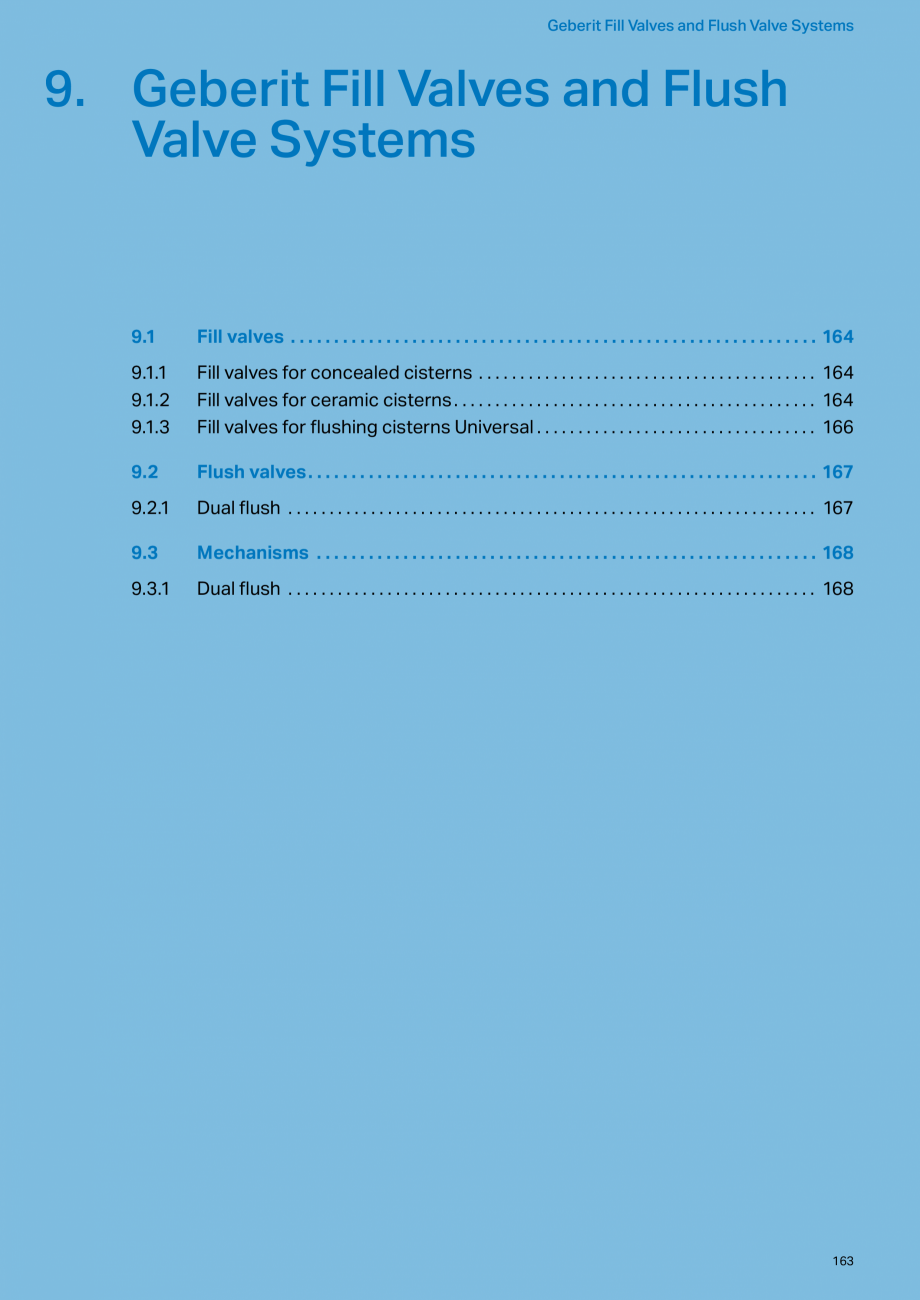

.1.1 9.1.2 9.1.3 Fill valves for concealed cisterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164 Fill valves for ceramic cisterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164 Fill valves for flushing cisterns Universal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166 9.2 Flush valves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167 9.2.1 Dual flush . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167 9.3 Mechanisms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168 9.3.1 Dual flush . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168 163 Geberit Fill Valves and Flush Val

Pagina 291-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 292 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

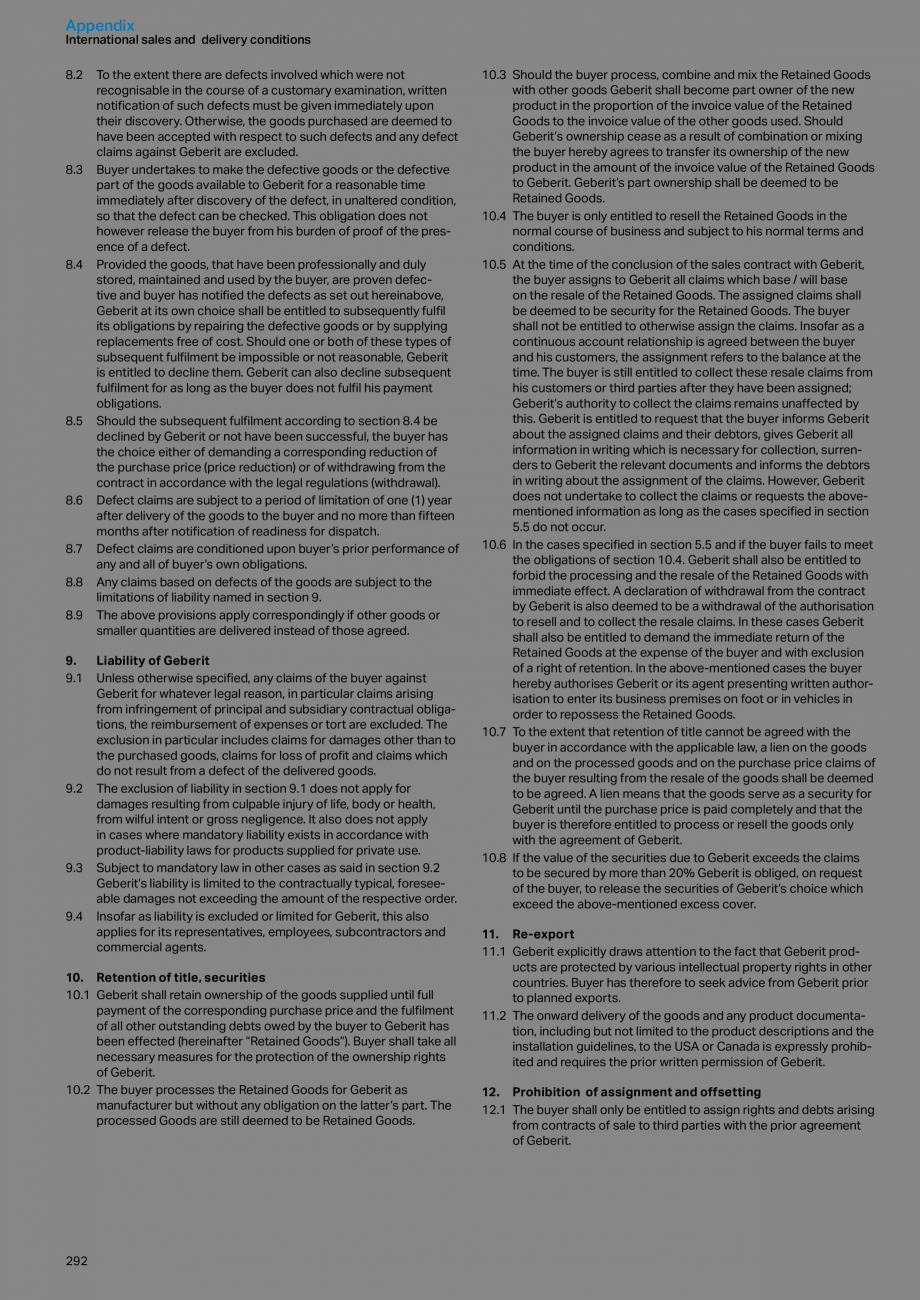

ve Systems Fill valves Fill valves for concealed cisterns 9.1 Fill valves 9.1.1 Fill valves for concealed cisterns 9.1.2 Fill valves for ceramic cisterns Geberit fill valve type 380, water supply connection left/right, 3/8“, nipple made of brass Geberit fill valve type 380, water supply connection on the right/left side, 3/8“ and 1/2“, nipple made of brass 112 3 243 212 Application purposes • For Geberit concealed cisterns • For grey water (rainwater), if a filter system is used • For potable water Characteristics • Adjustable filling height • Threaded nipple made of brass, G 3/8 • Water supply connection on the side at left or right • Low-noise in accordance with tap group I (DIN 4109) Technical data Flow pressure 0.1-10 bar Scope of delivery • Adapter for nipple, for fill valve type 350 • Cone screw fitting • Connection pipe made of copper Application purposes • For installation in exposed cisterns with water supply connection left or right •

Pagina 292-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 293 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

For grey water (rainwater), if a filter system is used • For ceramic cisterns • For potable water • For water supply connections 1/2‘‘ • For water supply connections 3/8‘‘ Characteristics • Adjustable filling height • Threaded nipple made of brass, G 3/8 • Water supply connection on the side at left or right Technical data Flow pressure Scope of delivery • Spacer ring set • Nipple made of brass, R 3/8 and R 1/2 Art. no. Art. no. 240.705.00.1 281.004.00.1 164 0.1-10 bar Geberit Fill Valves and Flush Valve Systems Fill valves for ceramic cisterns Fill valves Geberit fill valve type 360, water supply connection on the bottom, 1/2“, nipple made of brass 92 Geberit fill valve type 360, water supply connection on the bottom, 3/8“, nipple made of brass 96 92 25 96 25 71 71 CL CL WL WL 235 - 385 235 - 385 146 - 296 146 - 296 9 - 15 41.5 9 - 15 41.5 G G Application purposes • For Geberit exposed cisterns with bottom connection •

Pagina 293-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 294 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

For grey water (rainwater), if a filter system is used • For ceramic cisterns • For potable water • For water supply connections 1/2‘‘ Application purposes • For Geberit exposed cisterns with bottom connection • For grey water (rainwater), if a filter system is used • For ceramic cisterns • For potable water • For water supply connections 3/8‘‘ Characteristics • Adjustable filling height • Threaded nipple made of brass, G 1/2 • Height-adjustable • Water supply connection on the bottom Characteristics • Adjustable filling height • Threaded nipple made of brass, G 3/8 • Height-adjustable • Water supply connection on the bottom Technical data Technical data Flow pressure Art. no. 0.1-10 bar Flow pressure Art. no. 281.208.00.1 281.207.00.1 0.1-10 bar G [“] 3/8 165 Geberit Fill Valves and Flush Valve Systems Fill valves Geberit fill valve type 340, water supply connection on the bottom, 1/2“, nipple made of plastic 9.1.3 Fill va

Pagina 294-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 295 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

lves for flushing cisterns Universal Geberit fill valve type 330, water supply connection on the right/left side, 3/8“, nipple made of brass 95 25 34 Fill valves for flushing cisterns Universal CL 304 min. 140 max. 230 45 G 1/2" Application purposes • For Geberit exposed cisterns with bottom connection • For grey water (rainwater), if a filter system is used • For ceramic cisterns • For potable water • For water supply connections 1/2‘‘ Characteristics • Adjustable filling height • Water supply connection on the bottom • Threaded nipple made of plastic Application purposes • For installation in exposed cisterns with water supply connection left or right • For ceramic cisterns • For potable water • For water supply connections 3/8‘‘ Characteristics • Adjustable filling height • Threaded nipple made of brass, G 3/8 • Water supply connection on the side at left or right Technical data Technical data Flow pressure Flow pressure 0.5-10 bar

Pagina 295-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 296 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

0.1-10 bar Art. no. Art. no. 136.723.00.1 136.726.00.1 Geberit fill valve type 340, water supply connection on the bottom, 3/8“, nipple made of plastic Application purposes • For Geberit exposed cisterns with bottom connection • For grey water (rainwater), if a filter system is used • For ceramic cisterns • For potable water • For water supply connections 3/8‘‘ Characteristics • Adjustable filling height • Water supply connection on the bottom • Threaded nipple made of plastic Art. no. Application purposes • For installation in exposed cisterns with water supply connection left or right • For ceramic cisterns • For potable water • For water supply connections 1/2‘‘ • For water supply connections 3/8‘‘ Characteristics • Adjustable filling height • Threaded nipple made of brass, G 3/8 • Water supply connection on the side at left or right Technical data Technical data Flow pressure Geberit fill valve type 330, water supply connection

Pagina 296-Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog, brosura...

Pagina 297 - Sisteme sanitare 2015-2016 GEBERIT Delta, Sigma 12 , Omega, Duofix, Sigma 8 Catalog,...

on the right/left side, 3/8“ and 1/2“, nipple made of brass 0.1-10 bar Flow pressure Scope of delivery • Adapter made of brass, R 3/8–R 1/2 136.725.00.1 Art. no. 136.724.00.1 166 0.5-10 bar Geberit Fill Valves and Flush Valve Systems Dual flush Flush valves 9.2 Flush valves 9.2.1 Dual flush N ew Geberit flush valve type 290, dual flush ø 38−45 ø 12−45 N ew Geberit flush valve type 240, dual flush 137 ø 38–45 ≥ 08 ≤ 15 85 84 08–16 10 293−431 312−45 305–46 17−27 09–2 ≥ 09 ≤2 ø 6−65 ø 6–7 Application purposes • For ceramic cisterns • For potable water Characteristics • Dual flush • Height-adjustable • Small and large flush volume can be set depending on the amount of water in the cistern • Overflow pipe height-adjustable • With lid attachment Technical data Actuation force 18 N Scope of delivery • Fastening material Art. no. Colour / Surface 282.303.21.2 bright chrome-plated Application purposes �
