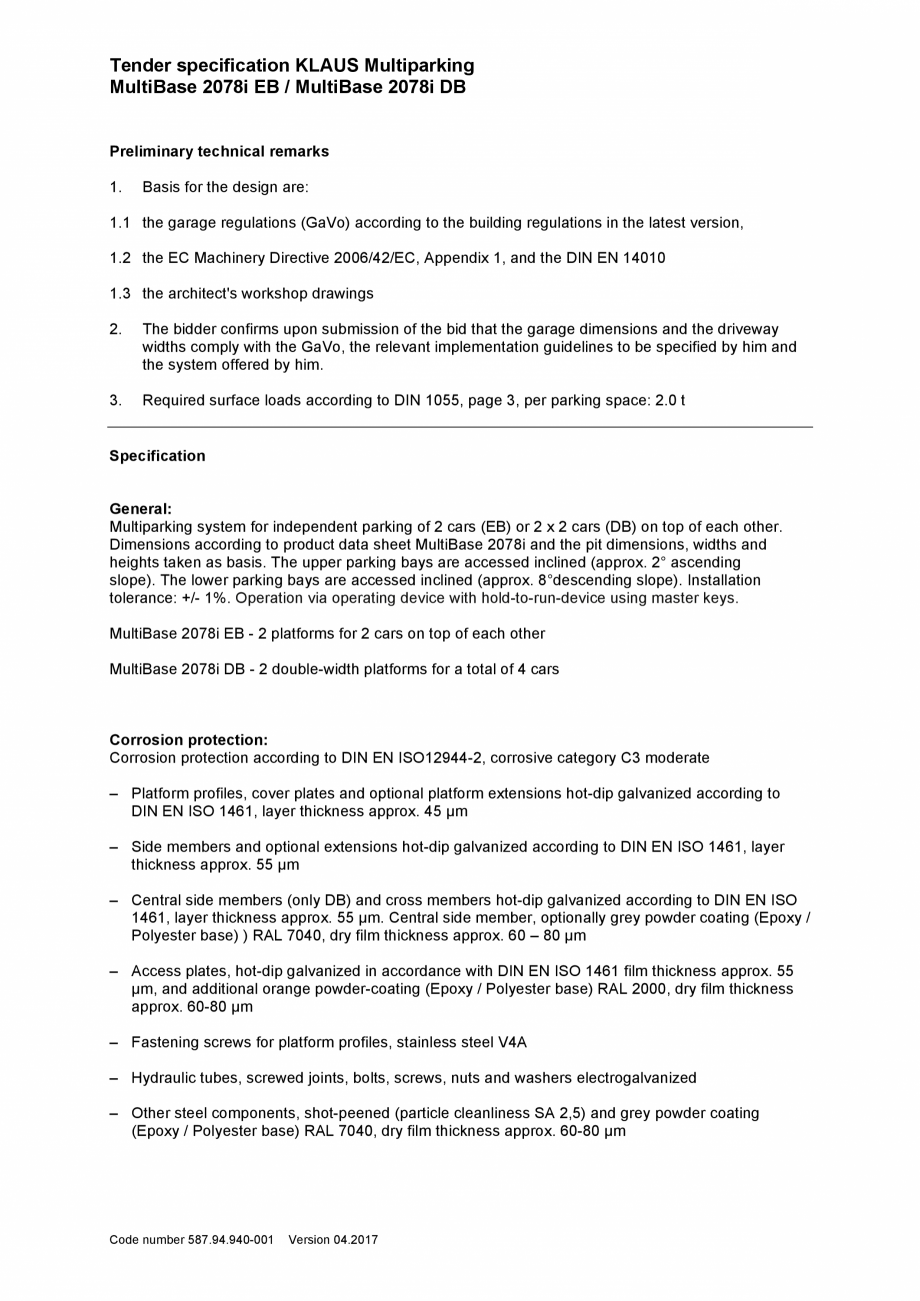

Tender specification KLAUS Multiparking MultiBase 2078i EB / MultiBase 2078i DB Preliminary technical remarks 1. Basis for the design are: 1.1 the garage regulations (GaVo) according to the building regulations in the latest version, 1.2 the EC Machinery Directive 2006/42/EC, Appendix 1, and the DIN EN 14010 1.3 the architect's workshop drawings 2. The bidder confirms upon submission of the bid that the garage dimensions and the driveway widths comply with the GaVo, the relevant implementation guidelines to be specified by him and the system offered by him. 3. Required surface loads according to DIN 1055, page 3, per parking space: 2.0 t Specification General: Multiparking system for independent parking of 2 cars (EB) or 2 x 2 cars (DB) on top of each other. Dimensions according to product data sheet MultiBase 2078i and the pit dimensions, widths and heights taken as basis. The upper parking bays are accessed inclined (approx. 2° ascending slope). The lower parking bays are acce

Pagina 1-Specificatii tehnice - Sistem de parcare hidraulic KLAUS MULTIBASE 2078i Fisa tehnica Engleza Tender...

Pagina 2 - Specificatii tehnice - Sistem de parcare hidraulic KLAUS MULTIBASE 2078i Fisa tehnica...

ssed inclined (approx. 8°descending slope). Installation tolerance: +/- 1%. Operation via operating device with hold-to-run-device using master keys. MultiBase 2078i EB - 2 platforms for 2 cars on top of each other MultiBase 2078i DB - 2 double-width platforms for a total of 4 cars Corrosion protection: Corrosion protection according to DIN EN ISO12944-2, corrosive category C3 moderate – Platform profiles, cover plates and optional platform extensions hot-dip galvanized according to DIN EN ISO 1461, layer thickness approx. 45 µm – Side members and optional extensions hot-dip galvanized according to DIN EN ISO 1461, layer thickness approx. 55 µm – Central side members (only DB) and cross members hot-dip galvanized according to DIN EN ISO 1461, layer thickness approx. 55 µm. Central side member, optionally grey powder coating (Epoxy / Polyester base) ) RAL 7040, dry film thickness approx. 60 – 80 µm – Access plates, hot-dip galvanized in accordance with DIN EN ISO 1461 fi

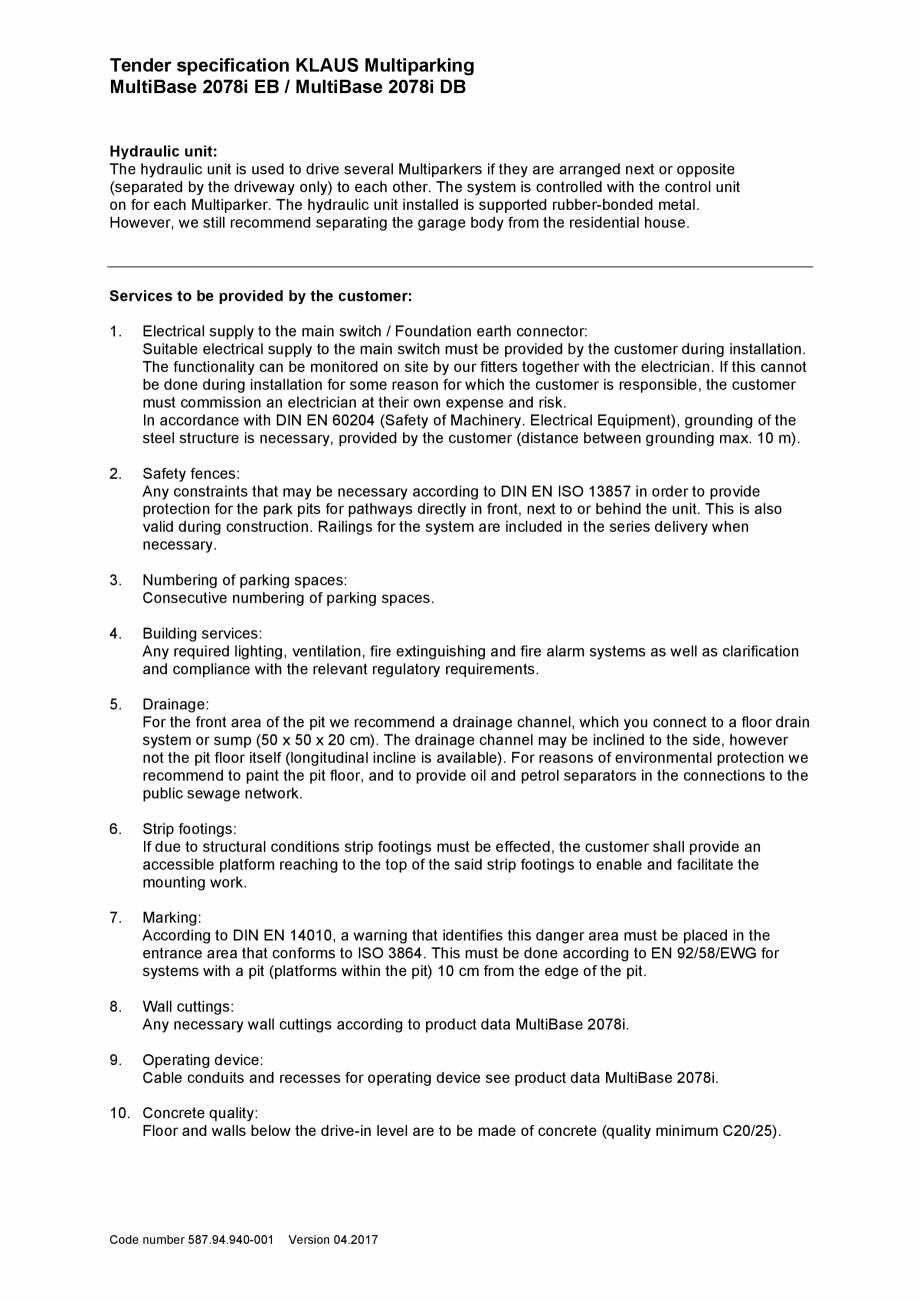

Pagina 2-Specificatii tehnice - Sistem de parcare hidraulic KLAUS MULTIBASE 2078i Fisa tehnica Engleza ssed...

Pagina 3 - Specificatii tehnice - Sistem de parcare hidraulic KLAUS MULTIBASE 2078i Fisa tehnica...

lm thickness approx. 55 µm, and additional orange powder-coating (Epoxy / Polyester base) RAL 2000, dry film thickness approx. 60-80 µm – Fastening screws for platform profiles, stainless steel V4A – Hydraulic tubes, screwed joints, bolts, screws, nuts and washers electrogalvanized – Other steel components, shot-peened (particle cleanliness SA 2,5) and grey powder coating (Epoxy / Polyester base) RAL 7040, dry film thickness approx. 60-80 µm Code number 587.94.940-001 Version 04.2017 Tender specification KLAUS Multiparking MultiBase 2078i EB / MultiBase 2078i DB Hydraulic unit: The hydraulic unit is used to drive several Multiparkers if they are arranged next or opposite (separated by the driveway only) to each other. The system is controlled with the control unit on for each Multiparker. The hydraulic unit installed is supported rubber-bonded metal. However, we still recommend separating the garage body from the residential house. Services to be provided by the customer:

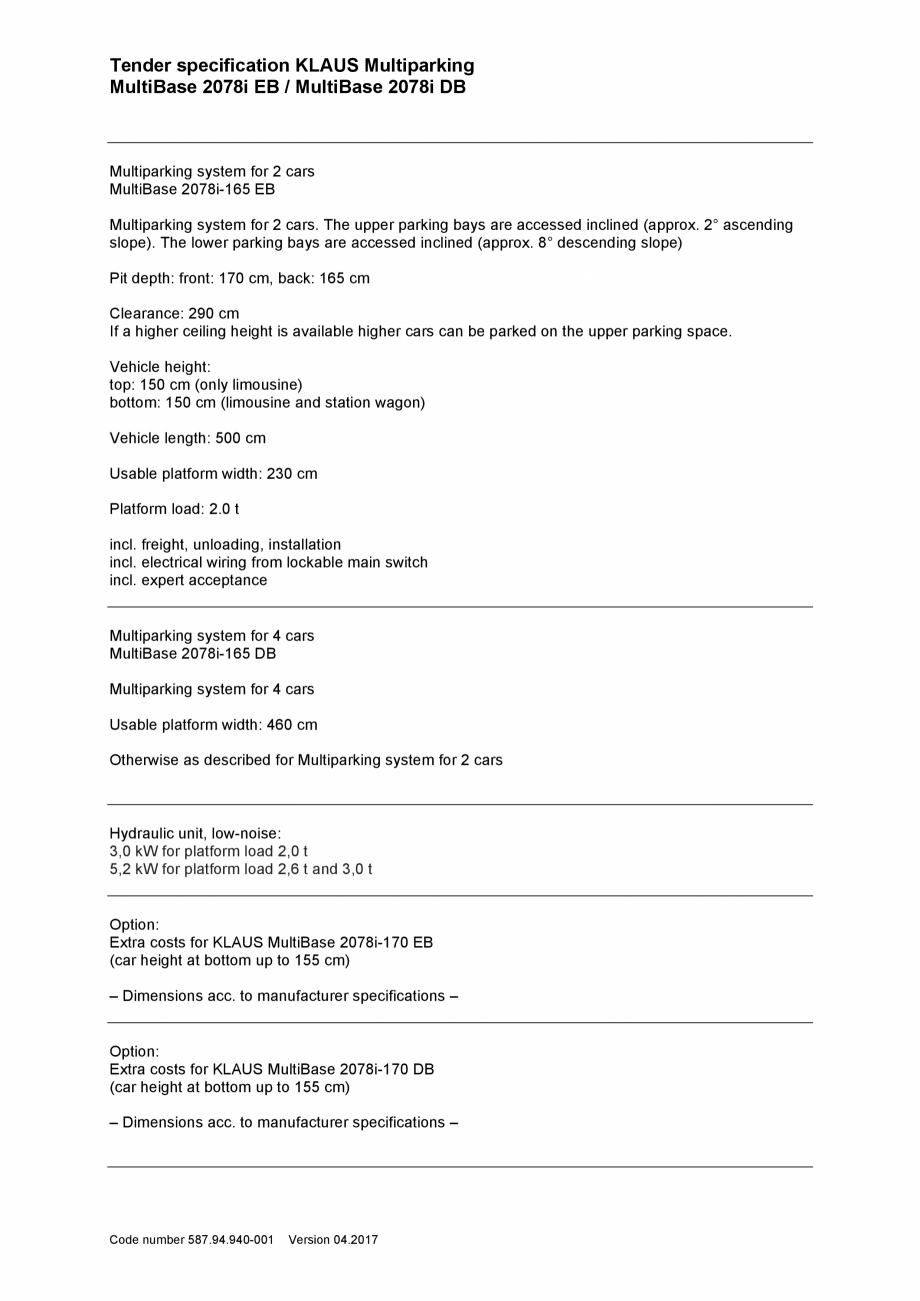

Pagina 3-Specificatii tehnice - Sistem de parcare hidraulic KLAUS MULTIBASE 2078i Fisa tehnica Engleza lm...

Pagina 4 - Specificatii tehnice - Sistem de parcare hidraulic KLAUS MULTIBASE 2078i Fisa tehnica...

1. Electrical supply to the main switch / Foundation earth connector: Suitable electrical supply to the main switch must be provided by the customer during installation. The functionality can be monitored on site by our fitters together with the electrician. If this cannot be done during installation for some reason for which the customer is responsible, the customer must commission an electrician at their own expense and risk. In accordance with DIN EN 60204 (Safety of Machinery. Electrical Equipment), grounding of the steel structure is necessary, provided by the customer (distance between grounding max. 10 m). 2. Safety fences: Any constraints that may be necessary according to DIN EN ISO 13857 in order to provide protection for the park pits for pathways directly in front, next to or behind the unit. This is also valid during construction. Railings for the system are included in the series delivery when necessary. 3. Numbering of parking spaces: Consecutive numbering of parki

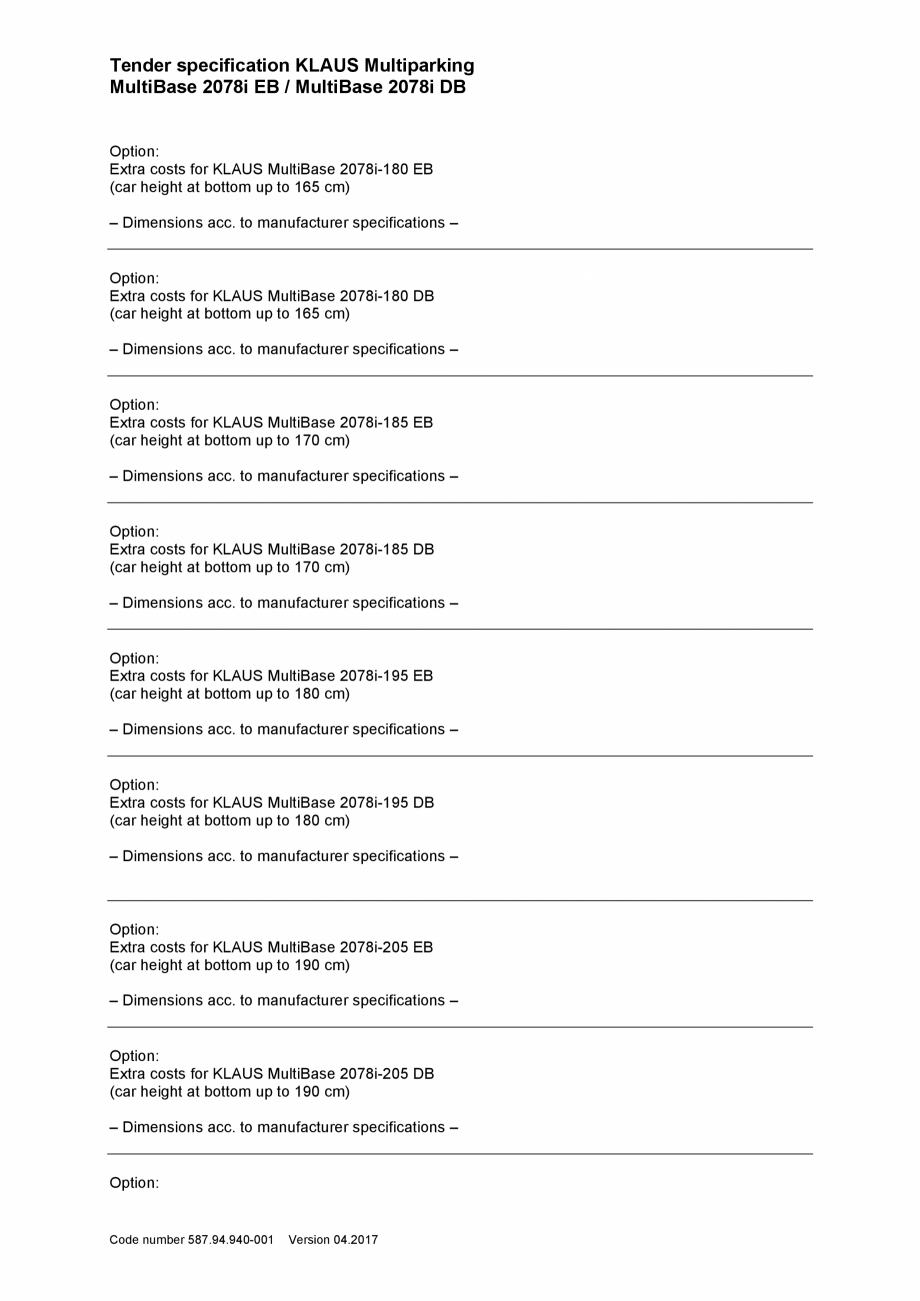

Pagina 4-Specificatii tehnice - Sistem de parcare hidraulic KLAUS MULTIBASE 2078i Fisa tehnica Engleza
1.
...

Pagina 5 - Specificatii tehnice - Sistem de parcare hidraulic KLAUS MULTIBASE 2078i Fisa tehnica...

ng spaces. 4. Building services: Any required lighting, ventilation, fire extinguishing and fire alarm systems as well as clarification and compliance with the relevant regulatory requirements. 5. Drainage: For the front area of the pit we recommend a drainage channel, which you connect to a floor drain system or sump (50 x 50 x 20 cm). The drainage channel may be inclined to the side, however not the pit floor itself (longitudinal incline is available). For reasons of environmental protection we recommend to paint the pit floor, and to provide oil and petrol separators in the connections to the public sewage network. 6. Strip footings: If due to structural conditions strip footings must be effected, the customer shall provide an accessible platform reaching to the top of the said strip footings to enable and facilitate the mounting work. 7. Marking: According to DIN EN 14010, a warning that identifies this danger area must be placed in the entrance area that conforms to ISO 38

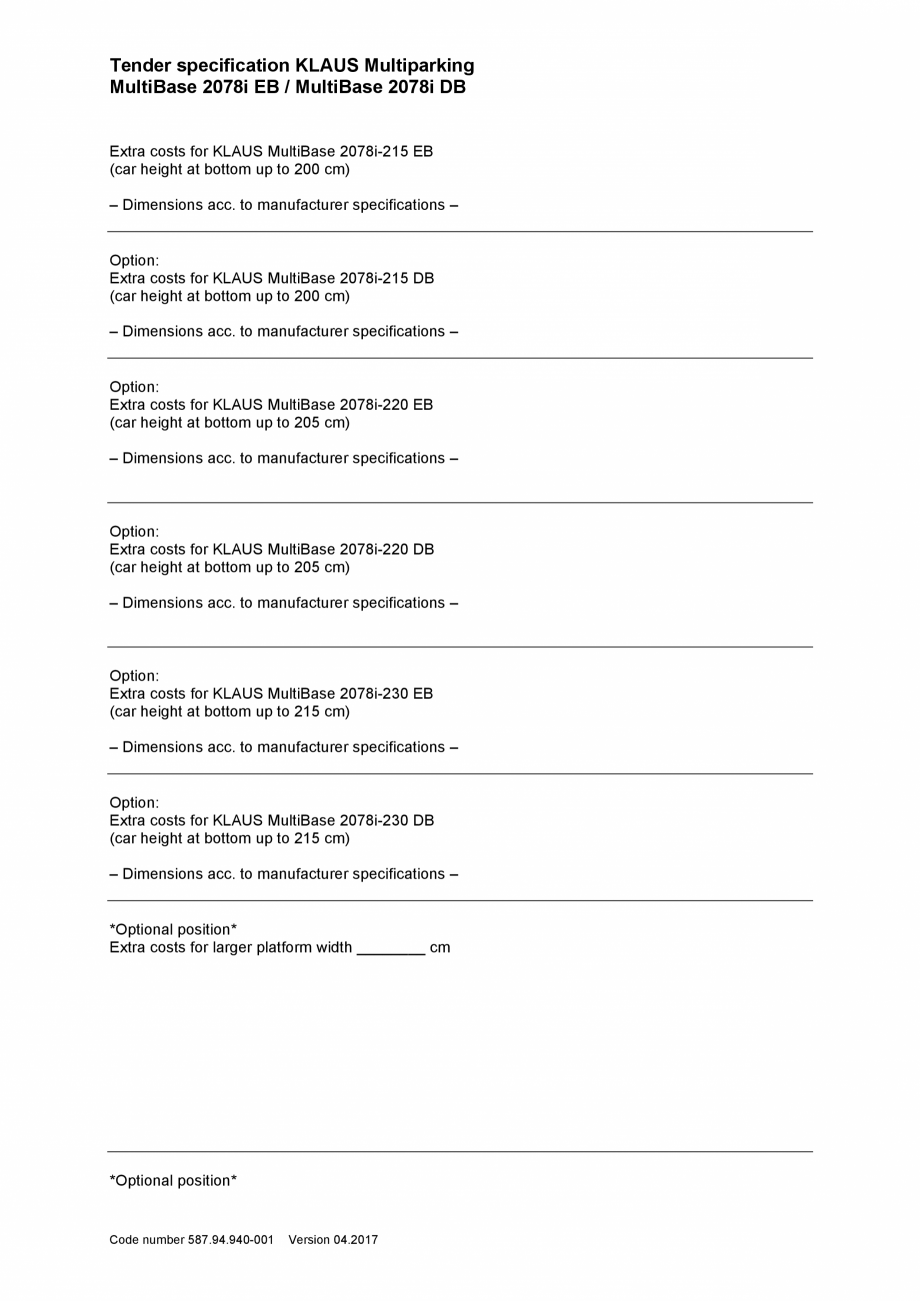

Pagina 5-Specificatii tehnice - Sistem de parcare hidraulic KLAUS MULTIBASE 2078i Fisa tehnica Engleza ng...

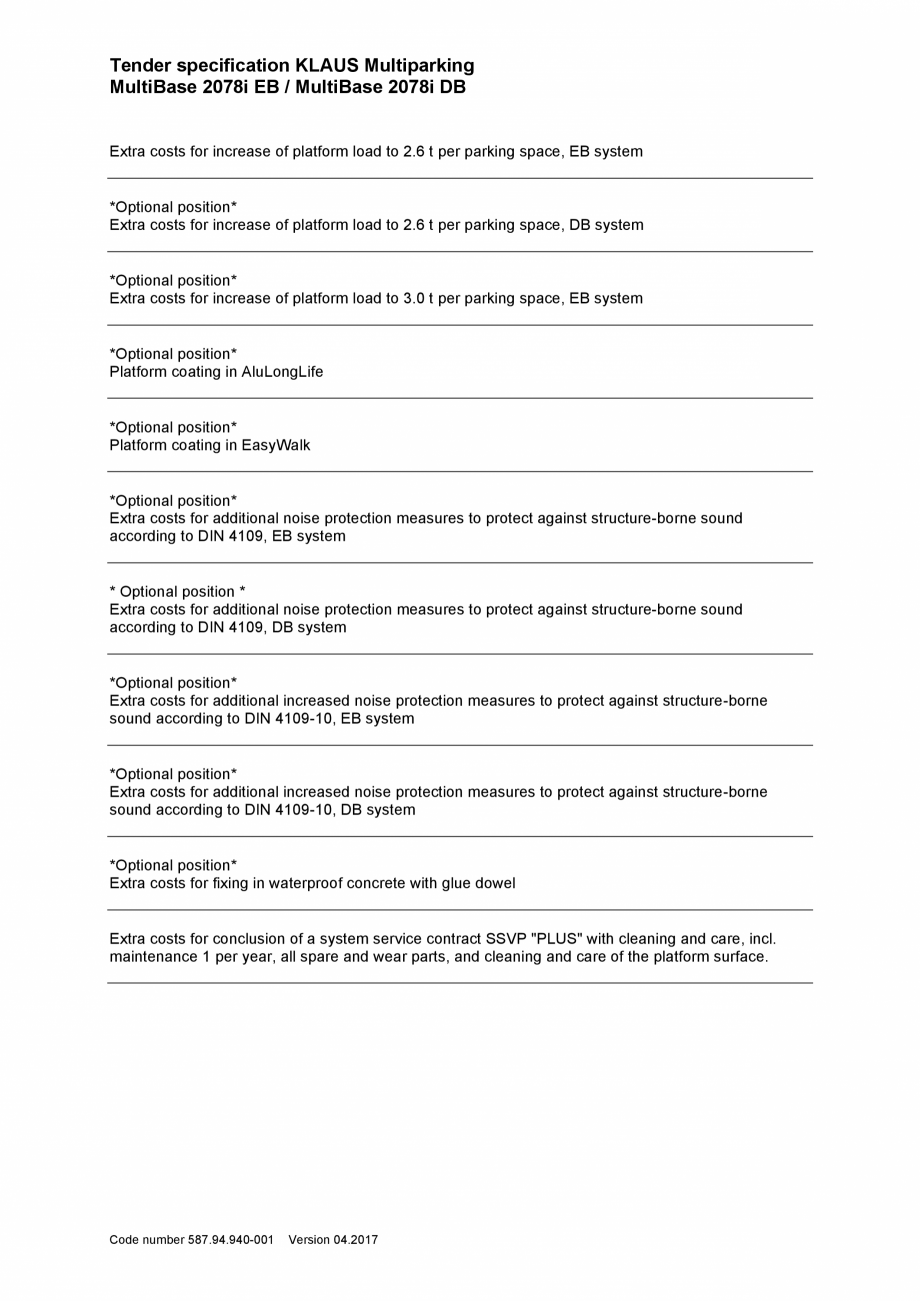

Pagina 6 - Specificatii tehnice - Sistem de parcare hidraulic KLAUS MULTIBASE 2078i Fisa tehnica...

64. This must be done according to EN 92/58/EWG for systems with a pit (platforms within the pit) 10 cm from the edge of the pit. 8. Wall cuttings: Any necessary wall cuttings according to product data MultiBase 2078i. 9. Operating device: Cable conduits and recesses for operating device see product data MultiBase 2078i. 10. Concrete quality: Floor and walls below the drive-in level are to be made of concrete (quality minimum C20/25). Code number 587.94.940-001 Version 04.2017 Tender specification KLAUS Multiparking MultiBase 2078i EB / MultiBase 2078i DB Multiparking system for 2 cars MultiBase 2078i-165 EB Multiparking system for 2 cars. The upper parking bays are accessed inclined (approx. 2° ascending slope). The lower parking bays are accessed inclined (approx. 8° descending slope) Pit depth: front: 170 cm, back: 165 cm Clearance: 290 cm If a higher ceiling height is available higher cars can be parked on the upper parking space. Vehicle height: top: 150 cm (only limou
