Structuri de fundatii PENETRON PENETRON PLUS, PENETRON ADMIX, PENETRON
I)

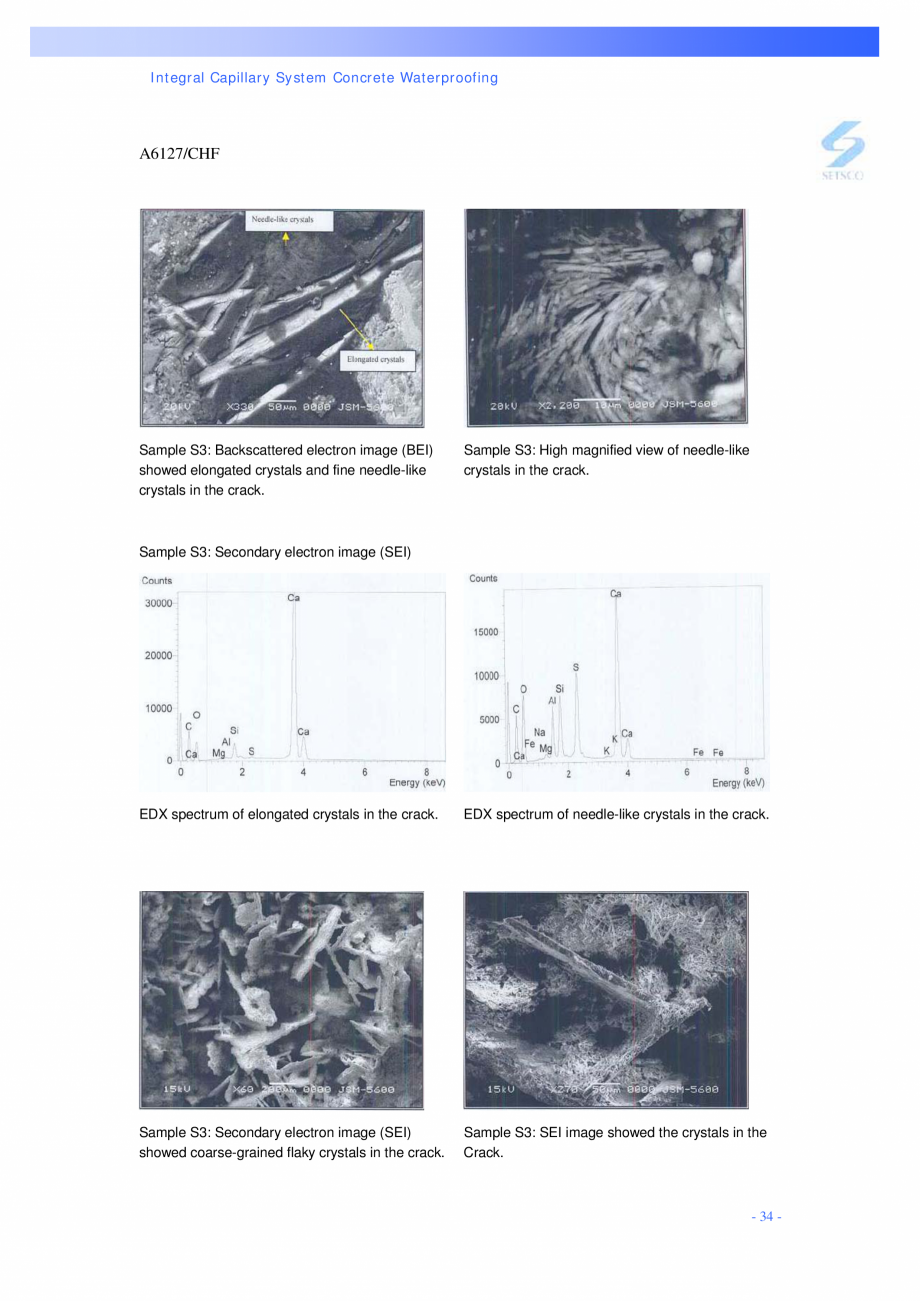

EDX spectrum of elongated crystals in the crack.
EDX spectrum of needle-like crystals in the crack.
Sample S3: Secondary electron image (SEI)
showed coarse-grained flaky crystals in the crack.
Sample S3: SEI image showed the crystals in the
Crack.
- 34 -

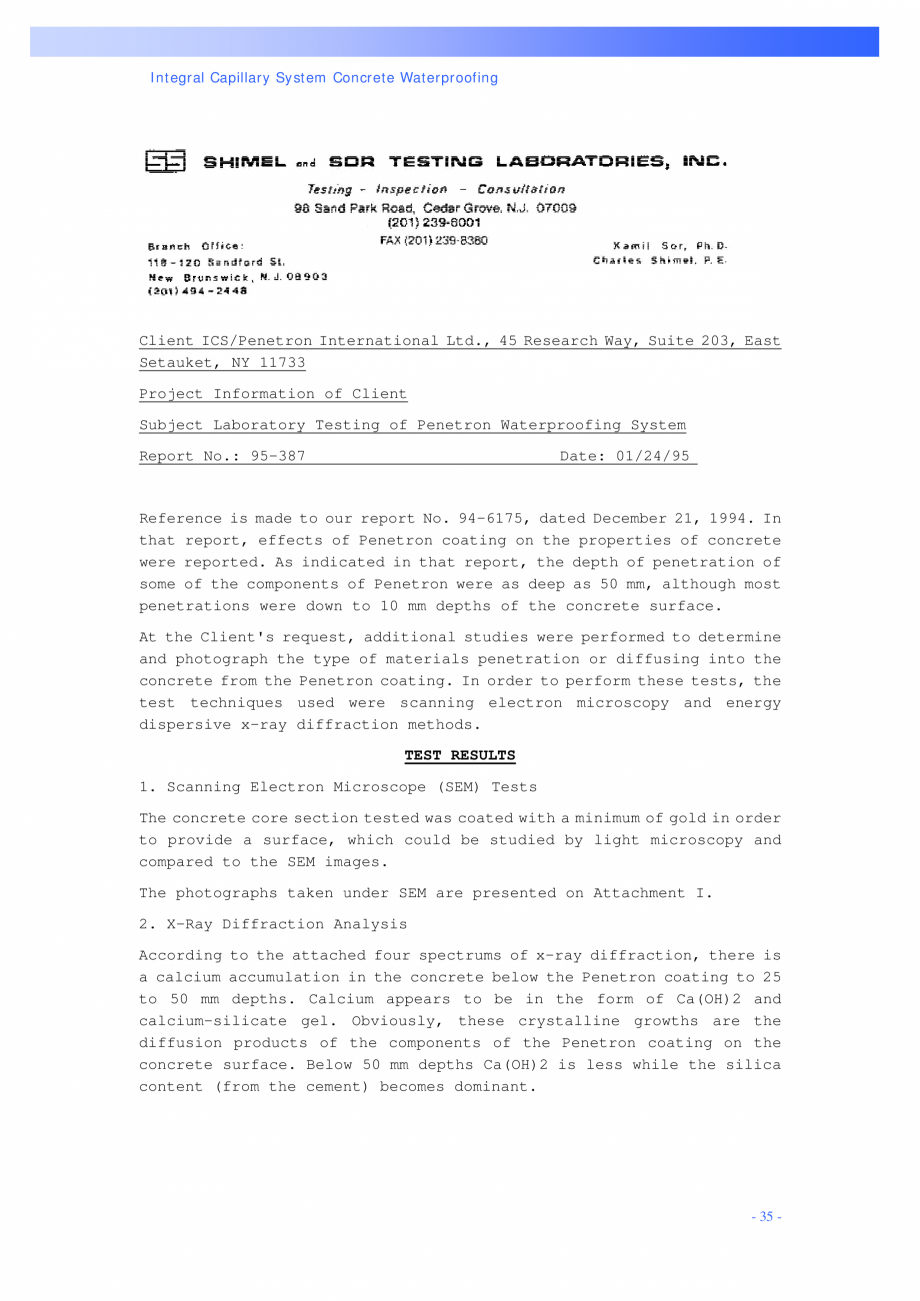

Integral Capillary System Concrete Waterproofing
Client ICS/Penetron International Ltd., 45 Research Way, Suite 203, East
Setauket, NY 11733
Project Information of Client
Subject Laboratory Testing of Penetron Waterproofing System
Report No.: 95-387
Date: 01/24/95
Reference is made to our report No. 94-6175, dated December 21, 1994. In
that report, effects of Penetron coating on the properties of concrete
were reported. As indicated in that report, the depth of penetration of
some of the components of Penetron were as deep as 50 mm, although most
penetrations were down to 10 mm depths of the concrete surface.
At the Client's request, additional studies were performed to determine
and photograph the type of materials penetr
