Pagina 1 - Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON...

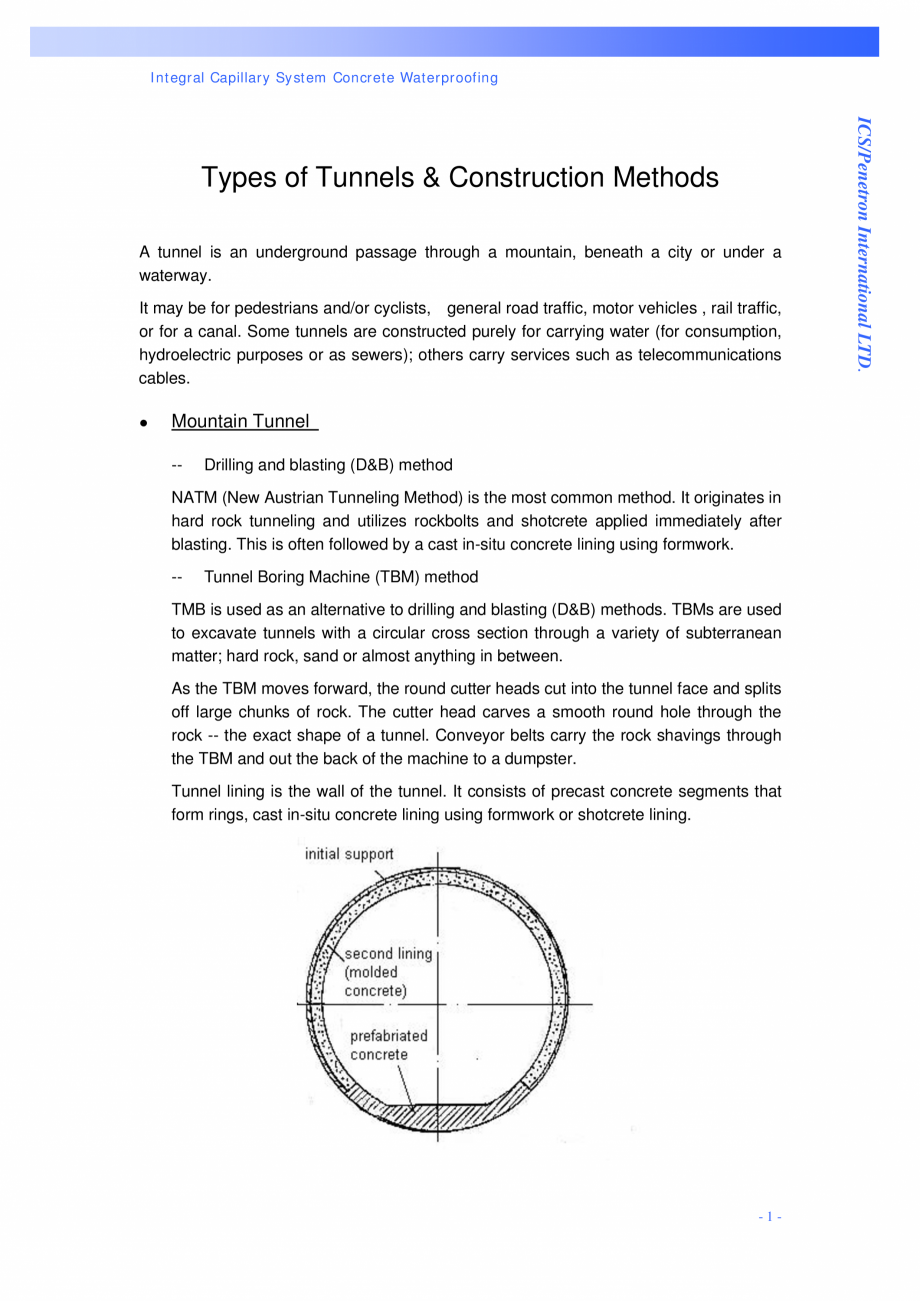

Integral Capillary System Concrete Waterproofing A tunnel is an underground passage through a mountain, beneath a city or under a waterway. It may be for pedestrians and/or cyclists, general road traffic, motor vehicles , rail traffic, or for a canal. Some tunnels are constructed purely for carrying water (for consumption, hydroelectric purposes or as sewers); others carry services such as telecommunications cables. Mountain Tunnel -- Drilling and blasting (D&B) method NATM (New Austrian Tunneling Method) is the most common method. It originates in hard rock tunneling and utilizes rockbolts and shotcrete applied immediately after blasting. This is often followed by a cast in-situ concrete lining using formwork. -- Tunnel Boring Machine (TBM) method TMB is used as an alternative to drilling and blasting (D&B) methods. TBMs are used to excavate tunnels with a circular cross section through a variety of subterranean matter; hard rock, sand or almost anything in between. As the TBM m

Pagina 1-Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON PLUS Catalog, ...

Pagina 2 - Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON...

oves forward, the round cutter heads cut into the tunnel face and splits off large chunks of rock. The cutter head carves a smooth round hole through the rock -- the exact shape of a tunnel. Conveyor belts carry the rock shavings through the TBM and out the back of the machine to a dumpster. Tunnel lining is the wall of the tunnel. It consists of precast concrete segments that form rings, cast in-situ concrete lining using formwork or shotcrete lining. -1- ICS/Penetron International LTD. Types of Tunnels & Construction Methods Integral Capillary System Concrete Waterproofing Shallow tunnels are of a cut-and-cover type (if under water of the immersed-tube type). Deep tunnels are excavated, often using a tunnelling shield. For intermediate levels, both methods are possible. -- Cut-and-cover method Cut-and-cover is a method of tunnel construction where a trench is excavated and roofed over. Strong supporting beams are necessary to avoid the danger of the tunnel collapsing. -- Shi

Pagina 2-Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON PLUS Catalog, ...

Pagina 3 - Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON...

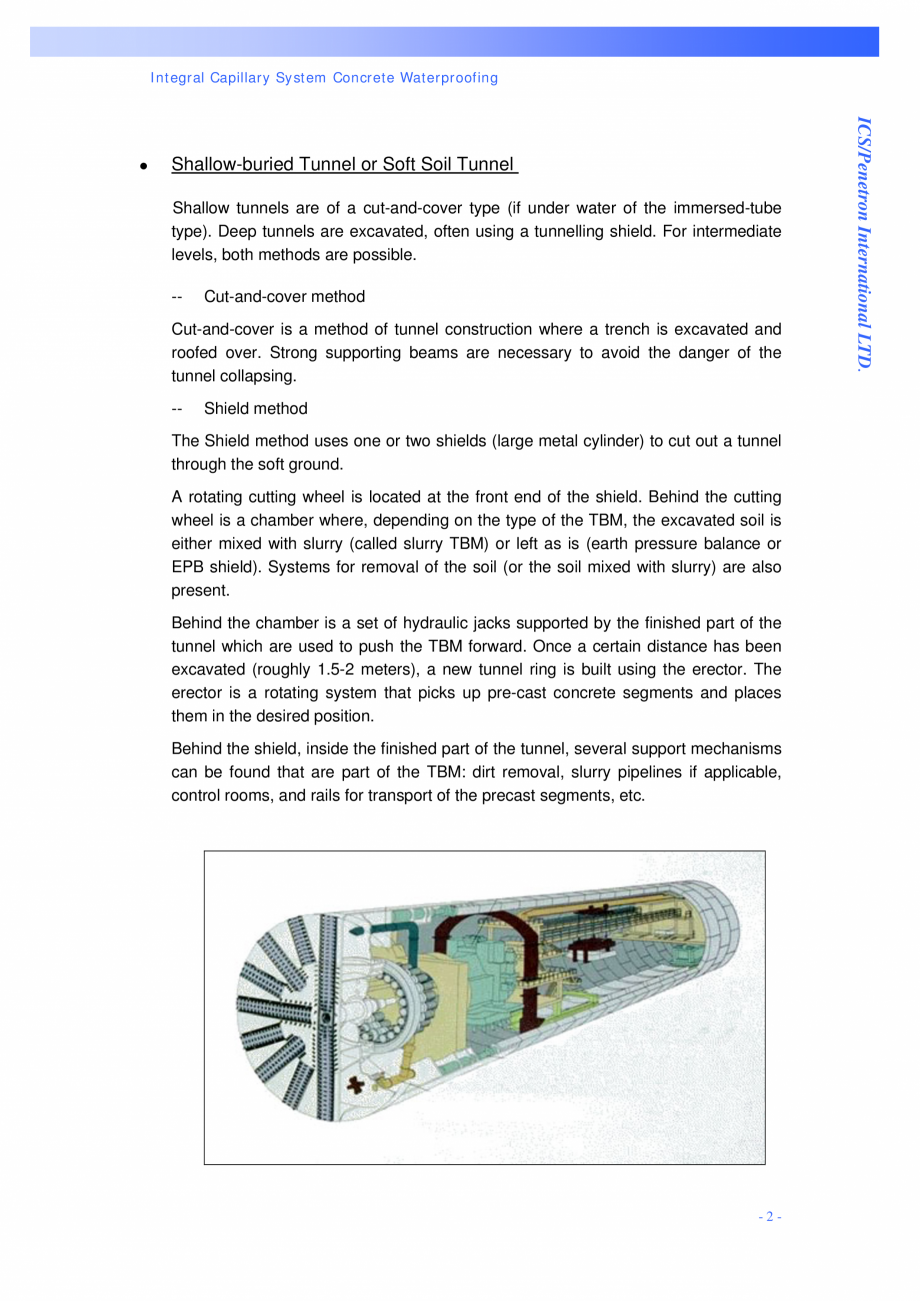

eld method The Shield method uses one or two shields (large metal cylinder) to cut out a tunnel through the soft ground. A rotating cutting wheel is located at the front end of the shield. Behind the cutting wheel is a chamber where, depending on the type of the TBM, the excavated soil is either mixed with slurry (called slurry TBM) or left as is (earth pressure balance or EPB shield). Systems for removal of the soil (or the soil mixed with slurry) are also present. Behind the chamber is a set of hydraulic jacks supported by the finished part of the tunnel which are used to push the TBM forward. Once a certain distance has been excavated (roughly 1.5-2 meters), a new tunnel ring is built using the erector. The erector is a rotating system that picks up pre-cast concrete segments and places them in the desired position. Behind the shield, inside the finished part of the tunnel, several support mechanisms can be found that are part of the TBM: dirt removal, slurry pipelines if applicabl

Pagina 3-Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON PLUS Catalog, ...

Pagina 4 - Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON...

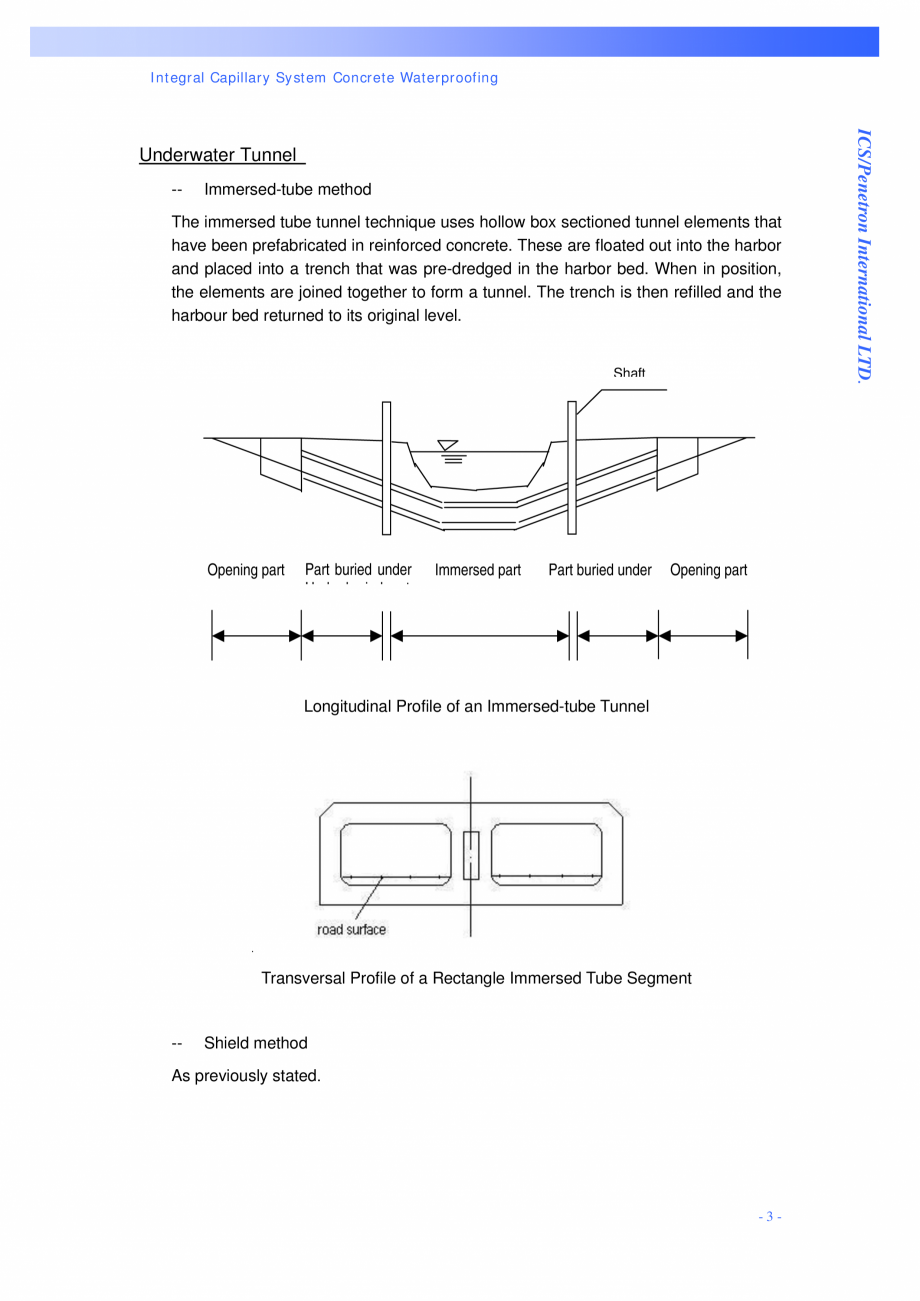

e, control rooms, and rails for transport of the precast segments, etc. -2- ICS/Penetron International LTD. Shallow-buried Tunnel or Soft Soil Tunnel Integral Capillary System Concrete Waterproofing -- Immersed-tube method The immersed tube tunnel technique uses hollow box sectioned tunnel elements that have been prefabricated in reinforced concrete. These are floated out into the harbor and placed into a trench that was pre-dredged in the harbor bed. When in position, the elements are joined together to form a tunnel. The trench is then refilled and the harbour bed returned to its original level. Shaft Opening part Part buried under U d b i d t Immersed part Part buried under Opening part Longitudinal Profile of an Immersed-tube Tunnel Transversal Profile of a Rectangle Immersed Tube Segment -- Shield method As previously stated. -3- ICS/Penetron International LTD. Underwater Tunnel Integral Capillary System Concrete Waterproofing ICS/Penetron International LT

Pagina 4-Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON PLUS Catalog, ...

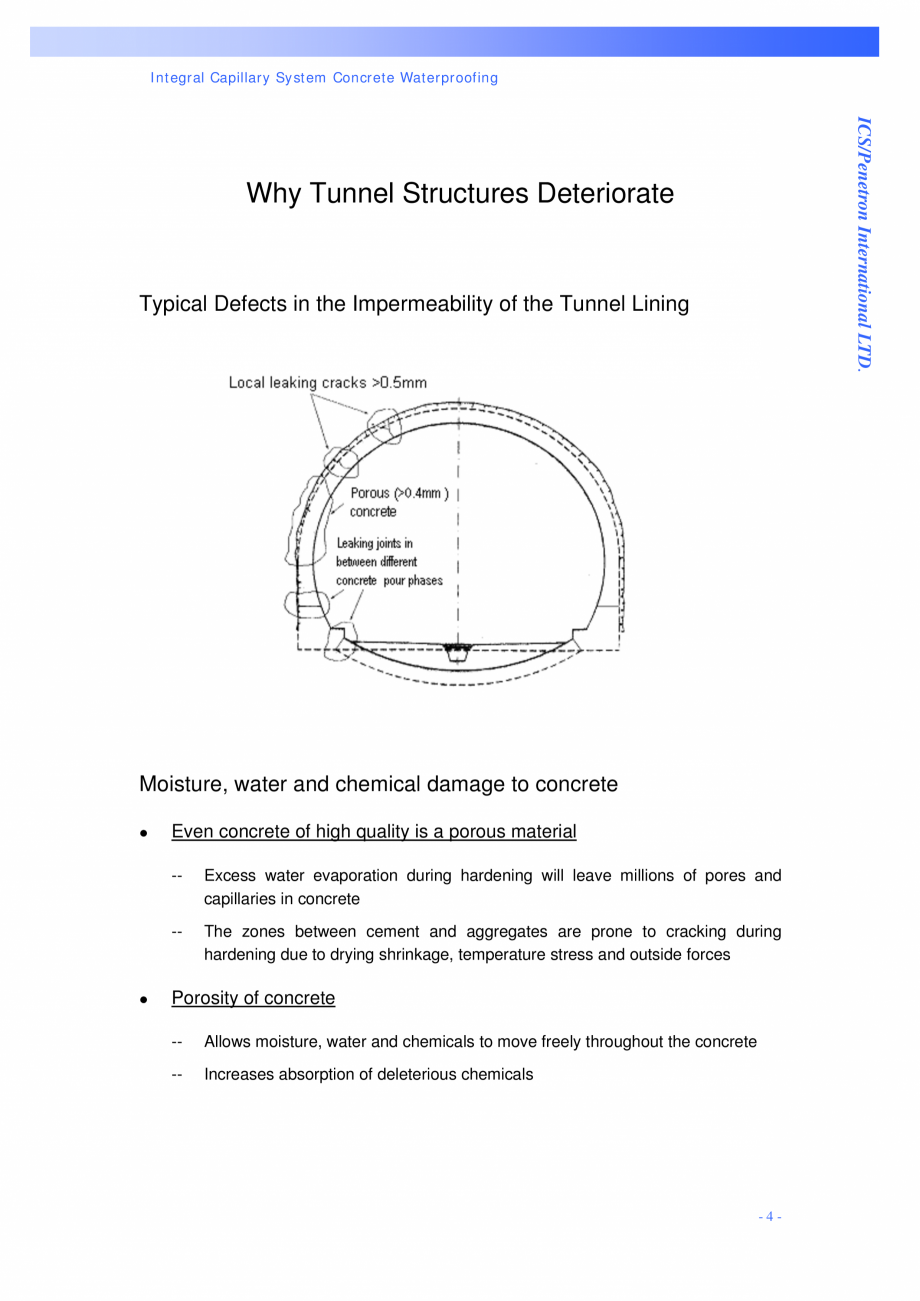

Pagina 5 - Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON...

D. Why Tunnel Structures Deteriorate Typical Defects in the Impermeability of the Tunnel Lining Moisture, water and chemical damage to concrete Even concrete of high quality is a porous material -- Excess water evaporation during hardening will leave millions of pores and capillaries in concrete -- The zones between cement and aggregates are prone to cracking during hardening due to drying shrinkage, temperature stress and outside forces Porosity of concrete -- Allows moisture, water and chemicals to move freely throughout the concrete -- Increases absorption of deleterious chemicals -4- Integral Capillary System Concrete Waterproofing -- If not waterproofed, cracks can allow water to pass into the structure and possibly damage utilities, interior finishes and even the structure itself. Moisture, water and chemical intrusion -- Results in corrosion of the concrete due to chemicals dissolved in water -- Results in concrete neutralization (carbonization) -- Results i

Pagina 5-Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON PLUS Catalog, ...

Pagina 6 - Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON...

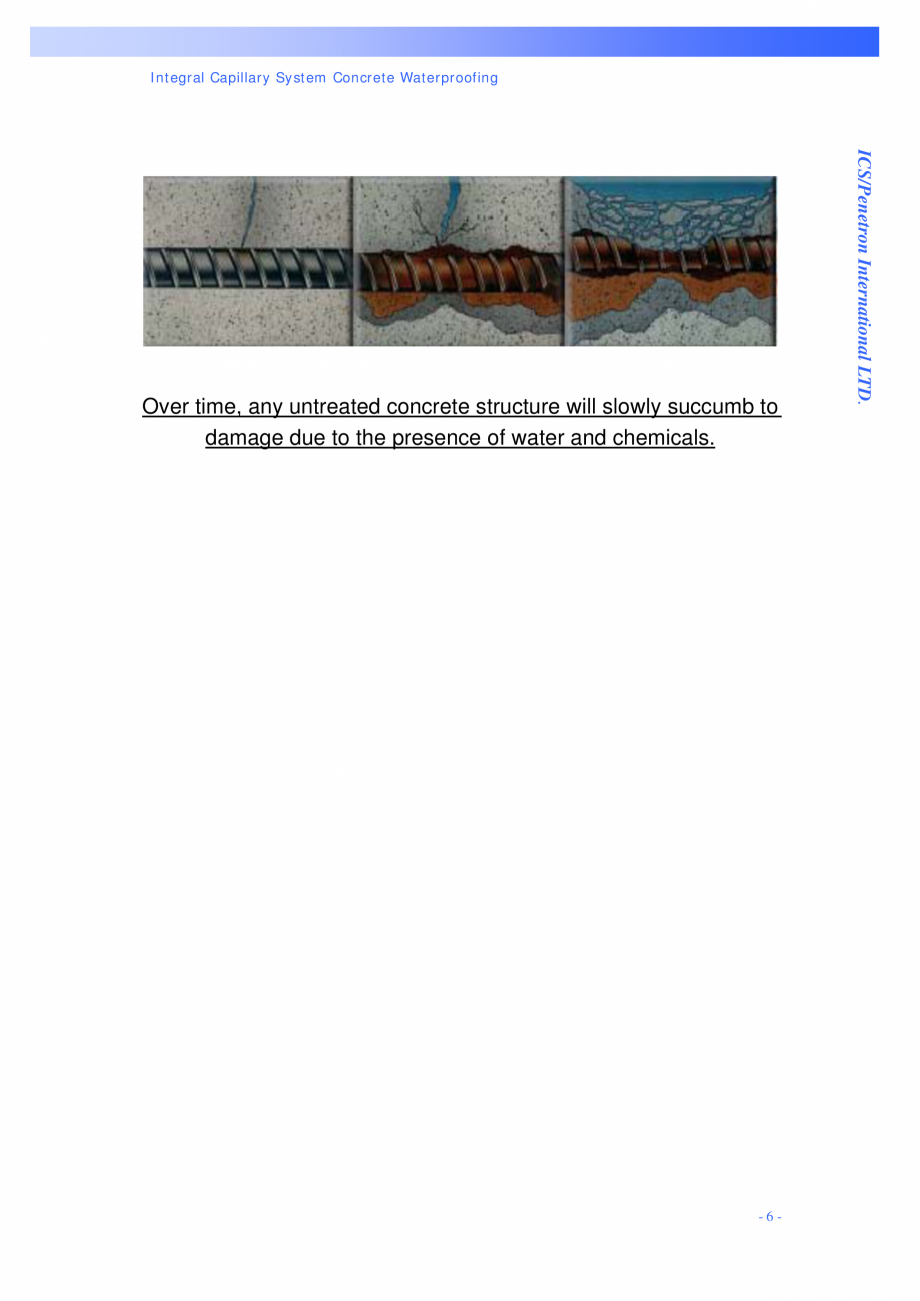

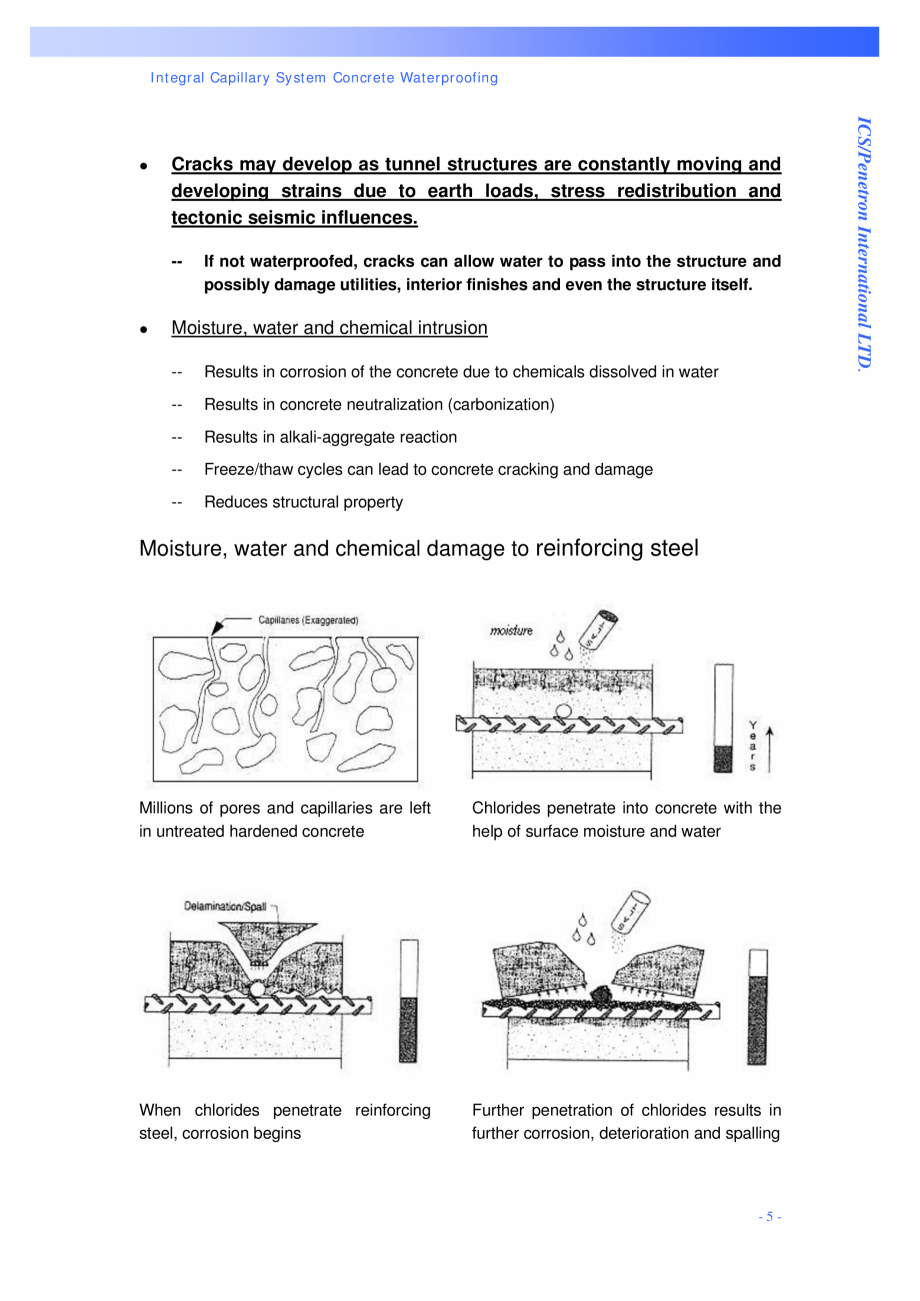

n alkali-aggregate reaction -- Freeze/thaw cycles can lead to concrete cracking and damage -- Reduces structural property Moisture, water and chemical damage to reinforcing steel Millions of pores and capillaries are left in untreated hardened concrete Chlorides penetrate into concrete with the help of surface moisture and water When chlorides penetrate reinforcing steel, corrosion begins Further penetration of chlorides results in further corrosion, deterioration and spalling -5- ICS/Penetron International LTD. Cracks may develop as tunnel structures are constantly moving and developing strains due to earth loads, stress redistribution and tectonic seismic influences. Integral Capillary System Concrete Waterproofing -6- ICS/Penetron International LTD. Over time, any untreated concrete structure will slowly succumb to damage due to the presence of water and chemicals. Integral Capillary System Concrete Waterproofing Penetron products are cementitious capillary cryst

Pagina 6-Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON PLUS Catalog, ...

Pagina 7 - Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON...

alline waterproofing materials -- Powders consisting of Portland cement, quartz sand and multiple activating chemicals -- A range of activating chemicals in powder form that can be applied to concrete as an admixture, slurry and dry-shake Penetron products can effectively stop water and moisture penetration into concrete, providing the best protection by improving the capillary structure and reducing porosity -- Penetron Applied by brush or spray on hardened concrete surface -- Penetron Plus Dry shake application on horizontal fresh concrete surface -- Penetron Admix An additive mixed into new concrete at the time of batching for complete integral waterproofing Applications Water towers & storage tanks Reservoirs & dam s Swimming pools Subway & other tunnel systems Bridge decks Parking decks Off-shore & marine structures Basements Foundations Sewage and water treatment plants Traffic-bearing structures Elevator shafts Company passed ISO 9001 quality system authe

Pagina 7-Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON PLUS Catalog, ...

Pagina 8 - Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON...

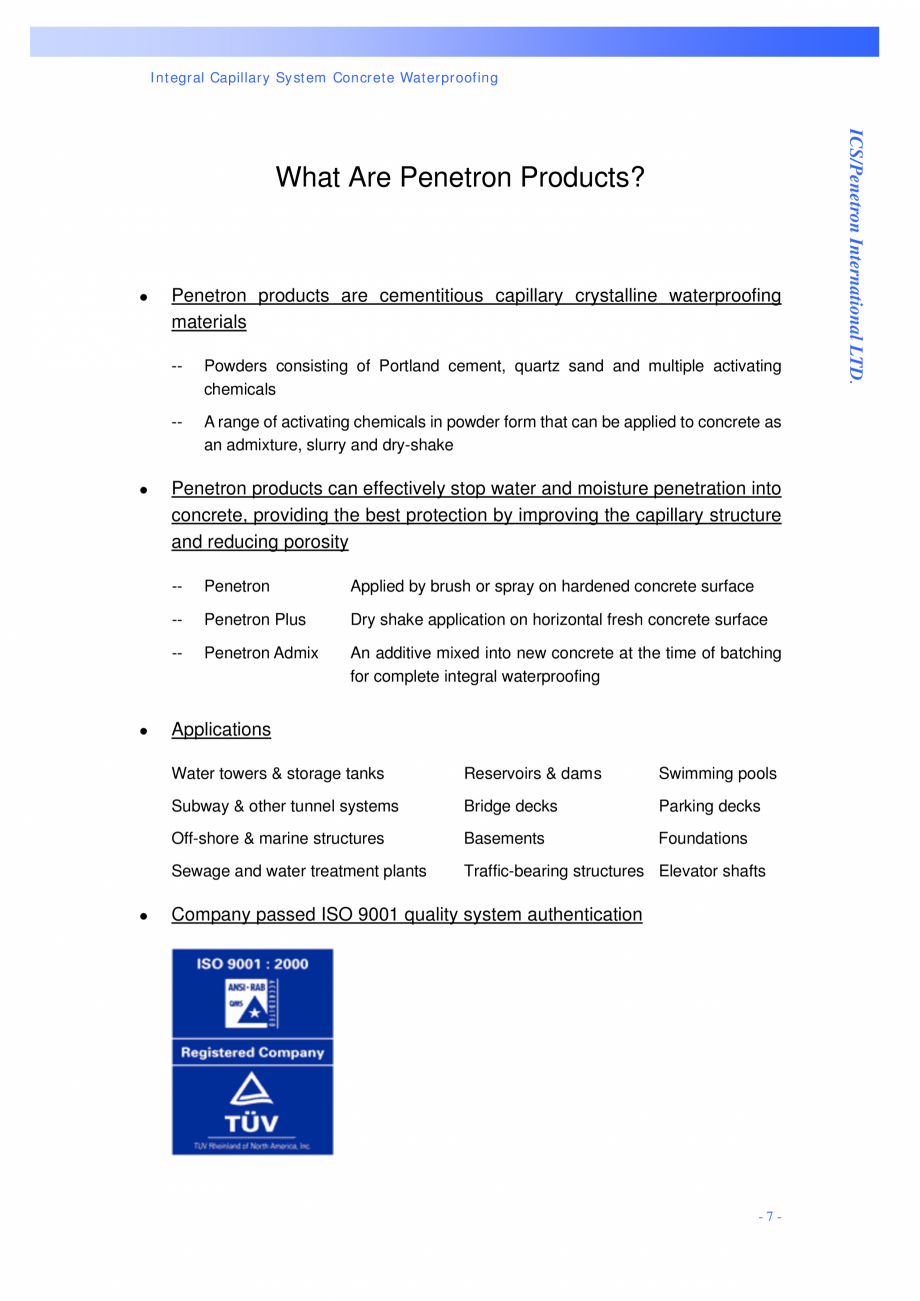

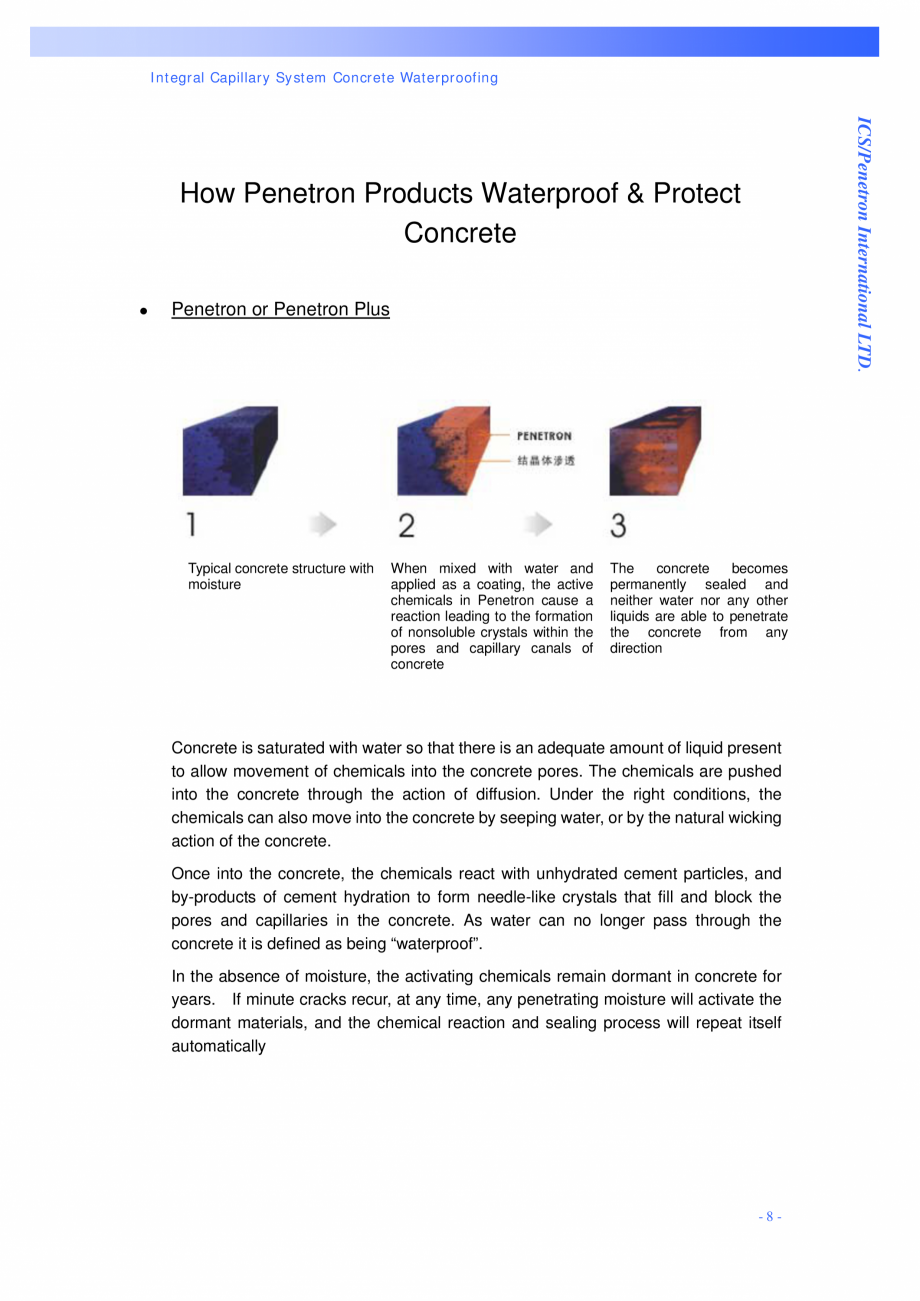

ntication -7- ICS/Penetron International LTD. What Are Penetron Products? Integral Capillary System Concrete Waterproofing ICS/Penetron International LTD. How Penetron Products Waterproof & Protect Concrete Penetron or Penetron Plus Typical concrete structure with moisture When mixed with water and applied as a coating, the active chemicals in Penetron cause a reaction leading to the formation of nonsoluble crystals within the pores and capillary canals of concrete The concrete becomes permanently sealed and neither water nor any other liquids are able to penetrate the concrete from any direction Concrete is saturated with water so that there is an adequate amount of liquid present to allow movement of chemicals into the concrete pores. The chemicals are pushed into the concrete through the action of diffusion. Under the right conditions, the chemicals can also move into the concrete by seeping water, or by the natural wicking action of the concrete. Once into the concrete,

Pagina 8-Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON PLUS Catalog, ...

Pagina 9 - Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON...

the chemicals react with unhydrated cement particles, and by-products of cement hydration to form needle-like crystals that fill and block the pores and capillaries in the concrete. As water can no longer pass through the concrete it is defined as being “waterproof”. In the absence of moisture, the activating chemicals remain dormant in concrete for years. If minute cracks recur, at any time, any penetrating moisture will activate the dormant materials, and the chemical reaction and sealing process will repeat itself automatically -8- Integral Capillary System Concrete Waterproofing Penetron Admix is a unique crystal-forming additive that provides permanent protection for buildings and other structures by waterproofing concrete from the inside out. Penetron Admix is added to the concrete mix at the time of batching. The activating chemicals of the product react with water, unhydrated cement particles and by-products of cement hydration in concrete to form needle-like crystals.

Pagina 9-Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON PLUS Catalog, ...

Pagina 10 - Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON...

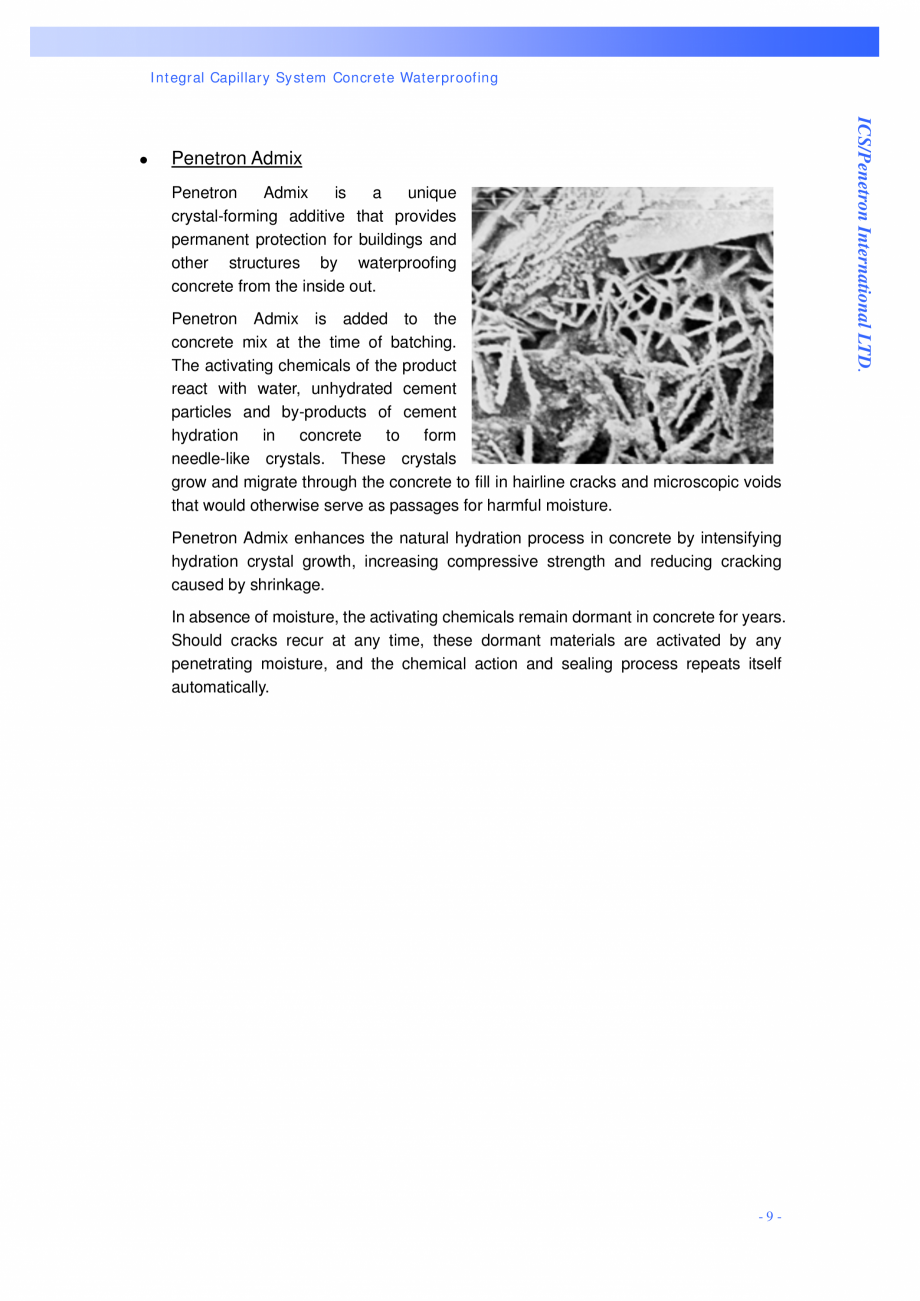

These crystals grow and migrate through the concrete to fill in hairline cracks and microscopic voids that would otherwise serve as passages for harmful moisture. Penetron Admix enhances the natural hydration process in concrete by intensifying hydration crystal growth, increasing compressive strength and reducing cracking caused by shrinkage. In absence of moisture, the activating chemicals remain dormant in concrete for years. Should cracks recur at any time, these dormant materials are activated by any penetrating moisture, and the chemical action and sealing process repeats itself automatically. -9- ICS/Penetron International LTD. Penetron Admix Integral Capillary System Concrete Waterproofing ICS/Penetron International LTD. Features, Advantages & Benefits Features and Advantages -- Penetron Admix Permanent waterproofing admixture ·Impermeability lasts as long as the concrete ·System becomes an integral part of the concrete ·Does not require re-application Resists high h

Pagina 10-Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON PLUS Catalog, ...

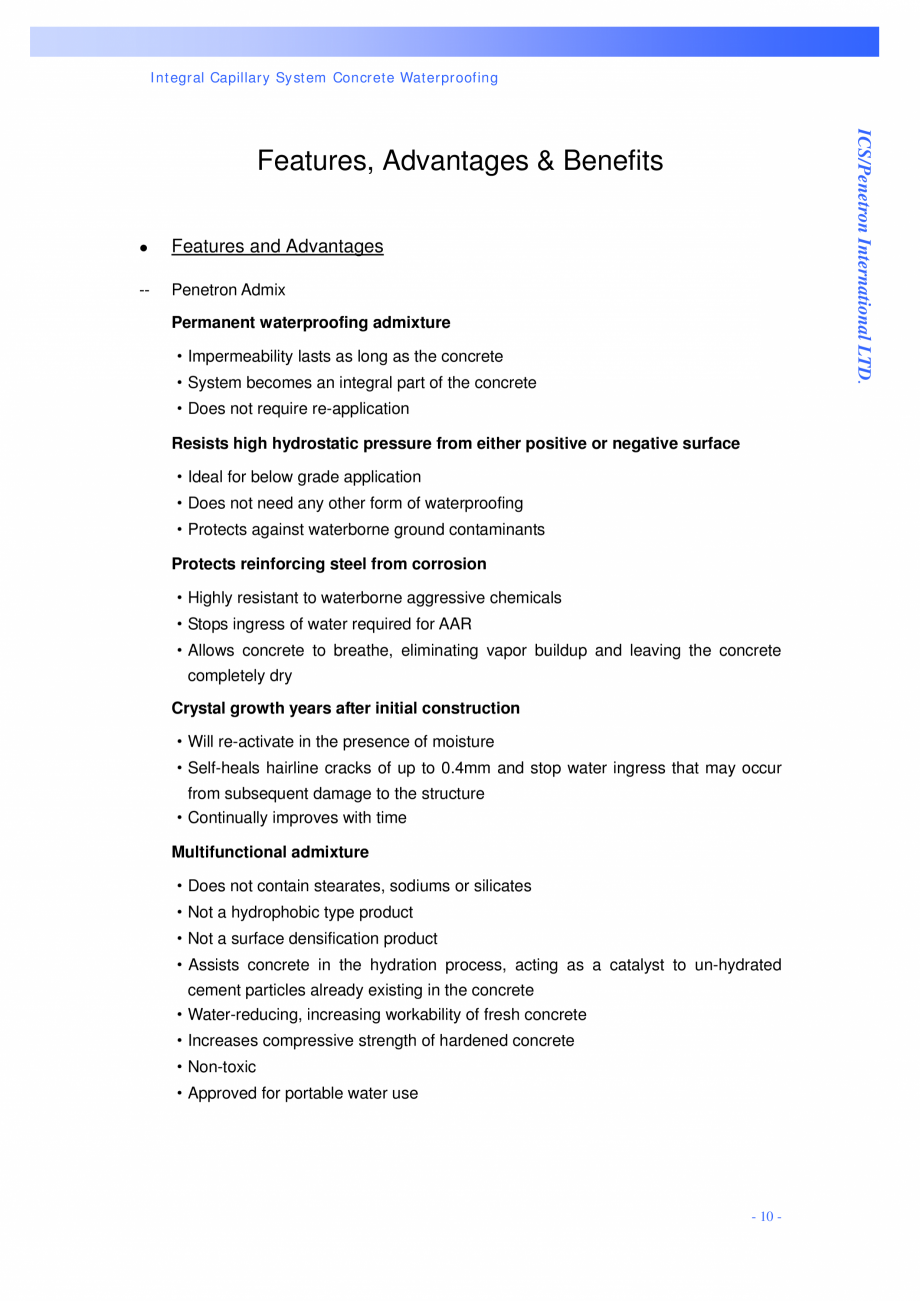

Pagina 11 - Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON...

ydrostatic pressure from either positive or negative surface ·Ideal for below grade application ·Does not need any other form of waterproofing ·Protects against waterborne ground contaminants Protects reinforcing steel from corrosion ·Highly resistant to waterborne aggressive chemicals ·Stops ingress of water required for AAR ·Allows concrete to breathe, eliminating vapor buildup and leaving the concrete completely dry Crystal growth years after initial construction ·Will re-activate in the presence of moisture ·Self-heals hairline cracks of up to 0.4mm and stop water ingress that may occur from subsequent damage to the structure ·Continually improves with time Multifunctional admixture ·Does not contain stearates, sodiums or silicates ·Not a hydrophobic type product ·Not a surface densification product ·Assists concrete in the hydration process, acting as a catalyst to un-hydrated cement particles already existing in the concrete ·Water-reducing, increasing workability o

Pagina 11-Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON PLUS Catalog, ...

Pagina 12 - Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON...

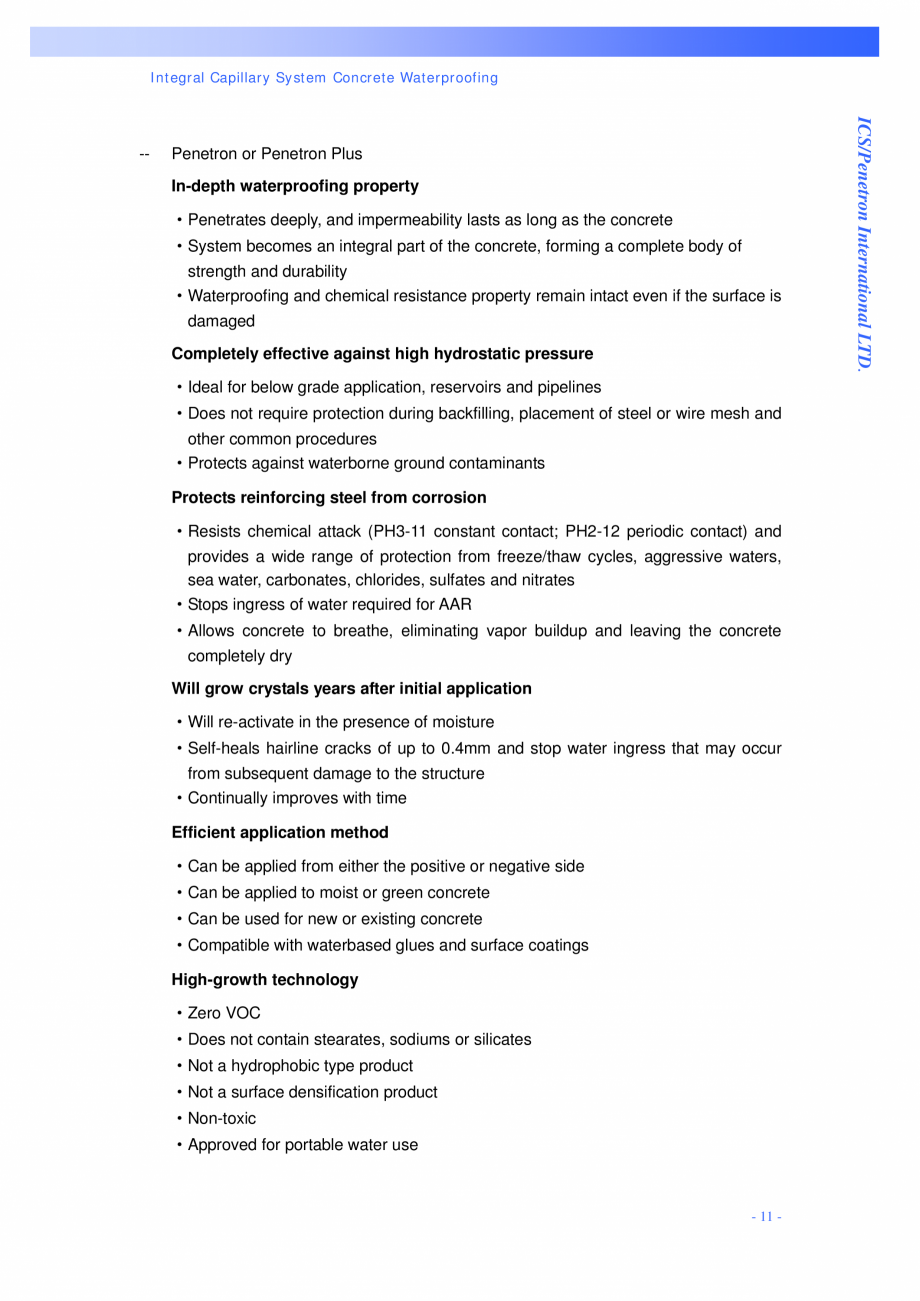

f fresh concrete ·Increases compressive strength of hardened concrete ·Non-toxic ·Approved for portable water use - 10 - Integral Capillary System Concrete Waterproofing Penetron or Penetron Plus In-depth waterproofing property ·Penetrates deeply, and impermeability lasts as long as the concrete ·System becomes an integral part of the concrete, forming a complete body of strength and durability ·Waterproofing and chemical resistance property remain intact even if the surface is damaged Completely effective against high hydrostatic pressure ·Ideal for below grade application, reservoirs and pipelines ·Does not require protection during backfilling, placement of steel or wire mesh and other common procedures ·Protects against waterborne ground contaminants Protects reinforcing steel from corrosion ·Resists chemical attack (PH3-11 constant contact; PH2-12 periodic contact) and provides a wide range of protection from freeze/thaw cycles, aggressive waters, sea water, carbonat

Pagina 12-Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON PLUS Catalog, ...

Pagina 13 - Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON...

es, chlorides, sulfates and nitrates ·Stops ingress of water required for AAR ·Allows concrete to breathe, eliminating vapor buildup and leaving the concrete completely dry Will grow crystals years after initial application ·Will re-activate in the presence of moisture ·Self-heals hairline cracks of up to 0.4mm and stop water ingress that may occur from subsequent damage to the structure ·Continually improves with time Efficient application method ·Can be applied from either the positive or negative side ·Can be applied to moist or green concrete ·Can be used for new or existing concrete ·Compatible with waterbased glues and surface coatings High-growth technology ·Zero VOC ·Does not contain stearates, sodiums or silicates ·Not a hydrophobic type product ·Not a surface densification product ·Non-toxic ·Approved for portable water use - 11 - ICS/Penetron International LTD. -- Integral Capillary System Concrete Waterproofing ICS/Penetron International LTD. Benefits

Pagina 13-Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON PLUS Catalog, ...

Pagina 14 - Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON...

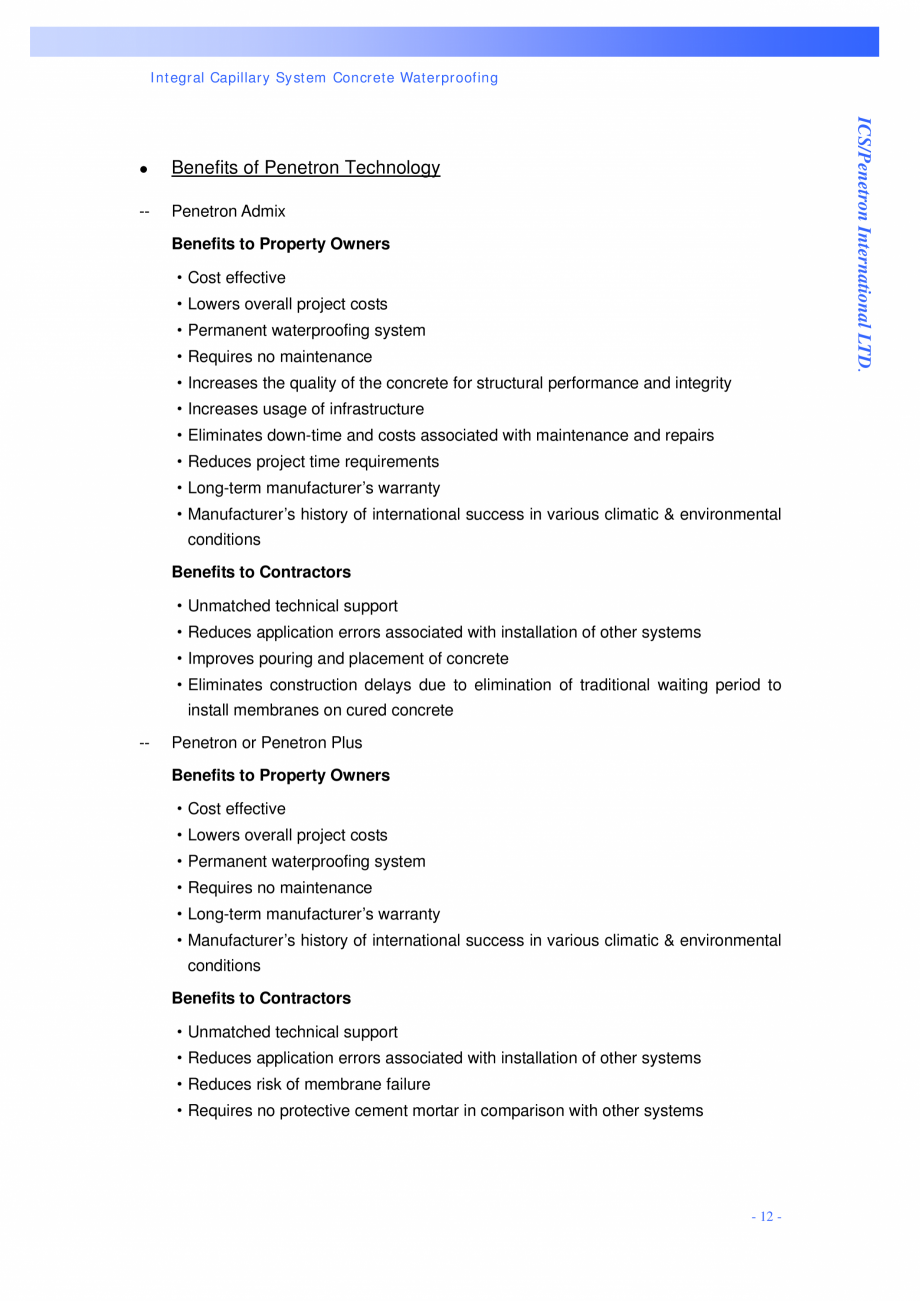

of Penetron Technology -- Penetron Admix Benefits to Property Owners ·Cost effective ·Lowers overall project costs ·Permanent waterproofing system ·Requires no maintenance ·Increases the quality of the concrete for structural performance and integrity ·Increases usage of infrastructure ·Eliminates down-time and costs associated with maintenance and repairs ·Reduces project time requirements ·Long-term manufacturer’s warranty ·Manufacturer’s history of international success in various climatic & environmental conditions Benefits to Contractors ·Unmatched technical support ·Reduces application errors associated with installation of other systems ·Improves pouring and placement of concrete ·Eliminates construction delays due to elimination of traditional waiting period to install membranes on cured concrete -- Penetron or Penetron Plus Benefits to Property Owners ·Cost effective ·Lowers overall project costs ·Permanent waterproofing system ·Requires no maintenance

Pagina 14-Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON PLUS Catalog, ...

Pagina 15 - Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON...

·Long-term manufacturer’s warranty ·Manufacturer’s history of international success in various climatic & environmental conditions Benefits to Contractors ·Unmatched technical support ·Reduces application errors associated with installation of other systems ·Reduces risk of membrane failure ·Requires no protective cement mortar in comparison with other systems - 12 - Integral Capillary System Concrete Waterproofing Penetron Penetron Plus Penetron Admix Membranes (Positive Side) Cementitious material applied on concrete surface to transfer needle-like crystals to infiltrate the concrete mass ·Improves with time ·Resistance to exceeding 150m head pressure ·Withstands 3Mpa in permeability test Cementitious material added into fresh concrete to form needle-like crystals within the concrete mass ·Improves with time ·Continuous self-healing ability ·Initiates full hydration Protection of reinforcing steel · Prevents corrosion of reinforcing steel by stopping passa

Pagina 15-Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON PLUS Catalog, ...

Pagina 16 - Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON...

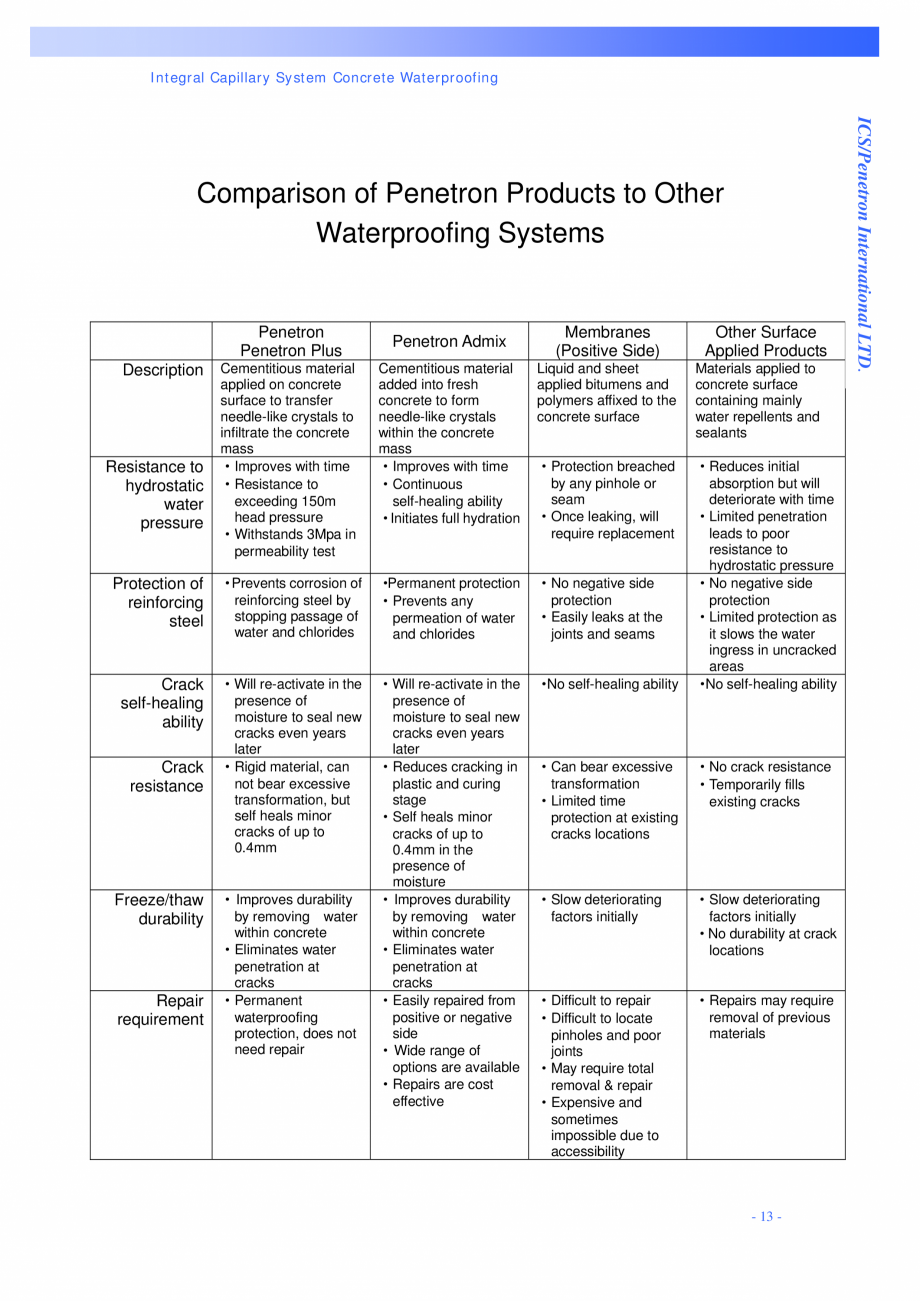

ge of water and chlorides · Permanent protection ·Prevents any permeation of water and chlorides ·No negative side protection ·Easily leaks at the joints and seams Crack self-healing ability ·Will re-activate in the presence of moisture to seal new cracks even years later ·Rigid material, can not bear excessive transformation, but self heals minor cracks of up to 0.4mm ·Will re-activate in the presence of moisture to seal new cracks even years later ·Reduces cracking in plastic and curing stage ·Self heals minor cracks of up to 0.4mm in the presence of moisture · Improves durability by removing water within concrete ·Eliminates water penetration at cracks ·Easily repaired from positive or negative side · Wide range of options are available ·Repairs are cost effective · self-healing ability No Description Resistance to hydrostatic water pressure Crack resistance Freeze/thaw durability Repair requirement · Improves durability by removing water within concrete

Pagina 16-Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON PLUS Catalog, ...

Pagina 17 - Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON...

·Eliminates water penetration at cracks ·Permanent waterproofing protection, does not need repair Other Surface Applied Products Liquid and sheet applied bitumens and polymers affixed to the concrete surface Materials applied to concrete surface containing mainly water repellents and sealants ·Protection breached by any pinhole or seam ·Once leaking, will require replacement ·Reduces initial absorption but will deteriorate with time ·Limited penetration leads to poor resistance to hydrostatic pressure ·No negative side protection ·Limited protection as it slows the water ingress in uncracked areas · self-healing ability No ·Can bear excessive transformation ·Limited time protection at existing cracks locations ·No crack resistance ·Temporarily fills existing cracks ·Slow deteriorating factors initially ·Slow deteriorating factors initially ·No durability at crack locations ·Difficult to repair ·Difficult to locate pinholes and poor joints ·May require total

Pagina 17-Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON PLUS Catalog, ...

Pagina 18 - Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON...

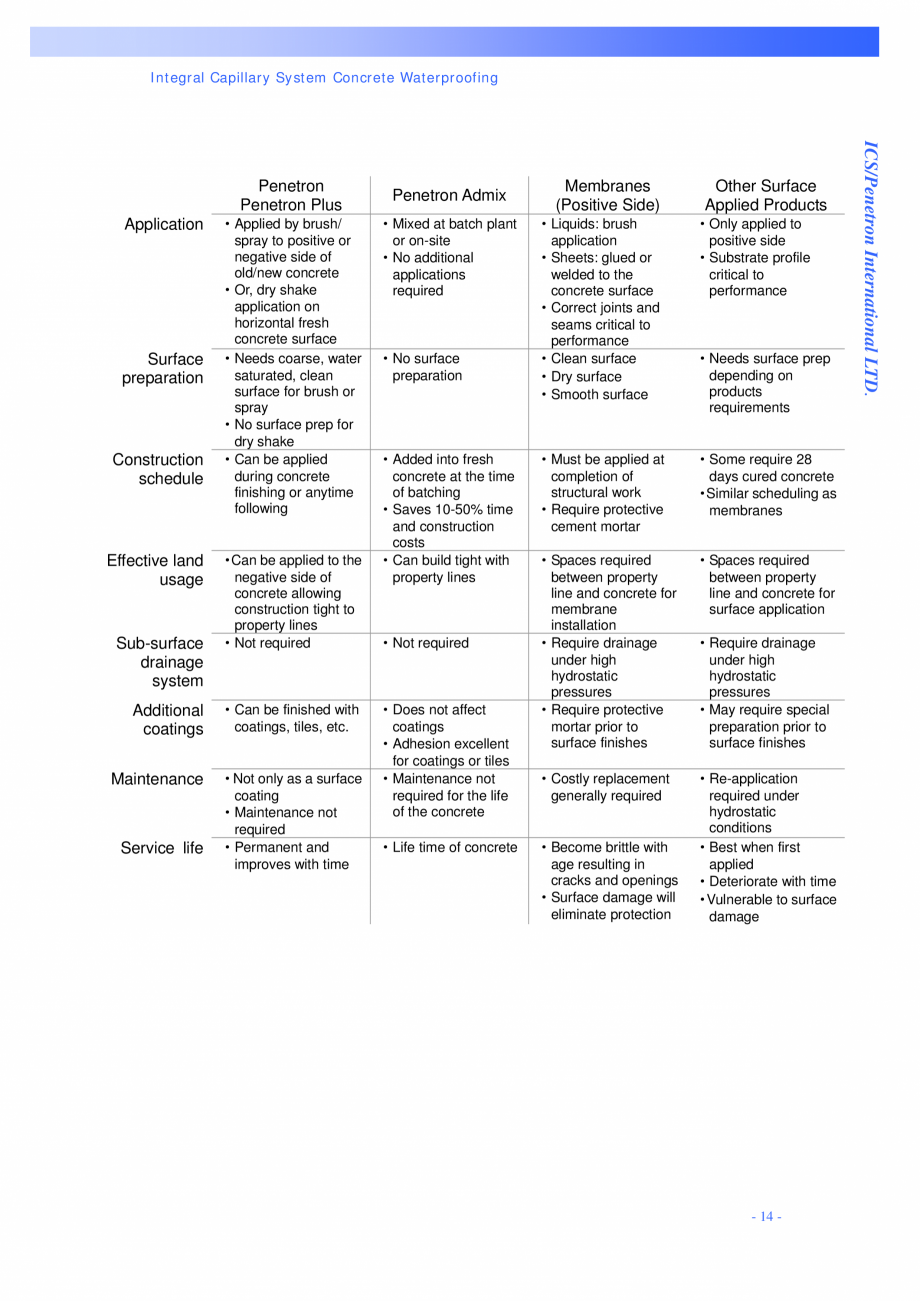

removal & repair ·Expensive and sometimes impossible due to accessibility ·Repairs may require removal of previous materials - 13 - ICS/Penetron International LTD. Comparison of Penetron Products to Other Waterproofing Systems Integral Capillary System Concrete Waterproofing Application Surface preparation Construction schedule Effective land usage Sub-surface drainage system ·Applied by brush/ spray to positive or negative side of old/new concrete ·Or, dry shake application on horizontal fresh concrete surface ·Needs coarse, water saturated, clean surface for brush or spray ·No surface prep for dry shake ·Can be applied during concrete finishing or anytime following · Can be applied to the negative side of concrete allowing construction tight to property lines ·Not required Additional coatings ·Can be finished with coatings, tiles, etc. Maintenance ·Not only as a surface coating ·Maintenance not required ·Permanent and improves with time Service life P

Pagina 18-Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON PLUS Catalog, ...

Pagina 19 - Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON...

enetron Admix ·Mixed at batch plant or on-site ·No additional applications required ·No surface preparation ·Added into fresh concrete at the time of batching ·Saves 10-50% time and construction costs ·Can build tight with property lines ·Not required ·Does not affect coatings ·Adhesion excellent for coatings or tiles ·Maintenance not required for the life of the concrete ·Life time of concrete Membranes (Positive Side) Other Surface Applied Products ·Liquids: brush application ·Sheets: glued or welded to the concrete surface ·Correct joints and seams critical to performance ·Clean surface ·Dry surface ·Smooth surface ·Only applied to positive side ·Substrate profile critical to performance ·Must be applied at completion of structural work ·Require protective cement mortar ·Some require 28 days cured concrete · Similar scheduling as membranes ·Spaces required between property line and concrete for membrane installation ·Require drainage under high hy

Pagina 19-Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON PLUS Catalog, ...

Pagina 20 - Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON...

drostatic pressures ·Require protective mortar prior to surface finishes ·Spaces required between property line and concrete for surface application ·Costly replacement generally required ·Re-application required under hydrostatic conditions ·Best when first applied ·Deteriorate with time ·Vulnerable to surface damage ·Become brittle with age resulting in cracks and openings ·Surface damage will eliminate protection ·Needs surface prep depending on products requirements ·Require drainage under high hydrostatic pressures ·May require special preparation prior to surface finishes - 14 - ICS/Penetron International LTD. Penetron Penetron Plus Integral Capillary System Concrete Waterproofing As underground structures are constantly moving and developing strains due to earth loads, stress redistribution and tectonic and seismic influences, cracks may develop in the structure. If not waterproofed, the cracks can allow water to pass into the structure and possibly damag

Pagina 20-Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON PLUS Catalog, ...

Pagina 21 - Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON...

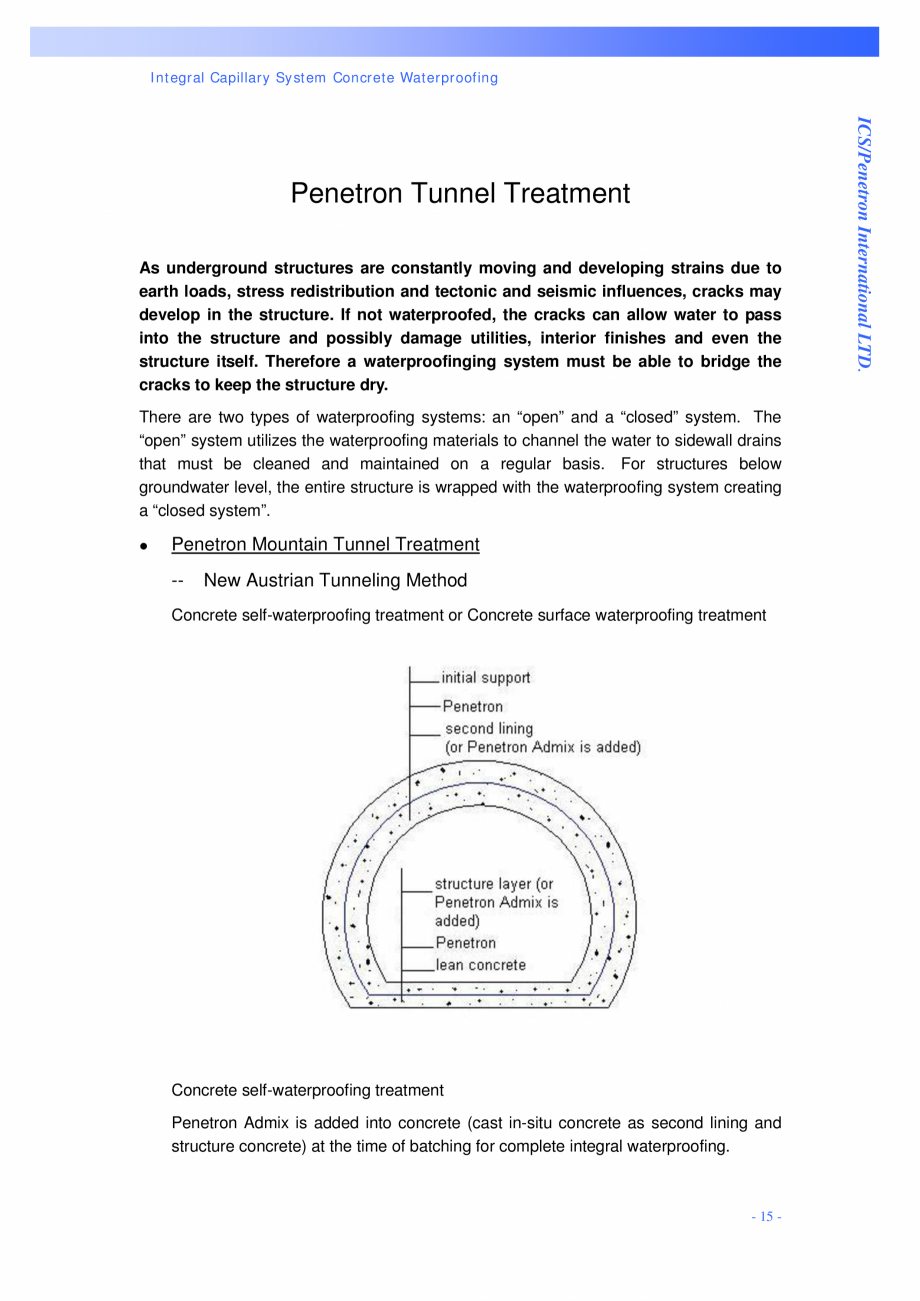

e utilities, interior finishes and even the structure itself. Therefore a waterproofinging system must be able to bridge the cracks to keep the structure dry. There are two types of waterproofing systems: an “open” and a “closed” system. The “open” system utilizes the waterproofing materials to channel the water to sidewall drains that must be cleaned and maintained on a regular basis. For structures below groundwater level, the entire structure is wrapped with the waterproofing system creating a “closed system”. Penetron Mountain Tunnel Treatment -- New Austrian Tunneling Method Concrete self-waterproofing treatment or Concrete surface waterproofing treatment Concrete self-waterproofing treatment Penetron Admix is added into concrete (cast in-situ concrete as second lining and structure concrete) at the time of batching for complete integral waterproofing. - 15 - ICS/Penetron International LTD. Penetron Tunnel Treatment Integral Capillary System Concrete Water

Pagina 21-Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON PLUS Catalog, ...

Pagina 22 - Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON...

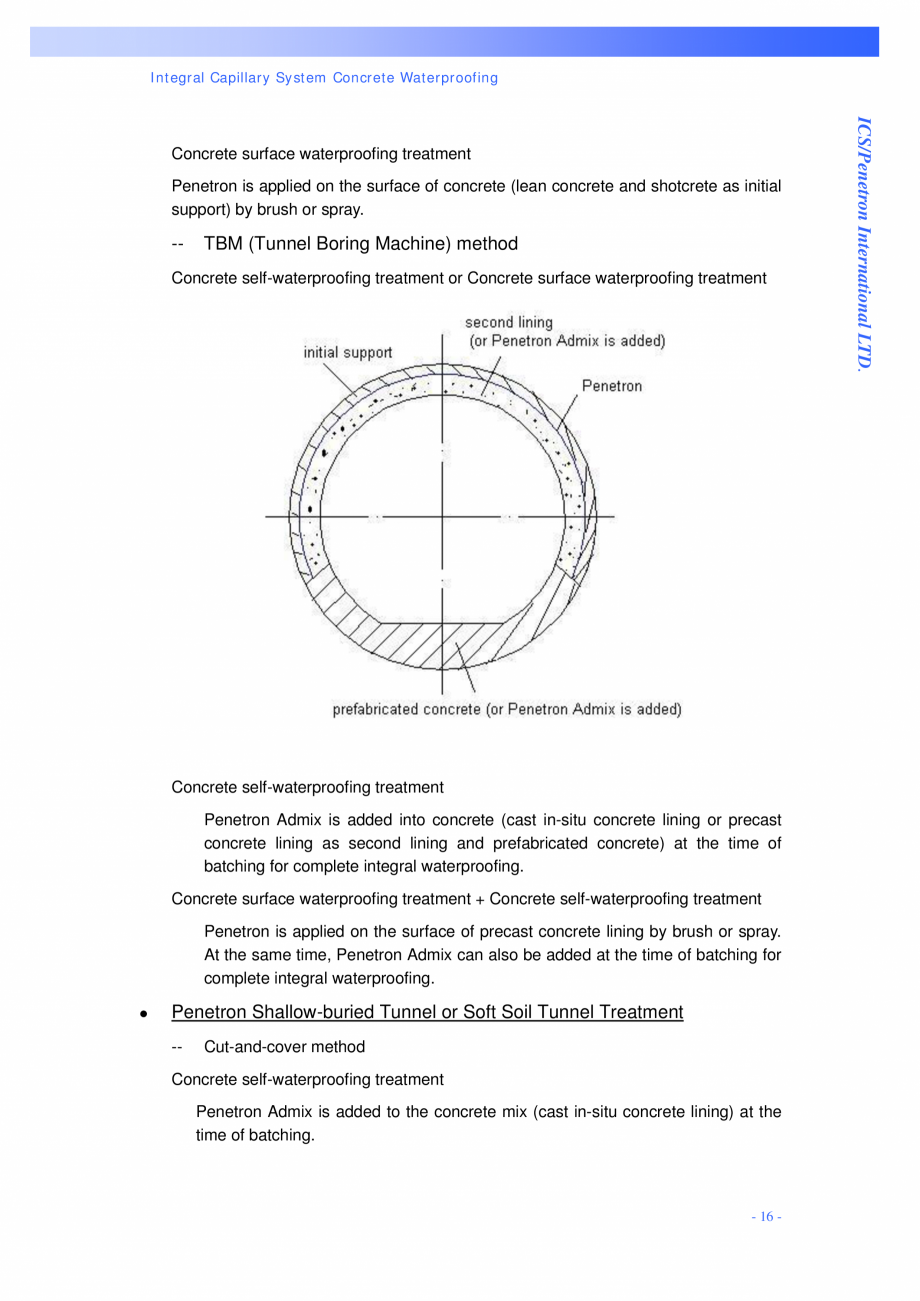

proofing Penetron is applied on the surface of concrete (lean concrete and shotcrete as initial support) by brush or spray. -- TBM (Tunnel Boring Machine) method Concrete self-waterproofing treatment or Concrete surface waterproofing treatment Concrete self-waterproofing treatment Penetron Admix is added into concrete (cast in-situ concrete lining or precast concrete lining as second lining and prefabricated concrete) at the time of batching for complete integral waterproofing. Concrete surface waterproofing treatment + Concrete self-waterproofing treatment Penetron is applied on the surface of precast concrete lining by brush or spray. At the same time, Penetron Admix can also be added at the time of batching for complete integral waterproofing. Penetron Shallow-buried Tunnel or Soft Soil Tunnel Treatment -- Cut-and-cover method Concrete self-waterproofing treatment Penetron Admix is added to the concrete mix (cast in-situ concrete lining) at the time of batching. - 16 - ICS

Pagina 22-Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON PLUS Catalog, ...

Pagina 23 - Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON...

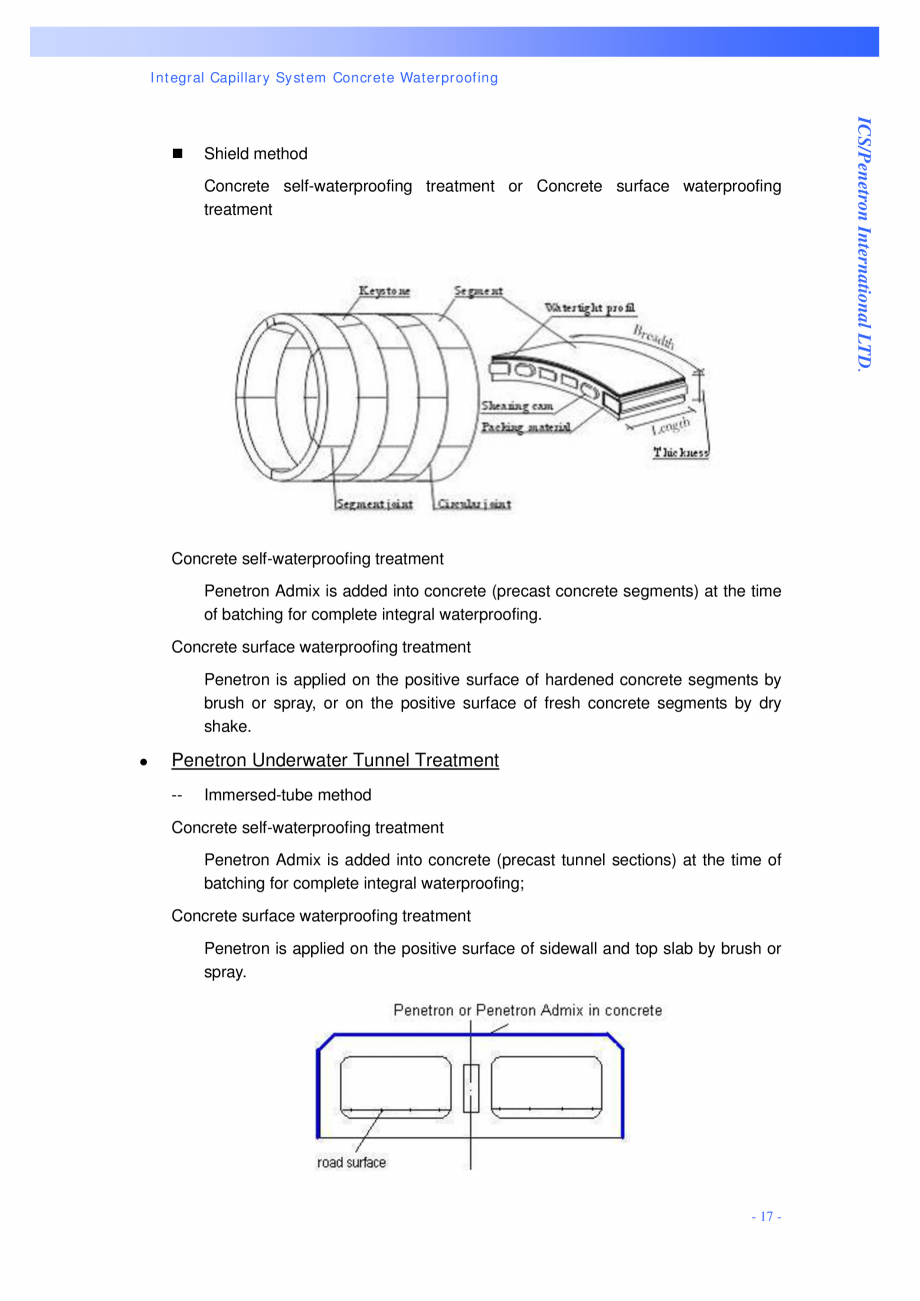

/Penetron International LTD. Concrete surface waterproofing treatment Integral Capillary System Concrete Waterproofing Concrete self-waterproofing treatment or Concrete surface waterproofing treatment Concrete self-waterproofing treatment Penetron Admix is added into concrete (precast concrete segments) at the time of batching for complete integral waterproofing. Concrete surface waterproofing treatment Penetron is applied on the positive surface of hardened concrete segments by brush or spray, or on the positive surface of fresh concrete segments by dry shake. Penetron Underwater Tunnel Treatment -- Immersed-tube method Concrete self-waterproofing treatment Penetron Admix is added into concrete (precast tunnel sections) at the time of batching for complete integral waterproofing; Concrete surface waterproofing treatment Penetron is applied on the positive surface of sidewall and top slab by brush or spray. - 17 - ICS/Penetron International LTD. Shield method Integral Capi

Pagina 23-Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON PLUS Catalog, ...

Pagina 24 - Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON...

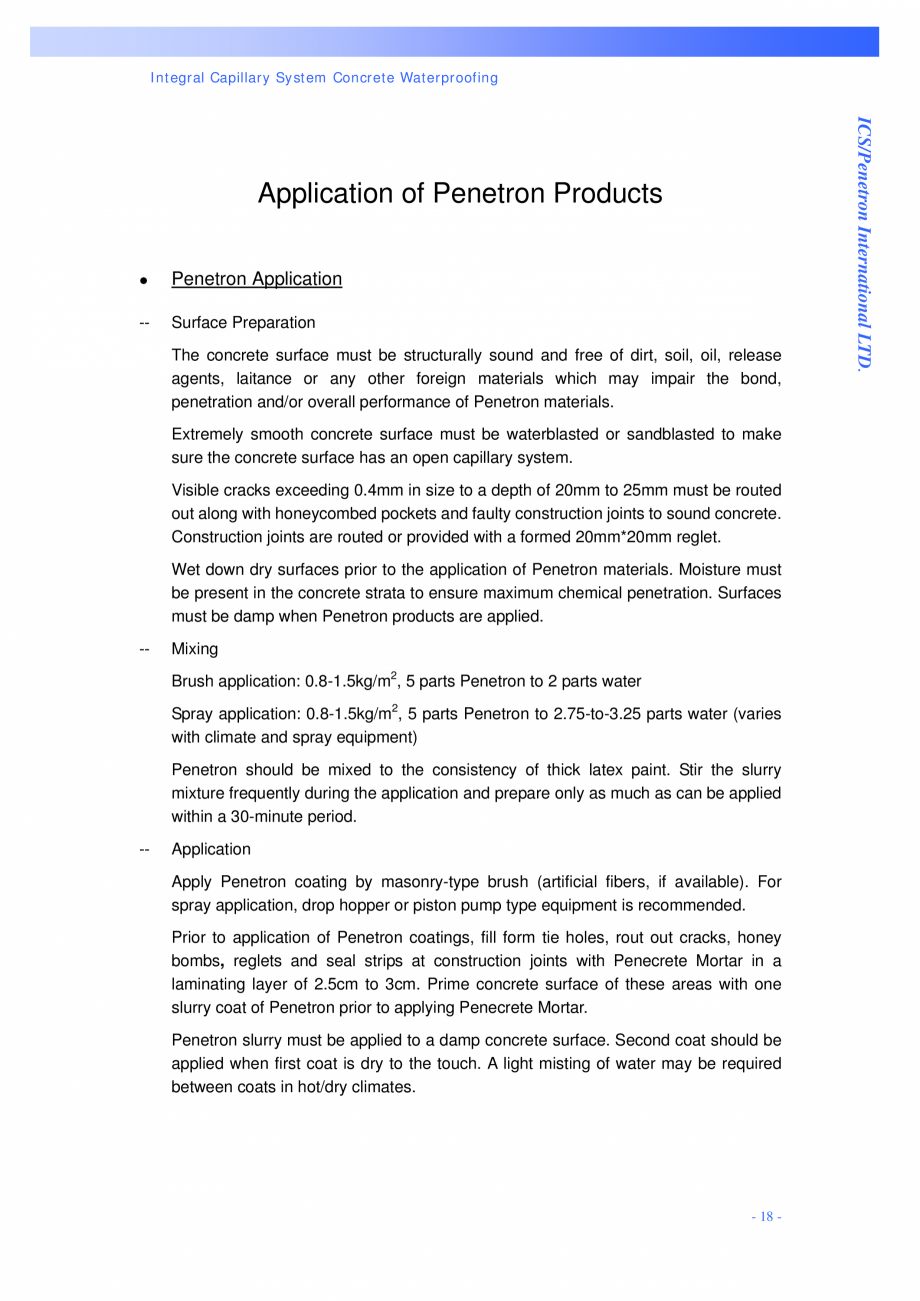

llary System Concrete Waterproofing Penetron Application -- Surface Preparation The concrete surface must be structurally sound and free of dirt, soil, oil, release agents, laitance or any other foreign materials which may impair the bond, penetration and/or overall performance of Penetron materials. Extremely smooth concrete surface must be waterblasted or sandblasted to make sure the concrete surface has an open capillary system. Visible cracks exceeding 0.4mm in size to a depth of 20mm to 25mm must be routed out along with honeycombed pockets and faulty construction joints to sound concrete. Construction joints are routed or provided with a formed 20mm*20mm reglet. Wet down dry surfaces prior to the application of Penetron materials. Moisture must be present in the concrete strata to ensure maximum chemical penetration. Surfaces must be damp when Penetron products are applied. -- Mixing Brush application: 0.8-1.5kg/m2, 5 parts Penetron to 2 parts water Spray application: 0.8-1.5

Pagina 24-Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON PLUS Catalog, ...

Pagina 25 - Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON...

kg/m2, 5 parts Penetron to 2.75-to-3.25 parts water (varies with climate and spray equipment) Penetron should be mixed to the consistency of thick latex paint. Stir the slurry mixture frequently during the application and prepare only as much as can be applied within a 30-minute period. -- Application Apply Penetron coating by masonry-type brush (artificial fibers, if available). For spray application, drop hopper or piston pump type equipment is recommended. Prior to application of Penetron coatings, fill form tie holes, rout out cracks, honey bombs, reglets and seal strips at construction joints with Penecrete Mortar in a laminating layer of 2.5cm to 3cm. Prime concrete surface of these areas with one slurry coat of Penetron prior to applying Penecrete Mortar. Penetron slurry must be applied to a damp concrete surface. Second coat should be applied when first coat is dry to the touch. A light misting of water may be required between coats in hot/dry climates. - 18 - ICS/Penetron

Pagina 25-Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON PLUS Catalog, ...

Pagina 26 - Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON...

International LTD. Application of Penetron Products Integral Capillary System Concrete Waterproofing Dry sprinkle Penetron or Penetron Plus on “still plastic” concrete by broadcasting or with a fine mesh sieve in specified quantities. Work the slab surface with wood flat or power trowel until required finish has been achieved. -- Coverage Horizontal concrete surface: Penetron at 1.4 to 1.6kg/m2. Apply in one slurry coat or powder application when concrete reaches initial set. Trowel or float to specified finish. Penetron Plus powder application at 0.5kg/m2 when concrete reaches initial set. Trowel or float to specified finish. Vertical concrete surfaces: Penetron at 1.4 to 1.6kg/m2. Apply in two coats (0.8kg.per coat). -- Curing Except for extremely hot weather and very Iow humidity, curing of the Penetron system is not required. In these extreme conditions curing, using a light water misting, must begin as soon as the Penetron coating has hardened sufficiently. Under most c

Pagina 26-Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON PLUS Catalog, ...

Pagina 27 - Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON...

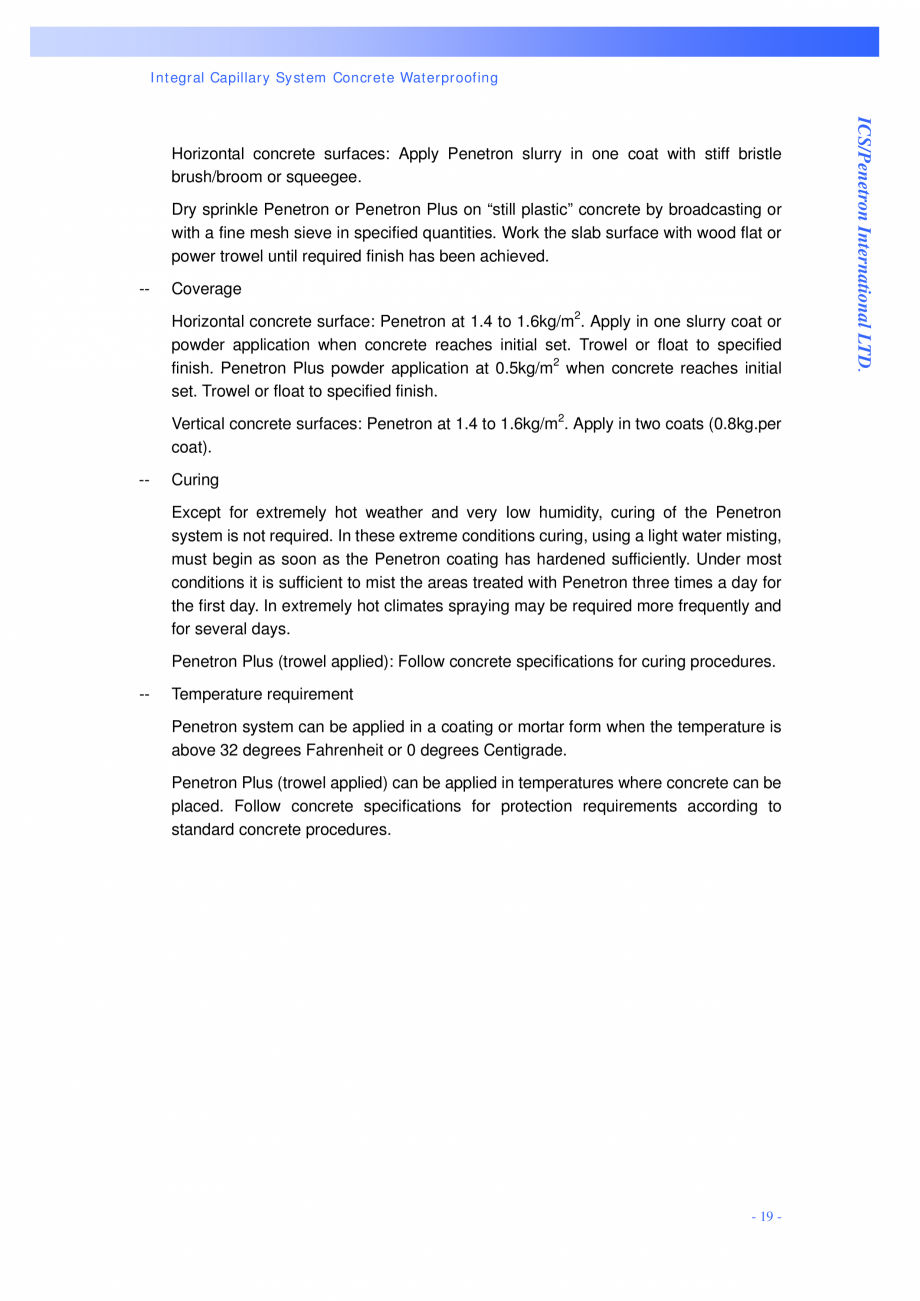

onditions it is sufficient to mist the areas treated with Penetron three times a day for the first day. In extremely hot climates spraying may be required more frequently and for several days. Penetron Plus (trowel applied): Follow concrete specifications for curing procedures. -- Temperature requirement Penetron system can be applied in a coating or mortar form when the temperature is above 32 degrees Fahrenheit or 0 degrees Centigrade. Penetron Plus (trowel applied) can be applied in temperatures where concrete can be placed. Follow concrete specifications for protection requirements according to standard concrete procedures. - 19 - ICS/Penetron International LTD. Horizontal concrete surfaces: Apply Penetron slurry in one coat with stiff bristle brush/broom or squeegee. Integral Capillary System Concrete Waterproofing -- Dosage rate Penetron Admix: 0.8% by weight of the cementitious materials, including fly ash, silica fume, etc. Note: Under certain conditions the dosage rat

Pagina 27-Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON PLUS Catalog, ...

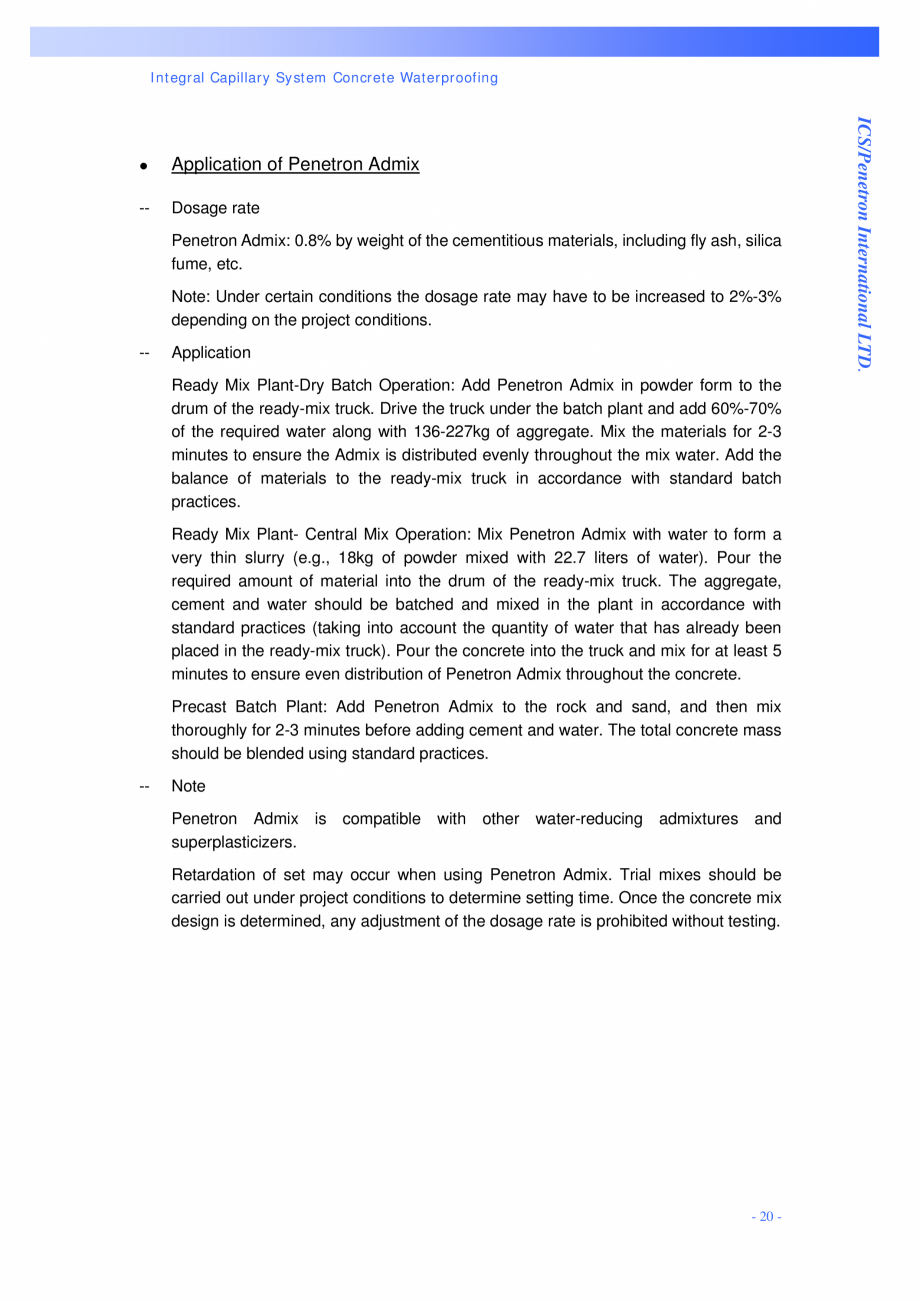

Pagina 28 - Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON...

e may have to be increased to 2%-3% depending on the project conditions. -- Application Ready Mix Plant-Dry Batch Operation: Add Penetron Admix in powder form to the drum of the ready-mix truck. Drive the truck under the batch plant and add 60%-70% of the required water along with 136-227kg of aggregate. Mix the materials for 2-3 minutes to ensure the Admix is distributed evenly throughout the mix water. Add the balance of materials to the ready-mix truck in accordance with standard batch practices. Ready Mix Plant- Central Mix Operation: Mix Penetron Admix with water to form a very thin slurry (e.g., 18kg of powder mixed with 22.7 liters of water). Pour the required amount of material into the drum of the ready-mix truck. The aggregate, cement and water should be batched and mixed in the plant in accordance with standard practices (taking into account the quantity of water that has already been placed in the ready-mix truck). Pour the concrete into the truck and mix for at least 5 m

Pagina 28-Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON PLUS Catalog, ...

Pagina 29 - Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON...

inutes to ensure even distribution of Penetron Admix throughout the concrete. Precast Batch Plant: Add Penetron Admix to the rock and sand, and then mix thoroughly for 2-3 minutes before adding cement and water. The total concrete mass should be blended using standard practices. -- Note Penetron Admix is compatible with other water-reducing admixtures and superplasticizers. Retardation of set may occur when using Penetron Admix. Trial mixes should be carried out under project conditions to determine setting time. Once the concrete mix design is determined, any adjustment of the dosage rate is prohibited without testing. - 20 - ICS/Penetron International LTD. Application of Penetron Admix Integral Capillary System Concrete Waterproofing ICS/Penetron International LTD. QA/QC of Penetron Products QA/QC of Penetron Project: Application Section: Client: Contractor: Date of Inspection: Before-Application Inspection: Surface Repair: [ ] Spalling repair [ ] Void repair [ ] C

Pagina 29-Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON PLUS Catalog, ...

Pagina 30 - Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON...

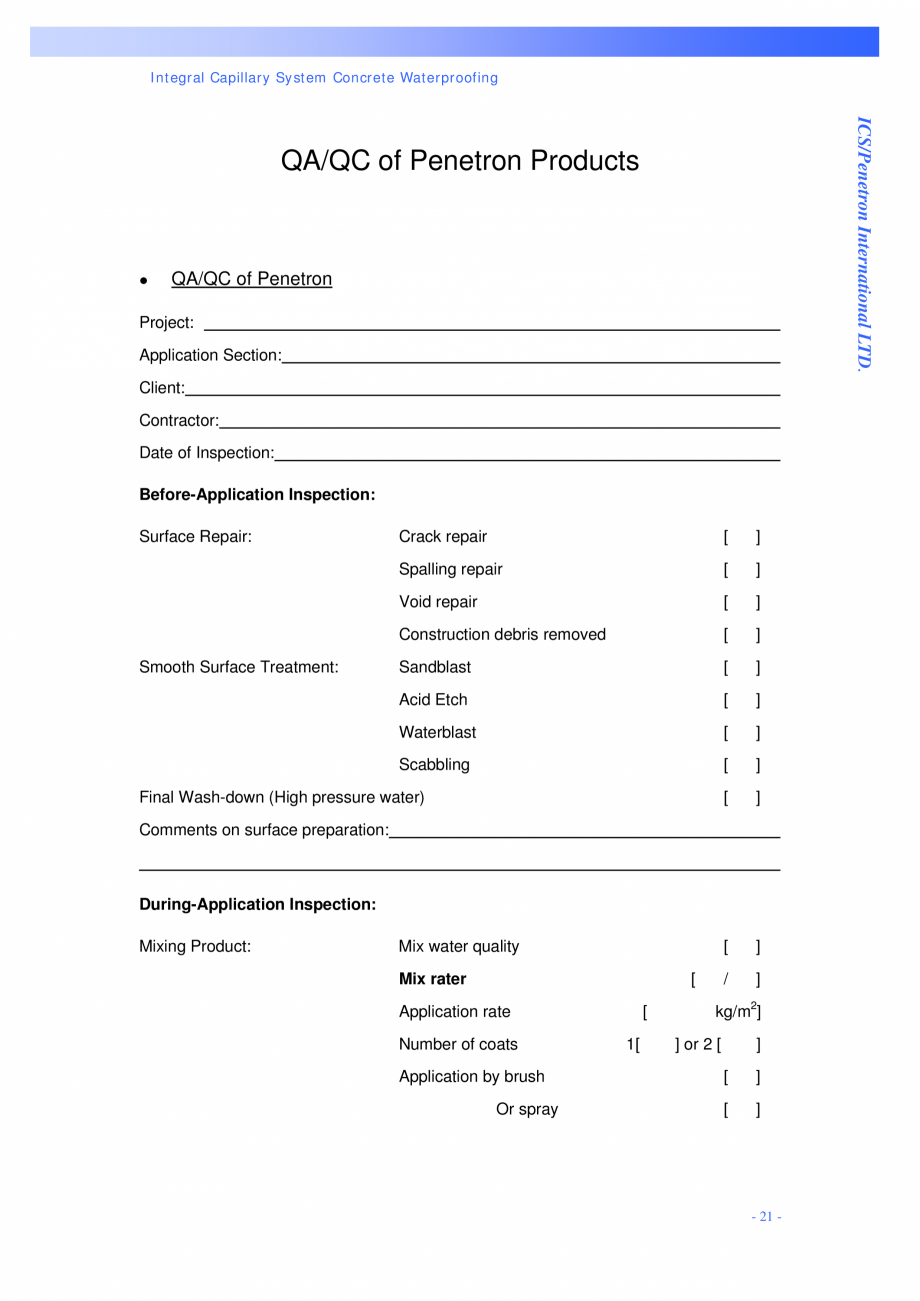

onstruction debris removed [ ] Sandblast [ ] Acid Etch [ ] Waterblast [ ] Scabbling Smooth Surface Treatment: Crack repair [ ] [ ] [ ] / ] Final Wash-down (High pressure water) Comments on surface preparation: During-Application Inspection: Mixing Product: Mix water quality Mix rater [ Application rate Number of coats Application by brush Or spray [ 1[ kg/m2] ] or 2 [ ] [ ] [ ] - 21 - Integral Capillary System Concrete Waterproofing ICS/Penetron International LTD. After-Application Inspection: Observations and comments on consistency of application: Thickness: Coverage: Joints: Overlap: Penetration: Curing Program: Water fogging [ ] times per day, for [ ] days Volume of product used in this section: [ kgs] Surface area treated [ m2 ] Comments: Inspected by: Date: - 22 - Integral Capillary System Concrete Waterproofing ICS/Penetron International LTD. QA/QC of Penetron Admix Pre Casting Project: Type of Structure: Section Identification

Pagina 30-Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON PLUS Catalog, ...

Pagina 31 - Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON...

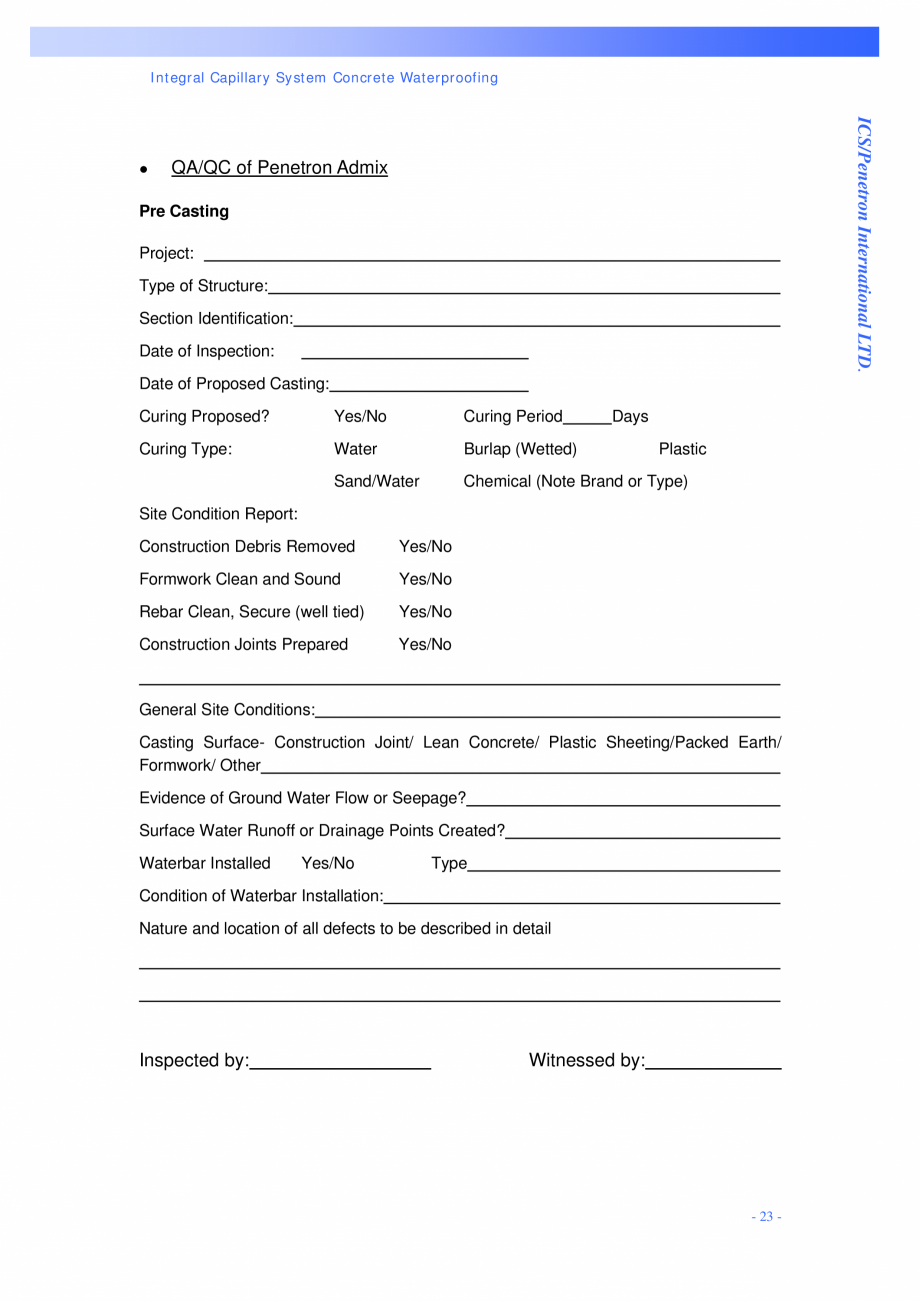

: Date of Inspection: Date of Proposed Casting: Curing Proposed? Yes/No Curing Period Curing Type: Water Burlap (Wetted) Sand/Water Chemical (Note Brand or Type) Days Plastic Site Condition Report: Construction Debris Removed Yes/No Formwork Clean and Sound Yes/No Rebar Clean, Secure (well tied) Yes/No Construction Joints Prepared Yes/No General Site Conditions: Casting Surface- Construction Joint/ Lean Concrete/ Plastic Sheeting/Packed Earth/ Formwork/ Other Evidence of Ground Water Flow or Seepage? Surface Water Runoff or Drainage Points Created? Waterbar Installed Yes/No Type Condition of Waterbar Installation: Nature and location of all defects to be described in detail Inspected by: Witnessed by: - 23 - Integral Capillary System Concrete Waterproofing Specification Specified Characteristic Strength: 28 days Target Mean Strength: Free-water/Cement Ratio: Type of concrete: Concrete Slump: Cementitious Materials Cement Type: Content: Silica Fume Conten

Pagina 31-Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON PLUS Catalog, ...

Pagina 32 - Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON...

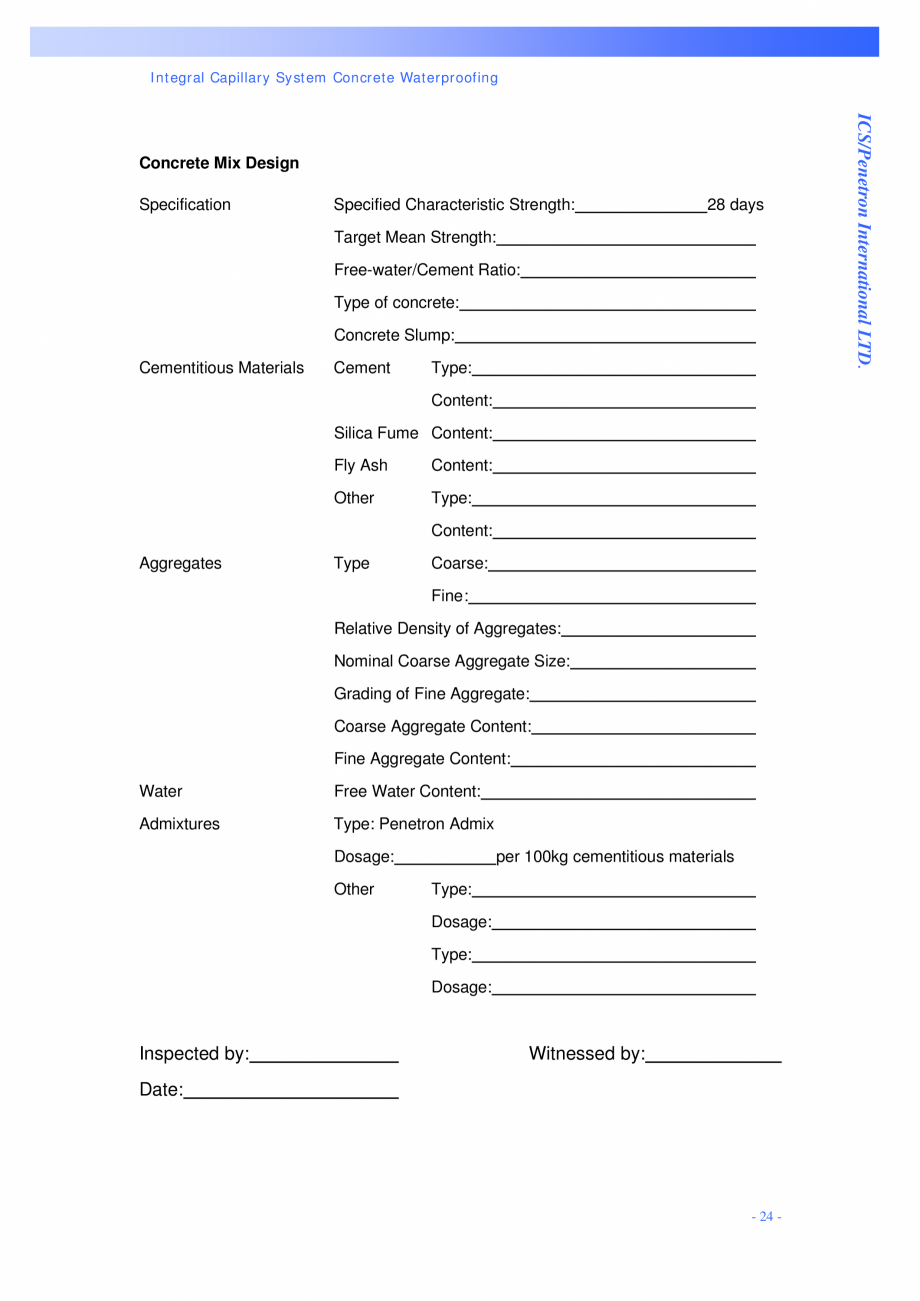

t: Fly Ash Content: Other Type: Content: Aggregates Type Coarse: Fine : Relative Density of Aggregates: Nominal Coarse Aggregate Size: Grading of Fine Aggregate: Coarse Aggregate Content: Fine Aggregate Content: Water Free Water Content: Admixtures Type: Penetron Admix Dosage: Other per 100kg cementitious materials Type: Dosage: Type: Dosage: Inspected by: Witnessed by: Date: - 24 - ICS/Penetron International LTD. Concrete Mix Design Integral Capillary System Concrete Waterproofing ICS/Penetron International LTD. Post Casting Volume of Concrete: Cast Section Identification: Date of Inspection: Date of Casting: Date of Formwork Removed: Curing Applied? Yes/No Curing Period Days Curing Type: Water Burlap (Wetted) Plastic Sand/Water Chemical Formwork Condition Report: Evidence of Honeycombing? Yes/No/Photo Evidence of Cracking? Yes/No/Photo Evidence of water leakage? Yes/No/Photo Exposed rebar Tie Bolt Holes Yes/No/Photo Yes/No/Photo Finish Surface

Pagina 32-Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON PLUS Catalog, ...

Pagina 33 - Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON...

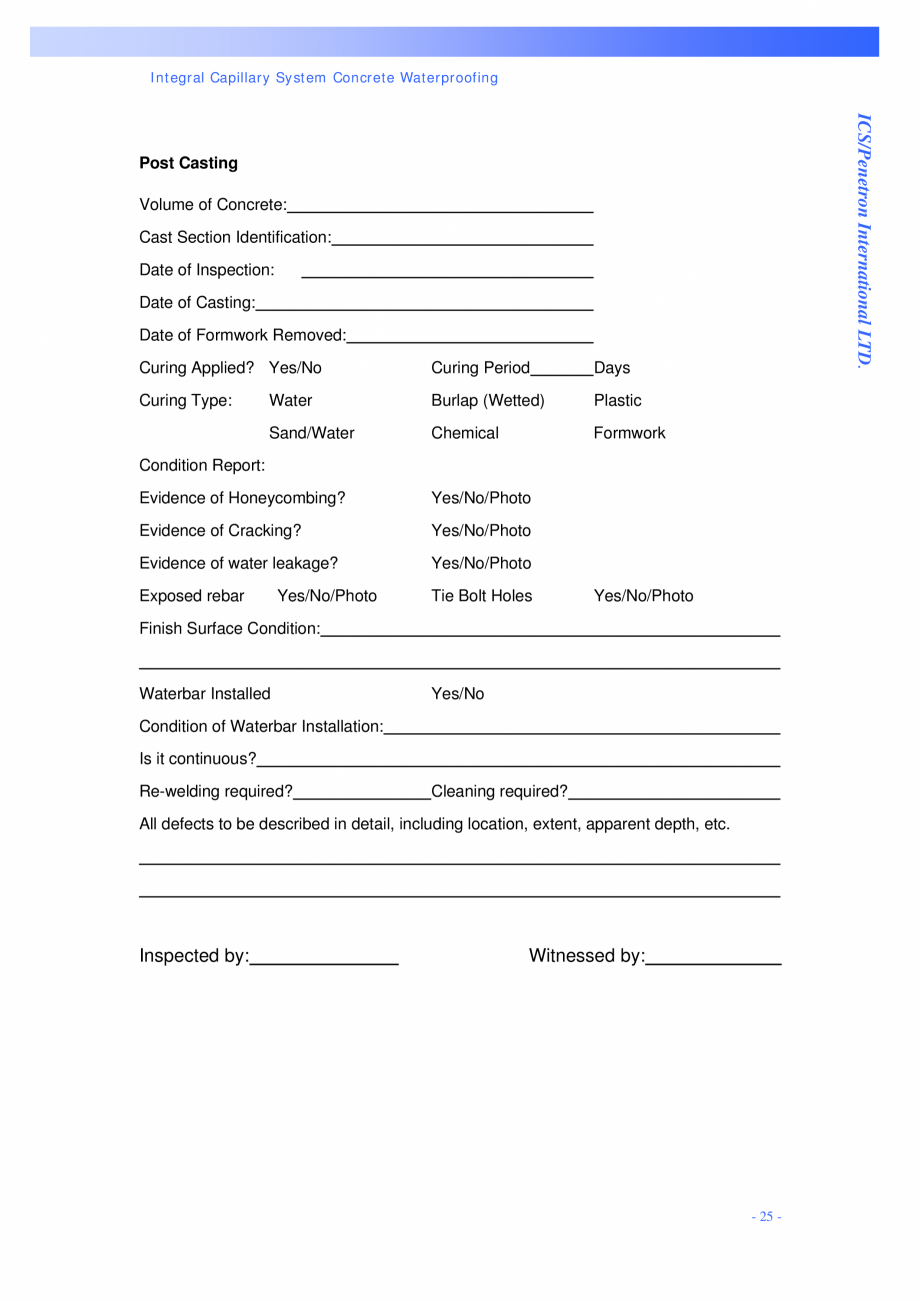

Condition: Waterbar Installed Yes/No Condition of Waterbar Installation: Is it continuous? Re-welding required? Cleaning required? All defects to be described in detail, including location, extent, apparent depth, etc. Inspected by: Witnessed by: - 25 - Integral Capillary System Concrete Waterproofing Second Hanna Tunnel, Osaka, Japan Repairs made to leaking tunnel in 1996. Penetron products were used to waterproof the shotecrete in this tunnel by applying a lining of Penetron to the shotcrete surface. Location: National Highway No. 308 Bypass; Second Hanna Toll Road Construction Project; Ventilation Shaft No.27+01 Vicinity Washington DC Metro, Washington DC, USA Repairs made to over 2 miles of tunnels in 1990. Sao Paulo Subway Sau Paulo, Brazil Repairs were made to over 9km of tunnel Sau Paulo Subway Sau Paulo, Brazil Waterproofing new tunnel. Year: 1990-1995 Moscow Metro, Moscow, Russia 18 km of tunnel were treated. Saint Petersburg Subway, Russia Over 100 tons o

Pagina 33-Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON PLUS Catalog, ...

Pagina 34 - Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON...

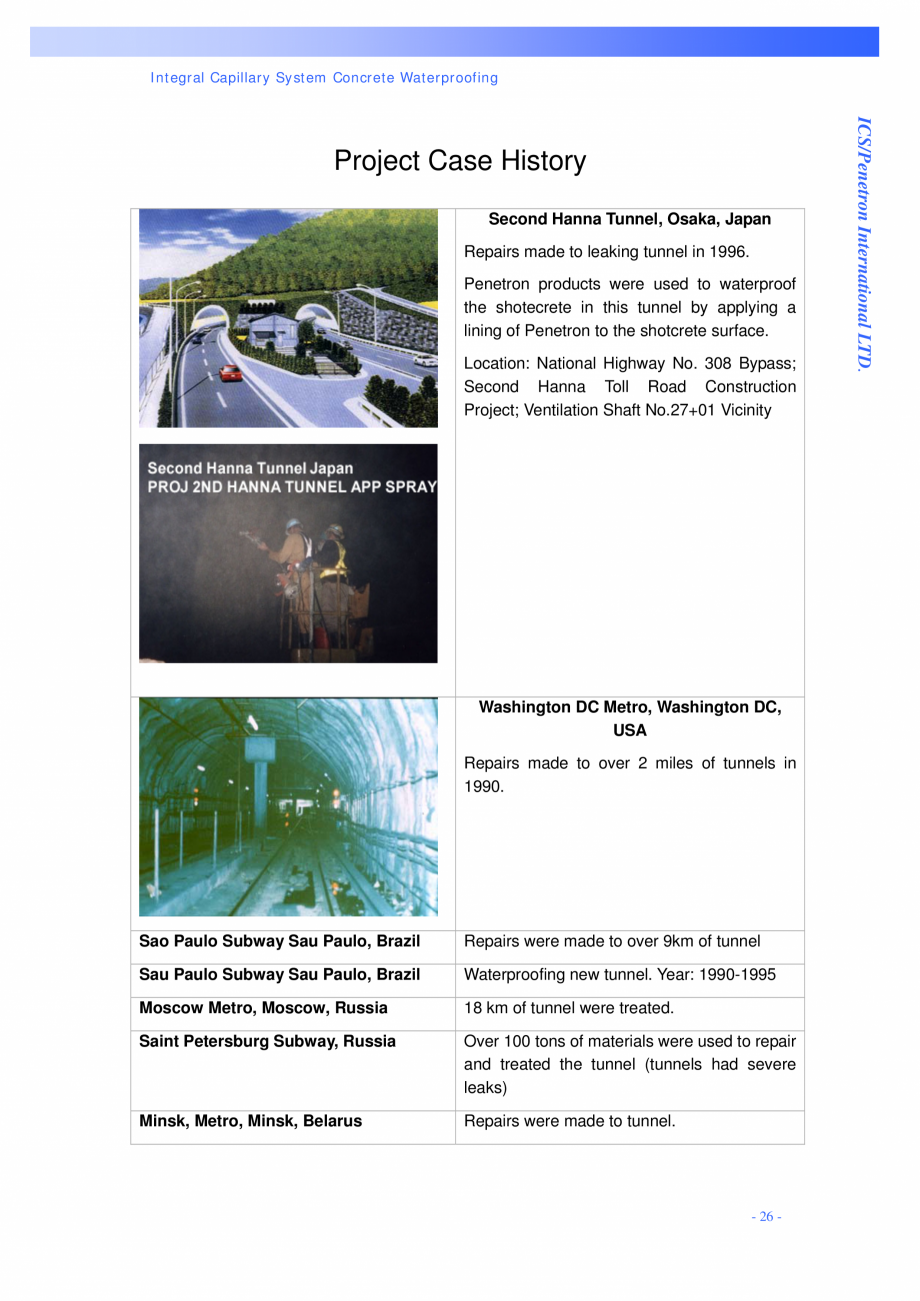

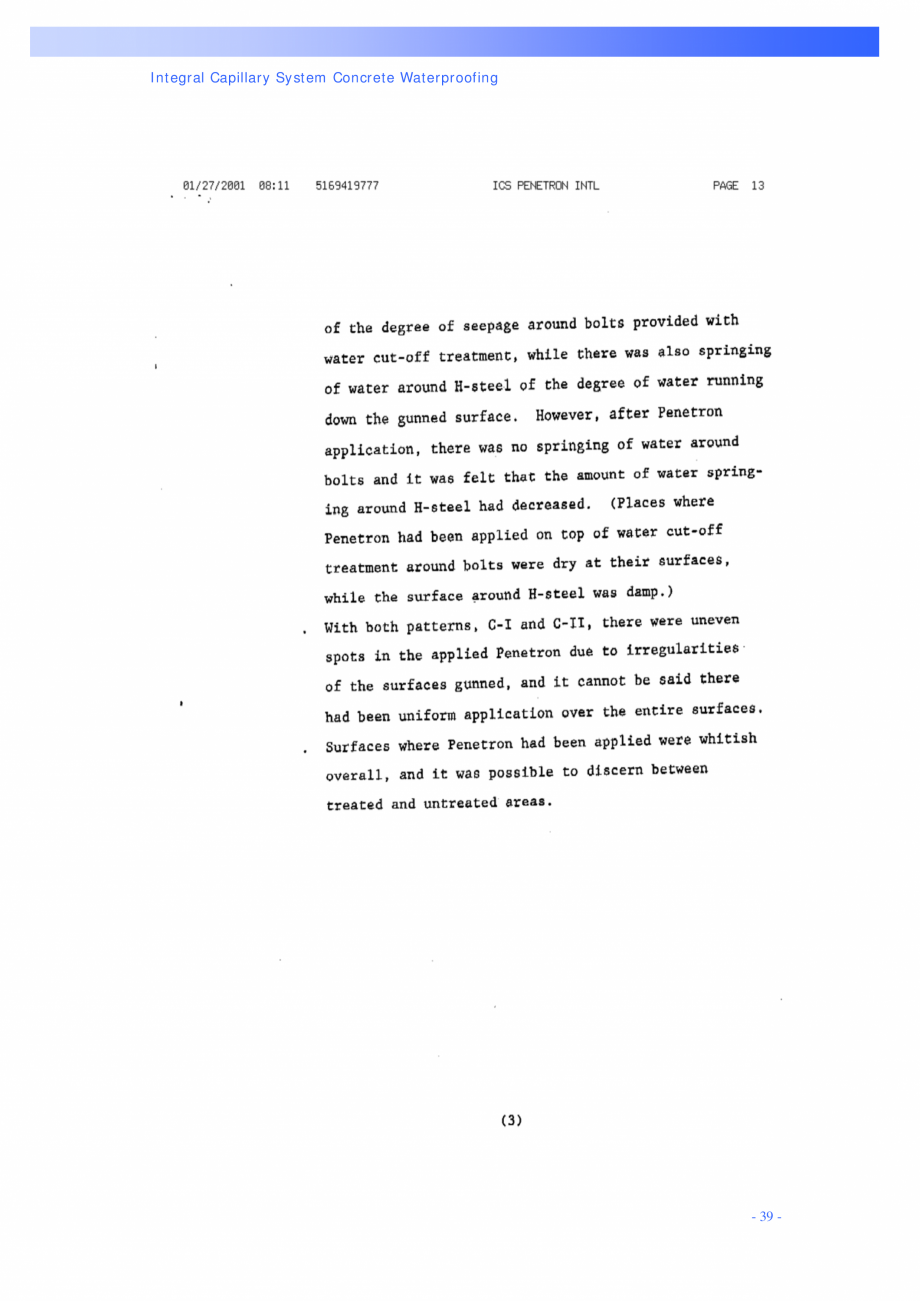

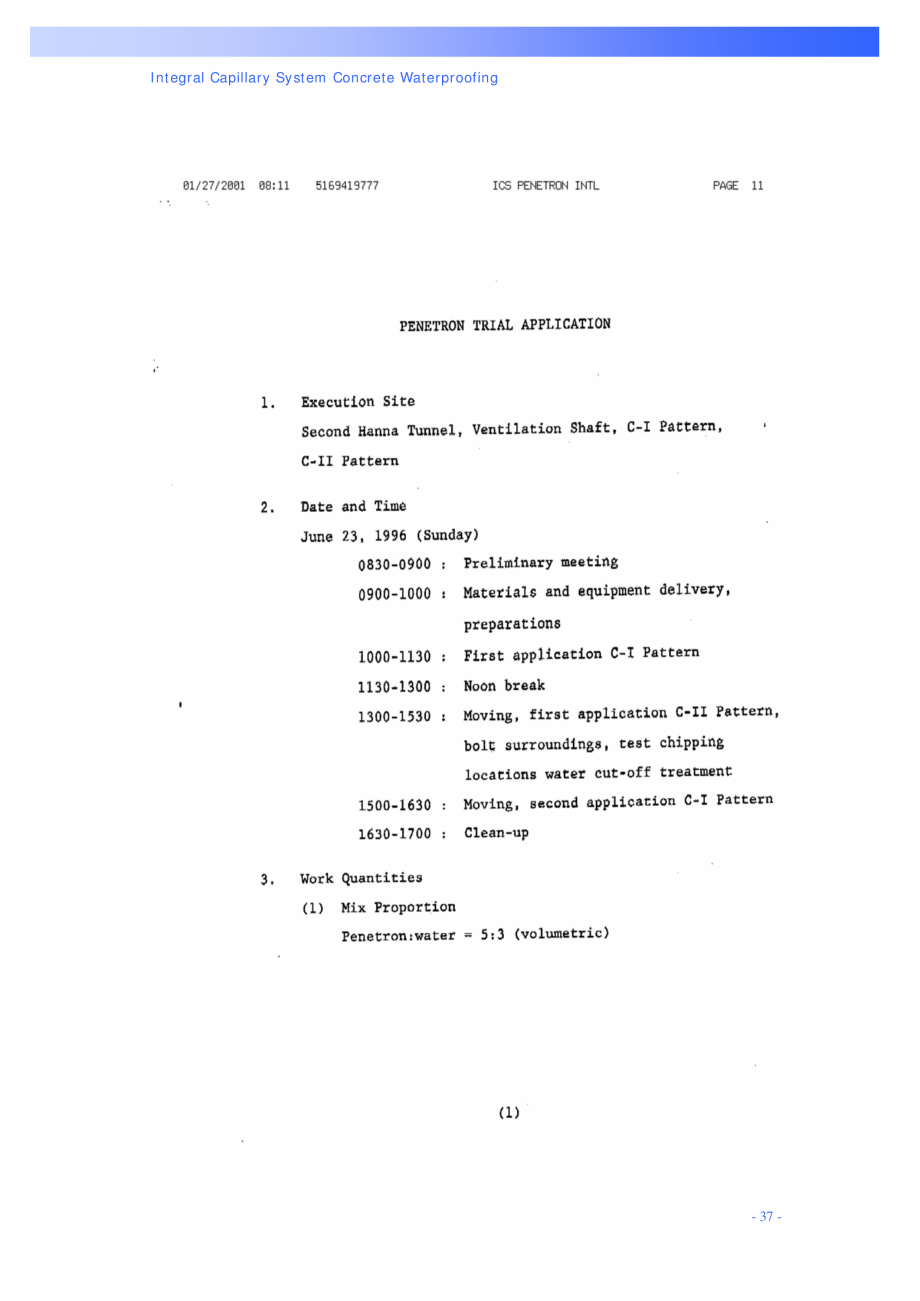

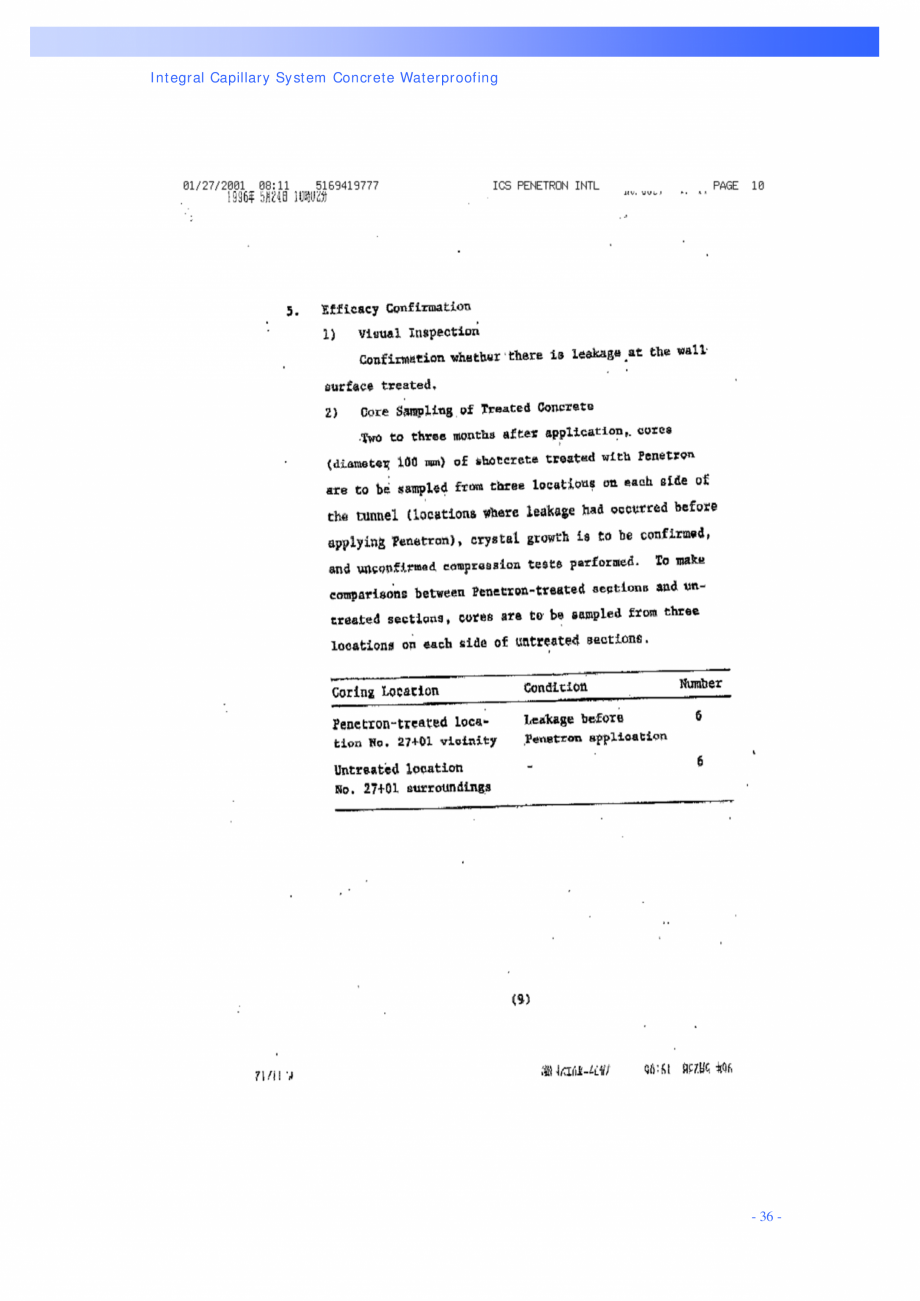

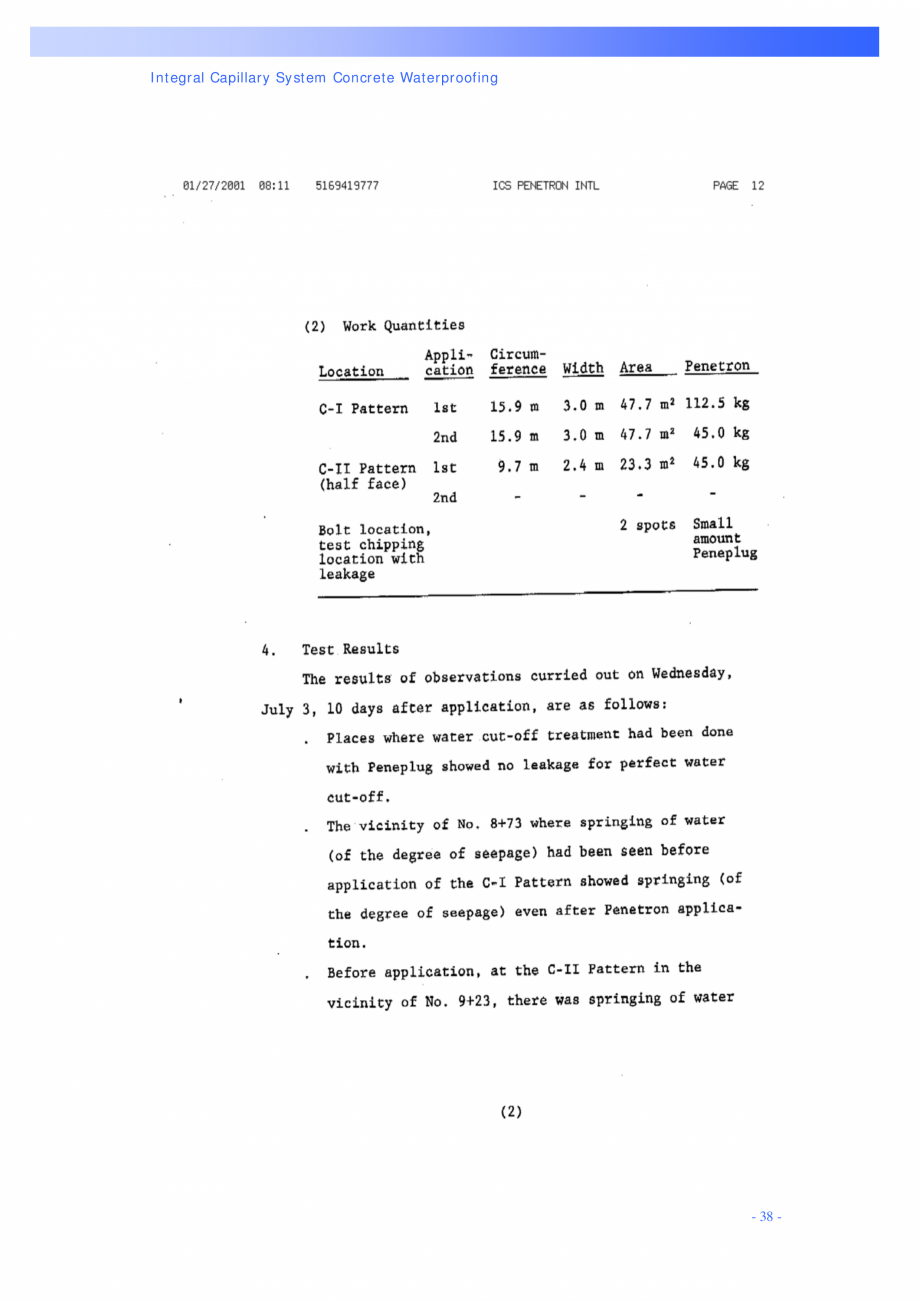

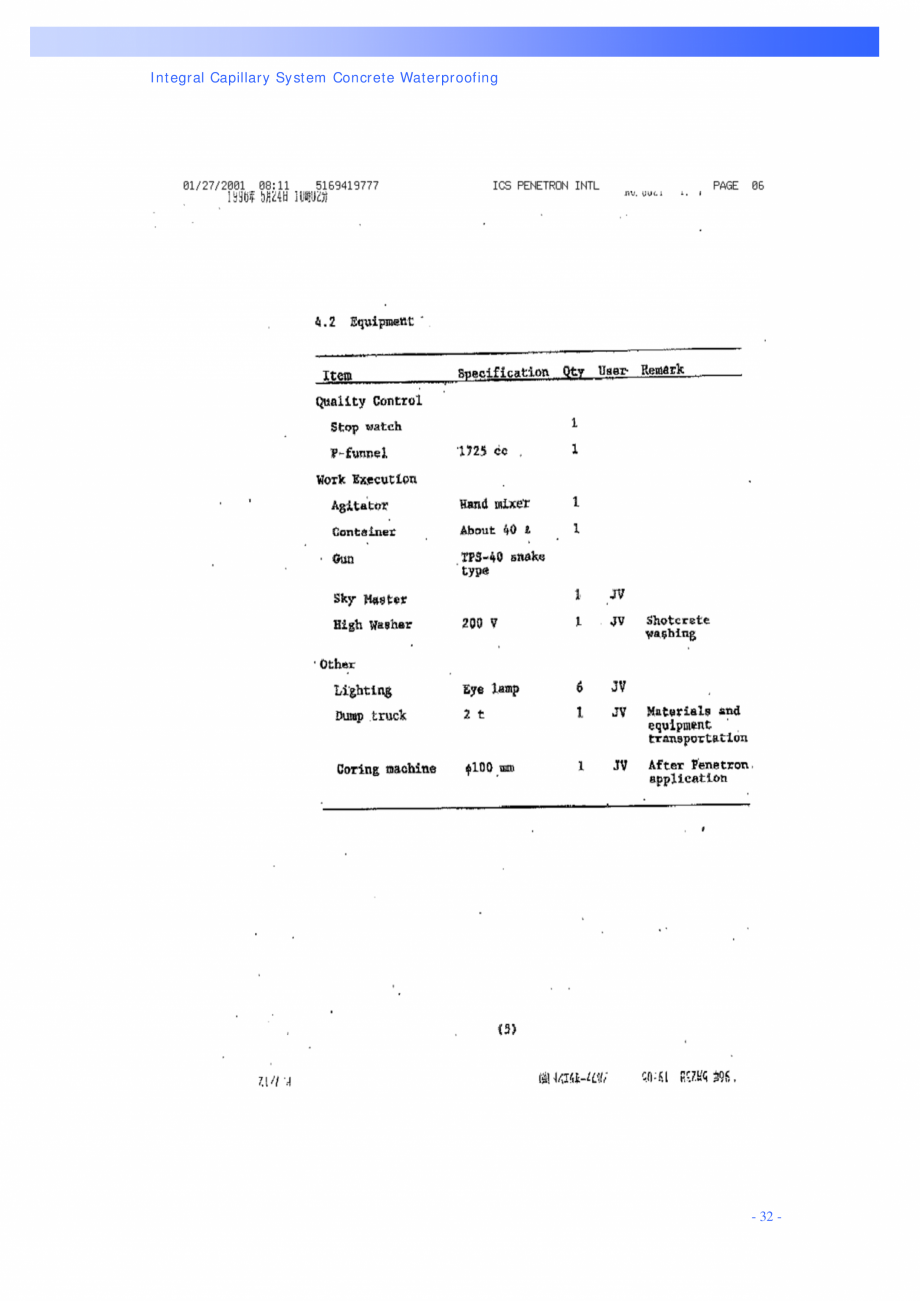

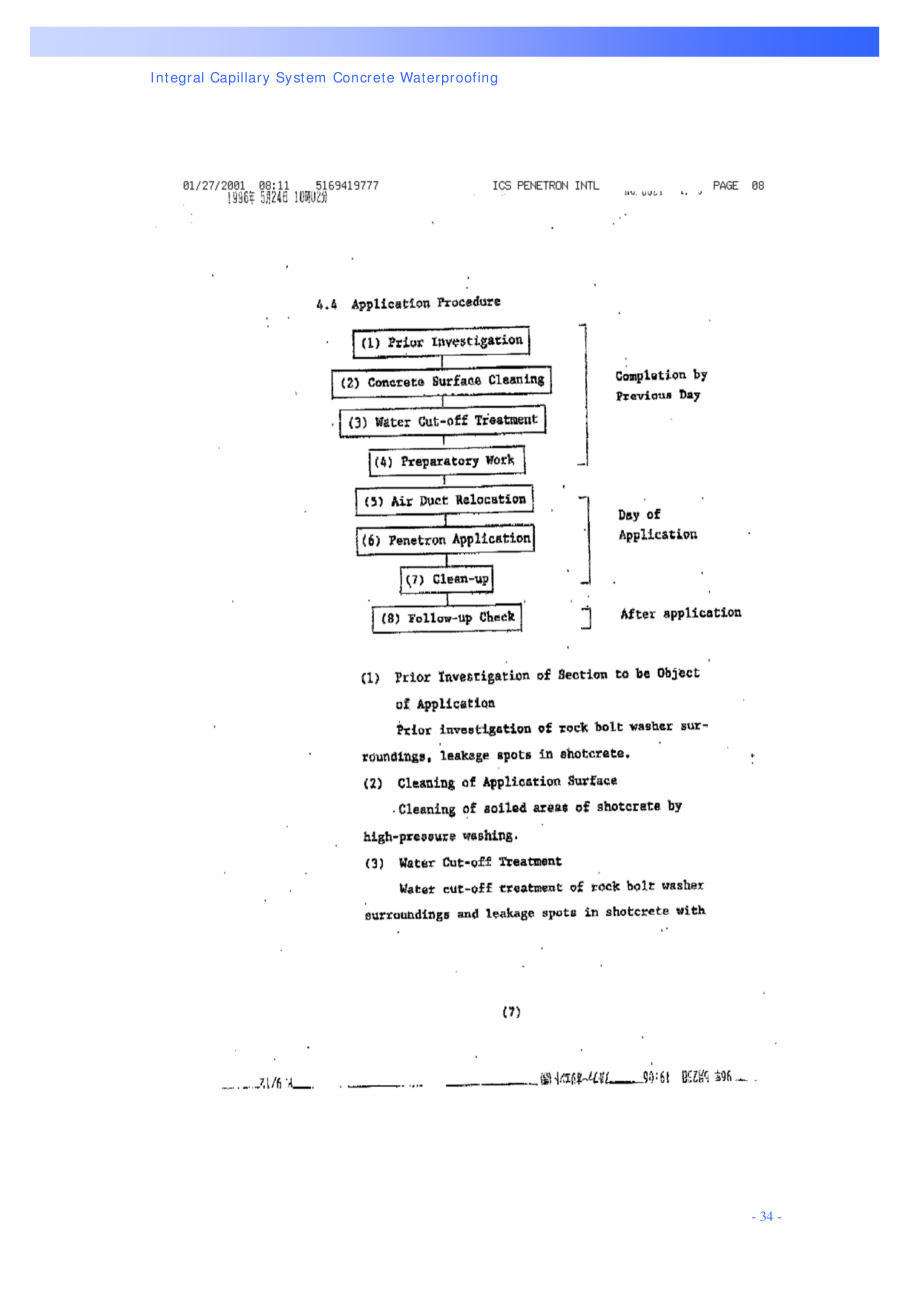

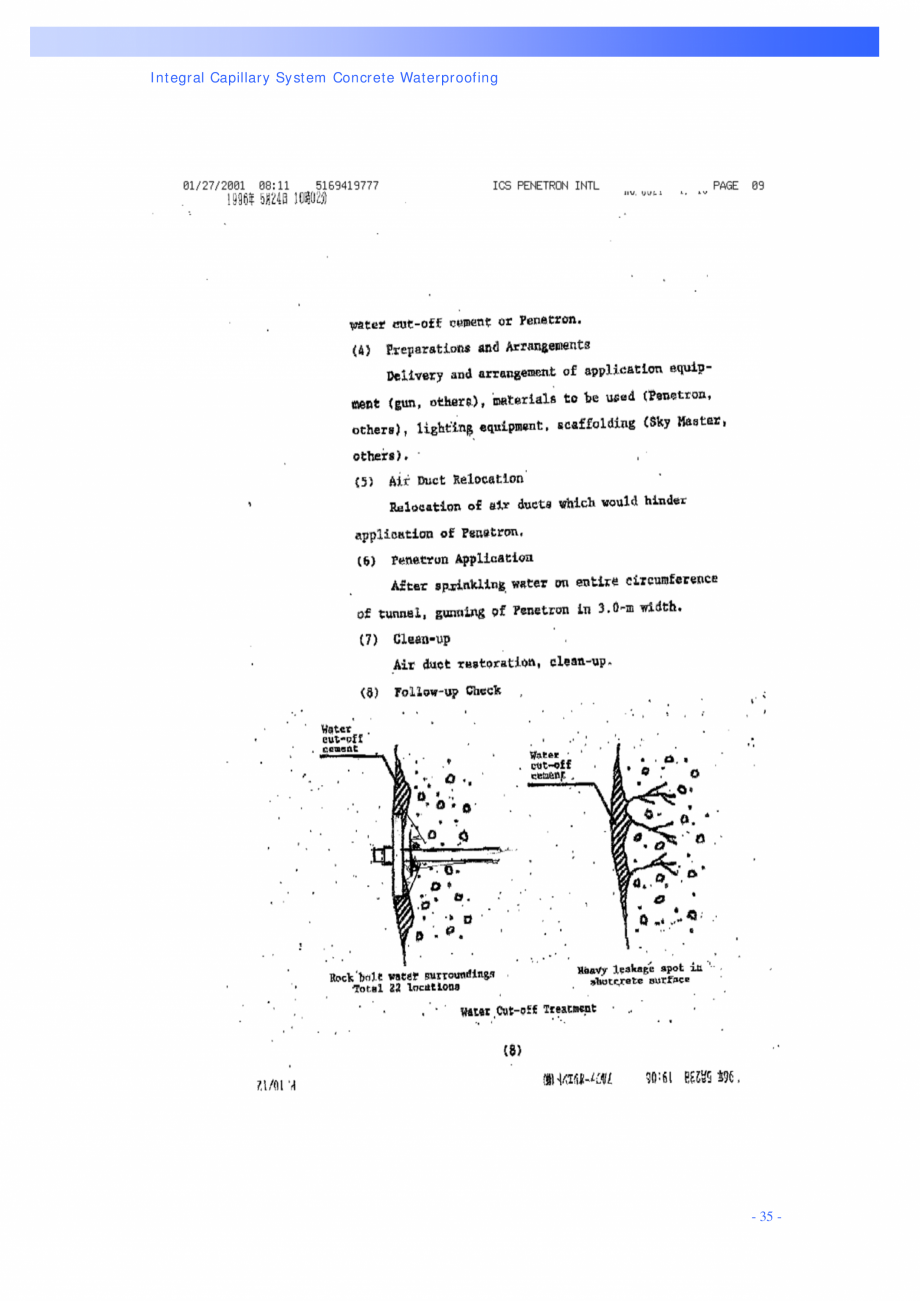

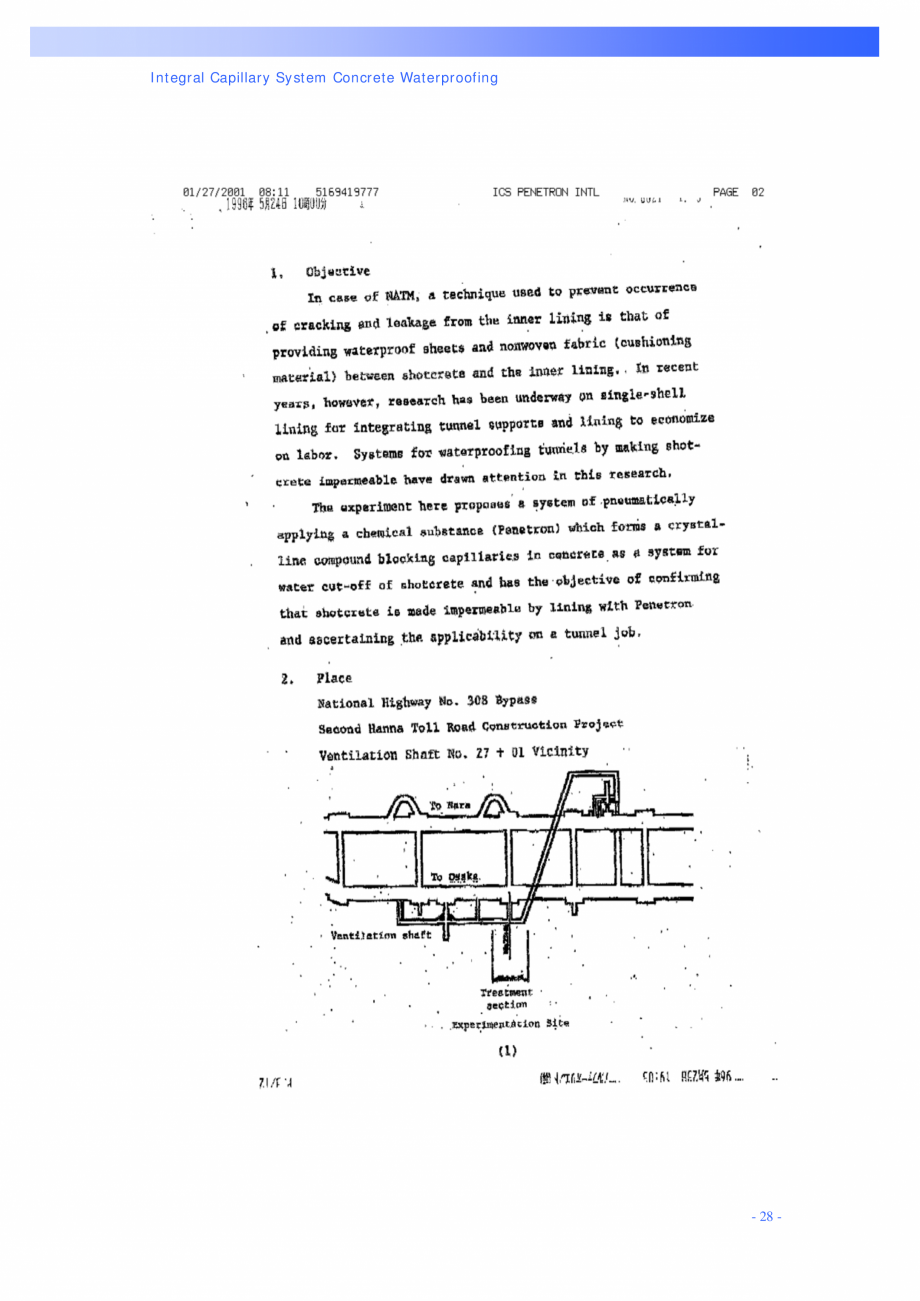

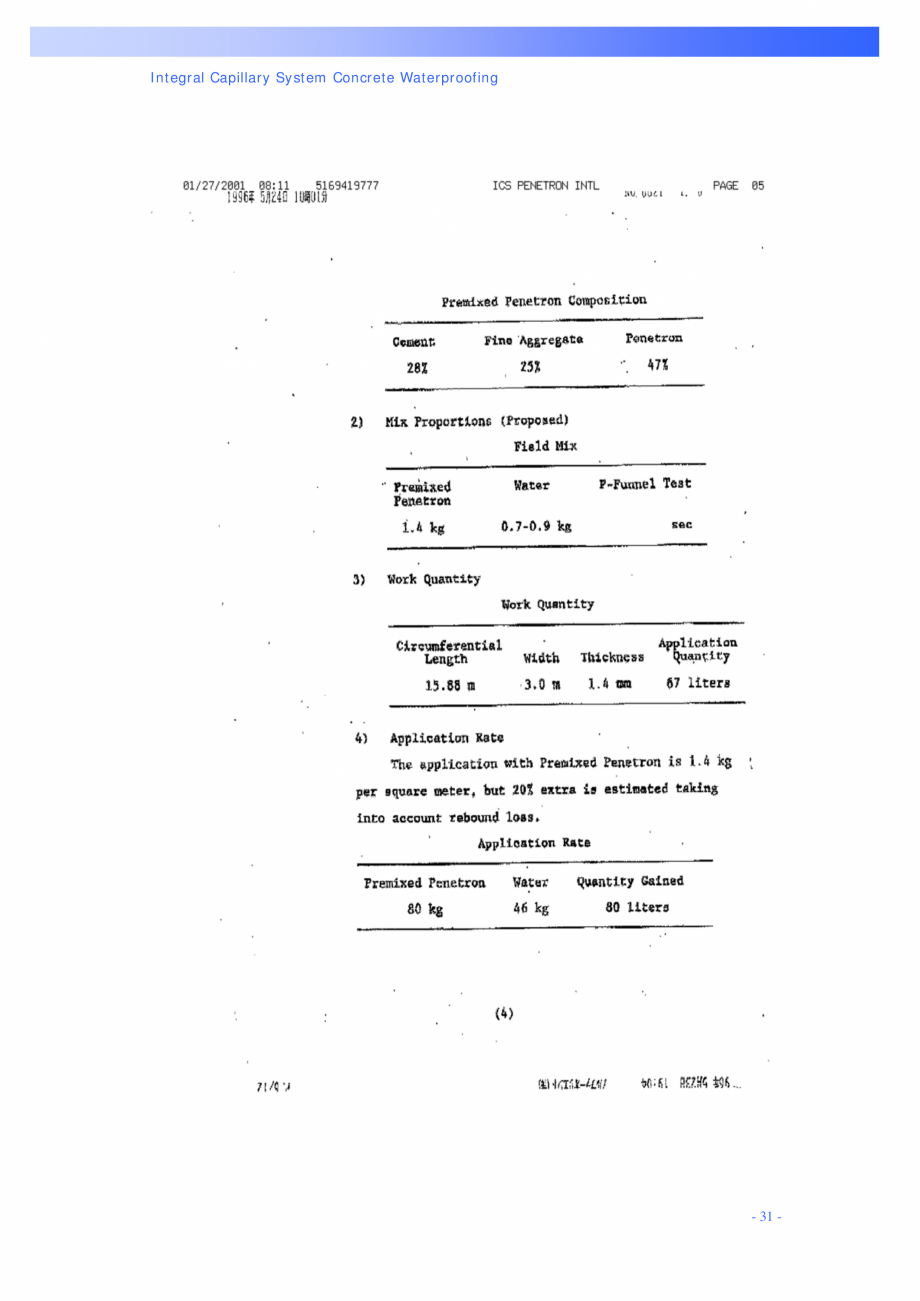

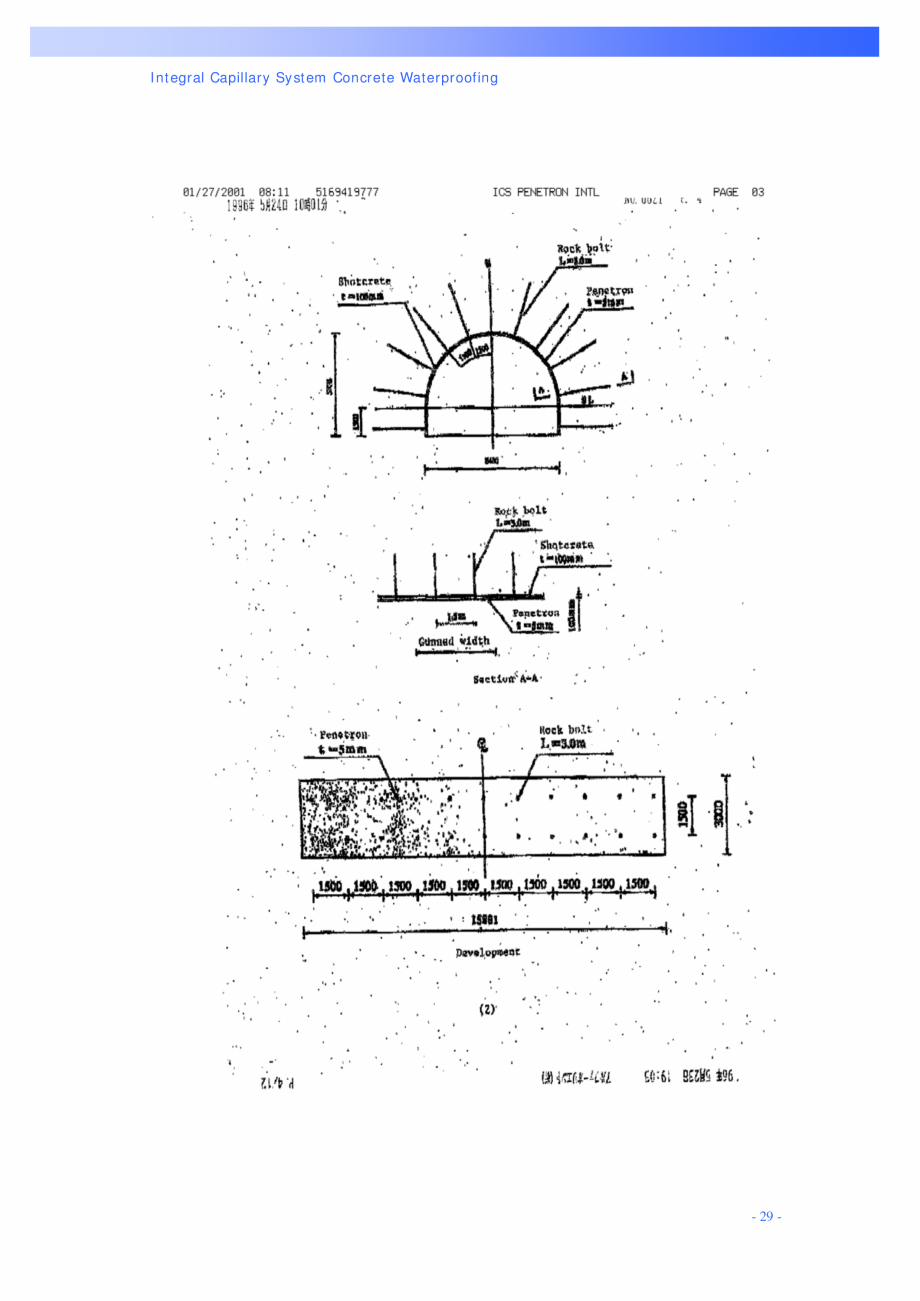

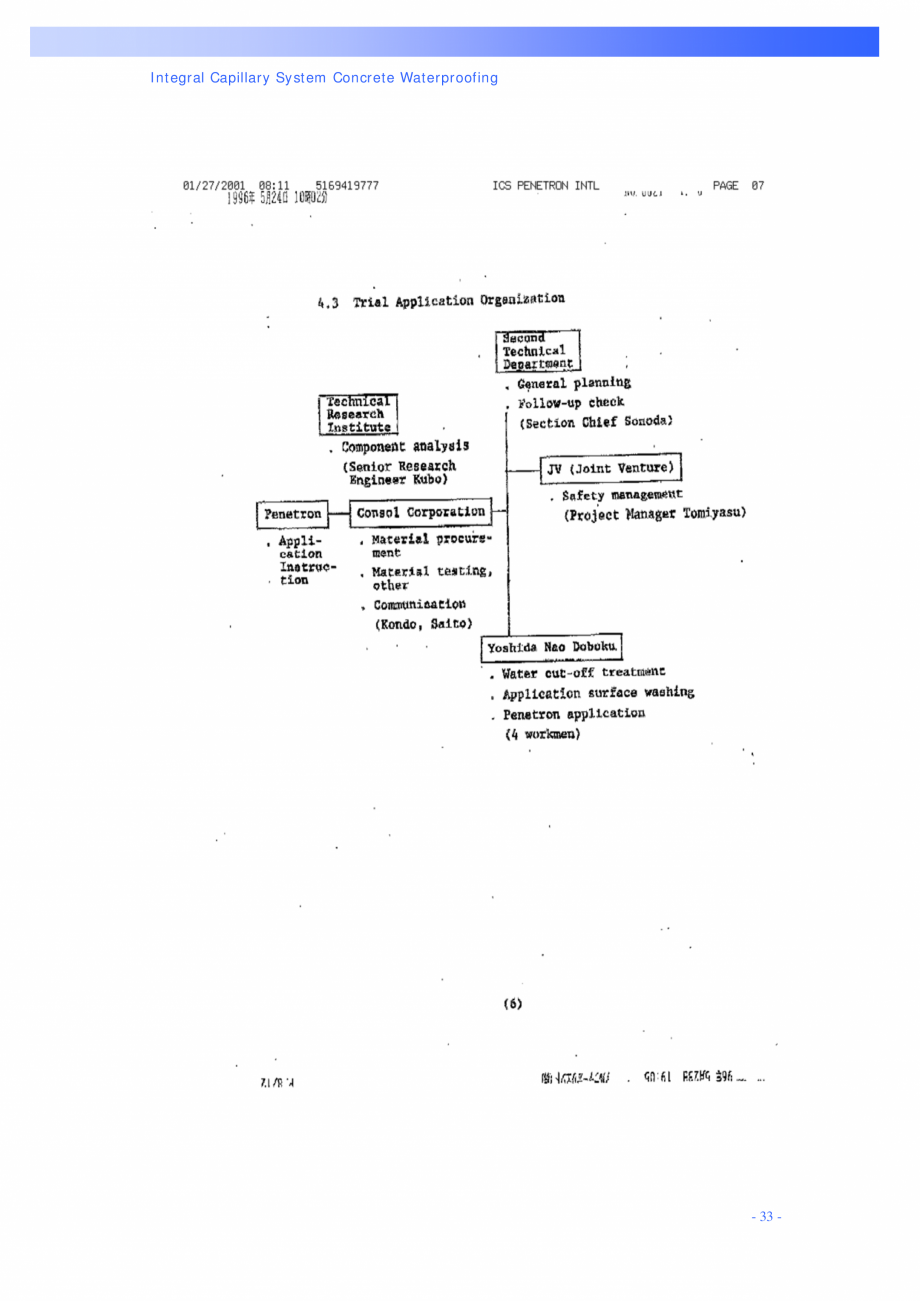

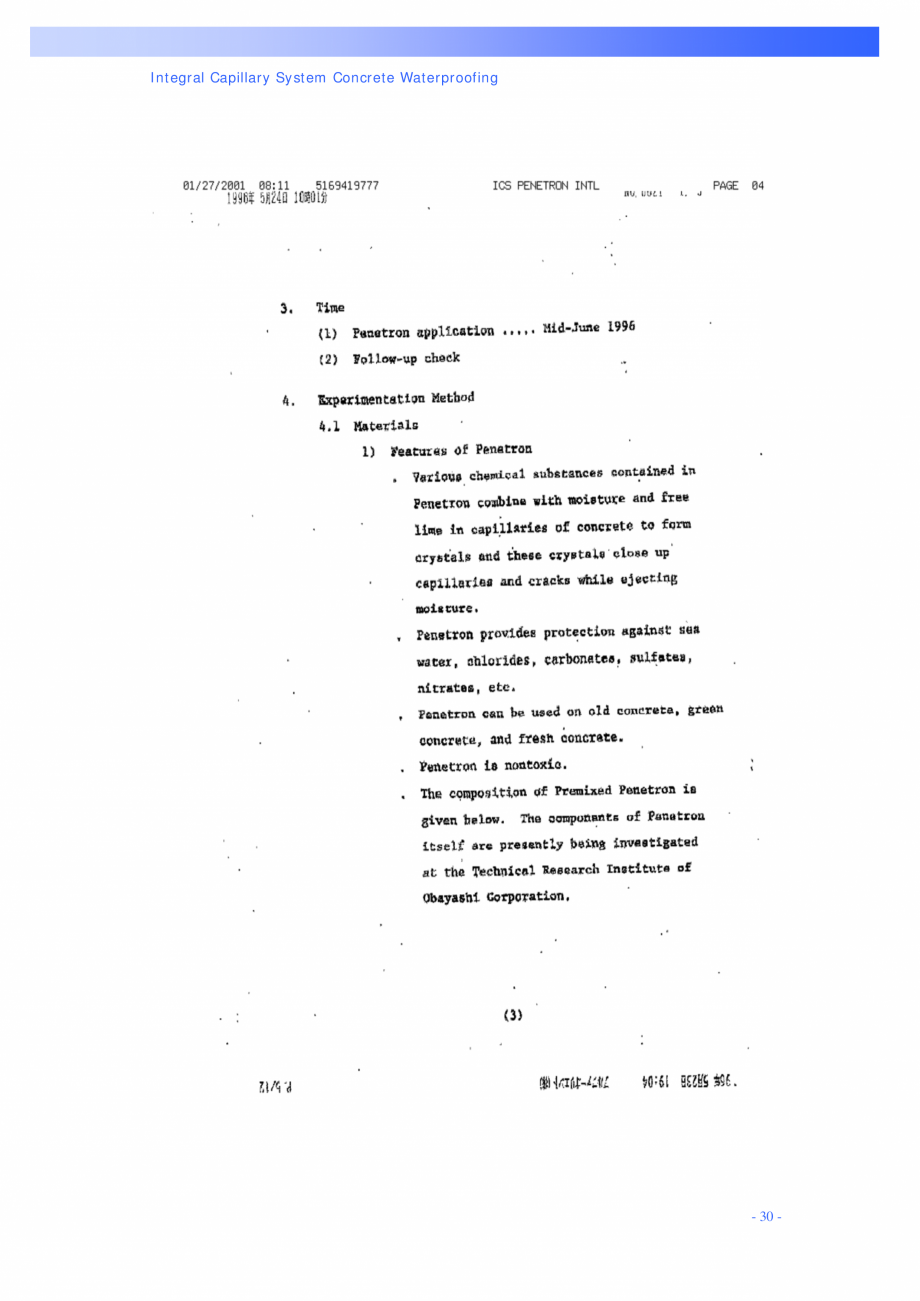

f materials were used to repair and treated the tunnel (tunnels had severe leaks) Minsk, Metro, Minsk, Belarus Repairs were made to tunnel. - 26 - ICS/Penetron International LTD. Project Case History Integral Capillary System Concrete Waterproofing Second Hanna Tunnel Information - 27 - Integral Capillary System Concrete Waterproofing - 28 - Integral Capillary System Concrete Waterproofing - 29 - Integral Capillary System Concrete Waterproofing - 30 - Integral Capillary System Concrete Waterproofing - 31 - Integral Capillary System Concrete Waterproofing - 32 - Integral Capillary System Concrete Waterproofing - 33 - Integral Capillary System Concrete Waterproofing - 34 - Integral Capillary System Concrete Waterproofing - 35 - Integral Capillary System Concrete Waterproofing - 36 - Integral Capillary System Concrete Waterproofing - 37 - Integral Capillary System Concrete Waterproofing - 38 - Integral Capillary System Concrete Waterproofing -

Pagina 34-Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON PLUS Catalog, ...

Pagina 35 - Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON...

39 - Integral Capillary System Concrete Waterproofing ICS/Penetron International LTD. Test Data Penetron -- Laboratory Testing of PENETRON Waterproofing System Riga Technical University Determination of Waterproofing RTU Testing Review Nr.64-98 Determination of Waterproofing Scanning Electron Microscope (SEM) Tests X-Ray Diffraction Analysis Test Report/Shenzhen, China -- Compressive Strength -- Shimel and Sor 12/21/94 Shimel and Sor 11/22/93 AITA 4/3/85 -- Shimel and Sor 12/21/94 AITA 8/7/85 AITA 12/10/90 Microscopic Examinations -- Shimel and Sor 12/21/94 -- Water Permeability Tests Analysis of Concrete for Penetron Content Shimel and Sor 12/21/94 Chemical Resistance -- Chloride Content Shimel and Sor 10/19/93 Chemical Resistance/Corrosion Chart -- Shimel and Sor 12/21/94 Shear and Bond Tests Toxicity -- Shimel and Sor 12/21/94 AITA 3/7/85 AITA 3/8/85 Riga 4/97 Acute Oral Toxicity Migration of toxic Element Cytotoxicity Test Penetron Admix SETSCO Singapore-c

Pagina 35-Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON PLUS Catalog, ...

Pagina 36 - Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON...

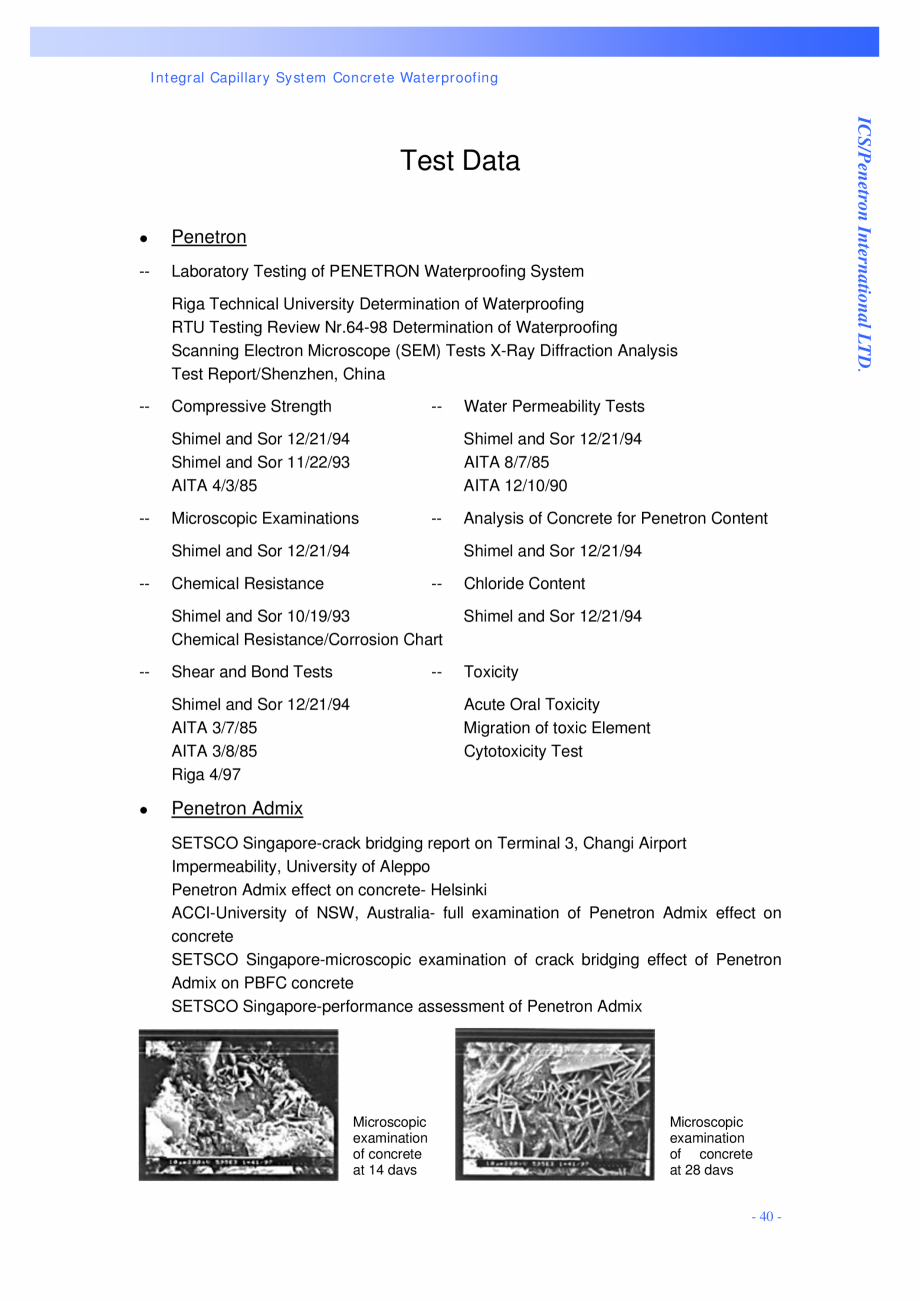

rack bridging report on Terminal 3, Changi Airport Impermeability, University of Aleppo Penetron Admix effect on concrete- Helsinki ACCI-University of NSW, Australia- full examination of Penetron Admix effect on concrete SETSCO Singapore-microscopic examination of crack bridging effect of Penetron Admix on PBFC concrete SETSCO Singapore-performance assessment of Penetron Admix Microscopic examination of concrete at 14 days Microscopic examination of concrete at 28 days - 40 - Integral Capillary System Concrete Waterproofing SETSCO SERVICES PTE LTD 18 Teban Gardens Crescent Singapore 608925 Tel: (65) 6566 7777 Fax: (65) 6566 7718 Website: www.setsco.com Our Ref: A6127/CHF TEST REPORT Date: 25/10/02 Page 1 of 4 (This Report is issued subject to the terms & conditions set out below) MICROSCOPIC ANALYSIS ON THE CONCRETE CORES FROM RETAINING WALL AT CHANGI AIRPORT TERMINAL 3 Prepared for: REVERTON ENGINEERING(S) PTE LTD 605A Macpherson Road #06-02 Citimac Industrial Complex Singap

Pagina 36-Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON PLUS Catalog, ...

Pagina 37 - Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON...

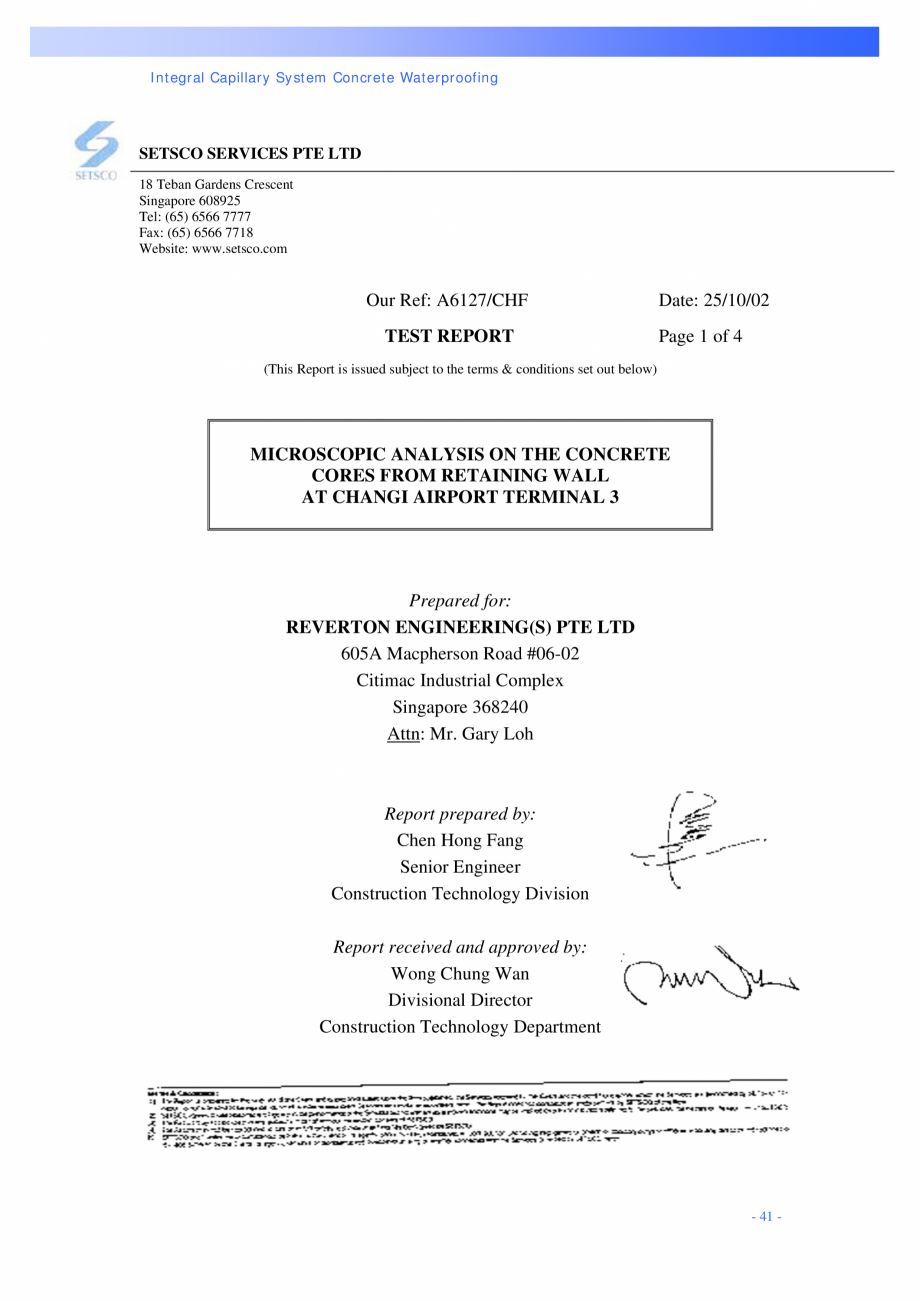

ore 368240 Attn: Mr. Gary Loh Report prepared by: Chen Hong Fang Senior Engineer Construction Technology Division Report received and approved by: Wong Chung Wan Divisional Director Construction Technology Department - 41 - Integral Capillary System Concrete Waterproofing A6127/CHF Page 2 of 4 1. INTRODUCTION Cracking and seepage of water on the retaining wall at Changi Airport Terminal 3 was reported by Reverton Engineering(s) Pte Ltd (herein refers to as the client). SETSCO has been engaged by the client to carry out laboratory analysis to determine the crack width and crystal growth in the crack on the concrete cores extracted from said structure. The proposed basement was constructed with three sides of wall, labeled as wall 1-3 in this report (refer to figure 1 in Appendix A). Thickness of the wall was about 600mm. PENETRON waterproofing admixture was said to be used in the concrete. Water leakage was found along the crack line and tie pin after backfill. However, the water

Pagina 37-Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON PLUS Catalog, ...

Pagina 38 - Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON...

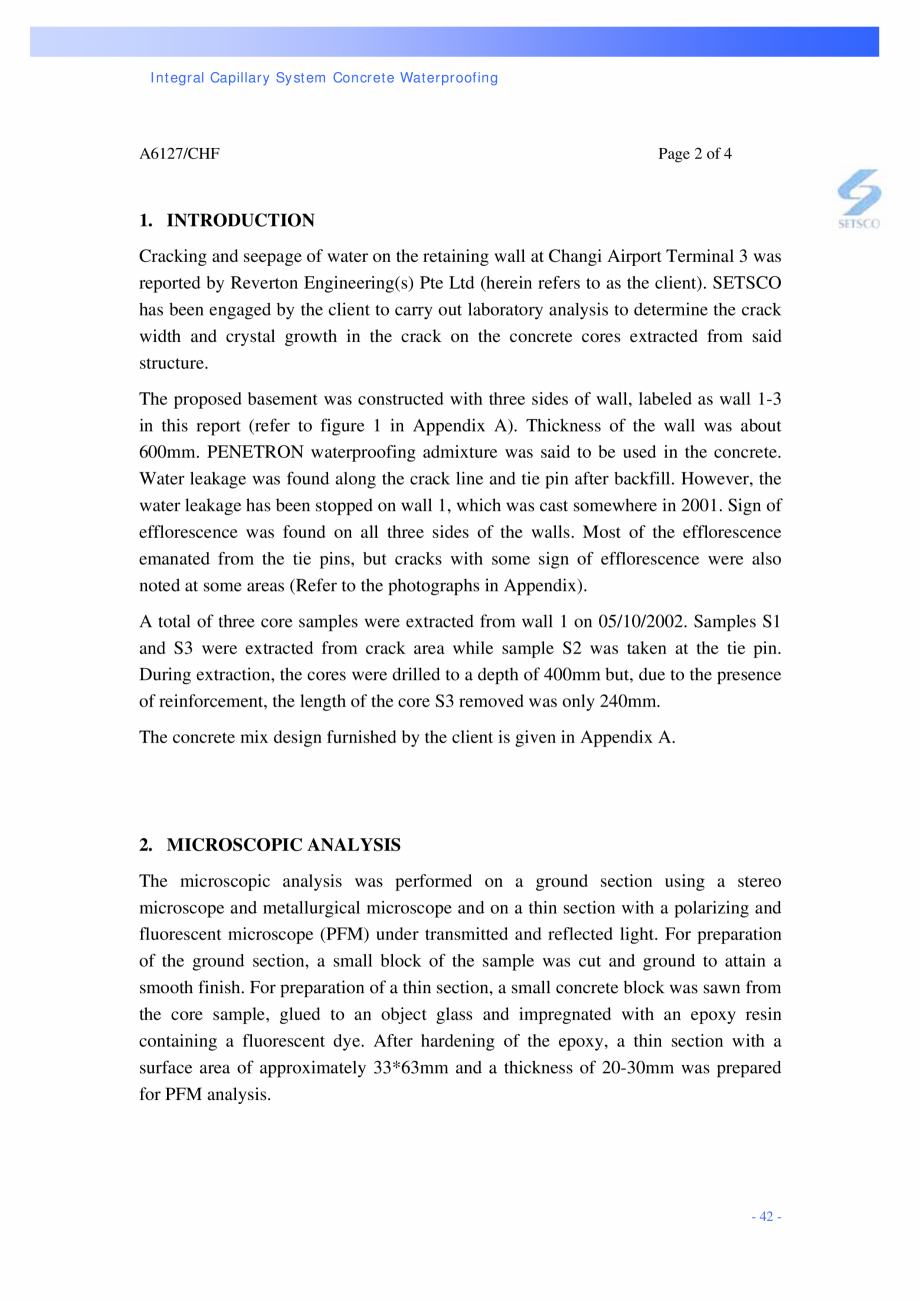

leakage has been stopped on wall 1, which was cast somewhere in 2001. Sign of efflorescence was found on all three sides of the walls. Most of the efflorescence emanated from the tie pins, but cracks with some sign of efflorescence were also noted at some areas (Refer to the photographs in Appendix). A total of three core samples were extracted from wall 1 on 05/10/2002. Samples S1 and S3 were extracted from crack area while sample S2 was taken at the tie pin. During extraction, the cores were drilled to a depth of 400mm but, due to the presence of reinforcement, the length of the core S3 removed was only 240mm. The concrete mix design furnished by the client is given in Appendix A. 2. MICROSCOPIC ANALYSIS The microscopic analysis was performed on a ground section using a stereo microscope and metallurgical microscope and on a thin section with a polarizing and fluorescent microscope (PFM) under transmitted and reflected light. For preparation of the ground section, a small block of

Pagina 38-Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON PLUS Catalog, ...

Pagina 39 - Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON...

the sample was cut and ground to attain a smooth finish. For preparation of a thin section, a small concrete block was sawn from the core sample, glued to an object glass and impregnated with an epoxy resin containing a fluorescent dye. After hardening of the epoxy, a thin section with a surface area of approximately 33*63mm and a thickness of 20-30mm was prepared for PFM analysis. - 42 - Integral Capillary System Concrete Waterproofing A6127/CHF Page 3 of 4 Under transmitted light, the various components ( type of cement and aggregates), air voids content, compaction pores and damage phenomena in the samples were identified. Under reflected light, the fluorescent microscopy made it possible to study the homogeneity of the mix and cement paste, capillary porosity, microcracks and other defects in the samples. Scanning Electron Microscope (SEM) and Energy Dispersive X-ray (EDX) Analysis technique were also applied for semi-quantitatively analysis of the element composition of the

Pagina 39-Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON PLUS Catalog, ...

Pagina 40 - Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON...

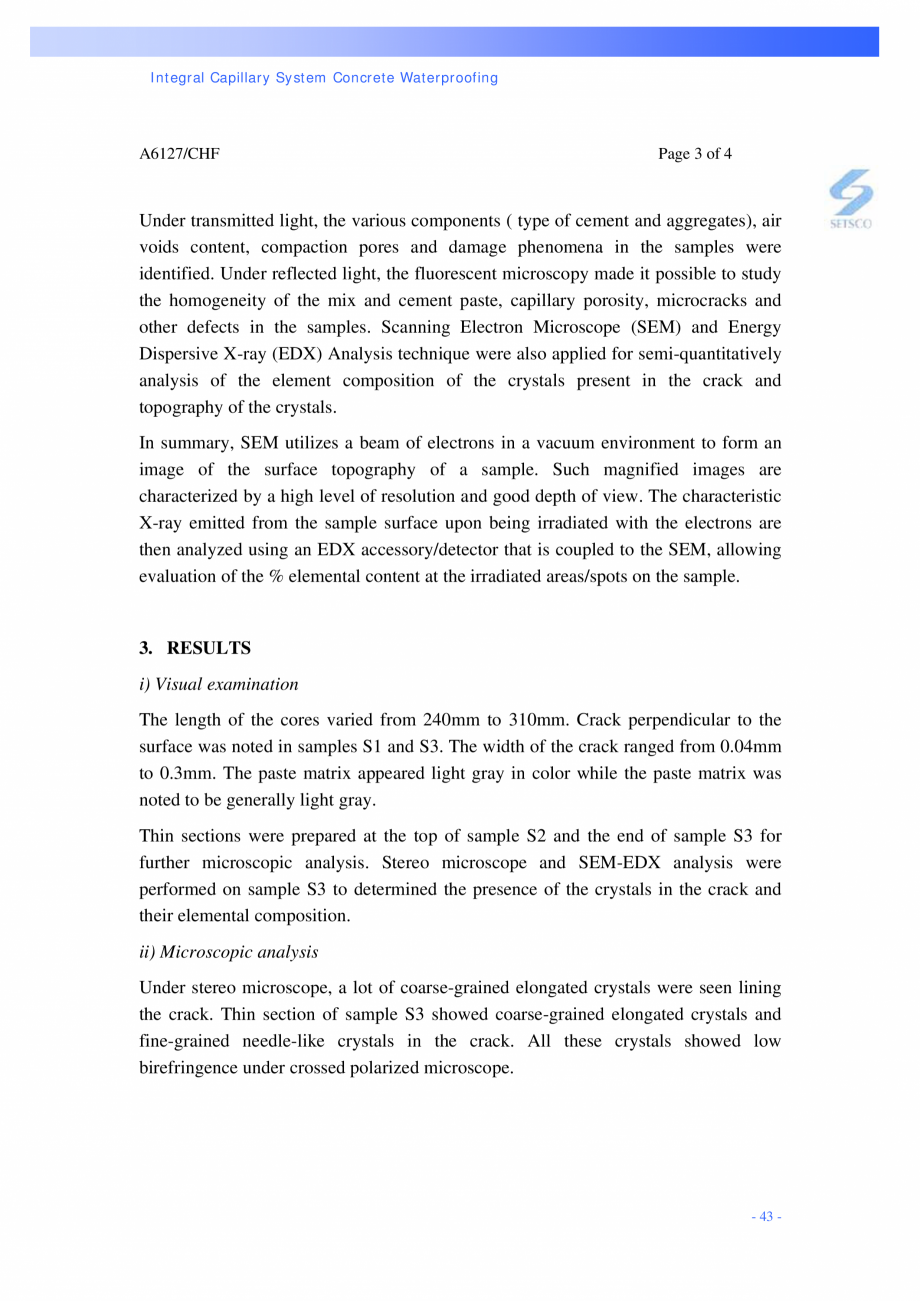

crystals present in the crack and topography of the crystals. In summary, SEM utilizes a beam of electrons in a vacuum environment to form an image of the surface topography of a sample. Such magnified images are characterized by a high level of resolution and good depth of view. The characteristic X-ray emitted from the sample surface upon being irradiated with the electrons are then analyzed using an EDX accessory/detector that is coupled to the SEM, allowing evaluation of the % elemental content at the irradiated areas/spots on the sample. 3. RESULTS i) Visual examination The length of the cores varied from 240mm to 310mm. Crack perpendicular to the surface was noted in samples S1 and S3. The width of the crack ranged from 0.04mm to 0.3mm. The paste matrix appeared light gray in color while the paste matrix was noted to be generally light gray. Thin sections were prepared at the top of sample S2 and the end of sample S3 for further microscopic analysis. Stereo microscope and SEM-ED

Pagina 40-Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON PLUS Catalog, ...

Pagina 41 - Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON...

X analysis were performed on sample S3 to determined the presence of the crystals in the crack and their elemental composition. ii) Microscopic analysis Under stereo microscope, a lot of coarse-grained elongated crystals were seen lining the crack. Thin section of sample S3 showed coarse-grained elongated crystals and fine-grained needle-like crystals in the crack. All these crystals showed low birefringence under crossed polarized microscope. - 43 - Integral Capillary System Concrete Waterproofing A6127/CHF Page 4 of 4 Further scanning electron microscope and energy dispersive X-ray analysis were performed on the crystals present in the crack. The coarse-grained elongated crystal (BEI image in Appendix) contained mainly Calcium (Ca), Oxygen (O) and Silicon (Si). The fine-grained needle-like crystal was predominantly made up of Calcium (Ca), Silicon (Si), Oxygen (O), Sulfur (S), Aluminum (Al), which was probably ettringite (C6AS3H32). Well-formed CaCO3 crystals were present as la

Pagina 41-Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON PLUS Catalog, ...

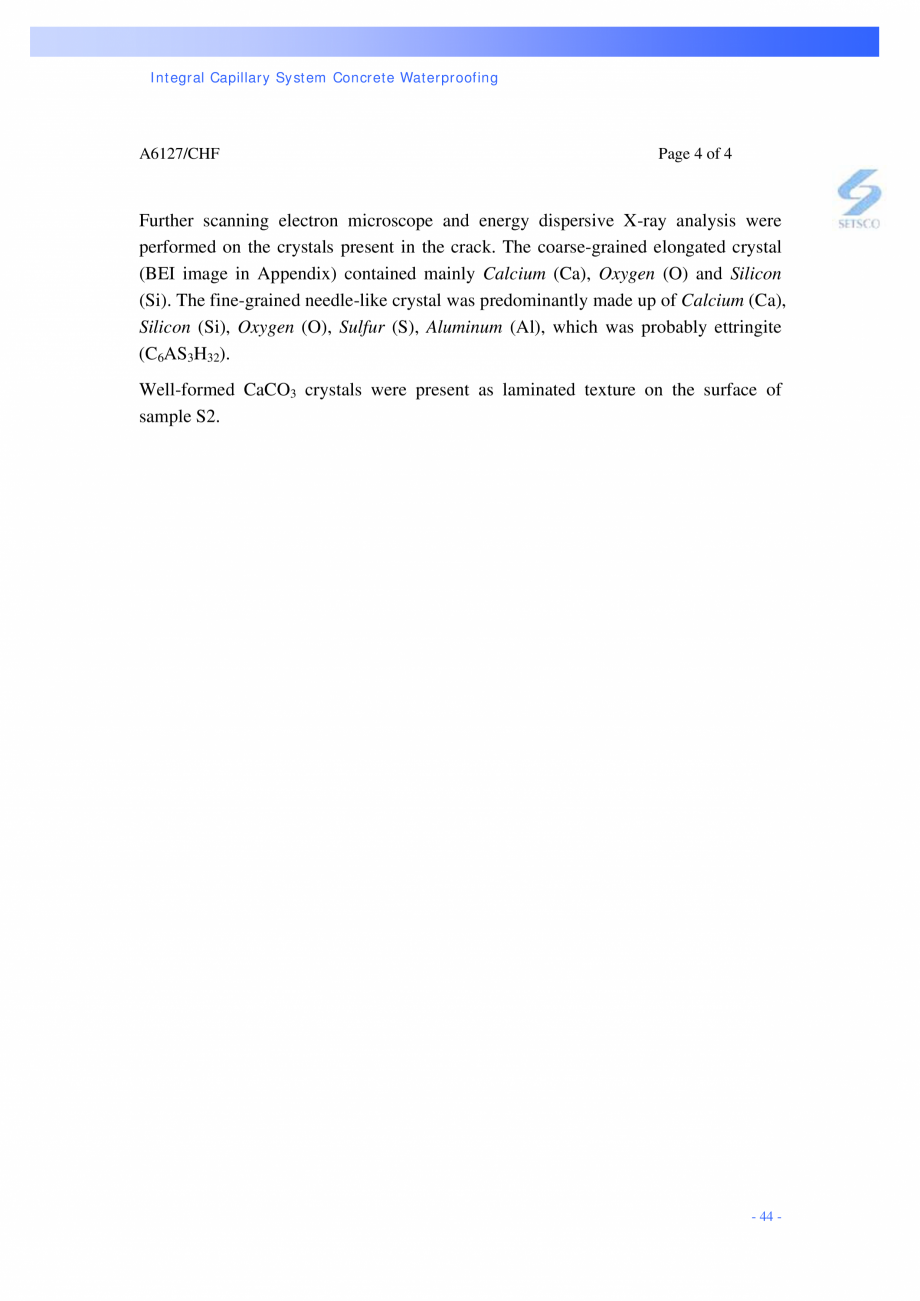

Pagina 42 - Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON...

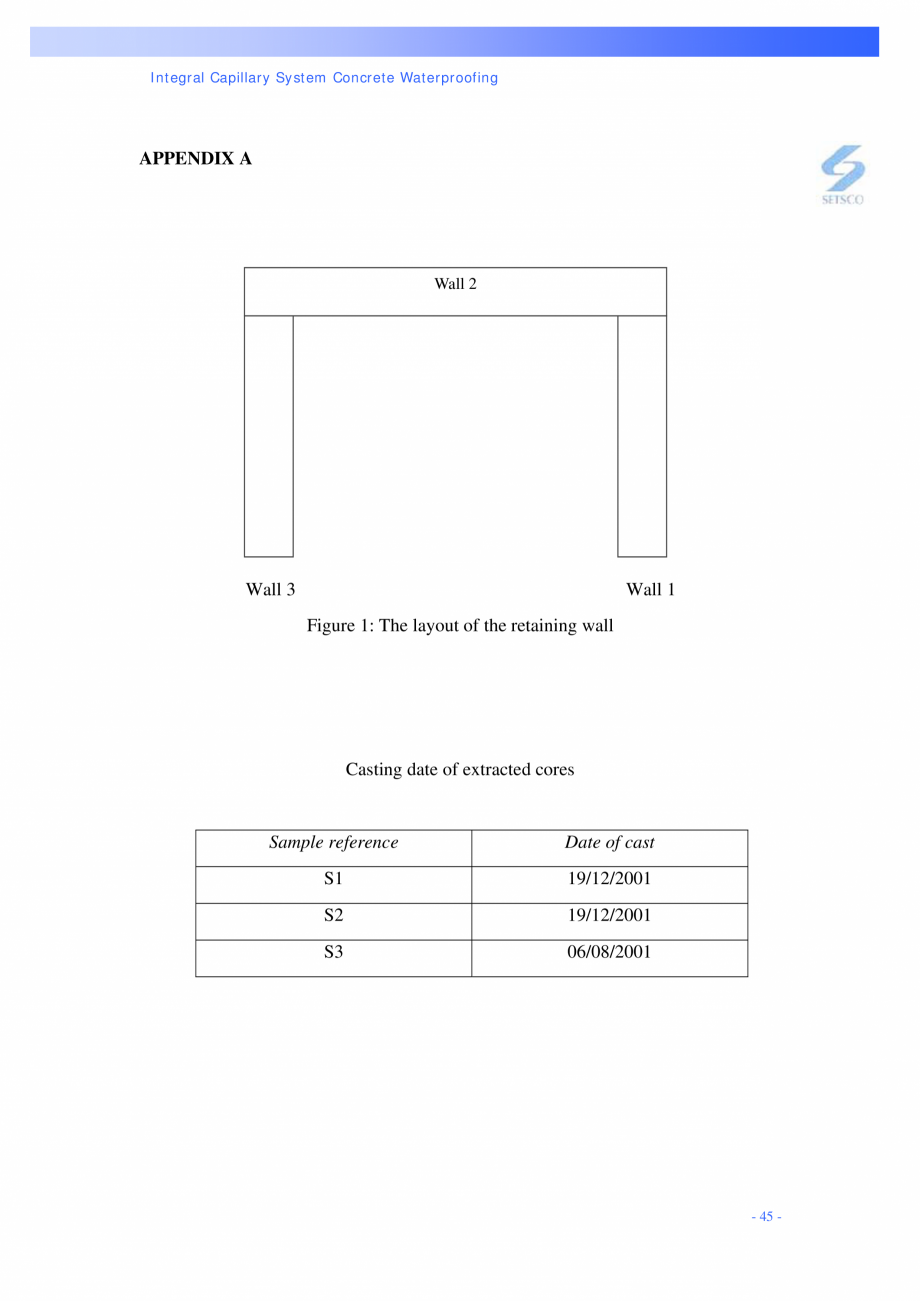

minated texture on the surface of sample S2. - 44 - Integral Capillary System Concrete Waterproofing APPENDIX A Wall 2 Wall 3 Wall 1 Figure 1: The layout of the retaining wall Casting date of extracted cores Sample reference Date of cast S1 19/12/2001 S2 19/12/2001 S3 06/08/2001 - 45 - Integral Capillary System Concrete Waterproofing CONCRETE MIX DESIGN Project Contractor Date Ref : Pile Foundation & Basement Construction For Terminal 3 Singapore Changi Airport : Sato Kogyo., Ltd : 8th March 2001 : RE/SK/PU/40P/01 Concrete Grade 40 Pump 1 Specification 1.1 Specific Characteristic Strength 1.2 Designed Standard Deviation 1.3 Design Margin 1.4 Target Mean Strength 1.5 Free Water/Cement Ratio 1.6 Type of Concrete 1.7 Concrete slump 2 Cement 2.1 Cement Type 2.2 Cement Content 3 Aggregates 3.1 Aggregate Type Coarse Fine 3.2 Relative Density of Aggregates 3.3 Normal Aggregate Size 3.4 Grading of Fine Aggregate 3.5 Coarse Aggregate Content: SSD 3.6 Fine Aggregate Conten

Pagina 42-Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON PLUS Catalog, ...

Pagina 43 - Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON...

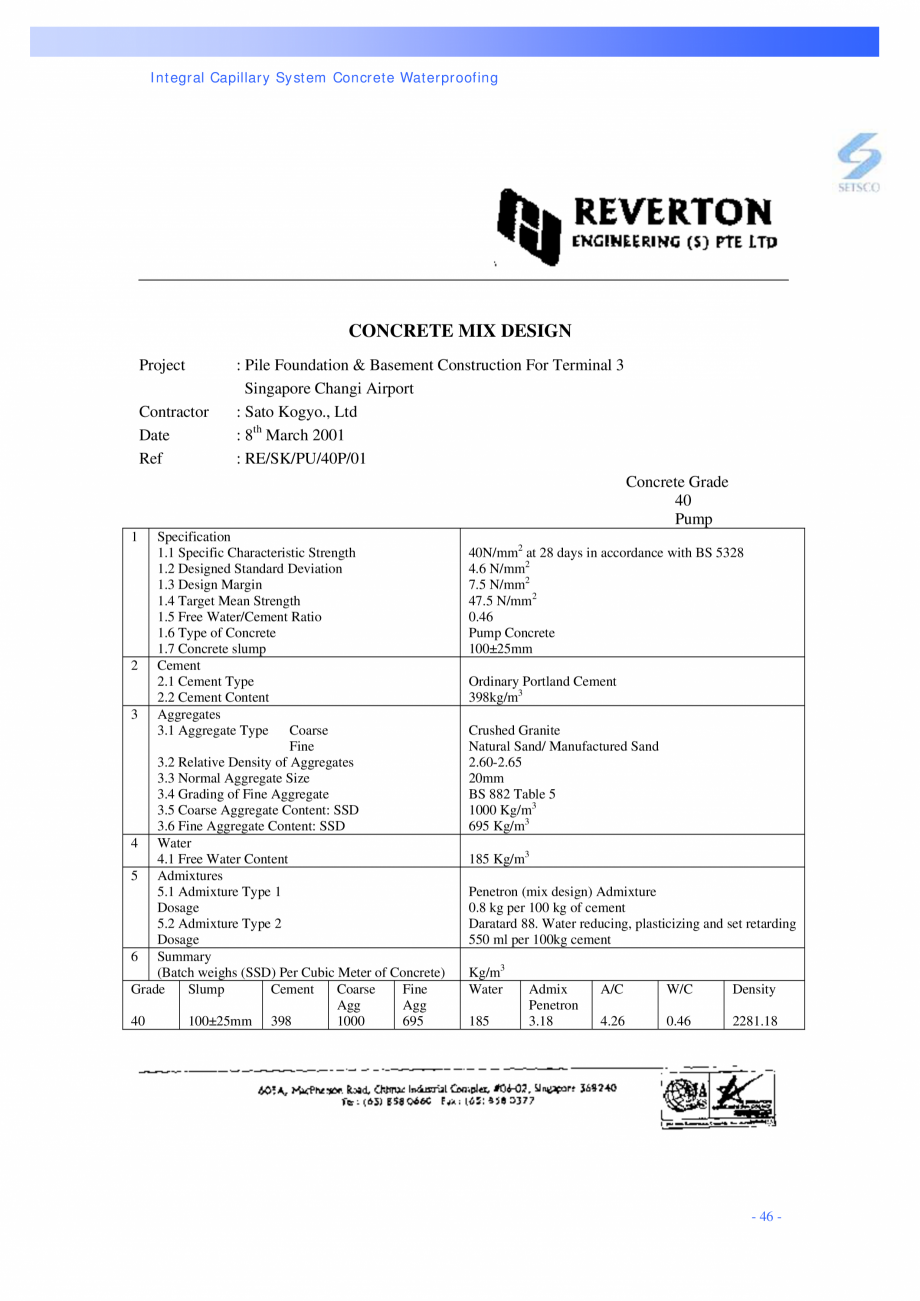

t: SSD 4 Water 4.1 Free Water Content 5 Admixtures 5.1 Admixture Type 1 Dosage 5.2 Admixture Type 2 Dosage 6 Summary (Batch weighs (SSD) Per Cubic Meter of Concrete) Grade Slump Cement Coarse Fine Agg Agg 40 100±25mm 398 1000 695 40N/mm2 at 28 days in accordance with BS 5328 4.6 N/mm2 7.5 N/mm2 47.5 N/mm2 0.46 Pump Concrete 100±25mm Ordinary Portland Cement 398kg/m3 Crushed Granite Natural Sand/ Manufactured Sand 2.60-2.65 20mm BS 882 Table 5 1000 Kg/m3 695 Kg/m3 185 Kg/m3 Penetron (mix design) Admixture 0.8 kg per 100 kg of cement Daratard 88. Water reducing, plasticizing and set retarding 550 ml per 100kg cement Kg/m3 Water 185 Admix Penetron 3.18 A/C W/C Density 4.26 0.46 2281.18 - 46 - Integral Capillary System Concrete Waterproofing APPENDIX B PHOTOGRAPHS A6127/CHF A crack connecting with tie pin with sign of Efflorescence was observed on wall 1 Sign of efflorescence was found along the crack line on wall 1. The location of sample S1 extracted at the cracked are

Pagina 43-Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON PLUS Catalog, ...

Pagina 44 - Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON...

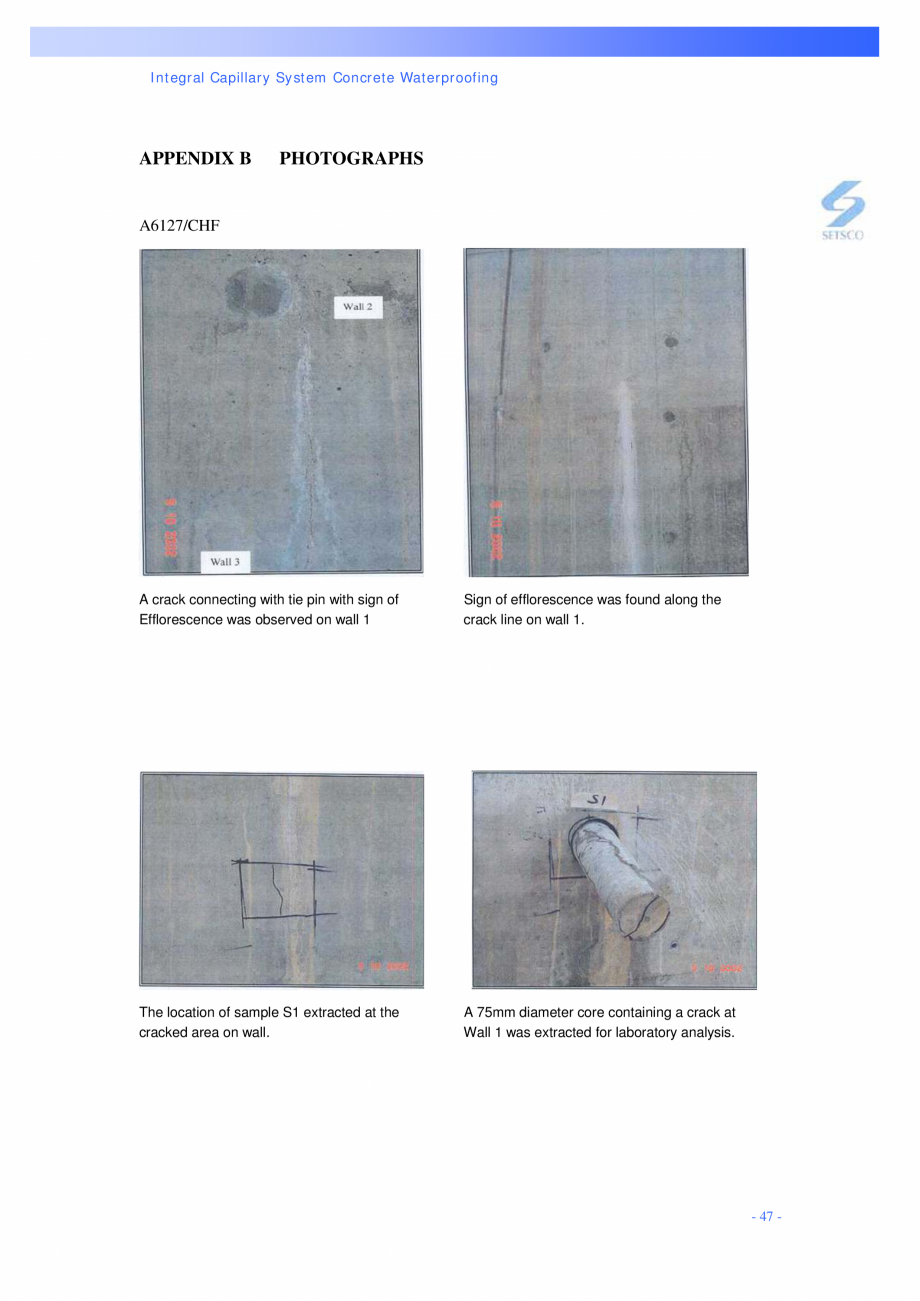

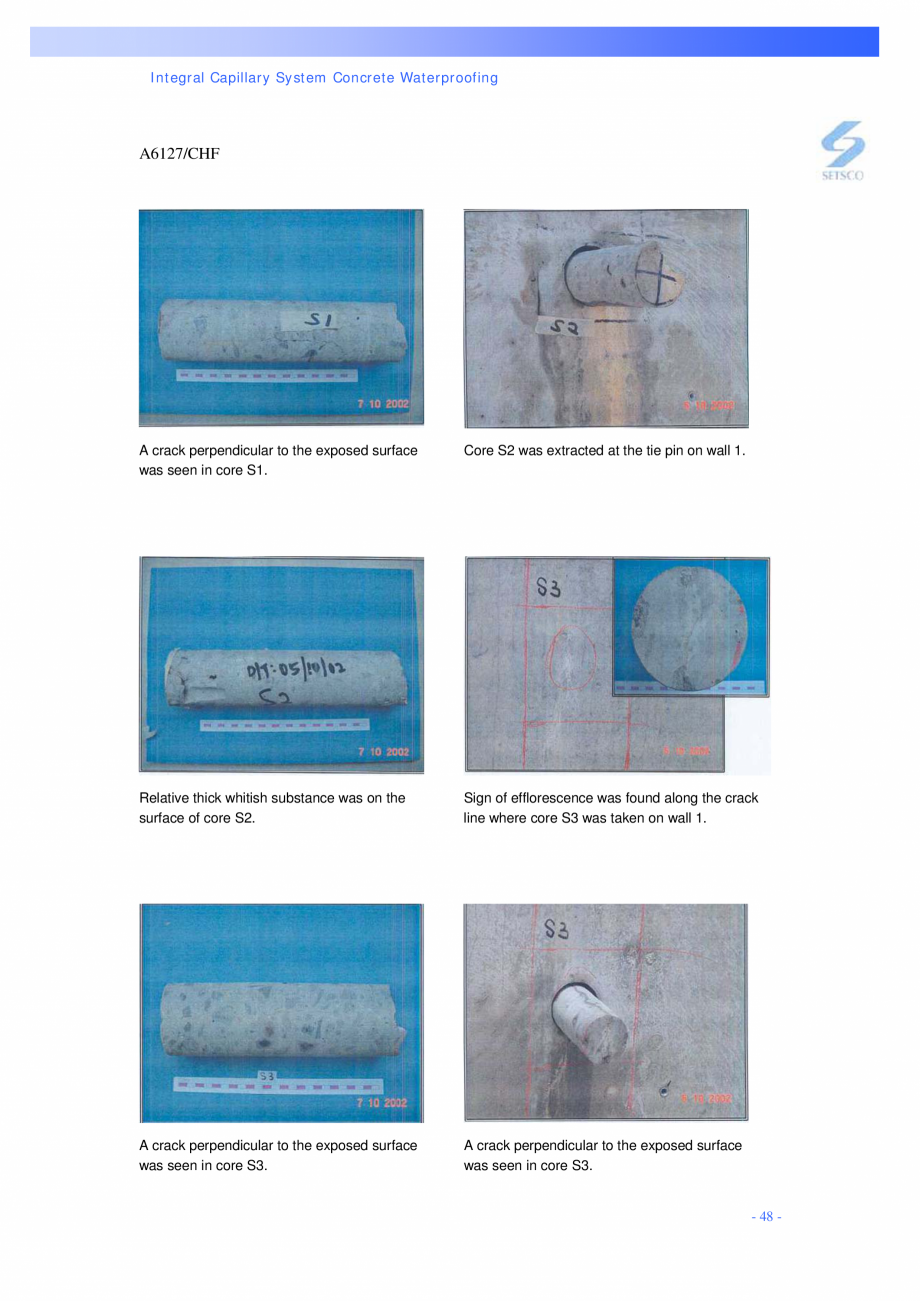

a on wall. A 75mm diameter core containing a crack at Wall 1 was extracted for laboratory analysis. - 47 - Integral Capillary System Concrete Waterproofing A6127/CHF A crack perpendicular to the exposed surface was seen in core S1. Core S2 was extracted at the tie pin on wall 1. Relative thick whitish substance was on the surface of core S2. Sign of efflorescence was found along the crack line where core S3 was taken on wall 1. A crack perpendicular to the exposed surface was seen in core S3. A crack perpendicular to the exposed surface was seen in core S3. - 48 - Integral Capillary System Concrete Waterproofing A6127/CHF Sample S3: Some crystals grew in the crack. Sample S3: Abundant coarse-grained crystals in the crack. Sample S2: Laminated CaCO3 crystals on the surface of the concrete. The width of the field is 3.88mm under plane light. Sample S2: Laminated CaCO3 crystals on the surface of the concrete. The width of the field is 3.88mm under crossed polarized ligh

Pagina 44-Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON PLUS Catalog, ...

Pagina 45 - Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON...

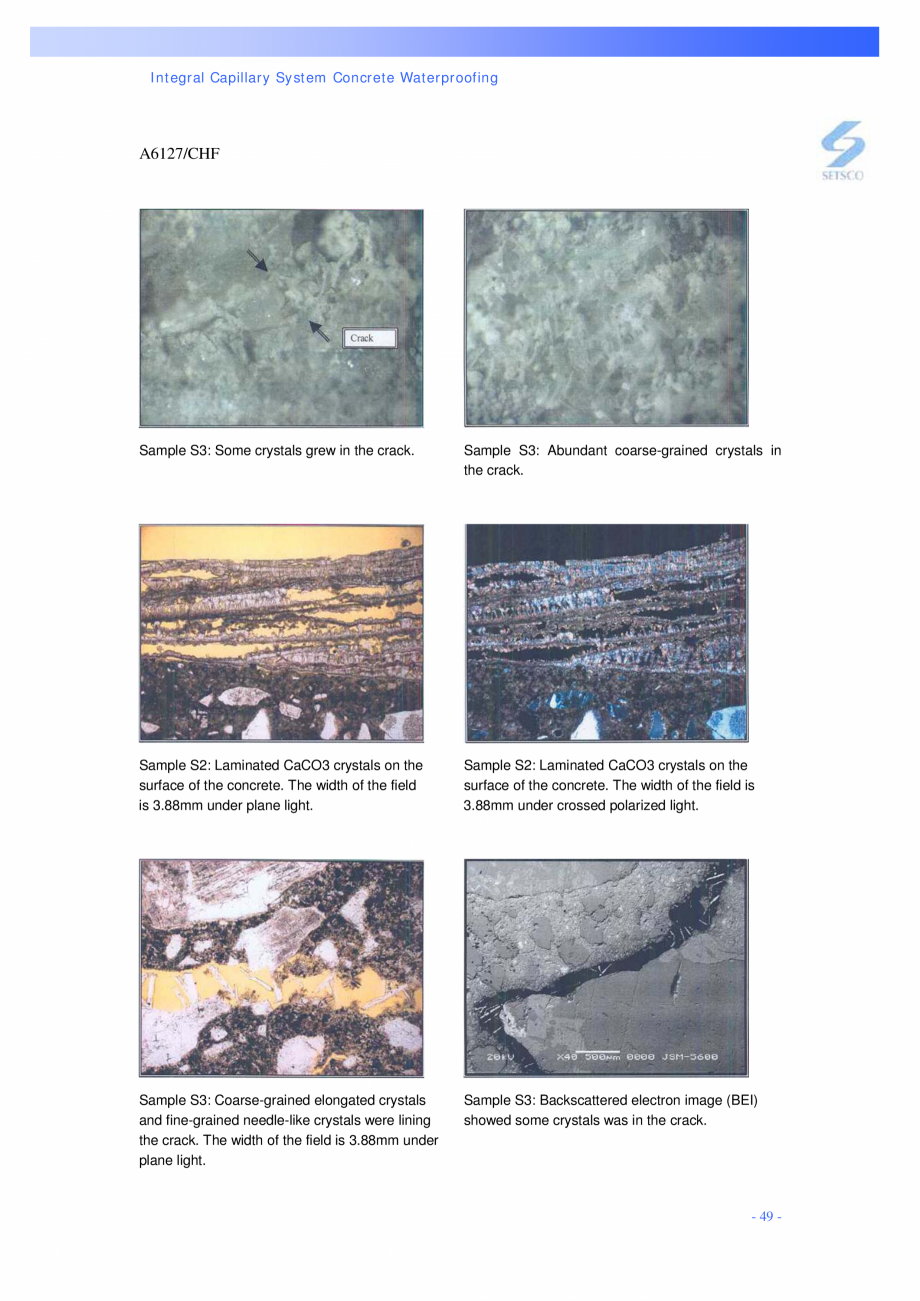

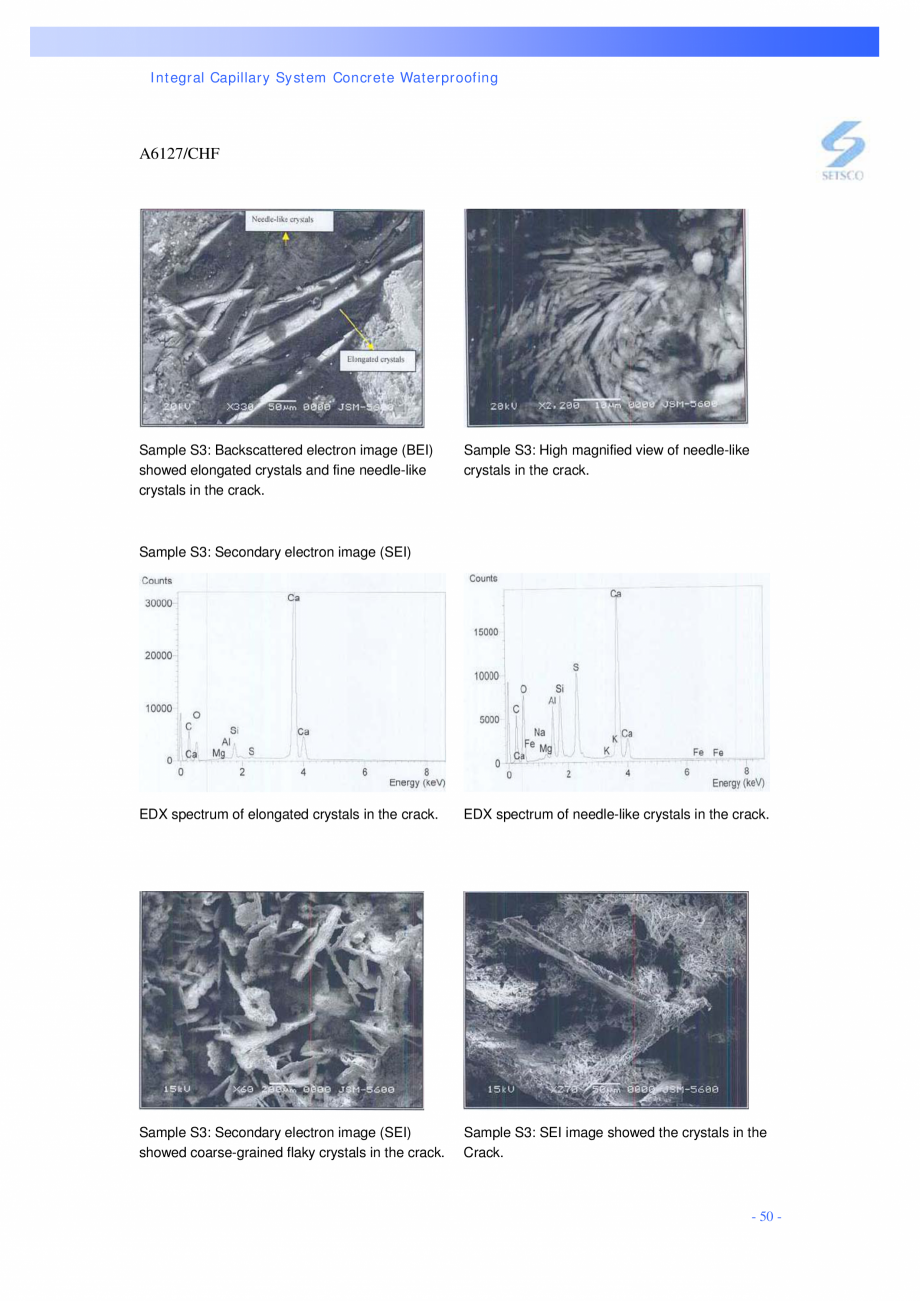

t. Sample S3: Coarse-grained elongated crystals and fine-grained needle-like crystals were lining the crack. The width of the field is 3.88mm under plane light. Sample S3: Backscattered electron image (BEI) showed some crystals was in the crack. - 49 - Integral Capillary System Concrete Waterproofing A6127/CHF Sample S3: Backscattered electron image (BEI) showed elongated crystals and fine needle-like crystals in the crack. Sample S3: High magnified view of needle-like crystals in the crack. Sample S3: Secondary electron image (SEI) EDX spectrum of elongated crystals in the crack. EDX spectrum of needle-like crystals in the crack. Sample S3: Secondary electron image (SEI) showed coarse-grained flaky crystals in the crack. Sample S3: SEI image showed the crystals in the Crack. - 50 - Integral Capillary System Concrete Waterproofing Client ICS/Penetron International Ltd., 45 Research Way, Suite 203, East Setauket, NY 11733 Project Information of Client Subject Laboratory

Pagina 45-Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON PLUS Catalog, ...

Pagina 46 - Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON...

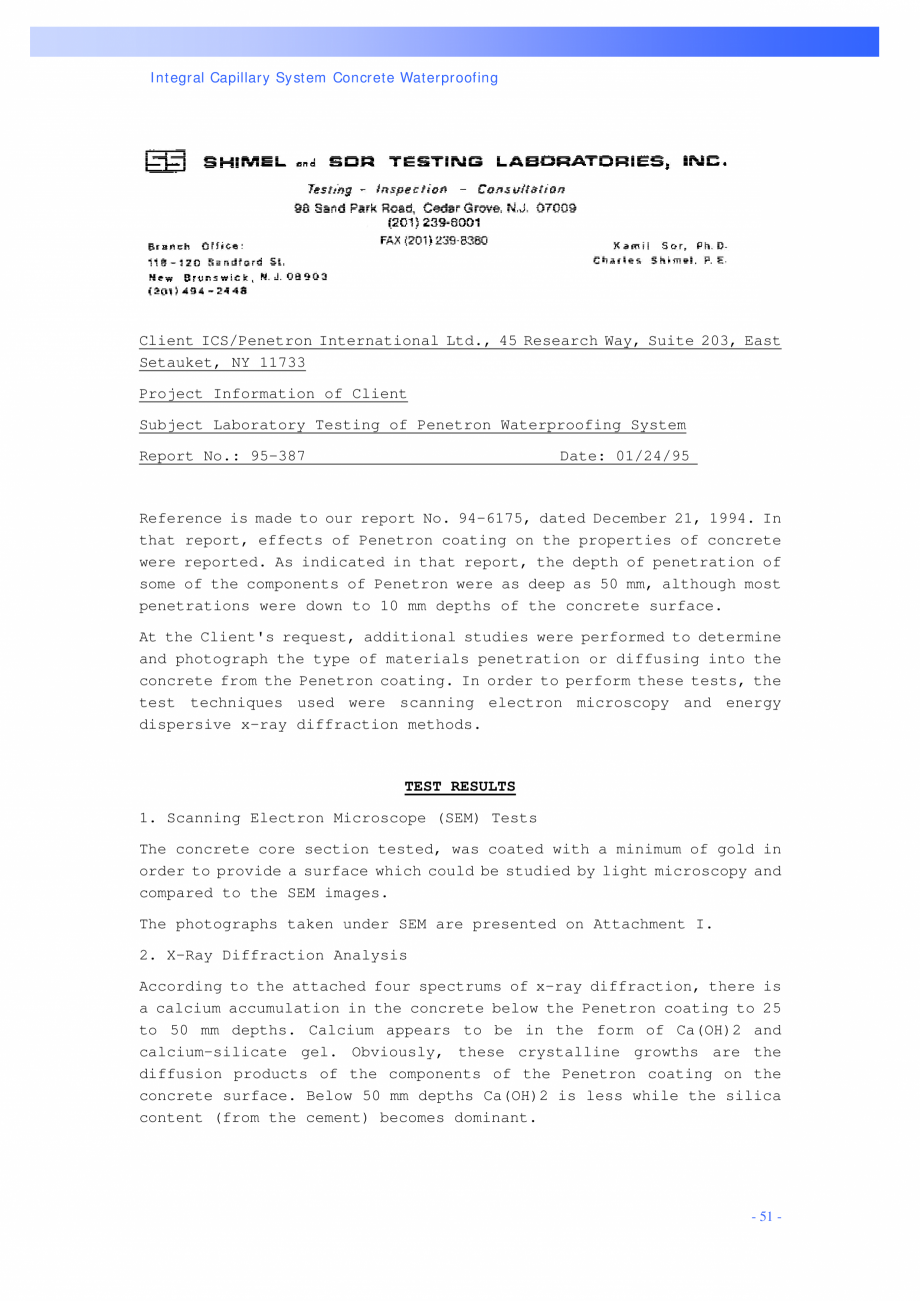

Testing of Penetron Waterproofing System Report No.: 95-387 Date: 01/24/95 Reference is made to our report No. 94-6175, dated December 21, 1994. In that report, effects of Penetron coating on the properties of concrete were reported. As indicated in that report, the depth of penetration of some of the components of Penetron were as deep as 50 mm, although most penetrations were down to 10 mm depths of the concrete surface. At the Client's request, additional studies were performed to determine and photograph the type of materials penetration or diffusing into the concrete from the Penetron coating. In order to perform these tests, the test techniques used were scanning electron microscopy and energy dispersive x-ray diffraction methods. TEST RESULTS 1. Scanning Electron Microscope (SEM) Tests The concrete core section tested, was coated with a minimum of gold in order to provide a surface which could be studied by light microscopy and compared to the SEM images. The photographs tak

Pagina 46-Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON PLUS Catalog, ...

Pagina 47 - Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON...

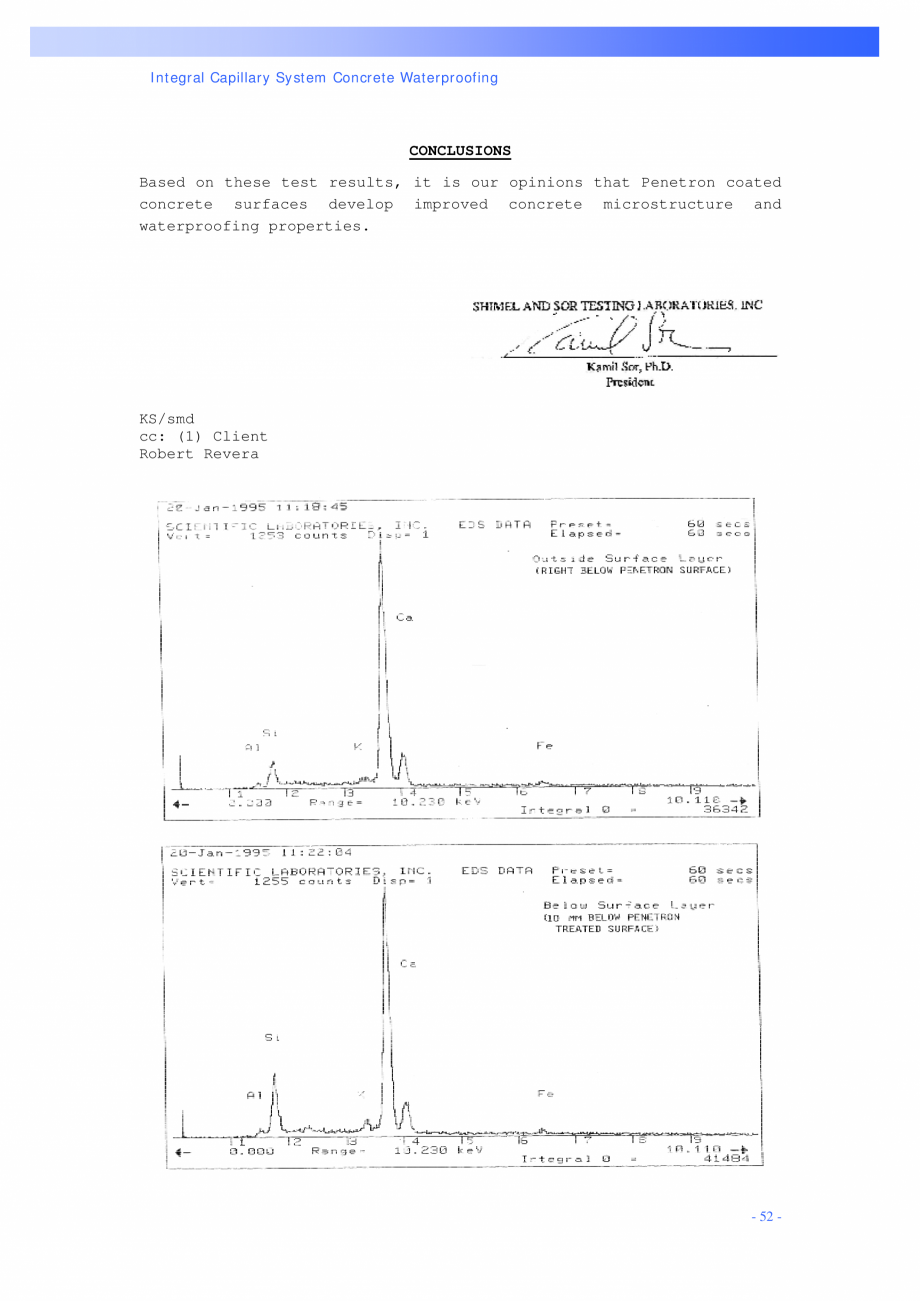

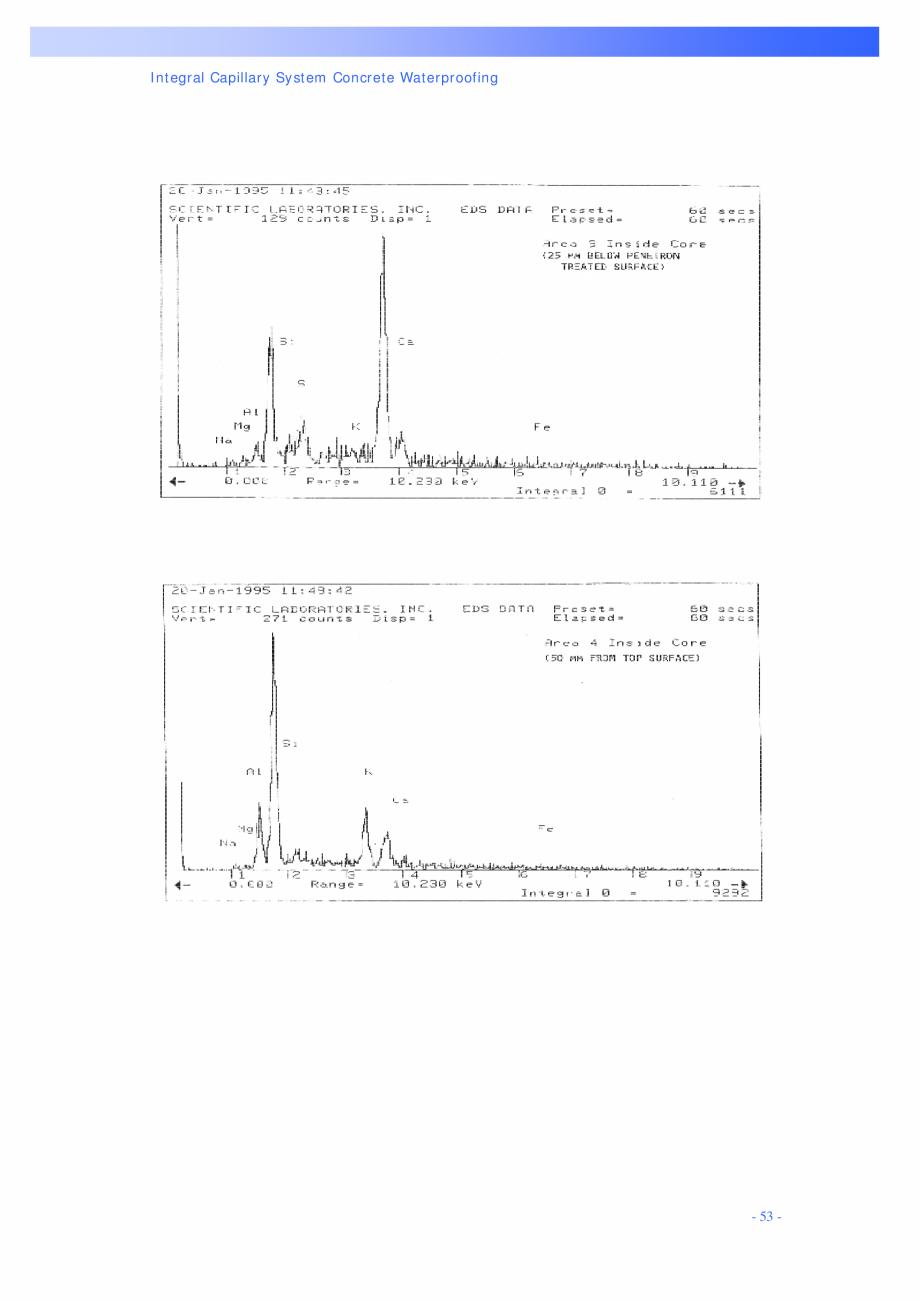

en under SEM are presented on Attachment I. 2. X-Ray Diffraction Analysis According to the attached four spectrums of x-ray diffraction, there is a calcium accumulation in the concrete below the Penetron coating to 25 to 50 mm depths. Calcium appears to be in the form of Ca(OH)2 and calcium-silicate gel. Obviously, these crystalline growths are the diffusion products of the components of the Penetron coating on the concrete surface. Below 50 mm depths Ca(OH)2 is less while the silica content (from the cement) becomes dominant. - 51 - Integral Capillary System Concrete Waterproofing CONCLUSIONS Based on these test results, it is our opinions that Penetron coated concrete surfaces develop improved concrete microstructure and waterproofing properties. KS/smd cc: (1) Client Robert Revera - 52 - Integral Capillary System Concrete Waterproofing - 53 - Integral Capillary System Concrete Waterproofing Client: ICS/Penetron International Ltd., C/o All Island Testing Labs. Project: In

Pagina 47-Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON PLUS Catalog, ...

Pagina 48 - Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON...

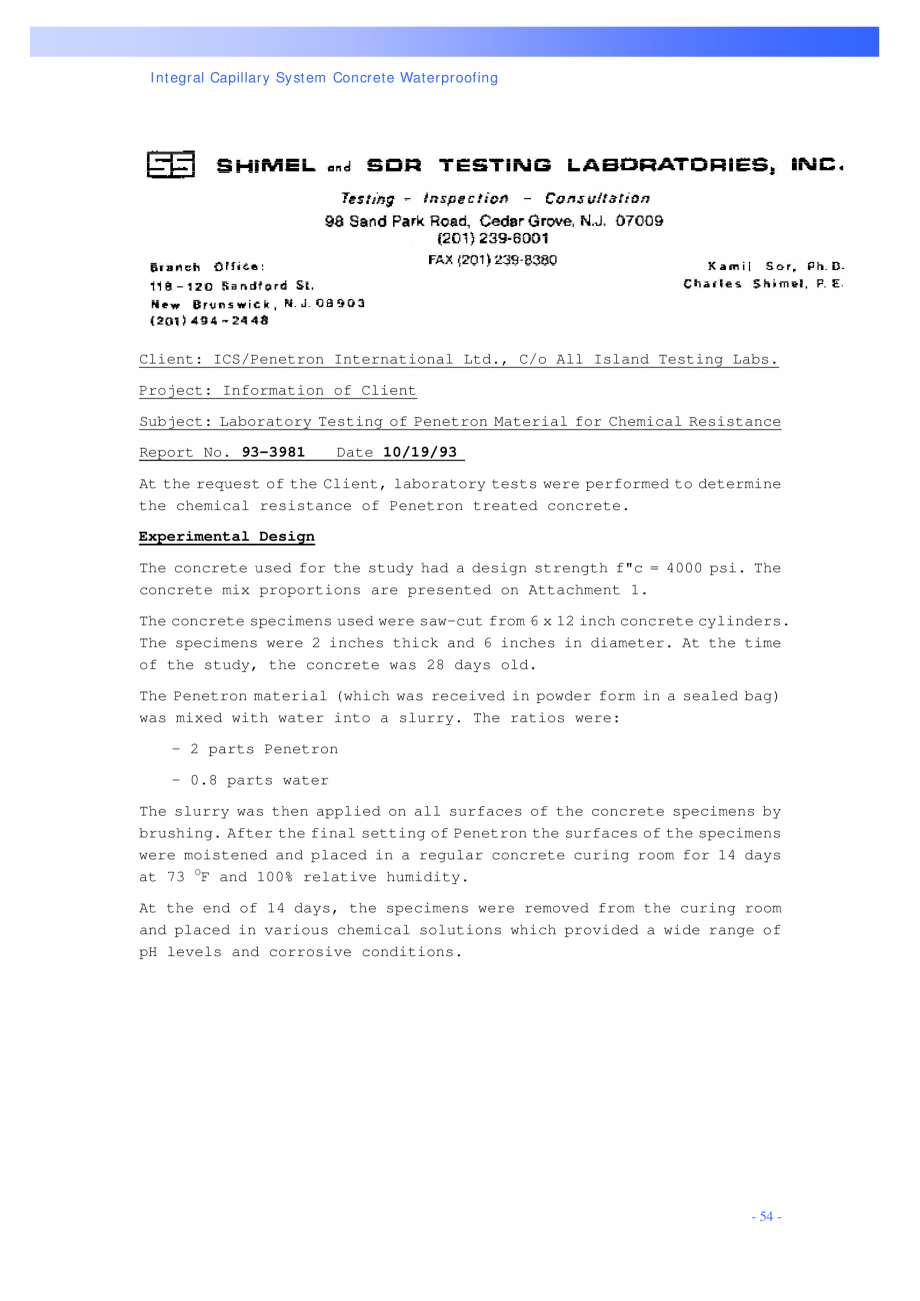

formation of Client Subject: Laboratory Testing of Penetron Material for Chemical Resistance Report No. 93-3981 Date 10/19/93 At the request of the Client, laboratory tests were performed to determine the chemical resistance of Penetron treated concrete. Experimental Design The concrete used for the study had a design strength f"c = 4000 psi. The concrete mix proportions are presented on Attachment 1. The concrete specimens used were saw-cut from 6 x 12 inch concrete cylinders. The specimens were 2 inches thick and 6 inches in diameter. At the time of the study, the concrete was 28 days old. The Penetron material (which was received in powder form in a sealed bag) was mixed with water into a slurry. The ratios were: - 2 parts Penetron - 0.8 parts water The slurry was then applied on all surfaces of the concrete specimens by brushing. After the final setting of Penetron the surfaces of the specimens were moistened and placed in a regular concrete curing room for 14 days at 73 OF and 1

Pagina 48-Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON PLUS Catalog, ...

Pagina 49 - Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON...

00% relative humidity. At the end of 14 days, the specimens were removed from the curing room and placed in various chemical solutions which provided a wide range of pH levels and corrosive conditions. - 54 - Integral Capillary System Concrete Waterproofing Test Results TYPE OF TREATMENT PH Penetron Treated Dilute Hcl 1B No Penetron 2A Penetron Treated SAMPLE NO. SAMPLE TYPE 1A 2B OBSERVATIONS 7 day 28 day 3 No Effect No Effect Dilute Hcl 3 No Effect Surface Weathered Dilute H2SO4 3 No Effect No Effect No Penetron Dilute H2SO4 3 No Effect Surface Weathered 3A Penetron Treated Rain Water 4 No Effect No Effect 3B No Penetron Rain Water 4 No Effect Surface Weathered 4A Penetron Treated CaCl2 7 No Effect No Effect 4B No Penetron CaCl2 7 No Effect Slight Effect 5A Penetron Treated NaOH 11 No Effect No Effect 5B No Penetron NaOH 11 No Effect No Effect CONCLUSIONS Based on these test results, the following conclusions were d

Pagina 49-Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON PLUS Catalog, ...

Pagina 50 - Tipuri de tunele si metode de constructie PENETRON PENETRON, PENETRON ADMIX, PENETRON...

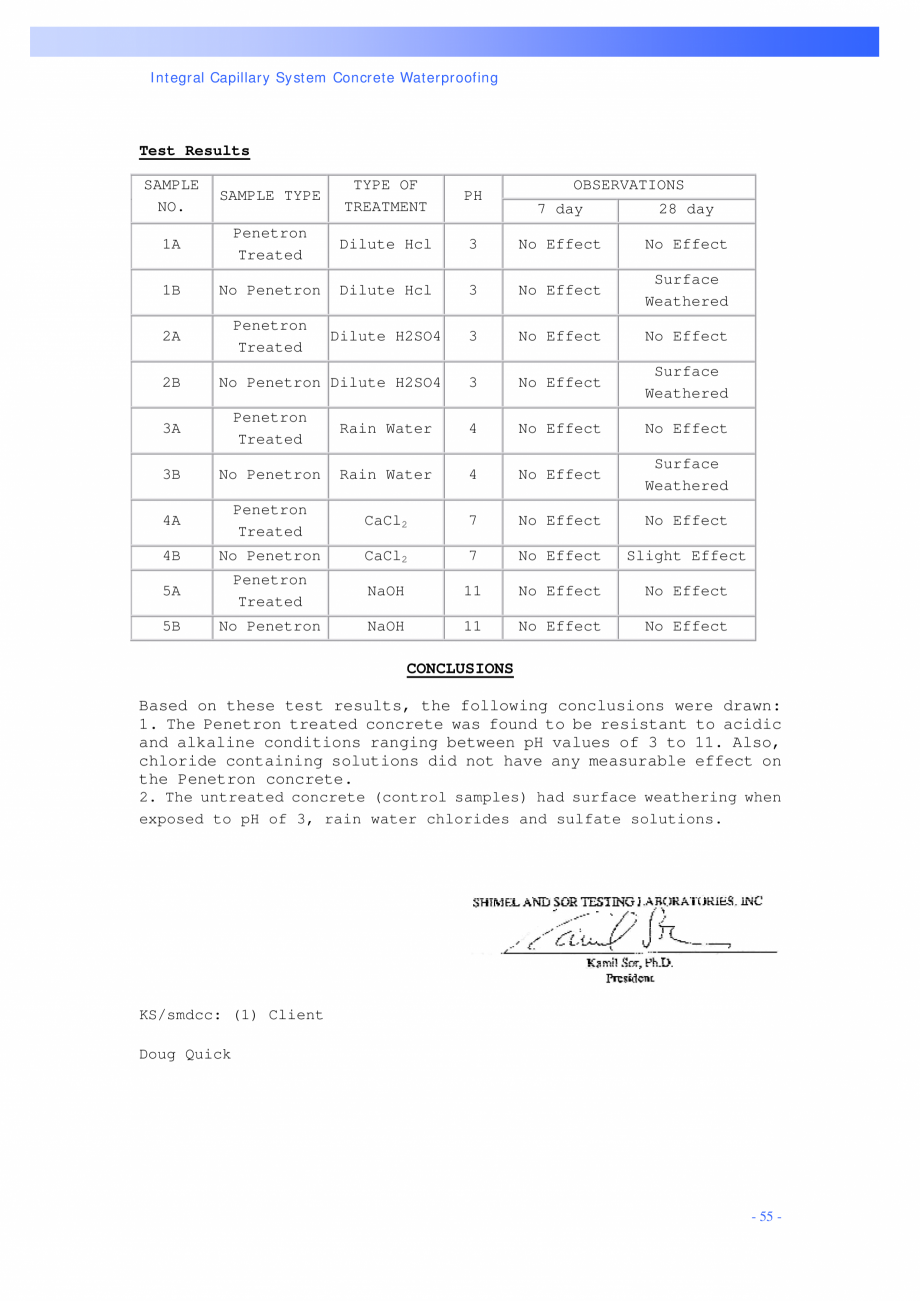

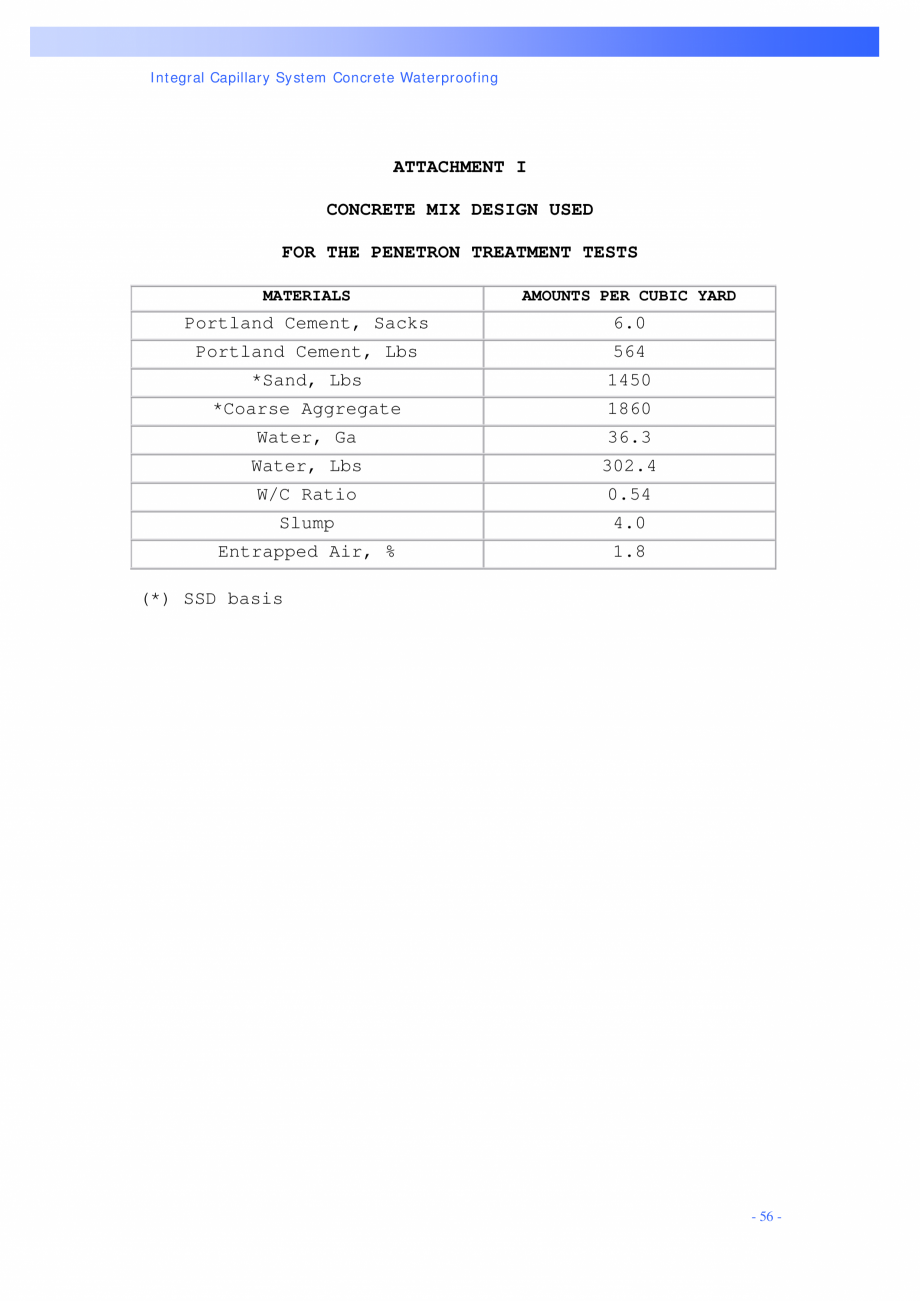

rawn: 1. The Penetron treated concrete was found to be resistant to acidic and alkaline conditions ranging between pH values of 3 to 11. Also, chloride containing solutions did not have any measurable effect on the Penetron concrete. 2. The untreated concrete (control samples) had surface weathering when exposed to pH of 3, rain water chlorides and sulfate solutions. KS/smdcc: (1) Client Doug Quick - 55 - Integral Capillary System Concrete Waterproofing ATTACHMENT I CONCRETE MIX DESIGN USED FOR THE PENETRON TREATMENT TESTS MATERIALS AMOUNTS PER CUBIC YARD Portland Cement, Sacks 6.0 Portland Cement, Lbs 564 *Sand, Lbs 1450 *Coarse Aggregate 1860 Water, Ga 36.3 Water, Lbs 302.4 W/C Ratio 0.54 Slump 4.0 Entrapped Air, % 1.8 (*) SSD basis - 56 -
