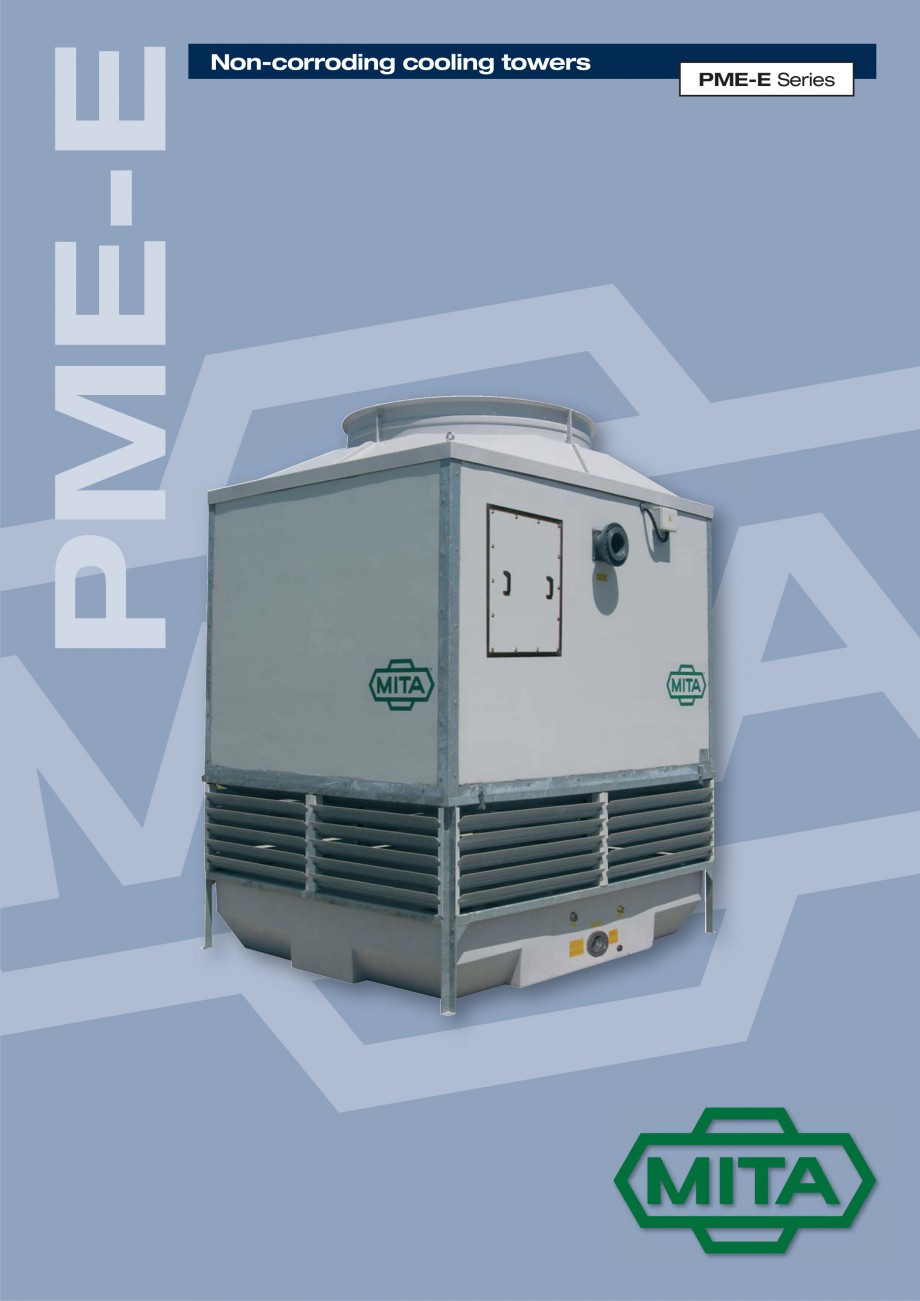

PME-E Non-corroding cooling towers PME-E Series PME-E series cooling tower PME-E series cooling tower The PME-E series cooling towers are manufactured with a high thickness (3-5 mm) steel bearing frame, which is hot-dip galvanized after all works and with ﬁbreglass sandwich panels of 22 mm thickness. This kind of panel is made by a double laminated layer with supporting expanded material in between. This construction grants, also on large surfaces, a great mechanical strength and a good dropping water noise absorption. The surface of the ﬁbreglass, moreover, is protected by a gel-coat that is resistant to UV rays, hot and cold water and abrasion due to weather and chemicals. The ﬁlling material is made of self-extinguishing PVC with 20 mm wide ﬂute, particularly suitable for industrial applications. In case of applications with very clean water, the tower version with 12 mm ﬂute ﬁll pack is also available. The multi-blade axial fan grants high performances with low ele

Pagina 1-Turnuri de racire cu circuit deschis MITA PME-E Fisa tehnica Engleza PME-E

Non-corroding cooling...

Pagina 2 - Turnuri de racire cu circuit deschis MITA PME-E Fisa tehnica Engleza ctrical power input....

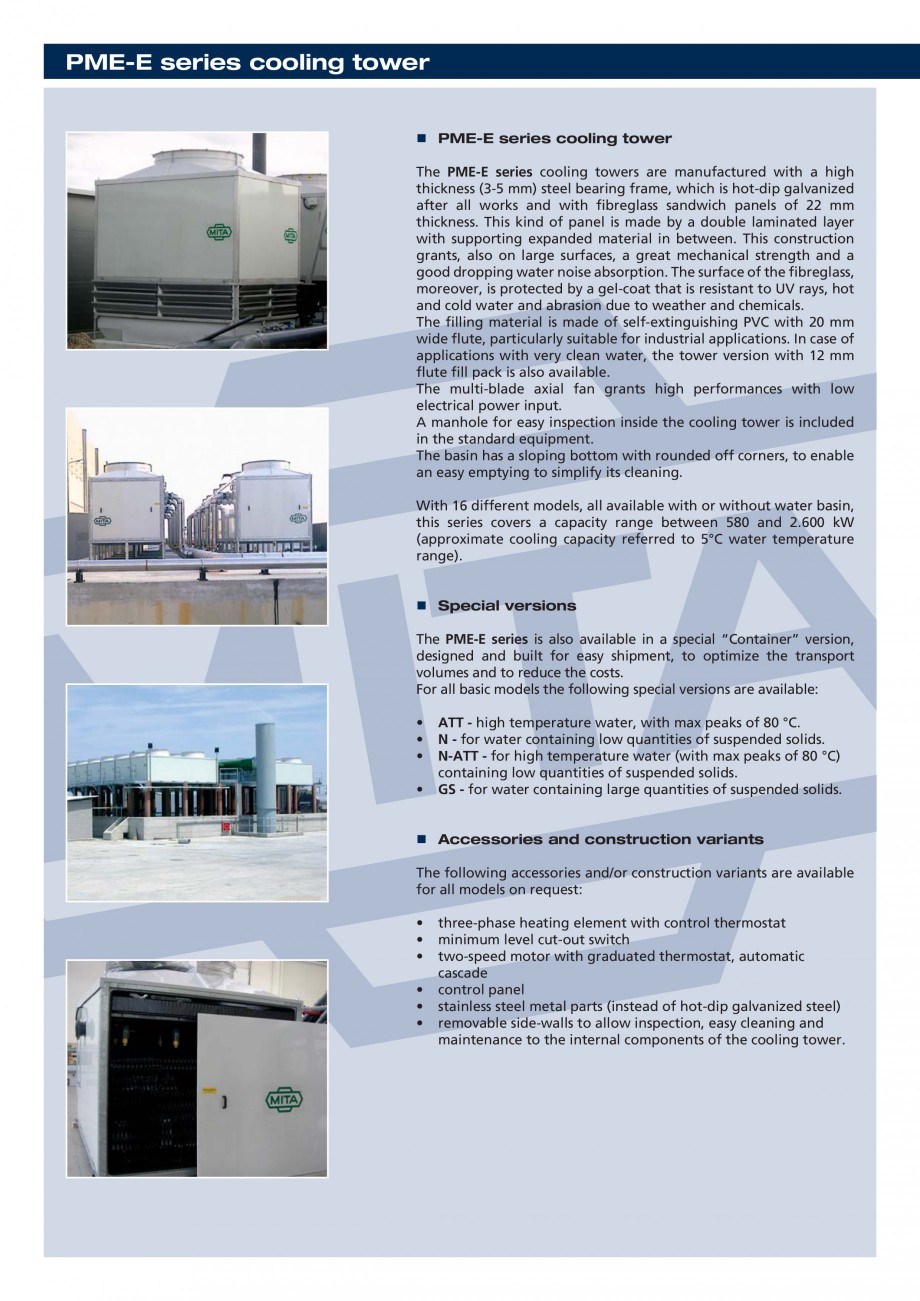

ctrical power input. A manhole for easy inspection inside the cooling tower is included in the standard equipment. The basin has a sloping bottom with rounded off corners, to enable an easy emptying to simplify its cleaning. With 16 different models, all available with or without water basin, this series covers a capacity range between 580 and 2.600 kW (approximate cooling capacity referred to 5°C water temperature range). Special versions The PME-E series is also available in a special “Container” version, designed and built for easy shipment, to optimize the transport volumes and to reduce the costs. For all basic models the following special versions are available: • • • • ATT - high temperature water, with max peaks of 80 °C. N - for water containing low quantities of suspended solids. N-ATT - for high temperature water (with max peaks of 80 °C) containing low quantities of suspended solids. GS - for water containing large quantities of suspended solids. Accessori

Pagina 2-Turnuri de racire cu circuit deschis MITA PME-E Fisa tehnica Engleza ctrical power input.
A manhole ...

Pagina 3 - Turnuri de racire cu circuit deschis MITA PME-E Fisa tehnica Engleza es and construction ...

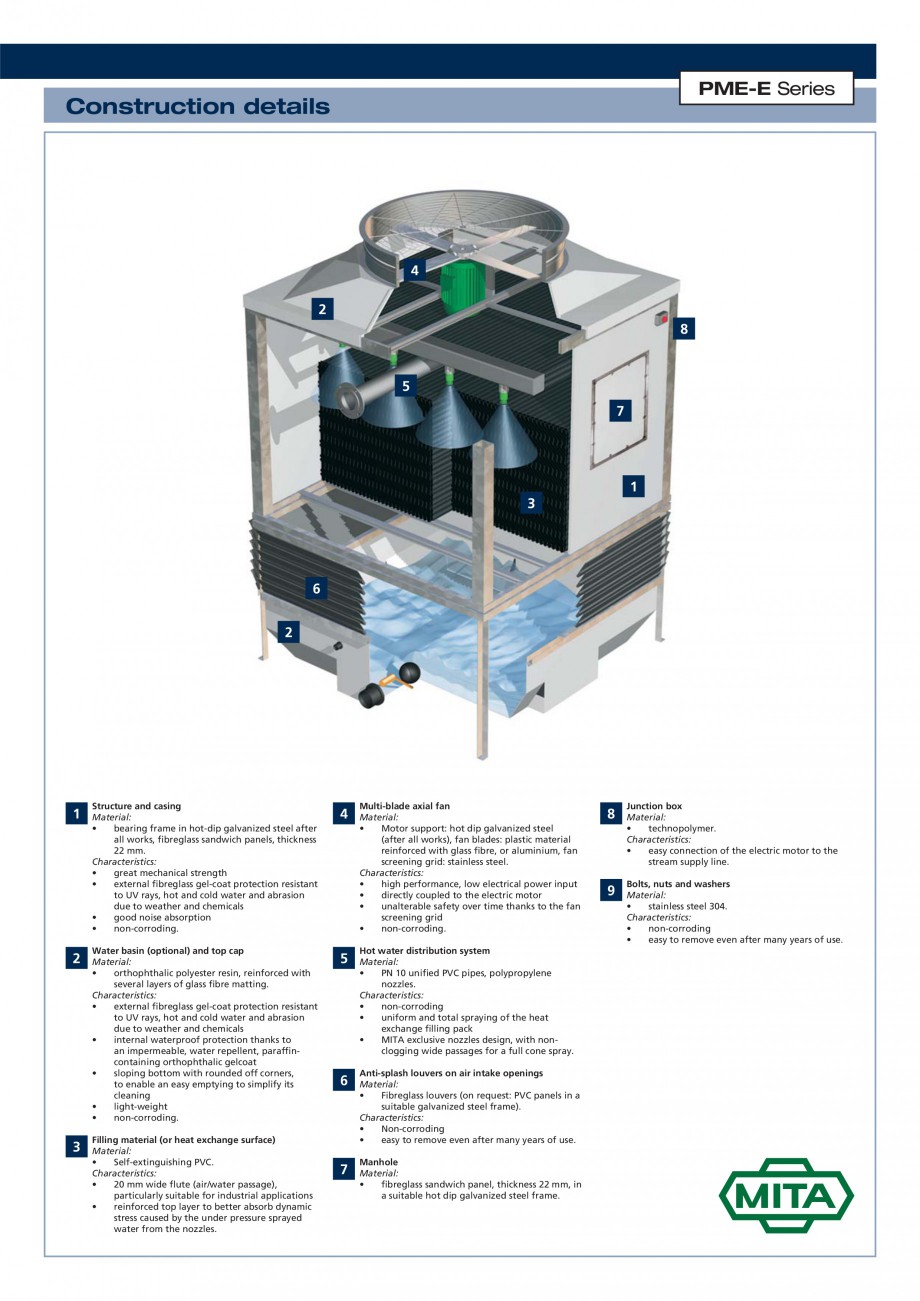

es and construction variants The following accessories and/or construction variants are available for all models on request: • • • • • • three-phase heating element with control thermostat minimum level cut-out switch two-speed motor with graduated thermostat, automatic cascade control panel stainless steel metal parts (instead of hot-dip galvanized steel) removable side-walls to allow inspection, easy cleaning and maintenance to the internal components of the cooling tower. PME-E Series Construction details 4 2 8 5 7 1 3 6 2 1 2 3 Structure and casing Material: • bearing frame in hot-dip galvanized steel after all works, ﬁbreglass sandwich panels, thickness 22 mm. Characteristics: • great mechanical strength • external ﬁbreglass gel-coat protection resistant to UV rays, hot and cold water and abrasion due to weather and chemicals • good noise absorption • non-corroding. Water basin (optional) and top cap Material: • orthophthalic polyester resin

Pagina 3-Turnuri de racire cu circuit deschis MITA PME-E Fisa tehnica Engleza es and construction variants...

Pagina 4 - Turnuri de racire cu circuit deschis MITA PME-E Fisa tehnica Engleza , reinforced with...

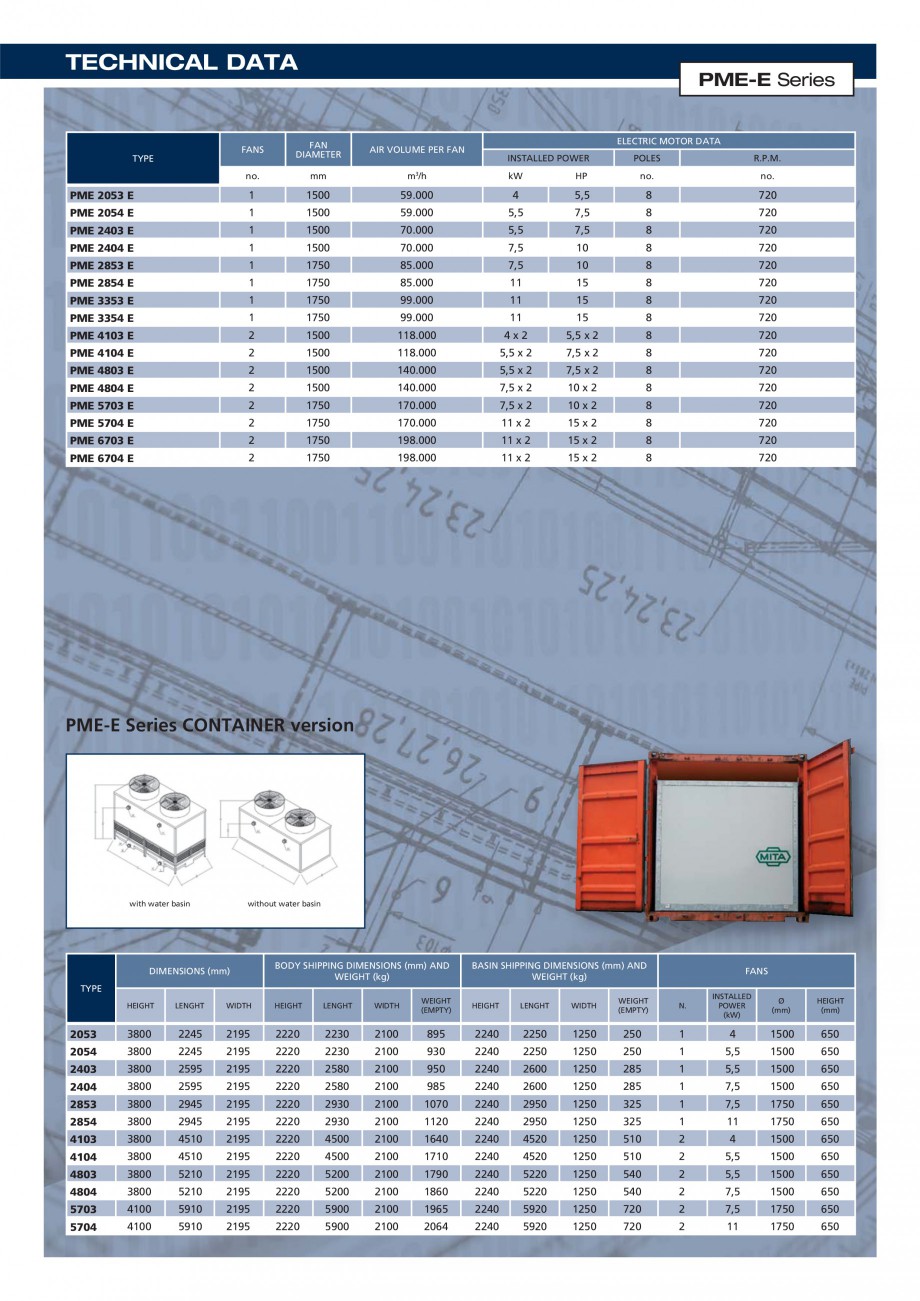

, reinforced with several layers of glass ﬁbre matting. Characteristics: • external ﬁbreglass gel-coat protection resistant to UV rays, hot and cold water and abrasion due to weather and chemicals • internal waterproof protection thanks to an impermeable, water repellent, parafﬁncontaining orthophthalic gelcoat • sloping bottom with rounded off corners, to enable an easy emptying to simplify its cleaning • light-weight • non-corroding. Filling material (or heat exchange surface) Material: • Self-extinguishing PVC. Characteristics: • 20 mm wide ﬂute (air/water passage), particularly suitable for industrial applications • reinforced top layer to better absorb dynamic stress caused by the under pressure sprayed water from the nozzles. 4 5 6 7 Multi-blade axial fan Material: • Motor support: hot dip galvanized steel (after all works), fan blades: plastic material reinforced with glass ﬁbre, or aluminium, fan screening grid: stainless steel. Characteristics:

Pagina 4-Turnuri de racire cu circuit deschis MITA PME-E Fisa tehnica Engleza , reinforced with
several...

Pagina 5 - Turnuri de racire cu circuit deschis MITA PME-E Fisa tehnica Engleza
•
high...

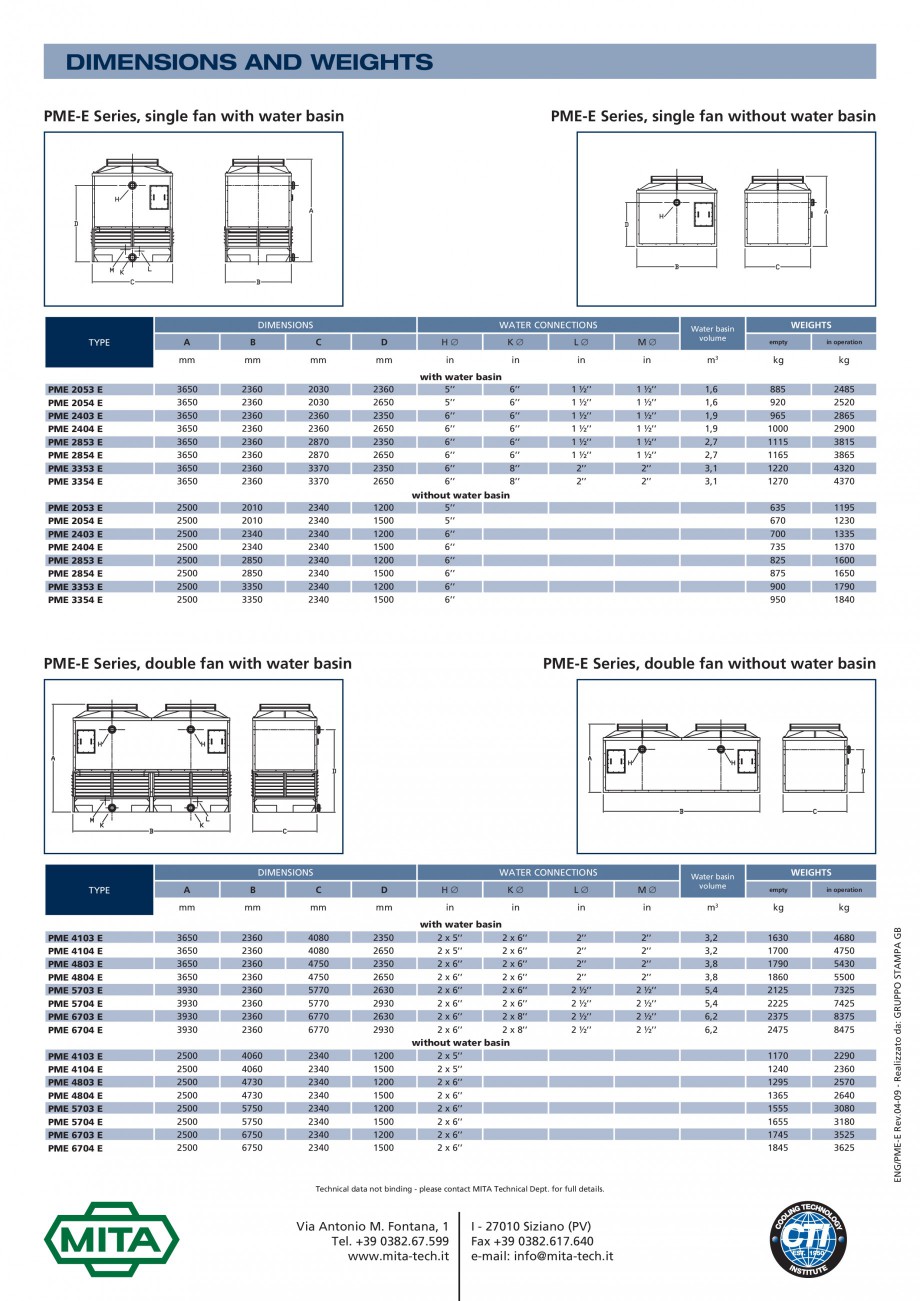

• high performance, low electrical power input • directly coupled to the electric motor • unalterable safety over time thanks to the fan screening grid • non-corroding. Hot water distribution system Material: • PN 10 uniﬁed PVC pipes, polypropylene nozzles. Characteristics: • non-corroding • uniform and total spraying of the heat exchange ﬁlling pack • MITA exclusive nozzles design, with nonclogging wide passages for a full cone spray. Anti-splash louvers on air intake openings Material: • Fibreglass louvers (on request: PVC panels in a suitable galvanized steel frame). Characteristics: • Non-corroding • easy to remove even after many years of use. Manhole Material: • ﬁbreglass sandwich panel, thickness 22 mm, in a suitable hot dip galvanized steel frame. 8 9 Junction box Material: • technopolymer. Characteristics: • easy connection of the electric motor to the stream supply line. Bolts, nuts and washers Material: • stainless steel 304. Character
