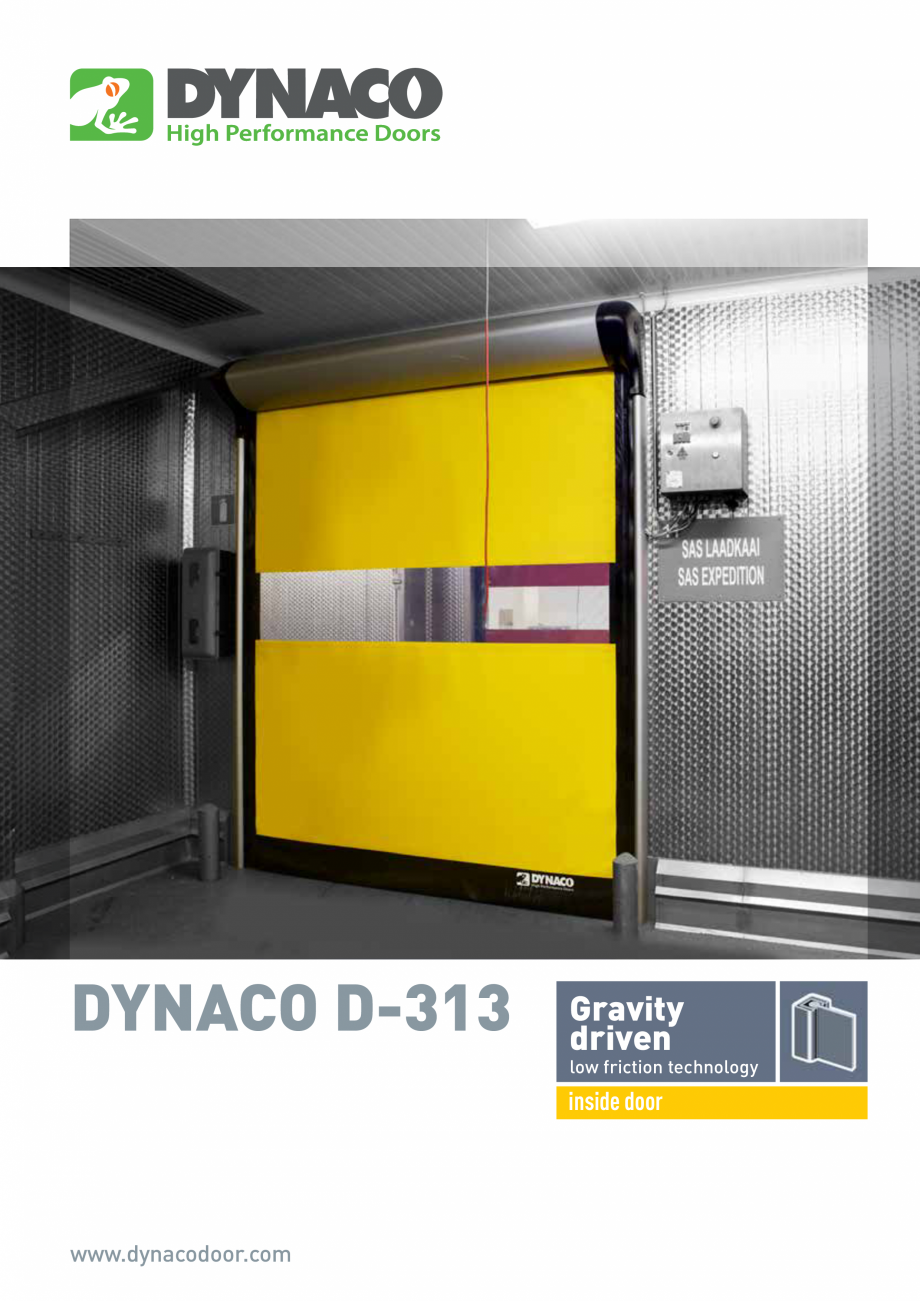

Pagina 1 - Usa rapida DYNACO D-313 Catalog, brosura Engleza DYNACO D-313

Gravity
driven

low...

DYNACO D-313 Gravity driven low friction technology inside door www.dynacodoor.com DYNACO D-313 The Dynaco D-313 LF is designed for inside applications where seal, aesthetics and required space are crucial. With its modern design, the Dynaco D-313 LF is the slimmest high speed door in the market. It protects your environment against drafts, humidity, dust and dirt. Operating speed and superior sealing properties improve your traffic flows and provide employee comfort, environmental control and savings on energy costs. The patented «LF» (Low Friction) technology, combined with a frequency inverter driven motor, assures a smooth operation. ■ OPENING SPEED: Up to 2,7 m/s ■ SUPERIOR SEAL: Patented side guides and the «BEAD» technology allow energy savings. ■ MINIMAL SPACE, MODERN LOOK: Motor installed inside the drum (DVDMPT). Very aesthetic design. ■ CRASH FORGIVING AND SELF-REINSERTING WITHOUT INTERVENTION: The curtain automatically reinserts itself when dislodge

Pagina 1-Usa rapida DYNACO D-313 Catalog, brosura Engleza DYNACO D-313

Gravity
driven

low friction...

Pagina 2 - Usa rapida DYNACO D-313 Catalog, brosura Engleza d. No repair costs, no production down ...

d. No repair costs, no production down time. ■ USER SAFETY: Flexible curtain without rigid elements. ■ COMFORT OF USE: DYNACO wireless detector at the bottom. ■ ADVANCED DRIVE: Frequency driven motor and encoder for smooth operation. Wearable elements are reduced to a minimum. ■ DYNALOGIC CONTROL BOX: User-friendly control box with self-diagnosis. ■ CONFORM TO EN13241-1 Printable curtain Motor incorporated in the drum - DVDMPT Covers: Synthetic material colour black Gravity driven low friction technology inside door EN13241-1 STANDARDS CHARACTERISTICS Standard Ref. Test acc. Results Water permeability EN 12425 EN 12489 Class 3 Wind load EN 12424 EN 12444 Class 1* Wind permeability EN 12426 EN 12427 Class 2** Safe openings EN 12453 EN 12445 Pass Mechanical resistance EN 12604 EN 12605 Pass Unintended movements EN 12604 EN 12605 Pass Thermal transmittance EN 12428 Performance (cycles) EN 12604 EN 12428 EN 12605 Max. dimensions

Pagina 2-Usa rapida DYNACO D-313 Catalog, brosura Engleza d. No repair costs, no production down time.

■ ...

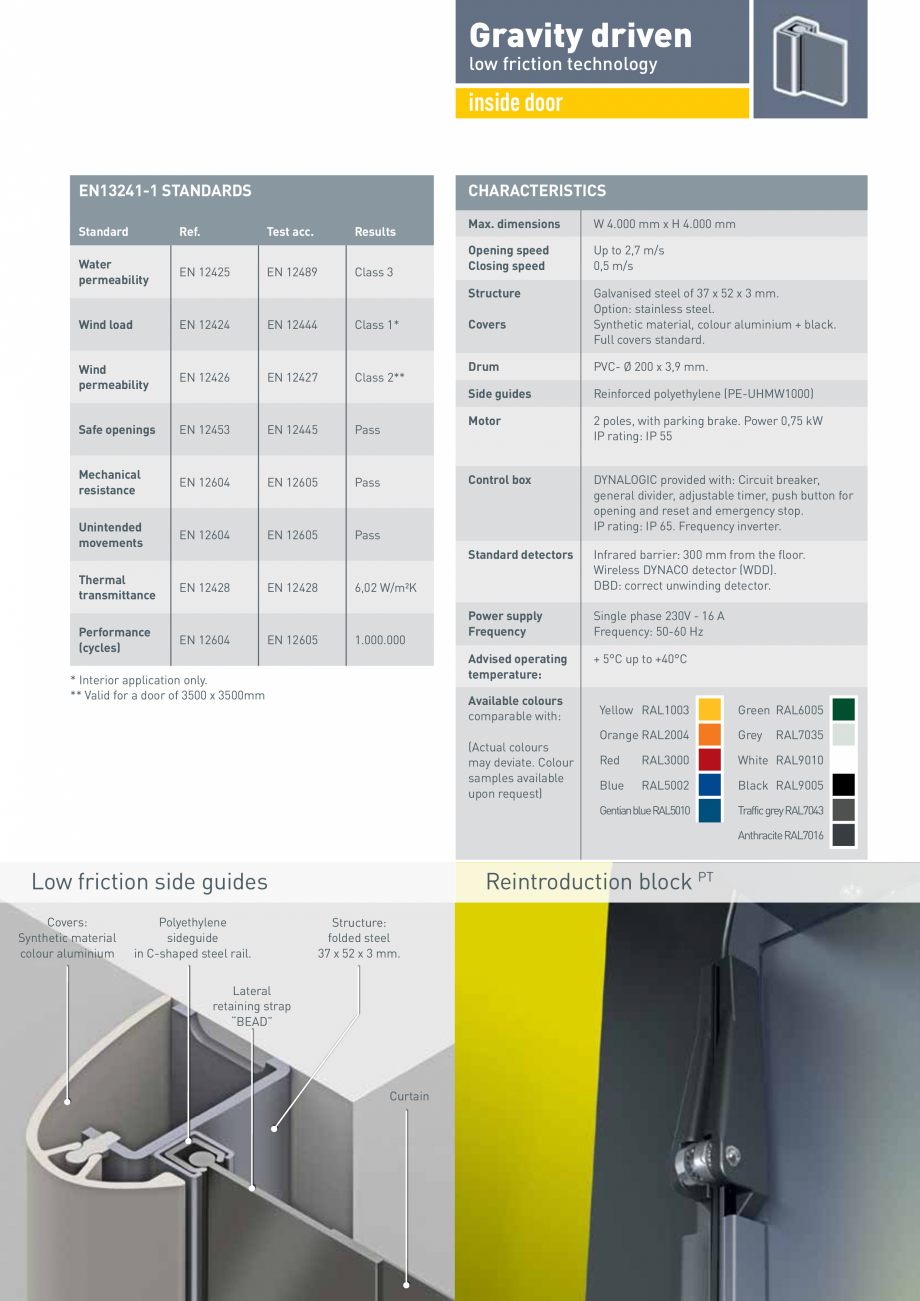

Pagina 3 - Usa rapida DYNACO D-313 Catalog, brosura Engleza W 4.000 mm x H 4.000 mm

Opening speed
...

W 4.000 mm x H 4.000 mm Opening speed Closing speed Up to 2,7 m/s 0,5 m/s Structure Galvanised steel of 37 x 52 x 3 mm. Option: stainless steel. Synthetic material, colour aluminium + black. Full covers standard. Covers Drum PVC- Ø 200 x 3,9 mm. Side guides Reinforced polyethylene (PE-UHMW1000) Motor 2 poles, with parking brake. Power 0,75 kW IP rating: IP 55 Control box DYNALOGIC provided with: Circuit breaker, general divider, adjustable timer, push button for opening and reset and emergency stop. IP rating: IP 65. Frequency inverter. Standard detectors Infrared barrier: 300 mm from the floor. Wireless DYNACO detector (WDD). DBD: correct unwinding detector. Power supply Frequency Single phase 230V - 16 A Frequency: 50-60 Hz Advised operating temperature: + 5°C up to +40°C 6,02 W/m²K 1.000.000 * Interior application only. ** Valid for a door of 3500 x 3500mm Available colours comparable with: (Actual colours may deviate. Colour samples available upon request)

Pagina 3-Usa rapida DYNACO D-313 Catalog, brosura Engleza W 4.000 mm x H 4.000 mm

Opening speed
Closing...

Pagina 4 - Usa rapida DYNACO D-313 Catalog, brosura Engleza

Yellow RAL1003

Green RAL6005

Orange...

Yellow RAL1003 Green RAL6005 Orange RAL2004 Grey Red RAL3000 White RAL9010 Blue RAL5002 Black RAL9005 Gentian blue RAL5010 Traffic grey RAL7043 RAL7035 Anthracite RAL7016 Low friction side guides Covers: Synthetic material colour aluminium Polyethylene sideguide in C-shaped steel rail. Reintroduction block PT Structure: folded steel 37 x 52 x 3 mm. Lateral retaining strap “BEAD” Curtain Dimensions and installation requirements Dynaco D-313 81 328 85 402 W H 300 65 65 60 328 All indicated dimensions are based on exact width and height dimensions only. The space necessary for mounting and maintenance has to be provided. REMARK: Based on the risk analysis of the environment, extra push buttons, detectors and covers might be required. About Dynaco PS-D-313-EN-V4.2-23/11/2021 Dynaco Europe NV Waverstraat 21 B-9310 Moorsel-Aalst (Belgium) Tel. +32 53 72 98 98 Fax. +32 53 72 98 50 info@dynacodoor.com www.dynacodoor.com Dynaco is the world leader in high
