Usi rapide BUTZBACH Novosprint Syncro

Limba: Engleza

2 afisari

Tip documentatie: Catalog, brosura

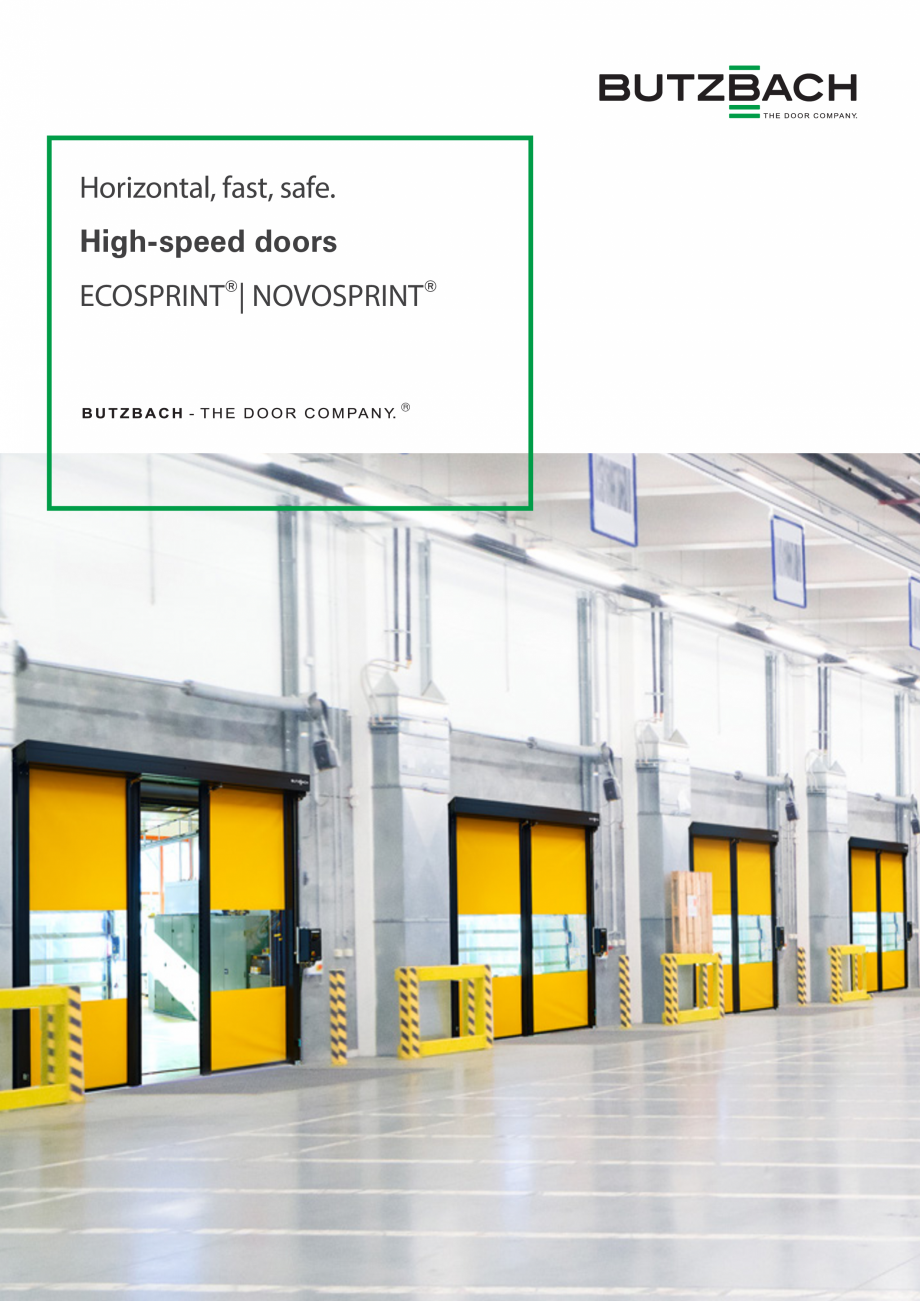

Pagina 1 - Usi rapide BUTZBACH Novosprint Syncro Catalog, brosura Engleza Horizontal, fast, safe....

Horizontal, fast, safe. High-speed doors ECOSPRINT®| NOVOSPRINT® The right solution for every requirement Butzbach was founded in 1953 and is now in its third generation as a German family business. With more than 270 employees, we are the specialist for industrial and hangar doors. For example, we developed a high-speed door that does not open upwards, but rolls the door skins of the two halves of the door to the side in a fraction of a second. The entire passage height is immediately available. This principle is superior to conventional doors in many ways: through flexibility in adapting to your requirements, protection against crash damage, maximum reliability and cost-effectiveness over the long term. Proven to work in practice worldwide High-speed doors NOVOSPRINT® The perfect solution for your application Industry Gingen an der Fils (GER) BOSIG GmbH Butzbach high-speed doors ensure a smooth and safe flow of material for persons and goods to be transported. Thanks to the

Pagina 1-Usi rapide BUTZBACH Novosprint Syncro Catalog, brosura Engleza Horizontal, fast, safe.
High-speed...

Pagina 2 - Usi rapide BUTZBACH Novosprint Syncro Catalog, brosura Engleza intelligent and...

intelligent and award-winning opening principle, the full headroom is immediately available, so that the risk of ramming damage is minimised. Several high-speed doors are combined with Butzbach outside doors. The high-speed door supports efficient intralogistics. At the end of business hours, the stacking and sectional doors enclose the building securely. Logistics Fast, reliable and with a guarantee of 500,000 opening cycles on the installed springs - depending on the version - this is how our high-speed doors score in logistics. Airports Amsterdam (NL) Our Doors are popular solutions at numerous international airports. The horizontal opening principle enables smooth, reliable and time-saving movement of luggage handling equipment and other transport vehicles. Flughafen Schiphol The airport installed numerous high-speed doors so that the luggage handling equipment can move from the runway to the distribution centre in a pulsating cycle without delay. Humid and wet areas (e.g.

Pagina 2-Usi rapide BUTZBACH Novosprint Syncro Catalog, brosura Engleza intelligent and award-winning...

Pagina 3 - Usi rapide BUTZBACH Novosprint Syncro Catalog, brosura Engleza washing bay)*
An optional ...

washing bay)* An optional surface coating on the frame protects the high-speed door from corrosion and moisture, making it suitable for wet areas and wash bays. The most important functional parts are made of stainless steel. The lateral opening prevents moisture or dirt particles from dropping from the door skins onto people, goods or vehicles. * Data may vary depending on door type, size and equipment. Figeac (FR) Ratier-Figeac Thanks to the individually adapted cut-outs for the crane rails, goods can be easily transported between two separate areas with industrial vehicles or a crane. Dubai (AE) AUDI Centre There are more than 20 Butzbach doors installed in the largest AUDI Centre worldwide. Besides the high-speed doors in the workshop area, Butzbach outside doors are also in use. You can find more completed Butzbach projects at www.butzbach.com. Your advantages Our promise The ideal door family For your prozesses* The sideways opening high-speed doors offer an optimal solut

Pagina 3-Usi rapide BUTZBACH Novosprint Syncro Catalog, brosura Engleza washing bay)*
An optional surface...

Pagina 4 - Usi rapide BUTZBACH Novosprint Syncro Catalog, brosura Engleza ion for every operational ...

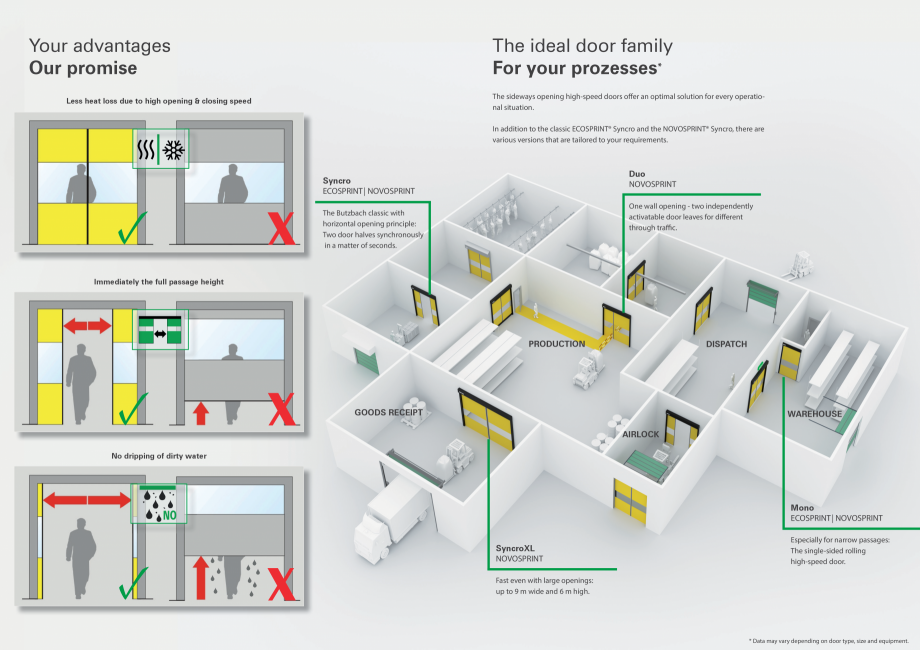

ion for every operational situation. Less heat loss due to high opening & closing speed In addition to the classic ECOSPRINT® Syncro and the NOVOSPRINT® Syncro, there are various versions that are tailored to your requirements. ✓ Duo NOVOSPRINT Syncro ECOSPRINT | NOVOSPRINT X One wall opening - two independently activatable door leaves for different through traffic. The Butzbach classic with horizontal opening principle: Two door halves synchronously in a matter of seconds. Immediately the full passage height PRODUCTION ✓ X DISPATCH GOODS RECEIPT WAREHOUSE AIRLOCK No dripping of dirty water Mono ECOSPRINT | NOVOSPRINT ✓ X SyncroXL NOVOSPRINT Especially for narrow passages: The single-sided rolling high-speed door. Fast even with large openings: up to 9 m wide and 6 m high. * Data may vary depending on door type, size and equipment. In all sizes Pretty fast NOVOSPRINT® Syncro L / XL The high-speed door series from Butzbach is still based on the horizo

Pagina 4-Usi rapide BUTZBACH Novosprint Syncro Catalog, brosura Engleza ion for every operational situation.
...

Pagina 5 - Usi rapide BUTZBACH Novosprint Syncro Catalog, brosura Engleza ntally
opening basic...

ntally opening basic principle – implemented with the latest technology and highquality materials. This makes both the ECOSOPRINT and the NOVOSPRINT the ideal solution for everyone who places the highest demands on efficiency, profitability and reliable protection. A variety of the most modern pulse transmitters, control options and individual equipment variants are available for this purpose. Fast, safe, trouble-free: even with large openings, you can rely on all NOVOSPRINT advantages. Doors up to 9 m wide and 6 m high are possible for very large vehicles and rail vehicles. ECOSPRINT® NOVOSPRINT® Syncro In design, the Butzbach classic with horizontal opening principle - in technology, a high-speed door of the latest generation: Spring force pulls both door leaves open at the same time and rolls them up in a compact housing profile. While the ECOSPRINT achieves an opening speed of up to 3.0 m/s, the NOVOSPRINT even manages a top speed of up to 5 m/s with the additional option „

Pagina 5-Usi rapide BUTZBACH Novosprint Syncro Catalog, brosura Engleza ntally
opening basic principle –...

Pagina 6 - Usi rapide BUTZBACH Novosprint Syncro Catalog, brosura Engleza Sprint“.
A reliable...

Sprint“. A reliable electric motor closes it again immediately at a speed of up to 2.5 m/s, thus ensuring the minimum opening times. ECOSPRINT® NOVOSPRINT® Mono The space and time-saving solution for unhindered and contactless passenger traffic. As a one-sided high-speed door, the Mono was specially created for narrow passages. It is particularly safe compared to swing, revolving or sliding doors with fixed door leaves. NOVOSPRINT® Duo NOVOSPRINT Duo has two door leaves that can be activated independently of each other in one passage. This makes it ideal for separating vehicle and passenger traffic for safety reasons or for creating a two-lane forklift track. Your way to new possibilities* Ground closure Double skinned Once the door is closed, the door leaves are lowered to the floor. Pests such as insects and small rodents stay outside, as do draughts and dust. And this works on almost any surface, because the flexible leakproof lip compensates for uneven floors. In the ba

Pagina 6-Usi rapide BUTZBACH Novosprint Syncro Catalog, brosura Engleza Sprint“.
A reliable electric motor ...

Pagina 7 - Usi rapide BUTZBACH Novosprint Syncro Catalog, brosura Engleza sic version with one door ...

sic version with one door skin, our high-speed door offers adequate protection in most cases. However, if there is a higher need for thermal and sound insulation, it can be equipped with twin-walled door leaves. This creates an air cushion about 25 mm thick, which improves both thermal and sound insulation. Sprint Escape routes Equip your high-speed door for maximum performance. You can reach top speeds of up to 5 m/s through the opening with spring force. An integrated light curtain also allows you to maximise the closing speed up to 2.5 m/s. This equipment variant is ideal wherever fast, manoeuvrable vehicles operate in a small space, for example with forklift truck traffic. An escape route and rescue path application must be able to be opened quickly in all situations – even in the event of a power failure. NOVOSPRINT meets these requirements verifiably according to TÜV SÜD and reliably according to DGUV in Germany. Since the door is opened by spring force, it is independent

Pagina 7-Usi rapide BUTZBACH Novosprint Syncro Catalog, brosura Engleza sic version with one door skin, our...

Pagina 8 - Usi rapide BUTZBACH Novosprint Syncro Catalog, brosura Engleza
of the power supply. A...

of the power supply. A certified, fail-safe radar motion sensor triggers it. Its proper functioning is checked automatically every 24 hours. Crane rail Airlock In many production processes, goods in transport containers such as big bags are transported with the help of crane rails. If a separation between two rooms is required without stopping the flow of goods, we can adapt your high-speed door with a precise cut-out. In contrast to vertical runners, the principle with the sideways opening is ideal for this application. In the case of larger temperature differences, internal goods traffic is often handled via temperature airlocks. These are transition zones with a door at each end. Due to the short opening times of the doors, the waiting time for persons and vehicles in the airlock is reduced to a minimum or, in most cases, even eliminated entirely. Hygiene Combination Whether pharmaceutical industry, food trade or health sector: With a wide range of hygiene options, NOVOSPRIN

Pagina 8-Usi rapide BUTZBACH Novosprint Syncro Catalog, brosura Engleza
of the power supply. A certified,...

Pagina 9 - Usi rapide BUTZBACH Novosprint Syncro Catalog, brosura Engleza T supports all specific...

T supports all specific regulations for cleanliness, non-porous surfaces, corrosion resistance, food safety and many other requirements. Discuss your individual needs with your Butzbach specialist advisor – and you will receive a solution that is optimally tailored to your needs. With this hybrid solution, you create optimal conditions for both operating and idle times. It combines the high-speed door, which is designed for high speed and high cycle rates, with a well-insulated, fixed outside door. During peak periods, only the high-speed door is active. During quiet periods, the outside door ensures protected and optimally thermally insulated building closure. * Data may vary depending on door type, size and equipment. Drastically reduced risk of accidents More safety for people and the flow of goods* The best high-speed door must be particularly good at one thing: It must be inconspicuous. It must open as fast as lightning when through traffic approaches and must not and must n

Pagina 9-Usi rapide BUTZBACH Novosprint Syncro Catalog, brosura Engleza T supports all specific regulations...

Pagina 10 - Usi rapide BUTZBACH Novosprint Syncro Catalog, brosura Engleza ot impede operational...

ot impede operational processes. This is exactly what is guaranteed by the record-breakingly fast lateral opening of our high-speed doors. In order to increase operational safety our Butzbach high-speed door can also be equipped with a number of features. This minimises the risk of an operational accident and drastically reduces damage to the goods or the transport vehicles through the door. Crash protection Currentless opening Light curtain Both the ECOSPRINT and the NOVOSPRINT can be opened at any time without electricity, because the door is always opened by high-performance springs in the side uprights. In the event of a power failure, the door opens either manually using the hand lever attached to the door or automatically using the „opening without current“ variant optionally available. Even in the standard version, our doors fully comply with the standard with their built-in safety edges. The optional monitoring of the closing movement by means of a light barrier in fro

Pagina 10-Usi rapide BUTZBACH Novosprint Syncro Catalog, brosura Engleza ot impede operational processes.
This...

Pagina 11 - Usi rapide BUTZBACH Novosprint Syncro Catalog, brosura Engleza nt or a light grid...

nt or a light grid integrated in the door leaves ensures contactless reversing. Transparent vision field LED signal light strip With the help of built-in transparent vision fields, the area behind the door is easy to see. Thanks to the lateral opening of the door, this view is guaranteed at all times. Accidents such as collisions can thus be significantly reduced. Several viewing fields at different heights are also possible. Numerous tests have shown that light signals are perceived particularly intensely. With the help of the LED signal light bar, it is immediately apparent whether and when the door may be accessed. When red, the door is closed or moving. A green light signals a fully open door. This avoids misunderstandings and increases operational reliability. If there is contact or a collision with the door, there is no immediate damage. This is thanks to innovative crash protection. This is a strut on the coupler that initiates a releasing mechanism when it comes into conta
