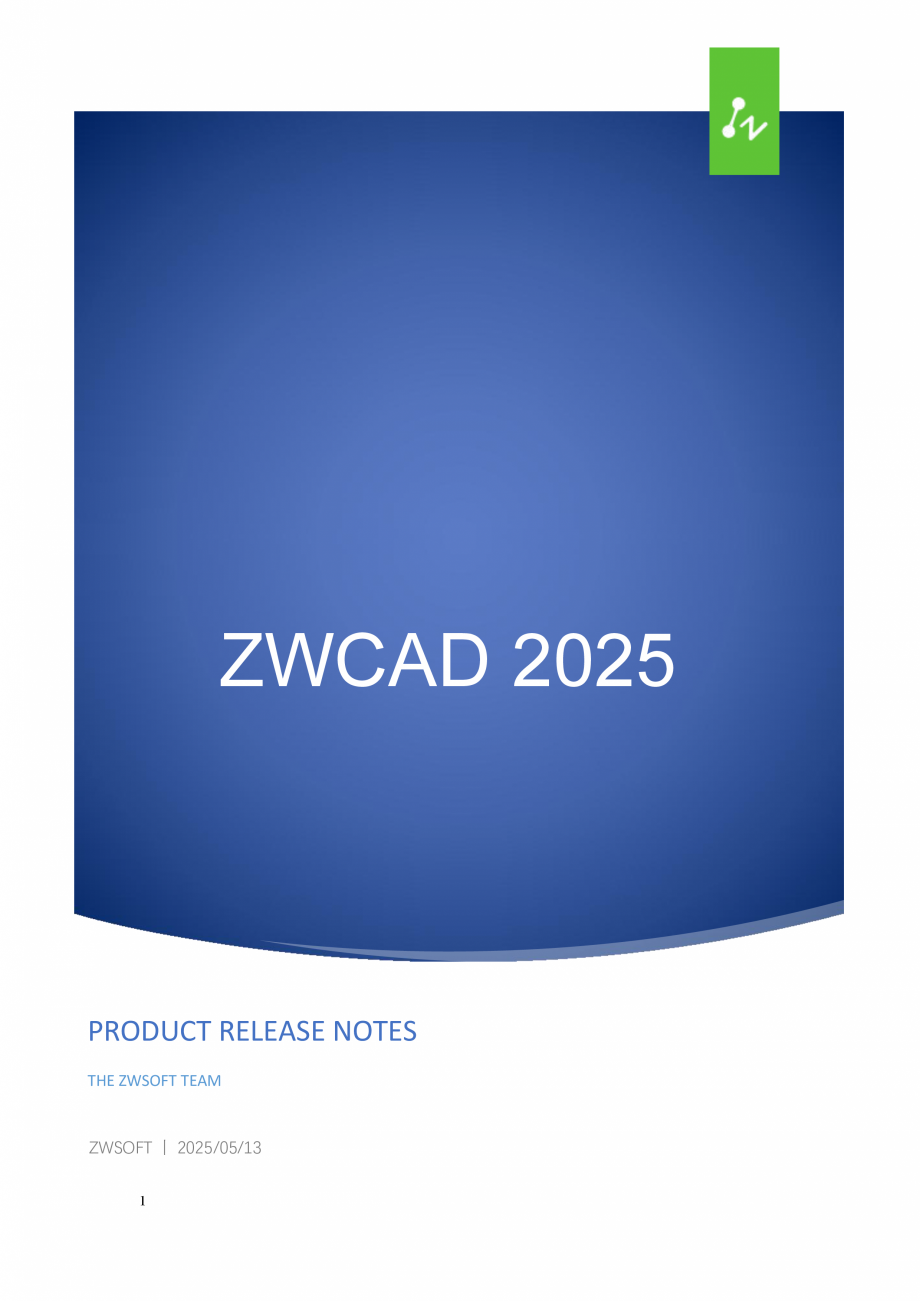

ZWCAD 2025
PRODUCT RELEASE NOTES
THE ZWSOFT TEAM
ZWSOFT 丨 2025/05/13
1
Welcome to ZWCAD 2025 Official!
Dear friends,
We are glad to tell you that ZWCAD 2025 Official is available now! Thanks to your valuable
feedback for the previous version, ZWCAD 2025 Official now comes with significant new
feature and improvements. Now, let’s take a look at this version.
This Release Notes mainly introduce the new features and improvements in ZWCAD 2025
Official.
Yours sincerely,
The ZWSOFT Team
May 2024
2
Contents
1. Overview ................................................................................................ 5
2. Efficiency ..............................................................................................10
3. Stability .................................................................................................10
4. New features and Improvement ........................................................... 11
4.1 2D Functionality Enhancement ...............
.....................................11
4.1.1 PDF Import&Attach Improvement ................................... 11
4.1.2 Plot Improvement ..............................................................13
4.1.3 Text Display Improvement ............................................... 15
4.1.4 Associative Array Improvement ....................................... 16
4.1.5 Revcloud Improvement .....................................................17
4.1.6 FAS/VLX File Support ..................................................... 19
4.1.7 JWW File Import ...............................................................19
4.1.8 Sizedrive ............................................................................ 20
4.1.9 Automatic Layout Drawings .............................................21
4.2 3D Functionality Enhancement ....................................................21
4.4.1 Improvement of Efficiency in Opening 3D Drawings ..... 21
4.2.2 New Visualization Styles ......................
............................ 21
4.4.3 STEP File Import .............................................................. 22
4.4.4 3D Gizmos .........................................................................23
4.2.5 New 3D workspace ........................................................... 24
4.3 Interface and Interaction Optimization ........................................ 26
4.3.1 Ribbon Redesign ............................................................... 26
4.3.2 Panel Redesign .................................................................. 27
4.3.2 Floating Document Window .............................................30
4.3.4 Help Document Redesign ................................................. 31
4.3.5 Command Matching Improvement ................................... 33
3
4.4 Industry Application Improvement ..............................................34
4.4.1 Point Cloud Module Improvement .................................. 34
4.4.2 GIS Module Improvement .....
........................................... 35
4.4.3 Raster Image to DWG Conversion ................................... 37
5. New Command & System Variable .....................................................38
6. APIs ...................................................................................................... 38
6.1 ZRX .............................................................................................. 43
6.2 .NET ............................................................................................. 43
6.3 VBA ..............................................................................................43
6.4 Lisp ............................................................................................... 43
7. Bug Fixes ..............................................................................................44
4
ZWCAD 2025 Release Notes
VERNUM= 25.00_2024.05.09(#11749-508f7afbe61)
1. Overview
ZWCAD 2025 primarily includes improvements in 5 asp
ects: 2D
functions, 3D functions, Interface, API, and Industry modules. The
specific details are as follows:
Note:
1. 32-bit version will be no longer supported from the 2025 version of ZWCAD ,
R&D Center is committed to providing users with a more stable and efficient 64-bit
ZWCAD product.
2. Starting from the 2025 version, SP version will be no longer available and will be
replaced by Update Packages which will be released every 2-3 months.
5
New
Description
Features&Enhancements
2D Functionality Enhancement
PDF Import&Attach
Improvement
Plot Improvement
Text Display Improvement
Associative Array
Improvement
Improved efficiency in importing and attaching
PDF files.
Improved efficiency in plotting.
Optimized display and editing accuracy for
Thai, Arabic, and Hebrew languages.
Add “Tangent” branch command in array path,
meanwhile fixed issues related to abnormal data
in associative array creation and editing.
“Revcloud” has become the new CAD entity
Revcloud Improvemen
t
type. Revcloud shapes can be edited quickly by
dragging grips.
Compatible with AutoLISP files created with
FAS/VLX File Support
Visual LISP. supports direct loading FAS/VLX
files.
JWW File Import
Sizedrive
Automatic Layout Drawing
Support for importing JWW format files.
Modifying the size of part by editing the
dimension.
Automatically arrange multiple drawings to
save printing space.
3D Functionality Enhancement
Improvement of Efficiency
CPU capabilities were fully utilized to enhance
6
in Opening 3D Drawings
the efficiency of opening 3D drawings.
It added “Conceptual”, “Realistic”, “Shade of
Grey”, and “X-ray” visual styles to provide
New Visualization Styles
diverse
visualization
effects.
The
display
efficiency of 3D models has been enhanced for
a smoother viewing experience.
STEP File Import
It supports the import of 3D files in STEP
format (AP203 and AP214 versions).
In the 3D visual style, objects can be
3D Gizmos
conveniently
panned,
rotat
ed,
scaled
and
transformed through 3D gizmos.
Optimizations
New 3D workspace
have
been
made
to
the
Workspace, significantly improving the ability
for users to customize their workspaces.
Interface and Interaction Optimization
A brand-new design of the ribbon, offering
features such as slide-out panels, dragging
Ribbon Redesign
panels, floating panels, and collapsed panels as
icons,
to
provide
users
with
a
highly
customizable interface.
Stacked and auto-hidden panels provide users
Panel Redesign
with a bigger drawing space. A new navigator
allows an easier interactive way of dragging and
docking panels.
Floating Documents
Document windows can be dragged out of the
Window
main program as floating windows, so users can
7
open one drawing on another monitor for
reference.
It supports filtering in the offline help
document. It added online help documents
Help Document Redesign
(Supported languages: including Simplified
Chinese, Traditional Chinese, English, Russian
,
German, Spanish, French, Japanese, Korean).
It supports non-initial string matching, and
Command Matching
sorting commands by frequency of use,
Improvement
providing users with a more intelligent and
convenient interaction method.
Industry Application Improvement
It
added
3
visual
styles
including
Point Cloud Module
“Intensity”, ”Elevation”, and “Classification”
Improvement
and support configuration to meet different
scenario needs.
It supports the import of commonly used map
sources such as Bing Maps, and the import of
GIS Module Improvement
OGC standard map services. It also supports
setting markers in the map and setting insertion
points in the drawing, so the map can the
drawing can be quickly matched according to
geographical location.
Raster to Vector
Conversion
Convert raster images to vector data to meet
users' needs for converting paper drawings into
DWG files.
8
API Improvement
For detailed information, please refer to the ZWCAD 2025 API Impr
ovement.
9
2. Efficiency
The R&D Center conducted efficiency tests on a selected set of customer
drawings, evaluating common user operations such as opening, saving,
moving, and copying. The efficiency comparison between ZWCAD 2025
and competing products is illustrated in the graph below. It clearly
demonstrates that ZWCAD has a significant advantage in performing
common commands compared to other competing products.
Figure 1. Efficiency comparison of commonly used functions.
3. Stability
The product development center extracted 169,718 drawings as test
samples to monitor the stability of the opening process in ZWCAD 2025
version. Within the test sample range, the majority of drawings could be
opened and edited normally, with no stability regression observed.
10
Figure 2, Stability comparison of opening and editing drawings.
4. New features and Improvement
4.1 2D Functionality Enhancement
4.1.1 PDF Import&Attach Improvement
The PDF file can be attached or imported into ZWCAD
for use. In the
ZWCAD 2025, related functions for applying PDF files have been
optimized, including improved efficiency in panning and zooming
drawings containing PDF underlays, enhanced efficiency in importing
PDF files, and optimized results when importing text from PDF files.
Improved efficiency in panning and zooming drawings containing
PDF underlays. The specific comparison data is as follows:
11
Figure 3. Comparison of panning with PDF underlay in drawings.
Conclusion: The panning efficiency in ZWCAD 2025 has improved
by 24 times compared to ZWCAD 2024, it is 3 times faster than the
competitor G2024, and equivalent to competitor A2024. The zooming
efficiency in ZWCAD 2025 has improved by 27 times compared to
ZWCAD 2024, it is 15 times faster than competitor G2024, and
equivalent to competitor A2024.
Enhanced efficiency in importing PDF files, The specific comparison
data is as follows:
12
Figure 4. Comparison of zooming with PDF underlay in drawings.
Conclusion: B
ased on the above test samples, the efficiency of
importing PDF files in ZWCAD 2025 has improved by 9 times
compared to ZWCAD 2024, it is 3 times faster than competitor
G2024, and 6 times faster than competitor A2024.
Optimized results when importing text from PDF files.
4.1.2 Plot Improvement
ZWCAD 2025 has improved plotting efficiency and reduced the size of
printed PDF files in some scenarios with PDF and physical printers. It has
enhanced the intelligent printing's ability to recognize frame, supports
printing PDF files in some small languages, and fixed stability issues
related to PLOT functions.
Improved printing efficiency for drawing includes image or underlay.
13
Figure 5. Comparison of print file sizes among various CAD products.
Improved accuracy in smart plot frame recognition.
a) The accuracy of frame sequence recognition has been improved,
especially when there are significant differences in frame sizes.
Figure 6. The recognition results on ZWCAD 2024
Figure 7. The recognition results on ZWCAD 2025
b) Enhanced accuracy in identifying and comparing the reference
14
frame and graphics for clipping blocks.
Figure 8. The recognition results on ZWCAD 2025
Figure 9. The recognition results on ZWCAD 2025
Enhanced accuracy when printing Thai, Hebrew, Arabic, Sanskrit,
and Khmer languages using the DWG to PDF.pc5 printer.
4.1.3 Text Display Improvement
ZWCAD 2025 has optimized the display and editing accuracy for Thai,
15
Arabic, and Hebrew languages. It focuses on resolving issues such as
incorrect line breaks in Thai text display, incorrect display of
connected Arabic characters, and incorrect editing of text displayed
and read from right to left. It also addresses the problem of incorrect
character display order when mixing languages with different reading
directions (right to left and left to right).
Language
ZWCAD2024
ZWCAD2025
Microsoft Office
Thai
Arabic
Hebrew
The MTEXT feature has been enhanced to include "Left
-to-Right Text
Direction" and "Right-to-Left Text Direction" functionalities, allowing
users with different language input directions to edit and read text
according to their accustomed text input sequence.
Figure 10. Text Direction Setting
4.1.4 Associative Array Improvement
ZWCAD 2025 has fixed issues related to abnormal data in associative
array creation and editing. For drawings with associative array errors from
16
previous versions, a ZRX tool is provided for repair. To perform the repair,
load the "AuditArray.zrx" file as an attachment and execute the
AUDITARRAY command.
Additionally, this version introduces a new "Tangent" branch command in
path arrays. This branch ensures that cloned objects align with the tangent
direction on the path, maintaining consistency between the cloned object's
orientation and the path curve's tangent direction. This feature allows the
cloned object's orientation to always face the tangent direction of the path
curve.
4.1.5 Revcloud Improvement
U
sers often use revclouds for drawing review. Revcloud has become a
CAD object and command branches are expanded, facilitating the creation
and editing of revclouds.
Revcloud as CAD Object Type
In the past, the CAD object type for revclouds was “polyline”. In this
version, it has been changed to "Revision Cloud." Users can directly edit
the shape of revclouds by dragging its grips and can modify the arc length
of revclouds through the properties panel.
17
Figure 11. New CAD object called “Revision Cloud”
Figure 12. Users can change the shape of revcloud with grips
New Branch Commands
“Circle”, “Ellipse”, “Modify” commands are added so you can create
circular or elliptical revclouds. With the “Modify” command, you can edit
18
the shape of existing revclouds.
Figure 13. New revcloud types
4.1.6 FAS/VLX File Support
It supports the direct loading of standard LISP binary files in FAS and
VLX formats. It improves LISP compatibility, eliminates format
conversi
on and enhances development efficiency.
Figure 14. Directly load FAS/VLS applications
4.1.7 JWW File Import
ZWCAD now supports direct import of JWW format, ensuring users can
browse and edit JWW data content in ZWCAD.
19
Figure 15. Support for importing JWW format files.
4.1.8 Sizedrive
This features enable designer to modify the dimension of the entities to
automatically adjust their shape. With this feature designer can help
quickly modify the specifications of simple parts.
Figure 16. Editing the dimension to automatically modify the part.
20
4.1.9 Automatic Layout Drawings
This function allows designer to automatically arrange drawings of
different sizes from various documents together. Designers can customize
the spacing between the drawings and the paper size for printing.
This can effectively save paper space when printing on large-sized paper
with a plotter.
Figure 17. ZWCAD helps you distribute drawings within a specified printing area, maximizing the
use of printing
paper.
4.2 3D Functionality Enhancement
4.4.1 Improvement of Efficiency in Opening 3D Drawings
By fully utilizing CPU capabilities and leveraging multi-threading parallel
technology, we significantly enhanced the efficiency of opening 3D
drawings in ZWCAD.
4.2.2 New Visualization Styles
We added “Conceptual”, “Realistic”, “Shade of Grey”, and “X-ray” visual
styles and optimized the display quality of visual styles including
wireframe, hidden, shaded, and shaded with edges.
21
Figure 18. New 3D visual styles
4.4.3 STEP File Import
STEP is an international file format in the mechanical industry. By
supporting STEP files import, the cost of file transfer from the design
department to manufacturers can be reduced.
Supported STEP Versions
It supports the import AP203 and AP214 versions of STEP files.
STEP Import Settings
It supports configuration of the import of STEP files, including destination
location, import method, and display settings.
22
Figure 19. STEP Impo
rt Settings dialog
4.4.4 3D Gizmos
In the 3D visual style, objects can be efficiently and conveniently moved,
rotated and scaled. When the gizmo is selected, you can switch between
moving, rotating, and scaling by pressing the spacebar.
Figure 20. 3D gizmos help users edit 3D entities more easily.
23
4.2.5 New 3D workspace
To redesign the ZWCAD workspace, create separate workspaces for 2D
drafting and 3D modeling, enabling users to focus on their commonly used
functions according to their requirements.
Add the "3D Modeling" workspace
Support switching the workspace in “Quick Access Toolbar” or “Status
Bar”, with the "2D Drafting & Annotation" workspace launched by
default.
Figure 21. Switch the workspace by “Quick Access Toolbar” or “Status Bar”
Figure 22. Ribbon setting for 3D workspace
Workspace Settings
a) Add the WSSETINGS command, which opens the "Workspace
Settings" dialog box when executed. In this dialog box, you can set the
current workspace, the display
order of workspace menus, and whether
to save workspace modifications when switching workspaces.
24
Figure 23. Workspace Settings Dialog
b) Add the WSSAVE command, which opens the "Save Workspace"
dialog box when executed. This feature allows you to quickly save the
current workspace.
Figure 24. Dialog of saving workspace
c) Add the WORKSPACE command, which is used to manage
workspaces. This includes setting the current workspace, saving,
editing, renaming workspaces, etc.
25
Figure 25. WORKSPACE Command
4.3 Interface and Interaction Optimization
4.3.1 Ribbon Redesign
The ribbon now includes new features such as slide-out panels, dragging
panels, and floating panels. Combined with CUI, it enhances the
customization level of interface.
Slide-out Panel
The panel can be expanded when you click on it and collapsed when you
move the mouse away from the slide-out area. You can also fix the panel
by clicking the “Pin” button on the left side to make it stay expanded or
collapse
d.
Figure 26. Slide-out ribbon panel
26
Dragging Panel
You can change the location of panels under the current tab on the Ribbon
by clicking on the panel (skipping function icons) and dragging it to the
desired location.
Figure 27. Dragging ribbon panel
Floating Panel
You can drag the panel outside the Ribbon by clicking on the panel
(avoiding function icons) and dragging it to the desired location. The
floated panel can be grouped with others or collapsed.
Figure 28. Floating ribbon panel
4.3.2 Panel Redesign
Panels can be stacked and hidden automatically, including Properties
Panel, Layer Properties Manager, External Reference panel, Design Centre,
Tool Palette, Calculator, helping users expand the drawing area.
27
Panel Stacking
When you drag one panel onto another, these panels can be stacked
together. Whether the panel is floated or docked, it can be combined with
another panel in four directions: top, bottom, left, and right.
Figure 29. panels stack together
Panel Aut
o-Hide
When the panel is docked on the side of ZWCAD, click the "Auto-Hide"
button in the top right corner of the panel, and the panel will be hidden.
You can choose to hide it as text or icon.
28
Figure 30. Different hiding methods
Navigator
When you drag the title bar of a panel, it will trigger the navigator between
the panel and the ZWCAD program. When you drag the panel to another
panel, it will trigger the navigator between them. The navigator can
provide you with a more intuitive preview effect.
29
Figure 31. Stacking Navigator
4.3.2 Floating Document Window
Document windows can be dragged out of the program, so users can open
one drawing on another monitor as a reference drawing. When opening
two or more drawings in ZWCAD, users can drag any document out of the
program by clicking on the document tab and dragging it to the desired
location.
30
Figure 32. Drag a drawing out as a new window
4.3.4 Help Document Redesign
It added an online help document and optimized th
e search engine for the
offline help document so users can access the help documentation service
more conveniently.
New Online Help Document
Online help document enables users to access the help document anytime,
anywhere, on any device, without the need to open the program
(Supported languages: including Simplified Chinese, Traditional Chinese,
English, Russian, German, Spanish, French, Japanese, Korean).
31
Figure 33. Online help document homepage
Offline Help Document Improvement
Offline help documentation supports filtering, enhancing the convenience
and efficiency of searching.
32
Figure 34. Search criteria help users more accuracy to find the content
4.3.5 Command Matching Improvement
The command matching mechanism has been improved to provide users
with a more intelligent command interaction experience.
Command Match Improvement
In the previous version, it had prefix matching only. In this version, it
added substring matching, wildcard matching and fuzzy matching. Users
can quickly locate the required commands by entering certain characters
or keywords of the command without having to enter the full name of the
command accurately.
Figure 35. Four Match Types
33
Intelligent Sorting
When users input a string, the commands will be sorted by the frequency
of usage.
4.4 Industry Application Improvement
4.4.1 Point Cloud Module Improvement
New Visualization Styles
It added 3 new visualization styles including “Intensity”, “Elevation”, and
“Classification”. Also, users can configure point cloud colors.
Figure 36. Intensity visualization style
Figure 37. Elevation visualization style
34
Figure 38. Classification visualization style
Navigate to Scan View
In the Point Cloud Manager, right-clicking a subset will trigger a context
menu. Through the "Navigate to Scan View" function, and users can
quickly locate the corresponding view.
Figure 39. Navigate to the scan view to observe the interior of the building.
4.4.2 GIS Module Improvement
T
his module has replaced the original ArcGIS module to import maps and
35
represent geographic features in ZWCAD.
Map Service Import
It provides multiple map services including Bing Maps. Users can add
map services compliant with the OGC protocol.
Figure 40. “Add Map” dialog box
Locating Function
You can match the geographic marker with the insertion point specified in
the drawing by specifying the latitude and longitude.
36
Figure 41. Visual representation of map and drawing matching
4.4.3 Raster Image to DWG Conversion
It supports converting raster images into CAD entities, allowing users to
directly edit and modify the converted drawings. This feature helps users
reuse historic hand-drawn drawings or scanned drawings, reducing the
workload and cost of converting them to CAD drawings manually.
Figure 42. Convert raster image to DWG drawing
ZWCAD has made significant improvements to its API modules,
including SDK upgrades, Ribbon API enhancements, .NET API
enhancements, a
nd more. For detailed information, please refer to the
.
37
5. New Command & System Variable
New Command
New Command
REVCLOUDPROPERTIES
Descriptions
Modify the approximate chord length of the selected
revision cloud arc.
WORKSPACE
Save, edit, delete, or specify workspace settings.
WSSAVE
Save the current workspace.
WSSETTINGS
Specify the display and switching settings for workspace.
SHORTCUTS
Open the shortcut key interface to modify shortcut key
settings.
EXPORTPDF(EPDF)
Export PDF file in a quick way.
STEPIMPORT
Import the 3D model from STEP file into the drawing file.
STEPIMPORTSETTINGS
Open the STEP Import Settings dialog box.
VSCURRENT
Set the visual style of the current viewport.
VISUALSTYLES
Set the visual style of the current viewport.
CHANGEBASE
Change the base point of block in drawing.
MAPCS
Set or remove the coordinate system of current drawing.
38
GEOGRAPHICLOCATION
Set the geographic marker, insertion position, and
due north
angle for current map.
GEOREORIENTMARKER
Set the due north angle and position of geographic marker.
ADDGEOMAP
Add a map to the current drawing.
ADDGEOSERVICE
Add a map to the current drawing.
MAPCATALOGUE
Open the Map Link palette.
MAPCATALOGUECLOSE
Open the Map Link palette.
New System Variables
New System Variables
DEFAULTGIZMO
GTAUTO
REVCLOUDGRIPS
VPSCALEASSOC
BAKMAXFILES
BAKMAXTOTALSIZE
THUMBQUALITY
Description
Control the default type of 3D gizmo displayed when
selecting objects in 3D visual styles.
Control the default type of 3D gizmo displayed when
selecting objects in 3D visual styles.
Control the number of grips displayed when revision
cloud is selected.
When using the SCALE command to scale a viewport,
control whether the internal view is scaled accordingly.
Set the maximum number of backup file entries that can
be kept in the automatic save file location.
Set an upper limit in megabytes (Mbs) for all graphic file
entries in the automatically saved
backup file.
Control the precision of saving thumbnail when saving
drawing.
39
SYSFLOATING
Control the fixed state of the graphic file tab.
INREFEDIT
Indicate the display status of the edit reference tab.
ARRAYCREATION
Indicate the display status of the array context tab.
RIBBONDOCKEDHEIGHT
Set the display height of fixed panels in ZWCAD ribbon.
RIBBONICONRESIZE
Control whether to adjust the icon size on the ribbon to
standard size
Control the default encoding runtime environment of
LISPSYS
Lisp, and after modification, it must be restarted to take
effect
FASTSHADEDMODE
Set whether fast rendering mode is enabled or set the
level of fast rendering mode
Adjust the smoothness of shading and rendering objects,
FACETRES
rendering shadows, and objects with hidden lines
removed.
VIEWUPDATEAUTO
Control whether the model document drawing view will
automatically update when changing the source model.
GEOLATLONGFORMAT
Control the format of latitude and longitude display
GEO
MARKERVISIBILITY
Control the visibility of anchor points
DIVMESHBOXHEIGHT
DIVMESHBOXLENGTH
DIVMESHBOXWIDTH
DIVMESHCONEAXIS
Set the number of subdivisions for the height of the grid
box along the Z-axis.
Set the number of subdivisions for the height of the grid
box along the X-axis.
Set the number of subdivisions for the height of the grid
box along the Y-axis.
Set the number of subdivisions around the perimeter of
the mesh cone base.
40
DIVMESHCONEBASE
DIVMESHCONEHEIGHT
DIVMESHCYLAXIS
DIVMESHCYLBASE
DIVMESHCYLHEIGHT
Set the number of subdivisions between the perimeter
and center of the mesh cone base.
Set the number of subdivisions between the base and
vertices of the mesh cone.
Set the number of subdivisions around the circumference
of the cylinder base.
Set the number of radius subdivisions from the center of
the mesh cylinder base to its circumference.
Set the number of subdivisions between the bottom and
top surfaces of the mesh cylinder.
Set the number of radius subdivisions
between the center
DIVMESHPYRBASE
of the bottom surface of the grid cold cone and its
circumference.
DIVMESHPYRHEIGHT
DIVMESHPYRLENGTH
DIVMESHSPHEREAXIS
DIVMESHSPHEREHEIGHT
DIVMESHTORUSPATH
DIVMESHTORUSSECTION
Set the number of subdivisions between the bottom and
top surfaces of the mesh pyramid.
Set the number of subdivisions for each annotation along
the bottom of the mesh pyramid.
Set the number of radius subdivisions around the
endpoints of the mesh sphere axis.
Set the number of subdivisions between the endpoints of
the two axes of the mesh sphere.
Set the number of subdivisions for the path swept by the
contour of the mesh torus.
Set the number of subdivisions in the contour of the
swept mesh torus path.
Set the number of subdivisions between the midpoint of
DIVMESHWEDGEBASE
the perimeter of the mesh wedge and the triangle
annotation.
DIVMESHWEDGEHEIGHT
DIVMESHWEDGELENGTH
Set the number of subdivisions for the height of the mesh
wedge along the Z-axis.
Set the number of
subdivisions along the X-axis for the
length of the mesh wedge.
41
DIVMESHWEDGESLOPE
DIVMESHWEDGEWIDTH
FACETERMESHTYPE
FACETERDEVSURFACE
FACETERDEVNORMAL
Set the number of subdivisions from the vertex of the
wedge to the edge of the base.
Set the number of subdivisions for the width of the mesh
wedge along the Y-axis.
Set the mesh type generated by the MESHSMOOTH
command.
This setting will affect the mesh converted from another
object using the MESHSMOOTH command.
Set the maximum angle between the surface normal and
adjacent mesh faces in the MESHSMOOTH command.
Set the maximum aspect ratio of the mesh converted
FACETERGRIDRATIO
from solids and surfaces in the MESHSMOOTH
command.
FACETERMAXEDGELENGTH
FACETERMAXGRID
FACETERMINUGRID
FACETERMINVGRID
FACETERSMOOTHLEV
Set the maximum length of the mesh generated by the
MESHSMOOTH command.
Set the maximum number of grid U and V lines
generated by the MESHSMOOTH command.
Set the minimum number of grid U lines generated by
the MESHSMOOT
H command.
Set the minimum number of grid V lines generated by
the MESHSMOOTH command.
Set the smoothness of the mesh generated by the
MESHSMOOTH command.
LONGITUDE
Set the longitude of geographic markers.
LATITUDE
Set the latitude of geographic markers.
MAPCS
SWITCHCOORDINATE
Set or remove the coordinate system of the current
drawing.
Convert the current drawing to the specified coordinate
system.
42
CGEOCS
Display the coordinate system of the current graphic
application.
6. APIs
6.1 ZRX
We have made significant improvements to ZRX. Please click here to
download the relevant document for viewing.
6.2 .NET
We have made significant improvements to .NET. Please click here to
download the relevant document for viewing.
6.3 VBA
0 were added and 4 were Fixed:
State
Interface
Fix
ZcadTable.GetValue Method
Fix
Document.Open Method
Fix
ZcadPopupMenu.AddMenuItem
Fix
QuickAccessToolBarSource.AddStandardItem
6.4 Lisp
0 were added and 12 were Fixed:
State
Interface
43
Fix
vl-prin1-to-string
Fix
command
State
Interface
Fix
vla-Save
Fix
trace
Fix
vlax-ldata-put
Fix
chr
Fix
write-line
Fix
read-line
Fix
findfile
Fix
grread
Fix
vla-load
Fix
vl-load-all
Fix
open
Fix
vl-catch-all-apply
Fix
load
Fix
arxload
Fix
setvar
Fix
trace
7. Bug Fixes
For the complete list, please refer to:
44
https://www.dropbox.com/scl/fi/y6jtv96c3h5rklebihift/Bug-Fixlist-ZWCAD-2025Official.xlsx?rlkey=7jjzxjpk8jl4xzhllgs85kr9h&st=n3uiblc4&dl=1
45
Alte documentatii ale aceleasi game
Fisa tehnica
10 p | EN
ZWCAD 2024
Instructiuni montaj, utilizare
16 p | EN
ZWCAD 2024
