FF102/50 Ventilated Cavity Fire Barrier
Tenmat’s FF102/50 Ventilated Cavity Fire Barriers are designed to reinstate
fire resistance performance within external wall cavities that require
permanent (open-state) ventilation in non-fire conditions.
Passive Fire Protection - Cavity Barriers
FF102/50

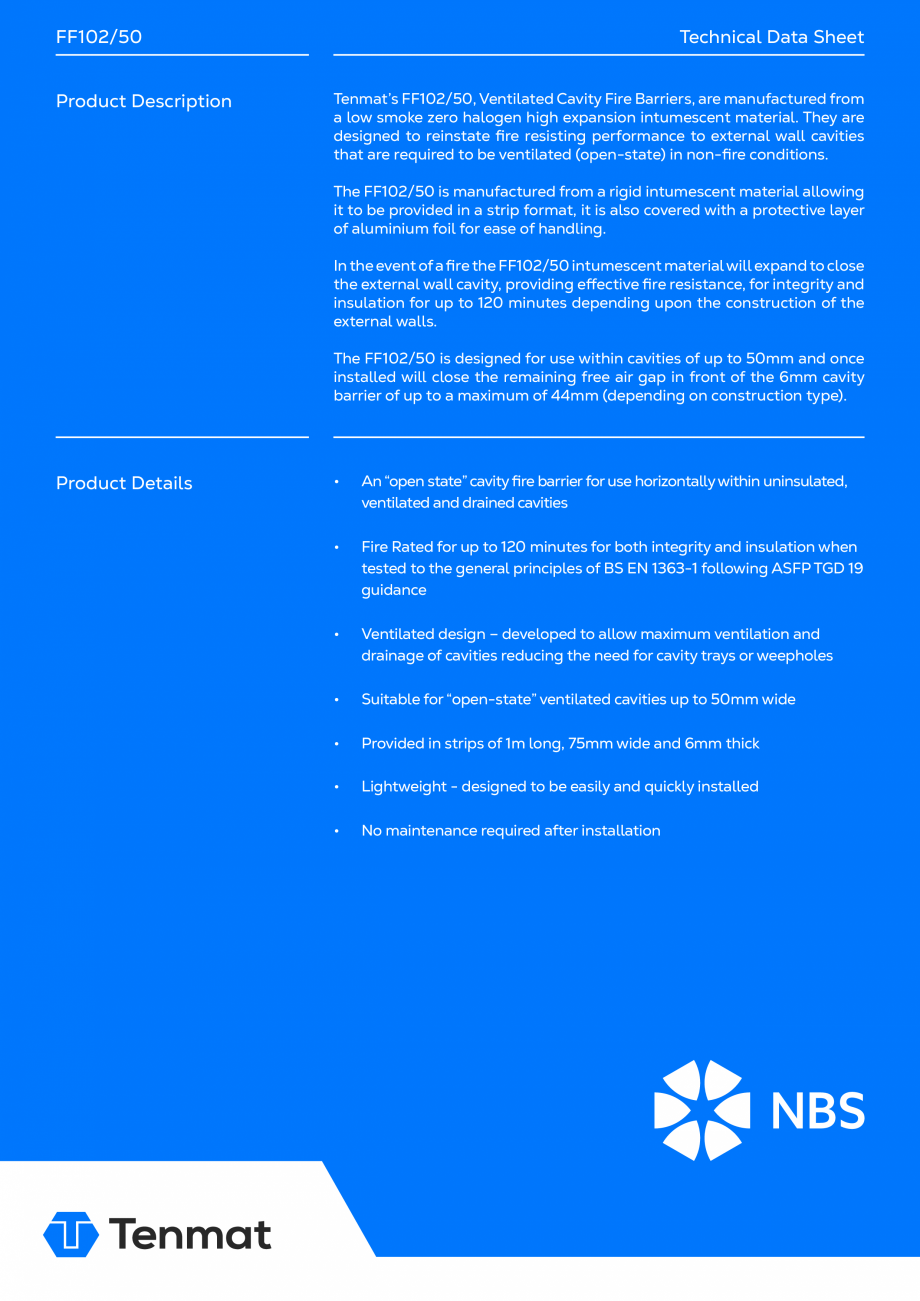

Product Description
Technical Data Sheet
Tenmat’s FF102/50, Ventilated Cavity Fire Barriers, are manufactured from
a low smoke zero halogen high expansion intumescent material. They are
designed to reinstate fire resisting performance to external wall cavities
that are required to be ventilated (open-state) in non-fire conditions.
The FF102/50 is manufactured from a rigid intumescent material allowing
it to be provided in a strip format, it is also covered with a protective layer
of aluminium foil for ease of handling.
In the event of a fire the FF102/50 intumescent material will expand to close
the external wall cavity, providing effective fire resistance, for integrity and
i
nsulation for up to 120 minutes depending upon the construction of the
external walls.
The FF102/50 is designed for use within cavities of up to 50mm and once
installed will close the remaining free air gap in front of the 6mm cavity
barrier of up to a maximum of 44mm (depending on construction type).
Product Details
•
An “open state” cavity fire barrier for use horizontally within uninsulated,
ventilated and drained cavities
•
Fire Rated for up to 120 minutes for both integrity and insulation when
tested to the general principles of BS EN 1363-1 following ASFP TGD 19
guidance
•
Ventilated design – developed to allow maximum ventilation and
drainage of cavities reducing the need for cavity trays or weepholes
•
Suitable for “open-state” ventilated cavities up to 50mm wide
•
Provided in strips of 1m long, 75mm wide and 6mm thick
•
Lightweight - designed to be easily and quickly installed
•
No maintenance required after installation
FF102/50
Techn
ical Data Sheet

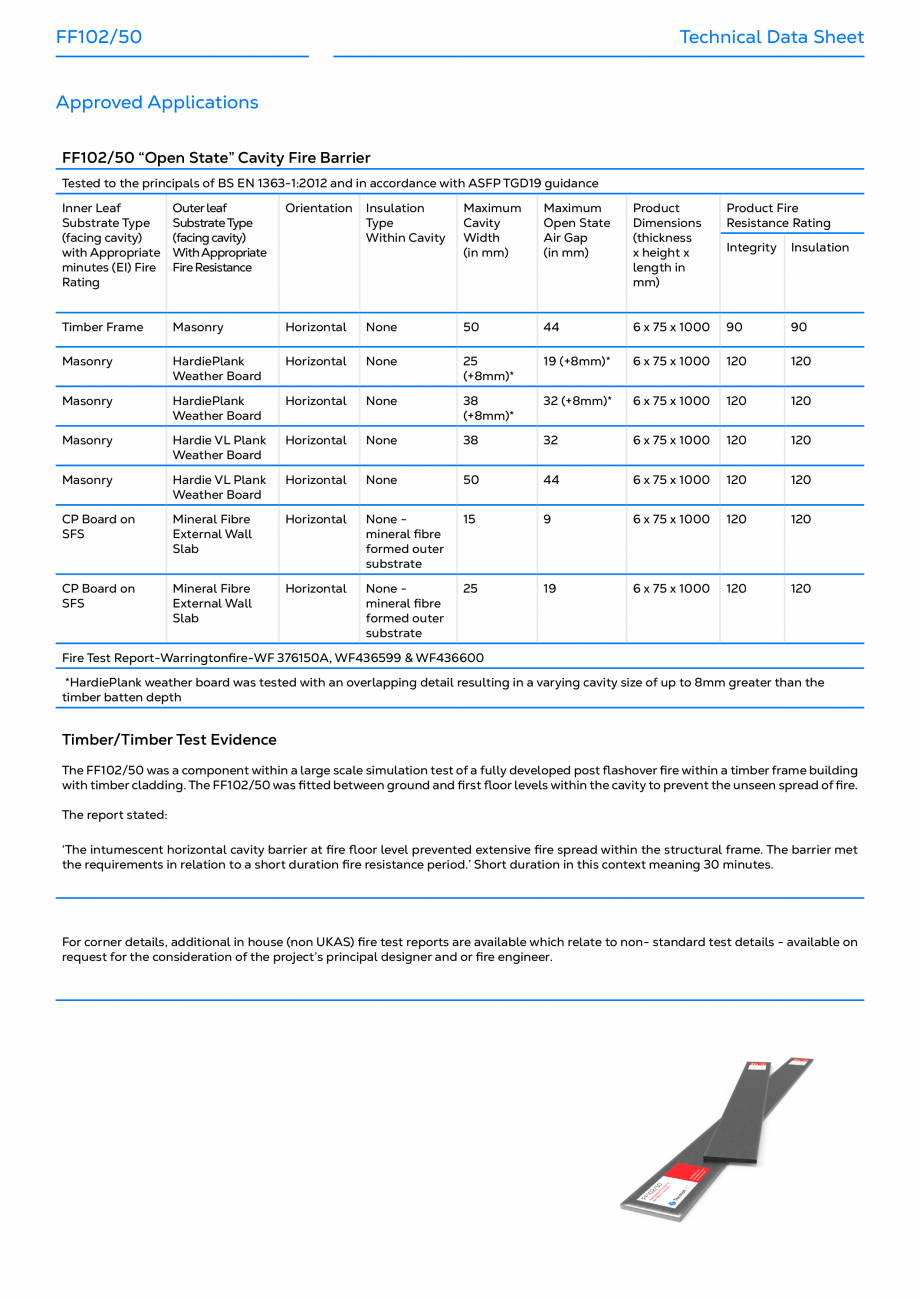

Approved Applications
FF102/50 “Open State” Cavity Fire Barrier
Tested to the principals of BS EN 1363-1:2012 and in accordance with ASFP TGD19 guidance
Inner Leaf
Substrate Type
(facing cavity)
with Appropriate
minutes (EI) Fire
Rating
Outer leaf
Substrate Type
(facing cavity)
With Appropriate
Fire Resistance
Orientation
Insulation
Type
Within Cavity
Maximum
Cavity
Width
(in mm)
Maximum
Open State
Air Gap
(in mm)
Product
Dimensions
(thickness
x height x
length in
mm)
Product Fire
Resistance Rating
Integrity
Insulation
Timber Frame
Masonry
Horizontal
None
50
44
6 x 75 x 1000
90
90
Masonry
HardiePlank
Weather Board
Horizontal
None
25
(+8mm)*
19 (+8mm)*
6 x 75 x 1000
120
120
Masonry
HardiePlank
Weather Board
Horizontal
None
38
(+8mm)*
32 (+8mm)*
6 x 75 x 1000
120
120
Masonry
Hardie VL Plank
Weather Board
Horizontal
None
38
32
6 x 75 x 1000
120
120
Masonry
Hardie VL Plank
Weather Board
Horizontal
None
50
44
6 x 75 x 1
000
120
120
CP Board on
SFS
Mineral Fibre
External Wall
Slab
Horizontal
None mineral fibre
formed outer
substrate
15
9
6 x 75 x 1000
120
120
CP Board on
SFS
Mineral Fibre
External Wall
Slab
Horizontal
None mineral fibre
formed outer
substrate
25
19
6 x 75 x 1000
120
120
Fire Test Report-Warringtonfire-WF 376150A, WF436599 & WF436600
*HardiePlank weather board was tested with an overlapping detail resulting in a varying cavity size of up to 8mm greater than the
timber batten depth
Timber/Timber Test Evidence
The FF102/50 was a component within a large scale simulation test of a fully developed post flashover fire within a timber frame building
with timber cladding. The FF102/50 was fitted between ground and first floor levels within the cavity to prevent the unseen spread of fire.
The report stated:
‘The intumescent horizontal cavity barrier at fire floor level prevented extensive fire spread within the structural frame. The barrier met
the requirements in rela
tion to a short duration fire resistance period.’ Short duration in this context meaning 30 minutes.
For corner details, additional in house (non UKAS) fire test reports are available which relate to non- standard test details - available on
request for the consideration of the project’s principal designer and or fire engineer.
FF102/50
Technical Data Sheet

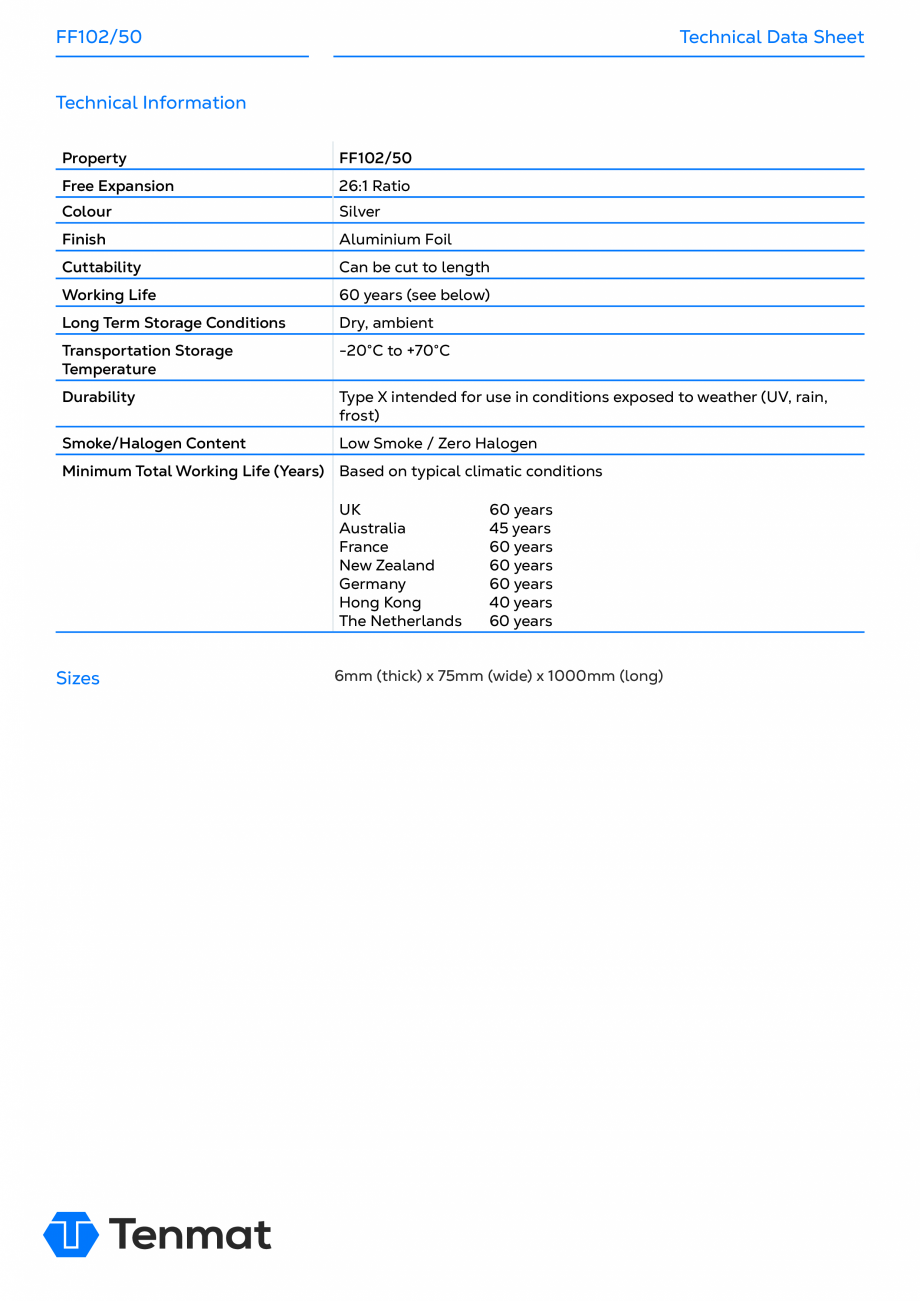

Technical Information
Property
FF102/50
Free Expansion
26:1 Ratio
Colour
Silver
Finish
Aluminium Foil
Cuttability
Can be cut to length
Working Life
60 years (see below)
Long Term Storage Conditions
Dry, ambient
Transportation Storage
Temperature
-20°C to +70°C
Durability
Type X intended for use in conditions exposed to weather (UV, rain,
frost)
Smoke/Halogen Content
Low Smoke / Zero Halogen
Minimum Total Working Life (Years) Based on typical climatic conditions
UK
Australia
France
New Zealand
Germany
Hong Kong
The Netherlands
Sizes
60 years
45 years
60 years
60 years
60 years
40 years
60 years
6mm (thick) x 75mm (wide) x 1000mm (long)
FF102/50
Technical Data Sheet

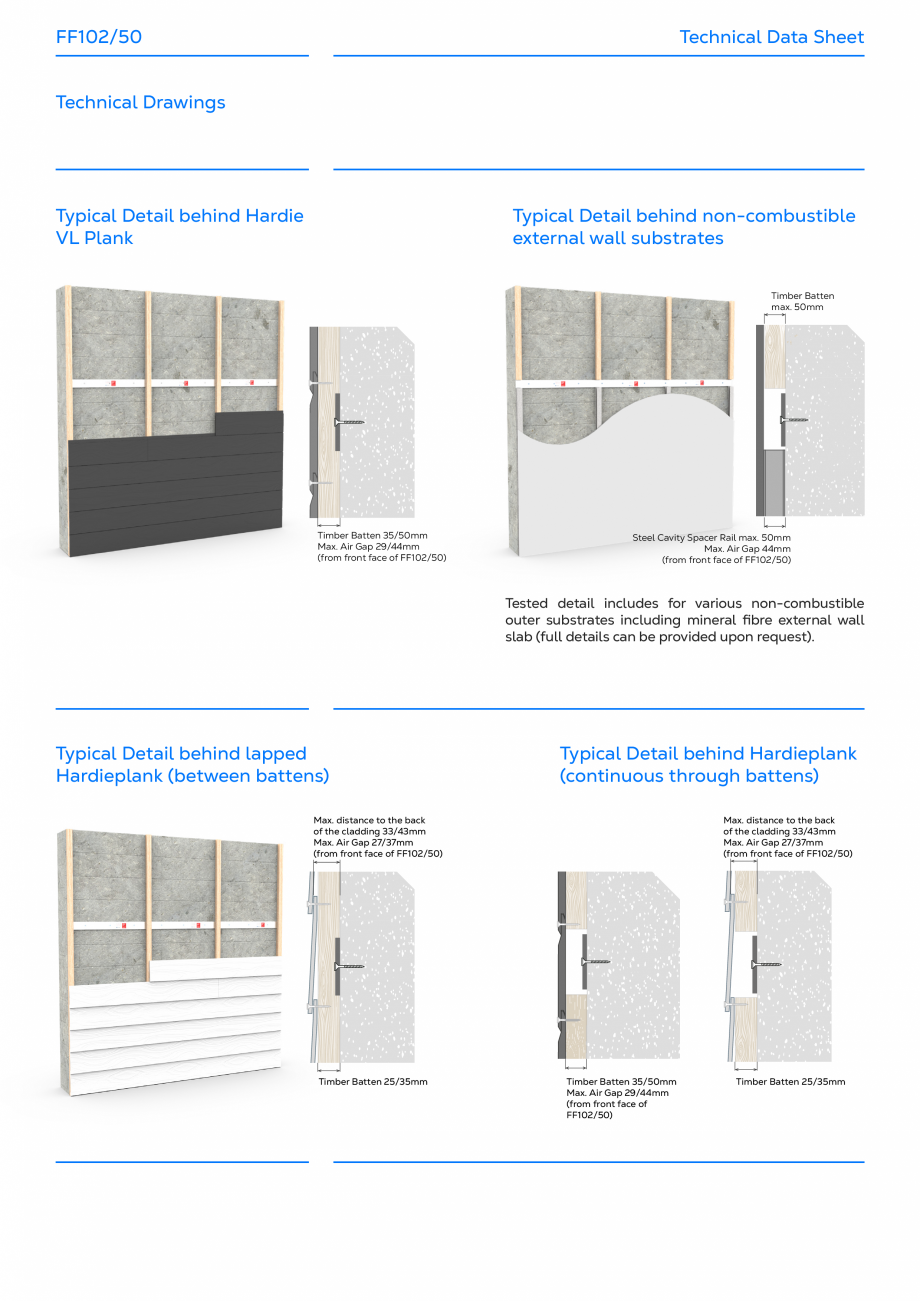

Technical Drawings
Typical Detail behind Hardie
VL Plank
Typical Detail behind non-combustible
external wall substrates
Timber Batten
max. 50mm
Timber Batten 35/50mm
Max. Air Gap 29/44mm
(from front face of FF102/50)
Steel Cavity Spacer Rail max. 50mm
Max. Air Gap 44mm
(from front face of FF102/50)
Tested detail includes for various non-combustible
outer substrates including mineral fibre external wall
slab (full details can be provided upon request).
Typical Detail behind lapped
Hardieplank (between battens)
Typical Detail behind Hardieplank
(continuous through battens)
Max. distance to the back
of the cladding 33/43mm
Max. Air Gap 27/37mm
(from front face of FF102/50)
Timber Batten 25/35mm
Max. distance to the back
of the cladding 33/43mm
Max.
to the back
Max.
Airdistance
Gap 27/37mm
of the
cladding
(from
front
face of33/46mm
FF102/50)
Timber Batten 35/50mm
Max. Air Gap 29/44mm
(from fro
nt face of
FF102/50)
Timber
Timber Batten
Batten 25/38mm
25/35mm
FF102/50

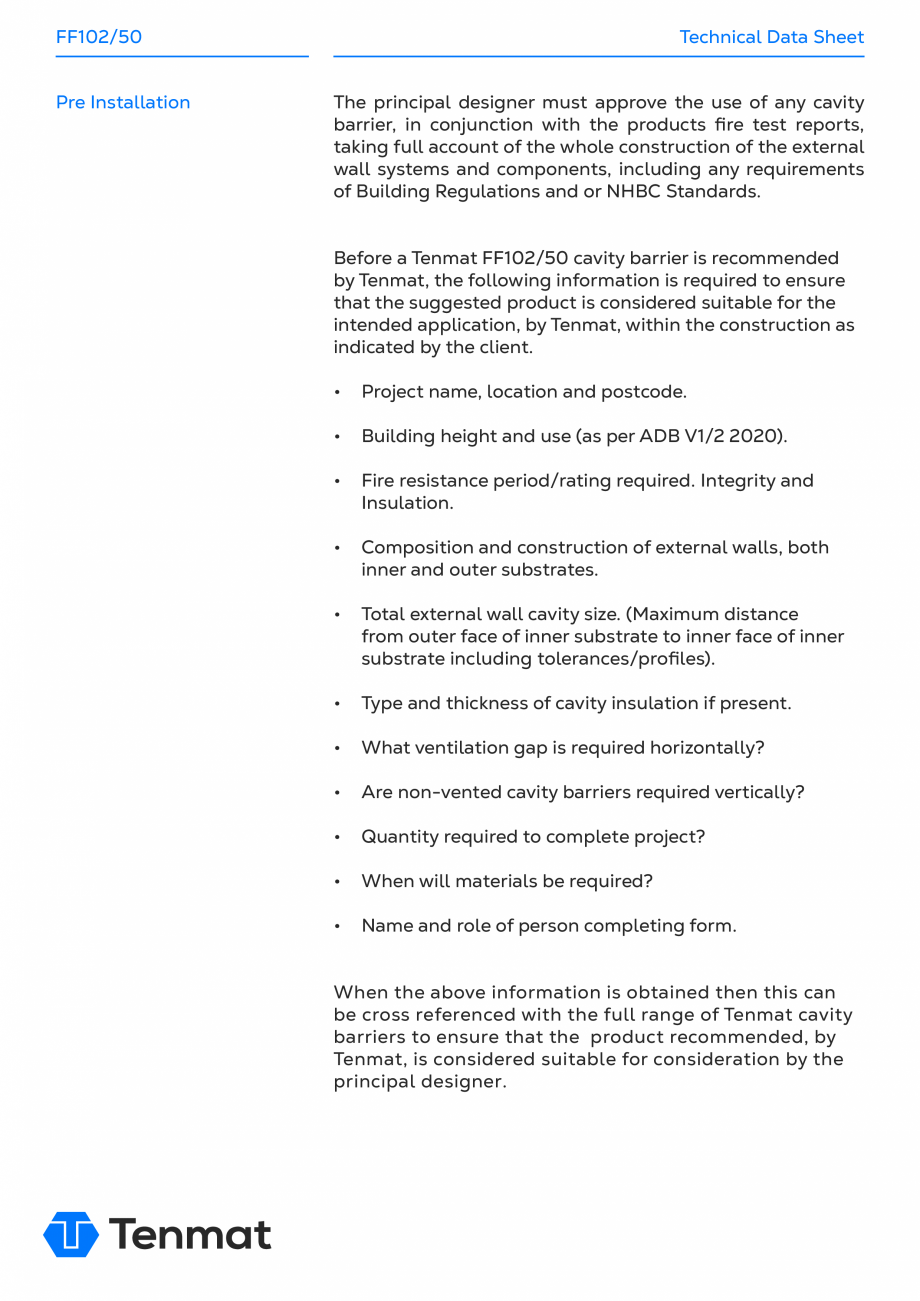

Pre Installation
Technical Data Sheet
The principal designer must approve the use of any cavity
barrier, in conjunction with the products fire test reports,
taking full account of the whole construction of the external
wall systems and components, including any requirements
of Building Regulations and or NHBC Standards.
Before a Tenmat FF102/50 cavity barrier is recommended
by Tenmat, the following information is required to ensure
that the suggested product is considered suitable for the
intended application, by Tenmat, within the construction as
indicated by the client.
•
•
•
•
•
•
•
•
•
•
•
Project name, location and postcode.
Building height and use (as per ADB V1/2 2020).
Fire resistance period/rating required. Integrity and
Insulation.
Composition and construction of external walls, both
inner and outer substrates.
Total exte
rnal wall cavity size. (Maximum distance
from outer face of inner substrate to inner face of inner
substrate including tolerances/profiles).
Type and thickness of cavity insulation if present.
What ventilation gap is required horizontally?
Are non-vented cavity barriers required vertically?
Quantity required to complete project?
When will materials be required?
Name and role of person completing form.
When the above information is obtained then this can
be cross referenced with the full range of Tenmat cavity
barriers to ensure that the product recommended, by
Tenmat, is considered suitable for consideration by the
principal designer.

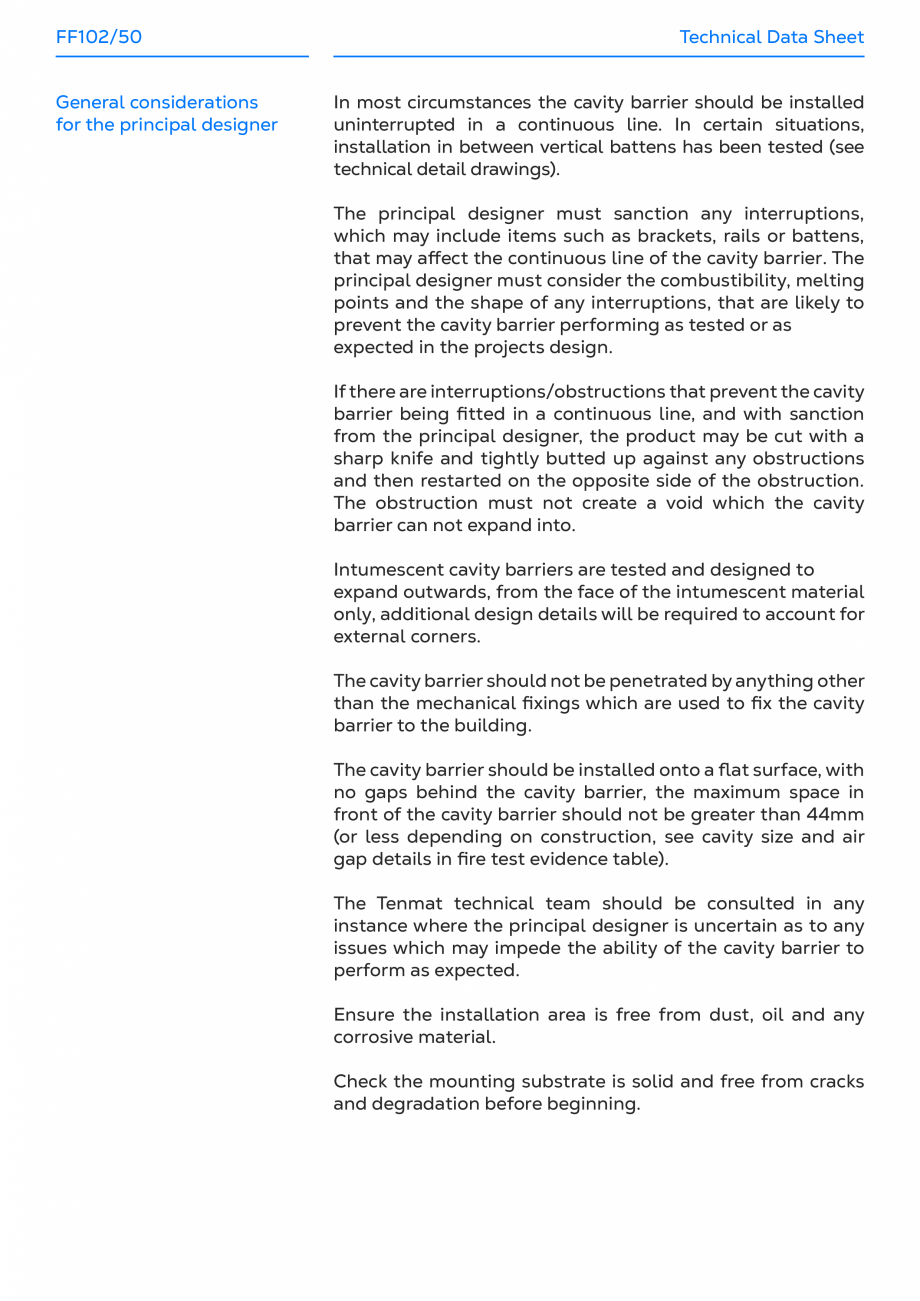

FF102/50
General considerations
for the principal designer
Technical Data Sheet
In most circumstances the cavity barrier should be installed
uninterrupted in a continuous line. In certain situations,
installation in between vertical battens has been tested (see
technical detail drawings).
The principal designer must sanction any interruptions,
which may include items such as brackets, rails or battens,
that may affect the continuous line of the cavity barrier. The
principal designer must consider the combustibility, melting
points and the shape of any interruptions, that are likely to
prevent the cavity barrier performing as tested or as
expected in the projects design.
If there are interruptions/obstructions that prevent the cavity
barrier being fitted in a continuous line, and with sanction
from the principal designer, the product may be cut with a
sharp knife and tightly butted up against any obstructions
and then restarted on the opposite side of the obstruction.
The obstruction must not create a void which the cavity
barrier can not expand into.
Intumescent cavity barriers are tested and designed to
expand outwards, from the face of the intumescent material
only, additional design details will be required to account for
external corners
.
The cavity barrier should not be penetrated by anything other
than the mechanical fixings which are used to fix the cavity
barrier to the building.
The cavity barrier should be installed onto a flat surface, with
no gaps behind the cavity barrier, the maximum space in
front of the cavity barrier should not be greater than 44mm
(or less depending on construction, see cavity size and air
gap details in fire test evidence table).
The Tenmat technical team should be consulted in any
instance where the principal designer is uncertain as to any
issues which may impede the ability of the cavity barrier to
perform as expected.
Ensure the installation area is free from dust, oil and any
corrosive material.
Check the mounting substrate is solid and free from cracks
and degradation before beginning.
FF102/50

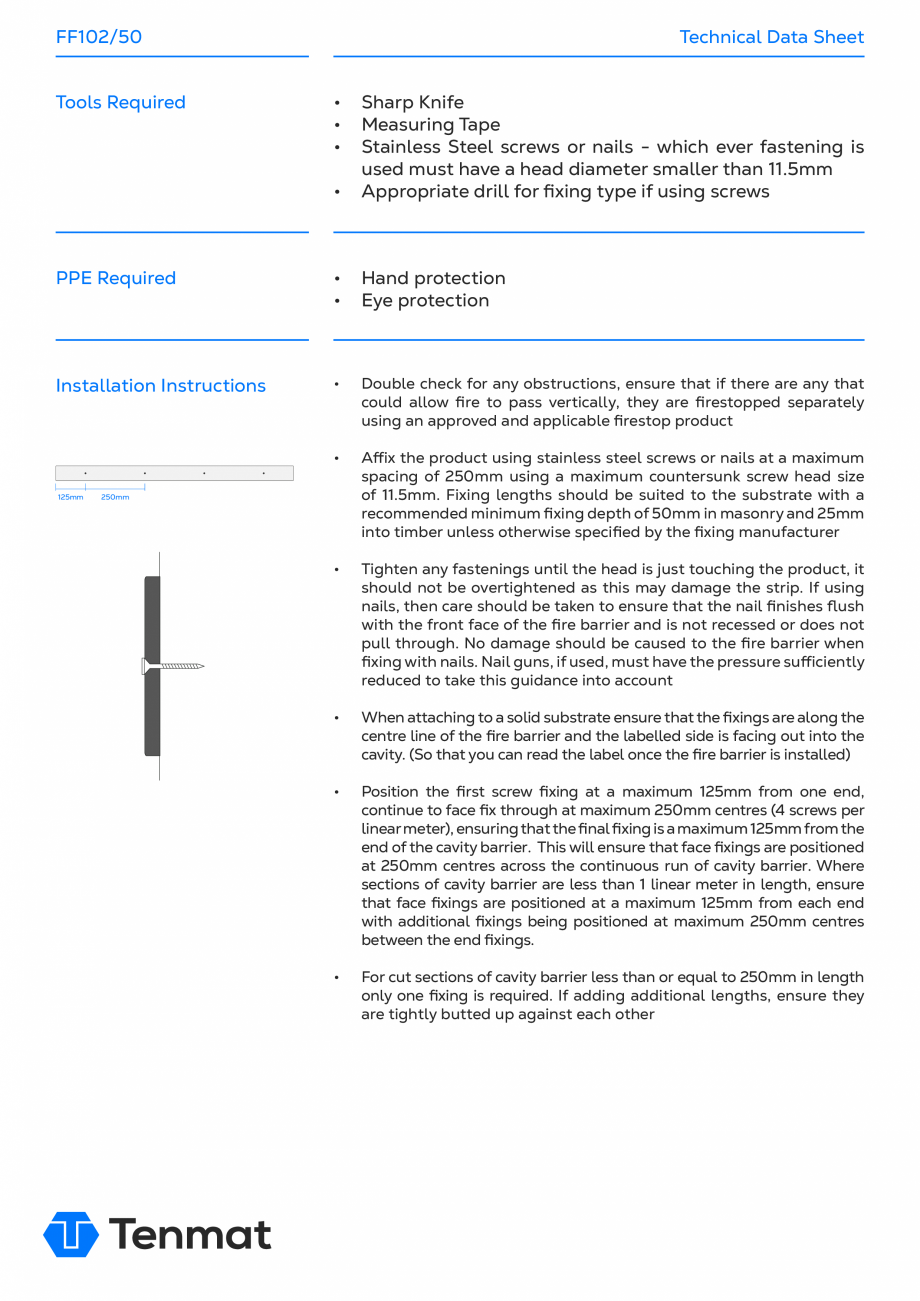

Tools Required
Technical Data Sheet
•
•
•
•
Sharp Knife
Measuring Tape
Stainless Steel screws or nails - which ever f
.
The cavity barrier should not be penetrated by anything other
than the mechanical fixings which are used to fix the cavity
barrier to the building.
The cavity barrier should be installed onto a flat surface, with
no gaps behind the cavity barrier, the maximum space in
front of the cavity barrier should not be greater than 44mm
(or less depending on construction, see cavity size and air
gap details in fire test evidence table).
The Tenmat technical team should be consulted in any
instance where the principal designer is uncertain as to any
issues which may impede the ability of the cavity barrier to
perform as expected.
Ensure the installation area is free from dust, oil and any
corrosive material.
Check the mounting substrate is solid and free from cracks
and degradation before beginning.

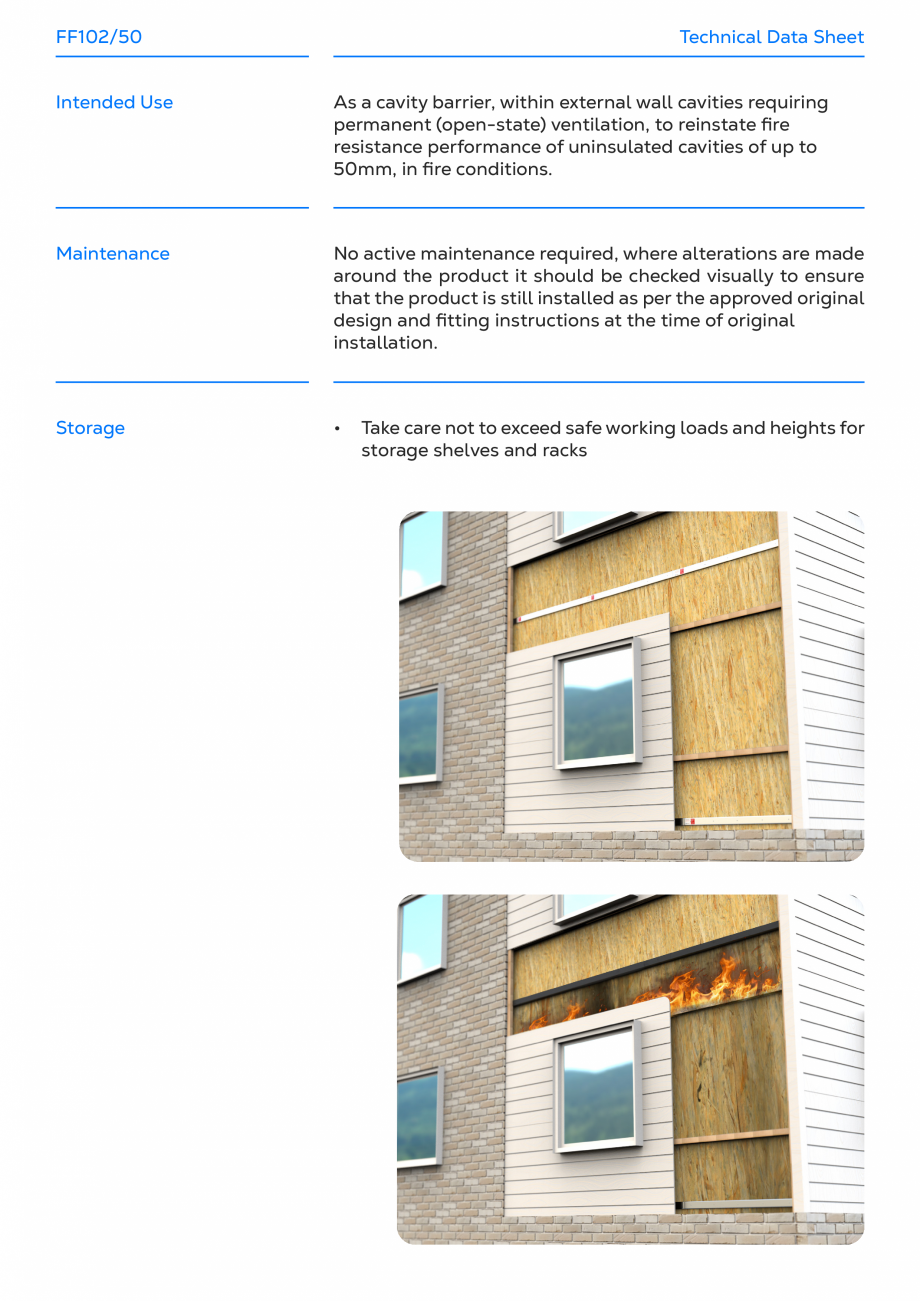

FF102/50
Tools Required
Technical Data Sheet
•
•
•
•
Sharp Knife
Measuring Tape
Stainless Steel screws or nails - which ever f
