TECHNICAL DATA
ArenaMatch AM40
DeltaQ array loudspeaker
PROFESSIONAL

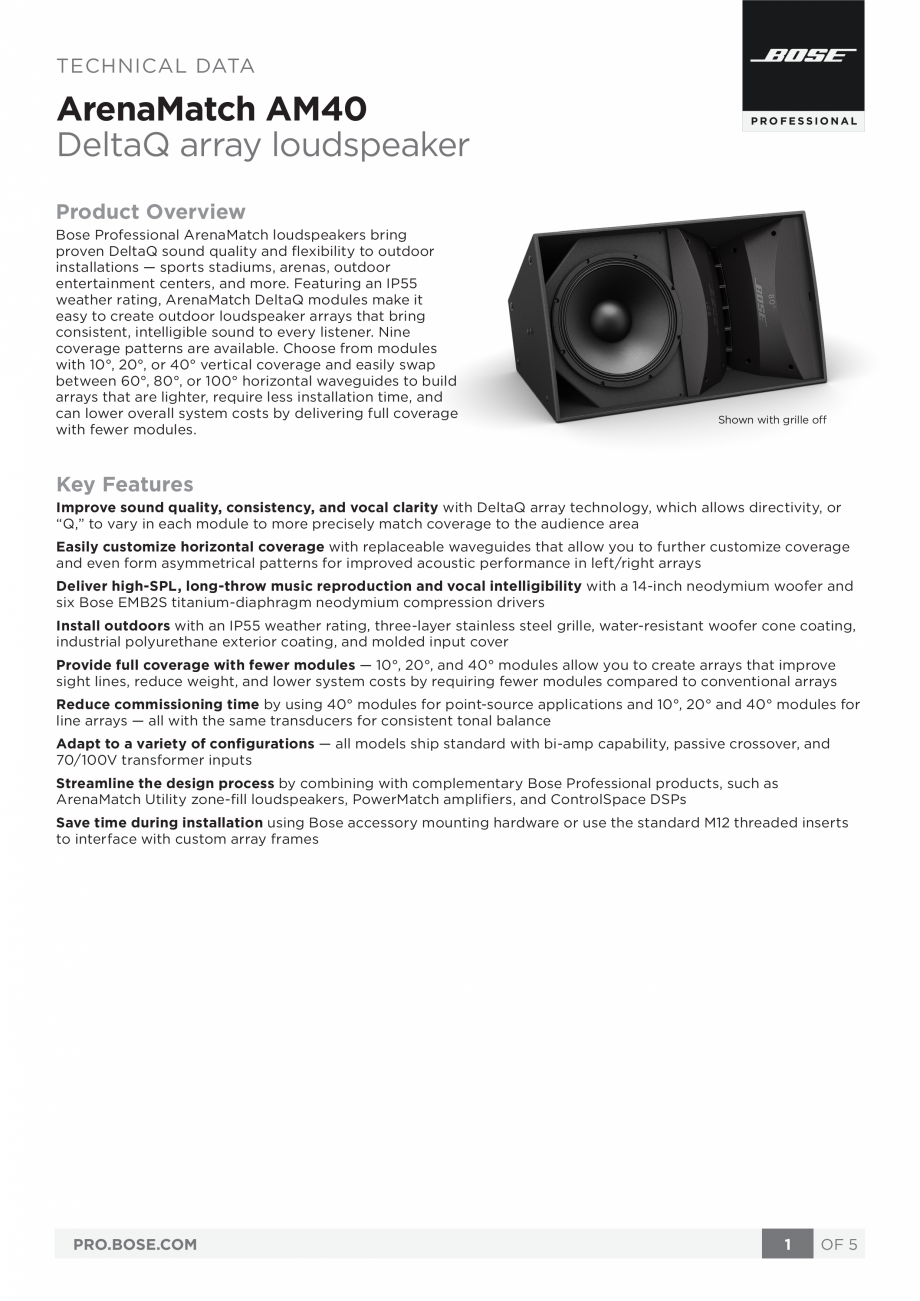

Product Overview
Bose Professional ArenaMatch loudspeakers bring
proven DeltaQ sound quality and flexibility to outdoor
installations — sports stadiums, arenas, outdoor
entertainment centers, and more. Featuring an IP55
weather rating, ArenaMatch DeltaQ modules make it
easy to create outdoor loudspeaker arrays that bring
consistent, intelligible sound to every listener. Nine
coverage patterns are available. Choose from modules
with 10°, 20°, or 40° vertical coverage and easily swap
between 60°, 80°, or 100° horizontal waveguides to build
arrays that are lighter, require less installation time, and
can lower overall system costs by delivering full coverage
with fewer modules.
Shown with grille off
Key Features
Improve sound quality, consistency, and vocal clarity with DeltaQ array technology, which allows directivity, or
“Q,” to vary in each module to more precisely match coverage to the audience area
Easily customize horizontal coverage with replaceable waveguides that allow you to further customize coverage
and even form asymmetrical patterns for improved acoustic performance in left/right arrays
Deliver high-SPL, long-throw music reproduction and vocal intelligibility with a 14-inch neodymium woofer and
six Bose EMB2S titanium-diaphragm neodymium compression drivers
Install outdoors with an IP55 weather rating, three-layer stainless steel grille, water-resistant woofer cone coating,
industrial polyurethane exterior coating, and molded input cover
Provide full coverage with fewer modules — 10°, 20°, and 40° modules allow you to create arrays that improve
sight lines, reduce weight, and lower system costs by requiring fewer modules compared to conventional arrays
Reduce commissioning time by using 40° modules for point-source applications and 10°, 20° and 40° modules for
line arrays — all with the same transducers for consistent tonal balance
Adapt to a variety of config
urations — all models ship standard with bi-amp capability, passive crossover, and
70/100V transformer inputs
Streamline the design process by combining with complementary Bose Professional products, such as
ArenaMatch Utility zone-fill loudspeakers, PowerMatch amplifiers, and ControlSpace DSPs
Save time during installation using Bose accessory mounting hardware or use the standard M12 threaded inserts
to interface with custom array frames
PRO.BOSE.COM
1
OF 5
ArenaMatch AM40
DeltaQ array loudspeaker

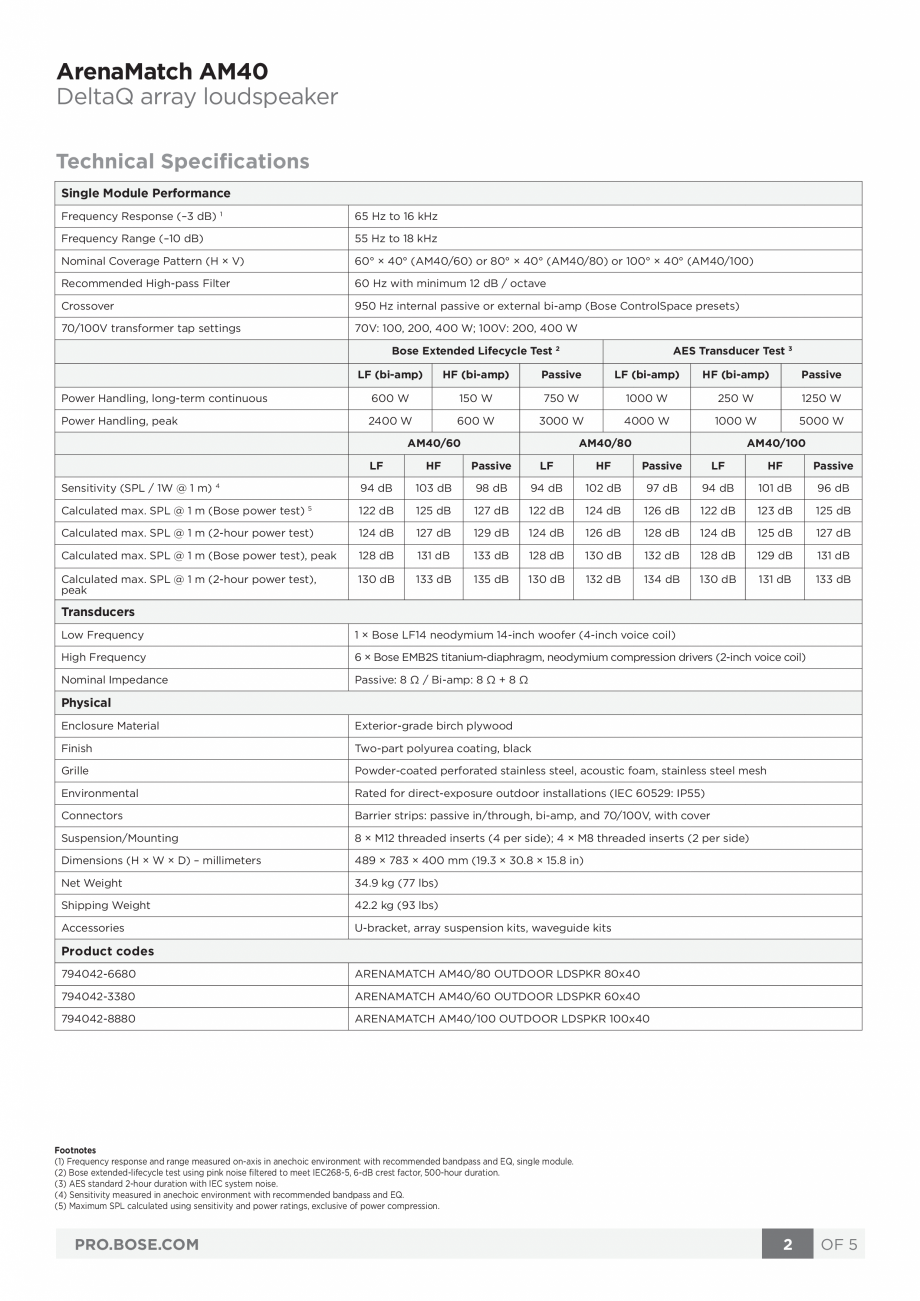

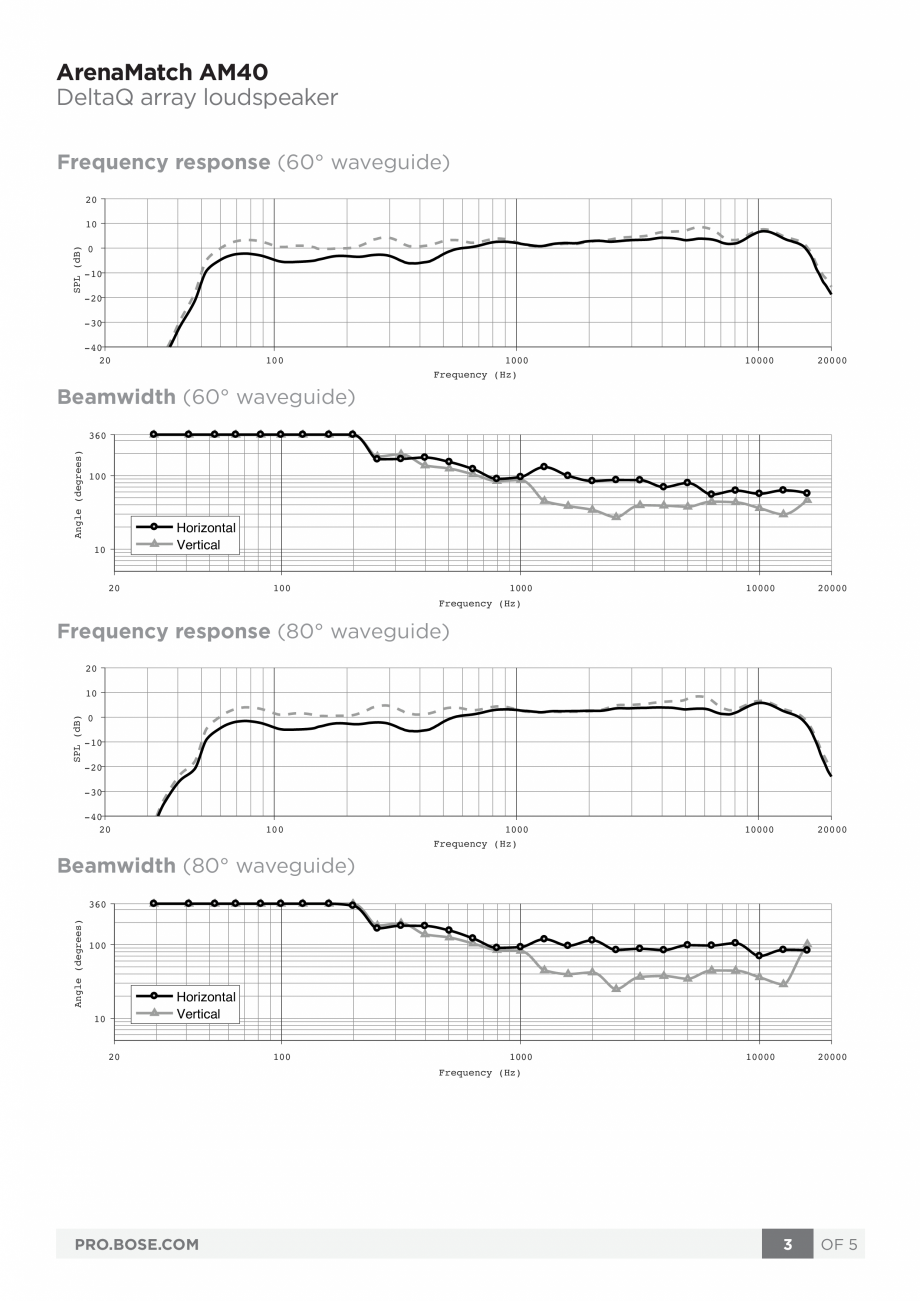

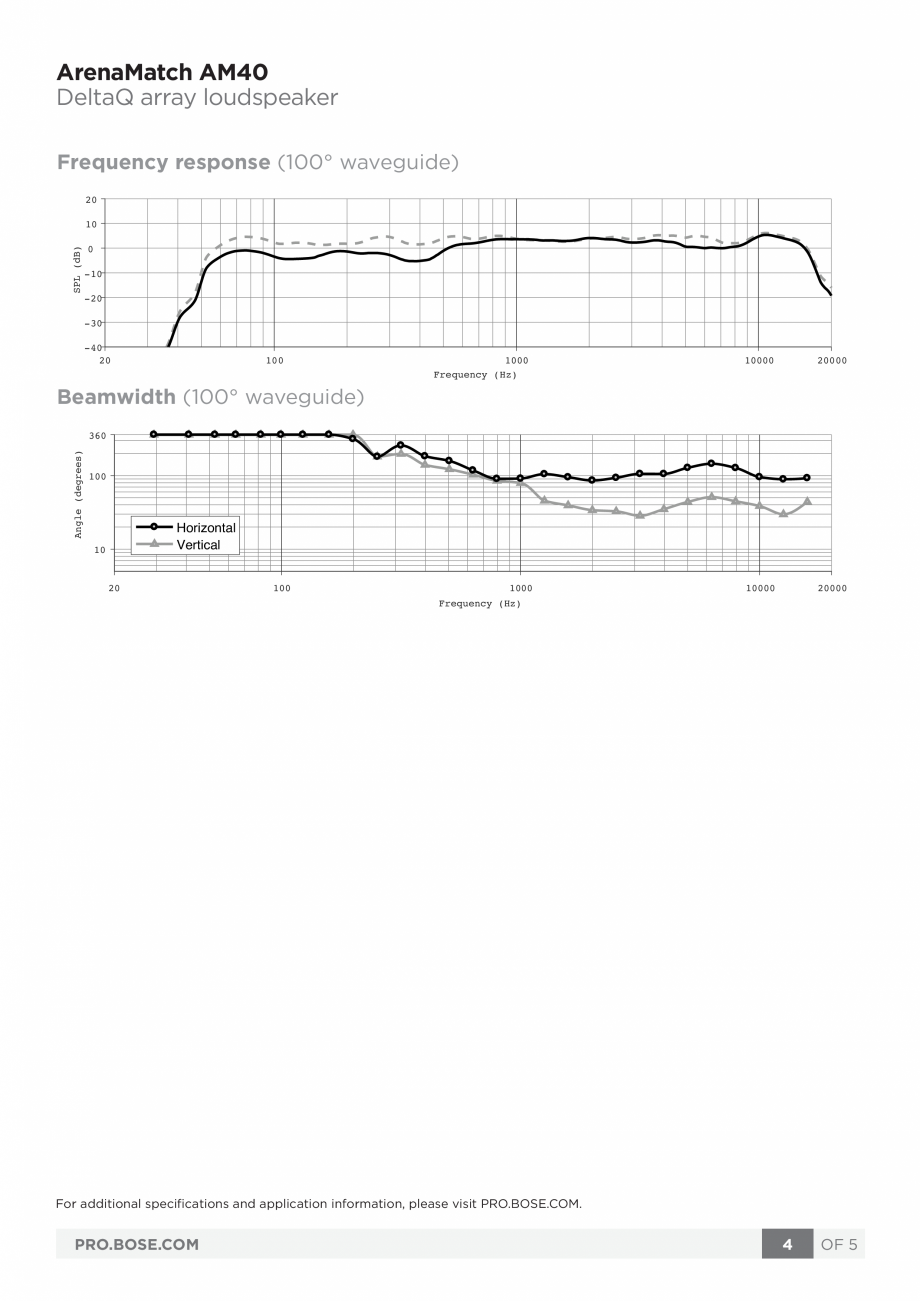

Technical Specifications
Single Module Performance
Frequency Response (–3 dB) 1
65 Hz to 16 kHz
Frequency Range (–10 dB)
55 Hz to 18 kHz
Nominal Coverage Pattern (H × V)
60° × 40° (AM40/60) or 80° × 40° (AM40/80) or 100° × 40° (AM40/100)
Recommended High-pass Filter
60 Hz with minimum 12 dB / octave
Crossover
950 Hz internal passive or external bi-amp (Bose ControlSpace presets)
70/100V transformer tap settings
70V: 100, 200, 400 W; 100V: 200, 400 W
Bose Exte
nded Lifecycle Test 2
LF (bi-amp)
HF (bi-amp)
AES Transducer Test 3
Passive
LF (bi-amp)
HF (bi-amp)
Passive
Power Handling, long-term continuous
600 W
150 W
750 W
1000 W
250 W
1250 W
Power Handling, peak
2400 W
600 W
3000 W
4000 W
1000 W
5000 W
AM40/60
Sensitivity (SPL / 1W @ 1 m)
4
Calculated max. SPL @ 1 m (Bose power test)
AM40/80
AM40/100
LF
HF
Passive
LF
HF
Passive
LF
HF
Passive
94 dB
103 dB
98 dB
94 dB
102 dB
97 dB
94 dB
101 dB
96 dB
122 dB
125 dB
127 dB
122 dB
124 dB
126 dB
122 dB
123 dB
125 dB
Calculated max. SPL @ 1 m (2-hour power test)
124 dB
127 dB
129 dB
124 dB
126 dB
128 dB
124 dB
125 dB
127 dB
Calculated max. SPL @ 1 m (Bose power test), peak
128 dB
131 dB
133 dB
128 dB
130 dB
132 dB
128 dB
129 dB
131 dB
Calculated max. SPL @ 1 m (2-hour power test),
peak
130 dB
133 dB
135 dB
130 dB
132 dB
134 dB
130 dB
131 dB
133 dB
5
Transducers
Low Frequency
1 × Bose LF14 neodymium 14-inch woofer (4
-inch voice coil)
High Frequency
6 × Bose EMB2S titanium-diaphragm, neodymium compression drivers (2-inch voice coil)
Nominal Impedance
Passive: 8 Ω / Bi-amp: 8 Ω + 8 Ω
Physical
Enclosure Material
Exterior-grade birch plywood
Finish
Two-part polyurea coating, black
Grille
Powder-coated perforated stainless steel, acoustic foam, stainless steel mesh
Environmental
Rated for direct-exposure outdoor installations (IEC 60529: IP55)
Connectors
Barrier strips: passive in/through, bi-amp, and 70/100V, with cover
Suspension/Mounting
8 × M12 threaded inserts (4 per side); 4 × M8 threaded inserts (2 per side)

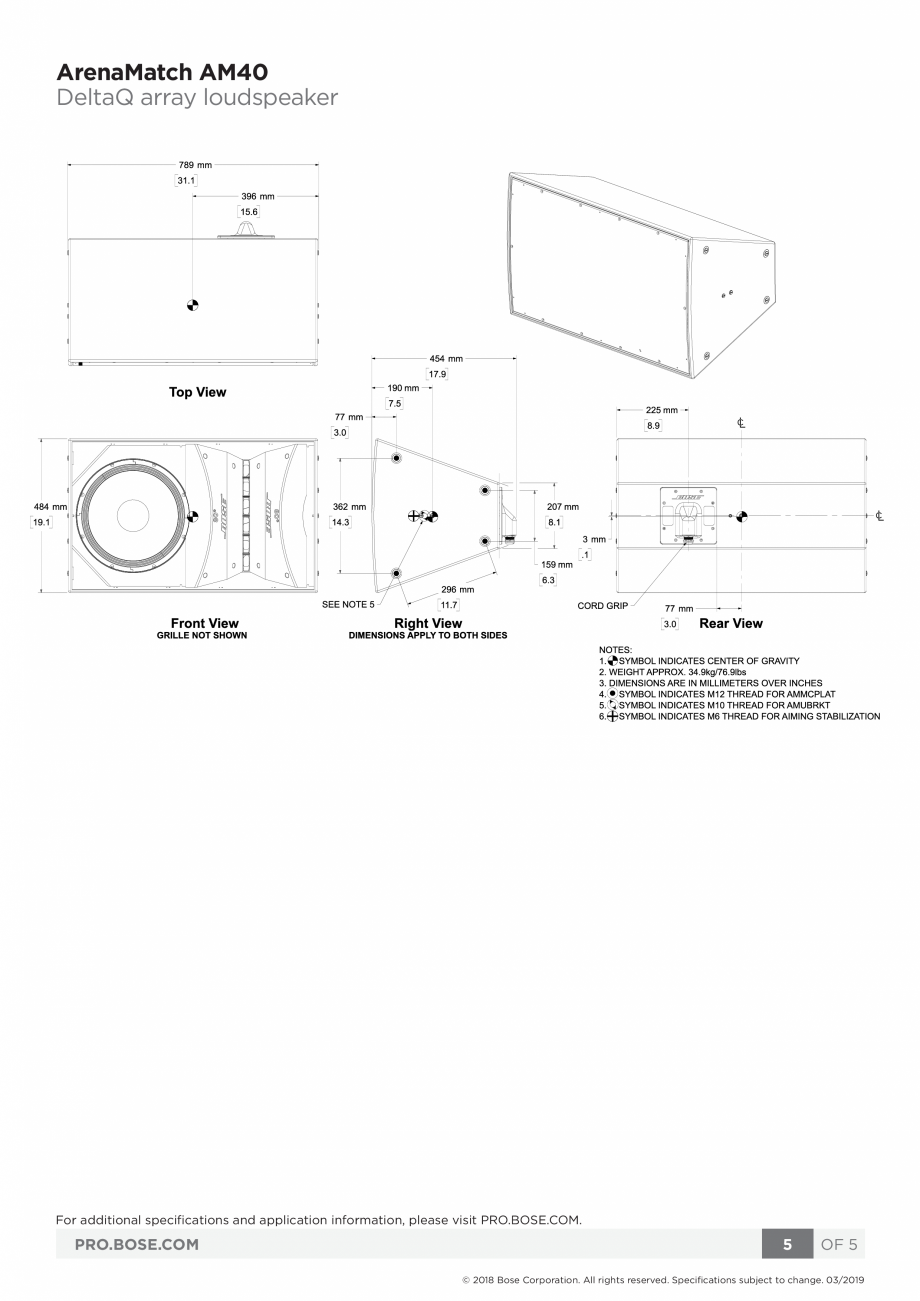

Dimensions (H × W × D) – millimeters
489 × 783 × 400 mm (19.3 × 30.8 × 15.8 in)
Net Weight
34.9 kg (77 lbs)
Shipping Weight
42.2 kg (93 lbs)
Accessories
U-bracket, array suspension kits, waveguide kits
Product codes
794042-6680
ARENAMATCH AM40/80 OUTDOOR LDSPKR 80x40
794042-3380
ARENAMATCH AM40/60 OUTDOOR LDSPKR 60x40
794042-8880
ARENAMATCH AM40
-inch voice coil)
High Frequency
6 × Bose EMB2S titanium-diaphragm, neodymium compression drivers (2-inch voice coil)
Nominal Impedance
Passive: 8 Ω / Bi-amp: 8 Ω + 8 Ω
Physical
Enclosure Material
Exterior-grade birch plywood
Finish
Two-part polyurea coating, black
Grille
Powder-coated perforated stainless steel, acoustic foam, stainless steel mesh
Environmental
Rated for direct-exposure outdoor installations (IEC 60529: IP55)
Connectors
Barrier strips: passive in/through, bi-amp, and 70/100V, with cover
Suspension/Mounting
8 × M12 threaded inserts (4 per side); 4 × M8 threaded inserts (2 per side)
Dimensions (H × W × D) – millimeters
489 × 783 × 400 mm (19.3 × 30.8 × 15.8 in)
Net Weight
34.9 kg (77 lbs)
Shipping Weight
42.2 kg (93 lbs)
Accessories
U-bracket, array suspension kits, waveguide kits
Product codes
794042-6680
ARENAMATCH AM40/80 OUTDOOR LDSPKR 80x40
794042-3380
ARENAMATCH AM40/60 OUTDOOR LDSPKR 60x40
794042-8880
ARENAMATCH AM40
