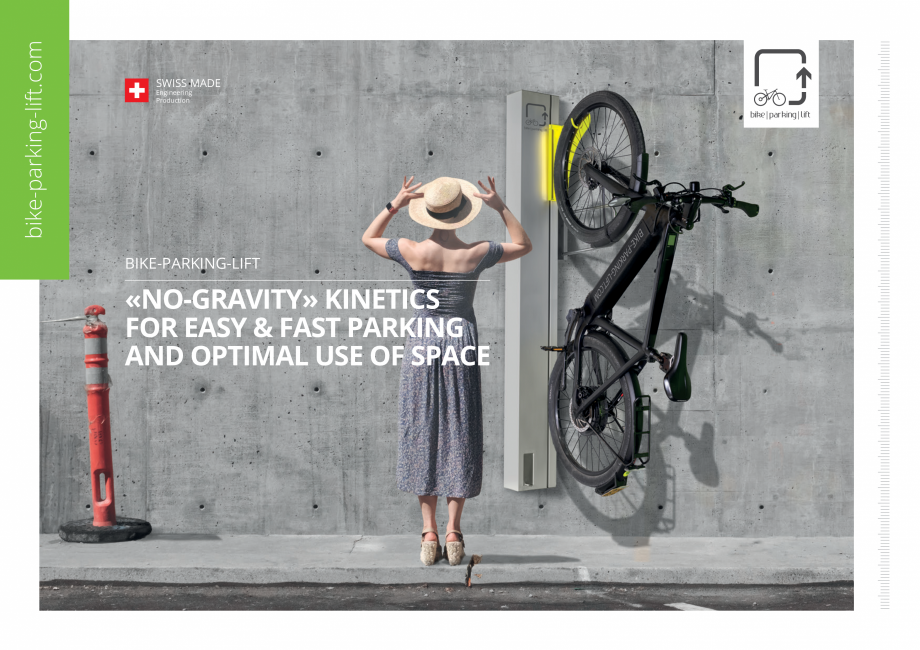

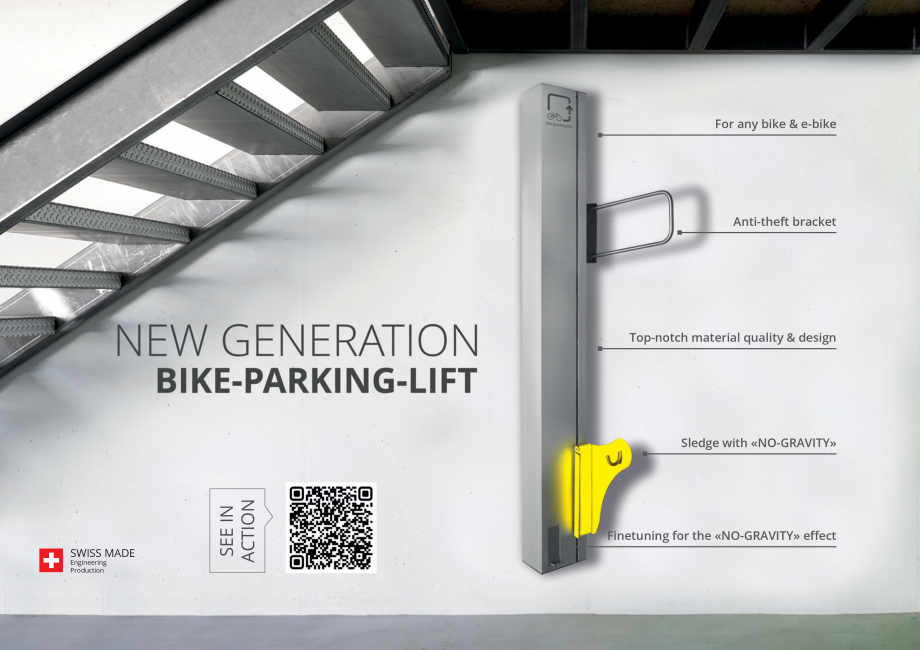

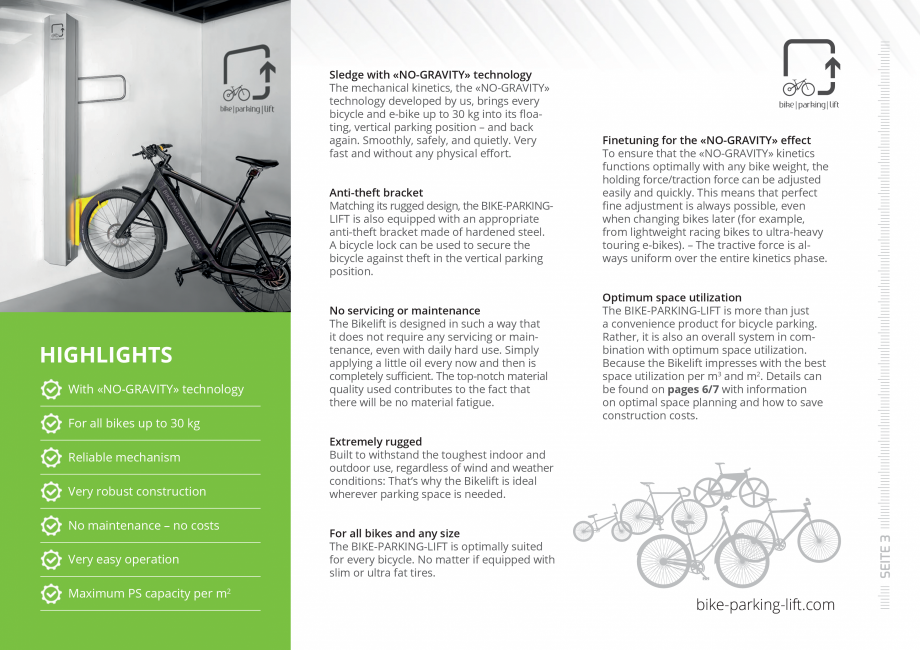

bike-parking-lift.com SWISS MADE Engineering Production bike | parking | lift BIKE-PARKING-LIFT «NO-GRAVITY» KINETICS FOR EASY & FAST PARKING AND OPTIMAL USE OF SPACE For any bike & e-bike Anti-theft bracket Top-notch material quality & design SWISS MADE Engineering Production SEE IN ACTION Sledge with «NO-GRAVITY» Finetuning for the «NO-GRAVITY» eﬀect Sledge with «NO-GRAVITY» technology The mechanical kinetics, the «NO-GRAVITY» technology developed by us, brings every bicycle and e-bike up to 30 kg into its ﬂoating, vertical parking position – and back again. Smoothly, safely, and quietly. Very fast and without any physical effort. Anti-theft bracket Matching its rugged design, the BIKE-PARKINGLIFT is also equipped with an appropriate anti-theft bracket made of hardened steel. A bicycle lock can be used to secure the bicycle against theft in the vertical parking position. With «NO-GRAVITY» technology For all bikes up to 30 kg Reliable mechanism Very ro

Pagina 1-Brosura sistem de parcare biciclete WÖHR Bike-Parking-Lift® Catalog, brosura Engleza...

Pagina 2 - Brosura sistem de parcare biciclete WÖHR Bike-Parking-Lift® Catalog, brosura...

bust construction No maintenance – no costs Very easy operation Maximum PS capacity per m2 Finetuning for the «NO-GRAVITY» eﬀect To ensure that the «NO-GRAVITY» kinetics functions optimally with any bike weight, the holding force/traction force can be adjusted easily and quickly. This means that perfect ﬁne adjustment is always possible, even when changing bikes later (for example, from lightweight racing bikes to ultra-heavy touring e-bikes). – The tractive force is always uniform over the entire kinetics phase. Optimum space utilization The BIKE-PARKING-LIFT is more than just a convenience product for bicycle parking. Rather, it is also an overall system in combination with optimum space utilization. Because the Bikelift impresses with the best space utilization per m3 and m2. Details can be found on pages 6/7 with information on optimal space planning and how to save construction costs. Extremely rugged Built to withstand the toughest indoor and outdoor use, regardless

Pagina 2-Brosura sistem de parcare biciclete WÖHR Bike-Parking-Lift® Catalog, brosura Engleza bust...

Pagina 3 - Brosura sistem de parcare biciclete WÖHR Bike-Parking-Lift® Catalog, brosura...

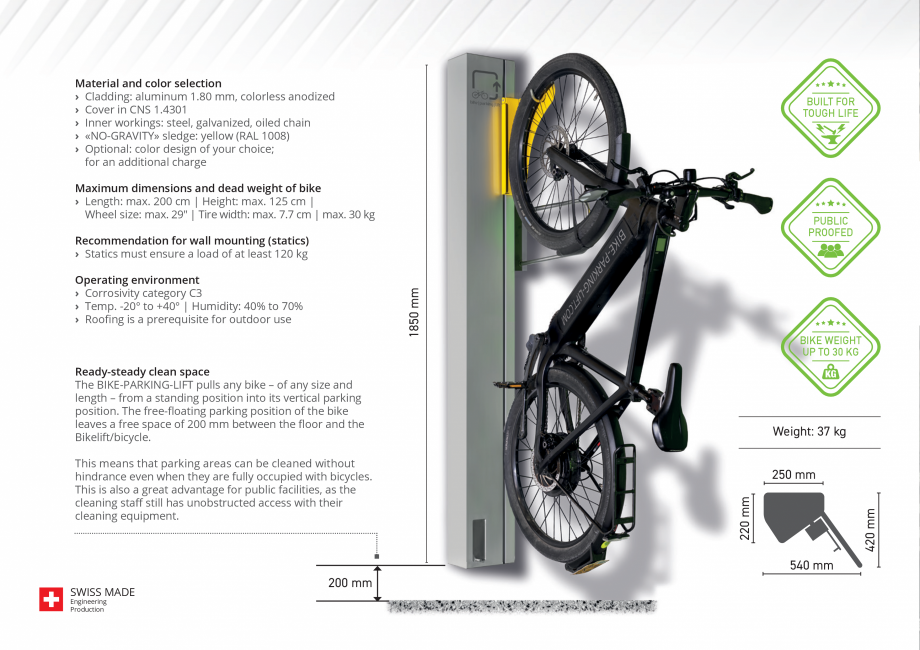

of wind and weather conditions: That‘s why the Bikelift is ideal wherever parking space is needed. For all bikes and any size The BIKE-PARKING-LIFT is optimally suited for every bicycle. No matter if equipped with slim or ultra fat tires. SEITE 3 HIGHLIGHTS No servicing or maintenance The Bikelift is designed in such a way that it does not require any servicing or maintenance, even with daily hard use. Simply applying a little oil every now and then is completely suﬃcient. The top-notch material quality used contributes to the fact that there will be no material fatigue. bike | parking | lift bike-parking-lift.com Material and color selection › Cladding: aluminum 1.80 mm, colorless anodized › Cover in CNS 1.4301 › Inner workings: steel, galvanized, oiled chain › «NO-GRAVITY» sledge: yellow (RAL 1008) › Optional: color design of your choice; for an additional charge BUILT FOR TOUGH LIFE Maximum dimensions and dead weight of bike › Length: max. 200 cm | Height

Pagina 3-Brosura sistem de parcare biciclete WÖHR Bike-Parking-Lift® Catalog, brosura Engleza of...

Pagina 4 - Brosura sistem de parcare biciclete WÖHR Bike-Parking-Lift® Catalog, brosura...

: max. 125 cm | Wheel size: max. 29″ | Tire width: max. 7.7 cm | max. 30 kg PUBLIC PROOFED Recommendation for wall mounting (statics) › Statics must ensure a load of at least 120 kg 1850 mm BIKE WEIGHT UP TO 30 KG Ready-steady clean space The BIKE-PARKING-LIFT pulls any bike – of any size and length – from a standing position into its vertical parking position. The free-ﬂoating parking position of the bike leaves a free space of 200 mm between the ﬂoor and the Bikelift/bicycle. Weight: 37 kg 250 mm 220 mm This means that parking areas can be cleaned without hindrance even when they are fully occupied with bicycles. This is also a great advantage for public facilities, as the cleaning staff still has unobstructed access with their cleaning equipment. KG 420 mm Operating environment › Corrosivity category C3 › Temp. -20° to +40° | Humidity: 40% to 70% › Rooﬁng is a prerequisite for outdoor use 540 mm SWISS MADE Engineering Production 200 mm Robust mec

Pagina 4-Brosura sistem de parcare biciclete WÖHR Bike-Parking-Lift® Catalog, brosura Engleza : max....

Pagina 5 - Brosura sistem de parcare biciclete WÖHR Bike-Parking-Lift® Catalog, brosura...

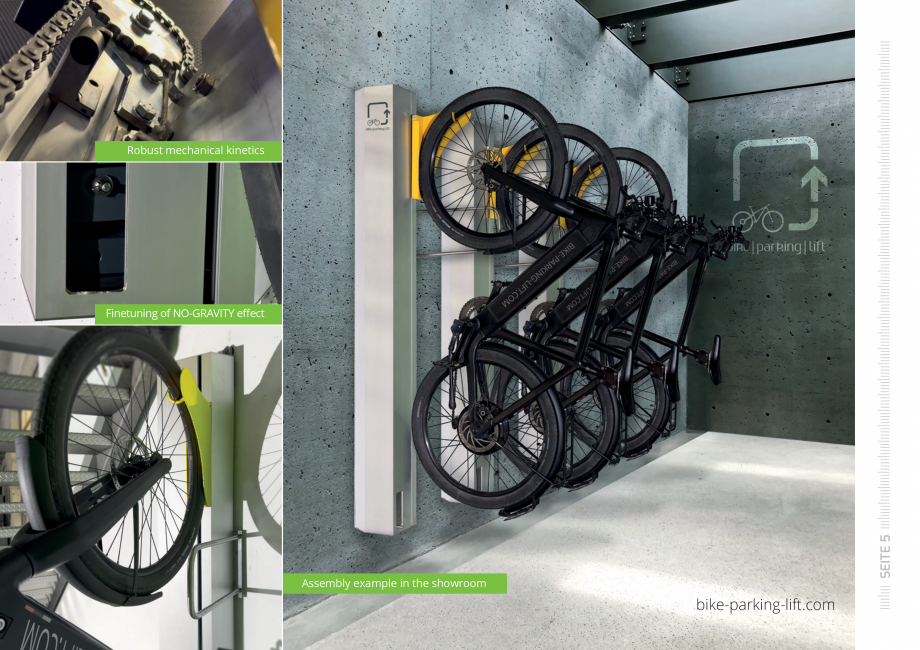

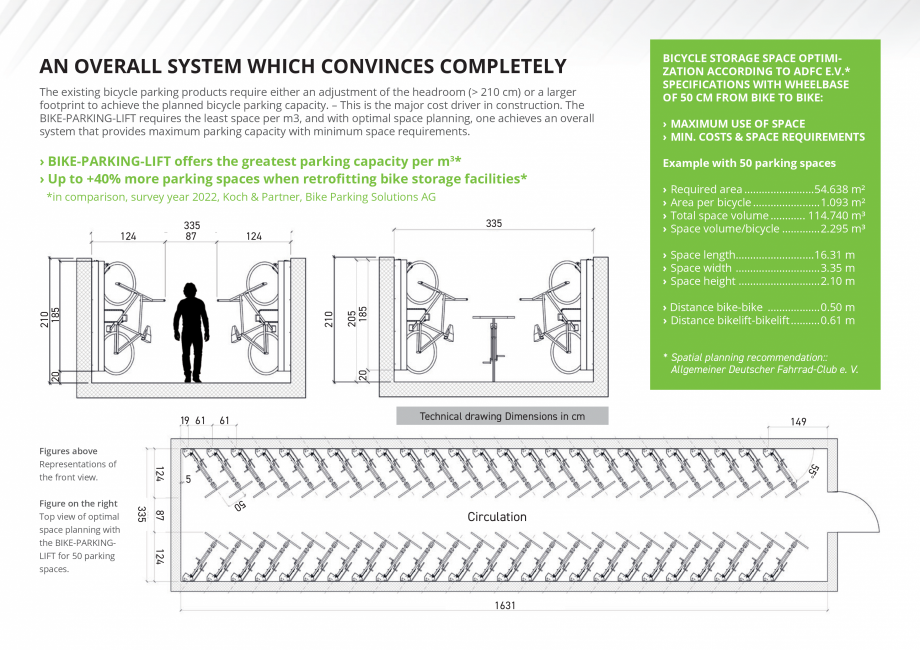

hanical kinetics SEITE 5 Finetuning of NO-GRAVITY effect Assembly example in the showroom bike-parking-lift.com AN OVERALL SYSTEM WHICH CONVINCES COMPLETELY The existing bicycle parking products require either an adjustment of the headroom (> 210 cm) or a larger footprint to achieve the planned bicycle parking capacity. – This is the major cost driver in construction. The BIKE-PARKING-LIFT requires the least space per m3, and with optimal space planning, one achieves an overall system that provides maximum parking capacity with minimum space requirements. › BIKE-PARKING-LIFT oﬀers the greatest parking capacity per m3* › Up to +40% more parking spaces when retroﬁtting bike storage facilities* *in comparison, survey year 2022, Koch & Partner, Bike Parking Solutions AG 335 87 124 335 124 BICYCLE STORAGE SPACE OPTIMIZATION ACCORDING TO ADFC E.V.* SPECIFICATIONS WITH WHEELBASE OF 50 CM FROM BIKE TO BIKE: › MAXIMUM USE OF SPACE › MIN. COSTS & SPACE REQUIREMENTS Examp

Pagina 5-Brosura sistem de parcare biciclete WÖHR Bike-Parking-Lift® Catalog, brosura Engleza...

Pagina 6 - Brosura sistem de parcare biciclete WÖHR Bike-Parking-Lift® Catalog, brosura...

le with 50 parking spaces › › › › Required area ........................54.638 m² Area per bicycle .......................1.093 m² Total space volume ............ 114.740 m³ Space volume/bicycle .............2.295 m³ 19 61 Figures above Representations of the front view. 205 185 › Distance bike-bike ..................0.50 m › Distance bikelift-bikelift ..........0.61 m 20 20 210 210 185 › Space length...........................16.31 m › Space width .............................3.35 m › Space height ............................2.10 m * Spatial planning recommendation:: Allgemeiner Deutscher Fahrrad-Club e. V. Technical drawing Dimensions in cm 61 149 *nur 48 anstelle von 50 Abstellplätzen 55 o 87 50 124 335 Circulation 124 Figure on the right Top view of optimal space planning with the BIKE-PARKINGLIFT for 50 parking spaces. 5 1631 Figure on the left Bike storage in Zurich/Switzerland, with the ﬁrst generation (2021) of the Bikelift. Mor

Pagina 6-Brosura sistem de parcare biciclete WÖHR Bike-Parking-Lift® Catalog, brosura Engleza le...

Pagina 7 - Brosura sistem de parcare biciclete WÖHR Bike-Parking-Lift® Catalog, brosura...

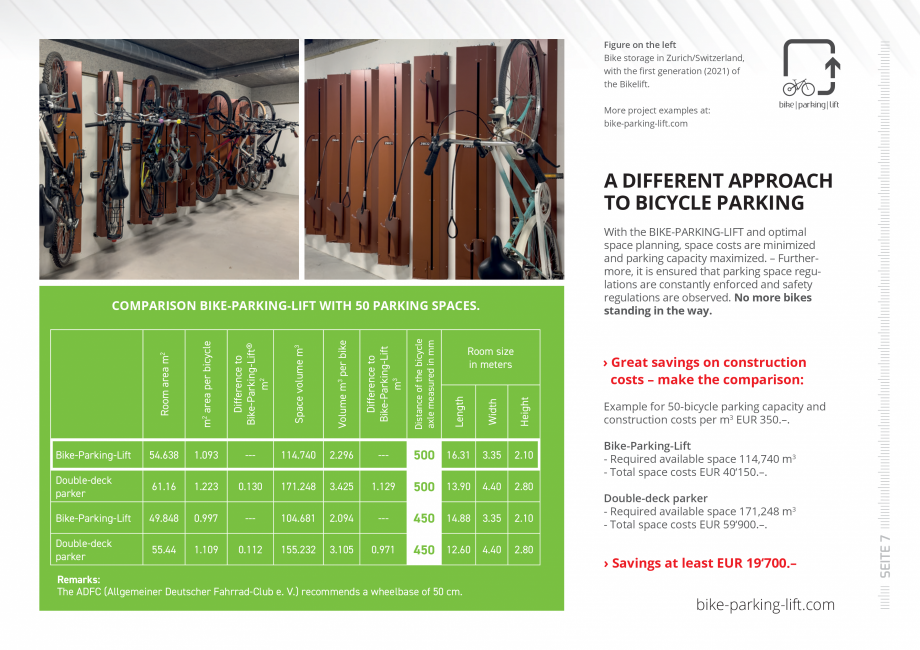

e project examples at: bike-parking-lift.com bike | parking | lift A DIFFERENT APPROACH TO BICYCLE PARKING With the BIKE-PARKING-LIFT and optimal space planning, space costs are minimized and parking capacity maximized. – Furthermore, it is ensured that parking space regulations are constantly enforced and safety regulations are observed. No more bikes standing in the way. Room area m2 m2 area per bicycle Difference to Bike-Parking-Lift® m2 Space volume m3 Volume m3 per bike Difference to Bike-Parking-Lift m3 Width Height Example for 50-bicycle parking capacity and construction costs per m3 EUR 350.–. Bike-Parking-Lift 54.638 1.093 --- 114.740 2.296 --- 500 16.31 3.35 2.10 Double-deck parker 61.16 1.223 0.130 171.248 3.425 1.129 500 13.90 4.40 Bike-Parking-Lift - Required available space 114,740 m3 - Total space costs EUR 40‘150.–. 2.80 Bike-Parking-Lift 49.848 0.997 --- 104.681 2.094 --- 450 14.88 3.35 2.10 Double-deck parker 55.44 1.

Pagina 7-Brosura sistem de parcare biciclete WÖHR Bike-Parking-Lift® Catalog, brosura Engleza e...

Pagina 8 - Brosura sistem de parcare biciclete WÖHR Bike-Parking-Lift® Catalog, brosura...

109 0.112 155.232 3.105 0.971 450 12.60 4.40 2.80 Length Room size in meters Remarks: The ADFC (Allgemeiner Deutscher Fahrrad-Club e. V.) recommends a wheelbase of 50 cm. Bemerkungen: Der ADFC (Allgemeiner Deutscher Fahrrad-Club e. V.) empfiehlt einen Achsabstand von 50 cm. › Great savings on construction costs – make the comparison: Double-deck parker - Required available space 171,248 m3 - Total space costs EUR 59‘900.–. › Savings at least EUR 19‘700.– bike-parking-lift.com SEITE 7 Distance of the bicycle axle measured in mm COMPARISON BIKE-PARKING-LIFT WITH 50 PARKING SPACES. V1-2023 | English | EU 16 BICYCLE PLACES IN THE MOBILE BIKE BOX FULLY AUTOMATIC BICYCLE PARKING GARAGE bike-parking-locker.com bike-safe-tower.com BIKELIFT WITH NO-GRAVITY FOR ANY BIKE CONSULTING & EXPERT ASSESSMENTS FOR BICYCLE PARKING kp-bikeparking.ch Distribution for Switzerland & production: Distribution for EU & international: KOCH & PARTNER, BIKE PARKING SYSTEMS A

Pagina 8-Brosura sistem de parcare biciclete WÖHR Bike-Parking-Lift® Catalog, brosura Engleza 109
