Catalog -Pereti mobili-Hufcor MoVista HUFCOR

Limba: Engleza

65 afisari

Tip documentatie: Catalog, brosura

Pagina 1 - Catalog -Pereti mobili-Hufcor MoVista HUFCOR Catalog, brosura Engleza Operable partition ...

Operable partition systems from Dessau – the Bauhaus City MF|1 HUFCOR CONTENTS HUFCOR ....................................................................................... 8-9 HUFCOR TYPE 100|100K ....................................................................................... 10-13 HUFCOR moVista ....................................................................................... 14-17 PANEL TYPES / TECHNICAL DETAILS ....................................................................................... 18 LOCKING SYSTEMS ....................................................................................... 19 HUFCOR GLASS WALL PARTITIONS G3000 .............................................................. 20-25 TRACK SYSTEMS / PARKING POSITIONS ....................................................................................... 26-29 SURFACES ....................................................................................... 30-33

Pagina 1-Catalog -Pereti mobili-Hufcor MoVista HUFCOR Catalog, brosura Engleza Operable partition systems...

Pagina 2 - Catalog -Pereti mobili-Hufcor MoVista HUFCOR Catalog, brosura Engleza
CERTIFICATION /...

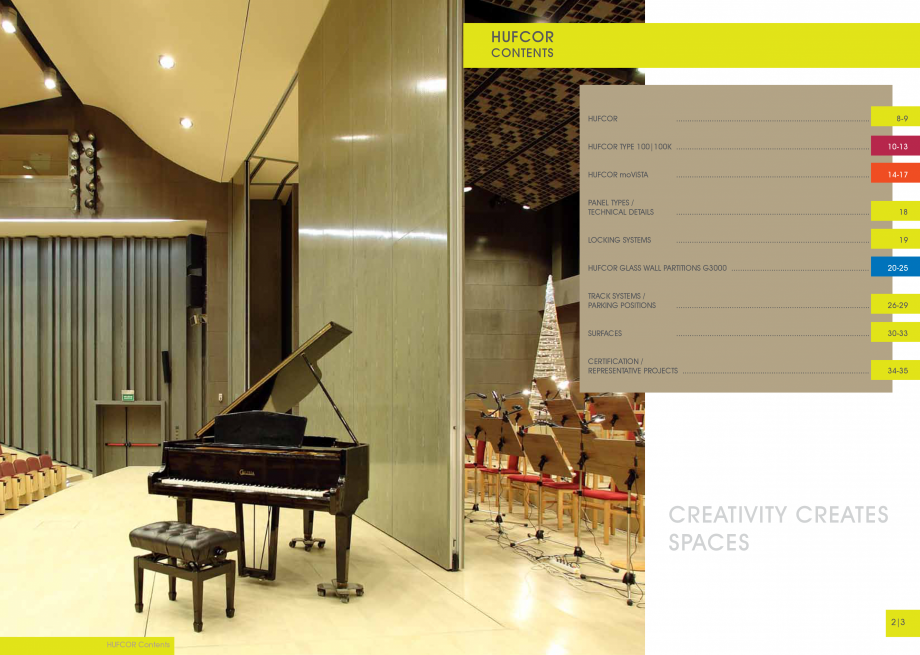

CERTIFICATION / REPRESENTATIVE PROJECTS .................................................................................... 34-35 CREATIVITY CREATES SPACES 2|3 HUFCOR Contents HUFCOR CREATIVITY CREATES SPACES In 1996, HUFCOR Inc, Janesville, WI – the world leader in flexible space management –established a subsidiary in Germany, Europe’s largest market for operable partitions. The selected location is the venerable World Cultural Heritage and Bauhaus City of Dessau. Gropius, Junkers and Kurt Weill are but a few world-renowned personalities who lived and worked in Dessau. Production of patented Hufcor partitions commenced here in 1997. In the meantime, HUFCOR Deutschland GmbH is among the market leaders in Germany. Thousands of custom-designed panels are fabricated, delivered and installed every year. The German market is serviced by professionally-trained space management consultants. Our team members will identify and prepare project-specific solutions jointly with you.

Pagina 3 - Catalog -Pereti mobili-Hufcor MoVista HUFCOR Catalog, brosura Engleza Well-trained and...

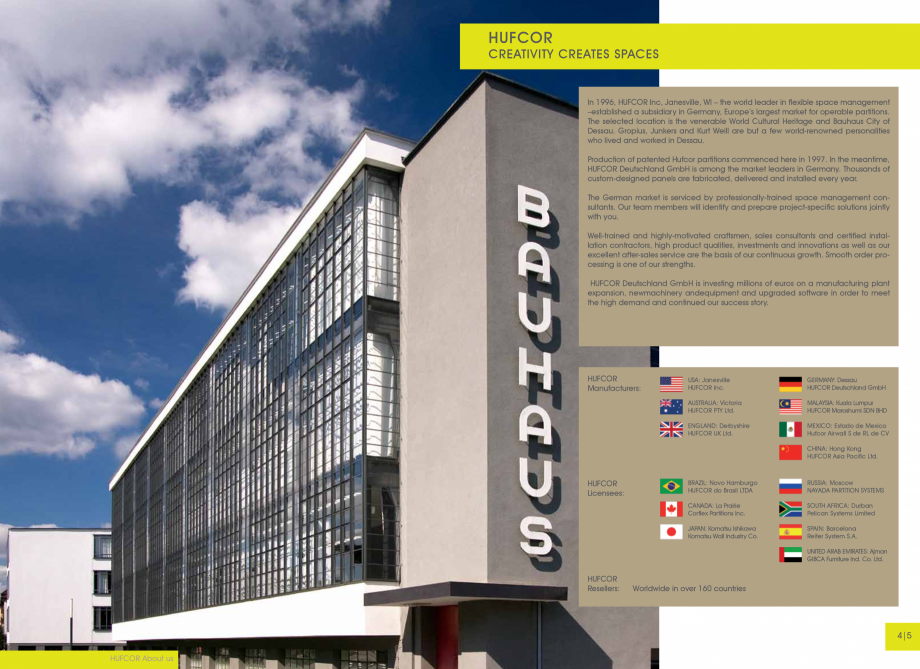

Well-trained and highly-motivated craftsmen, sales consultants and certified installation contractors, high product qualities, investments and innovations as well as our excellent after-sales service are the basis of our continuous growth. Smooth order processing is one of our strengths. HUFCOR Deutschland GmbH is investing millions of euros on a manufacturing plant expansion, newmachinery andequipment and upgraded software in order to meet the high demand and continued our success story. HUFCOR Manufacturers: USA: Janesville HUFCOR Inc. GERMANY: Dessau HUFCOR Deutschland GmbH AUSTRALIA: Victoria HUFCOR PTY Ltd. MALAYSIA: Kuala Lumpur HUFCOR Maroshumi SDN BHD ENGLAND: Derbyshire HUFCOR UK Ltd. MEXICO: Estado de Mexico Hufcor Airwall S de RL de CV CHINA: Hong Kong HUFCOR Asia Pacific Ltd. HUFCOR Licensees: BRAZIL: Novo Hamburgo HUFCOR do Brasil LTDA RUSSIA: Moscow NAYADA PARTITION SYSTEMS CANADA: La Prairie Corflex Partitions Inc. SOUTH AFRICA: Durban Pelican Systems Limited

Pagina 4 - Catalog -Pereti mobili-Hufcor MoVista HUFCOR Catalog, brosura Engleza

JAPAN: Komatsu...

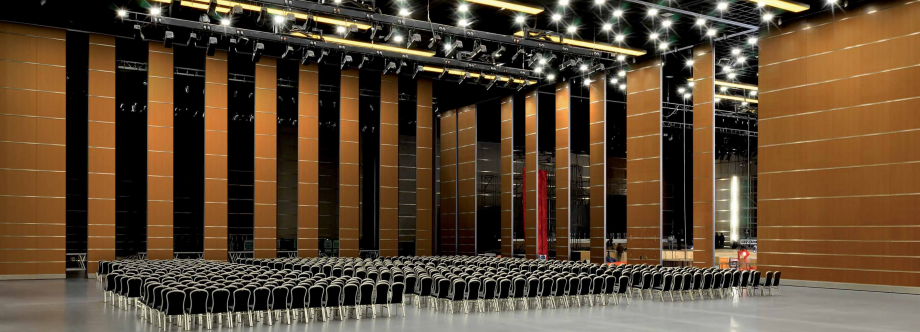

JAPAN: Komatsu Ishikawa Komatsu Wall Industry Co. SPAIN: Barcelona Reiter System S.A. UNITED ARAB EMIRATES: Ajman GIBCA Furniture Ind. Co. Ltd. HUFCOR Resellers: Worldwide in over 160 countries 4|5 HUFCOR About us HUFCOR TYPE 100|100K OPERABLE PARTITIONS The uses of operable partitions are limitless: Hotels and convention centers, schools and kindergartens, banks and insurance firms, restaurants and student cafeterias, offices and conference rooms, gyms and dancing schools, community centers and auditoriums, shopping centers and museums, police and military training centers ... HUFCOR operable partition systems should be your first choice when flexibility is your priority – a decision in favor of economic efficiency, product utility and customer value. Distinguishing features of HUFCOR operable partitions include excellent quality and unparalleled, ease of movement. Our ”Quick-Set” seal system is by far the swiftest and easiest way to manually operate partitions on the

Pagina 4-Catalog -Pereti mobili-Hufcor MoVista HUFCOR Catalog, brosura Engleza

JAPAN: Komatsu Ishikawa...

Pagina 5 - Catalog -Pereti mobili-Hufcor MoVista HUFCOR Catalog, brosura Engleza market today.
The...

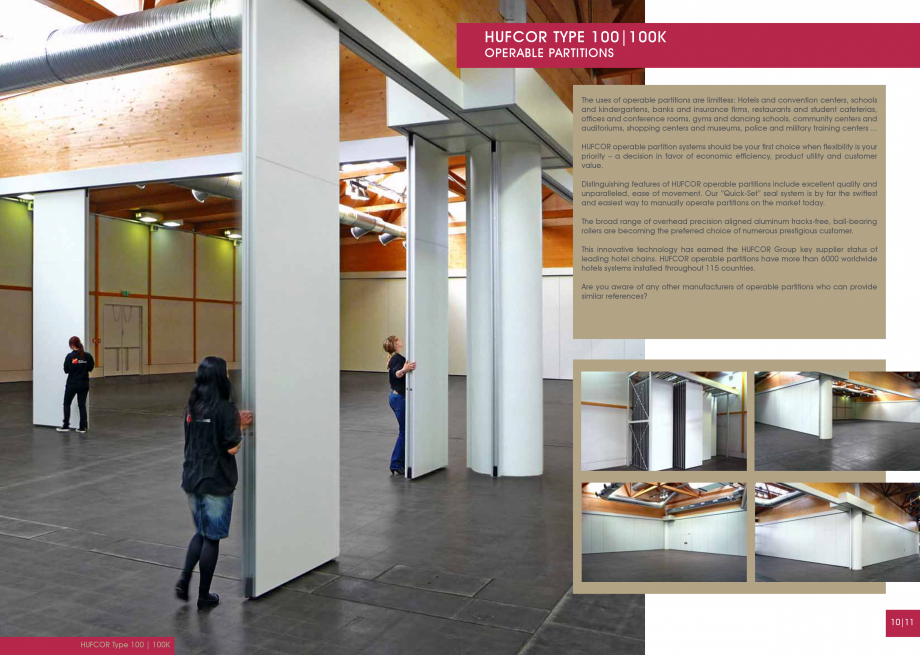

market today. The broad range of overhead precision aligned aluminum tracks-free, ball-bearing rollers are becoming the preferred choice of numerous prestigious customer. This innovative technology has earned the HUFCOR Group key supplier status of leading hotel chains. HUFCOR operable partitions have more than 6000 worldwide hotels systems installed throughout 115 countries. Are you aware of any other manufacturers of operable partitions who can provide similar references? 10|11 HUFCOR Type 100 | 100K HUFCOR TYPE 100|100K OPERABLE PARTITIONS 3 S “Quick-Set” mechanical locking seal system Fast locking by a mere half turn Stable due to high contact pressure Safe through verified quality (TÜV) Smooth-running, extremely low-noise aluminum track system with ball-bearing- supported, wear-free Delrin® castors Low weight due to reinforced bolted aluminum frame ESS – all panels also with electric-driven sealing bar EI30 fire resistance available

Pagina 5-Catalog -Pereti mobili-Hufcor MoVista HUFCOR Catalog, brosura Engleza market today.
The broad range ...

Pagina 6 - Catalog -Pereti mobili-Hufcor MoVista HUFCOR Catalog, brosura Engleza for Type 100

...

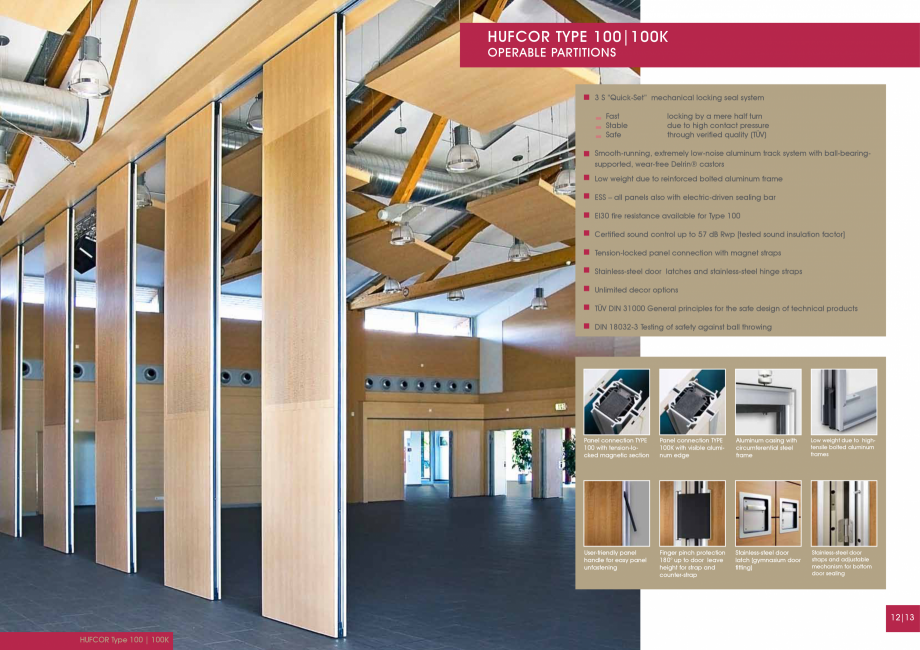

for Type 100 Certified sound control up to 57 dB Rwp [tested sound insulation factor] Stainless-steel door latches and stainless-steel hinge straps Unlimited decor options TÜV DIN 31000 General principles for the safe design of technical products DIN 18032-3 Testing of safety against ball throwing Tension-locked panel connection with magnet straps Panel connection TYPE 100 with tension-locked magnetic section Panel connection TYPE 100K with visible aluminum edge Aluminum casing with circumferential steel frame Low weight due to hightensile bolted aluminum frames User-friendly panel handle for easy panel unfastening Finger pinch protection 180° up to door leave height for strap and counter-strap Stainless-steel door latch (gymnasium door fitting) Stainless-steel door straps and adjustable mechanism for bottom door sealing 12|13 HUFCOR Type 100 | 100K HUFCOR moViSTA TRANSPARENCY COMBINED WITH SOUND CONTROL Our operable glass movable wall, HUFCOR m

Pagina 7 - Catalog -Pereti mobili-Hufcor MoVista HUFCOR Catalog, brosura Engleza oViSTA, helps you...

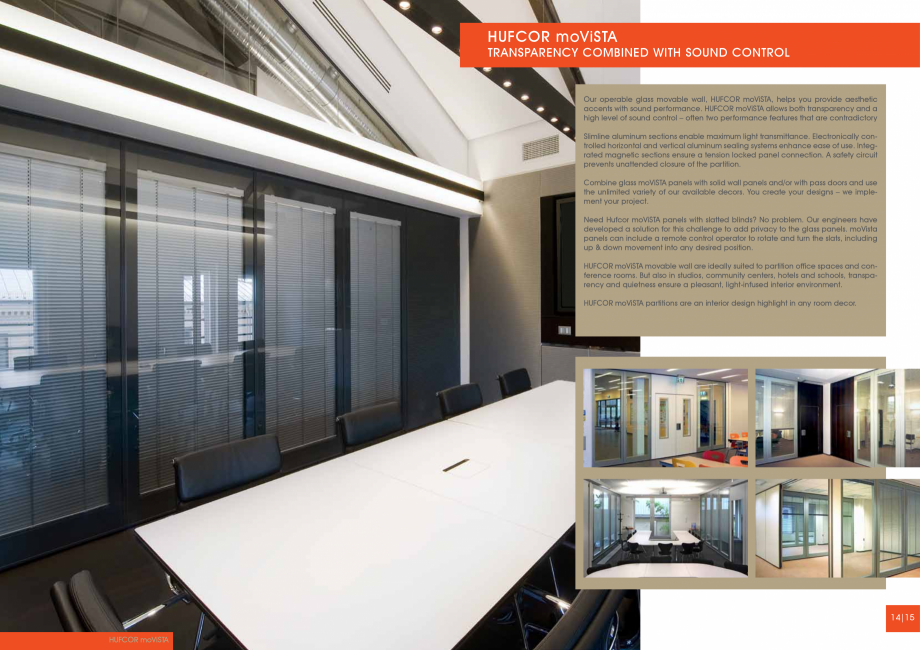

oViSTA, helps you provide aesthetic accents with sound performance. HUFCOR moViSTA allows both transparency and a high level of sound control – often two performance features that are contradictory Slimline aluminum sections enable maximum light transmittance. Electronically controlled horizontal and vertical aluminum sealing systems enhance ease of use. Integrated magnetic sections ensure a tension locked panel connection. A safety circuit prevents unattended closure of the partition. Combine glass moViSTA panels with solid wall panels and/or with pass doors and use the unlimited variety of our available decors. You create your designs – we implement your project. Need Hufcor moViSTA panels with slatted blinds? No problem. Our engineers have developed a solution for this challenge to add privacy to the glass panels. moVista panels can include a remote control operator to rotate and turn the slats, including up & down movement into any desired position. HUFCOR moViSTA movable wall

Pagina 7-Catalog -Pereti mobili-Hufcor MoVista HUFCOR Catalog, brosura Engleza oViSTA, helps you provide...

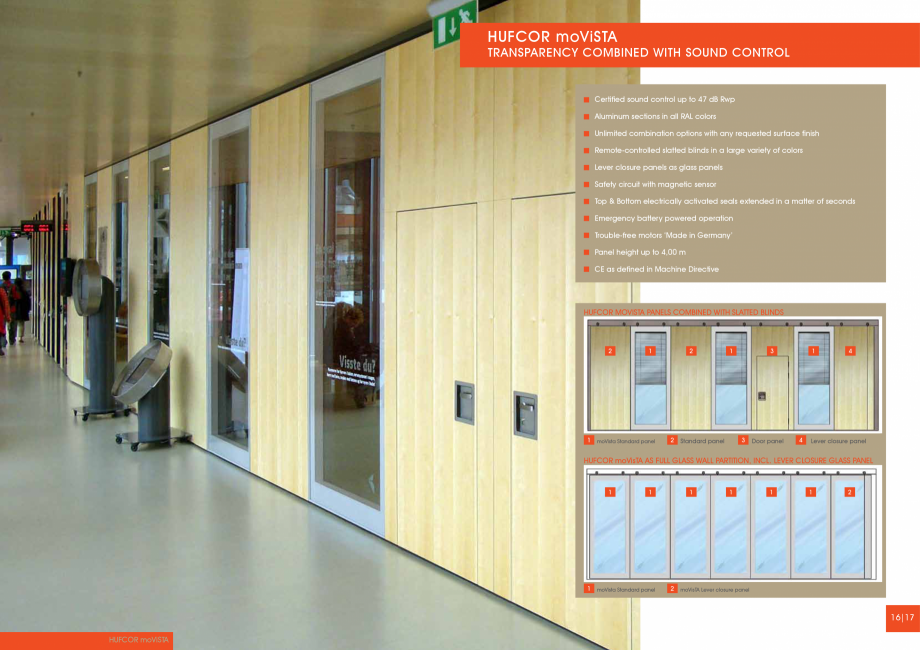

Pagina 8 - Catalog -Pereti mobili-Hufcor MoVista HUFCOR Catalog, brosura Engleza are ideally suited ...

are ideally suited to partition office spaces and conference rooms. But also in studios, community centers, hotels and schools, transparency and quietness ensure a pleasant, light-infused interior environment. HUFCOR moViSTA partitions are an interior design highlight in any room decor. 14|15 HUFCOR moViSTA HUFCOR moViSTA TRANSPARENCY COMBINED WITH SOUND CONTROL • Certified sound control up to 47 dB Rwp • Aluminum sections in all RAL colors • Unlimited combination options with any requested surface finish • Remote-controlled slatted blinds in a large variety of colors • Lever closure panels as glass panels • Safety circuit with magnetic sensor • Top & Bottom electrically activated seals extended in a matter of seconds • Emergency battery powered operation • Trouble-free motors ‘Made in Germany’ • Panel height up to 4,00 m • CE as defined in Machine Directive HUFCOR moVisTA PANELS COMBINED WITH SLATTED BLINDS 2 1 1 moVista Standard panel 2

Pagina 8-Catalog -Pereti mobili-Hufcor MoVista HUFCOR Catalog, brosura Engleza are ideally suited to...

Pagina 9 - Catalog -Pereti mobili-Hufcor MoVista HUFCOR Catalog, brosura Engleza

1

2 Standard...

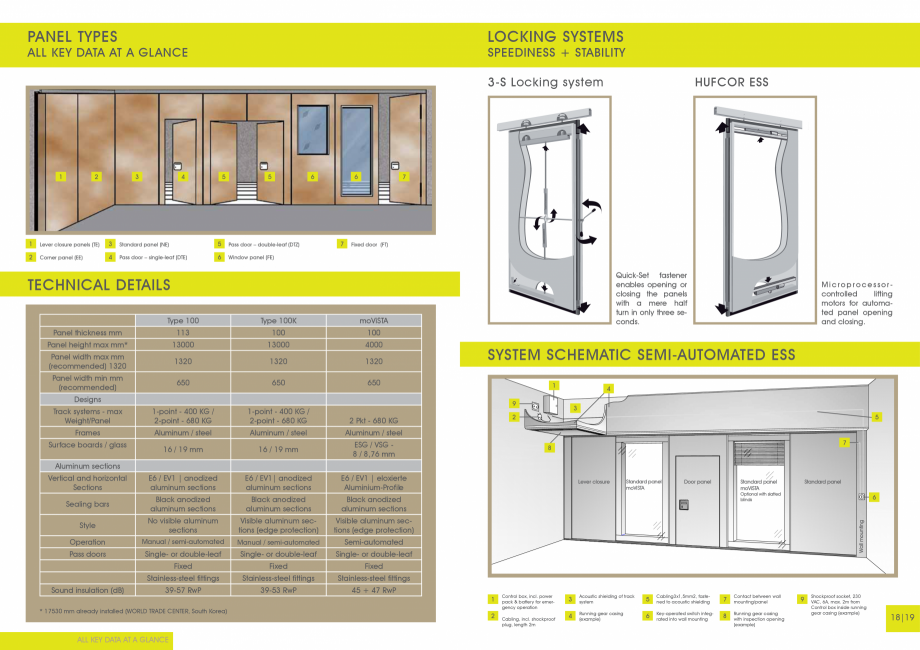

1 2 Standard panel 3 3 Door panel 1 4 4 Lever closure panel HUFCOR moVisTA AS FULL GLASS WALL PARTITION, INCL. LEVER CLOSURE GLASS PANEL 1 1 1 moVista Standard panel 1 1 1 1 2 2 moVisTA Lever closure panel 16|17 HUFCOR moViSTA PANEL TYPES LOCKING SYSTEMS ALL KEY DATA AT A GLANCE SPEEDINESS + STABILITY 3-S Locking system 1 2 3 4 5 5 6 1 Lever closure panels (TE) 3 Standard panel (NE) 5 Pass door – double-leaf (DTZ) 2 Corner panel (EE) 4 Pass door – single-leaf (DTE) 6 Window panel (FE) 6 7 7 Fixed door (FT) Quick-Set fastener enables opening or closing the panels with a mere half turn in only three seconds. TECHNICAL DETAILS Type 100 Type 100K moViSTA Panel thickness mm 113 100 100 Panel height max mm* 13000 13000 4000 Panel width max mm (recommended) 1320 1320 1320 1320 Panel width min mm (recommended) 650 650 650 Track systems - max Weight/Panel 1-point - 400 KG / 2-point - 680 KG 1-point - 400 KG /

Pagina 9-Catalog -Pereti mobili-Hufcor MoVista HUFCOR Catalog, brosura Engleza

1

2 Standard panel

3

3
...

Pagina 10 - Catalog -Pereti mobili-Hufcor MoVista HUFCOR Catalog, brosura Engleza 2-point - 680 KG

...

2-point - 680 KG 2 Pkt - 680 KG Frames Aluminum / steel Aluminum / steel Aluminum / steel 16 / 19 mm 16 / 19 mm ESG / VSG 8 / 8,76 mm Vertical and horizontal Sections E6 / EV1 | anodized aluminum sections E6 / EV1| anodized aluminum sections E6 / EV1 | eloxierte Aluminium-Prof i le Sealing bars Black anodized aluminum sections Black anodized aluminum sections Black anodized aluminum sections Style No visible aluminum sections Visible aluminum sections (edge protection) Visible aluminum sections (edge protection) Operation Manual / semi-automated Manual / semi-automated Semi-automated Pass doors Single- or double-leaf Single- or double-leaf Single- or double-leaf Fixed Fixed Fixed Stainless-steel fittings Stainless-steel fittings Stainless-steel fittings 39-57 RwP 39-53 RwP 45 + 47 RwP M i c r o p r o c e s s o rcontrolled lifting motors for automated panel opening and closing. SYSTEM SCHEMATIC SEMI-AUTOMATED ESS 1 Designs Surface boards / glass

Pagina 10-Catalog -Pereti mobili-Hufcor MoVista HUFCOR Catalog, brosura Engleza 2-point - 680 KG

2 Pkt - 680 ...

Pagina 11 - Catalog -Pereti mobili-Hufcor MoVista HUFCOR Catalog, brosura Engleza
HUFCOR ESS

4

9
...

HUFCOR ESS 4 9 3 2 5 7 8 Aluminum sections Sound insulation (dB) Lever closure ALL KEY DATA AT A GLANCE Door panel Standard panel moVista Standard panel Optional with slatted blinds 6 Wall mounting 1 * 17530 mm already installed (WORLD TRADE CENTER, South Korea) Standard panel moVista 2 Control box, incl. power pack & battery for emergency operation Cabling, incl. shockproof plug, length 2m 3 Acoustic shielding of track system 5 Cabling3x1,5mm2, fastened to acoustic shielding 7 Contact between wall mounting/panel 4 Running gear casing (example) 6 Key-operated switch integrated into wall mounting 8 Running gear casing with inspection opening (example) 9 Shockproof socket, 230 VAC, 6A, max. 2m from Control box inside running gear casing (example) 18|19 HUFCOR G3000 A CLEAR VIEW - OPERABLE GLASS WALL PARTITIONS Transparency which creates a desire for more – in shopping arcades, banks, hotels, restaurants, cafeterias and schools. We design your vi

Pagina 11-Catalog -Pereti mobili-Hufcor MoVista HUFCOR Catalog, brosura Engleza
HUFCOR ESS

4

9

3

2

5

7
...

Pagina 12 - Catalog -Pereti mobili-Hufcor MoVista HUFCOR Catalog, brosura Engleza sion into reality,...

sion into reality, wherever you wish for operable glass walls for your clients or staff members. Very stylish, slimline aluminum sections safely support glass panes with using four concealed bolts.providing the ultimate safety catch for the glass . Unlike friction supported systems, Hufcor’s glasswall designs reduce the hazard of ‘sliding panes’. Hufcor G3000 operable glass wall offer many door options, such as fixed, self-shutting doors or movable 360° double doors. Design your wall to your specifications. Aesthetic mushroom-head end caps of cast aluminum provide connections between panels. Tempered or laminated safety glass. Sand-blasted or sateen finish. Painted or printed. The choice is yours. We offer precise angular joints or polygonal systems.. Hufcor utilizes our experience from numerous successfully completed projects at your disposal. Our glasswall consultants will visit your site and provide an overview of the multi-faceted design options with our operable glass wall

Pagina 12-Catalog -Pereti mobili-Hufcor MoVista HUFCOR Catalog, brosura Engleza sion into reality, wherever...

Pagina 13 - Catalog -Pereti mobili-Hufcor MoVista HUFCOR Catalog, brosura Engleza partition G3000....

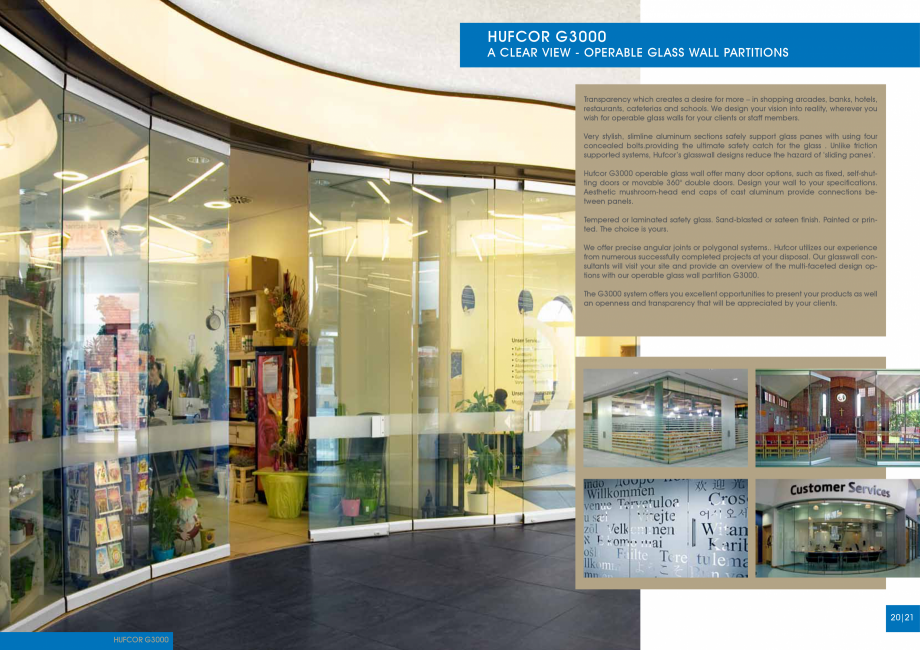

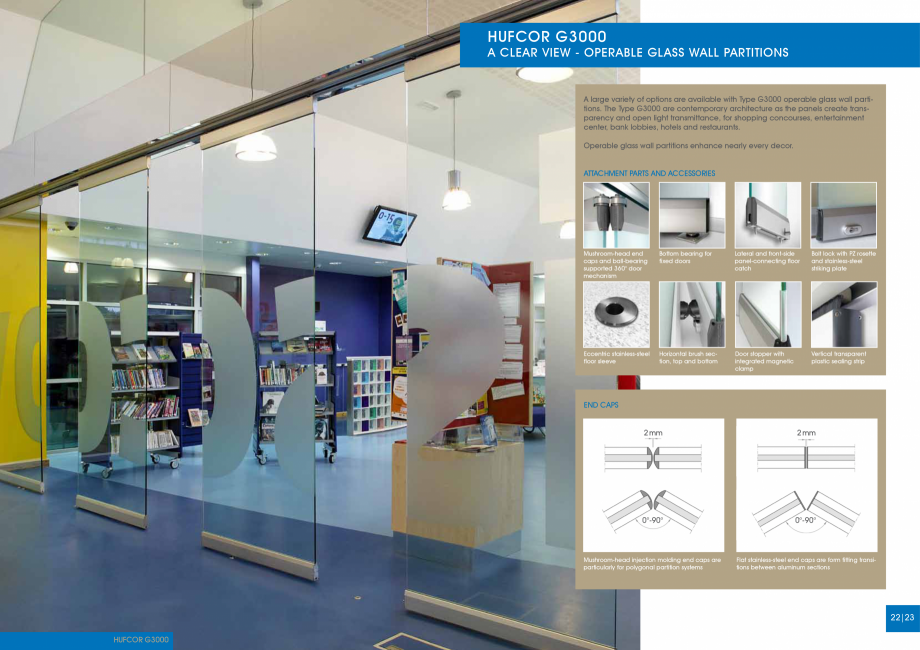

partition G3000. The G3000 system offers you excellent opportunities to present your products as well an openness and transparency that will be appreciated by your clients. 20|21 HUFCOR G3000 HUFCOR G3000 A CLEAR VIEW - OPERABLE GLASS WALL PARTITIONS A large variety of options are available with Type G3000 operable glass wall partitions. The Type G3000 are contemporary architecture as the panels create transparency and open light transmittance, for shopping concourses, entertainment center, bank lobbies, hotels and restaurants. Operable glass wall partitions enhance nearly every decor. ATTACHMENT PARTS AND ACCESSORIES Mushroom-head end caps and ball-bearing supported 360° door mechanism Bottom bearing for fixed doors Lateral and front-side panel-connecting floor catch Bolt lock with PZ rosette and stainless-steel striking plate Eccentric stainless-steel floor sleeve Horizontal brush section, top and bottom Door stopper with integrated magnetic clamp Vertical transparent p

Pagina 13-Catalog -Pereti mobili-Hufcor MoVista HUFCOR Catalog, brosura Engleza partition G3000.
The G3000...

Pagina 14 - Catalog -Pereti mobili-Hufcor MoVista HUFCOR Catalog, brosura Engleza lastic sealing...

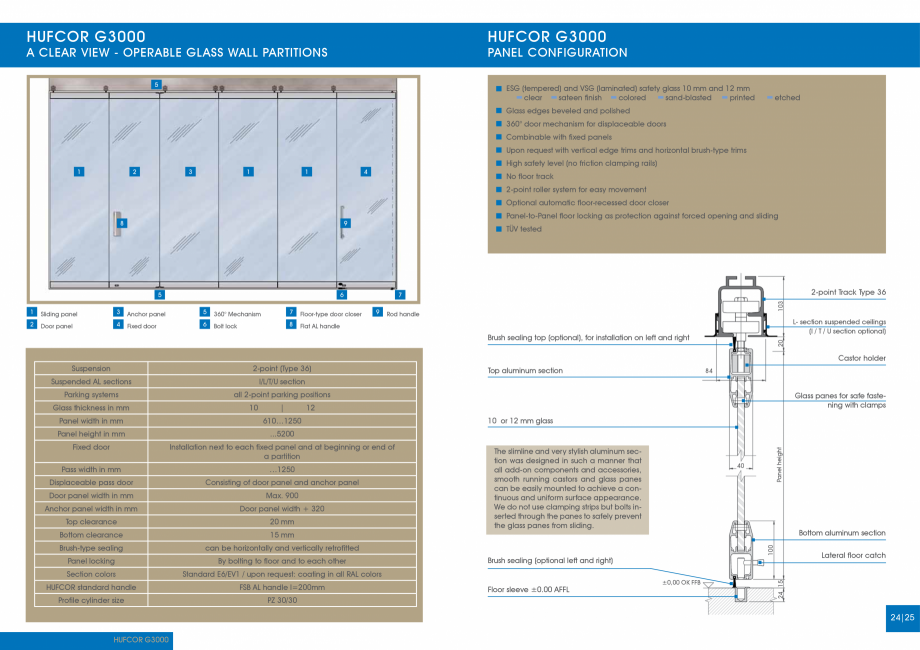

lastic sealing strip END CAPS 2 mm 2 mm 0°-90° 0°-90° Mushroom-head injection molding end caps are particularly for polygonal partition systems Flat stainless-steel end caps are form fitting transitions between aluminum sections 22|23 HUFCOR G3000 HUFCOR G3000 HUFCOR G3000 A CLEAR VIEW - OPERABLE GLASS WALL PARTITIONS PANEL CONFIGURATION 5 2 3 1 1 4 8 9 5 3 Door panel 4 Anchor panel 5 Fixed door 6 360° Mechanism 7 Floor-type door closer Bolt lock 8 Flat AL handle Glass edges beveled and polished 360° door mechanism for displaceable doors Combinable with fixed panels Upon request with vertical edge trims and horizontal brush-type trims High safety level (no friction clamping rails) No floor track 2-point roller system for easy movement Optional automatic floor-recessed door closer Panel-to-Panel floor locking as protection against forced opening and sliding TÜV tested 2-point Track Type 36 7 9 Rod handle L-

Pagina 14-Catalog -Pereti mobili-Hufcor MoVista HUFCOR Catalog, brosura Engleza lastic sealing strip

END CAPS...

Pagina 15 - Catalog -Pereti mobili-Hufcor MoVista HUFCOR Catalog, brosura Engleza section suspended...

section suspended ceilings (I / T / U section optional) 20 Brush sealing top (optional), for installation on left and right Castor holder Suspension 2-point (Type 36) Suspended AL sections I/L/T/U section Parking systems all 2-point parking positions 10 | 84 Glass panes for safe fastening with clamps 12 Panel width in mm 610…1250 Panel height in mm ...5200 Fixed door Installation next to each fixed panel and at beginning or end of a partition Pass width in mm …1250 Displaceable pass door Consisting of door panel and anchor panel Door panel width in mm Max. 900 Anchor panel width in mm Door panel width + 320 Top clearance 20 mm Bottom clearance 15 mm Brush-type sealing can be horizontally and vertically retrofitted Panel locking By bolting to floor and to each other Section colors Standard E6/EV1 / upon request: coating in all RAL colors HUFCOR standard handle FSB AL handle l=200mm Profile cylinder size PZ 30/30 10 or 12 mm glass The slimlin

Pagina 15-Catalog -Pereti mobili-Hufcor MoVista HUFCOR Catalog, brosura Engleza section suspended ceilings
(I...

Pagina 16 - Catalog -Pereti mobili-Hufcor MoVista HUFCOR Catalog, brosura Engleza e and very stylish...

e and very stylish aluminum section was designed in such a manner that all add-on components and accessories, smooth running castors and glass panes can be easily mounted to achieve a continuous and uniform surface appearance. We do not use clamping strips but bolts inserted through the panes to safely prevent the glass panes from sliding. Panel height Glass thickness in mm Top aluminum section 40 Bottom aluminum section 100 2 Sliding panel Lateral floor catch Brush sealing (optional left and right) Floor sleeve ±0.00 AFFL ±0,00 OK FFB 24 15 1 6 etched 103 1 ESG (tempered) and VSG (laminated) safety glass 10 mm and 12 mm clear sateen finish colored sand-blasted printed 24|25 HUFCOR G3000 TRACK SYSTEMS EASY HANDLING – HIGH CONVENIENCE We provide a perfect system of aluminum tracks that can be combined with freely selectable ceiling support sections and enables panel weights up to 680 KG. Special structurally tested suspension constructions for the

Pagina 16-Catalog -Pereti mobili-Hufcor MoVista HUFCOR Catalog, brosura Engleza e and very stylish aluminum...

Pagina 17 - Catalog -Pereti mobili-Hufcor MoVista HUFCOR Catalog, brosura Engleza track system...

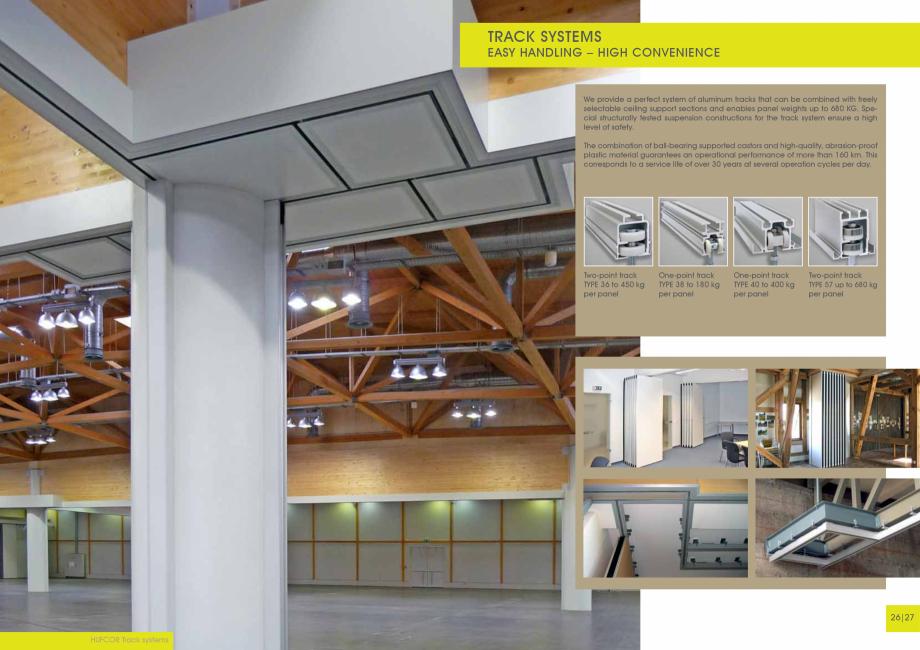

track system ensure a high level of safety. The combination of ball-bearing supported castors and high-quality, abrasion-proof plastic material guarantees an operational performance of more than 160 km. This corresponds to a service life of over 30 years at several operation cycles per day. Two-point track TYPE 36 to 450 kg per panel One-point track TYPE 38 to 180 kg per panel One-point track TYPE 40 to 400 kg per panel Two-point track TYPE 57 up to 680 kg per panel 26|27 HUFCOR Track systems TRACK SYSTEMS SCHEMATIC DIAGRAM PARKING POSITIONS TRACK TYPES | FASTENING AND SHIELDING OPTIONS Type 38 84 130 2-point track Type 36 Type 40 2-point track Type 57 57 1-point track Type 38 recommended min. 180 mm 83 recommended min. 120 mm 110 recommended min. 180 mm 140 103 recommended min. 150 mm 200 80 Type 57 140 76 Type 36 EVERYTHING IN ITS RIGHT PLACE Type 1 Type 2 Type 3 Type 4 Type 5 Type 6 Type 7 Type 8 Type 9 Type 10 Type 11 T

Pagina 17-Catalog -Pereti mobili-Hufcor MoVista HUFCOR Catalog, brosura Engleza track system ensure a high...

Pagina 18 - Catalog -Pereti mobili-Hufcor MoVista HUFCOR Catalog, brosura Engleza ype 12

127
...

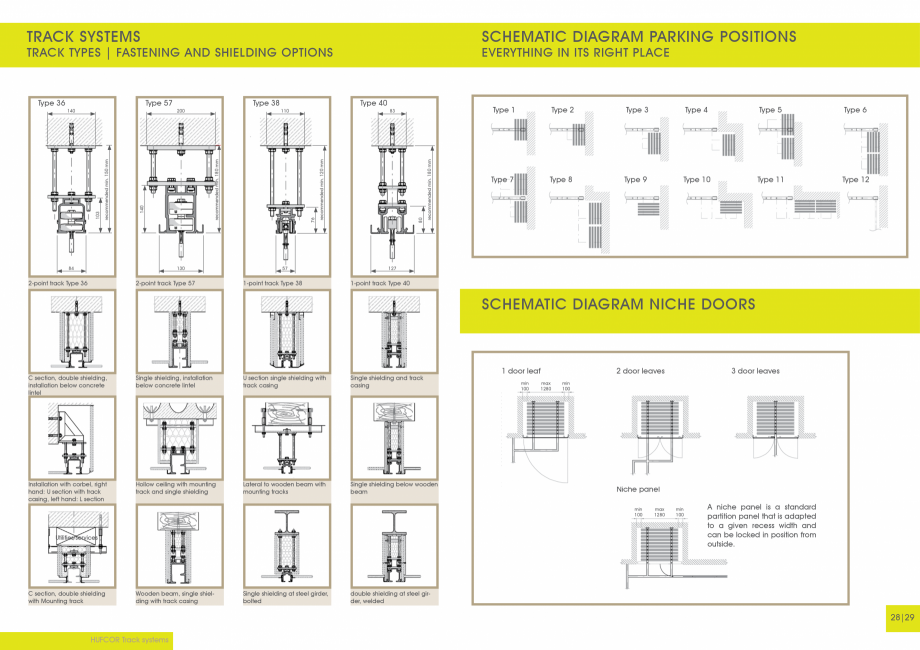

ype 12 127 1-point track Type 40 SCHEMATIC DIAGRAM NICHE DOORS C section, double shielding, installation below concrete lintel Single shielding, installation below concrete lintel U section single shielding with track casing Single shielding and track casing Installation with corbel, right hand: U section with track casing, left hand: L section Hollow ceiling with mounting track and single shielding Lateral to wooden beam with mounting tracks Single shielding below wooden beam 1 door leaf min 100 2 door leaves max 1280 min 100 Niche panel min 100 Utilities/services C section, double shielding with Mounting track Wooden beam, single shielding with track casing Single shielding at steel girder, bolted 3 door leaves max 1280 min 100 A niche panel is a standard partition panel that is adapted to a given recess width and can be locked in position from outside. double shielding at steel girder, welded 28|29 HUFCOR Track systems SURFACES LARGE VARIETY OF FINISHES F
