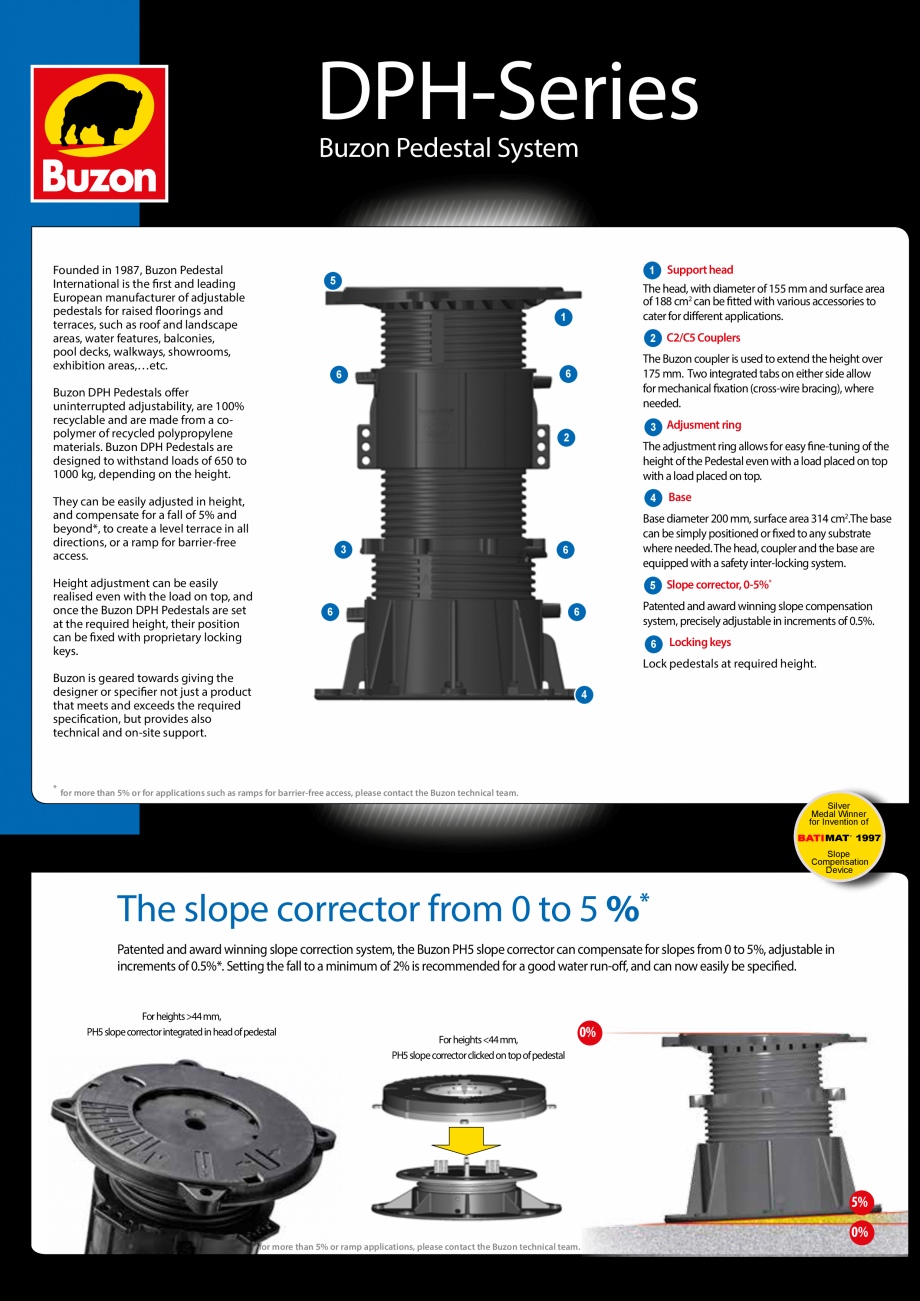

043-055-1351 Made From Minimum 50% Recycled Content Silver Medal Winner for Invention of BATIMAT 1997 © SGBPDC-14-267 Slope Compensation Device DPH-Serie High quality adjustable pedestals for all types of terraces info@buzon.eu www.buzon.eu DPH-Series Buzon Pedestal System Founded in 1987, Buzon Pedestal International is the first and leading European manufacturer of adjustable pedestals for raised floorings and terraces, such as roof and landscape areas, water features, balconies, pool decks, walkways, showrooms, exhibition areas,…etc. 1 5 1 2 C2/C5 Couplers The Buzon coupler is used to extend the height over 175 mm. Two integrated tabs on either side allow for mechanical fixation (cross-wire bracing), where needed. 6 6 Buzon DPH Pedestals offer uninterrupted adjustability, are 100% recyclable and are made from a copolymer of recycled polypropylene materials. Buzon DPH Pedestals are designed to withstand loads of 650 to 1000 kg, depending on the height. 3 Adjusment

Pagina 1-Catalog ploturi BUZON - seria DPH LastreCeramice.ro Catalog, brosura Engleza 043-055-1351
Made From ...

Pagina 2 - Catalog ploturi BUZON - seria DPH LastreCeramice.ro Catalog, brosura Engleza ring

2
...

ring 2 The adjustment ring allows for easy fine-tuning of the height of the Pedestal even with a load placed on top with a load placed on top. 4 They can be easily adjusted in height, and compensate for a fall of 5% and beyond*, to create a level terrace in all directions, or a ramp for barrier-free access. 3 Height adjustment can be easily realised even with the load on top, and once the Buzon DPH Pedestals are set at the required height, their position can be fixed with proprietary locking keys. Base Base diameter 200 mm, surface area 314 cm2.The base can be simply positioned or fixed to any substrate where needed. The head, coupler and the base are equipped with a safety inter-locking system. 6 5 Slope corrector, 0-5%* 6 Patented and award winning slope compensation system, precisely adjustable in increments of 0.5%. 6 6 Locking keys Lock pedestals at required height. Buzon is geared towards giving the designer or specifier not just a product that meets and exceeds t

Pagina 2-Catalog ploturi BUZON - seria DPH LastreCeramice.ro Catalog, brosura Engleza ring

2

The...

Pagina 3 - Catalog ploturi BUZON - seria DPH LastreCeramice.ro Catalog, brosura Engleza he required
...

he required specification, but provides also technical and on-site support. * Support head The head, with diameter of 155 mm and surface area of 188 cm2 can be fitted with various accessories to cater for different applications. 4 for more than 5% or for applications such as ramps for barrier-free access, please contact the Buzon technical team. Silver Medal Winner for Invention of BATIMAT 1997 © Slope Compensation Device The slope corrector from 0 to 5 %* Patented and award winning slope correction system, the Buzon PH5 slope corrector can compensate for slopes from 0 to 5%, adjustable in increments of 0.5%*. Setting the fall to a minimum of 2% is recommended for a good water run-off, and can now easily be specified. For heights >44 mm, PH5 slope corrector integrated in head of pedestal For heights <44 mm, PH5 slope corrector clicked on top of pedestal 0% 5% * 0% for more than 5% or ramp applications, please contact the Buzon technical team. Applications Terrace Applic

Pagina 4 - Catalog ploturi BUZON - seria DPH LastreCeramice.ro Catalog, brosura Engleza ations with ...

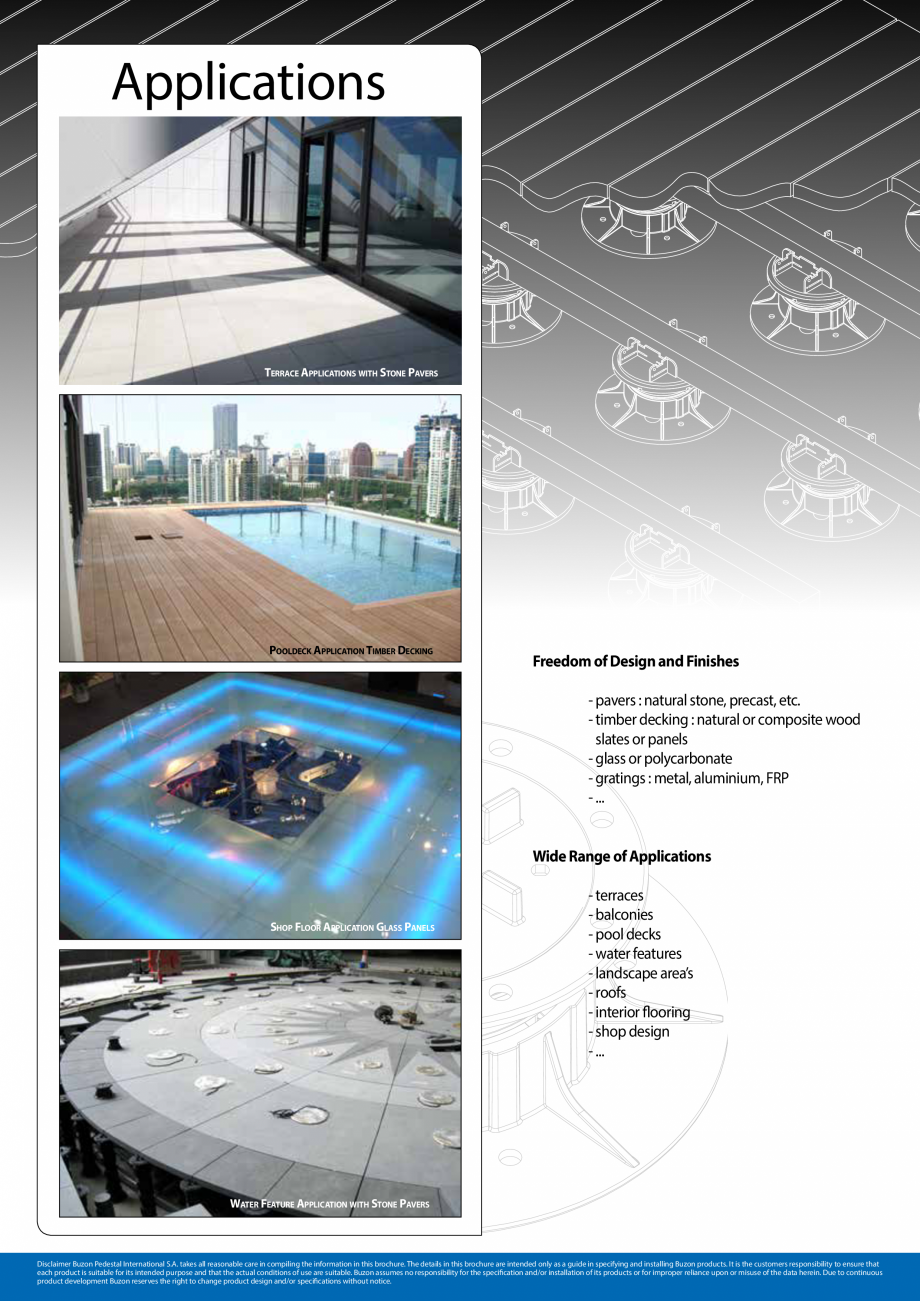

ations with Stone Pavers Pooldeck Application Timber Decking Freedom of Design and Finishes - pavers : natural stone, precast, etc. - timber decking : natural or composite wood - slates or panels - glass or polycarbonate - gratings : metal, aluminium, FRP - ... Wide Range of Applications Shop Floor Application Glass Panels - terraces - balconies - pool decks - water features - landscape area’s - roofs - interior flooring - shop design - ... Water Feature Application with Stone Pavers Disclaimer Buzon Pedestal International S.A. takes all reasonable care in compiling the information in this brochure. The details in this brochure are intended only as a guide in specifying and installing Buzon products. It is the customers responsibility to ensure that each product is suitable for its intended purpose and that the actual conditions of use are suitable. Buzon assumes no responsibility for the specification and/or installation of its products or for

Pagina 4-Catalog ploturi BUZON - seria DPH LastreCeramice.ro Catalog, brosura Engleza ations with Stone...

Pagina 5 - Catalog ploturi BUZON - seria DPH LastreCeramice.ro Catalog, brosura Engleza improper...

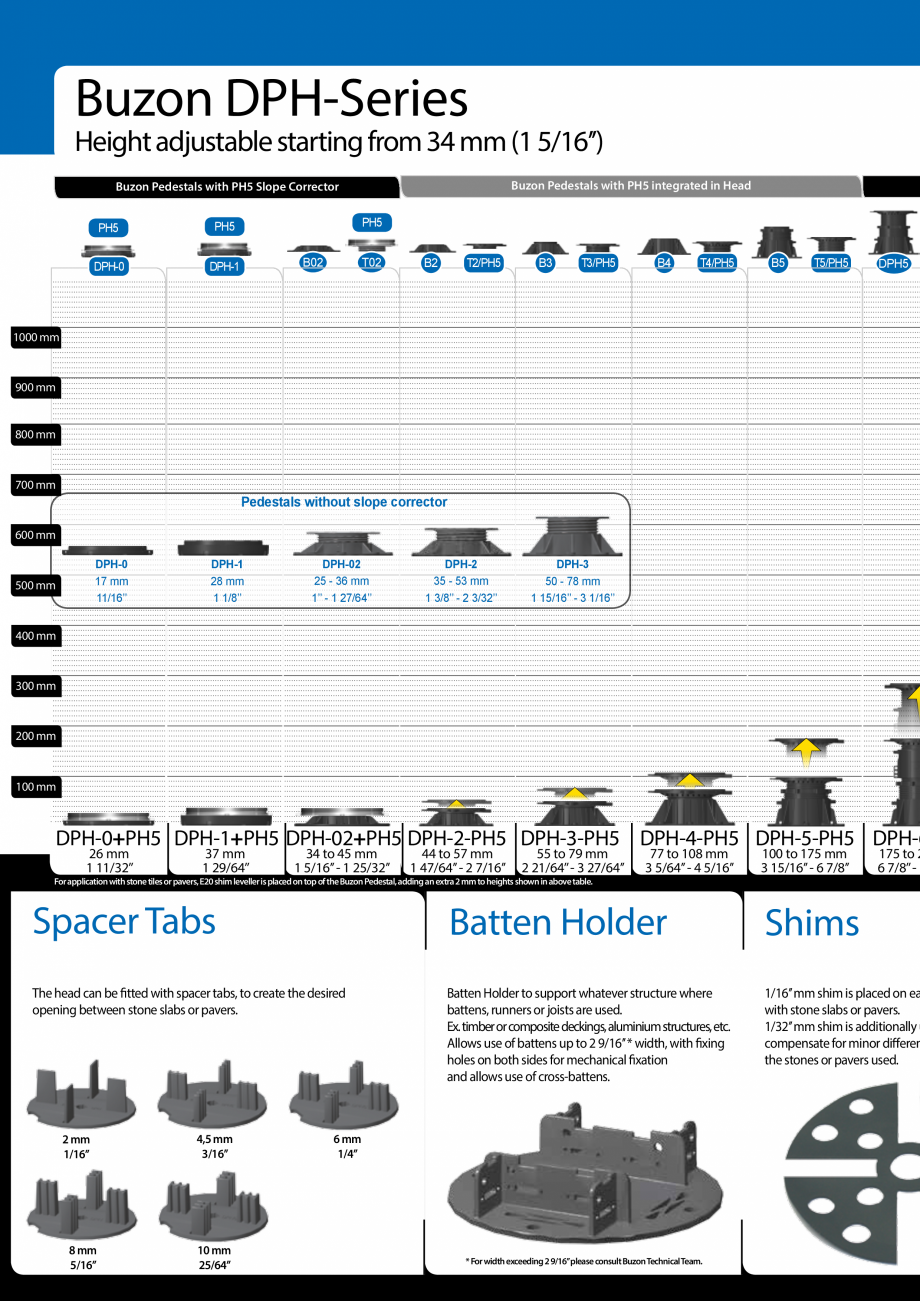

improper reliance upon or misuse of the data herein. Due to continuous product development Buzon reserves the right to change product design and/or specifications without notice. Buzon DPH-Series Height adjustable starting from 34 mm (1 5/16’’) Buzon Pedestals with PH5 integrated in Head Buzon Pedestals with PH5 Slope Corrector PH5 PH5 DPH-0 DPH-1 PH5 B02 T02 B2 T2/PH5 B3 T3/PH5 B4 T4/PH5 B5 T5/PH5 DPH5 1000 mm 900 mm 800 mm 700 mm Pedestals without slope corrector 600 mm DPH-0 17 mm 11/16’’ 500 mm DPH-1 28 mm 1 1/8’’ DPH-02 25 - 36 mm 1’’ - 1 27/64’’ DPH-2 35 - 53 mm 1 3/8’’ - 2 3/32’’ DPH-3 50 - 78 mm 1 15/16’’ - 3 1/16’’ 400 mm 300 mm 200 mm 100 mm DPH-0+PH5 DPH-1+PH5 DPH-02+PH5 DPH-2-PH5 DPH-3-PH5 DPH-4-PH5 DPH-5-PH5 DPH-6 26(without mm PH5 : 17 mm) 1 11/32’’ 37 mm (without PH5 : 28 34 to 45 mm (without PH5 44: 35toto 5357mm)mm mm) 1 29/64’’ 1 5/16’’ - 1 25/32’’ 1 47/64’’ - 2 7/16’’ 55 to

Pagina 5-Catalog ploturi BUZON - seria DPH LastreCeramice.ro Catalog, brosura Engleza improper reliance upon ...

Pagina 6 - Catalog ploturi BUZON - seria DPH LastreCeramice.ro Catalog, brosura Engleza 79 mm...

79 mm (without PH5 : 50 to 78 mm) 2 21/64’’ - 3 27/64’’ For application with stone tiles or pavers, E20 shim leveller is placed on top of the Buzon Pedestal, adding an extra 2 mm to heights shown in above table. 77 to 108 mm 3 5/64’’ - 4 5/16’’ 100 to 175 mm 3 15/16’’ - 6 7/8’’ 175 to 2 6 7/8’’ - 1 Spacer Tabs Batten Holder Shims The head can be fitted with spacer tabs, to create the desired opening between stone slabs or pavers. Batten Holder to support whatever structure where battens, runners or joists are used. Ex. timber or composite deckings, aluminium structures, etc. Allows use of battens up to 2 9/16’’ * width, with fixing holes on both sides for mechanical fixation and allows use of cross-battens. 1/16’’ mm shim is placed on ea with stone slabs or pavers. 1/32’’ mm shim is additionally u compensate for minor differen the stones or pavers used. 2 mm 1/16’’ 8 mm 5/16’’ 4,5 mm 3/16’’ 10 mm 25/64’’ 6 mm 1/4�

Pagina 6-Catalog ploturi BUZON - seria DPH LastreCeramice.ro Catalog, brosura Engleza 79 mm
(without PH5 :...

Pagina 7 - Catalog ploturi BUZON - seria DPH LastreCeramice.ro Catalog, brosura Engleza �’

* For ...

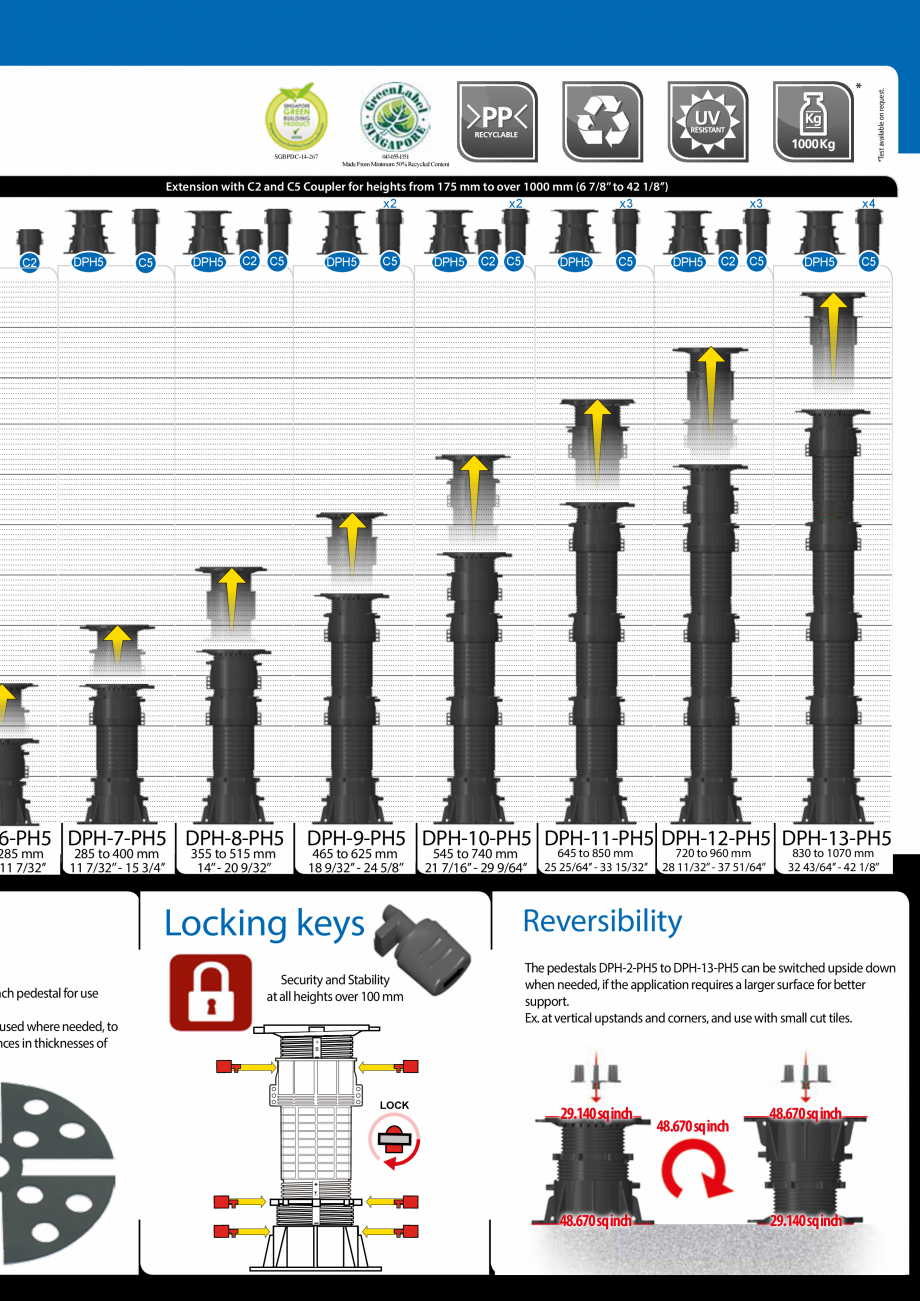

�’ * For width exceeding 2 9/16’’ please consult Buzon Technical Team. SGBPDC-14-267 043-055-1351 Made From Minimum 50% Recycled Content Extension with C2 and C5 Coupler for heights from 175 mm to over 1000 mm (6 7/8’’ to 42 1/8’’) x2 x2 x3 C2 DPH5 DPH5 C5 C2 C5 6-PH5 DPH-7-PH5 DPH-8-PH5 285 mm 11 7/32’’ 285 to 400 mm 11 7/32’’ - 15 3/4’’ ach pedestal for use used where needed, to nces in thicknesses of 355 to 515 mm 14’’ - 20 9/32’’ *Test available on request. * DPH5 C5 DPH5 C2 C5 DPH5 C5 x3 DPH5 C2 C5 x4 DPH5 C5 DPH-9-PH5 DPH-10-PH5 DPH-11-PH5 DPH-12-PH5 DPH-13-PH5 465 to 625 mm 18 9/32’’ - 24 5/8’’ Locking keys 545 to 740 mm 21 7/16’’ - 29 9/64’’ 645 to 850 mm 25 25/64’’ - 33 15/32’’ 720 to 960 mm 28 11/32’’ - 37 51/64’’ 830 to 1070 mm 32 43/64’’ - 42 1/8’’ Reversibility Security and Stability at all heights over 100 mm The pedestals DPH-2-PH5 to DPH-13-PH5 can be switc

Pagina 7-Catalog ploturi BUZON - seria DPH LastreCeramice.ro Catalog, brosura Engleza �’

* For width...

Pagina 8 - Catalog ploturi BUZON - seria DPH LastreCeramice.ro Catalog, brosura Engleza hed upside...

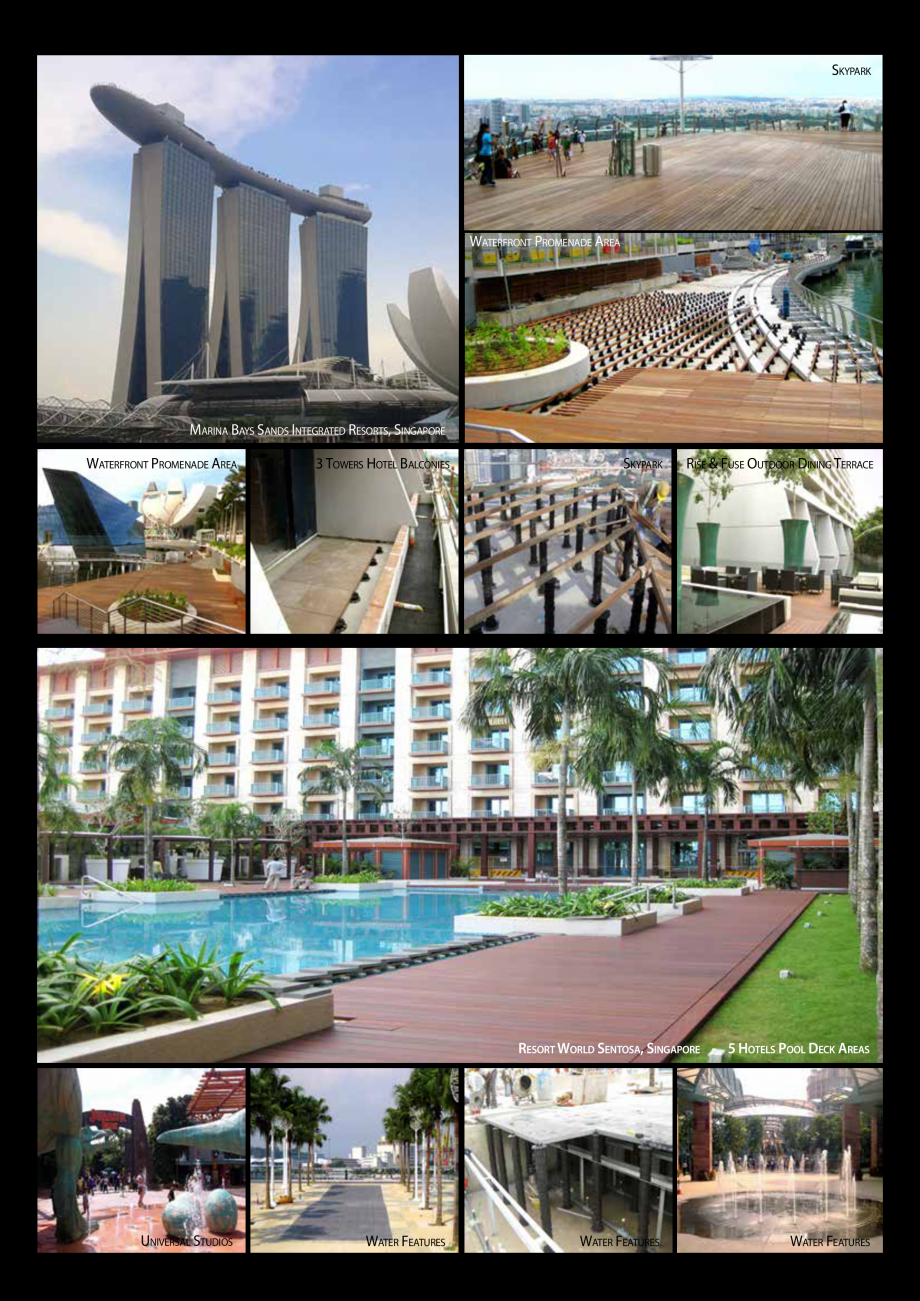

hed upside down when needed, if the application requires a larger surface for better support. Ex. at vertical upstands and corners, and use with small cut tiles. + B LOCK 29.140 sq inch 48.670 sq inch 48.670 sq inch + A + Y + A 48.670 sq inch 29.140 sq inch Skypark Waterfront Promenade Area Marina Bays Sands Integrated Resorts, Singapore Waterfront Promenade Area 3 Towers Hotel Balconies Skypark Rise & Fuse Outdoor Dining Terrace Resort World Sentosa, Singapore - 5 Hotels Pool Deck Areas Universal Studios Water Features Water Features Water Features National Insurance Company, Greece Sanlitun Village, Beijing, China Burj Kalifa, Dubai, U.A.E, Water Features Spetses island, Athens (Greece) Water Features Reflections at Keppel Bay, Singapore Taunusturm, Frankfurt (Germany) Orchard Residences, Singapore STAM, Gent, Belgium DPH-PC transparent pedestal St. Regis Hotel & Residences, Singapore Mosque Sheikh Zayed Bin Sultan Al Nahyan, Abu Dhabi, UAE Buzon©
