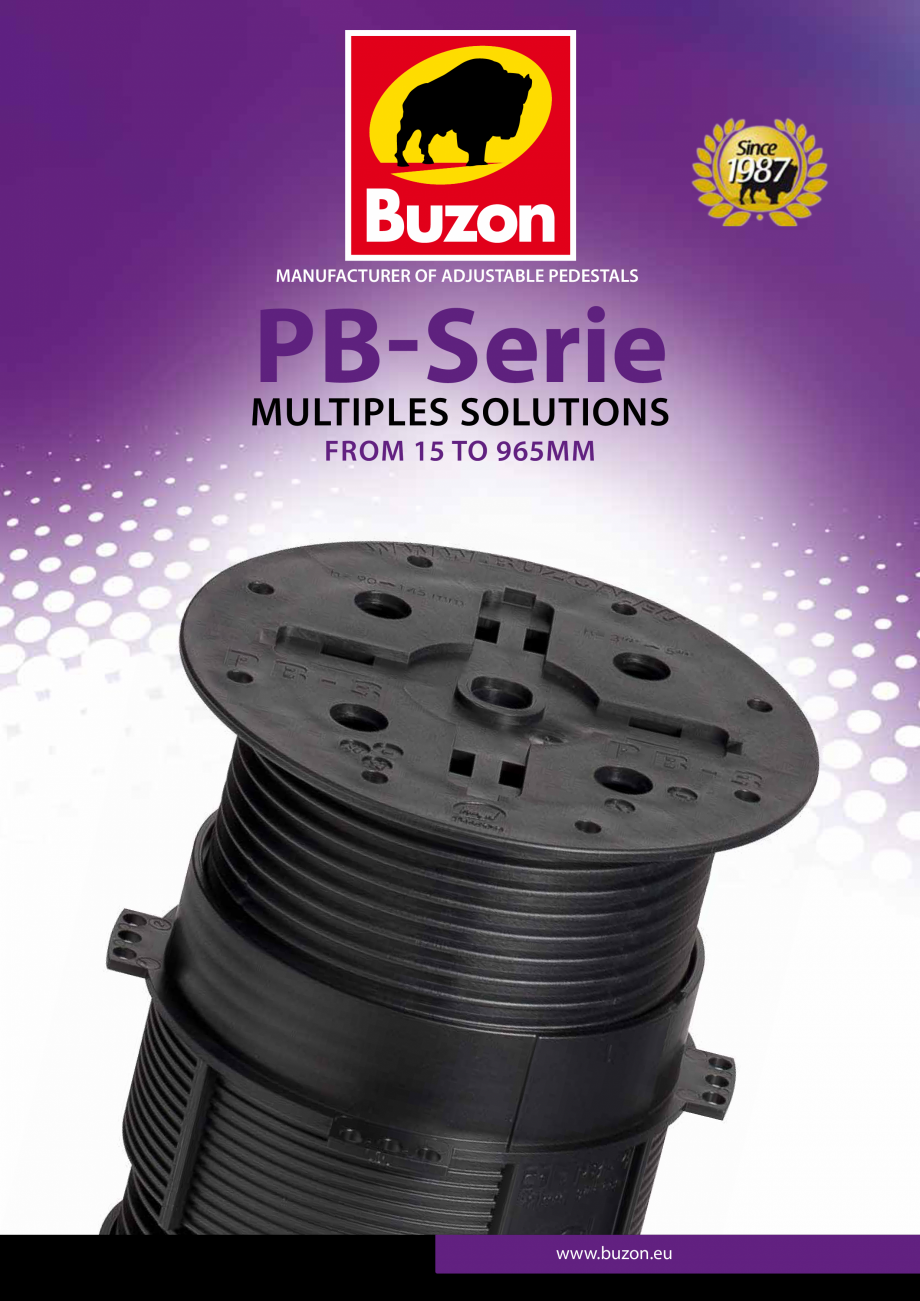

MANUFACTURER OF ADJUSTABLE PEDESTALS
PB-Serie
MULTIPLES SOLUTIONS
FROM 15 TO 965MM
www.buzon.eu
PB-Serie
Make a cross on your problems
3
Founded in 1987, Buzon Pedestal
Intenational is the first and leading
European manufacturer of screw-jack
pedestals. Buzon screw-jack pedestals
offer uninterrupted adjustability,
are made from 80% recycled and
100% recyclable polypropylene and
support loads 650 to 1000 kg per
pedestal. They can be adjusted to
compensate for up to 5% pitch, or
compensate for locally uneven subbases up to the same amount.
The pedestals and their accessories
are equally suited to applications at
ground or roof level and from
prestige, highly aesthetic projects to
industrial, performance-orientated
applications.
Buzon is geared towards giving the
specifier not just a product that meets
and exceeds the required specification, but technical and on-site
support that ensures the installation
proceeds on spec, on time and on
budget.
1
2

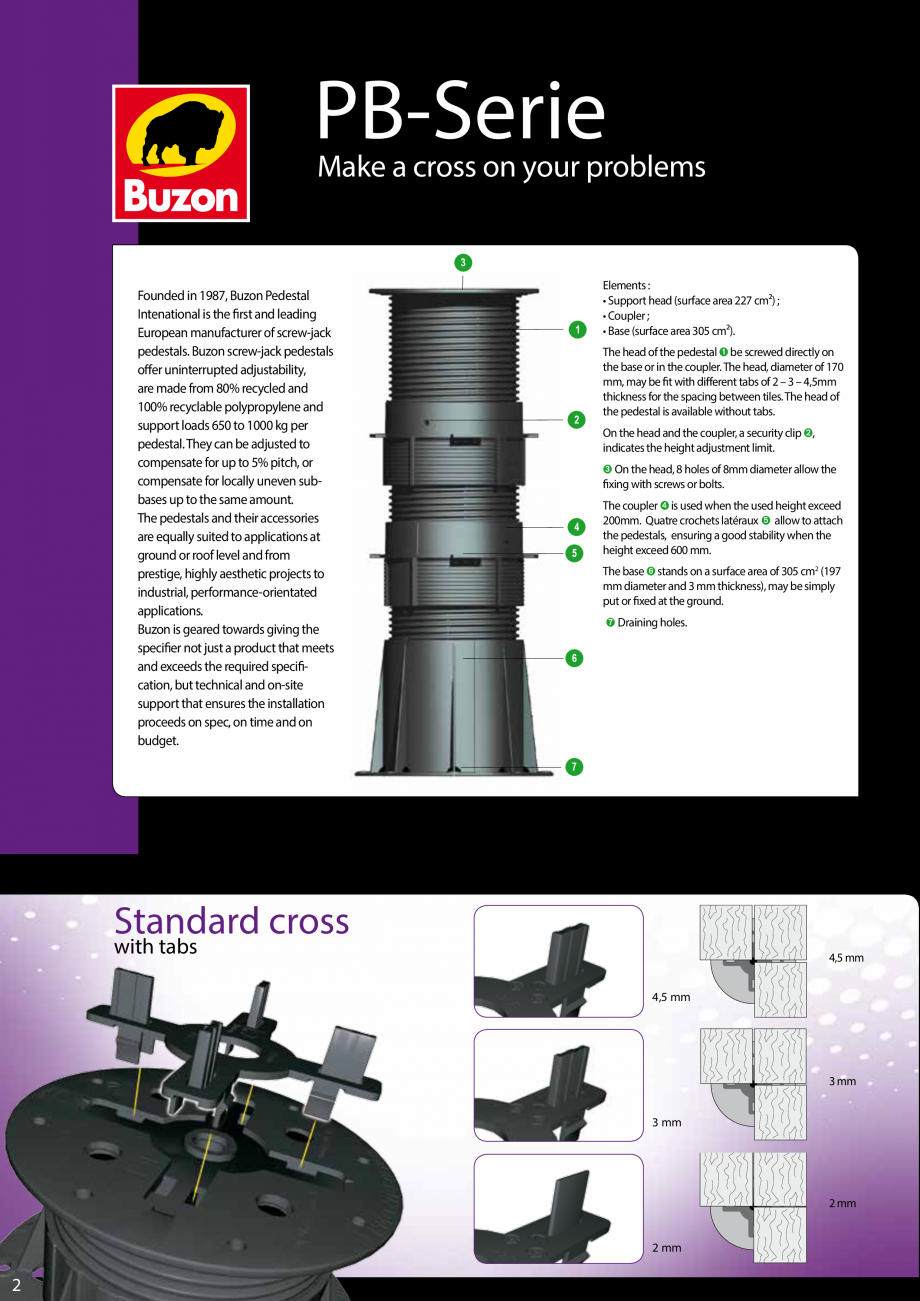

Elements :
• Support head (s
urface area 227 cm²) ;
• Coupler ;
• Base (surface area 305 cm²).
The head of the pedestal ➊ be screwed directly on
the base or in the coupler. The head, diameter of 170
mm, may be fit with different tabs of 2 – 3 – 4,5mm
thickness for the spacing between tiles. The head of
the pedestal is available without tabs.
On the head and the coupler, a security clip ➋,
indicates the height adjustment limit.
➌ On the head, 8 holes of 8mm diameter allow the
fixing with screws or bolts.
4
5
The coupler ➍ is used when the used height exceed
200mm. Quatre crochets latéraux ➎ allow to attach
the pedestals, ensuring a good stability when the
height exceed 600 mm.
The base ➏ stands on a surface area of 305 cm2 (197
mm diameter and 3 mm thickness), may be simply
put or fixed at the ground.
➐ Draining holes.
6
7
Standard cross
with tabs
4,5 mm
4,5 mm
4,5 mm
3 mm
3 mm
2 mm
2 mm
2

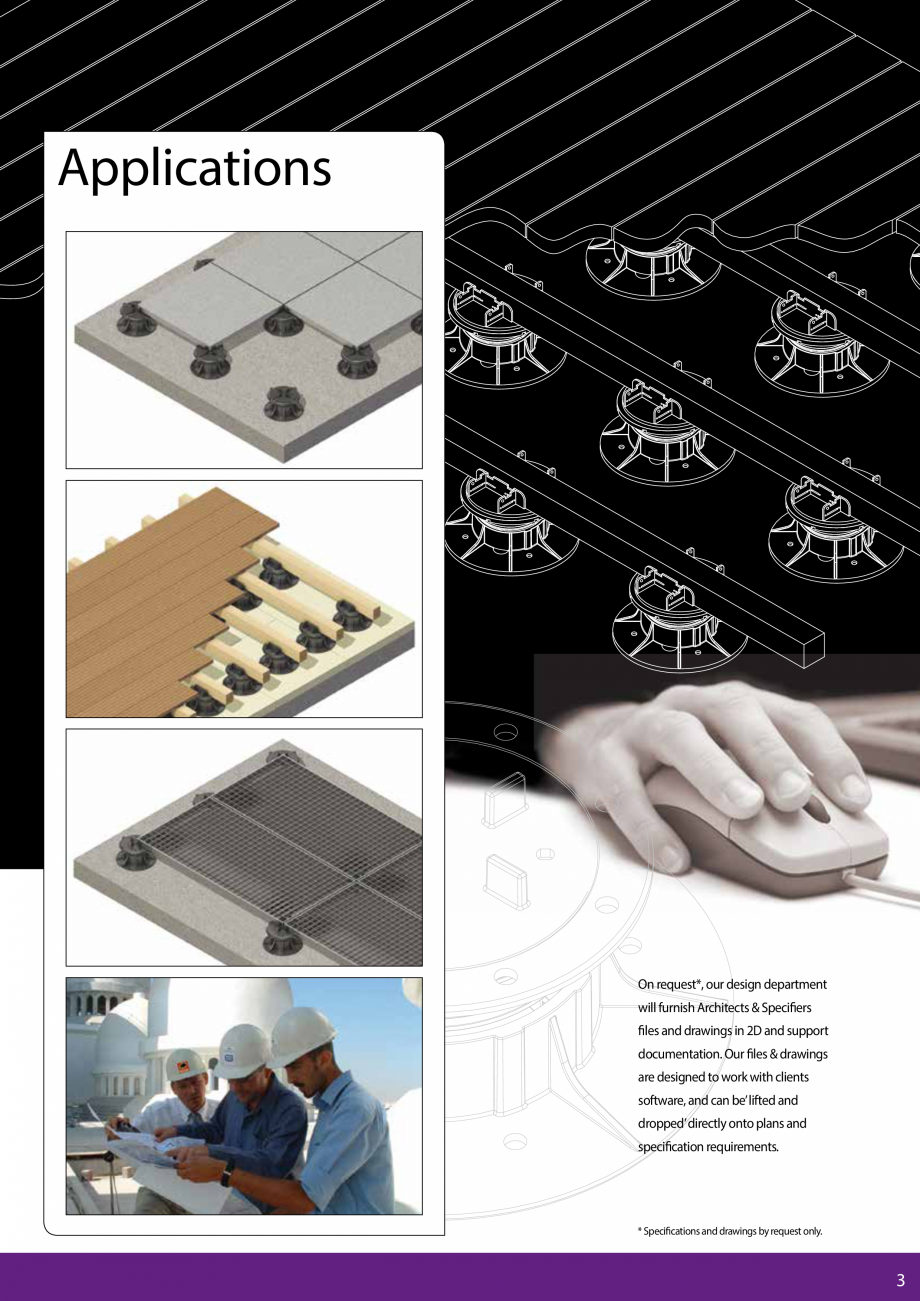

Applications
On request*, our design department
will furnish Architects & Specifiers
file
s and drawings in 2D and support
documentation. Our files & drawings
are designed to work with clients
software, and can be’ lifted and
dropped’ directly onto plans and
specification requirements.
* Specifications and drawings by request only.
3

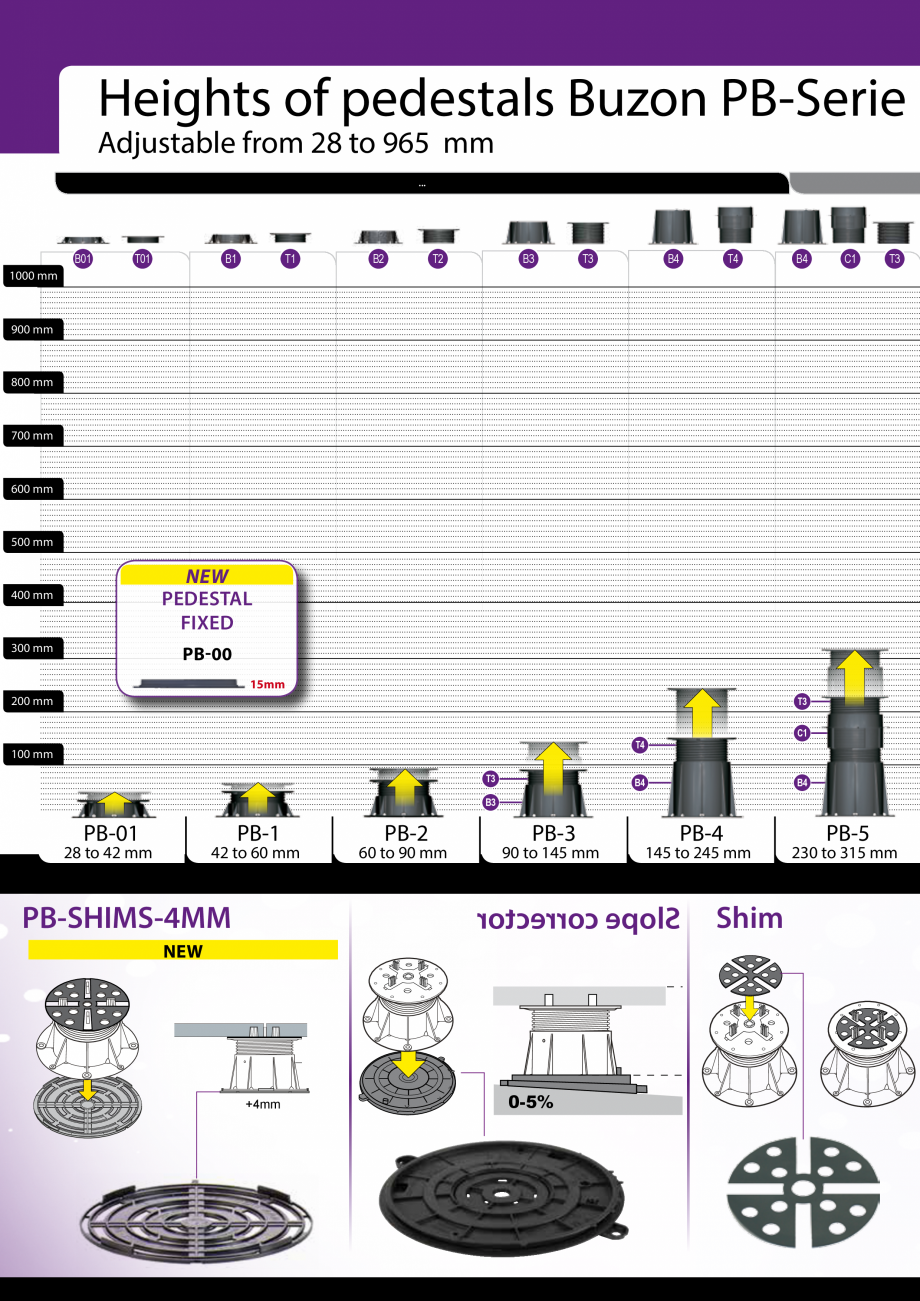

Heights of pedestals Buzon PB-Serie
Adjustable from 28 to 965 mm
...
B01
T01
B1
T1
B2
T2
B3
T3
B4
T4
B4
C1
T3
1000 mm
900 mm
800 mm
700 mm
600 mm
500 mm
400 mm
NEW
PEDESTAL
FIXED
300 mm
PB-00
15mm
T3
200 mm
C1
T4
100 mm
T3
B4
B4
B3
PB-01
PB-1
28 to 42 mm
42 to 60 mm
PB-SHIMS-4MM
PB-2
60 to 90 mm
PB-3
90 to 145 mm
PB-4
145 to 245 mm
rotcerroc epolS
NEW
+4mm
0-5%
Shim
PB-5
230 to 315 mm
x2
x3
x2
B4
C1
T4
B4
x3
x4
C1
T4
B4
C1
x4
x5
T4
B4
C1
x6
x6
x5
x6
T4
B4
C1
T4
B4
C1
T4
T4
T4
C1
T4
C1
C1
T4
C1
C1
C1
T4
C1
C1
C1
C1
T4
C1
C1
C1
C1
C1
C1
C1
C1
C1
C1
C1
B4
B4
B4
B4
B4
B4
PB-6
285 to 367 mm
PB-7
365 to 485 mm
PB-8
PB-9
452 to 605 mm

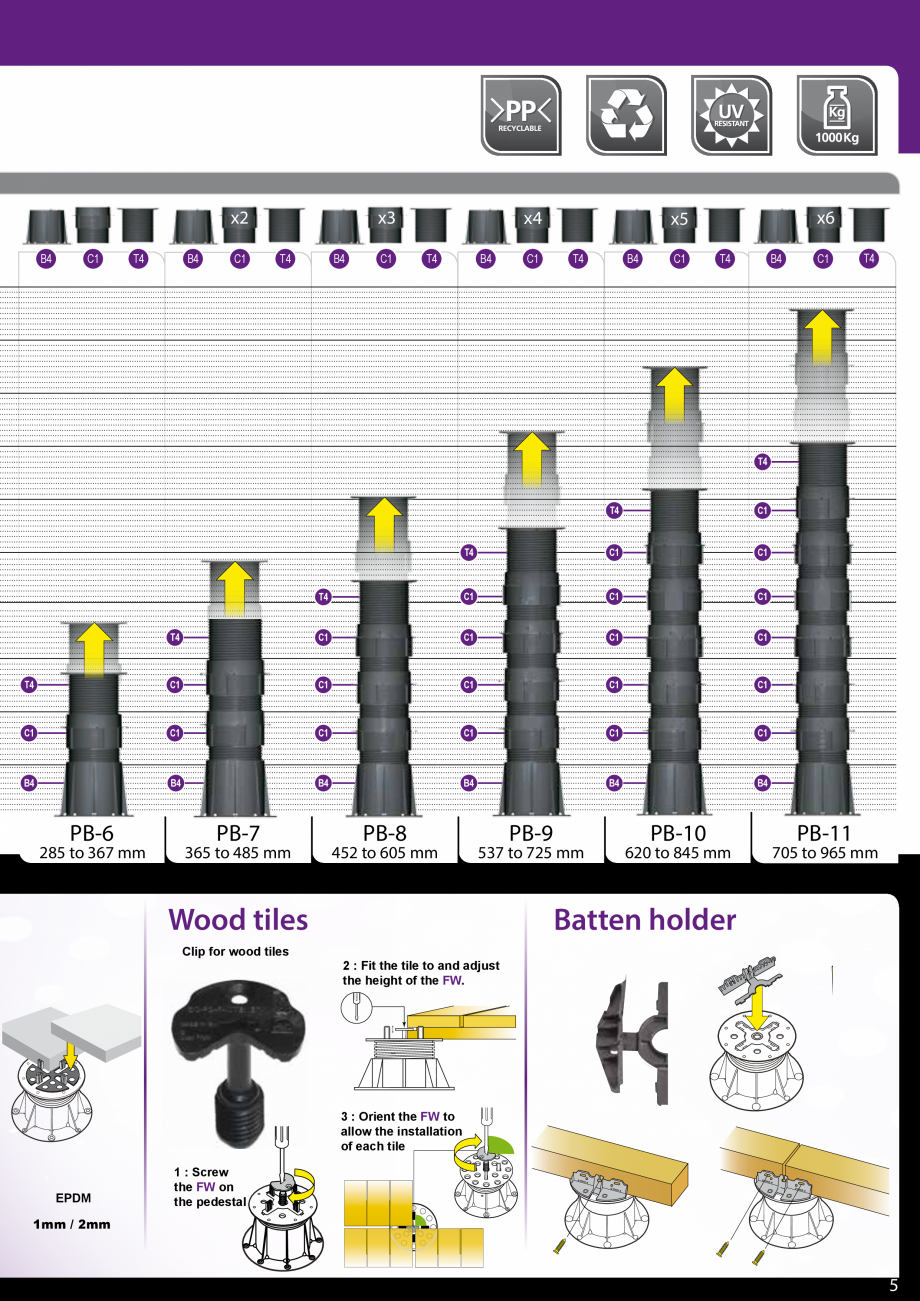

Wood tiles
Clip for wood tiles
PB-10
537 to 725 mm
620 to 845 mm
Batten holder
2 : Fit the tile to and adjust
the height of the FW.
Comment placer des lambourdes de dimensions différentes sur le
nouveau support de lambourde PB-CLIP-KIT-5 universel
Composition
Plots réglables PB-Series
1
Placez le CLIP-KIT-5 sur la tête du plot
m
125m
EPDM
PB-11
705 to 965 mm
Plot PB-series
Base + tête
Vis
PB-CLIP-KIT-5
2
Placez la lambourde sur la tête du plot
et fixez à l’endroit indiqué avec une vis
3 : Orient the FW to
allow the installation
of each tile
3
Placez les 2 sections de lambourd
sur la tête du plot et fixez à l’endr
indiqué avec deux vis
1 : Screw
Clac
the FW
on
the pedestal
1mm / 2mm
Vissez
NB: Le support de lambourde PB-CLIP-KIT-5 d’une longueur de 125mm est pourvu de trois trous permettant
la fixation d’une lambourde (trou central) ou de deux sections de lambourdes (trous latéraux)
5

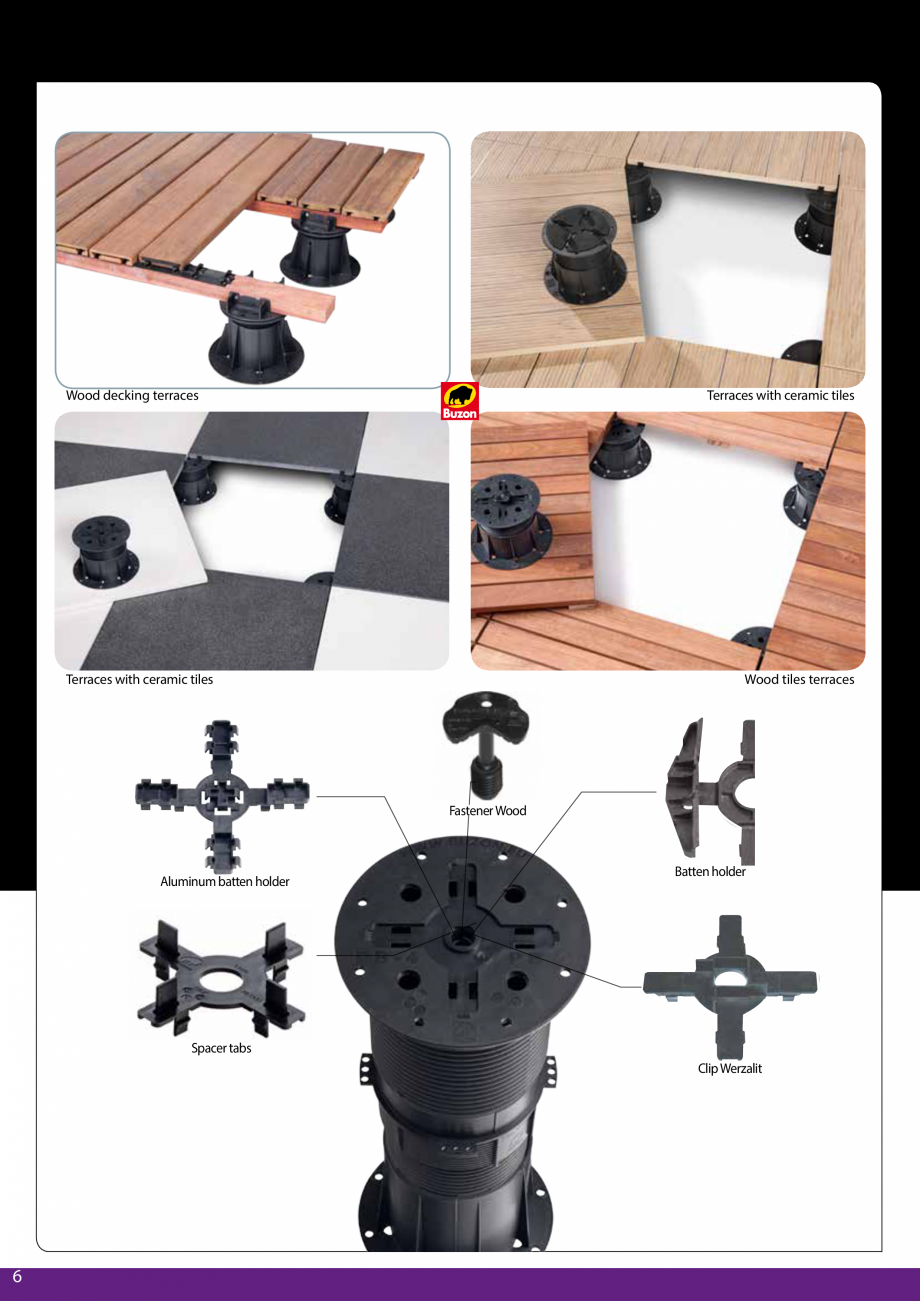

Wood decking terraces
Terraces with ceramic tiles
Terra
ces with ceramic tiles
Wood tiles terraces
Fastener Wood
Aluminum batten holder
Batten holder
Spacer tabs
Clip Werzalit
6

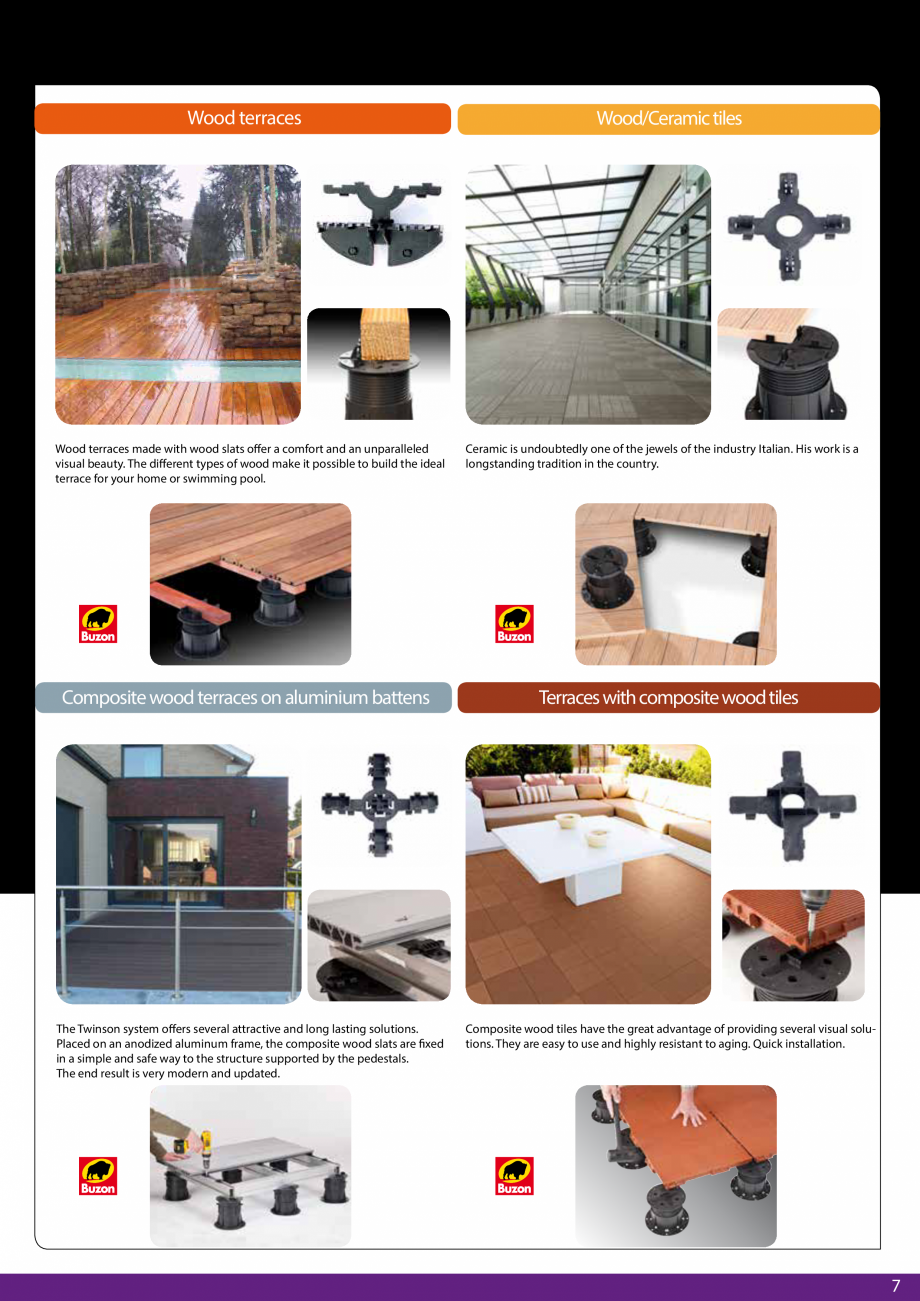

Wood terraces
Wood terraces made with wood slats offer a comfort and an unparalleled
visual beauty. The different types of wood make it possible to build the ideal
terrace for your home or swimming pool.
Composite wood terraces on aluminium battens
The Twinson system offers several attractive and long lasting solutions.
Placed on an anodized aluminum frame, the composite wood slats are fixed
in a simple and safe way to the structure supported by the pedestals.
The end result is very modern and updated.
Wood/Ceramic tiles
Ceramic is undoubtedly one of the jewels of the industry Italian. His work is a
longstanding tradition in the country.
Terraces with composite wood tiles
Composite wood tiles have the great advantage of providing several visual solutions. They are easy to use and highly resistant to aging. Quick installation.
7

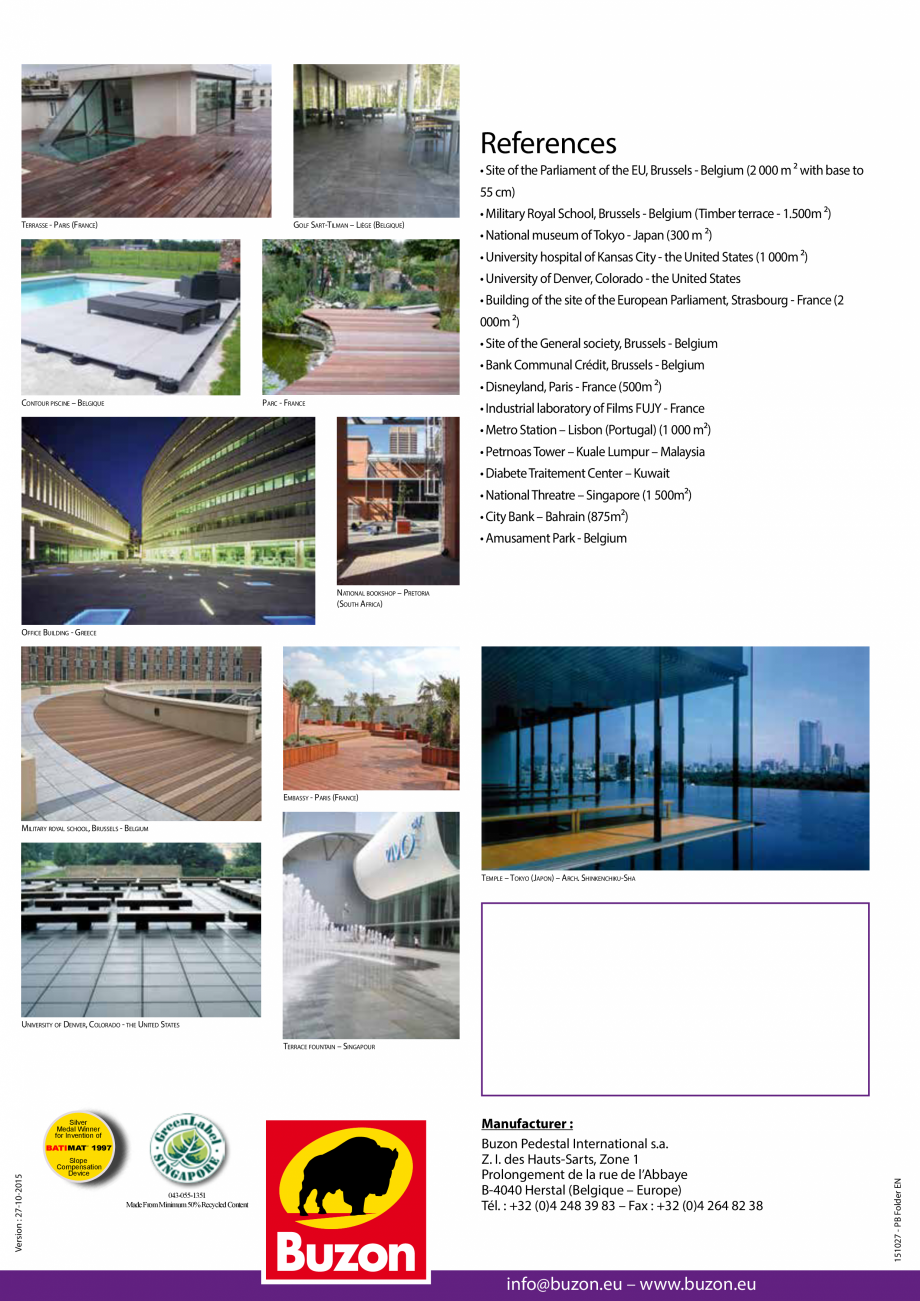

References
• Site
of the Parliament of the EU, Brussels - Belgium (2 000 m ² with base to
55 cm)
Terrasse - Paris (France)
Golf Sart-Tilman – Liège (Belgique)
• Military Royal School, Brussels - Belgium (Timber terrace - 1.500m ²)
• National museum of Tokyo - Japan (300 m ²)
• University hospital of Kansas City - the United States (1 000m ²)
• University of Denver, Colorado - the United States
• Building of the site of the European Parliament, Strasbourg - France (2
000m ²)
• Site of the General society, Brussels - Belgium
• Bank Communal Crédit, Brussels - Belgium
• Disneyland, Paris - France (500m ²)
Contour piscine – Belgique
Parc - France
• Industrial laboratory of Films FUJY - France
• Metro Station – Lisbon (Portugal) (1 000 m²)
• Petrnoas Tower – Kuale Lumpur – Malaysia
• Diabete Traitement Center – Kuwait
• National Threatre – Singapore (1 500m²)
• City Bank – Bahrain (875m²)
• Amusament Park - Belgium
National bookshop – Pretoria
(South Africa)
Office Building - Greece
Embassy - Paris (France)
Military royal school, Brussels - Belgium
Temple – Tokyo (Japon) – Arch. Shinkenchiku-Sha
University of Denver, Colorado - the United States
Silver
Medal Winner
for Invention of
BATIMAT 1997
Version : 27-10-2015
©
Slope
Compensation
Device
043-055-1351
Made From Minimum 50% Recycled Content
Manufacturer :
Buzon Pedestal International s.a.
Z. I. des Hauts-Sarts, Zone 1
Prolongement de la rue de l’Abbaye
B-4040 Herstal (Belgique – Europe)
Tél. : +32 (0)4 248 39 83 – Fax : +32 (0)4 264 82 38
info@buzon.eu – www.buzon.eu
151027 - PB Folder EN
Terrace fountain – Singapour
