DRINKING
WATER
FILTRATION AND
TREATMENT
SYSTEMS

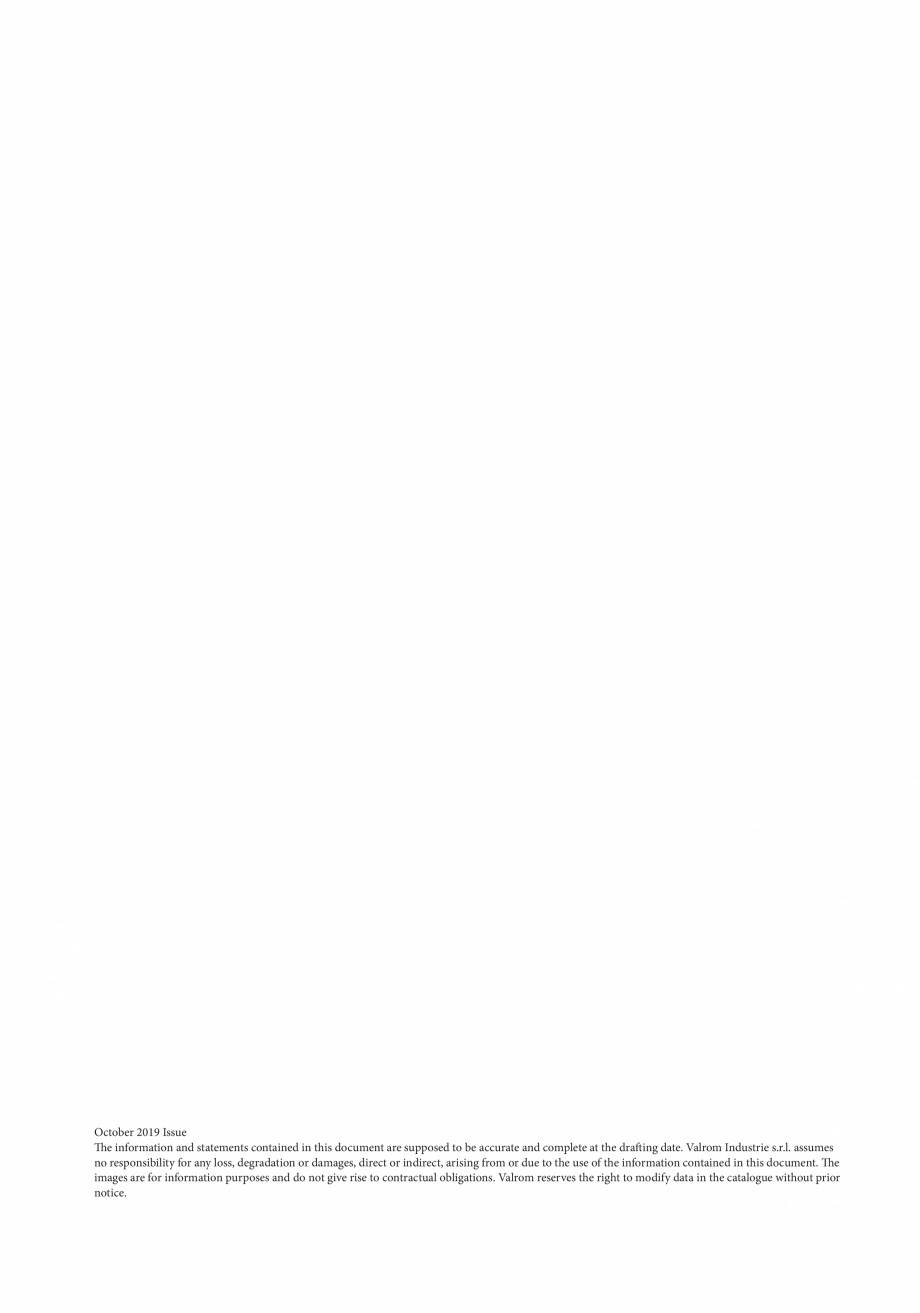

October 2019 Issue
The information and statements contained in this document are supposed to be accurate and complete at the drafting date. Valrom Industrie s.r.l. assumes
no responsibility for any loss, degradation or damages, direct or indirect, arising from or due to the use of the information contained in this document. The
images are for information purposes and do not give rise to contractual obligations. Valrom reserves the right to modify data in the catalogue without prior
notice.
pag.

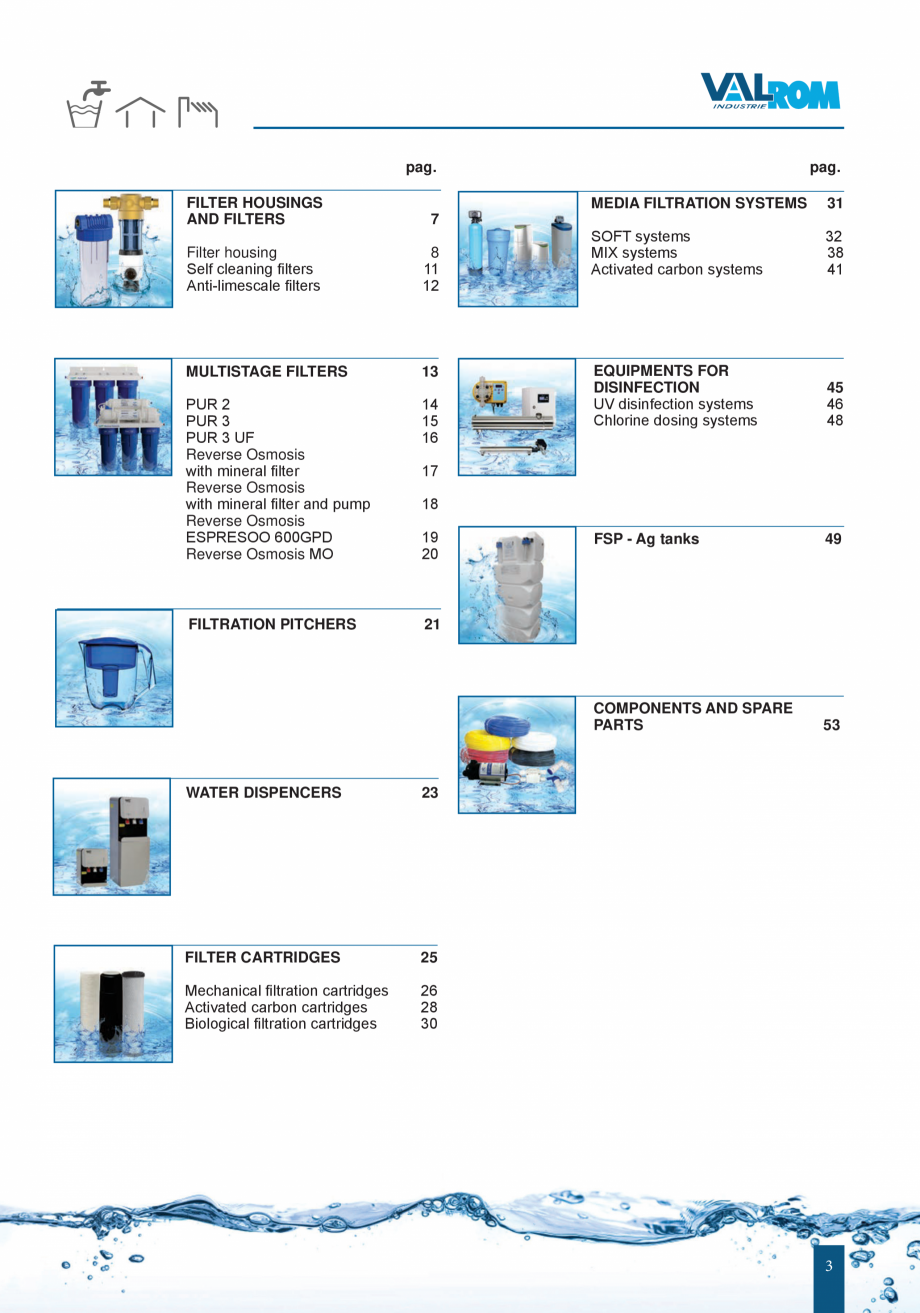

FILTER HOUSINGS
AND FILTERS
7
Filter housing

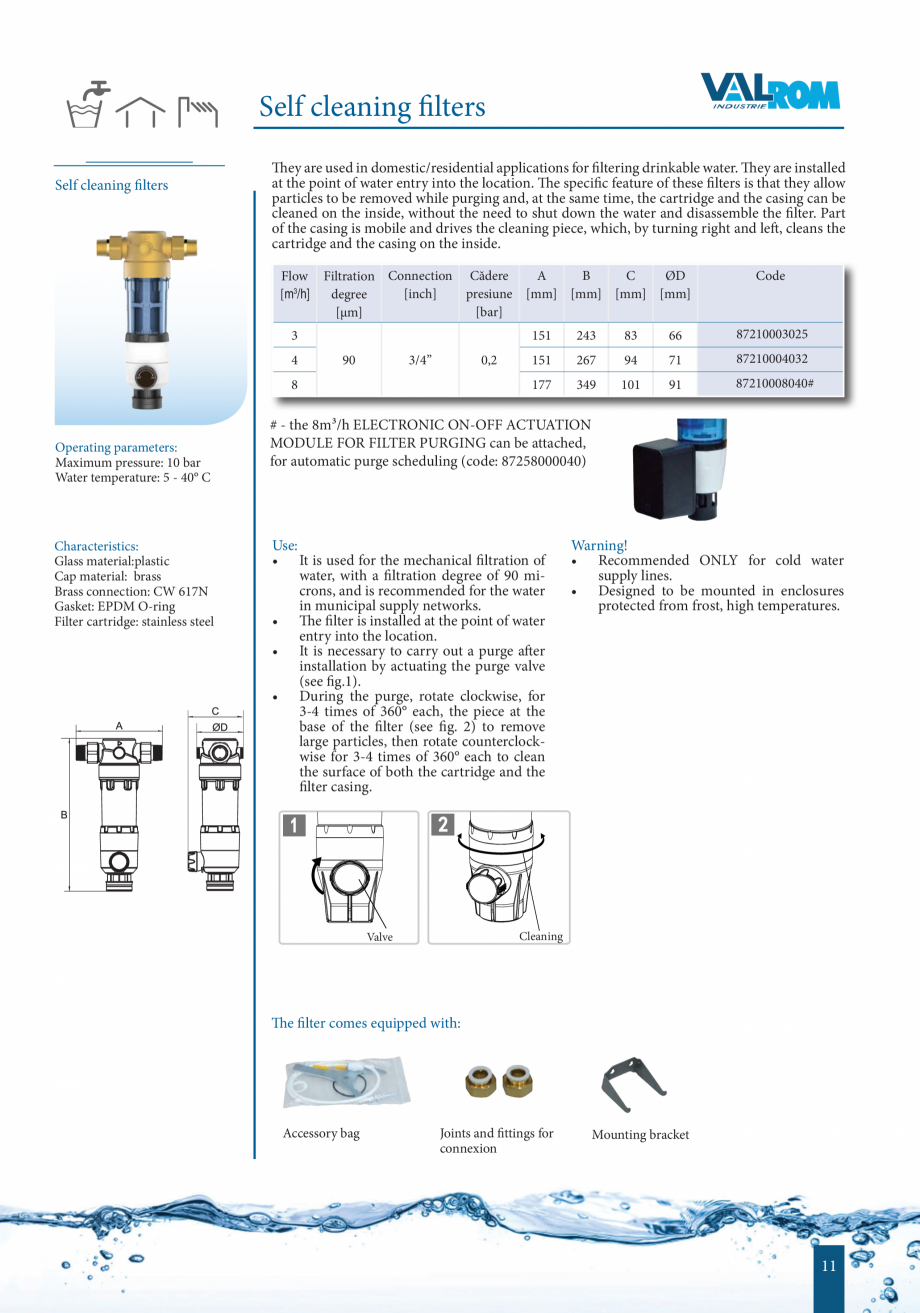

Self cleaning filters

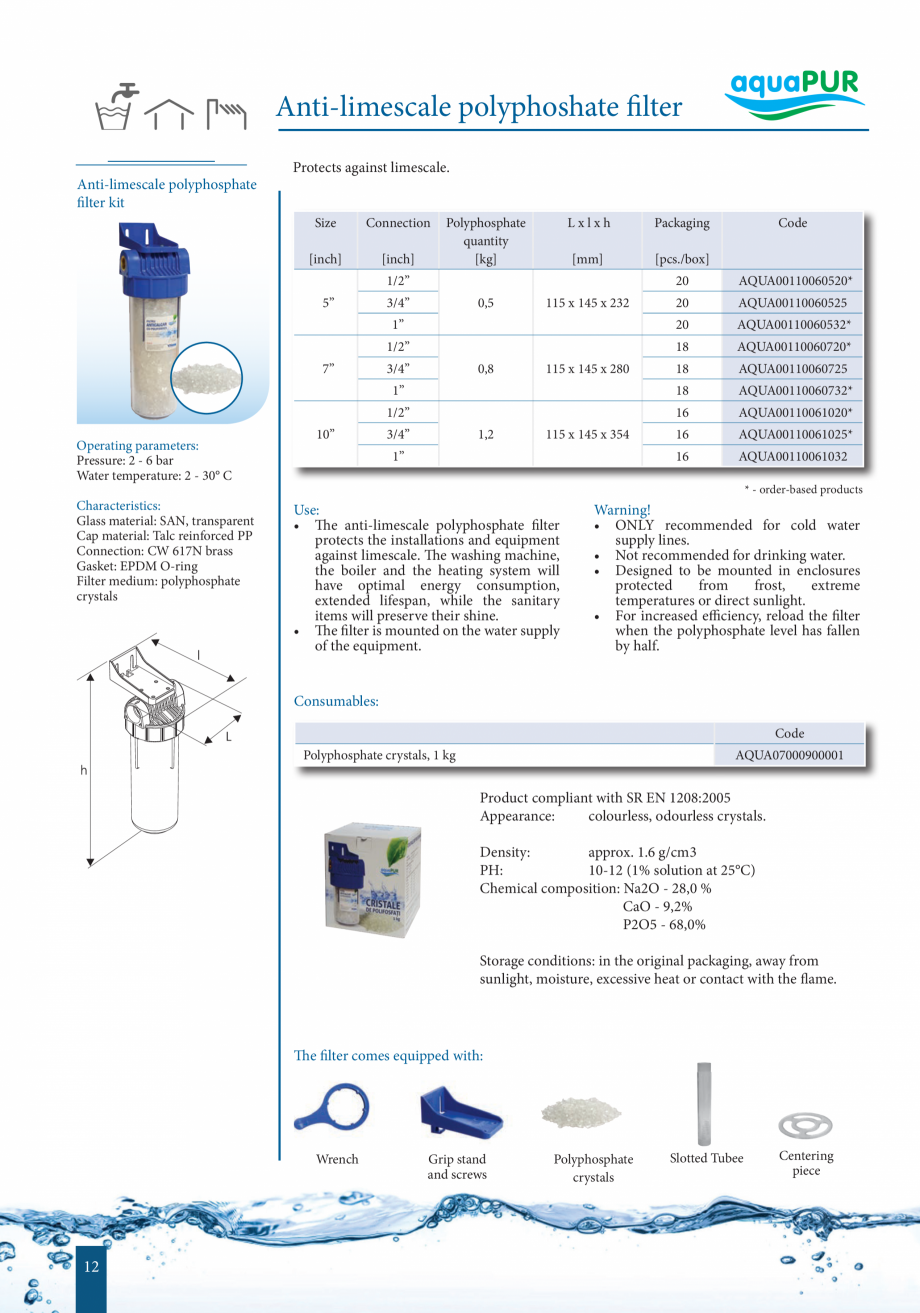

Anti-limescale filters
8
11
12

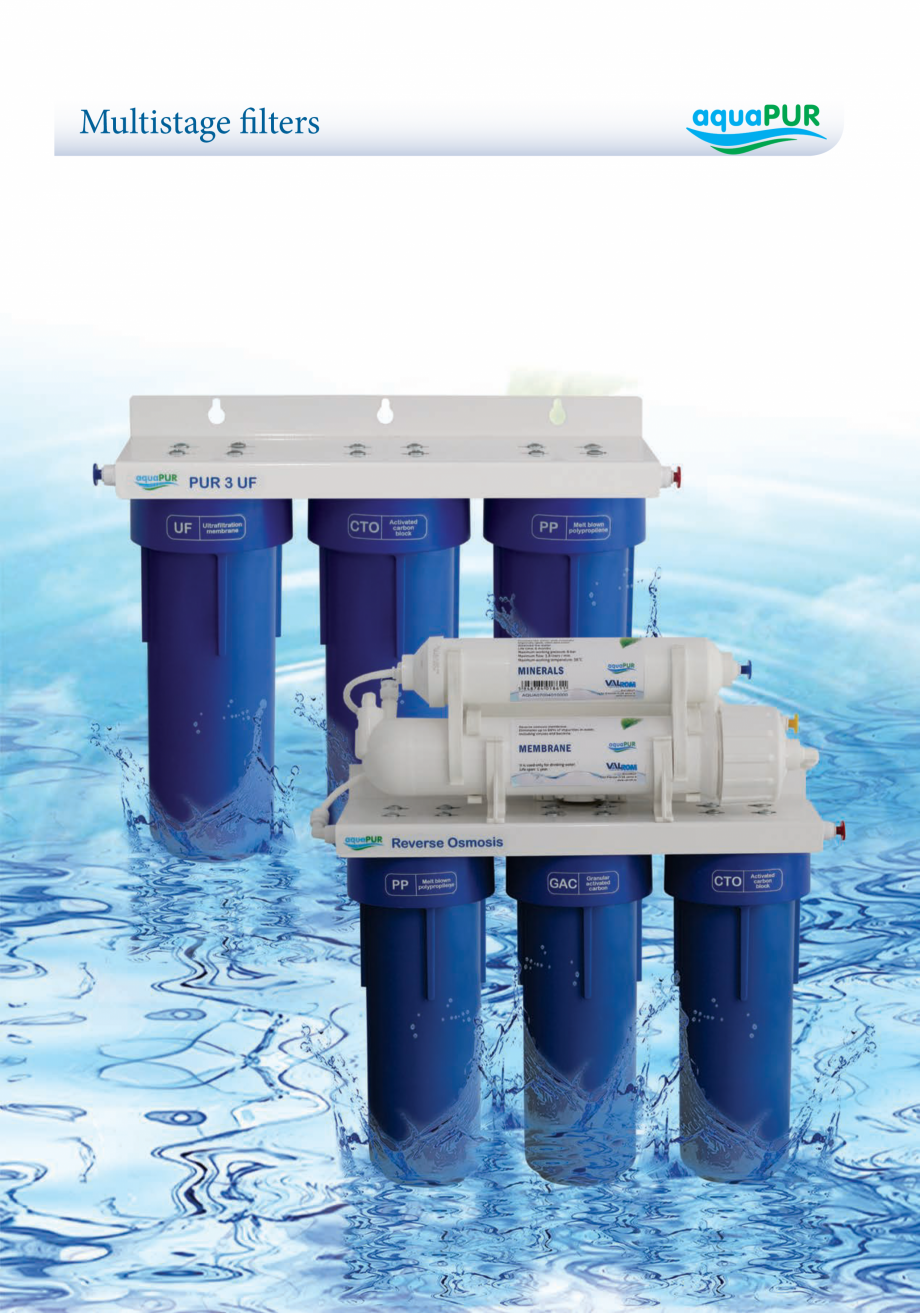

MULTISTAGE FILTERS
13

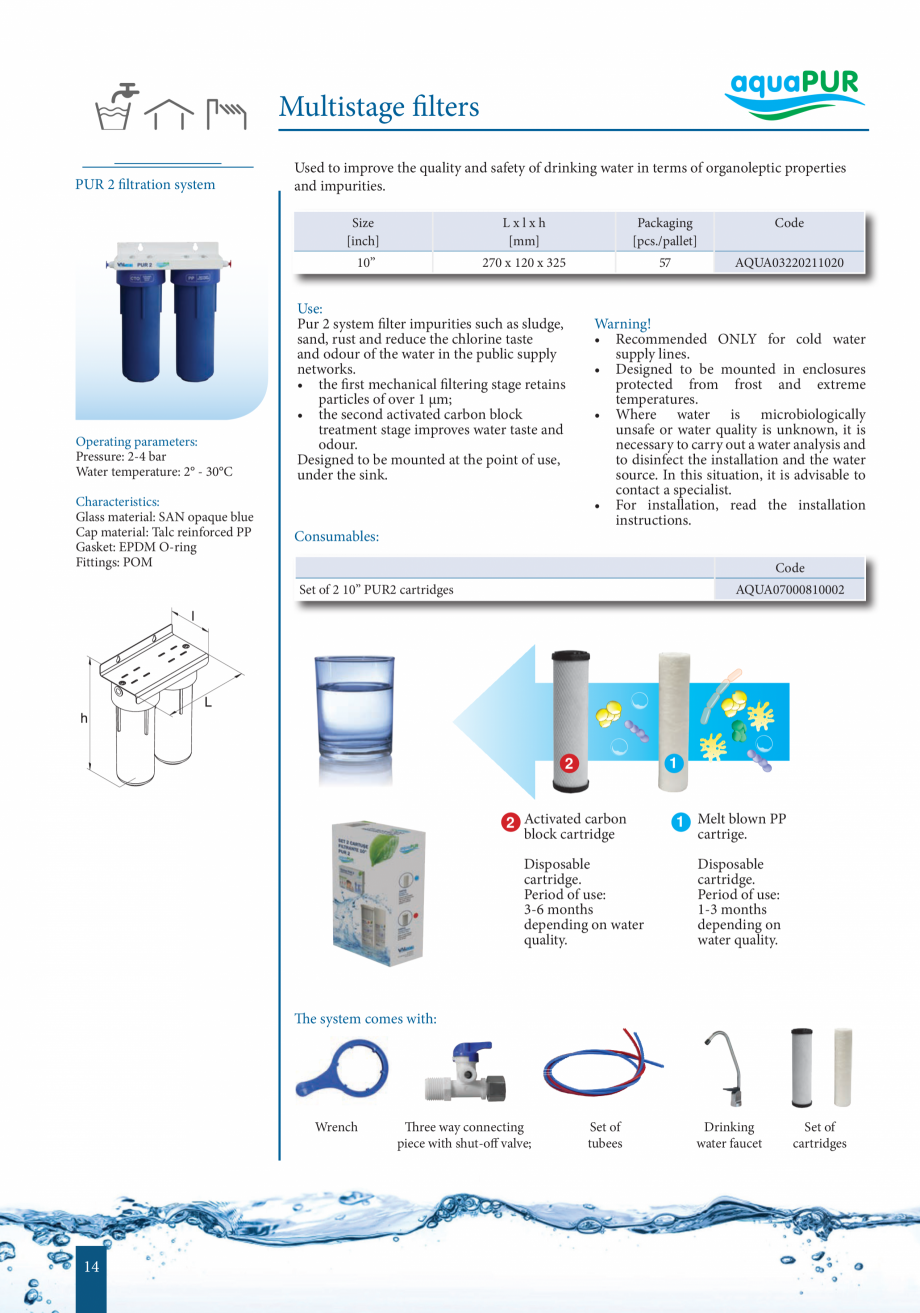

PUR 2

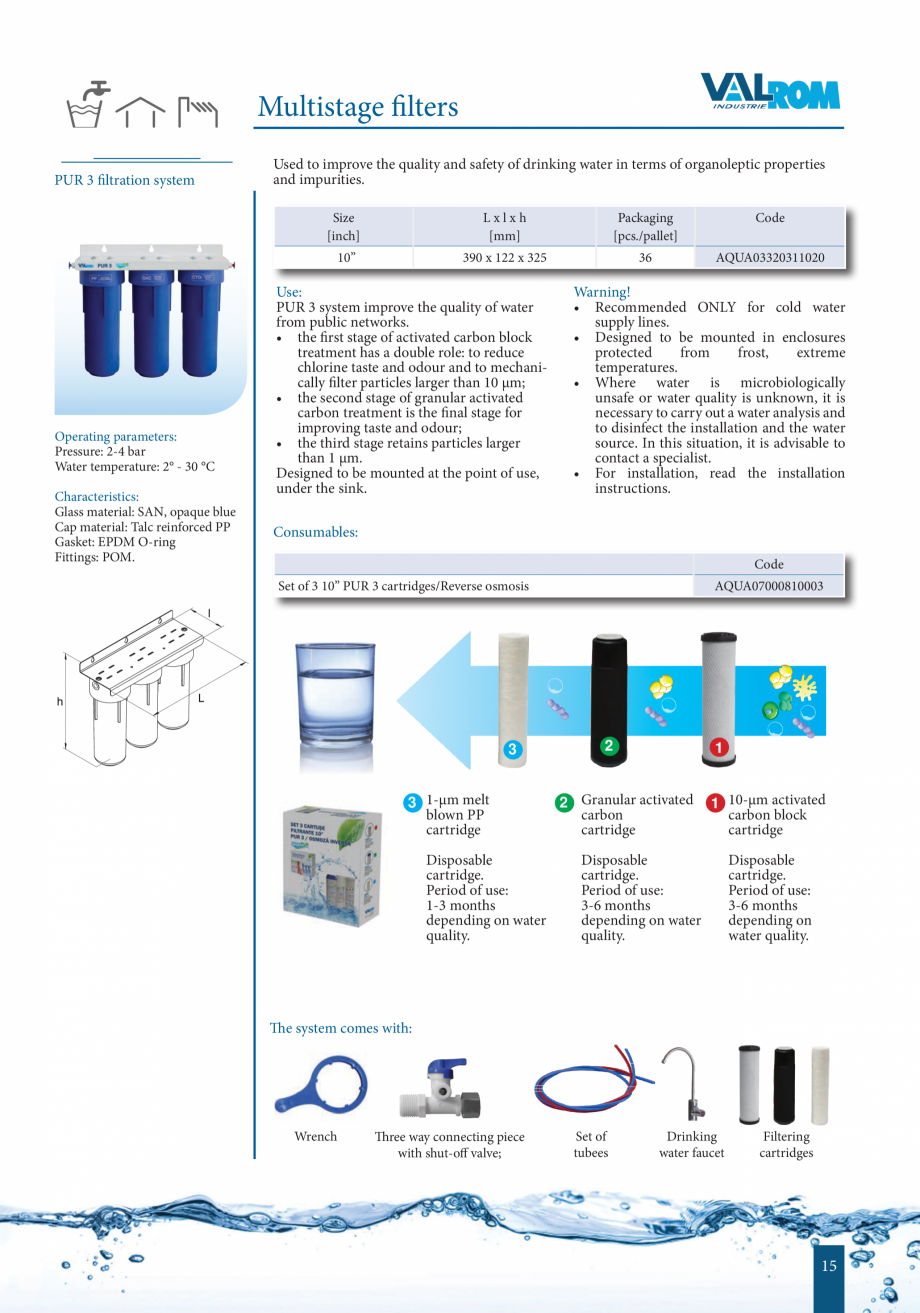

PUR 3

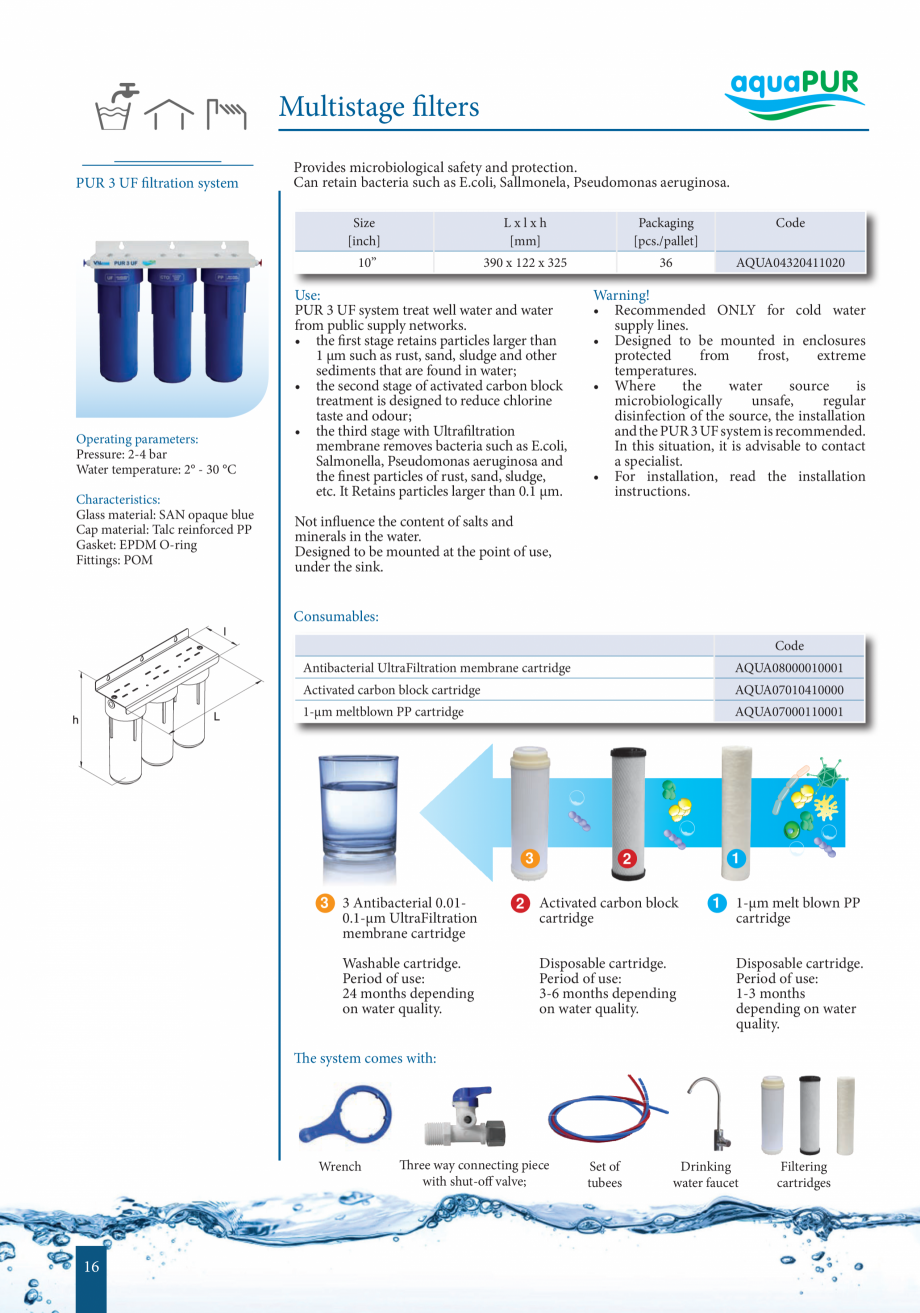

PUR 3 UF

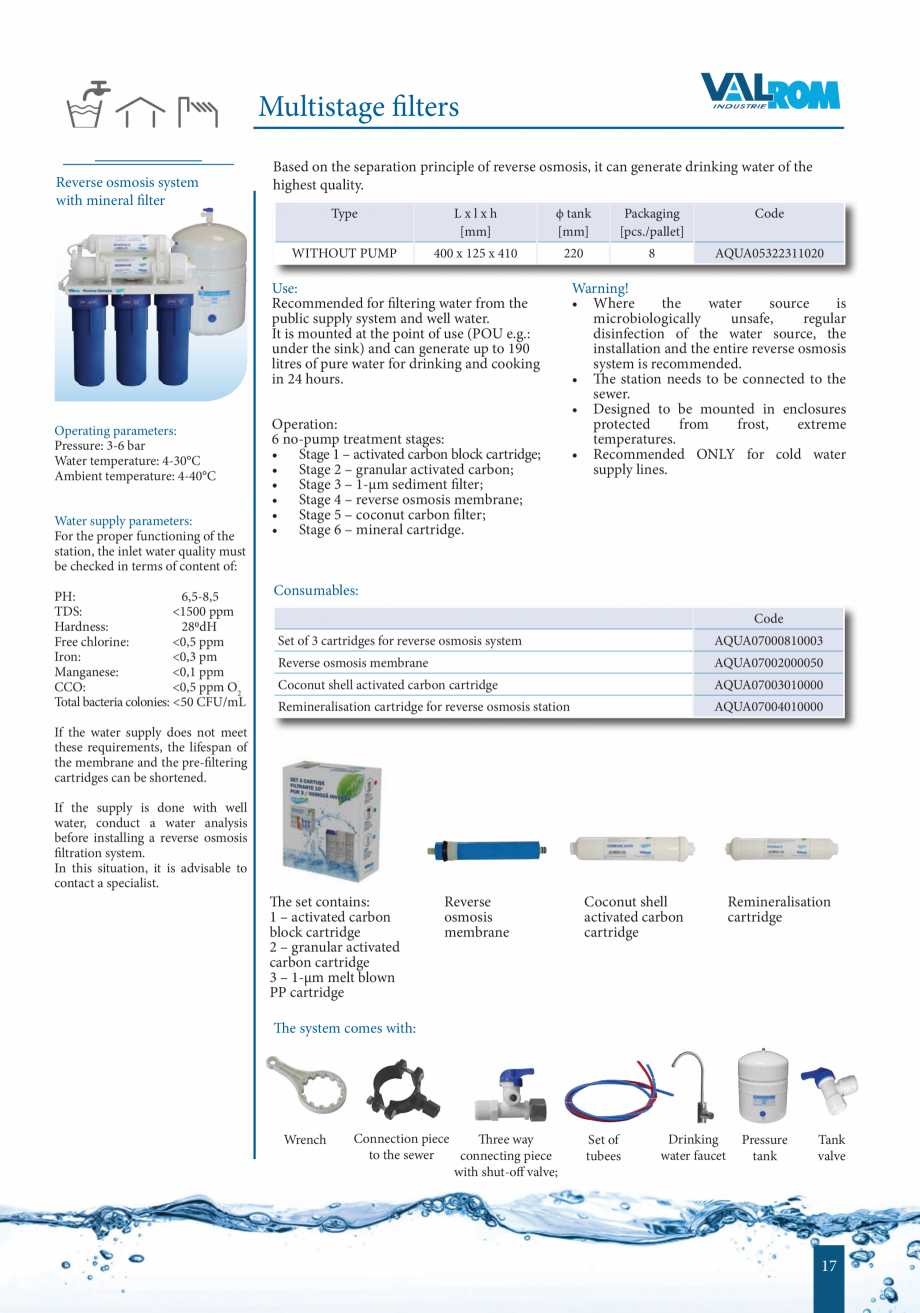

Reverse Osmosis
with mineral filter

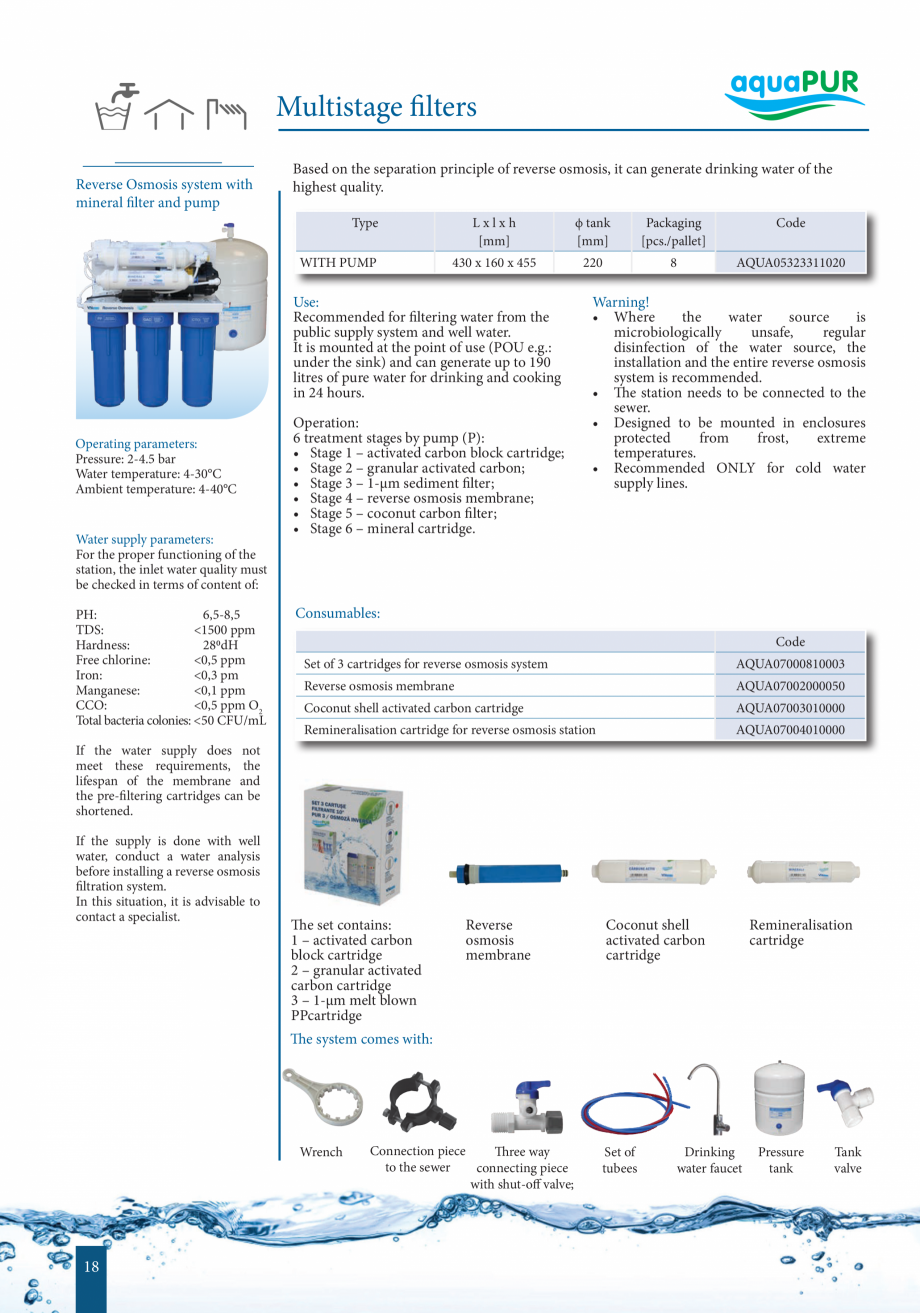

Reverse Osmosis
with mineral filter and pump
Reverse Osmosis

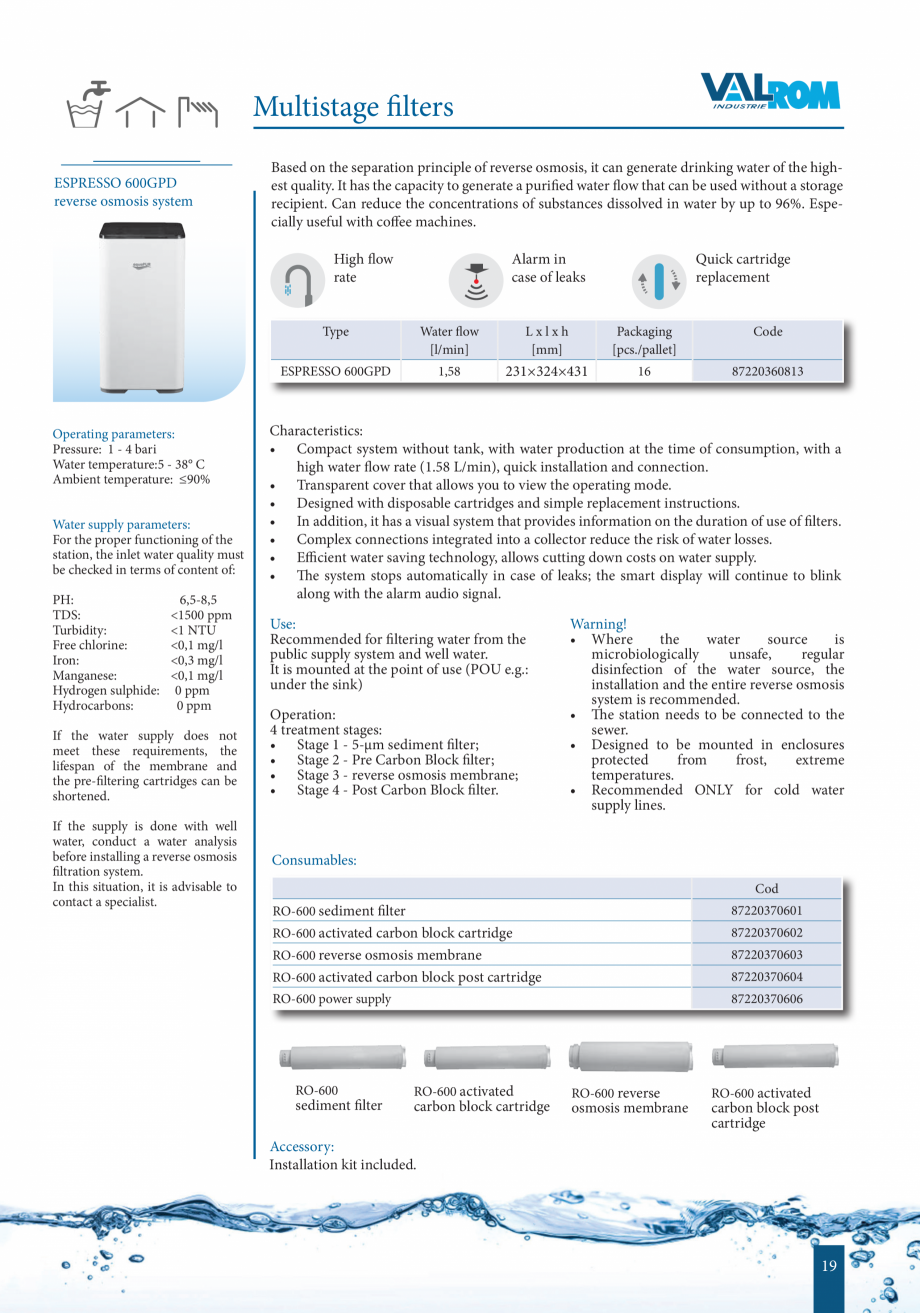

ESPRESOO 600GPD

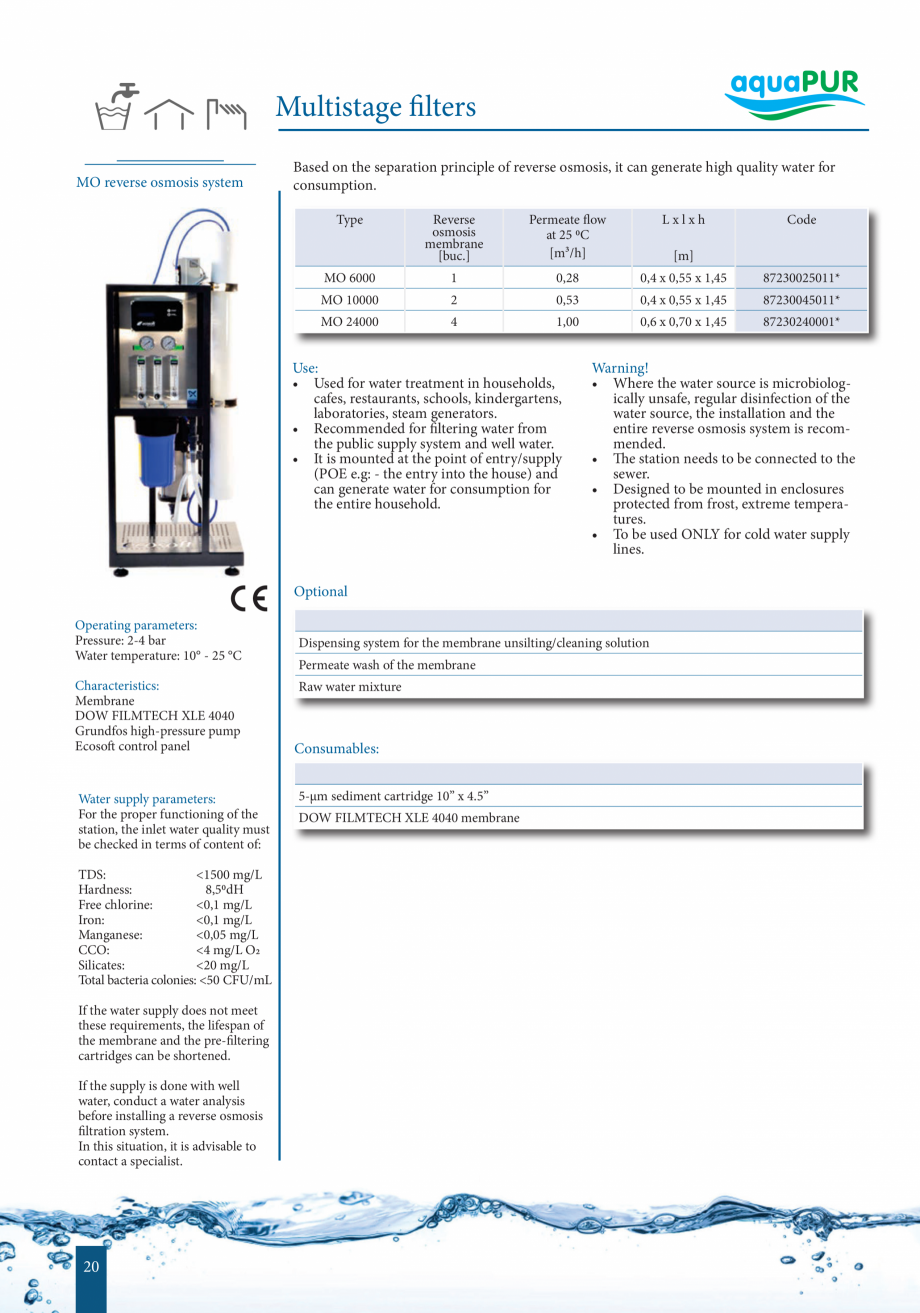

Reverse Osmosis MO
14
15
16

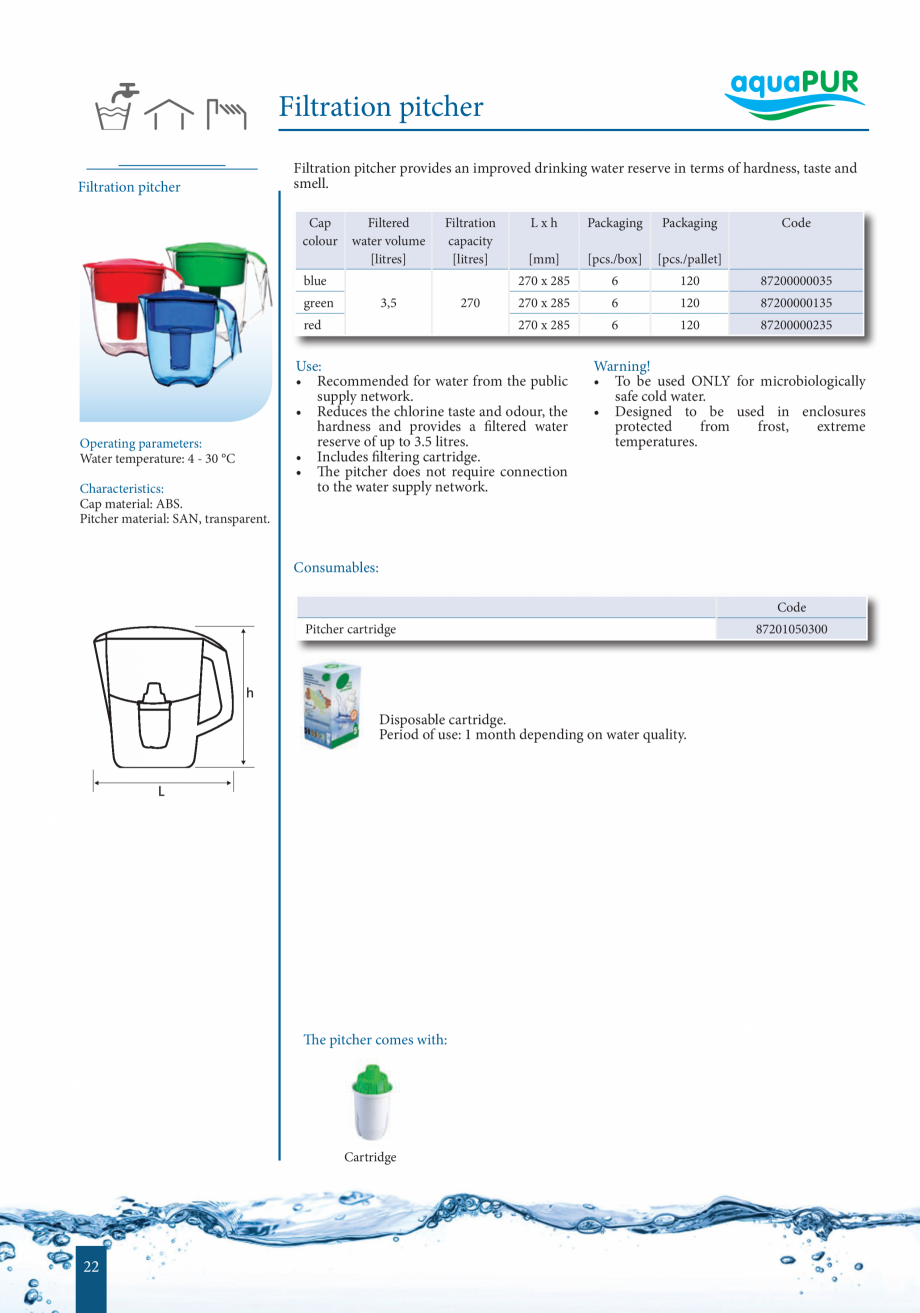

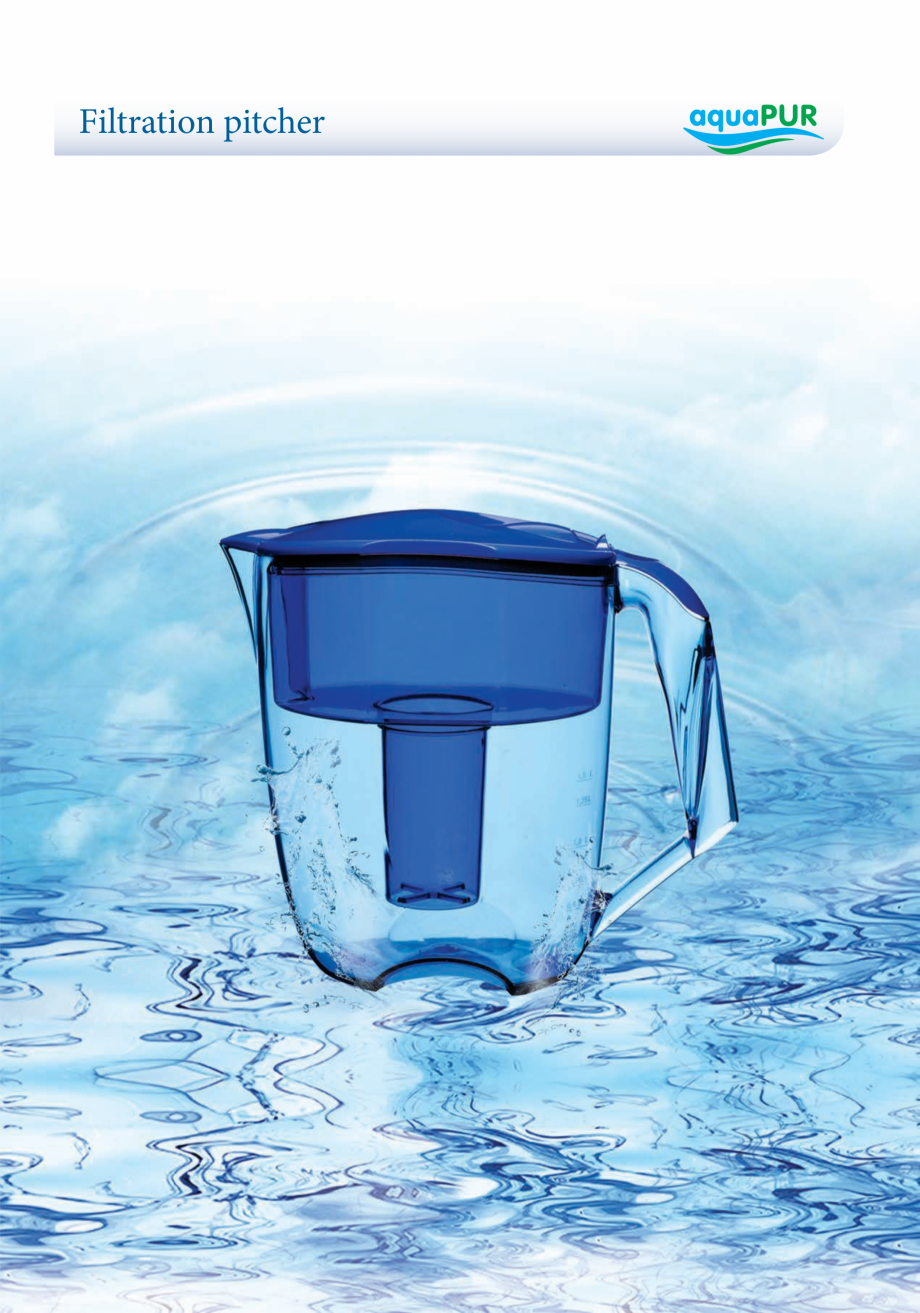

FILTRATION PITCHERS
21
pag.

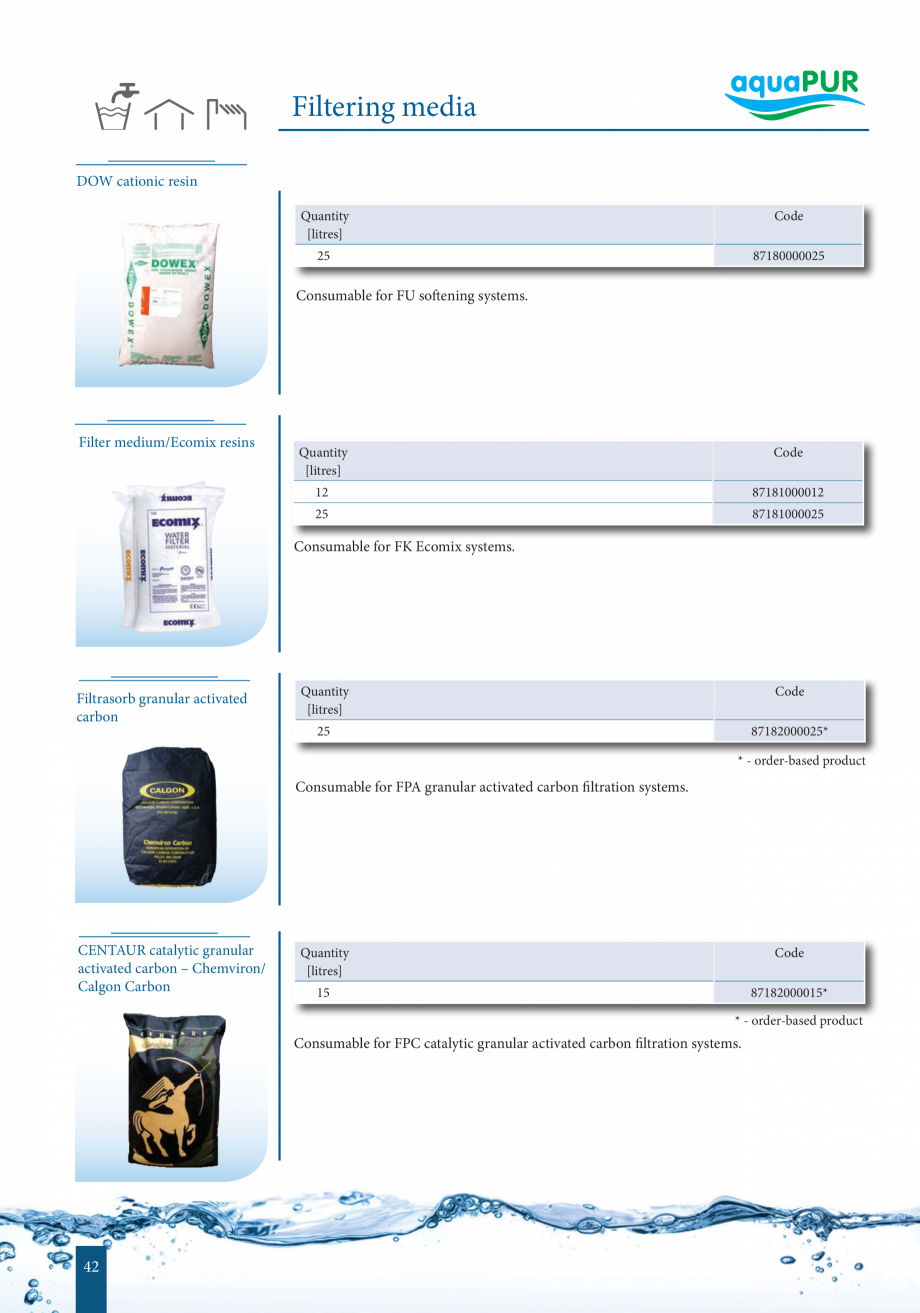

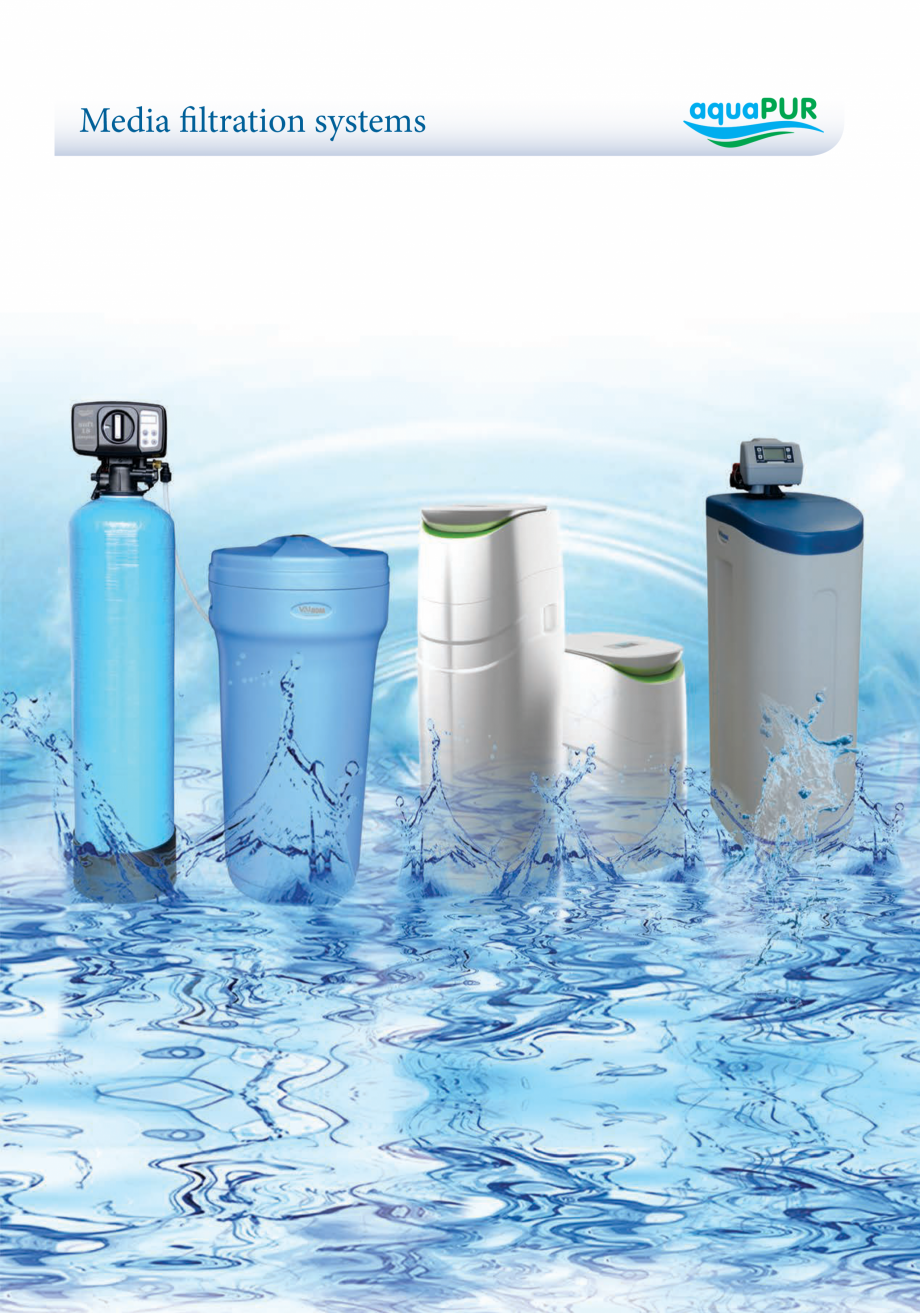

MEDIA FILTRATION SYSTEMS
31

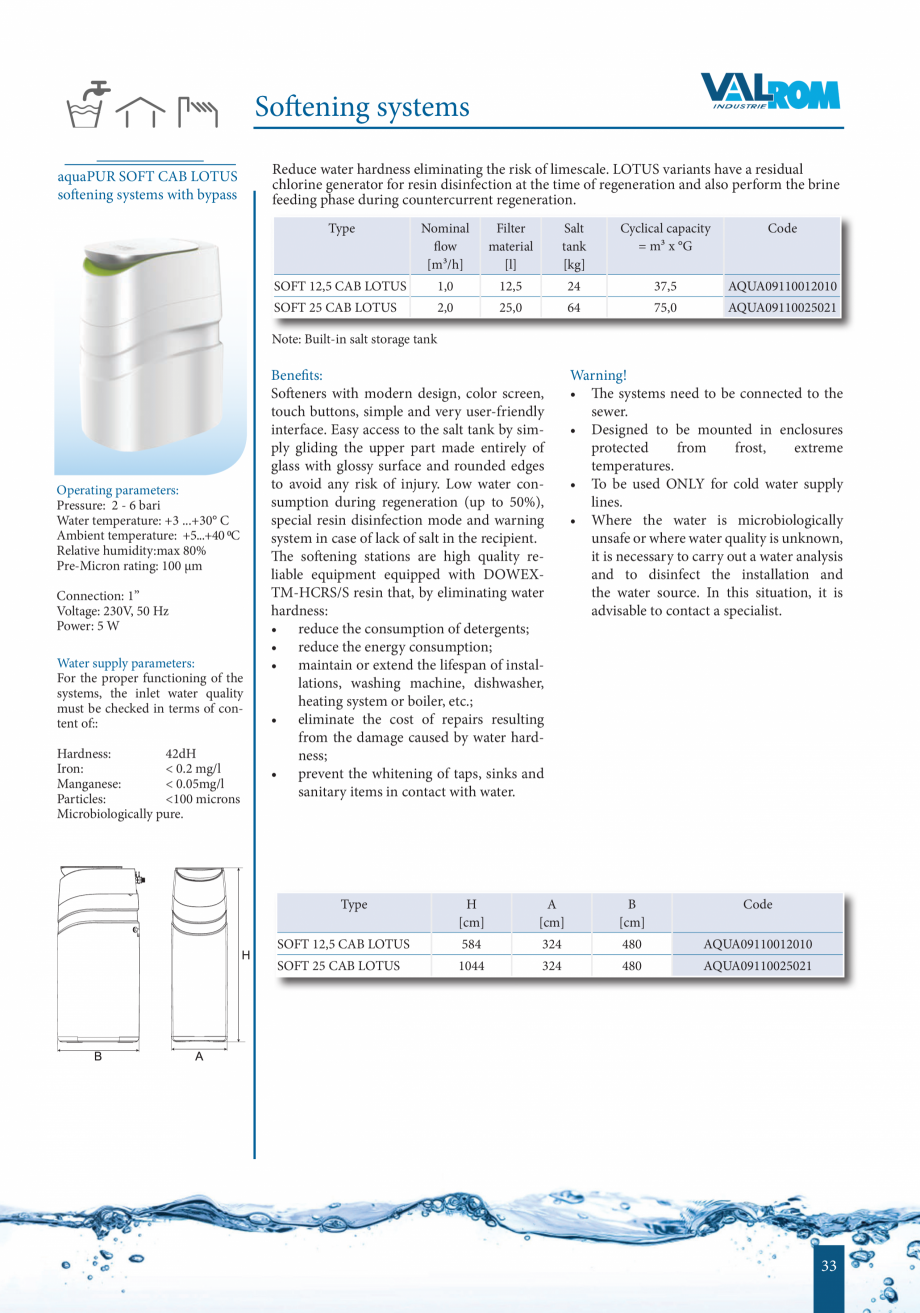

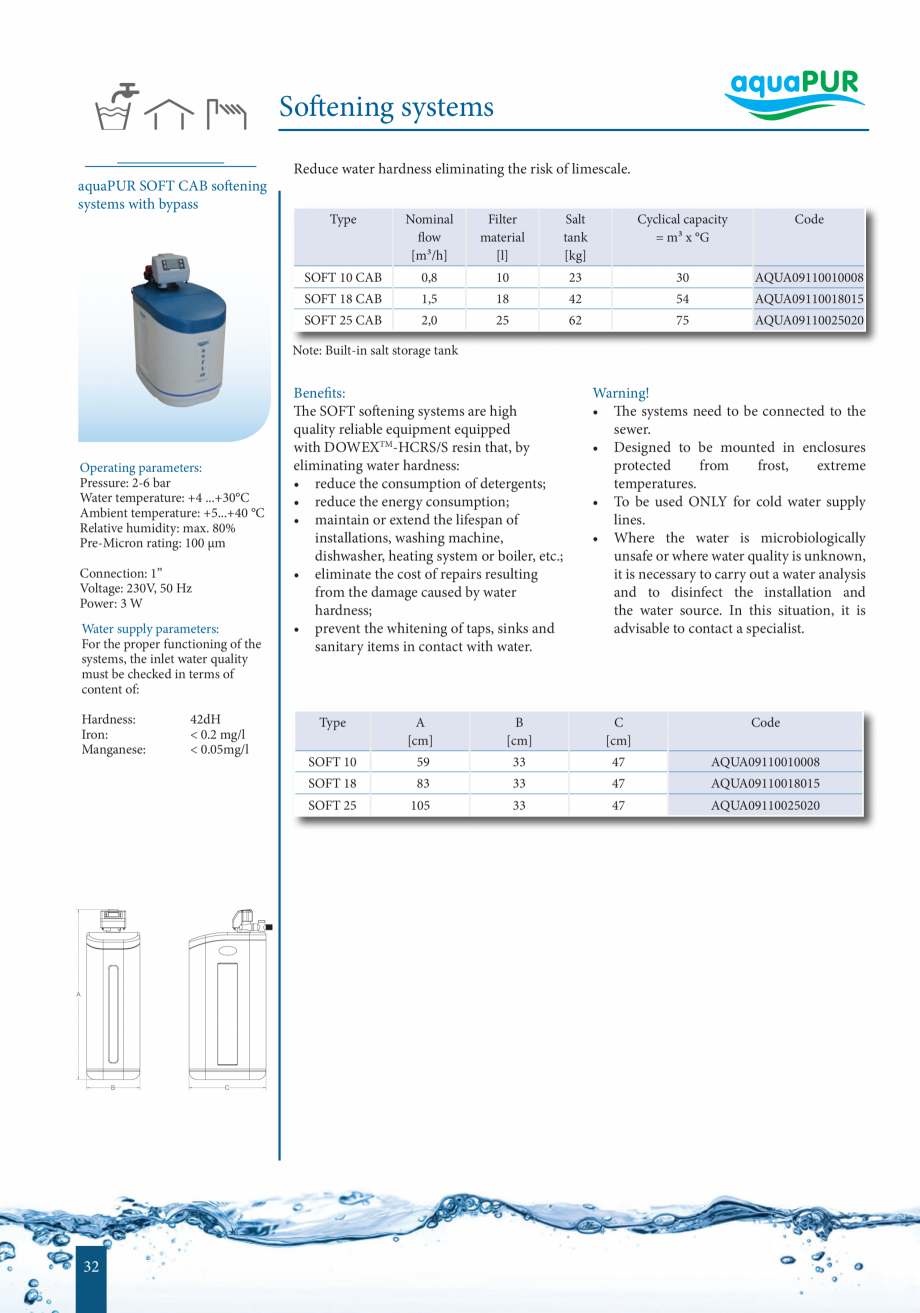

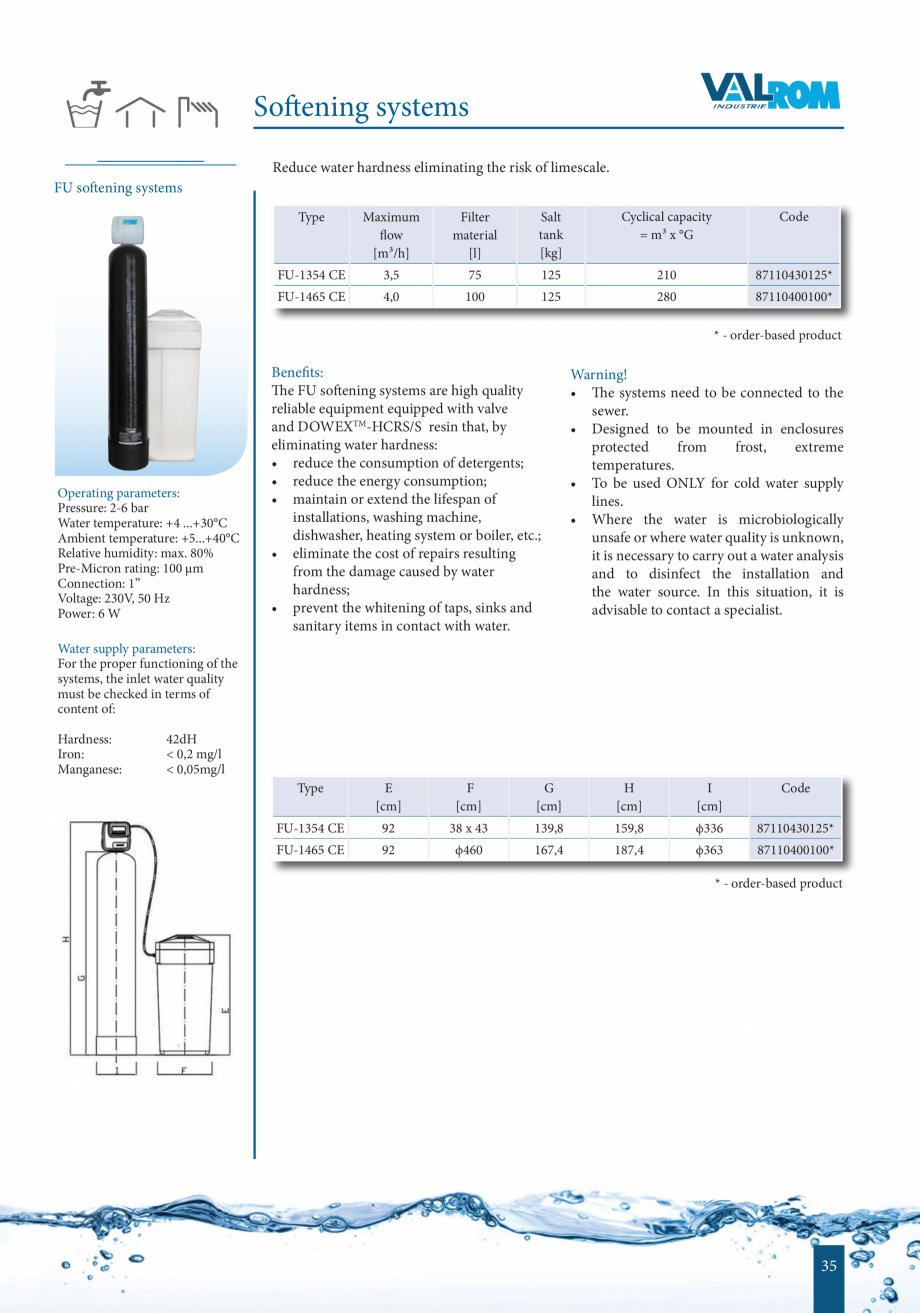

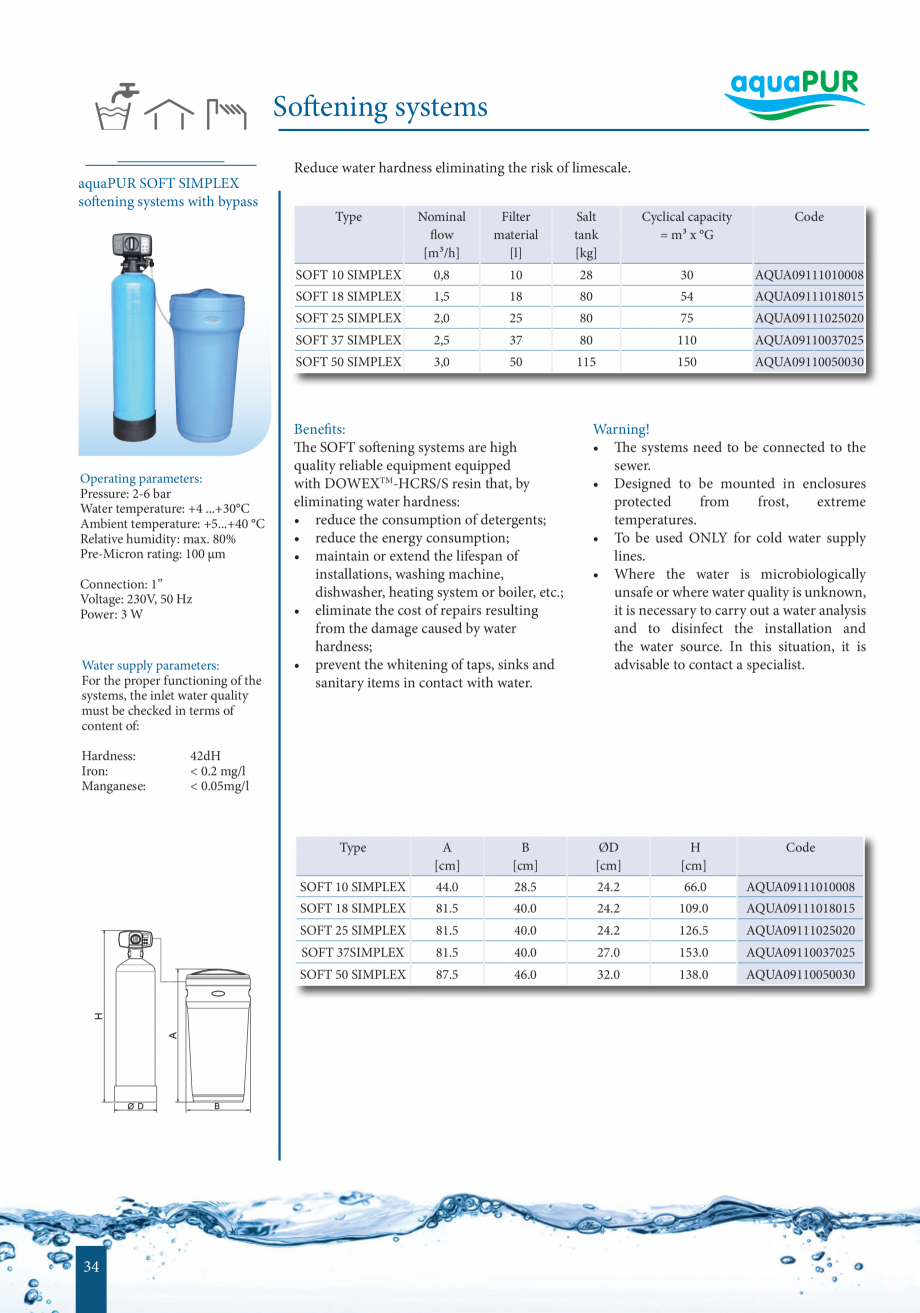

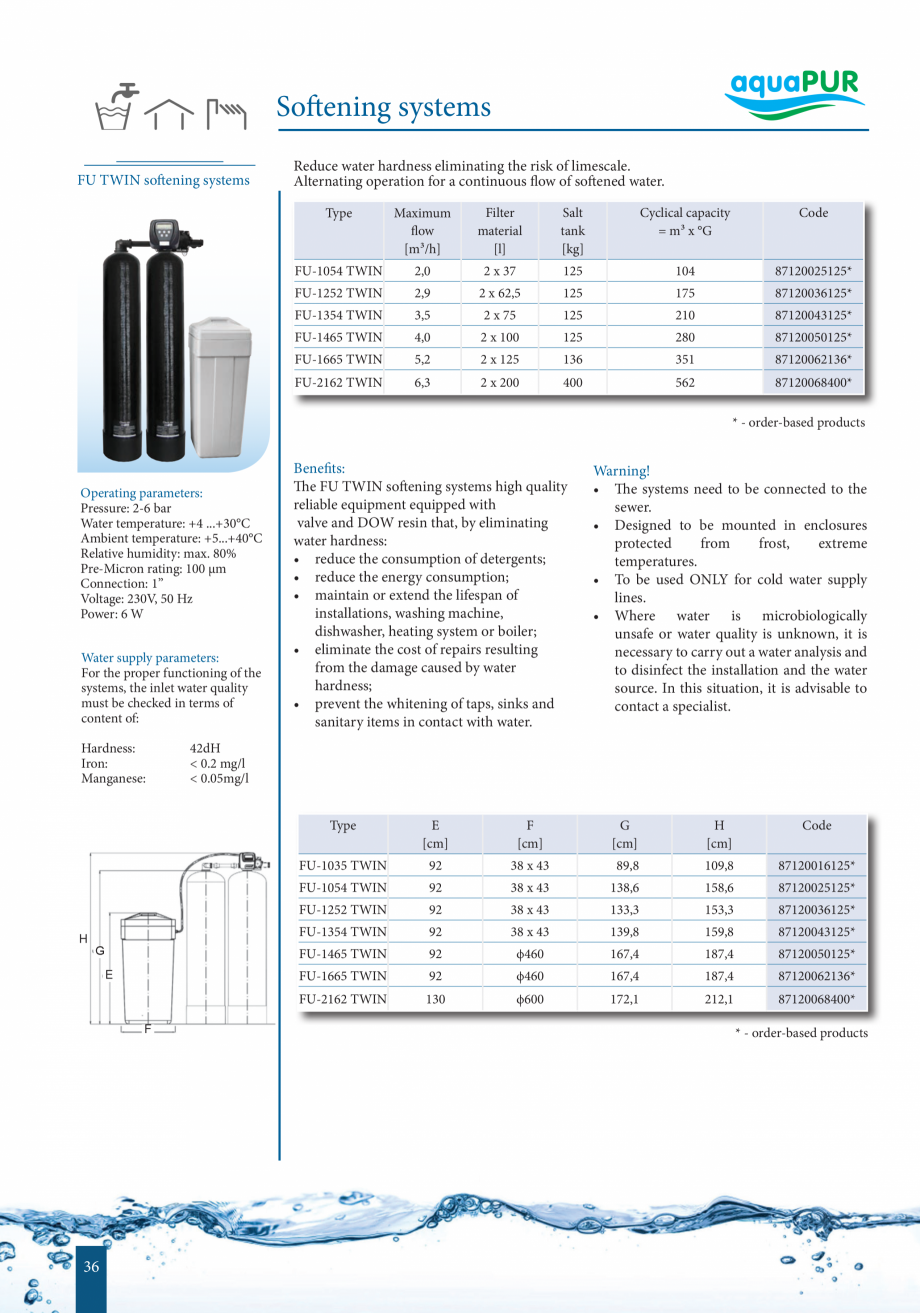

SOFT systems

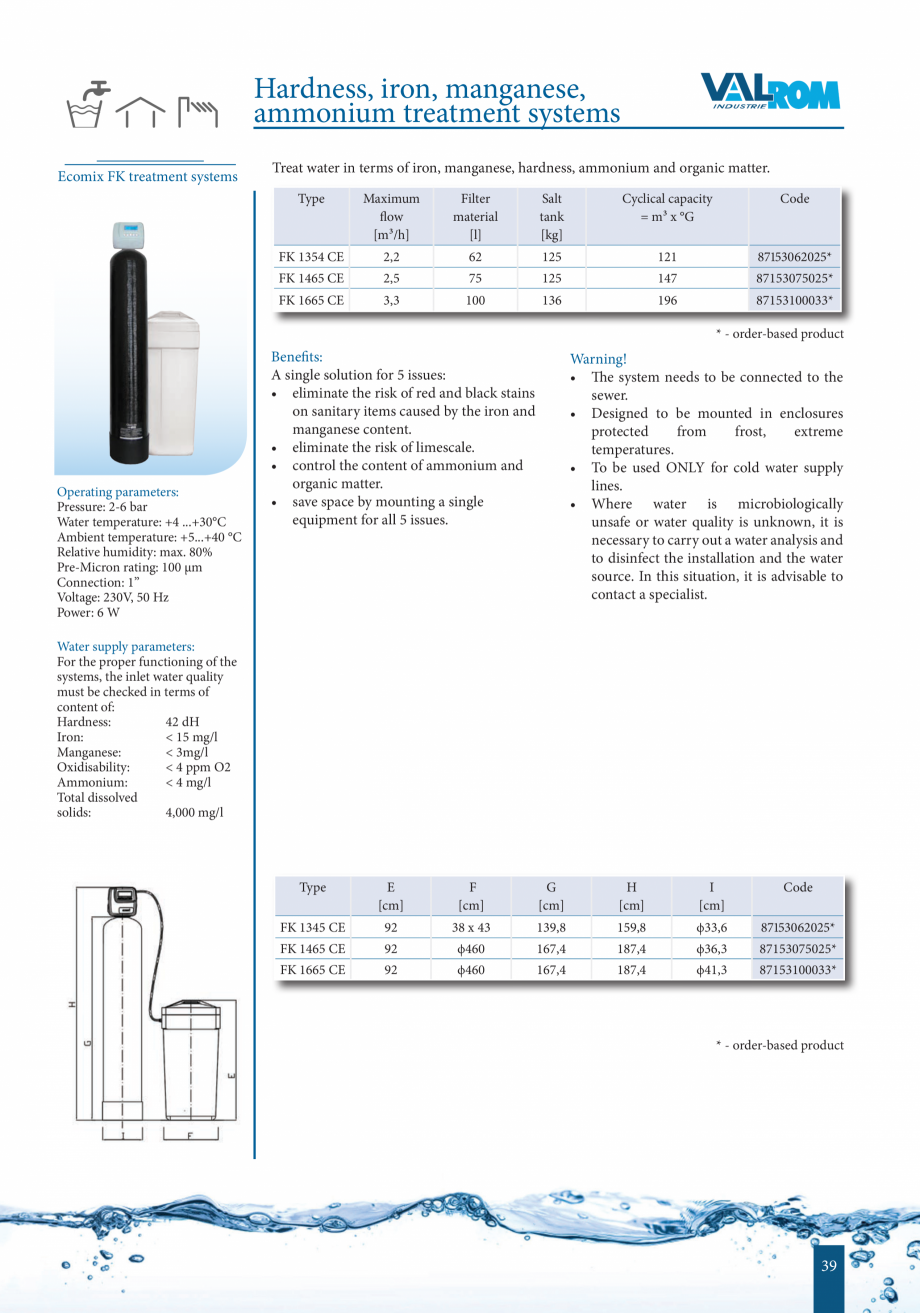

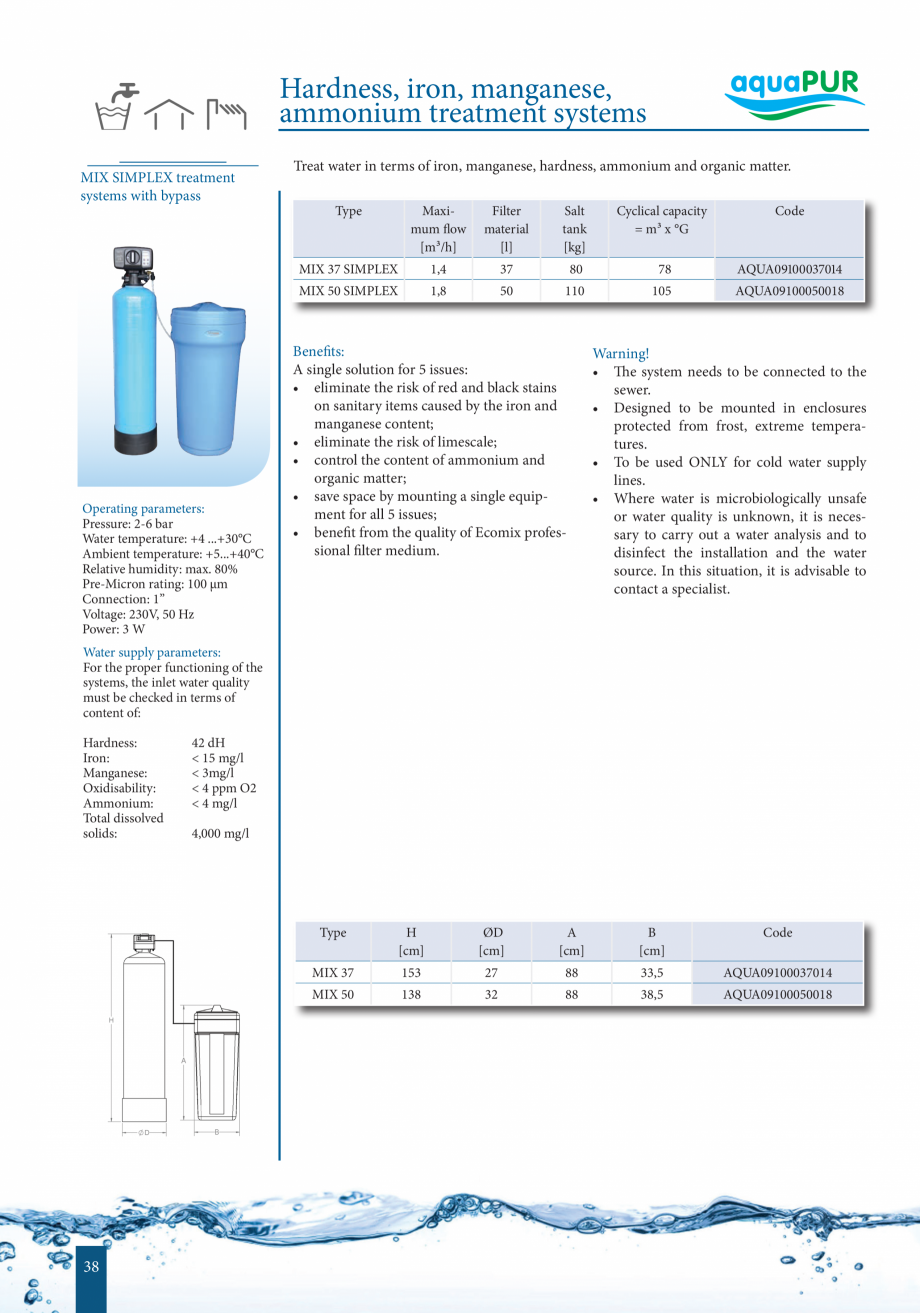

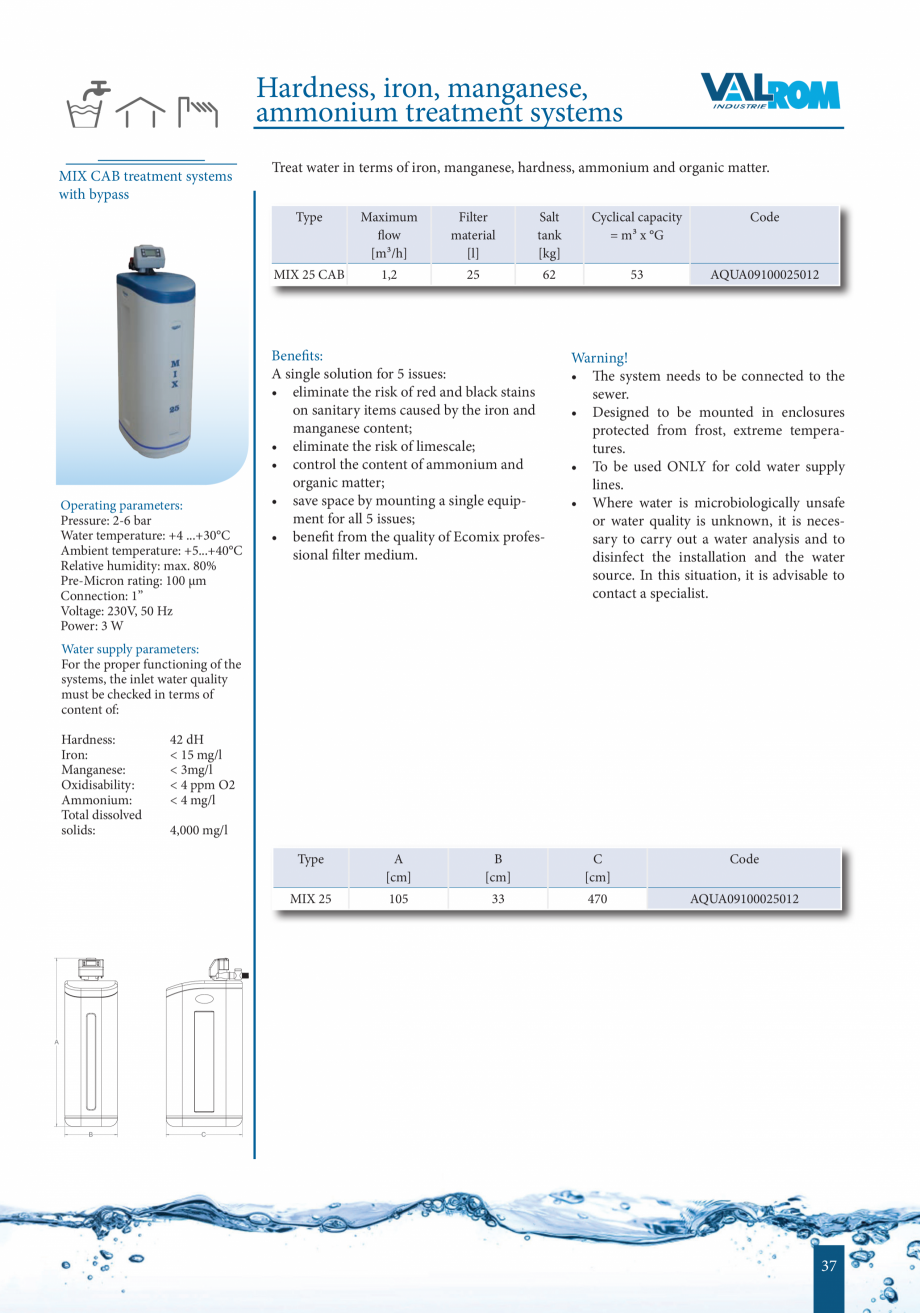

MIX systems

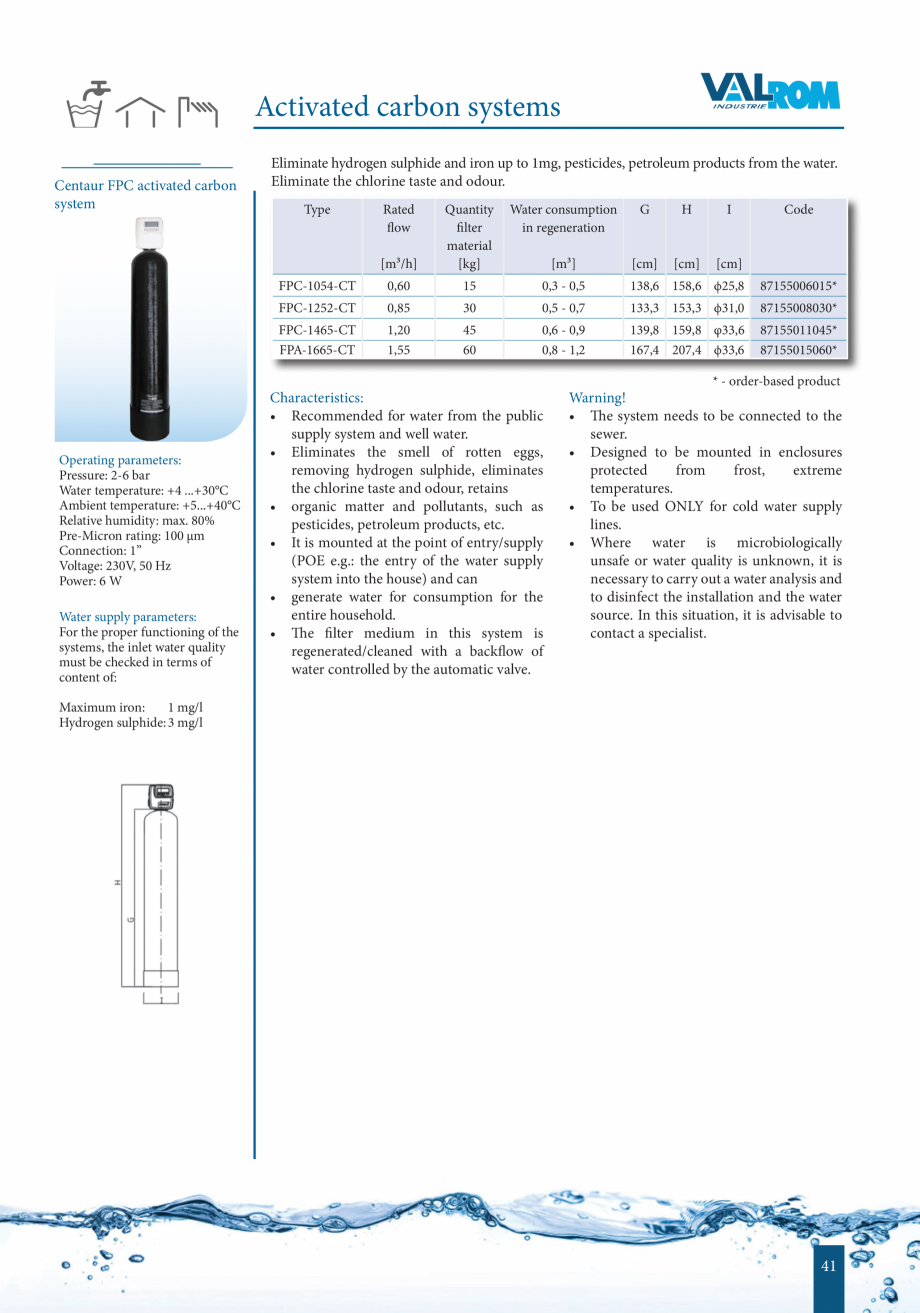

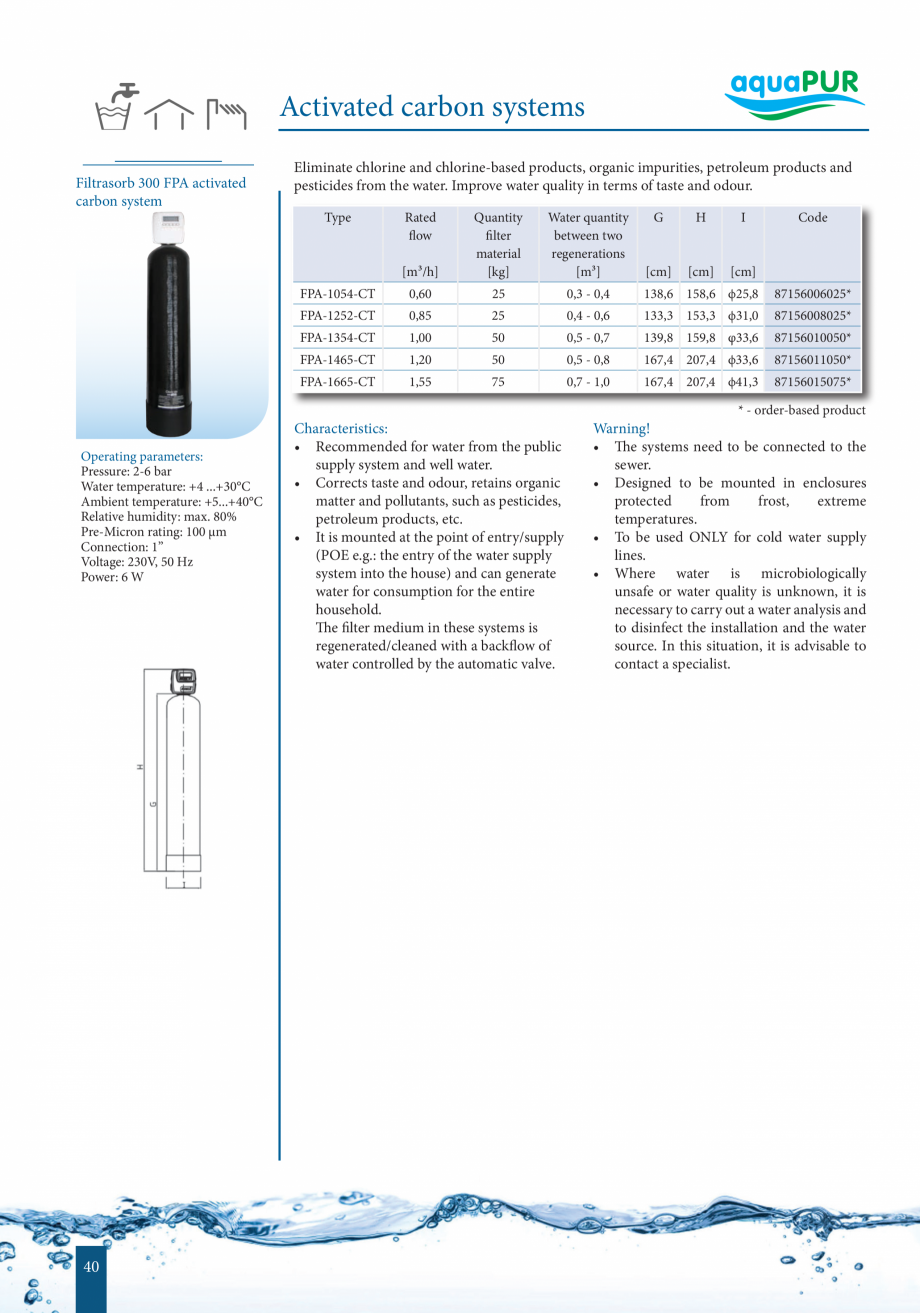

Activated carbon systems
32
38
41

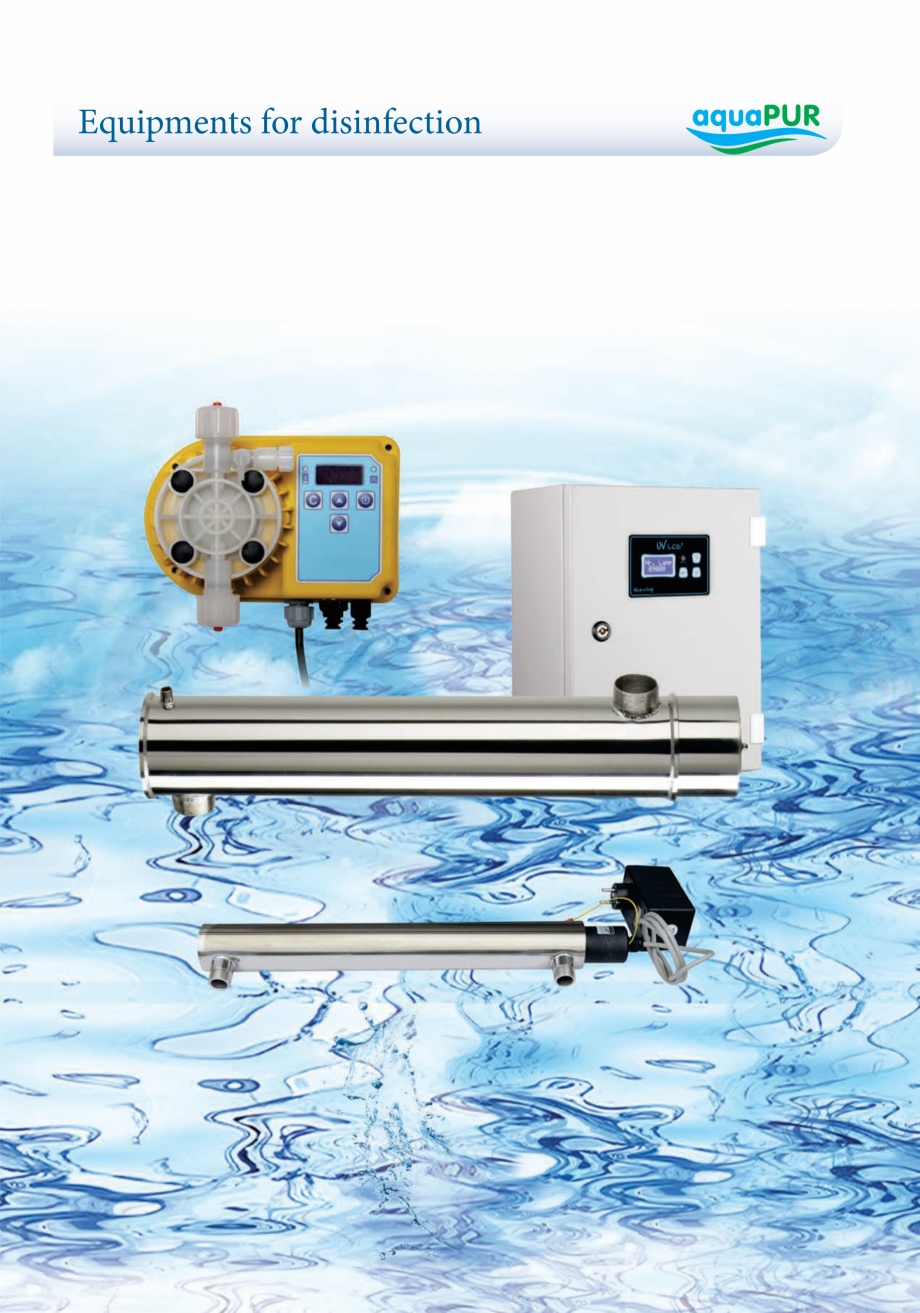

E
QUIPMENTS FOR
DISINFECTION

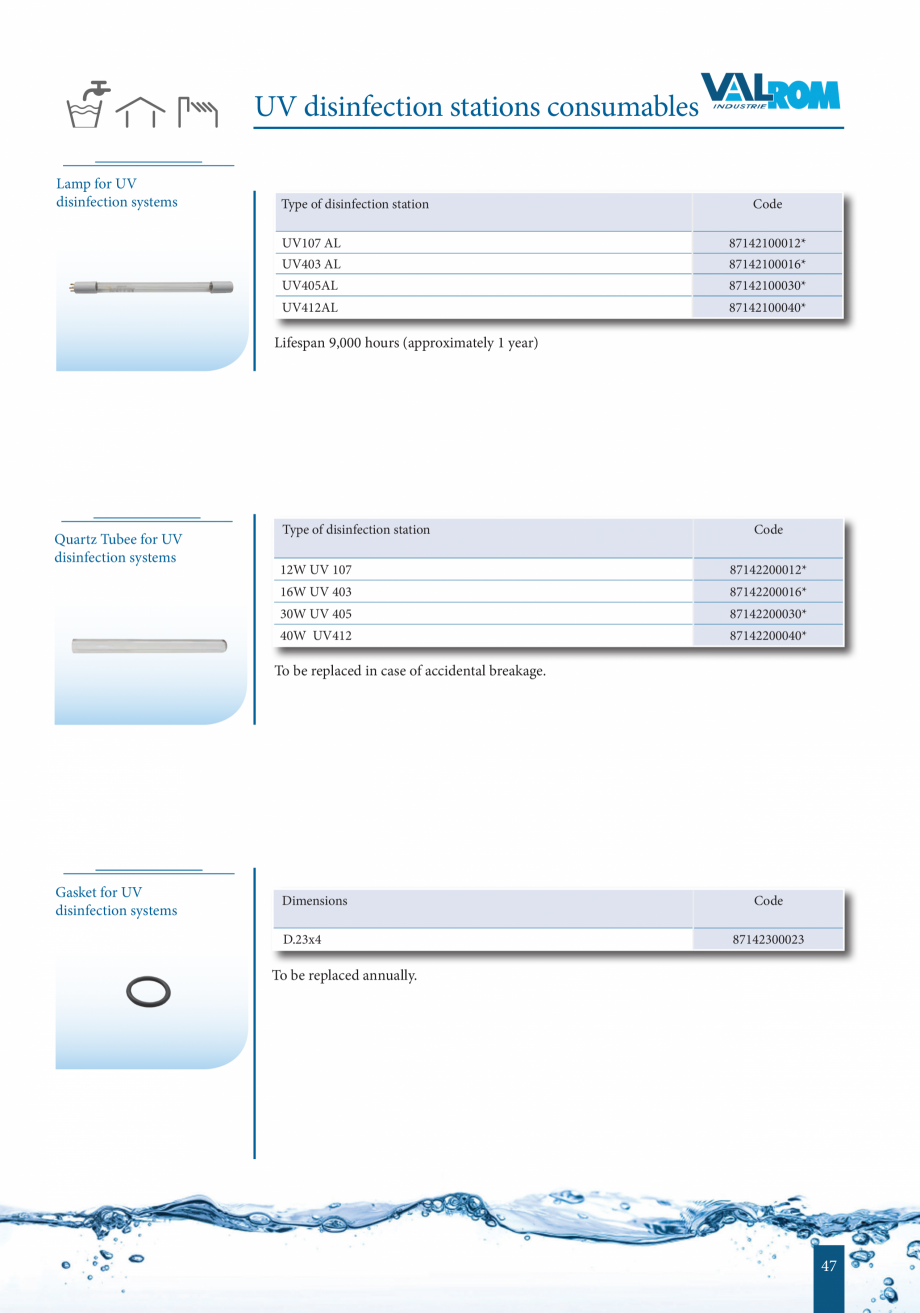

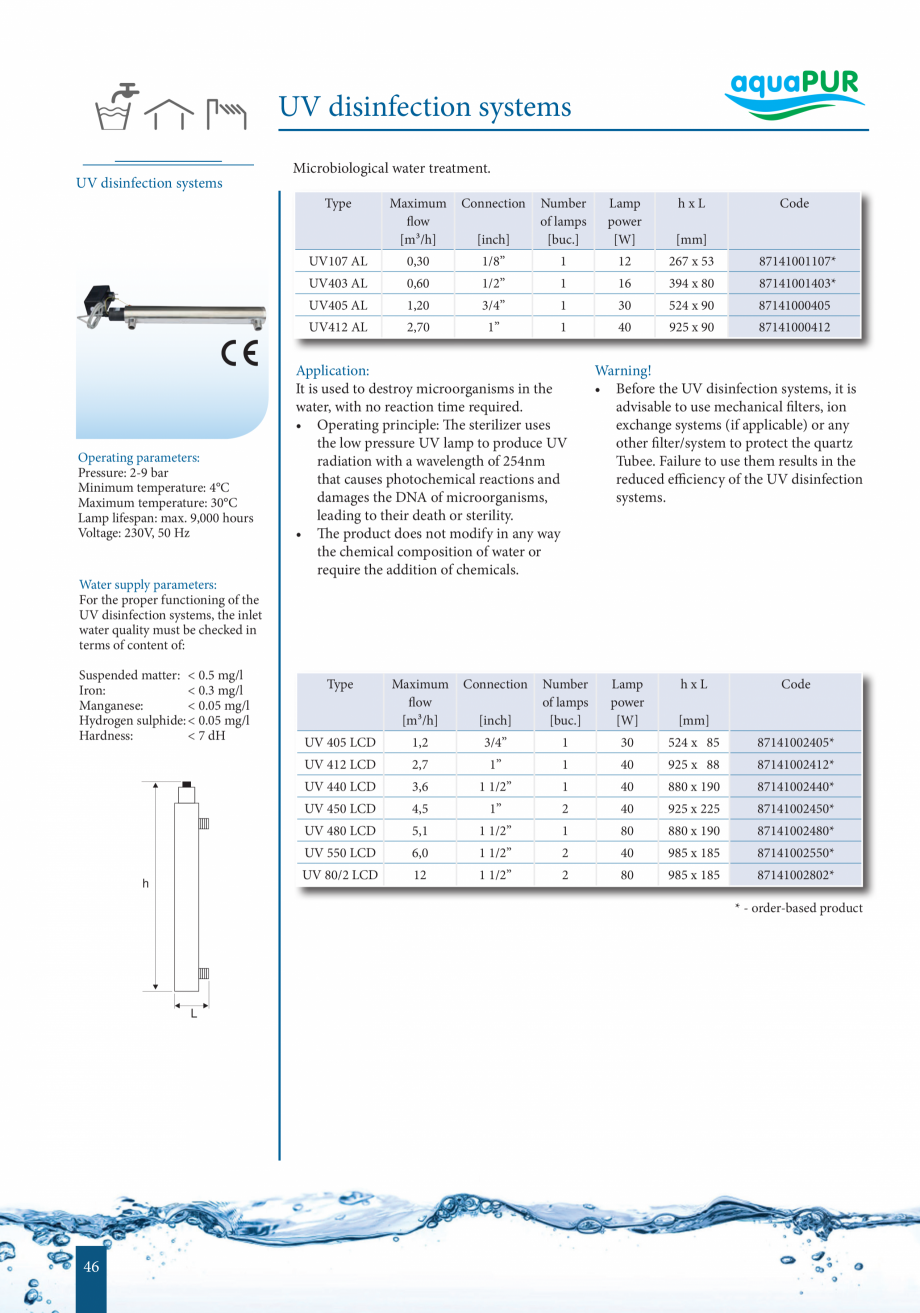

UV disinfection systems

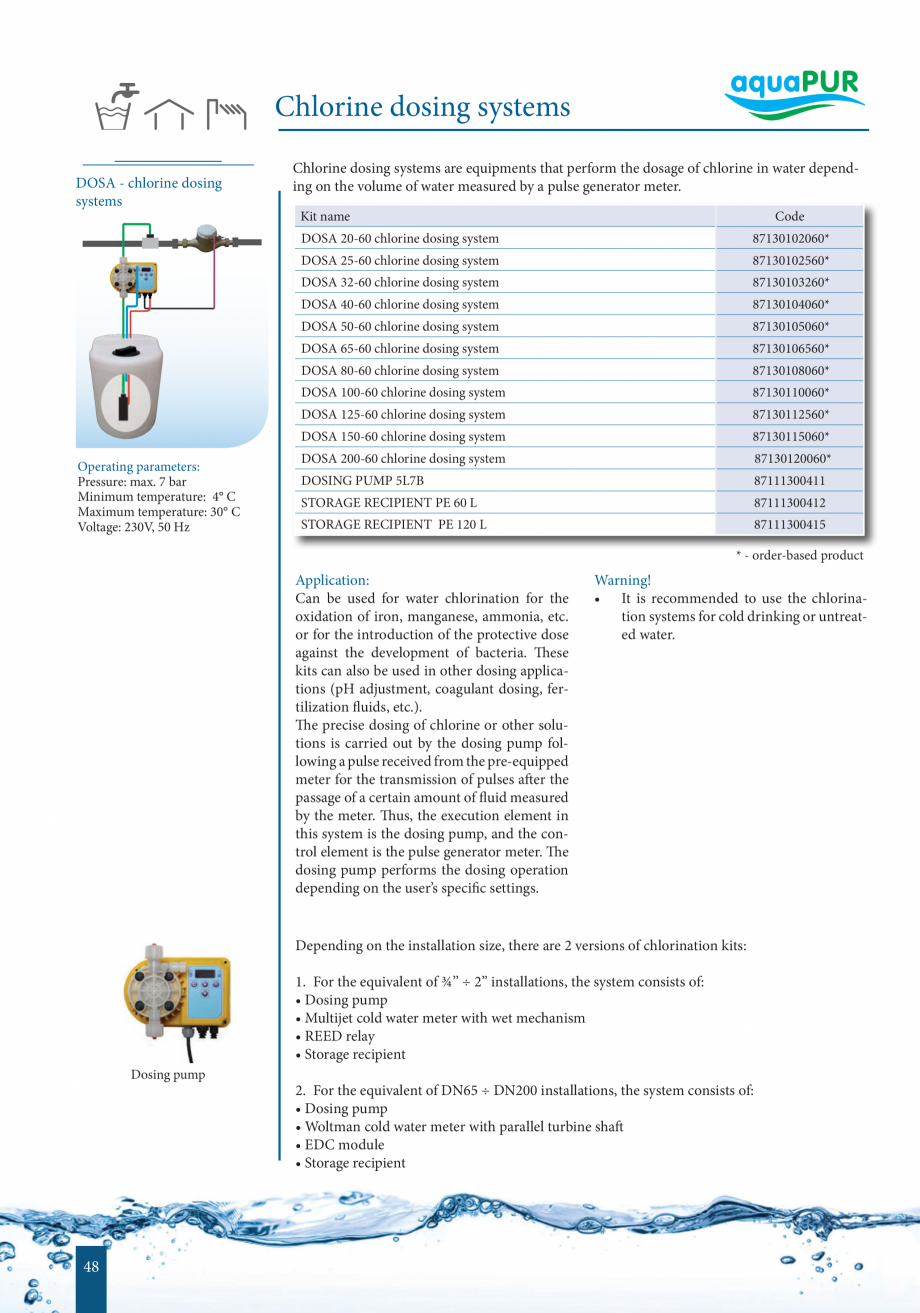

Chlorine dosing systems
45
46
48

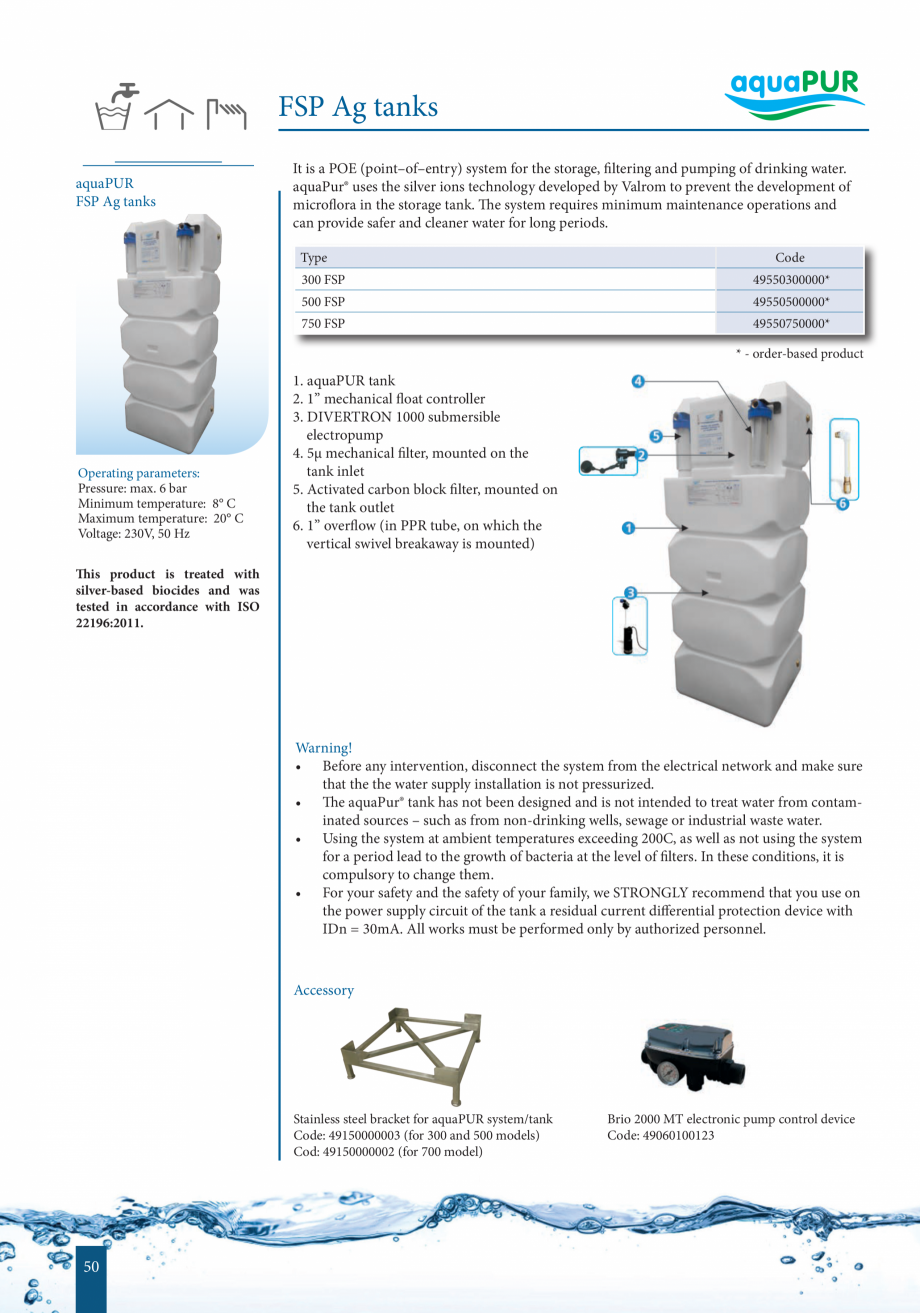

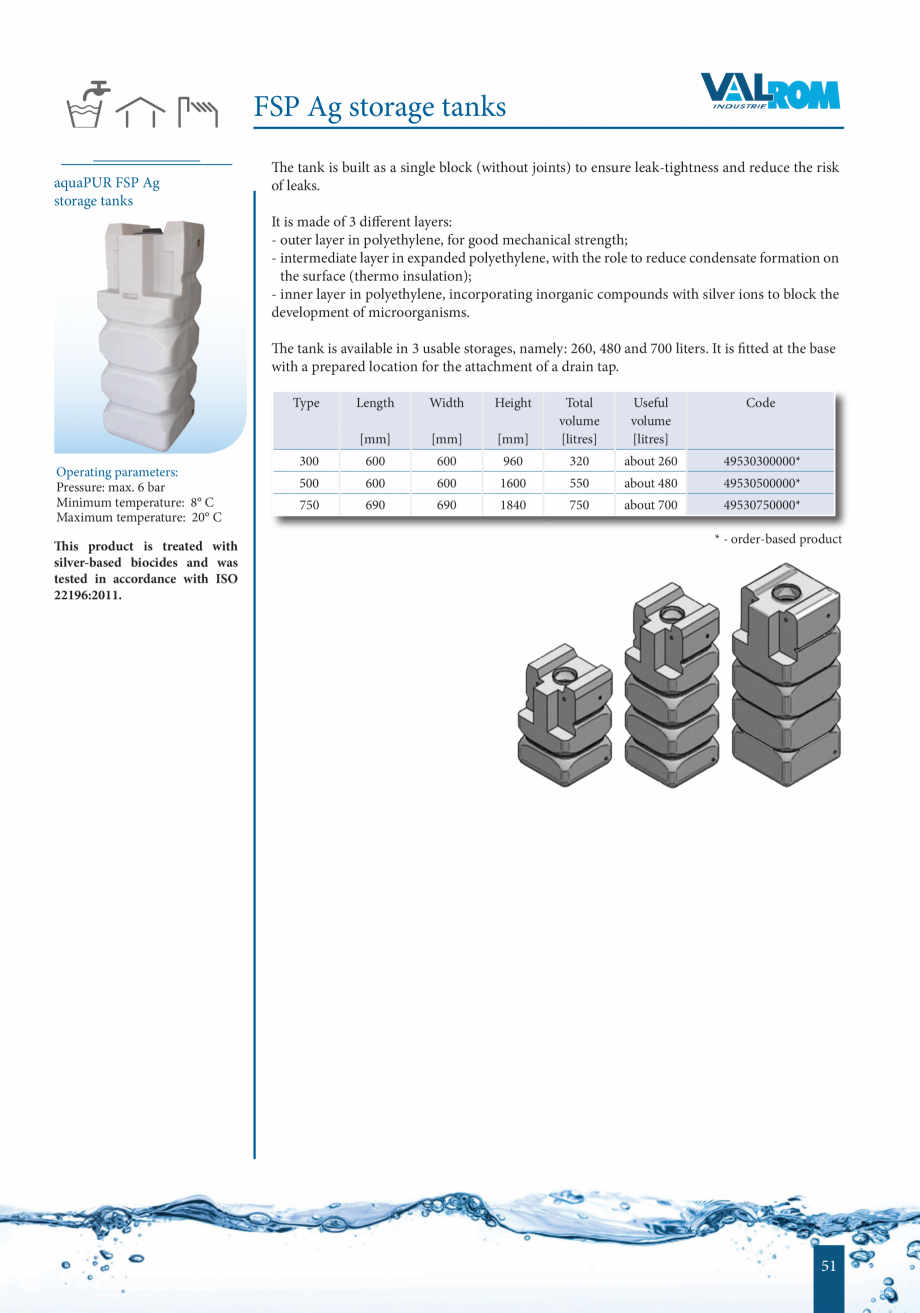

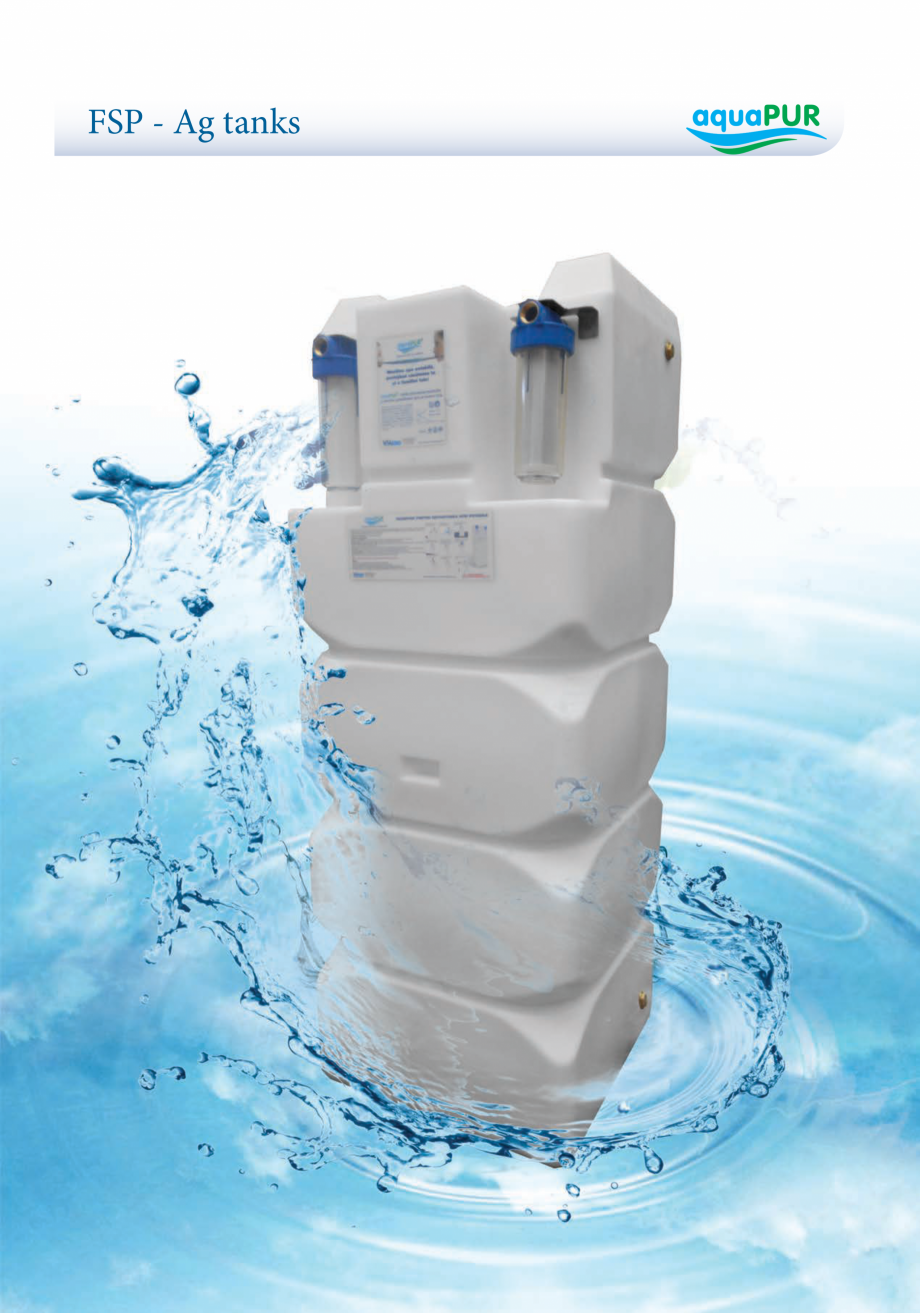

FSP - Ag tanks
49

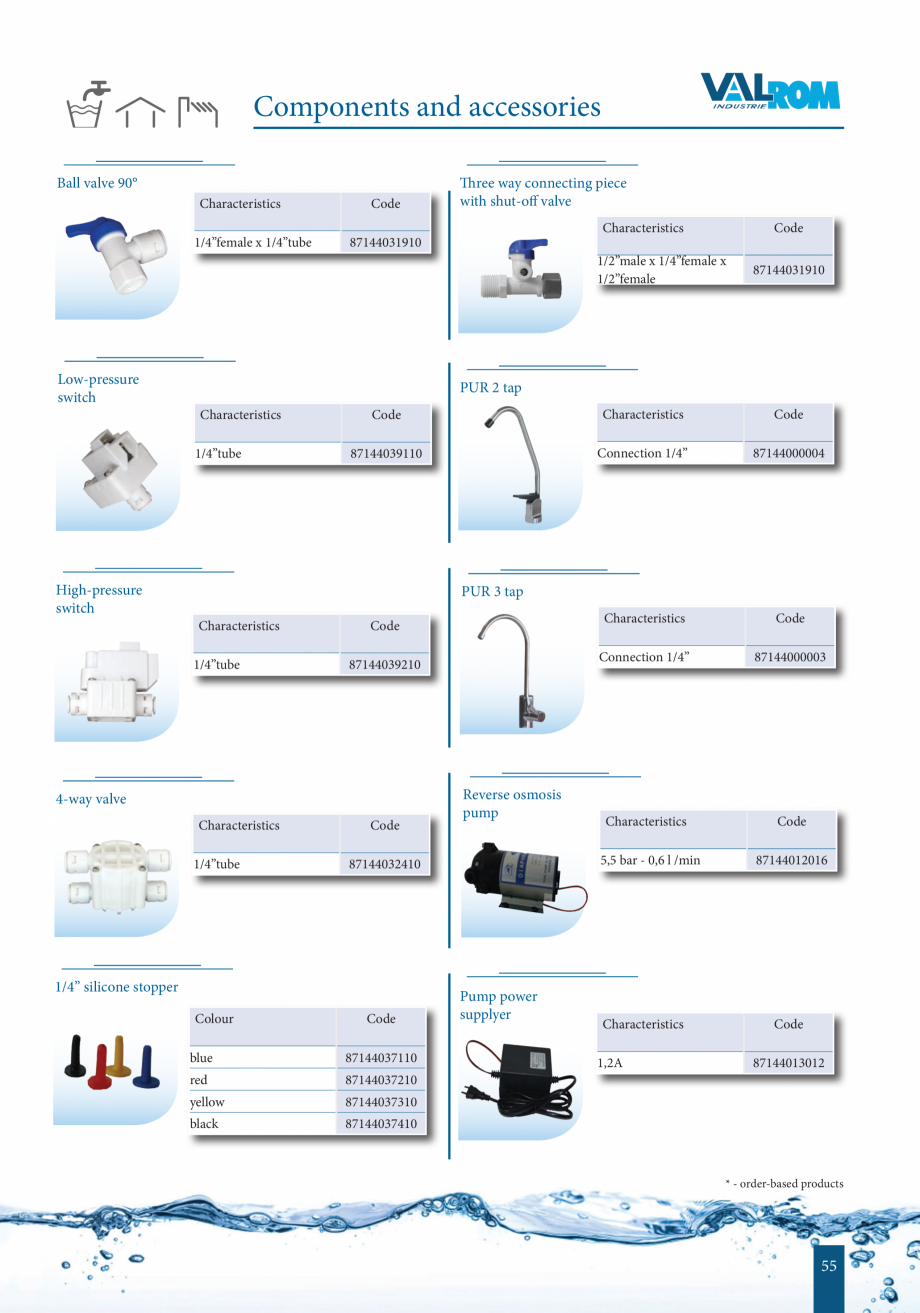

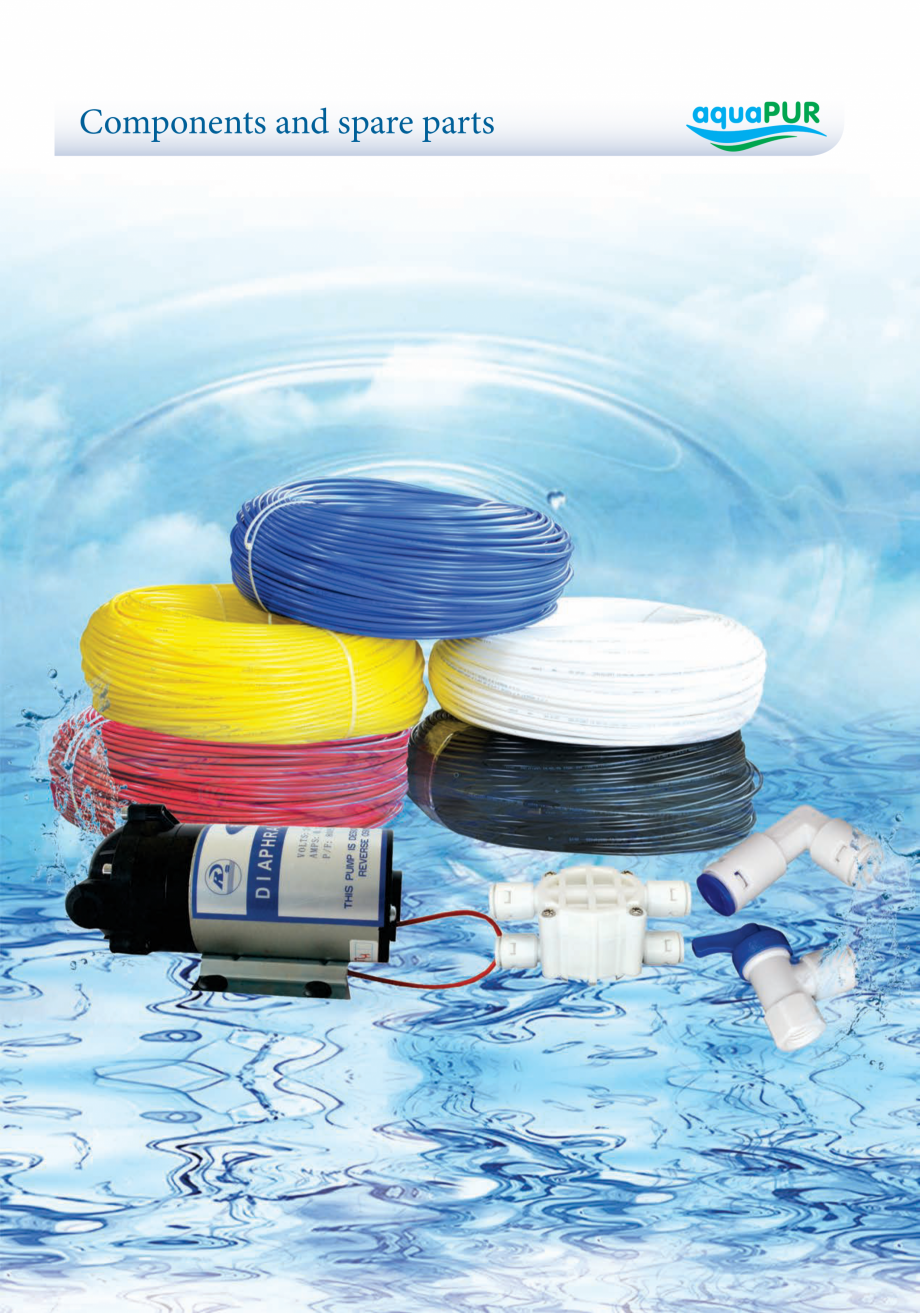

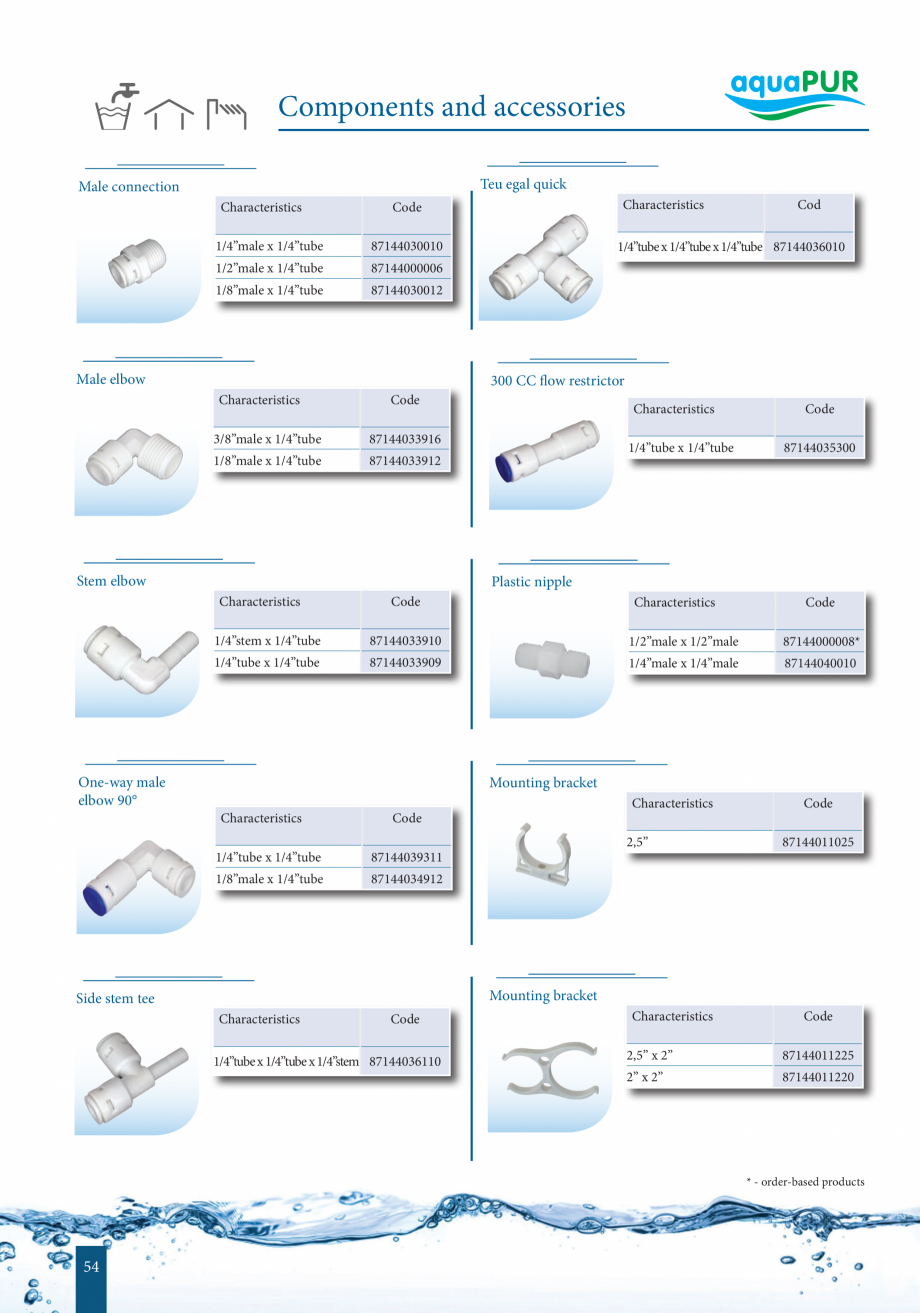

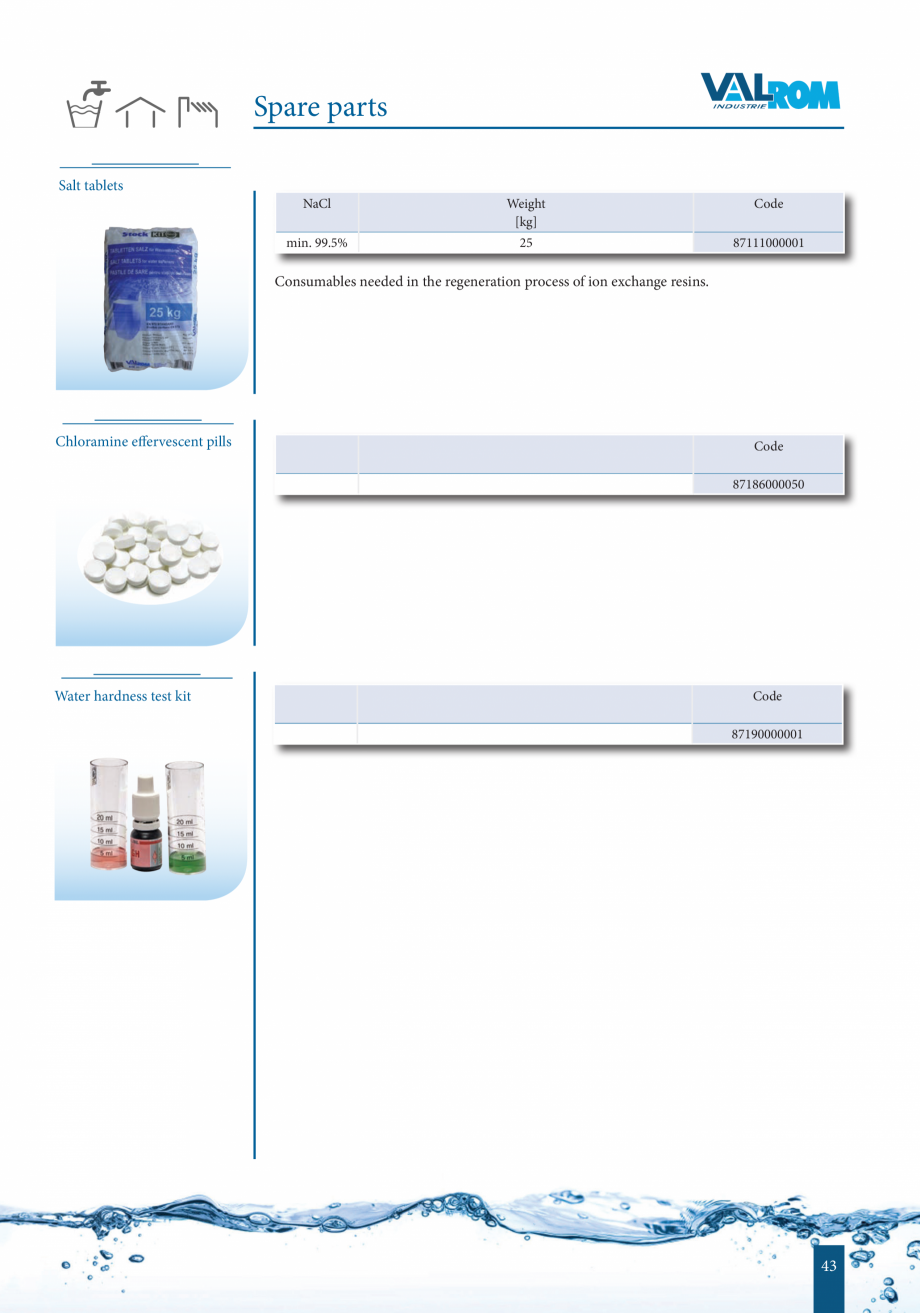

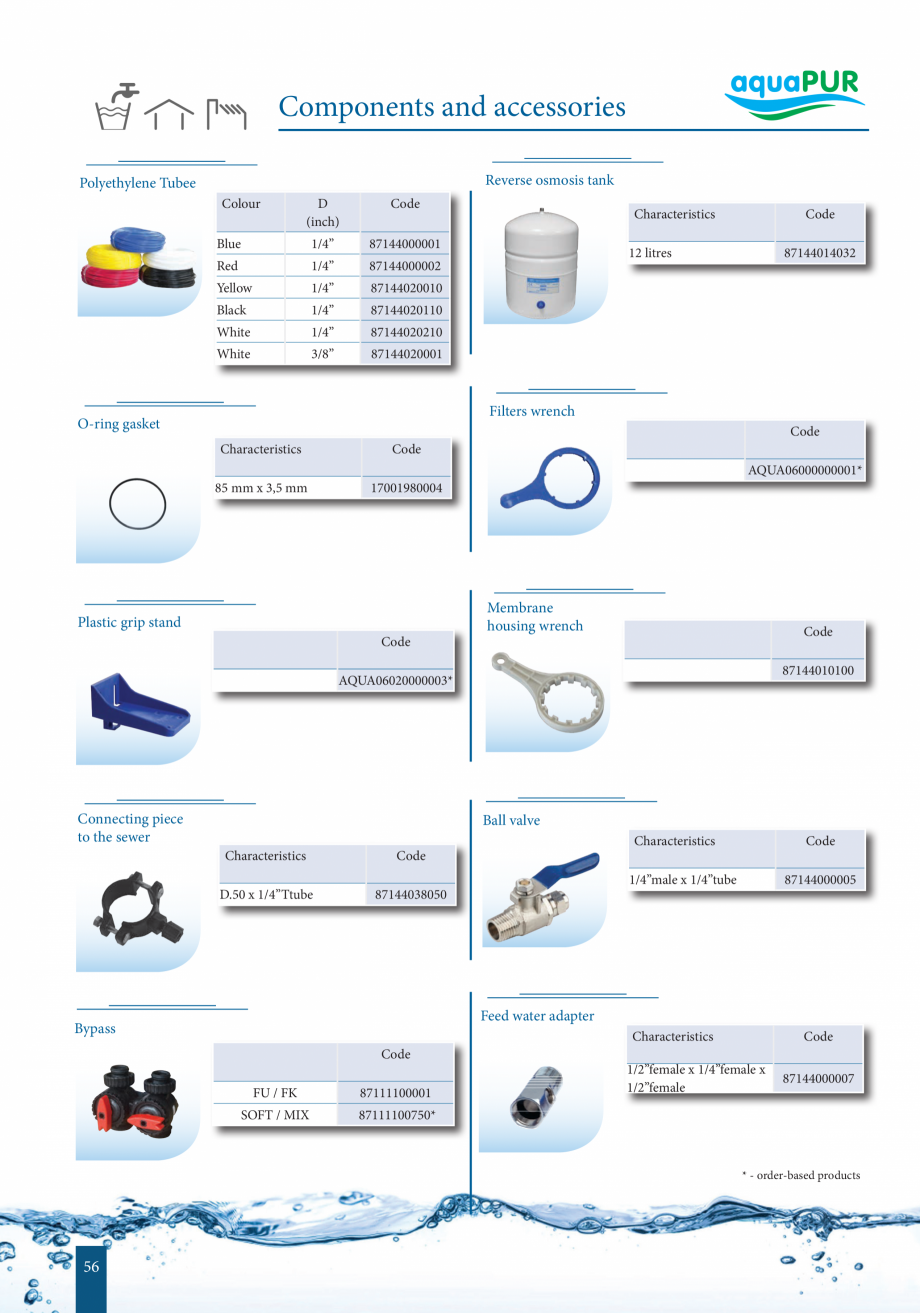

COMPONENTS AND SPARE
PARTS
53
17
18
19
20

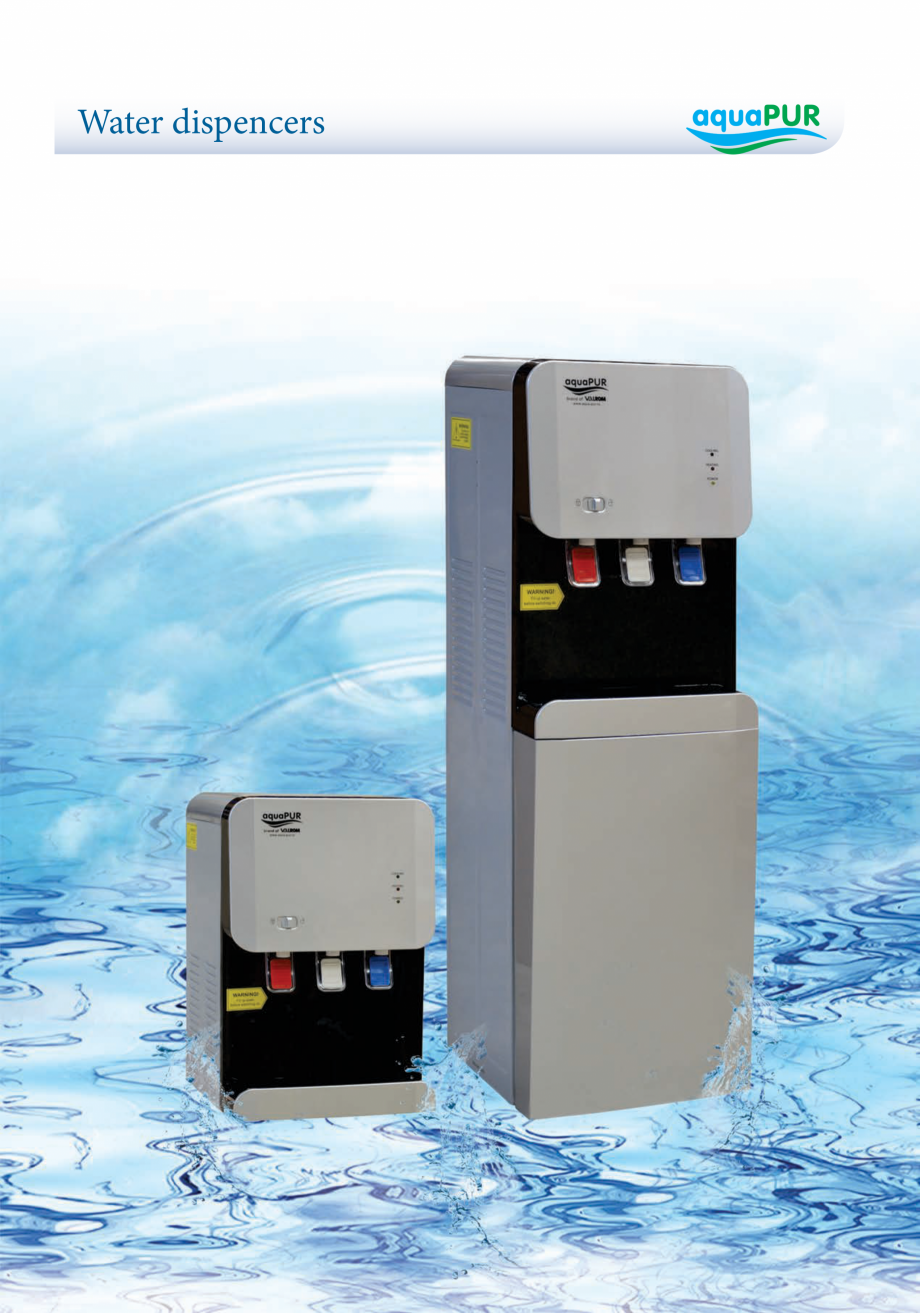

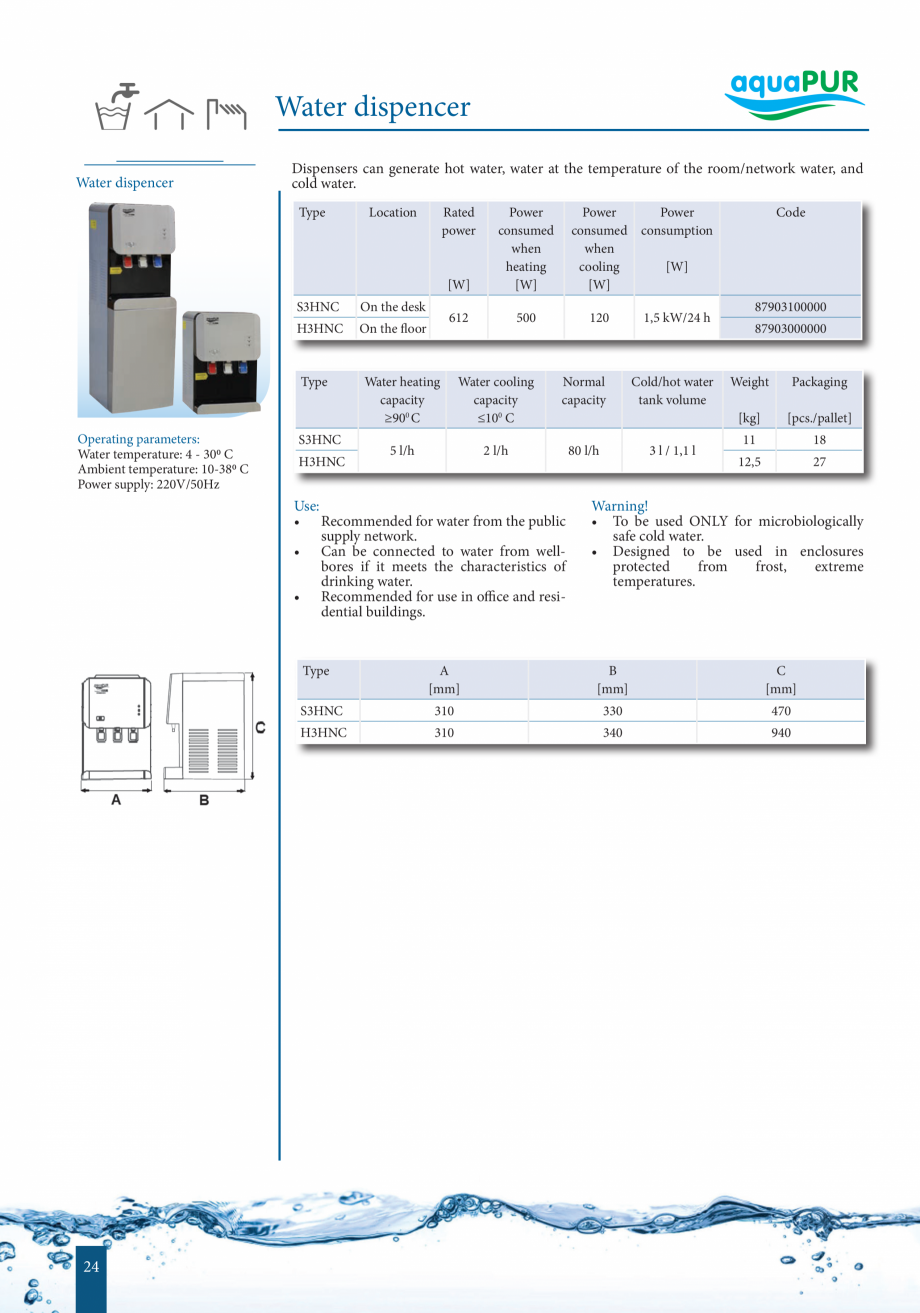

WATER DISPENCERS
23

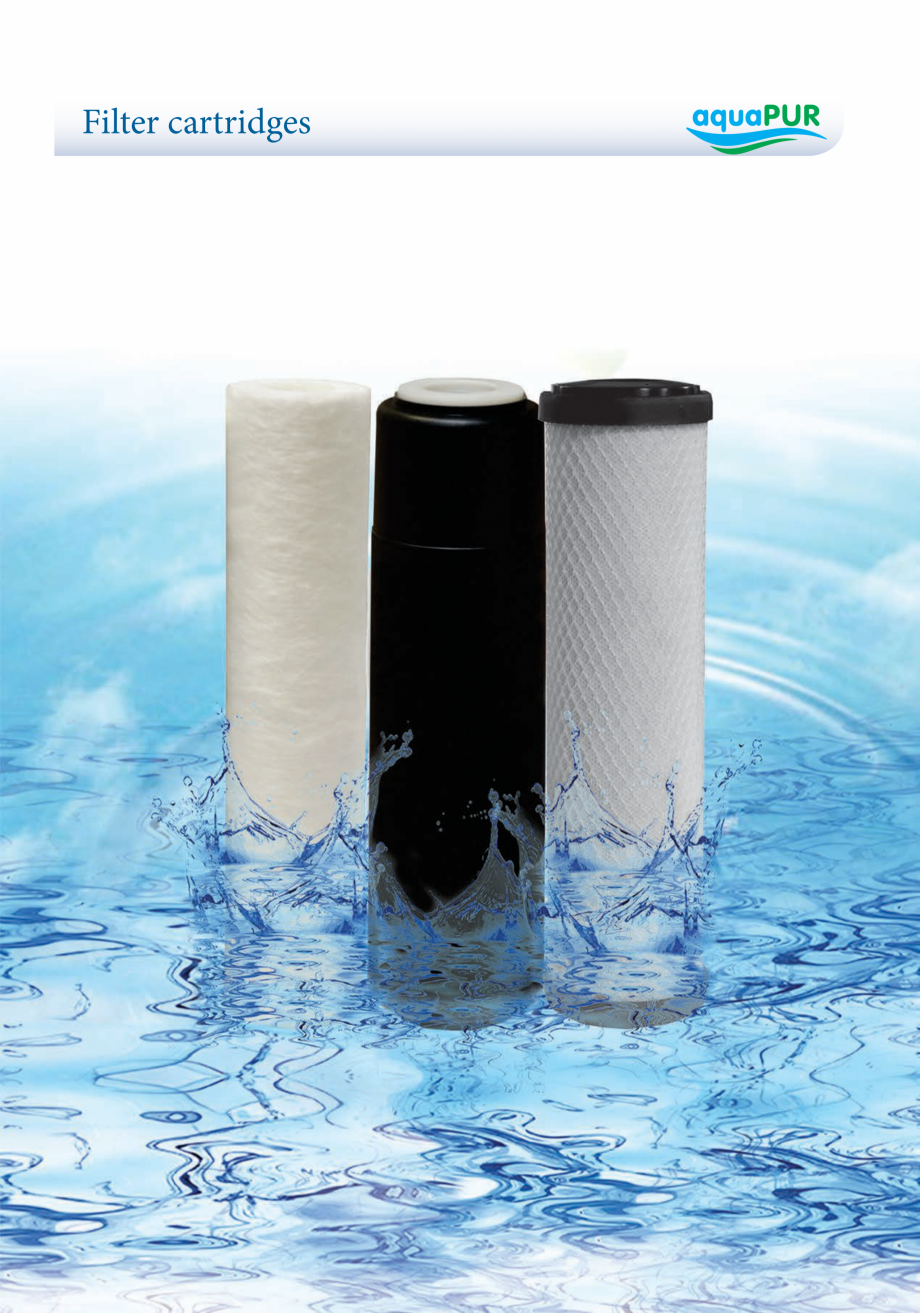

FILTER CARTRIDGES
25

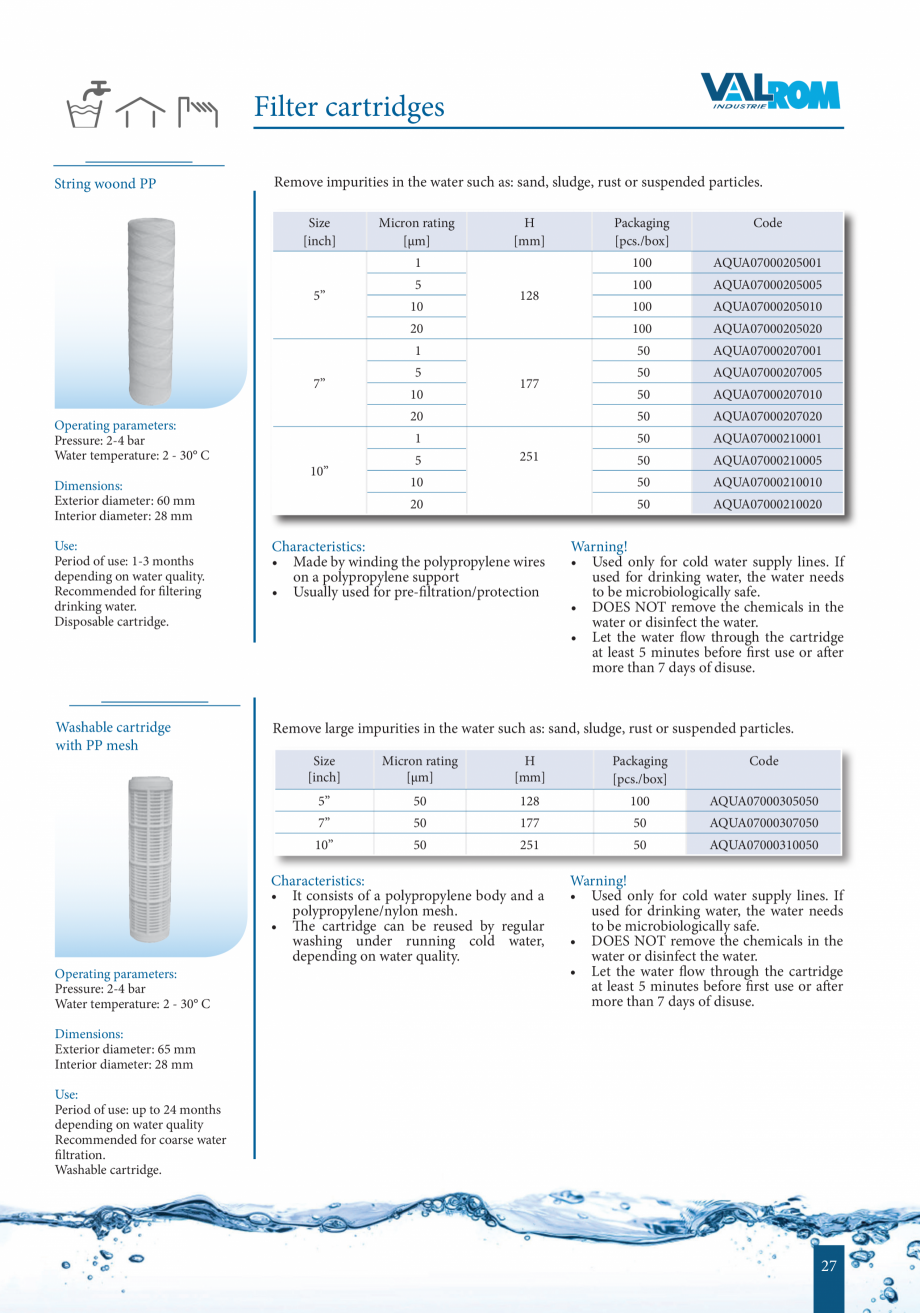

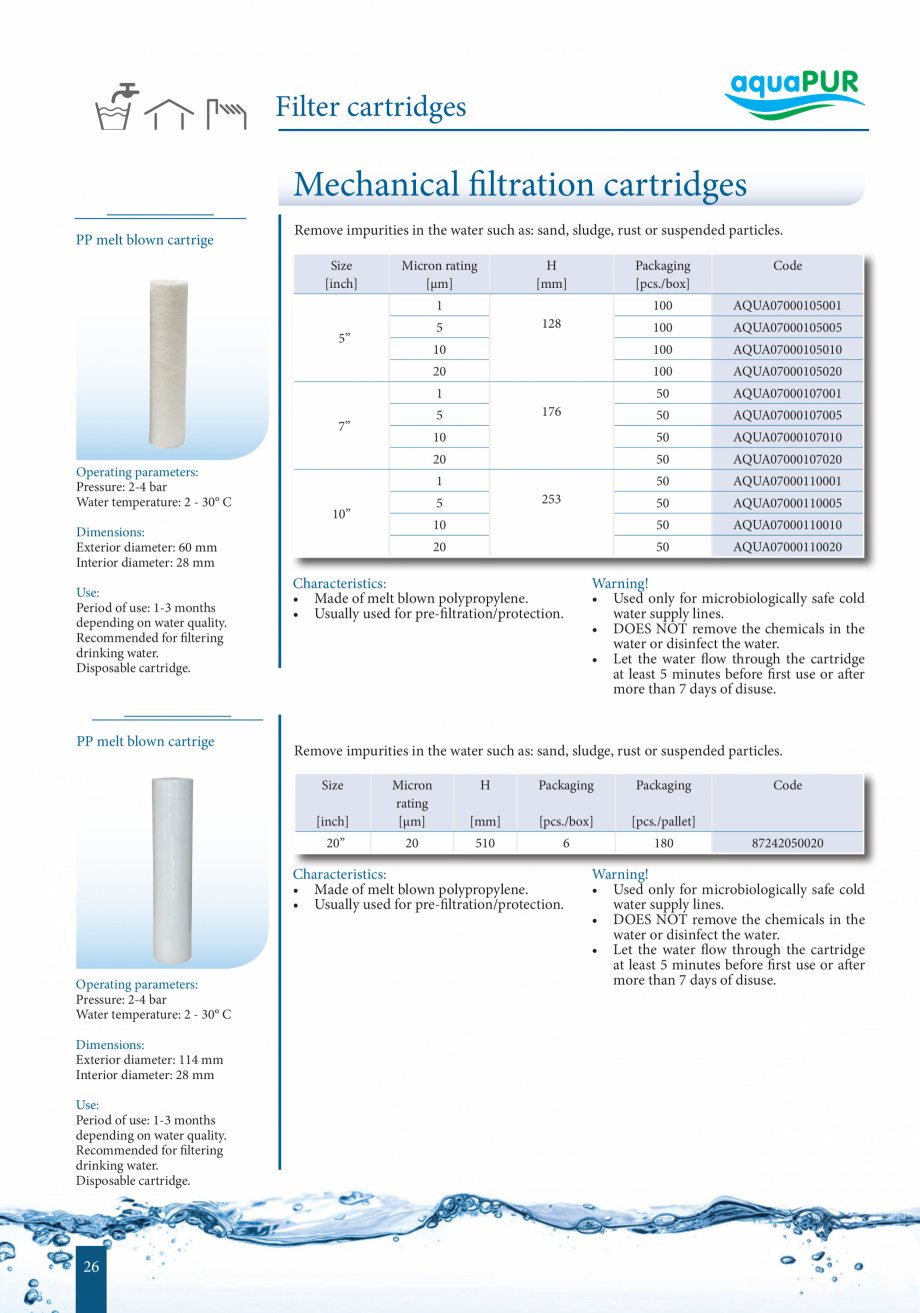

Mechanical filtration cartridges

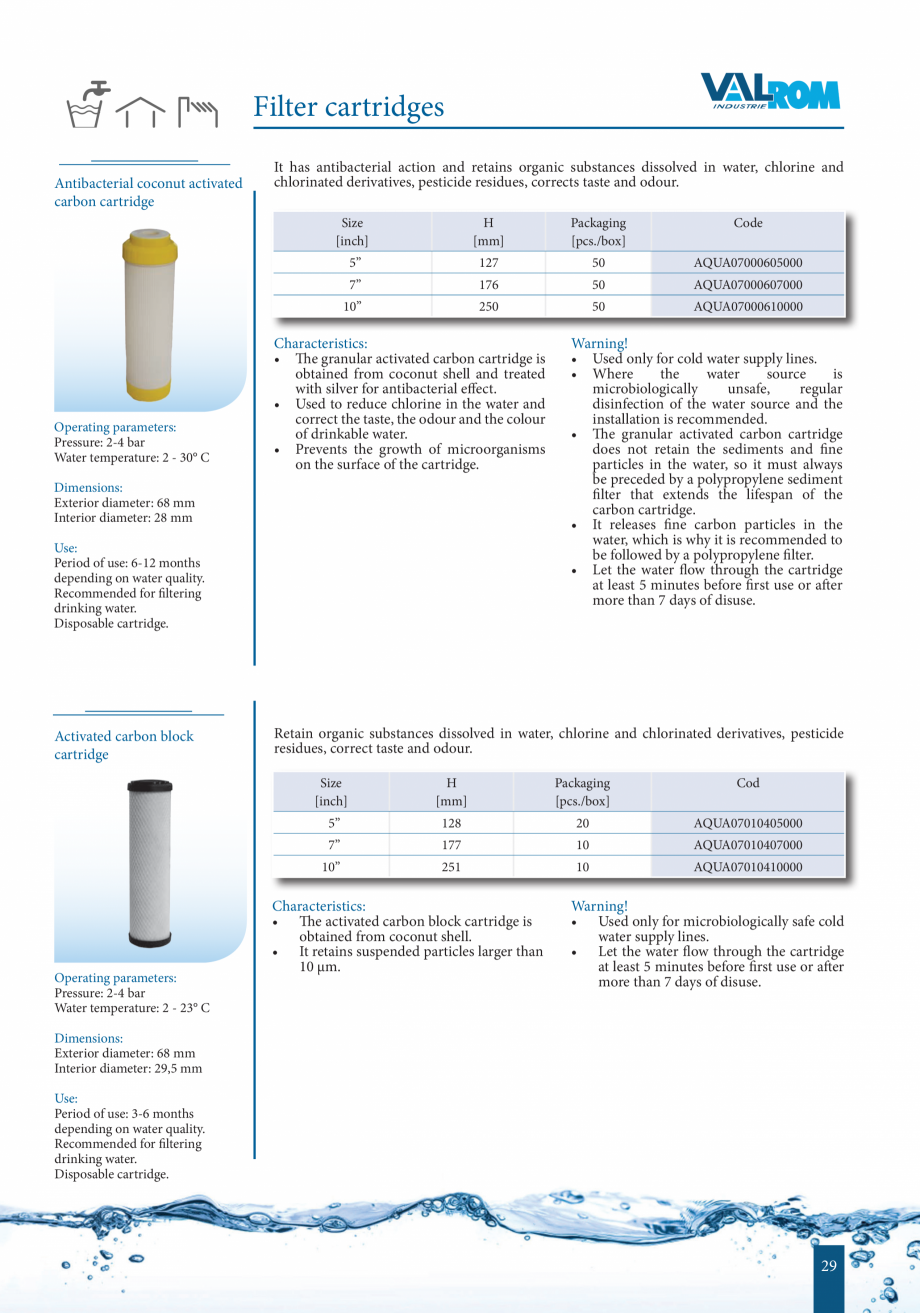

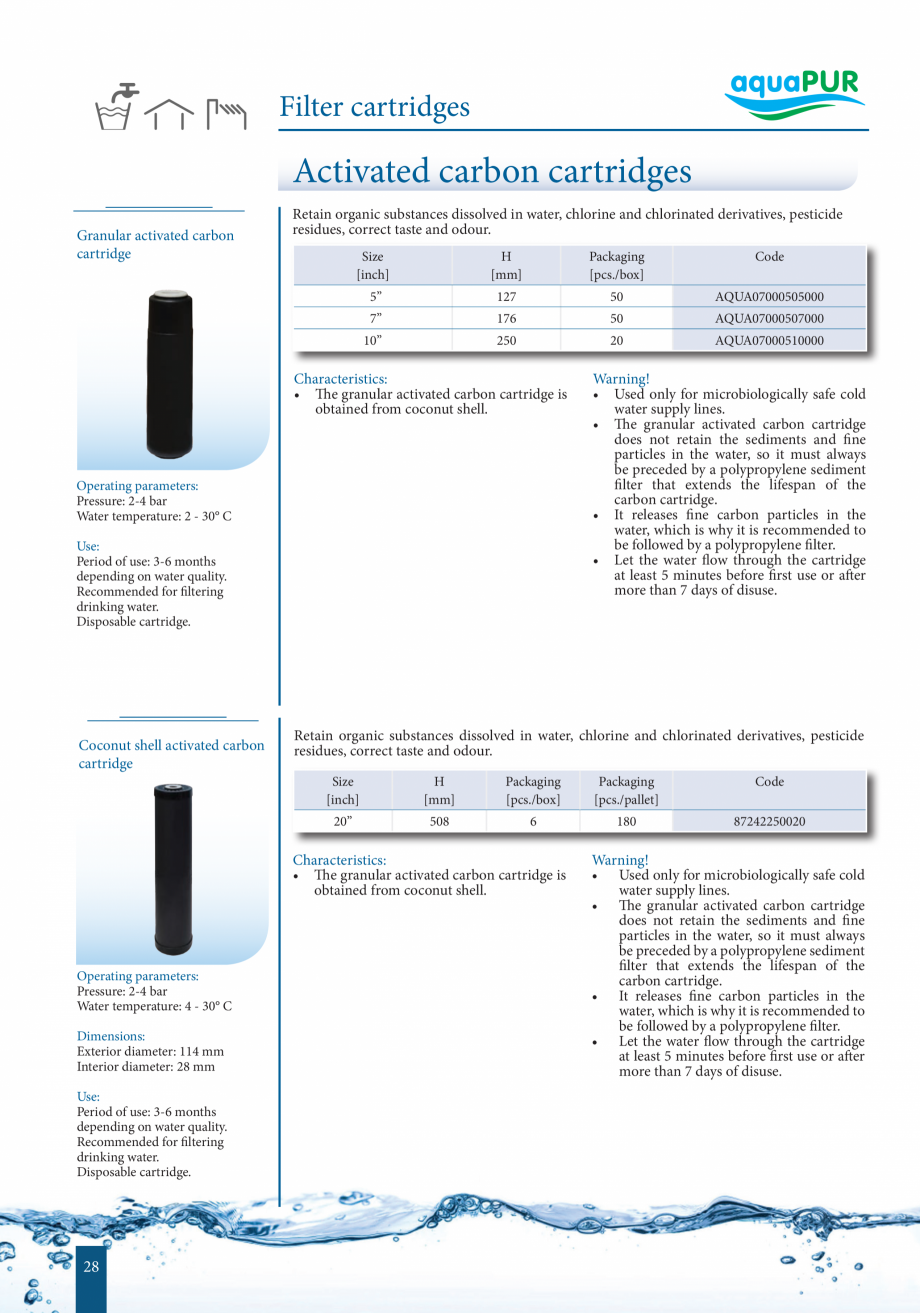

Activated carbon cartridges
Biological filtration cartridges
26
28
30
3

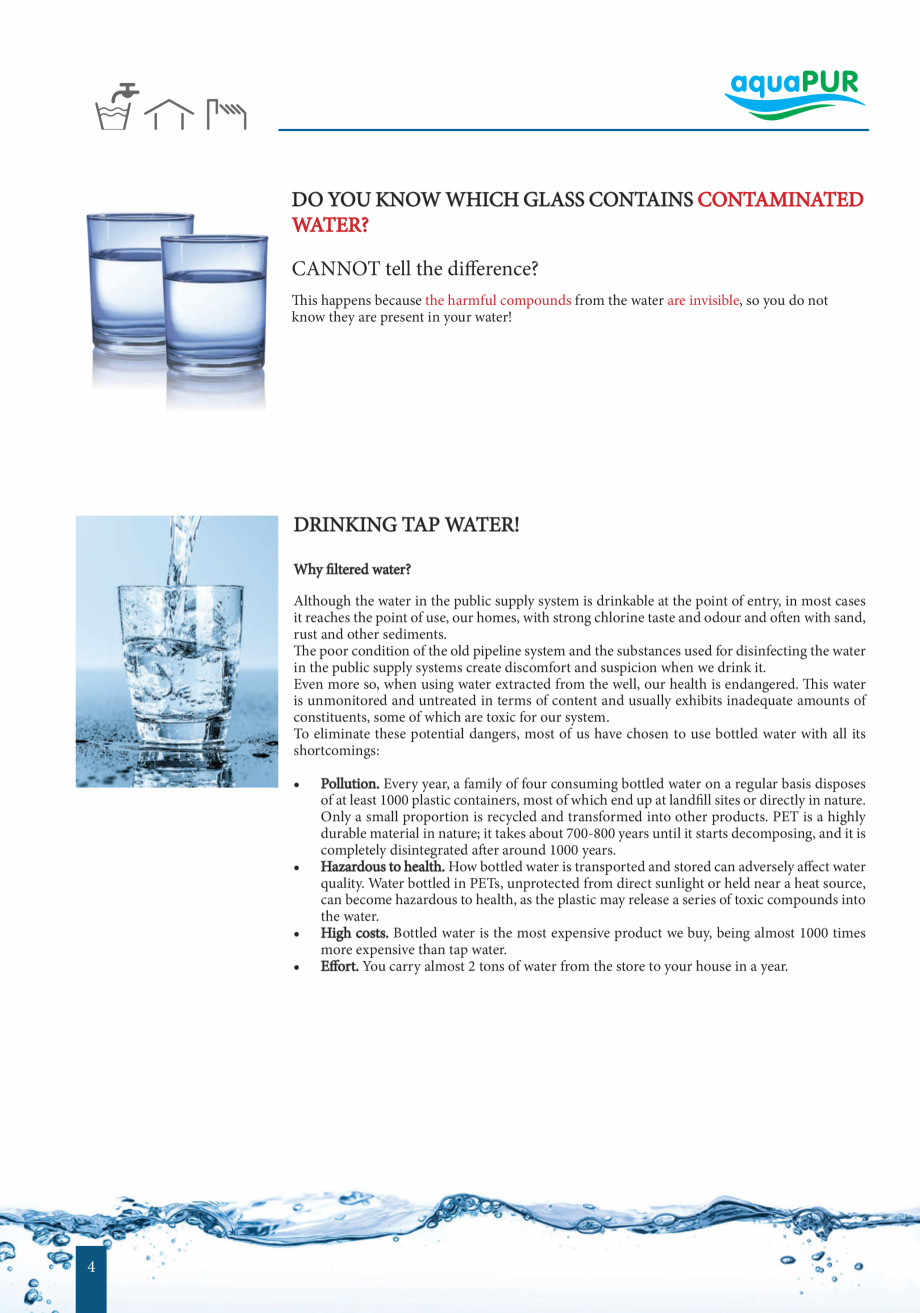

DO YOU KNOW WHICH GLASS CONTAINS CONTAMINATED
WATER?
CANNOT tell the difference?
This happens because the harmful compounds from the water are invisible, so you do not
know they are present in your water!
DRINKING TAP WATER!
Why filtered water?
Although the water in the public supply system is drinkable at the point of entry, in most cases
it reaches the point of use, our homes, with strong chlorine taste and odour and often with sand,
rust and other sediments.
The poor condition of the old pipeline system and the substances used for disinfecting the water
in the public supply systems create discomfort and suspicion when we drink it.
Even more so, when using water extracte
d from the well, our health is endangered. This water
is unmonitored and untreated in terms of content and usually exhibits inadequate amounts of
constituents, some of which are toxic for our system.
To eliminate these potential dangers, most of us have chosen to use bottled water with all its
shortcomings:
•
•
•
•
4
Pollution. Every year, a family of four consuming bottled water on a regular basis disposes
of at least 1000 plastic containers, most of which end up at landfill sites or directly in nature.
Only a small proportion is recycled and transformed into other products. PET is a highly
durable material in nature; it takes about 700-800 years until it starts decomposing, and it is
completely disintegrated after around 1000 years.
Hazardous to health. How bottled water is transported and stored can adversely affect water
quality. Water bottled in PETs, unprotected from direct sunlight or held near a heat source,
can become hazardous to health, as the plastic may release
a series of toxic compounds into
the water.
High costs. Bottled water is the most expensive product we buy, being almost 1000 times
more expensive than tap water.
Effort. You carry almost 2 tons of water from the store to your house in a year.

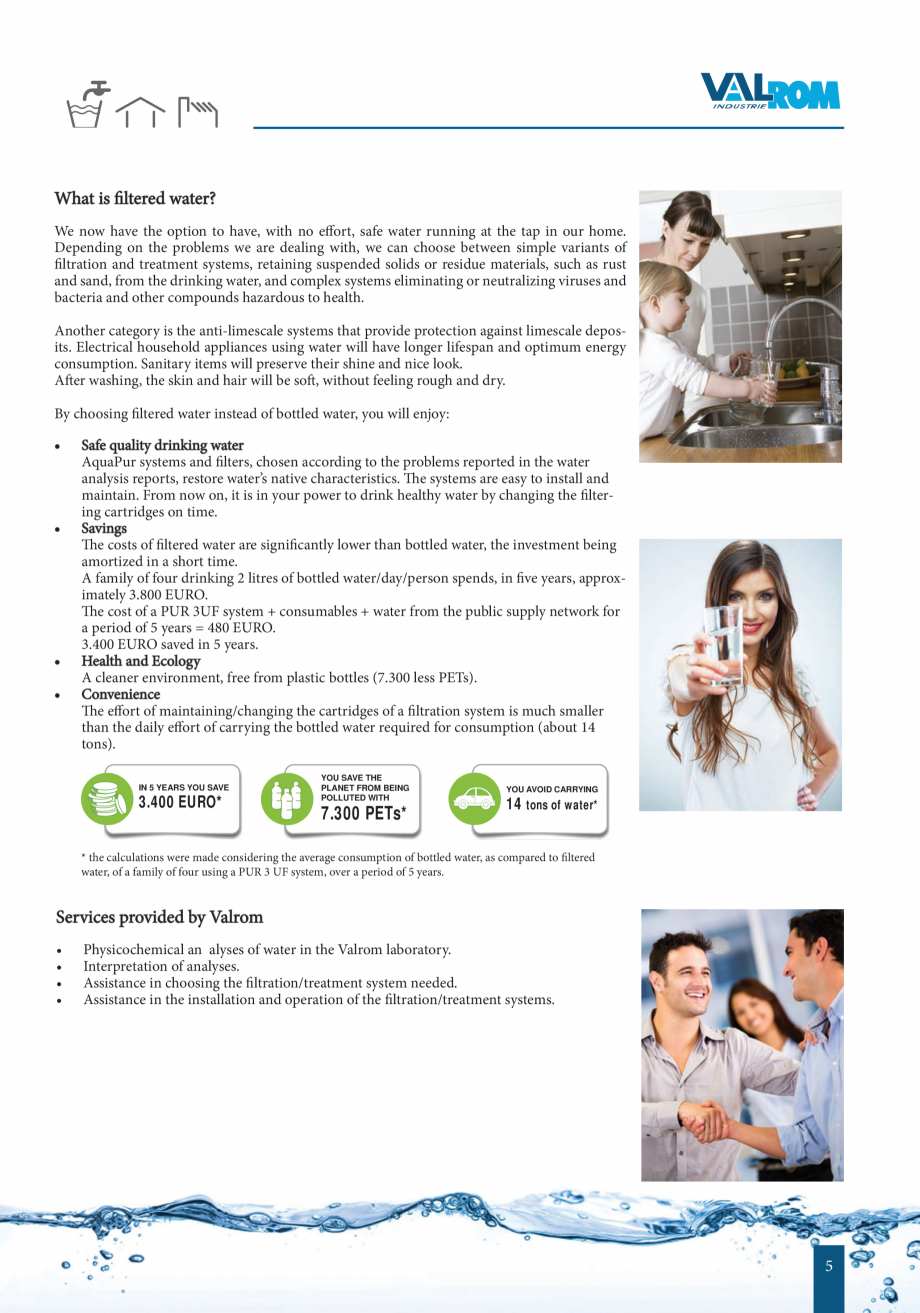

What is filtered water?
We now have the option to have, with no effort, safe water running at the tap in our home.
Depending on the problems we are dealing with, we can choose between simple variants of
filtration and treatment systems, retaining suspended solids or residue materials, such as rust
and sand, from the drinking water, and complex systems eliminating or neutralizing viruses and
bacteria and other compounds hazardous to health.
Another category is the anti-limescale systems that provide protection against limescale deposits. Electrical household appliances using water will have longer lifespan and optimum energy
consumption. Sanitary items will preserve their shine and nice look.
After washing, the skin and hair will be soft, witho
ut feeling rough and dry.
By choosing filtered water instead of bottled water, you will enjoy:
•
•
•
•
Safe quality drinking water
AquaPur systems and filters, chosen according to the problems reported in the water
analysis reports, restore water’s native characteristics. The systems are easy to install and
maintain. From now on, it is in your power to drink healthy water by changing the filtering cartridges on time.
Savings
The costs of filtered water are significantly lower than bottled water, the investment being
amortized in a short time.
A family of four drinking 2 litres of bottled water/day/person spends, in five years, approximately 3.800 EURO.
The cost of a PUR 3UF system + consumables + water from the public supply network for
a period of 5 years = 480 EURO.
3.400 EURO saved in 5 years.
Health and Ecology
A cleaner environment, free from plastic bottles (7.300 less PETs).
Convenience
IN 5 YEARS YOU SAVE
The effort of maintaining/changing the cartridges of a filtr
ation system is much smaller
3.400(about
EURO*
than the daily effort of carrying the bottled water required for consumption
14
tons).
IN 5 YEARS YOU SAVE
3.400 EURO*
YOU SAVE THE
PLANET FROM BEING
POLLUTED WITH
7.300 PETs*
YOU SAVE THE
PLANET FROM BEING
POLLUTED WITH
7.300 PETs*
YOU AVOID CARRYING
14 tons of water*
* the calculations were made considering the average consumption of bottled water, as compared to filtered
YOU AVOID
CARRYING
water, of a family
of four
using a PUR 3 UF system, over a period of 5 years.
14 tons of water*
Services provided by Valrom
•
•
•
•
Physicochemical an alyses of water in the Valrom laboratory.
Interpretation of analyses.
Assistance in choosing the filtration/treatment system needed.
Assistance in the installation and operation of the filtration/treatment systems.
5

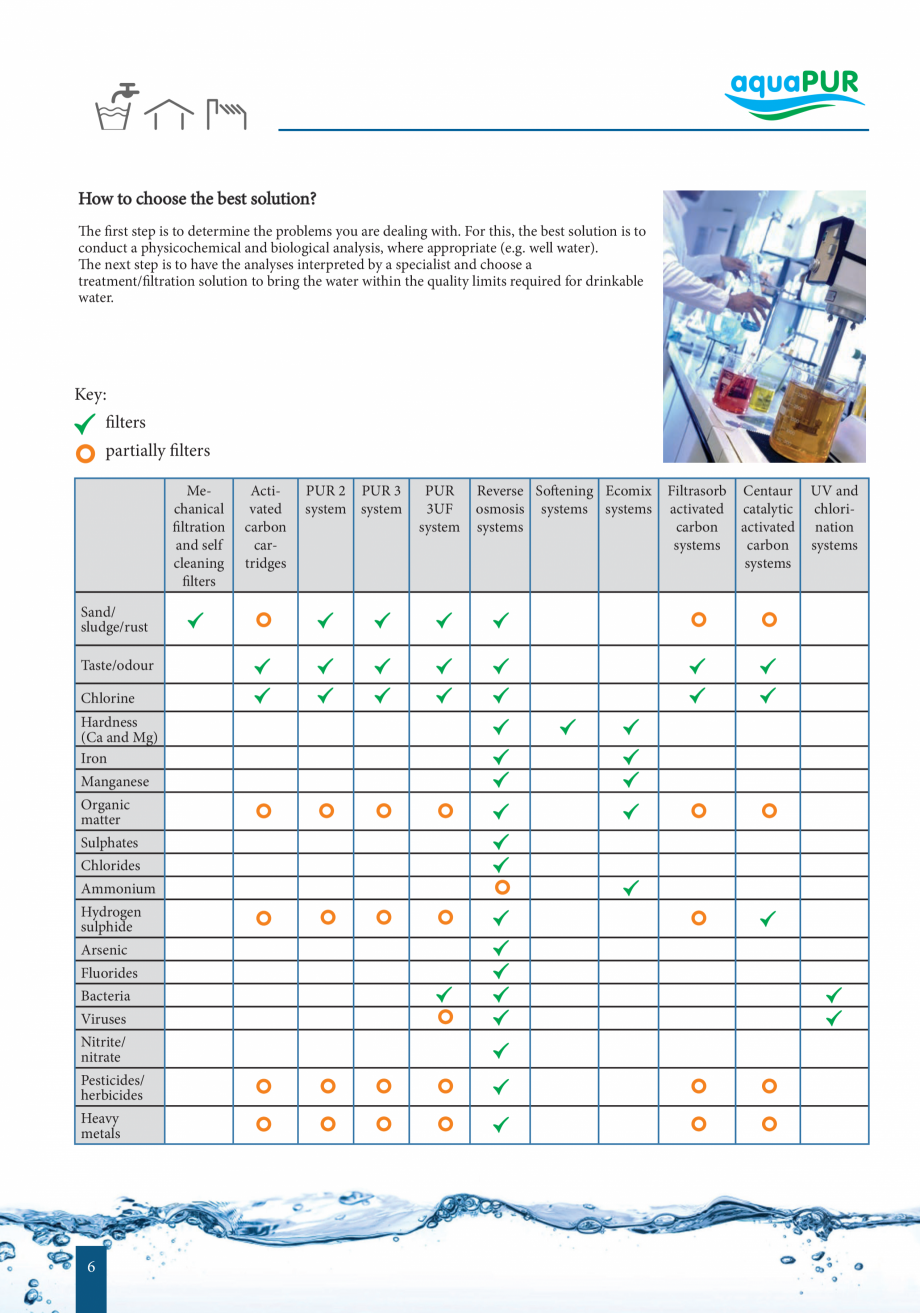

How to choose the best solution?
The first step is to determine the problems you are dealing with. For this, the best solution is to
conduct a physicochemical and biol
ogical analysis, where appropriate (e.g. well water).
The next step is to have the analyses interpreted by a specialist and choose a
treatment/filtration solution to bring the water within the quality limits required for drinkable
water.
Key:
filters
partially filters
Mechanical
filtration
and self
cleaning
filters
Sand/
sludge/rust
Taste/odour
Chlorine
Hardness
(Ca and Mg)
Iron
Manganese
Organic
matter
Sulphates
Chlorides
Ammonium
Hydrogen
sulphide
Arsenic
Fluorides
Bacteria
Viruses
Nitrite/
nitrate
Pesticides/
herbicides
Heavy
metals
6
Activated
carbon
cartridges
PUR 2 PUR 3
system system
PUR
3UF
system
Reverse Softening Ecomix
osmosis systems systems
systems
Filtrasorb Centaur
activated catalytic
carbon
activated
systems
carbon
systems
UV and
chlorination
systems
Filter housings and filters
Filter housings
Transparent filter housing
Used in domestic/residential applications for filtering drinkable water.
It is installed at the points of use.
Size
[inch]
Connection
[inc
h]
Lxlxh
[mm]
Packaging
[pcs./box]
Code
20
AQUA00110000520
20
AQUA00110000525
1”
20
AQUA00110000532*
1/2”
18
AQUA00110000720*
18
AQUA00110000725
1”
18
AQUA00110000732
1/2”
16
AQUA00110001020*
16
AQUA00110001025
16
AQUA00110001032
1/2”
5”
7”
Operating parameters:
Maximum pressure: 6 bar
Water temperature: 2 - 30° C
Characteristics:
Glass material: SAN, transparent
Cap material: Talc reinforced PP
Connection: CW 617N brass
Gasket: EPDM O-ring
10”
3/4”
3/4”
3/4”
115 x 115 x 185
115 x 115 x 230
115 x 115 x 310
1”
* - order-based products
Use:
• Needs to be equipped with cartridges, thus
becoming useful in mechanical, chemical
or biological filtration.
• Typically, the filter is mounted at the
endpoint, before the water is used (e.g.
– under the sink, before the kitchen tap,
before appliances such as the washing
machine, the dishwasher, before the water
supply of technological equipment, etc.)
• It can be mounted seriall
y, as a set of
multiple filters.
• The characteristics of its construction
materials make it suitable for residential,
commercial, industrial use.
Warning!
• Recommended ONLY for cold water
supply lines.
• Contains no cartridges. Choose the
filtering cartridges based on the quality of
the water to be filtered.
• Designed to be mounted in enclosures
protected
from
frost,
extreme
temperatures or direct sunlight.
Accessories:
Wrench
code: QUA06000000001
8
Grip stand and screws
code: AQUA06020000003
Filter housings

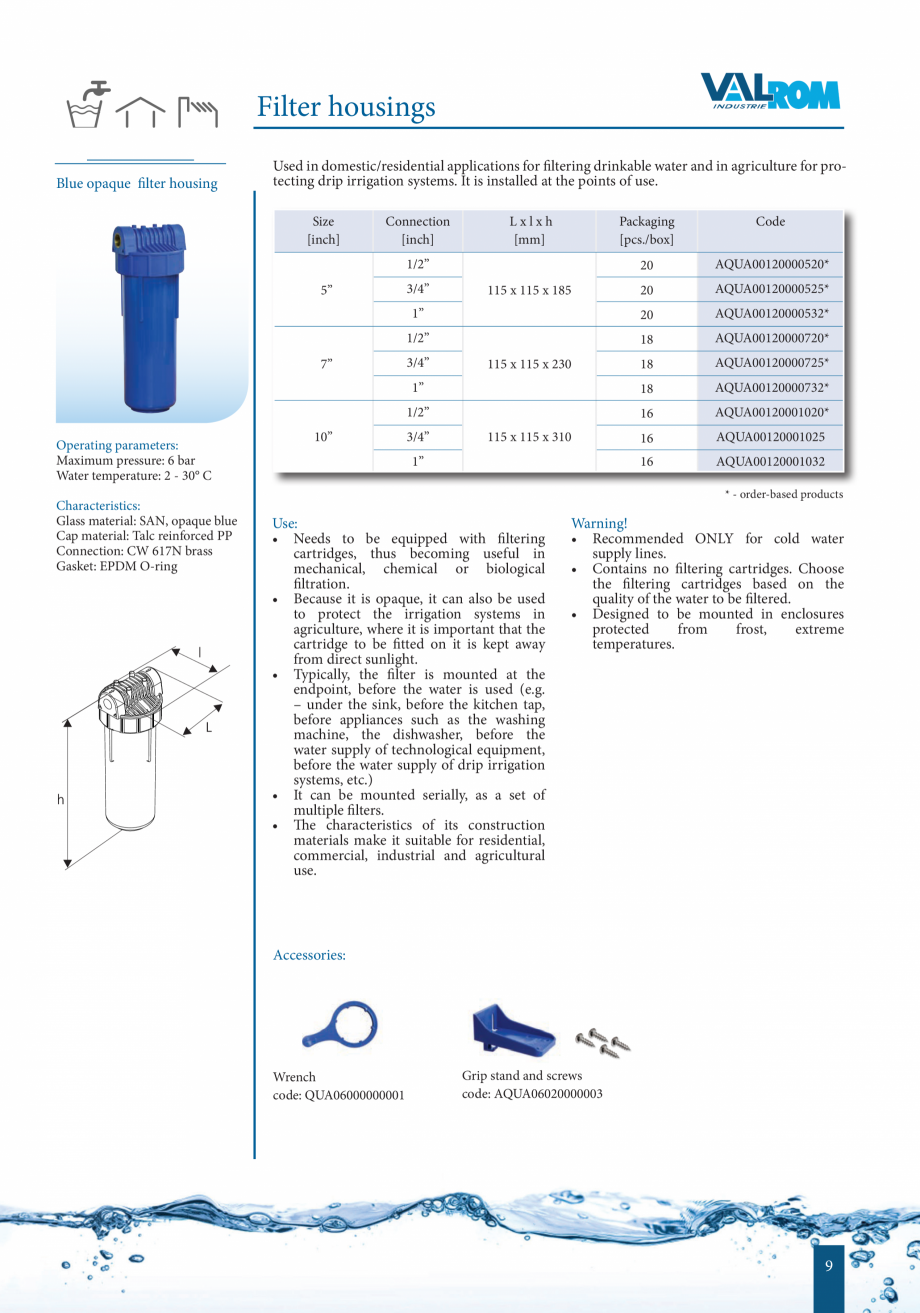

Blue opaque filter housing
Used in domestic/residential applications for filtering drinkable water and in agriculture for protecting drip irrigation systems. It is installed at the points of use.
Size
[inch]
Connection
[inch]
Lxlxh
[mm]
Packaging
[pcs./box]
Code
20
AQUA00120000520*
20
AQUA00120000525*
1”
20
AQUA00120000532*
1/2”
18
AQUA00120000720*
18
AQUA00120000725*
1”
18
AQUA00120000732*
1/2”
16
AQUA00120001020*
16
AQUA001200010
25
16
AQUA00120001032
1/2”
5”
7”
Operating parameters:
Maximum pressure: 6 bar
Water temperature: 2 - 30° C
Characteristics:
Glass material: SAN, opaque blue
Cap material: Talc reinforced PP
Connection: CW 617N brass
Gasket: EPDM O-ring
10”
3/4”
3/4”
3/4”
115 x 115 x 185
115 x 115 x 230
115 x 115 x 310
1”
* - order-based products
Use:
• Needs to be equipped with filtering
cartridges, thus becoming useful in
mechanical, chemical or biological
filtration.
• Because it is opaque, it can also be used
to protect the irrigation systems in
agriculture, where it is important that the
cartridge to be fitted on it is kept away
from direct sunlight.
• Typically, the filter is mounted at the
endpoint, before the water is used (e.g.
– under the sink, before the kitchen tap,
before appliances such as the washing
machine, the dishwasher, before the
water supply of technological equipment,
before the water supply of drip irrigation
systems, etc.)
• It can be m
ounted serially, as a set of
multiple filters.
• The characteristics of its construction
materials make it suitable for residential,
commercial, industrial and agricultural
use.
Warning!
• Recommended ONLY for cold water
supply lines.
• Contains no filtering cartridges. Choose
the filtering cartridges based on the
quality of the water to be filtered.
• Designed to be mounted in enclosures
protected
from
frost,
extreme
temperatures.
Accessories:
Wrench
code: QUA06000000001
Grip stand and screws
code: AQUA06020000003
9
Filter housings

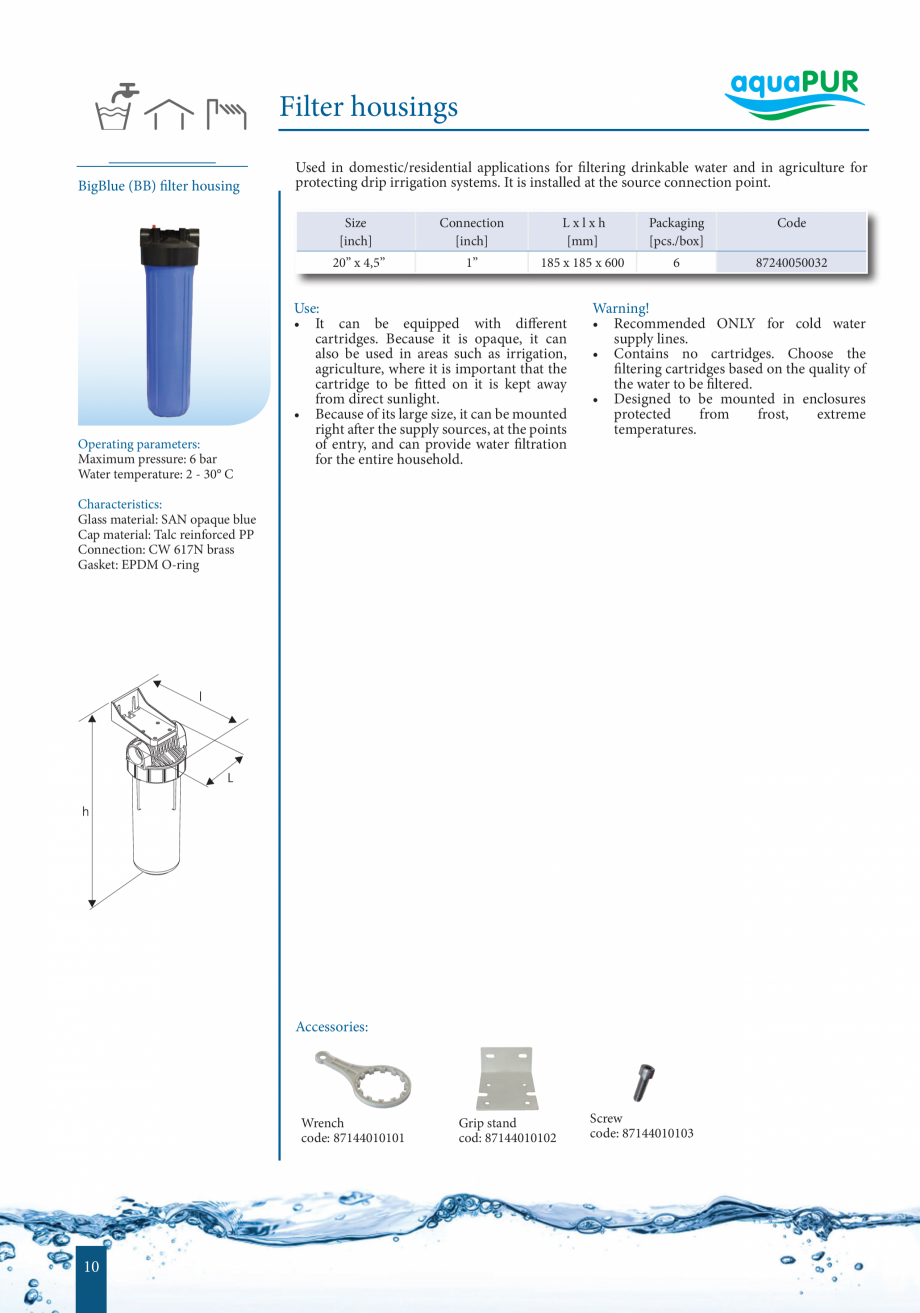

BigBlue (BB) filter housing
Operating parameters:
Maximum pressure: 6 bar
Water temperature: 2 - 30° C
Used in domestic/residential applications for filtering drinkable water and in agriculture for
protecting drip irrigation systems. It is installed at the source connection point.
Size
[inch]
Connection
[inch]
Lxlxh
[mm]
Packaging
[pcs./box]
Code
20” x 4,5”
1”
185 x 185 x 600
6
87240050032
Use:
• It can be equipped with d
ifferent
cartridges. Because it is opaque, it can
also be used in areas such as irrigation,
agriculture, where it is important that the
cartridge to be fitted on it is kept away
from direct sunlight.
• Because of its large size, it can be mounted
right after the supply sources, at the points
of entry, and can provide water filtration
for the entire household.
Warning!
• Recommended ONLY for cold water
supply lines.
• Contains no cartridges. Choose the
filtering cartridges based on the quality of
the water to be filtered.
• Designed to be mounted in enclosures
protected
from
frost,
extreme
temperatures.
Characteristics:
Glass material: SAN opaque blue
Cap material: Talc reinforced PP
Connection: CW 617N brass
Gasket: EPDM O-ring
Accessories:
Wrench
code: 87144010101
10
Grip stand
cod: 87144010102
Screw
code: 87144010103
Self cleaning filters
Self cleaning filters
They are used in domestic/residential applications for filtering drinkable water. They are installed
at the
point of water entry into the location. The specific feature of these filters is that they allow
particles to be removed while purging and, at the same time, the cartridge and the casing can be
cleaned on the inside, without the need to shut down the water and disassemble the filter. Part
of the casing is mobile and drives the cleaning piece, which, by turning right and left, cleans the
cartridge and the casing on the inside.
Flow
[m3/h]
A
B
C
ØD
Filtration Connection Cădere
[inch]
presiune [mm] [mm] [mm] [mm]
degree
[bar]
[μm]
3
4
90
3/4”
0,2
8
Operating parameters:
Maximum pressure: 10 bar
Water temperature: 5 - 40° C
Characteristics:
Glass material:plastic
Cap material: brass
Brass connection: CW 617N
Gasket: EPDM O-ring
Filter cartridge: stainless steel
Code
151
243
83
66
87210003025
151
267
94
71
87210004032
177
349
101
91
87210008040#
# - the 8m³/h ELECTRONIC ON-OFF ACTUATION
MODULE FOR FILTER PURGING can be attached,
for automatic purge schedulin
g (code: 87258000040)
Use:
• It is used for the mechanical filtration of
water, with a filtration degree of 90 microns, and is recommended for the water
in municipal supply networks.
• The filter is installed at the point of water
entry into the location.
• It is necessary to carry out a purge after
installation by actuating the purge valve
(see fig.1).
• During the purge, rotate clockwise, for
3-4 times of 360° each, the piece at the
base of the filter (see fig. 2) to remove
large particles, then rotate counterclockwise for 3-4 times of 360° each to clean
the surface of both the cartridge and the
filter casing.
Warning!
• Recommended ONLY for cold water
supply lines.
• Designed to be mounted in enclosures
protected from frost, high temperatures.
Cleaning
Valve
The filter comes equipped with:
Accessory bag
Joints and fittings for
connexion
Mounting bracket
11
Anti-limescale polyphoshate filter
Anti-limescale polyphosphate
filter kit
Protects against limescale.
Size
Connection
[inch]
[inch]
Polyphosphate
quantity
[kg]
Lxlxh
Packaging
[mm]
[pcs./box]
0,5
115 x 145 x 232
1/2”
5”
3/4”
1”
1/2”
7”
3/4”
0,8
115 x 145 x 280
1”
1/2”
Operating parameters:
Pressure: 2 - 6 bar
Water temperature: 2 - 30° C
Characteristics:
Glass material: SAN, transparent
Cap material: Talc reinforced PP
Connection: CW 617N brass
Gasket: EPDM O-ring
Filter medium: polyphosphate
crystals
10”
3/4”
1,2
115 x 145 x 354
1”
Code
20
AQUA00110060520*
20
AQUA00110060525
20
AQUA00110060532*
18
AQUA00110060720*
18
AQUA00110060725
18
AQUA00110060732*
16
AQUA00110061020*
16
AQUA00110061025*
16
AQUA00110061032
* - order-based products
Use:
• The anti-limescale polyphosphate filter
protects the installations and equipment
against limescale. The washing machine,
the boiler and the heating system will
have optimal energy consumption,
extended lifespan, while the sanitary
items will preserve their shine.
• The filter
is mounted on the water supply
of the equipment.
Warning!
• ONLY recommended for cold water
supply lines.
• Not recommended for drinking water.
• Designed to be mounted in enclosures
protected
from
frost,
extreme
temperatures or direct sunlight.
• For increased efficiency, reload the filter
when the polyphosphate level has fallen
by half.
Consumables:
Code
Polyphosphate crystals, 1 kg
AQUA07000900001
Product compliant with SR EN 1208:2005
Appearance:
colourless, odourless crystals.
Density:
approx. 1.6 g/cm3
PH:
10-12 (1% solution at 25°C)
Chemical composition: Na2O - 28,0 %
CaO - 9,2%
P2O5 - 68,0%
Storage conditions: in the original packaging, away from
sunlight, moisture, excessive heat or contact with the flame.
The filter comes equipped with:
Wrench
12
Grip stand
and screws
Polyphosphate
crystals
Slotted Tubee
Centering
piece
Multistage filters
Multistage filters
PUR 2 filtration system
Operating parameters:
Pressure: 2-4 bar
Water temperature: 2
- 30°C
Characteristics:
Glass material: SAN opaque blue
Cap material: Talc reinforced PP
Gasket: EPDM O-ring
Fittings: POM
Used to improve the quality and safety of drinking water in terms of organoleptic properties
and impurities.
Size
[inch]
Lxlxh
[mm]
Packaging
[pcs./pallet]
Code
10”
270 x 120 x 325
57
AQUA03220211020
Use:
Pur 2 system filter impurities such as sludge,
sand, rust and reduce the chlorine taste
and odour of the water in the public supply
networks.
• the first mechanical filtering stage retains
particles of over 1 μm;
• the second activated carbon block
treatment stage improves water taste and
odour.
Designed to be mounted at the point of use,
under the sink.
Consumables:
Warning!
• Recommended ONLY for cold water
supply lines.
• Designed to be mounted in enclosures
protected from frost and extreme
temperatures.
• Where water is microbiologically
unsafe or water quality is unknown, it is
necessary to carry out a water analysis and
to disinfec
t the installation and the water
source. In this situation, it is advisable to
contact a specialist.
• For installation, read the installation
instructions.
Code
Set of 2 10” PUR2 cartridges
AQUA07000810002
1
2
2 Activated carbon
block cartridge
Disposable
cartridge.
Period of use:
3-6 months
depending on water
quality.
1 Melt blown PP
cartrige.
Disposable
cartridge.
Period of use:
1-3 months
depending on
water quality.
The system comes with:
Wrench
14
Three way connecting
piece with shut-off valve;
Set of
tubees
Drinking
water faucet
Set of
cartridges
Multistage filters
PUR 3 filtration system
Operating parameters:
Pressure: 2-4 bar
Water temperature: 2° - 30 °C
Characteristics:
Glass material: SAN, opaque blue
Cap material: Talc reinforced PP
Gasket: EPDM O-ring
Fittings: POM.
Used to improve the quality and safety of drinking water in terms of organoleptic properties
and impurities.
Size
[inch]
Lxlxh
[mm]
Packaging
[pcs./pallet]
Code
10”
390 x 122 x 325
36
AQUA03320311020
Use:
PUR 3 system improve the quality of water
from public networks.
• the first stage of activated carbon block
treatment has a double role: to reduce
chlorine taste and odour and to mechanically filter particles larger than 10 μm;
• the second stage of granular activated
carbon treatment is the final stage for
improving taste and odour;
• the third stage retains particles larger
than 1 μm.
Designed to be mounted at the point of use,
under the sink.
Warning!
• Recommended ONLY for cold water
supply lines.
• Designed to be mounted in enclosures
protected
from
frost,
extreme
temperatures.
• Where water is microbiologically
unsafe or water quality is unknown, it is
necessary to carry out a water analysis and
to disinfect the installation and the water
source. In this situation, it is advisable to
contact a specialist.
• For installation, read the installation
instructions.
Consumables:
Code
Set of 3 10” PUR 3 cartridges/Reverse osmosis
3
3 1-μm
melt
blown PP
cartridge
Disposable
cartridge.
Period of use:
1-3 months
depending on water
quality.
AQUA07000810003
2
1
2 Granular activated
carbon
cartridge
1 10-μm activated
carbon block
cartridge
Disposable
cartridge.
Period of use:
3-6 months
depending on water
quality.
Disposable
cartridge.
Period of use:
3-6 months
depending on
water quality.
The system comes with:
Wrench
Three way connecting piece
with shut-off valve;
Set of
tubees
Drinking
water faucet
Filtering
cartridges
15
Multistage filters
PUR 3 UF filtration system
Operating parameters:
Pressure: 2-4 bar
Water temperature: 2° - 30 °C
Characteristics:
Glass material: SAN opaque blue
Cap material: Talc reinforced PP
Gasket: EPDM O-ring
Fittings: POM
Provides microbiological safety and protection.
Can retain bacteria such as E.coli, Sallmonela, Pseudomonas aeruginosa.
Size
[inch]
Lxlxh
[mm]
Packaging
[pcs./pallet]
Code
10”
390 x 122 x 325
36
AQUA04320411020
Use:
PUR 3 UF system treat well wate
r and water
from public supply networks.
• the first stage retains particles larger than
1 μm such as rust, sand, sludge and other
sediments that are found in water;
• the second stage of activated carbon block
treatment is designed to reduce chlorine
taste and odour;
• the third stage with Ultrafiltration
membrane removes bacteria such as E.coli,
Salmonella, Pseudomonas aeruginosa and
the finest particles of rust, sand, sludge,
etc. It Retains particles larger than 0.1 μm.
Warning!
• Recommended ONLY for cold water
supply lines.
• Designed to be mounted in enclosures
protected
from
frost,
extreme
temperatures.
• Where
the
water
source
is
microbiologically
unsafe,
regular
disinfection of the source, the installation
and the PUR 3 UF system is recommended.
In this situation, it is advisable to contact
a specialist.
• For installation, read the installation
instructions.
Not influence the content of salts and
minerals in the water.
Designed to be mounted at the point of
use,
under the sink.
Consumables:
Code
Antibacterial UltraFiltration membrane cartridge
AQUA08000010001
Activated carbon block cartridge
AQUA07010410000
1-μm meltblown PP cartridge
AQUA07000110001
3
1
2
3 3 Antibacterial 0.010.1-μm UltraFiltration
membrane cartridge
2 Activated carbon block
cartridge
Washable cartridge.
Period of use:
24 months depending
on water quality.
Disposable cartridge.
Period of use:
3-6 months depending
on water quality.
1
1-μm melt blown PP
cartridge
Disposable cartridge.
Period of use:
1-3 months
depending on water
quality.
The system comes with:
Wrench
16
Three way connecting piece
with shut-off valve;
Set of
tubees
Drinking
water faucet
Filtering
cartridges
Multistage filters
Reverse osmosis system
with mineral filter
Based on the separation principle of reverse osmosis, it can generate drinking water of the
highest quality.
Type
Lxlxh
[mm]
ϕ tank
[mm]
Packaging
[pcs./pallet]
Code
WITHOUT PUMP
400 x 125 x 410
220
8
AQU
A05322311020
Use:
Recommended for filtering water from the
public supply system and well water.
It is mounted at the point of use (POU e.g.:
under the sink) and can generate up to 190
litres of pure water for drinking and cooking
in 24 hours.
Operating parameters:
Pressure: 3-6 bar
Water temperature: 4-30°C
Ambient temperature: 4-40°C
Water supply parameters:
For the proper functioning of the
station, the inlet water quality must
be checked in terms of content of:
6,5-8,5
PH:
TDS:
<1500 ppm
280dH
Hardness:
<0,5 ppm
Free chlorine:
<0,3 pm
Iron:
Manganese:
<0,1 ppm
<0,5 ppm O2
CCO:
Total bacteria colonies: <50 CFU/mL
Operation:
6 no-pump treatment stages:
• Stage 1 – activated carbon block cartridge;
• Stage 2 – granular activated carbon;
• Stage 3 – 1-μm sediment filter;
• Stage 4 – reverse osmosis membrane;
• Stage 5 – coconut carbon filter;
• Stage 6 – mineral cartridge.
Warning!
• Where
the
water
source
is
microbiologically
unsafe,
regular
disinfection of the water source, the
installation and the entire reverse osmosis
system is recommended.
• The station needs to be connected to the
sewer.
• Designed to be mounted in enclosures
protected
from
frost,
extreme
temperatures.
• Recommended ONLY for cold water
supply lines.
Consumables:
Code
Set of 3 cartridges for reverse osmosis system
AQUA07000810003
Reverse osmosis membrane
AQUA07002000050
Coconut shell activated carbon cartridge
AQUA07003010000
Remineralisation cartridge for reverse osmosis station
AQUA07004010000
If the water supply does not meet
these requirements, the lifespan of
the membrane and the pre-filtering
cartridges can be shortened.
If the supply is done with well
water, conduct a water analysis
before installing a reverse osmosis
filtration system.
In this situation, it is advisable to
contact a specialist.
The set contains:
1 – activated carbon
block cartridge
2 – granular activated
carbon cartridge
3 – 1-μm melt blown
PP cartridge
Reverse
osmosis
membrane
Coconut shell
activated carbon
cartridge
Remineralisation
cartridge
The system comes with:
Wrench
Connection piece
Three way
to the sewer
connecting piece
with shut-off valve;
Set of
tubees
Drinking
water faucet
Pressure
tank
Tank
valve
17
Multistage filters
Reverse Osmosis system with
mineral filter and pump
Based on the separation principle of reverse osmosis, it can generate drinking water of the
highest quality.
Type
WITH PUMP
Lxlxh
[mm]
ϕ tank
[mm]
Packaging
[pcs./pallet]
Code
430 x 160 x 455
220
8
AQUA05323311020
Use:
Recommended for filtering water from the
public supply system and well water.
It is mounted at the point of use (POU e.g.:
under the sink) and can generate up to 190
litres of pure water for drinking and cooking
in 24 hours.
Operating parameters:
Pressure: 2-4.5 bar
Water temperature: 4-30°C
Ambient temperature: 4-40°C
Water supply parameters:
For the proper functioning of the
station, the inlet water quality must
b
e checked in terms of content of:
PH:
6,5-8,5
TDS:
<1500 ppm
Hardness:
280dH
Free chlorine:
<0,5 ppm
Iron:
<0,3 pm
Manganese:
<0,1 ppm
CCO:
<0,5 ppm O2
Total bacteria colonies: <50 CFU/mL
Operation:
6 treatment stages by pump (P):
• Stage 1 – activated carbon block cartridge;
• Stage 2 – granular activated carbon;
• Stage 3 – 1-μm sediment filter;
• Stage 4 – reverse osmosis membrane;
• Stage 5 – coconut carbon filter;
• Stage 6 – mineral cartridge.
Warning!
• Where
the
water
source
is
microbiologically
unsafe,
regular
disinfection of the water source, the
installation and the entire reverse osmosis
system is recommended.
• The station needs to be connected to the
sewer.
• Designed to be mounted in enclosures
protected
from
frost,
extreme
temperatures.
• Recommended ONLY for cold water
supply lines.
Consumables:
Code
Set of 3 cartridges for reverse osmosis system
AQUA07000810003
Reverse osmosis membrane
AQUA07002000050
Coconut shell ac
tivated carbon cartridge
AQUA07003010000
Remineralisation cartridge for reverse osmosis station
AQUA07004010000
If the water supply does not
meet these requirements, the
lifespan of the membrane and
the pre-filtering cartridges can be
shortened.
If the supply is done with well
water, conduct a water analysis
before installing a reverse osmosis
filtration system.
In this situation, it is advisable to
contact a specialist.
The set contains:
1 – activated carbon
block cartridge
2 – granular activated
carbon cartridge
3 – 1-μm melt blown
PPcartridge
Reverse
osmosis
membrane
Coconut shell
activated carbon
cartridge
Remineralisation
cartridge
The system comes with:
Wrench
18
Connection piece
Three way
to the sewer
connecting piece
with shut-off valve;
Set of
tubees
Drinking
water faucet
Pressure
tank
Tank
valve
Multistage filters
ESPRESSO 600GPD
reverse osmosis system
Based on the separation principle of reverse osmosis, it can generate drinking water of the highest
quality. It has the capacity to generate a purified water flow that can be used without a storage
recipient. Can reduce the concentrations of substances dissolved in water by up to 96%. Especially useful with coffee machines.
High flow
rate
Operating parameters:
Pressure: 1 - 4 bari
Water temperature:5 - 38° C
Ambient temperature: ≤90%
Water supply parameters:
For the proper functioning of the
station, the inlet water quality must
be checked in terms of content of:
PH:
TDS:
Turbidity:
Free chlorine:
Iron:
Manganese:
Hydrogen sulphide:
Hydrocarbons:
6,5-8,5
<1500 ppm
<1 NTU
<0,1 mg/l
<0,3 mg/l
<0,1 mg/l
0 ppm
0 ppm
If the water supply does not
meet these requirements, the
lifespan of the membrane and
the pre-filtering cartridges can be
shortened.
If the supply is done with well
water, conduct a water analysis
before installing a reverse osmosis
filtration system.
In this situation, it is advisable to
contact a specialist.
Alarm in
case of leaks
Quick cartridge
replaceme
nt
Type
Water flow
[l/min]
Lxlxh
[mm]
Packaging
[pcs./pallet]
Code
ESPRESSO 600GPD
1,58
231×324×431
16
87220360813
Characteristics:
• Compact system without tank, with water production at the time of consumption, with a
high water flow rate (1.58 L/min), quick installation and connection.
• Transparent cover that allows you to view the operating mode.
• Designed with disposable cartridges and simple replacement instructions.
• In addition, it has a visual system that provides information on the duration of use of filters.
• Complex connections integrated into a collector reduce the risk of water losses.
• Efficient water saving technology, allows cutting down costs on water supply.
• The system stops automatically in case of leaks; the smart display will continue to blink
along with the alarm audio signal.
Use:
Recommended for filtering water from the
public supply system and well water.
It is mounted at the point of use (POU e.g.:
under the sink)
Operation:
4 treatment stages:
• Stage 1 - 5-μm sediment filter;
• Stage 2 - Pre Carbon Block filter;
• Stage 3 - reverse osmosis membrane;
• Stage 4 - Post Carbon Block filter.
Warning!
• Where
the
water
source
is
microbiologically
unsafe,
regular
disinfection of the water source, the
installation and the entire reverse osmosis
system is recommended.
• The station needs to be connected to the
sewer.
• Designed to be mounted in enclosures
protected
from
frost,
extreme
temperatures.
• Recommended ONLY for cold water
supply lines.
Consumables:
Cod
RO-600 sediment filter
87220370601
RO-600 activated carbon block cartridge
87220370602
RO-600 reverse osmosis membrane
87220370603
RO-600 activated carbon block post cartridge
87220370604
RO-600 power supply
87220370606
RO-600
sediment filter
RO-600 activated
carbon block cartridge
RO-600 reverse
osmosis membrane
RO-600 activated
carbon block post
cartridge
Accessory:
Installation kit included.
19
Multistage filters
MO
reverse osmosis system
Based on the separation principle of reverse osmosis, it can generate high quality water for
consumption.
Type
Reverse
osmosis
membrane
[buc.]
Permeate flow
at 25 0C
[m3/h]
Lxlxh
MO 6000
1
0,28
0,4 x 0,55 x 1,45
87230025011*
MO 10000
2
0,53
0,4 x 0,55 x 1,45
87230045011*
MO 24000
4
1,00
0,6 x 0,70 x 1,45
87230240001*
Use:
• Used for water treatment in households,
cafes, restaurants, schools, kindergartens,
laboratories, steam generators.
• Recommended for filtering water from
the public supply system and well water.
• It is mounted at the point of entry/supply
(POE e.g: - the entry into the house) and
can generate water for consumption for
the entire household.
[m]
Warning!
• Where the water source is microbiologically unsafe, regular disinfection of the
water source, the installation and the
entire reverse osmosis system is recommended.
• The station needs to be connected to the
sewer.
• Designed to be mounted in enclosures
pro
tected from frost, extreme temperatures.
• To be used ONLY for cold water supply
lines.
Optional
Operating parameters:
Pressure: 2-4 bar
Water temperature: 10° - 25 °C
Characteristics:
Membrane
DOW FILMTECH XLE 4040
Grundfos high-pressure pump
Ecosoft control panel
Water supply parameters:
For the proper functioning of the
station, the inlet water quality must
be checked in terms of content of:
TDS:
<1500 mg/L
Hardness:
8,50dH
Free chlorine:
<0,1 mg/L
Iron:
<0,1 mg/L
Manganese:
<0,05 mg/L
CCO:
<4 mg/L O2
Silicates:
<20 mg/L
Total bacteria colonies: <50 CFU/mL
If the water supply does not meet
these requirements, the lifespan of
the membrane and the pre-filtering
cartridges can be shortened.
If the supply is done with well
water, conduct a water analysis
before installing a reverse osmosis
filtration system.
In this situation, it is advisable to
contact a specialist.
20
Dispensing system for the membrane unsilting/cleaning solution
Permeate wash of the membrane
Raw w
ater mixture
Consumables:
5-μm sediment cartridge 10” x 4.5”
DOW FILMTECH XLE 4040 membrane
Code
Filtration pitcher
21
Filtration pitcher
Filtration pitcher provides an improved drinking water reserve in terms of hardness, taste and
smell.
Filtration pitcher
Cap
colour
Filtered
water volume
[litres]
Filtration
capacity
[litres]
Lxh
Packaging
Packaging
[mm]
[pcs./box]
[pcs./pallet]
270 x 285
6
120
87200000035
3,5
270
270 x 285
6
120
87200000135
270 x 285
6
120
87200000235
blue
green
red
Operating parameters:
Water temperature: 4 - 30 °C
Characteristics:
Cap material: ABS.
Pitcher material: SAN, transparent.
Use:
• Recommended for water from the public
supply network.
• Reduces the chlorine taste and odour, the
hardness and provides a filtered water
reserve of up to 3.5 litres.
• Includes filtering cartridge.
• The pitcher does not require connection
to the water supply network.
Code
Warning!
• To be used ONLY for microbiologically
safe
cold water.
• Designed to be used in enclosures
protected
from
frost,
extreme
temperatures.
Consumables:
Code
Pitcher cartridge
h
Disposable cartridge.
Period of use: 1 month depending on water quality.
L
The pitcher comes with:
Cartridge
22
87201050300
Water dispencers
23
Water dispencer
Water dispencer
Dispensers can generate hot water, water at the temperature of the room/network water, and
cold water.
Type
612
500
120
1,5 kW/24 h
Water heating
capacity
≥900 C
Water cooling
capacity
≤100 C
Normal
capacity
Cold/hot water
tank volume
5 l/h
2 l/h
80 l/h
3 l / 1,1 l
S3HNC
On the desk
H3HNC
On the floor
Type
Operating parameters:
Water temperature: 4 - 300 C
Ambient temperature: 10-380 C
Power supply: 220V/50Hz
Power
consumed
when
cooling
[W]
Power
consumption
[W]
Power
consumed
when
heating
[W]
Location
S3HNC
H3HNC
Rated
power
Use:
• Recommended for water from the public
supply network.
• Can be connected to water from wellbores if it m
eets the characteristics of
drinking water.
• Recommended for use in office and residential buildings.
Type
24
Code
[W]
87903100000
87903000000
Weight
Packaging
[kg]
[pcs./pallet]
11
18
12,5
27
Warning!
• To be used ONLY for microbiologically
safe cold water.
• Designed to be used in enclosures
protected
from
frost,
extreme
temperatures.
A
[mm]
B
[mm]
C
[mm]
S3HNC
310
330
470
H3HNC
310
340
940
Filter cartridges
25
Filter cartridges
Mechanical filtration cartridges
PP melt blown cartrige
Remove impurities in the water such as: sand, sludge, rust or suspended particles.
Size
[inch]
Micron rating
[μm]
H
[mm]
Packaging
[pcs./box]
Code
100
AQUA07000105001
100
AQUA07000105005
10
100
AQUA07000105010
20
100
AQUA07000105020
1
50
AQUA07000107001
50
AQUA07000107005
10
50
AQUA07000107010
20
50
AQUA07000107020
50
AQUA07000110001
1
5”
Dimensions:
Exterior diameter: 60 mm
Interior diameter: 28 mm
Use:
Period of use: 1-3 months
depen
ding on water quality.
Recommended for filtering
drinking water.
Disposable cartridge.
PP melt blown cartrige
176
5
7”
Operating parameters:
Pressure: 2-4 bar
Water temperature: 2 - 30° C
128
5
1
253
5
10”
50
AQUA07000110005
10
50
AQUA07000110010
20
50
AQUA07000110020
Characteristics:
• Made of melt blown polypropylene.
• Usually used for pre-filtration/protection.
Remove impurities in the water such as: sand, sludge, rust or suspended particles.
H
Packaging
Packaging
[inch]
Micron
rating
[μm]
[mm]
[pcs./box]
[pcs./pallet]
20”
20
510
6
180
Size
Characteristics:
• Made of melt blown polypropylene.
• Usually used for pre-filtration/protection.
Operating parameters:
Pressure: 2-4 bar
Water temperature: 2 - 30° C
Dimensions:
Exterior diameter: 114 mm
Interior diameter: 28 mm
Use:
Period of use: 1-3 months
depending on water quality.
Recommended for filtering
drinking water.
Disposable cartridge.
26
Warning!
• Used only for microbiolog
ically safe cold
water supply lines.
• DOES NOT remove the chemicals in the
water or disinfect the water.
• Let the water flow through the cartridge
at least 5 minutes before first use or after
more than 7 days of disuse.
Code
87242050020
Warning!
• Used only for microbiologically safe cold
water supply lines.
• DOES NOT remove the chemicals in the
water or disinfect the water.
• Let the water flow through the cartridge
at least 5 minutes before first use or after
more than 7 days of disuse.
Filter cartridges
String woond PP
Remove impurities in the water such as: sand, sludge, rust or suspended particles.
Size
[inch]
5”
7”
Operating parameters:
Pressure: 2-4 bar
Water temperature: 2 - 30° C
Dimensions:
Exterior diameter: 60 mm
Interior diameter: 28 mm
Micron rating
[μm]
Packaging
[pcs./box]
Code
1
100
AQUA07000205001
5
100
AQUA07000205005
100
AQUA07000205010
10
H
[mm]
128
20
100
AQUA07000205020
1
50
AQUA07000207001
50
AQUA07000207005
50
AQUA07000207010
50
AQUA07000207020
50
AQUA07000210001
50
AQUA07000210005
10
50
AQUA07000210010
20
50
AQUA07000210020
5
10
177
20
1
10”
5
251
Use:
Period of use: 1-3 months
depending on water quality.
Recommended for filtering
drinking water.
Disposable cartridge.
Characteristics:
• Made by winding the polypropylene wires
on a polypropylene support
• Usually used for pre-filtration/protection
Washable cartridge
with PP mesh
Remove large impurities in the water such as: sand, sludge, rust or suspended particles.
Operating parameters:
Pressure: 2-4 bar
Water temperature: 2 - 30° C
Warning!
• Used only for cold water supply lines. If
used for drinking water, the water needs
to be microbiologically safe.
• DOES NOT remove the chemicals in the
water or disinfect the water.
• Let the water flow through the cartridge
at least 5 minutes before first use or after
more than 7 days of disuse.
Size
[inch]
Micron rating
[µm]
H
[mm]
Packaging
[pcs./box]
Code
5”
50
128
100
AQUA07000305050
7”
50
177
50
AQUA07000307050
10”
50
251
50
AQUA07000310050
Characteristics:
• It consists of a polypropylene body and a
polypropylene/nylon mesh.
• The cartridge can be reused by regular
washing under running cold water,
depending on water quality.
Warning!
• Used only for cold water supply lines. If
used for drinking water, the water needs
to be microbiologically safe.
• DOES NOT remove the chemicals in the
water or disinfect the water.
• Let the water flow through the cartridge
at least 5 minutes before first use or after
more than 7 days of disuse.
Dimensions:
Exterior diameter: 65 mm
Interior diameter: 28 mm
Use:
Period of use: up to 24 months
depending on water quality
Recommended for coarse water
filtration.
Washable cartridge.
27
Filter cartridges
Activated carbon cartridges
Granular activated carbon
cartridge
Retain organic substances dissolved in water, chlorine and chlorinated derivatives, pesticide
residues
, correct taste and odour.
Size
[inch]
H
[mm]
Packaging
[pcs./box]
Code
5”
127
50
AQUA07000505000
7”
176
50
AQUA07000507000
10”
250
20
AQUA07000510000
Characteristics:
• The granular activated carbon cartridge is
obtained from coconut shell.
Operating parameters:
Pressure: 2-4 bar
Water temperature: 2 - 30° C
Use:
Period of use: 3-6 months
depending on water quality.
Recommended for filtering
drinking water.
Disposable cartridge.
Coconut shell activated carbon
cartridge
Retain organic substances dissolved in water, chlorine and chlorinated derivatives, pesticide
residues, correct taste and odour.
Size
[inch]
H
[mm]
Packaging
[pcs./box]
Packaging
[pcs./pallet]
Code
20”
508
6
180
87242250020
Characteristics:
• The granular activated carbon cartridge is
obtained from coconut shell.
Operating parameters:
Pressure: 2-4 bar
Water temperature: 4 - 30° C
Dimensions:
Exterior diameter: 114 mm
Interior diameter: 28 mm
Use:
Period of use: 3-6 months
dep
ending on water quality.
Recommended for filtering
drinking water.
Disposable cartridge.
28
Warning!
• Used only for microbiologically safe cold
water supply lines.
• The granular activated carbon cartridge
does not retain the sediments and fine
particles in the water, so it must always
be preceded by a polypropylene sediment
filter that extends the lifespan of the
carbon cartridge.
• It releases fine carbon particles in the
water, which is why it is recommended to
be followed by a polypropylene filter.
• Let the water flow through the cartridge
at least 5 minutes before first use or after
more than 7 days of disuse.
Warning!
• Used only for microbiologically safe cold
water supply lines.
• The granular activated carbon cartridge
does not retain the sediments and fine
particles in the water, so it must always
be preceded by a polypropylene sediment
filter that extends the lifespan of the
carbon cartridge.
• It releases fine carbon particles in the
water, which is why i
t is recommended to
be followed by a polypropylene filter.
• Let the water flow through the cartridge
at least 5 minutes before first use or after
more than 7 days of disuse.
Filter cartridges
Antibacterial coconut activated
carbon cartridge
Operating parameters:
Pressure: 2-4 bar
Water temperature: 2 - 30° C
It has antibacterial action and retains organic substances dissolved in water, chlorine and
chlorinated derivatives, pesticide residues, corrects taste and odour.
Size
[inch]
H
[mm]
Packaging
[pcs./box]
Code
5”
127
50
AQUA07000605000
7”
176
50
AQUA07000607000
10”
250
50
AQUA07000610000
Characteristics:
• The granular activated carbon cartridge is
obtained from coconut shell and treated
with silver for antibacterial effect.
• Used to reduce chlorine in the water and
correct the taste, the odour and the colour
of drinkable water.
• Prevents the growth of microorganisms
on the surface of the cartridge.
Dimensions:
Exterior diameter: 68 mm
Interior
diameter: 28 mm
Use:
Period of use: 6-12 months
depending on water quality.
Recommended for filtering
drinking water.
Disposable cartridge.
Activated carbon block
cartridge
Operating parameters:
Pressure: 2-4 bar
Water temperature: 2 - 23° C
Warning!
• Used only for cold water supply lines.
• Where
the
water
source
is
microbiologically
unsafe,
regular
disinfection of the water source and the
installation is recommended.
• The granular activated carbon cartridge
does not retain the sediments and fine
particles in the water, so it must always
be preceded by a polypropylene sediment
filter that extends the lifespan of the
carbon cartridge.
• It releases fine carbon particles in the
water, which is why it is recommended to
be followed by a polypropylene filter.
• Let the water flow through the cartridge
at least 5 minutes before first use or after
more than 7 days of disuse.
Retain organic substances dissolved in water, chlorine and chlorinated derivatives, pesticide
residue
s, correct taste and odour.
Size
[inch]
H
[mm]
Packaging
[pcs./box]
Cod
5”
128
20
AQUA07010405000
7”
177
10
AQUA07010407000
10”
251
10
AQUA07010410000
Characteristics:
• The activated carbon block cartridge is
obtained from coconut shell.
• It retains suspended particles larger than
10 μm.
Warning!
• Used only for microbiologically safe cold
water supply lines.
• Let the water flow through the cartridge
at least 5 minutes before first use or after
more than 7 days of disuse.
Dimensions:
Exterior diameter: 68 mm
Interior diameter: 29,5 mm
Use:
Period of use: 3-6 months
depending on water quality.
Recommended for filtering
drinking water.
Disposable cartridge.
29
Filter cartridges
Centaur carbon filter cartridge
Efficiently eliminates hydrogen sulphide, chlorine from the water, corrects the taste and the
odour.
Size
[inch]
H
[mm]
Packaging
[pcs./box]
Packaging
[pcs./pallet]
Code
20”
508
6
180
87242251020
Characteristics:
• It is made of
catalytic activated carbon.
Warning!
• Used only for microbiologically safe cold
water supply lines.
• Let the water flow through the cartridge
at least 5 minutes before first use or after
more than 7 days of disuse.
Operating parameters:
Pressure: 2-4 bar
Water temperature: 4 - 30° C
Dimensions:
Exterior diameter: 114 mm
Interior diameter: 28 mm
Use:
Period of use: 6 months
depending on water quality.
Recommended for filtering
drinking water.
Disposable cartridge.
Antibacterial Ultrafiltration
membrane cartridge
Operating parameters:
Pressure: 1-4 bar
Water temperature: 2 - 30° C
Tehnical data sheet:
Exterior diameter: 70 mm
Interior diameter: 28 mm
Flow: 4-4.5 l/min. at 2 bar
Micron rating: 0.01-0.1 μm
Membrane surface area: 0.8 m2
Use:
Period of use: up to 1 year depending
on water quality
Washable cartridge: every 6 months
we recommend disinfection with usual
solutions (e.g.: chloramine 3-5%).
Recommended for filtering
drinking water.
30
Biological filtration cartridge
s
Eliminate from water bacteria such as: E.coli, Salmonella, Pseudomonas aeruginosa and the
finest particles of rust, sand, sludge, etc.
Size
[inch]
H
[mm]
Packaging
[pcs./box]
Code
10”
250
25
AQUA08000010001
Characteristics:
• Made of PVDF (polyvinyl diflouride), a
material that allows repeated washing/
disinfection of the membrane.
• Retains particles larger than 0.1 μm
(organic high-molecular substance – e.g.:
bacteria, etc).
• Does not retain salts, minerals,
oligoelements, etc. from the water)
• The efficiency in retaining bacteria was
tested in conjunction with ECOIND
laboratories (see analysis report).
• Used to replace the UF membrane
cartridge, a component of the PUR 3 UF
system, at the end of its lifespan.
Warning!
• Used only for cold water supply lines.
• Where
the
water
source
is
microbiologically
unsafe,
regular
disinfection of the water source, the
installation and the UF membrane
cartridge is recommended.
• Let the water flow through the ca
rtridge
at least 5 minutes before first use or after
more than 7 days of disuse.
Media filtration systems
31
Softening systems
aquaPUR SOFT CAB softening
systems with bypass
Reduce water hardness eliminating the risk of limescale.
Type
Nominal
flow
[m3/h]
Filter
material
[l]
Salt
tank
[kg]
Cyclical capacity
= m³ x °G
Code
SOFT 10 CAB
0,8
10
23
30
AQUA09110010008
SOFT 18 CAB
1,5
18
42
54
AQUA09110018015
SOFT 25 CAB
2,0
25
62
75
AQUA09110025020
Note: Built-in salt storage tank
Operating parameters:
Pressure: 2-6 bar
Water temperature: +4 ...+30°C
Ambient temperature: +5...+40 °C
Relative humidity: max. 80%
Pre-Micron rating: 100 μm
Connection: 1”
Voltage: 230V, 50 Hz
Power: 3 W
Water supply parameters:
For the proper functioning of the
systems, the inlet water quality
must be checked in terms of
content of:
Hardness:
Iron:
Manganese:
32
42dH
< 0.2 mg/l
< 0.05mg/l
Benefits:
The SOFT softening systems are high
quality reliable equipment equipped
with DOWEXTM-HCRS/S resin that, by
eliminating water hardness:
• reduce the consumption of detergents;
• reduce the energy consumption;
• maintain or extend the lifespan of
installations, washing machine,
dishwasher, heating system or boiler, etc.;
• eliminate the cost of repairs resulting
from the damage caused by water
hardness;
• prevent the whitening of taps, sinks and
sanitary items in contact with water.
Warning!
• The systems need to be connected to the
sewer.
• Designed to be mounted in enclosures
protected
from
frost,
extreme
temperatures.
• To be used ONLY for cold water supply
lines.
• Where the water is microbiologically
unsafe or where water quality is unknown,
it is necessary to carry out a water analysis
and to disinfect the installation and
the water source. In this situation, it is
advisable to contact a specialist.
Type
A
[cm]
B
[cm]
C
[cm]
Code
SOFT 10
59
33
47
AQUA09110010008
SOFT 18
83
33
47
AQUA09110018015
SOFT 25
105
33
47
AQUA09110025020
Softening systems
aquaPUR SOFT CAB LOTUS
softening systems with bypass
Reduce water hardness eliminating the risk of limescale. LOTUS variants have a residual
chlorine generator for resin disinfection at the time of regeneration and also perform the brine
feeding phase during countercurrent regeneration.
Type
Nominal
flow
[m3/h]
Salt
tank
[kg]
Filter
material
[l]
Cyclical capacity
= m³ x °G
Code
SOFT 12,5 CAB LOTUS
1,0
12,5
24
37,5
AQUA09110012010
SOFT 25 CAB LOTUS
2,0
25,0
64
75,0
AQUA09110025021
Note: Built-in salt storage tank
Operating parameters:
Pressure: 2 - 6 bari
Water temperature: +3 ...+30° C
Ambient temperature: +5...+40 0C
Relative humidity:max 80%
Pre-Micron rating: 100 µm
Connection: 1”
Voltage: 230V, 50 Hz
Power: 5 W
Water supply parameters:
For the proper functioning of the
systems, the inlet water quality
must be checked in terms of content of::
Hardness:
42dH
Iron:
< 0.2 mg/l
Manganese:
< 0.05mg/l
Particles:
<100 micro
ns
Microbiologically pure.
Benefits:
Softeners with modern design, color screen,
touch buttons, simple and very user-friendly
interface. Easy access to the salt tank by simply gliding the upper part made entirely of
glass with glossy surface and rounded edges
to avoid any risk of injury. Low water consumption during regeneration (up to 50%),
special resin disinfection mode and warning
system in case of lack of salt in the recipient.
The softening stations are high quality reliable equipment equipped with DOWEXTM-HCRS/S resin that, by eliminating water
hardness:
• reduce the consumption of detergents;
• reduce the energy consumption;
• maintain or extend the lifespan of installations, washing machine, dishwasher,
heating system or boiler, etc.;
• eliminate the cost of repairs resulting
from the damage caused by water hardness;
• prevent the whitening of taps, sinks and
sanitary items in contact with water.
Type
H
[cm]
A
[cm]
Warning!
• The systems need to be connected t
o the
sewer.
• Designed to be mounted in enclosures
protected
from
frost,
extreme
temperatures.
• To be used ONLY for cold water supply
lines.
• Where the water is microbiologically
unsafe or where water quality is unknown,
it is necessary to carry out a water analysis
and to disinfect the installation and
the water source. In this situation, it is
advisable to contact a specialist.
B
[cm]
Code
SOFT 12,5 CAB LOTUS
584
324
480
AQUA09110012010
SOFT 25 CAB LOTUS
1044
324
480
AQUA09110025021
33
Softening systems
aquaPUR SOFT SIMPLEX
softening systems with bypass
Operating parameters:
Pressure: 2-6 bar
Water temperature: +4 ...+30°C
Ambient temperature: +5...+40 °C
Relative humidity: max. 80%
Pre-Micron rating: 100 μm
Connection: 1”
Voltage: 230V, 50 Hz
Power: 3 W
Water supply parameters:
For the proper functioning of the
systems, the inlet water quality
must be checked in terms of
content of:
Hardness:
Iron:
Manganese:
34
Reduce water hardness eliminating t
he risk of limescale.
Type
Nominal
flow
[m3/h]
Filter
material
[l]
Salt
tank
[kg]
Cyclical capacity
= m³ x °G
Code
SOFT 10 SIMPLEX
0,8
10
28
30
AQUA09111010008
SOFT 18 SIMPLEX
1,5
18
80
54
AQUA09111018015
SOFT 25 SIMPLEX
2,0
25
80
75
AQUA09111025020
SOFT 37 SIMPLEX
2,5
37
80
110
AQUA09110037025
SOFT 50 SIMPLEX
3,0
50
115
150
AQUA09110050030
Benefits:
The SOFT softening systems are high
quality reliable equipment equipped
with DOWEXTM-HCRS/S resin that, by
eliminating water hardness:
• reduce the consumption of detergents;
• reduce the energy consumption;
• maintain or extend the lifespan of
installations, washing machine,
dishwasher, heating system or boiler, etc.;
• eliminate the cost of repairs resulting
from the damage caused by water
hardness;
• prevent the whitening of taps, sinks and
sanitary items in contact with water.
Warning!
• The systems need to be connected to the
sewer.
• Designed to be mounted in enclosures
protected
f
rom
frost,
extreme
temperatures.
• To be used ONLY for cold water supply
lines.
• Where the water is microbiologically
unsafe or where water quality is unknown,
it is necessary to carry out a water analysis
and to disinfect the installation and
the water source. In this situation, it is
advisable to contact a specialist.
42dH
< 0.2 mg/l
< 0.05mg/l
Type
A
[cm]
B
[cm]
ØD
[cm]
H
[cm]
Code
SOFT 10 SIMPLEX
44.0
28.5
24.2
66.0
AQUA09111010008
SOFT 18 SIMPLEX
81.5
40.0
24.2
109.0
AQUA09111018015
SOFT 25 SIMPLEX
81.5
40.0
24.2
126.5
AQUA09111025020
SOFT 37SIMPLEX
81.5
40.0
27.0
153.0
AQUA09110037025
SOFT 50 SIMPLEX
87.5
46.0
32.0
138.0
AQUA09110050030
Softening systems
Reduce water hardness eliminating the risk of limescale.
FU softening systems
Filter
material
[l]
Salt
tank
[kg]
Cyclical capacity
= m³ x °G
Code
3,5
75
125
210
87110430125*
4,0
100
125
280
87110400100*
Type
Maximum
flow
[m3/h]
FU-1354 CE
FU-1465 CE
* - order-based p
roduct
Operating parameters:
Pressure: 2-6 bar
Water temperature: +4 ...+30°C
Ambient temperature: +5...+40°C
Relative humidity: max. 80%
Pre-Micron rating: 100 μm
Connection: 1”
Voltage: 230V, 50 Hz
Power: 6 W
Benefits:
The FU softening systems are high quality
reliable equipment equipped with valve
and DOWEXTM-HCRS/S resin that, by
eliminating water hardness:
• reduce the consumption of detergents;
• reduce the energy consumption;
• maintain or extend the lifespan of
installations, washing machine,
dishwasher, heating system or boiler, etc.;
• eliminate the cost of repairs resulting
from the damage caused by water
hardness;
• prevent the whitening of taps, sinks and
sanitary items in contact with water.
Warning!
• The systems need to be connected to the
sewer.
• Designed to be mounted in enclosures
protected
from
frost,
extreme
temperatures.
• To be used ONLY for cold water supply
lines.
• Where the water is microbiologically
unsafe or where water quality is
unknown,
it is necessary to carry out a water analysis
and to disinfect the installation and
the water source. In this situation, it is
advisable to contact a specialist.
Water supply parameters:
For the proper functioning of the
systems, the inlet water quality
must be checked in terms of
content of:
Hardness:
Iron:
Manganese:
42dH
< 0,2 mg/l
< 0,05mg/l
Type
E
[cm]
F
[cm]
G
[cm]
H
[cm]
I
[cm]
Code
FU-1354 CE
92
38 x 43
139,8
159,8
ϕ336
87110430125*
FU-1465 CE
92
ϕ460
167,4
187,4
ϕ363
87110400100*
* - order-based product
35
Softening systems
FU TWIN softening systems
Reduce water hardness eliminating the risk of limescale.
Alternating operation for a continuous flow of softened water.
Type
Maximum
flow
[m3/h]
Filter
material
[l]
Salt
tank
[kg]
Cyclical capacity
= m³ x °G
Code
FU-1054 TWIN
2,0
2 x 37
125
104
87120025125*
FU-1252 TWIN
2,9
2 x 62,5
125
175
87120036125*
FU-1354 TWIN
3,5
2 x 75
125
210
87120043125*
FU-1465 TWIN
4,
0
2 x 100
125
280
87120050125*
FU-1665 TWIN
5,2
2 x 125
136
351
87120062136*
FU-2162 TWIN
6,3
2 x 200
400
562
87120068400*
* - order-based products
Operating parameters:
Pressure: 2-6 bar
Water temperature: +4 ...+30°C
Ambient temperature: +5...+40°C
Relative humidity: max. 80%
Pre-Micron rating: 100 μm
Connection: 1”
Voltage: 230V, 50 Hz
Power: 6 W
Water supply parameters:
For the proper functioning of the
systems, the inlet water quality
must be checked in terms of
content of:
Hardness:
Iron:
Manganese:
H
G
E
F
36
Benefits:
The FU TWIN softening systems high quality
reliable equipment equipped with
valve and DOW resin that, by eliminating
water hardness:
• reduce the consumption of detergents;
• reduce the energy consumption;
• maintain or extend the lifespan of
installations, washing machine,
dishwasher, heating system or boiler;
• eliminate the cost of repairs resulting
from the damage caused by water
hardness;
• prevent the whitening of tap
s, sinks and
sanitary items in contact with water.
Warning!
• The systems need to be connected to the
sewer.
• Designed to be mounted in enclosures
protected
from
frost,
extreme
temperatures.
• To be used ONLY for cold water supply
lines.
• Where water is microbiologically
unsafe or water quality is unknown, it is
necessary to carry out a water analysis and
to disinfect the installation and the water
source. In this situation, it is advisable to
contact a specialist.
42dH
< 0.2 mg/l
< 0.05mg/l
Type
E
[cm]
F
[cm]
G
[cm]
H
[cm]
Code
FU-1035 TWIN
92
FU-1054 TWIN
92
38 x 43
89,8
109,8
87120016125*
38 x 43
138,6
158,6
87120025125*
FU-1252 TWIN
92
38 x 43
133,3
153,3
87120036125*
FU-1354 TWIN
92
38 x 43
139,8
159,8
87120043125*
FU-1465 TWIN
92
ϕ460
167,4
187,4
87120050125*
FU-1665 TWIN
92
ϕ460
167,4
187,4
87120062136*
FU-2162 TWIN
130
ϕ600
172,1
212,1
87120068400*
* - order-based products
Hardness, iron, manganese,
ammonium treatm
ent systems
MIX CAB treatment systems
with bypass
Operating parameters:
Pressure: 2-6 bar
Water temperature: +4 ...+30°C
Ambient temperature: +5...+40°C
Relative humidity: max. 80%
Pre-Micron rating: 100 μm
Connection: 1”
Voltage: 230V, 50 Hz
Power: 3 W
Treat water in terms of iron, manganese, hardness, ammonium and organic matter.
Type
Maximum
flow
[m3/h]
Filter
material
[l]
Salt
tank
[kg]
Cyclical capacity
= m³ x °G
Code
MIX 25 CAB
1,2
25
62
53
AQUA09100025012
Benefits:
A single solution for 5 issues:
• eliminate the risk of red and black stains
on sanitary items caused by the iron and
manganese content;
• eliminate the risk of limescale;
• control the content of ammonium and
organic matter;
• save space by mounting a single equipment for all 5 issues;
• benefit from the quality of Ecomix professional filter medium.
Warning!
• The system needs to be connected to the
sewer.
• Designed to be mounted in enclosures
protected from frost, extreme tempera
tures.
• To be used ONLY for cold water supply
lines.
• Where water is microbiologically unsafe
or water quality is unknown, it is necessary to carry out a water analysis and to
disinfect the installation and the water
source. In this situation, it is advisable to
contact a specialist.
Water supply parameters:
For the proper functioning of the
systems, the inlet water quality
must be checked in terms of
content of:
Hardness:
Iron:
Manganese:
Oxidisability:
Ammonium:
Total dissolved
solids:
42 dH
< 15 mg/l
< 3mg/l
< 4 ppm O2
< 4 mg/l
4,000 mg/l
Type
A
[cm]
B
[cm]
C
[cm]
Code
MIX 25
105
33
470
AQUA09100025012
37
Hardness, iron, manganese,
ammonium treatment systems
MIX SIMPLEX treatment
systems with bypass
Operating parameters:
Pressure: 2-6 bar
Water temperature: +4 ...+30°C
Ambient temperature: +5...+40°C
Relative humidity: max. 80%
Pre-Micron rating: 100 μm
Connection: 1”
Voltage: 230V, 50 Hz
Power: 3 W
Treat water in terms of iron, manganese, hardness,
ammonium and organic matter.
Salt
tank
[kg]
Cyclical capacity
= m³ x °G
Code
Type
Maximum flow
[m3/h]
Filter
material
[l]
MIX 37 SIMPLEX
1,4
37
80
78
AQUA09100037014
MIX 50 SIMPLEX
1,8
50
110
105
AQUA09100050018
Benefits:
A single solution for 5 issues:
• eliminate the risk of red and black stains
on sanitary items caused by the iron and
manganese content;
• eliminate the risk of limescale;
• control the content of ammonium and
organic matter;
• save space by mounting a single equipment for all 5 issues;
• benefit from the quality of Ecomix professional filter medium.
Warning!
• The system needs to be connected to the
sewer.
• Designed to be mounted in enclosures
protected from frost, extreme temperatures.
• To be used ONLY for cold water supply
lines.
• Where water is microbiologically unsafe
or water quality is unknown, it is necessary to carry out a water analysis and to
disinfect the installation and the water
source. In this situation, it is
ammonium and organic matter.
Salt
tank
[kg]
Cyclical capacity
= m³ x °G
Code
Type
Maximum flow
[m3/h]
Filter
material
[l]
MIX 37 SIMPLEX
1,4
37
80
78
AQUA09100037014
MIX 50 SIMPLEX
1,8
50
110
105
AQUA09100050018
Benefits:
A single solution for 5 issues:
• eliminate the risk of red and black stains
on sanitary items caused by the iron and
manganese content;
• eliminate the risk of limescale;
• control the content of ammonium and
organic matter;
• save space by mounting a single equipment for all 5 issues;
• benefit from the quality of Ecomix professional filter medium.
Warning!
• The system needs to be connected to the
sewer.
• Designed to be mounted in enclosures
protected from frost, extreme temperatures.
• To be used ONLY for cold water supply
lines.
• Where water is microbiologically unsafe
or water quality is unknown, it is necessary to carry out a water analysis and to
disinfect the installation and the water
source. In this situation, it is
... ascunde
Alte documentatii ale aceleasi game Vezi toate
Catalog, brosura 60 p | RO
Instructiuni montaj, utilizare 46 p | RO - EN + inca 5 limbi
