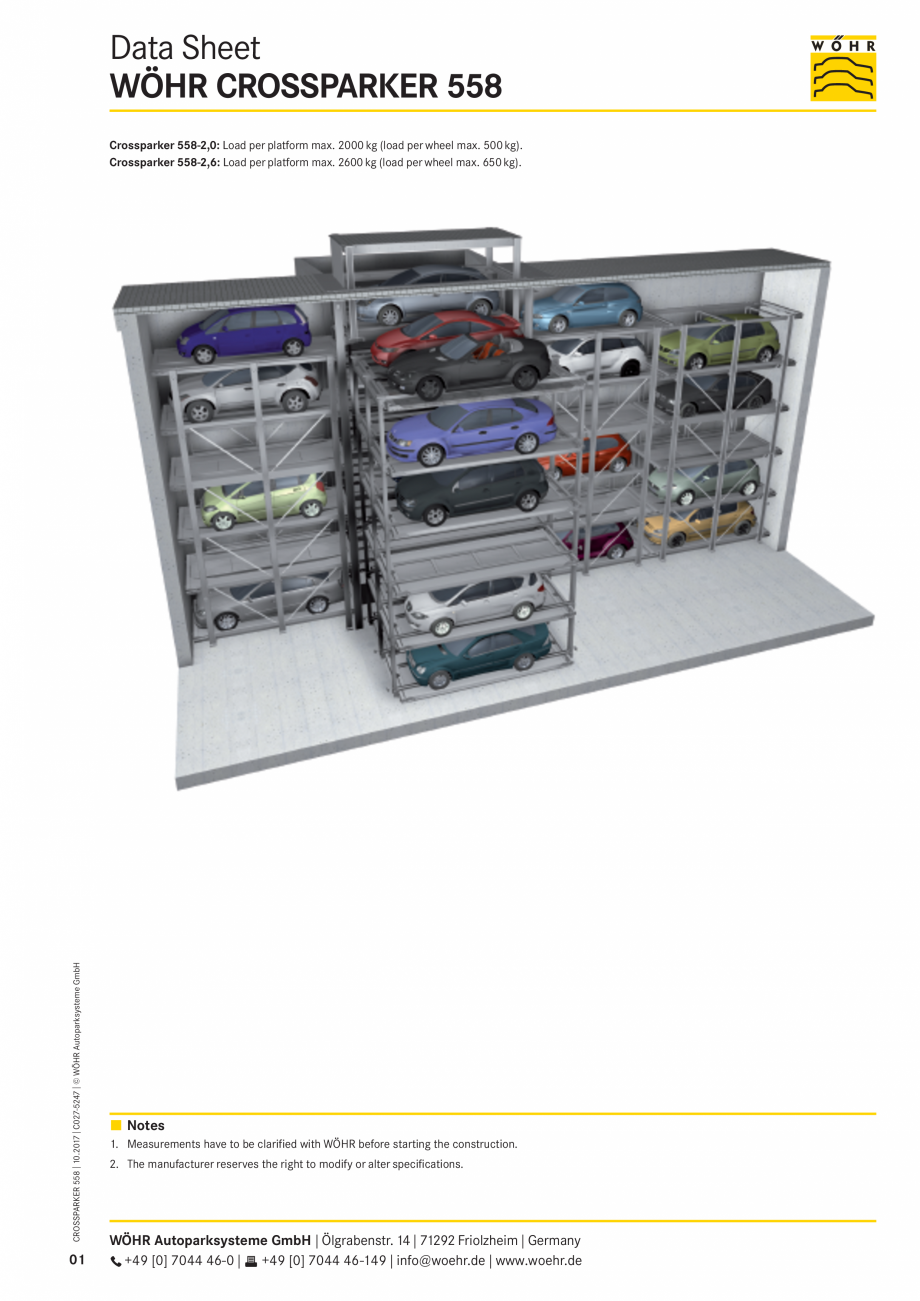

Pagina 1 - Fisa tehnica sistem de parcare automat CROSSPARKER WÖHR CROSSPARKER 558 Fisa tehnica...

Data Sheet WÖHR CROSSPARKER 558 CROSSPARKER 558 | 10.2017 | C027-5247 | © WÖHR Autoparksysteme GmbH Crossparker 558-2,0: Load per platform max. 2000 kg (load per wheel max. 500 kg). Crossparker 558-2,6: Load per platform max. 2600 kg (load per wheel max. 650 kg). 01 Notes 1. Measurements have to be clarified with WÖHR before starting the construction. 2. The manufacturer reserves the right to modify or alter specifications. WÖHR Autoparksysteme GmbH | Ölgrabenstr. 14 | 71292 Friolzheim | Germany +49 [0] 7044 46-0 | +49 [0] 7044 46-149 | info@woehr.de | www.woehr.de Dimensions 10,08 m 10,48 m 10,88 m Operating device 5,70 m (length 4,90) 5,90 m (length 5,10) 6,10 m (length 5,30) 4,93 m 5,13 m 5,33 m 2,50 m 6,32 m (length 4,90) 6,52 m (length 5,10) 6,72 m (length 5,30) No doors or windows at buildings are allowed within this area (min. 3,00 x 7,00 m) 9,80 m 10,20 m 10,60 m 4,65 m 4,85 m 5,05 m 0,45 m Maintenance shaft 0,28 H 0,4 m Drainage system pump to be perfo

Pagina 1-Fisa tehnica sistem de parcare automat CROSSPARKER WÖHR CROSSPARKER 558 Fisa tehnica Engleza...

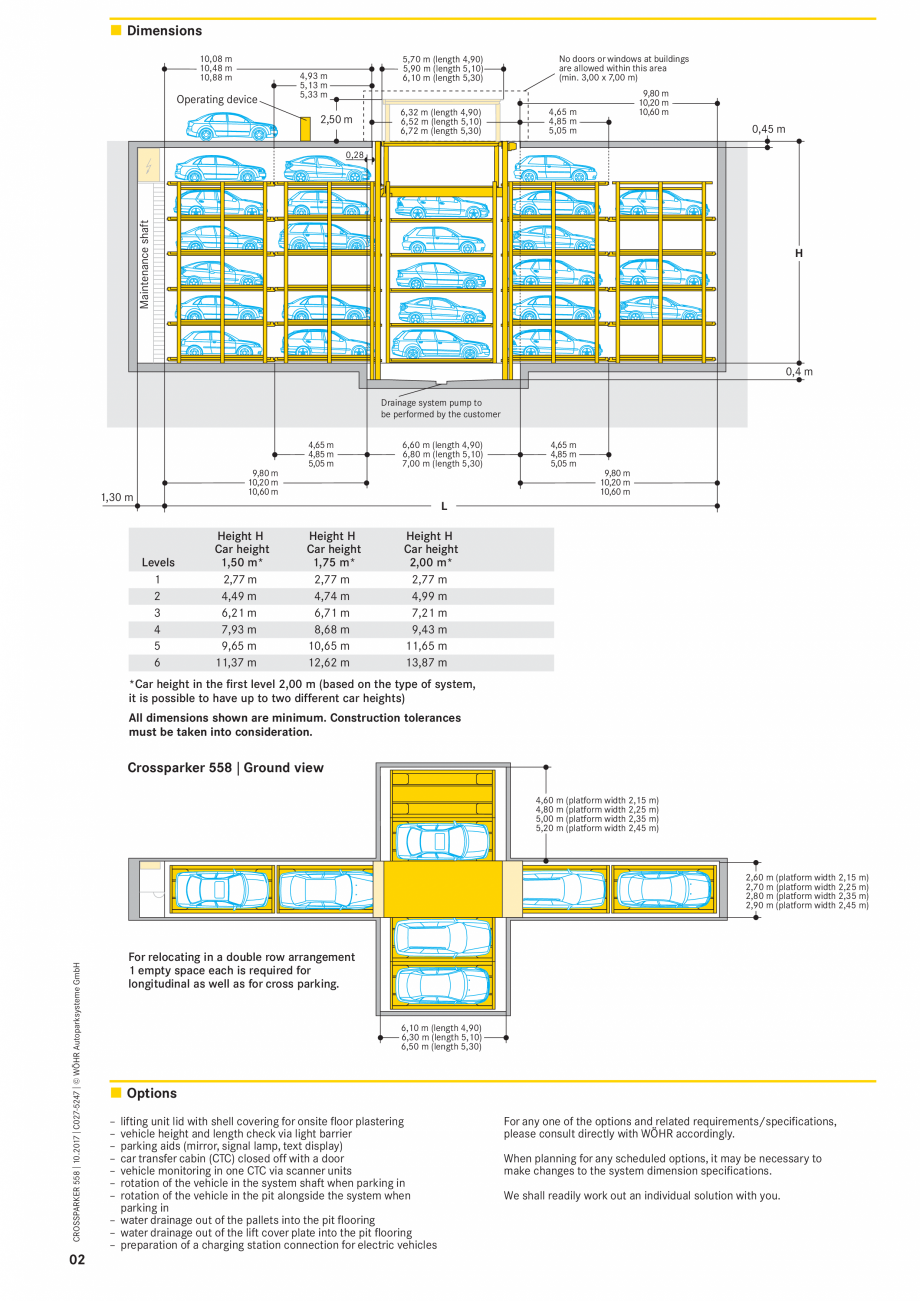

Pagina 2 - Fisa tehnica sistem de parcare automat CROSSPARKER WÖHR CROSSPARKER 558 Fisa tehnica...

rmed by the customer 4,65 m 4,85 m 5,05 m 6,60 m (length 4,90) 6,80 m (length 5,10) 7,00 m (length 5,30) 9,80 m 10,20 m 10,60 m 9,80 m 10,20 m 10,60 m 1,30 m 4,65 m 4,85 m 5,05 m L Levels 1 2 3 4 5 6 Height H Car height 1,50 m* 2,77 m 4,49 m 6,21 m 7,93 m 9,65 m 11,37 m Height H Car height 1,75 m* 2,77 m 4,74 m 6,71 m 8,68 m 10,65 m 12,62 m Height H Car height 2,00 m* 2,77 m 4,99 m 7,21 m 9,43 m 11,65 m 13,87 m *Car height in the first level 2,00 m (based on the type of system, it is possible to have up to two different car heights) All dimensions shown are minimum. Construction tolerances must be taken into consideration. Crossparker 558 | Ground view 4,60 m (platform width 2,15 m) 4,80 m (platform width 2,25 m) 5,00 m (platform width 2,35 m) 5,20 m (platform width 2,45 m) CROSSPARKER 558 | 10.2017 | C027-5247 | © WÖHR Autoparksysteme GmbH 2,60 m (platform width 2,15 m) 2,70 m (platform width 2,25 m) 2,80 m (platform width 2,35 m) 2,90 m (platform width 2,45 m) 02 F

Pagina 2-Fisa tehnica sistem de parcare automat CROSSPARKER WÖHR CROSSPARKER 558 Fisa tehnica Engleza...

Pagina 3 - Fisa tehnica sistem de parcare automat CROSSPARKER WÖHR CROSSPARKER 558 Fisa tehnica...

or relocating in a double row arrangement 1 empty space each is required for longitudinal as well as for cross parking. 6,10 m (length 4,90) 6,30 m (length 5,10) 6,50 m (length 5,30) Options – – – – – – – lifting unit lid with shell covering for onsite floor plastering vehicle height and length check via light barrier parking aids (mirror, signal lamp, text display) car transfer cabin (CTC) closed off with a door vehicle monitoring in one CTC via scanner units rotation of the vehicle in the system shaft when parking in rotation of the vehicle in the pit alongside the system when parking in – water drainage out of the pallets into the pit flooring – water drainage out of the lift cover plate into the pit flooring – preparation of a charging station connection for electric vehicles For any one of the options and related requirements/specifications, please consult directly with WÖHR accordingly. When planning for any scheduled options, it may be necessary to make

Pagina 3-Fisa tehnica sistem de parcare automat CROSSPARKER WÖHR CROSSPARKER 558 Fisa tehnica Engleza or...

Pagina 4 - Fisa tehnica sistem de parcare automat CROSSPARKER WÖHR CROSSPARKER 558 Fisa tehnica...

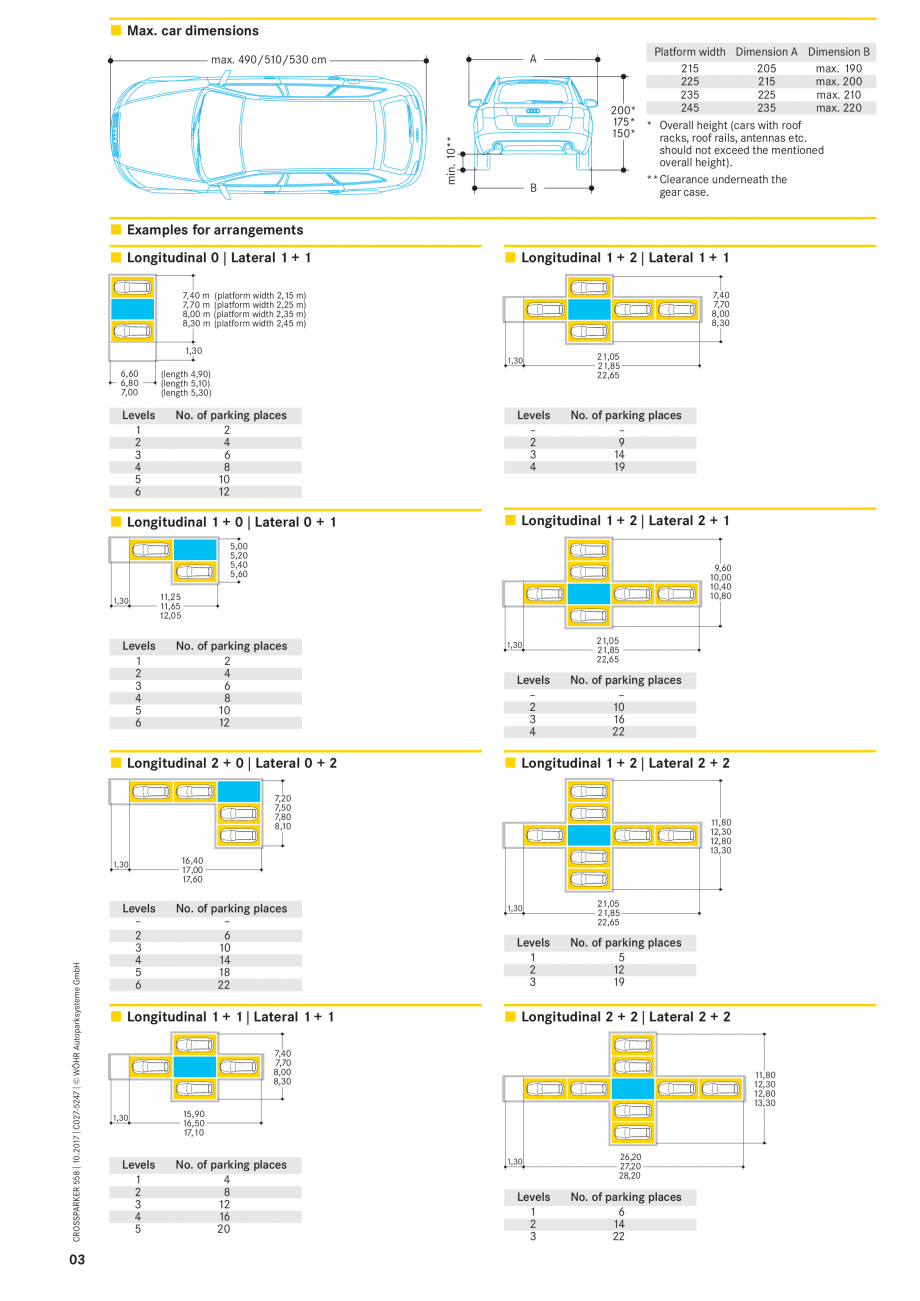

changes to the system dimension specifications. We shall readily work out an individual solution with you. Max. car dimensions Platform width Dimension A Dimension B 215 205 max. 190 215 max. 200 225 235 225 max. 210 235 max. 220 245 A min. 10** max. 490/510/530 cm B 200* 175* * Overall height (cars with roof 150* racks, roof rails, antennas etc. should not exceed the mentioned overall height). **Clearance underneath the gear case. Examples for arrangements Longitudinal 0 | Lateral 1 + 1 7,40 m 7,70 m 8,00 m 8,30 m Longitudinal 1 + 2 | Lateral 1 + 1 7,40 7,70 8,00 8,30 (platform width 2,15 m) (platform width 2,25 m) (platform width 2,35 m) (platform width 2,45 m) 1,30 1,30 6,60 6,80 7,00 Levels 1 2 3 4 5 6 (length 4,90) (length 5,10) (length 5,30) No. of parking places 2 4 6 8 10 12 Longitudinal 1 + 0 | Lateral 0 + 1 Levels – 2 3 4 21,05 21,85 22,65 No. of parking places – 9 14 19 Longitudinal 1 + 2 | Lateral 2 + 1 5,00 5,20 5,40 5,60 1,30 Levels 1 2 3 4 5 6

Pagina 4-Fisa tehnica sistem de parcare automat CROSSPARKER WÖHR CROSSPARKER 558 Fisa tehnica Engleza...
