TECHNICAL
DATASHEET | 03-2023

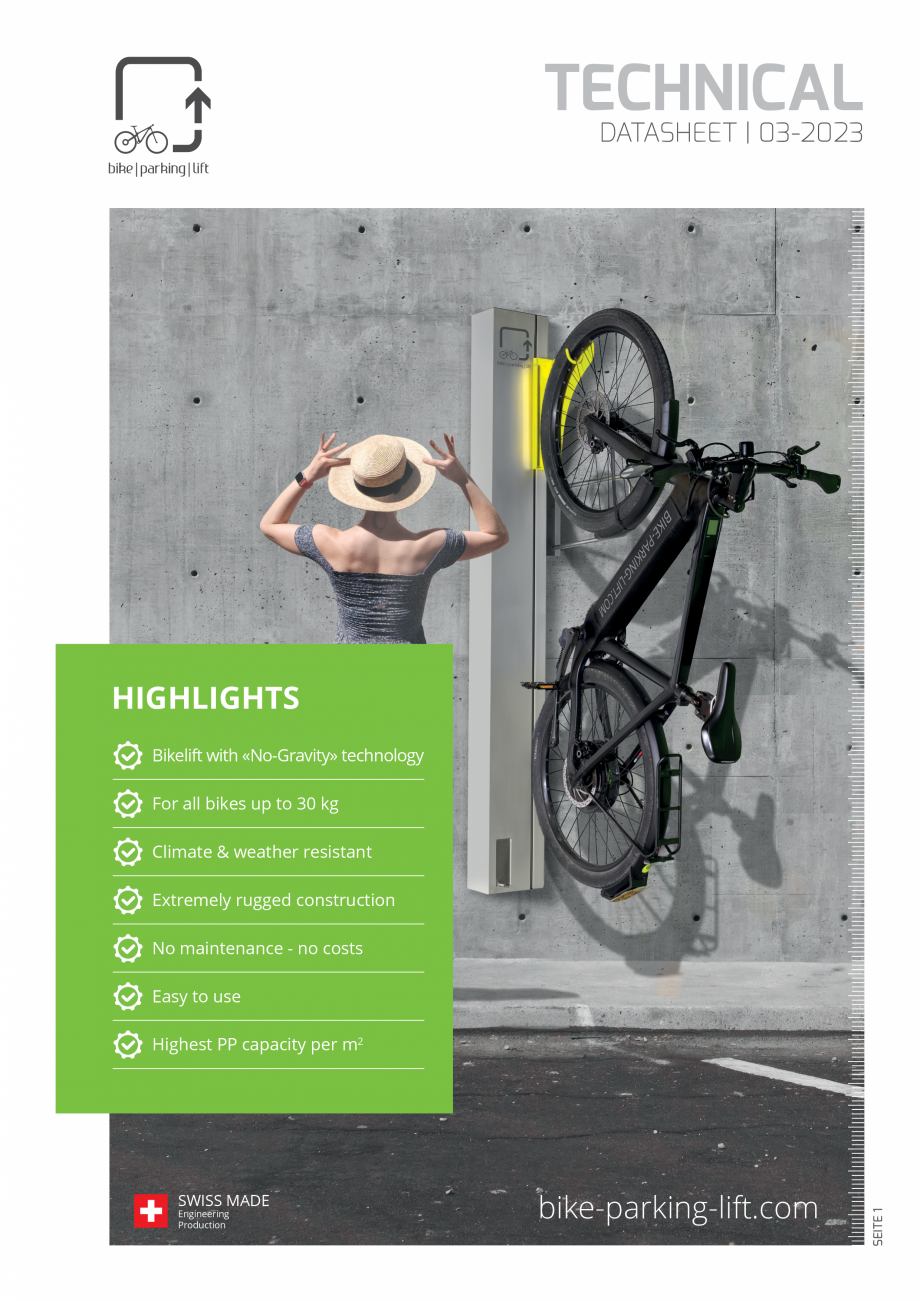

HIGHLIGHTS
Bikelift with «No-Gravity» technology
For all bikes up to 30 kg
Climate & weather resistant
Extremely rugged construction
No maintenance - no costs
Easy to use
SWISS MADE
Engineering
Production
bike-parking-lift.com
SEITE 1
Highest PP capacity per m2
TECHNICAL
DATASHEET | 03-2023
bike-parking-lift.com

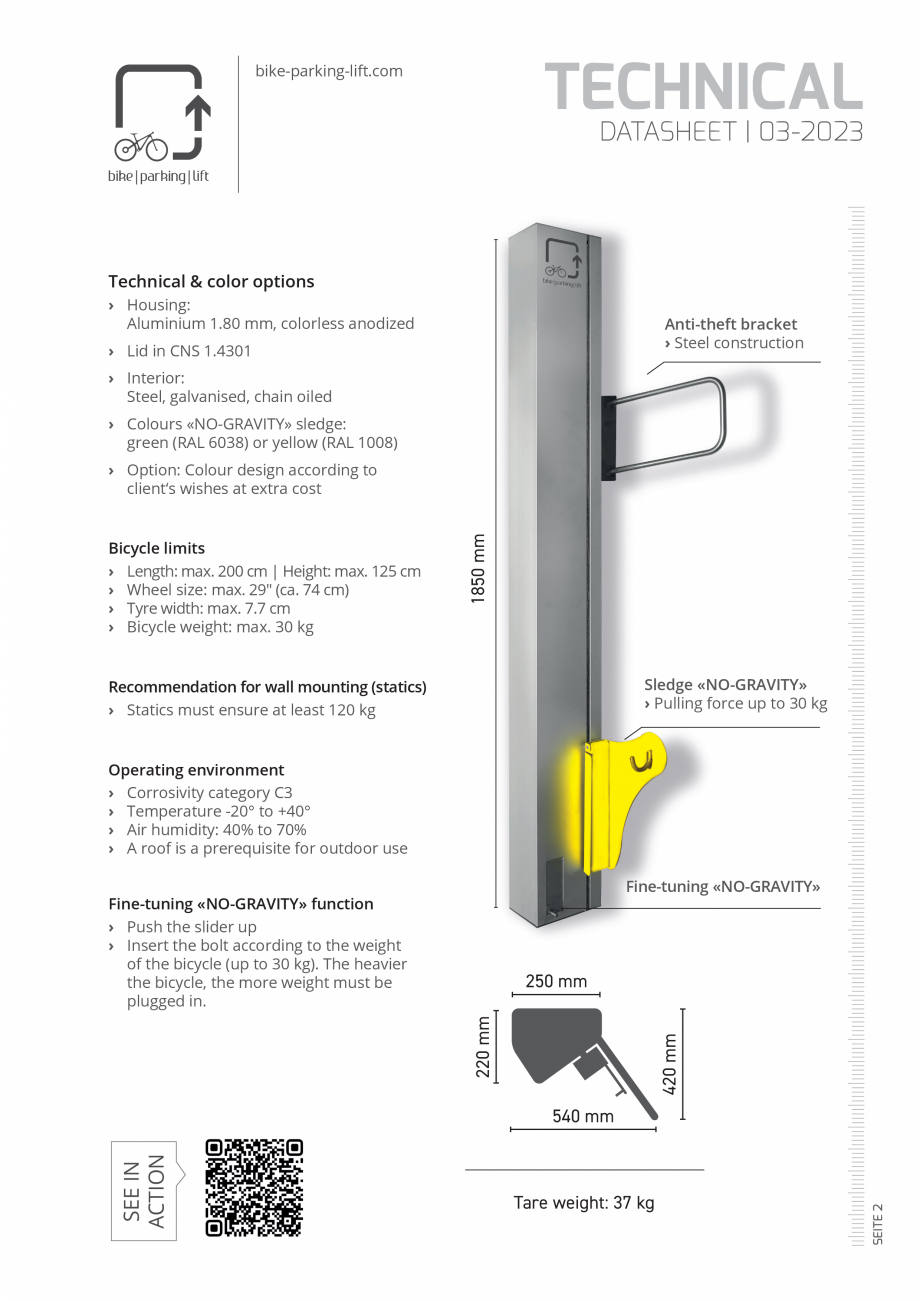

Technical & color options
› Housing:
Aluminium 1.80 mm, colorless anodized
Anti-theft bracket
› Steel construction
› Lid in CNS 1.4301
› Interior:
Steel, galvanised, chain oiled
› Colours «NO-GRAVITY» sledge:
green (RAL 6038) or yellow (RAL 1008)
Bicycle limits
› Length: max. 200 cm | Height: max. 125 cm
› Wheel size: max. 29″ (ca. 74 cm)
› Tyre width: max. 7.7 cm
› Bicycle weight: max. 30 kg
1850 mm
› Option: Colour design according to
client‘s wishes at extra cost
Sledge «NO-GRAVITY»
› Pulling force up to 30 kg
Recommendation for wall mounting (statics)
› Statics must ensure at least 120 kg
Opera
ting environment
› Corrosivity category C3
› Temperature -20° to +40°
› Air humidity: 40% to 70%
› A roof is a prerequisite for outdoor use
Fine-tuning «NO-GRAVITY»
Fine-tuning «NO-GRAVITY» function
› Push the slider up
› Insert the bolt according to the weight
of the bicycle (up to 30 kg). The heavier
the bicycle, the more weight must be
plugged in.
420 mm
220 mm
250 mm
Tare weight: 37 kg
SEITE 2
SEE IN
ACTION
540 mm
TECHNICAL
DATASHEET | 03-2023
bike-parking-lift.com
124
335
87
124
20
210
185
149
55 o
1631
Circulation
20
205
185

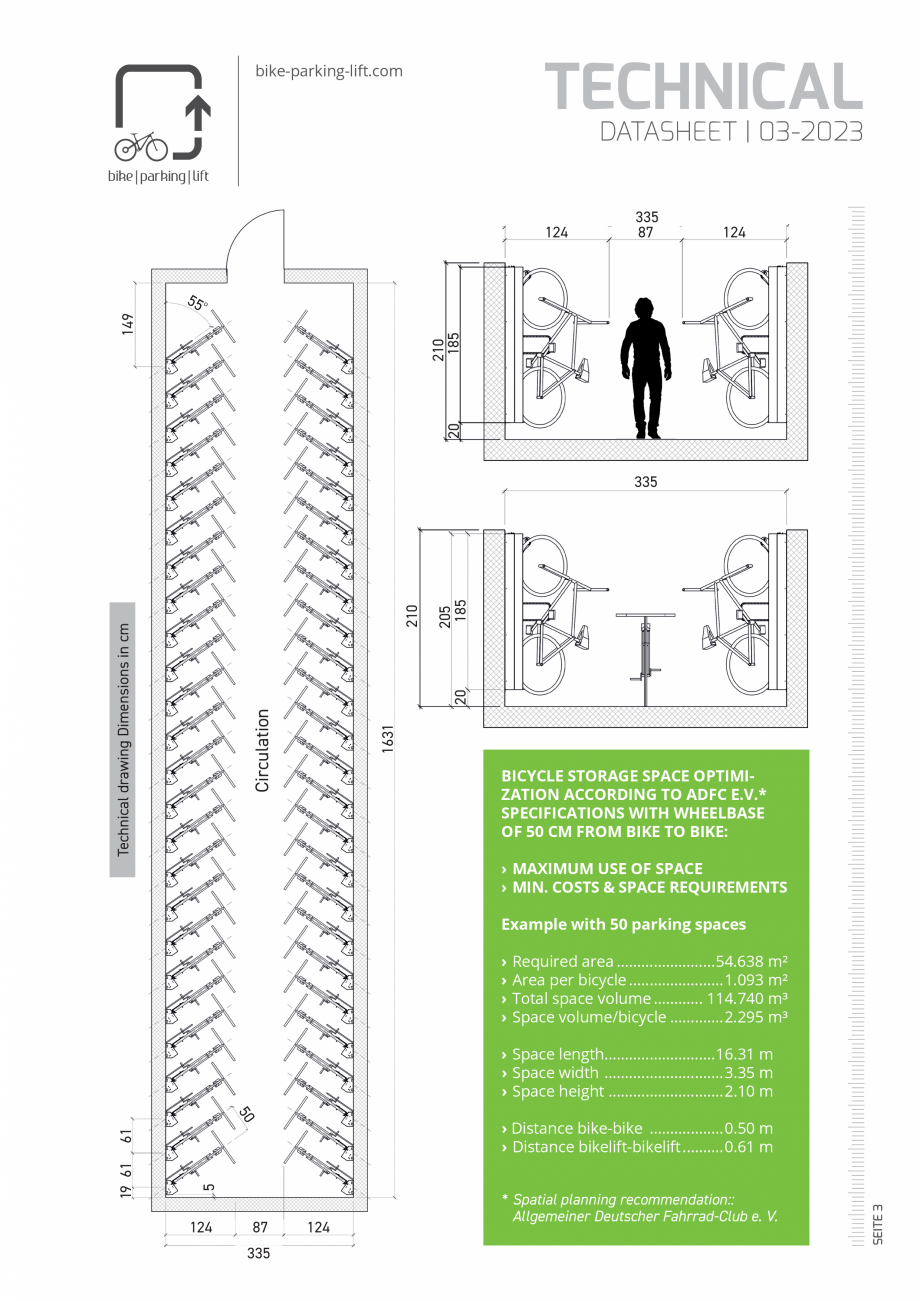

Technical drawing Dimensions in cm
210
335
BICYCLE STORAGE SPACE OPTIMIZATION ACCORDING TO ADFC E.V.*
SPECIFICATIONS WITH WHEELBASE
OF 50 CM FROM BIKE TO BIKE:
› MAXIMUM USE OF SPACE
› MIN. COSTS & SPACE REQUIREMENTS
Example with 50 parking spaces
›
›
›
›
Required area ........................54.638 m²
Area per bicycle .......................1.093 m²
Total space volume ............ 114.740 m³
Space v
olume/bicycle .............2.295 m³
› Space length...........................16.31 m
› Space width .............................3.35 m
› Space height ............................2.10 m
50
124
87
335
124
* Spatial planning recommendation::
Allgemeiner Deutscher Fahrrad-Club e. V.
SEITE 3
5
19 61
61
› Distance bike-bike ..................0.50 m
› Distance bikelift-bikelift ..........0.61 m
TECHNICAL
DATASHEET | 03-2023
bike-parking-lift.com
Room area m2
m2 area per bicycle
Difference to
Bike-Parking-Lift®
m2
Space volume m3
Volume m3 per bike
Difference to
Bike-Parking-Lift
m3
Width
Height
Distance of the bicycle
axle measured in mm

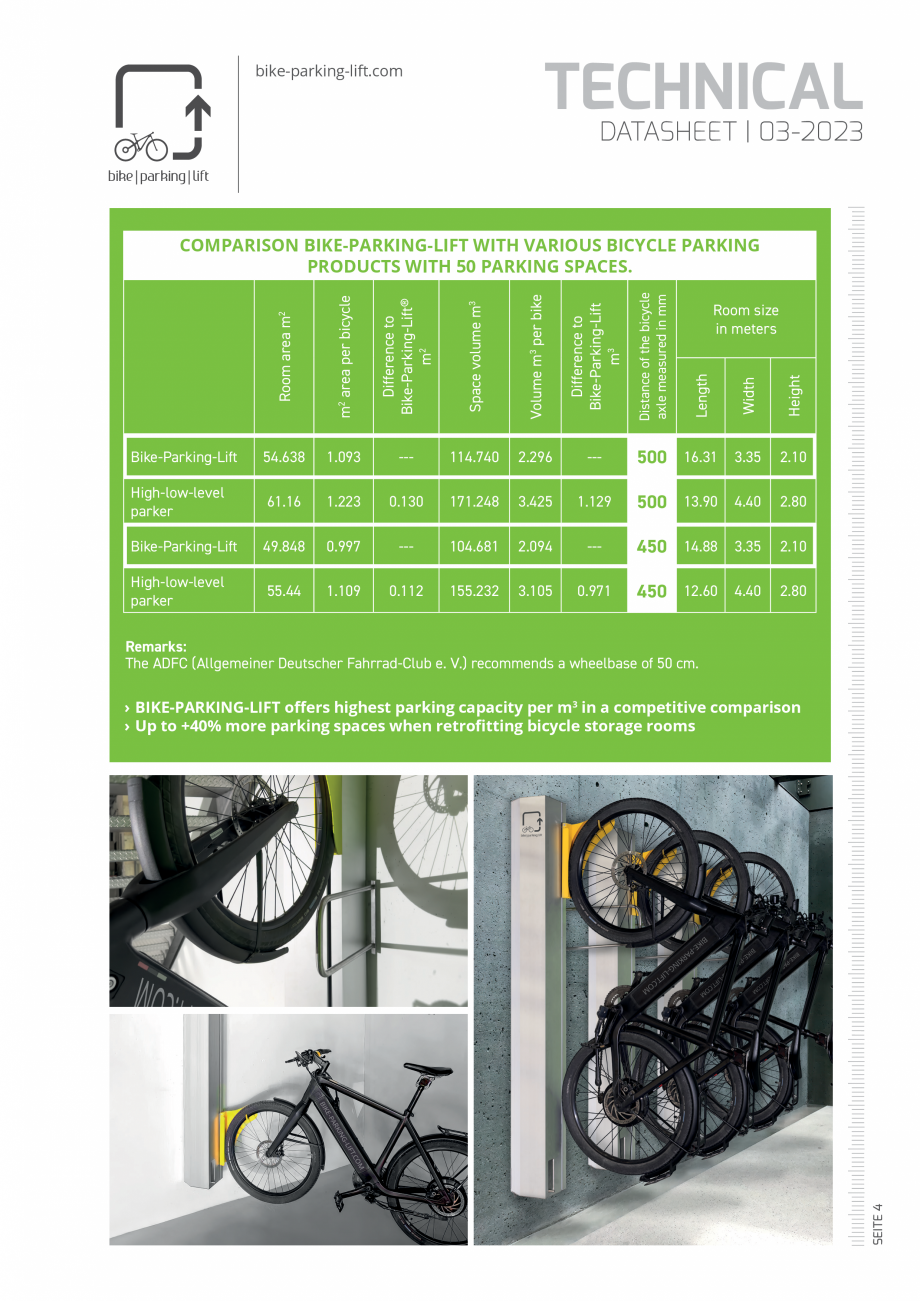

COMPARISON BIKE-PARKING-LIFT WITH VARIOUS BICYCLE PARKING
PRODUCTS WITH 50 PARKING SPACES.
Bike-Parking-Lift
54.638
1.093
---
114.740
2.296
---
500 16.31 3.35
2.10
High-low-level
parker
61.16
1.223
0.130
171.248
3.425
1.129
500 13.90 4.40
2.80
Bike-Parking-Lift
49.848
0.997
---
104.681
2.094
---
450
14.88 3.35
2.10
High-low-level
parker
55.44
1.109
0.112
155.232
3.105
0.971
450 12.60 4.40
2.80
Length
Room size
in meters
Remarks:
The ADFC (Allgemeiner Deutscher Fahrrad-Club e. V.) recommends a wheelbase of 50 cm.
SEITE 4
› BIKE-PARKING-LIFT offers highest parking capacity per m3 in a competitive comparison
› Up to +40% more parking spaces when retrofitting bicycle storage rooms

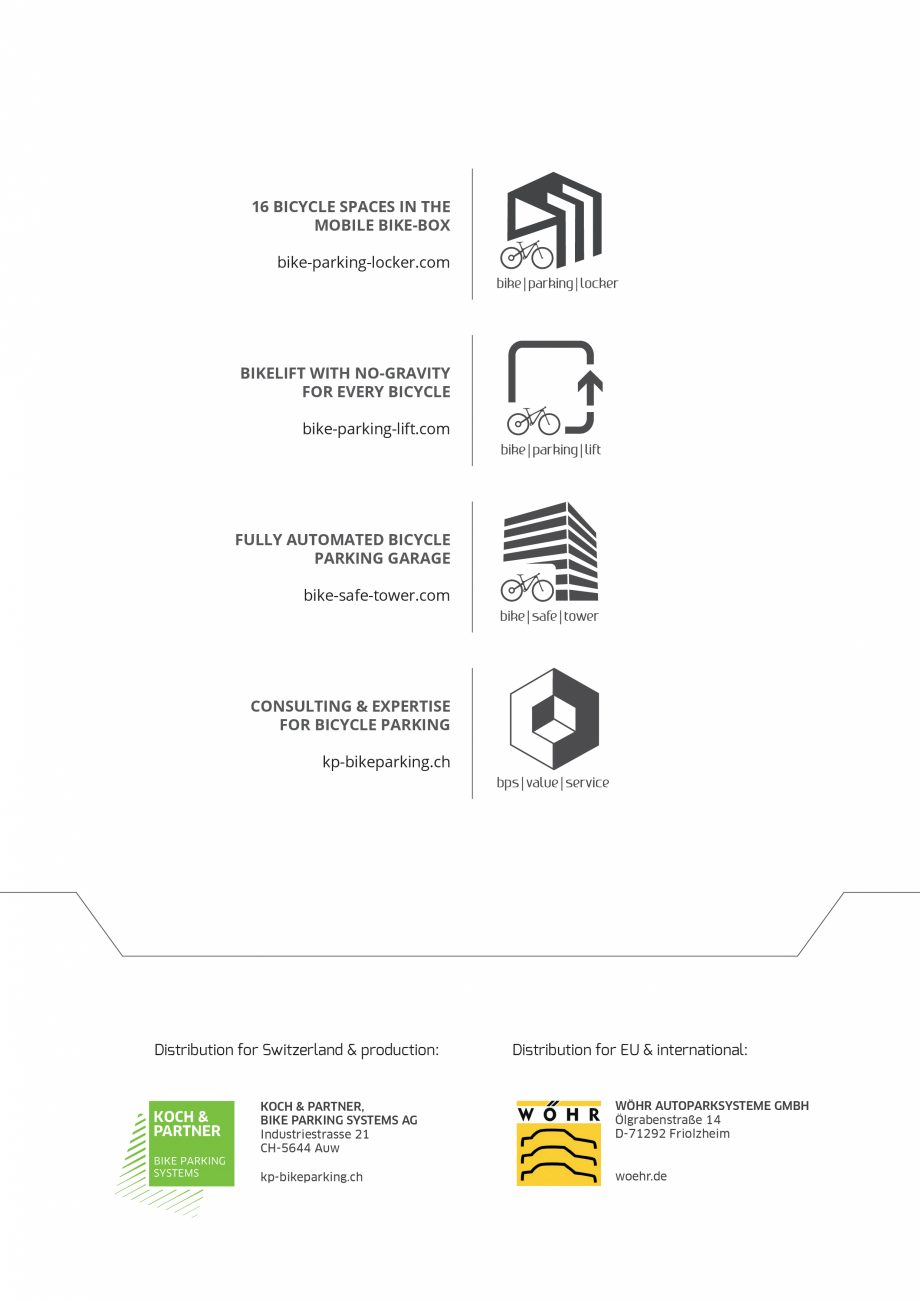

16 BICYCLE SPACES IN THE
MOBILE BIKE-BOX
