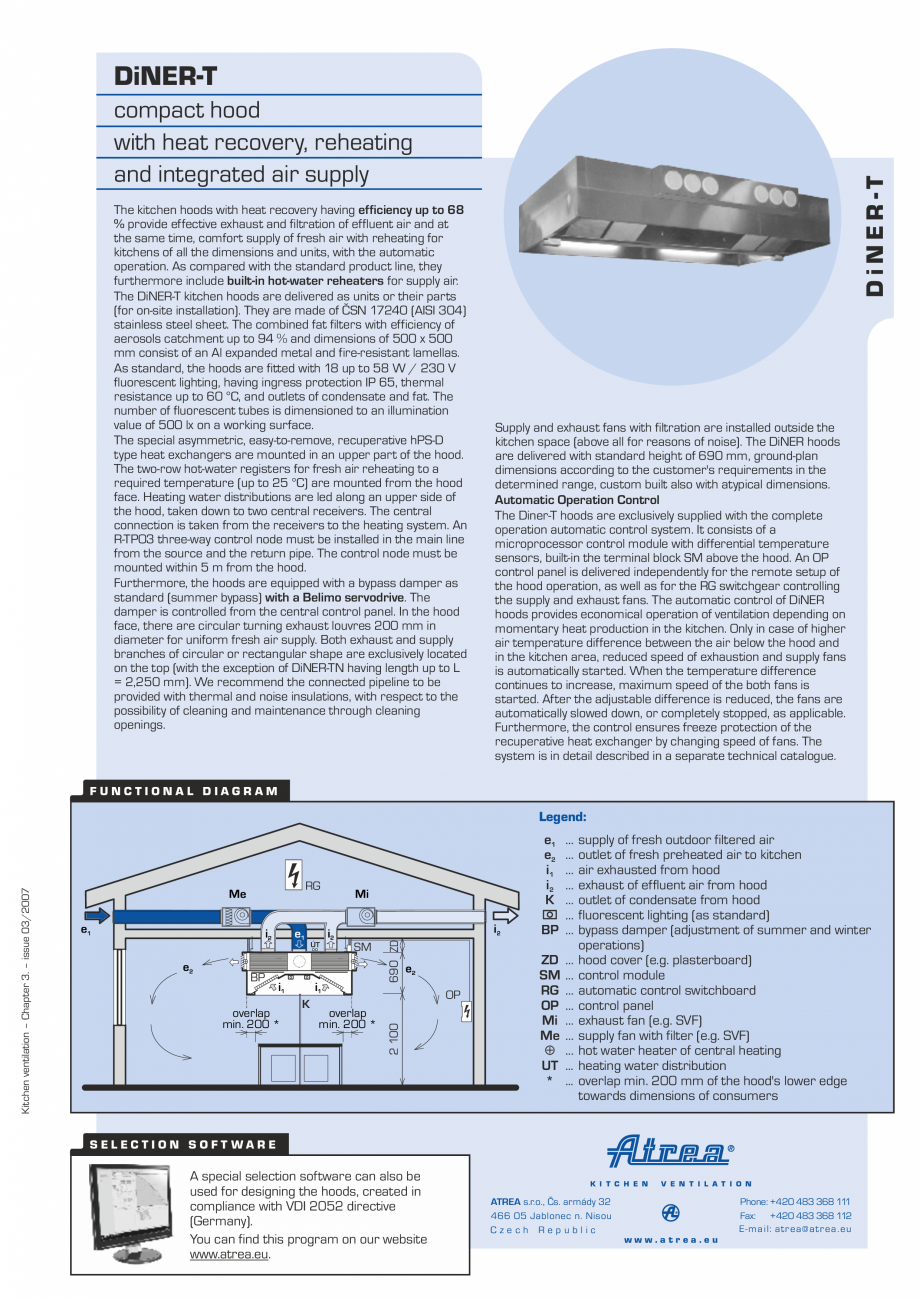

DiNER-T The kitchen hoods with heat recovery having efficiency up to 68 % provide effective exhaust and filtration of effluent air and at the same time, comfort supply of fresh air with reheating for kitchens of all the dimensions and units, with the automatic operation. As compared with the standard product line, they furthermore include built-in hot-water reheaters for supply air. The DiNER-T kitchen hoods are delivered as units or their parts (for on-site installation). They are made of ČSN 17240 (AISI 304) stainless steel sheet. The combined fat filters with efficiency of aerosols catchment up to 94 % and dimensions of 500 x 500 mm consist of an Al expanded metal and fire-resistant lamellas. As standard, the hoods are fitted with 18 up to 58 W / 230 V fluorescent lighting, having ingress protection IP 65, thermal resistance up to 60 °C, and outlets of condensate and fat. The number of fluorescent tubes is dimensioned to an illumination value of 500 lx on a working surface. The

Pagina 1-Hota pentru bucatarii profesionale ATREA Diner-T Fisa tehnica Engleza DiNER-T

The kitchen hoods...

Pagina 2 - Hota pentru bucatarii profesionale ATREA Diner-T Fisa tehnica Engleza special asymmetric,...

special asymmetric, easy-to-remove, recuperative hPS-D type heat exchangers are mounted in an upper part of the hood. The two-row hot-water registers for fresh air reheating to a required temperature (up to 25 °C) are mounted from the hood face. Heating water distributions are led along an upper side of the hood, taken down to two central receivers. The central connection is taken from the receivers to the heating system. An R-TPO3 three-way control node must be installed in the main line from the source and the return pipe. The control node must be mounted within 5 m from the hood. Furthermore, the hoods are equipped with a bypass damper as standard (summer bypass) with a Belimo servodrive. The damper is controlled from the central control panel. In the hood face, there are circular turning exhaust louvres 200 mm in diameter for uniform fresh air supply. Both exhaust and supply branches of circular or rectangular shape are exclusively located on the top (with the exception of DiNER-T

Pagina 3 - Hota pentru bucatarii profesionale ATREA Diner-T Fisa tehnica Engleza N having length up ...

N having length up to L = 2,250 mm). We recommend the connected pipeline to be provided with thermal and noise insulations, with respect to the possibility of cleaning and maintenance through cleaning openings. DiNER -T compact hood with heat recovery, reheating and integrated air supply Supply and exhaust fans with filtration are installed outside the kitchen space (above all for reasons of noise). The DiNER hoods are delivered with standard height of 690 mm, ground-plan dimensions according to the customer's requirements in the determined range, custom built also with atypical dimensions. Automatic Operation Control The Diner-T hoods are exclusively supplied with the complete operation automatic control system. It consists of a microprocessor control module with differential temperature sensors, built-in the terminal block SM above the hood. An OP control panel is delivered independently for the remote setup of the hood operation, as well as for the RG switchgear controlling the s

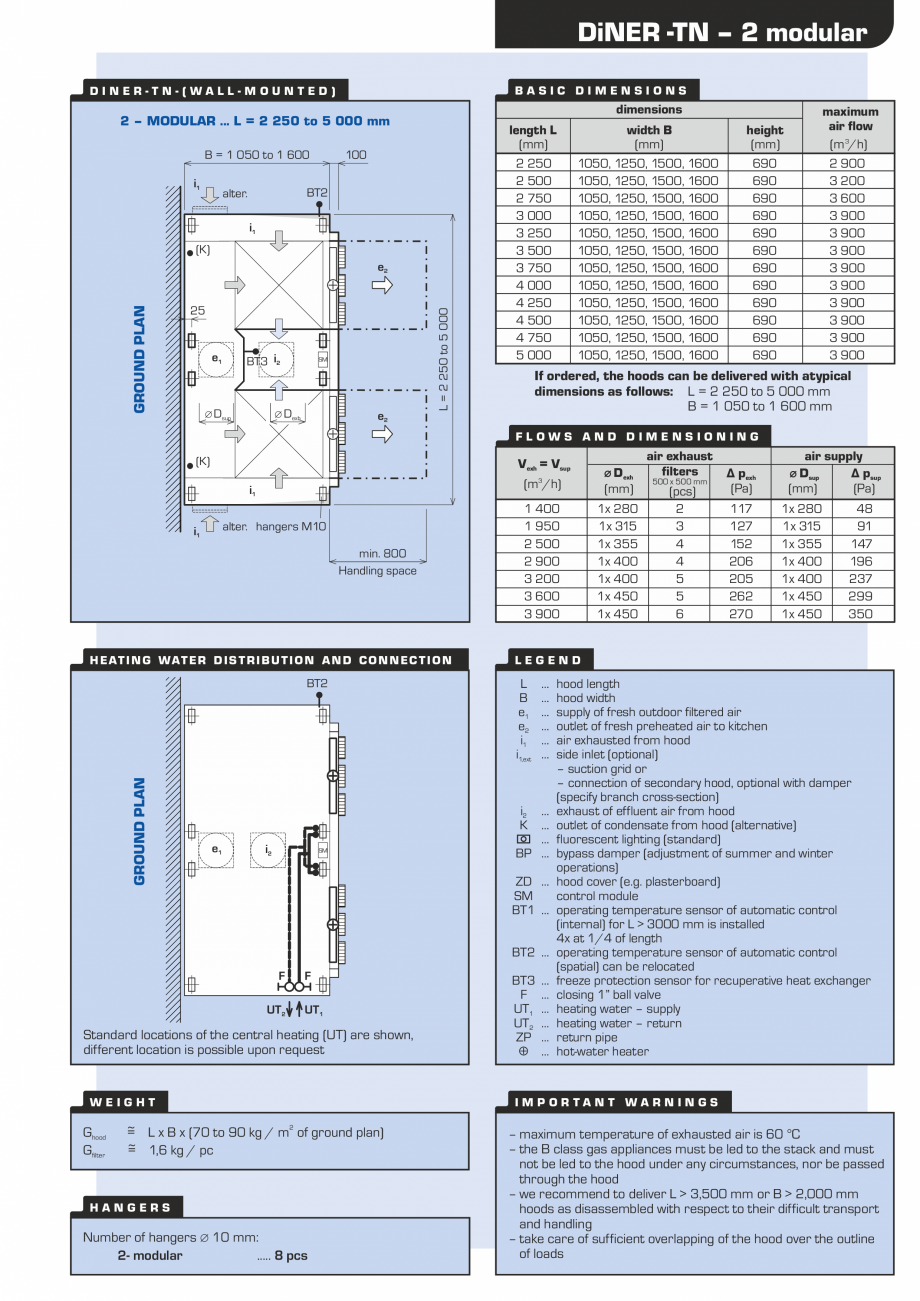

Pagina 3-Hota pentru bucatarii profesionale ATREA Diner-T Fisa tehnica Engleza N having length up to L
= 2...

Pagina 4 - Hota pentru bucatarii profesionale ATREA Diner-T Fisa tehnica Engleza upply and exhaust...

upply and exhaust fans. The automatic control of DiNER hoods provides economical operation of ventilation depending on momentary heat production in the kitchen. Only in case of higher air temperature difference between the air below the hood and in the kitchen area, reduced speed of exhaustion and supply fans is automatically started. When the temperature difference continues to increase, maximum speed of the both fans is started. After the adjustable difference is reduced, the fans are automatically slowed down, or completely stopped, as applicable. Furthermore, the control ensures freeze protection of the recuperative heat exchanger by changing speed of fans. The system is in detail described in a separate technical catalogue. FUNCTIONAL DIAGRAM RG e1 e1 i2 BP i1 overlap min. 200 * i2 i2 ÚT e2 Mi SM i1 K overlap min. 200 * 690 ZD Me e2 OP 2 100 Kitchen ventilation – Chapter 3. – issue 03/2007 Legend: e1 e2 i1 i2 K BP … … … … … … … ZD SM RG

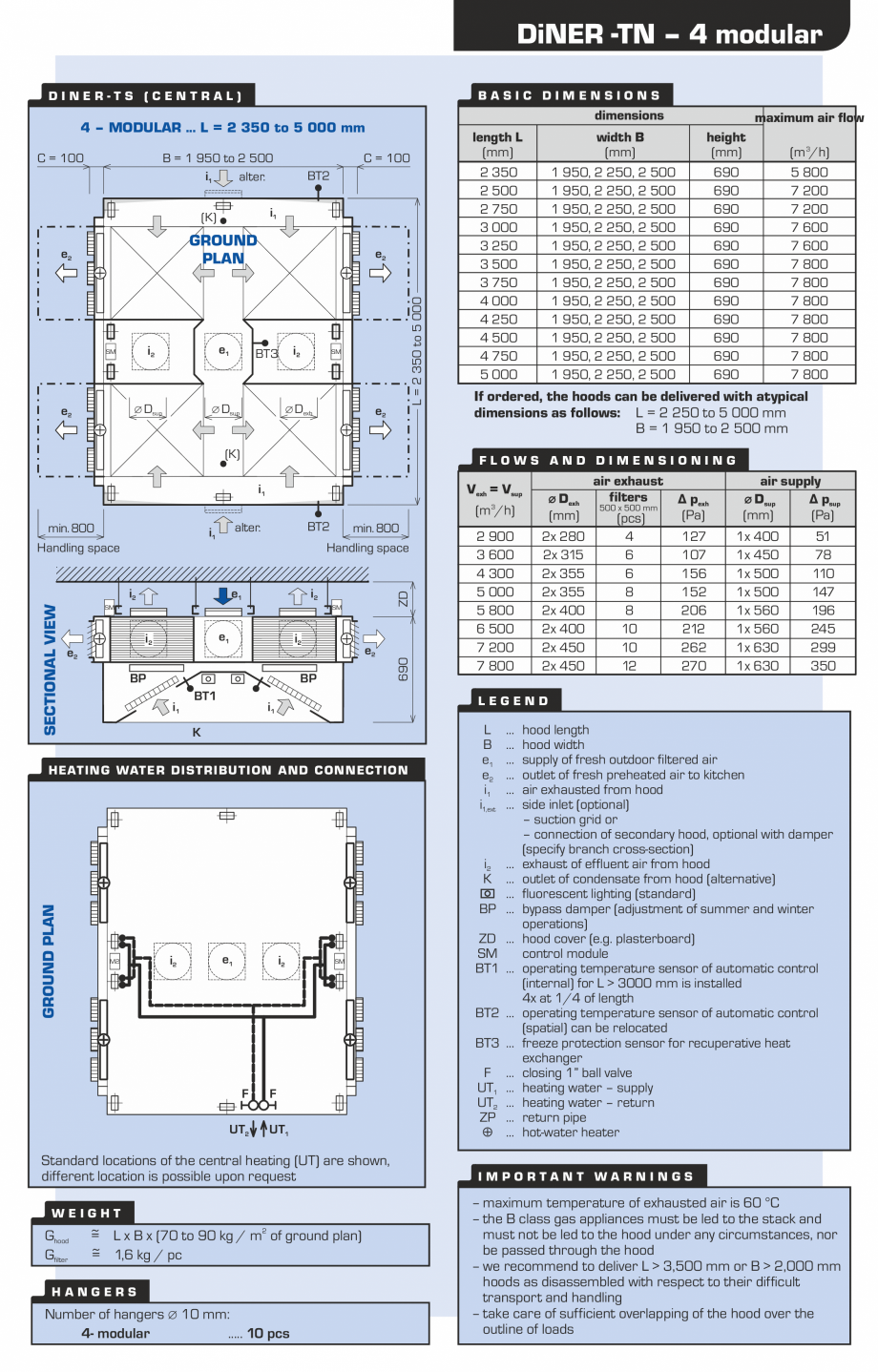

Pagina 4-Hota pentru bucatarii profesionale ATREA Diner-T Fisa tehnica Engleza upply and exhaust fans. The...

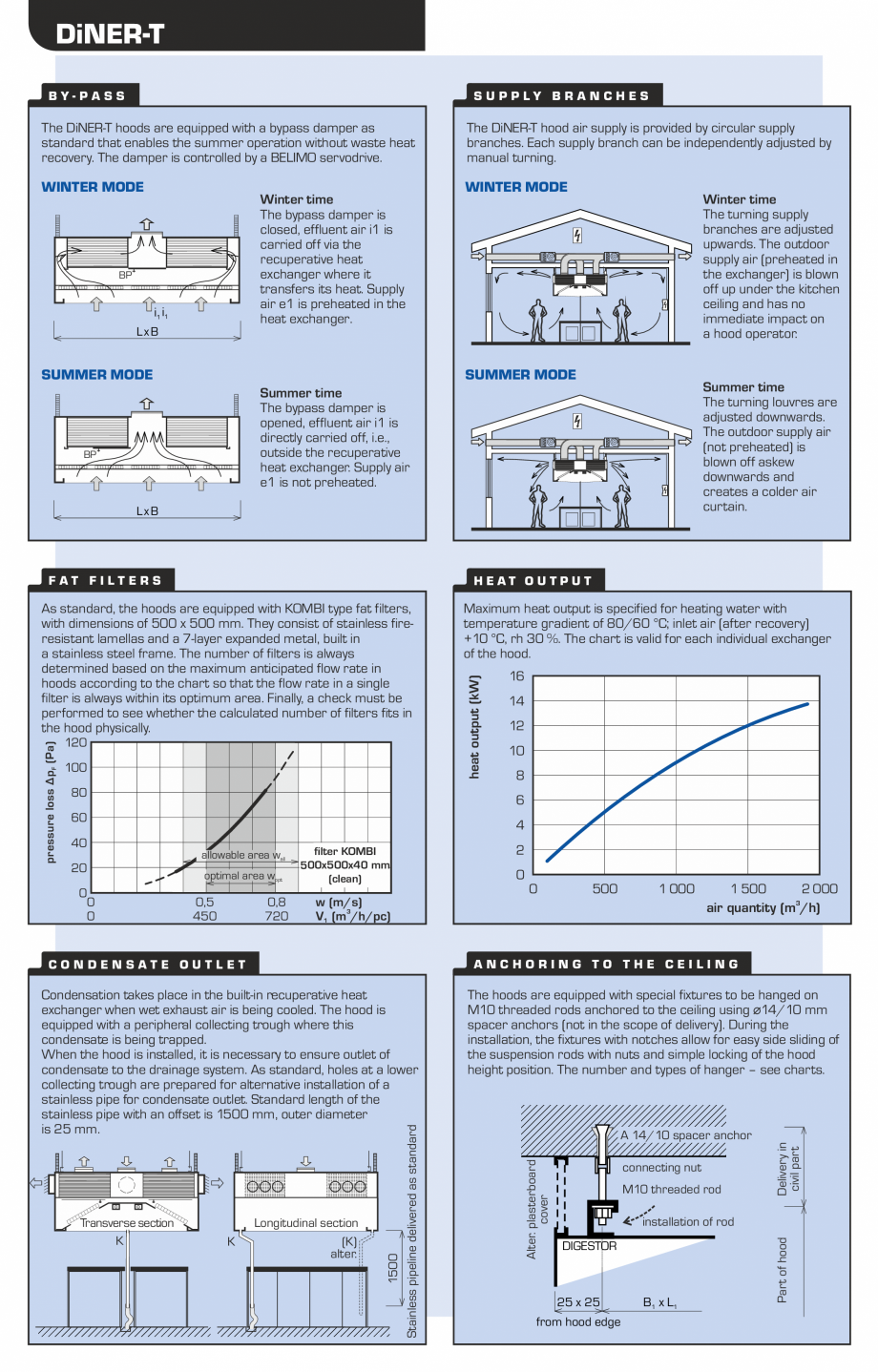

Pagina 5 - Hota pentru bucatarii profesionale ATREA Diner-T Fisa tehnica Engleza
OP
Mi
Me

UT
*

...

OP Mi Me UT * … ... … … … … ... ... ... supply of fresh outdoor filtered air outlet of fresh preheated air to kitchen air exhausted from hood exhaust of effluent air from hood outlet of condensate from hood fluorescent lighting (as standard) bypass damper (adjustment of summer and winter operations) hood cover (e.g. plasterboard) control module automatic control switchboard control panel exhaust fan (e.g. SVF) supply fan with filter (e.g. SVF) hot water heater of central heating heating water distribution overlap min. 200 mm of the hood's lower edge towards dimensions of consumers SELECTION SOFTWARE A special selection software can also be used for designing the hoods, created in compliance with VDI 2052 directive (Germany). You can find this program on our website www.atrea.eu. K I T C H E N V E N T I L A T I O N ATREA s.r.o., Čs. armády 32 466 05 Jablonec n. Nisou Czech Republic Phone: +420 483 368 111 Fax: +420 483 368 112 E - m a i l : atr ea@ a t r e a . e

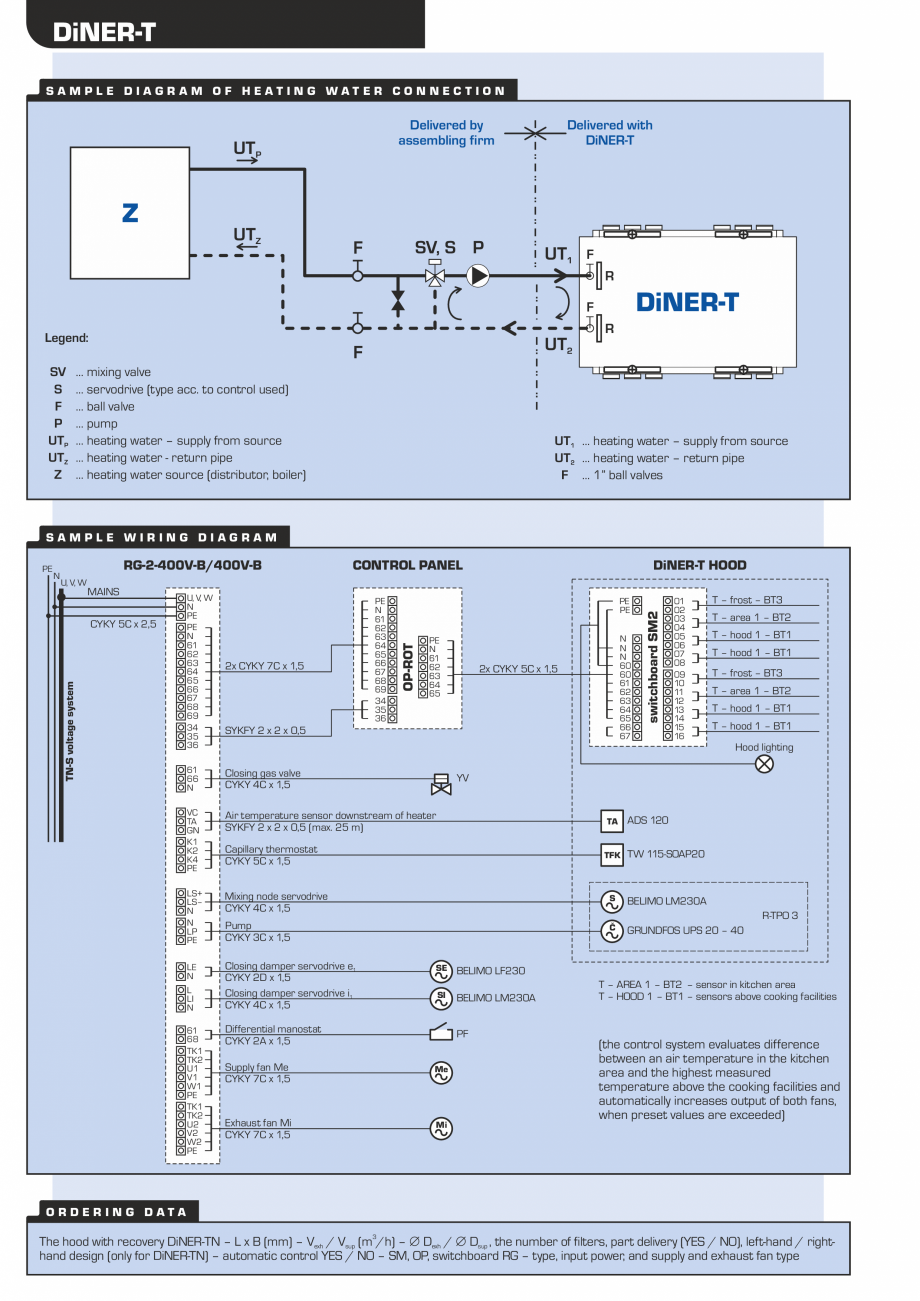

Pagina 6 - Hota pentru bucatarii profesionale ATREA Diner-T Fisa tehnica Engleza u
www.atrea.eu
...

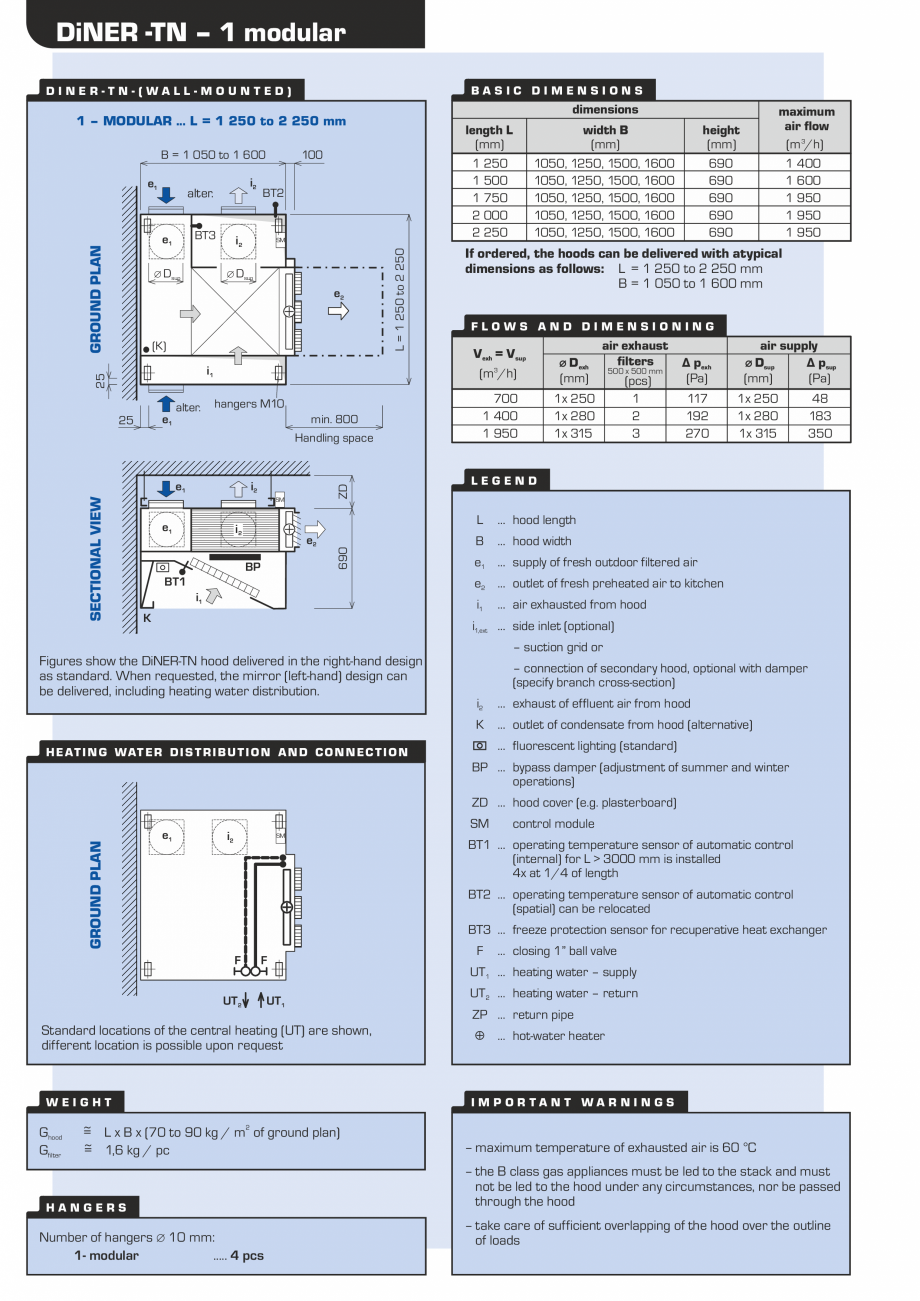

u www.atrea.eu DiNER -TN – 1 modular BASIC DIMENSIONS DINER-TN-(WALL-MOUNTED) dimensions 1 – MODULAR ... L = 1 250 to 2 250 mm B = 1 050 to 1 600 BT3 e1 GROUND PLAN i2 alter. ∅ Dsup 100 BT2 i2 SM ∅ Dsup e2 (K) L = 1 250 to 2 250 e1 length L (mm) 1 250 1 500 1 750 2 000 2 250 FLOWS AND DIMENSIONING Vexh = Vsup 25 alter. (m3/h) min. 800 Handling space ZD i2 SM e1 i2 e2 BP 690 e1 SECTIONAL VIEW 700 1 400 1 950 hangers M10 e1 BT1 maximum air flow (m 3/h) 1 400 1 600 1 950 1 950 1 950 height (mm) 690 690 690 690 690 If ordered, the hoods can be delivered with atypical dimensions as follows: L = 1 250 to 2 250 mm B = 1 050 to 1 600 mm i1 25 width B (mm) 1050, 1250, 1500, 1600 1050, 1250, 1500, 1600 1050, 1250, 1500, 1600 1050, 1250, 1500, 1600 1050, 1250, 1500, 1600 ∅ Dexh air exhaust filters (mm) 500 x 500 mm 1x 250 1x 280 1x 315 (pcs) 1 2 3 ∆ pexh (Pa) 117 192 270 air supply ∆ psup (mm) (Pa) ∅ Dsup 1x 250 1x 280 1x 315
