Covers.fm Page 1 Friday, April 17, 2009 9:51 AM
VIRTUALLY INVISIBLE 791 SPEAKERS
®
VIRTUALLY INVISIBLE® 791 SPEAKERS
Installation Guide
Installationsvejledning
Installationsanleitung
Guía de instalación
Asennusopas
Notice d’installation
Telepítési útmutató
Guida di installazione
Gebruikershandleiding
Podręcznik instalacji
Installationsanvisning
©2009 Bose Corporation, The Mountain,
Framingham, MA 01701-9168 USA
AM321052 Rev.01
01_SafetyInformation.fm Page ii Thursday, June 11, 2009 10:34 AM
TAB 8
TAB 7
TAB 6
TAB 5
TAB 4
TAB 3
TAB 2
English

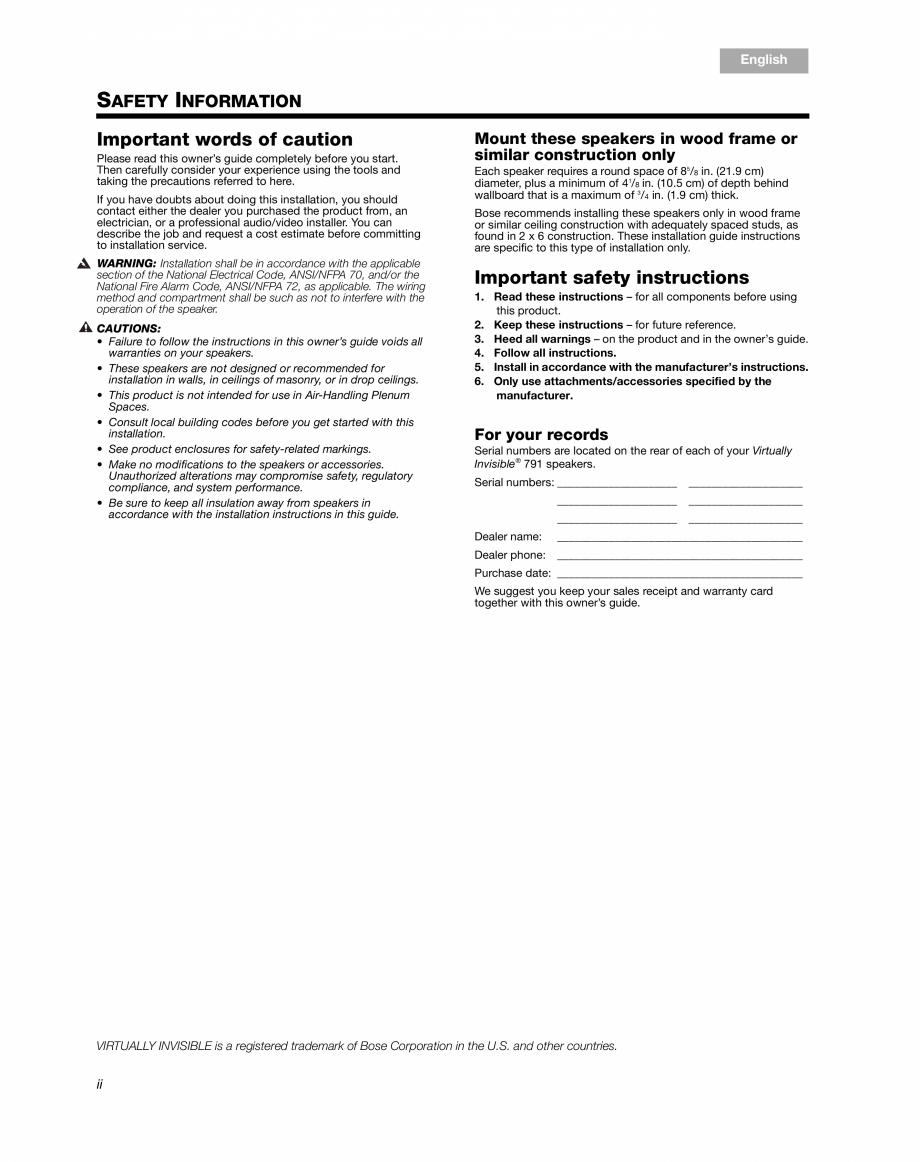

SAFETY INFORMATION
Important words of caution
Please read this owner’s guide completely before you start.
Then carefully consider your experience using the tools and
taking the precautions referred to here.
If you have doubts about doing this installation, you should
contact either the dealer you purchased the product from, an
electrician, or a professional audio/video installer. You can
describe the job and request a cos
t estimate before committing
to installation service.
WARNING: Installation shall be in accordance with the applicable
section of the National Electrical Code, ANSI/NFPA 70, and/or the
National Fire Alarm Code, ANSI/NFPA 72, as applicable. The wiring
method and compartment shall be such as not to interfere with the
operation of the speaker.
CAUTIONS:
• Failure to follow the instructions in this owner’s guide voids all
warranties on your speakers.
• These speakers are not designed or recommended for
installation in walls, in ceilings of masonry, or in drop ceilings.
• This product is not intended for use in Air-Handling Plenum
Spaces.
• Consult local building codes before you get started with this
installation.
• See product enclosures for safety-related markings.
• Make no modifications to the speakers or accessories.
Unauthorized alterations may compromise safety, regulatory
compliance, and system performance.
• Be sure to keep all insulation away from speakers in
acco
rdance with the installation instructions in this guide.
Mount these speakers in wood frame or
similar construction only
Each speaker requires a round space of 85/8 in. (21.9 cm)
diameter, plus a minimum of 41/8 in. (10.5 cm) of depth behind
wallboard that is a maximum of 3/4 in. (1.9 cm) thick.
Bose recommends installing these speakers only in wood frame
or similar ceiling construction with adequately spaced studs, as
found in 2 x 6 construction. These installation guide instructions
are specific to this type of installation only.
Important safety instructions
1. Read these instructions – for all components before using
this product.
2. Keep these instructions – for future reference.
3. Heed all warnings – on the product and in the owner’s guide.
4. Follow all instructions.
5. Install in accordance with the manufacturer’s instructions.
6. Only use attachments/accessories specified by the
manufacturer.
For your records
Serial numbers are located on the rear of each of your
Virtually
Invisible® 791 speakers.
Serial numbers: _____________________
____________________
Serial numbers: _____________________
____________________
Serial numbers: _____________________
____________________
Dealer name:
___________________________________________
Dealer phone: ___________________________________________
Purchase date: ___________________________________________
We suggest you keep your sales receipt and warranty card
together with this owner’s guide.
VIRTUALLY INVISIBLE is a registered trademark of Bose Corporation in the U.S. and other countries.
ii
02_TOC.fm Page iii Thursday, June 11, 2009 10:36 AM
English
TAB 2
TAB 3
TAB 4
TAB 5
TAB 6
TAB 7
TAB 8

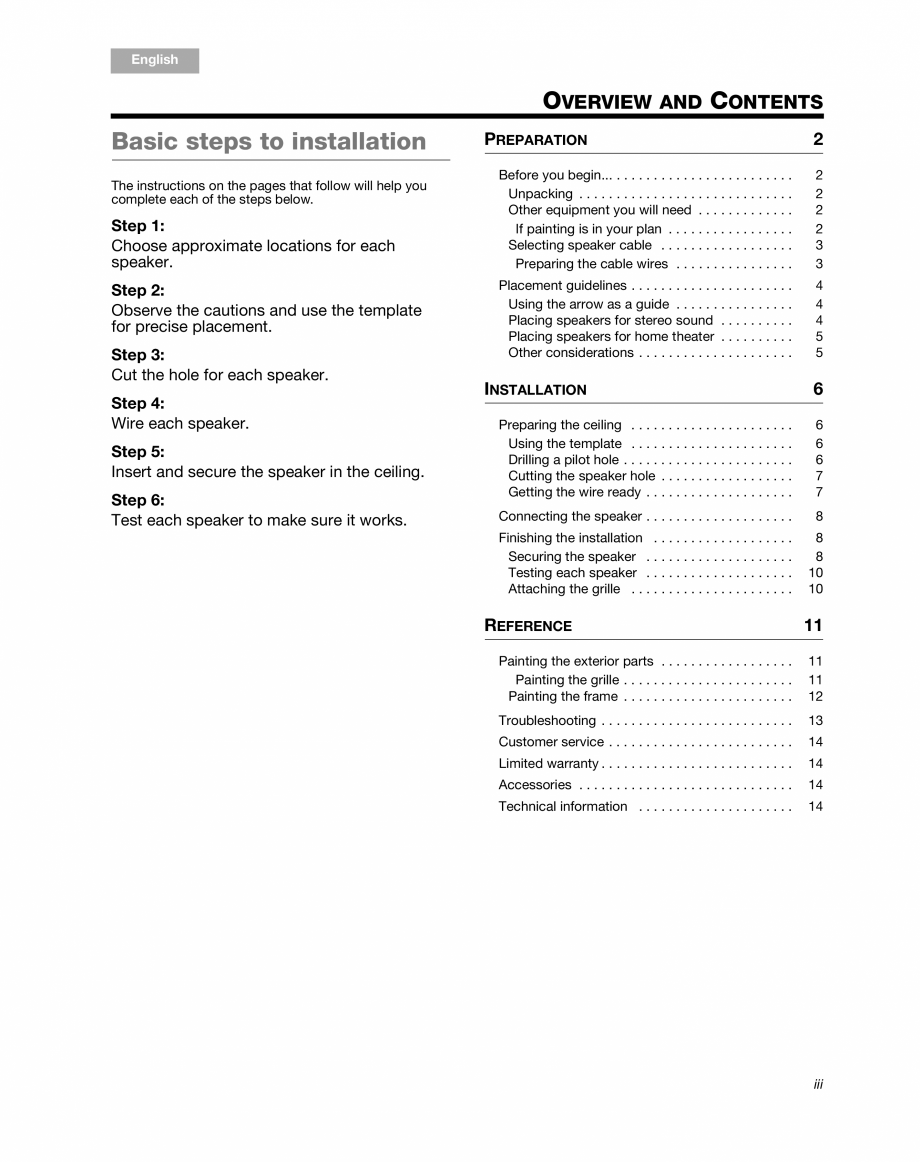

OVERVIEW AND CONTENTS
Basic steps to installation
The instructions on the pages that follow will help you
complete each of the steps below.
Step 1:
Choose approximate locations for each
speaker.
Step 2:
Observe the cautions and use the template
for precise placement.
Step 3:
Cut the hole for
each speaker.
Step 4:
Wire each speaker.
Step 5:
Insert and secure the speaker in the ceiling.
Step 6:
Test each speaker to make sure it works.
PREPARATION
2
Before you begin... . . . . . . . . . . . . . . . . . . . . . . . .
Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Other equipment you will need . . . . . . . . . . . . .
If painting is in your plan . . . . . . . . . . . . . . . . .
Selecting speaker cable . . . . . . . . . . . . . . . . . .
Preparing the cable wires . . . . . . . . . . . . . . . .
2
2
2
2
3
3
Placement guidelines . . . . . . . . . . . . . . . . . . . . . .
Using the arrow as a guide . . . . . . . . . . . . . . . .
Placing speakers for stereo sound . . . . . . . . . .
Placing speakers for home theater . . . . . . . . . .
Other considerations . . . . . . . . . . . . . . . . . . . . .
4
4
4
5
5
INSTALLATION
6

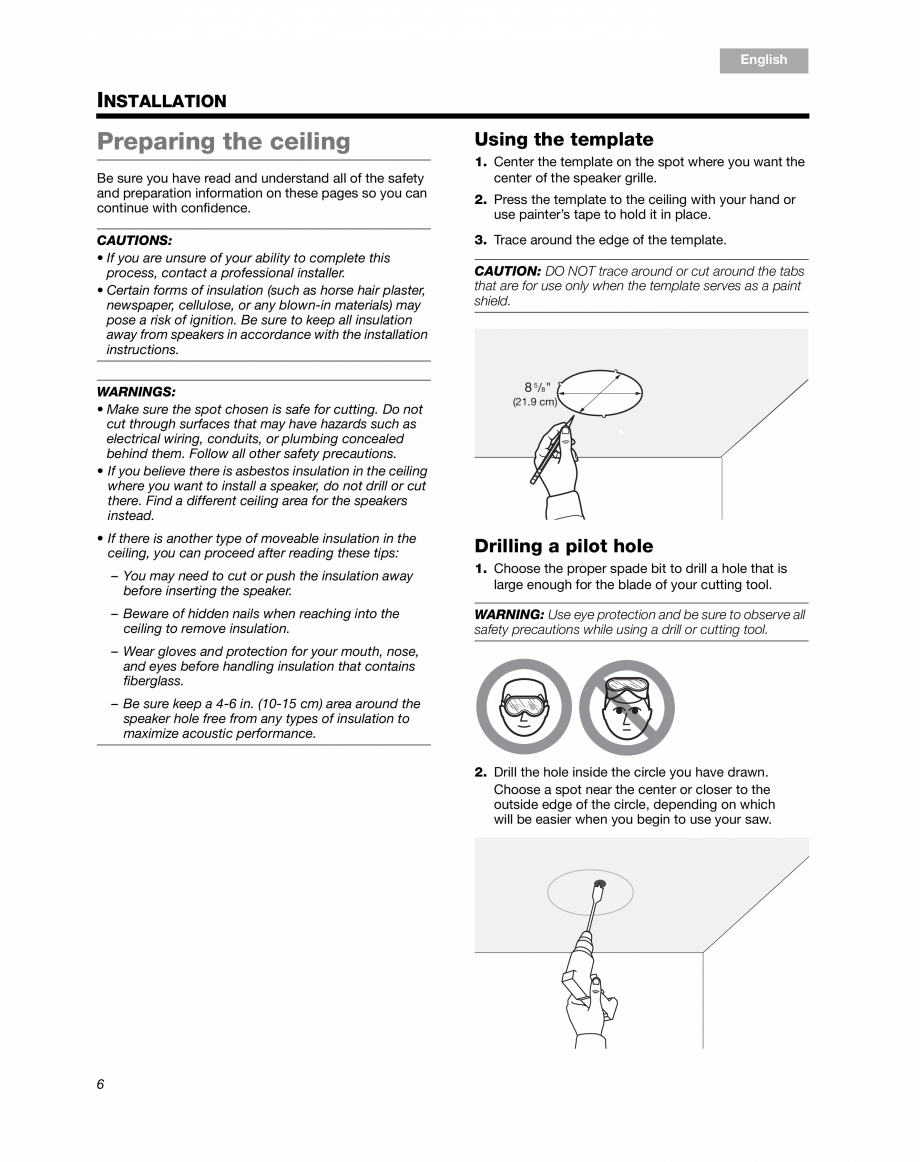

Preparing the ceiling . . . . . . . . . . . . . . . . . . . . . .
Using the template . . . . . . . . . . . . . . . . . . . . . .
Drilling a pilot hole . . . . . . . . . . . . . . . . . . . . . . .

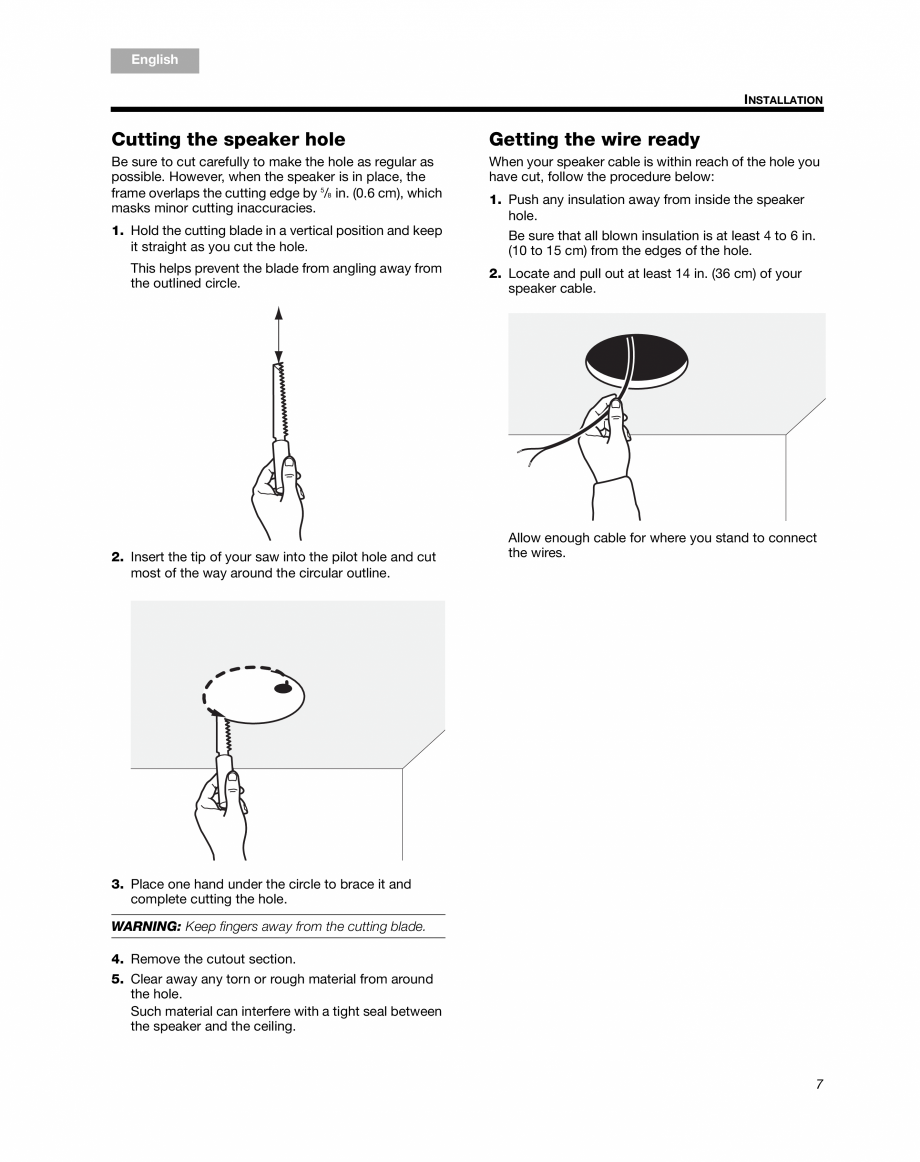

Cutting the speaker hole . . . . . . . . . . . . . . . . . .
Getting the wire ready . . . . . . . . . . . . . . . . . . . .
6
6
6
7
7

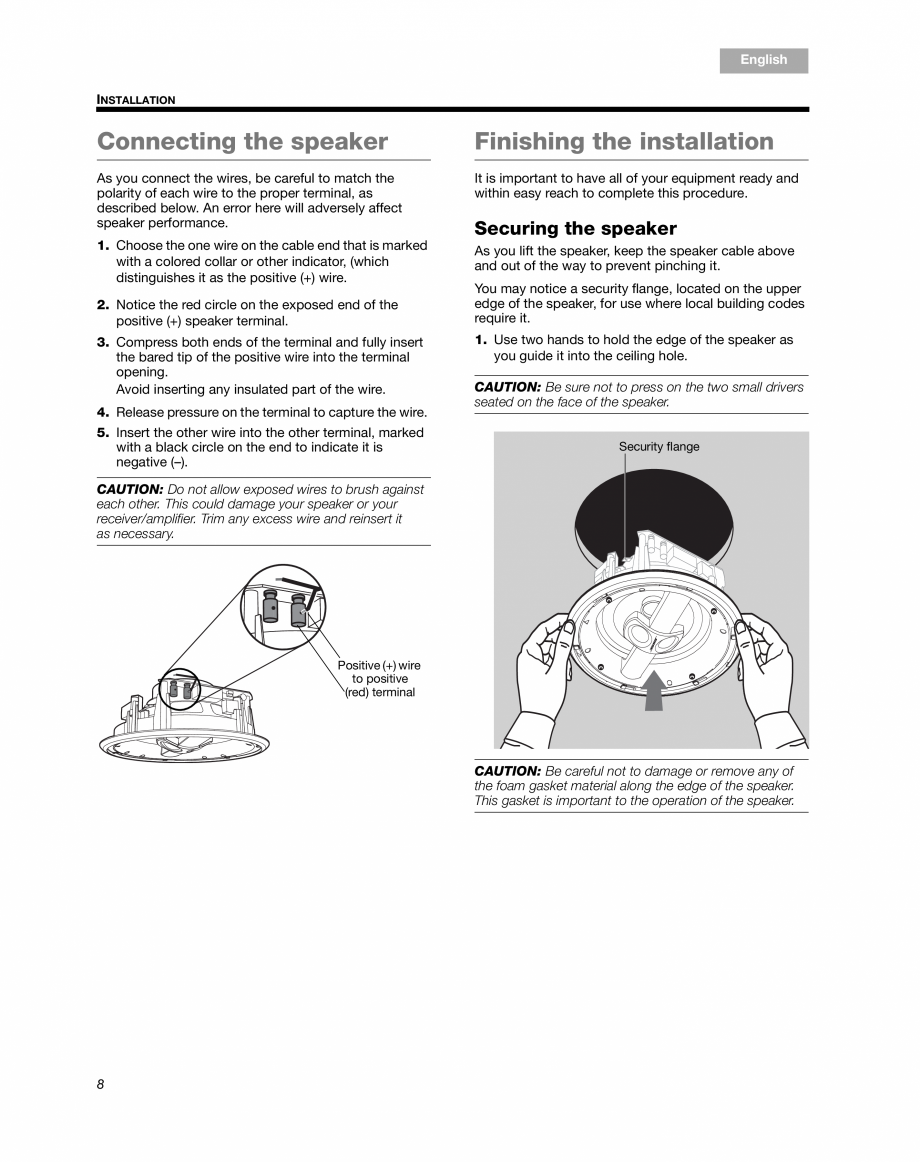

Connecting the speaker . . . . . . . . . . . . . . . . . . . .
8
Finishing the installation . . . . . . . . . . . . . . . . . . .

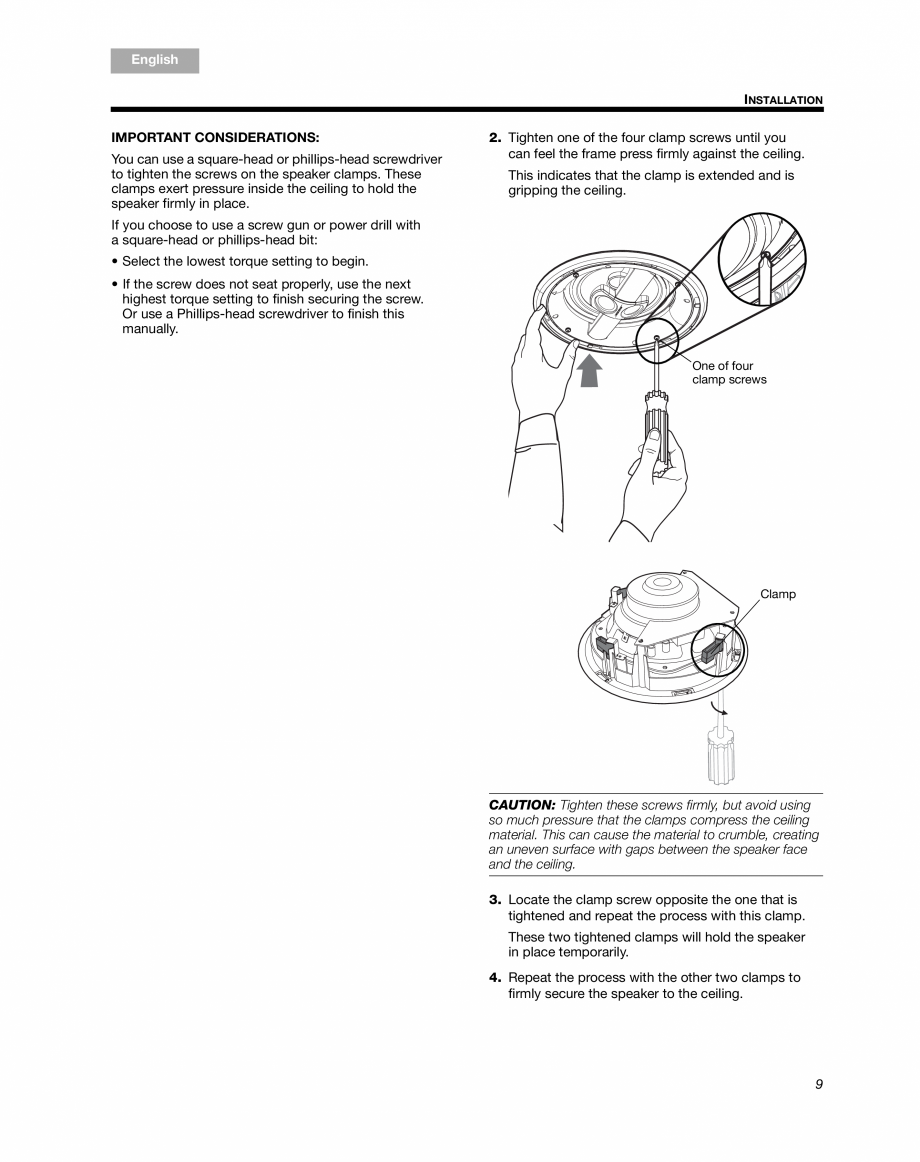

Securing the speaker . . . . . . . . . . . . . . . . . . . .

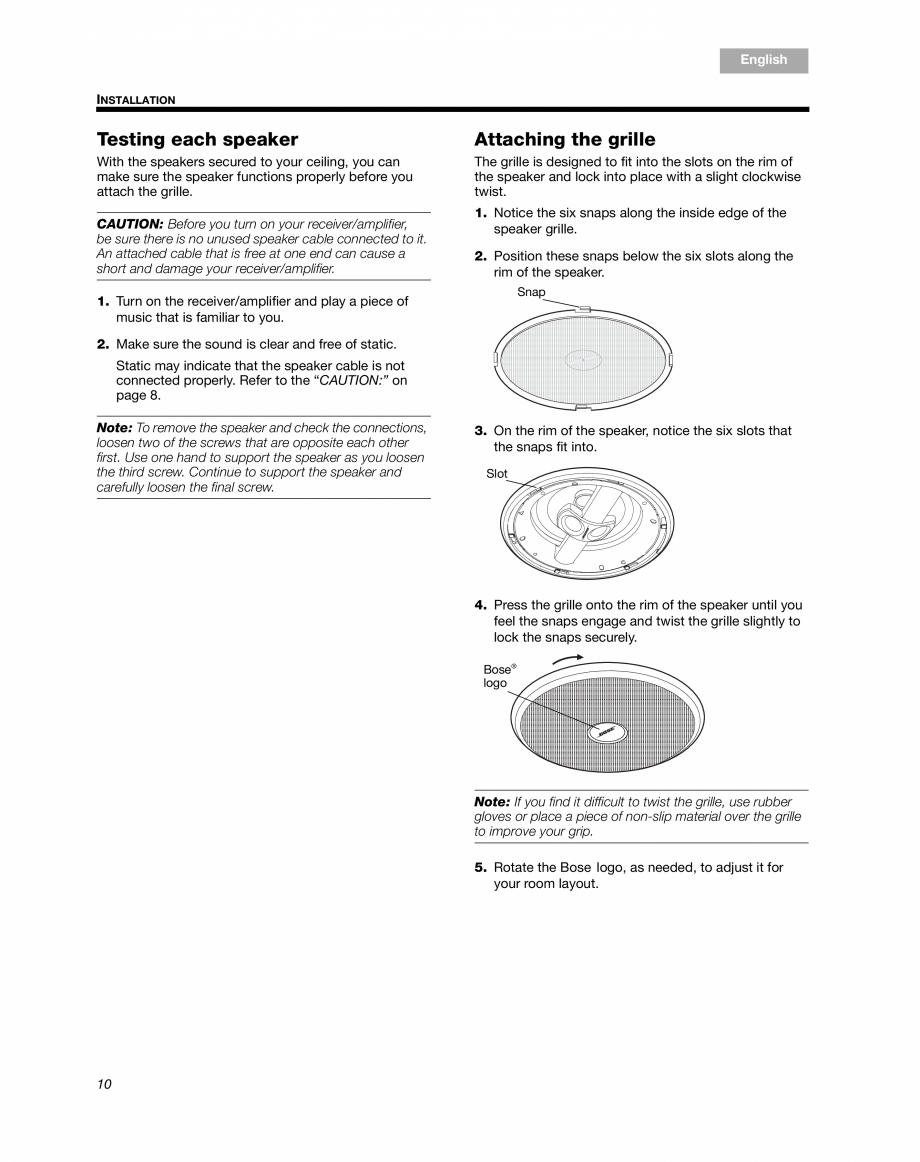

Testing each speaker . . . . . . . . . . . . . . . . . . . .
Attaching the grille . . . . . . . . . . . . . . . . . . . . . .
8
8
10
10
REFERENCE
11

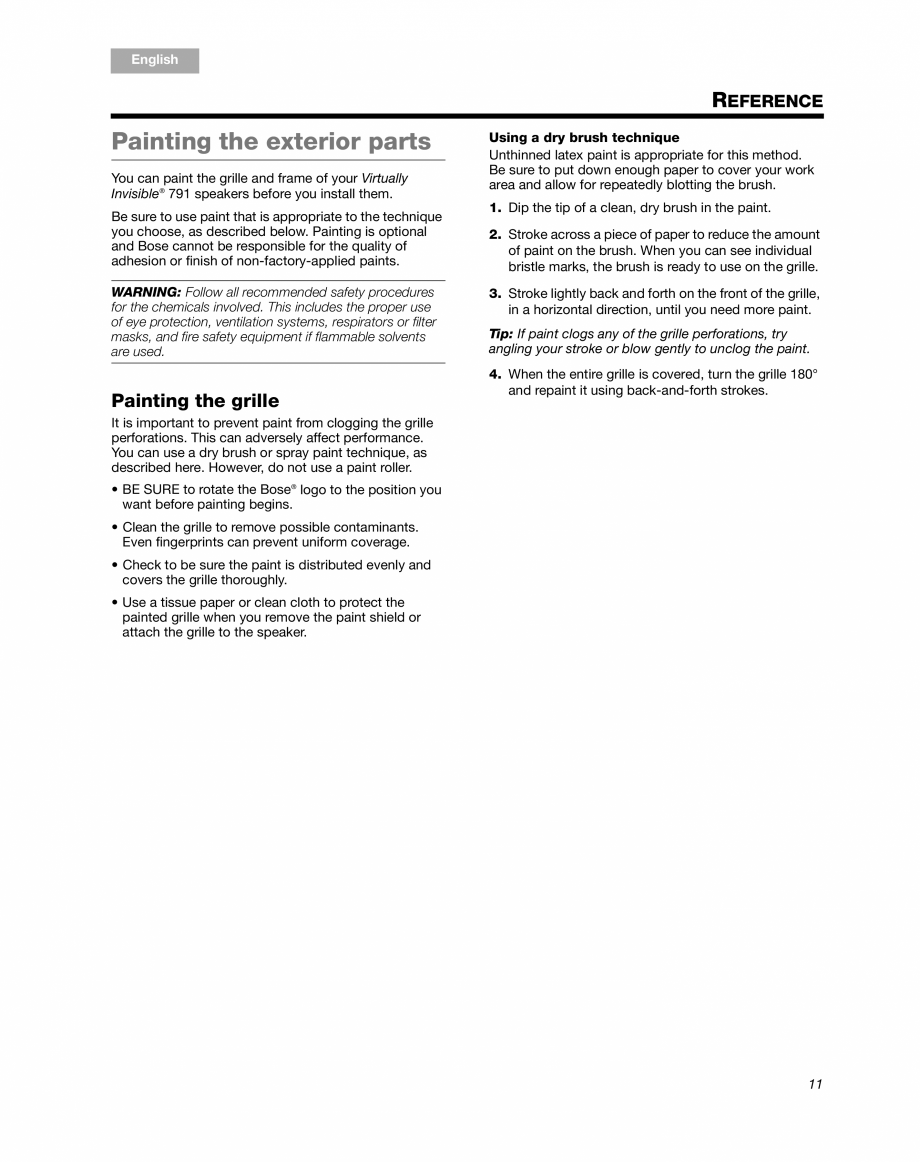

Painting the exterior parts . . . . . . . . . . . . . . . . . .
Painting the grille . . . . . . . . . . . . . . . . . . . . . . .

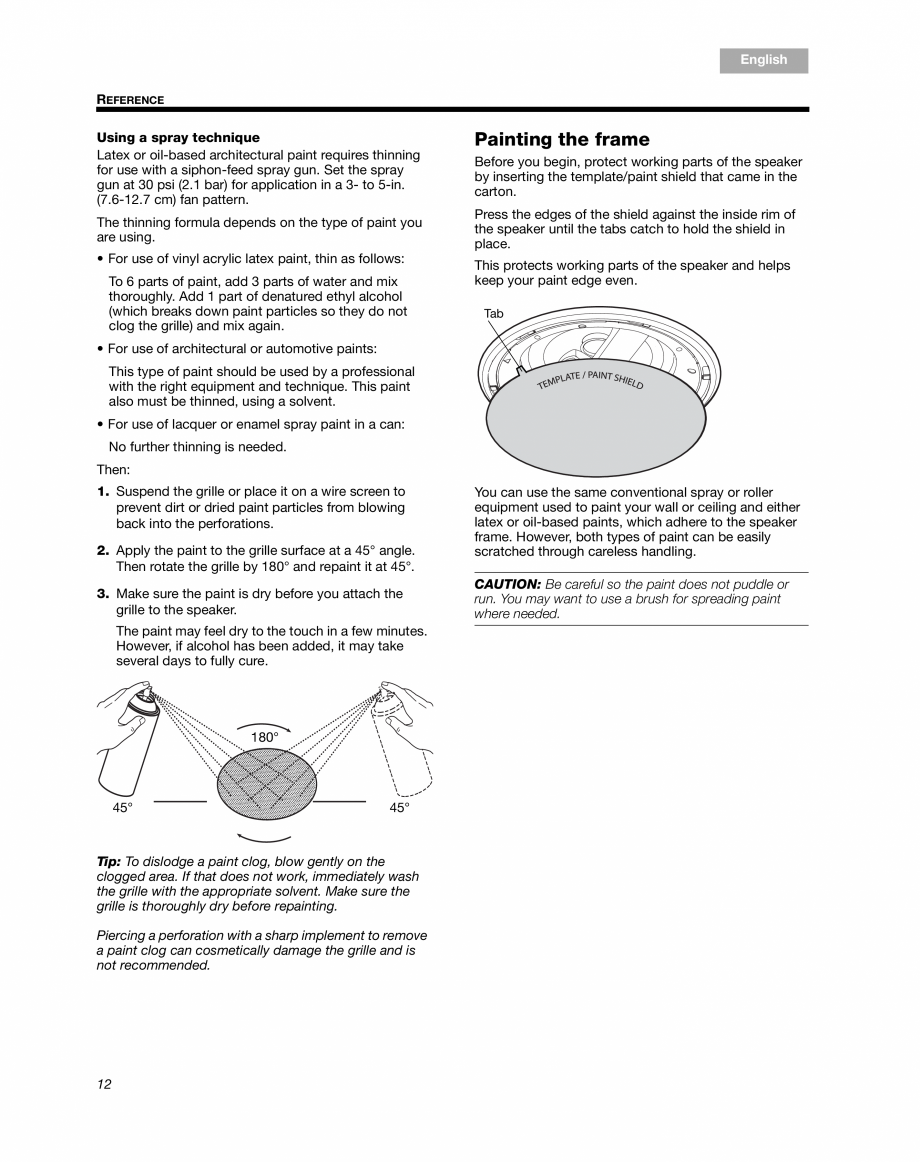

Painting the frame . . . . . . . . . . . . . . . . . . . . . . .
11
11
12

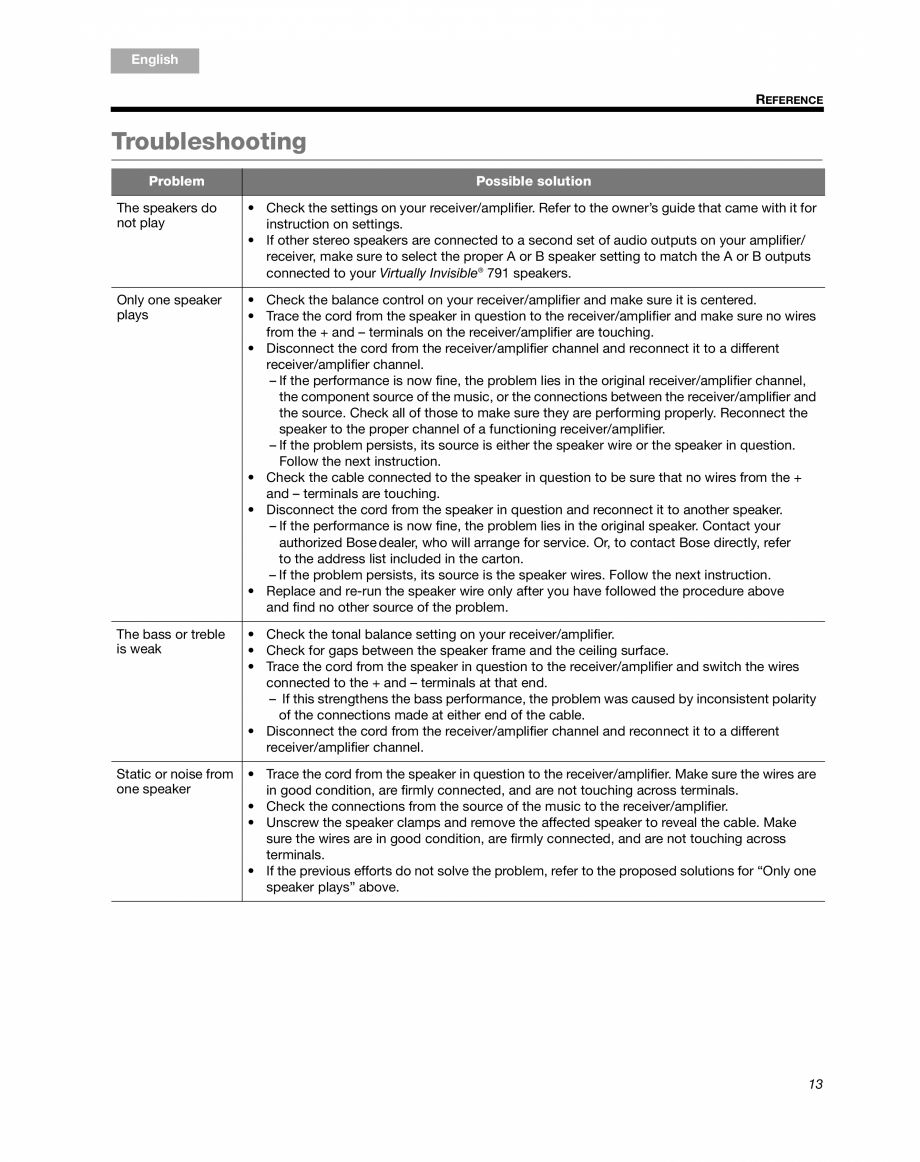

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . .
13

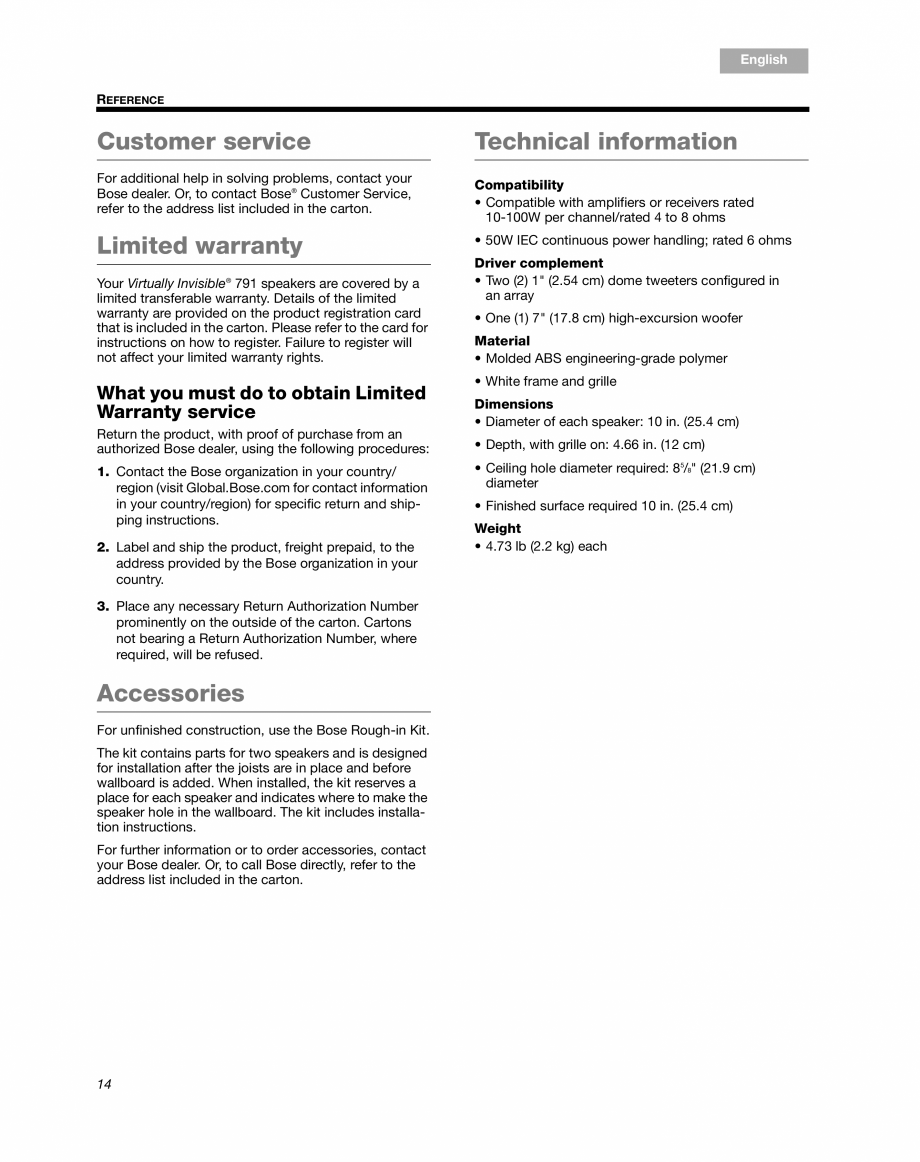

Customer service . . . . . . . . . . . . . . . . . . . . . . . . .
14
Limited warranty . . . . . . . . . . . . . . . . . . . . . . . . . .
14
Accessories . . . . . . .
. . . . . . . . . . . . . . . . . . . . . .
14
Technical information . . . . . . . . . . . . . . . . . . . . .
14
iii
00_791_Speaker_IG.book Page 2 Wednesday, April 15, 2009 8:33 AM
TAB 8
TAB 7
TAB 6
TAB 5
TAB 4
TAB 3
TAB 2
English
PREPARATION

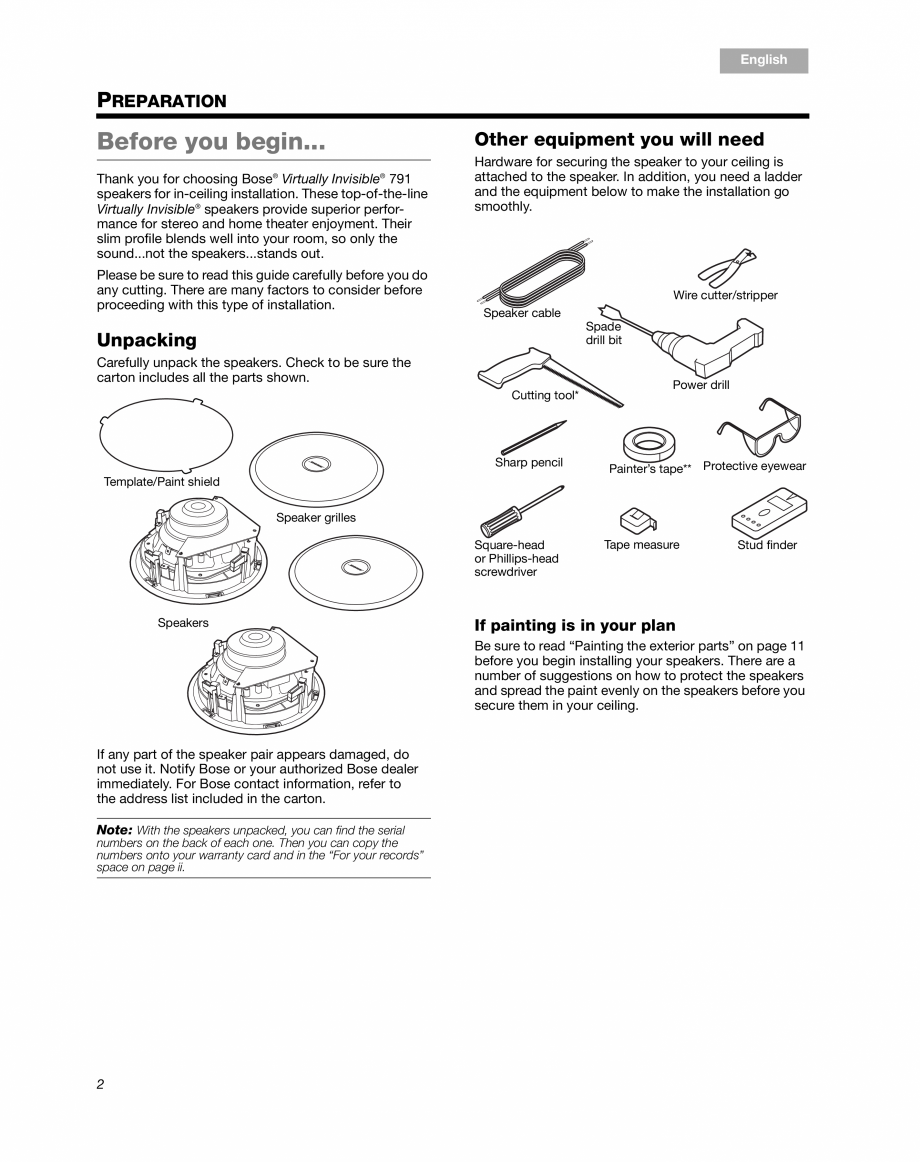

Before you begin...
®
Other equipment you will need
®
Thank you for choosing Bose Virtually Invisible 791
speakers for in-ceiling installation. These top-of-the-line
Virtually Invisible® speakers provide superior performance for stereo and home theater enjoyment. Their
slim profile blends well into your room, so only the
sound...not the speakers...stands out.
Please be sure to read this guide carefully before you do
any cutting. There are many factors to consider before
proceeding with this type of installation.
Hardware for securing the speaker to your ceiling is
attached to the speaker. In addition, you need a ladder
and the equipment below to make the installation go
smoothly.
Wire cutter/stripper
Speaker cable
Spade
dr
ill bit
Unpacking
Carefully unpack the speakers. Check to be sure the
carton includes all the parts shown.
Cutting tool*
Sharp pencil
Power drill
Painter’s tape** Protective eyewear
Template/Paint shield
Speaker grilles
Square-head
or Phillips-head
screwdriver
Speakers
Tape measure
Stud finder
If painting is in your plan
Be sure to read “Painting the exterior parts” on page 11
before you begin installing your speakers. There are a
number of suggestions on how to protect the speakers
and spread the paint evenly on the speakers before you
secure them in your ceiling.
If any part of the speaker pair appears damaged, do
not use it. Notify Bose or your authorized Bose dealer
immediately. For Bose contact information, refer to
the address list included in the carton.
Note: With the speakers unpacked, you can find the serial
numbers on the back of each one. Then you can copy the
numbers onto your warranty card and in the “For your records”
space on page ii.
2
00_791_Spe
aker_IG.book Page 3 Wednesday, April 15, 2009 8:33 AM
English
TAB 2
TAB 3
TAB 4
TAB 5
TAB 6
TAB 7
TAB 8
PREPARATION

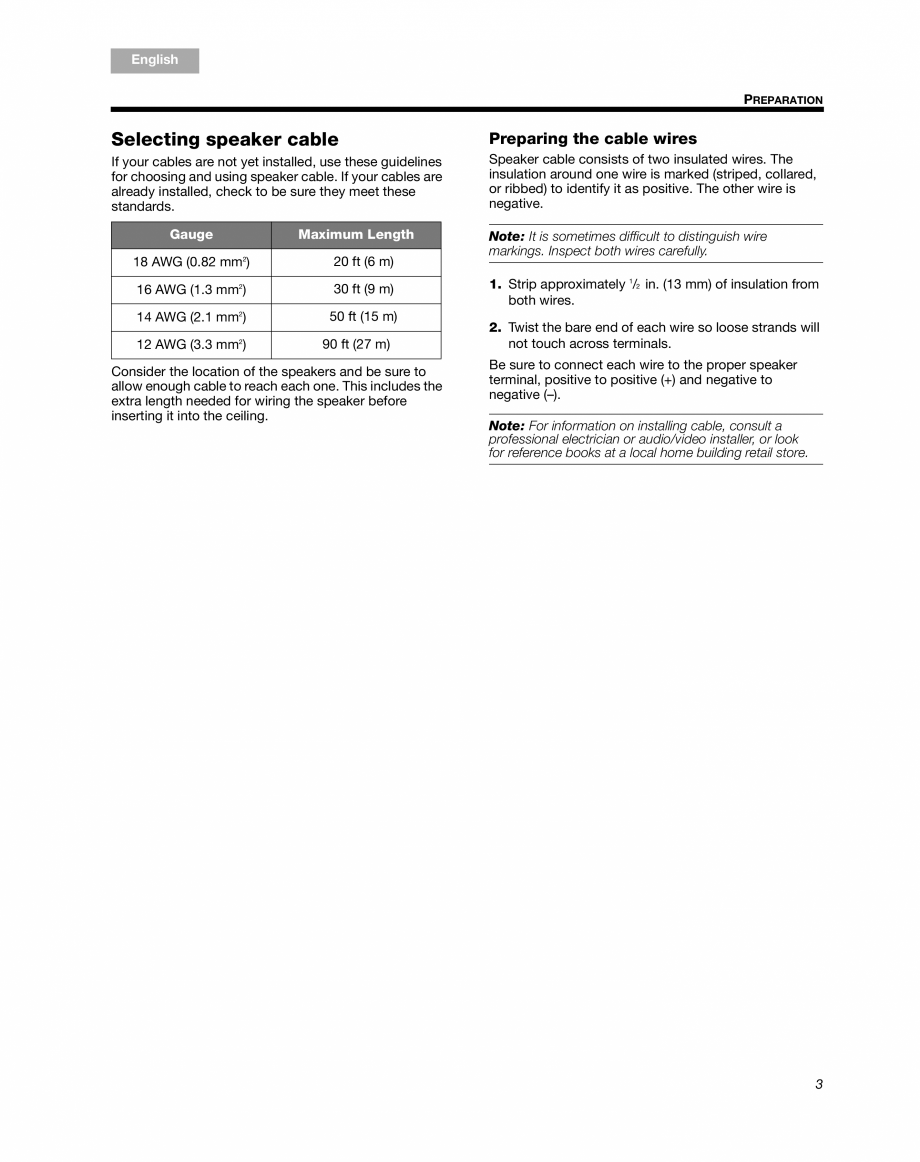

Selecting speaker cable
Preparing the cable wires
If your cables are not yet installed, use these guidelines
for choosing and using speaker cable. If your cables are
already installed, check to be sure they meet these
standards.
Speaker cable consists of two insulated wires. The
insulation around one wire is marked (striped, collared,
or ribbed) to identify it as positive. The other wire is
negative.
Gauge
Maximum Length
18 AWG (0.82 mm2)
20 ft (6 m)
16 AWG (1.3 mm2)
30 ft (9 m)
14 AWG (2.1 mm2)
50 ft (15 m)
12 AWG (3.3 mm2)
90 ft (27 m)
Consider the location of the speakers and be sure to
allow enough cable to reach each one. This includes the
extra length needed for wiring the speaker before
inserting it into the ceiling.
Note: It is sometimes difficult to distinguish wire
markings. Inspect both wires carefully.
1. Strip approximately 1/2 in. (13
mm) of insulation from
both wires.
2. Twist the bare end of each wire so loose strands will
not touch across terminals.
Be sure to connect each wire to the proper speaker
terminal, positive to positive (+) and negative to
negative (–).
Note: For information on installing cable, consult a
professional electrician or audio/video installer, or look
for reference books at a local home building retail store.
3
03_Preparation.fm Page 4 Thursday, June 11, 2009 10:41 AM
TAB 8
TAB 7
TAB 6
TAB 5
TAB 4
TAB 3
TAB 2
English
PREPARATION

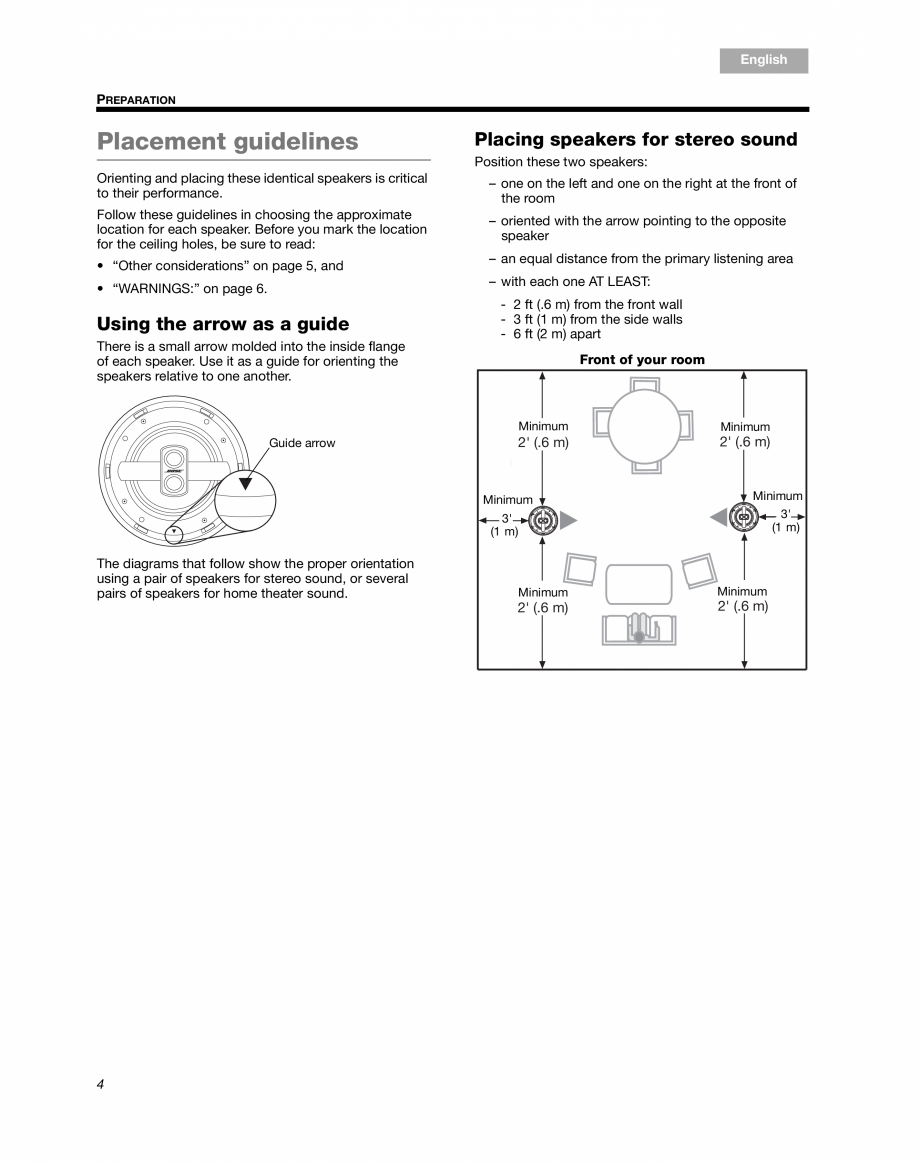

Placement guidelines
Placing speakers for stereo sound
Position these two speakers:
Orienting and placing these identical speakers is critical
to their performance.
– one on the left and one on the right at the front of
the room
Follow these guidelines in choosing the approximate
location for each speaker. Before you mark the location
for the ceiling holes, be sure to read:
– oriented with the arrow pointing to the opposite
speaker
• “Ot
her considerations” on page 5, and
– an equal distance from the primary listening area
– with each one AT LEAST:
• “WARNINGS:” on page 6.
Using the arrow as a guide
- 2 ft (.6 m) from the front wall
- 3 ft (1 m) from the side walls
- 6 ft (2 m) apart
There is a small arrow molded into the inside flange
of each speaker. Use it as a guide for orienting the
speakers relative to one another.
Front of your room
Minimum
Guide arrow
Minimum
2' (.6 m)
2' (.6 m)
Minimum
3'
(1 m)
The diagrams that follow show the proper orientation
using a pair of speakers for stereo sound, or several
pairs of speakers for home theater sound.
Minimum
3'
(1 m)
4
Minimum
Minimum
2' (.6 m)
2' (.6 m)
00_791_Speaker_IG.book Page 5 Wednesday, April 15, 2009 8:33 AM
English
TAB 2
TAB 3
TAB 4
TAB 5
TAB 6
TAB 7
TAB 8
PREPARATION

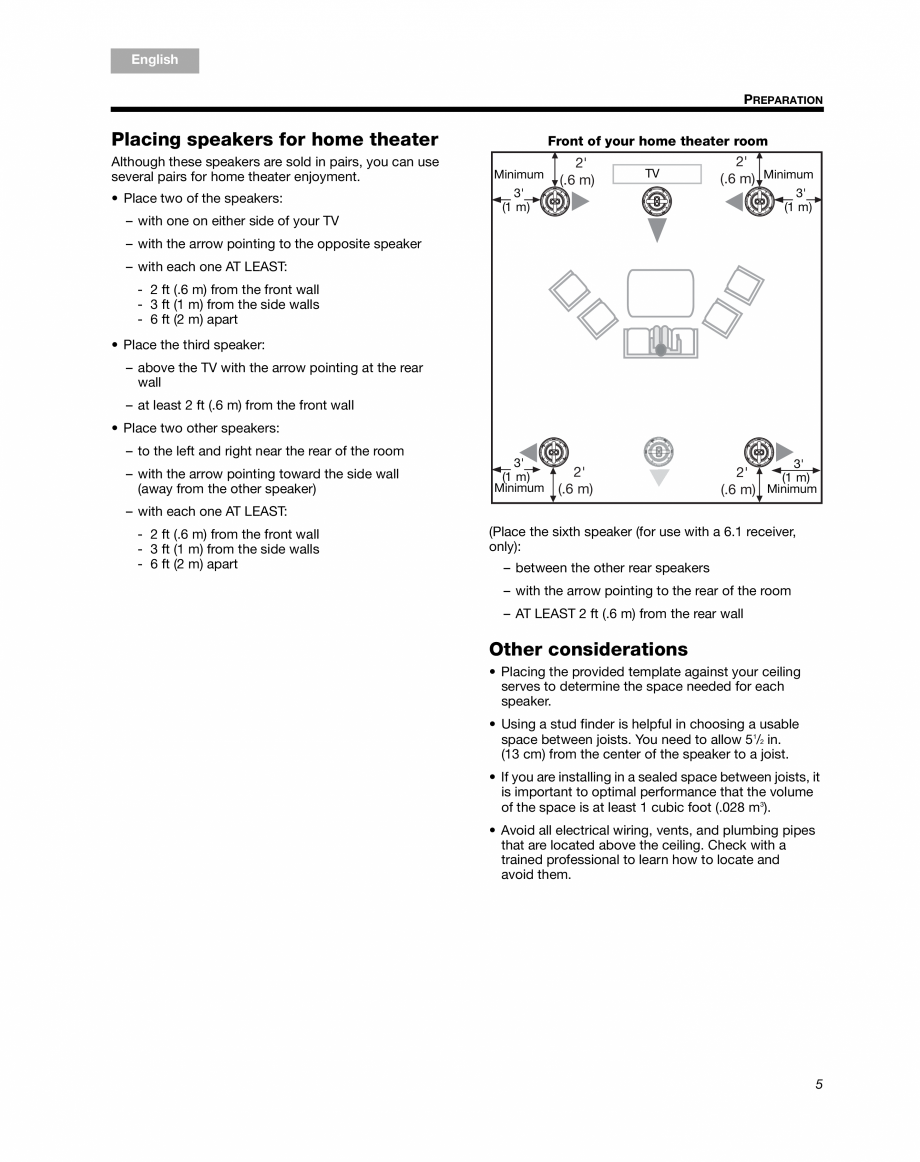

Placing speakers for home theater
Although these speakers are sold in pairs, you can use
several pairs for home theater enjoyment.
• Place two of the s
peakers:
Front of your home theater room
Minimum
2'
(.6 m)
TV
2'
(.6 m) Minimum
3'
(1 m)
3'
(1 m)
– with one on either side of your TV
– with the arrow pointing to the opposite speaker
– with each one AT LEAST:
- 2 ft (.6 m) from the front wall
- 3 ft (1 m) from the side walls
- 6 ft (2 m) apart
• Place the third speaker:
– above the TV with the arrow pointing at the rear
wall
– at least 2 ft (.6 m) from the front wall
• Place two other speakers:
– to the left and right near the rear of the room
– with the arrow pointing toward the side wall
(away from the other speaker)
3'
(1 m)
Minimum
2'
(.6 m)
3'
2'
(1 m)
(.6 m) Minimum
– with each one AT LEAST:
- 2 ft (.6 m) from the front wall
- 3 ft (1 m) from the side walls
- 6 ft (2 m) apart
(Place the sixth speaker (for use with a 6.1 receiver,
only):
– between the other rear speakers
– with the arrow pointing to the rear of the room
– AT LEAST 2 ft (.6 m) from the rear wall
Other considerations
• Pla
cing the provided template against your ceiling
serves to determine the space needed for each
speaker.
• Using a stud finder is helpful in choosing a usable
space between joists. You need to allow 51/2 in.
(13 cm) from the center of the speaker to a joist.
• If you are installing in a sealed space between joists, it
is important to optimal performance that the volume
of the space is at least 1 cubic foot (.028 m3).
• Avoid all electrical wiring, vents, and plumbing pipes
that are located above the ceiling. Check with a
trained professional to learn how to locate and
avoid them.
5
04_Installation.fm Page 6 Thursday, April 23, 2009 10:08 AM
TAB 8
TAB 7
TAB 6
TAB 5
TAB 4
TAB 3
TAB 2
English
INSTALLATION
Preparing the ceiling
Be sure you have read and understand all of the safety
and preparation information on these pages so you can
continue with confidence.
CAUTIONS:
• If you are unsure of your ability to complete this
process, contact a professional installer.
• Ce
rtain forms of insulation (such as horse hair plaster,
newspaper, cellulose, or any blown-in materials) may
pose a risk of ignition. Be sure to keep all insulation
away from speakers in accordance with the installation
instructions.
WARNINGS:
• Make sure the spot chosen is safe for cutting. Do not
cut through surfaces that may have hazards such as
electrical wiring, conduits, or plumbing concealed
behind them. Follow all other safety precautions.
• If you believe there is asbestos insulation in the ceiling
where you want to install a speaker, do not drill or cut
there. Find a different ceiling area for the speakers
instead.
• If there is another type of moveable insulation in the
ceiling, you can proceed after reading these tips:
Using the template
1. Center the template on the spot where you want the
center of the speaker grille.
2. Press the template to the ceiling with your hand or
use painter’s tape to hold it in place.
3. Trace around the edge of the template.
CAUTION: DO
NOT trace around or cut around the tabs
that are for use only when the template serves as a paint
shield.
8 5/8 "
(21.9 cm)
Drilling a pilot hole
– You may need to cut or push the insulation away
before inserting the speaker.
1. Choose the proper spade bit to drill a hole that is
large enough for the blade of your cutting tool.
– Beware of hidden nails when reaching into the
ceiling to remove insulation.
WARNING: Use eye protection and be sure to observe all
safety precautions while using a drill or cutting tool.
– Wear gloves and protection for your mouth, nose,
and eyes before handling insulation that contains
fiberglass.
– Be sure keep a 4-6 in. (10-15 cm) area around the
speaker hole free from any types of insulation to
maximize acoustic performance.
2. Drill the hole inside the circle you have drawn.
Choose a spot near the center or closer to the
outside edge of the circle, depending on which
will be easier when you begin to use your saw.
6
00_791_Speaker_IG.boo
k Page 7 Wednesday, April 15, 2009 8:33 AM
English
TAB 2
TAB 3
TAB 4
TAB 5
TAB 6
TAB 7
TAB 8
INSTALLATION
Cutting the speaker hole
Getting the wire ready
Be sure to cut carefully to make the hole as regular as
possible. However, when the speaker is in place, the
frame overlaps the cutting edge by 5/8 in. (0.6 cm), which
masks minor cutting inaccuracies.
When your speaker cable is within reach of the hole you
have cut, follow the procedure below:
1. Hold the cutting blade in a vertical position and keep
it straight as you cut the hole.
Be sure that all blown insulation is at least 4 to 6 in.
(10 to 15 cm) from the edges of the hole.
This helps prevent the blade from angling away from
the outlined circle.
2. Insert the tip of your saw into the pilot hole and cut
most of the way around the circular outline.
1. Push any insulation away from inside the speaker
hole.
2. Locate and pull out at least 14 in. (36 cm) of your
speaker cable.
Allow enough cable for where you stan
d to connect
the wires.
3. Place one hand under the circle to brace it and
complete cutting the hole.
WARNING: Keep fingers away from the cutting blade.
4. Remove the cutout section.
5. Clear away any torn or rough material from around
the hole.
Such material can interfere with a tight seal between
the speaker and the ceiling.
7
04_Installation.fm Page 8 Thursday, June 11, 2009 10:50 AM
TAB 8
TAB 7
TAB 6
TAB 5
TAB 4
TAB 3
TAB 2
English
INSTALLATION
Connecting the speaker
Finishing the installation
As you connect the wires, be careful to match the
polarity of each wire to the proper terminal, as
described below. An error here will adversely affect
speaker performance.
It is important to have all of your equipment ready and
within easy reach to complete this procedure.
1. Choose the one wire on the cable end that is marked
with a colored collar or other indicator, (which
distinguishes it as the positive (+) wire.
As you lift the speaker, keep the speaker cable above
an
d to connect
the wires.
3. Place one hand under the circle to brace it and
complete cutting the hole.
WARNING: Keep fingers away from the cutting blade.
4. Remove the cutout section.
5. Clear away any torn or rough material from around
the hole.
Such material can interfere with a tight seal between
the speaker and the ceiling.
7
04_Installation.fm Page 8 Thursday, June 11, 2009 10:50 AM
TAB 8
TAB 7
TAB 6
TAB 5
TAB 4
TAB 3
TAB 2
English
INSTALLATION
Connecting the speaker
Finishing the installation
As you connect the wires, be careful to match the
polarity of each wire to the proper terminal, as
described below. An error here will adversely affect
speaker performance.
It is important to have all of your equipment ready and
within easy reach to complete this procedure.
1. Choose the one wire on the cable end that is marked
with a colored collar or other indicator, (which
distinguishes it as the positive (+) wire.
As you lift the speaker, keep the speaker cable above
an
... ascunde
Alte documentatii ale aceleasi game Vezi toate
Instructiuni montaj, utilizare 18 p | RO
Instructiuni montaj, utilizare
14 p | EN - SP + inca 2 limbi
251
