L1 Pro32
Portable Line Array
Owner's Guide

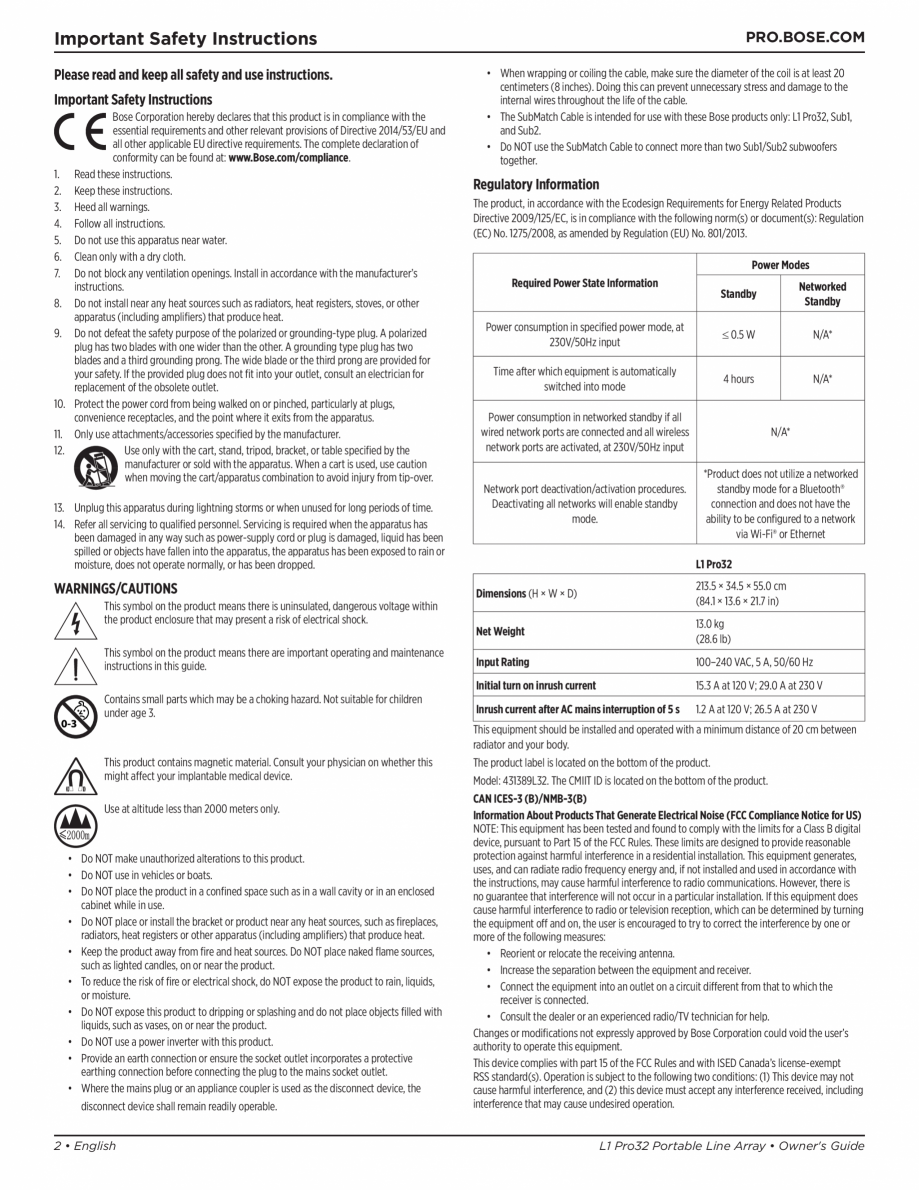

Important Safety Instructions
Please read and keep all safety and use instructions.
Important Safety Instructions
B ose Corporation hereby declares that this product is in compliance with the
essential requirements and other relevant provisions of Directive 2014/53/EU and
all other applicable EU directive requirements. The complete declaration of
conformity can be found at: www.Bose.com/compliance.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider
than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the third prong are provided for
your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched, particularly at plugs,
convenience receptacles, and the point where it exits from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12.
Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer or sold with the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified personnel. Servicing is required when the apparatus has
been damaged in any way such as power-supply cord or plug is damaged, liquid has been
spilled or obje
cts have fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
WARNINGS/CAUTIONS
T his symbol on the product means there is uninsulated, dangerous voltage within
the product enclosure that may present a risk of electrical shock.
T his symbol on the product means there are important operating and maintenance
instructions in this guide.
C ontains small parts which may be a choking hazard. Not suitable for children
under age 3.
T his product contains magnetic material. Consult your physician on whether this
might affect your implantable medical device.
Use at altitude less than 2000 meters only.
• Do NOT make unauthorized alterations to this product.
• Do NOT use in vehicles or boats.
• Do NOT place the product in a confined space such as in a wall cavity or in an enclosed
cabinet while in use.
• Do NOT place or install the bracket or product near any heat sources, such as fireplaces,
radiators, heat
registers or other apparatus (including amplifiers) that produce heat.
• Keep the product away from fire and heat sources. Do NOT place naked flame sources,
such as lighted candles, on or near the product.
• To reduce the risk of fire or electrical shock, do NOT expose the product to rain, liquids,
or moisture.
• Do NOT expose this product to dripping or splashing and do not place objects filled with
liquids, such as vases, on or near the product.
• Do NOT use a power inverter with this product.
• Provide an earth connection or ensure the socket outlet incorporates a protective
earthing connection before connecting the plug to the mains socket outlet.
• Where the mains plug or an appliance coupler is used as the disconnect device, the
disconnect device shall remain readily operable.
2 • English
PRO.BOSE.COM
• When wrapping or coiling the cable, make sure the diameter of the coil is at least 20
centimeters (8 inches). Doing this can prevent unnecessary stress and damage
to the
internal wires throughout the life of the cable.
• The SubMatch Cable is intended for use with these Bose products only: L1 Pro32, Sub1,
and Sub2.
• Do NOT use the SubMatch Cable to connect more than two Sub1/Sub2 subwoofers
together.
Regulatory Information
The product, in accordance with the Ecodesign Requirements for Energy Related Products
Directive 2009/125/EC, is in compliance with the following norm(s) or document(s): Regulation
(EC) No. 1275/2008, as amended by Regulation (EU) No. 801/2013.
Power Modes
Required Power State Information
Standby
Networked
Standby
Power consumption in specified power mode, at
230V/50Hz input
≤ 0.5 W
N/A*
Time after which equipment is automatically
switched into mode
4 hours
N/A*
Power consumption in networked standby if all
wired network ports are connected and all wireless
network ports are activated, at 230V/50Hz input
N/A*
Network port deactivation/activation procedures.
Deactivating all networks will enable standby
mode
.
*Product does not utilize a networked
standby mode for a Bluetooth®
connection and does not have the
ability to be configured to a network
via Wi-Fi® or Ethernet
L1 Pro32
Dimensions (H × W × D)
213.5 × 34.5 × 55.0 cm
(84.1 × 13.6 × 21.7 in)
Net Weight
13.0 kg
(28.6 lb)
Input Rating
100–240 VAC, 5 A, 50/60 Hz
Initial turn on inrush current
15.3 A at 120 V; 29.0 A at 230 V
Inrush current after AC mains interruption of 5 s
1.2 A at 120 V; 26.5 A at 230 V
This equipment should be installed and operated with a minimum distance of 20 cm between
radiator and your body.
The product label is located on the bottom of the product.
Model: 431389L32. The CMIIT ID is located on the bottom of the product.
CAN ICES-3 (B)/NMB-3(B)
Information About Products That Generate Electrical Noise (FCC Compliance Notice for US)
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are desig
ned to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by Bose Corporation could vo
id the user’s
authority to operate this equipment.
This device complies with part 15 of the FCC Rules and with ISED Canada’s license-exempt
RSS standard(s). Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
L1 Pro32 Portable Line Array • Owner's Guide
PRO.BOSE.COM

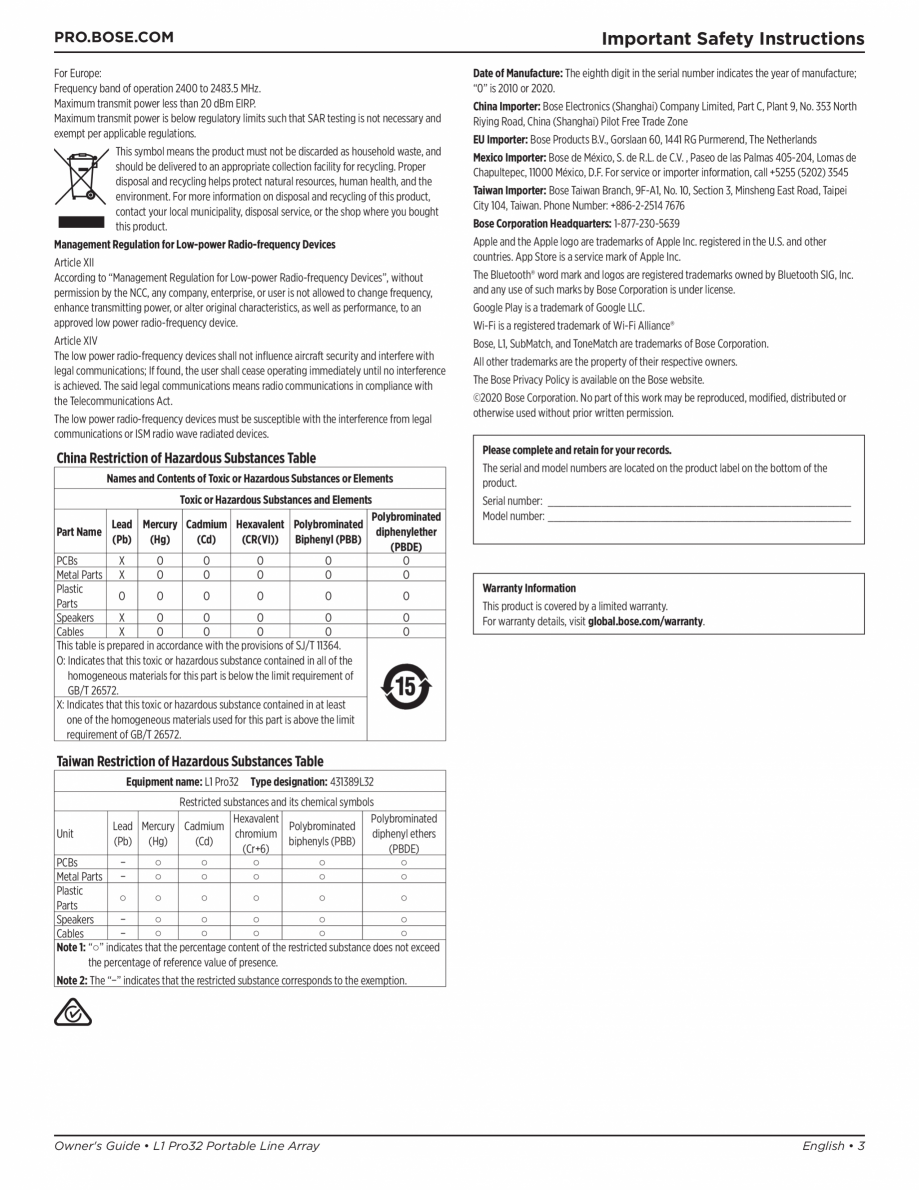

For Europe:
Frequency band of operation 2400 to 2483.5 MHz.
Maximum transmit power less than 20 dBm EIRP.
Maximum transmit power is below regulatory limits such that SAR testing is not necessary and
exempt per applicable regulations.
This symbol means the product must not be discarded as household waste, and
should be delivered to an appropriate collection facility for recycling. Proper
disposal and recycling helps protect natural resources, human health, and the
environment. For more information on disposal and recycling of this product,
contact
your local municipality, disposal service, or the shop where you bought
this product.
Management Regulation for Low-power Radio-frequency Devices
Article XII
According to “Management Regulation for Low-power Radio-frequency Devices”, without
permission by the NCC, any company, enterprise, or user is not allowed to change frequency,
enhance transmitting power, or alter original characteristics, as well as performance, to an
approved low power radio-frequency device.
Article XIV
The low power radio-frequency devices shall not influence aircraft security and interfere with
legal communications; If found, the user shall cease operating immediately until no interference
is achieved. The said legal communications means radio communications in compliance with
the Telecommunications Act.
The low power radio-frequency devices must be susceptible with the interference from legal
communications or ISM radio wave radiated devices.
China Restriction of Hazardous Substances Table
Names and Con
tents of Toxic or Hazardous Substances or Elements
Toxic or Hazardous Substances and Elements
Polybrominated
Lead Mercury Cadmium Hexavalent Polybrominated
Part Name
diphenylether
(Pb) (Hg)
(Cd)
(CR(VI)) Biphenyl (PBB)
(PBDE)
PCBs
X
O
O
O
O
O
Metal Parts X
O
O
O
O
O
Plastic
O
O
O
O
O
O
Parts
Speakers
X
O
O
O
O
O
Cables
X
O
O
O
O
O
This table is prepared in accordance with the provisions of SJ/T 11364.
O: Indicates that this toxic or hazardous substance contained in all of the
homogeneous materials for this part is below the limit requirement of
GB/T 26572.
X: Indicates that this toxic or hazardous substance contained in at least
one of the homogeneous materials used for this part is above the limit
requirement of GB/T 26572.
Important Safety Instructions
Date of Manufacture: The eighth digit in the serial number indicates the year of manufacture;
“0” is 2010 or 2020.
China Importer: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North
Riying Road, China
(Shanghai) Pilot Free Trade Zone
EU Importer: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, The Netherlands
Mexico Importer: Bose de México, S. de R.L. de C.V. , Paseo de las Palmas 405-204, Lomas de
Chapultepec, 11000 México, D.F. For service or importer information, call +5255 (5202) 3545
Taiwan Importer: Bose Taiwan Branch, 9F-A1, No. 10, Section 3, Minsheng East Road, Taipei
City 104, Taiwan. Phone Number: +886-2-2514 7676
Bose Corporation Headquarters: 1-877-230-5639
Apple and the Apple logo are trademarks of Apple Inc. registered in the U.S. and other
countries. App Store is a service mark of Apple Inc.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc.
and any use of such marks by Bose Corporation is under license.
Google Play is a trademark of Google LLC.
Wi-Fi is a registered trademark of Wi-Fi Alliance®
Bose, L1, SubMatch, and ToneMatch are trademarks of Bose Corporation.
All other trademarks are the property of their respectiv
e owners.
The Bose Privacy Policy is available on the Bose website.
©2020 Bose Corporation. No part of this work may be reproduced, modified, distributed or
otherwise used without prior written permission.
Please complete and retain for your records.
The serial and model numbers are located on the product label on the bottom of the
product.
Serial number: ____________________________________________________
Model number: ____________________________________________________
Warranty Information
This product is covered by a limited warranty.
For warranty details, visit global.bose.com/warranty.
Taiwan Restriction of Hazardous Substances Table
Equipment name: L1 Pro32 Type designation: 431389L32
Restricted substances and its chemical symbols
Hexavalent
Polybrominated
Lead Mercury Cadmium
Polybrominated
Unit
chromium
diphenyl ethers
(Pb) (Hg)
(Cd)
biphenyls (PBB)
(Cr+6)
(PBDE)
○
○
○
○
○
PCBs
−
○
○
○
○
○
Metal Parts −
Plastic
○
○
○
○
○
○
Parts
○
○
○
○
○
Speakers
−
○
○
○
○
○
Cables
−
Note 1: “○” indicates that the percentage content of the restricted substance does not exceed
the percentage of reference value of presence.
Note 2: The “−” indicates that the restricted substance corresponds to the exemption.
Owner's Guide • L1 Pro32 Portable Line Array
English • 3

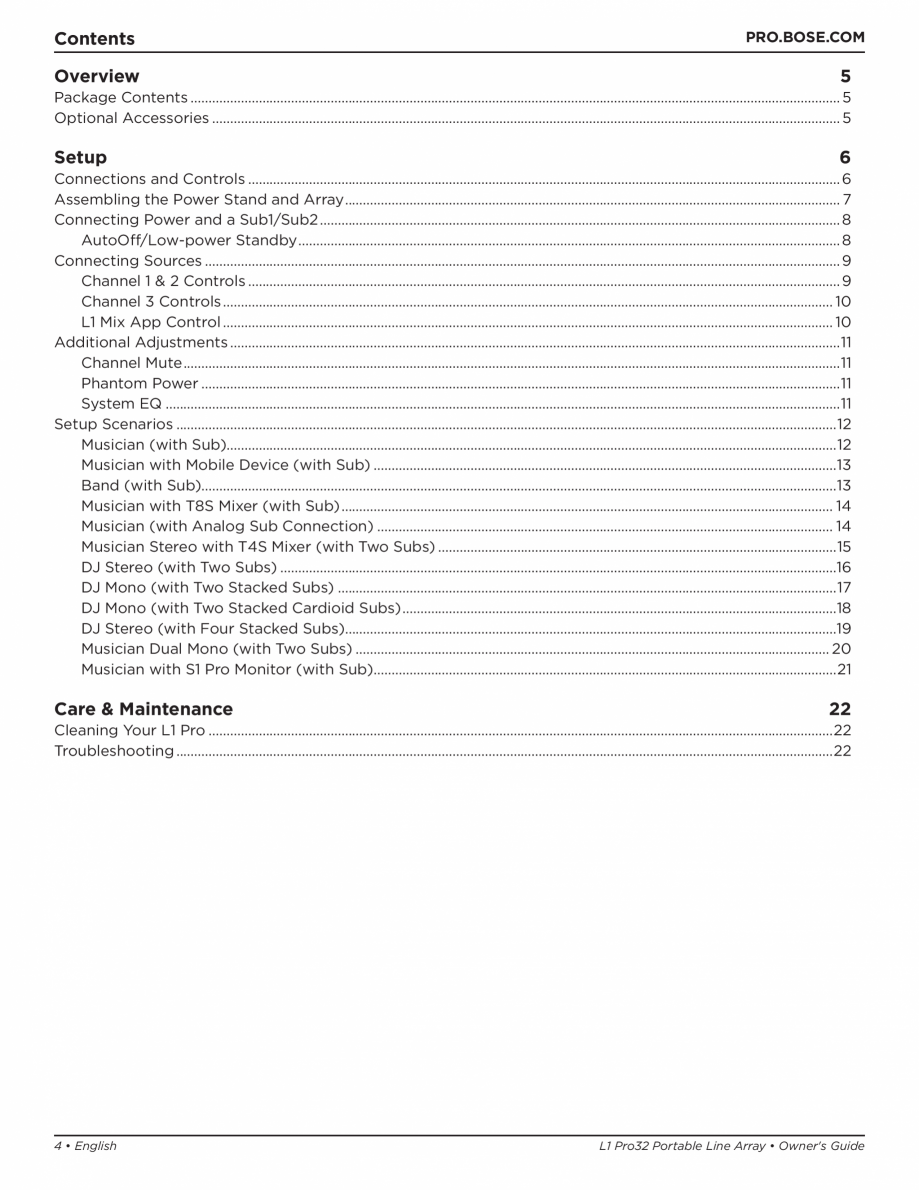

Contents
Overview
PRO.BOSE.COM
5
Package Contents...................................................................................................................................................................................... 5
Optional Accessories................................................................................................................................................................................ 5
Setup
6
Connections and Controls....................................................................................................................................................................
.. 6
Assembling the Power Stand and Array........................................................................................................................................... 7
Connecting Power and a Sub1/Sub2.................................................................................................................................................. 8
AutoOff/Low-power Standby........................................................................................................................................................ 8
Connecting Sources.................................................................................................................................................................................. 9
Channel 1 & 2 Controls...................................................................................................................................................................... 9

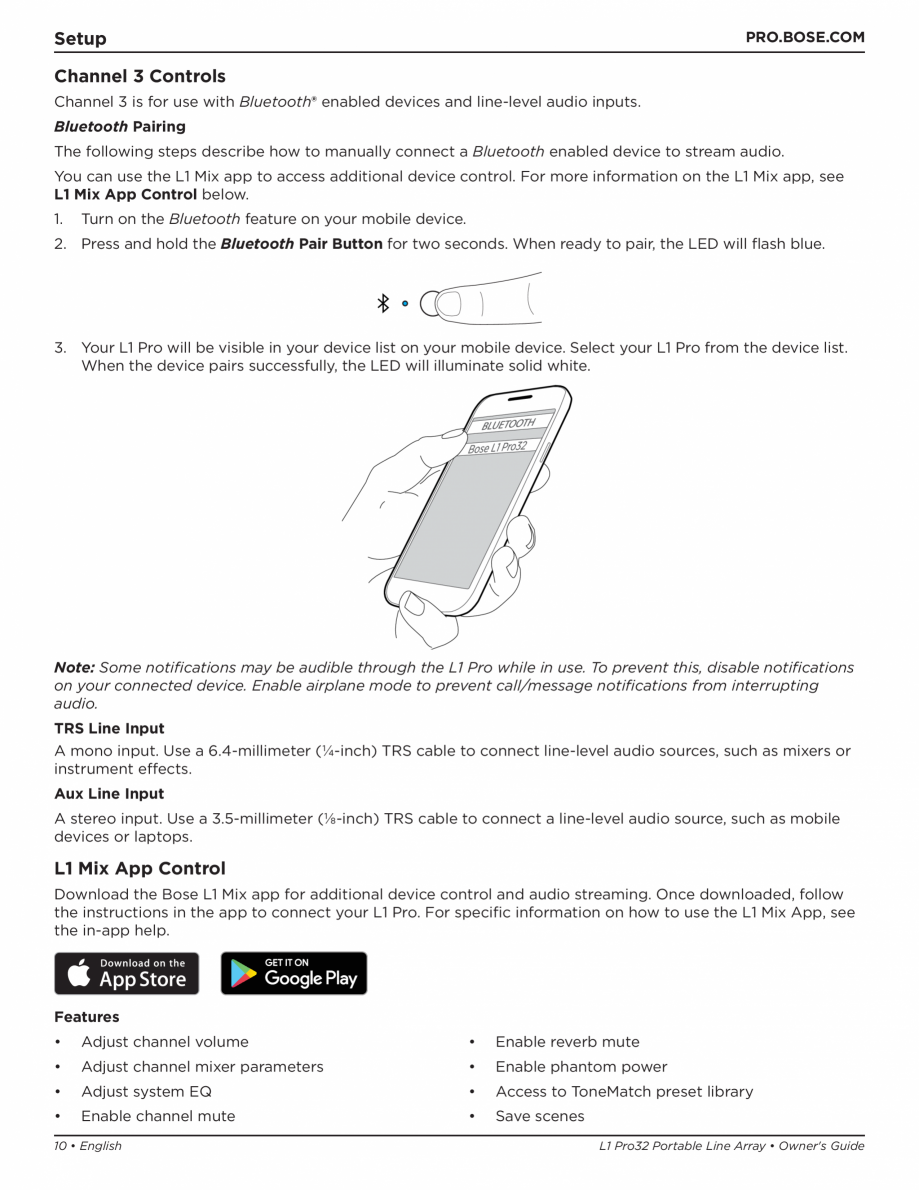

Channel 3 Controls................................................
........................................................................................................................... 10
L1 Mix App Control........................................................................................................................................................................... 10
Additional Adjustments...........................................................................................................................................................................11

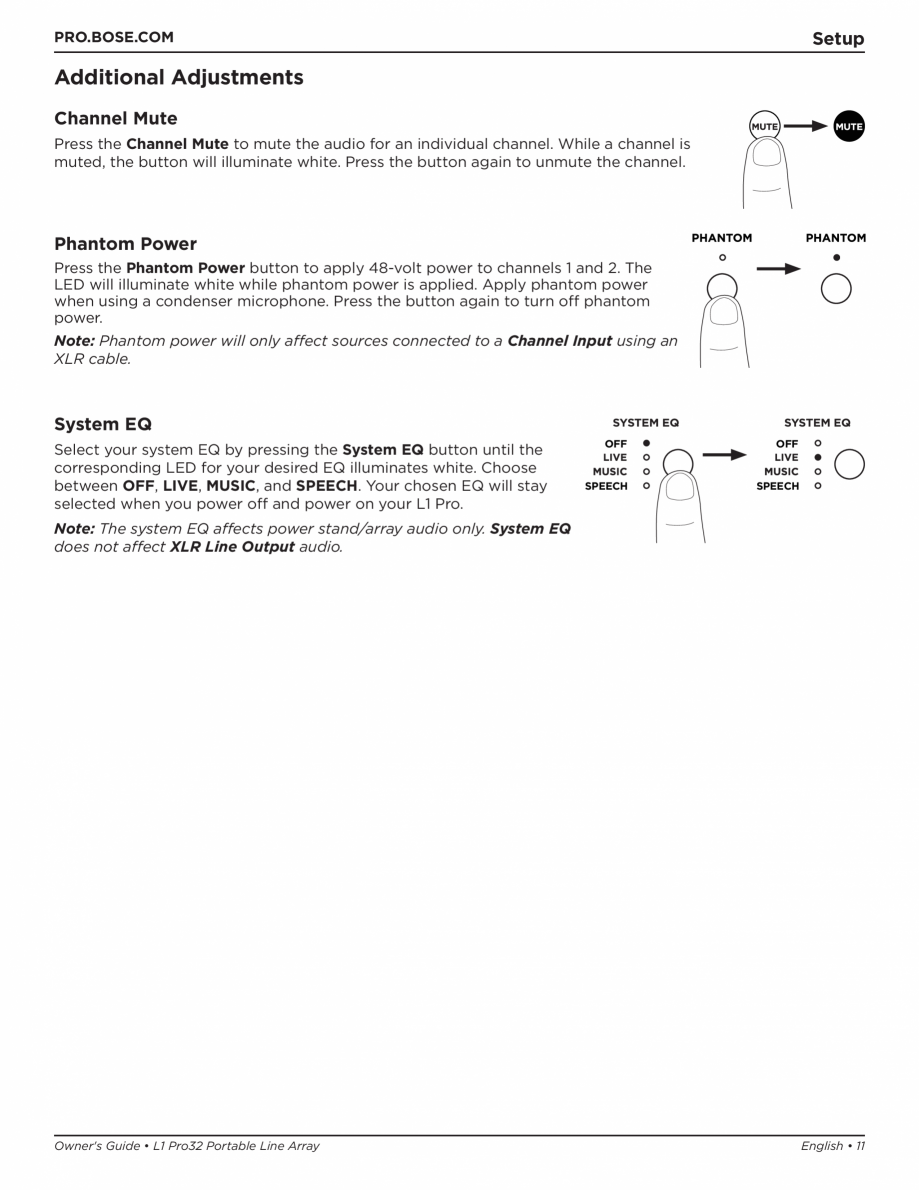

Channel Mute........................................................................................................................................................................................11
Phantom Power...................................................................................................................................................................................11
System EQ.................................................................................
............................................................................................................11

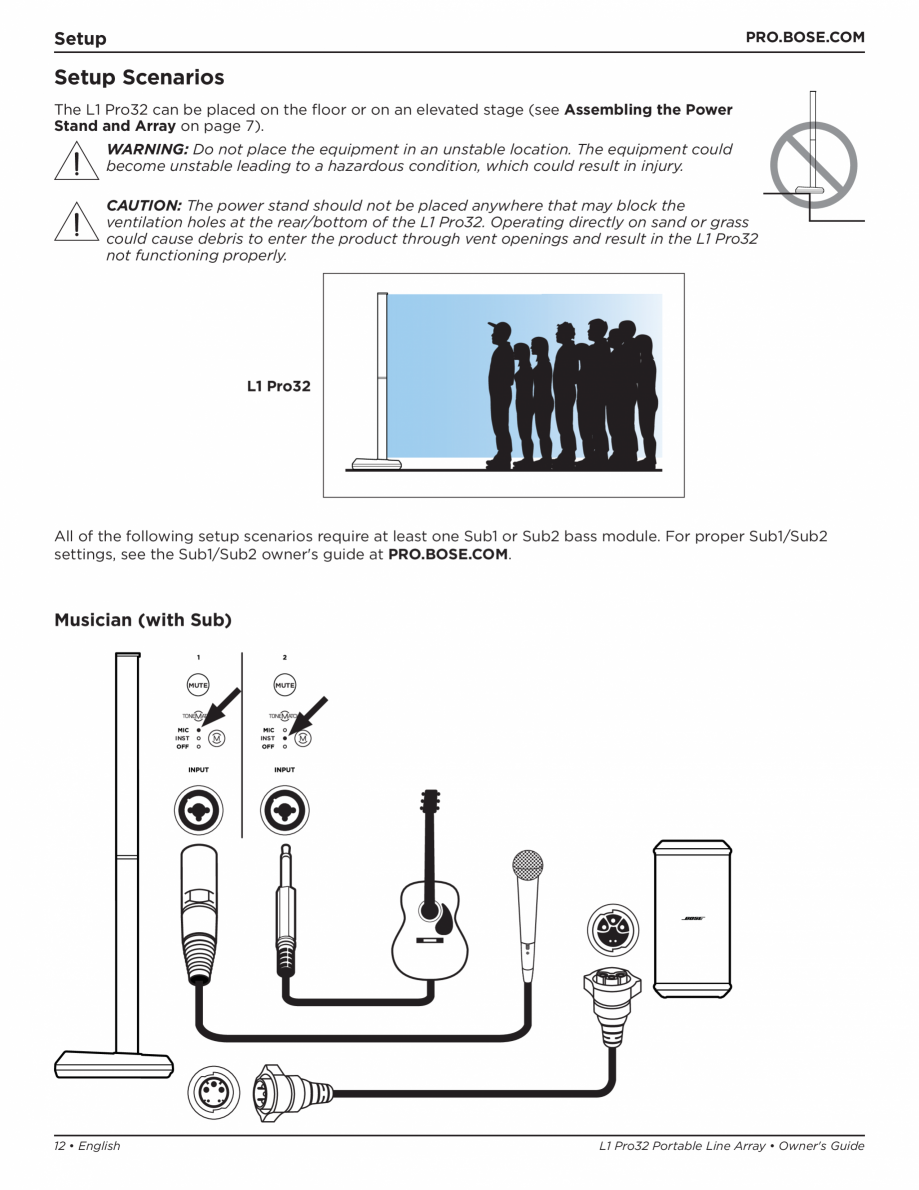

Setup Scenarios.........................................................................................................................................................................................12
Musician (with Sub)..........................................................................................................................................................................12

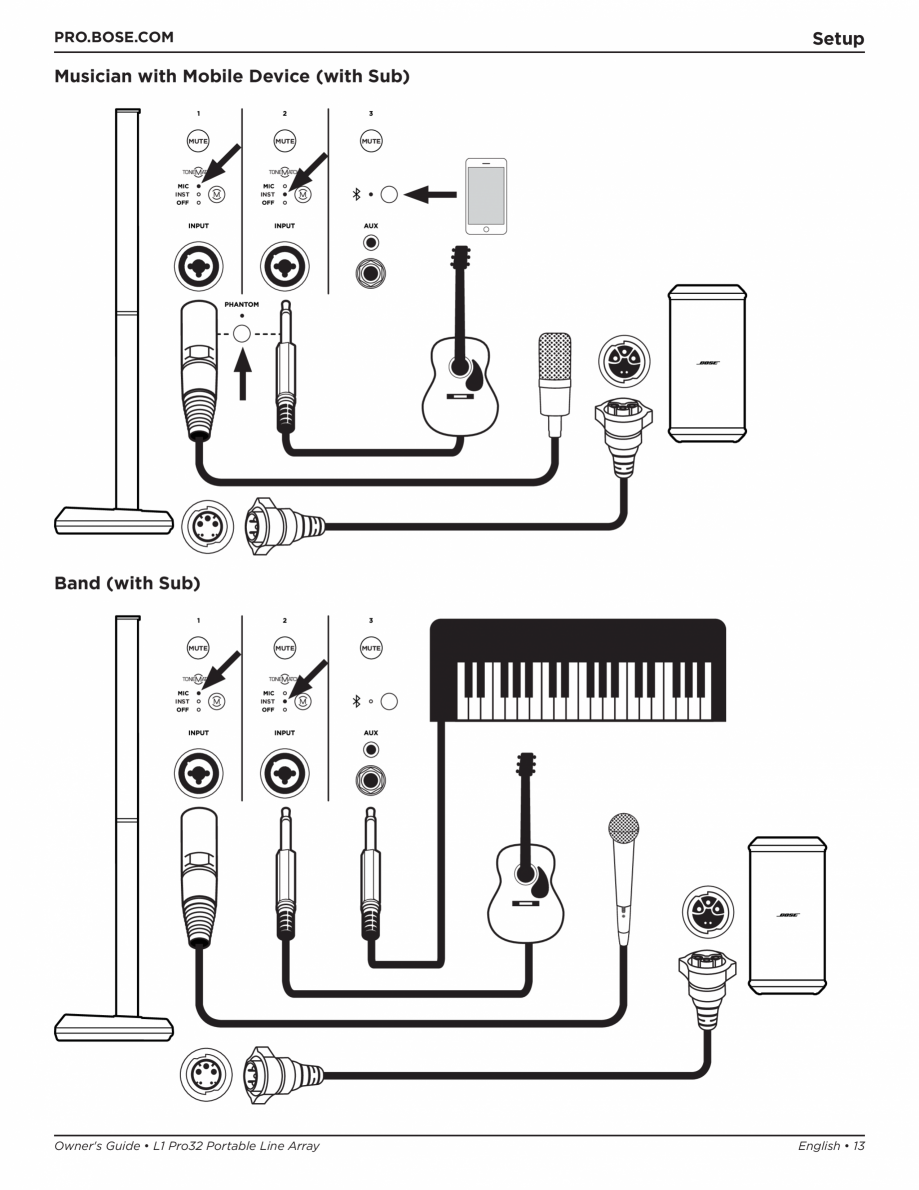

Musician with Mobile Device (with Sub)..................................................................................................................................13
Band (with Sub).................................................................................................................................................................................13

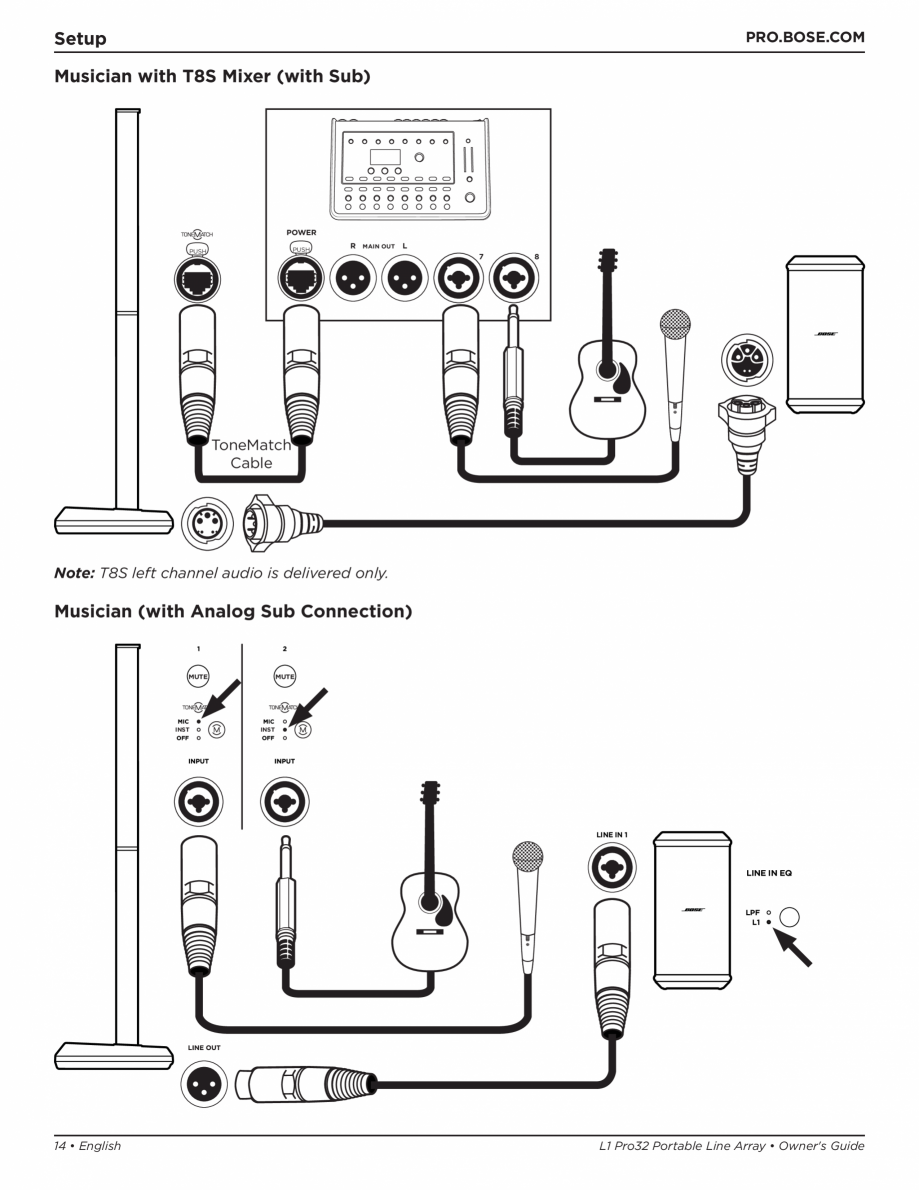

Musician with T8S Mixer (with Sub)..............................................................................................
............................................ 14
Musician (with Analog Sub Connection)................................................................................................................................ 14

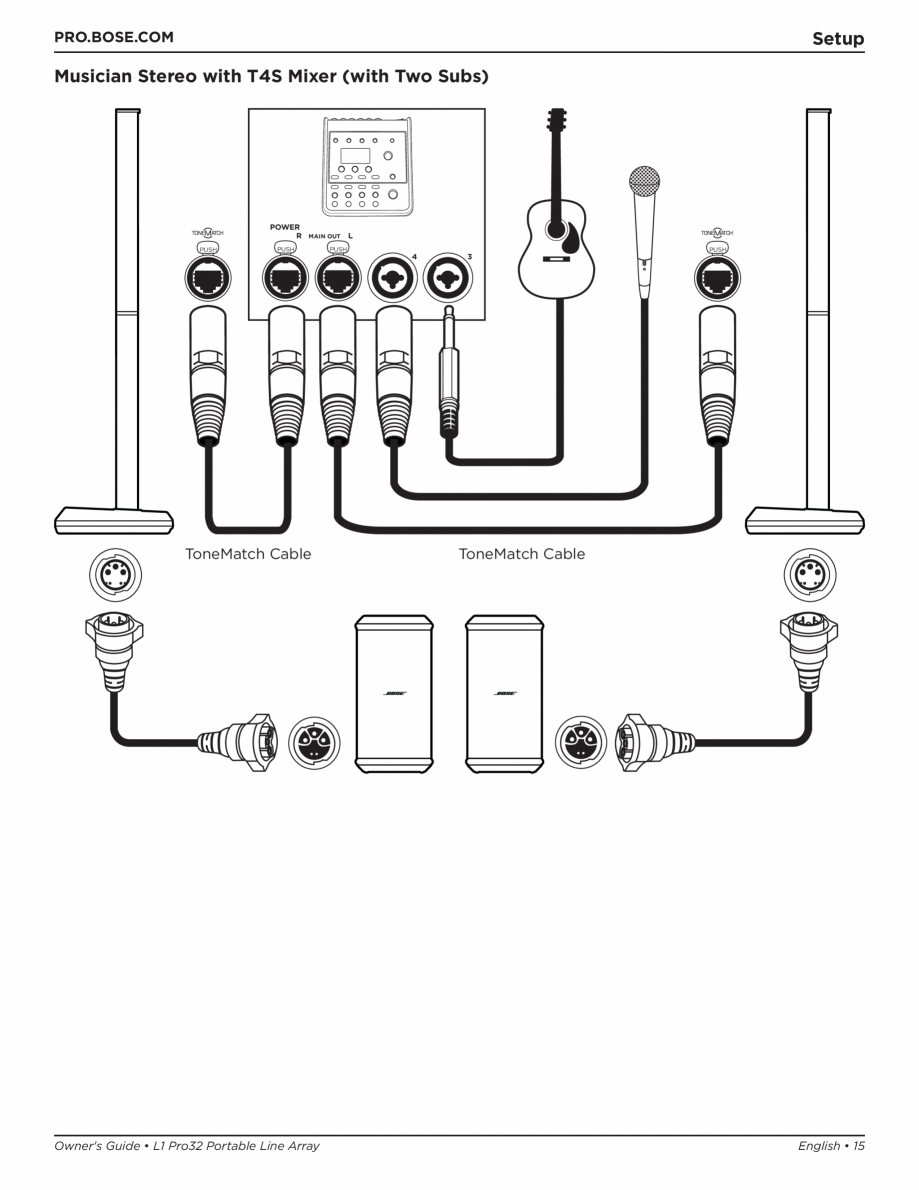

Musician Stereo with T4S Mixer (with Two Subs)................................................................................................................15

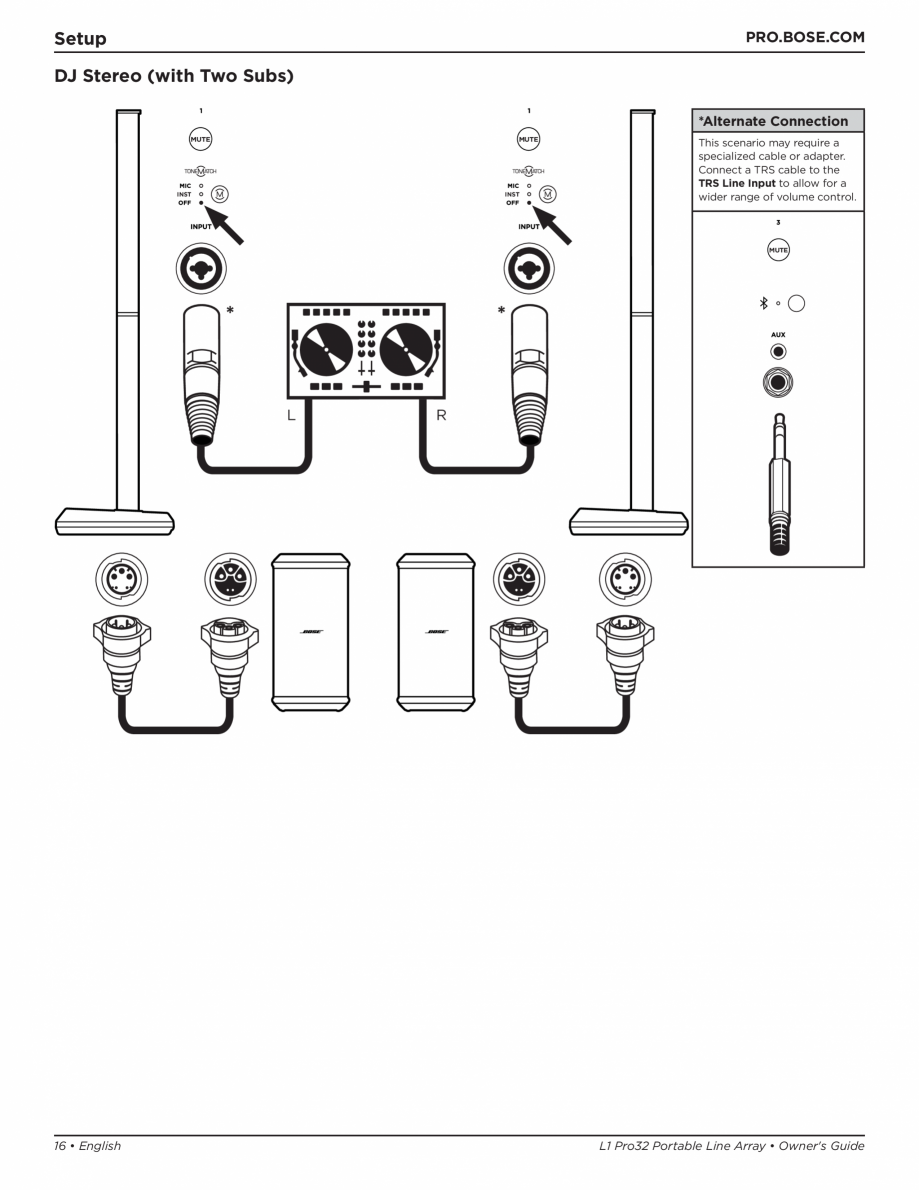

DJ Stereo (with Two Subs)............................................................................................................................................................16

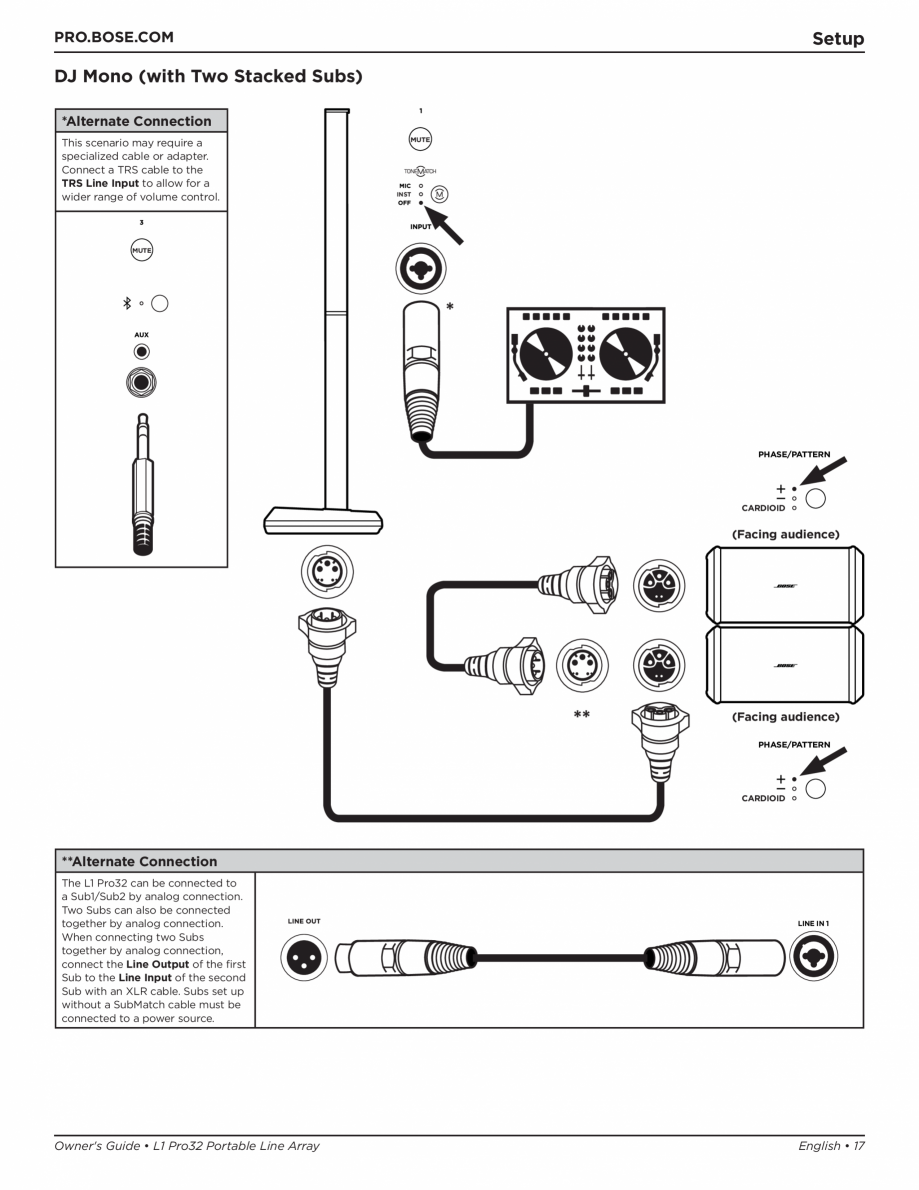

DJ Mono (with Two Stacked Subs)............................................................................................................................................17

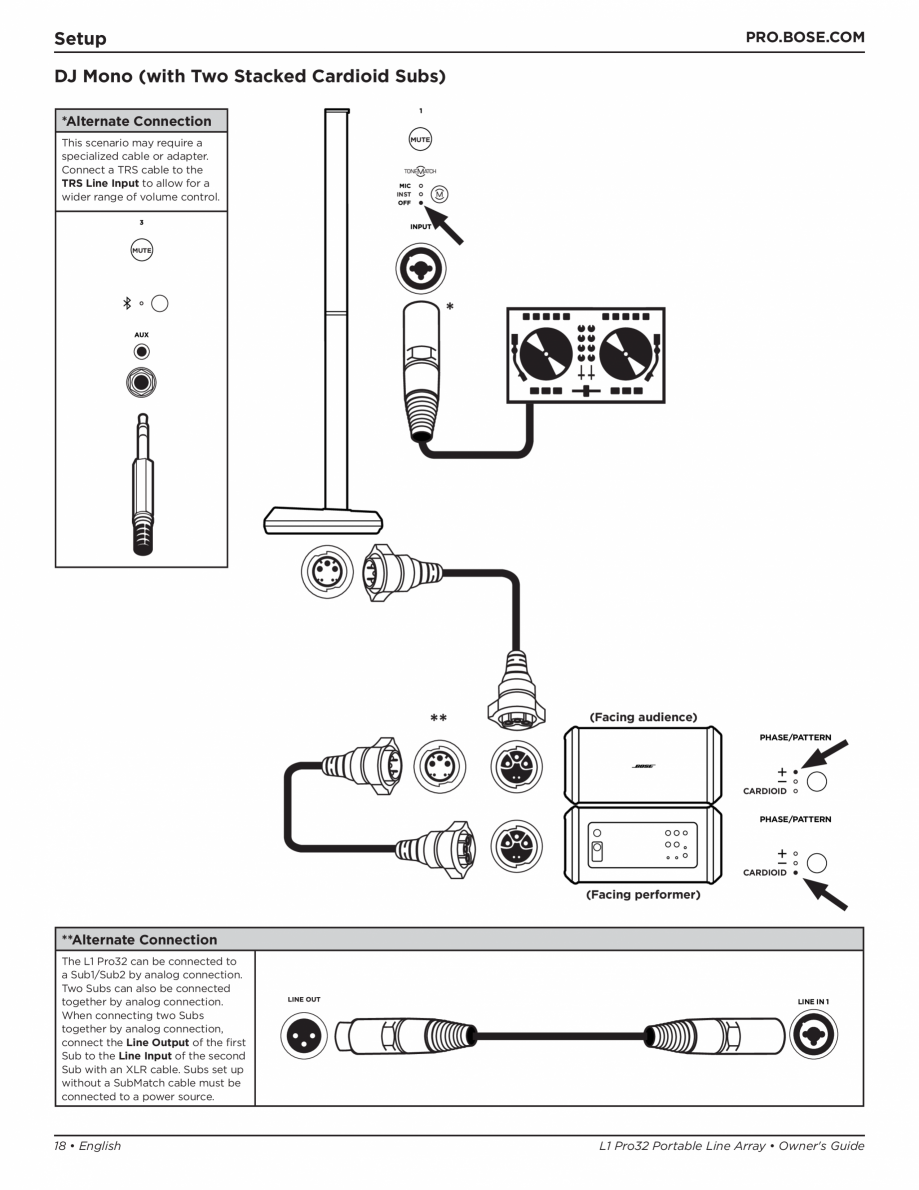

DJ Mono (with Two Stacked Cardioid Subs)..........................................................................................................................18

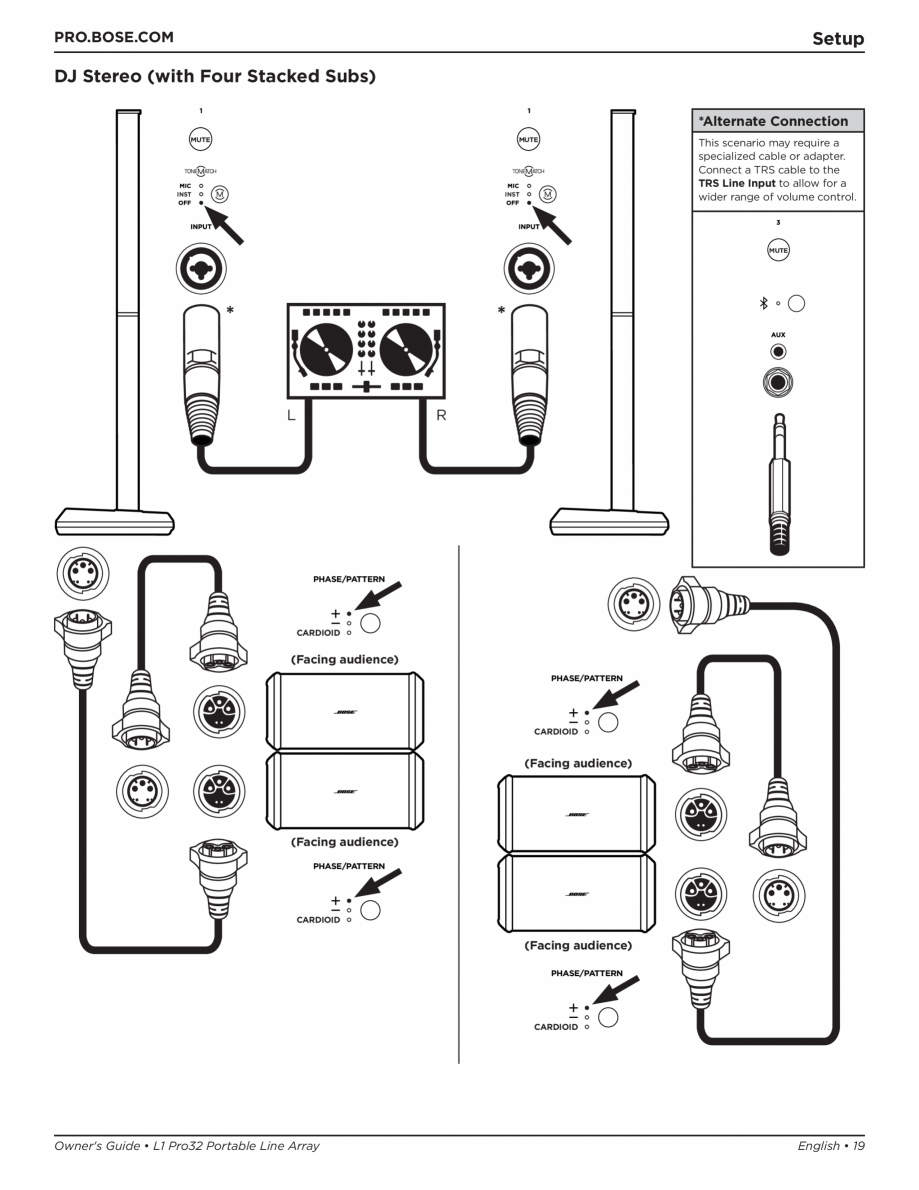

DJ Stereo (with Four Stacked Subs).................................................................
........................................................................19

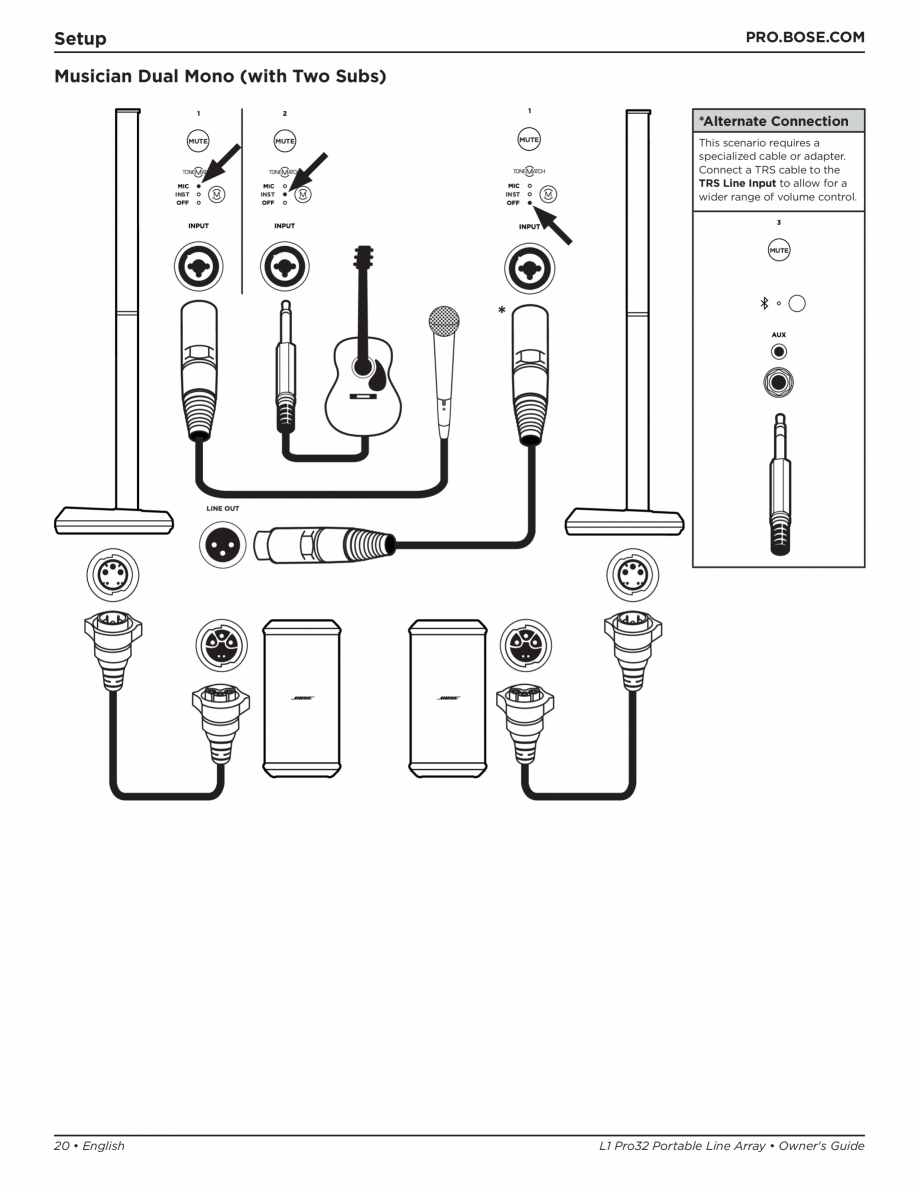

Musician Dual Mono (with Two Subs)..................................................................................................................................... 20

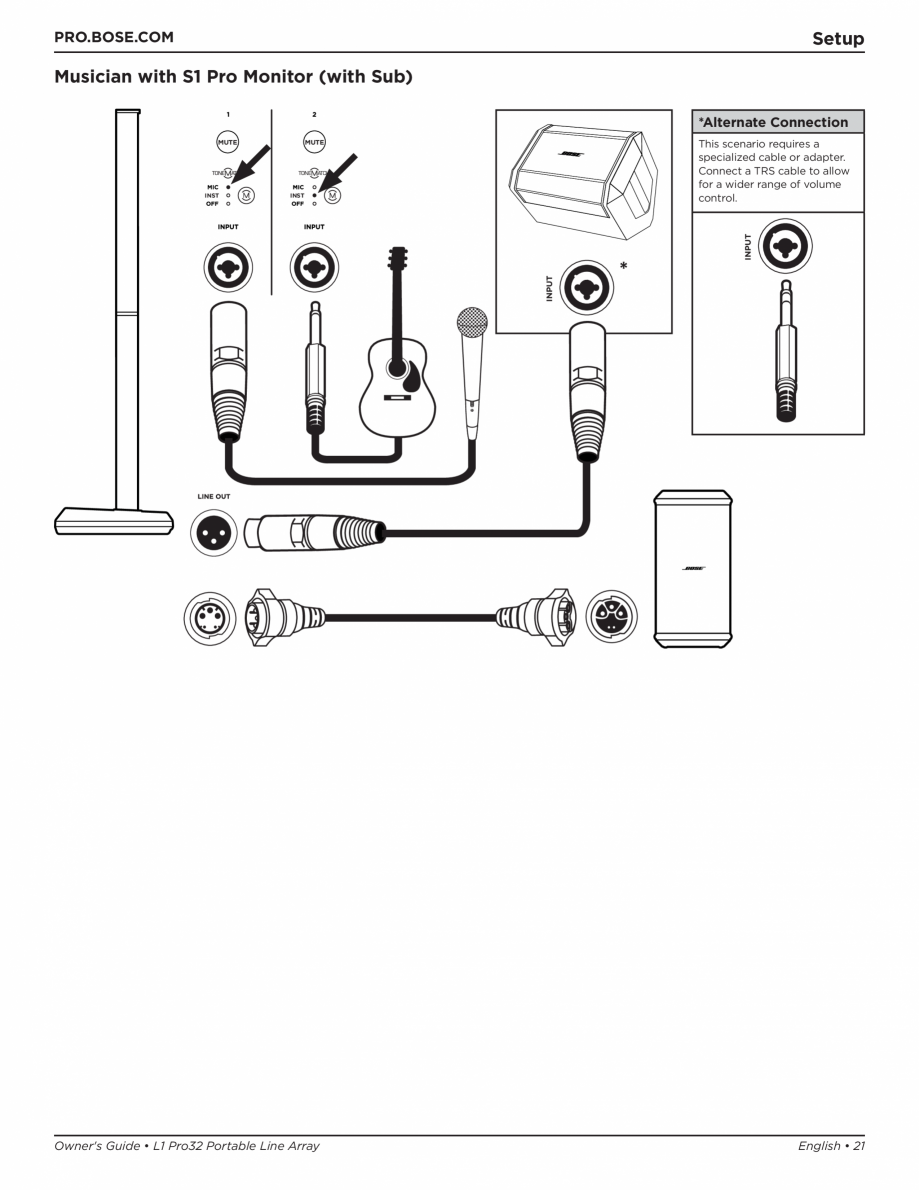

Musician with S1 Pro Monitor (with Sub)..................................................................................................................................21
Care & Maintenance
22

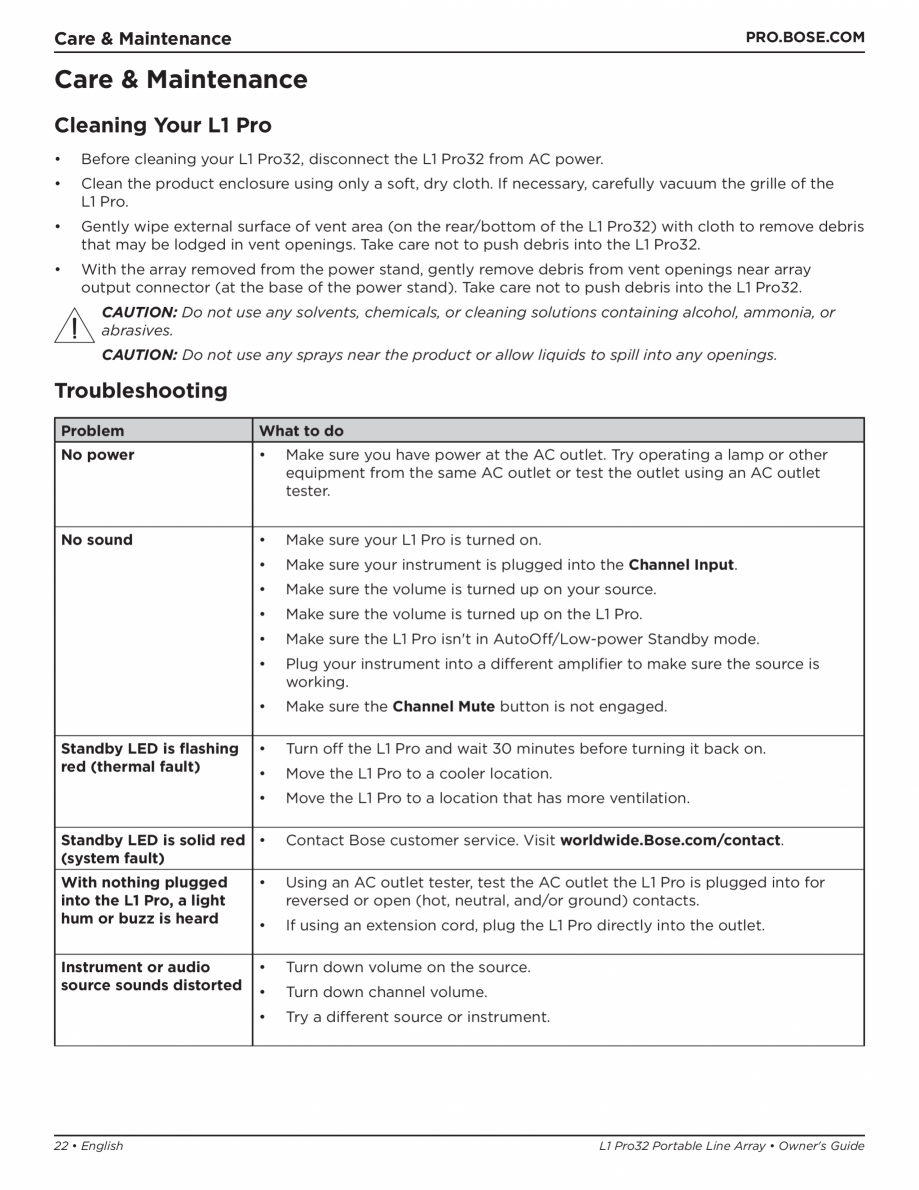

Cleaning Your L1 Pro...............................................................................................................................................................................22

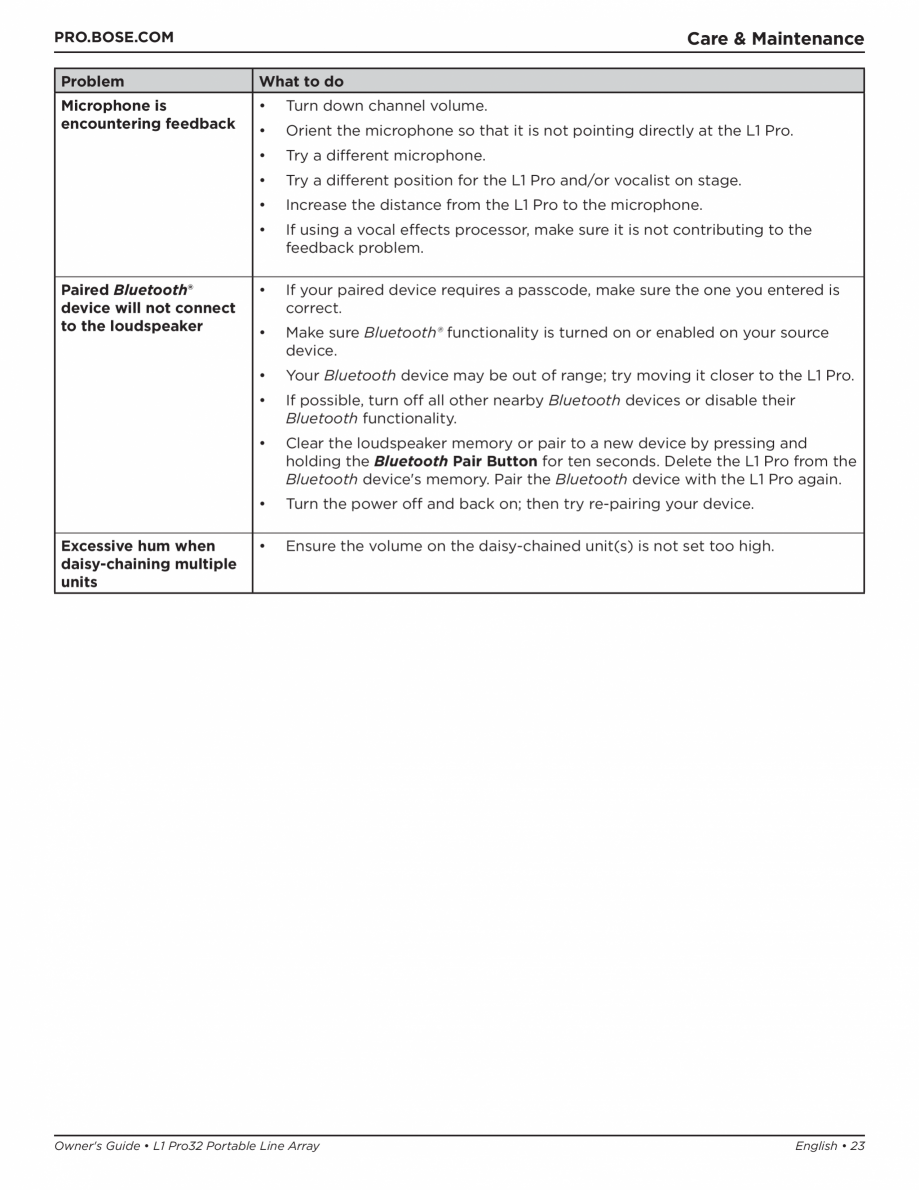

Troubleshooting........................................................................................................................................................................................22
4 • English
L1 Pro32 Portable Line Array • Owner's Guide
Overview
PRO.BOSE.COM
Overview

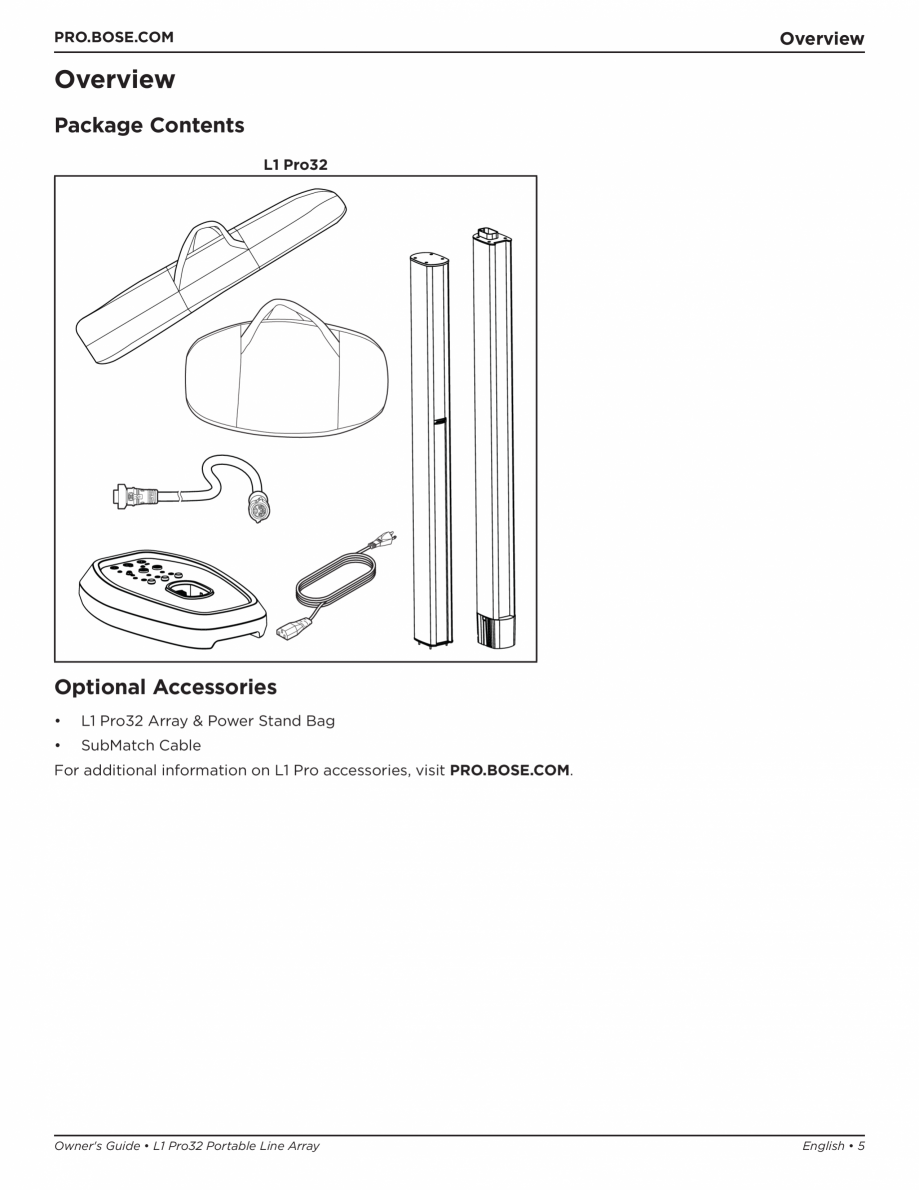

Package Contents
L1 Pro32
Optional Accessories
•
L1 Pro
32 Array & Power Stand Bag
•
SubMatch Cable
For additional information on L1 Pro accessories, visit PRO.BOSE.COM.
Owner's Guide • L1 Pro32 Portable Line Array
English • 5
Setup
PRO.BOSE.COM
Setup

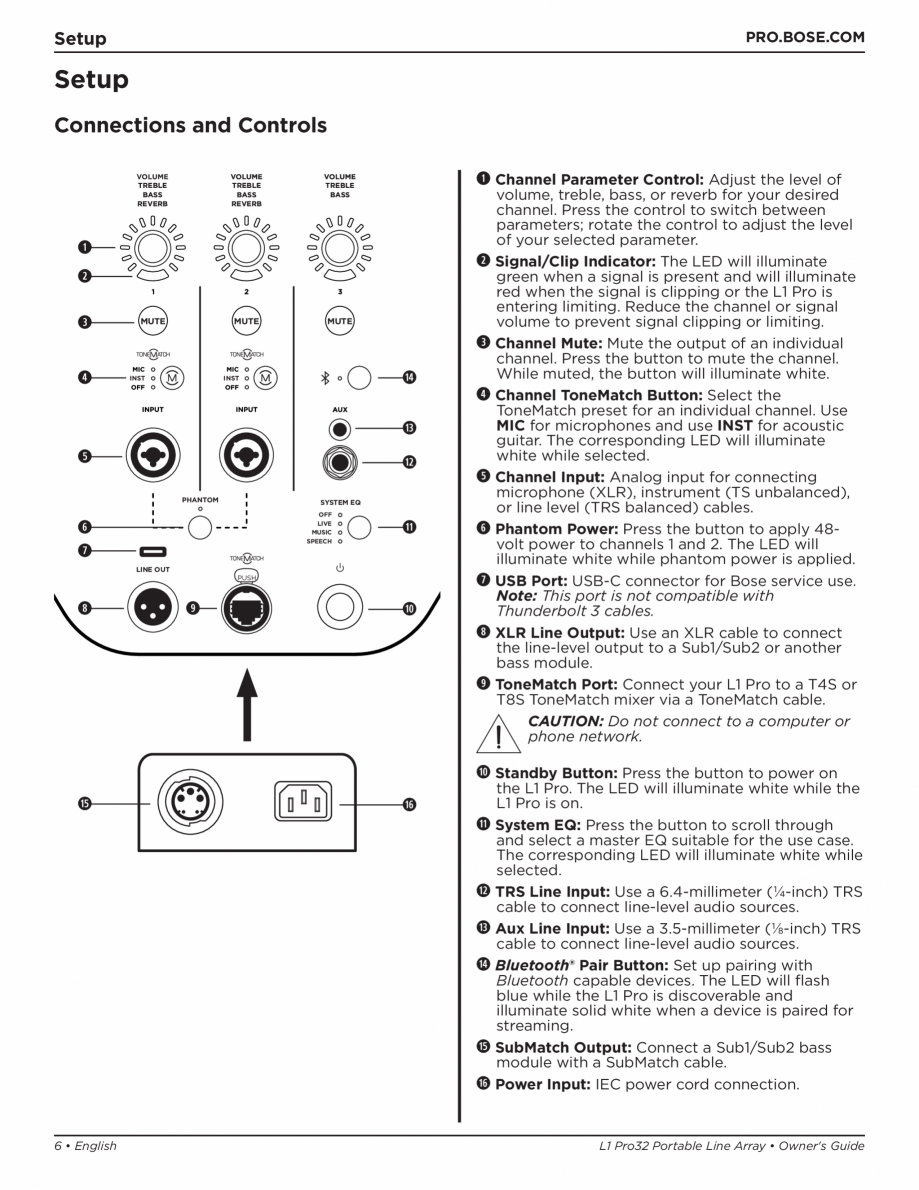

Connections and Controls
VOLUME
TREBLE
BASS
REVERB
VOLUME
TREBLE
BASS
REVERB
VOLUME
TREBLE
BASS
MUTE
MUTE
MUTE
q Channel Parameter Control: Adjust the level of
q
w
e
r
INST
g
INST
f
t
d
PHANTOM
SYSTEM EQ
OFF
LIVE
MUSIC
SPEECH
y
u
LINE OUT
i
s
PUSH
o
a
volume, treble, bass, or reverb for your desired
channel. Press the control to switch between
parameters; rotate the control to adjust the level
of your selected parameter.
w Signal/Clip Indicator: The LED will illuminate
green when a signal is present and will illuminate
red when the signal is clipping or the L1 Pro is
entering limiting. Reduce the channel or signal
volume to prevent signal clipping or limiting.
e Channel Mute: Mute the output of an individual
channel. Press the button to mute the channel.
W
hile muted, the button will illuminate white.
r Channel ToneMatch Button: Select the
ToneMatch preset for an individual channel. Use
MIC for microphones and use INST for acoustic
guitar. The corresponding LED will illuminate
white while selected.
t Channel Input: Analog input for connecting
microphone (XLR), instrument (TS unbalanced),
or line level (TRS balanced) cables.
y Phantom Power: Press the button to apply 48volt power to channels 1 and 2. The LED will
illuminate white while phantom power is applied.
u USB Port: USB-C connector for Bose service use.
Note: This port is not compatible with
Thunderbolt 3 cables.
i XLR Line Output: Use an XLR cable to connect
the line-level output to a Sub1/Sub2 or another
bass module.
o ToneMatch Port: Connect your L1 Pro to a T4S or
T8S ToneMatch mixer via a ToneMatch cable.
CAUTION: Do not connect to a computer or
phone network.
a Standby Button: Press the button to power on
h
6 • English
j
the L1 Pro. The LED will illuminate white w
hile the
L1 Pro is on.
s System EQ: Press the button to scroll through
and select a master EQ suitable for the use case.
The corresponding LED will illuminate white while
selected.
d TRS Line Input: Use a 6.4-millimeter (1/4-inch) TRS
cable to connect line-level audio sources.
f Aux Line Input: Use a 3.5-millimeter (1/8-inch) TRS
cable to connect line-level audio sources.
gB
luetooth® Pair Button: Set up pairing with
Bluetooth capable devices. The LED will flash
blue while the L1 Pro is discoverable and
illuminate solid white when a device is paired for
streaming.
h SubMatch Output: Connect a Sub1/Sub2 bass
module with a SubMatch cable.
j Power Input: IEC power cord connection.
L1 Pro32 Portable Line Array • Owner's Guide
Setup
PRO.BOSE.COM

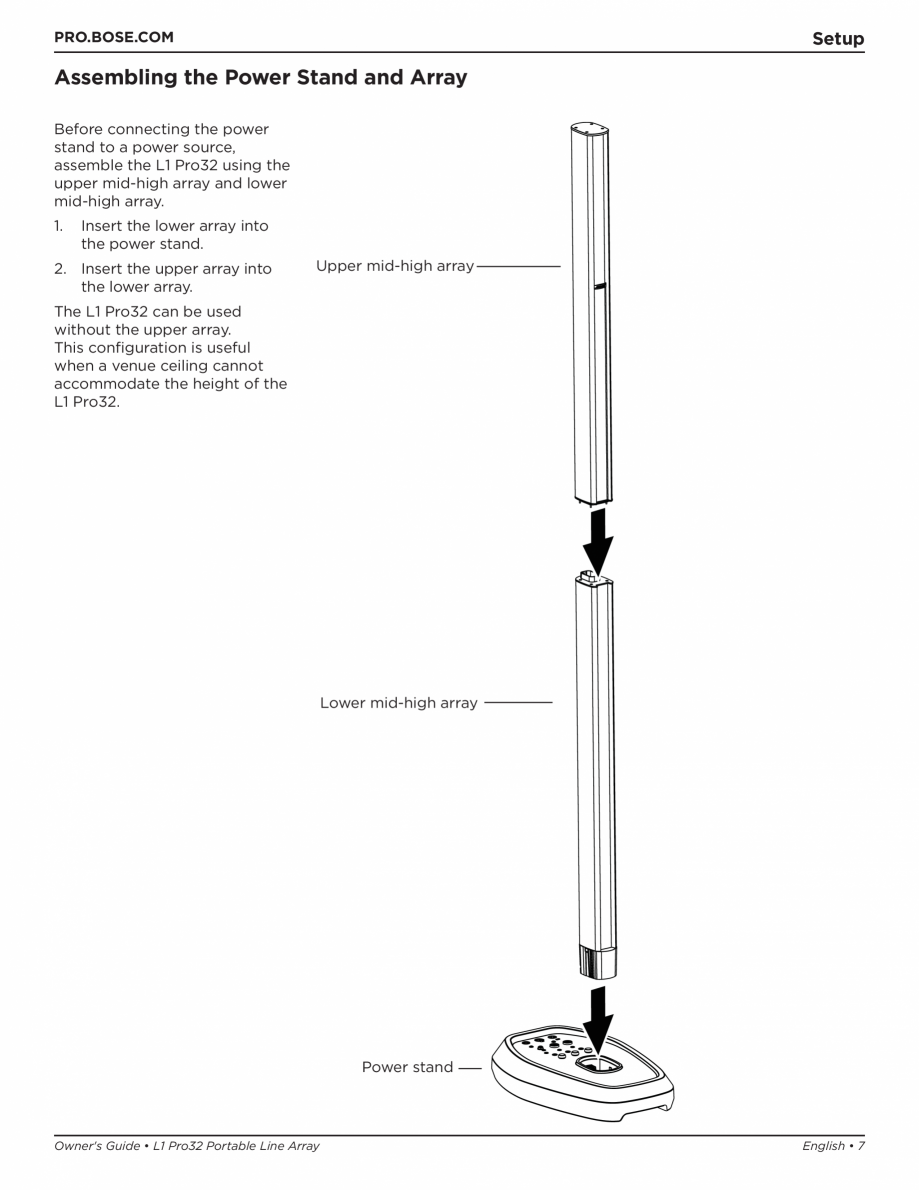

Assembling the Power Stand and Array
Before connecting the power
stand to a power source,
assemble the L1 Pro32 using the
upper mid-high array and lower
mid-high array.
1.
Insert the lower array into
the power stand.
2. Insert the u
pper array into
the lower array.
Upper mid-high array
The L1 Pro32 can be used
without the upper array.
This configuration is useful
when a venue ceiling cannot
accommodate the height of the
L1 Pro32.
Lower mid-high array
Power stand
Owner's Guide • L1 Pro32 Portable Line Array
English • 7
Setup
PRO.BOSE.COM

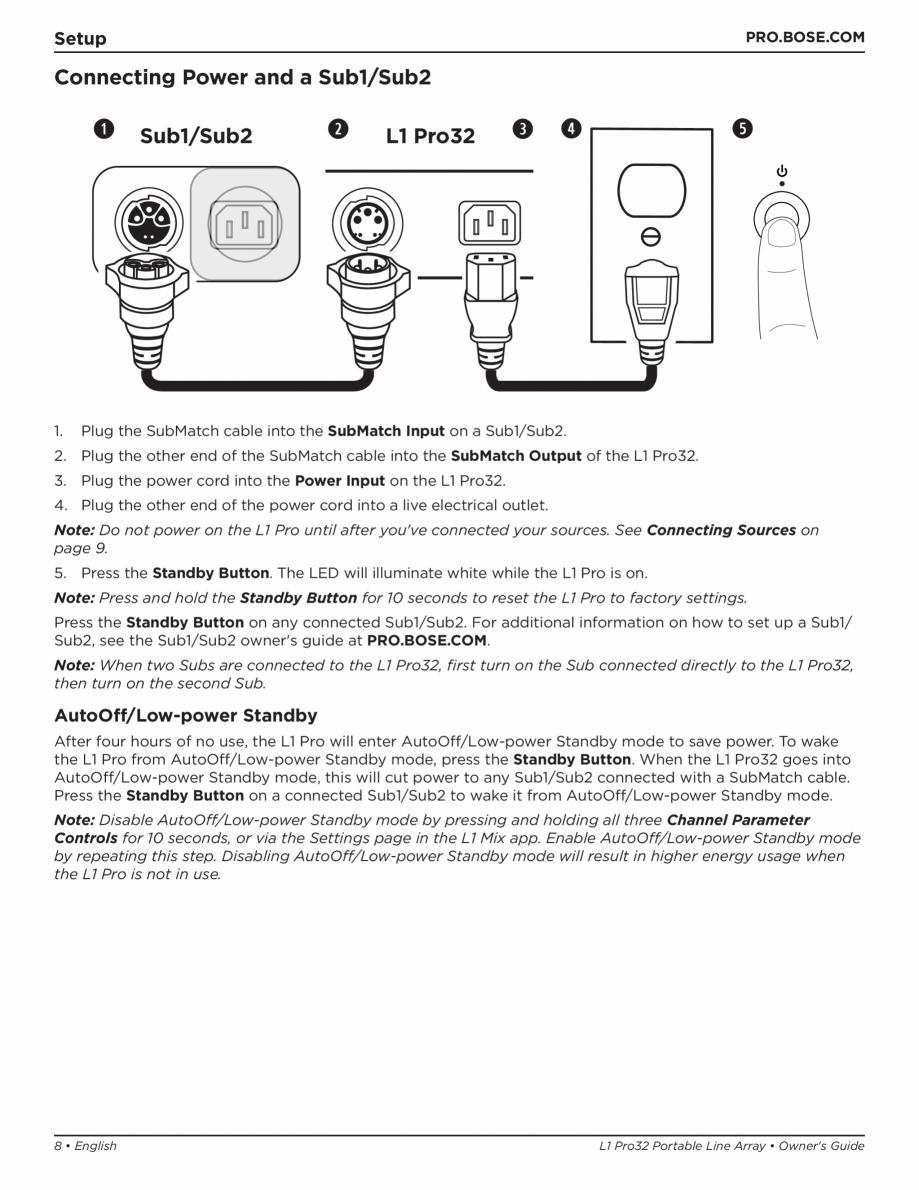

Connecting Power and a Sub1/Sub2
q
1.
Sub1/Sub2
w
L1 Pro32
e r
t
Plug the SubMatch cable into the SubMatch Input on a Sub1/Sub2.
2. Plug the other end of the SubMatch cable into the SubMatch Output of the L1 Pro32.
3. Plug the power cord into the Power Input on the L1 Pro32.
4. Plug the other end of the power cord into a live electrical outlet.
Note: Do not power on the L1 Pro until after you've connected your sources. See Connecting Sources on
page 9.
5. Press the Standby Button. The LED will illuminate white while the L1 Pro is on.
Note: Press and hold the Standby Button for 10 seconds to reset the L1 Pro to factory settings.
Press the Standby Button on any
connected Sub1/Sub2. For additional information on how to set up a Sub1/
Sub2, see the Sub1/Sub2 owner's guide at PRO.BOSE.COM.
Note: When two Subs are connected to the L1 Pro32, first turn on the Sub connected directly to the L1 Pro32,
then turn on the second Sub.
AutoOff/Low-power Standby
After four hours of no use, the L1 Pro will enter AutoOff/Low-power Standby mode to save power. To wake
the L1 Pro from AutoOff/Low-power Standby mode, press the Standby Button. When the L1 Pro32 goes into
AutoOff/Low-power Standby mode, this will cut power to any Sub1/Sub2 connected with a SubMatch cable.
Press the Standby Button on a connected Sub1/Sub2 to wake it from AutoOff/Low-power Standby mode.
Note: Disable AutoOff/Low-power Standby mode by pressing and holding all three Channel Parameter
Controls for 10 seconds, or via the Settings page in the L1 Mix app. Enable AutoOff/Low-power Standby mode
by repeating this step. Disabling AutoOff/Low-power Standby mode will result in higher energy us
age when
the L1 Pro is not in use.
8 • English
L1 Pro32 Portable Line Array • Owner's Guide
Setup
PRO.BOSE.COM

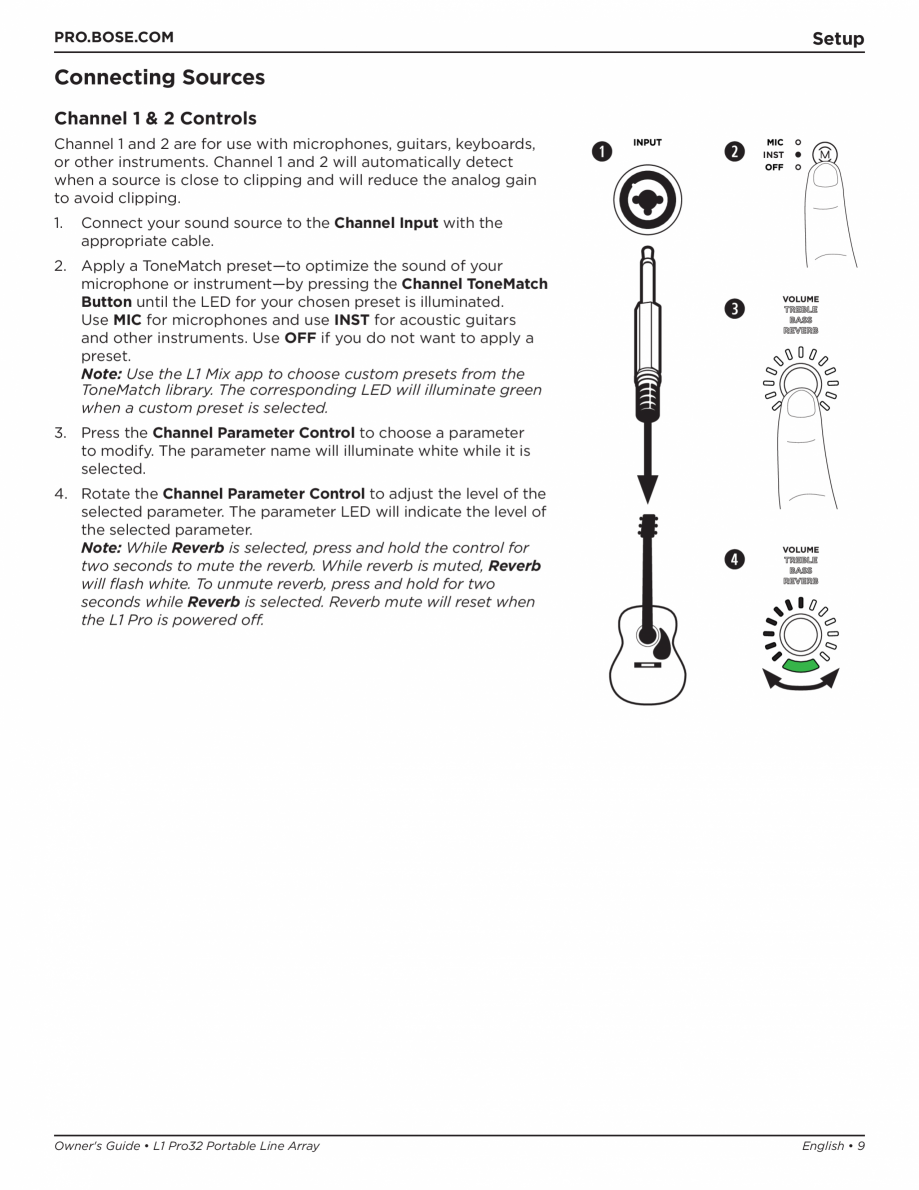

Connecting Sources
Channel 1 & 2 Controls
Channel 1 and 2 are for use with microphones, guitars, keyboards,
or other instruments. Channel 1 and 2 will automatically detect
when a source is close to clipping and will reduce the analog gain
to avoid clipping.
1.
q
w
INST
Connect your sound source to the Channel Input with the
appropriate cable.
2. Apply a ToneMatch preset—to optimize the sound of your
microphone or instrument—by pressing the Channel ToneMatch
Button until the LED for your chosen preset is illuminated.
Use MIC for microphones and use INST for acoustic guitars
and other instruments. Use OFF if you do not want to apply a
preset.
Note: Use the L1 Mix app to choose custom presets from the
ToneMatch library. The corresponding LED will illuminate green
when a custom preset is selected.
e
3. Press the Channel Parameter Control to choose a parameter
age when
the L1 Pro is not in use.
8 • English
L1 Pro32 Portable Line Array • Owner's Guide
Setup
PRO.BOSE.COM
Connecting Sources
Channel 1 & 2 Controls
Channel 1 and 2 are for use with microphones, guitars, keyboards,
or other instruments. Channel 1 and 2 will automatically detect
when a source is close to clipping and will reduce the analog gain
to avoid clipping.
1.
q
w
INST
Connect your sound source to the Channel Input with the
appropriate cable.
2. Apply a ToneMatch preset—to optimize the sound of your
microphone or instrument—by pressing the Channel ToneMatch
Button until the LED for your chosen preset is illuminated.
Use MIC for microphones and use INST for acoustic guitars
and other instruments. Use OFF if you do not want to apply a
preset.
Note: Use the L1 Mix app to choose custom presets from the
ToneMatch library. The corresponding LED will illuminate green
when a custom preset is selected.
e
3. Press the Channel Parameter Control to choose a parameter
... ascunde
Alte documentatii ale aceleasi game Vezi toate
Instructiuni montaj, utilizare
24 p | EN
F1
Instructiuni montaj, utilizare
3 p | EN
F1 812
