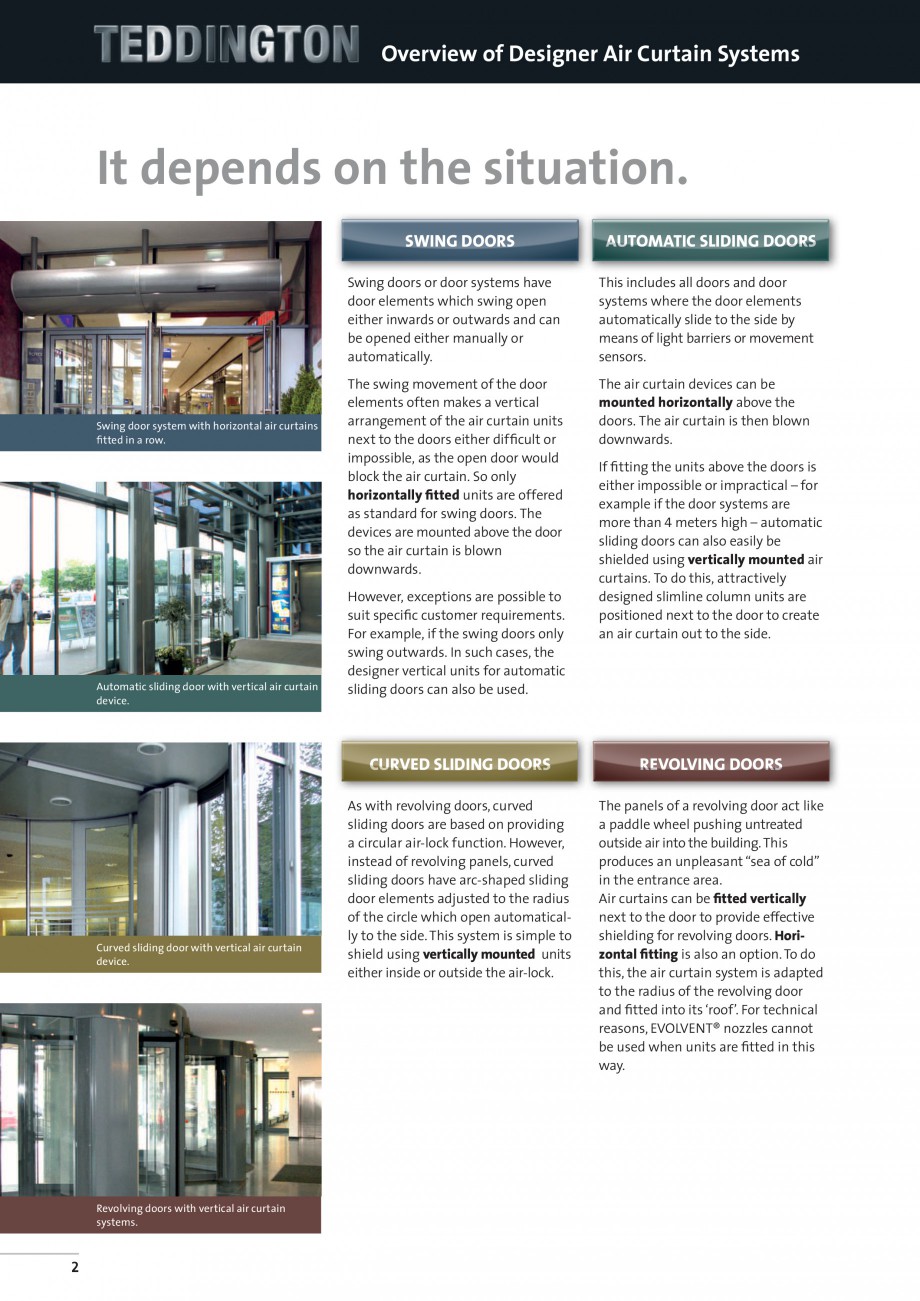

Overview of Designer Air Curtain Systems
It depends on the situation.
SWING DOORS
AutomatiC SLIDING DOORS
Swing doors or door systems have
door elements which swing open
either inwards or outwards and can
be opened either manually or
automatically.
S
wing door system with horizontal air curtains
fitted in a row.
Automatic sliding door with vertical air curtain
device.
This includes all doors and door
systems where the door elements
automatically slide to the side by
means of light barriers or movement
sensors.
The swing movement of the door
elements often makes a vertical
arrangement of the air curtain units
next to the doors either difficult or
impossible, as the open door would
block the air curtain. So only
horizontally fitted units are offered
as standard for swing doors. The
devices are mounted above the door
so the air curtain is blown
down
wards.
The air curtain devices can be
mounted horizontally above the
doors. The air curtain is then blown
downwards.
However, exceptions are possible to
suit specific customer requirements.
For example, if the swing doors only
swing outwards. In such cases, the
designer vertical units for automatic
sliding doors can also be used.
If fitting the units above the doors is
either impossible or impractical – for
example if the door systems are
more than 4 meters high – automatic
sliding doors can also easily be
shielded using vertically mounted air
curtains. To do this, attractively
designed slimline column units are
positioned next to the door to create
an air curtain out to the side.
Curved sliding doors
C
urved sliding door with vertical air curtain
device.
Revolving doors with vertical air curtain
systems.
2
REVOLVING DOORS
As with revolving doors, curved
sliding doors are based on providing
a circular air-lock function. However,
instead of revolving panels, curved
slidin
g doors have arc-shaped sliding
door elements adjusted to the radius
of the circle which open automatically to the side. This system is simple to
shield using vertically mounted units
either inside or outside the air-lock.
The panels of a revolving door act like
a paddle wheel pushing untreated
outside air into the building. This
produces an unpleasant “sea of cold”
in the entrance area.
Air curtains can be fitted vertically
next to the door to provide effective
shielding for revolving doors. Horizontal fitting is also an option. To do
this, the air curtain system is adapted
to the radius of the revolving door
and fitted into its ‘roof’. For technical
reasons, EVOLVENT® nozzles cannot
be used when units are fitted in this
way.

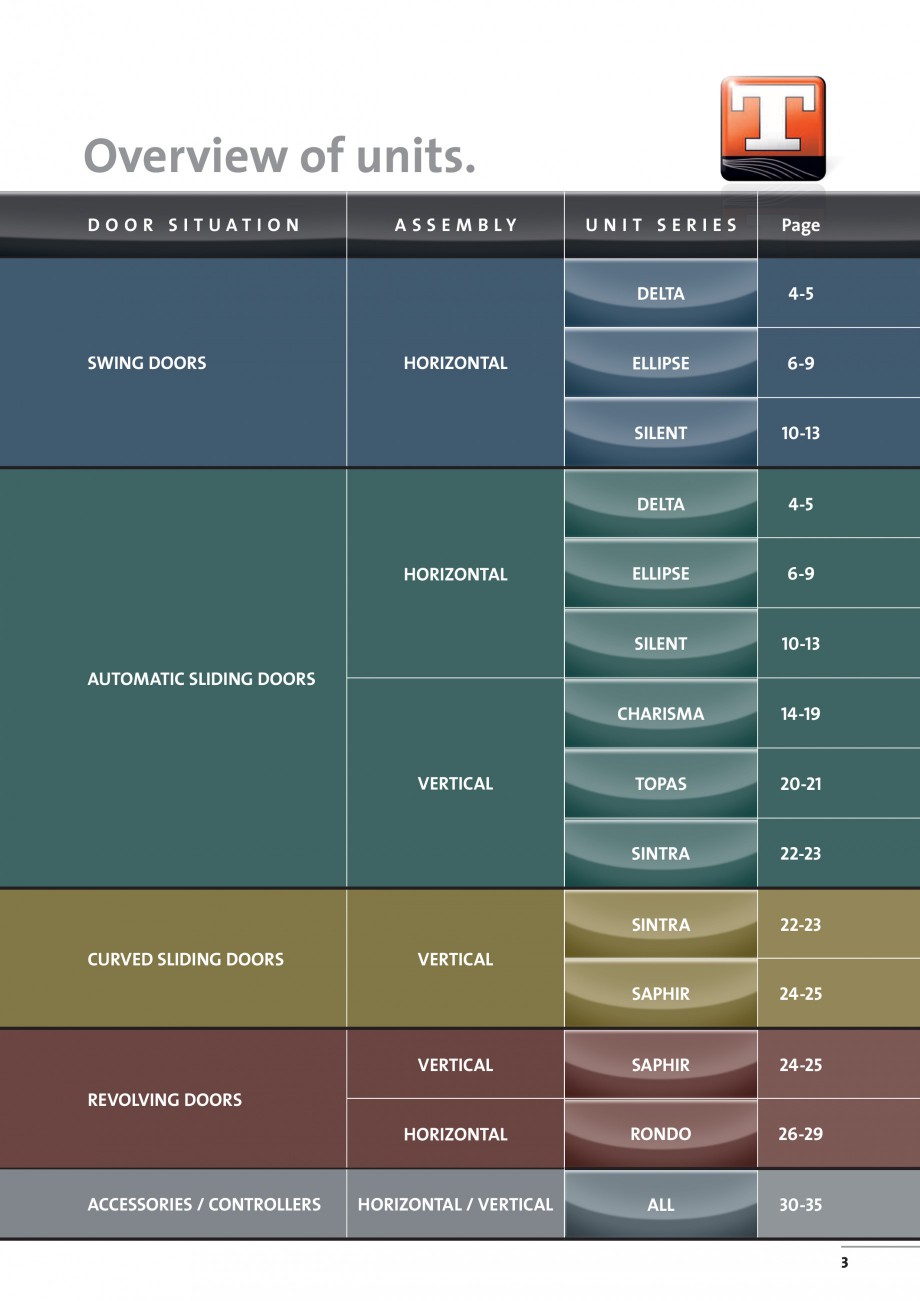

Overview of units.
D o o r s i tuat i o n
Unit series
Page
DELTA
4-5
ELLIPSE
6-9
SILENT
10-13
DELTA
4-5
ELLIPSE
6-9
SILENT
10-13
CHARISMA
14-19
TOPAS
20-21
SINTRA
22-23
SINTRA
22-23
SAPHIR
24-25
Vertical
SAPHIR
24-25
Hor
izontal
SWING DOORS
A ss e m b l y
RONDO
26-29
Horizontal / Vertical
ALL
30-35
HORIZONTAL
Horizontal
Automatic sliding doors
VertiCal
Curved sliding doors
VertiCal
REVOLVING DOORS
ACCESSORIES / CONTROLLERS
3
SAPHIR
Designer Units for Vertical Fitting
Curved sliding doors
RE VO LVI NG DO O R S

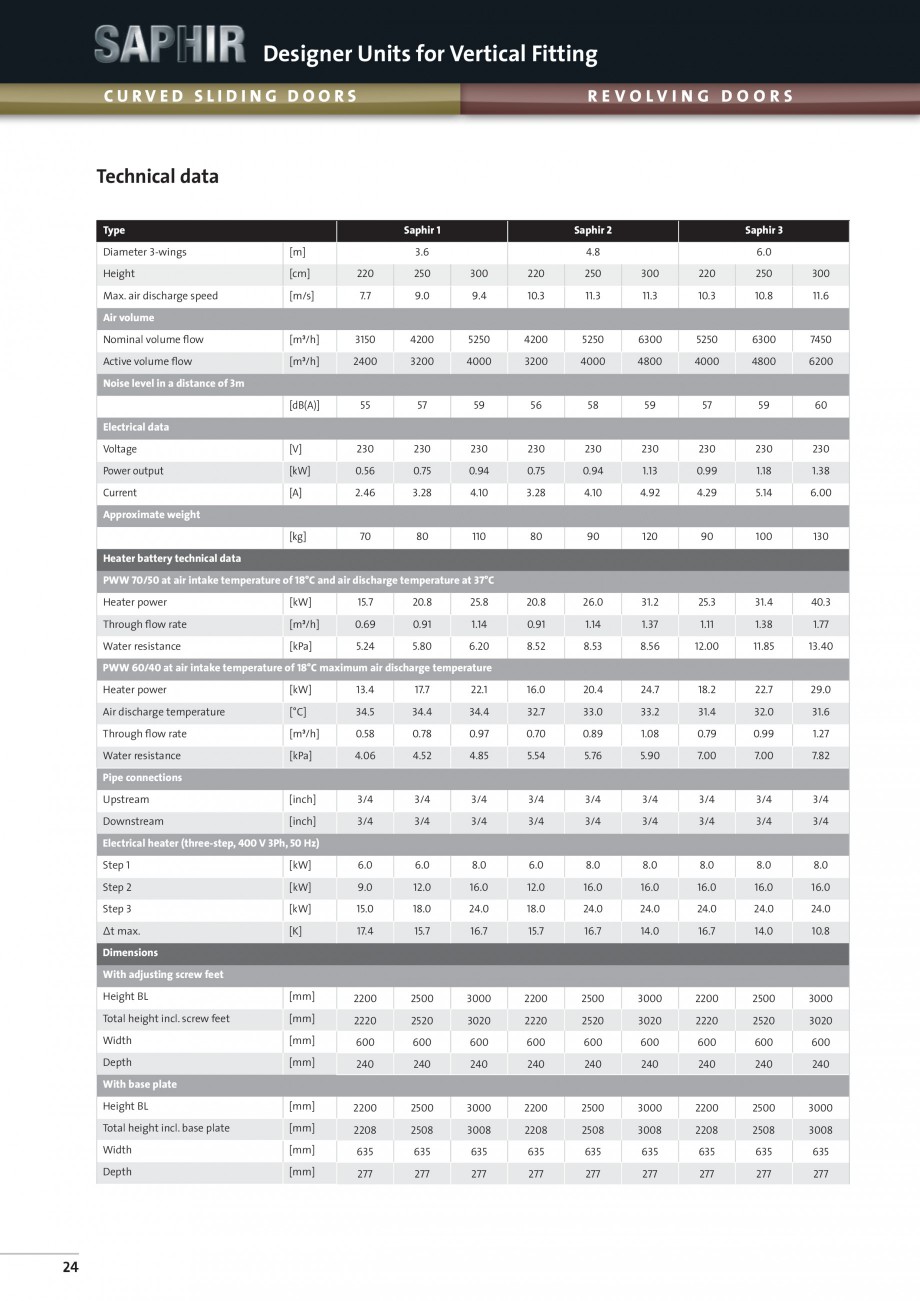

Technical data
Type
Saphir 1
Saphir 2
3.6
Saphir 3
Diameter 3-wings
[m]
Height
[cm]
220
250
300
220
250
4.8
300
220
250
6.0
300
Max. air discharge speed
[m/s]
7.7
9.0
9.4
10.3
11.3
11.3
10.3
10.8
11.6
Nominal volume flow
[m³/h]
3150
4200
5250
4200
5250
6300
5250
6300
7450
Active volume flow
[m³/h]
2400
3200
4000
3200
4000
4800
4000
4800
6200
[dB(A)]
55
57
59
56
58
59
57
59
60
Air volume
Noise level in a distance of 3m
Electrical data
Voltage
[V]
230
230
230
230
230
230
230
230
230
Power output
[kW]
0.56
0.75
0.94
0.75
0.94
1.13
0.99
1.18
1.38
Current
[A]
2.46
3.28
4.10
3.28
4.10
4.92
4.29
5.14
6.00
[kg]
70
80
110
80
90
120
90
100
130
Approximate weight
Heater battery technical data
PWW 70/50 at air intake temperature of 18°C and air discharge temperature at 37°C
Heater power
[kW]
15.7
20.8
25.8
20.8
26.0
31.2
25.3
31.4
40.3
Through flow rate
[m³/h]
0.69
0.91
1.14
0.91
1.14
1.37
1.11
1.38
1.77
Water resistance
[kPa]
5.24
5.80
6.20
8.52
8.53
8.56
12.00
11.85
13.40
PWW 60/40 at air intake temperature of 18°C maximum air discharge temperature
Heater power
[kW]
13.4
17.7
22.1
16.0
20.4
24.7
18.2
22.7
29.0
Air discharge temperature
[°C]
34.5
34.4
34.4
32.7
33.0
33.2
31.4
32.0
31.6
Through flow rate
[m³/h]
0.58
0.78
0.97
0.70
0.89
1.08
0.79
0.99
1.27
Water resistance
[kPa]
4.06
4.52
4.85
5.54
5.76
5.90
7.00
7.00
7.82
Upstream
[inch]
3/4
3/4
3/4
3/4
3/4
3/4
3/4
3/4
3/4
Downstream
[inch]
3/4
3/4
3/4
3/4
3/4
3/4
3/4
3/4
3/4
6.0
6.0
8.0
6.0
8.0
8.0
8.
0
8.0
8.0
Pipe connections
Electrical heater (three-step, 400 V 3Ph, 50 Hz)
Step 1
[kW]
Step 2
[kW]
9.0
12.0
16.0
12.0
16.0
16.0
16.0
16.0
16.0
Step 3
[kW]
15.0
18.0
24.0
18.0
24.0
24.0
24.0
24.0
24.0
∆t max.
[K]
17.4
15.7
16.7
15.7
16.7
14.0
16.7
14.0
10.8
Dimensions
With adjusting screw feet
Height BL
[mm]
2200
2500
3000
2200
2500
3000
2200
2500
3000
Total height incl. screw feet
[mm]
2220
2520
3020
2220
2520
3020
2220
2520
3020
Width
[mm]
600
600
600
600
600
600
600
600
600
Depth
[mm]
240
240
240
240
240
240
240
240
240
[mm]
2200
2500
3000
2200
2500
3000
2200
2500
3000
With base plate
Height BL
Total height incl. base plate
2208
2508
3008
2208
2508
3008
2208
2508
3008
[mm]
635
635
635
635
635
635
635
635
635
Depth
24
[mm]
Width
[mm]
277
277
277
277
277
277
277
277
277
BL
Water connection 3/4"
(flow with/without factory
fitted value)
15
Base plate
590
635
50
290
30
E-connection
Sectioned view A-A
E-connection
A
30
2.5
4x n12 to
floor attachment
Filter
on
Sucti d
gri
Filter flap
Suction grid
35
RL
VL
560
600
Inspection door
Sectioned view A-A
Air discharge
nozzle
Filter flap
Water connection 3/4"
Water connection 3/4"
(flow with/without factory
fitted value)
75
90.33
A
565
Adjusting screw feet
225
Water connection 3/4"
(return flow)
A
Adjusting screw feet
Filter flap
Suction grid
Filter
RL
VL
560
600
Sectioned view A-A
2x Anchoring points (backside) female threads
M6 to protect the unit against tilting
E-connection
E-connection
250
Sectioned view A-A
145
on
Sucti d
gri
100
130
110
Water connection 3/4"
(return flow)
Water connection 3/4"
55
2x Anchoring points (backside) female threads
M6 to protect the unit against tilting
240
565
100
A
30
180
225
187.5
20
51.71
8
277
10
175
BL
97.5
145
185
50
Filter flap
Inspection door
Air discharge
nozzle

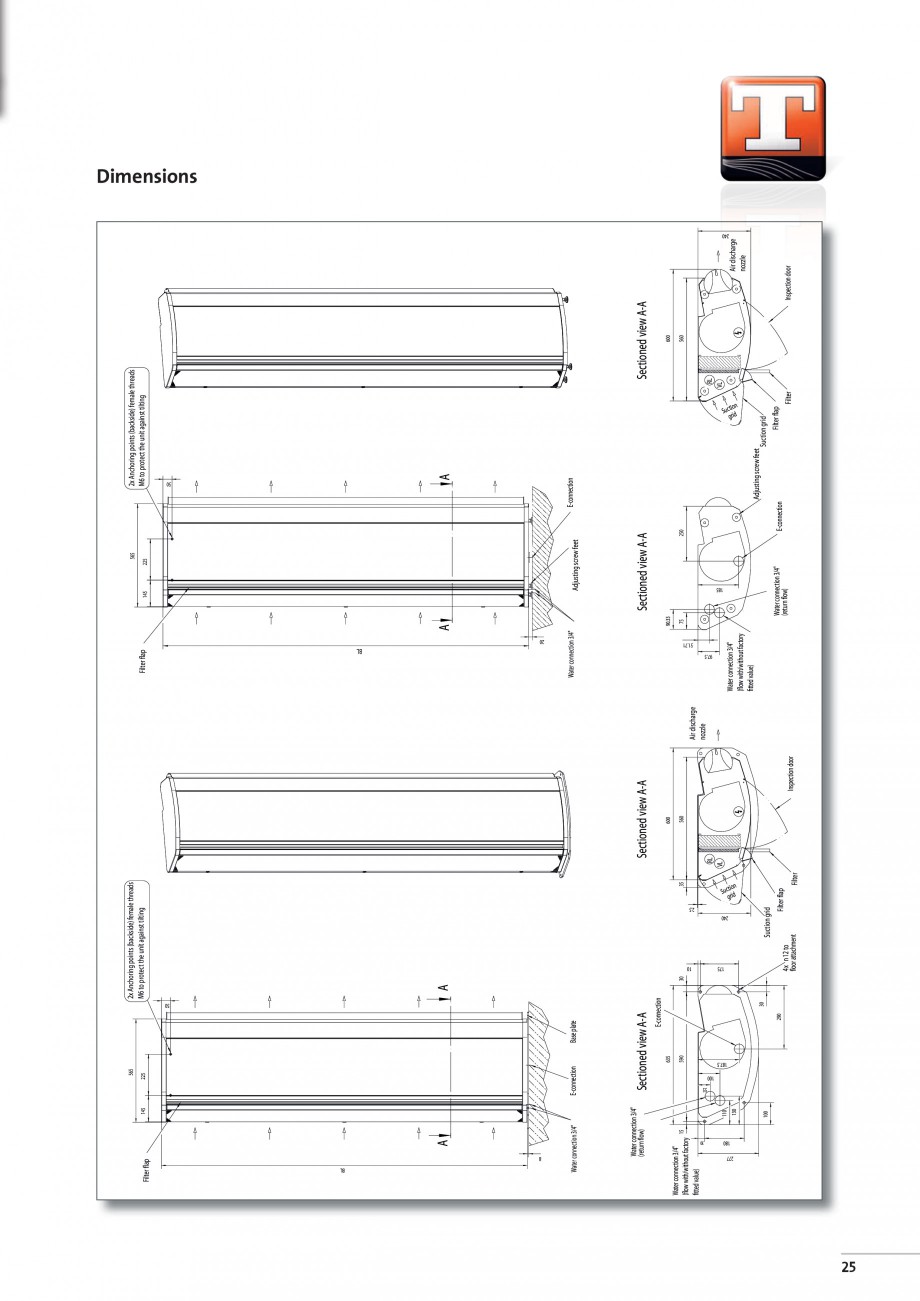

Dimensions
25
240
TEDDINGTON
Designer Units for Horizontal / Vertical Fitting
Acce sso r i e s
/
Co ntro lle r s

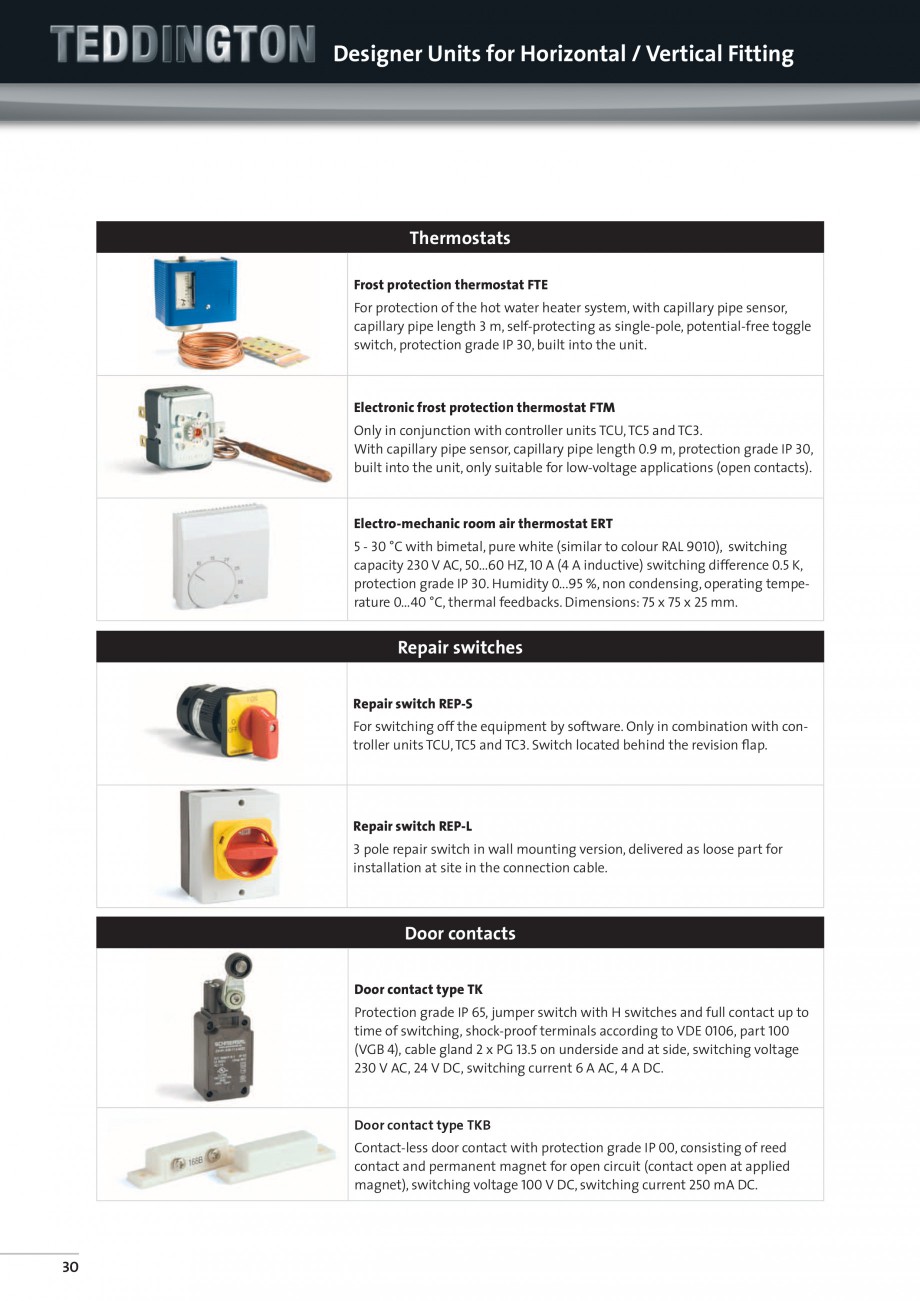

Thermostats
Frost protection thermostat FTE
For protection of the hot water heater system, with capillary pipe sensor,
capillary pipe length 3 m, self-protecting as single-pole, potential-free toggle
switch, protection grade IP 30, built into the unit.
Electronic frost protection thermostat FTM
Only in conjunction with controller units TCU, TC5 and TC3.
With capillary pipe sensor, capillary pipe length 0.9 m, protection grade IP 30,
built into the unit, only suitable for low-voltage applications (open contacts).
Electro-mechanic room air thermostat ERT
5 - 30 °C with bimetal, pure white (similar to colour RAL 9010), switching
capacity 230 V AC, 50...60 HZ, 10 A (4 A inductive) switching difference 0.5 K,
protection grade IP 30. Humidity 0...95 %, non condensing, operating temperature 0...40 °C, thermal feedbacks. Dimensions: 75 x 75 x 25 mm.
Repair switches
Repair switch REP-S
Fo
r switching off the equipment by software. Only in combination with controller units TCU, TC5 and TC3. Switch located behind the revision flap.
Repair switch REP-L
3 pole repair switch in wall mounting version, delivered as loose part for
installation at site in the connection cable.
Door contacts
Door contact type TK
Protection grade IP 65, jumper switch with H switches and full contact up to
time of switching, shock-proof terminals according to VDE 0106, part 100
(VGB 4), cable gland 2 x PG 13.5 on underside and at side, switching voltage
230 V AC, 24 V DC, switching current 6 A AC, 4 A DC.
Door contact type TKB
Contact-less door contact with protection grade IP 00, consisting of reed
contact and permanent magnet for open circuit (contact open at applied
magnet), switching voltage 100 V DC, switching current 250 mA DC.
30
Controller/shut-off and magnetic valves
Regulating valve Type MR 2-E DN 20, built into the unit
Regulating valve MR-2 with electrical adjustment motor for reg
ulation a
constant discharge temperature, including air discharge sensor, completely
installed and connected inside the air curtain device. The regulation valves
type MR-2 are special valves for regulation especially high quantities of water
(kvs-value at minimum 7.5). Connection DN 20.
Thermostatic control valve type KR 2-E DN 20, built into the unit
Special valve for controlling especially large water quantities;
kvs value 7.5. Capillary pipe length sensor 2 m, connection DN 20.
Thermostatic control valve type KR 3-L DN 20/25/32
Thermostatic control valve (three way valve) KR 3-L with thermostat head for
controlling of constant blow-out temperature, delivered as a loose part.
Special valve for controlling especially large water quantities. Capillary pipe
length sensor 2 m, DN 20 kvs 4.5; DN 25 kvs 6.5; DN 32 kvs 9.5.
Thermo electric shut-off valve Type TAV
230 V, closed at no current, delivered as a loose part for water shut-off via
summer/winter switch or for controlling the
water through flow quantities
with controlling at site. Special valve for controlling especially large water
quantities; kvs value 5.5. Connection DN 20.
Magnetic valve MV
230 V, closed at no current, immediately closing, for water shut-off purposes
via summer/winter switch, delivered as a loose part.

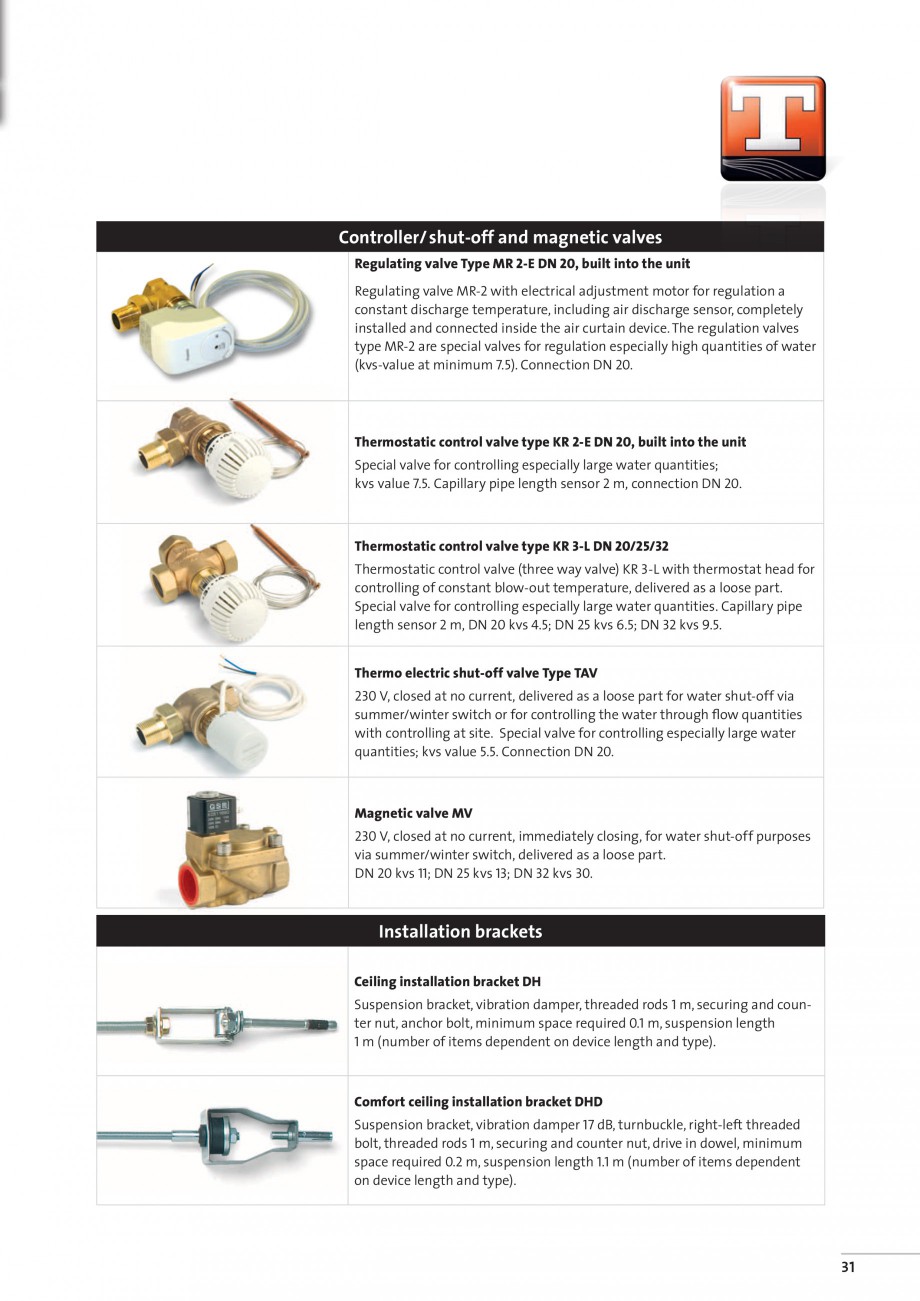

DN 20 kvs 11; DN 25 kvs 13; DN 32 kvs 30.
Installation brackets
Ceiling installation bracket DH
Suspension bracket, vibration damper, threaded rods 1 m, securing and counter nut, anchor bolt, minimum space required 0.1 m, suspension length
1 m (number of items dependent on device length and type).
Comfort ceiling installation bracket DHD
Suspension bracket, vibration damper 17 dB, turnbuckle, right-left threaded
bolt, threaded rods 1 m, securing and counter nut, drive in dowel, minimum
space required 0.2 m, suspension length 1.1 m (number of items dependent
on device length and type).
31
TEDDINGTON
Designer Units for Horizontal / Vertical Fitting
Acce sso r i e s
/
Co ntro lle
r s

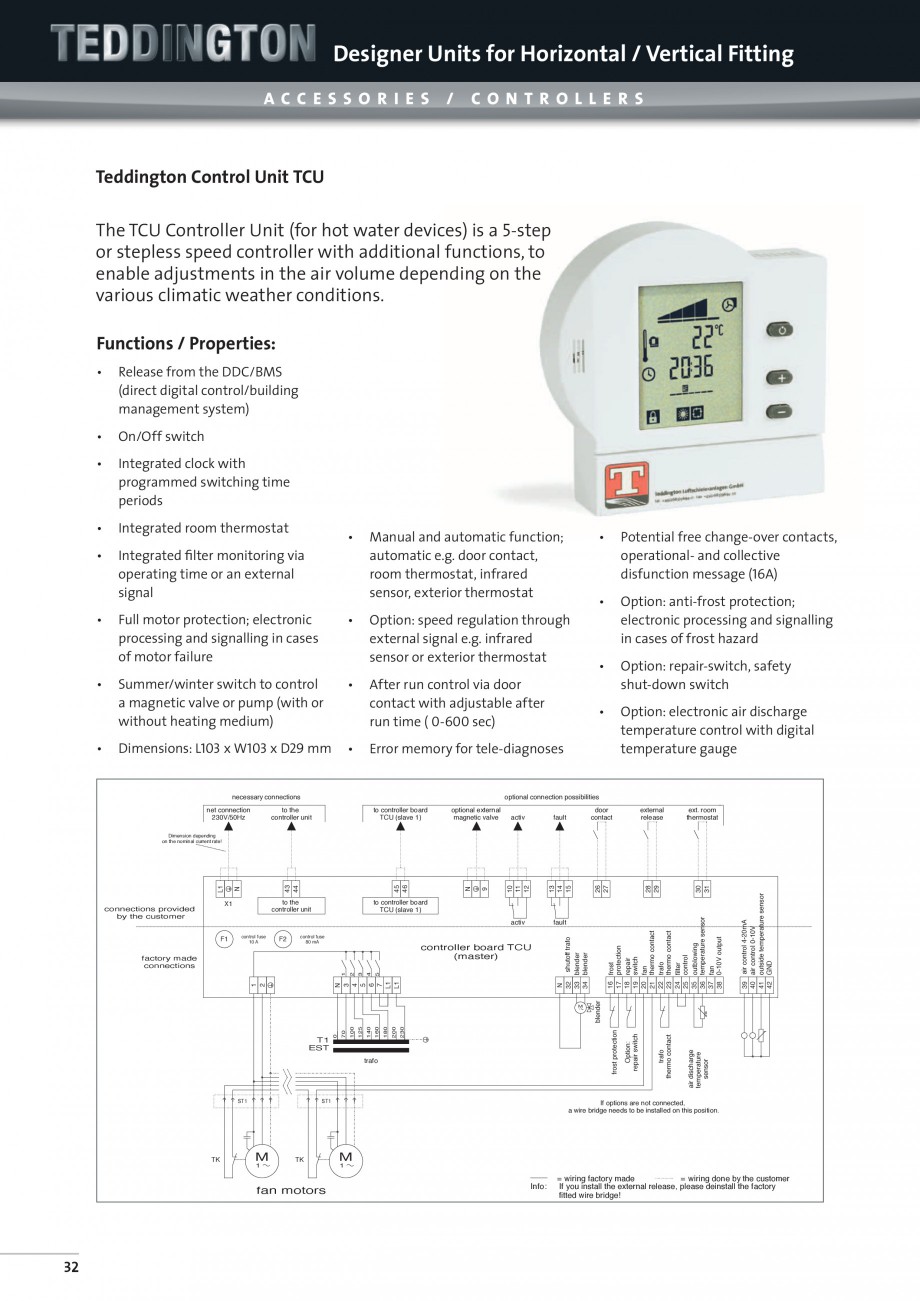

Teddington Control Unit TCU
The TCU Controller Unit (for hot water devices) is a 5-step
or stepless speed controller with additional functions, to
enable adjustments in the air volume depending on the
various climatic weather conditions.
Functions / Properties:
• Release from the DDC/BMS
(direct digital control/building
management system)
• On/Off switch
• Integrated clock with
programmed switching time
periods
• Integrated room thermostat
• Potential free change-over contacts,
operational- and collective
disfunction message (16A)
• Integrated filter monitoring via
operating time or an external
signal
•
Manual and automatic function;
automatic e.g. door contact,
room thermostat, infrared
sensor, exterior thermostat
• Full motor protection; electronic
processing and signalling in cases
of motor failure
• Option: speed regulation through
external signal e.g. infrared
sensor or exterior thermostat
• Summer/winter swit
r s
Teddington Control Unit TCU
The TCU Controller Unit (for hot water devices) is a 5-step
or stepless speed controller with additional functions, to
enable adjustments in the air volume depending on the
various climatic weather conditions.
Functions / Properties:
• Release from the DDC/BMS
(direct digital control/building
management system)
• On/Off switch
• Integrated clock with
programmed switching time
periods
• Integrated room thermostat
• Potential free change-over contacts,
operational- and collective
disfunction message (16A)
• Integrated filter monitoring via
operating time or an external
signal
•
Manual and automatic function;
automatic e.g. door contact,
room thermostat, infrared
sensor, exterior thermostat
• Full motor protection; electronic
processing and signalling in cases
of motor failure
• Option: speed regulation through
external signal e.g. infrared
sensor or exterior thermostat
• Summer/winter swit
... ascunde
Alte documentatii ale aceleasi game Vezi toate
Fisa tehnica
16 p | EN
CHARISMA
Fisa tehnica
12 p | EN
DELTA
