Pagina 1 - Perdea de aer industriala TEDDINGTON INDUVENT Fisa tehnica Engleza INDUSTRIES

INDUVENT

...

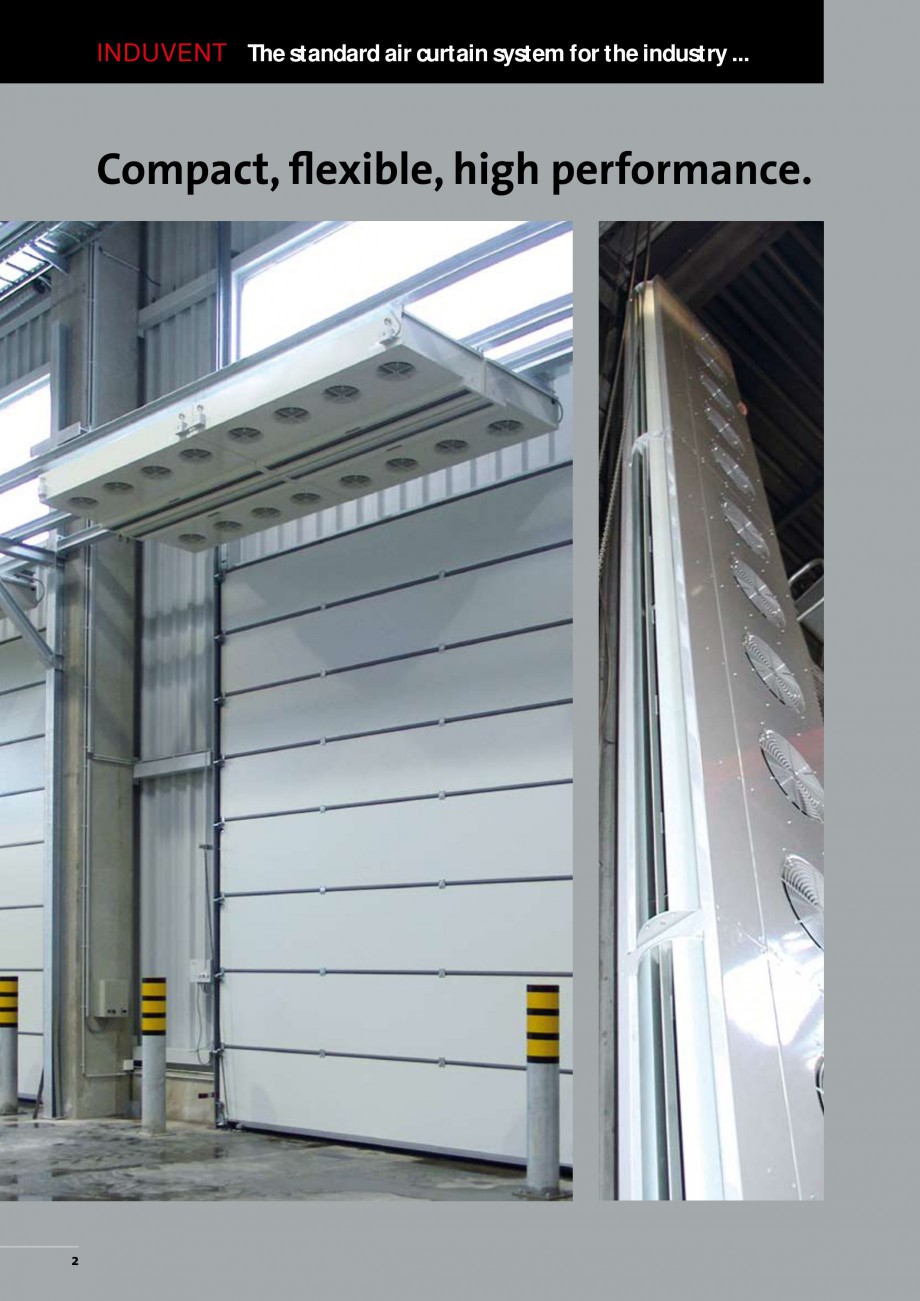

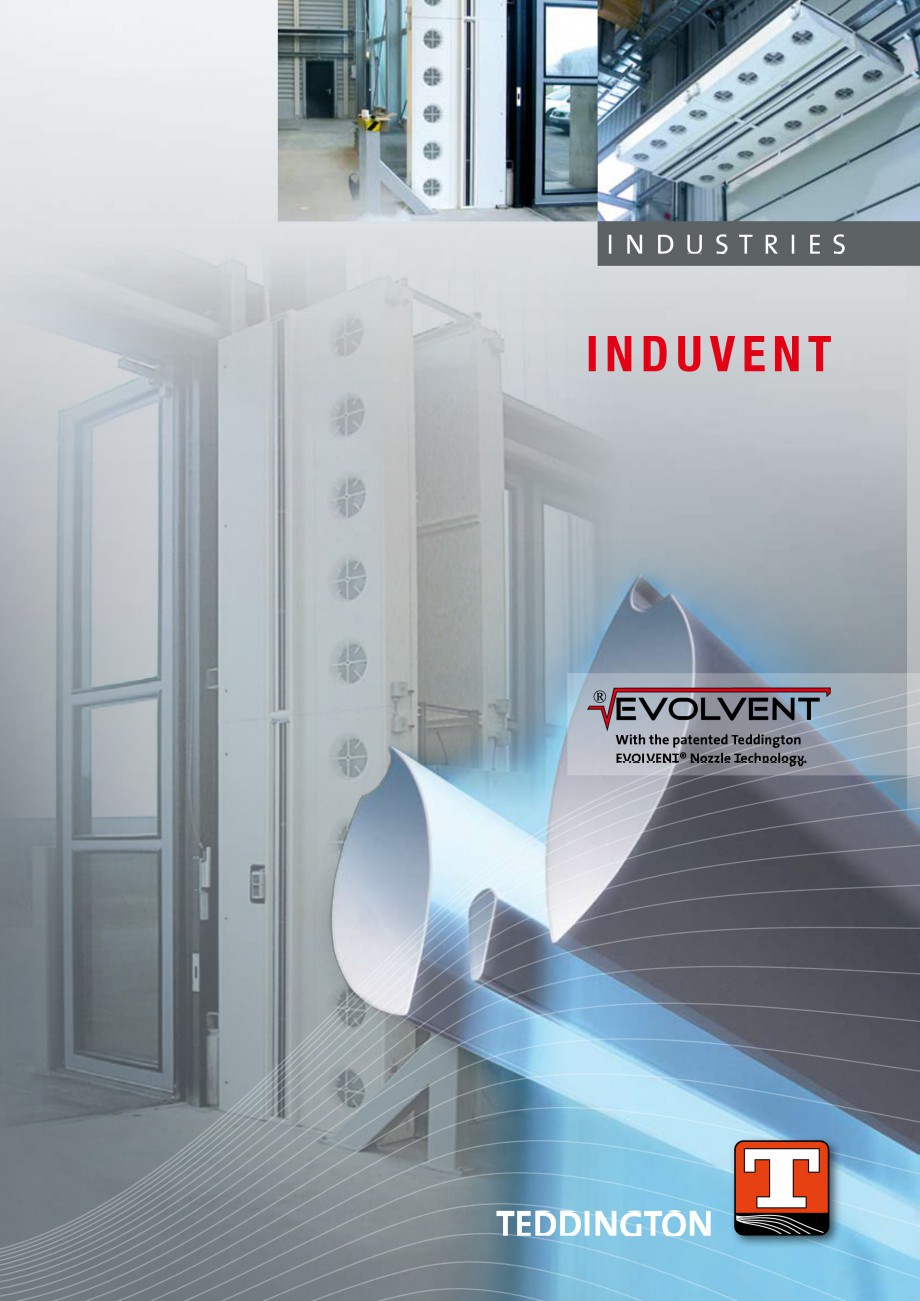

INDUSTRIES INDUVENT With the patented Teddington EVOLVENT® Nozzle Technology. Teddington INDUVENT The standard air curtain system for the industry ... Compact, flexible, high performance. 2 Highly frequented workshops with doors which are metres high create tremendous cold draughts with high energy losses. Energy efficient solutions are demanded here for draughtless climate conditions. The INDUVENT air curtain systems from Teddington, to be mounted either vertically or horizontally, are designed for universal usage in all industry sectors. The patented EVOLVENT® nozzle technology in the blow-out section ensures a high throwing range with minimal energy demand. With many different types, the adaptable INDUVENT devices conform to all performance and space requirements. Teddington air curtain technology in the refuse industry Especially for usage in the refuse industry, the Teddington INDUVENT air curtain systems have maintained their popularity. Since 01.06.2005, depositing

Pagina 1-Perdea de aer industriala TEDDINGTON INDUVENT Fisa tehnica Engleza INDUSTRIES

INDUVENT

With the...

Pagina 2 - Perdea de aer industriala TEDDINGTON INDUVENT Fisa tehnica Engleza of untreated,...

of untreated, biodegradable and organic-containing waste has been forbidden in Germany due to severe pollution and endangering of the environment. The processing of this waste today takes place in mechanical incineration plants or mechanical biological plants, which are very rigorously subject to regulations regarding the authorised emission limits (17th and 30th Federal Emission Control Regulation, BImSchV). In complying with the authorised toxic emissions, the wide delivery doors have a special meaning. The Federal Emission Control Regulation (BImSchV) also authorises these doors, next to special lock systems, to be able to make use of specific air curtain systems. Teddington air curtain systems with EVOLVENT® pressurechamber-nozzle-system offer here a very efficient and compact solution, which has already been repeatedly and successfully used in practice. Your advantages ■ obstruction to transportation No ■ No damage to the doors from the vehicles ■ No extra space re

Pagina 2-Perdea de aer industriala TEDDINGTON INDUVENT Fisa tehnica Engleza of untreated, biodegradable and...

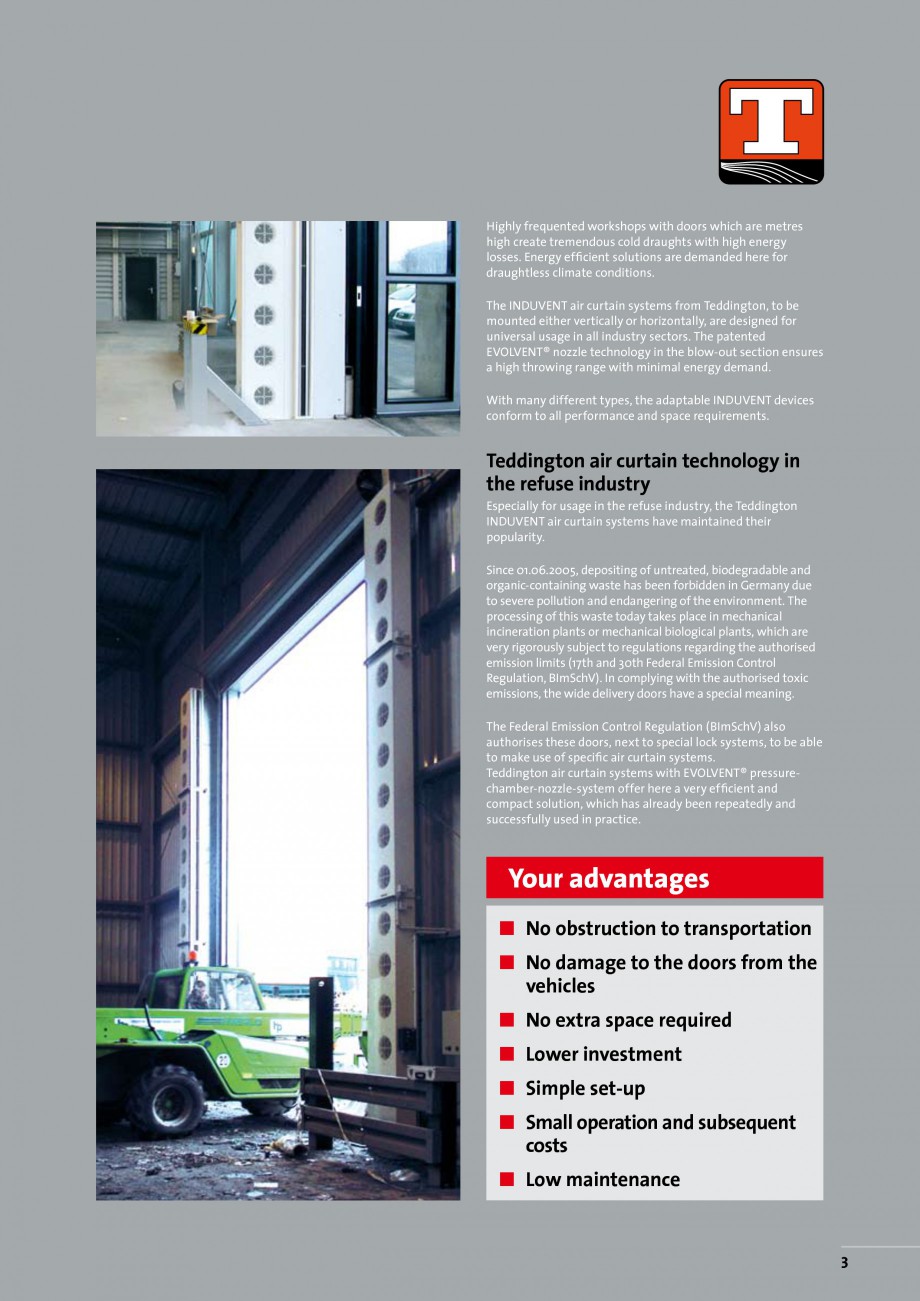

Pagina 3 - Perdea de aer industriala TEDDINGTON INDUVENT Fisa tehnica Engleza quired
■ Lower...

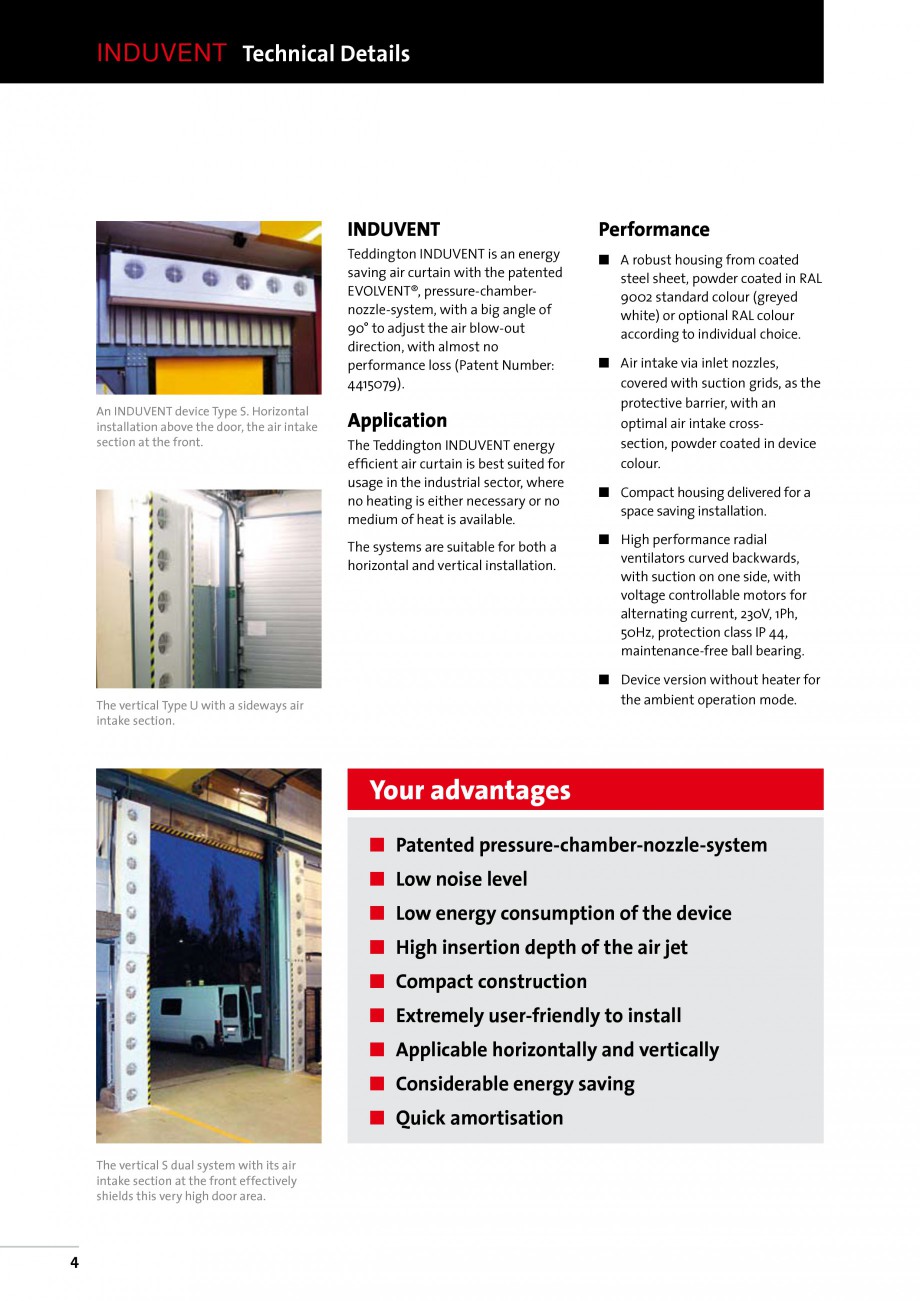

quired ■ Lower investment ■ Simple set-up ■ Small operation and subsequent costs ■ Low maintenance 3 INDUVENT Technical Details INDUVENT Teddington INDUVENT is an energy saving air curtain with the patented EVOLVENT®, pressure-chambernozzle-system, with a big angle of 90° to adjust the air blow-out direction, with almost no performance loss (Patent Number: 4415079). An Induvent device Type S. Horizontal installation above the door, the air intake section at the front. Application The Teddington INDUVENT energy efficient air curtain is best suited for usage in the industrial sector, where no heating is either necessary or no medium of heat is available. The systems are suitable for both a horizontal and vertical installation. Performance  robust housing from coated A steel sheet, powder coated in RAL 9002 standard colour (greyed white) or optional RAL colour according to individual choice.  Air intake via inlet nozzles, covered with sucti

Pagina 3-Perdea de aer industriala TEDDINGTON INDUVENT Fisa tehnica Engleza quired
■ Lower investment
■ ...

Pagina 4 - Perdea de aer industriala TEDDINGTON INDUVENT Fisa tehnica Engleza on grids, as the ...

on grids, as the protective barrier, with an optimal air intake cross- section, powder coated in device colour.  Compact housing delivered for a space saving installation.  High performance radial ventilators curved backwards, with suction on one side, with voltage controllable motors for alternating current, 230V, 1Ph, 50Hz, protection class IP 44, maintenance-free ball bearing.  Device version without heater for the ambient operation mode. The vertical Type U with a sideways air intake section. Your advantages ■ Patented pressure-chamber-nozzle-system ■ Low noise level ■ Low energy consumption of the device ■ High insertion depth of the air jet ■ Compact construction ■ Extremely user-friendly to install ■ Applicable horizontally and vertically ■ Considerable energy saving ■ Quick amortisation The vertical S dual system with its air intake section at the front effectively shields this very high door area. 4 The choice is do

Pagina 4-Perdea de aer industriala TEDDINGTON INDUVENT Fisa tehnica Engleza on grids, as the
protective...

Pagina 5 - Perdea de aer industriala TEDDINGTON INDUVENT Fisa tehnica Engleza wn to you.
The...

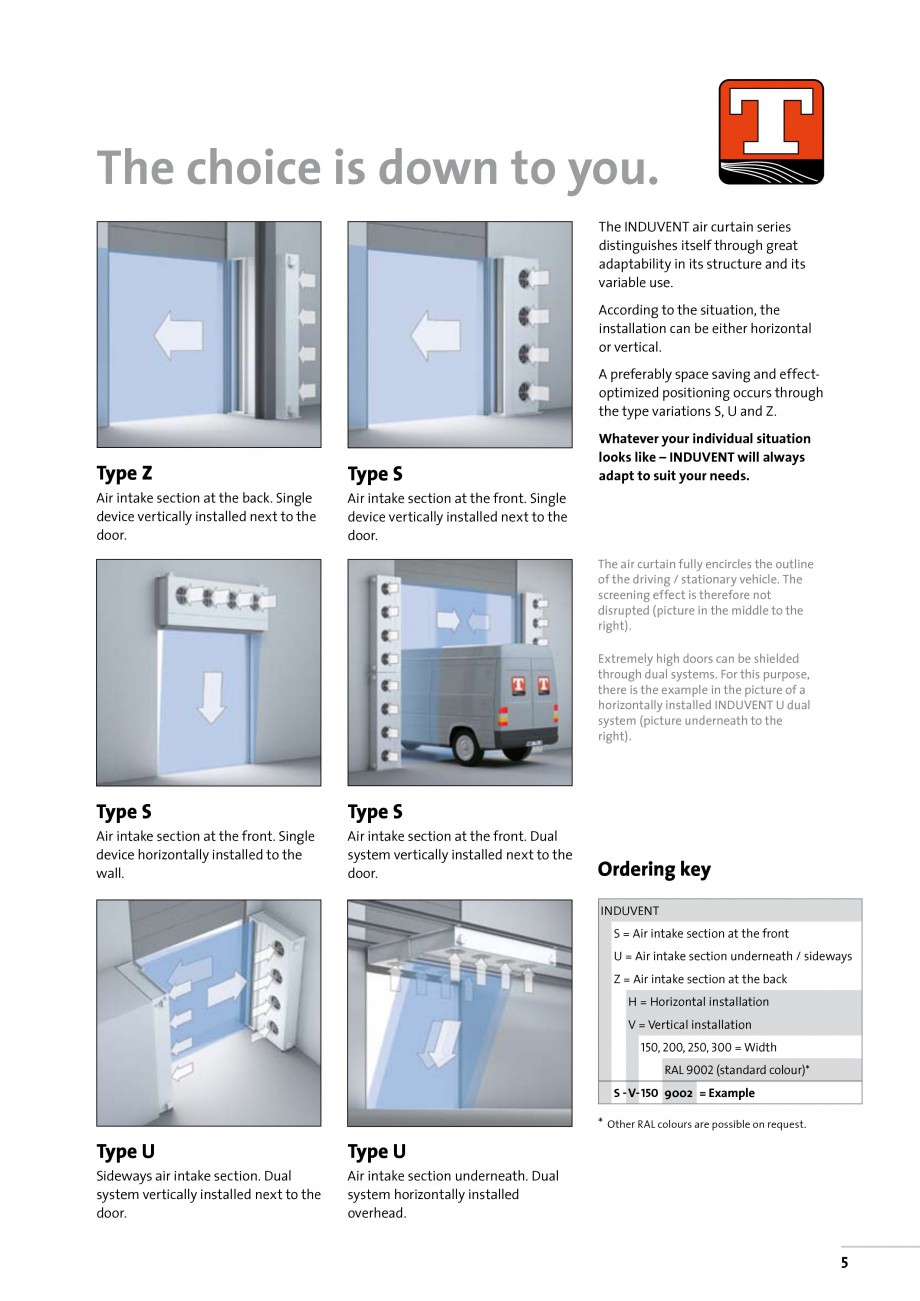

wn to you. The Induvent air curtain series distinguishes itself through great adaptability in its structure and its variable use. According to the situation, the installation can be either horizontal or vertical. A preferably space saving and effectoptimized positioning occurs through the type variations S, U and Z. Type Z Air intake section at the back. Single device vertically installed next to the door. Type S Whatever your individual situation looks like – Induvent will always adapt to suit your needs. Air intake section at the front. Single device vertically installed next to the door. The air curtain fully encircles the outline of the driving / stationary vehicle. The screening effect is therefore not disrupted (picture in the middle to the right). Extremely high doors can be shielded through dual systems. For this purpose, there is the example in the picture of a horizontally installed INDUVENT U dual system (picture underneath to the right). Type S Air intake section a

Pagina 5-Perdea de aer industriala TEDDINGTON INDUVENT Fisa tehnica Engleza wn to you.
The Induvent air...

Pagina 6 - Perdea de aer industriala TEDDINGTON INDUVENT Fisa tehnica Engleza t the front. Single...

t the front. Single device horizontally installed to the wall. Type S Air intake section at the front. Dual system vertically installed next to the door. Ordering key Induvent S = Air intake section at the front U = Air intake section underneath / sideways Z = Air intake section at the back H = Horizontal installation V = Vertical installation 150, 200, 250, 300 = Width RAL 9002 (standard colour)* S - V- 150 9002 = Example * ther RAL colours are possible on request. O Type U Sideways air intake section. Dual system vertically installed next to the door. Type U Air intake section underneath. Dual system horizontally installed overhead. 5 INDUVENT Technical Data and Dimensions Technical Data INDUVENT 2 Devices Width/-height „B“ [cm] 150 200 250 300 350 400 Blow-out width max. [m] 4.0 4.0 4.0 4.0 4.0 4.0 Weight [kg] 75 95 105 120 170 190 Nominal volume flow [m3/h] 6.900 9.200 11.600 13.800 16.100 18.400 Work volume flow [m3/h] 4.400 5.900

Pagina 6-Perdea de aer industriala TEDDINGTON INDUVENT Fisa tehnica Engleza t the front. Single
device...

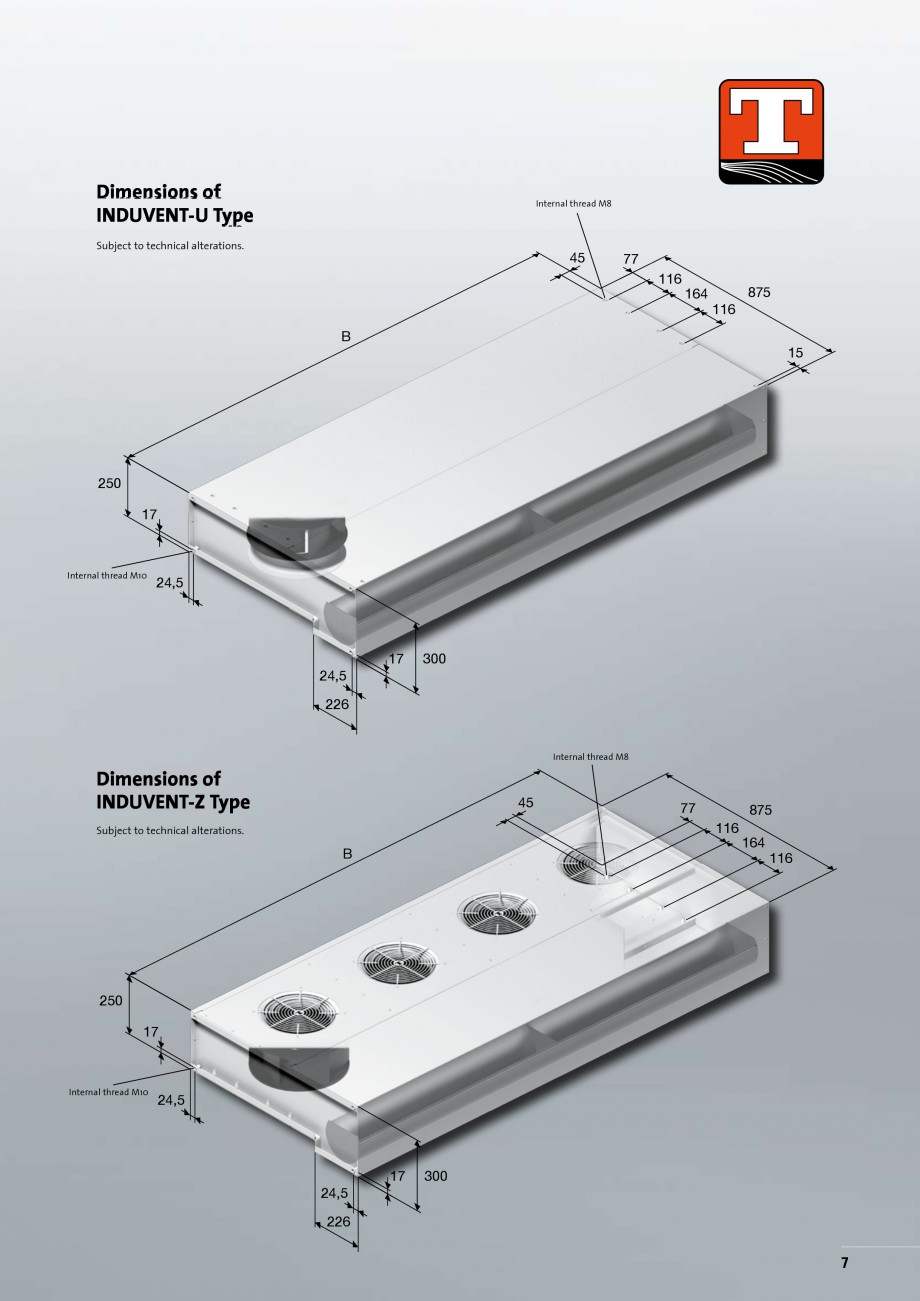

Pagina 7 - Perdea de aer industriala TEDDINGTON INDUVENT Fisa tehnica Engleza

7.350

8.850

10.300...

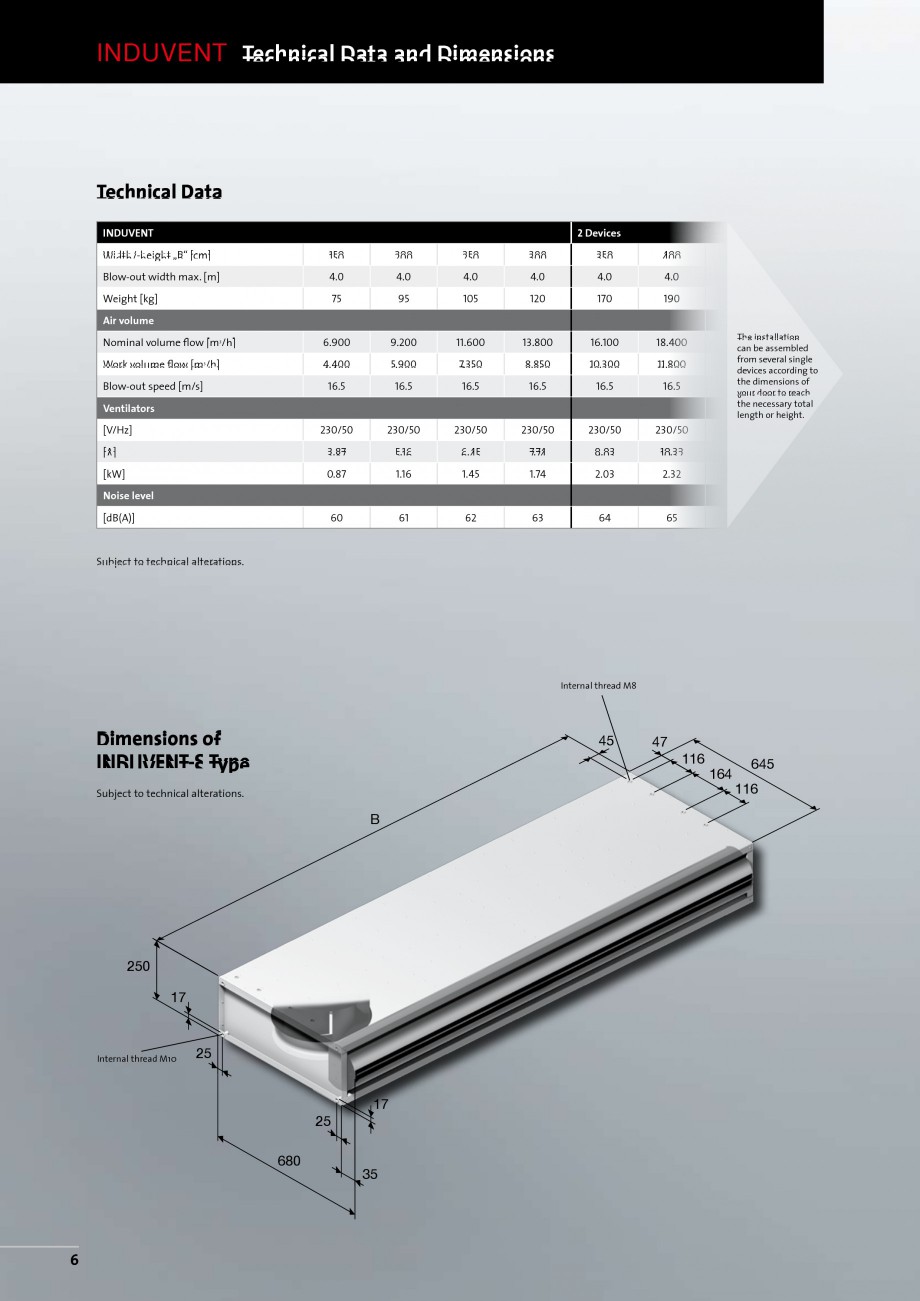

7.350 8.850 10.300 11.800 16.5 16.5 16.5 16.5 16.5 16.5 Air volume Blow-out speed [m/s] The installation can be assembled from several single devices according to the dimensions of your door to reach the necessary total length or height. Ventilators [V/Hz] 230/50 230/50 230/50 230/50 230/50 230/50 [A] 3.87 5.16 6.45 7.74 9.03 10.32 [kW] 0.87 1.16 1.45 1.74 2.03 2.32 60 61 62 63 64 65 Noise level [dB(A)] Subject to technical alterations. Internal thread M8 Dimensions of INDUVENT-S Type 45 116 Subject to technical alterations. B 250 17 Internal thread M10 25 17 25 680 6 47 35 164 645 116 Dimensions of INDUVENT-U Type Internal thread M8 Subject to technical alterations. 45 77 116 164 875 116 B 15 250 17 Internal thread M10 24,5 17 300 24,5 226 Internal thread M8 Dimensions of INDUVENT-Z Type 45 77 875 116 Subject to technical alterations. B 164 116 250 17 Internal thread M10 24,5 17 300 24,5 226 7 IND

Pagina 7-Perdea de aer industriala TEDDINGTON INDUVENT Fisa tehnica Engleza

7.350

8.850

10.300

11.800
...

Pagina 8 - Perdea de aer industriala TEDDINGTON INDUVENT Fisa tehnica Engleza UVENT Selection

It...

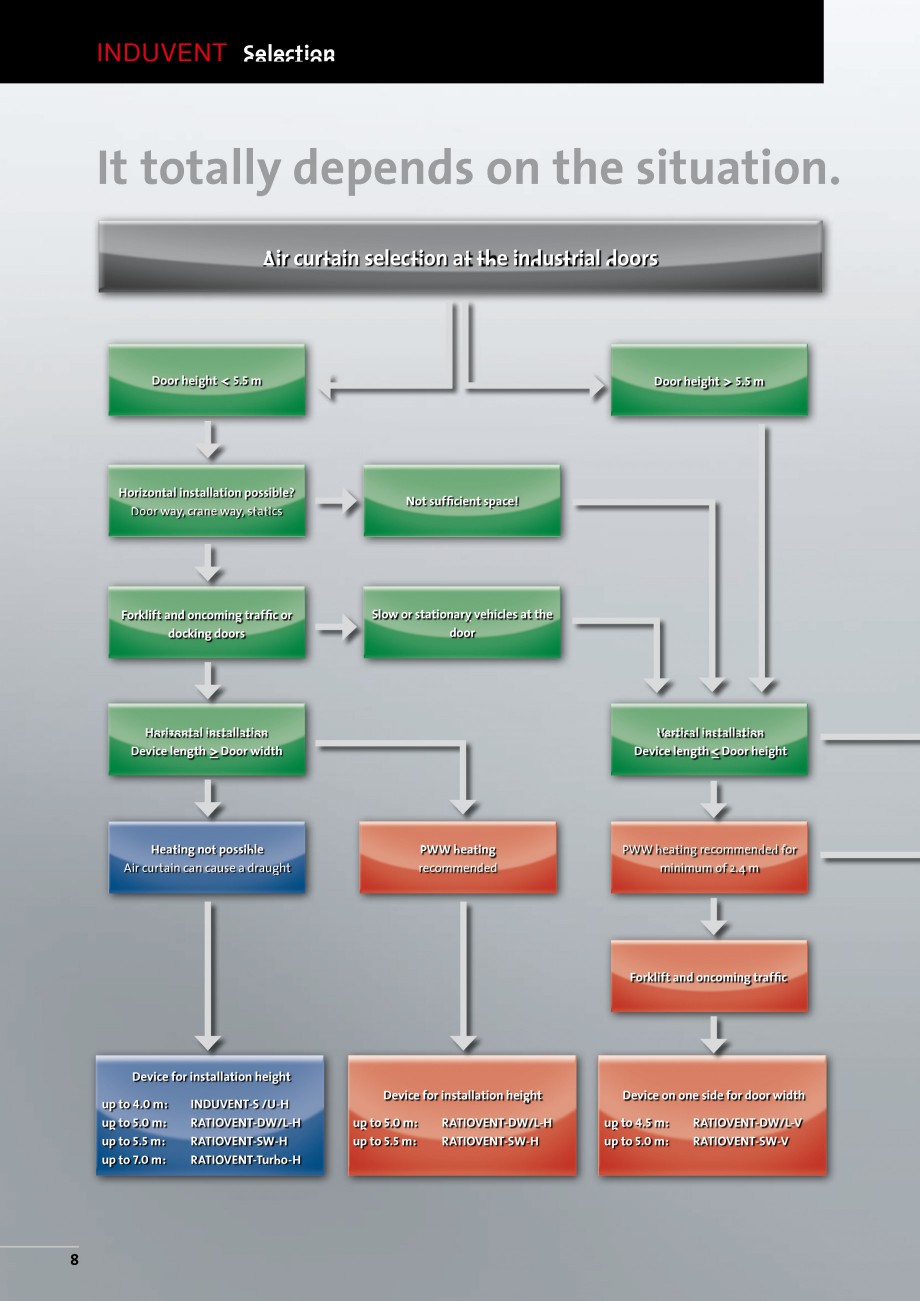

UVENT Selection It totally depends on the situation. Air curtain selection at the industrial doors Door height < 5.5 m Door height > 5.5 m Horizontal installation possible? Door way, crane way, statics Not sufficient space! Forklift and oncoming traffic or docking doors Slow or stationary vehicles at the door Horizontal installation Device length > Door width _ Heating not possible Air curtain can cause a draught Vertical installation Device length< Door height _ PWW heating recommended PWW heating recommended for minimum of 2.4 m Forklift and oncoming traffic Device for installation height up to 4.0 m: INDUVENT-S /U-H up to 5.0 m: RATIOVENT-DW/L-H up to 5.5 m: RATIOVENT-SW-H up to 7.0 m: RATIOVENT-Turbo-H 8 Device for installation height up to 5.0 m: up to 5.5 m: RATIOVENT-DW/L-H RATIOVENT-SW-H Device on one side for door width up to 4.5 m: up to 5.0 m: RATIOVENT-DW/L-V RATIOVENT-SW-V Main selection guidelines for air curtain systems at the ind

Pagina 8-Perdea de aer industriala TEDDINGTON INDUVENT Fisa tehnica Engleza UVENT Selection

It totally...

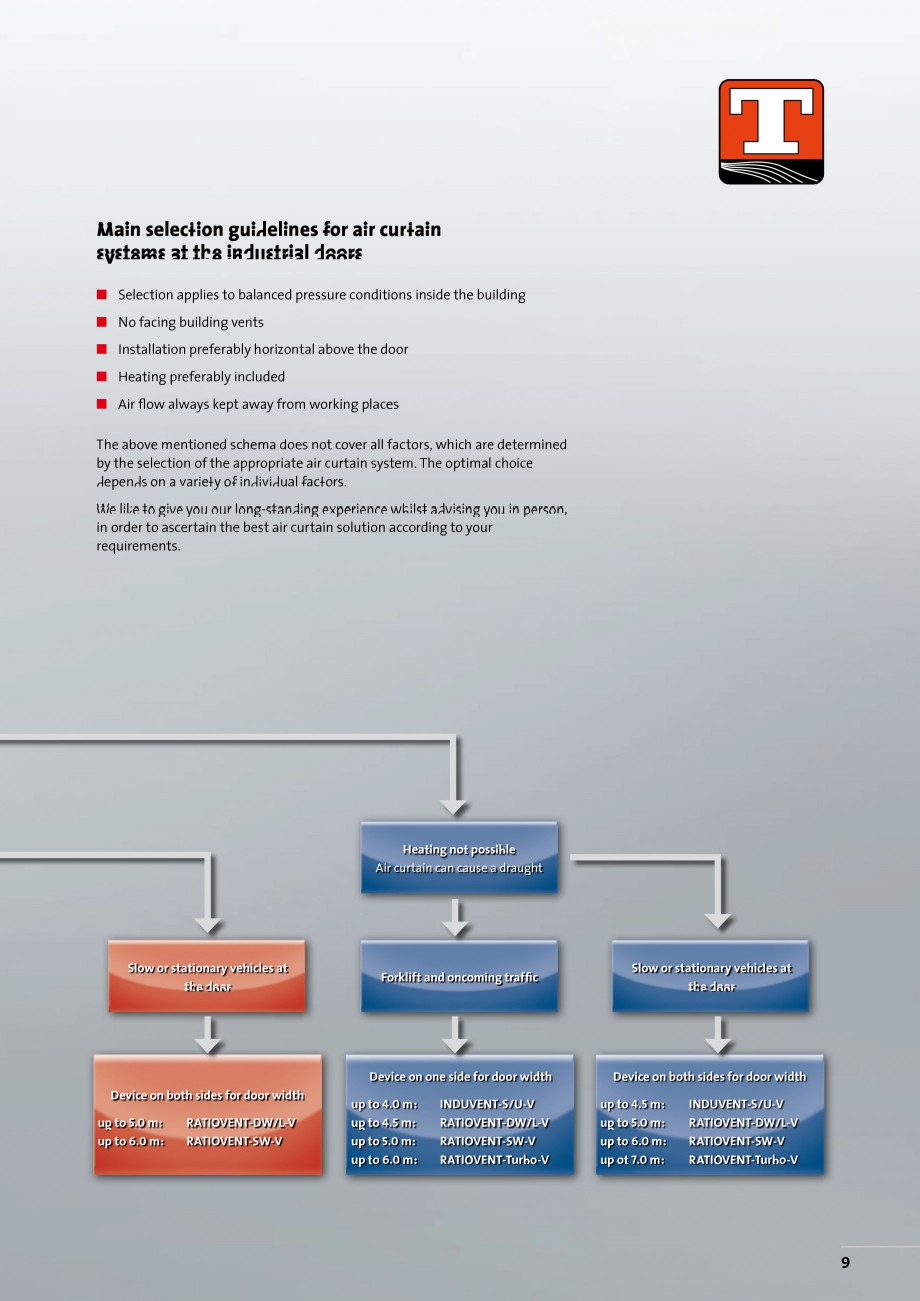

Pagina 9 - Perdea de aer industriala TEDDINGTON INDUVENT Fisa tehnica Engleza ustrial doors
■ ...

ustrial doors ■ Selection applies to balanced pressure conditions inside the building ■ No facing building vents ■ Installation preferably horizontal above the door ■ Heating preferably included ■ Air flow always kept away from working places The above mentioned schema does not cover all factors, which are determined by the selection of the appropriate air curtain system. The optimal choice depends on a variety of individual factors. We like to give you our long-standing experience whilst advising you in person, in order to ascertain the best air curtain solution according to your requirements. Heating not possible Air curtain can cause a draught Slow or stationary vehicles at the door Device on both sides for door width up to 5.0 m: up to 6.0 m: RATIOVENT-DW/L-V RATIOVENT-SW-V Forklift and oncoming traffic Slow or stationary vehicles at the door Device on one side for door width Device on both sides for door width up to 4.0 m: INDUVENT-S/U-V up to 4.5 m: R

Pagina 9-Perdea de aer industriala TEDDINGTON INDUVENT Fisa tehnica Engleza ustrial doors
■ Selection...

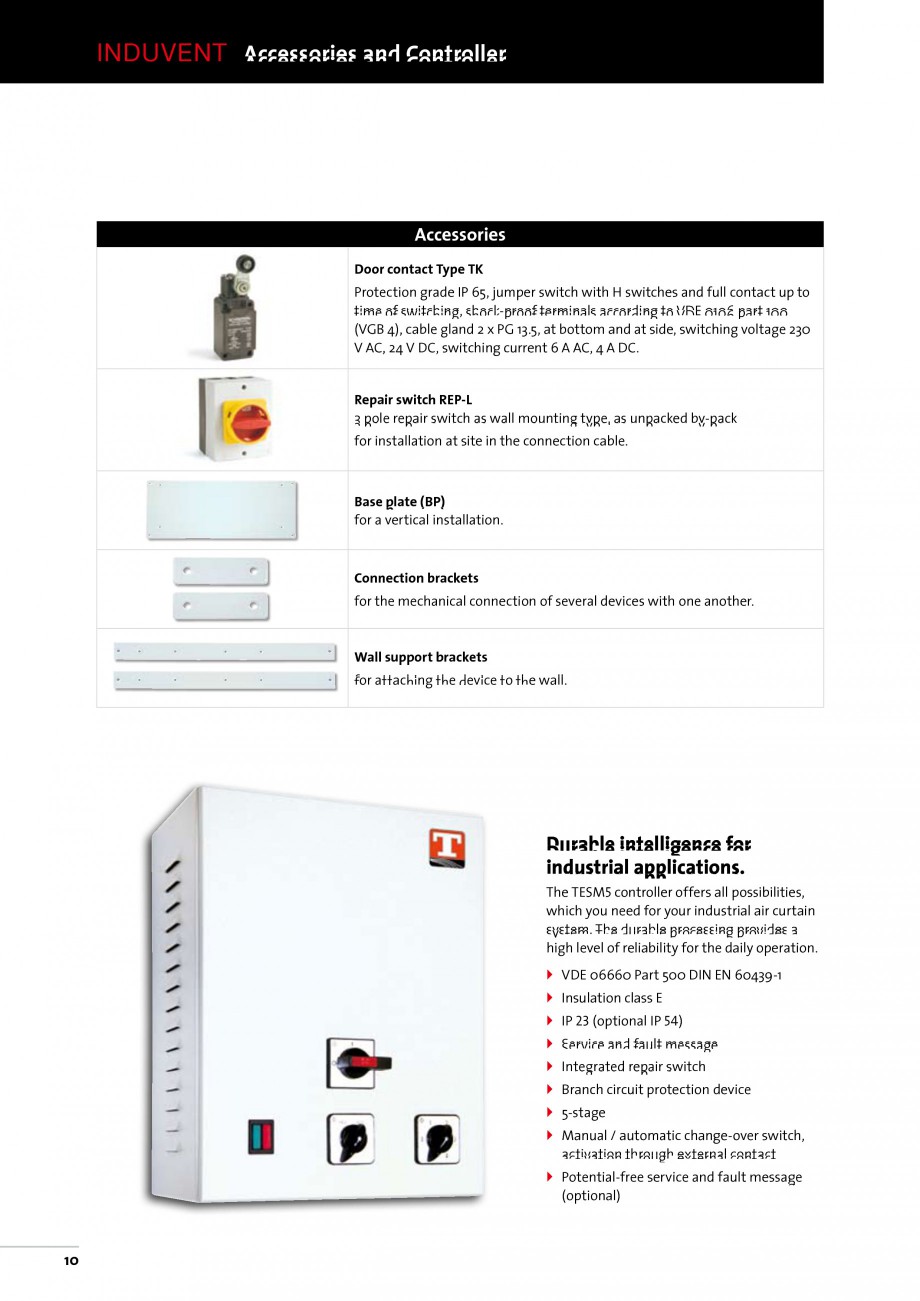

Pagina 10 - Perdea de aer industriala TEDDINGTON INDUVENT Fisa tehnica Engleza ATIOVENT-DW/L-V
up to...

ATIOVENT-DW/L-V up to 5.0 m: RATIOVENT-SW-V up to 6.0 m: RATIOVENT-Turbo-V up to 4.5 m: INDUVENT-S/U-V up to 5.0 m: RATIOVENT-DW/L-V up to 6.0 m: RATIOVENT-SW-V up ot 7.0 m: RATIOVENT-Turbo-V 9 INDUVENT Accessories and Controller Accessories Door contact Type TK Protection grade IP 65, jumper switch with H switches and full contact up to time of switching, shock-proof terminals according to VDE 0106 part 100 (VGB 4), cable gland 2 x PG 13.5, at bottom and at side, switching voltage 230 V AC, 24 V DC, switching current 6 A AC, 4 A DC. Repair switch REP-L 3 pole repair switch as wall mounting type, as unpacked by-pack for installation at site in the connection cable. Base plate (BP) for a vertical installation. Connection brackets for the mechanical connection of several devices with one another. Wall support brackets for attaching the device to the wall. Durable intelligence for industrial applications. The TESM5 controller offers all possibilities, which you need for

Pagina 10-Perdea de aer industriala TEDDINGTON INDUVENT Fisa tehnica Engleza ATIOVENT-DW/L-V
up to 5.0 m: ...

Pagina 11 - Perdea de aer industriala TEDDINGTON INDUVENT Fisa tehnica Engleza your industrial air ...

your industrial air curtain system. The durable processing provides a high level of reliability for the daily operation. } VDE 06660 Part 500 DIN EN 60439-1 } Insulation class E } IP 23 (optional IP 54) } Service and fault message } Integrated repair switch } Branch circuit protection device } 5-stage } Manual / automatic change-over switch, activation through external contact } Potential-free service and fault message (optional) 10 Quality is our highest demand. Independently of what device you may decide for – at Teddington’s you can be sure to have chosen a high performance product having a name in the market and featuring the latest state of the art technology. With our experience over many years we can guarantee, that each device is composed of high grade, well proven components. And we are continuously developing new techniques, which are minimizing your operating costs and optimize the efficiency of the devices. Teddington is a long lasting partner of the

Pagina 11-Perdea de aer industriala TEDDINGTON INDUVENT Fisa tehnica Engleza your industrial air curtain...

Pagina 12 - Perdea de aer industriala TEDDINGTON INDUVENT Fisa tehnica Engleza specialized craft...

specialized craft business, of trade and industry. A staff of experienced specialists care almost around the clock for making sure to continuously satisfying the world wide demands for precise and high quality air curtain products. We will assist you in planning and supporting your choice for that device, which suits your needs most and will also support you after the time of putting the equipment into operation by a comprehensive service. Teddington runs a network of competent special firms, which are always available for you. eddington. typically T ... Device technology, intelligent controller systems and service – all matching perfectly. The better the consultation, the better the result will be. Modern production facilities with CNC technology ensure a very high quality standard. Innovation is our main commitment. For example, the patented nozzle technology. No device will leave the production, which has not been tested entirely on all functions. www.teddington.de 11 TEDDI
