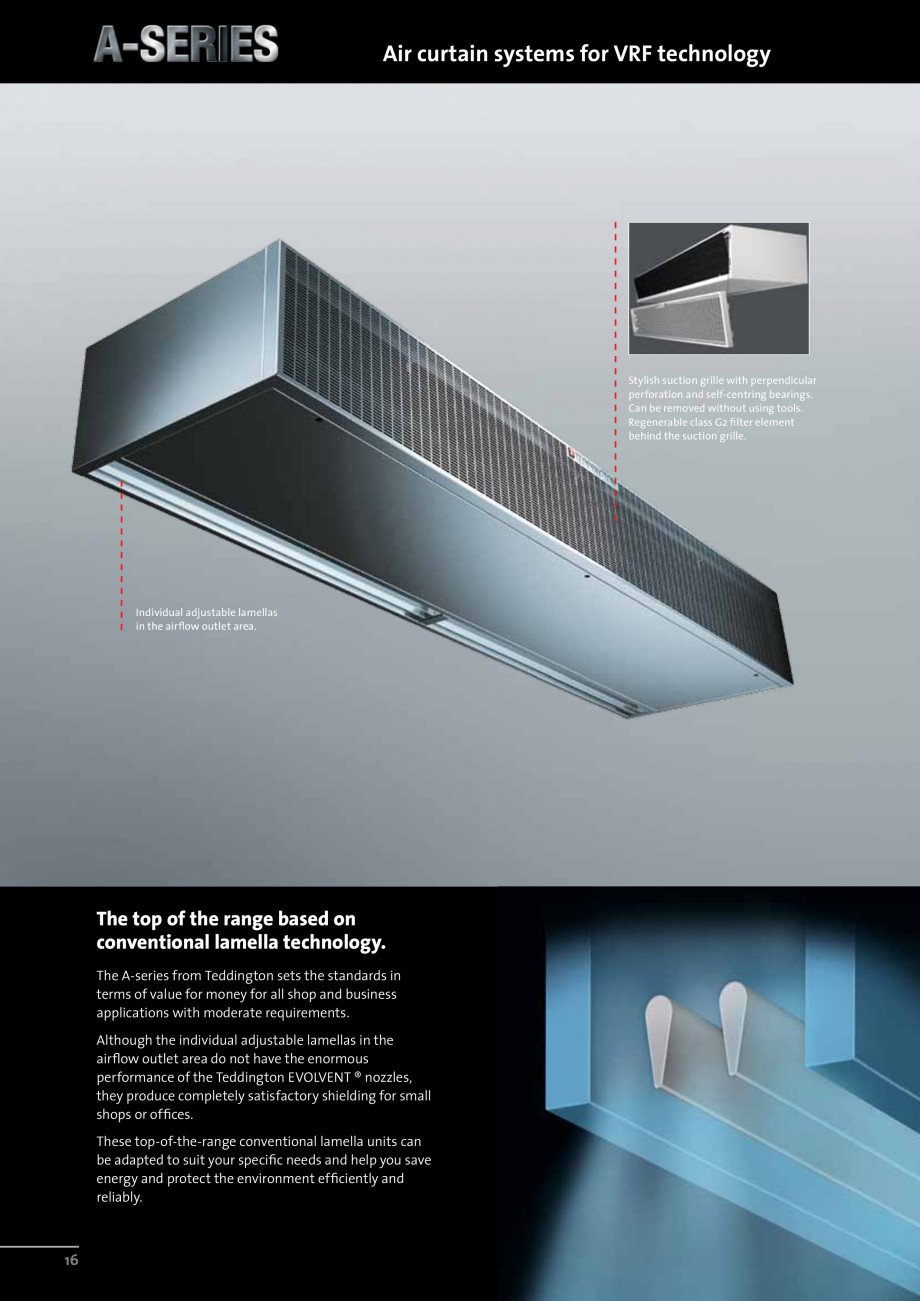

A-SERIES Air curtain systems for VRF technology Stylish suction grille with perpendicular perforation and self-centring bearings. Can be removed without using tools. Regenerable class G2 filter element behind the suction grille. Individual adjustable lamellas in the airflow outlet area. The top of the range based on conventional lamella technology. The A-series from Teddington sets the standards in terms of value for money for all shop and business applications with moderate requirements. Although the individual adjustable lamellas in the airflow outlet area do not have the enormous performance of the Teddington EVOLVENT ® nozzles, they produce completely satisfactory shielding for small shops or offices. These top-of-the-range conventional lamella units can be adapted to suit your specific needs and help you save energy and protect the environment efficiently and reliably. 16 Areas of use Wall-mounting unit with varied applications with 2 performance categories and 3 design

Pagina 1-Perdea de aer pentru spatii comerciale si birouri TEDDINGTON A-SERIES Fisa tehnica Engleza A-SERIES ...

Pagina 2 - Perdea de aer pentru spatii comerciale si birouri TEDDINGTON A-SERIES Fisa tehnica...

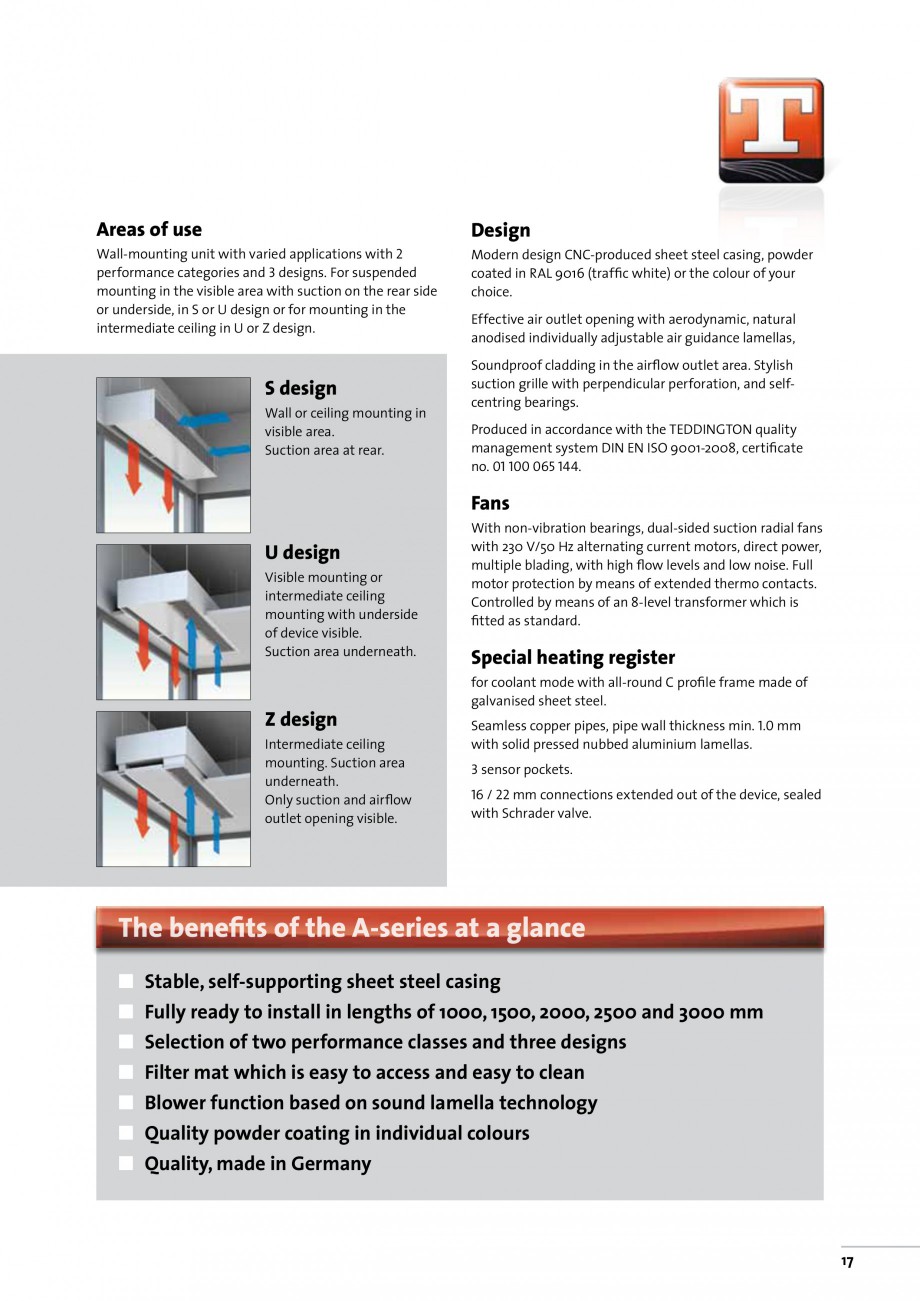

s. For suspended mounting in the visible area with suction on the rear side or underside, in S or U design or for mounting in the intermediate ceiling in U or Z design. S design Wall or ceiling mounting in visible area. Suction area at rear. Design Modern design CNC-produced sheet steel casing, powder coated in RAL 9016 (traffic white) or the colour of your choice. Effective air outlet opening with aerodynamic, natural anodised individually adjustable air guidance lamellas, Soundproof cladding in the airflow outlet area. Stylish suction grille with perpendicular perforation, and selfcentring bearings. Produced in accordance with the TEDDINGTON quality management system DIN EN ISO 9001-2008, certificate no. 01 100 065 144. Fans U design Visible mounting or intermediate ceiling mounting with underside of device visible. Suction area underneath. Z design Intermediate ceiling mounting. Suction area underneath. Only suction and airflow outlet opening visible. With non-vibration bea

Pagina 2-Perdea de aer pentru spatii comerciale si birouri TEDDINGTON A-SERIES Fisa tehnica Engleza s. For...

Pagina 3 - Perdea de aer pentru spatii comerciale si birouri TEDDINGTON A-SERIES Fisa tehnica...

rings, dual-sided suction radial fans with 230 V/50 Hz alternating current motors, direct power, multiple blading, with high flow levels and low noise. Full motor protection by means of extended thermo contacts. Controlled by means of an 8-level transformer which is fitted as standard. Special heating register for coolant mode with all-round C profile frame made of galvanised sheet steel. Seamless copper pipes, pipe wall thickness min. 1.0 mm with solid pressed nubbed aluminium lamellas. 3 sensor pockets. 16 / 22 mm connections extended out of the device, sealed with Schrader valve. The benefits of the A-series at a glance ■ Stable, self-supporting sheet steel casing ■ ully ready to install in lengths of 1000, 1500, 2000, 2500 and 3000 mm F ■ Selection of two performance classes and three designs ■ Filter mat which is easy to access and easy to clean ■ lower function based on sound lamella technology B ■ Quality powder coating in individual colours ■ Quali

Pagina 3-Perdea de aer pentru spatii comerciale si birouri TEDDINGTON A-SERIES Fisa tehnica Engleza rings,...

Pagina 4 - Perdea de aer pentru spatii comerciale si birouri TEDDINGTON A-SERIES Fisa tehnica...

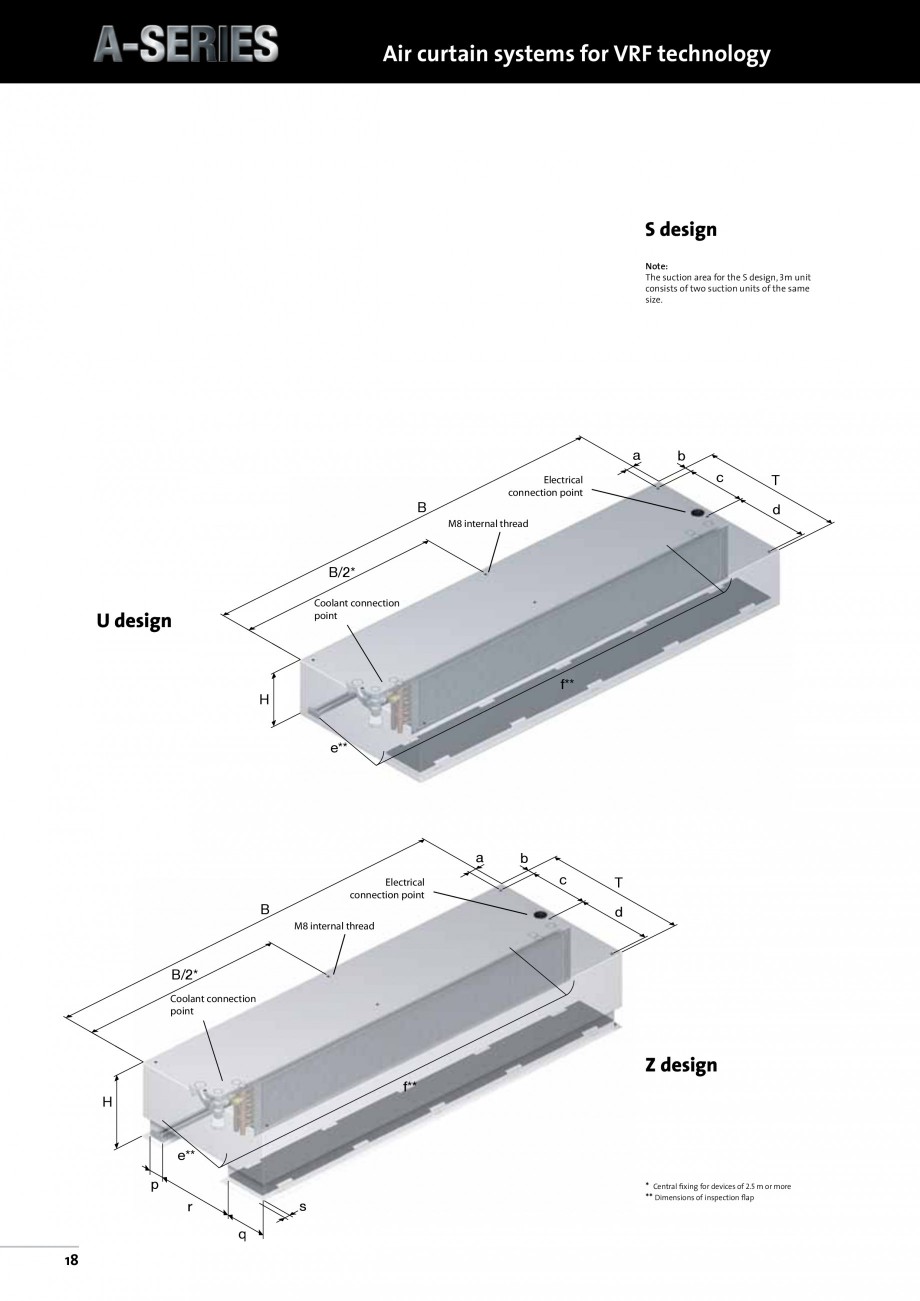

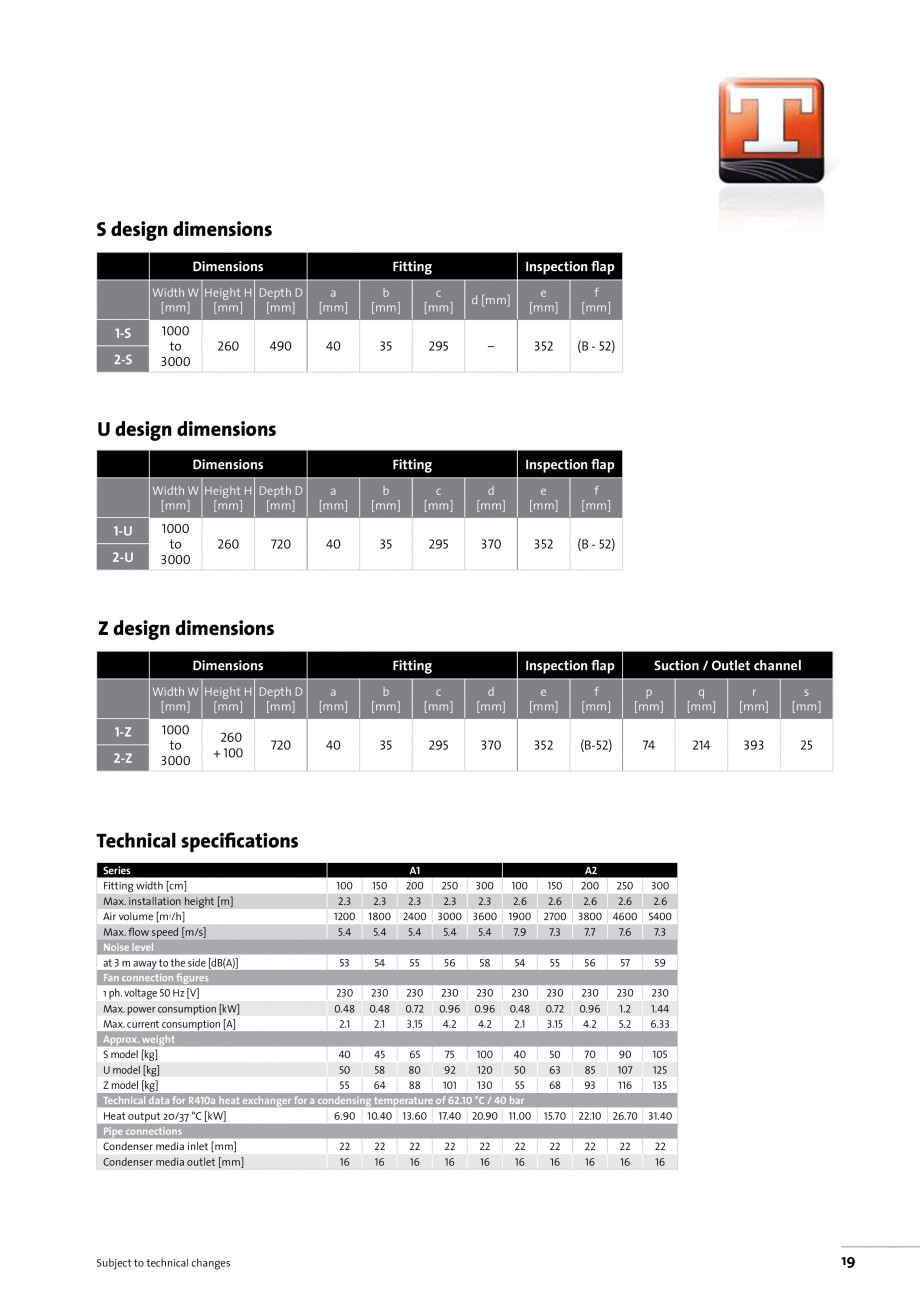

ty, made in Germany 17 A-SERIES Air curtain systems for VRF technology a b c Electrical connection point B T M8 internal thread S design B/2* Note: The suction area for the S design, 3m unit consists of two suction units of the same size. Coolant connection point f** H e** a b c Electrical connection point B T d M8 internal thread B/2* Coolant connection point U design f** H e** a Electrical connection point B b c T d M8 internal thread B/2* Coolant connection point f** H Z design e** p s r q 18 * Central fixing for devices of 2.5 m or more ** Dimensions of inspection flap S design dimensions Dimensions Fitting Width W Height H Depth D [mm] [mm] [mm] 1-S 2-S 1000 to 3000 260 490 Inspection flap a [mm] b [mm] c [mm] d [mm] e [mm] f [mm] 40 35 295 – 352 (B - 52) U design dimensions Dimensions Fitting Width W Height H Depth D [mm] [mm] [mm] 1-U 2-U 1000 to 3000 260 720 Inspection

Pagina 4-Perdea de aer pentru spatii comerciale si birouri TEDDINGTON A-SERIES Fisa tehnica Engleza ty, made ...

Pagina 5 - Perdea de aer pentru spatii comerciale si birouri TEDDINGTON A-SERIES Fisa tehnica...

flap a [mm] b [mm] c [mm] d [mm] e [mm] f [mm] 40 35 295 370 352 (B - 52) Z design dimensions Dimensions Fitting Width W Height H Depth D [mm] [mm] [mm] 1-Z 2-Z 1000 to 3000 260 + 100 720 Inspection flap Suction / Outlet channel a [mm] b [mm] c [mm] d [mm] e [mm] f [mm] p [mm] q [mm] r [mm] s [mm] 40 35 295 370 352 (B-52) 74 214 393 25 Technical specifications Series A1 Fitting width [cm] 100 150 200 250 300 100 Max. installation height [m] 2.3 2.3 2.3 2.3 2.3 2.6 Air volume [m3/h] 1200 1800 2400 3000 3600 1900 Max. flow speed [m/s] 5.4 5.4 5.4 5.4 5.4 7.9 Noise level at 3 m away to the side [dB(A)] 53 54 55 56 58 54 Fan connection figures 1 ph. voltage 50 Hz [V] 230 230 230 230 230 230 Max. power consumption [kW] 0.48 0.48 0.72 0.96 0.96 0.48 Max. current consumption [A] 2.1 2.1 3.15 4.2 4.2 2.1 Approx. weight S model [kg] 40 45 65 75 100 40 U model [kg] 50 58 80 92 120 50 Z model [kg] 55 64 88 101 130 55 Technical data for R410a heat exchange
