Perdea de aer pentru spatii comerciale si birouri TEDDINGTON L-SERIES

Limba: Engleza

103 afisari

Tip documentatie: Fisa tehnica

Pagina 1 - Perdea de aer pentru spatii comerciale si birouri TEDDINGTON L-SERIES Fisa tehnica...

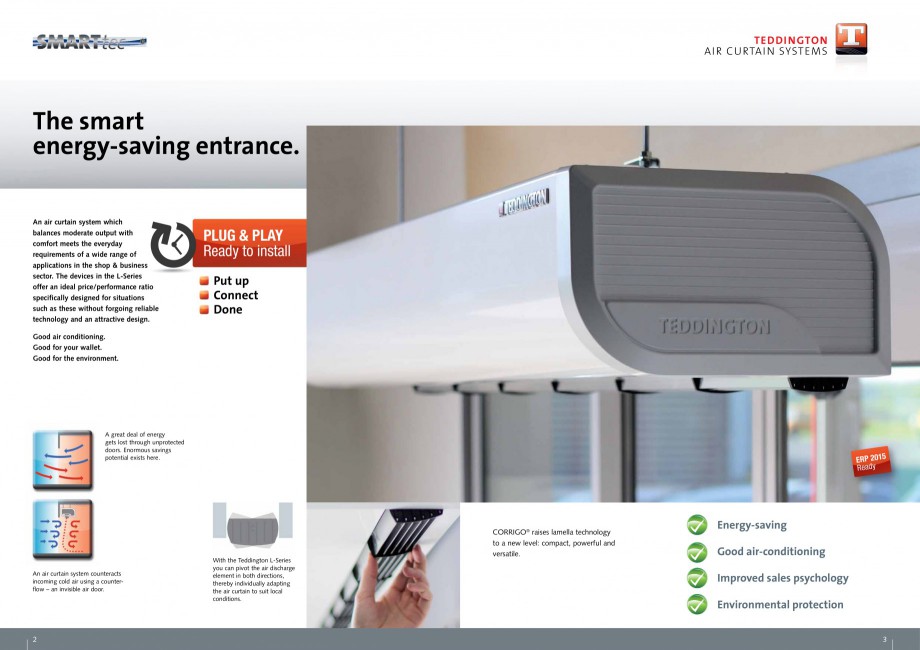

TEDDI NGTON A I R CU RTA I N SYSTE MS L -S E R I E S The smart entrance for Shop & Business Equipped with the CORRIGO ® air discharge system Doors Made of Air RAL 5002 Ultramarinblau 100 / 70 / 0 / 40 TED D I NGTON A I R CU RTA I N SYSTEMS ® ® The smart energy-saving entrance. An air curtain system which balances moderate output with comfort meets the everyday requirements of a wide range of applications in the shop & business sector. The devices in the L-Series offer an ideal price/performance ratio specifically designed for situations such as these without forgoing reliable technology and an attractive design. Plug & Play Ready to install Put up Connect Done Good air conditioning. Good for your wallet. Good for the environment. A great deal of energy gets lost through unprotected doors. Enormous savings potential exists here. An air curtain system counteracts incoming cold air using a counterflow – an invisible air door. 2 ERP 2015 Ready With the Teddingt

Pagina 1-Perdea de aer pentru spatii comerciale si birouri TEDDINGTON L-SERIES Fisa tehnica Engleza TEDDI...

Pagina 2 - Perdea de aer pentru spatii comerciale si birouri TEDDINGTON L-SERIES Fisa tehnica...

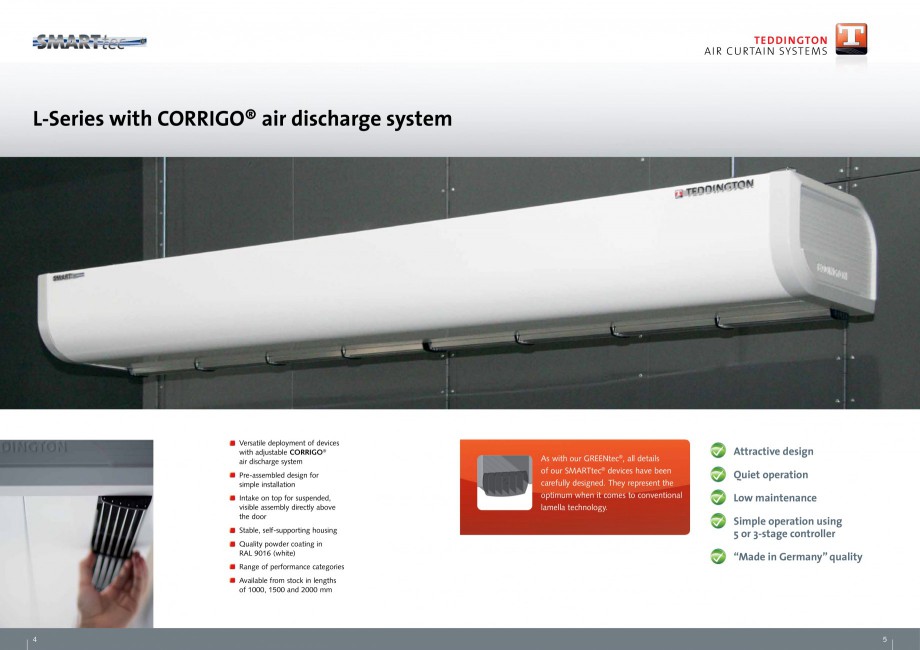

on L-Series you can pivot the air discharge element in both directions, thereby individually adapting the air curtain to suit local conditions. CORRIGO® raises lamella technology to a new level: compact, powerful and versatile. Energy-saving Good air-conditioning Improved sales psychology Environmental protection 3 RAL 5002 Ultramarinblau 100 / 70 / 0 / 40 TED D I NGTON A I R CU RTA I N SYSTEMS ® ® L-Series with CORRIGO® air discharge system ersatile deployment of devices V with adjustable CORRIGO® air discharge system re-assembled design for P simple installation ntake on top for suspended, I visible assembly directly above the door Stable, self-supporting housing uality powder coating in Q RAL 9016 (white) Range of performance categories As with our GREENtec®, all details of our SMARTtec® devices have been carefully designed. They represent the optimum when it comes to conventional lamella technology. Attractive design Quiet oper

Pagina 2-Perdea de aer pentru spatii comerciale si birouri TEDDINGTON L-SERIES Fisa tehnica Engleza on...

Pagina 3 - Perdea de aer pentru spatii comerciale si birouri TEDDINGTON L-SERIES Fisa tehnica...

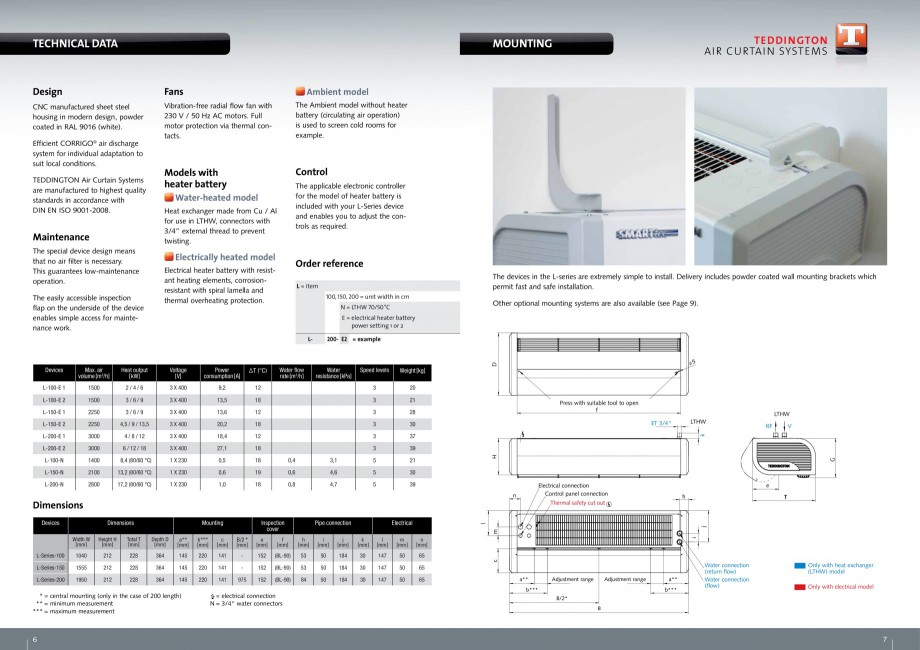

ation Low maintenance Simple operation using 5 or 3-stage controller “Made in Germany” quality vailable from stock in lengths A of 1000, 1500 and 2000 mm 4 5 Technical data TED D I NGTON A I R CU RTA I N SYSTEMS Mounting Design Fans Ambient model CNC manufactured sheet steel housing in modern design, powder coated in RAL 9016 (white). Vibration-free radial flow fan with 230 V / 50 Hz AC motors. Full motor protection via thermal contacts. The Ambient model without heater battery (circulating air operation) is used to screen cold rooms for example. Models with heater battery Control Efficient CORRIGO® air discharge system for individual adaptation to suit local conditions. TEDDINGTON Air Curtain Systems are manufactured to highest quality standards in accordance with DIN EN ISO 9001-2008. The applicable electronic controller for the model of heater battery is included with your L-Series device and enables you to adjust the controls as required. Wat

Pagina 3-Perdea de aer pentru spatii comerciale si birouri TEDDINGTON L-SERIES Fisa tehnica Engleza ation
Low...

Pagina 4 - Perdea de aer pentru spatii comerciale si birouri TEDDINGTON L-SERIES Fisa tehnica...

er-heated model Heat exchanger made from Cu / Al for use in LTHW, connectors with 3/4” external thread to prevent twisting. Maintenance The special device design means that no air filter is necessary. This guarantees low-maintenance operation. Electrically heated model Order reference Electrical heater battery with resistant heating elements, corrosionresistant with spiral lamella and thermal overheating protection. The easily accessible inspection flap on the underside of the device enables simple access for maintenance work. The devices in the L-series are extremely simple to install. Delivery includes powder coated wall mounting brackets which permit fast and safe installation. L = item 100, 150, 200 = unit width in cm Other optional mounting systems are also available (see Page 9). N = LTHW 70/50 °C E = electrical heater battery power setting 1 or 2 L- Power consumption [A] ΔT (°C) L-100-E 1 1500 2/4/6 3 X 400 9,2 L-100-E 2 1500 3/6/9 3 X 400 L-150-

Pagina 4-Perdea de aer pentru spatii comerciale si birouri TEDDINGTON L-SERIES Fisa tehnica Engleza er-heated...

Pagina 5 - Perdea de aer pentru spatii comerciale si birouri TEDDINGTON L-SERIES Fisa tehnica...

E 1 2250 3/6/9 L-150-E 2 2250 L-200-E 1 Water flow rate [m3/h] Water resistance [kPa] Speed levels 5 Weight [kg] 12 3 20 13,5 18 3 21 3 X 400 13,6 12 3 28 4,5 / 9 / 13,5 3 X 400 20,2 18 3 30 3000 4 / 8 / 12 3 X 400 18,4 12 3 37 L-200-E 2 3000 6 / 12 / 18 3 X 400 27,1 18 3 39 L-100-N 1400 8,4 (80/60 °C) 1 X 230 0,5 18 0,4 3,1 5 21 L-150-N 2100 13,2 (80/60 °C) 1 X 230 0,6 19 0,6 4,6 5 30 L-200-N 2800 17,2 (80/60 °C) 1 X 230 1,0 18 0,8 4,7 5 39 Press with suitable tool to open f h Thermal safety cut out Pipe connection Electrical j Inspection cover Total T [mm] Depth D [mm] a** [mm] b*** [mm] c [mm] B/2 * [mm] e [mm] f [mm] h [mm] i [mm] j [mm] k [mm] l [mm] m [mm] n [mm] L-Series-100 1040 212 228 364 145 220 141 - 152 (BL-90) 53 50 184 30 147 50 65 L-Series-150 1555 212 228 364 145 220 141 - 152 (BL-90) 53 50 184 30 147 50 65 L-Series

Pagina 5-Perdea de aer pentru spatii comerciale si birouri TEDDINGTON L-SERIES Fisa tehnica Engleza E 1

2250...

Pagina 6 - Perdea de aer pentru spatii comerciale si birouri TEDDINGTON L-SERIES Fisa tehnica...

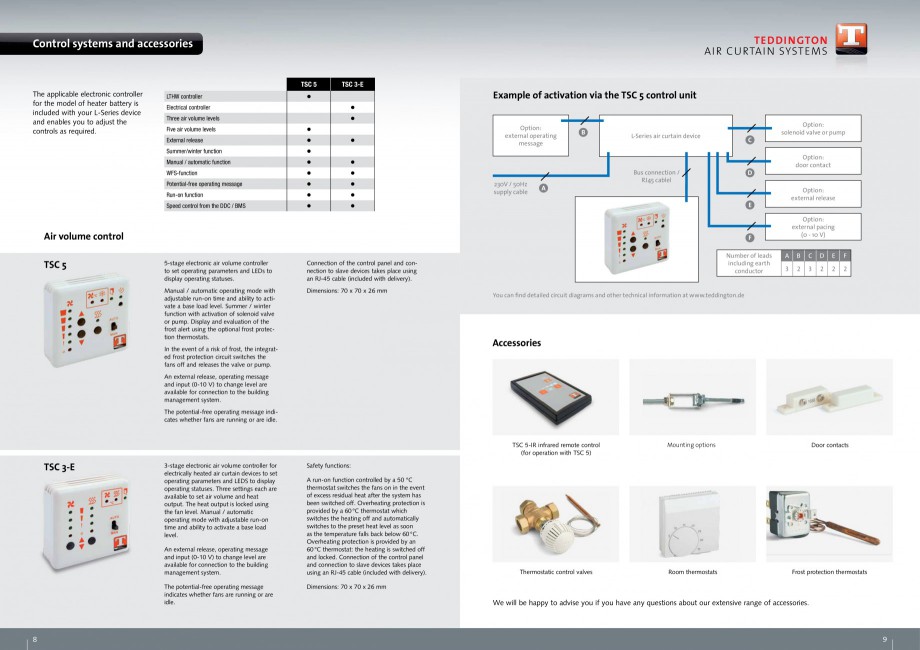

-200 1950 212 228 364 145 220 141 975 152 (BL-90) 84 50 184 30 147 50 65 i Height H [mm] c Width W [mm] T m Mounting V l Dimensions RF e Electrical connection Control panel connection n Dimensions Devices LTHW LTHW ET 3/4“ G Voltage [V] k Heat output [kW] D Max. air volume [m3/h] H Devices 200- E2 = example * = central mounting (only in the case of 200 length) ** = minimum measurement *** = maximum measurement 6 = electrical connection N = 3/4“ water connectors a** Adjustment range Adjustment range b*** a** b*** Water connection (return flow) Water connection (flow) Only with heat exchanger (LTHW) model Only with electrical model B/2* B 7 TED D I NGTON A I R CU RTA I N SYSTEMS Control systems and accessories TSC 5 The applicable electronic controller for the model of heater battery is included with your L-Series device and enables you to adjust the controls as required. LTHW controller TSC 3-E  Electric

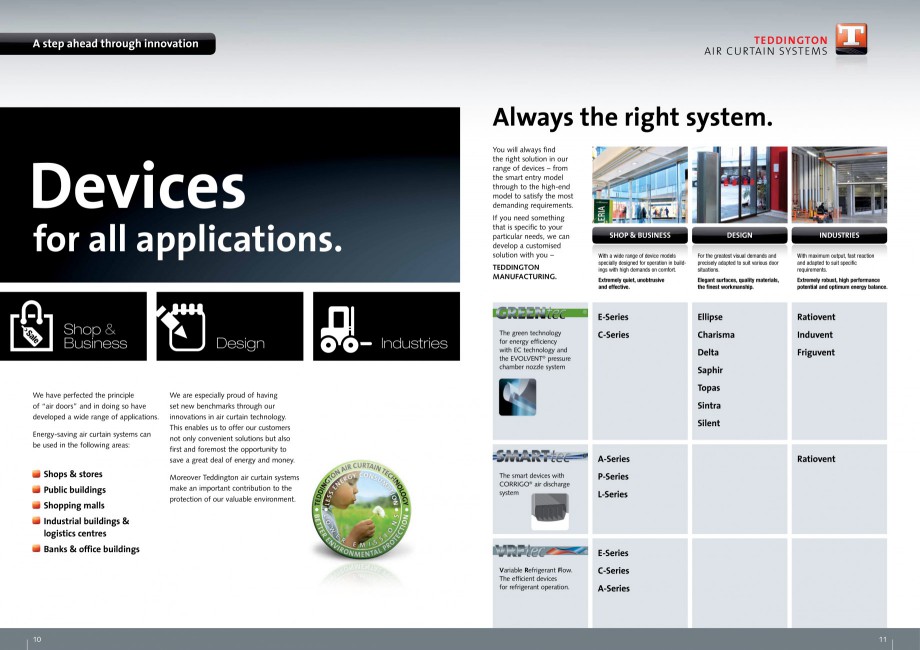

Pagina 6-Perdea de aer pentru spatii comerciale si birouri TEDDINGTON L-SERIES Fisa tehnica Engleza -200
...

Pagina 7 - Perdea de aer pentru spatii comerciale si birouri TEDDINGTON L-SERIES Fisa tehnica...

al controller  Three air volume levels Example of activation via the TSC 5 control unit  Five air volume levels  External release  Summer/winter function  Manual / automatic function    Potential-free operating message   Run-on function   Speed control from the DDC / BMS    230V / 50Hz supply cable B A L-Series air curtain device C Bus connection / RJ45 cablel Option: door contact D Option: external release E Air volume control TSC 5 Option: solenoid valve or pump  WFS-function Option: external operating message Option: external pacing (0 - 10 V) F 5-stage electronic air volume controller to set operating parameters and LEDs to display operating statuses. Manual / automatic operating mode with adjustable run-on time and ability to activate a base load level. Summer / winter function with activation of solenoid valve or pump. Display and evaluation of the frost alert using the optional frost protect
