Pagina 1 - Policarbonat cutat luminatoare GEPLAST GRECA Fisa tehnica Engleza POLYCARBONATE MULTIWALL...

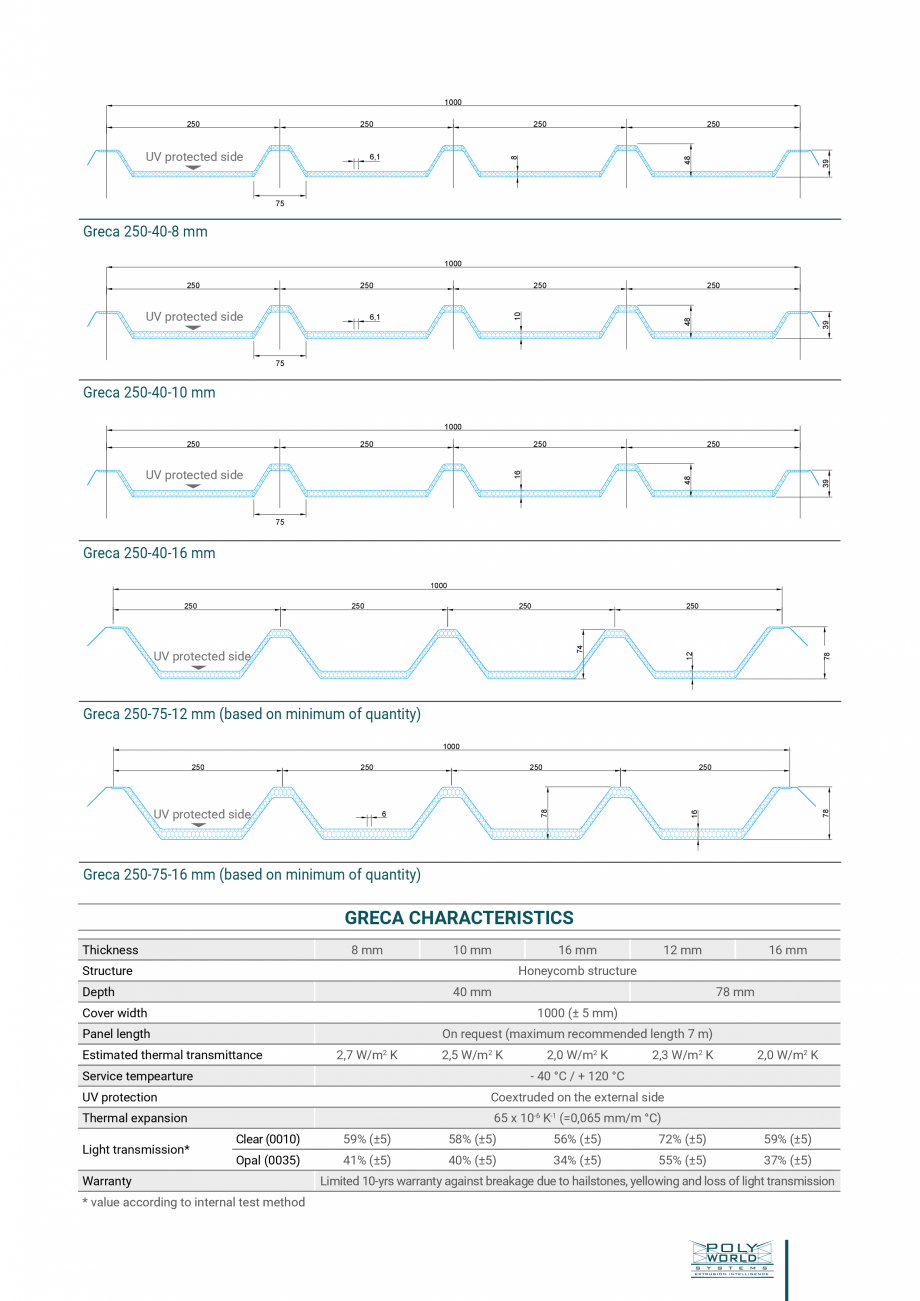

POLYCARBONATE MULTIWALL CORRUGATED SHEETS WITH COEXTRUDED UV PROTECTION GRECA 1000 250 8 6,1 250 39 UV protected side 250 48 250 75 Greca 250-40-8 mm 1000 UV protected side 250 UV protected side 10 6,1 250 39 250 48 250 75 Greca 250-40-10 mm 1000 250 250 48 16 UV protected side 250 39 250 75 Greca 250-40-16 mm 1000 250 250 12 UV protected side 78 250 74 250 Greca 250-75-12 mm (based on minimum of quantity) 1000 6 250 16 UV protected side 250 78 250 78 250 Greca 250-75-16 mm (based on minimum of quantity) GRECA CHARACTERISTICS Thickness 8 mm 10 mm 16 mm Structure 12 mm Depth 40 mm 78 mm Cover width 1000 (± 5 mm) Panel length On request (maximum recommended length 7 m) Estimated thermal transmittance 2,7 W/m K 2 2,5 W/m2 K Service tempearture 2,0 W/m2 K 2,3 W/m2 K 2,0 W/m2 K - 40 °C / + 120 °C UV protection Coextruded on the external side Thermal expansion 65 x 10-6 K-1 (=0,065 mm/m °C) Light transmission*

Pagina 1-Policarbonat cutat luminatoare GEPLAST GRECA Fisa tehnica Engleza POLYCARBONATE MULTIWALL CORRUGATED...

Pagina 2 - Policarbonat cutat luminatoare GEPLAST GRECA Fisa tehnica Engleza
16 mm

Honeycomb...

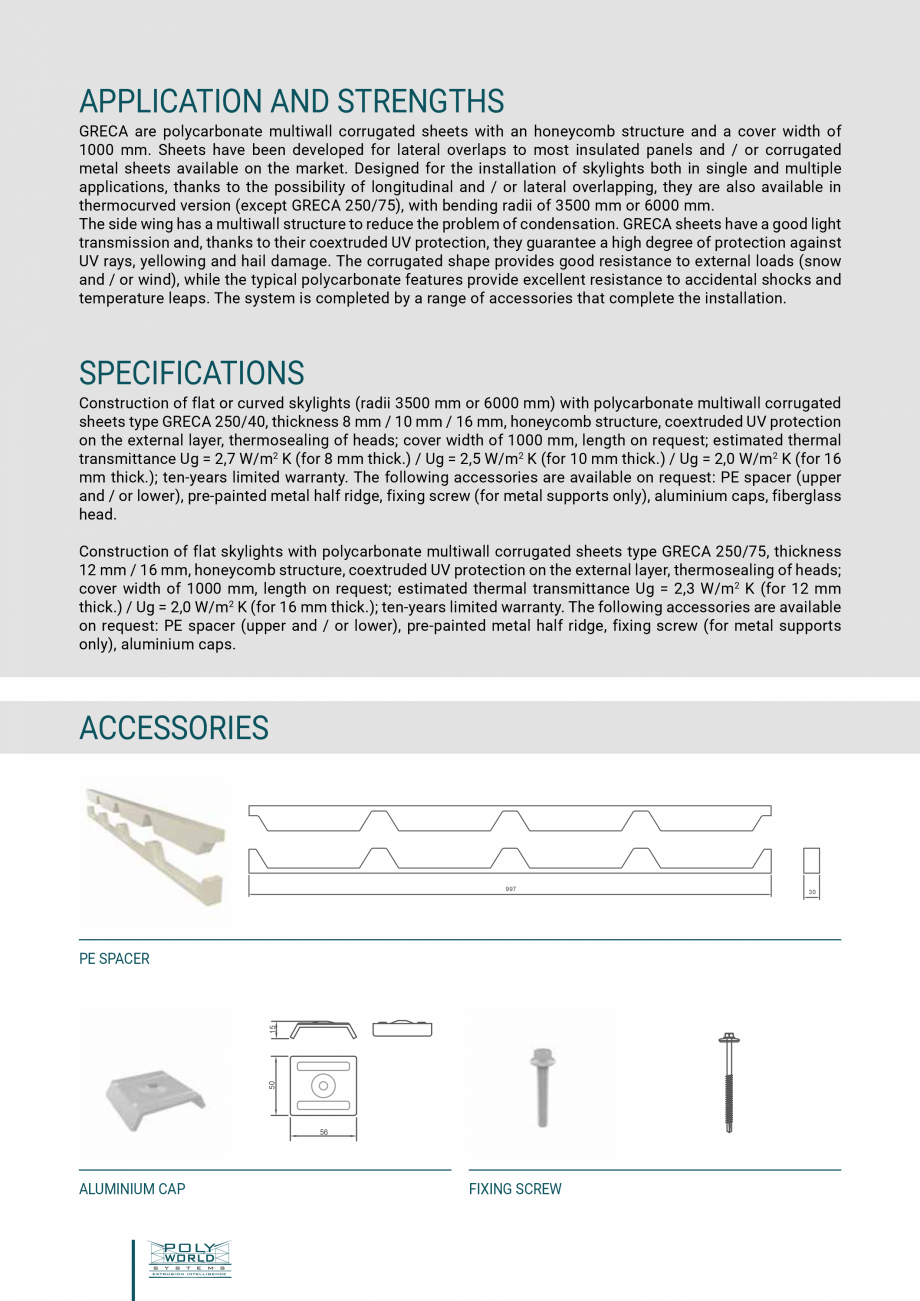

16 mm Honeycomb structure Clear (0010) Opal (0035) Warranty * value according to internal test method 59% (±5) 58% (±5) 56% (±5) 72% (±5) 59% (±5) 41% (±5) 40% (±5) 34% (±5) 55% (±5) 37% (±5) Limited 10-yrs warranty against breakage due to hailstones, yellowing and loss of light transmission APPLICATION AND STRENGTHS GRECA are polycarbonate multiwall corrugated sheets with an honeycomb structure and a cover width of 1000 mm. Sheets have been developed for lateral overlaps to most insulated panels and / or corrugated metal sheets available on the market. Designed for the installation of skylights both in single and multiple applications, thanks to the possibility of longitudinal and / or lateral overlapping, they are also available in thermocurved version (except GRECA 250/75), with bending radii of 3500 mm or 6000 mm. The side wing has a multiwall structure to reduce the problem of condensation. GRECA sheets have a good light transmission and, thanks to thei

Pagina 2-Policarbonat cutat luminatoare GEPLAST GRECA Fisa tehnica Engleza
16 mm

Honeycomb structure

Clear...

Pagina 3 - Policarbonat cutat luminatoare GEPLAST GRECA Fisa tehnica Engleza r coextruded UV...

r coextruded UV protection, they guarantee a high degree of protection against UV rays, yellowing and hail damage. The corrugated shape provides good resistance to external loads (snow and / or wind), while the typical polycarbonate features provide excellent resistance to accidental shocks and temperature leaps. The system is completed by a range of accessories that complete the installation. SPECIFICATIONS Construction of flat or curved skylights (radii 3500 mm or 6000 mm) with polycarbonate multiwall corrugated sheets type GRECA 250/40, thickness 8 mm / 10 mm / 16 mm, honeycomb structure, coextruded UV protection on the external layer, thermosealing of heads; cover width of 1000 mm, length on request; estimated thermal transmittance Ug = 2,7 W/m2 K (for 8 mm thick.) / Ug = 2,5 W/m2 K (for 10 mm thick.) / Ug = 2,0 W/m2 K (for 16 mm thick.); ten-years limited warranty. The following accessories are available on request: PE spacer (upper and / or lower), pre-painted metal half ridge,

Pagina 3-Policarbonat cutat luminatoare GEPLAST GRECA Fisa tehnica Engleza r coextruded UV protection, they...

Pagina 4 - Policarbonat cutat luminatoare GEPLAST GRECA Fisa tehnica Engleza fixing screw (for...

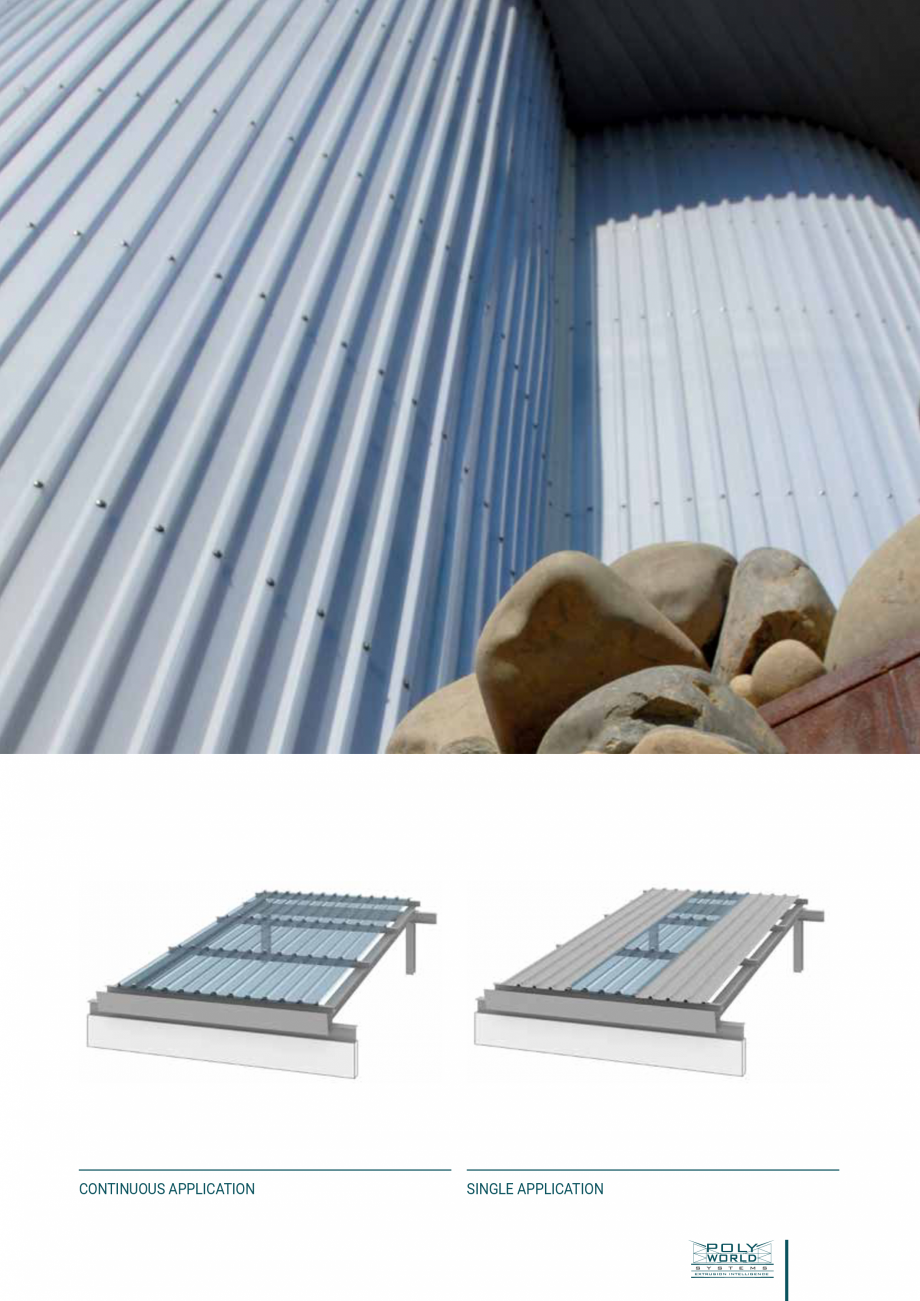

fixing screw (for metal supports only), aluminium caps, fiberglass head. Construction of flat skylights with polycarbonate multiwall corrugated sheets type GRECA 250/75, thickness 12 mm / 16 mm, honeycomb structure, coextruded UV protection on the external layer, thermosealing of heads; cover width of 1000 mm, length on request; estimated thermal transmittance Ug = 2,3 W/m2 K (for 12 mm thick.) / Ug = 2,0 W/m2 K (for 16 mm thick.); ten-years limited warranty. The following accessories are available on request: PE spacer (upper and / or lower), pre-painted metal half ridge, fixing screw (for metal supports only), aluminium caps. ACCESSORIES 997 50 15 PE SPACER 56 ALUMINIUM CAP FIXING SCREW 30 CONTINUOUS APPLICATION SINGLE APPLICATION
