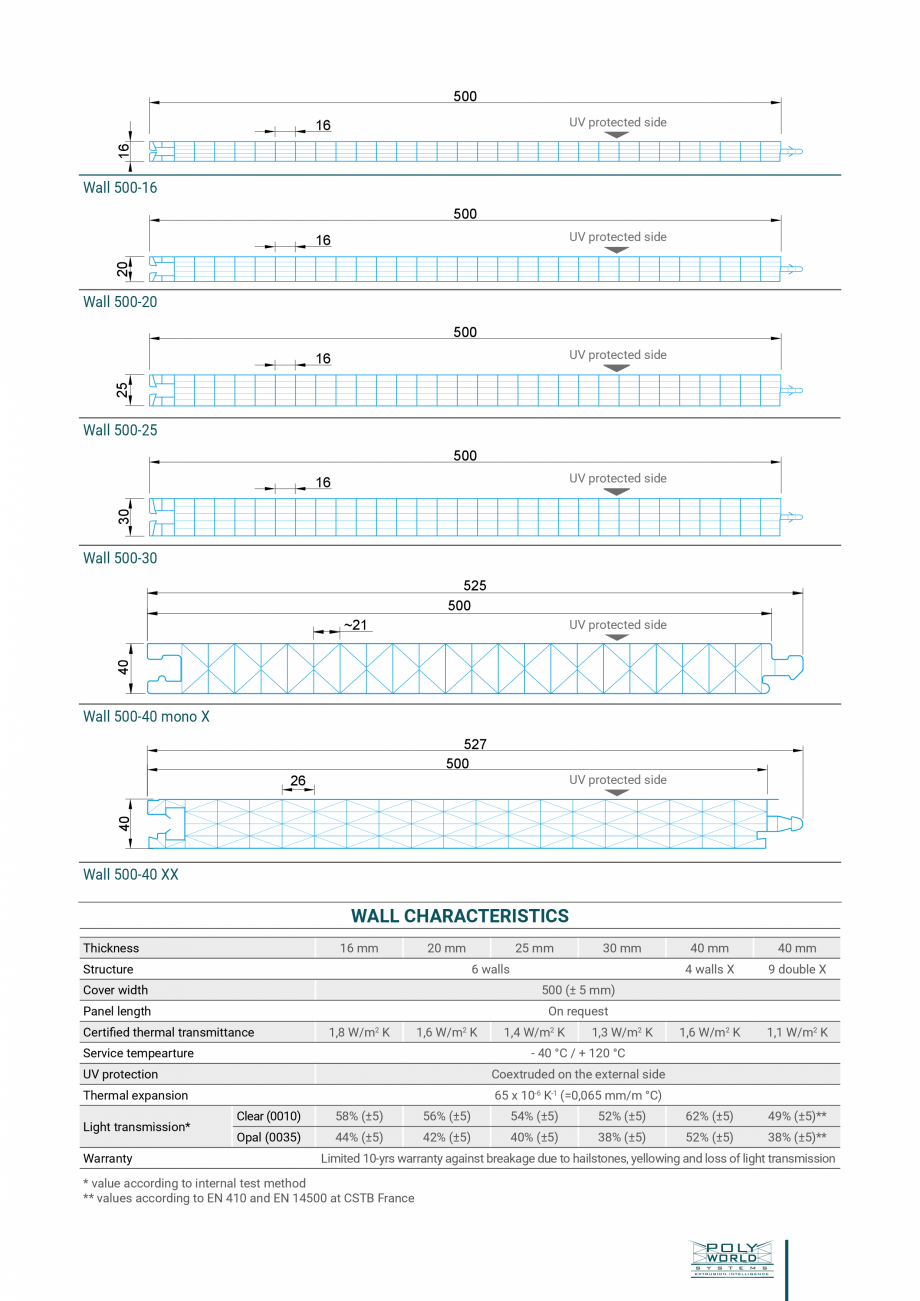

MODULAR POLYCARBONATE SYSTEM WITH COEXTRUDED UV PROTECTION, FOR WALLS WALL 500 UV protected side 16 16 Wall 500-16 500 UV protected side UV protected side 20 16 Wall 500-20 500 UV protected side 25 16 Wall 500-25 500 UV protected side 30 16 Wall 500-30 525 500 ~21 40 UV protected side Wall 500-40 mono X 527 500 UV protected side 40 26 Wall 500-40 XX WALL CHARACTERISTICS Thickness 16 mm 20 mm Structure 25 mm 30 mm 6 walls Cover width 1,6 W/m2 K 1,1 W/m2 K On request Certified thermal transmittance 1,8 W/m2 K 1,6 W/m2 K Service tempearture 1,4 W/m2 K 1,3 W/m2 K - 40 °C / + 120 °C UV protection Coextruded on the external side Thermal expansion 65 x 10-6 K-1 (=0,065 mm/m °C) Warranty 40 mm 9 double X 500 (± 5 mm) Panel length Light transmission* 40 mm 4 walls X Clear (0010) 58% (±5) 56% (±5) 54% (±5) 52% (±5) 62% (±5) 49% (±5)** Opal (0035) 44% (±5) 42% (±5) 40% (±5) 38% (±5) 52% (±5) 38% (±5)** Limited 10-yrs

Pagina 1-Sistem modular policarbonat structurat GEPLAST NUT-FEDER WALL Fisa tehnica Engleza MODULAR...

Pagina 2 - Sistem modular policarbonat structurat GEPLAST NUT-FEDER WALL Fisa tehnica Engleza...

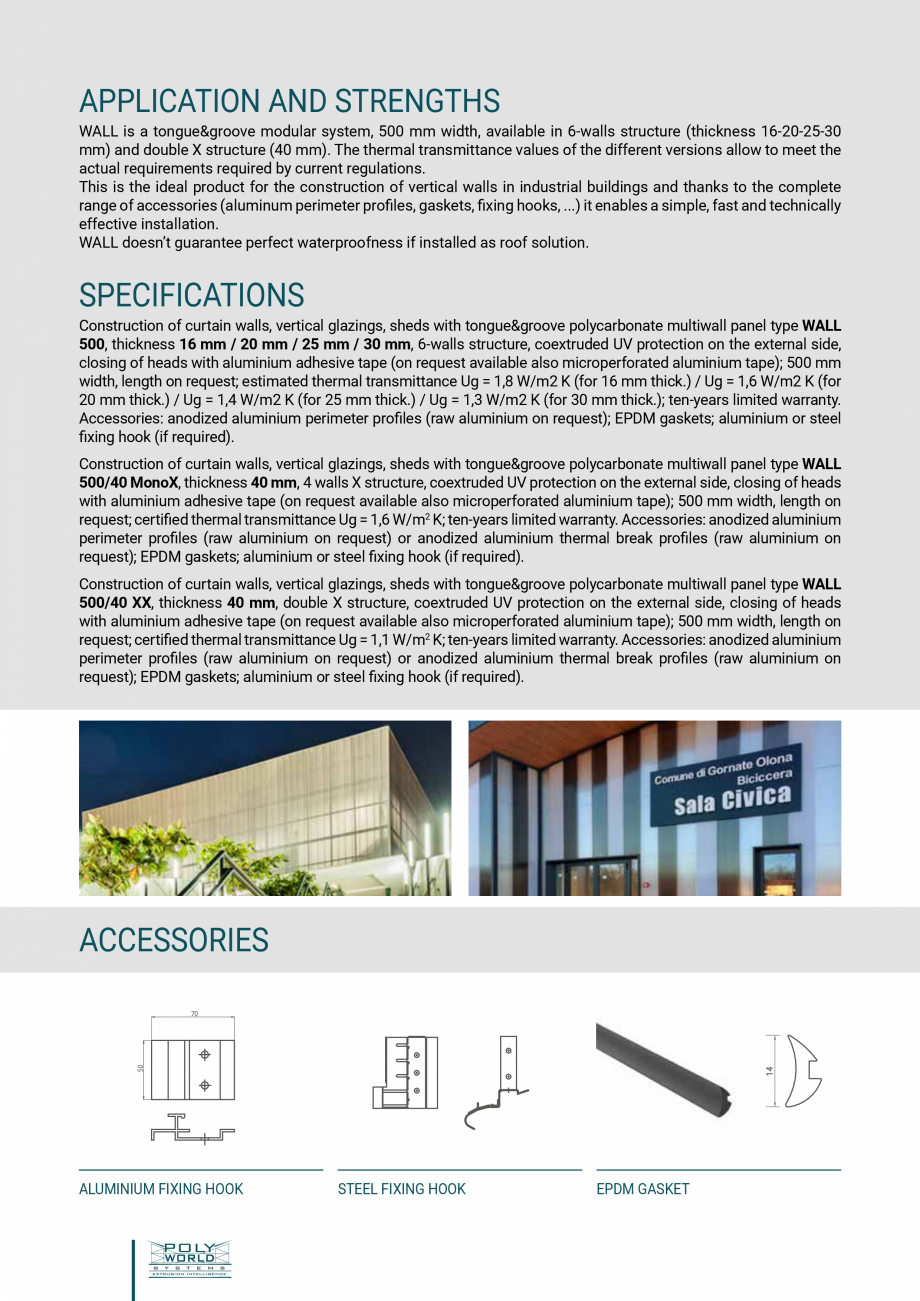

warranty against breakage due to hailstones, yellowing and loss of light transmission * value according to internal test method ** values according to EN 410 and EN 14500 at CSTB France APPLICATION AND STRENGTHS WALL is a tongue&groove modular system, 500 mm width, available in 6-walls structure (thickness 16-20-25-30 mm) and double X structure (40 mm). The thermal transmittance values of the different versions allow to meet the actual requirements required by current regulations. This is the ideal product for the construction of vertical walls in industrial buildings and thanks to the complete range of accessories (aluminum perimeter profiles, gaskets, fixing hooks, ...) it enables a simple, fast and technically effective installation. WALL doesn’t guarantee perfect waterproofness if installed as roof solution. SPECIFICATIONS Construction of curtain walls, vertical glazings, sheds with tongue&groove polycarbonate multiwall panel type WALL 500, thickness 16 mm / 20 mm / 25 mm /

Pagina 2-Sistem modular policarbonat structurat GEPLAST NUT-FEDER WALL Fisa tehnica Engleza warranty against ...

Pagina 3 - Sistem modular policarbonat structurat GEPLAST NUT-FEDER WALL Fisa tehnica Engleza 30 mm...

30 mm, 6-walls structure, coextruded UV protection on the external side, closing of heads with aluminium adhesive tape (on request available also microperforated aluminium tape); 500 mm width, length on request; estimated thermal transmittance Ug = 1,8 W/m2 K (for 16 mm thick.) / Ug = 1,6 W/m2 K (for 20 mm thick.) / Ug = 1,4 W/m2 K (for 25 mm thick.) / Ug = 1,3 W/m2 K (for 30 mm thick.); ten-years limited warranty. Accessories: anodized aluminium perimeter profiles (raw aluminium on request); EPDM gaskets; aluminium or steel fixing hook (if required). Construction of curtain walls, vertical glazings, sheds with tongue&groove polycarbonate multiwall panel type WALL 500/40 MonoX, thickness 40 mm, 4 walls X structure, coextruded UV protection on the external side, closing of heads with aluminium adhesive tape (on request available also microperforated aluminium tape); 500 mm width, length on request; certified thermal transmittance Ug = 1,6 W/m2 K; ten-years limited warranty. Accessories

Pagina 3-Sistem modular policarbonat structurat GEPLAST NUT-FEDER WALL Fisa tehnica Engleza 30 mm, 6-walls...

Pagina 4 - Sistem modular policarbonat structurat GEPLAST NUT-FEDER WALL Fisa tehnica Engleza :...

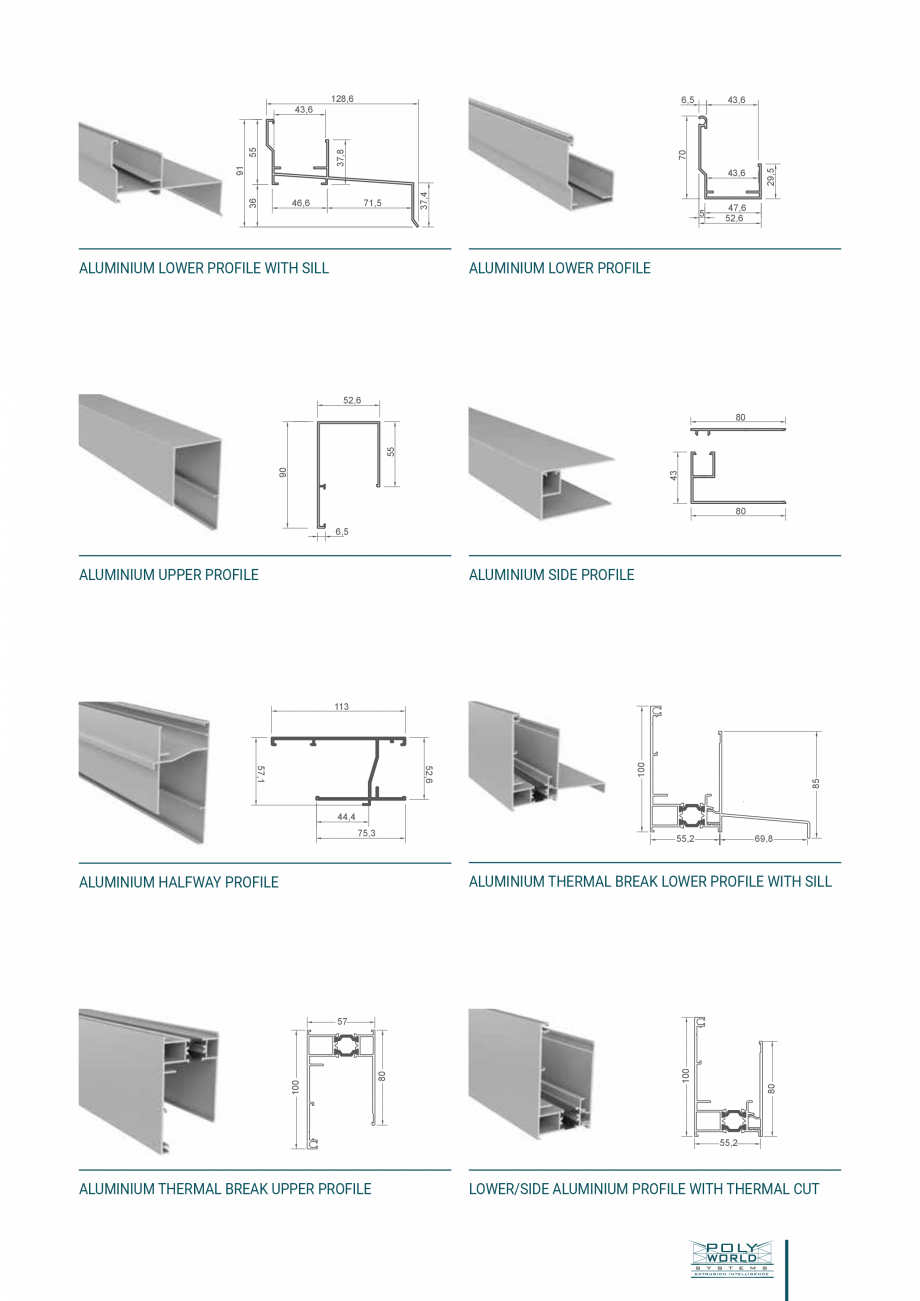

: anodized aluminium perimeter profiles (raw aluminium on request) or anodized aluminium thermal break profiles (raw aluminium on request); EPDM gaskets; aluminium or steel fixing hook (if required). Construction of curtain walls, vertical glazings, sheds with tongue&groove polycarbonate multiwall panel type WALL 500/40 XX, thickness 40 mm, double X structure, coextruded UV protection on the external side, closing of heads with aluminium adhesive tape (on request available also microperforated aluminium tape); 500 mm width, length on request; certified thermal transmittance Ug = 1,1 W/m2 K; ten-years limited warranty. Accessories: anodized aluminium perimeter profiles (raw aluminium on request) or anodized aluminium thermal break profiles (raw aluminium on request); EPDM gaskets; aluminium or steel fixing hook (if required). ACCESSORIES ALUMINIUM FIXING HOOK 14 50 70 STEEL FIXING HOOK EPDM GASKET 128,6 6,5 71,5 5 29,5 70 46,6 36 43,6 43,6 37,4 91 37,8 55 43,6 47,

Pagina 4-Sistem modular policarbonat structurat GEPLAST NUT-FEDER WALL Fisa tehnica Engleza : anodized...

Pagina 5 - Sistem modular policarbonat structurat GEPLAST NUT-FEDER WALL Fisa tehnica Engleza 6
52,6...

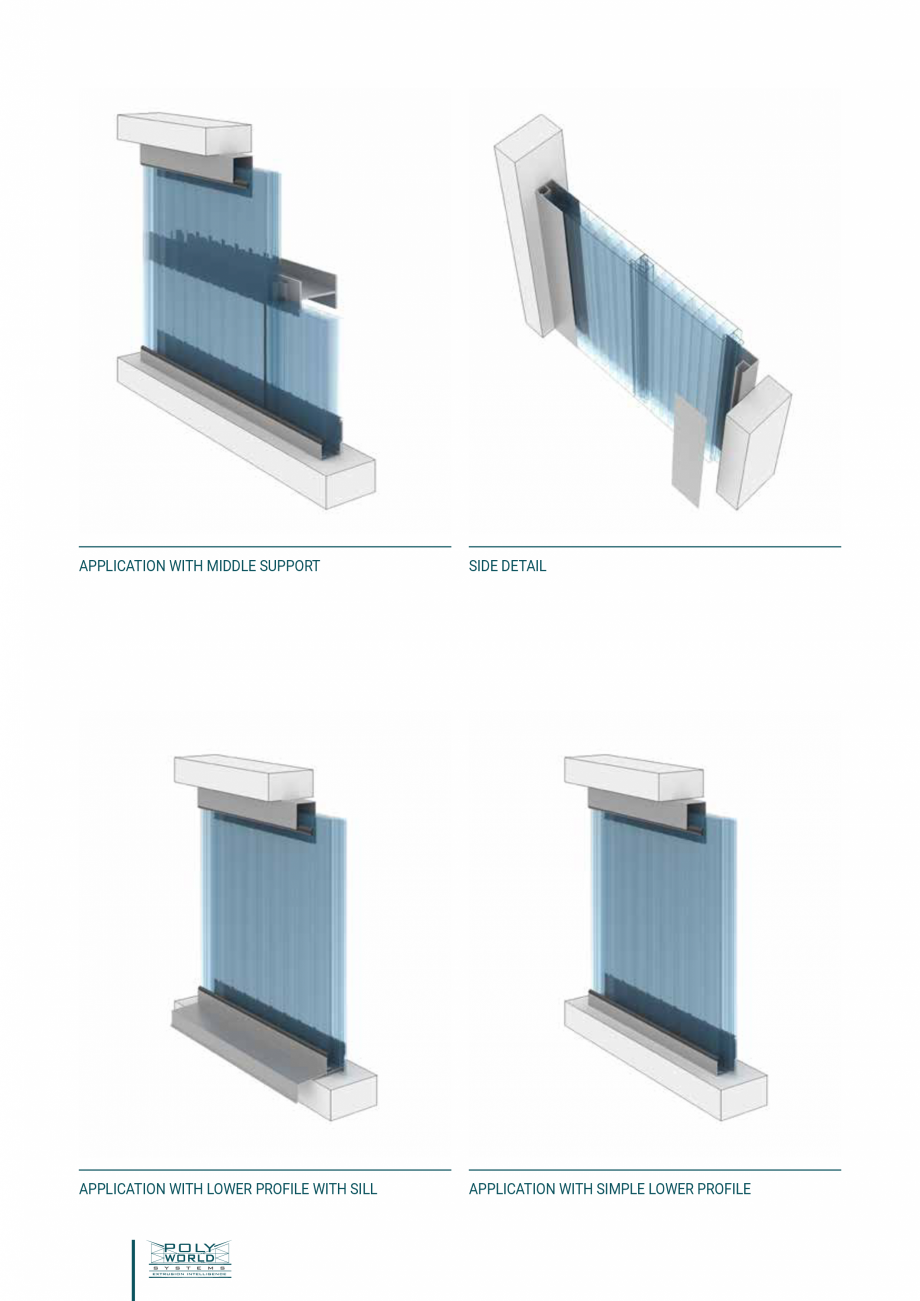

6 52,6 ALUMINIUM LOWER PROFILE ALUMINIUM LOWER PROFILE WITH SILL 52,6 43 90 55 80 80 6,5 ALUMINIUM UPPER PROFILE ALUMINIUM SIDE PROFILE 85 52,6 57,1 100 113 44,4 75,3 55,2 69,8 ALUMINIUM THERMAL BREAK LOWER PROFILE WITH SILL ALUMINIUM HALFWAY PROFILE 80 100 80 100 57 55,2 ALUMINIUM THERMAL BREAK UPPER PROFILE LOWER/SIDE ALUMINIUM PROFILE WITH THERMAL CUT APPLICATION WITH MIDDLE SUPPORT SIDE DETAIL APPLICATION WITH LOWER PROFILE WITH SILL APPLICATION WITH SIMPLE LOWER PROFILE
