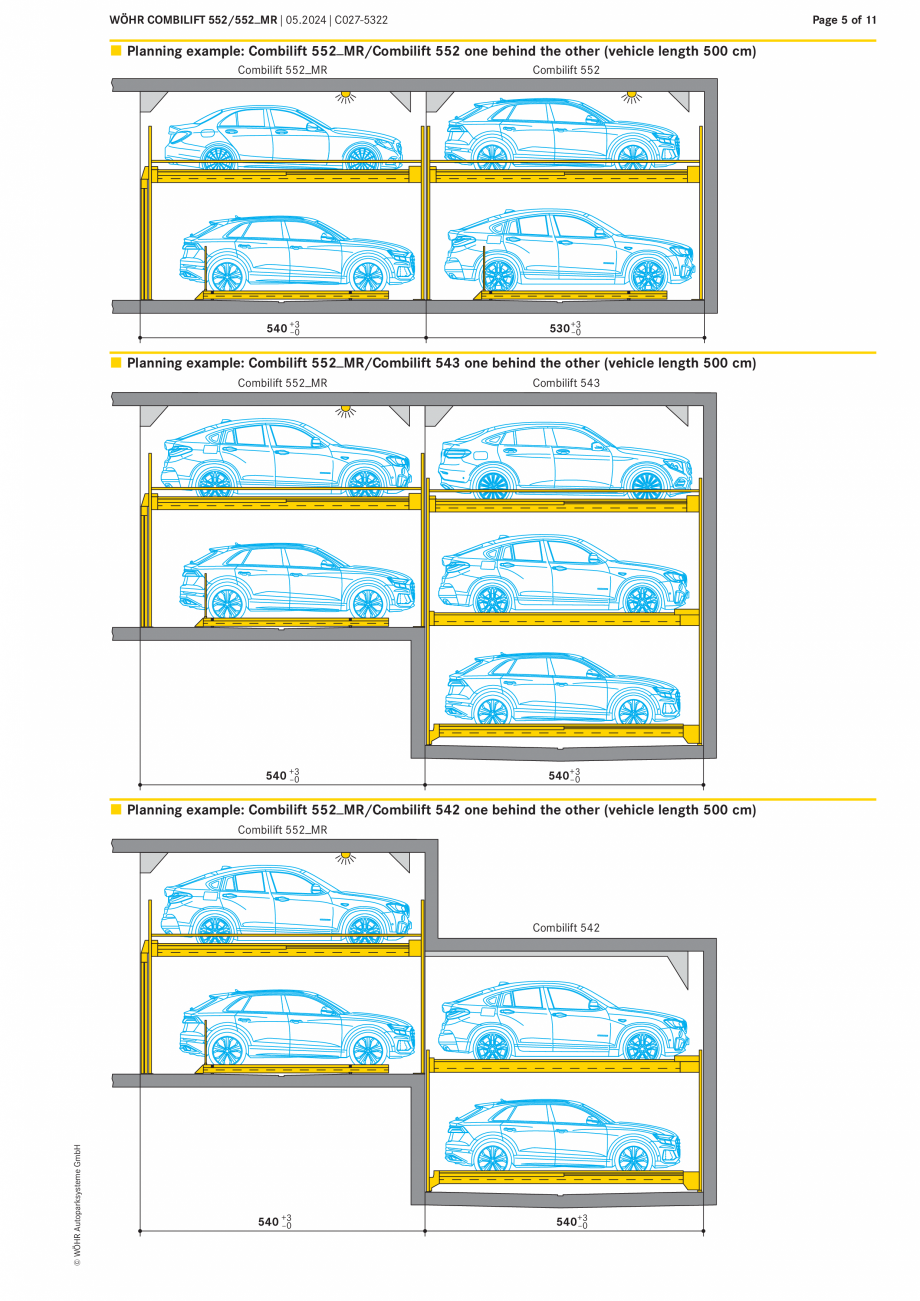

comfort depending
on the vehicle width, vehicle type, individual driving style, access
situation of the (underground) garage.
With a 90° arrangement of the parking places, we recommend widening
the driving aisle to at least 700 cm or a wall recess (see below).

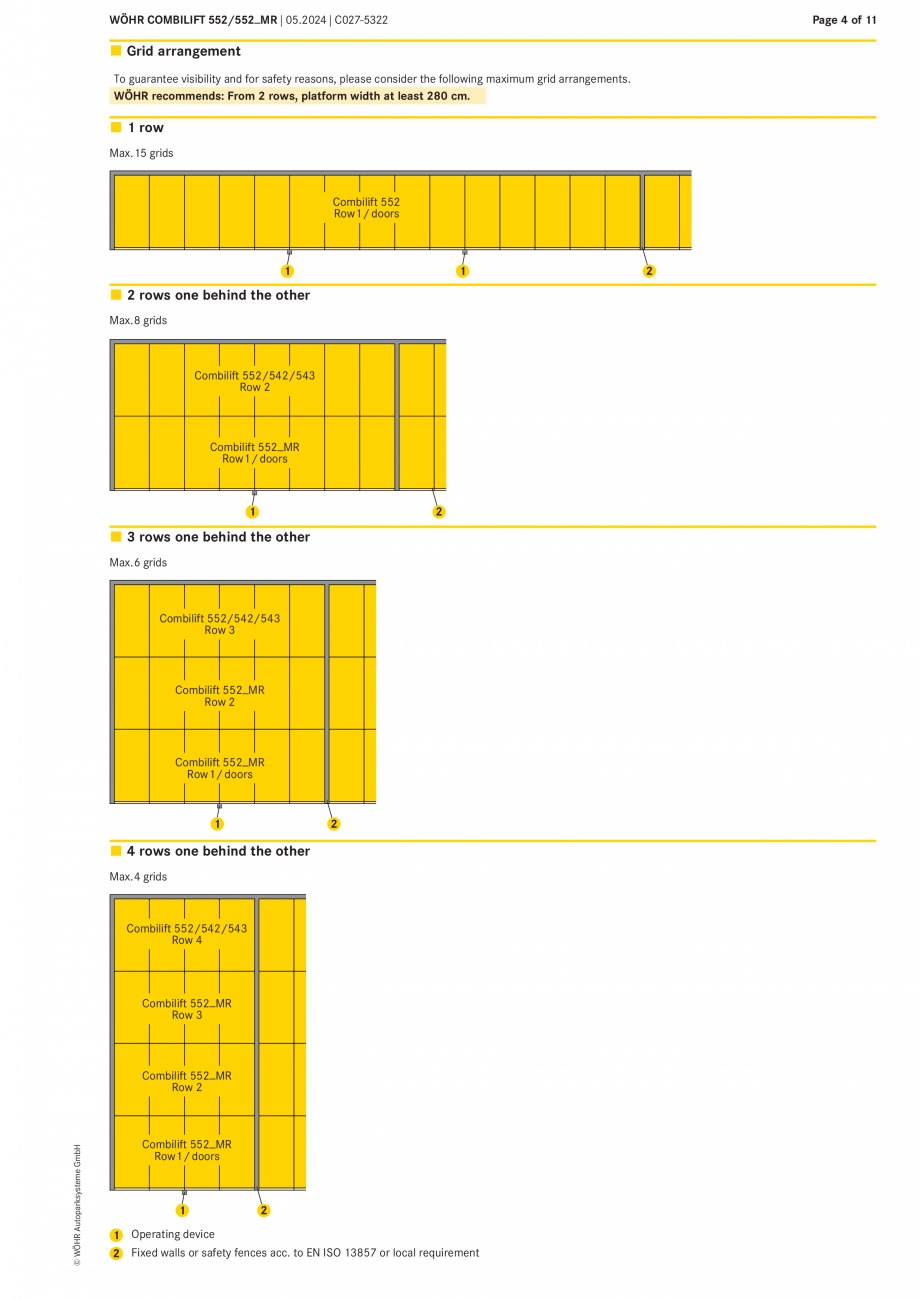

Platform widths:
250 cm:
– for 190 cm vehicle width (without outside mirror)
260–300 cm:
– for vehicles wider than 190 cm (without outside mirror)
270–300 cm:
– for units at the end of the driving aisle

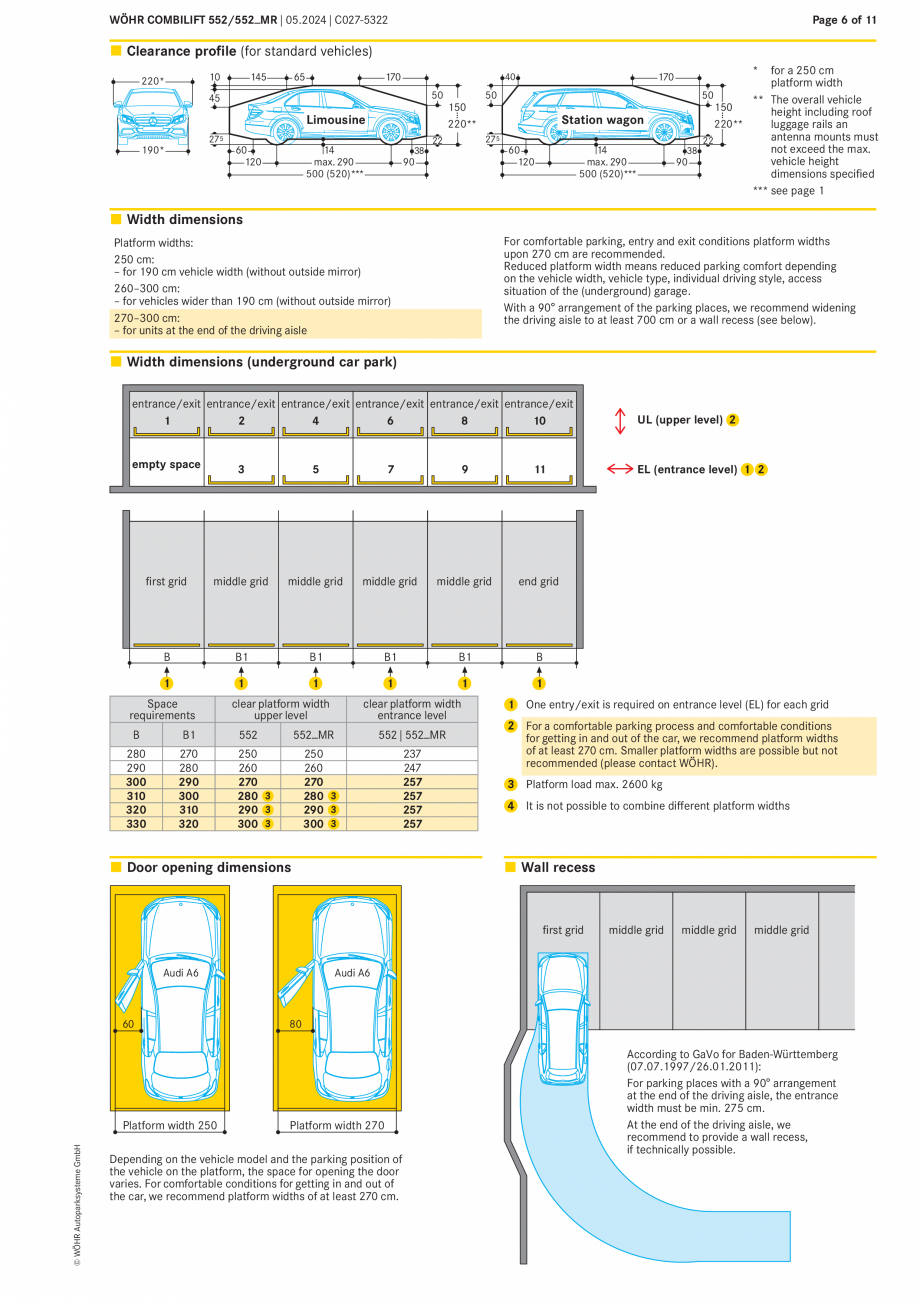

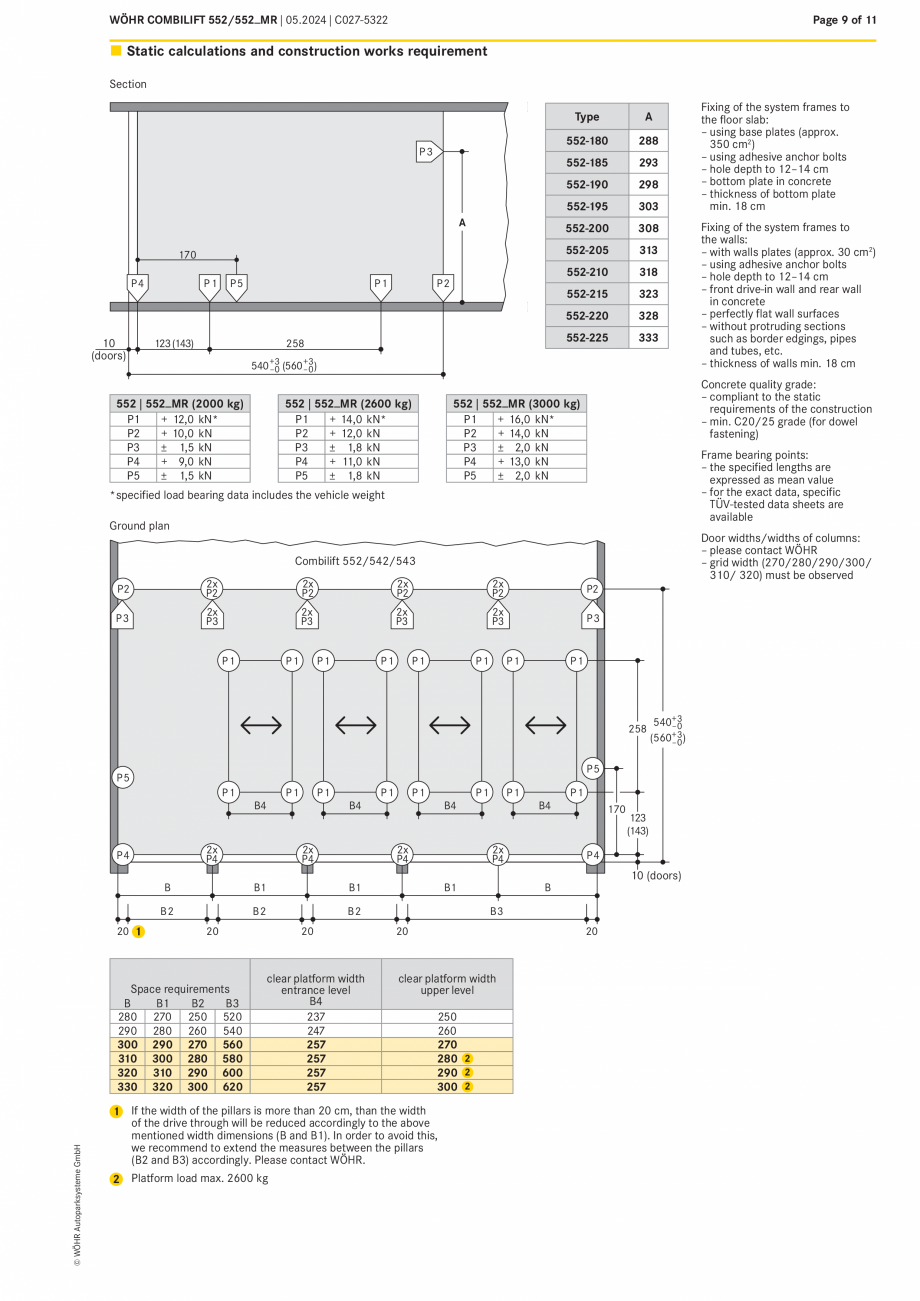

Width dimensions (underground car park)
entrance/exit entrance/exit entrance/exit entrance/exit entrance/exit entrance/exit
1
2
4
6
8
10
UL (upper level) 2
empty space
3
5
7
9
11
EL (entrance level) 1 2
first grid
middle grid
middle grid
middle grid
middle grid
end grid
B
B1
B1
B1
B1
B
1
1
1
1
1
Space
requirements
B
B1
280
290
300
310
320
330
270
280
290
300
310
320
clear platform width
upper level
552
552_MR
250
260
270
280 3
290 3
300 3
clear platform width
entrance level
552 | 552_MR
