Pagina 1 - Sistem mecanic de parcare - COMBILIFT WÖHR COMBILIFT 542 Fisa tehnica Engleza Data ...

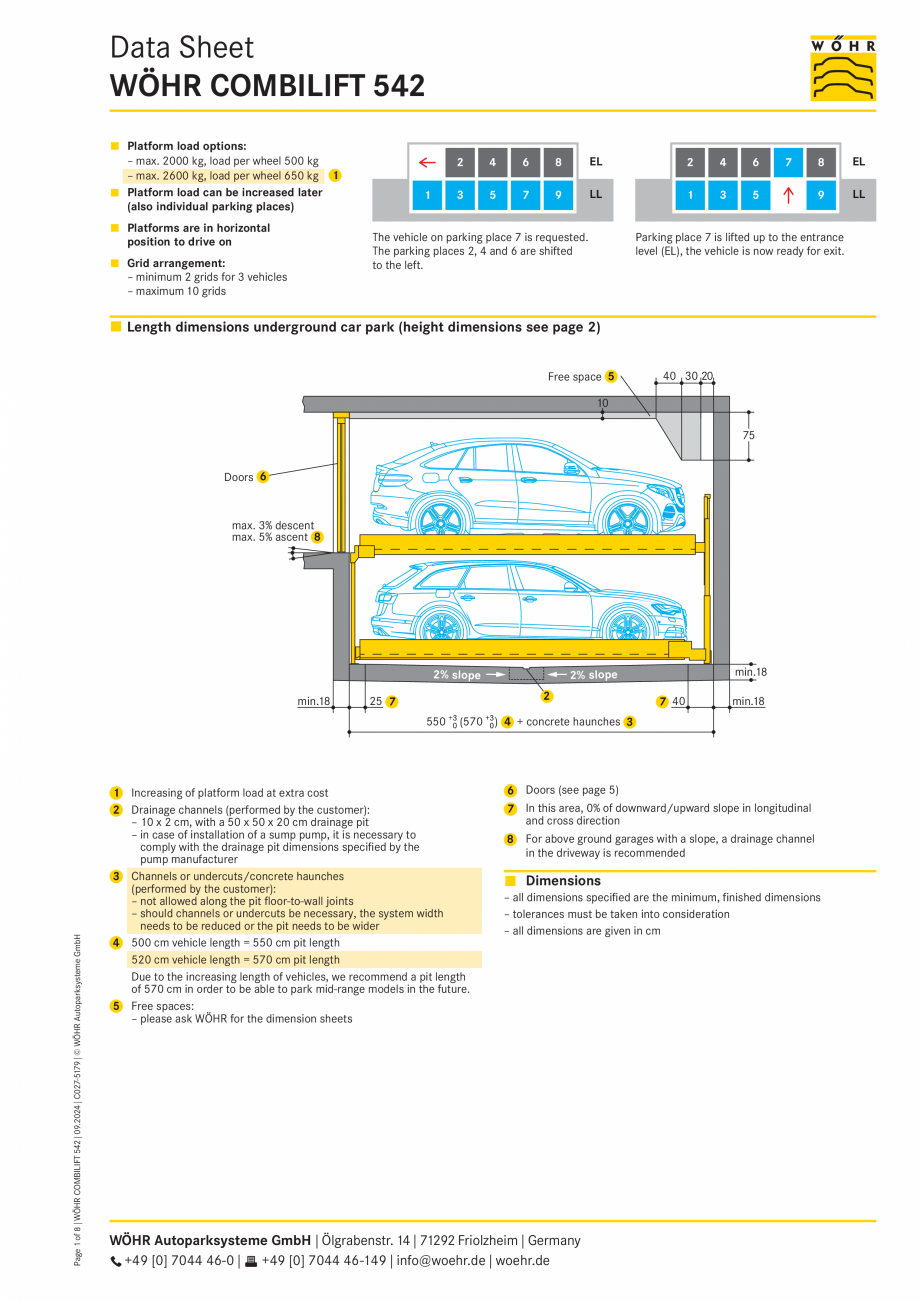

Data Sheet WÖHR COMBILIFT 542 Platform load options: – max. 2000 kg, load per wheel 500 kg – max. 2600 kg, load per wheel 650 kg 1 Platform load can be increased later (also individual parking places) Platforms are in horizontal position to drive on 1 2 4 6 8 EL 2 4 6 3 5 7 9 LL 1 3 5 The vehicle on parking place 7 is requested. The parking places 2, 4 and 6 are shifted to the left. Grid arrangement: – minimum 2 grids for 3 vehicles – maximum 10 grids 7 8 EL 9 LL Parking place 7 is lifted up to the entrance level (EL), the vehicle is now ready for exit. Length dimensions underground car park (height dimensions see page 2) Free space 5 40 30 20 10 75 Doors 6 max. 3% descent max. 5% ascent 8 2% slope min.18 2 25 7 550 1 2 Page 1 of 8 | WÖHR COMBILIFT 542 | 09.2024 | C027-5179 | © WÖHR Autoparksysteme GmbH 3 4 5 (570 Increasing of platform load at extra cost Drainage channels (performed by the customer): – 10 x 2 cm, with a 50 x 50 x 2

Pagina 1-Sistem mecanic de parcare - COMBILIFT WÖHR COMBILIFT 542 Fisa tehnica Engleza Data Sheet
WÖHR...

Pagina 2 - Sistem mecanic de parcare - COMBILIFT WÖHR COMBILIFT 542 Fisa tehnica Engleza 0 cm ...

0 cm drainage pit – in case of installation of a sump pump, it is necessary to comply with the drainage pit dimensions specified by the pump manufacturer Channels or undercuts/concrete haunches (performed by the customer): – not allowed along the pit floor-to-wall joints – should channels or undercuts be necessary, the system width needs to be reduced or the pit needs to be wider 500 cm vehicle length = 550 cm pit length 520 cm vehicle length = 570 cm pit length Due to the increasing length of vehicles, we recommend a pit length of 570 cm in order to be able to park mid-range models in the future. Free spaces: – please ask WÖHR for the dimension sheets min.18 2% slope 7 40 min.18 ) 4 + concrete haunches 3 6 Doors (see page 5) 7 In this area, 0% of downward/upward slope in longitudinal and cross direction 8 For above ground garages with a slope, a drainage channel in the driveway is recommended Dimensions – all dimensions specified are the minimum, finished dimens

Pagina 2-Sistem mecanic de parcare - COMBILIFT WÖHR COMBILIFT 542 Fisa tehnica Engleza 0 cm drainage...

Pagina 3 - Sistem mecanic de parcare - COMBILIFT WÖHR COMBILIFT 542 Fisa tehnica Engleza ions
...

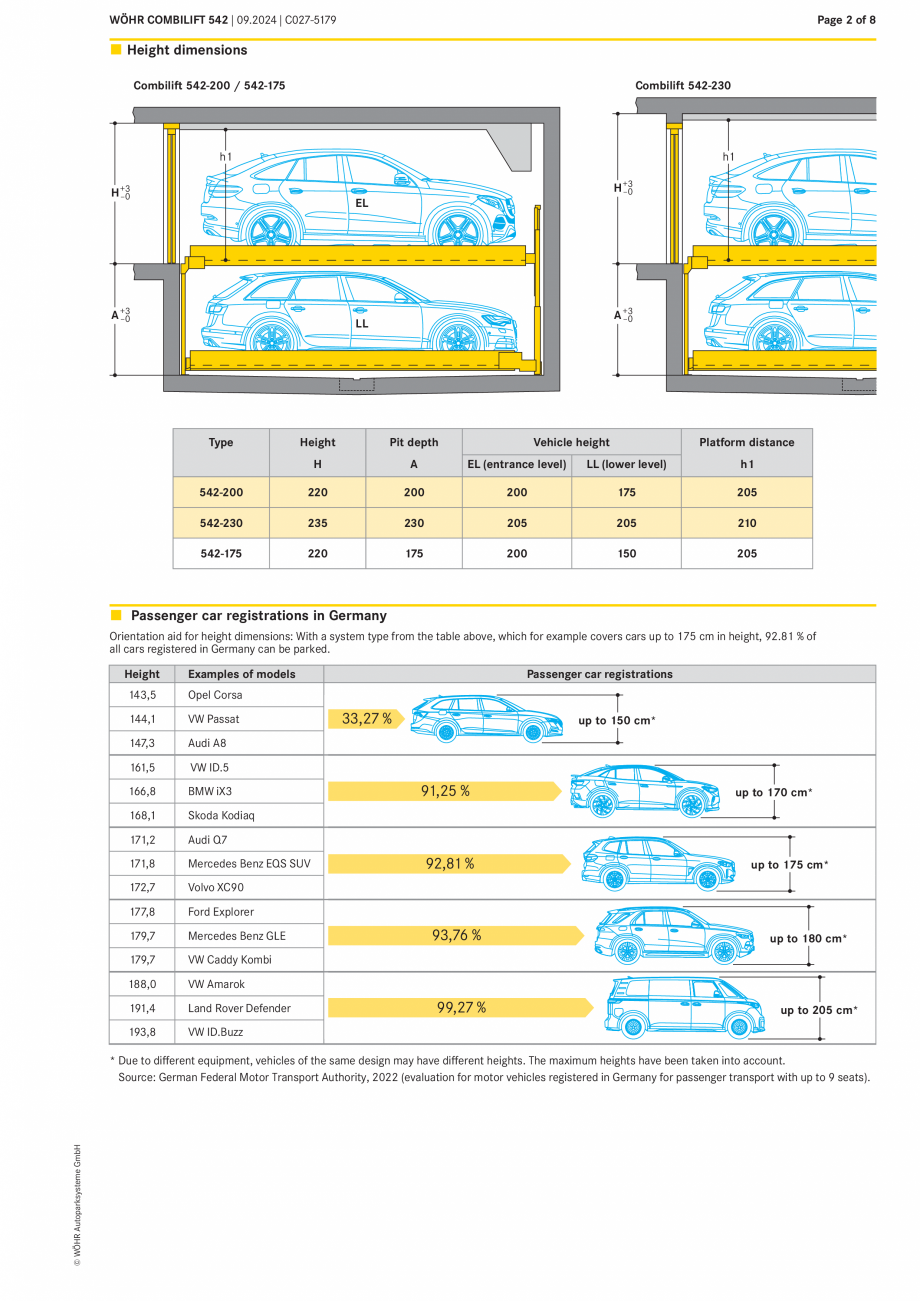

ions – tolerances must be taken into consideration – all dimensions are given in cm WÖHR Autoparksysteme GmbH | Ölgrabenstr. 14 | 71292 Friolzheim | Germany +49 [0] 7044 46-0 | +49 [0] 7044 46-149 | info@woehr.de | woehr.de WÖHR COMBILIFT 542 | 09.2024 | C027-5179 Page 2 of 8 Height dimensions Combilift 542-200 / 542-175 h1 H +3 –0 H +3 –0 A +3 –0 A +3 –0 Combilift 542-230 h1 h1 EL LL Type H +3 –0 H +3 –0 A +3 –0 A +3 –0 Vehicle height h1 Height Pit depth H A EL (entrance level) LL (lower level) Platform distance h1 542-200 220 200 200 175 205 542-230 235 230 205 205 210 542-175 220 175 200 150 205 33,27 % Passenger car registrations in Germany Orientation aid for height dimensions: With a system type from the table above, which for example covers cars up to 175 cm in height, 92.81 % of all cars registered in Germany can be parked. 33,27 % Examples of models 33,27 % 143,5 Opel Corsa 144,1 VW Passat 33,27 % 33,2

Pagina 4 - Sistem mecanic de parcare - COMBILIFT WÖHR COMBILIFT 542 Fisa tehnica Engleza 7 %

...

7 % 147,3 Audi A8 91,25 % 161,5 VW ID.5 91,25 % 166,8 BMW iX3 168,1 Skoda Kodiaq 171,2 Audi Q7 91,25 % 92,81 % 91,25 % 92,81 % 171,8 Mercedes Benz EQS SUV 92,81 % 172,7 Volvo XC90 177,8 Ford Explorer 92,81 % 93,76 % 92,81 % 179,7 Mercedes Benz GLE 93,76 % 179,7 VW Caddy Kombi 93,76 % 188,0 VW Amarok 191,4 Land Rover Defender 93,76 % 99,27%% 93,76 193,8 VW ID.Buzz Height Passenger car registrations 91,25 % up to 150 cm* up to 170 cm* up to 175 cm* up to 180 cm* up to 205 cm* 99,27 % * Due to different equipment, vehicles of the same design may have different heights. The maximum heights have been taken into account. 99,27 % Source: German Federal Motor Transport Authority, 2022 (evaluation for motor vehicles registered in Germany for passenger transport with up to 9 seats). © WÖHR Autoparksysteme GmbH 99,27 % 99,27 % WÖHR COMBILIFT 542 | 09.2024 | C027-5179 Page 3 of 8 Decision support for the vehicle height Choosing the right vehicle

Pagina 4-Sistem mecanic de parcare - COMBILIFT WÖHR COMBILIFT 542 Fisa tehnica Engleza 7 %

147,3

Audi...

Pagina 5 - Sistem mecanic de parcare - COMBILIFT WÖHR COMBILIFT 542 Fisa tehnica Engleza ...

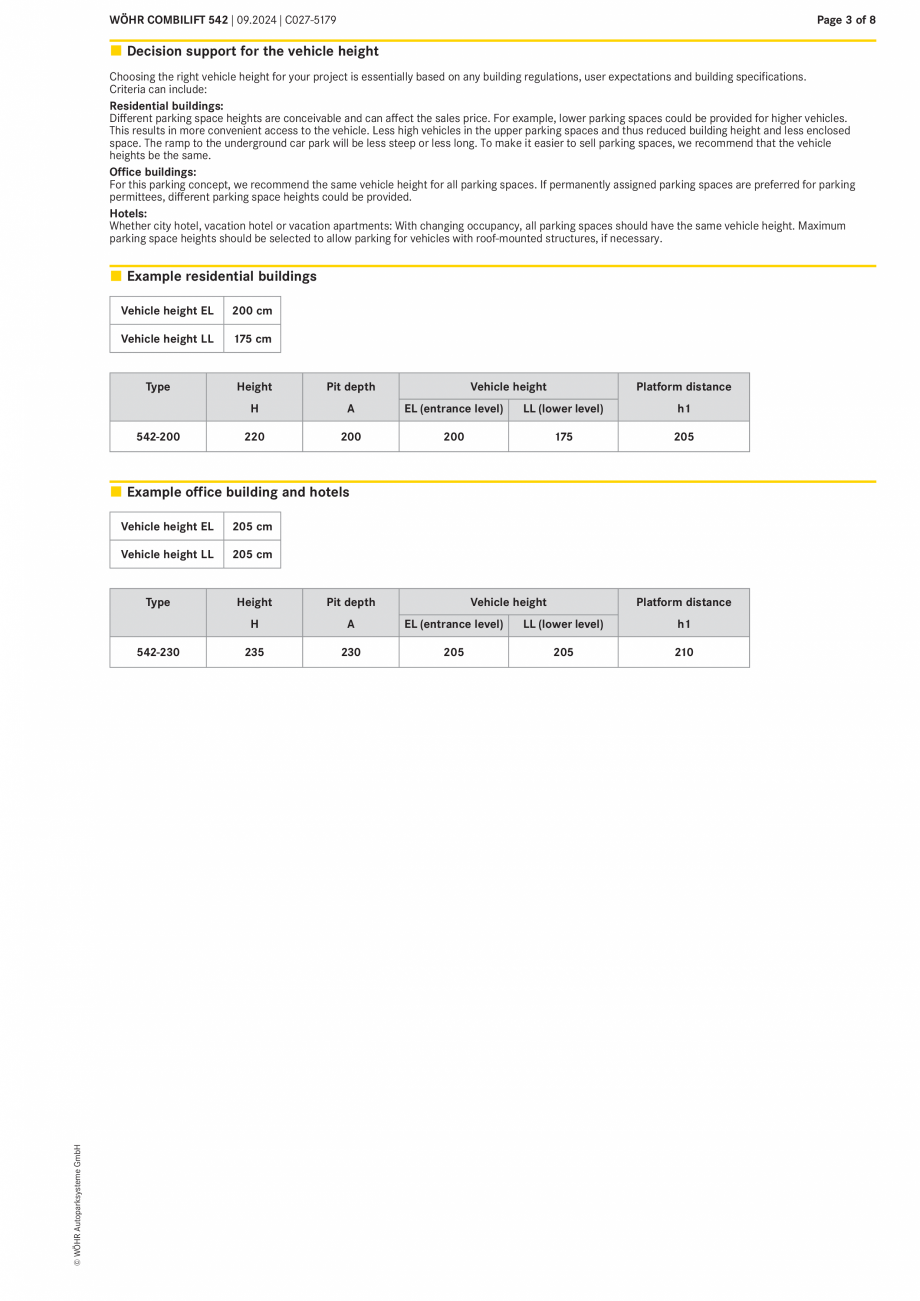

height for your project is essentially based on any building regulations, user expectations and building specifications. Criteria can include: Residential buildings: Different parking space heights are conceivable and can affect the sales price. For example, lower parking spaces could be provided for higher vehicles. This results in more convenient access to the vehicle. Less high vehicles in the upper parking spaces and thus reduced building height and less enclosed space. The ramp to the underground car park will be less steep or less long. To make it easier to sell parking spaces, we recommend that the vehicle heights be the same. Office buildings: For this parking concept, we recommend the same vehicle height for all parking spaces. If permanently assigned parking spaces are preferred for parking permittees, different parking space heights could be provided. Hotels: Whether city hotel, vacation hotel or vacation apartments: With changing occupancy, all parking spaces should have t

Pagina 5-Sistem mecanic de parcare - COMBILIFT WÖHR COMBILIFT 542 Fisa tehnica Engleza height for your...

Pagina 6 - Sistem mecanic de parcare - COMBILIFT WÖHR COMBILIFT 542 Fisa tehnica Engleza he...

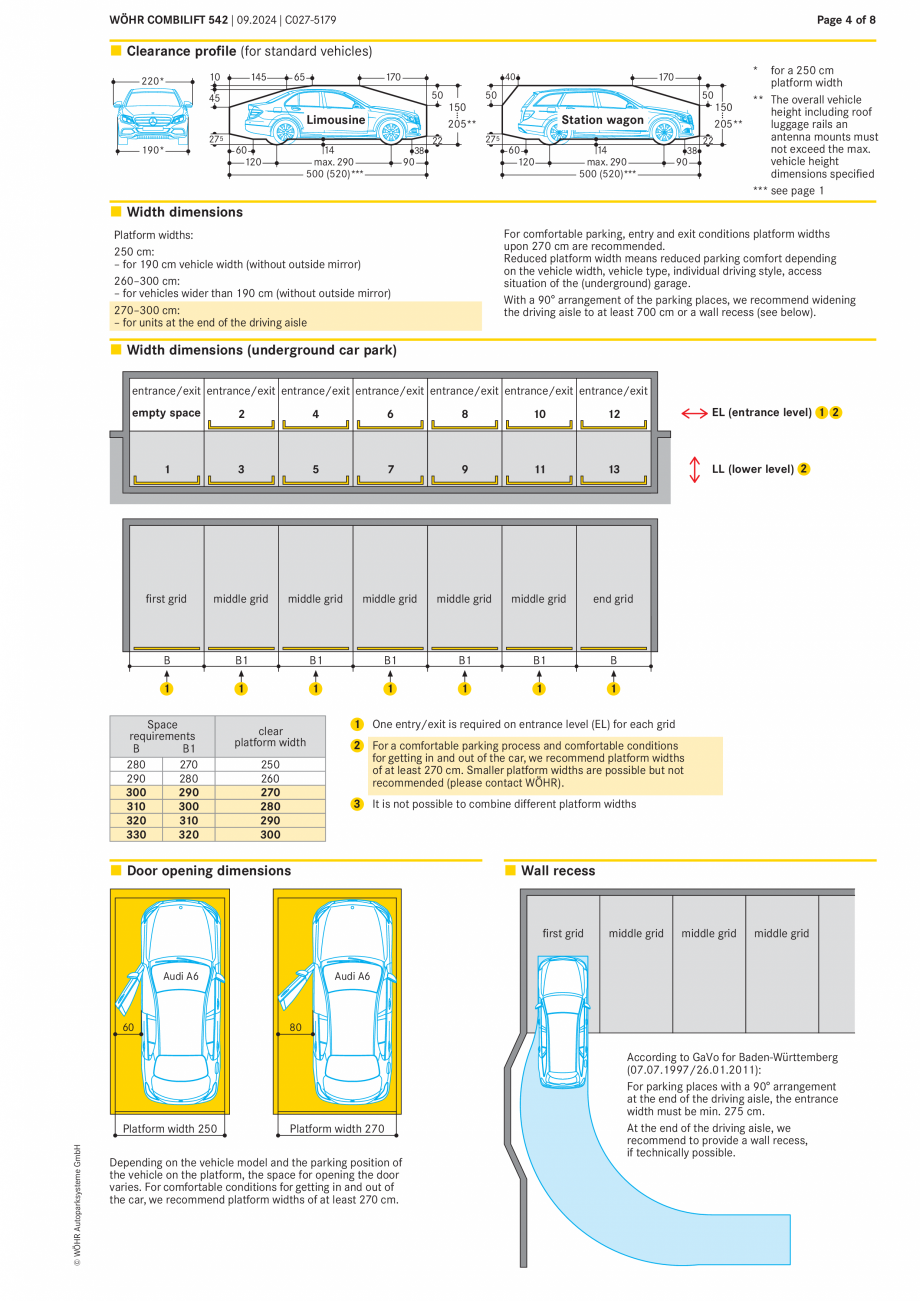

he same vehicle height. Maximum parking space heights should be selected to allow parking for vehicles with roof-mounted structures, if necessary. Example residential buildings Vehicle height EL 200 cm Vehicle height LL 175 cm Type 542-200 Height Pit depth H A EL (entrance level) Vehicle height LL (lower level) Platform distance h1 220 200 200 175 205 Example office building and hotels Vehicle height EL 205 cm Vehicle height LL 205 cm Type © WÖHR Autoparksysteme GmbH 542-230 Height Pit depth H A EL (entrance level) Vehicle height LL (lower level) Platform distance h1 235 230 205 205 210 WÖHR COMBILIFT 542 | 09.2024 | C027-5179 Page 4 of 8 Clearance profile (for standard vehicles) 10 145 65 170 50 Limousine 190* 50 Station wagon 205** 14 max. 290 500 (520)*** 60 120 150 ... 45 275 170 40 38 275 22 90 14 max. 290 500 (520)*** 60 120 * for a 250 cm platform width 50 ** The overall vehicle 150 height including roof 205** lug

Pagina 6-Sistem mecanic de parcare - COMBILIFT WÖHR COMBILIFT 542 Fisa tehnica Engleza he same vehicle ...

Pagina 7 - Sistem mecanic de parcare - COMBILIFT WÖHR COMBILIFT 542 Fisa tehnica Engleza gage ...

gage rails an antenna mounts must 22 not exceed the max. 38 vehicle height 90 dimensions specified *** see page 1 ... 220* Width dimensions For comfortable parking, entry and exit conditions platform widths upon 270 cm are recommended. Reduced platform width means reduced parking comfort depending on the vehicle width, vehicle type, individual driving style, access situation of the (underground) garage. With a 90° arrangement of the parking places, we recommend widening the driving aisle to at least 700 cm or a wall recess (see below). Platform widths: 250 cm: – for 190 cm vehicle width (without outside mirror) 260–300 cm: – for vehicles wider than 190 cm (without outside mirror) 270–300 cm: – for units at the end of the driving aisle Width dimensions (underground car park) entrance/exit entrance/exit entrance/exit entrance/exit entrance/exit entrance/exit entrance/exit empty space 2 4 6 8 10 12 EL (entrance level) 1 2 1 3 5 7 9 11 13 LL (lower level) 2 f

Pagina 7-Sistem mecanic de parcare - COMBILIFT WÖHR COMBILIFT 542 Fisa tehnica Engleza gage rails an...

Pagina 8 - Sistem mecanic de parcare - COMBILIFT WÖHR COMBILIFT 542 Fisa tehnica Engleza irst ...

irst grid middle grid middle grid middle grid middle grid middle grid end grid B B1 B1 B1 B1 B1 B 1 1 1 1 1 1 1 Space requirements B B1 280 270 290 280 300 290 310 300 320 310 330 320 clear platform width 250 260 270 280 290 300 1 One entry/exit is required on entrance level (EL) for each grid 2 For a comfortable parking process and comfortable conditions for getting in and out of the car, we recommend platform widths of at least 270 cm. Smaller platform widths are possible but not recommended (please contact WÖHR). 3 It is not possible to combine different platform widths Door opening dimensions Wall recess first grid Audi A6 60 © WÖHR Autoparksysteme GmbH middle grid middle grid Audi A6 80 60 80 Platform width 250 middle grid Platform width 270 Depending on the vehicle model and the parking position of the vehicle on the platform, the space for opening the door varies. For comfortable conditions for getting in and out of the car, we recom

Pagina 8-Sistem mecanic de parcare - COMBILIFT WÖHR COMBILIFT 542 Fisa tehnica Engleza irst grid
...
