Sistem WC GEBERIT AquaClean

Limba: Engleza

203 afisari

Tip documentatie: Fisa tehnica

Pagina 1 - Sistem WC GEBERIT AquaClean Fisa tehnica Engleza Geberit AquaClean

14. Geberit AquaClean...

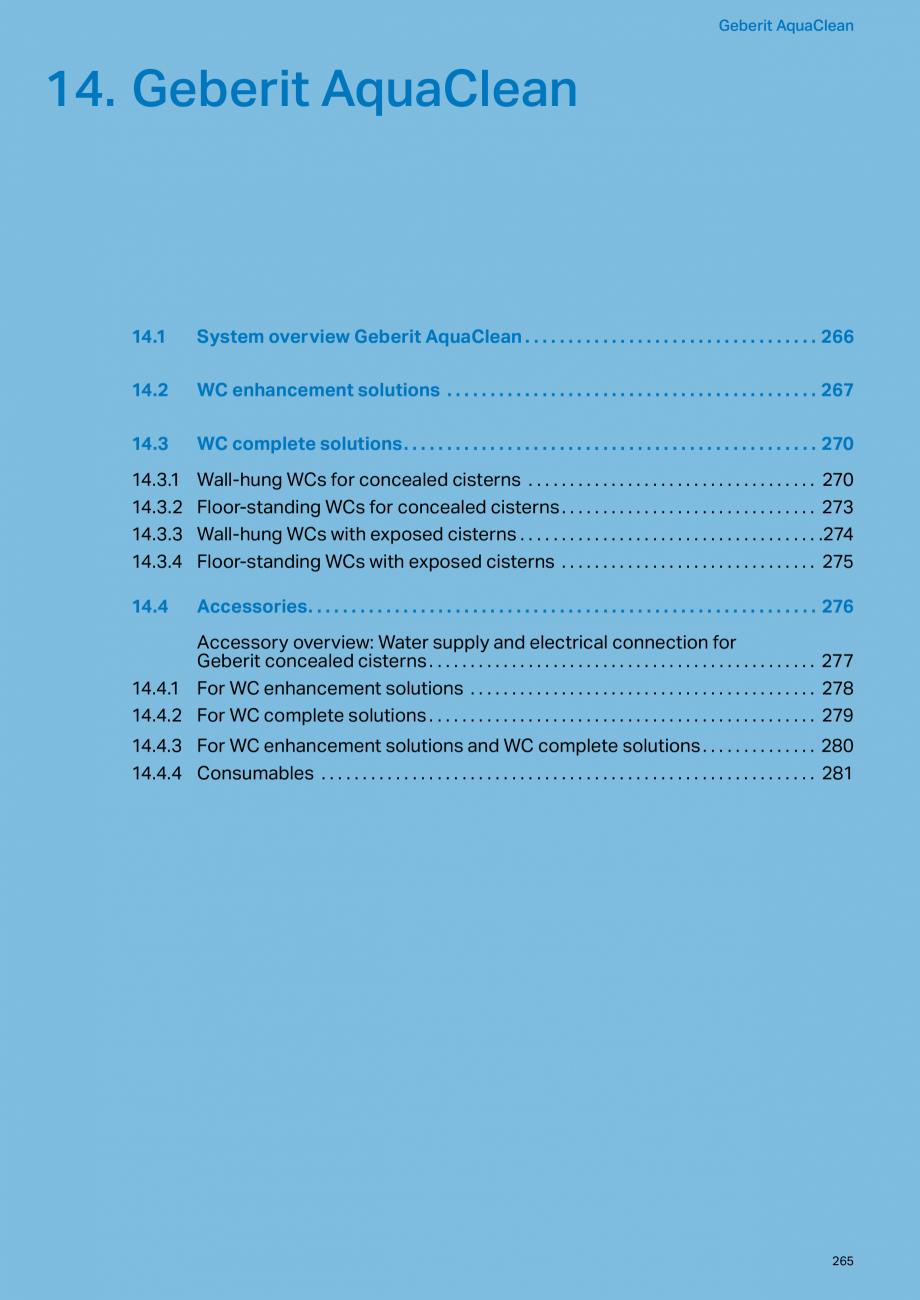

Geberit AquaClean 14. Geberit AquaClean 14.1 System overview Geberit AquaClean . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 266 14.2 WC enhancement solutions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 267 14.3 WC complete solutions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 270 14.3.1 14.3.2 14.3.3 14.3.4 Wall-hung WCs for concealed cisterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 270 Floor-standing WCs for concealed cisterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 273 Wall-hung WCs with exposed cisterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .274 Floor-standing WCs with exposed cisterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 275 14.4 Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Pagina 1-Sistem WC GEBERIT AquaClean Fisa tehnica Engleza Geberit AquaClean

14. Geberit AquaClean

14.1
...

Pagina 2 - Sistem WC GEBERIT AquaClean Fisa tehnica Engleza . . . . 276

Accessory overview: Water ...

. . . . 276 Accessory overview: Water supply and electrical connection for Geberit concealed cisterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 277 14.4.1 For WC enhancement solutions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 278 14.4.2 For WC complete solutions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 279 14.4.3 For WC enhancement solutions and WC complete solutions . . . . . . . . . . . . . . 280 14.4.4 Consumables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 281 265 Geberit AquaClean System overview Geberit AquaClean 14.1 System overview Geberit AquaClean Article no. Bidet function with warm water Adjustable water spray strength Soft lid and seat closing 146.130.11.1 Model ü ü ü white alpine ü ü bahama beige white alpine manhattan pergamon

Pagina 2-Sistem WC GEBERIT AquaClean Fisa tehnica Engleza . . . . 276

Accessory overview: Water supply and ...

Pagina 3 - Sistem WC GEBERIT AquaClean Fisa tehnica Engleza
ü

bahama
beige white
alpine
manhattan...

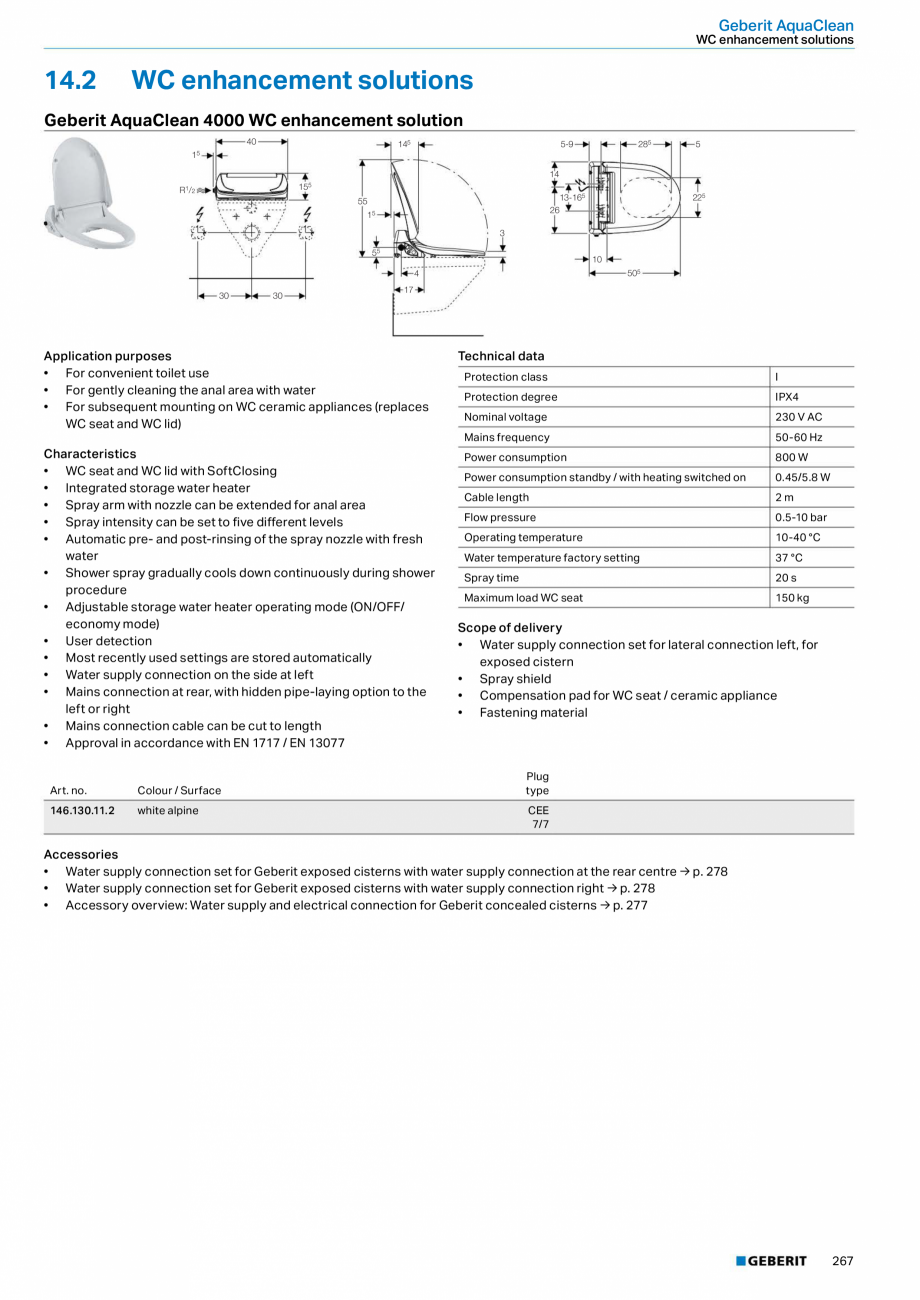

ü bahama beige white alpine manhattan pergamon Oscillating spray Air purification Warm air dryer Remote control Ceramics included Colours AquaClean 4000 146.120.10.1 146.120.11.2 146.120.CG.1 146.120.EP.1 ü ü ü AquaClean 5000 146.110.10.1 146.110.11.2 146.110.CG.1 146.110.EP.1 ü ü ü ü 146.182.11.1 ü ü ü ü 146.145.11.1 ü ü ü ü 146.175.11.1 ü ü ü ü 180.100.11.2 ü ü ü ü ü 186.100.11.1 ü ü ü ü 185.100.11.1 ü ü ü ü ü ü AquaClean 5000plus ü white alpine ü ü white alpine ü ü white alpine ü ü ü white alpine ü ü ü ü white alpine ü ü ü ü white alpine AquaClean 8000 AquaClean Sela AquaClean Sela floor standing AquaClean 8000plus AquaClean 8000plus, wall-hung AquaClean 8000plus, floor standing 266 Geberit AquaClean WC enhancement solutions 14.2 WC enhancement solutions Geberit AquaClean 4000 WC enhancement solution 40 145 285 5-9 5 15 14 155 R1/2 225 13-1

Pagina 3-Sistem WC GEBERIT AquaClean Fisa tehnica Engleza
ü

bahama
beige white
alpine
manhattan
pergamon

...

Pagina 4 - Sistem WC GEBERIT AquaClean Fisa tehnica Engleza 65
26

55
15
3
55

10
505

4
30

30

17
...

65 26 55 15 3 55 10 505 4 30 30 17 Application purposes • For convenient toilet use • For gently cleaning the anal area with water • For subsequent mounting on WC ceramic appliances (replaces WC seat and WC lid) Characteristics • WC seat and WC lid with SoftClosing • Integrated storage water heater • Spray arm with nozzle can be extended for anal area • Spray intensity can be set to five different levels • Automatic pre- and post-rinsing of the spray nozzle with fresh water • Shower spray gradually cools down continuously during shower procedure • Adjustable storage water heater operating mode (ON/OFF/ economy mode) • User detection • Most recently used settings are stored automatically • Water supply connection on the side at left • Mains connection at rear, with hidden pipe-laying option to the left or right • Mains connection cable can be cut to length • Approval in accordance with EN 1717 / EN 13077 Art. no. Colour / Surface 146.130.11.2 wh

Pagina 5 - Sistem WC GEBERIT AquaClean Fisa tehnica Engleza ite alpine

Technical data
Protection...

ite alpine Technical data Protection class I Protection degree IPX4 Nominal voltage 230 V AC Mains frequency 50-60 Hz Power consumption 800 W Power consumption standby / with heating switched on 0.45/5.8 W Cable length 2m Flow pressure 0.5-10 bar Operating temperature 10-40 °C Water temperature factory setting 37 °C Spray time 20 s Maximum load WC seat 150 kg Scope of delivery • Water supply connection set for lateral connection left, for exposed cistern • Spray shield • Compensation pad for WC seat / ceramic appliance • Fastening material Plug type CEE 7/7 Accessories • Water supply connection set for Geberit exposed cisterns with water supply connection at the rear centre → p. 278 • Water supply connection set for Geberit exposed cisterns with water supply connection right → p. 278 • Accessory overview: Water supply and electrical connection for Geberit concealed cisterns → p. 277 267 Geberit AquaClean WC enhancement solutions G

Pagina 5-Sistem WC GEBERIT AquaClean Fisa tehnica Engleza ite alpine

Technical data
Protection class

I
...

Pagina 6 - Sistem WC GEBERIT AquaClean Fisa tehnica Engleza eberit AquaClean 5000 WC enhancement...

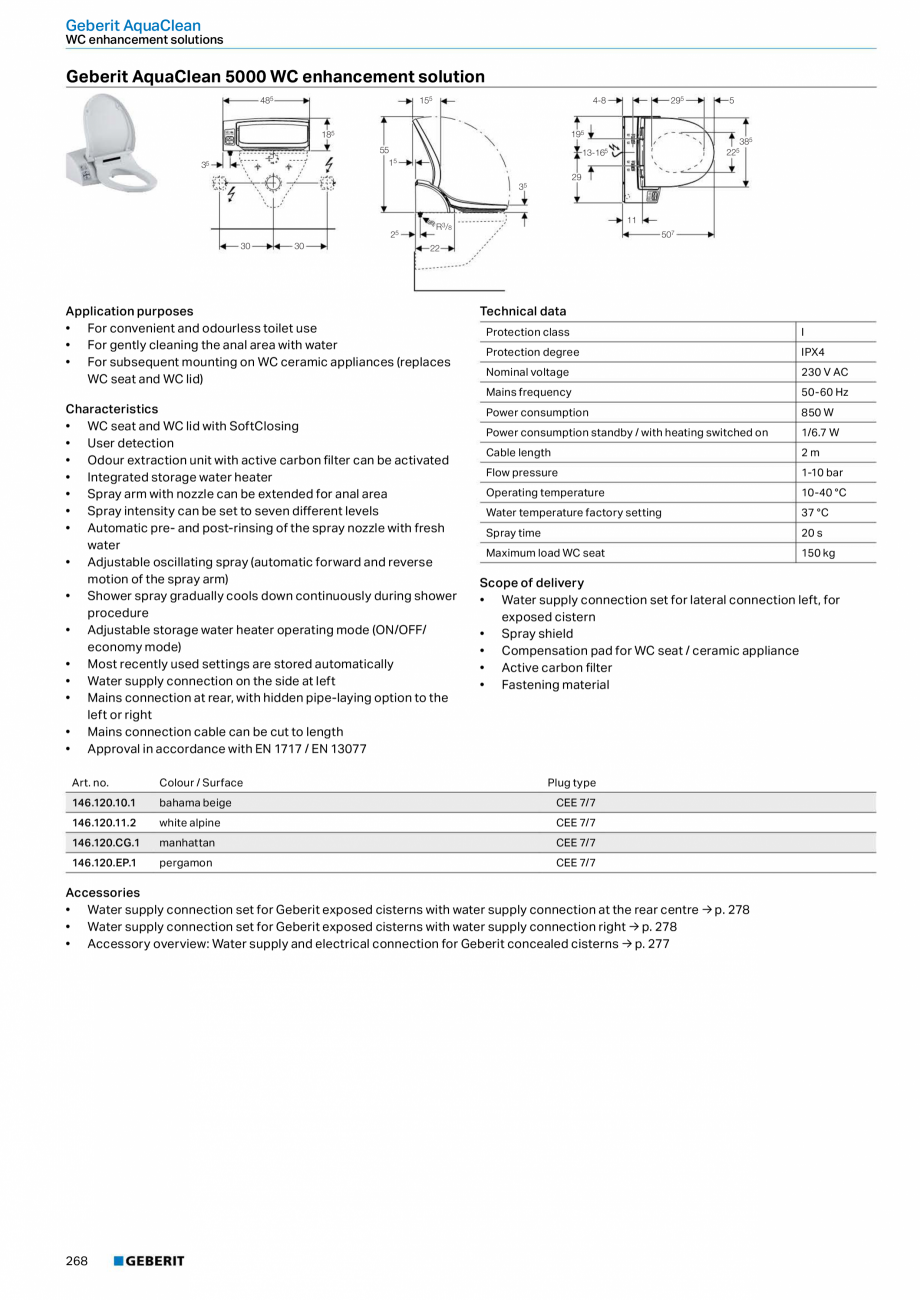

eberit AquaClean 5000 WC enhancement solution 485 155 195 185 55 15 35 25 30 5 385 225 13-165 29 35 30 295 4-8 11 R3/8 507 22 Application purposes • For convenient and odourless toilet use • For gently cleaning the anal area with water • For subsequent mounting on WC ceramic appliances (replaces WC seat and WC lid) Characteristics • WC seat and WC lid with SoftClosing • User detection • Odour extraction unit with active carbon filter can be activated • Integrated storage water heater • Spray arm with nozzle can be extended for anal area • Spray intensity can be set to seven different levels • Automatic pre- and post-rinsing of the spray nozzle with fresh water • Adjustable oscillating spray (automatic forward and reverse motion of the spray arm) • Shower spray gradually cools down continuously during shower procedure • Adjustable storage water heater operating mode (ON/OFF/ economy mode) • Most recently used settings are stored automatically

Pagina 6-Sistem WC GEBERIT AquaClean Fisa tehnica Engleza eberit AquaClean 5000 WC enhancement solution
485

...

Pagina 7 - Sistem WC GEBERIT AquaClean Fisa tehnica Engleza
• Water supply connection on the side...

• Water supply connection on the side at left • Mains connection at rear, with hidden pipe-laying option to the left or right • Mains connection cable can be cut to length • Approval in accordance with EN 1717 / EN 13077 Technical data Protection class I Protection degree IPX4 Nominal voltage 230 V AC Mains frequency 50-60 Hz Power consumption 850 W Power consumption standby / with heating switched on 1/6.7 W Cable length 2m Flow pressure 1-10 bar Operating temperature 10-40 °C Water temperature factory setting 37 °C Spray time 20 s Maximum load WC seat 150 kg Scope of delivery • Water supply connection set for lateral connection left, for exposed cistern • Spray shield • Compensation pad for WC seat / ceramic appliance • Active carbon filter • Fastening material Art. no. Colour / Surface 146.120.10.1 bahama beige Plug type CEE 7/7 146.120.11.2 white alpine CEE 7/7 146.120.CG.1 manhattan CEE 7/7 146.120.EP.1 pergamon CEE 7/7

Pagina 7-Sistem WC GEBERIT AquaClean Fisa tehnica Engleza
• Water supply connection on the side at left...

Pagina 8 - Sistem WC GEBERIT AquaClean Fisa tehnica Engleza

Accessories
• Water supply...

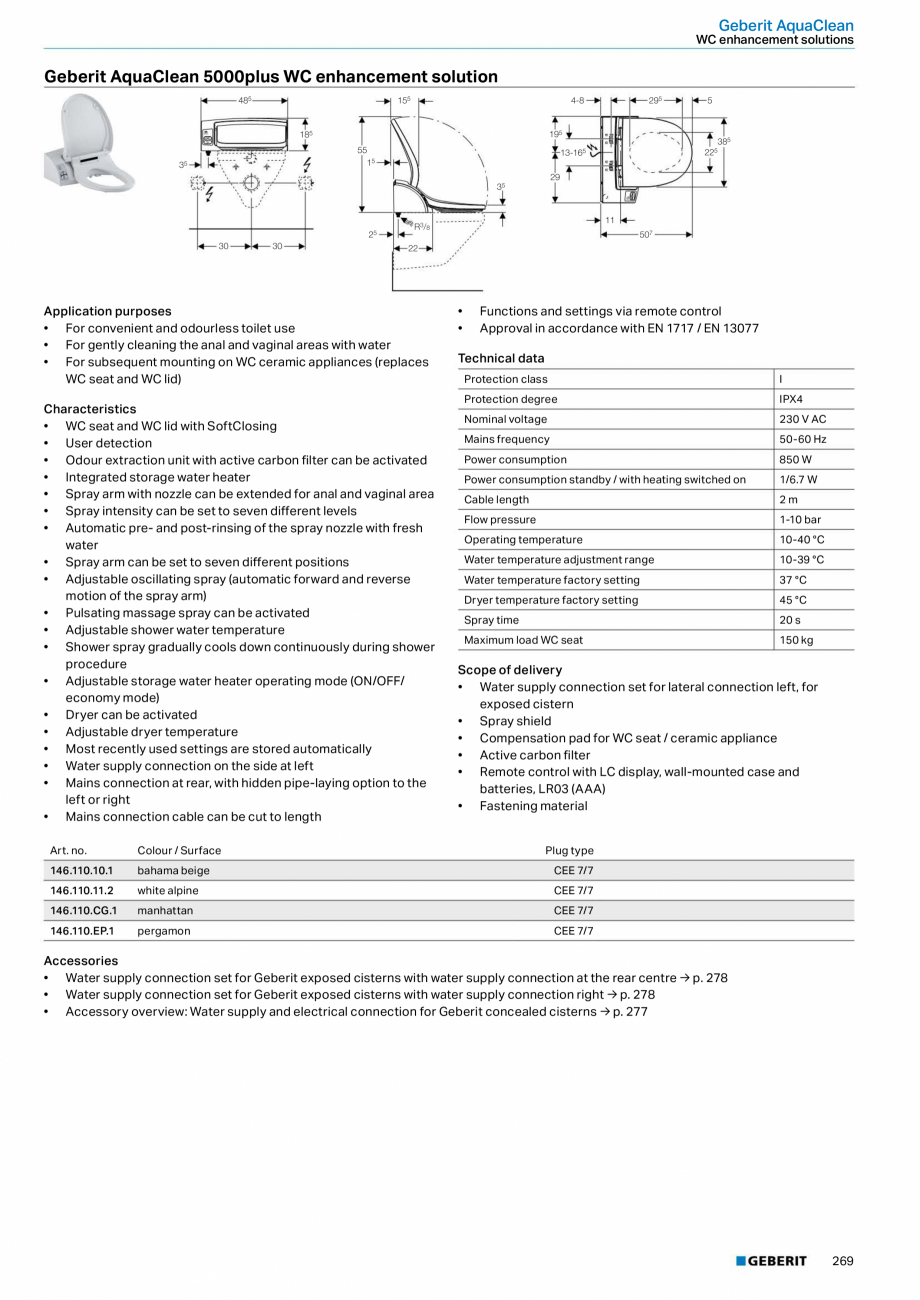

Accessories • Water supply connection set for Geberit exposed cisterns with water supply connection at the rear centre → p. 278 • Water supply connection set for Geberit exposed cisterns with water supply connection right → p. 278 • Accessory overview: Water supply and electrical connection for Geberit concealed cisterns → p. 277 268 Geberit AquaClean WC enhancement solutions Geberit AquaClean 5000plus WC enhancement solution 485 155 195 185 55 15 35 25 30 5 385 225 13-165 29 35 30 295 4-8 11 R3/8 507 22 Application purposes • For convenient and odourless toilet use • For gently cleaning the anal and vaginal areas with water • For subsequent mounting on WC ceramic appliances (replaces WC seat and WC lid) Characteristics • WC seat and WC lid with SoftClosing • User detection • Odour extraction unit with active carbon filter can be activated • Integrated storage water heater • Spray arm with nozzle can be extended for anal and vaginal a

Pagina 8-Sistem WC GEBERIT AquaClean Fisa tehnica Engleza

Accessories
• Water supply connection set for...

Pagina 9 - Sistem WC GEBERIT AquaClean Fisa tehnica Engleza rea
• Spray intensity can be set to...

rea • Spray intensity can be set to seven different levels • Automatic pre- and post-rinsing of the spray nozzle with fresh water • Spray arm can be set to seven different positions • Adjustable oscillating spray (automatic forward and reverse motion of the spray arm) • Pulsating massage spray can be activated • Adjustable shower water temperature • Shower spray gradually cools down continuously during shower procedure • Adjustable storage water heater operating mode (ON/OFF/ economy mode) • Dryer can be activated • Adjustable dryer temperature • Most recently used settings are stored automatically • Water supply connection on the side at left • Mains connection at rear, with hidden pipe-laying option to the left or right • Mains connection cable can be cut to length • • Functions and settings via remote control Approval in accordance with EN 1717 / EN 13077 Technical data Protection class I Protection degree IPX4 Nominal voltage 230 V AC Mains

Pagina 9-Sistem WC GEBERIT AquaClean Fisa tehnica Engleza rea
• Spray intensity can be set to seven...

Pagina 10 - Sistem WC GEBERIT AquaClean Fisa tehnica Engleza frequency

50-60 Hz

Power consumption
...

frequency 50-60 Hz Power consumption 850 W Power consumption standby / with heating switched on 1/6.7 W Cable length 2m Flow pressure 1-10 bar Operating temperature 10-40 °C Water temperature adjustment range 10-39 °C Water temperature factory setting 37 °C Dryer temperature factory setting 45 °C Spray time 20 s Maximum load WC seat 150 kg Scope of delivery • Water supply connection set for lateral connection left, for exposed cistern • Spray shield • Compensation pad for WC seat / ceramic appliance • Active carbon filter • Remote control with LC display, wall-mounted case and batteries, LR03 (AAA) • Fastening material Art. no. Colour / Surface 146.110.10.1 bahama beige Plug type CEE 7/7 146.110.11.2 white alpine CEE 7/7 146.110.CG.1 manhattan CEE 7/7 146.110.EP.1 pergamon CEE 7/7 Accessories • Water supply connection set for Geberit exposed cisterns with water supply connection at the rear centre → p. 278 • Water supply conn

Pagina 10-Sistem WC GEBERIT AquaClean Fisa tehnica Engleza frequency

50-60 Hz

Power consumption

850 W
...

Pagina 11 - Sistem WC GEBERIT AquaClean Fisa tehnica Engleza ection set for Geberit exposed cisterns...

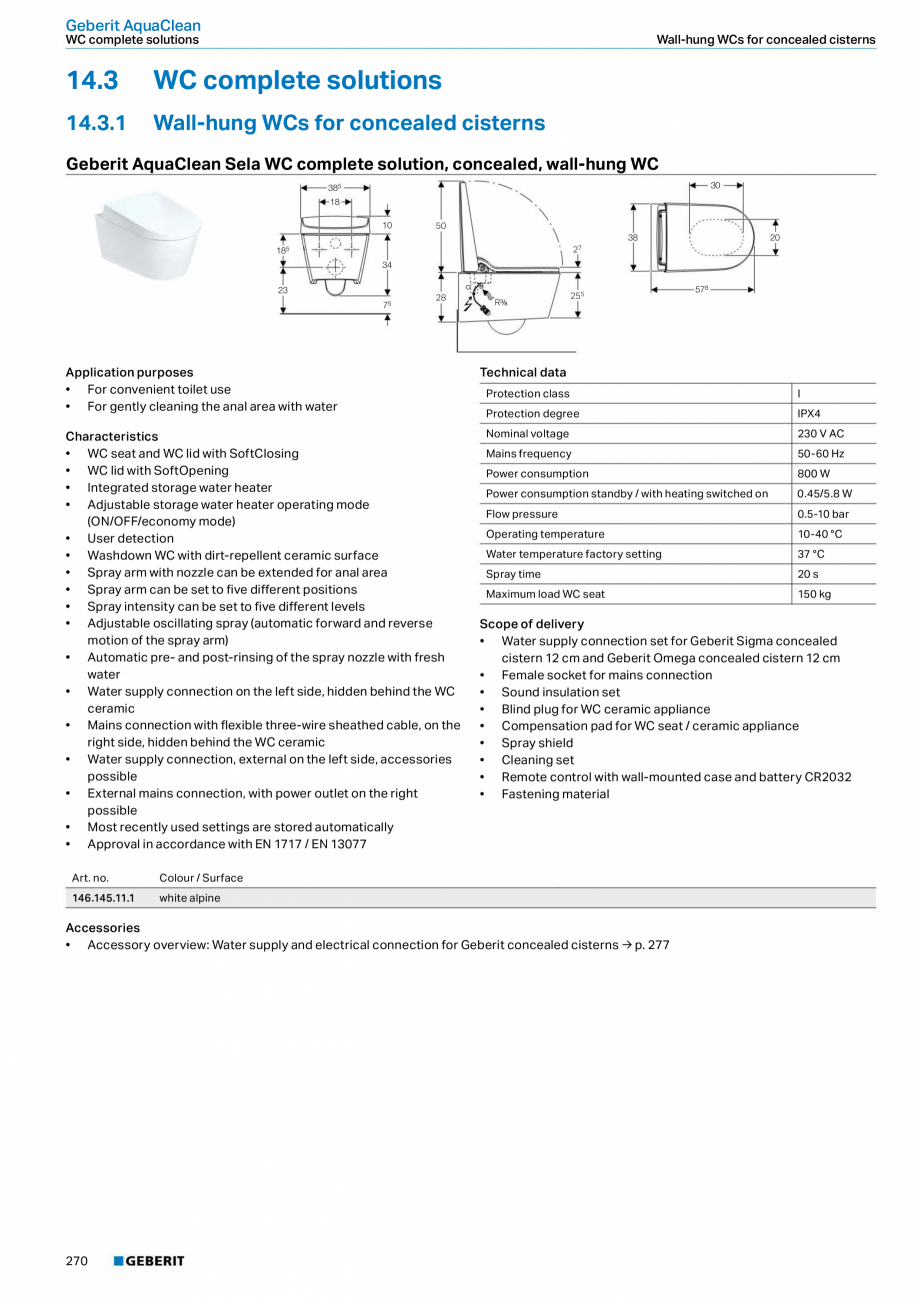

ection set for Geberit exposed cisterns with water supply connection right → p. 278 • Accessory overview: Water supply and electrical connection for Geberit concealed cisterns → p. 277 269 Geberit AquaClean WC complete solutions Wall-hung WCs for concealed cisterns 14.3 WC complete solutions 14.3.1 Wall-hung WCs for concealed cisterns Geberit AquaClean Sela WC complete solution, concealed, wall-hung WC 30 385 18 10 50 38 20 27 185 34 23 75 28 Application purposes • For convenient toilet use • For gently cleaning the anal area with water Characteristics • WC seat and WC lid with SoftClosing • WC lid with SoftOpening • Integrated storage water heater • Adjustable storage water heater operating mode (ON/OFF/economy mode) • User detection • Washdown WC with dirt-repellent ceramic surface • Spray arm with nozzle can be extended for anal area • Spray arm can be set to five different positions • Spray intensity can be set to five different levels �

Pagina 11-Sistem WC GEBERIT AquaClean Fisa tehnica Engleza ection set for Geberit exposed cisterns with water ...

Pagina 12 - Sistem WC GEBERIT AquaClean Fisa tehnica Engleza � Adjustable oscillating spray...

� Adjustable oscillating spray (automatic forward and reverse motion of the spray arm) • Automatic pre- and post-rinsing of the spray nozzle with fresh water • Water supply connection on the left side, hidden behind the WC ceramic • Mains connection with flexible three-wire sheathed cable, on the right side, hidden behind the WC ceramic • Water supply connection, external on the left side, accessories possible • External mains connection, with power outlet on the right possible • Most recently used settings are stored automatically • Approval in accordance with EN 1717 / EN 13077 Art. no. 255 Protection class I Protection degree IPX4 Nominal voltage 230 V AC Mains frequency 50-60 Hz Power consumption 800 W Power consumption standby / with heating switched on 0.45/5.8 W Flow pressure 0.5-10 bar Operating temperature 10-40 °C Water temperature factory setting 37 °C Spray time 20 s Maximum load WC seat 150 kg Scope of delivery • Water supply conne

Pagina 12-Sistem WC GEBERIT AquaClean Fisa tehnica Engleza � Adjustable oscillating spray (automatic forward...

Pagina 13 - Sistem WC GEBERIT AquaClean Fisa tehnica Engleza ction set for Geberit Sigma concealed...

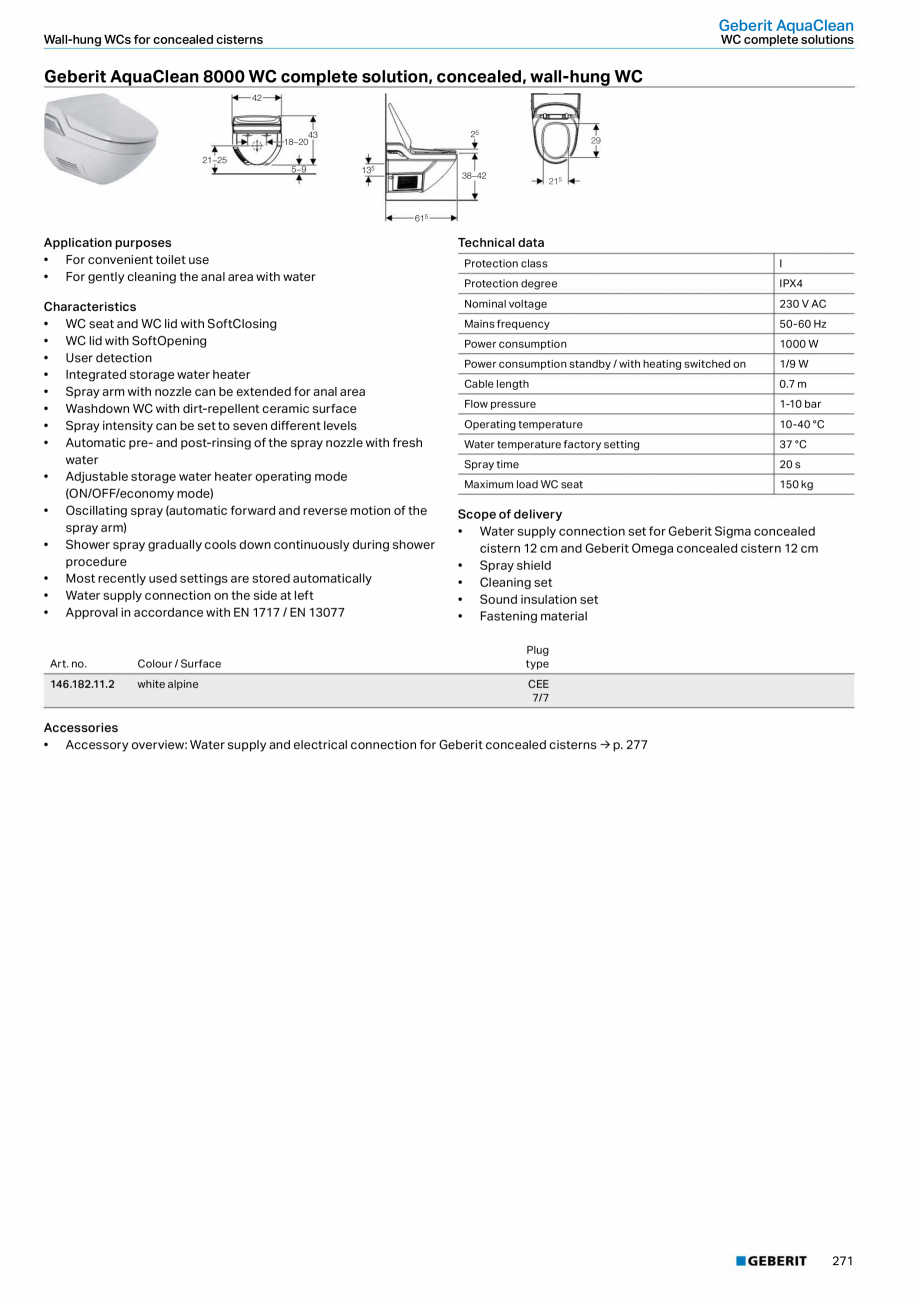

ction set for Geberit Sigma concealed cistern 12 cm and Geberit Omega concealed cistern 12 cm • Female socket for mains connection • Sound insulation set • Blind plug for WC ceramic appliance • Compensation pad for WC seat / ceramic appliance • Spray shield • Cleaning set • Remote control with wall-mounted case and battery CR2032 • Fastening material white alpine Accessories • Accessory overview: Water supply and electrical connection for Geberit concealed cisterns → p. 277 270 578 Technical data Colour / Surface 146.145.11.1 R⅜ Geberit AquaClean Wall-hung WCs for concealed cisterns WC complete solutions Geberit AquaClean 8000 WC complete solution, concealed, wall-hung WC 42 25 43 18−20 21−25 5−9 135 29 38−42 215 615 Application purposes • For convenient toilet use • For gently cleaning the anal area with water Characteristics • WC seat and WC lid with SoftClosing • WC lid with SoftOpening • User detection • Integrated s

Pagina 13-Sistem WC GEBERIT AquaClean Fisa tehnica Engleza ction set for Geberit Sigma concealed
cistern 12 cm...

Pagina 14 - Sistem WC GEBERIT AquaClean Fisa tehnica Engleza torage water heater
• Spray arm with ...

torage water heater • Spray arm with nozzle can be extended for anal area • Washdown WC with dirt-repellent ceramic surface • Spray intensity can be set to seven different levels • Automatic pre- and post-rinsing of the spray nozzle with fresh water • Adjustable storage water heater operating mode (ON/OFF/economy mode) • Oscillating spray (automatic forward and reverse motion of the spray arm) • Shower spray gradually cools down continuously during shower procedure • Most recently used settings are stored automatically • Water supply connection on the side at left • Approval in accordance with EN 1717 / EN 13077 Art. no. Colour / Surface 146.182.11.2 white alpine Technical data Protection class I Protection degree IPX4 Nominal voltage 230 V AC Mains frequency 50-60 Hz Power consumption 1000 W Power consumption standby / with heating switched on 1/9 W Cable length 0.7 m Flow pressure 1-10 bar Operating temperature 10-40 °C Water temperature fa

Pagina 14-Sistem WC GEBERIT AquaClean Fisa tehnica Engleza torage water heater
• Spray arm with nozzle can...

Pagina 15 - Sistem WC GEBERIT AquaClean Fisa tehnica Engleza ctory setting

37 °C

Spray time

20 s...

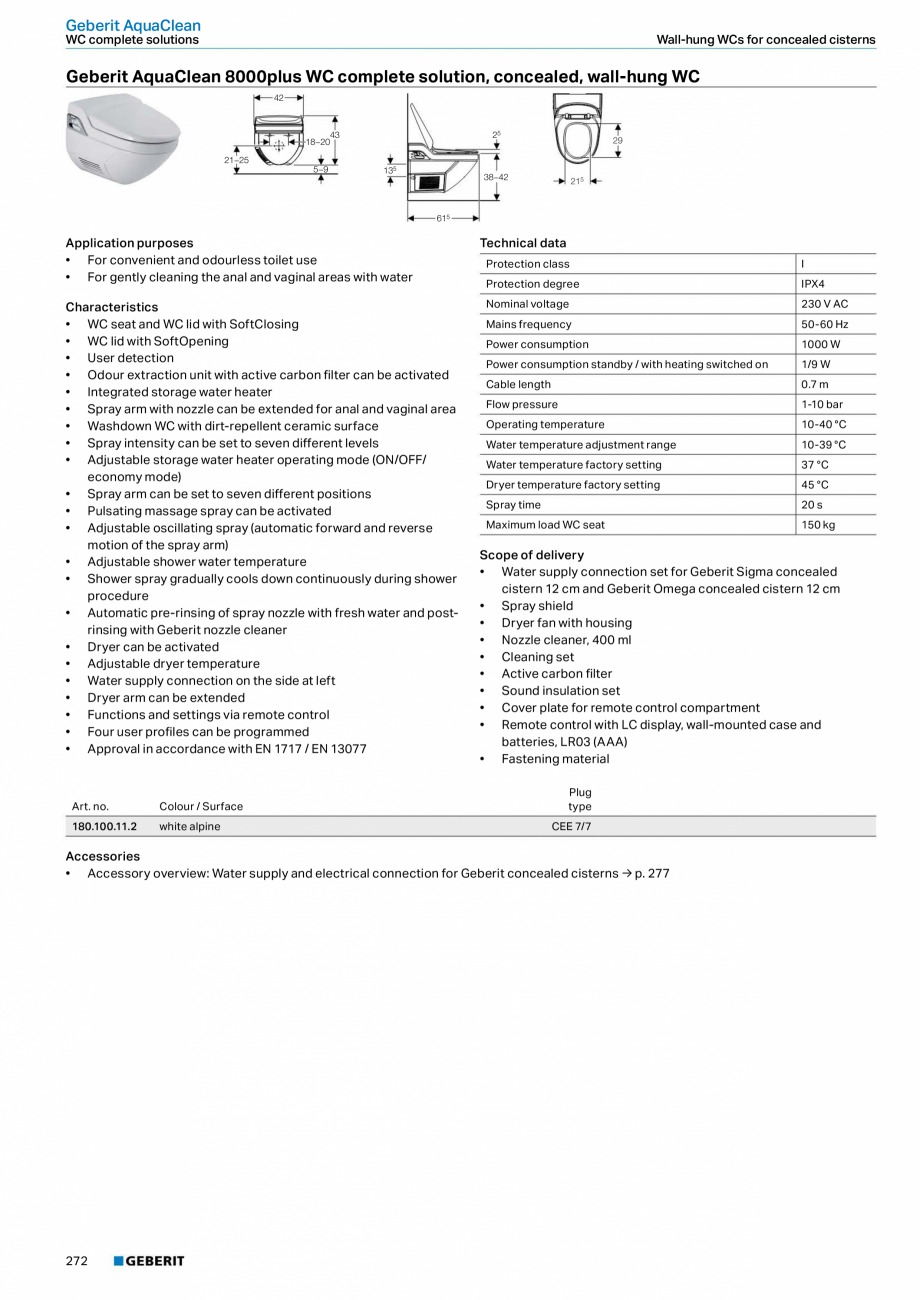

ctory setting 37 °C Spray time 20 s Maximum load WC seat 150 kg Scope of delivery • Water supply connection set for Geberit Sigma concealed cistern 12 cm and Geberit Omega concealed cistern 12 cm • Spray shield • Cleaning set • Sound insulation set • Fastening material Plug type CEE 7/7 Accessories • Accessory overview: Water supply and electrical connection for Geberit concealed cisterns → p. 277 271 Geberit AquaClean WC complete solutions Wall-hung WCs for concealed cisterns Geberit AquaClean 8000plus WC complete solution, concealed, wall-hung WC 42 25 43 18−20 21−25 5−9 135 29 38−42 215 615 Application purposes • For convenient and odourless toilet use • For gently cleaning the anal and vaginal areas with water Characteristics • WC seat and WC lid with SoftClosing • WC lid with SoftOpening • User detection • Odour extraction unit with active carbon filter can be activated • Integrated storage water heater • Spray arm with n

Pagina 15-Sistem WC GEBERIT AquaClean Fisa tehnica Engleza ctory setting

37 °C

Spray time

20 s

Maximum...

Pagina 16 - Sistem WC GEBERIT AquaClean Fisa tehnica Engleza ozzle can be extended for anal and...

ozzle can be extended for anal and vaginal area • Washdown WC with dirt-repellent ceramic surface • Spray intensity can be set to seven different levels • Adjustable storage water heater operating mode (ON/OFF/ economy mode) • Spray arm can be set to seven different positions • Pulsating massage spray can be activated • Adjustable oscillating spray (automatic forward and reverse motion of the spray arm) • Adjustable shower water temperature • Shower spray gradually cools down continuously during shower procedure • Automatic pre-rinsing of spray nozzle with fresh water and postrinsing with Geberit nozzle cleaner • Dryer can be activated • Adjustable dryer temperature • Water supply connection on the side at left • Dryer arm can be extended • Functions and settings via remote control • Four user profiles can be programmed • Approval in accordance with EN 1717 / EN 13077 Art. no. Colour / Surface 180.100.11.2 white alpine Technical data Protection clas

Pagina 16-Sistem WC GEBERIT AquaClean Fisa tehnica Engleza ozzle can be extended for anal and vaginal area
•...

Pagina 17 - Sistem WC GEBERIT AquaClean Fisa tehnica Engleza s

I

Protection degree

IPX4

Nominal ...

s I Protection degree IPX4 Nominal voltage 230 V AC Mains frequency 50-60 Hz Power consumption 1000 W Power consumption standby / with heating switched on 1/9 W Cable length 0.7 m Flow pressure 1-10 bar Operating temperature 10-40 °C Water temperature adjustment range 10-39 °C Water temperature factory setting 37 °C Dryer temperature factory setting 45 °C Spray time 20 s Maximum load WC seat 150 kg Scope of delivery • Water supply connection set for Geberit Sigma concealed cistern 12 cm and Geberit Omega concealed cistern 12 cm • Spray shield • Dryer fan with housing • Nozzle cleaner, 400 ml • Cleaning set • Active carbon filter • Sound insulation set • Cover plate for remote control compartment • Remote control with LC display, wall-mounted case and batteries, LR03 (AAA) • Fastening material Plug type CEE 7/7 Accessories • Accessory overview: Water supply and electrical connection for Geberit concealed cisterns → p. 277 272 G
