DYNACO S-539
Cat.2...

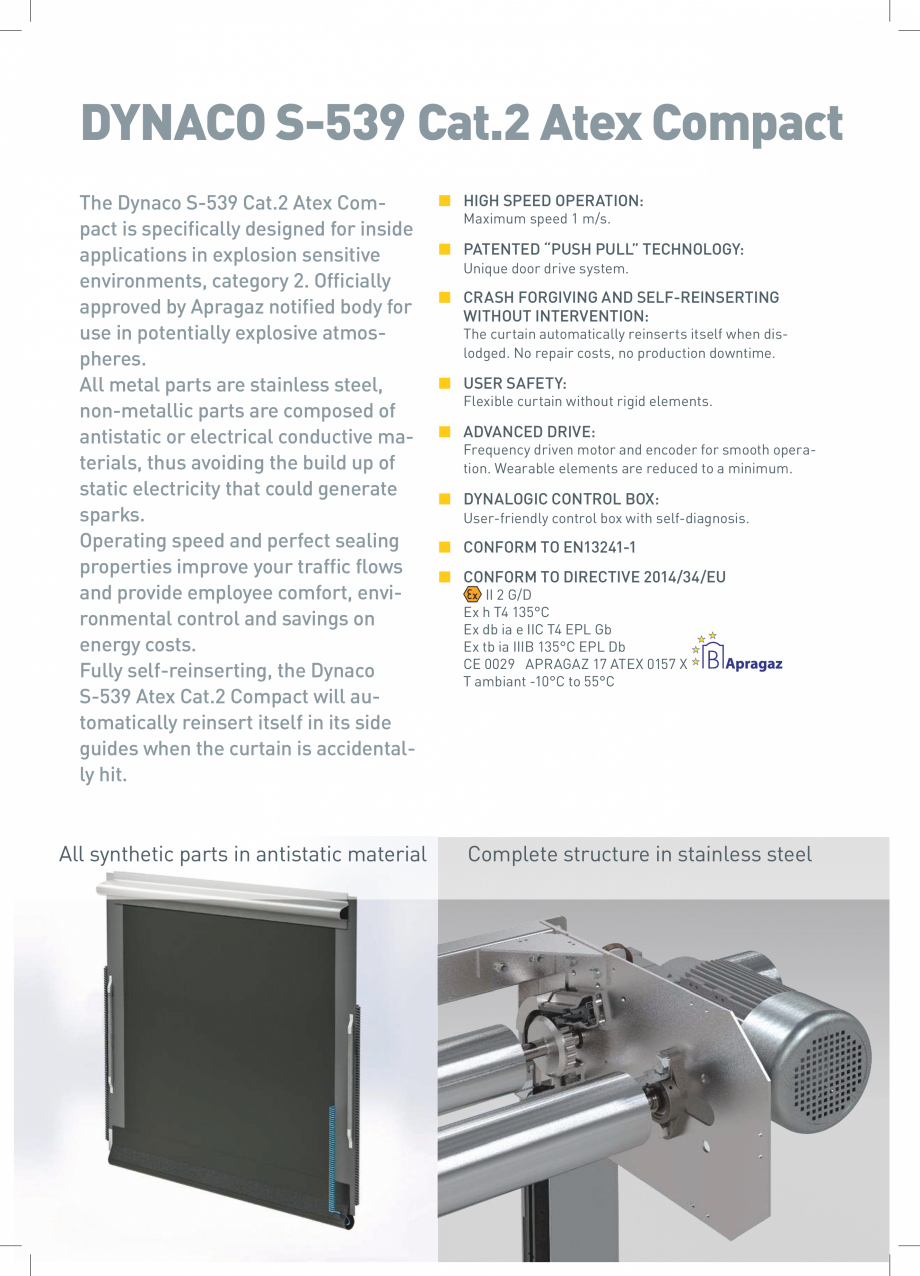

2 DYNACO S-539 Cat.2 Atex Compact www.dynacodoor.com Push-Pull gear driven technology inside door DYNACO S-539 Cat.2 Atex Compact The Dynaco S-539 Cat.2 Atex Compact is specifically designed for inside applications in explosion sensitive environments, category 2. Officially approved by Apragaz notified body for use in potentially explosive atmospheres. All metal parts are stainless steel, non-metallic parts are composed of antistatic or electrical conductive materials, thus avoiding the build up of static electricity that could generate sparks. Operating speed and perfect sealing properties improve your traffic flows and provide employee comfort, environmental control and savings on energy costs. Fully self-reinserting, the Dynaco S-539 Atex Cat.2 Compact will automatically reinsert itself in its side guides when the curtain is accidentally hit. All synthetic parts in antistatic material ■ HIGH SPEED OPERATION: Maximum speed 1 m/s. ■ PATENTED “PUSH PULL” TECHNOLOGY: Uniq

Pagina 1-Usa rapida S-539 - Cat2 DYNACO S-5 ATEX Catalog, brosura Engleza 2
DYNACO S-539
Cat.2 Atex
Compact...

Pagina 2 - Usa rapida S-539 - Cat2 DYNACO S-5 ATEX Catalog, brosura Engleza ue door drive system.
...

ue door drive system. ■ CRASH FORGIVING AND SELF-REINSERTING WITHOUT INTERVENTION: The curtain automatically reinserts itself when dislodged. No repair costs, no production downtime. ■ USER SAFETY: Flexible curtain without rigid elements. ■ ADVANCED DRIVE: Frequency driven motor and encoder for smooth operation. Wearable elements are reduced to a minimum. ■ DYNALOGIC CONTROL BOX: User-friendly control box with self-diagnosis. ■ CONFORM TO EN13241-1 ■ CONFORM TO DIRECTIVE 2014/34/EU II 2 G/D Ex h T4 135°C Ex db ia e IIC T4 EPL Gb Ex tb ia IIIB 135°C EPL Db CE 0029 APRAGAZ 17 ATEX 0157 X T ambiant -10°C to 55°C Complete structure in stainless steel Push-Pull 2 gear driven technology inside door EN13241-1 STANDARDS CHARACTERISTICS Standard Ref. Test acc. Results Water permeability EN 12425 EN 12489 Class 1 Wind load EN 12424 EN 12444 Class 1 Wind permeability EN 12426 EN 12427 Safe openings EN 12453 Mechanical resistance Max. dimensions W 5

Pagina 2-Usa rapida S-539 - Cat2 DYNACO S-5 ATEX Catalog, brosura Engleza ue door drive system.

■ CRASH...

Pagina 3 - Usa rapida S-539 - Cat2 DYNACO S-5 ATEX Catalog, brosura Engleza .500 mm x H 5.500 mm
...

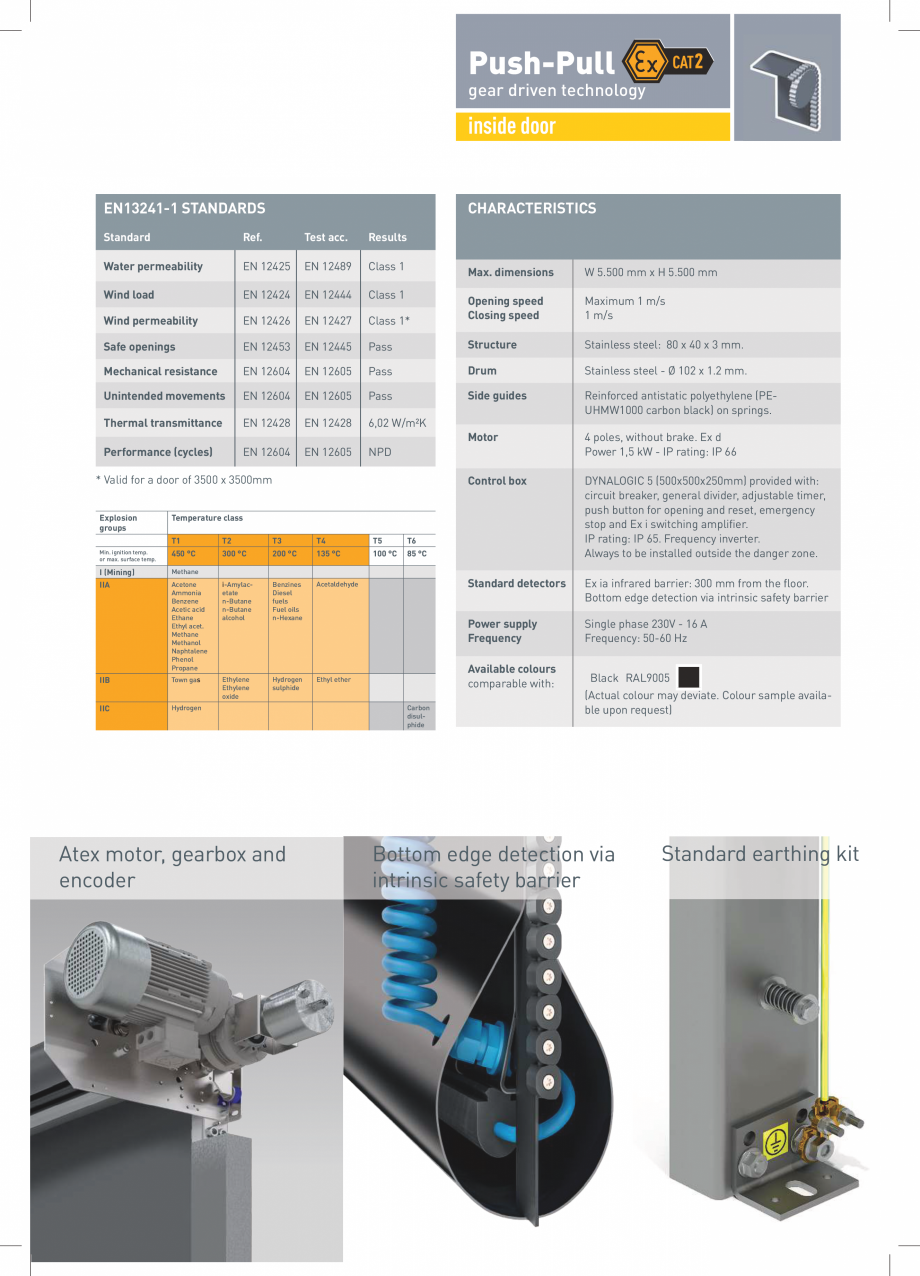

.500 mm x H 5.500 mm Class 1* Opening speed Closing speed Maximum 1 m/s 1 m/s EN 12445 Pass Structure Stainless steel: 80 x 40 x 3 mm. EN 12604 EN 12605 Pass Drum Stainless steel - Ø 102 x 1.2 mm. Unintended movements EN 12604 EN 12605 Pass Side guides Reinforced antistatic polyethylene (PEUHMW1000 carbon black) on springs. Thermal transmittance EN 12428 EN 12428 6,02 W/m²K Motor Performance (cycles) EN 12604 EN 12605 NPD 4 poles, without brake. Ex d Power 1,5 kW - IP rating: IP 66 Control box DYNALOGIC 5 (500x500x250mm) provided with: circuit breaker, general divider, adjustable timer, push button for opening and reset, emergency stop and Ex i switching amplifier. IP rating: IP 65. Frequency inverter. Always to be installed outside the danger zone. Standard detectors Ex ia infrared barrier: 300 mm from the floor. Bottom edge detection via intrinsic safety barrier Power supply Frequency Single phase 230V - 16 A Frequency: 50-60 Hz * Valid for a door

Pagina 3-Usa rapida S-539 - Cat2 DYNACO S-5 ATEX Catalog, brosura Engleza .500 mm x H 5.500 mm

Class 1*
...

Pagina 4 - Usa rapida S-539 - Cat2 DYNACO S-5 ATEX Catalog, brosura Engleza of 3500 x 3500mm...

of 3500 x 3500mm Explosion groups Temperature class T1 T2 T3 T4 T5 T6 Min. ignition temp. or max. surface temp. 450 °C 300 °C 200 °C 135 °C 100 °C 85 °C I (Mining) Methane IIA Acetone Ammonia Benzene Acetic acid Ethane Ethyl acet. Methane Methanol Naphtalene Phenol Propane i-Amylacetate n-Butane n-Butane alcohol Benzines Diesel fuels Fuel oils n-Hexane Acetaldehyde Town gas Ethylene Ethylene oxide Hydrogen sulphide Ethyl ether IIB IIC Hydrogen Atex motor, gearbox and encoder Available colours comparable with: Carbon disulphide Black RAL9005 (Actual colour may deviate. Colour sample available upon request) Bottom edge detection via intrinsic safety barrier Standard earthing kit Dimensions and installation requirements Dynaco S-539 Cat.2 Atex Compact 2 154 454 645 174 454 475 W W 139 130 139 130 H≤4000 H>4000 or H>4000 without drum cover with drum cover 552 636 All indicated dimensions are net: the space necessary for mounting and
