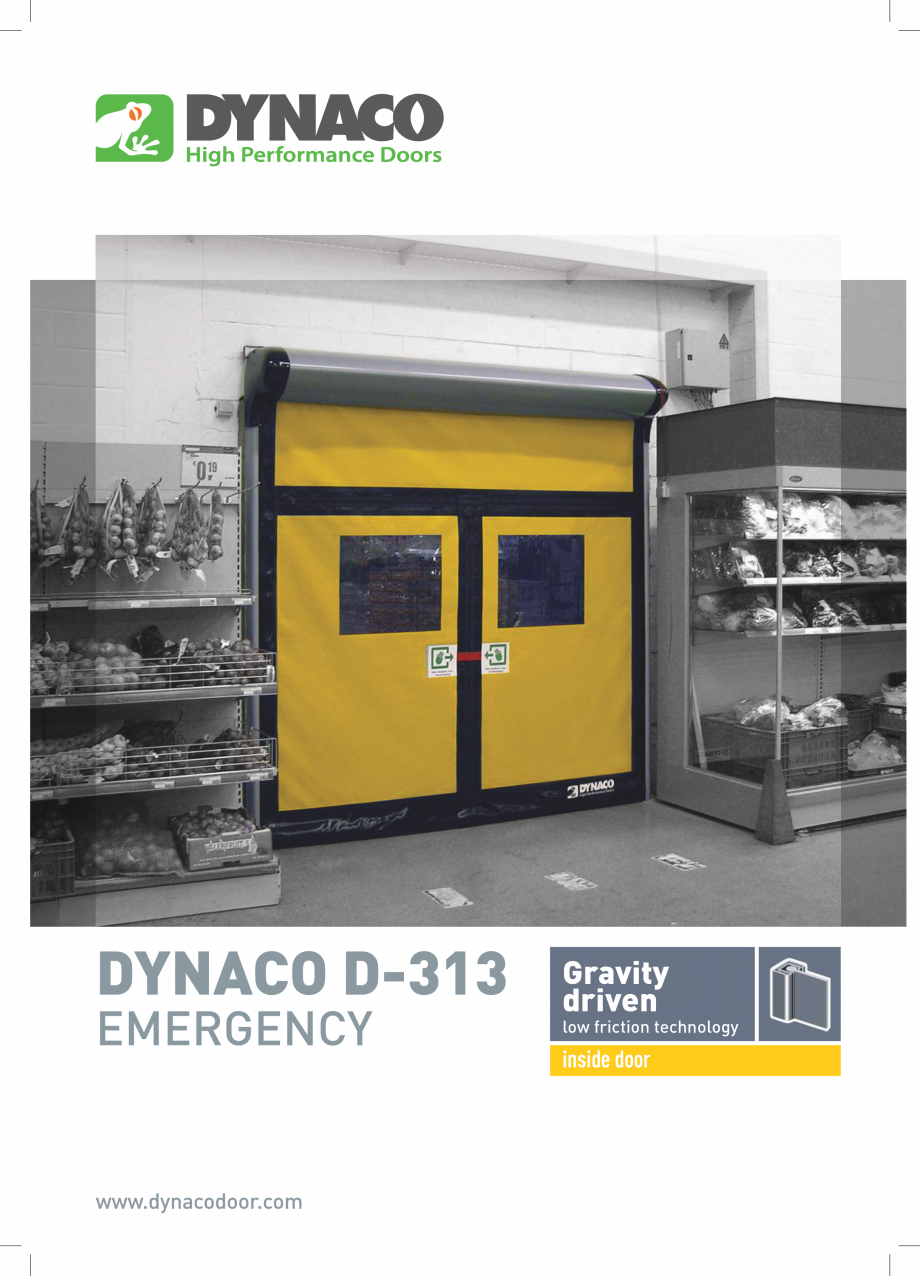

DYNACO D-313 EMERGENCY www.dynacodoor.com Gravity driven low friction technology inside door DYNACO D-313 EMERGENCY The Dynaco D-313 Emergency is designed as an emergency exit for inside applications. At the same time, it offers all the advantages of a Dynaco high speed door. With its modern design, the D-313 Emergency LF is the slimmest high speed door in the market. The smooth operation and the low maintenance requirements make it a perfect door for retail stores. An ingenious T-shaped cut in the middle of the curtain allows two symmetric “flaps” to release an emergency exit, simply by pushing on the indicated spot. ■ OPENING SPEED: Up to 2 m/s ■ GOOD SEAL: Patented side guides and «BEAD» technology allow energy savings. ■ MINIMAL SPACE, MODERN LOOK: Motor installed inside the drum (DVDMPT). Very aesthetic design. ■ USER SAFETY: Flexible curtain without rigid elements. Integrated emergency escape system. ■ COMFORT OF USE: DYNACO wireless detector at the bott

Pagina 1-Usa rapida DYNACO D-313 EMERGENCY Catalog, brosura Engleza DYNACO D-313
EMERGENCY

www.dynacodoor...

Pagina 2 - Usa rapida DYNACO D-313 EMERGENCY Catalog, brosura Engleza om.

■ ADVANCED DRIVE:...

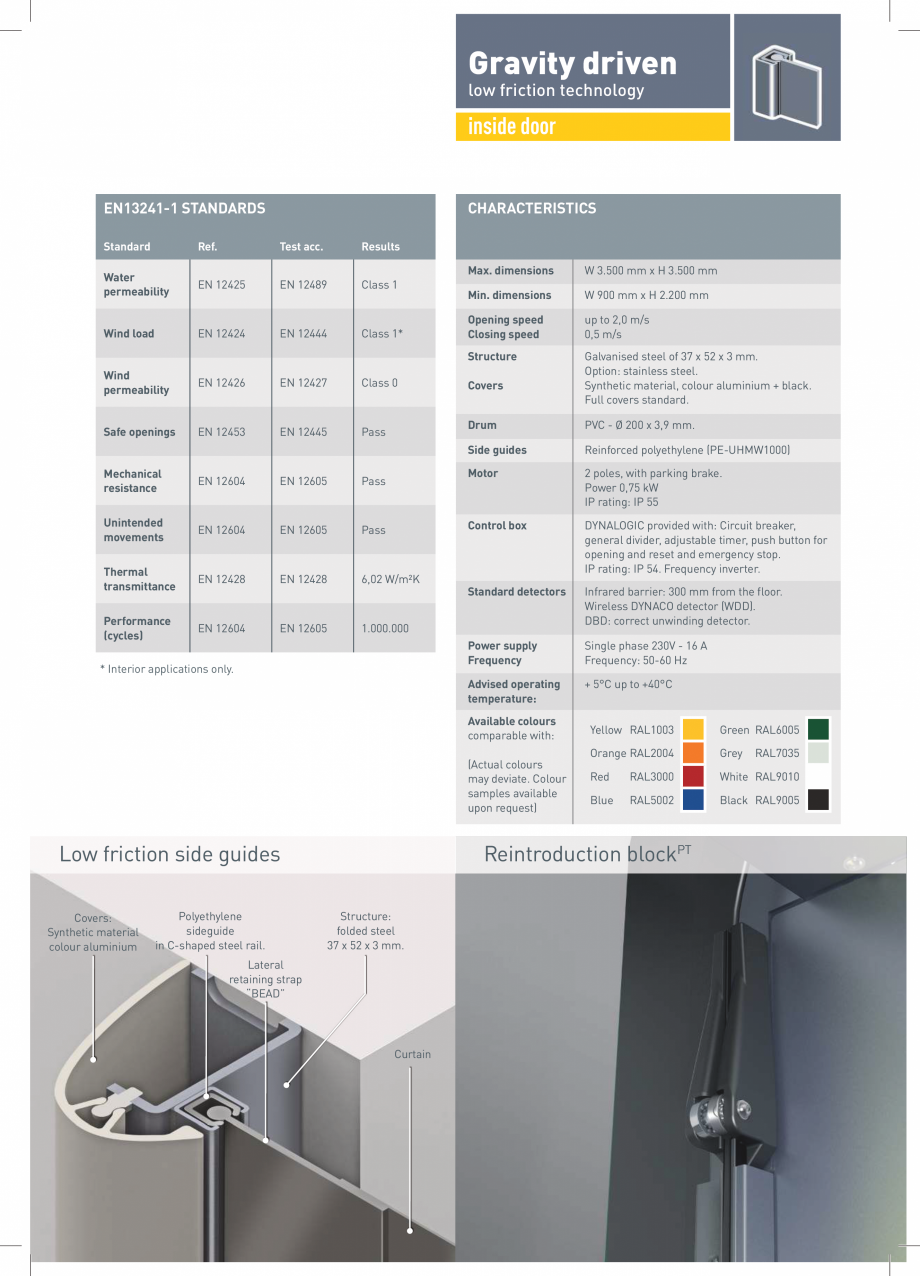

om. ■ ADVANCED DRIVE: Frequency driven motor and encoder for smooth operation. Wearable elements are reduced to a minimum. ■ DYNALOGIC CONTROL BOX: User-friendly control box with self-diagnosis. ■ CONFORM TO EN13241-1 Opening by pushing at the emergency release spots Incorporated Motor Covers: Synthetic material colour black Gravity driven low friction technology inside door EN13241-1 STANDARDS CHARACTERISTICS Standard Ref. Test acc. Results Water permeability EN 12425 EN 12489 Class 1 Wind load EN 12424 EN 12444 Class 1* Wind permeability EN 12426 EN 12427 Class 0 Safe openings EN 12453 EN 12445 Pass Mechanical resistance EN 12604 EN 12605 Pass Unintended movements EN 12604 EN 12605 Pass Thermal transmittance EN 12428 EN 12428 6,02 W/m²K Performance (cycles) EN 12604 EN 12605 Max. dimensions W 3.500 mm x H 3.500 mm Min. dimensions W 900 mm x H 2.200 mm Opening speed Closing speed up to 2,0 m/s 0,5 m/s Structure Galvanised st

Pagina 2-Usa rapida DYNACO D-313 EMERGENCY Catalog, brosura Engleza om.

■ ADVANCED DRIVE:
Frequency driven...

Pagina 3 - Usa rapida DYNACO D-313 EMERGENCY Catalog, brosura Engleza eel of 37 x 52 x 3 mm.
Option:...

eel of 37 x 52 x 3 mm. Option: stainless steel. Synthetic material, colour aluminium + black. Full covers standard. Covers Drum PVC - Ø 200 x 3,9 mm. Side guides Reinforced polyethylene (PE-UHMW1000) Motor 2 poles, with parking brake. Power 0,75 kW IP rating: IP 55 Control box DYNALOGIC provided with: Circuit breaker, general divider, adjustable timer, push button for opening and reset and emergency stop. IP rating: IP 54. Frequency inverter. Standard detectors Infrared barrier: 300 mm from the floor. Wireless DYNACO detector (WDD). DBD: correct unwinding detector. Power supply Frequency Single phase 230V - 16 A Frequency: 50-60 Hz Advised operating temperature: + 5°C up to +40°C 1.000.000 * Interior applications only. Available colours comparable with: (Actual colours may deviate. Colour samples available upon request) Low friction side guides Covers: Synthetic material colour aluminium Polyethylene sideguide in C-shaped steel rail. Yellow RAL1003 Green RAL6005

Pagina 3-Usa rapida DYNACO D-313 EMERGENCY Catalog, brosura Engleza eel of 37 x 52 x 3 mm.
Option: stainless ...

Pagina 4 - Usa rapida DYNACO D-313 EMERGENCY Catalog, brosura Engleza

Orange RAL2004

Grey

Red
...

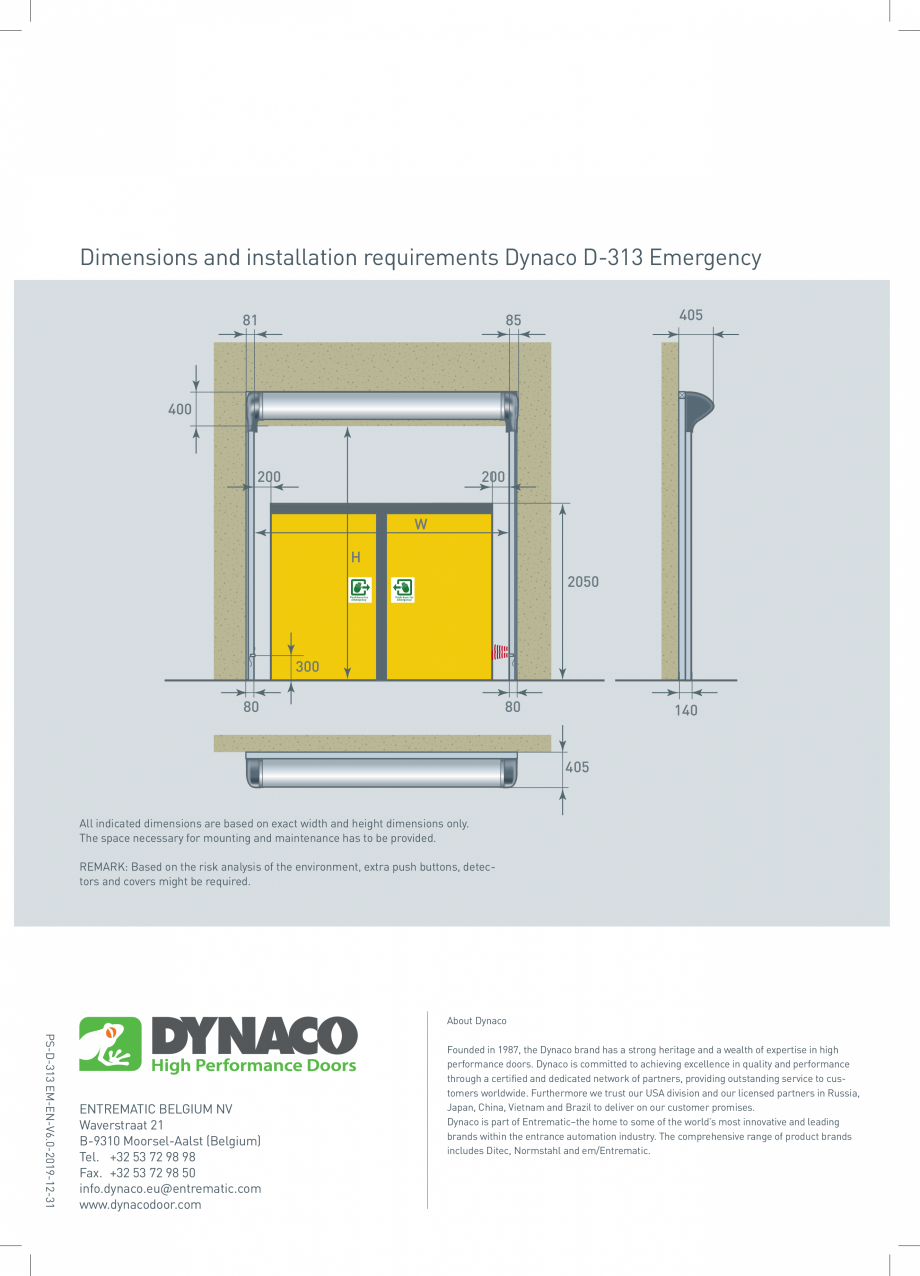

Orange RAL2004 Grey Red RAL3000 White RAL9010 Blue RAL5002 Black RAL9005 Reintroduction blockPT Structure: folded steel 37 x 52 x 3 mm. Lateral retaining strap “BEAD” Curtain RAL7035 Dimensions and installation requirements Dynaco D-313 Emergency 405 85 81 400 200 200 W H 2050 Push here for emergency Push here for emergency 300 80 80 140 405 All indicated dimensions are based on exact width and height dimensions only. The space necessary for mounting and maintenance has to be provided. REMARK: Based on the risk analysis of the environment, extra push buttons, detectors and covers might be required. About Dynaco PS-D-313 EM-EN-V6.0-2019-12-31 ENTREMATIC BELGIUM NV Waverstraat 21 B-9310 Moorsel-Aalst (Belgium) Tel. +32 53 72 98 98 Fax. +32 53 72 98 50 info.dynaco.eu@entrematic.com www.dynacodoor.com Founded in 1987, the Dynaco brand has a strong heritage and a wealth of expertise in high performance doors. Dynaco is committed to achieving excellence in q
