Usa sectionala compacta BUTZBACH SPACELITE HT40 RC3

Limba: Engleza

11 afisari

Tip documentatie: Fisa tehnica

Pagina 1 - Usa sectionala compacta BUTZBACH SPACELITE HT40 RC3 Fisa tehnica Engleza The other kind...

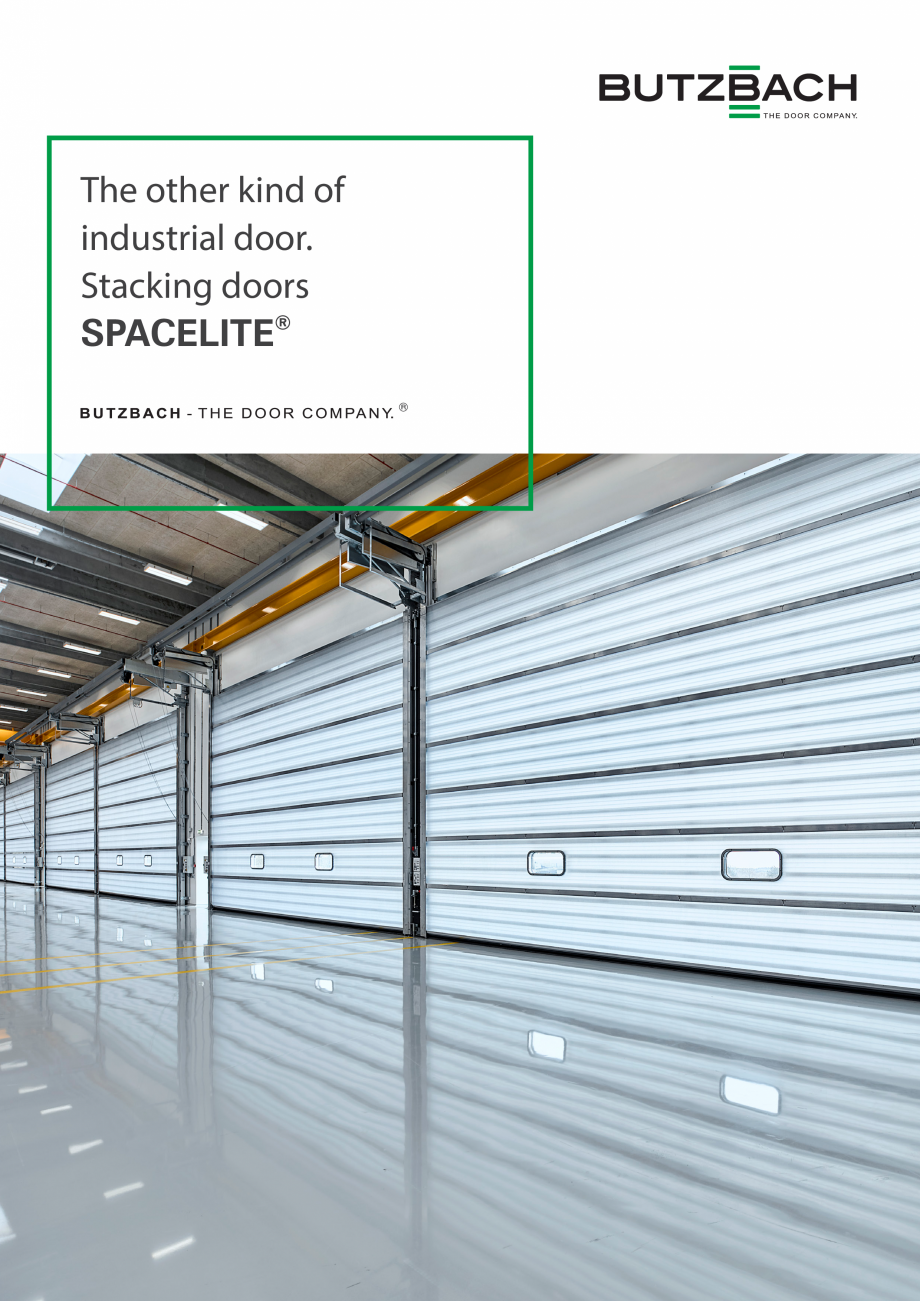

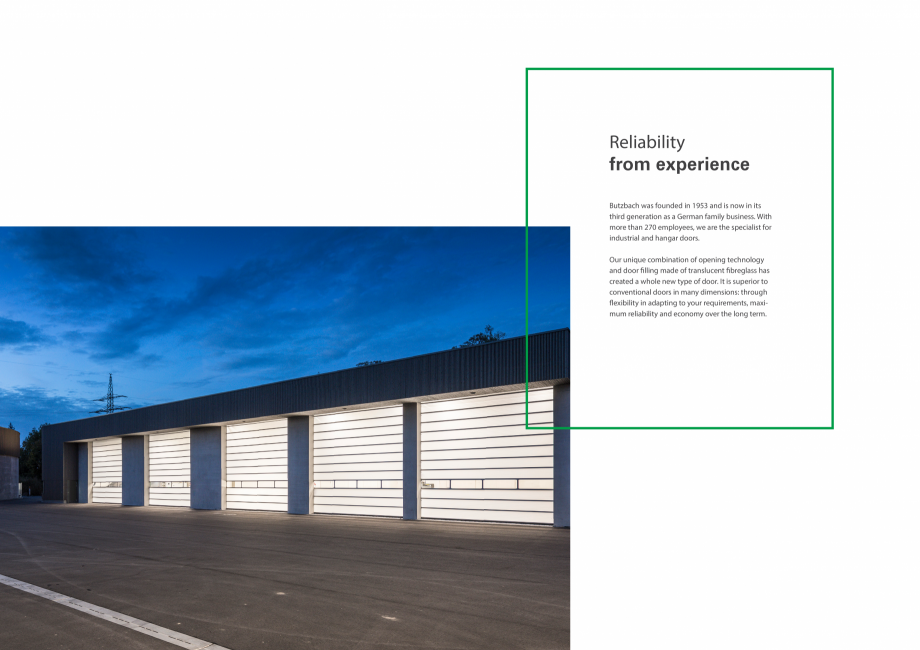

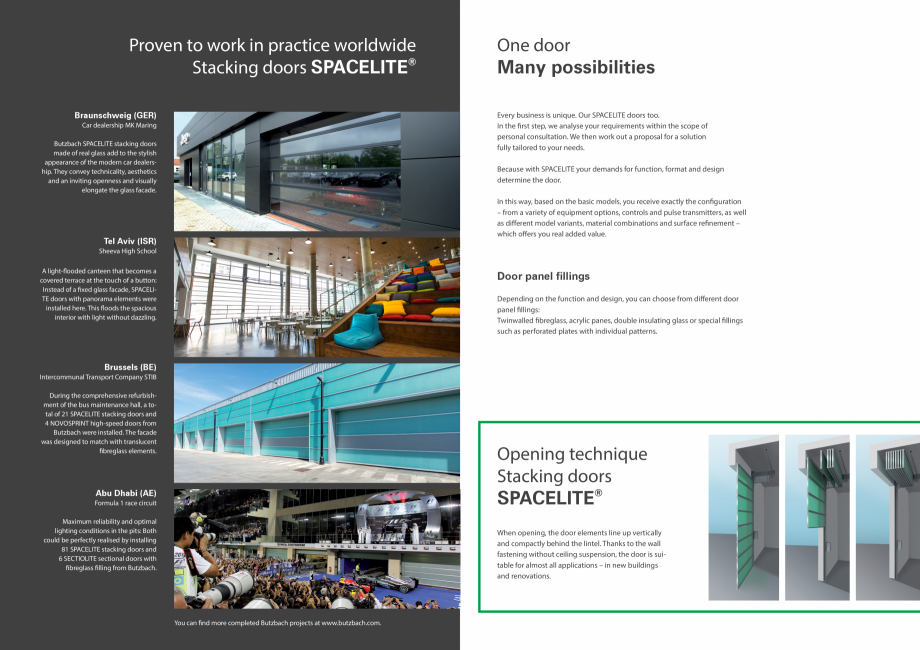

The other kind of industrial door. Stacking doors SPACELITE® Reliability from experience Butzbach was founded in 1953 and is now in its third generation as a German family business. With more than 270 employees, we are the specialist for industrial and hangar doors. Our unique combination of opening technology and door filling made of translucent fibreglass has created a whole new type of door. It is superior to conventional doors in many dimensions: through flexibility in adapting to your requirements, maximum reliability and economy over the long term. Proven to work in practice worldwide Stacking doors SPACELITE® Braunschweig (GER) One door Many possibilities Every business is unique. Our SPACELITE doors too. In the first step, we analyse your requirements within the scope of personal consultation. We then work out a proposal for a solution fully tailored to your needs. Car dealership MK Maring Butzbach SPACELITE stacking doors made of real glass add to the stylish appearanc

Pagina 1-Usa sectionala compacta BUTZBACH SPACELITE HT40 RC3 Fisa tehnica Engleza The other kind of...

Pagina 2 - Usa sectionala compacta BUTZBACH SPACELITE HT40 RC3 Fisa tehnica Engleza e of the modern ...

e of the modern car dealership. They convey technicality, aesthetics and an inviting openness and visually elongate the glass facade. Because with SPACELITE your demands for function, format and design determine the door. In this way, based on the basic models, you receive exactly the configuration – from a variety of equipment options, controls and pulse transmitters, as well as different model variants, material combinations and surface refinement – which offers you real added value. Tel Aviv (ISR) Sheeva High School A light-flooded canteen that becomes a covered terrace at the touch of a button: Instead of a fixed glass facade, SPACELITE doors with panorama elements were installed here. This floods the spacious interior with light without dazzling. Door panel fillings Depending on the function and design, you can choose from different door panel fillings: Twinwalled fibreglass, acrylic panes, double insulating glass or special fillings such as perforated plates with individua

Pagina 2-Usa sectionala compacta BUTZBACH SPACELITE HT40 RC3 Fisa tehnica Engleza e of the modern car...

Pagina 3 - Usa sectionala compacta BUTZBACH SPACELITE HT40 RC3 Fisa tehnica Engleza l patterns.
...

l patterns. Brussels (BE) Intercommunal Transport Company STIB During the comprehensive refurbishment of the bus maintenance hall, a total of 21 SPACELITE stacking doors and 4 NOVOSPRINT high-speed doors from Butzbach were installed. The facade was designed to match with translucent fibreglass elements. Opening technique Stacking doors SPACELITE® Abu Dhabi (AE) Formula 1 race circuit Maximum reliability and optimal lighting conditions in the pits: Both could be perfectly realised by installing 81 SPACELITE stacking doors and 6 SECTIOLITE sectional doors with fibreglass filling from Butzbach. When opening, the door elements line up vertically and compactly behind the lintel. Thanks to the wall fastening without ceiling suspension, the door is suitable for almost all applications – in new buildings and renovations. You can find more completed Butzbach projects at www.butzbach.com. The innovative material FIBREGLASS Fibreglass – a material that, thanks to its positive properti

Pagina 3-Usa sectionala compacta BUTZBACH SPACELITE HT40 RC3 Fisa tehnica Engleza l patterns.

Brussels (BE)
...

Pagina 4 - Usa sectionala compacta BUTZBACH SPACELITE HT40 RC3 Fisa tehnica Engleza es, is also used...

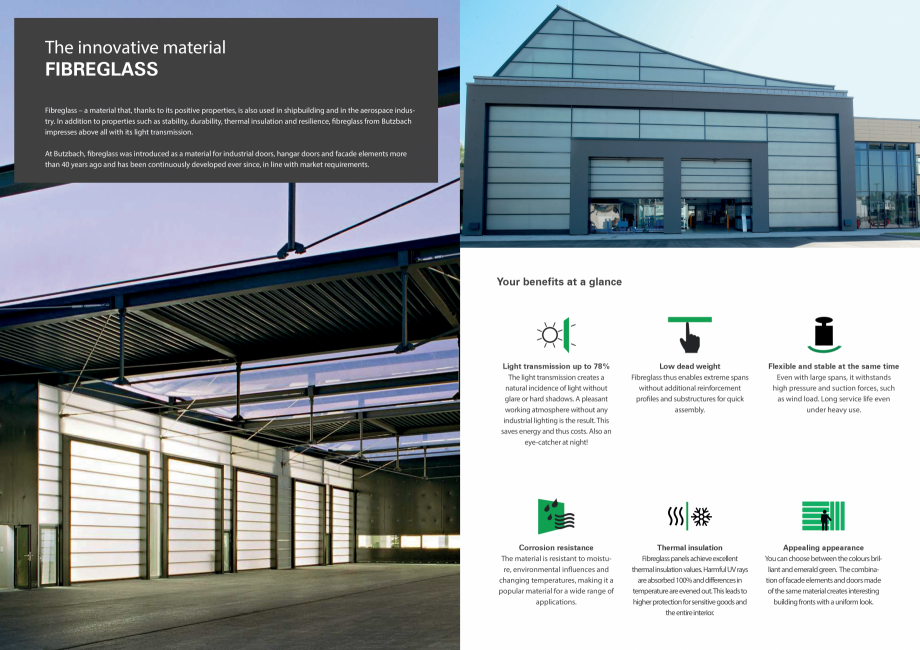

es, is also used in shipbuilding and in the aerospace industry. In addition to properties such as stability, durability, thermal insulation and resilience, fibreglass from Butzbach impresses above all with its light transmission. At Butzbach, fibreglass was introduced as a material for industrial doors, hangar doors and facade elements more than 40 years ago and has been continuously developed ever since, in line with market requirements. Your benefits at a glance Light transmission up to 78% The light transmission creates a natural incidence of light without glare or hard shadows. A pleasant working atmosphere without any industrial lighting is the result. This saves energy and thus costs. Also an eye-catcher at night! Low dead weight Fibreglass thus enables extreme spans without additional reinforcement profiles and substructures for quick assembly. Corrosion resistance The material is resistant to moisture, environmental influences and changing temperatures, making it a popular

Pagina 4-Usa sectionala compacta BUTZBACH SPACELITE HT40 RC3 Fisa tehnica Engleza es, is also used in...

Pagina 5 - Usa sectionala compacta BUTZBACH SPACELITE HT40 RC3 Fisa tehnica Engleza material for a...

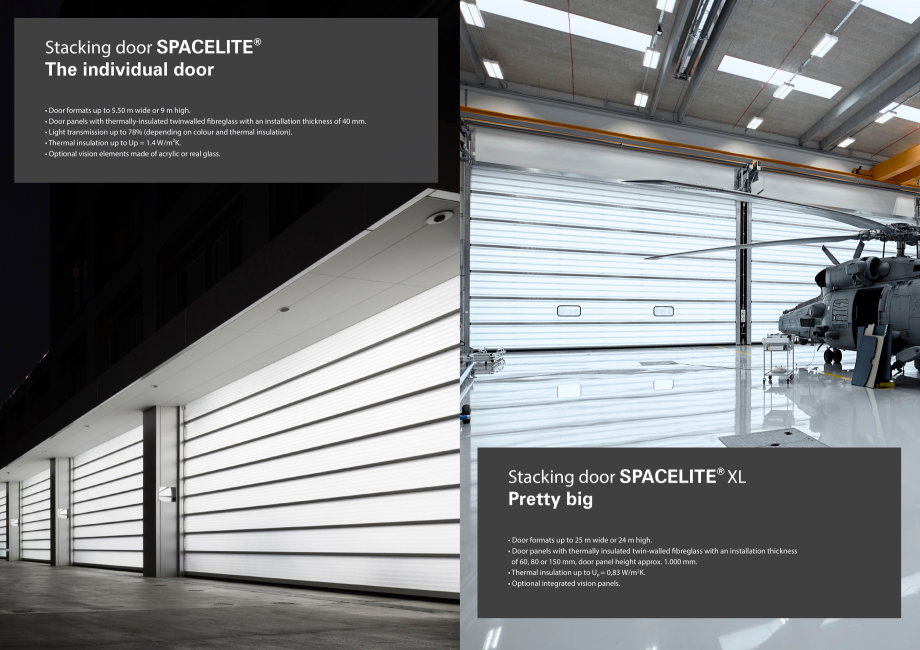

material for a wide range of applications. Thermal insulation Fibreglass panels achieve excellent thermal insulation values. Harmful UV rays are absorbed 100% and differences in temperature are evened out. This leads to higher protection for sensitive goods and the entire interior. Flexible and stable at the same time Even with large spans, it withstands high pressure and suction forces, such as wind load. Long service life even under heavy use. Appealing appearance You can choose between the colours brilliant and emerald green. The combination of facade elements and doors made of the same material creates interesting building fronts with a uniform look. Stacking door SPACELITE® The individual door • Door formats up to 5.50 m wide or 9 m high. • Door panels with thermally-insulated twinwalled fibreglass with an installation thickness of 40 mm. • Light transmission up to 78% (depending on colour and thermal insulation). • Thermal insulation up to Up = 1.4 W/m²K. • Optio

Pagina 5-Usa sectionala compacta BUTZBACH SPACELITE HT40 RC3 Fisa tehnica Engleza material for a wide range...

Pagina 6 - Usa sectionala compacta BUTZBACH SPACELITE HT40 RC3 Fisa tehnica Engleza nal vision...

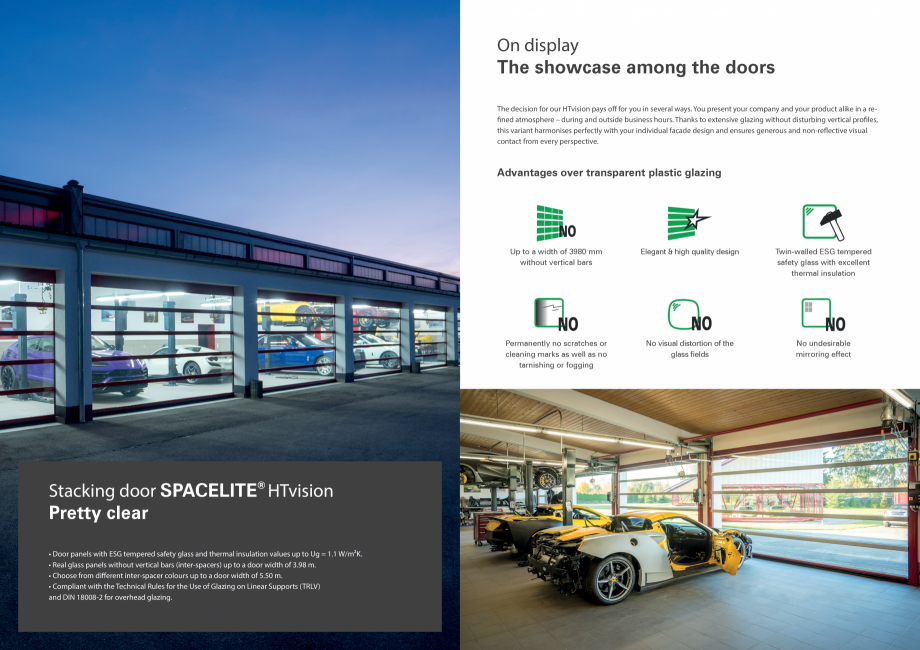

nal vision elements made of acrylic or real glass. Stacking door SPACELITE® XL Pretty big • Door formats up to 25 m wide or 24 m high. • Door panels with thermally insulated twin-walled fibreglass with an installation thickness of 60, 80 or 150 mm, door panel height approx. 1.000 mm. • Thermal insulation up to Up = 0,83 W/m2K. • Optional integrated vision panels. On display The showcase among the doors The decision for our HTvision pays off for you in several ways. You present your company and your product alike in a refined atmosphere – during and outside business hours. Thanks to extensive glazing without disturbing vertical profiles, this variant harmonises perfectly with your individual facade design and ensures generous and non-reflective visual contact from every perspective. Advantages over transparent plastic glazing Stacking door SPACELITE® HTvision Pretty clear • Door panels with ESG tempered safety glass and thermal insulation values up to Ug = 1.1 W/m²K.

Pagina 6-Usa sectionala compacta BUTZBACH SPACELITE HT40 RC3 Fisa tehnica Engleza nal vision elements made of...

Pagina 7 - Usa sectionala compacta BUTZBACH SPACELITE HT40 RC3 Fisa tehnica Engleza
• Real glass ...

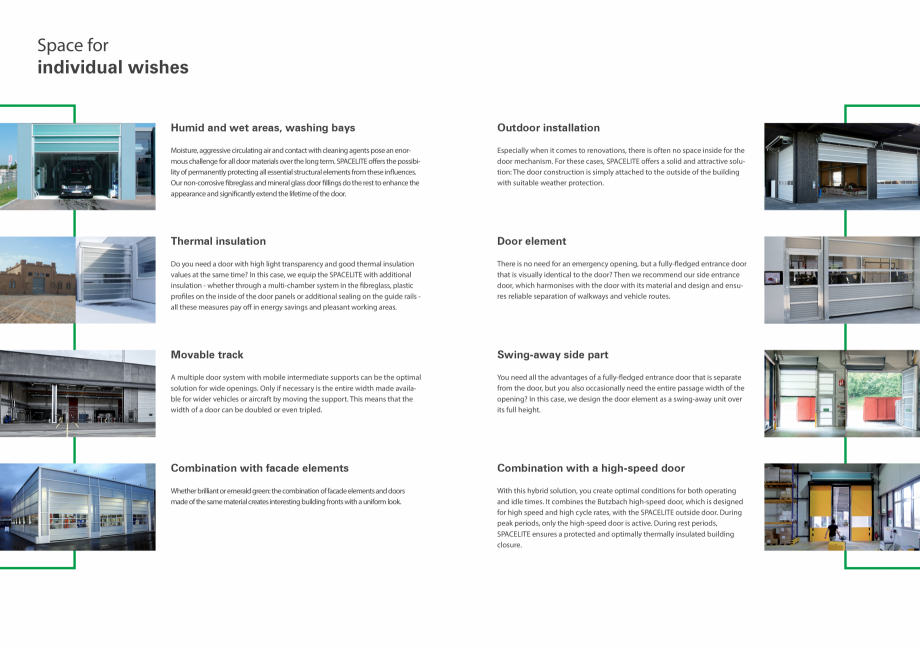

• Real glass panels without vertical bars (inter-spacers) up to a door width of 3.98 m. • Choose from different inter-spacer colours up to a door width of 5.50 m. • Compliant with the Technical Rules for the Use of Glazing on Linear Supports (TRLV) and DIN 18008-2 for overhead glazing. Up to a width of 3980 mm without vertical bars Elegant & high quality design Twin-walled ESG tempered safety glass with excellent thermal insulation Permanently no scratches or cleaning marks as well as no tarnishing or fogging No visual distortion of the glass ﬁelds No undesirable mirroring effect Space for individual wishes Humid and wet areas, washing bays Outdoor installation Moisture, aggressive circulating air and contact with cleaning agents pose an enormous challenge for all door materials over the long term. SPACELITE offers the possibility of permanently protecting all essential structural elements from these influences. Our non-corrosive fibreglass and mineral glass door fil

Pagina 7-Usa sectionala compacta BUTZBACH SPACELITE HT40 RC3 Fisa tehnica Engleza
• Real glass panels...

Pagina 8 - Usa sectionala compacta BUTZBACH SPACELITE HT40 RC3 Fisa tehnica Engleza lings do the...

lings do the rest to enhance the appearance and significantly extend the lifetime of the door. Especially when it comes to renovations, there is often no space inside for the door mechanism. For these cases, SPACELITE offers a solid and attractive solution: The door construction is simply attached to the outside of the building with suitable weather protection. Thermal insulation Door element Do you need a door with high light transparency and good thermal insulation values at the same time? In this case, we equip the SPACELITE with additional insulation - whether through a multi-chamber system in the fibreglass, plastic profiles on the inside of the door panels or additional sealing on the guide rails all these measures pay off in energy savings and pleasant working areas. There is no need for an emergency opening, but a fully-fledged entrance door that is visually identical to the door? Then we recommend our side entrance door, which harmonises with the door with its material an

Pagina 8-Usa sectionala compacta BUTZBACH SPACELITE HT40 RC3 Fisa tehnica Engleza lings do the rest to...

Pagina 9 - Usa sectionala compacta BUTZBACH SPACELITE HT40 RC3 Fisa tehnica Engleza d design and...

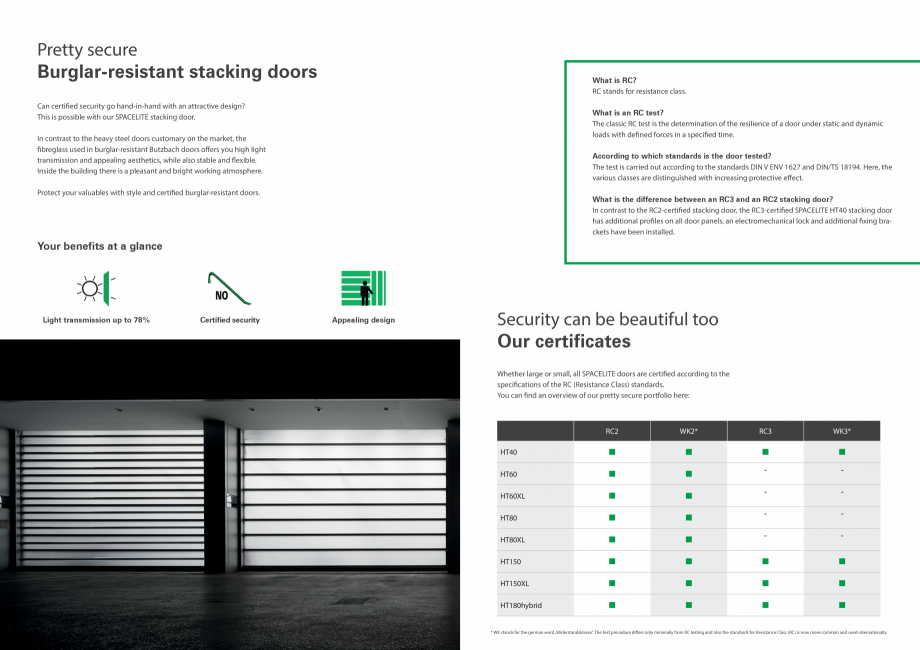

d design and ensures reliable separation of walkways and vehicle routes. Movable track Swing-away side part A multiple door system with mobile intermediate supports can be the optimal solution for wide openings. Only if necessary is the entire width made available for wider vehicles or aircraft by moving the support. This means that the width of a door can be doubled or even tripled. You need all the advantages of a fully-fledged entrance door that is separate from the door, but you also occasionally need the entire passage width of the opening? In this case, we design the door element as a swing-away unit over its full height. Combination with facade elements Combination with a high-speed door Whether brilliant or emerald green: the combination of facade elements and doors made of the same material creates interesting building fronts with a uniform look. With this hybrid solution, you create optimal conditions for both operating and idle times. It combines the Butzbach high-sp

Pagina 9-Usa sectionala compacta BUTZBACH SPACELITE HT40 RC3 Fisa tehnica Engleza d design and ensures...

Pagina 10 - Usa sectionala compacta BUTZBACH SPACELITE HT40 RC3 Fisa tehnica Engleza eed door, which...

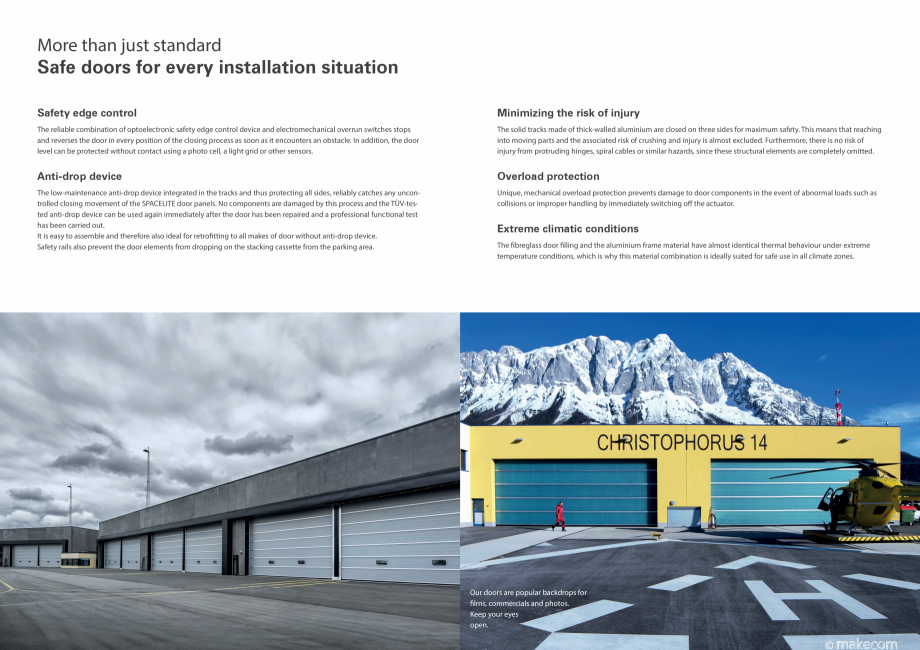

eed door, which is designed for high speed and high cycle rates, with the SPACELITE outside door. During peak periods, only the high-speed door is active. During rest periods, SPACELITE ensures a protected and optimally thermally insulated building closure. More than just standard Safe doors for every installation situation Safety edge control Minimizing the risk of injury The reliable combination of optoelectronic safety edge control device and electromechanical overrun switches stops and reverses the door in every position of the closing process as soon as it encounters an obstacle. In addition, the door level can be protected without contact using a photo cell, a light grid or other sensors. The solid tracks made of thick-walled aluminium are closed on three sides for maximum safety. This means that reaching into moving parts and the associated risk of crushing and injury is almost excluded. Furthermore, there is no risk of injury from protruding hinges, spiral cables or simila

Pagina 10-Usa sectionala compacta BUTZBACH SPACELITE HT40 RC3 Fisa tehnica Engleza eed door, which is designed...

Pagina 11 - Usa sectionala compacta BUTZBACH SPACELITE HT40 RC3 Fisa tehnica Engleza r hazards,...

r hazards, since these structural elements are completely omitted. Anti-drop device Overload protection The low-maintenance anti-drop device integrated in the tracks and thus protecting all sides, reliably catches any uncontrolled closing movement of the SPACELITE door panels. No components are damaged by this process and the TÜV-tested anti-drop device can be used again immediately after the door has been repaired and a professional functional test has been carried out. It is easy to assemble and therefore also ideal for retrofitting to all makes of door without anti-drop device. Safety rails also prevent the door elements from dropping on the stacking cassette from the parking area. Unique, mechanical overload protection prevents damage to door components in the event of abnormal loads such as collisions or improper handling by immediately switching off the actuator. Extreme climatic conditions The fibreglass door filling and the aluminium frame material have almost identical t
