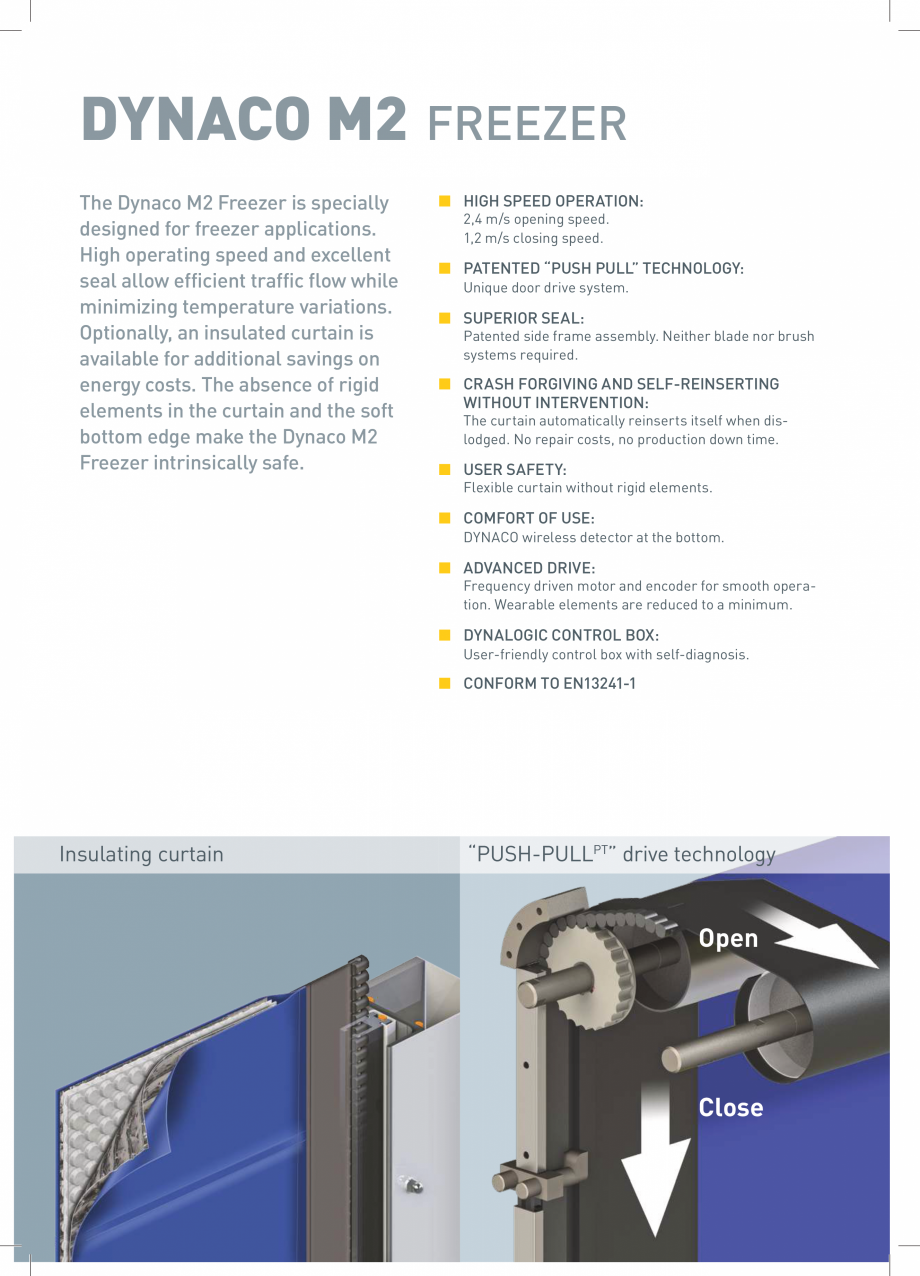

DYNACO M2 FREEZER www.dynacodoor.com Push-Pull gear driven technology inside door DYNACO M2 FREEZER The Dynaco M2 Freezer is specially designed for freezer applications. High operating speed and excellent seal allow efficient traffic flow while minimizing temperature variations. Optionally, an insulated curtain is available for additional savings on energy costs. The absence of rigid elements in the curtain and the soft bottom edge make the Dynaco M2 Freezer intrinsically safe. ■ HIGH SPEED OPERATION: 2,4 m/s opening speed. 1,2 m/s closing speed. ■ PATENTED “PUSH PULL” TECHNOLOGY: Unique door drive system. ■ SUPERIOR SEAL: Patented side frame assembly. Neither blade nor brush systems required. ■ CRASH FORGIVING AND SELF-REINSERTING WITHOUT INTERVENTION: The curtain automatically reinserts itself when dislodged. No repair costs, no production down time. ■ USER SAFETY: Flexible curtain without rigid elements. ■ COMFORT OF USE: DYNACO wireless detector at the bo

Pagina 1-Usi rapide de interior DYNACO M2 FREEZER Catalog, brosura Engleza DYNACO M2
FREEZER

www.dynacodoor....

Pagina 2 - Usi rapide de interior DYNACO M2 FREEZER Catalog, brosura Engleza ttom.

■ ADVANCED...

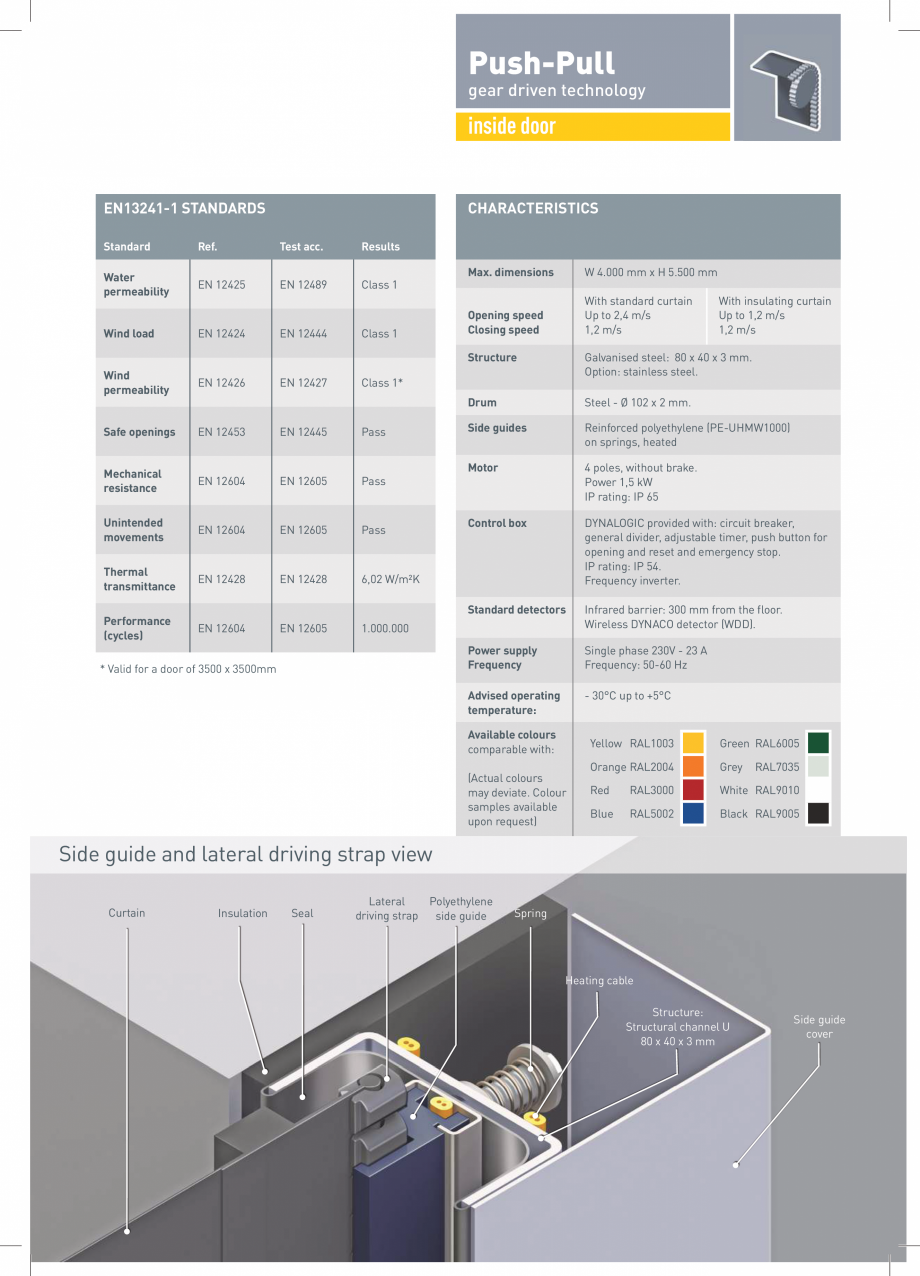

ttom. ■ ADVANCED DRIVE: Frequency driven motor and encoder for smooth operation. Wearable elements are reduced to a minimum. ■ DYNALOGIC CONTROL BOX: User-friendly control box with self-diagnosis. ■ CONFORM TO EN13241-1 Insulating curtain “PUSH-PULLPT” drive technology Open Close Push-Pull gear driven technology inside door EN13241-1 STANDARDS CHARACTERISTICS Standard Ref. Test acc. Results Water permeability EN 12425 EN 12489 Class 1 Wind load Wind permeability EN 12424 EN 12426 EN 12444 EN 12427 Class 1 Max. dimensions W 4.000 mm x H 5.500 mm Opening speed Closing speed With standard curtain Up to 2,4 m/s 1,2 m/s Structure Galvanised steel: 80 x 40 x 3 mm. Option: stainless steel. Drum Steel - Ø 102 x 2 mm. Side guides Reinforced polyethylene (PE-UHMW1000) on springs, heated Motor 4 poles, without brake. Power 1,5 kW IP rating: IP 65 Control box DYNALOGIC provided with: circuit breaker, general divider, adjustable timer, push button

Pagina 2-Usi rapide de interior DYNACO M2 FREEZER Catalog, brosura Engleza ttom.

■ ADVANCED DRIVE:...

Pagina 3 - Usi rapide de interior DYNACO M2 FREEZER Catalog, brosura Engleza for
opening and reset ...

for opening and reset and emergency stop. IP rating: IP 54. Frequency inverter. Standard detectors Infrared barrier: 300 mm from the floor. Wireless DYNACO detector (WDD). Power supply Frequency Single phase 230V - 23 A Frequency: 50-60 Hz Advised operating temperature: - 30°C up to +5°C Class 1* Safe openings EN 12453 EN 12445 Pass Mechanical resistance EN 12604 EN 12605 Pass Unintended movements EN 12604 EN 12605 Pass Thermal transmittance EN 12428 EN 12428 6,02 W/m²K Performance (cycles) EN 12604 EN 12605 1.000.000 * Valid for a door of 3500 x 3500mm With insulating curtain Up to 1,2 m/s 1,2 m/s Available colours comparable with: (Actual colours may deviate. Colour samples available upon request) Yellow RAL1003 Green RAL6005 Orange RAL2004 Grey Red RAL3000 White RAL9010 Blue RAL5002 Black RAL9005 RAL7035 Side guide and lateral driving strap view Curtain Insulation Seal Lateral Polyethylene driving strap side guide Spring Heating cab

Pagina 3-Usi rapide de interior DYNACO M2 FREEZER Catalog, brosura Engleza for
opening and reset and...

Pagina 4 - Usi rapide de interior DYNACO M2 FREEZER Catalog, brosura Engleza le
Structure:...

le Structure: Structural channel U 80 x 40 x 3 mm Side guide cover Dimensions and installation requirements Dynaco M2 Freezer 180 305 515 500 W H 300 145 135 180 570 * Option reduced lintel: upon request. All indicated dimensions are net: the space necessary for mounting and maintenance has to be provided. Weekly maintenance (de-icing) is necessary. REMARK: Based on the risk analysis of the environment, extra push buttons and detectors might be required. PS-M2 F-EN-VV3.0-2019-12-31 About Dynaco ENTREMATIC BELGIUM NV Waverstraat 21 B-9310 Moorsel-Aalst (Belgium) Tel. +32 53 72 98 98 Fax. +32 53 72 98 50 info.dynaco.eu@entrematic.com www.dynacodoor.com Founded in 1987, the Dynaco brand has a strong heritage and a wealth of expertise in high performance doors. Dynaco is committed to achieving excellence in quality and performance through a certified and dedicated network of partners, providing outstanding service to customers worldwide. Furthermore we trust our USA divisio
