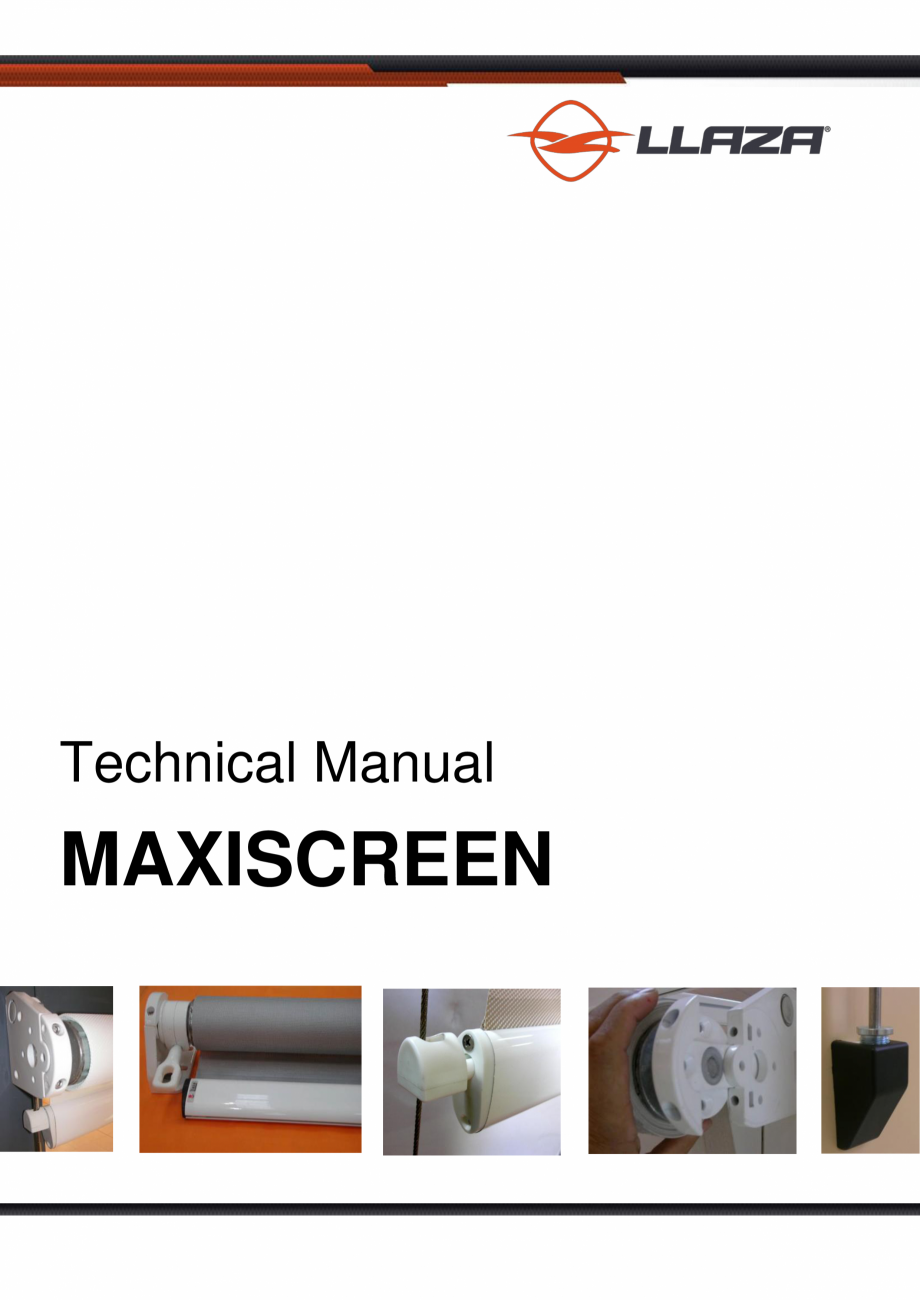

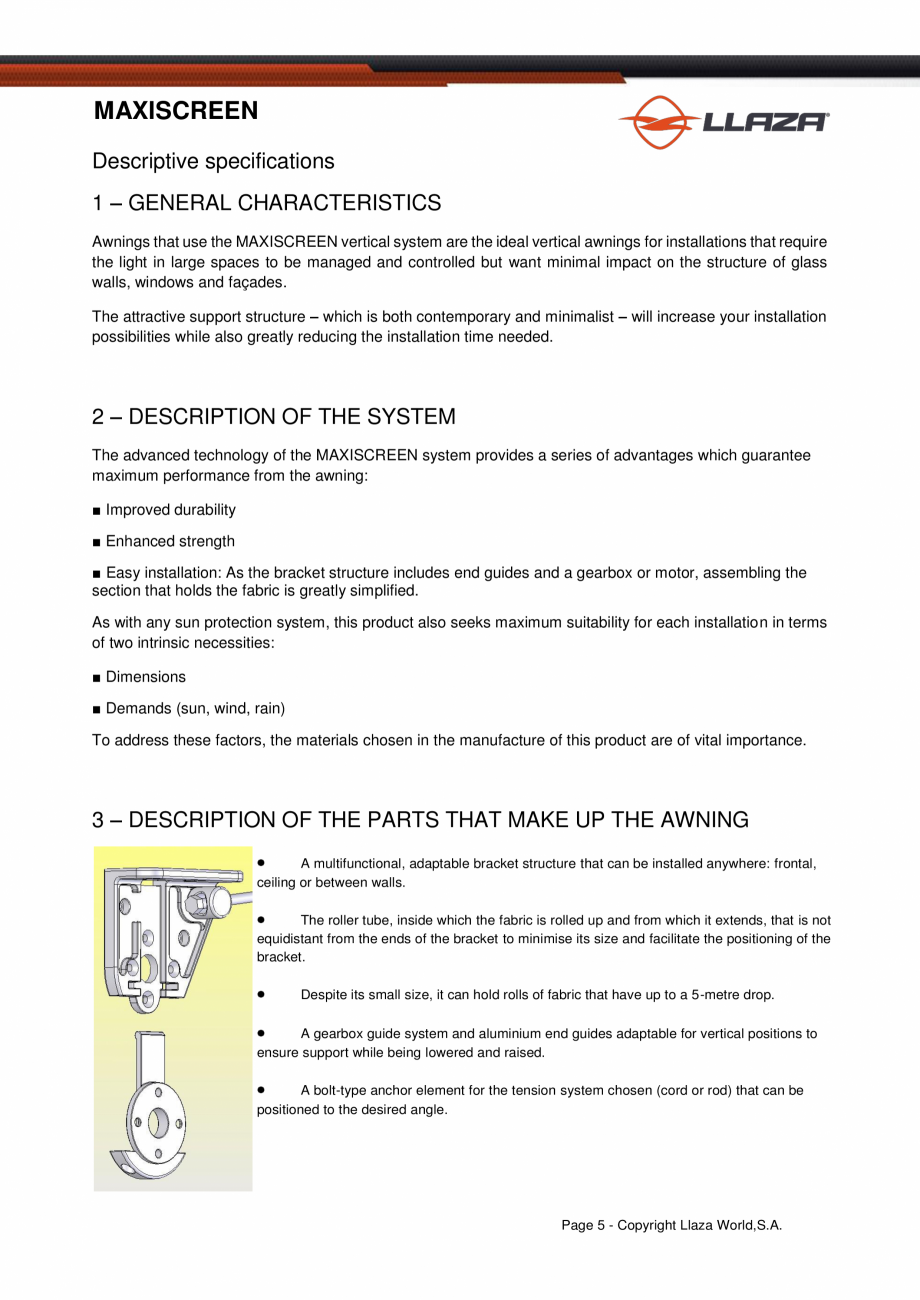

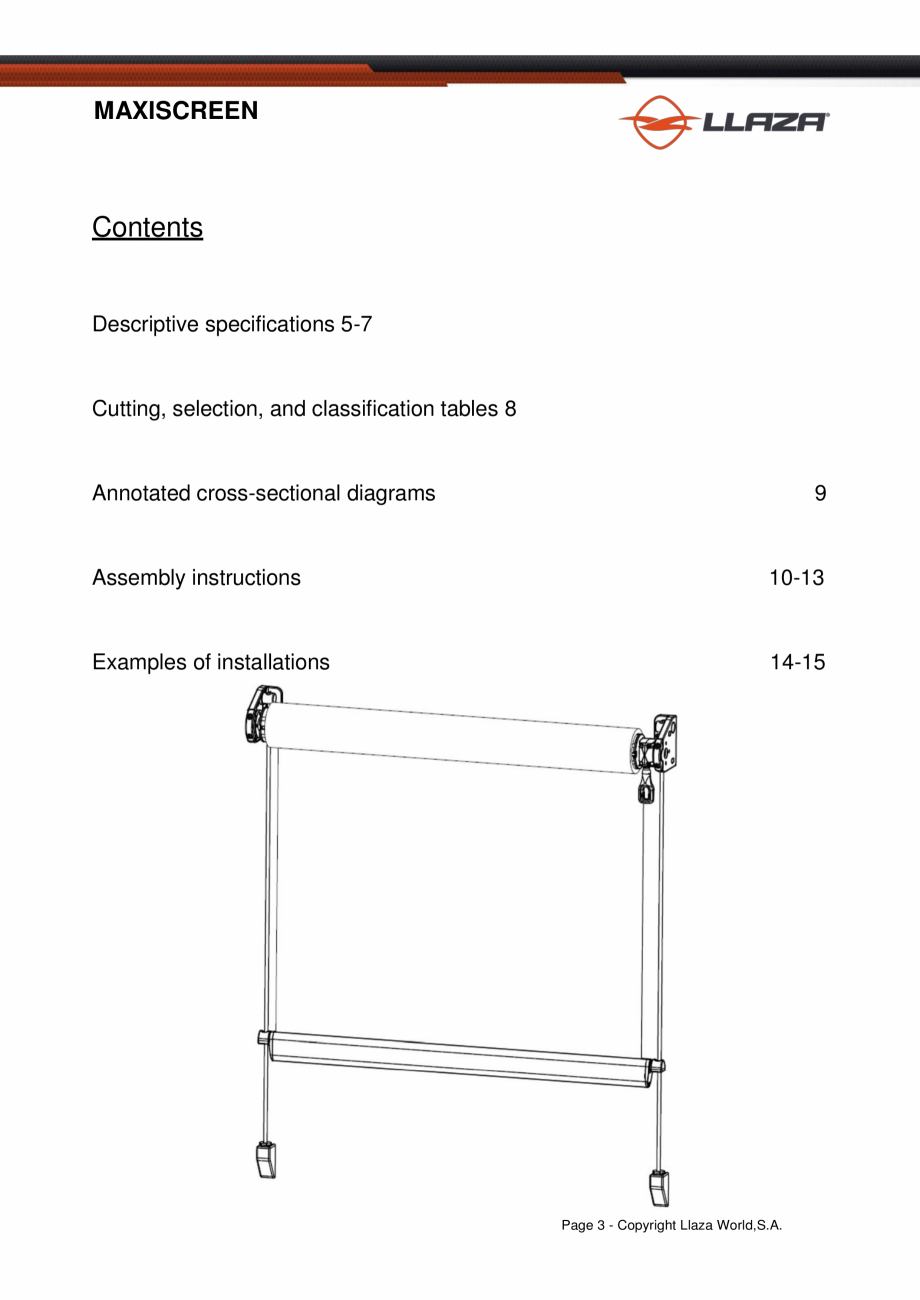

MAXISCREEN Technical Manual MAXISCREEN Page 1 - Copyright Llaza World, S.A. MAXISCREEN Page 2 - Copyright Llaza World,S.A. MAXISCREEN Contents Descriptive specifications 5-7 Cutting, selection, and classification tables 8 Annotated cross-sectional diagrams 9 Assembly instructions 10-13 Examples of installations 14-15 Page 3 - Copyright Llaza World,S.A. MAXISCREEN Page 4 - Copyright Llaza World,S.A. MAXISCREEN Descriptive specifications 1 – GENERAL CHARACTERISTICS Awnings that use the MAXISCREEN vertical system are the ideal vertical awnings for installations that require the light in large spaces to be managed and controlled but want minimal impact on the structure of glass walls, windows and façades. The attractive support structure – which is both contemporary and minimalist – will increase your installation possibilities while also greatly reducing the installation time needed. 2 – DESCRIPTION OF THE SYSTEM The advanced technology of the MAXISCREEN s

Pagina 1-Rulou din material textil LLAZA Maxi Screen Fisa tehnica Engleza MAXISCREEN

Technical Manual
...

Pagina 2 - Rulou din material textil LLAZA Maxi Screen Fisa tehnica Engleza ystem provides a series ...

ystem provides a series of advantages which guarantee maximum performance from the awning: ■ Improved durability ■ Enhanced strength ■ Easy installation: As the bracket structure includes end guides and a gearbox or motor, assembling the section that holds the fabric is greatly simplified. As with any sun protection system, this product also seeks maximum suitability for each installation in terms of two intrinsic necessities: ■ Dimensions ■ Demands (sun, wind, rain) To address these factors, the materials chosen in the manufacture of this product are of vital importance. 3 – DESCRIPTION OF THE PARTS THAT MAKE UP THE AWNING A multifunctional, adaptable bracket structure that can be installed anywhere: frontal, ceiling or between walls. The roller tube, inside which the fabric is rolled up and from which it extends, that is not equidistant from the ends of the bracket to minimise its size and facilitate the positioning of the bracket. Despite its small size, it can hold rol

Pagina 2-Rulou din material textil LLAZA Maxi Screen Fisa tehnica Engleza ystem provides a series of...

Pagina 3 - Rulou din material textil LLAZA Maxi Screen Fisa tehnica Engleza ls of fabric that have...

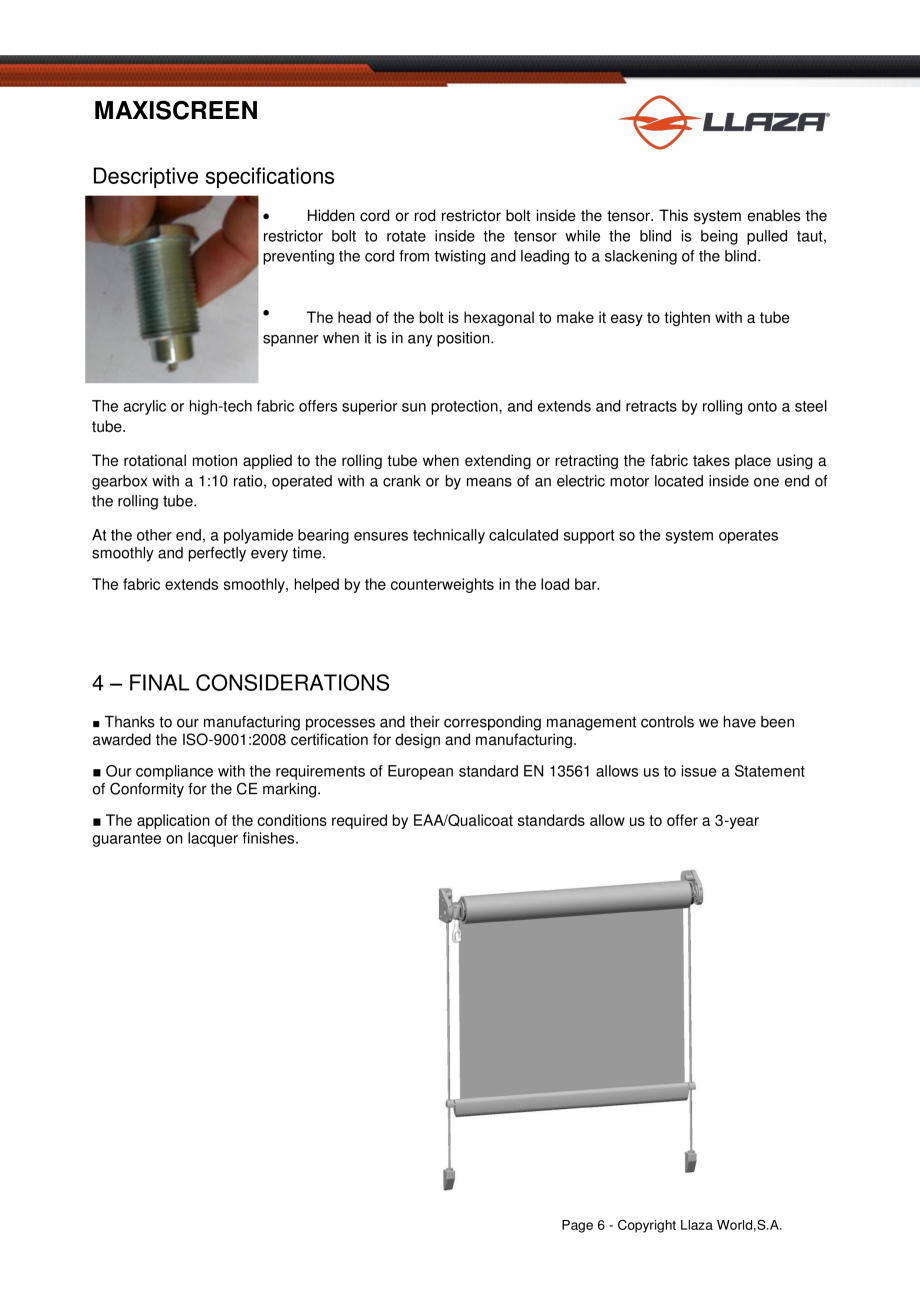

ls of fabric that have up to a 5-metre drop. A gearbox guide system and aluminium end guides adaptable for vertical positions to ensure support while being lowered and raised. A bolt-type anchor element for the tension system chosen (cord or rod) that can be positioned to the desired angle. Page 5 - Copyright Llaza World,S.A. MAXISCREEN Descriptive specifications Hidden cord or rod restrictor bolt inside the tensor. This system enables the restrictor bolt to rotate inside the tensor while the blind is being pulled taut, preventing the cord from twisting and leading to a slackening of the blind. The head of the bolt is hexagonal to make it easy to tighten with a tube spanner when it is in any position. The acrylic or high-tech fabric offers superior sun protection, and extends and retracts by rolling onto a steel tube. The rotational motion applied to the rolling tube when extending or retracting the fabric takes place using a gearbox with a 1:10 ratio, operated with a crank or by

Pagina 3-Rulou din material textil LLAZA Maxi Screen Fisa tehnica Engleza ls of fabric that have up to a...

Pagina 4 - Rulou din material textil LLAZA Maxi Screen Fisa tehnica Engleza means of an electric...

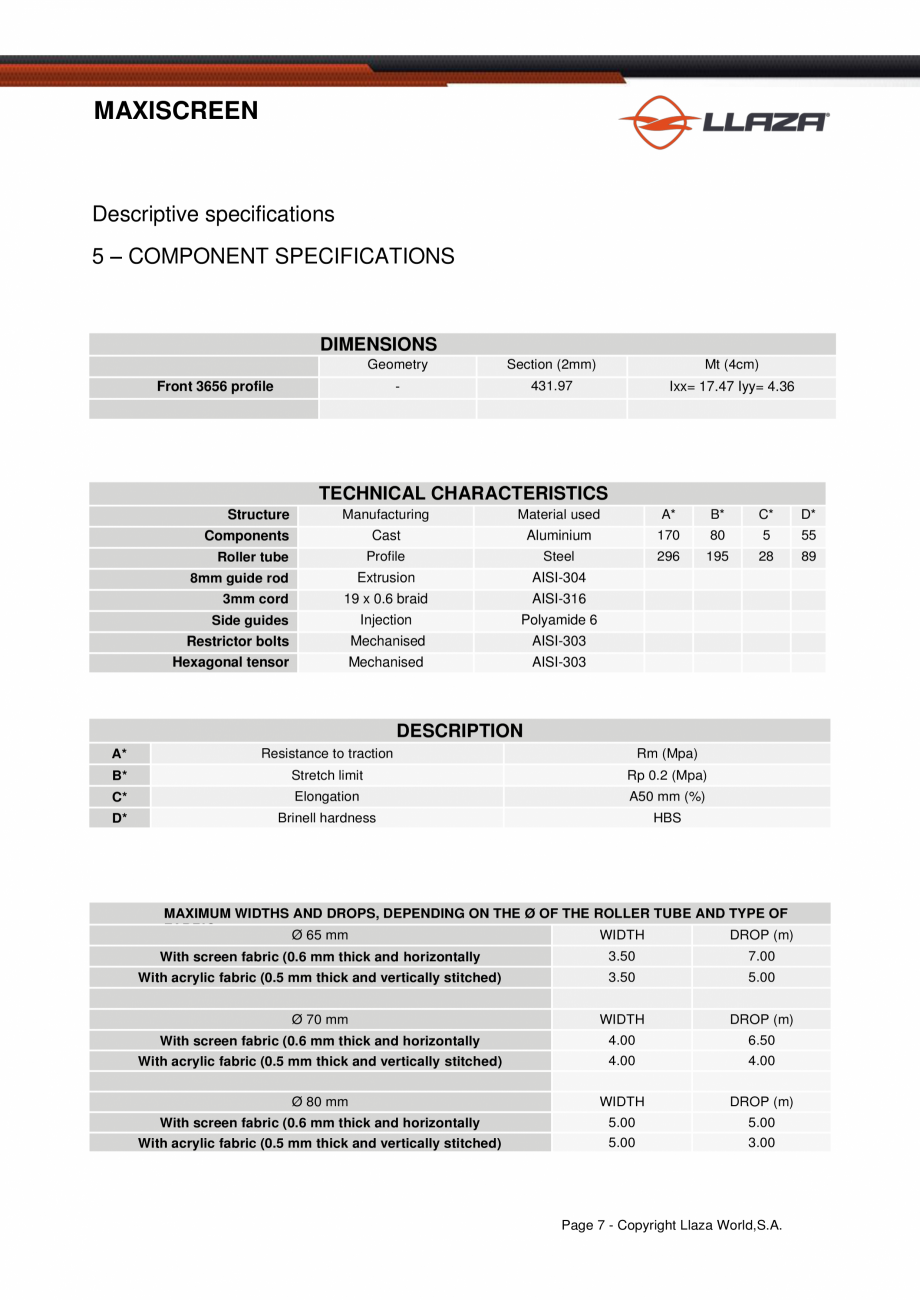

means of an electric motor located inside one end of the rolling tube. At the other end, a polyamide bearing ensures technically calculated support so the system operates smoothly and perfectly every time. The fabric extends smoothly, helped by the counterweights in the load bar. 4 – FINAL CONSIDERATIONS ■ Thanks to our manufacturing processes and their corresponding management controls we have been awarded the ISO-9001:2008 certification for design and manufacturing. ■ Our compliance with the requirements of European standard EN 13561 allows us to issue a Statement of Conformity for the CE marking. ■ The application of the conditions required by EAA/Qualicoat standards allow us to offer a 3-year guarantee on lacquer finishes. Page 6 - Copyright Llaza World,S.A. MAXISCREEN Descriptive specifications 5 – COMPONENT SPECIFICATIONS DIMENSIONS Geometry Section (2mm) Mt (4cm) - 431.97 Ixx= 17.47 Iyy= 4.36 Front 3656 profile TECHNICAL CHARACTERISTICS Structure Componen

Pagina 4-Rulou din material textil LLAZA Maxi Screen Fisa tehnica Engleza means of an electric motor located ...

Pagina 5 - Rulou din material textil LLAZA Maxi Screen Fisa tehnica Engleza ts

Manufacturing...

ts Manufacturing process Cast Material used A* B* C* D* Aluminium 170 80 5 55 Profile Steel 296 195 28 89 Roller tube Extrusion AISI-304 19 x 0.6 braid AISI-316 8mm guide rod 3mm cord Injection Polyamide 6 Restrictor bolts Mechanised AISI-303 Hexagonal tensor Mechanised AISI-303 Side guides DESCRIPTION A* Resistance to traction Rm (Mpa) B* Stretch limit Rp 0.2 (Mpa) C* Elongation A50 mm (%) D* Brinell hardness HBS MAXIMUM WIDTHS AND DROPS, DEPENDING ON THE Ø OF THE ROLLER TUBE AND TYPE OF FABRIC Ø 65 mm WIDTH DROP (m) (m) 3.50 7.00 With screen fabric (0.6 mm thick and horizontally soldered) and vertically stitched) 3.50 5.00 With acrylic fabric (0.5 mm thick Ø 70 mm With screen fabric (0.6 mm thick and horizontally soldered) With acrylic fabric (0.5 mm thick and vertically stitched) Ø 80 mm With screen fabric (0.6 mm thick and horizontally soldered) With acrylic fabric (0.5 mm thick and vertically stitched) WIDTH (m) 4.00 DROP (m) 4.0

Pagina 5-Rulou din material textil LLAZA Maxi Screen Fisa tehnica Engleza ts

Manufacturing
process
Cast
...

Pagina 6 - Rulou din material textil LLAZA Maxi Screen Fisa tehnica Engleza 0

4.00

WIDTH
(m)
5.00
...

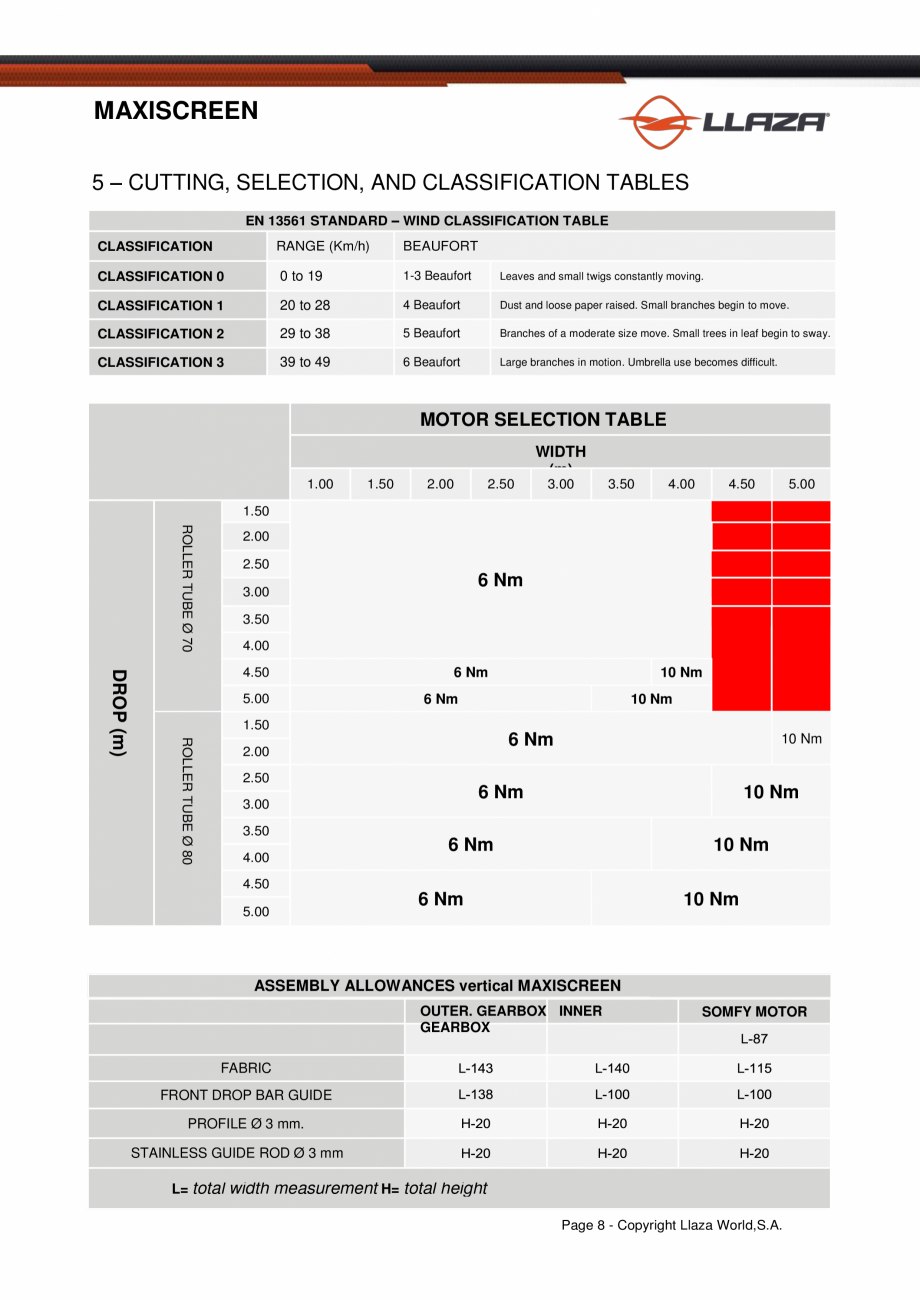

0 4.00 WIDTH (m) 5.00 DROP (m) 5.00 3.00 6.50 5.00 Page 7 - Copyright Llaza World,S.A. MAXISCREEN 5 – CUTTING, SELECTION, AND CLASSIFICATION TABLES EN 13561 STANDARD – WIND CLASSIFICATION TABLE CLASSIFICATION RANGE (Km/h) BEAUFORT CLASSIFICATION 0 0 to 19 1-3 Beaufort Leaves and small twigs constantly moving. CLASSIFICATION 1 20 to 28 4 Beaufort Dust and loose paper raised. Small branches begin to move. CLASSIFICATION 2 29 to 38 5 Beaufort Branches of a moderate size move. Small trees in leaf begin to sway. CLASSIFICATION 3 39 to 49 6 Beaufort Large branches in motion. Umbrella use becomes difficult. MOTOR SELECTION TABLE WIDTH (m) 1.00 1.50 2.00 2.50 3.00 3.50 4.00 4.50 5.00 1.50 ROLLER TUBE Ø 70 2.00 2.50 6 Nm 3.00 3.50 4.00 5.00 6 Nm 10 Nm 6 Nm 10 Nm 1.50 ROLLER TUBE Ø 80 DROP (m) 4.50 6 Nm 2.00 2.50 6 Nm 3.00 3.50 4.00 10 Nm 10 Nm 6 Nm 10 Nm 4.50 5.00 6 Nm 10 Nm ASSEMBLY ALLOWANCES vertical MAXISCREEN OUTER. GEARB

Pagina 6-Rulou din material textil LLAZA Maxi Screen Fisa tehnica Engleza 0

4.00

WIDTH
(m)
5.00

DROP (m)

...

Pagina 7 - Rulou din material textil LLAZA Maxi Screen Fisa tehnica Engleza OX
OUTER GEARBOX INNER...

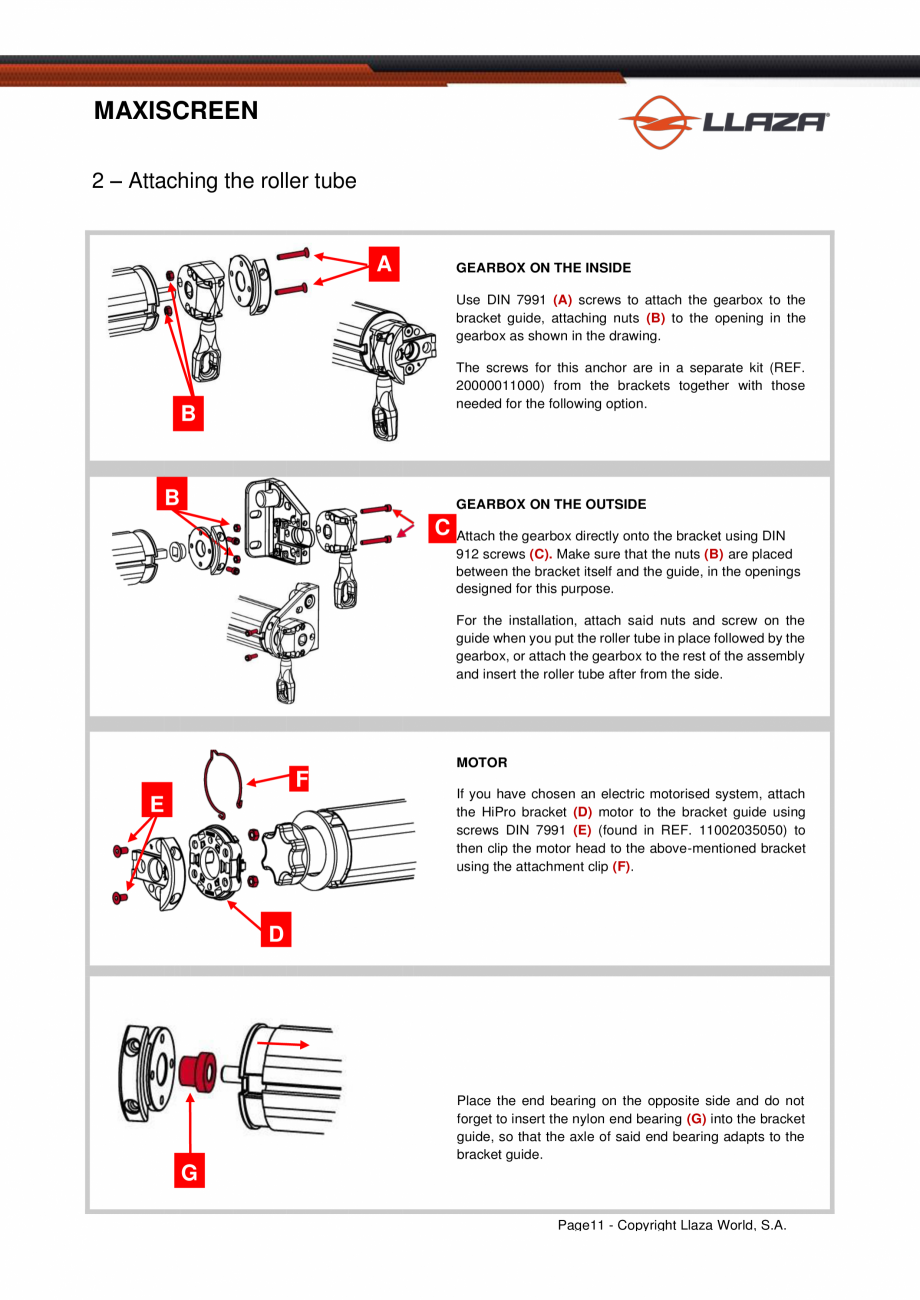

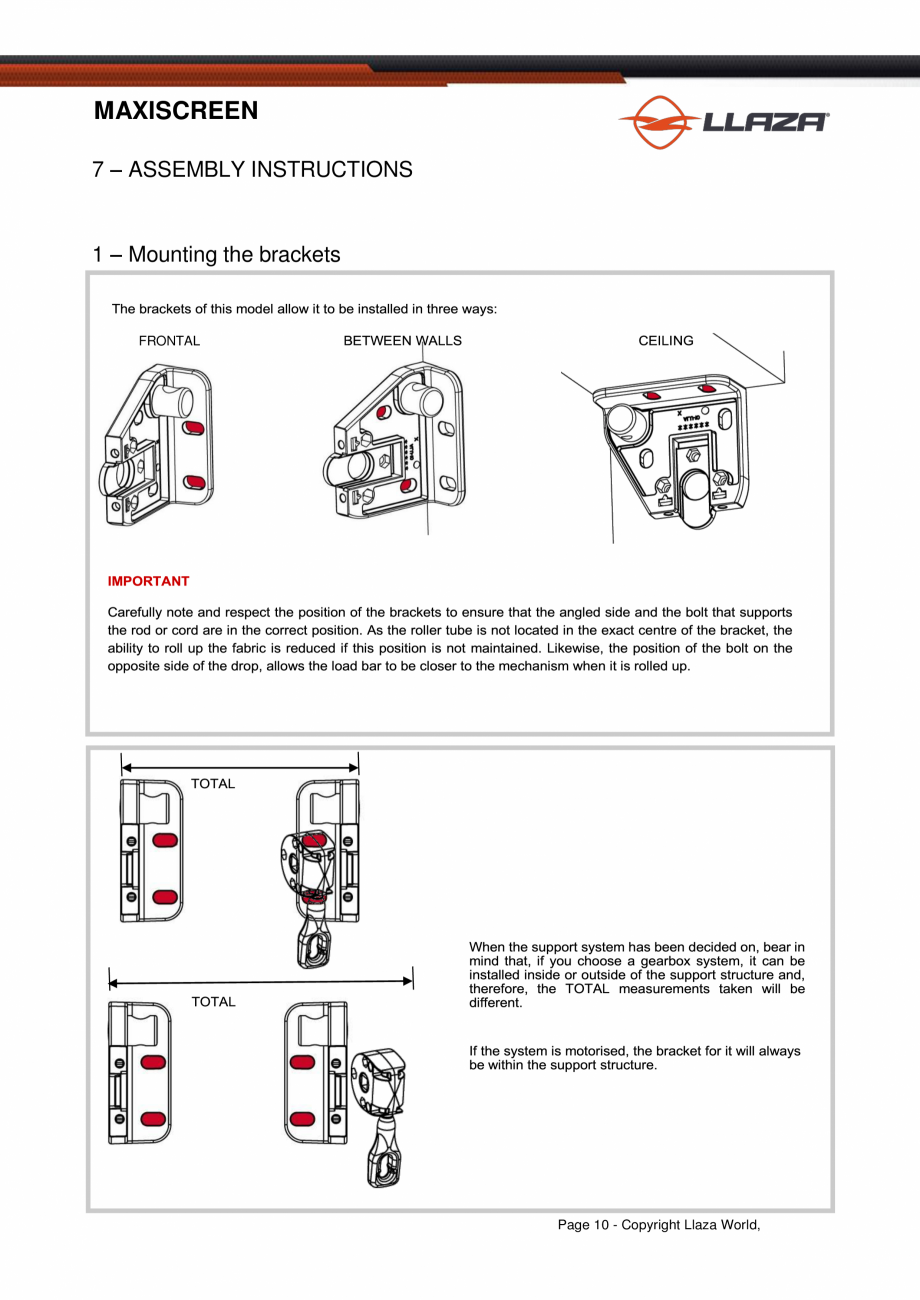

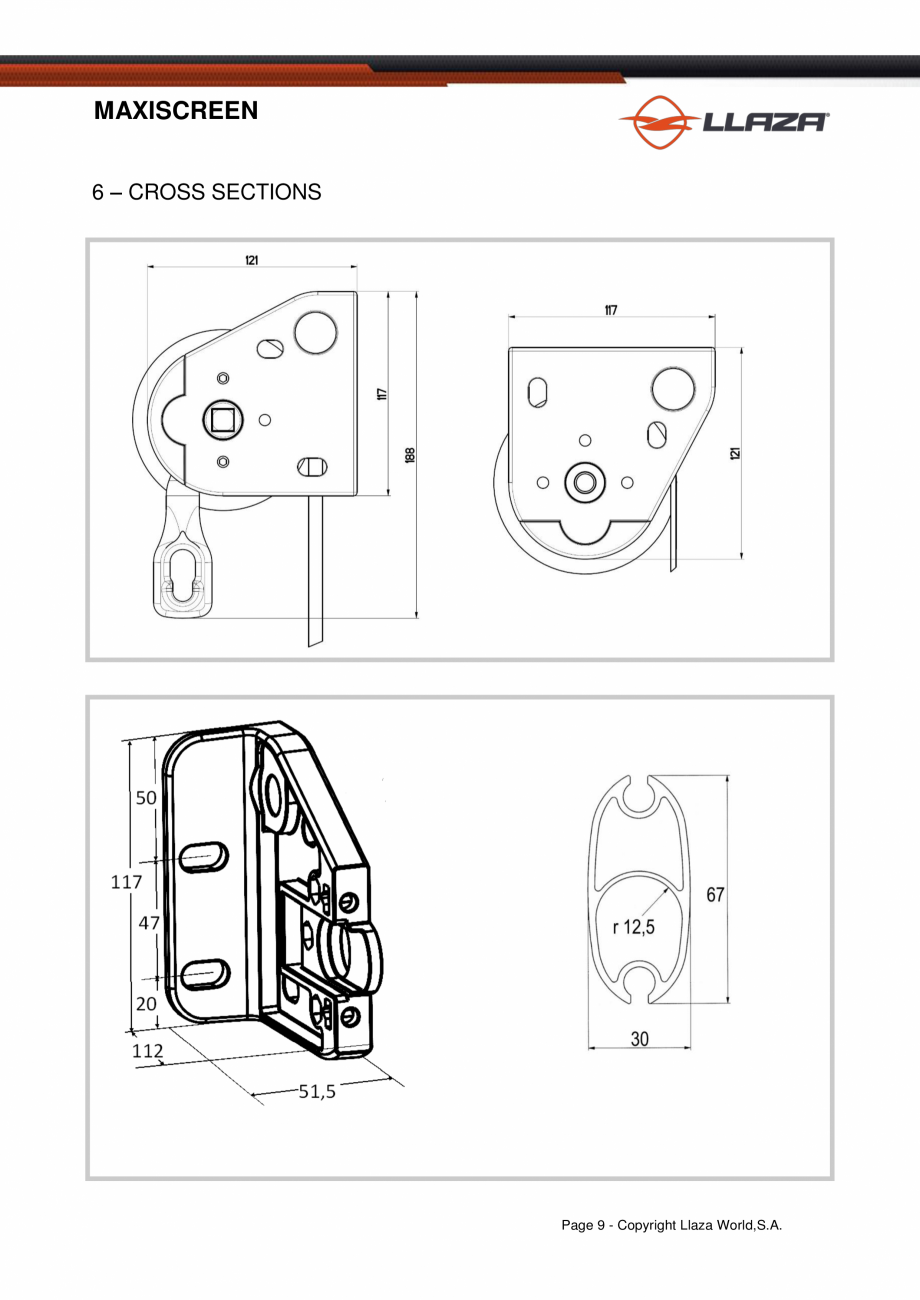

OX OUTER GEARBOX INNER GEARBOX GEARBOX Ø 70 OR Ø 80 ROLLER TUBE --ROLLER TUBE L-108 --FABRIC CANVAS --FRONT PROFILE FRONT DROP BAR GUIDE TEXPRO CASSETTE PROFILE PROFILE Ø 3 mm. INNER INA INTERIOR L-131 L-141 L-103 L-110 L-130 SOMFY MOTOR SOMFY MOTOR L-115 L-135 L-110 L-130 STAINLESS GUIDE ROD Ø 3 mm L= total width measurement H= total height Page 8 - Copyright Llaza World,S.A. MAXISCREEN 6 – CROSS SECTIONS Page 9 - Copyright Llaza World,S.A. MAXISCREEN 7 – ASSEMBLY INSTRUCTIONS 1 – Mounting the brackets FRONTAL Page 10 - Copyright Llaza World, S.A. MAXISCREEN 2 – Attaching the roller tube A GEARBOX ON THE INSIDE Use DIN 7991 (A) screws to attach the gearbox to the bracket guide, attaching nuts (B) to the opening in the gearbox as shown in the drawing. The screws for this anchor are in a separate kit (REF. 20000011000) from the brackets together with those needed for the following option. B B GEARBOX ON THE OUTSIDE C Attach the gearbox directly onto the

Pagina 7-Rulou din material textil LLAZA Maxi Screen Fisa tehnica Engleza OX
OUTER GEARBOX INNER GEARBOX...

Pagina 8 - Rulou din material textil LLAZA Maxi Screen Fisa tehnica Engleza bracket using DIN
912...

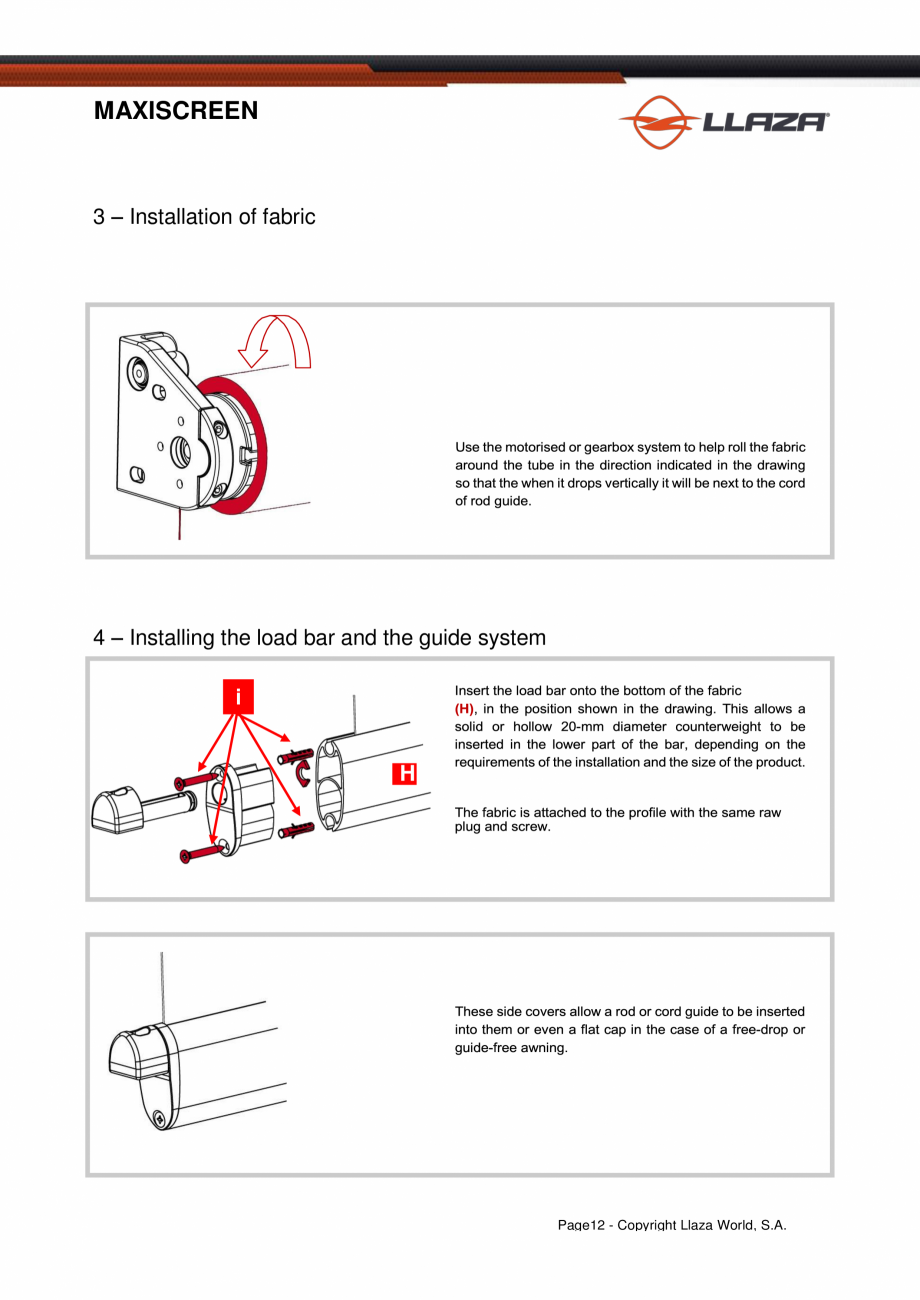

bracket using DIN 912 screws (C). Make sure that the nuts (B) are placed between the bracket itself and the guide, in the openings designed for this purpose. For the installation, attach said nuts and screw on the guide when you put the roller tube in place followed by the gearbox, or attach the gearbox to the rest of the assembly and insert the roller tube after from the side. MOTOR F E If you have chosen an electric motorised system, attach the HiPro bracket (D) motor to the bracket guide using screws DIN 7991 (E) (found in REF. 11002035050) to then clip the motor head to the above-mentioned bracket using the attachment clip (F). D Place the end bearing on the opposite side and do not forget to insert the nylon end bearing (G) into the bracket guide, so that the axle of said end bearing adapts to the bracket guide. G Page11 - Copyright Llaza World, S.A. S.A. MAXISCREEN 3 – Installation of fabric 4 – Installing the load bar and the guide system i H Page12 - Copyright

Pagina 8-Rulou din material textil LLAZA Maxi Screen Fisa tehnica Engleza bracket using DIN
912 screws (C). ...

Pagina 9 - Rulou din material textil LLAZA Maxi Screen Fisa tehnica Engleza Llaza World, S.A.
S.A.

...

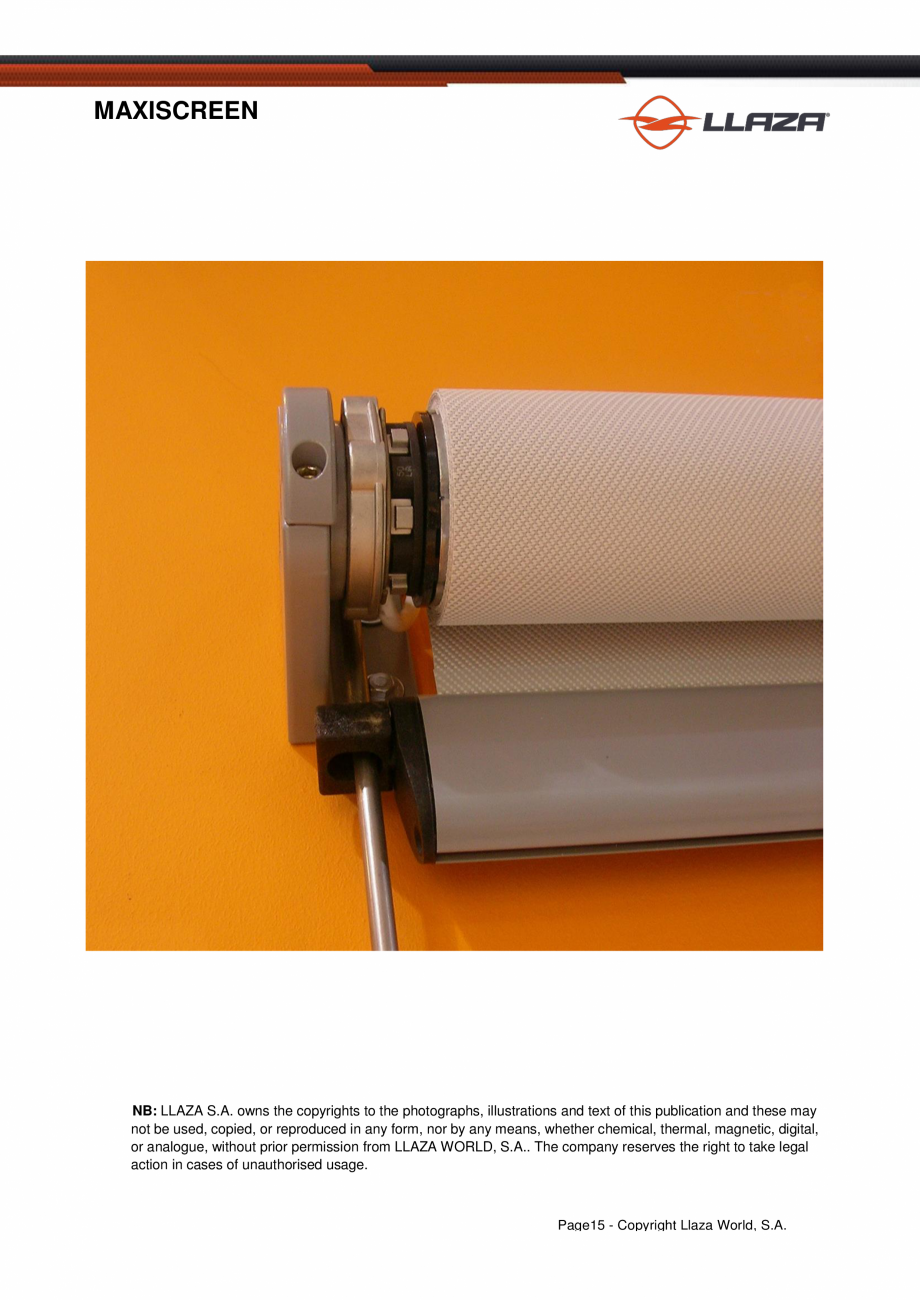

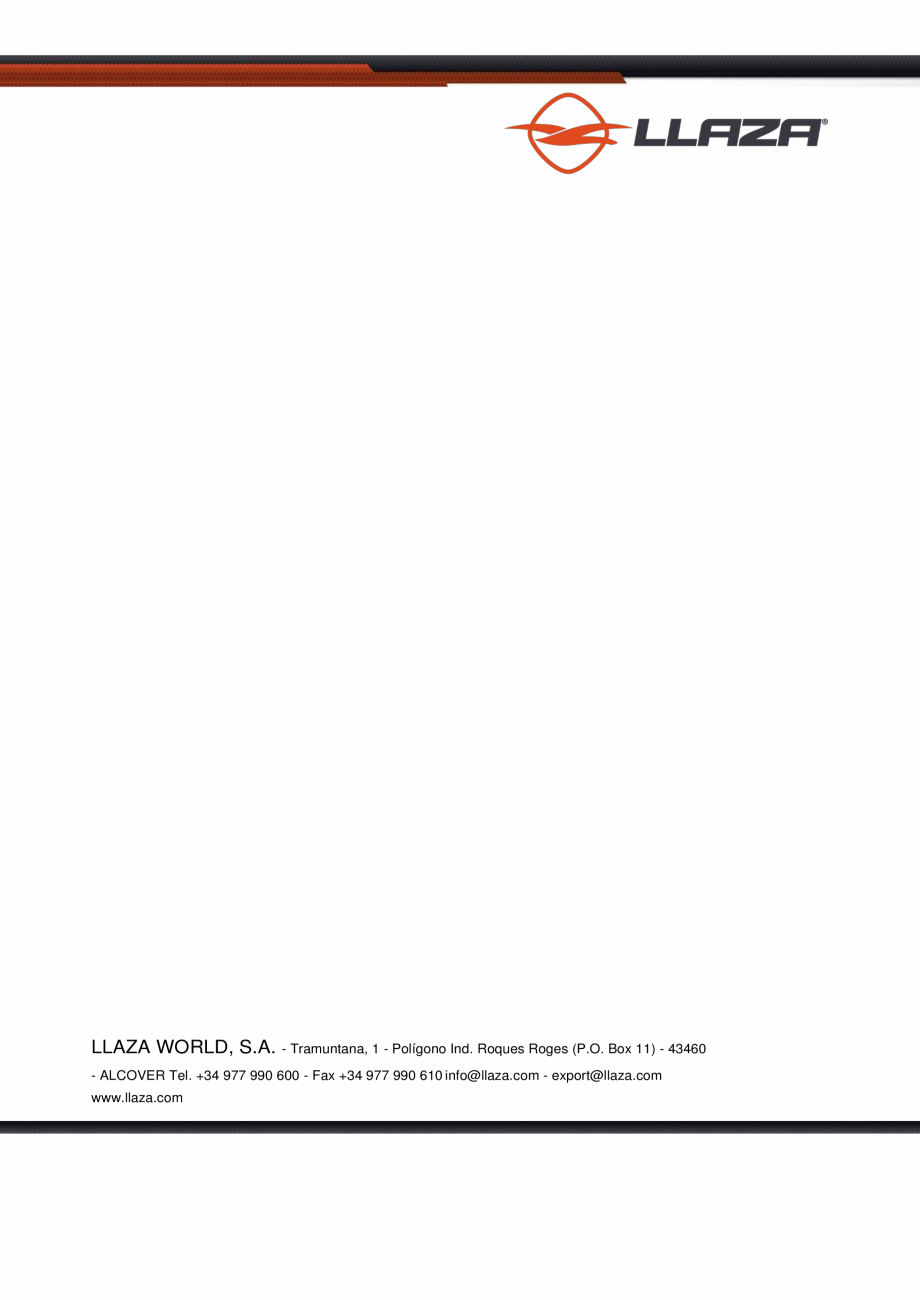

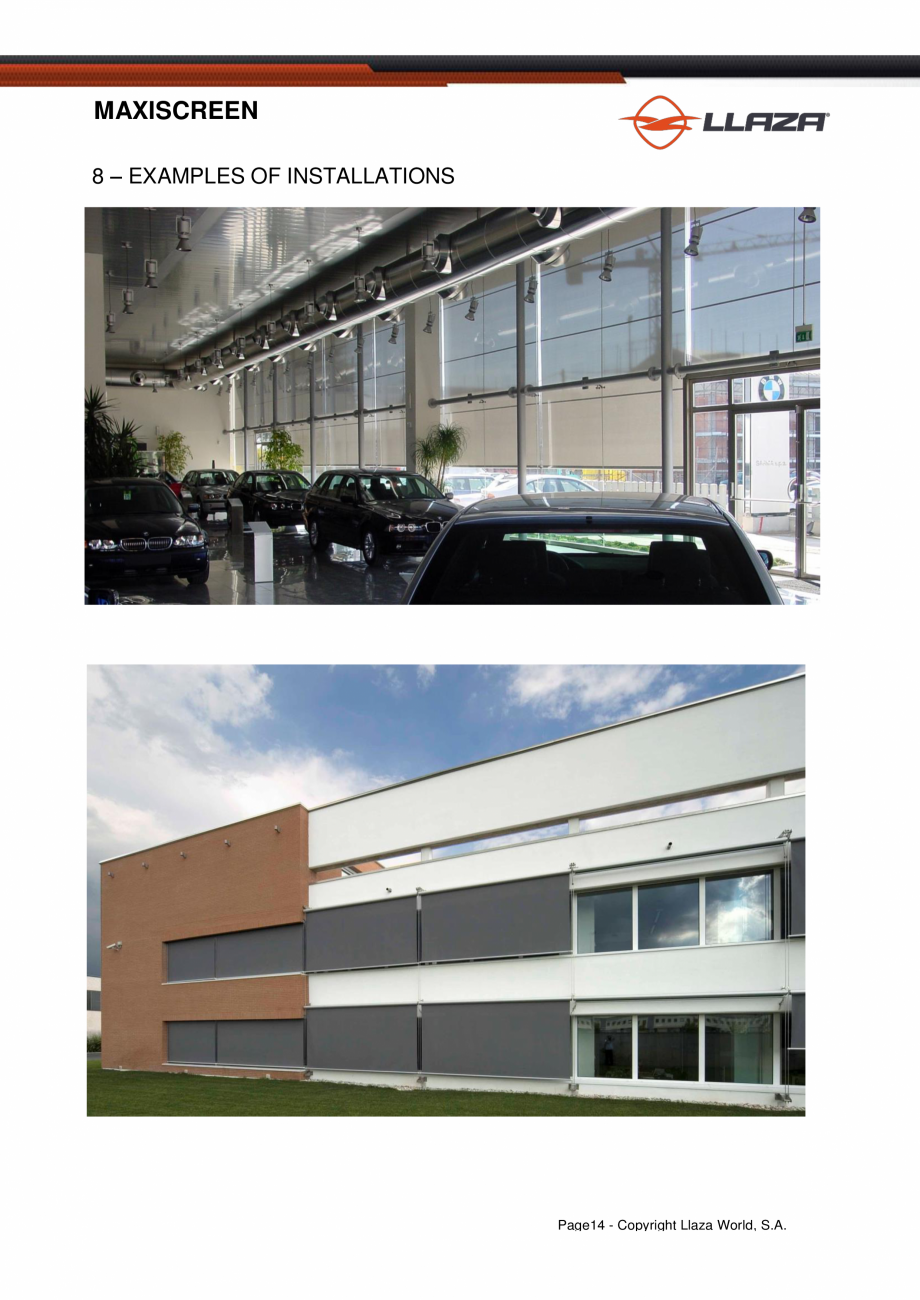

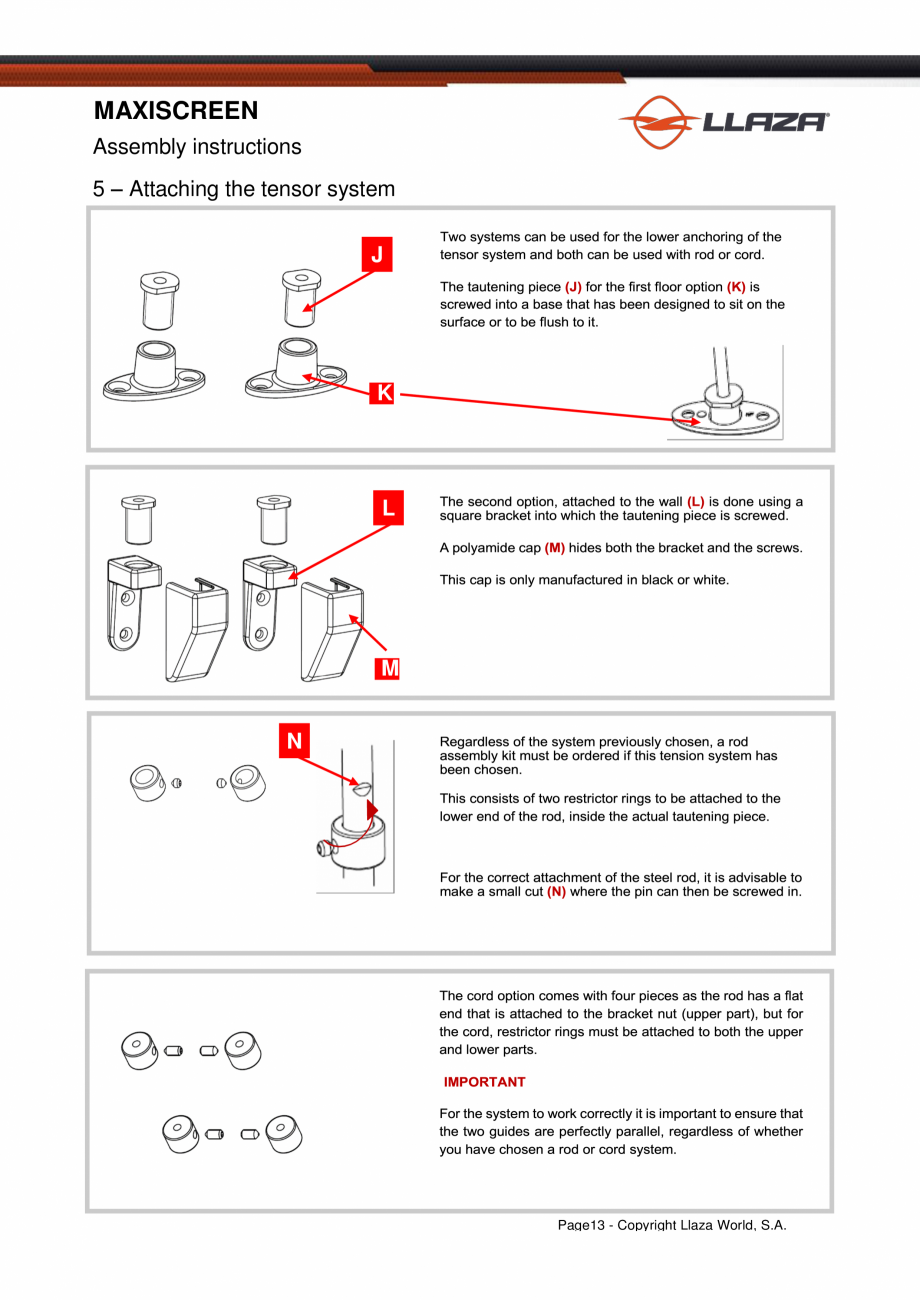

Llaza World, S.A. S.A. MAXISCREEN Assembly instructions 5 – Attaching the tensor system J K L M N Page13 - Copyright Llaza World, S.A. S.A. MAXISCREEN 8 – EXAMPLES OF INSTALLATIONS Page14 - Copyright Llaza World, S.A. S.A. MAXISCREEN NB: LLAZA S.A. owns the copyrights to the photographs, illustrations and text of this publication and these may not be used, copied, or reproduced in any form, nor by any means, whether chemical, thermal, magnetic, digital, or analogue, without prior permission from LLAZA WORLD, S.A.. The company reserves the right to take legal action in cases of unauthorised usage. Page15 - Copyright Llaza World, S.A. S.A. MAXISCREEN LLAZA WORLD, S.A. - Tramuntana, 1 - Polígono Ind. Roques Roges (P.O. Box 11) - 43460 - ALCOVER Tel. +34 977 990 600 - Fax +34 977 990 610 info@llaza.com - export@llaza.com www.llaza.com Page 16 - Copyright Llaza World, S.A.
