STRONGAND BRIGHT CUTTING-EDGE POLYCARBONATE SOLUTIONS FOR AN EVER-EVOLVING CONSTRUCTION INDUSTRY Poly World Systems represents the perfect synthesis of the thirty years experience in the extrusion field and know-how in the building products of its staff, grown up in twenty years of activity in the field. Poly World Systems offers a full range of polycarbonate systems for walls, roofs, sheds, false ceilings, suspended ceilings, internal partitions, greenhouses and all those typical industrial building applications but not only by finding extensive use in sports halls, shopping malls and farms. All products are the result of continuous researches and improvements over time for a constantly evolving market, collaborating with our partners and developing together the solutions that best suit the applications you require. Multiwall corrugated sheets GRECA Multiwall corrugated sheets COVERTECH Self supporting system for roofings and vertical glazings REVERS Modular system for roofi

Pagina 1-Sisteme policarbonat pentru luminatoare GEPLAST GRECA, REVERS, NUT-FEDER WALL, COVERTECH Fisa...

Pagina 2 - Sisteme policarbonat pentru luminatoare GEPLAST GRECA, REVERS, NUT-FEDER WALL, COVERTECH ...

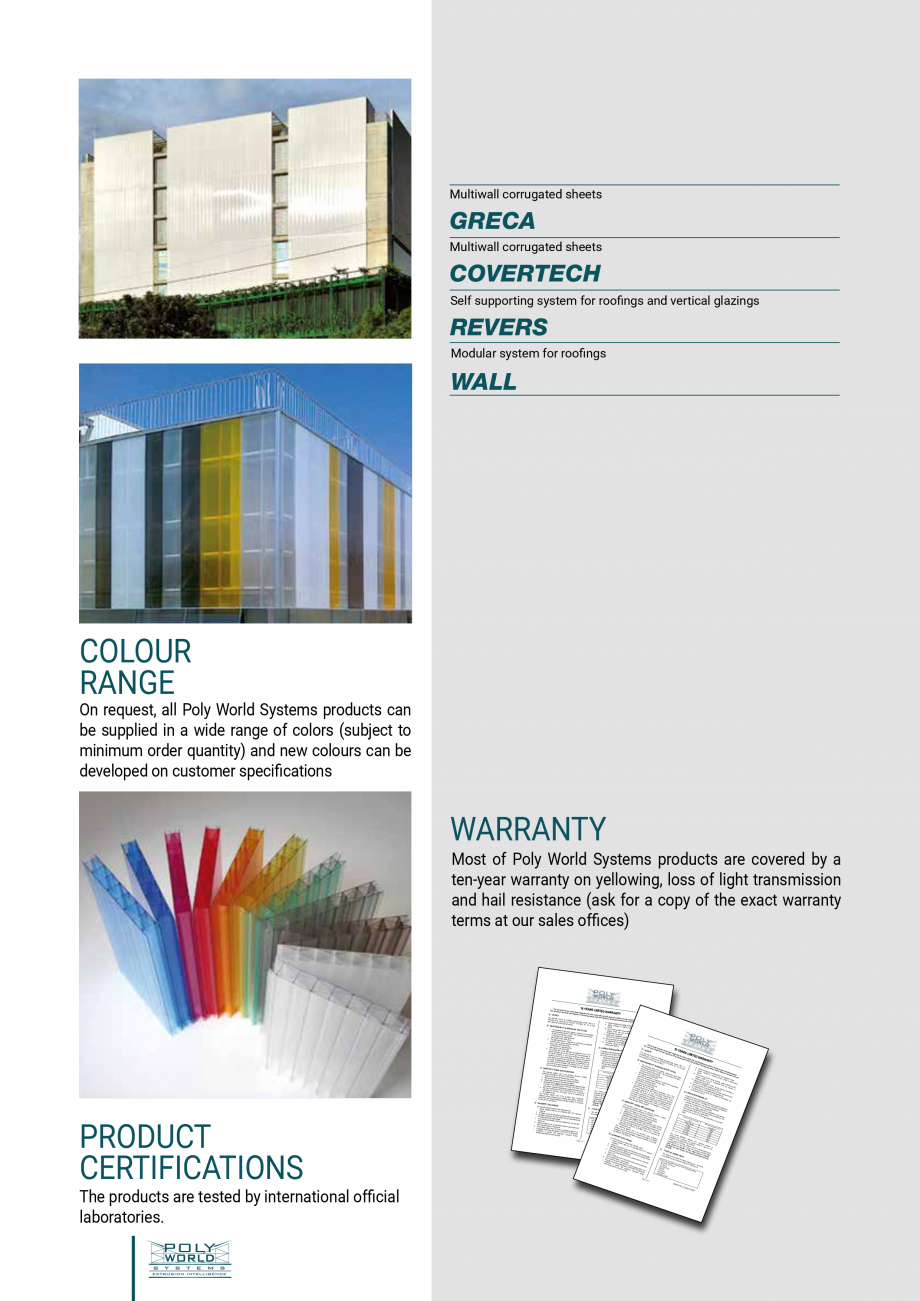

ngs WALL COLOUR RANGE On request, all Poly World Systems products can be supplied in a wide range of colors (subject to minimum order quantity) and new colours can be developed on customer specifications WARRANTY Most of Poly World Systems products are covered by a ten-year warranty on yellowing, loss of light transmission and hail resistance (ask for a copy of the exact warranty terms at our sales offices) 10 YEAR S LIMITED This warranty in favour This warranty is valid only of the buyer integrate with regards s the order A) VALIDIT to UV protecte confirma tion and Y d panels the general sold and The warranty conditions installed in Europea of covers all protected n Countrie sale, except if otherwis multiwall layer, produced s with a minimum polycarbonate e agreed. years starting 8. panels thickness from the date by GIPLAST SYSTEM panels with damage by U.V. of 6 mm. of delivery. S Srl, for 9. panels handling during 10 (ten) exposed the installatio to heating panels n stage sou

Pagina 2-Sisteme policarbonat pentru luminatoare GEPLAST GRECA, REVERS, NUT-FEDER WALL, COVERTECH Fisa...

Pagina 3 - Sisteme policarbonat pentru luminatoare GEPLAST GRECA, REVERS, NUT-FEDER WALL, COVERTECH ...

rces ITY & BREAK 10. use of and/or thermofo 1. The yellowing AGE DUE joining rmed TO HAIL sealant which and/or fixing elements index of the with the standard panels, measure are not and/or adhesive inadequa - 10 (ten) ASTM compatible d in accordan and/or Δ for colourles D 1925, will not 11. panels te use of them with the - 14 (fourteen ce decrease with insufficie panels or s panels more than: GIPLAST nt and/or with respect ) Δ for coloured panels SYSTEM wrong cleaning 12. panels to the initial 2. The light according exposed to S’ technical instructio to transmission, value chemical ns /or substanc and/or corrosive ASTM D measure es not 13. The - 6 (six) 1003, will not decrease d in conformity Buyer doesn’t compatible with polycarb substances % for colourles the and This standard more than: provide the mentioned onate - 12 (twelve) s panels. This at point C) complete war % documentation warrant ranty with respect for coloured panels E) LIMITED as to the y is in favo 3. The A) VAL

Pagina 3-Sisteme policarbonat pentru luminatoare GEPLAST GRECA, REVERS, NUT-FEDER WALL, COVERTECH Fisa...

Pagina 4 - Sisteme policarbonat pentru luminatoare GEPLAST GRECA, REVERS, NUT-FEDER WALL, COVERTECH ...

RESPONSABIL valid ur panels will initial value only of the ITY IDIT where “breakag not be affected If material buy with The Y is by breakage e due to hail” rega er inte the panels recognized claimed during the warrant s due means that protecte rds warranty period to UVgrates the y caused by presents in an even the external to hail can, at his by GIPLAST SYSTEM and the damage years d laye covers hail. In case choice (just layer of protect ord and S Srl, GIPLAST sheet will r, star - eliminate one of the of breakage diffuse manner, be ed paner confirm SYSTEM is ting fromproduceall multiwa following by means subject to the executio , a sample of the holes possibilities): B) S Srl - provide the defects as soon els sold atio of the dated by GIP ll poly as possible free of charge n WEATH mm which standardized artificial n of a simulated claimed and and the which do crash test materials shall hit the of deliv LAST carbona sphere installe gen not ERA for substitut such test correspond SYS t

Pagina 4-Sisteme policarbonat pentru luminatoare GEPLAST GRECA, REVERS, NUT-FEDER WALL, COVERTECH Fisa...

Pagina 5 - Sisteme policarbonat pentru luminatoare GEPLAST GRECA, REVERS, NUT-FEDER WALL, COVERTECH ...

e pan ery. warranty not produce panel with a speed of a diameter of 20 BILITY ion of the 1. The to the TEM d in eral con layer, the panels yello of 21 m/s. evidence S Srl, els with Europe ditio - indemnif (according to the belowcharacteristics specified claim will & BR Should y the buyer with be rejected of breakages on table) for 10 U.V. an Cou ns of EAK - in this the wing inde the external table) 8. for his damage C) WARRA AGE stan 10 (ten) ntries sale, exc panels (ten NTY TERMS (according dard x of the DUE 9. ept with 14 (fou ) Δ for to the below AST panels damage AND CONDIT TO HA pan a min if othe This warranty IONS with rteen) colourle M D 192 els, mea TIME FROM imum rwis panels expose by han IL applies only ss 2. resp 5, Δ warning of THE PURCHAS 10. thicknee agreed. d to dling The ect to for colo panels will not sured if the end-user use the defect E DATE heating during of to GIPLAST 1. within decreas in acco ss of MATERIAL provide a AST light tran the initia ured pan sealant j

Pagina 5-Sisteme policarbonat pentru luminatoare GEPLAST GRECA, REVERS, NUT-FEDER WALL, COVERTECH Fisa...

Pagina 6 - Sisteme policarbonat pentru luminatoare GEPLAST GRECA, REVERS, NUT-FEDER WALL, COVERTECH ...

oining the 6 IN -SUBSTITU 6 mm M written Up to 5 years e mor rdance sources insta 2. attaching(six) days as of the SYSTEMS Srl: and/or 6 (six)TIOND 100 smission l value els inad OR INDEMNIT . llatio discovery e than 3, equ whic 11. of the defect and/or n stag 3. indicatin copy of the invoice 6 th year 12Y(twe % for colowill not , measure : panels ate useh are fixing elem of g 100% the the dec quantity thermofe claimed not 4. attaching lve) urle of with 7 th year reas d in GIPLAS with com ents and 3. photos clearlyof the claimed materialmaterial ormed 12. insu them 75%The respect % for coloss panels. e mor conform patible /or the batch panels T SYS fficie 8 th year e than ity the code of the indicating the defect/s nt and with adhesiv 60%whe panels to the initiaured pan : also require /or sub expose TEMS’ stan product. 9 th year e and found /or re “bre will the 13. dard tech l valu els d stan 45% 5. the Client a significant specimeGIPLAST SYSTEM and also the not to panels /or The ni

Pagina 6-Sisteme policarbonat pentru luminatoare GEPLAST GRECA, REVERS, NUT-FEDER WALL, COVERTECH Fisa...

Pagina 7 - Sisteme policarbonat pentru luminatoare GEPLAST GRECA, REVERS, NUT-FEDER WALL, COVERTECH ...

ca wrong e che ces 10 th year pan aka l S Srl can authorizes n including caused els presge due be affected or 30% men Buyer doe not com mical andinstructio cleaning authorized GIPLAST tioned SYSTEMS the batch code by pati ns acco Any further /or sheet by hail. ents to hail” by 15% E) LIM the installatio GIPLAST SYSTEM Srl rding at poinsn’t prov ble with corrosiv obligation In casein an evemeans breakag by meawill be excluded S Srl) for (or a third part ide This warranty n site to ITE poly t deriving e that C) es due and in particula subject sub an inspectio the D RES from of brea n and ns the exte applies rescission com carbona stances n at handled, If mat r the buyer’s defective mm to whic of stan plete of PONSA delivery te stored, processeonly if the products rnal to hail and dard the exe kage, diffuse h sha Further costs the agreement is excluded option to such is docume instructions reco erial is d and were forwarde BILITY claimtest ll hit ized artif cution a sample manner, l

Pagina 7-Sisteme policarbonat pentru luminatoare GEPLAST GRECA, REVERS, NUT-FEDER WALL, COVERTECH Fisa...

Pagina 8 - Sisteme policarbonat pentru luminatoare GEPLAST GRECA, REVERS, NUT-FEDER WALL, COVERTECH ...

ayer of claim gniz for not laye . theprod ntation reinstallation for example: transpor the pan ed by can, by GIPLAST and recommendationsinstalled accordin of d, ed r, icial of hole a the g to the claim s at his simu SYSTEMS GIP during provided sph as claim uce el other claimsor of any other nature t, costsC)forWA disassem verbally or technical Srl. elim choice LAST SYSthe war RRANbling and will be evidenc with a speere of a lated cras ed for damage are in writing whatever D) WARRA inate (just diam h rejected e of y excluded or loss, expressl TEM ranty peri TY. TER the cause prov one NTY EXCLU eter test brea ed of 21 either This Any S warranty thereof, are ide freethe defe direct of 20 kages SIONS m/s cts as of the follo Srl, GIP od and the whic expresslywarningwaror rantindirect, MS AN The warranty of on the . Should h do LAS wing D CO dam warrant of d y app not charge soon 1. exclude T 1. panels does not apply in F) PLACE exte pos lies age NDITIO within thefrom defethe the following r

Pagina 8-Sisteme policarbonat pentru luminatoare GEPLAST GRECA, REVERS, NUT-FEDER WALL, COVERTECH Fisa...

Pagina 9 - Sisteme policarbonat pentru luminatoare GEPLAST GRECA, REVERS, NUT-FEDER WALL, COVERTECH ...

nal y (acc corresp materia as possible sibilitiesSYSTEM is installed only inde OF JURISD 2. with the S Srl NS mni ording ond to ls outwards attachin6 (six) ct to GIP if the ): ICTION UV protectedcases: table) fy the 3. days the for sub This warranty 2. damages g side NOT indic buyer to the belo charact stitution as of LAST SYS end-use 4. atin copy exposed of jurisdictio is governed by 3. damages caused by accident for his w tabl eristics of the Italian national attachin g the quaof the invothe disc TEMS r provide n for any al impacts/ caused by e) ove controversy Srl: dam specifie panels g laws – the ice events ntity TIME transport a writt the loading age will be the the batc pho and/or incorrect and vandalism tos clea of the of the ry of the FRO d in (acc Milan en 4. incorrect and unloading h place also courts. NOTE: this M THE defe this ording claim claim handling during rly 5. requ cod storage (panels stages warranty is PUR the Clie ire a e of the indicatin ed mat ed mat ct - GP O

Pagina 9-Sisteme policarbonat pentru luminatoare GEPLAST GRECA, REVERS, NUT-FEDER WALL, COVERTECH Fisa...

Pagina 10 - Sisteme policarbonat pentru luminatoare GEPLAST GRECA, REVERS, NUT-FEDER WALL, COVERTECH...

nda to the referred to CHA before use DATE store not SE sign prod the following g the eria erial Up to protected nt belo authproducts 5. panels - GP Greca (only 6 mm) by sun and w 5 yea orized authoriz ificant spe uct. GIP defect/sl modify by rain) the M tools rs es th LAS 6 ATER their characte cime GP CoverTe by or techniqu insta foun GIP This yea IAL IN ch es which d ristics llatio GIPLAS LAST n inclu T SYS 6. cold - GP Wall 7 th yea r could comprom TEM and also handledwarrant n bended panels or cause flaws ding T SYS SYS OR INDESUBSTIT y app site ise - GP Revers complian with minimum , 8 th yea r TEM TEMS the batc S Srl can instr MNIT UTION lies uctio stored, S Srl) Srl (or h cod cold bending 7. installatio t to technical specifica 100% Y - GP System only by GIP ns and 9 th yea r proc for an n of panels tion of GIPLAST radius nona third e esse if LAS r - GP Radius 75% water/condensati 10 th with scratche insp SYSTEMS T SYS recomm d and the prod Any 1000 year D) WA ectio part on into

Pagina 10-Sisteme policarbonat pentru luminatoare GEPLAST GRECA, REVERS, NUT-FEDER WALL, COVERTECH Fisa...

Pagina 11 - Sisteme policarbonat pentru luminatoare GEPLAST GRECA, REVERS, NUT-FEDER WALL, COVERTECH...

the Srl 60% TEM endatio installed ucts n at structure s, inclusions and/or excludefurther RRAN S Srl. ns prov oblig acco were forw 45% d resc TY EXC atio rdin ided The issio and 30% warrant verb g to techarded, Further n of the in part n deriving LUS VERSION 1. ally IONS y doe pan01 Page 1 di or in nical agre icular the 15% reinstall costs elsDATED from s not 1 eme writing insta 09.01.2 017 outw buy othe ation for exampl nt is lled apply in 2. excludeer’s optidefective dam ards with the follo wha r claims or of any e: tran on to deliv 3. ages the teve sport, d. dam wing UV warrant r the for dam other natu claim ery is age cau cost protecte case cause age the load s cau sed by acci for the y re are s for s: 4. sed d or F) ther den side ing exp disassem inco eof, loss, PLA rrect and unloby transpo tal imp NOT eith ress are bling CE OF befo expose rt and acts/eve express er direly exclude adin and 5. re storage JUR This /or inco nts panels use d (pan g stag ly exc ct or d. Any ISDICT e

Pagina 11-Sisteme policarbonat pentru luminatoare GEPLAST GRECA, REVERS, NUT-FEDER WALL, COVERTECH Fisa...

Pagina 12 - Sisteme policarbonat pentru luminatoare GEPLAST GRECA, REVERS, NUT-FEDER WALL, COVERTECH...

ls stor es rrect and van of juriswarranty their modify lude indirect ION handling dalis e not 6. d from diction is gov , m cold characterisby tool protecte during for any erned the tics s or tech com bended d by NOT controvby Italia plian 7. panels or cause niques sun insta t to tech - GP E: this war and ersy n nationa whic flaws with rain) will be h cou nica wate llation min l - GP Onda (onl ranty is ld com the Milalaws – r/conde of pan l specific imum y 6 mm referred - GP Greca prom nsation els n cou the plac atio cold ben to the ) ise e rts. - GP CoverTe ding into with scran of GIP follo the stru ch wing - GP Wall tche LAST SYSradius prod s, inclu cture TEM nonucts - GP Revers sion s andS Srl - GP System Rad /or ius 100 0 Pag e1 di 1 VERS ION 01 DAT ED 09.01. 201 7 WARRAN TY B) WEATH ERABIL 10 YE ARS PRODUCT CERTIFICATIONS The products are tested by international official laboratories. LIMI TED WAR RANT Y USE AND MAINTENANCE RESISTANCE AGAINST CHEMICALS STORAGE Pro

Pagina 12-Sisteme policarbonat pentru luminatoare GEPLAST GRECA, REVERS, NUT-FEDER WALL, COVERTECH Fisa...

Pagina 13 - Sisteme policarbonat pentru luminatoare GEPLAST GRECA, REVERS, NUT-FEDER WALL, COVERTECH...

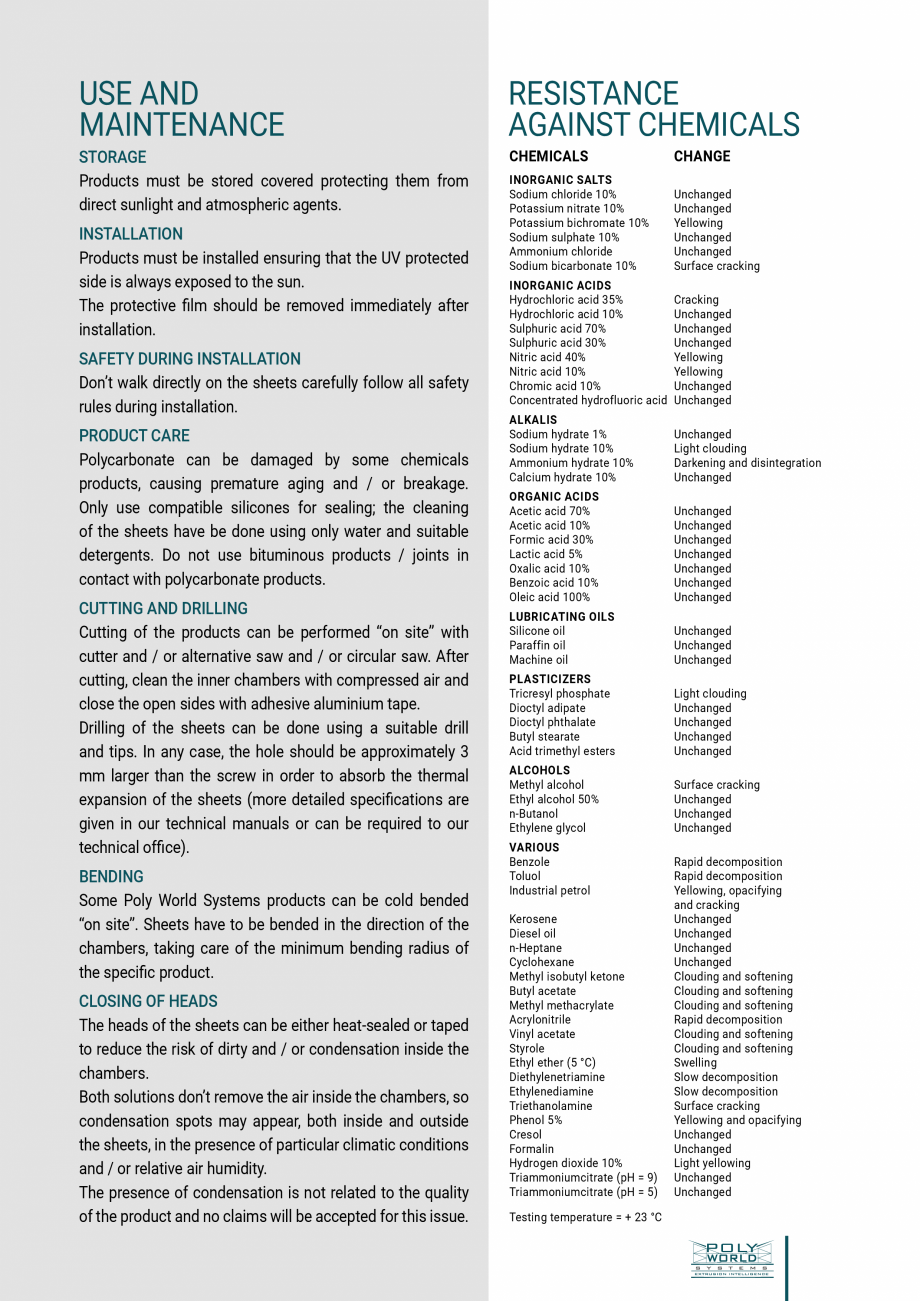

ducts must be stored covered protecting them from direct sunlight and atmospheric agents. CHEMICALS CHANGE INORGANIC SALTS Sodium chloride 10% Potassium nitrate 10% Potassium bichromate 10% Sodium sulphate 10% Ammonium chloride Sodium bicarbonate 10% Unchanged Unchanged Yellowing Unchanged Unchanged Surface cracking INORGANIC ACIDS Hydrochloric acid 35% Hydrochloric acid 10% Sulphuric acid 70% Sulphuric acid 30% Nitric acid 40% Nitric acid 10% Chromic acid 10% Concentrated hydrofluoric acid Cracking Unchanged Unchanged Unchanged Yellowing Yellowing Unchanged Unchanged ALKALIS Sodium hydrate 1% Sodium hydrate 10% Ammonium hydrate 10% Calcium hydrate 10% Unchanged Light clouding Darkening and disintegration Unchanged ORGANIC ACIDS Acetic acid 70% Acetic acid 10% Formic acid 30% Lactic acid 5% Oxalic acid 10% Benzoic acid 10% Oleic acid 100% Unchanged Unchanged Unchanged Unchanged Unchanged Unchanged Unchanged LUBRICATING OILS Silicone oil Paraffin oi

Pagina 13-Sisteme policarbonat pentru luminatoare GEPLAST GRECA, REVERS, NUT-FEDER WALL, COVERTECH Fisa...

Pagina 14 - Sisteme policarbonat pentru luminatoare GEPLAST GRECA, REVERS, NUT-FEDER WALL, COVERTECH...

l Machine oil Unchanged Unchanged Unchanged PLASTICIZERS Tricresyl phosphate Dioctyl adipate Dioctyl phthalate Butyl stearate Acid trimethyl esters Light clouding Unchanged Unchanged Unchanged Unchanged ALCOHOLS Methyl alcohol Ethyl alcohol 50% n-Butanol Ethylene glycol Surface cracking Unchanged Unchanged Unchanged INSTALLATION Products must be installed ensuring that the UV protected side is always exposed to the sun. The protective film should be removed immediately after installation. SAFETY DURING INSTALLATION Don’t walk directly on the sheets carefully follow all safety rules during installation. PRODUCT CARE Polycarbonate can be damaged by some chemicals products, causing premature aging and / or breakage. Only use compatible silicones for sealing; the cleaning of the sheets have be done using only water and suitable detergents. Do not use bituminous products / joints in contact with polycarbonate products. CUTTING AND DRILLING Cutting of the products can be per

Pagina 14-Sisteme policarbonat pentru luminatoare GEPLAST GRECA, REVERS, NUT-FEDER WALL, COVERTECH Fisa...

Pagina 15 - Sisteme policarbonat pentru luminatoare GEPLAST GRECA, REVERS, NUT-FEDER WALL, COVERTECH...

formed “on site” with cutter and / or alternative saw and / or circular saw. After cutting, clean the inner chambers with compressed air and close the open sides with adhesive aluminium tape. Drilling of the sheets can be done using a suitable drill and tips. In any case, the hole should be approximately 3 mm larger than the screw in order to absorb the thermal expansion of the sheets (more detailed specifications are given in our technical manuals or can be required to our technical office). BENDING Some Poly World Systems products can be cold bended “on site”. Sheets have to be bended in the direction of the chambers, taking care of the minimum bending radius of the specific product. CLOSING OF HEADS The heads of the sheets can be either heat-sealed or taped to reduce the risk of dirty and / or condensation inside the chambers. Both solutions don’t remove the air inside the chambers, so condensation spots may appear, both inside and outside the sheets, in the presence of pa

Pagina 15-Sisteme policarbonat pentru luminatoare GEPLAST GRECA, REVERS, NUT-FEDER WALL, COVERTECH Fisa...

Pagina 16 - Sisteme policarbonat pentru luminatoare GEPLAST GRECA, REVERS, NUT-FEDER WALL, COVERTECH...

rticular climatic conditions and / or relative air humidity. The presence of condensation is not related to the quality of the product and no claims will be accepted for this issue. VARIOUS Benzole Toluol Industrial petrol Kerosene Diesel oil n-Heptane Cyclohexane Methyl isobutyl ketone Butyl acetate Methyl methacrylate Acrylonitrile Vinyl acetate Styrole Ethyl ether (5 °C) Diethylenetriamine Ethylenediamine Triethanolamine Phenol 5% Cresol Formalin Hydrogen dioxide 10% Triammoniumcitrate (pH = 9) Triammoniumcitrate (pH = 5) Testing temperature = + 23 °C Rapid decomposition Rapid decomposition Yellowing, opacifying and cracking Unchanged Unchanged Unchanged Unchanged Clouding and softening Clouding and softening Clouding and softening Rapid decomposition Clouding and softening Clouding and softening Swelling Slow decomposition Slow decomposition Surface cracking Yellowing and opacifying Unchanged Unchanged Light yellowing Unchanged Unchanged POLYCARBONATE MULTIWALL CORRUGAT

Pagina 16-Sisteme policarbonat pentru luminatoare GEPLAST GRECA, REVERS, NUT-FEDER WALL, COVERTECH Fisa...

Pagina 17 - Sisteme policarbonat pentru luminatoare GEPLAST GRECA, REVERS, NUT-FEDER WALL, COVERTECH...

ED SHEETS WITH COEXTRUDED UV PROTECTION GRECA 1000 250 8 6,1 250 39 UV protected side 250 48 250 75 Greca 250-40-8 mm 1000 UV protected side 250 UV protected side 10 6,1 250 39 250 48 250 75 Greca 250-40-10 mm 1000 250 250 48 16 UV protected side 250 39 250 75 Greca 250-40-16 mm 1000 250 250 12 UV protected side 78 250 74 250 Greca 250-75-12 mm (based on minimum of quantity) 1000 6 250 16 UV protected side 250 78 250 78 250 Greca 250-75-16 mm (based on minimum of quantity) GRECA CHARACTERISTICS Thickness 8 mm 10 mm 16 mm Structure 12 mm Depth 40 mm 78 mm Cover width 1000 (± 5 mm) Panel length On request (maximum recommended length 7 m) Estimated thermal transmittance 2,7 W/m K 2 2,5 W/m2 K Service tempearture 2,0 W/m2 K 2,3 W/m2 K 2,0 W/m2 K - 40 °C / + 120 °C UV protection Coextruded on the external side Thermal expansion 65 x 10-6 K-1 (=0,065 mm/m °C) Light transmission* 16 mm Honeycomb structure Cle

Pagina 17-Sisteme policarbonat pentru luminatoare GEPLAST GRECA, REVERS, NUT-FEDER WALL, COVERTECH Fisa...

Pagina 18 - Sisteme policarbonat pentru luminatoare GEPLAST GRECA, REVERS, NUT-FEDER WALL, COVERTECH...

ar (0010) Opal (0035) Warranty * value according to internal test method 59% (±5) 58% (±5) 56% (±5) 72% (±5) 59% (±5) 41% (±5) 40% (±5) 34% (±5) 55% (±5) 37% (±5) Limited 10-yrs warranty against breakage due to hailstones, yellowing and loss of light transmission APPLICATION AND STRENGTHS GRECA are polycarbonate multiwall corrugated sheets with an honeycomb structure and a cover width of 1000 mm. Sheets have been developed for lateral overlaps to most insulated panels and / or corrugated metal sheets available on the market. Designed for the installation of skylights both in single and multiple applications, thanks to the possibility of longitudinal and / or lateral overlapping, they are also available in thermocurved version (except GRECA 250/75), with bending radii of 3500 mm or 6000 mm. The side wing has a multiwall structure to reduce the problem of condensation. GRECA sheets have a good light transmission and, thanks to their coextruded UV protection, they

Pagina 18-Sisteme policarbonat pentru luminatoare GEPLAST GRECA, REVERS, NUT-FEDER WALL, COVERTECH Fisa...

Pagina 19 - Sisteme policarbonat pentru luminatoare GEPLAST GRECA, REVERS, NUT-FEDER WALL, COVERTECH...

guarantee a high degree of protection against UV rays, yellowing and hail damage. The corrugated shape provides good resistance to external loads (snow and / or wind), while the typical polycarbonate features provide excellent resistance to accidental shocks and temperature leaps. The system is completed by a range of accessories that complete the installation. SPECIFICATIONS Construction of flat or curved skylights (radii 3500 mm or 6000 mm) with polycarbonate multiwall corrugated sheets type GRECA 250/40, thickness 8 mm / 10 mm / 16 mm, honeycomb structure, coextruded UV protection on the external layer, thermosealing of heads; cover width of 1000 mm, length on request; estimated thermal transmittance Ug = 2,7 W/m2 K (for 8 mm thick.) / Ug = 2,5 W/m2 K (for 10 mm thick.) / Ug = 2,0 W/m2 K (for 16 mm thick.); ten-years limited warranty. The following accessories are available on request: PE spacer (upper and / or lower), pre-painted metal half ridge, fixing screw (for metal support

Pagina 19-Sisteme policarbonat pentru luminatoare GEPLAST GRECA, REVERS, NUT-FEDER WALL, COVERTECH Fisa...

Pagina 20 - Sisteme policarbonat pentru luminatoare GEPLAST GRECA, REVERS, NUT-FEDER WALL, COVERTECH...

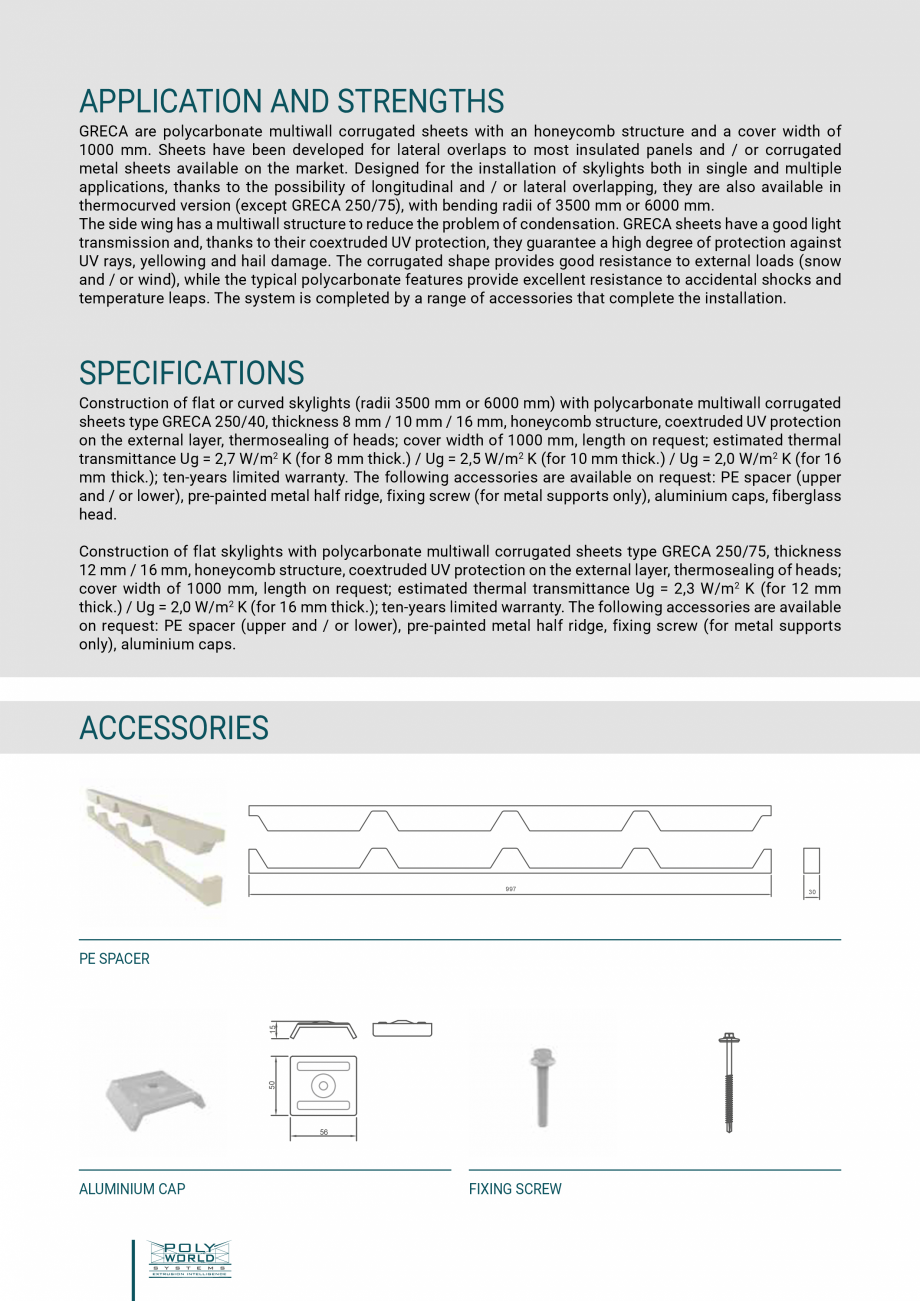

s only), aluminium caps, fiberglass head. Construction of flat skylights with polycarbonate multiwall corrugated sheets type GRECA 250/75, thickness 12 mm / 16 mm, honeycomb structure, coextruded UV protection on the external layer, thermosealing of heads; cover width of 1000 mm, length on request; estimated thermal transmittance Ug = 2,3 W/m2 K (for 12 mm thick.) / Ug = 2,0 W/m2 K (for 16 mm thick.); ten-years limited warranty. The following accessories are available on request: PE spacer (upper and / or lower), pre-painted metal half ridge, fixing screw (for metal supports only), aluminium caps. ACCESSORIES 997 50 15 PE SPACER 56 ALUMINIUM CAP FIXING SCREW 30 CONTINUOUS APPLICATION SINGLE APPLICATION POLYCARBONATE MULTIWALL PANELS WITH COEXTRUDED UV PROTECTION, FOR INDUSTRIAL ROOFINGS COVERTECH 1000 CoverTech 25 GP Cover Tech 25 930 GP Cover Tech 25 GP Cover Tech 25 1000 27 65 40 40 40 25 930 25 27 65 65 930 25 27 10 UV protected side 15 25 10 10

Pagina 20-Sisteme policarbonat pentru luminatoare GEPLAST GRECA, REVERS, NUT-FEDER WALL, COVERTECH Fisa...

Pagina 21 - Sisteme policarbonat pentru luminatoare GEPLAST GRECA, REVERS, NUT-FEDER WALL, COVERTECH...

25 25 25 1000 10 10 15 10 25 27 40 27 15 40 40 1000 27 25 GP Cover Tech 30 GP Cover Tech 30 70 70 70 40 40 40 10 930 CoverTech 40 25 930 930 GP Cover Tech 40 1000 25 GP CoverTech RX30 250 UV protected side 34,5 25 10 10 25 27 10 25 80 27 80 80 27 59,5 UV protected side 40 1000 15 35 10 10 1000 1000 GP Cover Tech 40 GP Cover Tech 40 27 40 40 40 25 25 10 10 40 40 27 930 GP Cover Tech 30 15 27 25 930 15 10 40 27 25 930 40 40 27 15 25 CoverTech 30 27 UV protected side 35 30 25 1000 25 10 10 30 30 15 10 27 40 80 8080 27 15 40 40 1000 27 64,5 35 CoverTech RX25 35 250 34,5 1000 25 60 GP CoverTech RX30 64,5 34,5 35 35 30 UV protected side 30 65 80 80 65 1000 250 CoverTech RX30 34,5 35 35 UV protected side 74,5 1000 250 CoverTech RX40 GP CoverTech RX40 COVERTECH CHARACTERISTICS 40 75 34,5 35 40 75 35 250 74,5 1000 Thickness 25 mm Structure 30 mm 40 mm GP CoverTec

Pagina 21-Sisteme policarbonat pentru luminatoare GEPLAST GRECA, REVERS, NUT-FEDER WALL, COVERTECH Fisa...

Pagina 22 - Sisteme policarbonat pentru luminatoare GEPLAST GRECA, REVERS, NUT-FEDER WALL, COVERTECH...

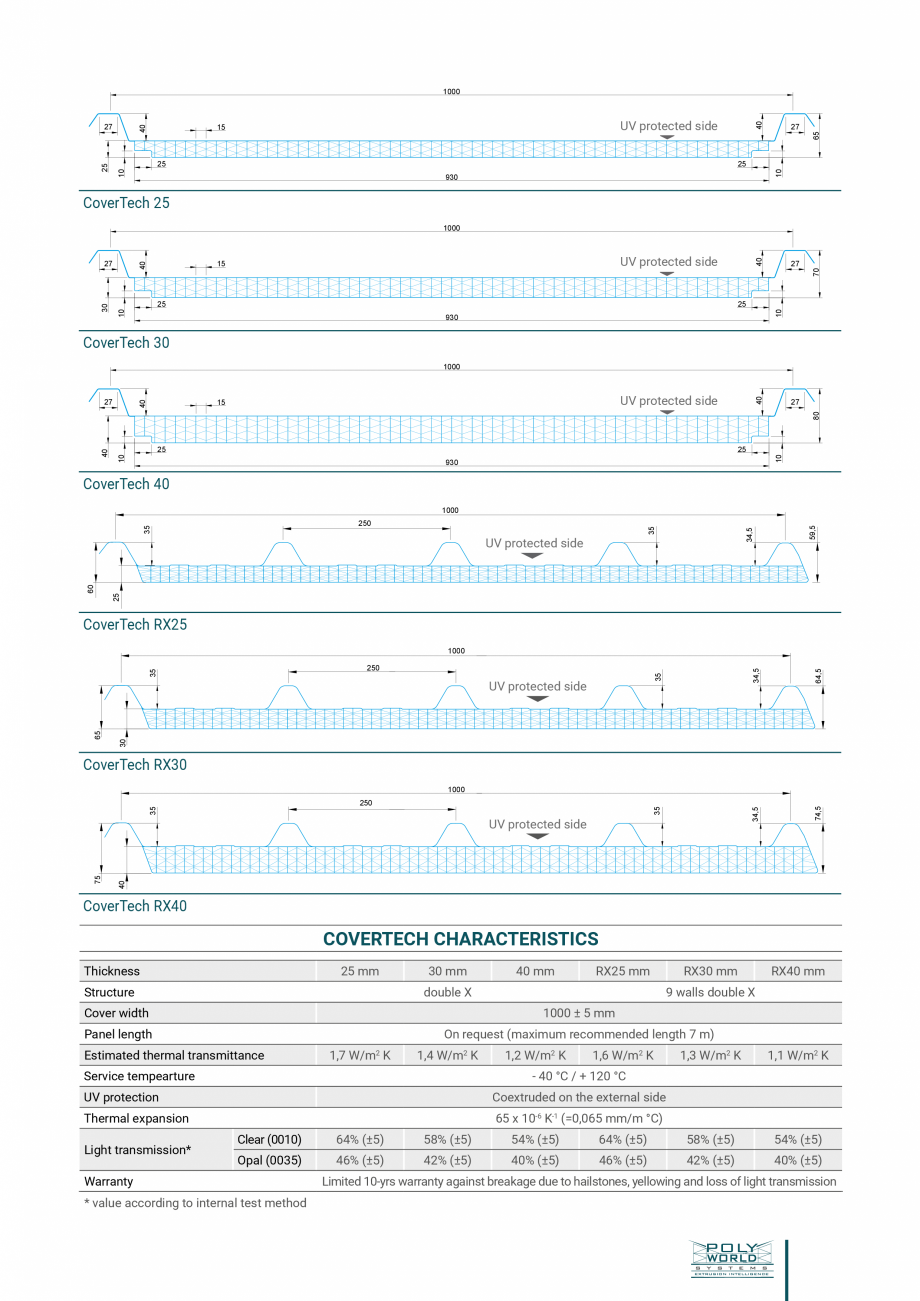

h RX40 RX25 mm double X Cover width RX30 mm 9 walls double X 1000 ± 5 mm Panel length On request (maximum recommended length 7 m) Estimated thermal transmittance 1,7 W/m K 2 1,4 W/m2 K Service tempearture 1,2 W/m2 K 1,6 W/m2 K 1,3 W/m2 K 1,1 W/m2 K - 40 °C / + 120 °C UV protection Coextruded on the external side Thermal expansion 65 x 10-6 K-1 (=0,065 mm/m °C) Light transmission* RX40 mm Clear (0010) 64% (±5) 58% (±5) 54% (±5) 64% (±5) 58% (±5) 54% (±5) Opal (0035) 46% (±5) 42% (±5) 40% (±5) 46% (±5) 42% (±5) 40% (±5) Warranty * value according to internal test method Limited 10-yrs warranty against breakage due to hailstones, yellowing and loss of light transmission APPLICATION AND STRENGTHS COVERTECH panels are designed to facilitate the installation of skylights into the most common insulated panels on the market. The different thicknesses available (25 mm - 30 mm - 40 mm) make the system adaptable to most panel thicknesses, p

Pagina 22-Sisteme policarbonat pentru luminatoare GEPLAST GRECA, REVERS, NUT-FEDER WALL, COVERTECH Fisa...

Pagina 23 - Sisteme policarbonat pentru luminatoare GEPLAST GRECA, REVERS, NUT-FEDER WALL, COVERTECH...

roviding good thermal insulation and light transmission. It is possible to make skylights even on long slopes by carefully verifying the required expansion spaces. We always suggest to install a metal flashing cap to protect the side wings. Good load resistance, coextruded UV protection on the external layer and the usual ten-years limited warranty of the products complete the features of these panels. SPECIFICATIONS Construction of roofs and / or single skylight from ridge to eaves with polycarbonate multiwall panel type COVERTECH, thickness 25 mm / 30 mm / 40 mm, double X structure, coextruded UV protection on the external layer, closing of heads with aluminium adhesive tape (microperforated tape available on request); cover width of 1000 mm, length on request; estimated thermal transmittance Ug = 1,7 W/m2 K (for 25 mm thick.) / Ug = 1,4 W/m2 K (for 30 mm thick.) / Ug = 1,2 W/m2 K (for 40 mm thick.); ten-years limited warranty. MODULAR POLYCARBONATE SYSTEM WITH COEXTRUDED UV PRO

Pagina 23-Sisteme policarbonat pentru luminatoare GEPLAST GRECA, REVERS, NUT-FEDER WALL, COVERTECH Fisa...

Pagina 24 - Sisteme policarbonat pentru luminatoare GEPLAST GRECA, REVERS, NUT-FEDER WALL, COVERTECH...

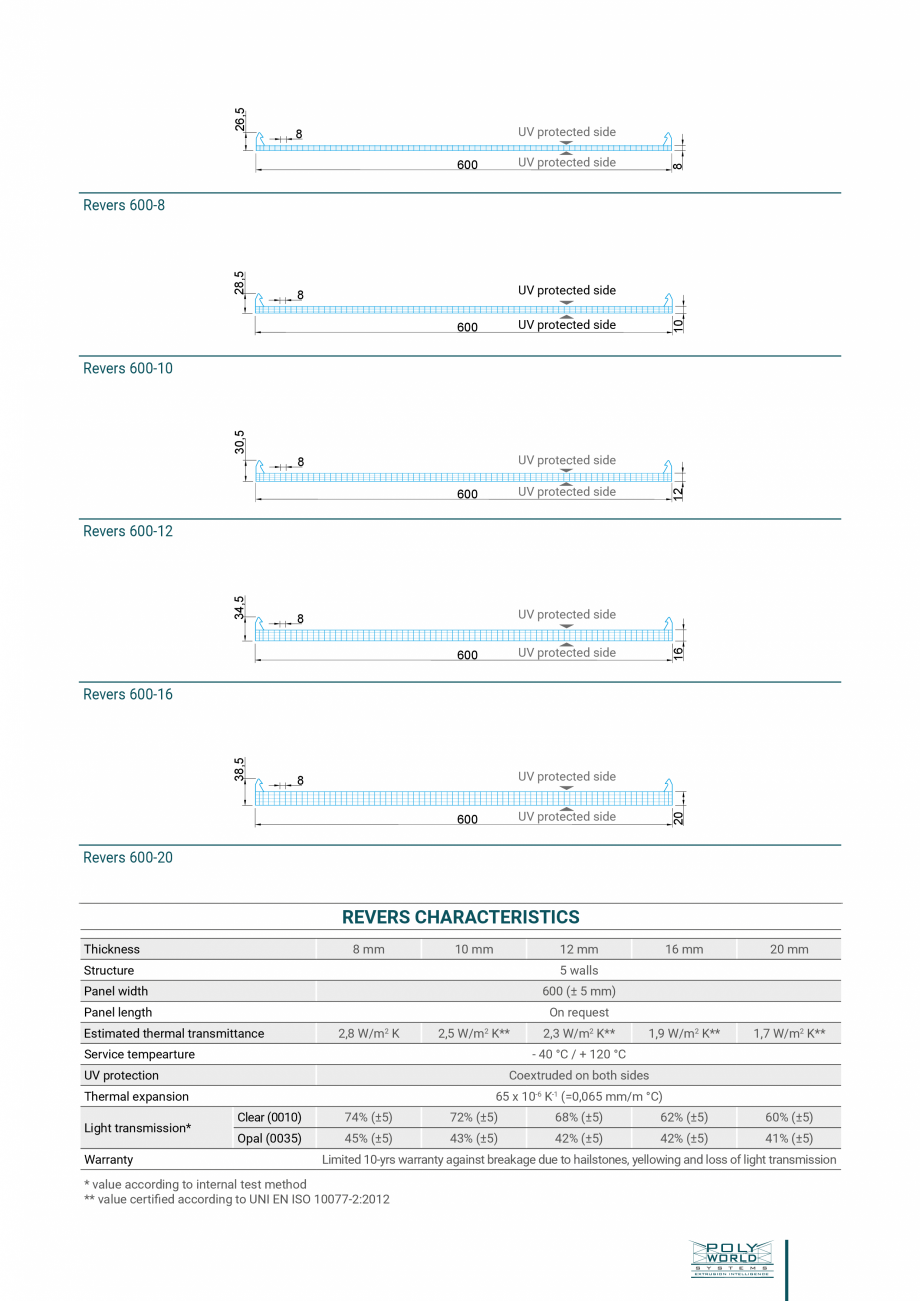

TECTION, FOR ROOFINGS REVERS UV protected side 600 8 26,5 UV protected side 8 UV protected side 8 UV protected side 600 10 28,5 Revers 600-8 UV protected side 8 UV protected side 600 12 30,5 Revers 600-10 UV protected side 8 UV protected side 600 16 34,5 Revers 600-12 UV protected side 8 UV protected side 600 20 38,5 Revers 600-16 Revers 600-20 REVERS CHARACTERISTICS Thickness 8 mm 10 mm 12 mm Structure Panel width 1,9 W/m2 K** 1,7 W/m2 K** On request Estimated thermal transmittance 2,8 W/m2 K 2,5 W/m2 K** Service tempearture 2,3 W/m2 K** - 40 °C / + 120 °C UV protection Coextruded on both sides 65 x 10-6 K-1 (=0,065 mm/m °C) Thermal expansion Warranty 20 mm 600 (± 5 mm) Panel length Light transmission* 16 mm 5 walls Clear (0010) 74% (±5) 72% (±5) 68% (±5) 62% (±5) 60% (±5) Opal (0035) 45% (±5) 43% (±5) 42% (±5) 42% (±5) 41% (±5) Limited 10-yrs warranty against breakage due to hailstones, yellowing a

Pagina 24-Sisteme policarbonat pentru luminatoare GEPLAST GRECA, REVERS, NUT-FEDER WALL, COVERTECH Fisa...

Pagina 25 - Sisteme policarbonat pentru luminatoare GEPLAST GRECA, REVERS, NUT-FEDER WALL, COVERTECH...

nd loss of light transmission * value according to internal test method ** value certified according to UNI EN ISO 10077-2:2012 UV protected side UV protected side 995 25 43,5 14 14 UV protected side UV protected side 995 30 48,5 Revers 1000-25 14 UV protected side 995 UV protected side 32 50,5 Revers 1000-30 14 UV protected side UV protected side 995 35 53,5 Revers 1000-32 14 UV protected side UV protected side 995 40 58,5 Revers 1000-35 Revers 1000-40 REVERS CHARACTERISTICS Thickness 25 mm 30 mm 32 mm Structure Panel width 1,3 W/m2 K 1,1 W/m2 K ** On request Estimated thermal transmittance 1,4 W/m2 K 1,3 W/m2 K Service tempearture 1,2 W/m2 K - 40 °C / + 120 °C UV protection Coextruded on the external side (on request on both sides) 65 x 10-6 K-1 (=0,065 mm/m °C) Thermal expansion Warranty 40 mm 995 (± 5 mm) Panel length Light transmission* 35 mm 9 walls double X Clear (0010) 58% (±5) 56% (±5) 55% (±5) 53% (±5) 49

Pagina 25-Sisteme policarbonat pentru luminatoare GEPLAST GRECA, REVERS, NUT-FEDER WALL, COVERTECH Fisa...

Pagina 26 - Sisteme policarbonat pentru luminatoare GEPLAST GRECA, REVERS, NUT-FEDER WALL, COVERTECH...

% (±5) Opal (0035) 40% (±5) 39% (±5) 39% (±5) 39% (±5) 38% (±5) Limited 10-yrs warranty against breakage due to hailstones, yellowing and loss of light transmission * value according to internal test method ** value certified according to UNI EN ISO 10077-2:2012 APPLICATION AND STRENGTHS REVERS is an innovative modular polycarbonate system that allows the realization of roofs and vertical walls thanks to joining profile connecting the panels to each other. These joining profiles can be made of polycarbonate, to achieve maximum transparency of the solution without visible visual interruption, or aluminum, to ensure greater load resistance. The interlocking joning system between the panel and the profile, without any fixing through the polycarbonate, allows also: • to reduce the typical noise of polycarbonate systems when elements expad / shrink due to temperature variations • install solutions with considerable lengths of panels without risk of breakage at the fixin
